SUMMITTM 425 & 450

LP Gas Barbecues

Operating Guide

Read before assembly

m DANGER

If you smell gas:

1.Shut off gas to the appliance.

2.Extinguish any open flame.

3.Open lid.

4.If odor continues, Keep away from the appliance and immediately call your gas supplier or your fire department.

Leaking gas may cause a fire or explosion which can cause serious bodily injury or death or damage to property.

mWARNING

1.Do not store spare LP Cylinder within 10 feet (3m) of this appliance.

2.Do not store or use gasoline or other flammable liquids or vapors within 25 feet (8m) of this appliance.

WARNING: Follow all leak check procedures carefully in this manual prior to barbecue operation. Do this even if barbecue was dealer assembled.

NOTICE TO INSTALLER: These instructions must be left with the owner and the owner should keep them for future use.

THIS GAS APPLIANCE IS DESIGNED FOR

OUTDOOR USE ONLY.

WARNING: Do not try to light this appliance without reading "Lighting" instructions section of this manual.

92776 10/98

WARNINGS

m DANGER

Failure to follow the Dangers, Warnings and Cautions contained in this Owner???s Manual may result in serious bodily injury or death, or a fire or an explosion causing damage to property.

???Do not store a spare or disconnected LP tank under or near this barbecue.

???Improper assembly may be dangerous. Please carefully follow the assembly instructions in this manual.

???After a period of storage, and/or nonuse, the Weber Gas Barbecue should be checked for gas leaks and burner obstructions before using. See instructions in this manual for correct procedures.

???Do not operate the Weber Gas Barbecue if there is a gas leak present.

???Do not use a flame to check for gas leaks.

???Combustible materials should never be within

24 inches of the top, bottom, back or sides of your Weber Gas Barbecue.

???Do not put a barbecue cover or anything flammable on or in the storage area under the barbecue.

???Your Weber Gas Barbecue should never be used by children.

???You should exercise reasonable care when operating your Weber Gas Barbecue. It will be hot during cooking or cleaning, and should never be left unattended.

???Should the burners go out during operation, turn all gas valves off. Open the lid and wait five minutes before attempting to relight, using the lighting instructions.

???Do not use charcoal or lava rock in your Weber Gas Barbecue.

???Never lean over open grill or place hands or fingers on the front edge of the cooking box.

???Should a grease fire occur, turn off all burners and leave lid closed until fire is out.

???Do not enlarge valve orifices or burner ports when cleaning the valves or burners.

???The Weber Gas Barbecue should be thoroughly cleaned on a regular basis.

???LP gas is not natural gas. The conversion or attempted use of natural gas in an LP unit or LP gas in a natural gas unit is dangerous and will void your warranty.

???Do not attempt to disconnect any gas fitting while your barbecue is in operation.

???Use heat-resistant barbecue mitts or gloves when operating barbecue.

???This barbecue is for residential use only.

LP GAS UNITS ONLY:

???Use the regulator that is supplied with your Weber Gas Barbecue.

???Do not attempt to disconnect the gas regulator or any gas fitting while your barbecue is in operation.

???A dented or rusty LP tank may be hazardous and should be checked by your liquid propane supplier. Do not use an LP tank with a damaged valve.

???Although your LP tank may appear to be empty, gas may still be present, and the tank should be transported and stored accordingly.

???If you see, smell or hear the hiss of escaping gas from the LP tank:

1.Get away from LP tank.

2.Do not attempt to correct the problem yourself.

3.Call your fire department.

WARRANTY

Weber-Stephen Products Co. (Weber) hereby warrants to the ORIGINAL PURCHASER of this Weber Gas Barbecue that it will be free of defects in material and workmanship from the date of purchase as follows:

Aluminum Castings, 25 years,

Cooking Grates and Flavorizer Bars, 7 years,

All Remaining Parts, 5 years,

when assembled and operated in accordance with the printed instructions accompanying it.

Weber may require reasonable proof of your date of purchase. THEREFORE, YOU SHOULD RETAIN YOUR SALES

SLIP OR INVOICE.

This Limited Warranty shall be limited to the repair or replacement of parts which prove defective under normal use and service and which on examination shall indicate, to Weber's satisfaction, they are defective. Before returning any parts, contact Weber-Stephen Products Co. Customer Service Center. If Weber confirms the defect and approves the claim, Weber will elect to replace such parts without charge. If you are required to return defective parts, transportation charges must be prepaid. Weber will return parts to the purchaser, freight or postage prepaid.

This Limited Warranty does not cover any failures or operating difficulties due to accident, abuse, misuse, alteration, misapplication, vandalism, improper installation or improper maintenance or service, or failure to perform normal and routine maintenance, including but not limited to damage caused by insects within the burner tubes, as set out in this owner's manual.

Deterioration or damage due to severe weather conditions such as hail, hurricanes, earthquakes or tornadoes, acid rain, discoloration due to exposure to chemicals either directly or in the atmosphere, is not covered by this Limited Warranty.

There are no other express warrants except as set forth herein and any applicable implied warranties of merchantability and fitness are limited in duration to the period of coverage of this express written Limited Warranty. Some states do not allow limitation on how long an implied warranty lasts, so this limitation may not apply to you.

Weber is not liable for any special, indirect or consequential damages. Some states do not allow the exclusion or limitation of incidental or consequential damages, so this limitation or exclusion may not apply to you.

Weber does not authorize any person or company to assume for it any other obligation or liability in connection with the sale, installation, use, removal, return, or replacement of its equipment; and no such representations are binding on Weber.

This Warranty applies only to products sold at retail.

A WORD OF THANKS

Thank you for choosing a Weber Barbecue. Our family here at Weber has worked hard to produce the highest quality products for your satisfaction. While we give much attention to our products, an occasional error may occur. Our knowledgeable Customer Service staff is prepared to help you with any problems with parts or assembly. Call our toll free number. For quicker service, please have your owner???s manual and serial number available for reference. We also welcome any comments or suggestions you might have regarding our products. We wish you the best in outdoor cooking enjoyment.

Weber-Stephen Products Company Customer Service Center

200 E. Daniels Road Palatine, IL 60067-6266 (888) 33-SUMMIT (888-337-8664)

STANDARDS AND CODES INFORMATION

Your Weber Gas Barbecue is a portable outdoor cooking appliance. With the Weber Gas Barbecue you can grill, barbecue, roast and bake with results that are difficult to duplicate with indoor kitchen appliances. The closed lid and Flavorizer Bars produce that "outdoor" flavor in

the food.

The Weber Gas Barbecue is portable so you can easily change its location in your yard or on your patio. Portability means you can take your Weber Gas Barbecue with you if you move.

Liquid Propane (LP) gas supply is easy to use and gives you more cooking control than charcoal fuel.

???These instructions will give you the minimum requirements for operating and maintaining your Weber Gas Barbecue. Please read the instructions carefully before using your Weber Gas Barbecue. Improper assembly can be dangerous.

???Not for use by children.

???If there are local codes that apply to portable gas grills, you will have to conform to them. If there are no local codes, you must conform to the latest edition of the National Fuel Gas Code: ANSI Z 223.1.

???The pressure regulator supplied with the Weber Gas Barbecue must be used. This regulator is set for 10.5 inches of water column (pressure).

???This Weber Gas Barbecue is designed for use with liquid propane (LP) gas only. Do not use with natural (piped in city) gas. The valves, orifices, hose and regulator are for LP gas only.

???Do not use with charcoal fuel.

For Installation in Canada

These instructions, while generally acceptable, do not necessarily comply with the Canadian Installation codes, particularly with piping above and below ground. In Canada the installation of this appliance must comply with local codes and/or Standard CAN/CGA-B149.2 (Installation Code for Propane Burning Appliances and Equipment).

Operating area

mWARNING: Only use this barbecue outdoors in a well ventilated area. Do not use in a garage, building, breezeway or any other enclosed area.

???Never use your Weber Gas Barbecue under an unprotected combustible roof or overhang.

???Your Weber Gas Barbecue is not intended to be installed in or on recreational vehicles and/or boats.

???Keep this grill away from combustible materials when in use at a minimum of 24 inches of the top, bottom, back or sides.

???The entire cooking box gets hot when in use. Do not leave unattended.

???Keep any electrical supply cord and the fuel supply hose away from any heated surface.

???Keep the cooking area clear of flammable vapors and liquids, such as gasoline, alcohol, etc., and combustible materials.

???Never store an extra (spare) LP tank under or near the Weber Gas Barbecue.

Storage

???The gas must be turned off at the LP tank when the Weber Gas Barbecue is not in use.

???When the Weber Gas Barbecue is stored indoors, the gas supply must be DISCONNECTED and the LP tank stored outdoors in a well-ventilated space.

???LP tanks must be stored outdoors in a well-ventilated area out of reach of children. Disconnected LP tanks must not be stored in a building, garage or any other enclosed area.

???When the LP tank is not disconnected from the Weber Gas Barbecue, the appliance and LP tank must be kept outdoors in a well-ventilated space.

???The Weber Gas Barbecue should be checked for gas leaks and any obstructions in the burner tubes before using. (See Maintenance Section)

???Check that the areas under the control panel and the bottom tray are free from debris that might obstruct the flow of combustion or ventilation air.

???The Spider/Insect Screens should also be checked for any obstructions. Refer to Maintenance Section.

REFER TO YOUR STEP-BY-

STEP GUIDE AT THIS TIME

FOR BARBECUE ASSEMBLY

mWARNING: Make sure your barbecue is set up properly and leak checked before attempting

to operate.

LIGHTING

EACH HEAT ZONE OPERATES INDEPENDENTLY.

Summary lighting instructions are on the control panel.

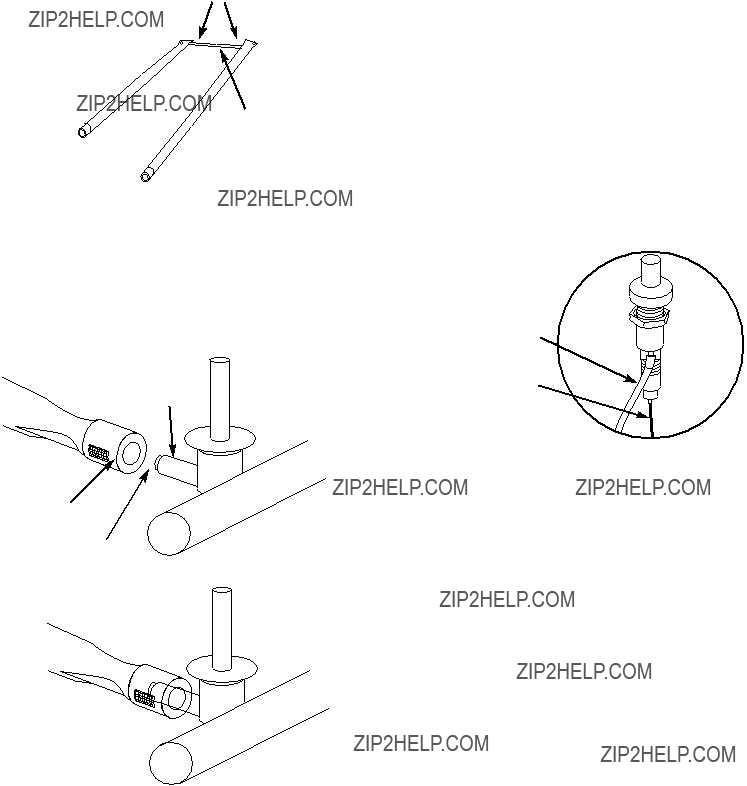

Crossover Ignition System

m DANGER

Failure to open lid while igniting the barbecue, or not waiting 5 minutes to allow the gas to clear if the barbecue does not light, may result in an explosive flame- up which can cause serious bodily injury or death.

Note - The Crossover Ignition System ignites the Left burner of each heat zone with a spark from the igniter electrode inside the Gas Catcher Ignition Chamber. You generate the energy for the spark by pushing the Crossover Ignition Button until it clicks.

mWARNING: Check hose before each use of barbecue for nicks, cracking, abrasions or cuts. If the hose is found to be damaged in any way, do not use the barbecue. Contact your dealer.

mWARNING: The storage space under the cooking module is intended for storage of nonflammable items only.

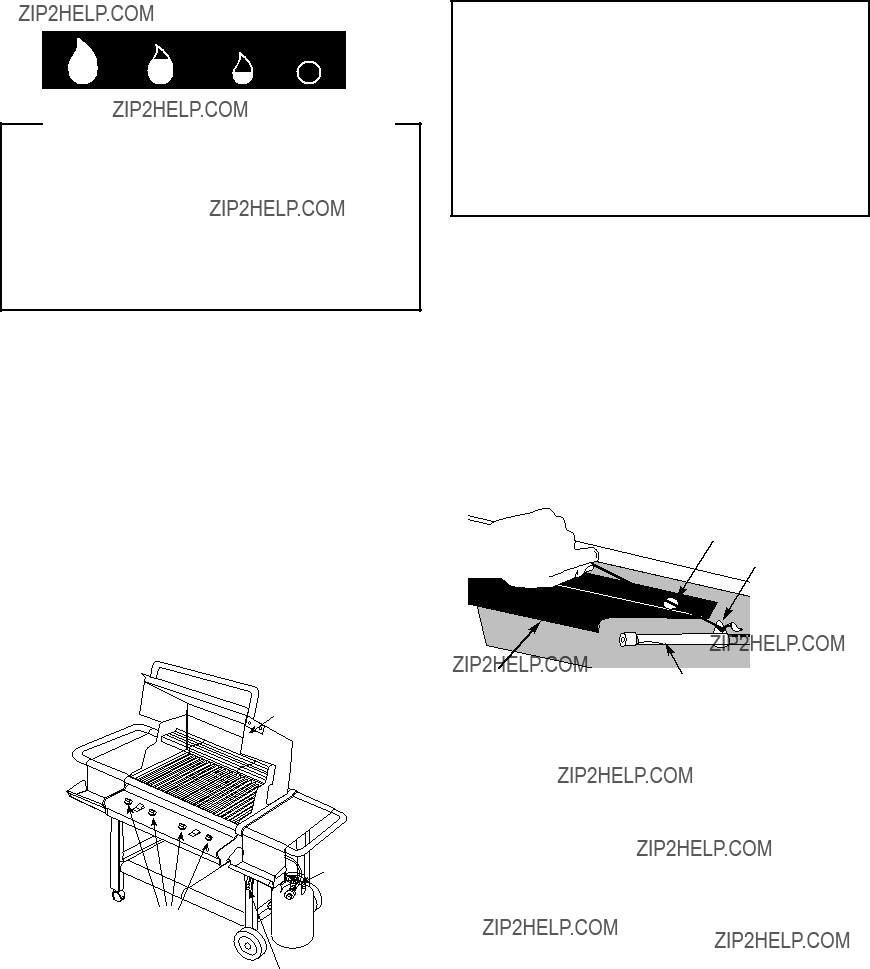

Crossover Ignition System

Figure 1

1)Open the lid. Figure 1.

2)Check that the fuel scale reads more than ???E???. Note - E = empty; F = full.

3)Make sure all burner control knobs are OFF. (Push each burner control knob down and turn clockwise.)

mWARNING: The burner control knobs must be in the

OFF position before turning on the LP tank valve. If they are not in the OFF position, when you turn on the LP tank valve, the excess flow control will activate, limiting the flow of gas from the LP tank. If this should occur, turn OFF the LP tank valve and burner control knobs and start over.

m DANGER

When the excess flow control is activated, a small amount of gas is still flowing to the burners. After turning OFF the tank and burner control knobs, wait at least 5 minutes for the gas to clear before attempting to light the barbecue. Failure to do so may result in an explosive flame- up which can cause serious bodily injury or death.

4)Turn the tank on by turning the tank valve counterclockwise.

mWARNING: Do not lean over open barbecue. Keep your face and body at least one foot away from the matchlight hole when lighting the barbecue.

5)Select Heat Zone.

6)Push LEFT burner control knob down and turn to START/HI.

7)Push the Crossover Ignition Button several times, so it clicks each time.

8)Check that the burner is lit by looking through the matchlight hole above the burner control knob.

mWARNING: If the burner does not light, turn the

LEFT burner control knob to OFF and wait 5 minutes to let the gas clear before you try again or try to light with a match.

9)After the LEFT burner is lit you can turn on the RIGHT burner.

Note - Always light the LEFT burner first. The RIGHT burner ignites from the LEFT burner.

TO EXTINGUISH

Turn gas supply OFF at the source, then push down and turn each burner control knob clockwise to OFF.

MANUAL LIGHTING

EACH HEAT ZONE OPERATES INDEPENDENTLY.

m DANGER

1)Open the lid. Figure 2.

2)Check that fuel scale reads more than ???E???.

Note - E = empty; F = full.

3)Make sure all burner control knobs are turned OFF. (Push each burner control knob down and turn clockwise.)

mWARNING: The burner control knobs must be in the

OFF position before turning on the LP tank valve. If they are not in the OFF position, when you turn on

m DANGER

4)Turn the tank on by turning the tank valve counterclockwise.

5)Select heat zone.

6)Put a match in the match holder and strike the match.

7)Insert match holder and lit match through matchlight hole to ignite LEFT burner. Figure 3.

mWARNING: Do not lean over open barbecue. Keep your face and body at least one foot away from the matchlight hole when lighting the barbecue.

8)Push LEFT burner control knob down and turn to H (high).

the LP tank valve, the excess flow control will activate, limiting the flow of gas from the LP tank. If this should occur, turn OFF the LP tank valve and burner control knobs and start over.

mWARNING: The storage space under the cooking module is intended for storage of nonflammable items only.

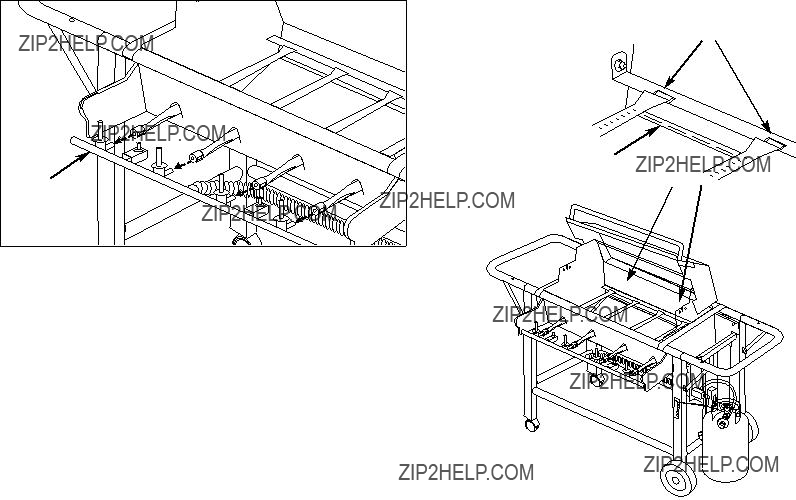

Manual Lighting

Control panel

matchlight hole in control panel

Hole in cooking box assembly

Left burner tube

Figure 2

Figure 3

9)Observe if LEFT burner has ignited by looking through matchlight hole.

mWARNING: If LEFT burner fails to ignite turn LEFT burner control knob to OFF and wait 5 minutes before attempting to ignite again.

10)After the LEFT burner is lit you can turn on the RIGHT burner.

Note: Always light the LEFT burner first. The RIGHT burner ignites from the LEFT burner.

TO EXTINGUISH

Turn gas supply OFF at the source, then push down and turn each burner control knob clockwise to OFF.

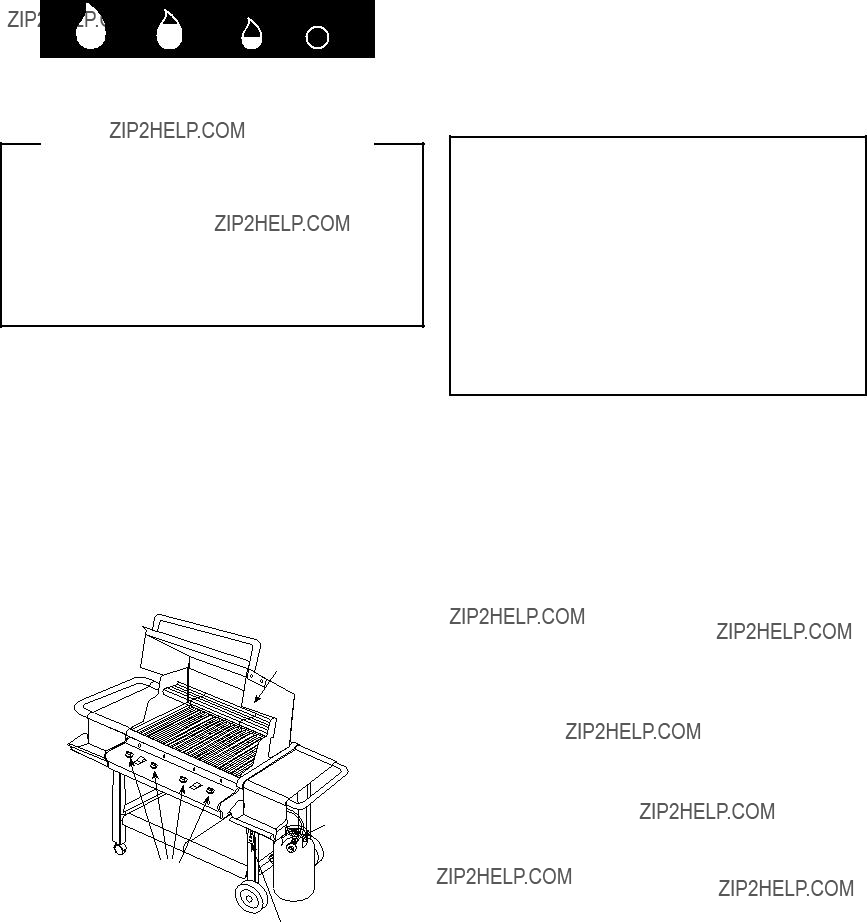

COOKING

mWARNING: Do not move the Weber Gas Barbecue when operating or hot.

You can adjust the LEFT and RIGHT burners as desired. The control settings High (H), Medium (M), Low (L), or Off

(O) are described in your Weber cookbook. The cookbook uses these notations to describe the settings of the LEFT and RIGHT burners.

Note: Cooking conditions may require the adjustment of the burner controls.

If burners go out during cooking, turn off all burners and wait 5 minutes before relighting.

mWARNING: Check the bottom tray for grease build- up before each use. Remove excess grease to avoid a grease fire in the bottom tray.

STORAGE

???The gas must be turned off at the LP cylinder when the Weber Gas Barbecue is not in use.

???When the Weber Gas Barbecue is stored indoors, the gas supply must be DISCONNECTED and the LP cylinder stored outdoors in a well-ventilated space.

???LP cylinders must be stored outdoors in a well- ventilated area out of reach of children. Disconnected LP cylinders must not be stored in a building, garage or any other enclosed area.

???When the LP cylinder is not disconnected from the Weber Gas Barbecue, the appliance and LP cylinder must be kept outdoors in a well-ventilated space.

???The Weber Gas Barbecue should be checked for gas leaks and any obstructions in the burner tubes before using. (See Maintenance Section.)

???Check that the areas under the control panel and the bottom tray are free from debris that might obstruct the flow of combustion or ventilation air.

???The Spider/Insect Screens should also be checked for any obstructions. Refer to Maintenance Section.

CLEANING

mWARNING: Turn your Weber Gas Barbecue OFF and wait for it to cool before cleaning.

mCAUTION: Do not clean your Flavorizer Bars or cooking grills in a self-cleaning oven. Replacement cooking grates and Flavorizer Bars are available through your retailer or the Weber-Stephen Customer Service Center.

Outside surfaces - Use a warm soapy water solution.

mCAUTION: Do not use oven cleaner, abrasive cleansers (kitchen cleansers) cleaners that contain citrus products or abrasive cleaning pads on barbecue or cart surfaces.

Bottom tray - Remove excess grease and then wash with warm soapy water.

Flavorizer Bars and Cooking Grates - Clean with a suitable brass bristle brush. As needed, remove from grill and wash with warm soapy water.

Catch pan - Disposable foil trays are available, or you can line the catch pan with aluminum foil. To clean the catch pan, wash with warm soapy water.

Thermometer - Wipe with warm soapy water, clean with plastic scrub ball. Do not put in dishwasher or submerge in water.

Inside cooking module - Brush any debris off of burners tubes. DO NOT ENLARGE BURNER PORTS (OPENINGS).

Wash inside of cooking box with warm soapy water.

Inside lid - While lid is warm, wipe inside with paper towel to prevent flaking due to grease build-up.

Stainless steel surfaces - Wash with a soft cloth and soap and water solution.

USING THE STEAM-N-CHIPS SMOKER

The Steam-N-Chips Smoker cooks with both Weber FireSpice Wood Chips and Chunks. For best results with faster cooking foods like steaks, burgers and chops, etc., we recommend using the FireSpice Chips because they ignite and create smoke faster. For longer cooking foods such as roasts, chicken and turkeys, etc., we recommend using FireSpice Chunks because they ignite slowly and provide smoke for a longer period of time. As you gain experience in using your Steam-N-Chips Smoker, we encourage you to experiment with different combinations of FireSpice Chips and Chunks to find the smoke flavor that best suits your taste.

To use the Steam-N-Chips Smoker

As a starting point, place a handful of FireSpice Chips or a few FireSpice Chunks in the bottom of the smoker body. Figure 4. Since the chunks vary in size, place as many as you can in the smoker allowing room for the water pan. As you gain experience in smoking, increase or decrease the amount of wood to suit your taste. Fill water pan, place it in the smoker and close the smoker lid.

Water Pan

Steam-N-Chips Body

m DANGER

Do not use any flammable fluid in the Steam-N-Chips Smoker to ignite the wood. This will cause serious bodily injury.

Cleaning the Steam-N-Chips Smoker

Before each use, empty the Steam-N-Chips Smoker of ash to allow proper air flow.

Note - Smoking will leave a "smoke" residue on the surface of the smoker. This residue cannot be removed and will not affect the function of the Steam-N-Chips Smoker. To a lesser degree a "smoke" residue will accumulate on the inside of your Weber Gas Barbecue. This residue need not be removed and will not adversely affect the function of your Weber Gas Barbecue.

Note - Remove the Steam-N-Chips Smoker when it is not in use. If it is left in the barbecue, grease and cooking debris can accumulate on the cover.

Place wood in here

Figure 4

Light the barbecue and preheat with all burners on HIGH, lid down, for 10 minutes or until the thermometer registers 500??F - 550??F. Adjust the burners for cooking; MM or LL will be your best settings for long duration smoking. Smoke will start in approximately 10 minutes and last as long as 45 minutes. If you require more smoke flavor, refill the smoker with FireSpice Chips and/or Chunks and refill the water pan with water. The Steam-N-Chips Smoker may be used to enhance any of the meat, poultry and fish recipes in the gas barbecue cookbook. Cook with the lid down according to the times indicated in charts or recipes.

Note - After refilling smoker, smoke will take about 10 to 15 minutes to start again.

MAINTENANCE

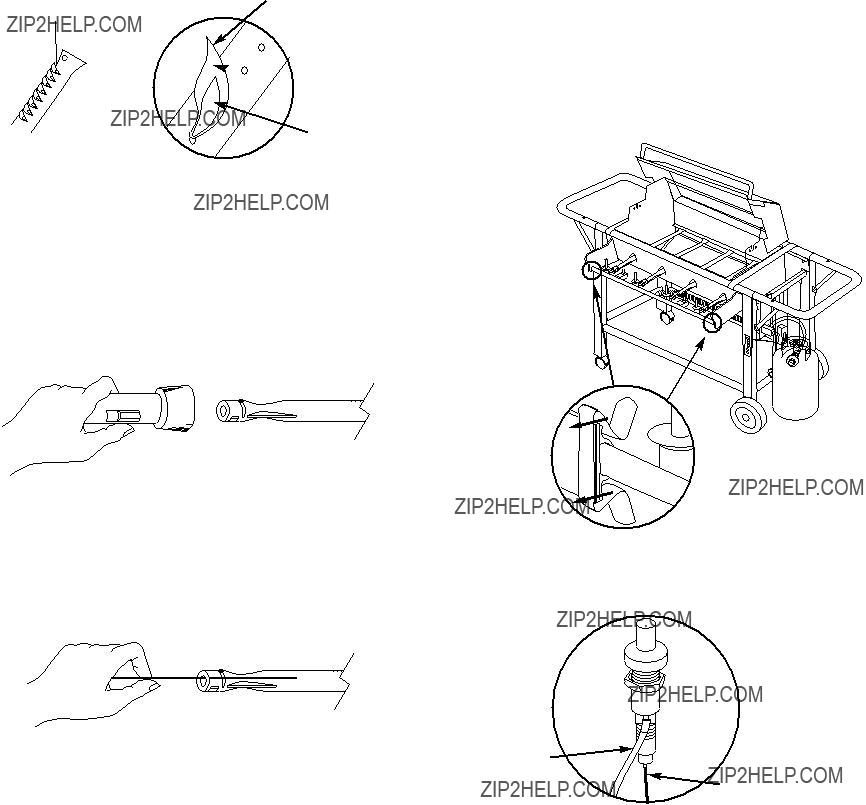

Spider/Insect screens

Your Gas Barbecue, as well as any outdoor gas appliance, is a target for spiders and other insects. They can nest in the venturi section of the burner tubes. This blocks the normal gas flow, and can cause the gas to flow back out of the air shutter. Figure 5. This could result in a fire in and around the air shutters, under the control panel, causing serious damage to your barbecue.

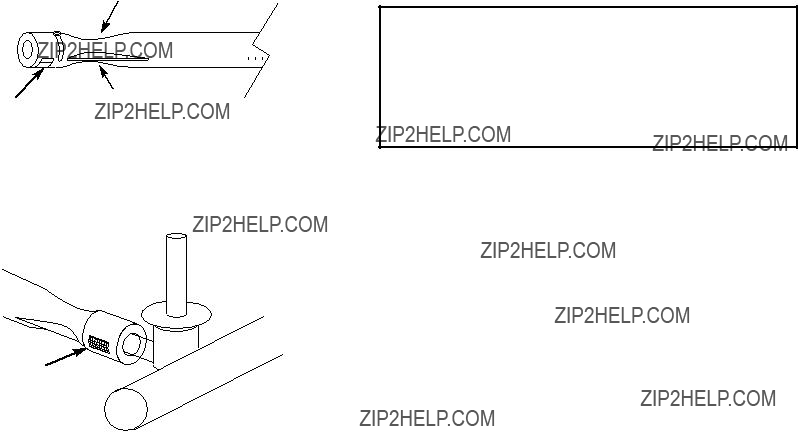

Venturi

We recommend that you inspect the Spider/Insect screens at least once a year. Also inspect and clean the Spider/Insect screens if any of the following symptoms should ever occur.

1.The smell of gas in conjunction with the burner flames appearing yellow and lazy.

2.Barbecue does not reach temperature.

3.Barbecue heats unevenly.

4.One or more of the burners do not ignite.

m DANGER

Air shutter

Venturi fin

Figure 5

Failure to correct these symptoms may result in a fire which can cause serious bodily injury or death and cause damage to property.

The burner tube air shutter is fitted with a stainless steel screen to prevent spiders and other insects access to the burner tubes through the air shutter openings. Figure 6.

Weber Spider/Insect screen

Figure 6

Inspection and cleaning of the

Spider/Insect screens

To inspect the spider/insect screens, remove the control panel. If there is dust or dirt on the screens, remove the burners for cleaning the screens. Refer to Maintenance, Replacing Main Burners. Brush the spider/inspect screens, lightly, with a soft bristle brush (i.e. an old toothbrush).

mCaution: Do not clean the spider/insect screens with hard or sharp tools. Do not dislodge the spider/insect screens or enlarge the screen openings.

Lightly tap the burner to get debris and dirt out of the burner tube. Once the spider/insect screens and burners are clean replace the burners.

If the spider/insect screen becomes damaged or cannot be cleaned, call Weber-Stephen Products Customer Service for replacement parts.

MAINTENANCE

Main Burner Flame Pattern

The Weber Gas Barbecue burners have been factory set for the correct air and gas mixture. The correct flame pattern is shown in Figure 7.

Light blue

Dark blue

Flames

Figure 7

If the flames do not appear to be uniform the length of the burner tube, follow the burner cleaning procedures.

Main Burner Cleaning Procedure

Turn off the gas supply. Remove the manifold.

Look inside each burner with a flashlight. Figure 8.

Figure 8

Clean the inside of the burners with a wire (a straightened out coat hanger will work). Figure 9. Check and clean the air shutter opening at the ends of the burners. Check and clean the valve orifices at the base of the valves. Use a brass bristle brush to clean outside of burners. This is to make sure all the burner ports are fully open.

Figure 9

mCAUTION: Do not enlarge the burner ports when cleaning.

Replacing Main Burners

1.Your Weber Gas Barbecue must be OFF and cool.

2.Turn OFF gas at source.

3.Disconnect regulator.

4.To remove control panel refer to ???Remove the control panel and the front panel??? in the Step-By-Step Guide.

5.Remove cooking grates.

6.Remove Flavorizer bars.

7.Remove the manifold by unsnapping the clips at the right and left front of the cooking box. Figure 10.

Figure 10

8.Disconnect white and black wire from each igniter. Figure 11.

White wire

Black wire

Figure 11

MAINTENANCE

11.Lift and twist the burner assembly slightly to separate the crossover tube from the burners. Remove the burners from the cooking box. Figure 14.

Separate here

Crossover tube

Figure 14

12. To reinstall the burners, reverse steps 3 through 11.

mCAUTION: The burner openings must be positioned properly over the valve orifices. Figure 15 (a).

Check proper assembly before fastening manifold in place. Figure 15 (b).

(a)

Valve

Burner

Orifice

(b)

Figure 15

Crossover Ignition System Operations

If the Crossover Ignition System fails to ignite the Left burner, light the Left burner with a match. If the Left burner lights with a match, then check the Crossover Ignition System.

???Check that both the white and black ignition wires are attached properly. Figure 16.

???Check that the Crossover Ignition button pushes the igniter (button) down, and returns to the up position.

???Check to see if the igniter is loose in the frame. Tighten if necessary; See Step ???Install igniter??? for correct procedure.

If the Crossover Ignition System still fails to light, contact Weber-Stephen Customer Service.

White wire

Black wire

Figure 16

TROUBLESHOOTING

Burners burn with a yellow or orange flame, in conjunction with the smell of gas.

Inspect Spider/Insect Screens for possible obstructions. (Blockage of holes.)

Clean Spider/Insect Screens and inspect burners. (See Maintenance Section.)

Burners do not light. -or-

Burners have a small flickering flame in the HIGH position. -or-

Barbecue temperature only reaches 250?? to 300?? degrees in the HIGH position.

The excess flow safety device, which is part of the barbecue to tank connection, may have activated.

To reset the excess flow safety device turn all burner control knobs and the tank valve OFF. Disconnect the regulator from the tank. Turn burner control knobs to HIGH. Wait at least 1 minute. Turn burner control knobs OFF. Reconnect the regulator to the tank. Turn tank valve on slowly. Refer to Lighting Section.

Burner does not light, or flame is low in HIGH position.

All burners on high for 10 to 15 minutes for preheating.

mCAUTION: Do not line the bottom tray with aluminum foil.

Fuel scale must be adjusted with an empty tank.

Inside of lid appears to be ???peeling.??? (Resembles paint peeling.)

The lid is porcelain-on-steel, not paint. It cannot ???peel.??? What you are seeing is baked on grease that has turned to carbon and is flaking off.

THIS IS NOT A DEFECT.

Clean thoroughly. (See Cleaning Section.)

If problems cannot be corrected by using these methods, please contact Weber-Stephen Customer Service.
