Safe

Operation

WARNING: Engine Exhaust, some of its constituents, and certain vehicle compo- nents contain or emit chemicals known to State of California to cause cancer and birth defects or other reproductive harm.

DANGER: This machine was built to be operated according to the rules for safe operation in this manual. As with any type of power equipment, carelessness or error on the part of the operator can result in serious injury. This machine is capable of amputating hands and feet and throwing objects. Failure to observe the following safety instructions could result in serious injury or death.

Practices

WARNING

This symbol points out important safety instructions which, if not followed, could endanger the personal safety and/or property of yourself and others. Read and follow all instructions in this manual before attempting to operate this machine. Failure to comply with these instructions may result in personal injury.

When you see this symbol.

HEED ITS WARNING

Your

Responsibility

Restrict the use

of this power machine to persons who read, understand

and follow the warnings and instructions

in this manual and on the machine.

Children

Tragic accidents can occur if operator is not alert to presence of children. Children are often attracted to power equipment such as lawn edgers. They do not understand the dangers. Never assume that children will remain where you last saw them.

1.Keep children out of the mowing area and under watchful care of a responsible adult other than the operator.

2.Be alert and turn lawn edger off if a child enters the area.

3.Before and while moving backwards, look behind and down for small children.

4.Use extreme care when approaching blind corners, doorways, shrubs, trees, or other objects that may obscure your vision of a child who may run into the lawn edger.

5.Keep children away from hot or running engines. They can suffer burns from a hot muffler.

6.Never allow children under 14 years old to operate an edger. Children 14 years old and over should read and understand operation instructions and safety rules in this manual and should be trained and supervised by a parent.

Operation

Safe Handling Of Gasoline:

1.To avoid personal injury or property damage use extreme care in handling gasoline. Gasoline is extremely flammable and the vapors are explosive. Serious personal injury can occur when gasoline is spilled on yourself or your clothes which can ignite.

2.Wash your skin and change clothes immediately.

3.Use only an approved gasoline container.

4.Never fill containers inside a vehicle or on a truck or trailer bed with a plastic liner. Always place containers on the ground away from your vehicle before filling.

5.Remove gas-powered equipment from the truck or trailer and refuel it on the ground. If this is not possible, then refuel such equipment on a trailer with a portable container, rather than from a gasoline dispenser nozzle.

6.Keep the nozzle in contact with the rim of the fuel tank or container opening at all times until fueling is complete. Do not use a nozzle lock-open device.

7.Extinguish all cigarettes, cigars, pipes and other sources of ignition.

8.Never fuel machine indoors because flammable vapors will accumulate in the area.

9.Never remove gas cap or add fuel while engine is hot or running. Allow engine to cool at least two minutes before refueling.

10.Never over fill fuel tank. Fill tank to no more than ?? inch below bottom of filler neck to provide for fuel expansion.

11.Replace gasoline cap and tighten securely.

12.If gasoline is spilled, wipe it off the engine and equipment. Move unit to another area. Wait 5 minutes before starting engine.

13.Never store the machine or fuel container near an open flame, spark or pilot light as on a water heater, space heater, furnace, clothes dryer or other gas appliances.

14.To reduce fire hazard, keep lawn edger free of grass, leaves, or other debris build-up. Clean up oil or

fuel spillage and remove any fuel soaked debris.

15.Allow a lawn edger to cool at least 5 minutes before storing.

General Operation:

1.Read this operator???s manual carefully in its entirety before attempting to assemble this machine. Read, understand, and follow all instructions on the machine and in the manual(s) before operation. Be completely familiar with the controls and the proper use of this machine before operating it. Keep this manual in a safe place for future and regular reference and for ordering replacement parts.

2.This machine is a precision piece of power equipment, not a plaything. Therefore, exercise extreme caution at all times. Your unit has been designed to perform one job: to edge lawn. Do not use it for any other purpose.

3.Never allow children under 14 years old to operate this machine. Children 14 years old and over should read and understand the instructions in this manual and should be trained and supervised by a parent. Only responsible individuals who are familiar with these rules of safe operation should be allowed to use this machine.

4.To help avoid blade contact or a thrown object injury, stay in operator zone behind handles and keep children, bystanders, helpers and pets at least 75 feet from lawn edger while it is in operation. Stop machine if anyone enters area.

5.Thoroughly inspect the area where the equipment is to be used. Remove all stones, sticks, wire, bones, toys and other foreign objects which could be tripped over or picked up and thrown by the blade. Thrown objects can cause serious personal injury.

6.Always wear safety glasses or safety goggles during operation and while performing an adjustment or repair to protect your eyes. Thrown objects which ricochet can cause serious injury to the eyes.

7.Wear sturdy, rough-soled work shoes and close-fitting slacks and shirts. Shirts and pants that cover the arms and legs and steel-toed shoes are recommended.

Never operate this machine in bare feet, sandals, slippery or light weight (e.g. canvas) shoes.

8.Never attempt to make any adjustments while the engine is running, except where specifically recommended in the operator???s manual.

9.To avoid personal injury or property damage use extreme care in handling gasoline. Gasoline is extremely flammable and the vapors are explosive. Serious personal injury can occur when gasoline is spilled on yourself or your clothes which can ignite. Washer your skin and change clothes immediately.

10.Do not put hands or feet near rotating parts. Contact with the rotating blade can amputate hands and feet.

11.The blade control handle is a safety device. Never bypass its operation. Doing so, makes the machine unsafe and may cause personal injury.

12.Never operate without blade guard, debris shield and blade control handle in place and working.

13.Never operate with damaged safety devices. Failure to do so, can result in personal injury.

14.Never run an engine indoors or in a poorly ventilated area. Engine exhaust contains carbon monoxide, an odorless and deadly gas.

15.Do not operate machine while under the influence of alcohol or drugs.

16.Muffler and engine become hot and can cause a burn. Do not touch.

17.Never operate this machine without good visibility or light. Always be sure of your footing and keep a firm hold on the handles. Walk, never run.

18.Do not operate this machine if it has been dropped or damaged. Return machine to your nearest authorized servicing dealer for examination and repair.

29.Do not operate this machine with a damaged or excessively worn cutting blade.

20.Never attempt to clear material from the blade guard while the engine is running. Shut the engine off, disconnect the spark plug wire and ground against the engine to prevent unintended starting.

21.Do not overload machine capacity by attempting to edge at too fast of a rate.

22.Stay alert for uneven sidewalks, terrain etc. Always push slowly over rough surfaces. Do not use this machine on gravel surfaces.

23.Do not operate machine in rain or wet soil conditions.

Always operate machine from behind the handles and position yourself where the direct line of sight to cutting blade is blocked by guards.

24.Always stop engine when edging or trimming is delayed or when transporting machine

from one location to another.

Never leave a running machine unattended. Stop the engine, disconnect spark plug wire and ground against the engine to prevent unintended starting.

25.Only use parts and accessories made for this machine by the manufacturer. Failure to do so, can result in personal injury.

26.If situations occur which are not covered in this manual, use care and good judgment. Call 1-866-840-6483 for Customer Support and the name of your nearest dealer.

Service

1.Never run an engine indoors or in a poorly ventilated area. Engine exhaust contains carbon monoxide, an odorless and deadly gas.

2.Before cleaning, repairing, or inspecting, make certain the blade and all moving parts have stopped. Disconnect the spark plug wire and ground against the engine to prevent unintended starting.

3.Check the blade and engine mounting bolts at frequent intervals for proper tightness. Also, visually inspect blade for damage (e.g., bent, cracked, worn) Replace blade with the original equipment manufacture???s (O.E.M.) blade only, listed in this manual. ???Use of parts which do not meet the original equipment specifications may lead to improper performance and compromise safety!???

4.Lawn edger blades are sharp and can cut. Wrap the blade or wear gloves, and use extra caution when servicing them.

5.Keep all nuts, bolts, and screws tight to be sure the equipment is in safe working condition.

6.Never tamper with safety devices. Check their proper operation regularly.

7.After striking a foreign object, stop the engine, disconnect the spark plug wire and ground against the engine. Thoroughly inspect the lawn edger for any damage. Repair the damage before starting and operating the lawn edger.

8.Never attempt to make a wheel or cutting height adjustment while the engine is running.

9.Many components on your new edger can wear with continued use. For safety protection, frequently check all edger components and replace immediately with original equipment manufacturer???s (O.E.M.) parts only, listed in this manual. ???Use of parts which do not meet the original equipment specifications may lead to improper performance and compromise safety!???

10.Do not change the engine governor setting or overspeed the engine. The governor controls the maximum safe operating speed of the engine.

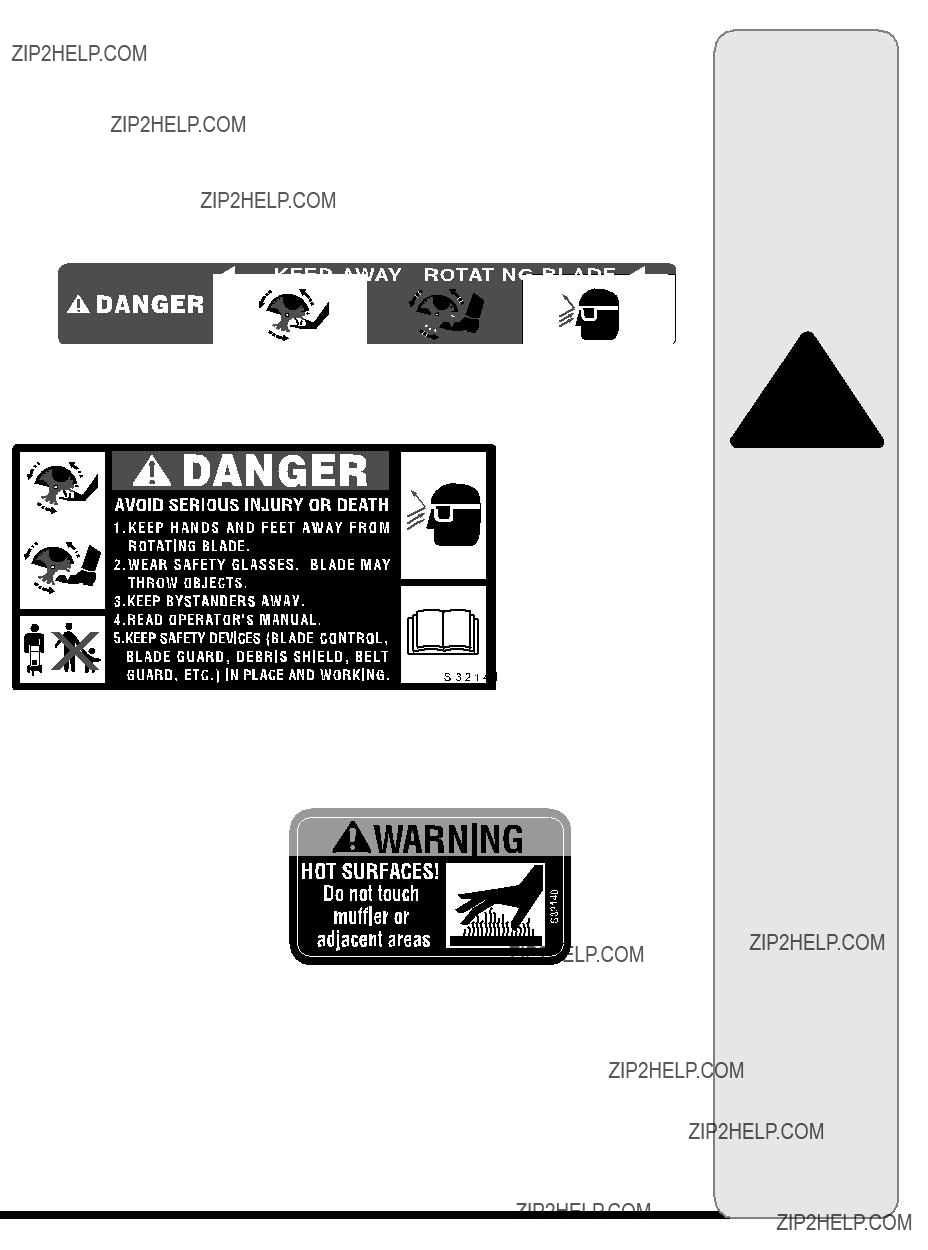

11.Maintain or replace safety labels, as necessary.

12.Observe proper disposal laws and regulations. Improper disposal of fluids and materials can harm the environment.

2

Safe

Operation

Practices

WARNING

This symbol points out important safety instructions which, if not followed, could endanger the personal safety and/or property of yourself and others. Read and follow all instructions in this manual before attempting to operate this machine. Failure to comply with these instructions may result in personal injury.

When you see this symbol.

HEED ITS WARNING

Your

Responsibility

Restrict the use

of this power machine to persons who read, understand

and follow the warnings and instructions

in this manual and on the machine.

3

Assembling

Your New

Edger

2

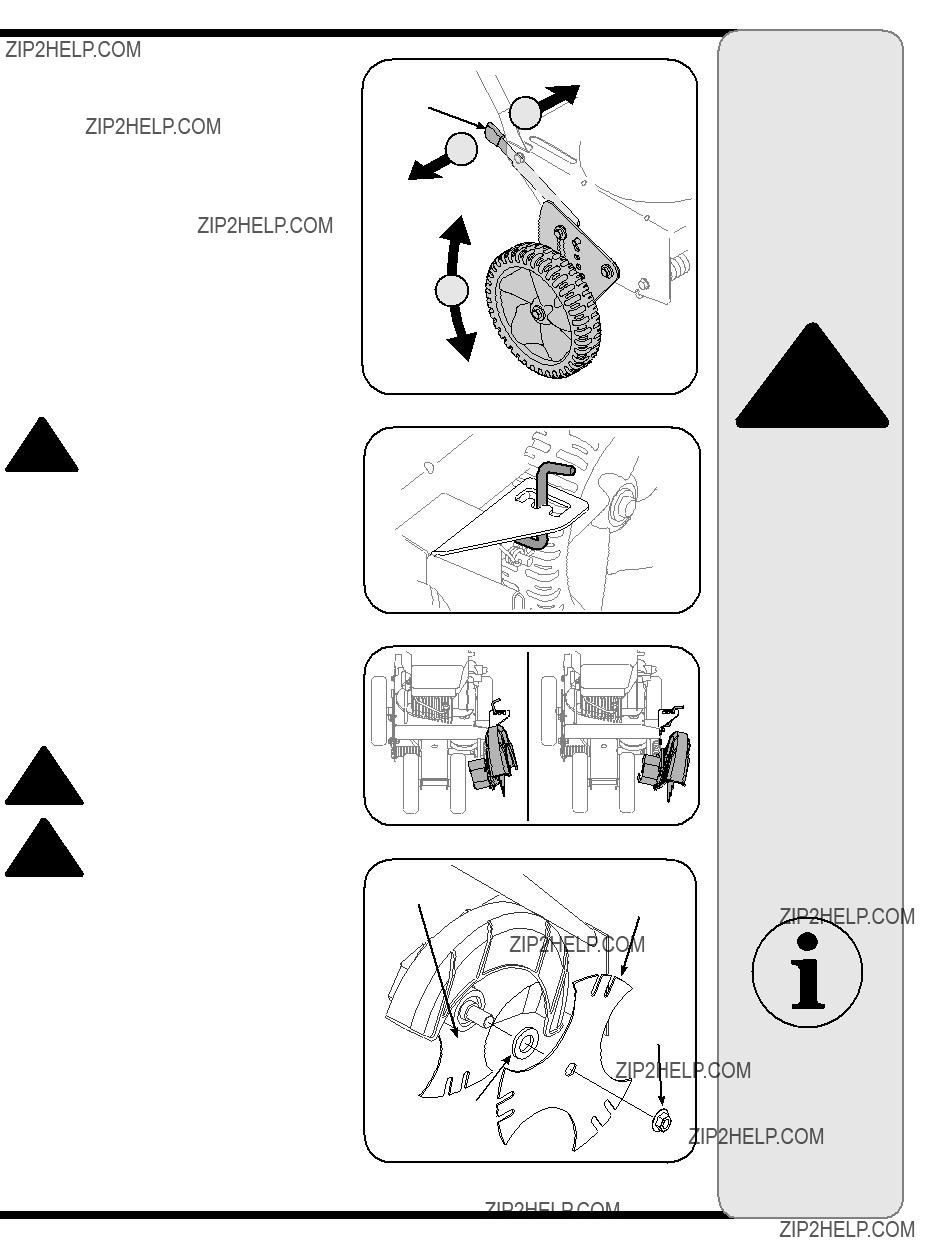

Figure 3???1

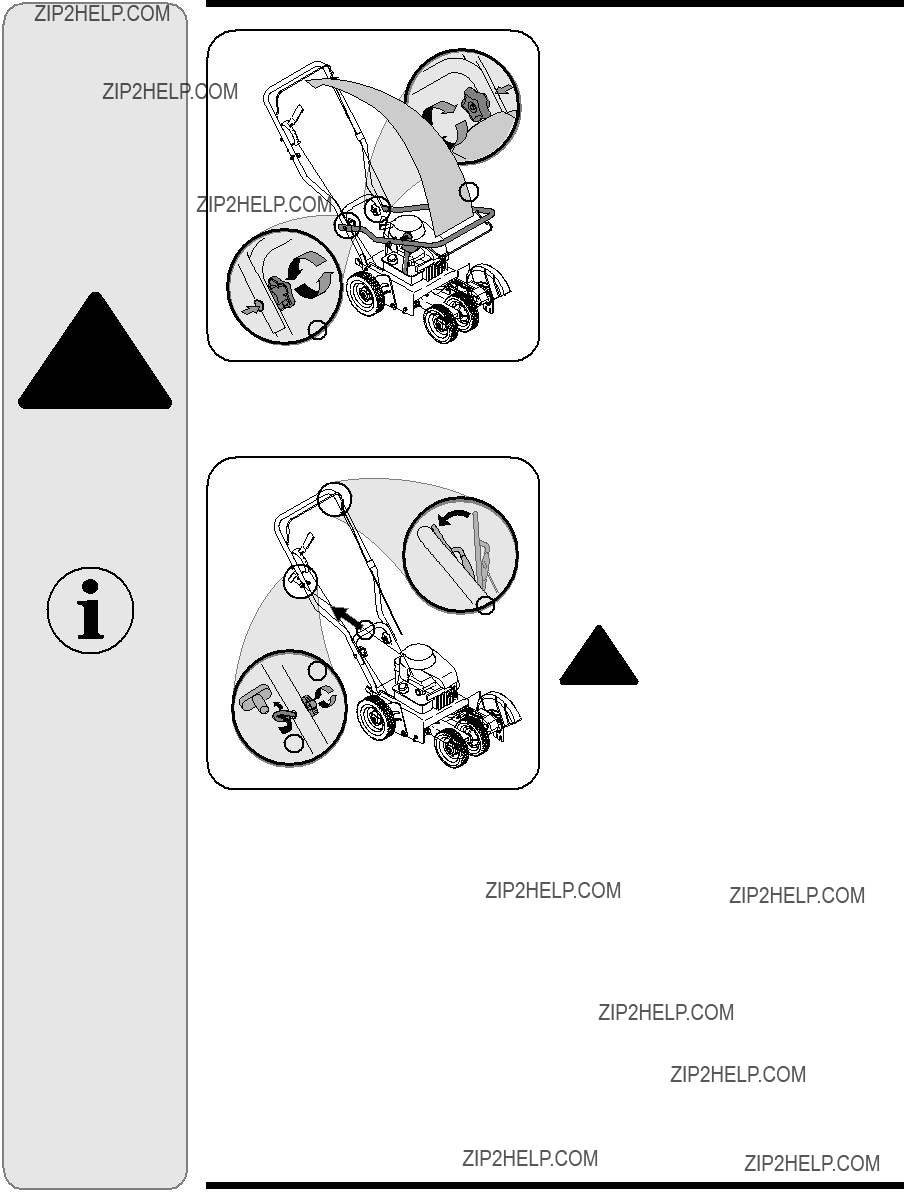

Positioning the Edger Handles

Remove and discard any packaging cardboard that may be present between the upper handle and the lower handle.

1. Pivot the upper handle upward until it snaps into place. See Fig. 3???1.

2.Tighten the hand knobs, which are located on both the left and right sides of the handle.

WARNING

The edger blade WILL rotate when the starter rope is pulled.

IMPORTANT:

This unit is shipped

WITHOUT GASOLINE.

After setting up the unit, service engine with gasoline as instructed in the separate engine manual packed with your unit. Be sure to service engine with the oil enclosed with this unit as instructed

in the separate engine manual.

NOTE: Specifications are subject to change without notification or obligation.

Images my not reflect your exact model and are for reference purposes only.

3

1

4

Figure 3???2

WARNING: The edger blade WILL rotate when the starter rope is pulled.

NOTE: The starter rope will not pull out of the engine unless the blade control (refer to Figure 3???2) is depressed against the upper handle.

4.Slip the starter rope through the top of the rope guide. Retighten the wing knob which secures the rope guide to the upper handle.

Blade Control

Blade Depth Control Lever

(Transport Position Shown)

Bevel Adjustment Lever

Starter Rope/

Recoil Starter

Curb Height

Adjustment Lever

Primer

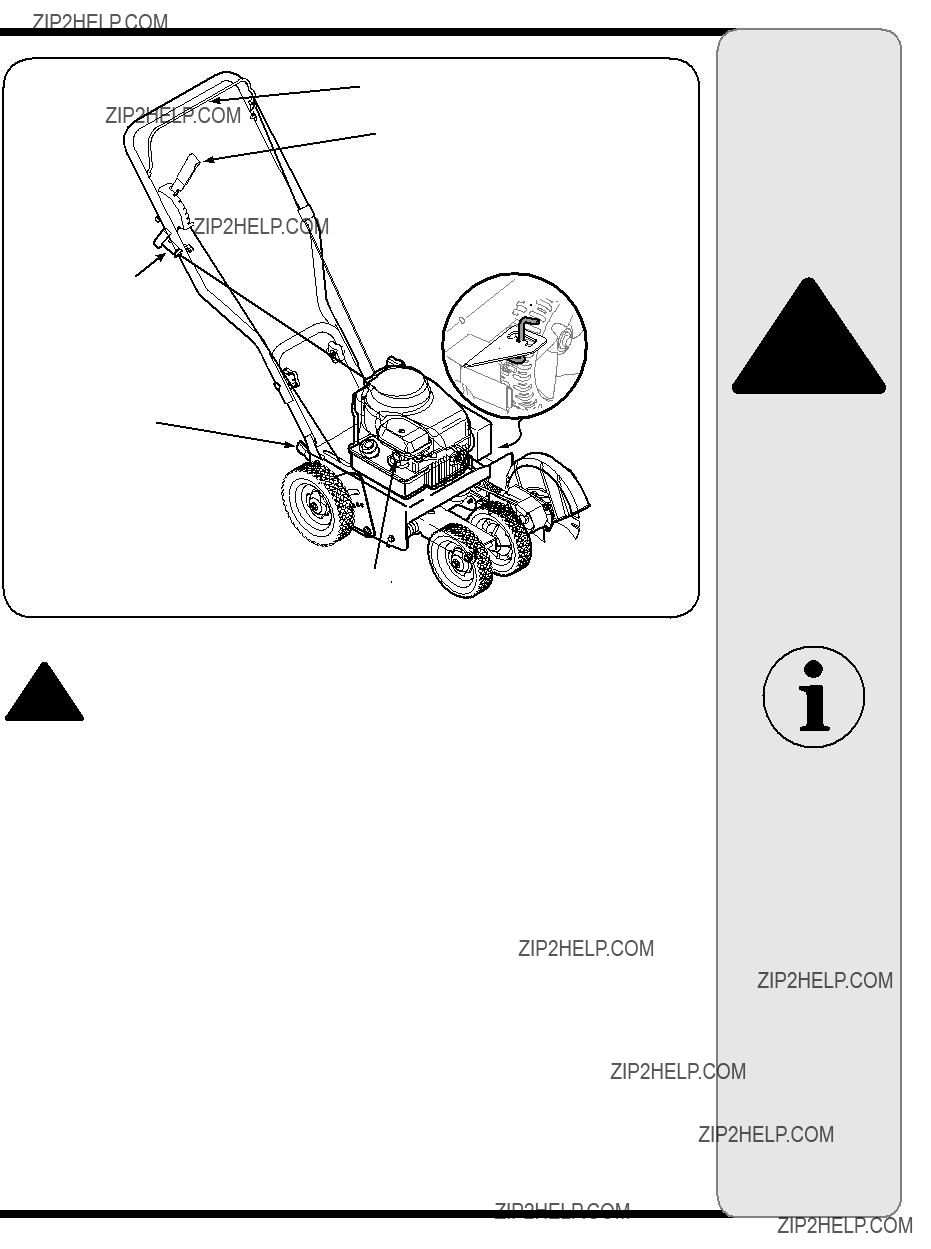

Figure 4???1

4

Know Your

Edger

WARNING:

Be familiar with all controls and their proper operation.

Know how to stop the machine and disengage them quickly.

WARNING: Be familiar with all controls and their proper operation. Know how to stop the machine and disengage them quickly.

NOTE: Refer to the Engine Manual packed with your edger for a detailed description of all engine-related controls and components.

Starter Rope / Recoil Starter

The starter rope/recoil starter is used to start the engine. See Fig. 4???1

Primer

The primer is used to pump gas into the carburetor and aid in starting the engine. Use it to start a cold engine, but do not use it to restart a warm engine after a short shutdown. See Fig. 4???1

NOTE: Refer to the Engine Manual packed with your edger for a detailed description of all engine-related controls and components.

Blade Control

Located on the upper handle, the blade control must be depressed against the upper handle in order to operate the unit. Releasing the blade control stops the engine and the edger blade. See Fig. 4???1.

Blade Depth Control Lever

The blade depth control lever is located on the right side of the upper handle. It is used to control the depth of the cut. The further forward the blade depth control lever is moved, the deeper into the soil the edger blade will cut. See Fig. 4???1.

Bevel Adjustment Lever

The bevel adjustment lever is located on the front, left portion of the edger, behind the edger blade. It is used to vary the angle of the edger blade between one of three positions for edging/trenching or beveled edging. See Fig. 4???1.

Curb Height Adjustment Lever

The curb height adjustment lever is found on the rear portion of the edger. When placed in an applicable notch, it aids in stabilizing the edger while edging grass along a curb. See Fig. 4???1.

IMPORTANT: Become familiar with all the controls before operating the edger.

NOTE: Refer to the Engine Manual packed with your edger for a detailed description of all engine-related controls and components.

IMPORTANT:

Become familiar with all the controls before operating the edger.

NOTE: Specifications are subject to change without notification or obligation.

Images may not reflect your exact model and are for reference purposes only.

5

Operation

And

Adjustment

WARNING

Do not lower blade if blade is over concrete, asphalt, rocks or the like. The blade can strike the supporting surface, resulting in personal injury or property damage.

Never fill fuel tank indoors, with engine running or until the engine has been allowed to cool for at least two minutes after running.

The ???Blade Control??? is a safety device. Never attempt to bypass its operation.

Rotating cutting blade may throw objects causing personal injury.

Keep area clear of bystanders and do not operate without guards in place.

The operation of any edger can result in foreign objects being thrown into the

eyes, which can result in severe eye damage. Always wear safety glasses or

eye shields. We recommend wide vision safety mask for over spectacles or standard safety glasses.

WARNING: Do not lower blade if blade is over concrete, asphalt, rocks or

the like. Blade can strike supporting surface, resulting in personal injury or property damage.

Adding Gasoline And Oil

Service the engine with gasoline and oil as instructed in the Engine Manual packed with your edger. Read instructions carefully.

WARNING: Never fill fuel tank indoors, with engine running or until the engine has been allowed to cool for at least two minutes after running.

Starting The Engine

NOTE: Refer to the Engine Manual packed with your edger for a detailed description of all engine-related controls and components.

To start the edger???s engine, proceed as follows:

1.Attach the spark plug wire to the spark plug. Make certain the metal cap on the end of the spark plug wire is fastened securely over the metal tip on the spark plug.

2.Move the blade depth control lever back to the START position in the adjacent (top) notch.

3.Depress the primer bulb three times, pausing two to three seconds between each push. In cold weather (below 50??F /19??C), it may be necessary to depress the primer bulb four or five times.

IMPORTANT: Using the primer to restart a warm engine after a short shutdown is usually not necessary. Doing so may result in a flooded engine.

4.Standing behind the unit, depress the blade control and hold it against the upper handle with your left hand.

WARNING: This control mechanism is a safety device. Never attempt to bypass its operation.

5.With your right hand, grasp the recoil starter handle and slowly pull the rope outward until engine reaches the start of its compression cycle (the rope will pull slightly harder at this point).

6.After slowly allowing the rope to recoil, pull the rope with a rapid, continuous, full arm stroke. Keep a firm

grip on starter handle throughout the entire stroke. 7. Allow the starter handle to slowly return to the eyebolt.

NOTE: If the engine fails to start after three pulls, depress the primer an additional two times before pulling the starter rope again.

Stopping The Engine

To stop the edger???s engine, release the blade control.

NOTE: See your engine manual packed with your unit for more detailed instructions.

WARNING: Rotating cutting blade may throw objects causing personal injury. Keep area clear of bystanders and do not operate without guards in place.

Edging

To begin edging, proceed as follows:

1.Move unit to area to be edged, making sure that the left rear wheel is on a hard surface and the blade is over the area to be cut. See Fig. 5???1.

2.With blade control lever in START position, make a pass along area to be edged before proceeding to the next notch. The further forward blade depth control lever is moved, the deeper or lower the blade will cut into the ground. Several passes may be necessary to obtain desired depth of cut. Do not lower blade more than one depth notch at a time without making a pass.

3.For best results, proceed slowly along path being edged, slowly moving edger back and forth through cutting area, again making sure to keep the left rear wheel on the hard surface and the blade in the cutting path, close to but not touching the edge of the hard surface.

4.Once you have finished edging selected area, raise the blade control lever back into the START position, move to the next area to be edged, and proceed again from step 1.the curb to be edged along.

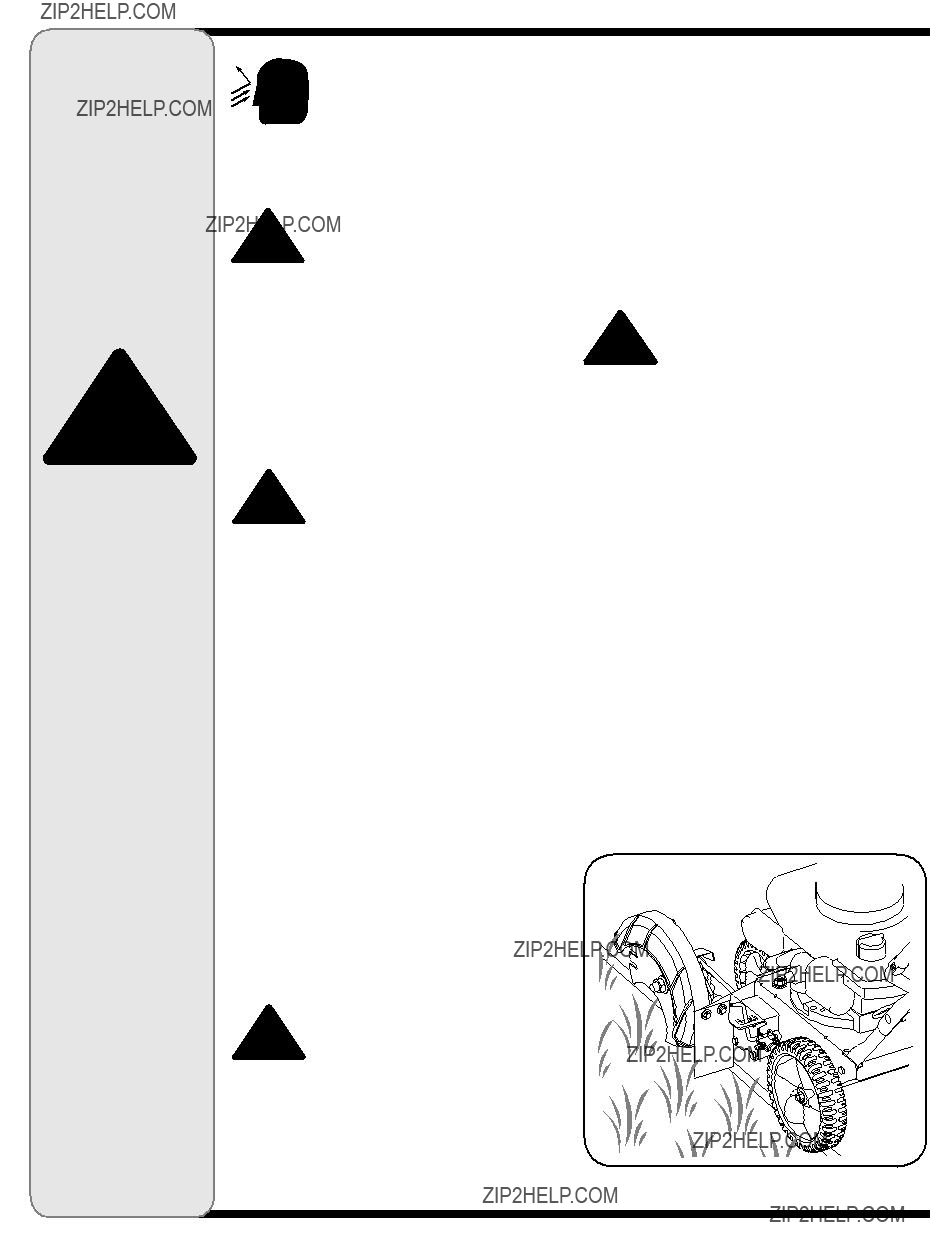

Figure 5???1

Edging Along A Curb

The right, rear wheel of the edger can be lowered into one of five positions to ease the task of edging along a curb.

To adjust the height of curb wheel, proceed as follows:

1.Lower the right, rear wheel by moving the curb height adjustment lever slightly to the left. See Fig. 5???2.

2.Pivot the right, rear wheel into an applicable position in relation to the height of the curb to be edged along. See Fig. 5???2

3.Release the curb height adjustment lever to lock the wheel in position. See Fig. 5???2.

Bevel Adjustment

The angle of the edger blade can be adjusted by placing the bevel adjustment in one of three positions for edging. See Fig. 5???3.

WARNING: Rotating cutting blade may throw objects causing personal injury. Keep area clear of bystanders and do not operate without guards in place.

Beveling

In order to achieve a bevelled edge, set the bevel adjustment lever (refer to Fig. 5???3) in the first (left hand) or third (right hand) notch to place the edger blade in position for beveling (See fig. 5???4).

Trenching (Optional)

You can utilize the edger???s optional trenching feature in order to create a wider cutting path for such things as laying wire for landscape lighting.

WARNING: Disconnect the spark plug wire and ground against the engine before performing the following steps.

WARNING: The edger blade is sharp.

Operation

And

Adjustment

2

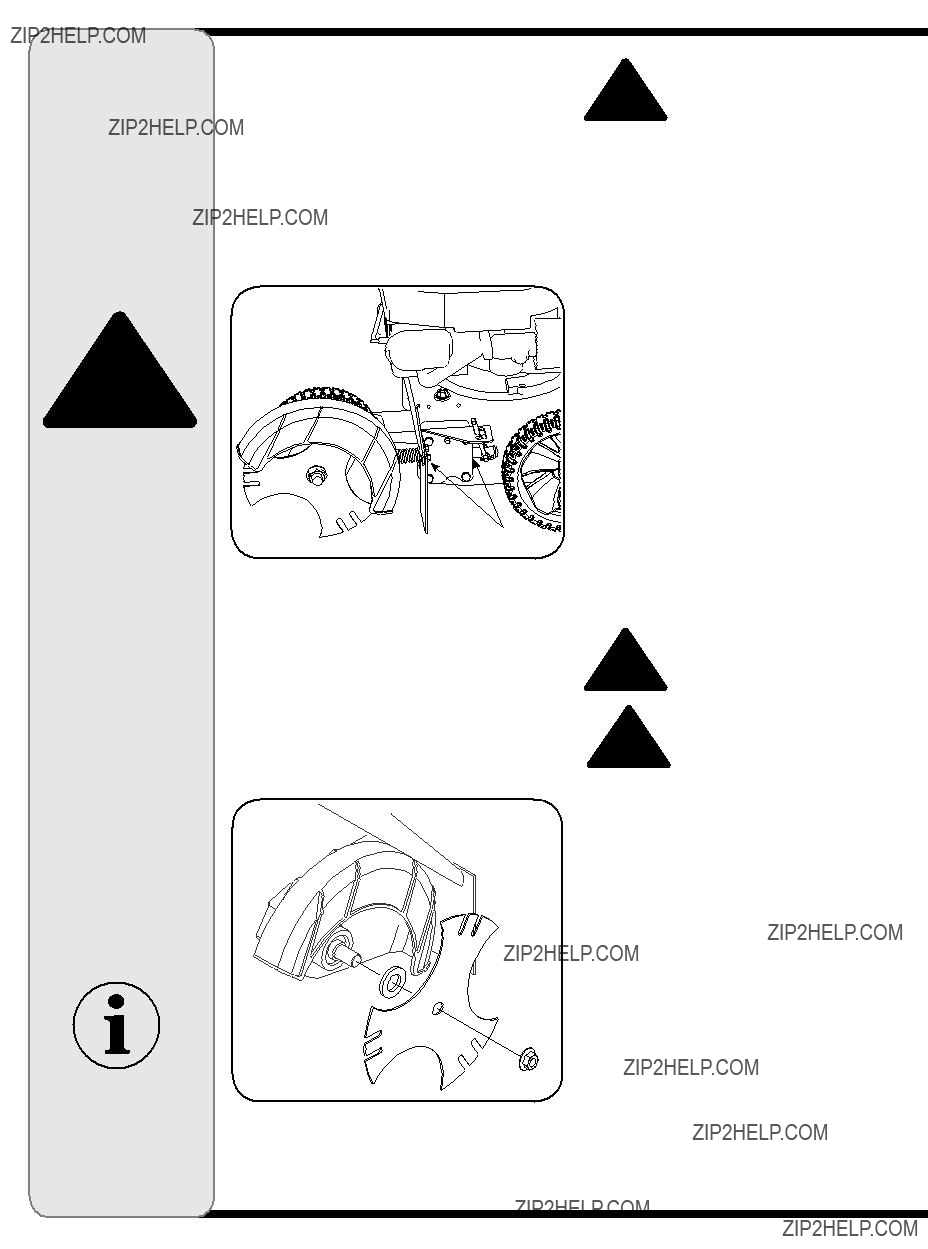

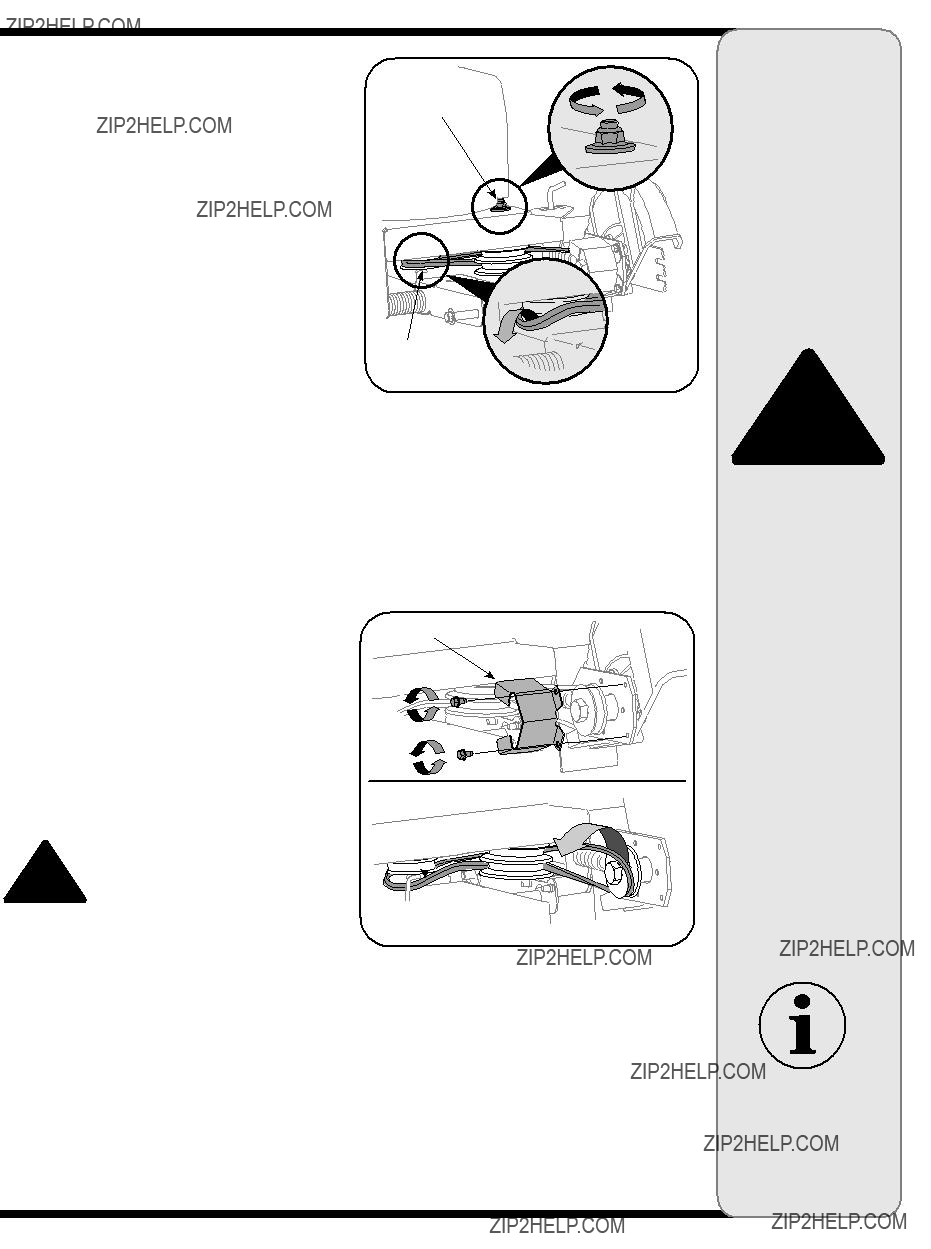

Figure 5???2

WARNING

Wear leather work gloves to protect your hands when working around the edger blade.

1.Use two wrenches (one wrench to prevent hex bolt head from spinning and the other to unthread the flange nut) to remove flange nut that secures edger

blade, leaving the edger blade in place. See Fig. 9.

5.Install the Tri-star edger blade and the flat washer. See Fig. 10.

6.Secure with the flange nut removed earlier.

IMPORTANT: Use a torque wrench to tighten the flange nut to between 37 foot-lbs. and 50 foot-lbs.

IMPORTANT: Make certain that drive belt is seated correctly on blade spindle and that it is riding smoothly on spindle sheaves and is not pinched between them. Repeat first three steps if belt is pinched.

Figure 5???4

Edger Blade

Tri-star Blade

Flange Nut

Flat Washer

Figure 5???5

NOTE: Specifications are subject to change without notification or obligation.

Images my not reflect your exact model and are for reference purposes only.

6

Maintaining

& Servicing

Your Edger

WARNING

Disconnect the spark plug wire and ground against the engine before performing any adjustment, repairs or mainte-

nance.

The edger blade is sharp. Wear leather work gloves

to protect your hands when working around the edger blade.

Disconnect the spark plug wire and ground against engine before performing the following steps.

NOTE: Specifications are subject to change without notification or obligation.

Images my not reflect your exact model and are for reference purposes only.

WARNING: Disconnect the spark plug wire and ground against the engine before performing any adjustment, repairs or maintenance.

Lubrication

Engine

Refer to the Engine Manual packed with your edger for a detailed description of all engine-related service specifications.

Wheels

Lubricate the wheels and bearings at least once a season with a light oil. Also if the wheels are removed for any reason, lubricate the surface of the axle bolt and the inner surface of the wheel with light oil.

Pivot Points

Lubricate the pivot points on the blade control bail, blade depth control lever, and if applicable, the blade adjustment lever, and curb height adjustment lever with light oil at least once a season.

Replacing the Edger Blade

WARNING: The edger blade is sharp. Wear leather work gloves to protect your hands when working around the edger blade.

WARNING: Disconnect the spark plug wire and ground against engine before performing the following steps.

1.Use two wrenches (one wrench to prevent the hex bolt head from spinning and the other to remove the flange nut) to remove the edger blade. Refer to Fig. 6???2.

2.Remove and discard the edger blade but retain the flange nut.

3.Install the replacement edger blade and the flange nut removed earlier.

IMPORTANT: Use a torque wrench to tighten the flange nut to between 37 foot-lbs. and 50 foot-lbs.

IMPORTANT: Make certain that the drive belt is seated correctly on the blade spindle and that it is riding smoothly on the spindle sheaves and is not pinched between them. Repeat the first three steps if the belt is pinched.

Figure 6???2

Replacing the Drive Belt

IMPORTANT: To aid in reassembly, note the orientation of the drive belt on the two idler pulleys and the engine flywheel pulley prior to performing the following steps. Refer to Fig. 6???3.

The edger drive belt is subject to wear and should be replaced if any signs of cracking, shredding or rotting are present. To replace the belt, proceed as follows:

1.Working in front of the edger, loosen the flange lock nut on top of frame, allowing the idler pulley assembly to pivot slightly out from the frame. See Fig. 6???3.

2.With your other hand, carefully reach under the rear of the unit and remove the belt from around the engine flywheel pulley. See Fig. 6???3.

3.Remove the spindle sheaves belt guard by removing the two self-tapping screws which secure it to the blade plate assembly. See Fig. 6???4.

4.Carefully remove the belt from off of the pulleys, again making sure to note the orientation of the belt. Discard the belt. See Fig. 6???4.

5.Working from the front of the edger, place the belt onto the spindle sheaves, route it back onto the two idler pulleys, and then place it onto the engine flywheel pulley.

IMPORTANT: Make certain that the ???V??? side of the belt is seated into the top pulley and the flat side of the belt is seated into the bottom pulley. See Fig. 6???3.

6.Reinstall the spindle sheaves belt guard with the self tapping screws removed earlier.

7.Make certain that the drive belt is on the engine flywheel pulley and idler pulleys, and retighten the flange lock nut on the top of the frame.

IMPORTANT: Make certain that the drive belt is seated correctly and that it is riding smoothly on the spindle sheaves and is not pinched between them. Repeat the first three steps if the belt is pinched.

WARNING: Never operate the edger without the spindle sheaves belt guard in place.

Flange lock nut

Engine flywheel pulley

Figure 6???3

Belt guard

Engine flywheel pulley

Figure 6???4

6

Maintaining

and Servicing

Your Edger

WARNING

Never operate the edger without the spindle sheaves belt guard in place.

NOTE: Specifications are subject to change without notification or obligation.

Images my not reflect your exact model and are for reference purposes only.

Troubleshooting Guide

8

Problem

Engine fails to start

Engine runs erratic

Engine Overheats

Excessive Vibration

Drivebelt Slips

Troubleshooting

Guide

For parts and/or accessories please call 1-800-520-5520, or 1-330-558-7220 or visit www.troybilt.com

NOTE: Specifications are subject to change without notification or obligation.

Images my not reflect your exact model and are for reference purposes only.

18

40

66

53

56

43

15

35

57

11

5

29

6

64

54

60

55

33

25

21

44 3

51

57

63

19

42

28

39

V-BELTS are specially designed to engage and disengage safely. A substitute (non-OEM) V-Belt can be dangerous by not disengaging completely.

34734-1268 Wheel 8 x 1.75 T-Tread ???

35736-0179 Flat Washer 1/2 x 1.25 x .10 ???

36736-0232 Wave Washer .531 x .781 x .013

37736-0234 Flat Washer, .385 x 1.5 x .075

38736-0258 Flat Washer .385 x 1.0 x .135 ???

39736-04088 Flat Washer .635x1.24x.181

40736-0452 Bell Washer,.396 x 1.140

41738-04149 Shoulder Screw, 3/8-16

42738-0706C Shoulder Screw

43738-0929 Shoulder Screw, 3/8-16

44741-0524 Bearing, .625 ID x 1.57 OD

45746-04035 Control Cable (Briggs & Stratton)

46746-04036 Wheel Adjustment Cable

47747-04110 Blade Adjustment Rod

53750-04142 Pulley Mount Spacer

54750-0547 Spacer, .64 x.88 x .50

55754-04032B Belt

56756-04148 Flat Idler Pulley, 2.5 OD

61781-0741A Depth Index Bracket

62781-0742 Depth Index Lever

63781-0748 Tri-Star Blade (Trencher) ???

64 787-01081A Cover Plate

65787-01239 Dual Wheel Bracket

66787-01304 Frame

??? Optional

9

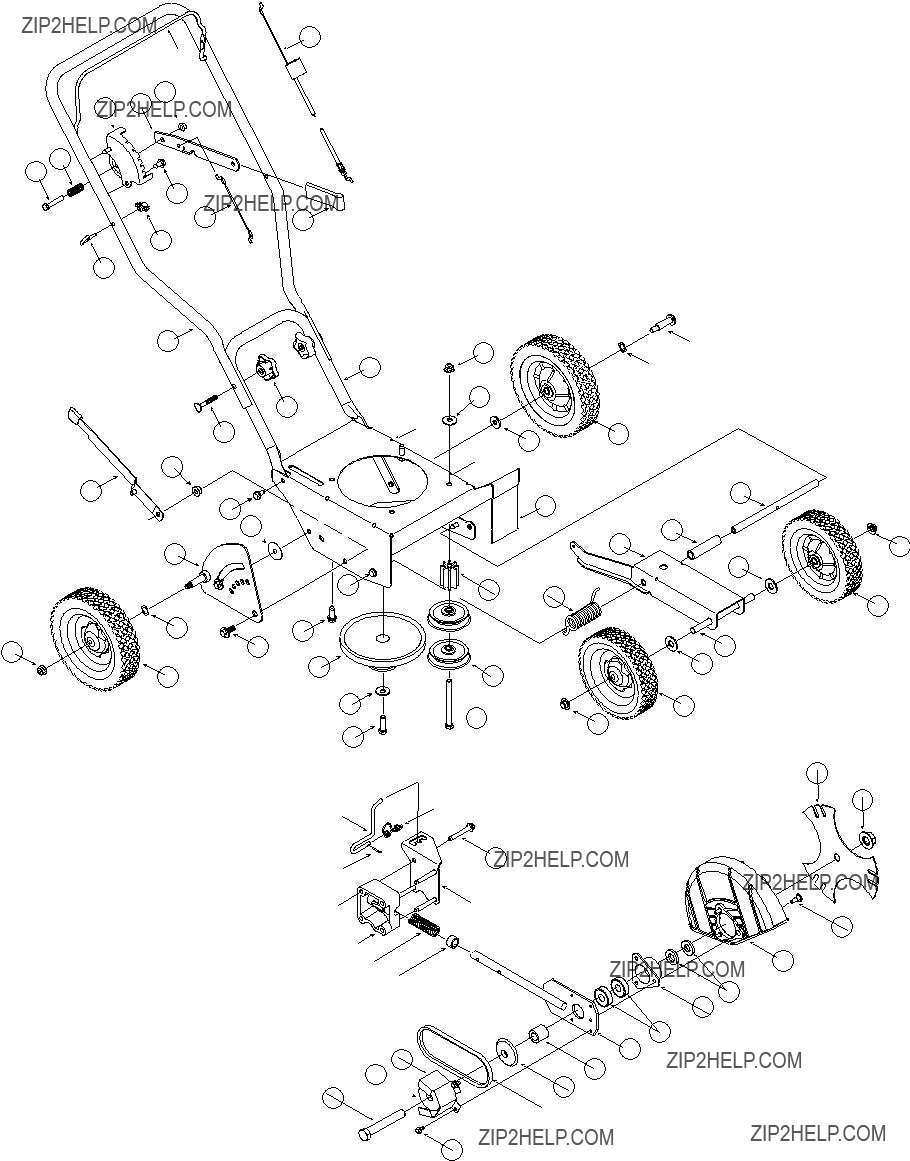

Part List:

Handle/Frame/

Wheel Assembly

Model 554

For parts and/or accessories please call 1-866-840-6483, or 1-330-558-7220.

www.troybilt.com

NOTE: Specifications are subject to change without notification or obligation.

Images my not reflect your exact model and are for reference purposes only.

The limited warranty set forth below is given by Troy-Bilt LLC with respect to new merchandise purchased and used in the United States, its posses- sions and territories.

???Troy-Bilt??? warrants this product against defects in material and workman- ship for a period of two (2) years commencing on the date of original purchase and will, at its option, repair or replace, free of charge, any part found to be defective in materials or workmanship. This limited warranty shall only apply if this product has been operated and maintained in accordance with the Operator???s Manual furnished with the product, and has not been subject to misuse, abuse, commercial use, neglect, accident, improper maintenance, alteration, vandalism, theft, fire, water, or damage because of other peril or natural disaster. Damage resulting from the installation or use of any part, accessory or attachment not approved by Troy-Bilt for use with the product(s) covered by this manual will void your warranty as to any resulting damage.

Normal wear parts are warranted to be free from defects in material and workmanship for a period of thirty (30) days from the date of purchase. Normal wear parts include, but are not limited to items such as: batteries, belts, blades, blade adapters, grass bags, rider deck wheels, seats, snow thrower skid shoes, shave plates, auger spiral rubber and tires.

HOW TO OBTAIN SERVICE: Warranty service is available, WITH PROOF OF PURCHASE, through your local authorized service dealer. To locate the dealer in your area, check your Yellow Pages, or contact Troy-Bilt LLC at P.O. Box 361131, Cleveland, Ohio 44136- 0019, or call 1-866-840-6483 or 1-330-558-7220, or log on to our Web site at www.troybilt.com.

This limited warranty does not provide coverage in the following cases:

a.The engine or component parts thereof. These items may carry a separate manufacturer???s warranty. Refer to applicable manufacturer???s warranty for terms and conditions.

b.Log splitter pumps, valves, and cylinders have a separate one year warranty.

c.Routine maintenance items such as lubricants, filters, blade sharpening, tune-ups, brake adjustments, clutch adjustments, deck adjustments, and normal deterioration of the exterior finish due to use or exposure.

d.Service completed by someone other than an authorized service dealer.

e.Troy-Bilt does not extend any warranty for products sold or exported outside of the United States, its possessions and territories, except those sold through Troy-Bilt???s authorized channels of export distribution.

f.Replacement parts that are not genuine Troy-Bilt parts.

g.Transportation charges and service calls.

No implied warranty, including any implied warranty of merchant- ability of fitness for a particular purpose, applies after the applicable period of express written warranty above as to the parts as identi- fied. No other express warranty, whether written or oral, except as mentioned above, given by any person or entity, including a dealer or retailer, with respect to any product, shall bind Troy-Bilt. During the period of the warranty, the exclusive remedy is repair or replacement of the product as set forth above.

The provisions as set forth in this warranty provide the sole and exclusive remedy arising from the sale. Troy-Bilt shall not be liable for incidental or consequential loss or damage including, without limitation, expenses incurred for substitute or replacement lawn care services or for rental expenses to temporarily replace a warranted product.

Some states do not allow the exclusion or limitation of incidental or consequential damages, or limitations on how long an implied warranty lasts, so the above exclusions or limitations may not apply to you.

In no event shall recovery of any kind be greater than the amount of the purchase price of the product sold. Alteration of safety features of the product shall void this warranty. You assume the risk and liability for loss, damage, or injury to you and your property and/or to others and their property arising out of the misuse or inability to use the product.

This limited warranty shall not extend to anyone other than the original purchaser or to the person for whom it was purchased as a gift.

HOW STATE LAW RELATES TO THIS WARRANTY: This limited war- ranty gives you specific legal rights, and you may also have other rights which vary from state to state.

IMPORTANT: Owner must present Original Proof of Purchase to obtain warranty coverage.
