Precautions

WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE

TO RAIN OR MOISTURE.

TO PREVENT ELECTRIC SHOCK, DO NOT OPEN THE COVER. REFER SERVICING

TO QUALIFIED PERSONNEL ONLY.

This unit is not disconnected from the AC power source as long as it is connected to the wall outlet, even if the unit itself has been turned off.

NOTE

The rating label and the safety caution are on the rear of the unit.

Power cord cautions

When plugging in or unplugging the power cord, hold it by the plug. Do not unplug it by pulling on the cord.

Do not touch the cord with wet hands as this could cause electrical shock or shorting Do not place furniture, etc, on top of the power cord.

Do not tie up the power cord, or connect a different power cord. Route the power cord so that it is not stepped on, or tripped over.

Using a damaged power cord could result in fire or electric shock. Inspect the power cord for damage. If damaged, consult your nearest TOSHIBA service centre or have it replaced at a sales outlet.

Welcome to the world of high definition picture and sound created by the TOSHIBA HD-S23 Set-Top Box. In order to enjoy the many features this receiver has to offer, please read this owner???s manual thoroughly before using.

Please record the serial number located on the back of the receiver. In the following spaces. Serial No:

In order to continue to get the maximum performance from your receiver: Make sure that it is set up properly.

Have it regularly inspected by qualified service personnel. Make sure that all family members learn to operate it properly.

In particular:

Prevent electric shock by making sure that children do not insert objects into the receiver???s holes or slots.

Please do not use or place the receiver in the following environments.

1.Near heat sources.

Places subject to direct sunlight.

Near radiators or air ducts.

On top of an amplifier

2.Dusty places

3.Places subject to vibration or shock

4.Near strong magnetic fields such as a speaker or a cassette deck.

5.Places subject to moisture such as a kitchen or bathroom.

6.Places without adequate air circulation. On top of a carpet or sofa.

In a bookcase.

Near materials such as curtains, etc.

7.Extremely hot or cold places

The operating temperature range of this unit is 5??? to 40???

8.Do not place a flower vase or cloth on top of this unit.

Please pay attention to the following items when using this unit. Failure to do so may result in damage to the unit or electric shock.

1.Connect the power plug to AC 100-240V 50/60Hz

2.Unplug the power cord from the receiver before connecting any other equipment, especially the TV antenna. Connect all equipment to the receiver before plugging any power cords to the power source.

3.Be sure your TV antenna is not located near overhead power lines, or where it might fall into any power lines. Also be careful to avoid touching any such power lines when installing the TV antenna.

4.Be sure that antenna is grounded to provide protection from lightning and build-up of static electricity.

5.Do not attempt to modify the unit.

6.If you hear a strange a sound or notice smoke coming from the unit, turn the power off immediately, unplug the power cord, and consult with your local sales outlet.

7.Do not drop metal objects, paper or liquids into the unit through the ventilation openings, etc.. This may result in damage. In the event something is dropped inside, turn the power off, unplug the power cord and consult with your local sales outlet.

8.When transporting, do not vibrate or shake the unit. This may result in damager or faulty operation.

9.If a three-prong power plug is provided with receiver. Be sure it is used with a properly grounded three-wise power socket.

10.Do not use insecticide sprays, etc, near the unit. Also, do not leave rubber or plastic objects in contact with the unit for long periods of time. This may cause discolouring of this unit???s finish.

11.When transporting the unit, be sure to turn off the power and disconnect all cables.

12.When not using the unit for a long period of time (when on vacation, etc) unplug the power cord.

13.Keep the original packing that this unit came in and use it to re-pack the unit when moving or transporting.

14.Avoid overloading electrical outlets or extension cords, otherwise it could result in electric shock or fire.

MOISTURE CONDENSATION

Never operate this receiver immediately after moving it from a cold location to a warm location. In this case, connect the power cables of the receiver to an AC outlet, to turn the power on and leave it for TWO TO THREE hours without operating it.

Moisture condensation is most likely to occur in the following cases: When moved from a cold location to a warm location.

In a room rapidly heated or in a place where the receiver is directly exposed to cool flow of air from an air-conditioner or other electrical appliance.

In a room with excessive dampness or high humidity.

INTRODUCTION

The HD-S23 Digital Terrestrial HDTV Receiver opens up to a new world of free-to-air terrestrial HDTV and SDTV programmes. The receiver can receive channels from both VHF band and UHF band TV station???s signals. All the major terrestrial free-to-air station numbers currently available in your area are listed in the on-screen menu. To watch a channel, simply select the channel number and you will be accessing a wide range of high quality digital programmes.

The receiver is fully MPEG 2 / DVB-T compliant, delivering High Definition crystal-sharp video and Dolby?? Digital sound. As it supports a channel frequency range of 50-860 MHz, it can be easily programmed for all the channels within the VHF and UHF frequency bands. To find out the channel frequencies in your area, please contact your local service provider.

FEATURES

HD 1080i Capability

High Definition (HD) brings a wide-screen format to the home television as well as a sharper picture. This receiver corresponds with 1080i signal input and it fully recreates high definition screen quality.

Dolby?? Digital

Dolby?? Digital is the surround sound technology used in theatres showing the latest movies, and is now available to reproduce this realistic effect in the home. You can enjoy motion pictures and live concert TV programmes with this dynamic realistic sound by connecting HD-S23 receiver to a 6-channel amplifier equipped with a Dolby?? Digital decoder.

Teletext/Fastext

PIP (Picture-in-Picture)

This feature gives you the ability to view 2 different channels at the same time. One program can be viewed on the main screen while another is simultaneously displayed in a smaller viewing window, often positioned in one corner of the screen. The basic PIP system requires you to use the tuner of an externally connected video component such as a VCR as the source for the second signal.

AUX Input

Allows you to select video input between Antenna and DVD/VCR.

Still Picture Display

Allows you to take a snapshot of a video at a particular instant as a still picture.

Wide-screen Picture Format

Wide-screen is the term given to picture displays that have a wider aspect ratio than normal. For example, the aspect ratio for conventional TVs is 4:3 and for wide-screen TVs is 16:9. This receiver supports broadcasts in both formats.

Introduction

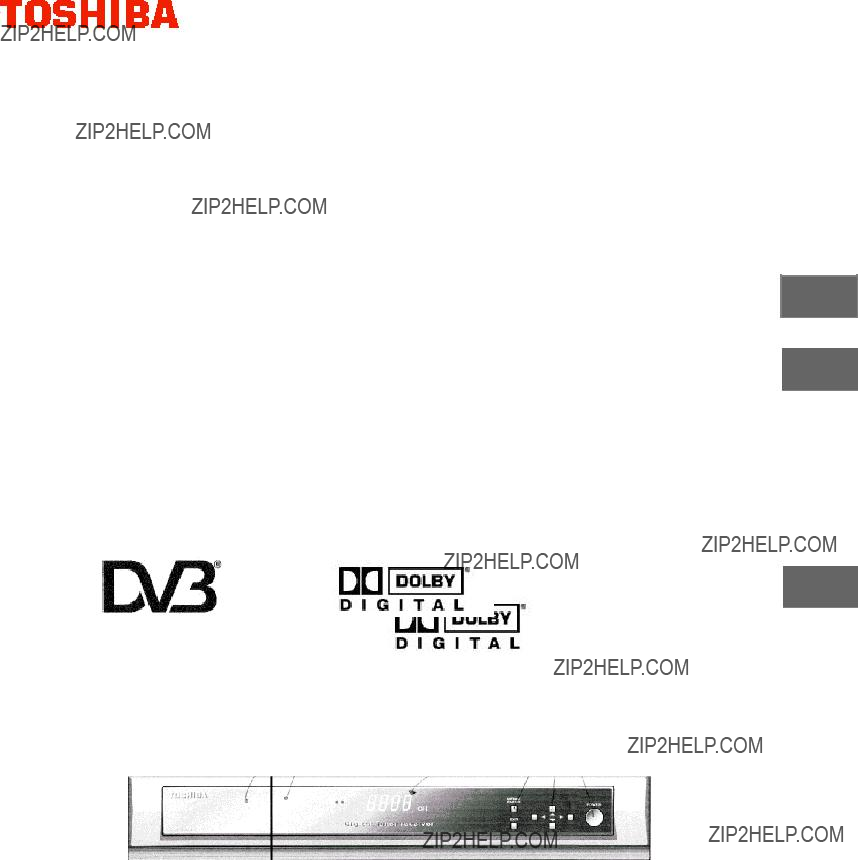

IDENTIFICATION OF CONTROLS

Front Panel

LED Display

Four-digit channel number, time or video format Two LEDs:

Green for power; Red for signal indication (OFF ???signal captured, ON ???no signal)

MENU / ENTER (Please refer to pp. 17 for more details)

EXIT / V.OUTPUT ??? OUT1 & OUT2 description (Zinwell)

Direction Keys

Power on / off

Rear Panel

AC MAINS SUPPLY

100~240 VAC, 50/60 Hz

SERIAL PORT

For connection to PC for software upgrade

DIGITAL AUDIO (OPTICAL)

For connection to an amplifier equipped with Dolby?? Digital decoder

(OUT2) Component ??? Y/Pb/Pr

For connection to TV monitor???s component video inputs

S-VIDEO (OUT1)

For connection to TV monitor???s S-Video input

(OUT1) Composite- VIDEO / L

/ R

For connection to TV monitor???s Video/L/R inputs

For connection to DVD or VCR Video/L/R output

RF OUT

For connection to analogue TV???s ANT. IN

ANT.IN

For connection to UHF/VHF antenna

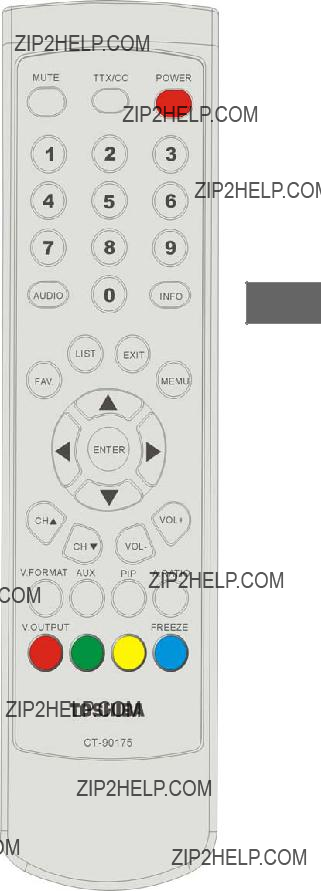

Remote Control

The buttons on the remote control are described as follows:

Numeric Buttons For entering channel number or password

POWER Switches the receiver between ON and STANDBY modes

VOL+/VOL- Increases or decreases audio volume

A.RATIO Adjusts the aspect ratio between 16:9 and 4:3

- Wide Vision: to display 16:9 program on 16:9 TV screen to display 4:3 program on 4:3 TV screen

- Wideview Normal: to display 16:9 program on 4:3 TV screen in letterbox

- Normal Vision: to display 16:9 program cropped on 4:3 TV screen

PIP Shows the auxiliary input and multiple programs list in the same DTV Network the receiver is tuned to and allows displaying the second program on the TV screen

AUX Selects between ANT.IN (DTV signal) and AUX (DVD or VCR) inputs

V.Format Toggles between 576i, 576p, 720p and 1080i video formats through Y/Pb/Pr video connectors.

Freeze To Freeze the picture on the main Screen.

V.Output Switch between Composite (Out 1) and Component (Out 2)

Introduction

Loading batteries

Operating with the remote control

1.Open the Cover

2.Insert batteries (AAA size)

Make sure to match the + and ??? on the batteries to the marks inside the battery compartment. 3. Close the cover.

Notes on batteries

Improper use of batteries may cause battery leakage and corrosion. To operate the remote control correctly, follow the instructions below.

Do not insert batteries into the remote control in the wrong direction.

Do not charge, heat, open, or short-circuit the batteries. Do not throw batteries into a fire. Do not leave dead or exhausted batteries in the remote control.

Do not use different types of batteries together, or mix old and new batteries.

If you do not use the remote control for long period of time, remote the batteries to avoid possible damage from battery corrosion.

If the remote control does not function correctly or if the operating range becomes reduced, replace all batteries with new ones.

If battery leakage occurs, wipe the battery liquid from the battery compartment, then insert new batteries.

Operating with the remote control

Point the remote control at the remote sensor and press the buttons.

Distance: About 7 m (23 feet) from the front of the remote sensor.

Angle: About 30??in each direction of the front of the rem sensor.

Do not expose the remote sensor of the DVD player to a strong light source such as direct sunlight or other illumination. If you do so, you may not be able to operate the DVD player via the remote control.

Notes on the remote control

Direct the remote control at the remote sensor of the DVD player. Do not drop or give the remote control a shock.

Do not leave the remote control near an extremely hot or humid place. Do not spill water or put anything wet on the remote control.

Do not open the remote control

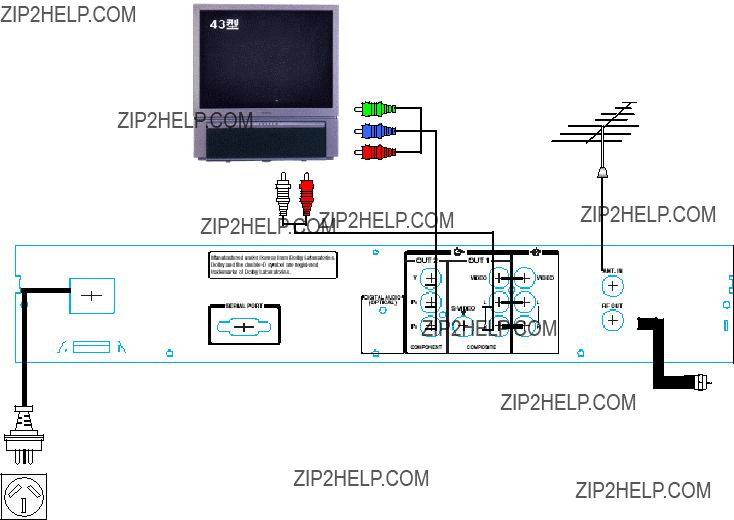

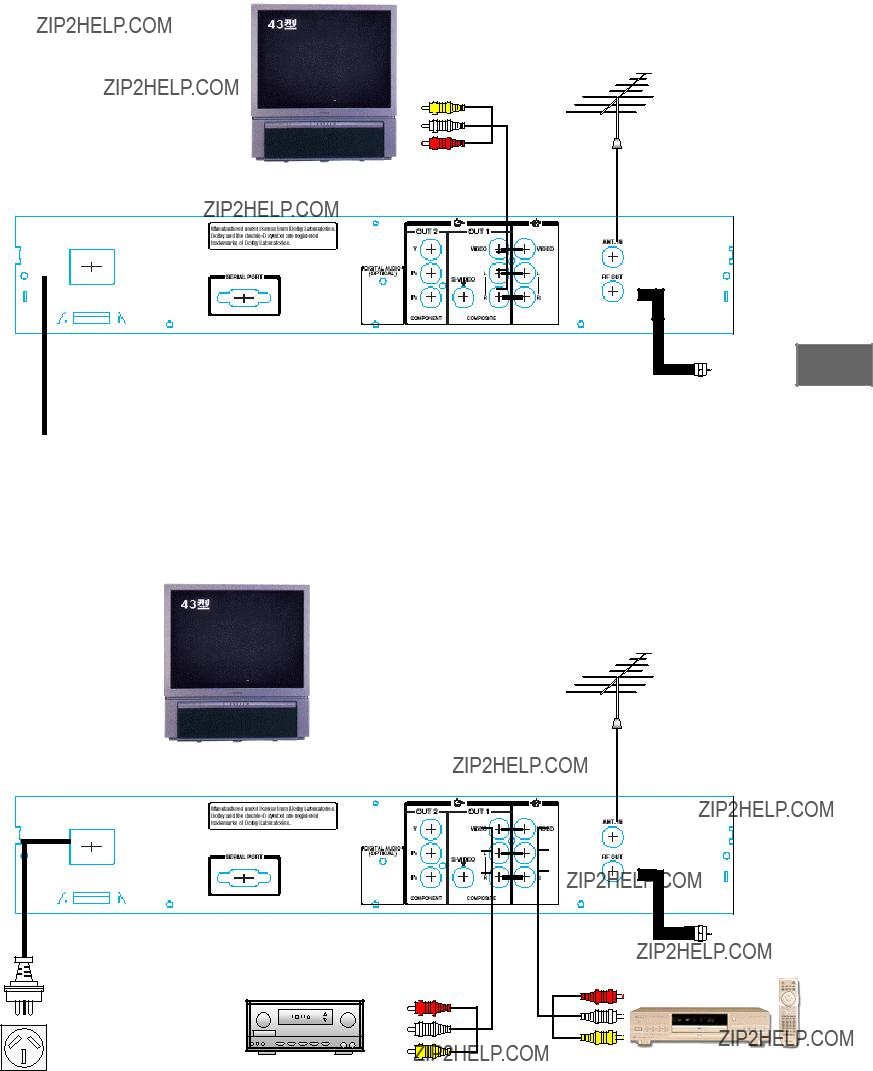

CONNECTING TO AUDIO VIDEO DEVICES

For the best video/audio quality, use the higher quality Y/Pb/Pr or S-Video cables if available. Always remember to disconnect the receiver from the power source, when connecting or disconnecting the cable to the UHF/VHF antenna.

Notes:

(a)If your TV supports 1080i / 720p / 576p / 576i video input formats, please use the receiver???s OUT2 video connectors. You may use the V.FORMAT button on the remote control to switch between four video output formats 1080i/720p/576p/576i.

(b)If your TV supports 576i video input format, please use the receiver???s OUT1 connectors to connect to

your TV.

For more details on the various ways of connection, please refer to pp. XX.

Before connecting or disconnecting the antenna cable, turn off the antenna booster, if any.

UMenu

Functions in the Menu.

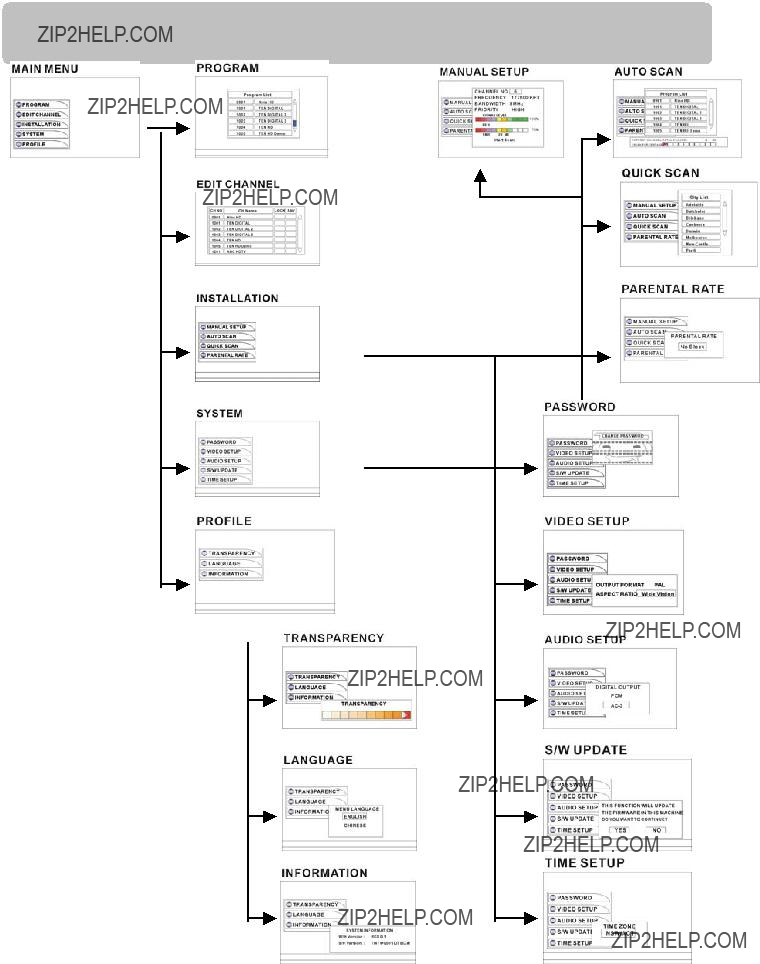

???Menu Map

???Initial Setup

???Main Menu

???Installation

-Auto Scan

-Quick Scan

-Manual Setup

-Reset Data

???Program

???Electronic Program Guide

???System

-Password

-Video Setup

-Audio Setup

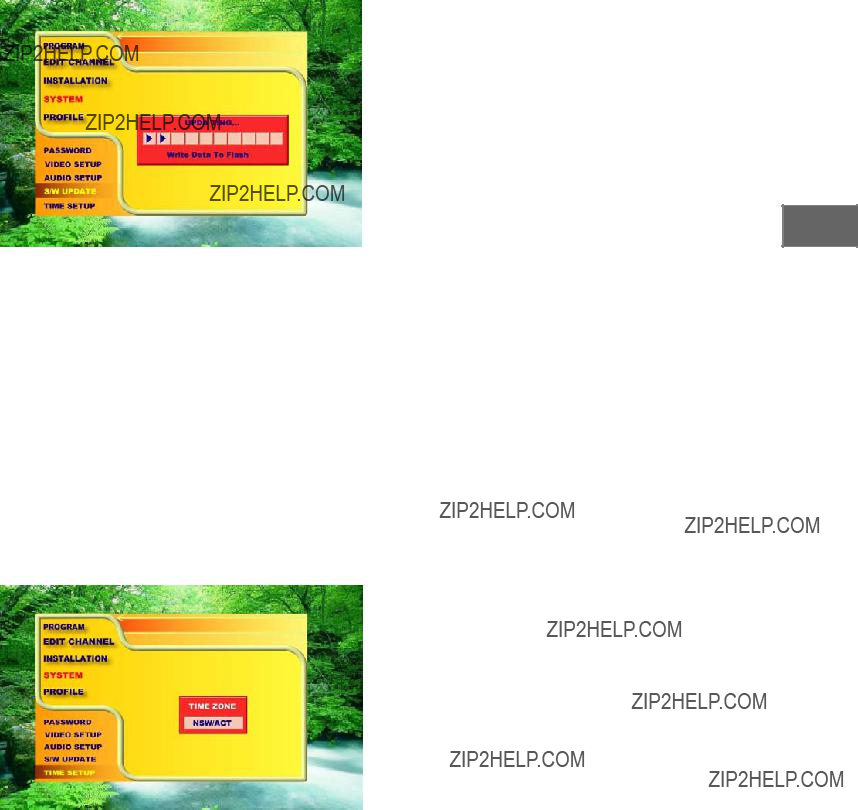

-Software Update

-Time Setup

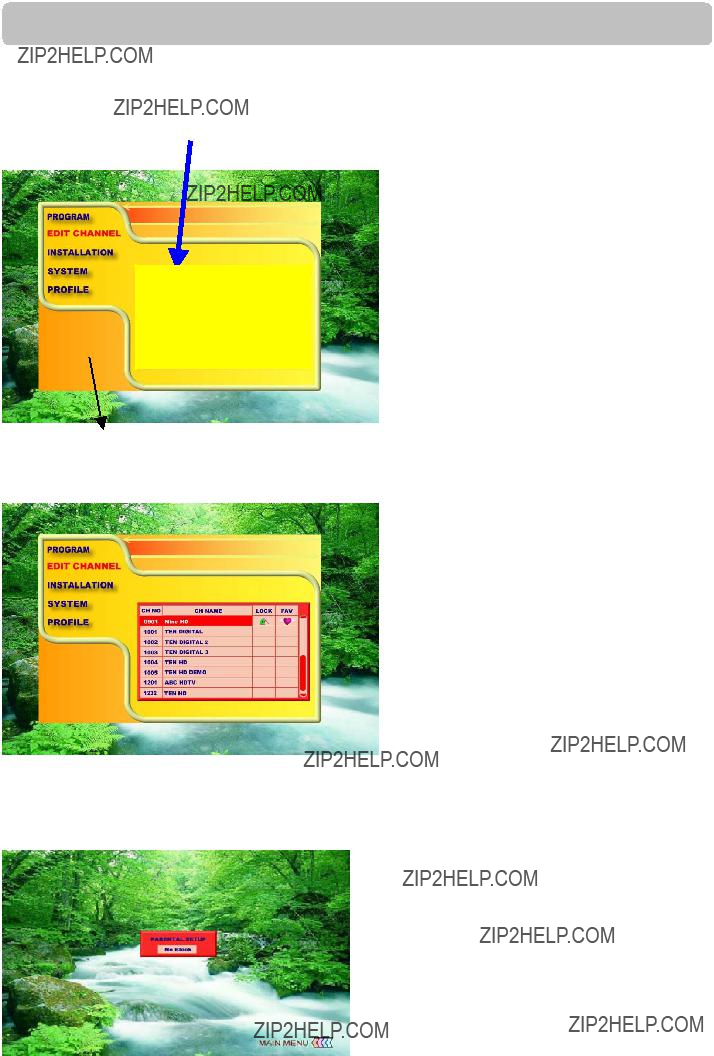

???Edit channel

-Fav. & Lock

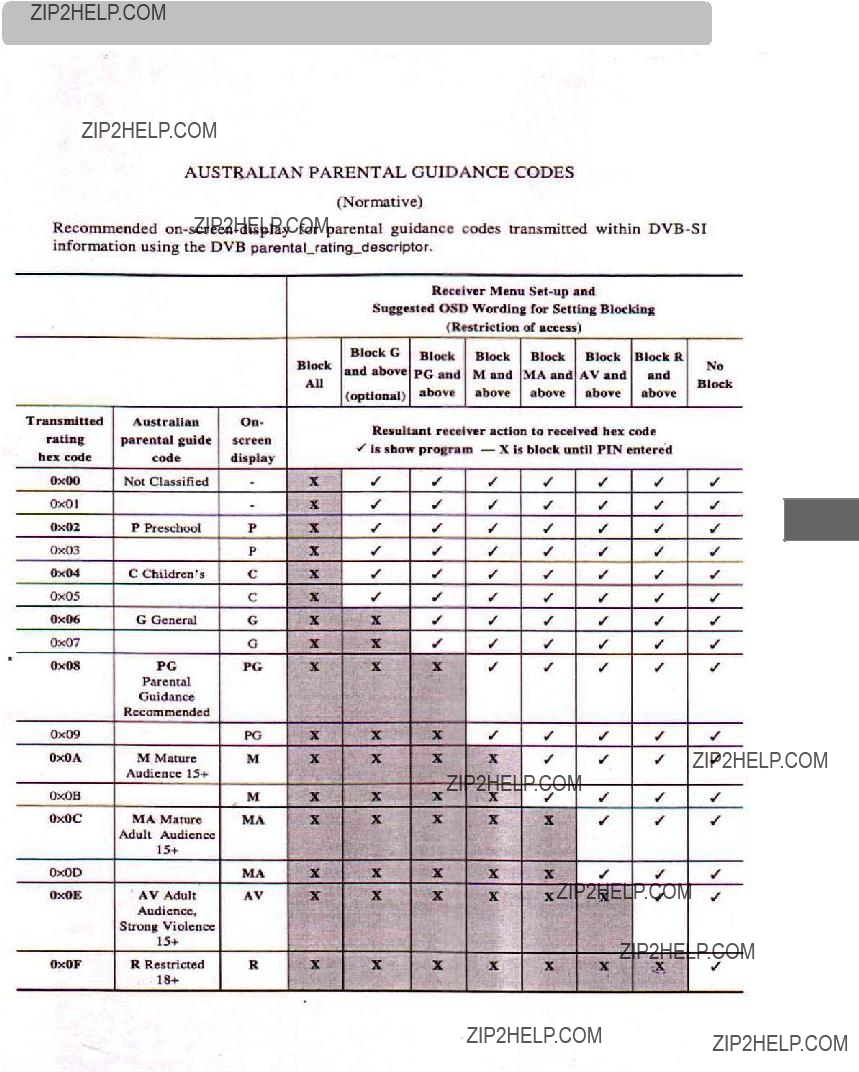

-Parental Guidance (Rating)

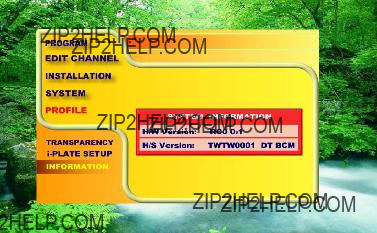

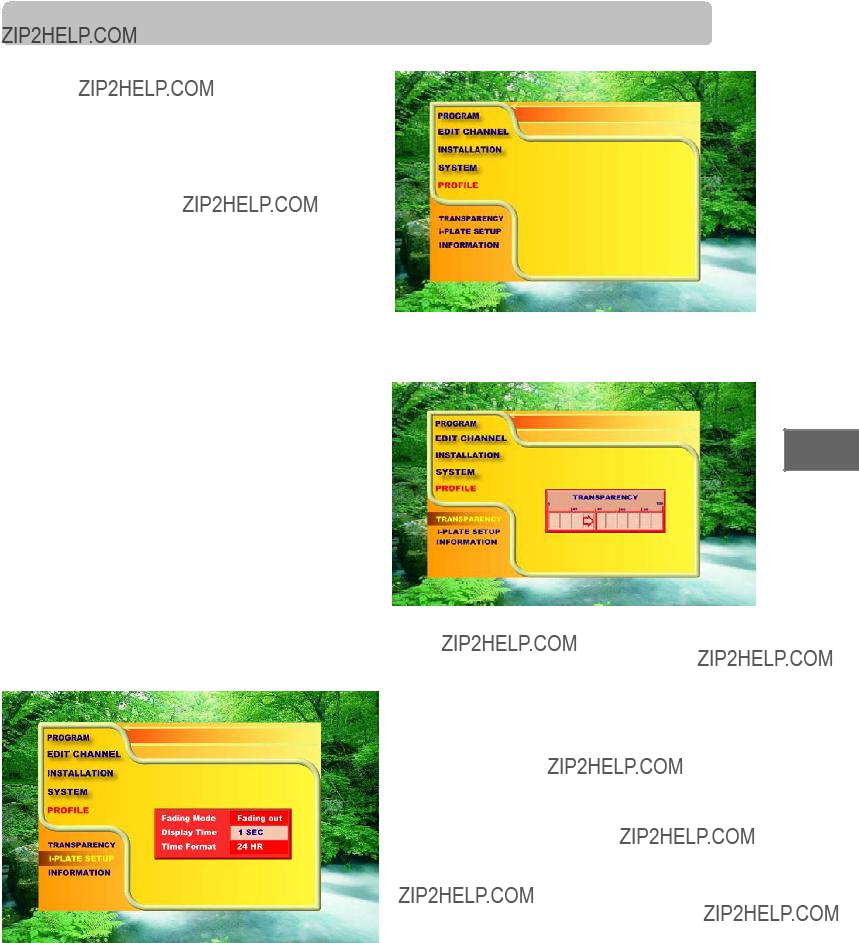

???Profile

-Transparency

-I-Plate Setup

-Information

INITIAL SETUP

If your service provider or antenna installer has already installed your TV system to receive terrestrial TV programmes, do not change any connections of those devices or installation settings unless it is absolutely necessary. If your receiver has not been configured by your service provider or system installer, then it will not be set up for any specific channel or frequency when powered on for the first time.

???Initial Screen ???

The first time the receiver is powered on, it will display a Country Selection menu.

??? Use the arrow buttons ????????? and ????????? to highlight your country of residence and press the ???ENTER??? button to make your selection.

SIN AUS

??? If the Initial Screen does not appear, press the ???MENU??? button for configuration.

Zinwell to-do:

Above is tentative description.

Actual procedure to be confirmed by Zinwell. Also Zinwell should provide an updated snapshot for country selection screen.

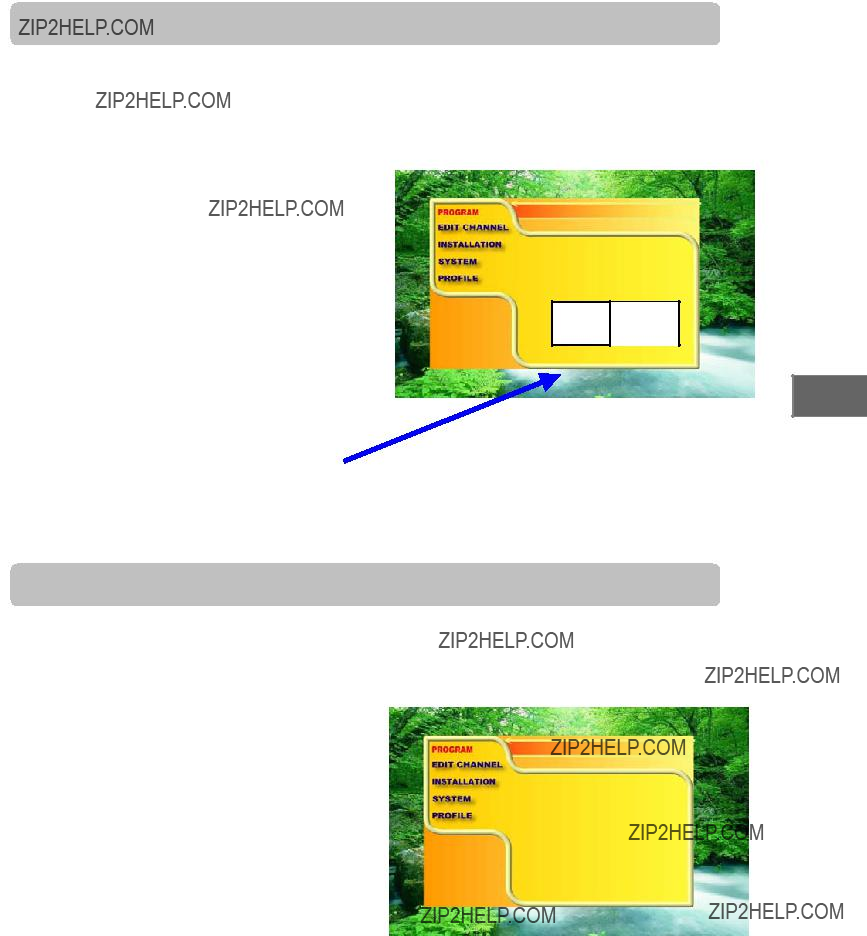

MAIN MENU

There are two ways to enter the Main Menu when the receiver is powered on:

???On the remote control, press the ???MENU??? button.

???Alternatively, press ???MENU??? button on the front panel.

Use the arrow buttons ?????? to navigate through the menu, ???ENTER??? button to choose specific items, and ???EXIT??? button to return to the main menu from submenu or to leave the main menu.

Navigation Menu

INSTALLATION

On the main menu, select ???INSTALLATION??? and key-in your password to enter the Installation page.

Note: The default password is 0000. Please refer to pp. XX to change the password.

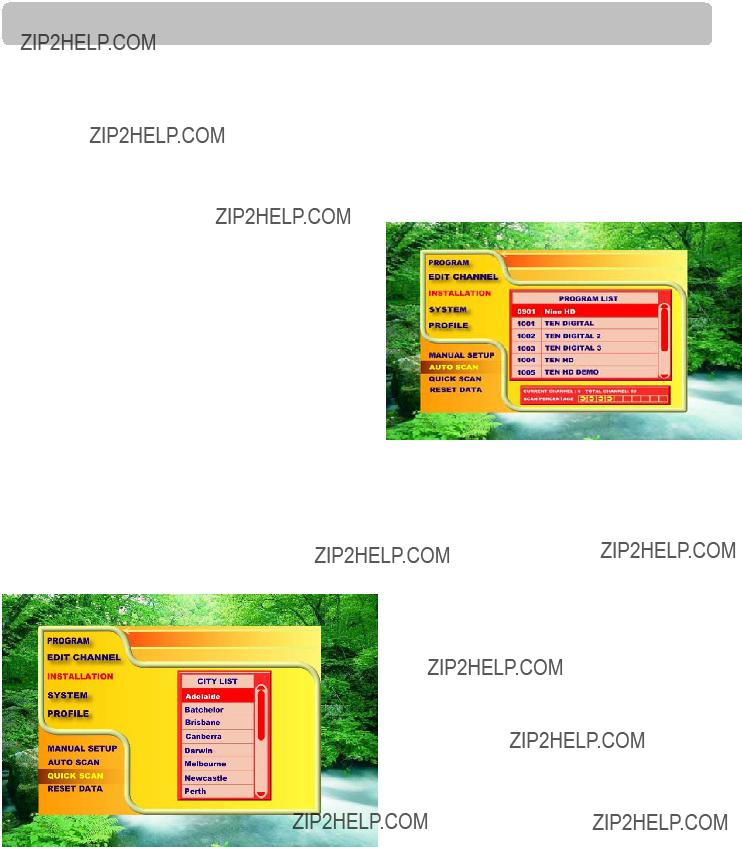

AUTO SCAN

The steps required to automatically program the receiver are outlined as below:

???Highlight ???AUTO SCAN??? and press the ???ENTER??? button to start channel search.

???The receiver starts scanning from channel 2 to channel 69. The status bar shows the progress being made.

???Once the digital TV signal is scanned, the channel number and program name will be shown.

NOTE: Auto scan process may take about 18 minutes to complete.

QUICK SCAN

If you live in one of the cities listed on the Quick Scan menu, you may select your city and start scanning all predefined digital TV channel signals..

??? On the installation page, highlight ???QUICK SCAN??? and press the ???ENTER??? button.

??? Use the ????????? and ????????? buttons to highlight the city you live in and press the ???ENTER??? button to start scanning.

??? For Australia, it will scan through five RF channels including ???Seven???, ???Nine???, ???Ten???, ???ABC and ???SBS???.

Note: The frequencies of these five channels are preset in the receiver???s database. In the case that the channel frequency is changed by the local TV station or a new channel comes up after July 2003 you have to scan these channels using ???MANUAL SETUP???.

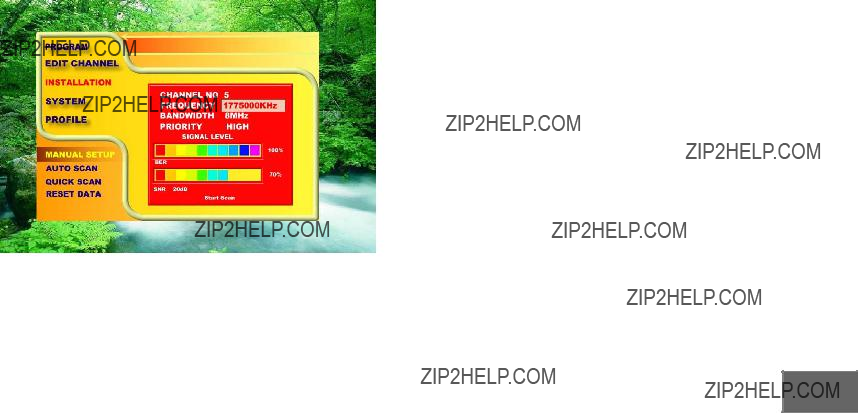

MANUAL SETUP

??? On the Installation page, highlight ???MANUAL SETUP??? and press the ???ENTER??? button.

??? Select channel number. Be sure you know the channel number and its RF frequency. You may refer to Digital TV channel table on Appendix 1.

??? Press ????????? button to highlight ???Frequency???, ???Bandwidth??? and ???Priority??? to make sure the

parameters are correct, then press ????????? button to highlight ???Start Scan??? and press the ???ENTER??? button to start scanning.

Note:

(1)If scanning is successful, ???Start Scan??? will change to ???Get Channel Success??? and signal quality will be shown. At this point you can press ???EXIT??? to leave ???MANUAL SETUP??? or continue scanning other channels.

(2)If scanning is unsuccessful, ???Start Scan??? will change to ???Time out error???. At this point you can rescan the signal or refer to the signal level bar ???LVL??? and bit error rate counter ???BER??? for aligning the direction of the antenna to get the signal. Please refer to your Antenna Installer if problem persists.

(3)For Australia, the bandwidth should be 7MHz while for Singapore the bandwidth should be 8MHz.

RESET DATA

Zinwell to-do:

Add RESET DATA description here!

Navigation Menu

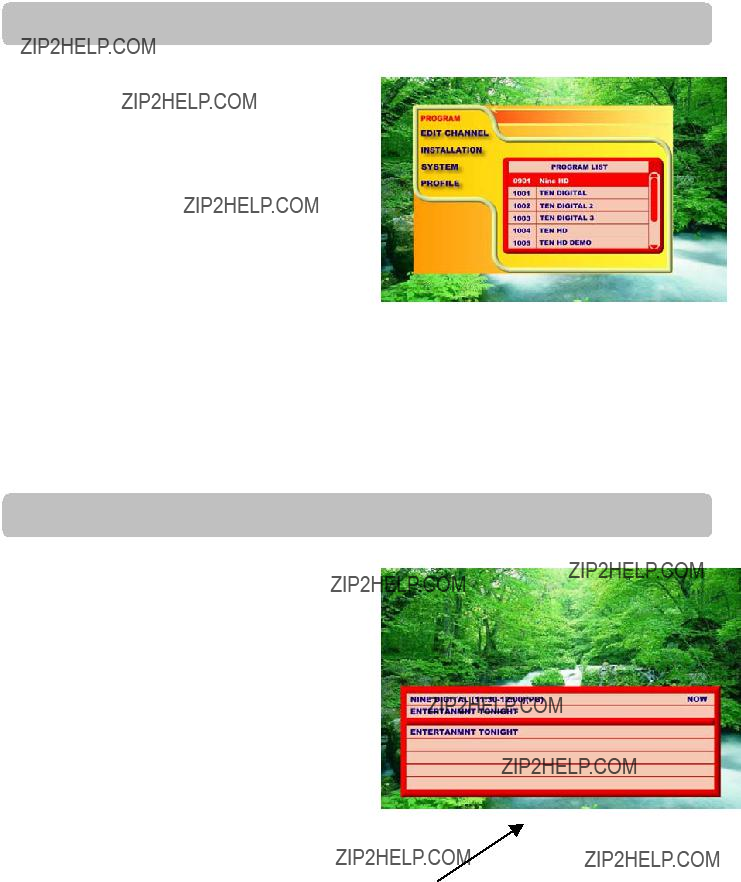

PROGRAM

???On the main menu, select ???PROGRAM??? to enter the program list.

???Use the ????????? and ????????? buttons to browse through the channel numbers and names

Note: Alternatively, when you are watching a Digital TV channel (without any menu on screen), you can press the ???LIST??? button on the remote control twice to call up the program list.

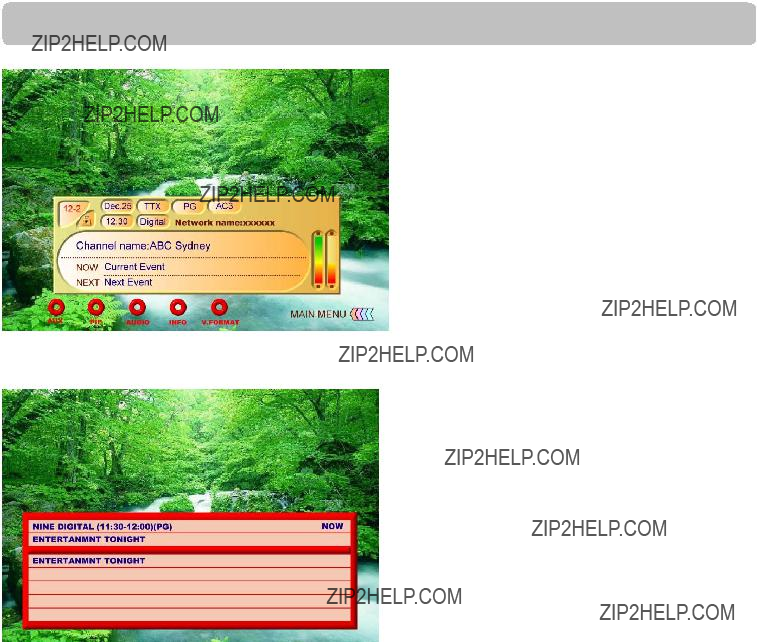

ELECTRONIC PROGRAM GUIDE

???To call out the program guide of the specific channel, highlight the channel from the program list and press the ???ENTER??? button.

???Alternatively, you may press the ???INFO??? button on the remote control twice to call up the program guide.

???Use ????????? and ????????? buttons for details on NOW and

NEXT event, and ????????? and ????????? buttons for scrolling an event table that consists more than 1 page.

The first row shows channel name, show times and parental rating. The second row shows program name and third row shows program genre.

EPG???s OSD need to change to have three rows on the top of OSD.

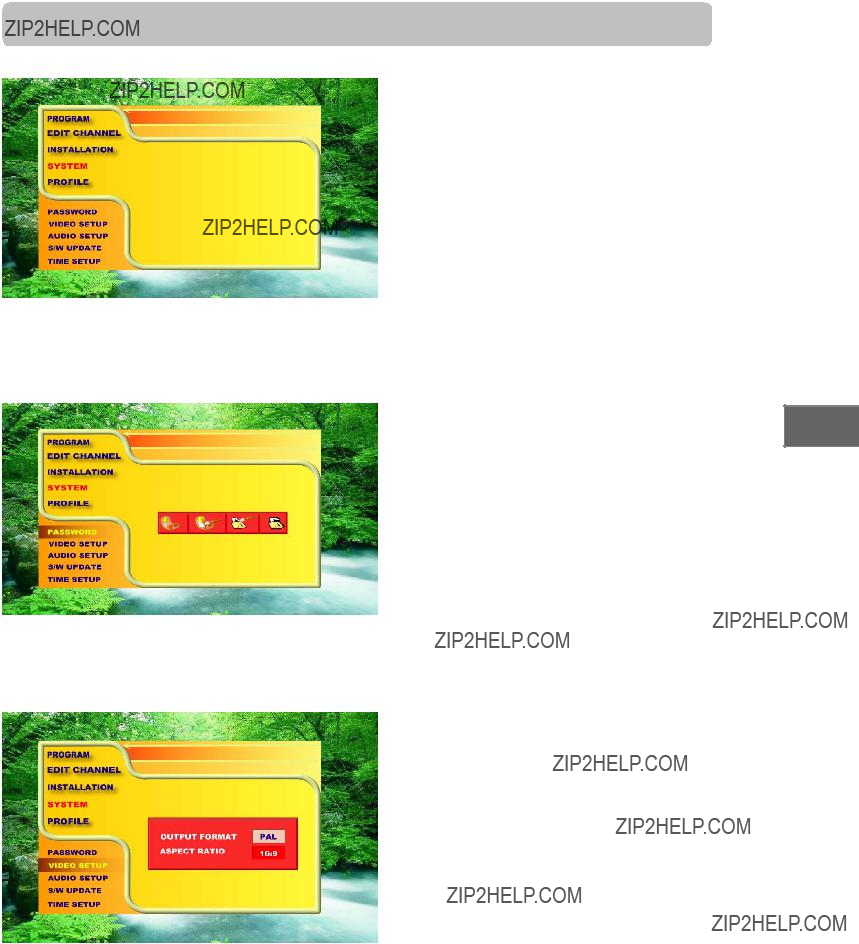

SYSTEM

??? On the main menu, select ???SYSTEM???.

??? Use the ????????? and ????????? buttons to highlight the options

PASSWORD

??? Highlight ???PASSWORD??? and press the ???ENTER??? button. When prompted, enter your current password.

??? You will then be prompted to enter the New Password.

??? Enter the new password again to reconfirm.

Note: The default password is 0000.

VIDEO SETUP

??? Highlight ???VIDEO SETUP??? and press the ???ENTER??? button.

??? Use the ????????? and ????????? buttons to switch between ???4:3??? and ???16:9??? picture formats.

Navigation Menu

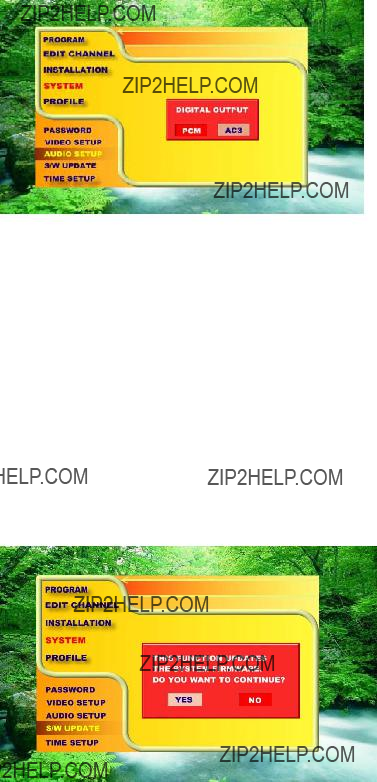

AUDIO SETUP

???Highlight ???AUDIO SETUP??? and press the ???ENTER??? button.

???Use the ????????? and ????????? buttons to switch between ???PCM??? and ???Dolby?? Digital??? .

Note: The digital audio output will automatically output in PCM format whenever switching to a channel without Dolby?? Digital sound track.

Digital output: PCM and Dolby digital (add description here)

Note: You need to connect to an amplifier with AC-3 decoding capability via Digital Audio (SPDIF) Output when Dolby Digital option is selected. Otherwise, you may encounter softer audio from TV output.

Audio Format English (MPEG1) & English (Dolby)

SOFTWARE UPDATE

This option in System page updates the software in the receiver. However, before you proceed to update the software,

please consult your local dealer first and make sure you know how to operate Microsoft Windows HyperTerminal on

your computer.

???Highlight ???S/W UPDATE??? and press the ???ENTER??? button.

???Use the ????????? and ????????? buttons to highlight between ???YES??? and ???NO???.

???Before you select ???YES???, please follow the steps outlined below to configure your PC first:

(a)Connect PC to your HD-S23 receiver with a cross-over RS232 cable (cable for null modem)

(b)On the PC side:

-Launch the Windows HyperTerminal application.

-Name the connection.

-Select the correct COM port ??? usually COM1.

-Use the following COM port settings:

baud rate: 115200

data: 8

parity: none

stop bit: 1

flow control: none

-Select HyperTerminal???s basic function ???Transfer???.

-Select ???Send File???.

-Browse to select the updated software file.

-Transfer protocol: ???1K Xmodem???

DON???T click on the ???Send??? button at this time yet.

???Now that your PC has been properly configured, you can highlight ???YES??? on the TV screen and press the ???ENTER??? button on the remote control.

-To be continued on the next page ???

???After selecting ???YES???, you will see the current software version and its size on the TV screen. Make sure this software version is different from the version of the new software file stored on your PC. Select ???YES??? again to proceed with the download.

???Now click on the ???Send??? button on your PC Hyperterminal to start uploading the new software.

???On the TV screen, you will see the window with a status bar indicating the download progress

???When download is completed, the receiver will reboot automatically.

???After the receiver is booted up, you will see a message window informing you that the receiver???s database is empty.

???Press the ???MENU??? button on the remote control, select ???PROFILE??? then select ???INFORMATION??? to confirm the current software is indeed changed to the new one. You can then proceed to scan digital TV channels by following instructions on pp. XX and XX.

TIME SETUP

??? Highlight ??? TIME SETUP??? and press the ???ENTER??? button.

??? Use the ????????? and ????????? buttons to select the local time zone you are located in.

Navigation Menu

EDIT CHANNEL

Zinwell to-do:

Add the screen snapshot for EDIT CHANNEL here.

??? On the main menu, select ???EDIT CHANNEL???.

??? Use the ????????? and ????????? buttons to highlight the options

- FAV & LOCK

- PARENTAL RATE

Add two selections here.

FAV & LOCK

??? Highlight ???FAV & LOCK??? and press the ???ENTER??? button.

??? Use the ????????? and ????????? buttons to select the channel, use the ????????? and ????????? buttons to select ???LOCK??? or ???FAV???.

??? Highlight ???LOCK??? and press the ???ENTER??? button to lock the selected channel.

??? Highlight ???FAV??? and press the ???ENTER??? button to add the selected channel into the favourite list.

PARENTAL GUIDANCE (RATING)

??? On the ???EDIT CHANNEL??? page, highlight ???PARENTAL RATING??? and press the ???ENTER??? button to block programs.

??? Use the ????????? and ????????? buttons to select the Rating and press the ???EXIT??? button to confirm the setting.

??? When DTV programs broadcasted are accompanied by the ratings, the programs will be blocked based on your setting. You have to enter PASSWORD to resume watching the program.

??? Please refer to Appendix 3 for details.

PROFILE

???On the main menu, select ???PROFILE???.

???Use the ????????? and ????????? buttons to highlight the options

-TRANSPARENCY

-I-PLATE SETUP

-INFORMATION

TRANSPARENCY

???Highlight ???TRANSPARENCY??? and press the ???ENTER??? button.

??? Use the ????????? and ????????? buttons to change the degree of transparency of the on-screen-display.

Navigation Menu

I-PLATE SETUP

???Highlight ???I-PLATE SETUP??? and press the ???ENTER??? button.

???Use the ????????? and ????????? buttons to highlight ???Fading Mode???, ???Display Time??? and ???Time Format???.

???Use the ????????? and ?????????buttons to change the values of the highlighted options.

I-PLATE (INFO)

???When watching DTV channels (without any menu on the screen) , press the ???INFO??? button.

???I-PLATE will pop up with the following information:

-Current Channel Number

-Network Name

-Program Name

-Audio System (Dolby?? Digital or MPEG)

-Teletext

-Current Local Time

-Date and Month

-Parental Guidance

???When I-PLATE is still on the TV screen, you can press the ???INFO??? button again to call up the extended program information (also known as electronic program guide) of the current TV channel.

???Please refer to pp. XX for details on electronic program guide.

AUX IN (External Video/Audio Input)

???Press the ???AUX??? button on the remote control to select the following options:

-OFF-AIR

-AUX

???Use the ????????? and ????????? buttons to highlight the options and press the ???ENTER??? button to select.

User can change to any other format by pressing the ???V.Format??? button. (Please refer to Pg 9). This feature is possible only through the use of ???OUT2??? connector (Y/Pb/Pr).

PIP (Picture-in-picture)

???When watching a TV program (not in the main menu), press the ???PIP??? button on the remote control to

bring up the PIP menu with a list of different programs .

???Use the ????????? and ????????? buttons to browse through the program list.

???Highlight a program and press the ???ENTER??? button to show ???picture-in-picture??? ??? two programs playing on the TV screen at the same time.

???To close PIP window, press the ???PIP??? button and select ???PIP OFF???.

NOTE: When playing VCR movie in PIP window through AUX IN connection, you may encounter poor picture quality if old video tape is used.

Control Quick

TELETEXT / CLOSED CAPTION

??? When I-PLATE indicates the presence of Teletext, you can press the ???TTX/CC??? button on the remote control to display it on the TV screen.

To show the close caption on TV screen, press ???TTX/CC??? button and go to page ???801???.

Note: Close caption will be disabled when new OSD was displayed on screen.

FAVOURITE CHANNEL LIST

??? Press the ???FAV??? button on the remote control to call up the Favourite List.

??? Use the ????????? and ????????? buttons to browse through the favourite list and highlight the program you want to watch.

??? Press the ???ENTER??? button to confirm your selection.

FREEZE

Zinwell to add description here for FREEZE button!

A.RATIO

Zinwell to add description here for A.RATIO button!

APPENDIX 4 GLOSSARY

*Aspect Ratio: It is the ratio of the width of the screen to the height. The two relevant digital TV formats are 16:9 (widescreen) or 4:3 (the traditional screen ratio). 16:9 is more ergonomically suitable for the human eye.

*Bandwidth: Frequency range allows for carrying a certain radio signal. The speed of data transmission depends on the available bandwidth of the transmission channel.

*Coaxial Cable: A type of cable used to transmit high frequency signals e.g. from the VHF/UHF antenna to the terrestrial Digital TV receiver.

*Composite Video: There are three elements of the video system: First - the " active video" which means the picture to be displayed on the screen and its associated colors. Second - the " sync" decides where to place each pixel on the screen. Third - the " blanking" tells the display when to turn off the electron beam so no retrace across the screen. These three elements combined together is called " composite video" when connecting to a display through connectors.

*Dolby?? Digital: Dolby?? Digital is a method of transmitting and storing multi-channel soundtracks via newer digital media such as DVD, digital cable, digital broadcast TV (DTV), and satellite transmissions.

*DVB: Abbreviation for "Digital Video Broadcasting". An international organization created in October 1993, whose primary objective is to achieve a common framework for all technical platforms of digital broadcasting systems including DVB-C (cable), DVB-S (satellite), DVB-T (terrestrial), DVB-MC (MMDS), DVB-CS(SMATV).

*EPG: Abbreviation for "Electronic Program Guide". A software that enable viewers to navigate through the

large number of channels offered by digital TV broadcaster and select the desired services.

*Frequency: The property of a signal which is measured in cycles per second(=Hertz).

*Letterbox : The picture with aspect ratio 16:9 in a 4:3 TV screen with blank lines on top and bottom. It is the means to watch a wide screen TV program on a 4:3 TV screen.

*Megahertz (MHz): Millions of cycles per second, which describes frequencies of radio wave or electric current.

*OSD: Abbreviation of "On Screen Display", used in digital set top box. OSD is comprised of a main menu and

many sub-menus with lots of options of functions inside.

*PAL: Stands for "Phase Alternating Line", the European video standard which has the image format of 4 by 3, 625 horizontal lines, 50 Hz and a total 8 MHz of video channel width.

*PID : Stands for "Packet Identifier". It is a code used for identifying video, audio PCR and other elements that form a particular service in the transport stream.

*RF Channel: Radiated Frequency Channel, for instance channel 28 for SBS Network in analog TV transmission. However in digital TV, one RF channel may carry 4 to 6 sub-channels like SBS HD, SBS Digital.

*S-Video (also called Y/C): The standard for the way a video signal is carried on the cable. Y represents

brightness and C represents color. S-Video cables have separate wires for the color and brightness so it offers a better picture quality than the composite video.

*VHF: Stands for "Very High Frequency", starts from 30 to 300 MHz corresponding to channels 2-12, including Bands I, II and III.

*UHF: Stands for "Ultra High Frequency", starts from 300 to 3000 MHz corresponding to channels 13-69,

including Bands IV and V.

* Y/Pb/Pr: Component Video Output. It is better than S-Video and Composite Video output in terms of picture quality. Y/Pb/Pr is the standard HDTV connector.
