f e a t u r e s

DPA Cutting Units

???Cast iron and cast aluminum cutting unit frames provide unmatched rigidity and consistency for less frequent adjustments

???Precise DPA adjustment simplify reel-to-reel consistency and setup

???EdgeMax?? bedknifes and austempered hardened reel blades provide longer edge retention and improved wear life

Options Include:

???68.6 cm and 81.3 cm (27??? & 32???) Cutting Unit widths

???5, 8, and 11 blade options

???Rear roller brushers for enhanced clipping dispersion.

???Grass baskets

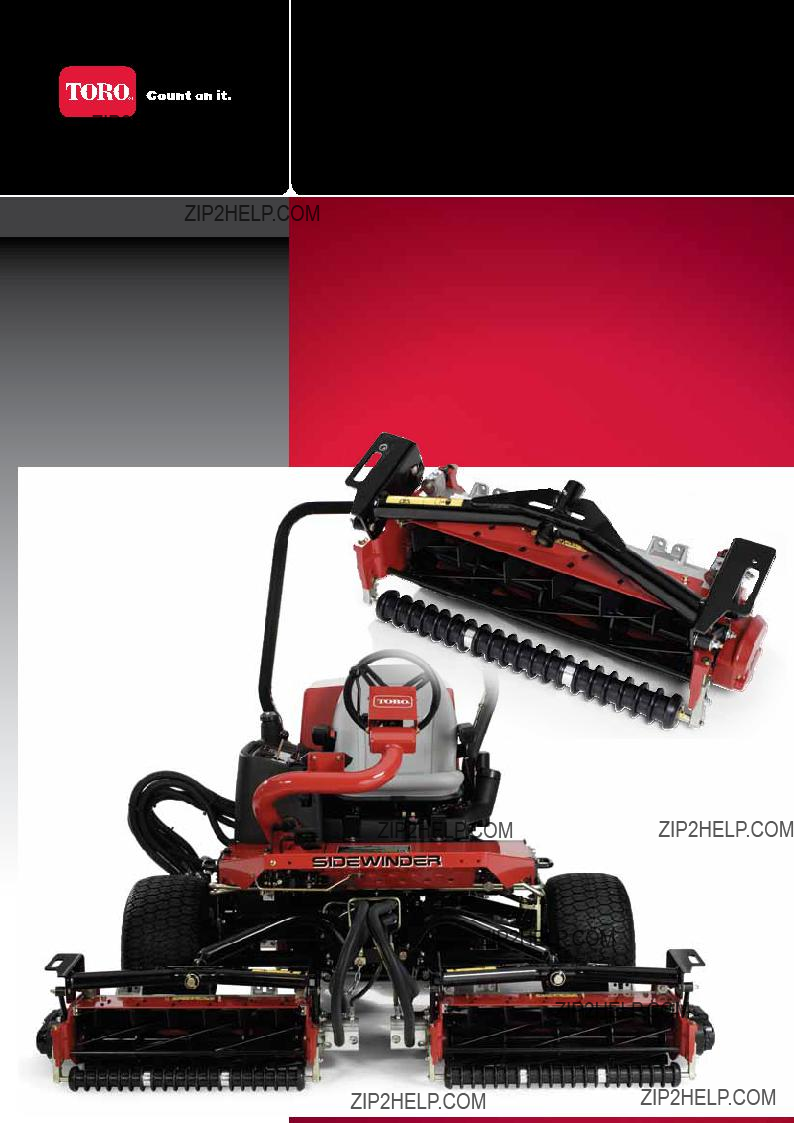

Reelmaster?? 3100-D

with DPA Cutting Units

The Best Just Got Better!

Now the best triplex trim mower on the market just got better with the addition of the legendary DPA (Dual Precision Adjustment) cutting units. These proven cutting units deliver superior aftercut appearance, increased adjustment retention and longer wear life. Combine that with the unique features of the Reelmaster 3100-D with optional Sidewinder??? technology and you have a mower whose versatility and cutting quality is second to none.

Engine

configuration FUEL capacity

traction drive

ground speed

controls

gauges

electrical & interlocks

tires Frame Brakes steering

overall dimensions

sound level sound pressure level vibration level

cutting unit configuration

cutting unit offset

certification

warranty

REELMASTER 3100-D, MODEL 03170 REELMASTER 3100-D, MODEL 03171 w/SIDEWINDER

Kubota?? liquid-cooled diesel, 3-cylinder, 16 kW (21.5 hp) net @ 2500 RPM. 1123 cm3 (68.5 cu. in.) displacement. Pressurized lubrication system with 3.3 liter (3.5 U.S. qt.) capacity. Heavy duty, radial seal air cleaner. Fuel/water separator with visible bowl.

Rear mounted engine, front operator position. Rear mounted radiator. Two post ROPS and seat belt standard.

28 liters (7.5 gallons). 2008 models Biodiesel-Ready for use up to B-20 (20% biodiesel and 80% petrol blend).

Series/Parallel hydraulic traction circuit provides continuous 3-wheel drive, in mow and transport. Hydrostatic traction drive provides infinitely variable speed in forward and reverse. 23 liter (6 gallon) hydraulic system capacity.

Mow: 0-10 km/h (0-6 mph); Transport: 0-14 km/h (0-9 mph). Reverse: 0-6 km/h (0-4 mph).

Forward and reverse traction control pedals, mow/transport lever, hand activated park brake, ignition key switch, tilt steering wheel lock, PTO switch, throttle, joystick control for cutting unit raise and lower (and for moving cutting units side-to-side on Sidewinder equipped models), cutting unit transport lock, reel speed and backlap control knob.

Hour meter, fuel gauge, cluster gauge with glow plug and charge indicator lights, and low engine oil pressure and high coolant temperature warning lights (high temperature safety shut off).

12-volt, 585 cold cranking amps at -18?? C (0?? F), 40 amps with regulator/rectifier. Traction pedal, operator presence in seat, PTO engage or disengage, and cutting unit mow or transport safety interlock switches.

Front: 20 x 10-12, 4-ply Turf Trac. Rear: 20 x 12-10

Formed steel, welded steel and steel tubing.

Hydrostatic service brake, parking brake.

Power steering with tilt steering wheel.

This product complies with the American National Standards Institute (ANSI B71-4 ??? 1999) and European Community specifications (CE Certified).

Two-year limited warranty, refer to operators manual for details.
