Models BC10/BW11
Razzle Blender
Operating Instructions
2/1/01
Complete this page for quick reference when service is required:
Taylor Distributor:
Address:
Phone:
Service:
Parts:
Date of Installation:
Information found on the data label:
Model Number:
Serial Number:
E February, 2001 Taylor All rights reserved.
The word Taylor and the Crown design
are registered trademarks in the United States of America and certain other countries.
Taylor Company
750 N. Blackhawk Blvd.
Rockton, IL 61072
Table of Contents
______________________________________________________________________________
Note: Continuing research results in steady improvements; therefore, information in this manual is subject to change without notice.
Notes:
This machine is designed for indoor use only.
DO NOT install the machine in an area where a water jet could be used to clean or rinse the machine. Failure to follow this instruction may result in serious electrical shock.
Electrical Connections
Each unit requires one power supply. Check the data labels on the unit for fuse, wire ampacity and electrical specifications. Refer to the wiring diagram for proper power connections.
In the United States, this equipment is intended to be installed in accordance with the National Electrical Code (NEC), ANSI/NFPA
In all other areas of the world, equipment should be installed in accordance with the existing local codes. Please contact your local authorities.
Stationary appliances which are not equipped with a power cord and a plug or other device to disconnect the appliance from the power source must have an
CAUTION: THIS EQUIPMENT MUST BE
PROPERLY GROUNDED! FAILURE TO DO SO
CAN RESULT IN SEVERE PERSONAL INJURY
FROM ELECTRICAL SHOCK!
Foot Pedal Instructions
To use the momentary foot pedal to control the mixer, connect the foot pedal to a grounded wall outlet. Plug the mixer cord into the back of the foot pedal plug. In this mode, both the control switch and the foot pedal must be activated. Leave the control switch in the ???ON??? position when you wish to use the momentary foot control. Make sure the foot control is kept where it will not be activated accidently. The foot guard is an additional design feature which helps prevent accidental use of the foot pedal.
The mixer you have purchased has been carefully engineered and manufactured to give you dependable operation. Mixing various candies, cookies, fruits, nuts, liquid flavors, and other food items into ice cream or frozen yogurt has made unlimited flavor combinations and product textures available.
The development of counter and wall mount mixers have made this unlimited resource available to even very small retail outlets and to those facilities where counter space is limited.
The mixer, when properly operated and cared for, will produce a consistent, quality product. Like all mechanical products, it will require cleaning and maintenance. A minimum amount of care and attention is necessary if the operating procedures outlined in this manual are followed closely.
This Operator???s Manual should be read before operating or performing any maintenance on your equipment.
In the event that you should require technical assistance, please contact your local authorized Taylor Distributor.
NSF approvals of the Models BC10 and BW11 were obtained by the
If the crossed out wheeled bin symbol is affixed to this product, it signifies that this product is compliant with the EU Directive as well as other similar legislation in effect after August 13, 2005. Therefore, it must be collected separately after its use is completed, and cannot be disposed as unsorted municipal waste.
The user is responsible for returning the product to the appropriate collection facility, as specified by your local code.
For additional information regarding applicable local laws, please contact the municipal facility and/or local distributor.
Warranty on Taylor Blenders
Caution: This warranty is valid only if required exchanges are provided by an authorized Taylor Distributor.
Warranty Terms
This warranty covers only defects in material and workmanship under normal use and service. The Taylor Distributor will replace those components that become defective as follows:
SFive years from date of installation for the blender.
SOne year from date of installation for the product dispensers.
Not included are the following items:
SLabor, transportation charges, and sales or use taxes associated with the removal and return of the defective part and the installation of the replacement part.
SExternal power cords, and electrical grounding.
SWear items: agitator shaft, splash shield, and foot pedal.
SReplacements required because of operator misuse as defined below, fire or other casualty, normal wear or deterioration.
Misuse includes the owner???s failure to handle parts properly, resulting in breakage. Misuse is also defined as allowing unauthorized service agents to attempt repair on units.
For validation of warranty, this unit must be registered at the Taylor Company within thirty (30) days of installation.
050819
To the Operator2Models BC10/BW11
Make sure the mixer is level and sitting or mounted solidly on a sturdy surface during operation. Failure to comply may result in personal injury or equipment damage.
DO NOT use attachments not recommended or sold by the Taylor Company. Doing so may cause fire, electric shock, injury, or equipment damage.
DO NOT allow the power cord to hang over the edge of the counter or touch hot surfaces. Failure to comply may result in an electrical fire.
WARNING!
Some consumers are highly allergic to peanuts, peanut oil, and peanut dust. In some severe cases, peanut allergy reactions can cause death. When blending product with peanuts, make sure excess product is cleaned from the agitator shaft to eliminate the fear of product carryover.
NOISE LEVEL: Airborne noise emission does not exceed 78 dB(A) when measured at a distance of 1.0 meter from the surface of the machine and at a height of 1.6 meters from the floor.
040406
Safety4Models BC10/BW11
Notes:
Section 4 Operator Parts Identification
BC10

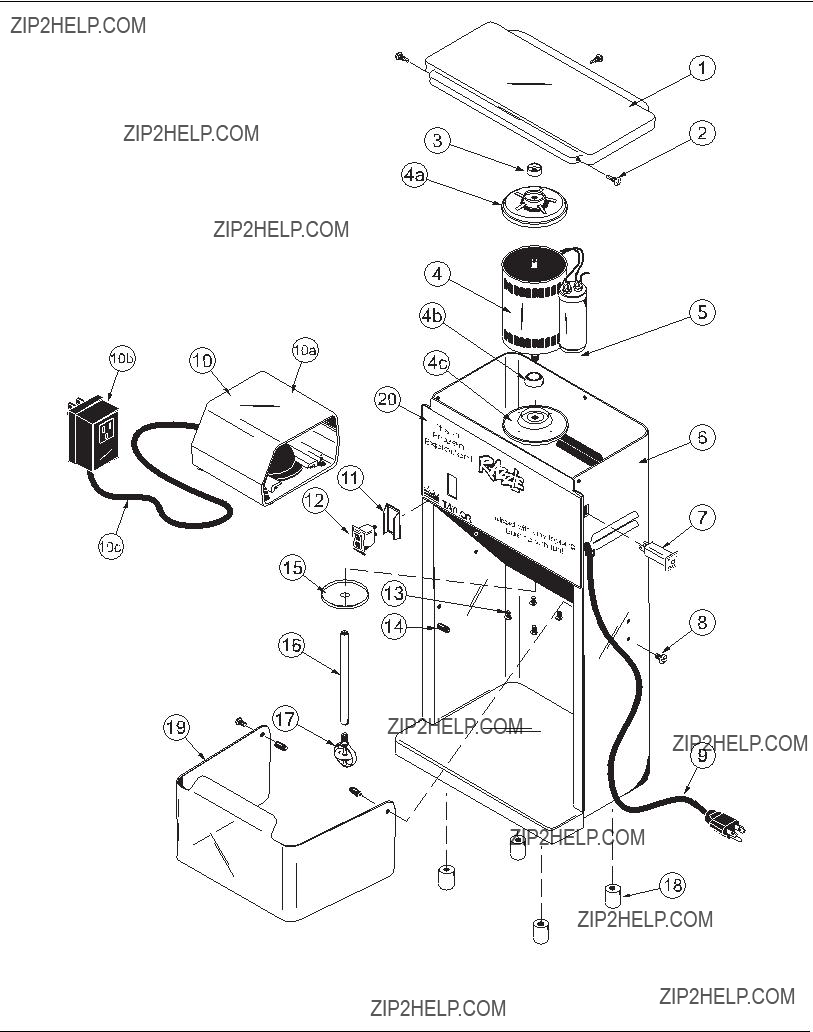

BC10 Exploded View Parts Identification
* NOT SHOWN

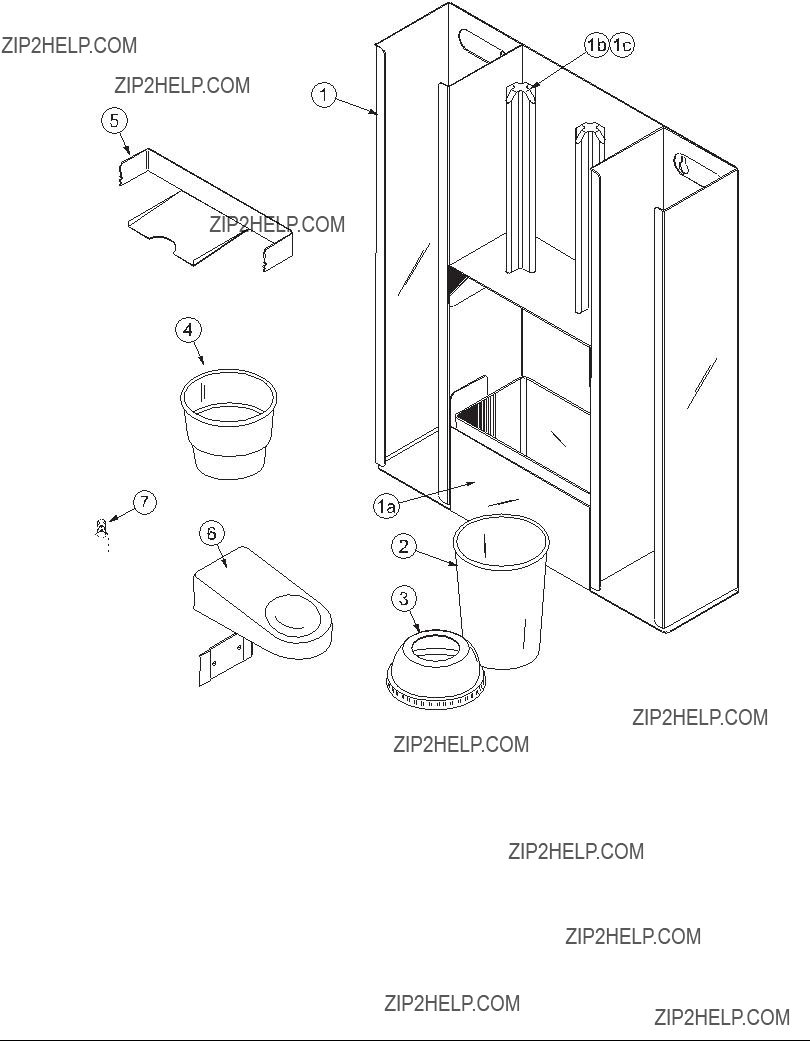

BW11

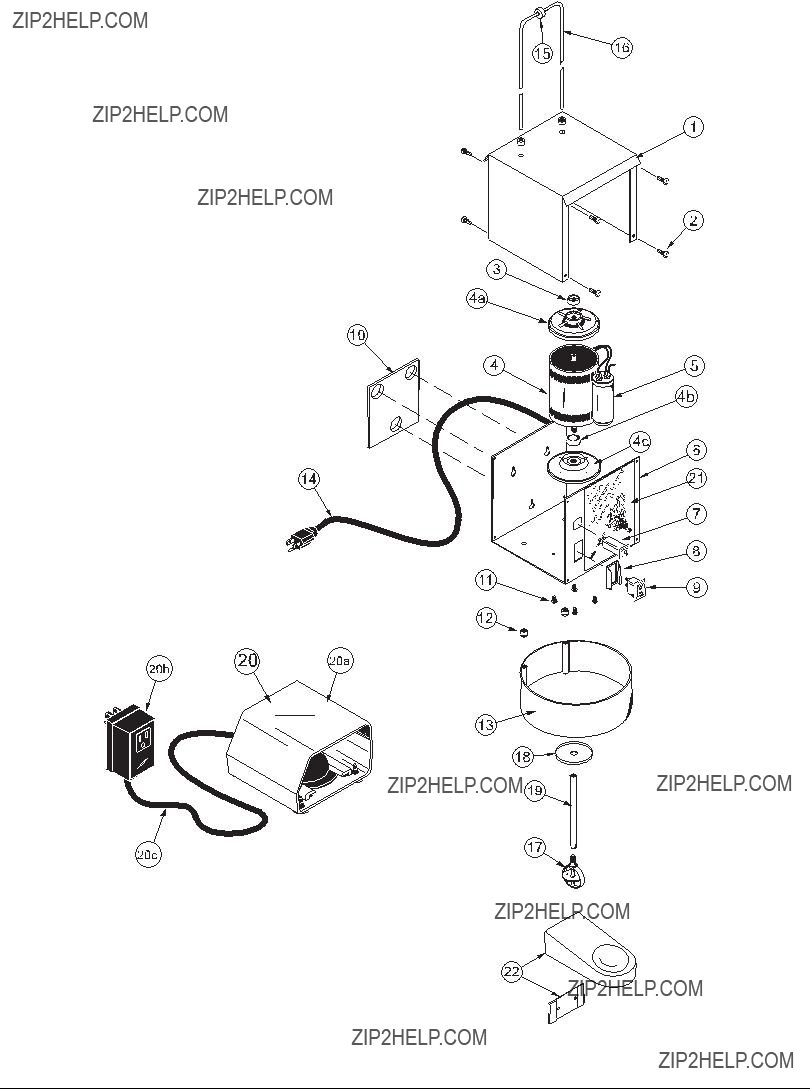

BW11 Exploded View Parts Identification
* NOT SHOWN
Accessories

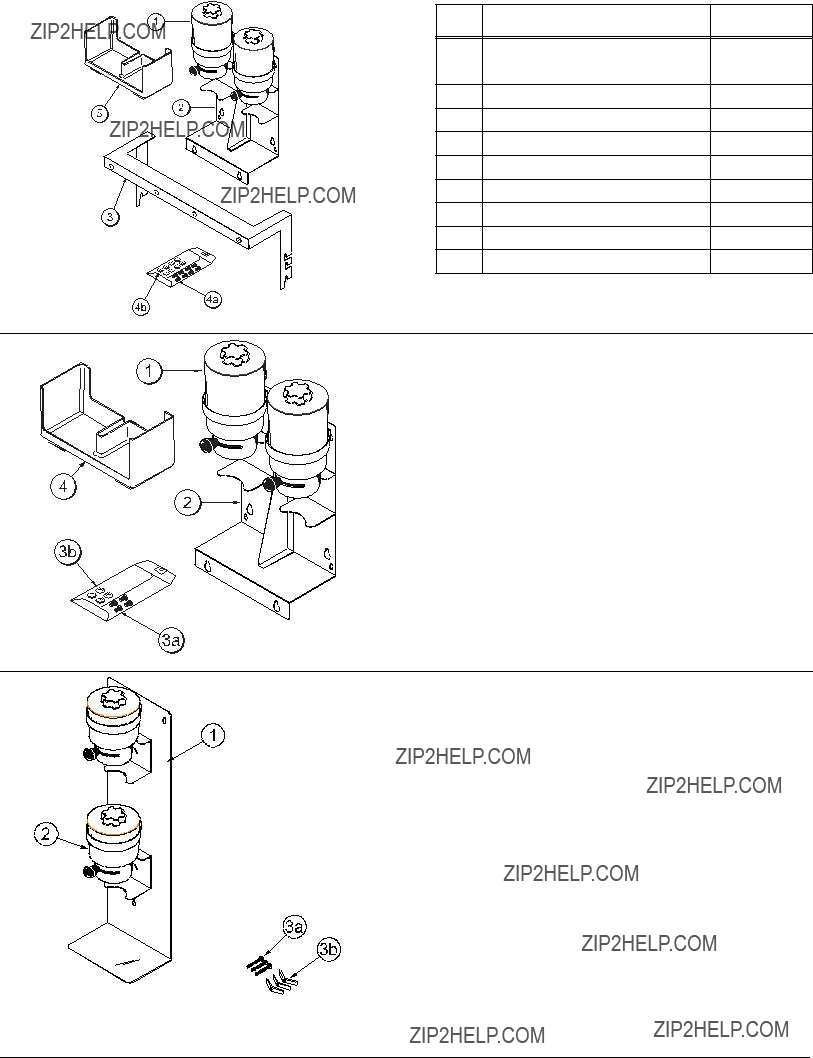

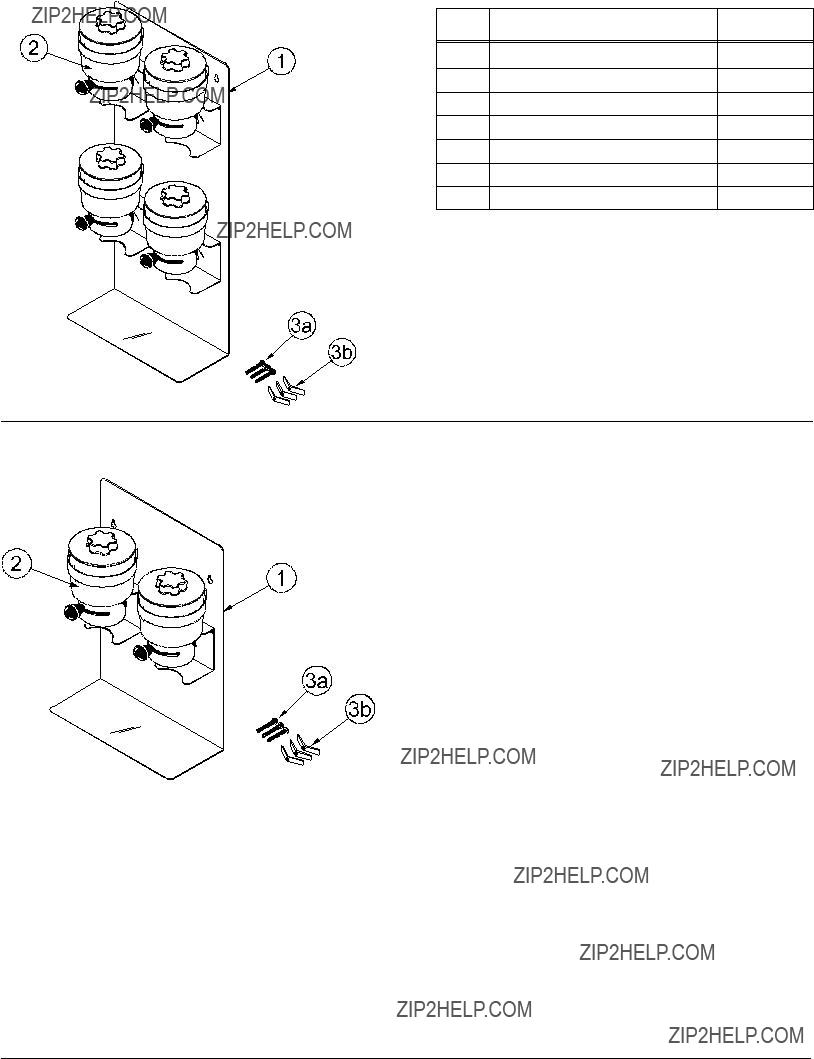

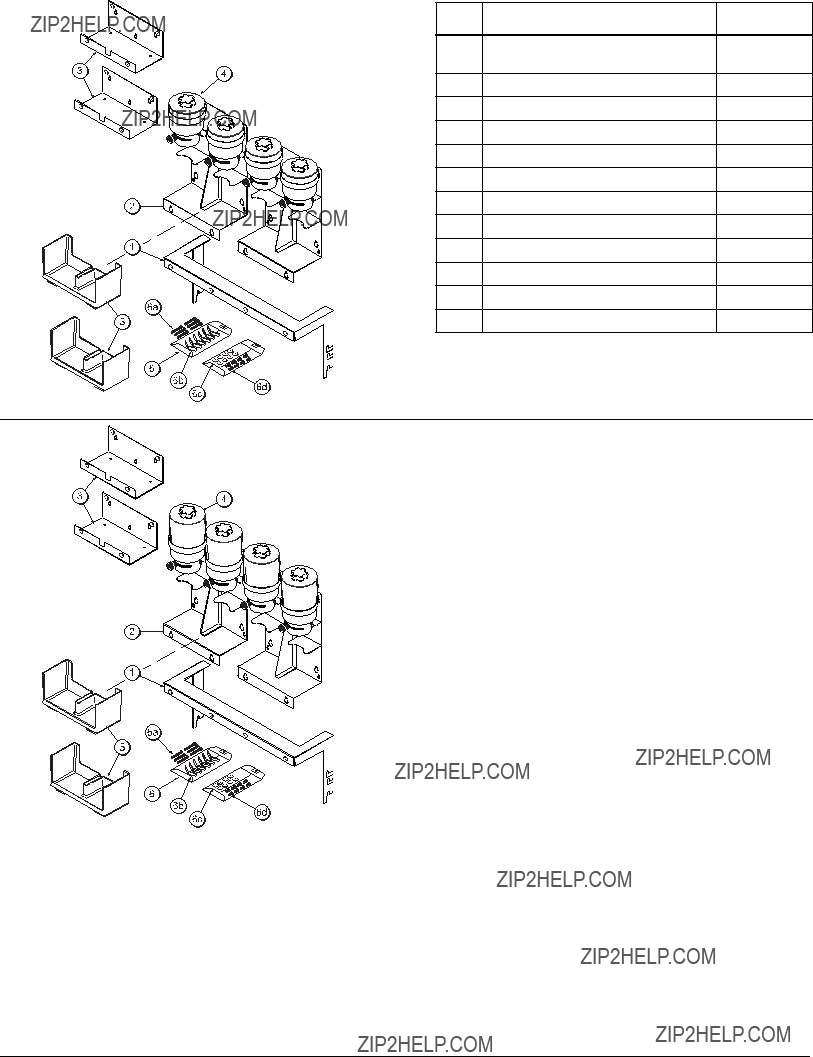

Optional Dispensers
*Not Shown
*Not Shown
*Not Shown
*Not Shown

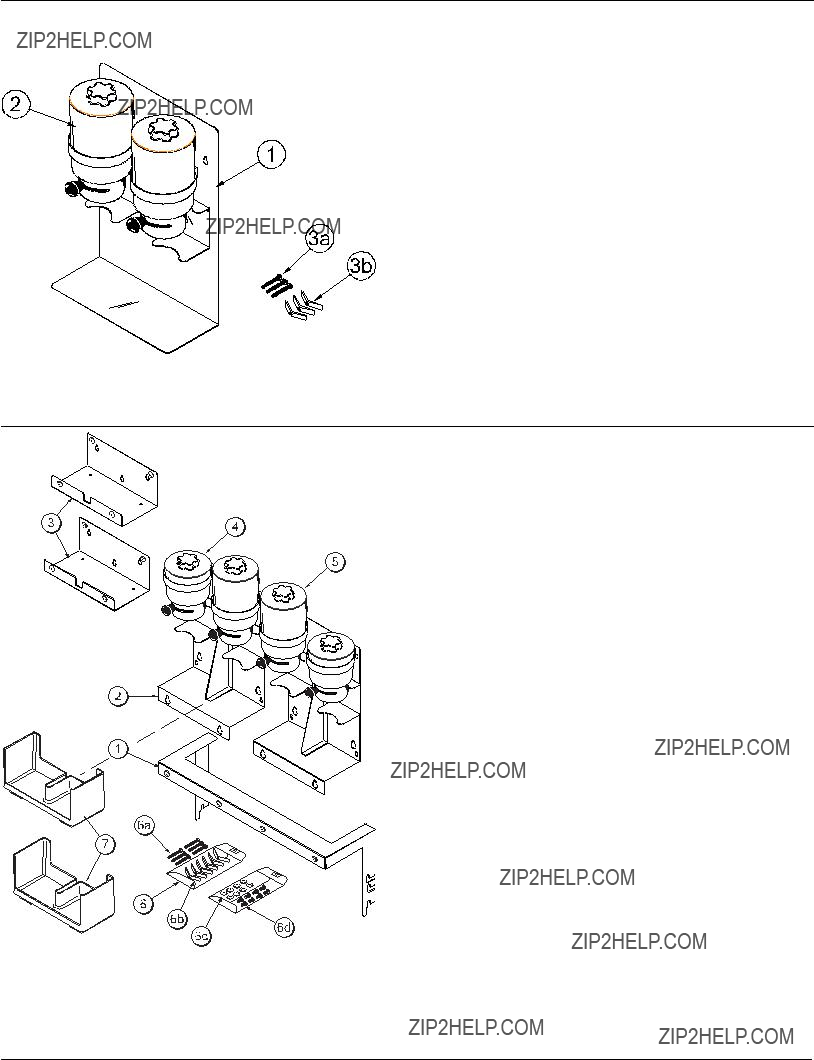

Optional Dispensers (Cont???d.)
*Not Shown
*Not Shown
*Not Shown
*Not Shown
*Not Shown
*Not Shown

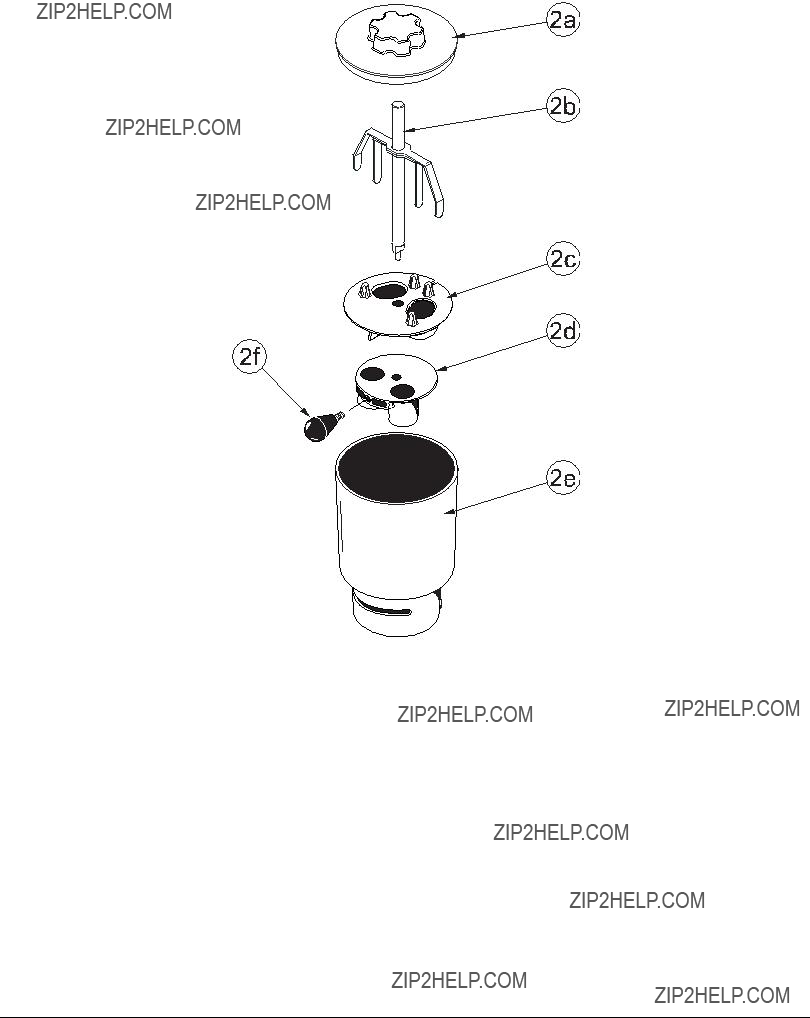

Optional Large Candy Dispenser Canister Assembly
Optional Small Candy Dispenser Canister Assembly
Control Switch
When placed in the ???ON??? position, the agitator activates to blend product.
Figure 1
Foot Pedal
A grounded foot pedal allows the operator to use both hands to mix product.
Figure 2
Note: Some International units are not equipped with this feature.
Reset Switch
The reset switch is located above the control switch on the front panel. The reset switch protects the motor from an overload condition. If an overload occurs, the reset mechanism will trip. To properly reset the unit, make sure the control switch is in the ???OFF??? position. Press the reset switch and resume operation.
Figure 3
Splash Guard
The splash guard functions as a
The splash guard for the Model BC10
Figure 4
Motor
The motor features a heavy duty, ball bearing induction motor and does not use brushes, belts, couplings, or gears. This design reduces power consumption, heat, noise, and wear. The motor maintains an optimal speed of 3,485 RPM to maintain product consistency.
Permanent Agitator
The permanent agitator is manufactured from FDA and NSF approved, food safe material. The shaft must be cleaned between servings as product carryover will occur. (See page 23.)
Figure 5
Candy Dispenser Canisters
The canisters contain the candy toppings. The operator dispenses the toppings by use of the dispenser handle.
Candy Care
Most candies have a tendency to ???lump??? or ???cluster??? under various conditions. This can lead to broken dispensing pucks if excessive pressure is required to move the handle.
SStore candies in the proper ambient conditions according to the manufacturer???s directions. Avoid excessively hot and humid locations.
SAvoid opening a bag of candy if the entire contents cannot be poured into the canister. If this cannot be avoided, be sure to fold the bag opening over and reseal it with a bag clip. Store it in a cool, dry place until needed again.
SRotate the candy stock to use the oldest candy first (First
SBefore opening a new bag of candy, check to see if it contains large lumps by slightly squeezing the bag. If lumps exist, gently break them apart with your fingers prior to opening the bag.
Canister Care and Location
SAvoid mounting canisters near heat, humidity, or hot air discharges. These conditions can promote lumping and difficult dispensing of candies.
SAlways keep candies protected from the open ambience by having the lids properly installed on top of the canisters when candies are present.
SWhen canisters are not cleaned daily, candy dust and powers begin to congeal and will cause excessive pressure to be exerted in order to dispense candies. This additional pressure can cause the pucks to break.
SAvoid ???slamming??? the dispensing handle back and forth when dispensing candies. This can cause the puck to break.
SDo not apply undue force on the handle to make the puck move. If a ???lock up??? condition occurs, empty the dispenser of candies. Disassemble, clean and thoroughly dry the dispenser according to cleaning instructions. Eliminate clusters and lumps before refilling the canister.
SWhen reassembling the canister, take care not to
030103
Important: To the Operator20Models BC10/BW11
Mixing Instructions
Make sure your hands are clean and sanitized before performing these steps.
Step 1
Fill a serving cup with soft serve product and install the plastic domed lid.
Figure 6
Figure 7
Step 2
Add
Figure 8
Step 3
Place the control switch in the ???ON??? position.
Step 4
Hold the cup securely in place beneath the agitator, and step on the foot pedal. Using a circular motion, work the cup upward and over the spinning agitator.
Figure 9
Select International Units: For select International units which are not equipped with a foot pedal, the control switch must be pressed during agitation.
Note: Agitation will chip and break down solids. It is not intended to completely pulverize ingredients because solid chunks should be evident in the finished product.
CAUTION: The permanent agitator is designed to withstand reasonable contact with the spinning agitator shaft. However, it should not be forced or held solidly against the side or bottom of the cup. This may cause damage to the cup or components.
Step 5
After about 10 seconds have elapsed, slowly remove the cup by ???swirling??? it around the agitator. This will create an effect that is pleasing to the eye, and avoids leaving a hole in the center of the product.
Step 6
Before removing the cup completely, hold the top edge of the cup near the spinning agitator to allow excess mixture to be projected into the cup or the
Step 7
Release the foot pedal or place the control switch in the ???OFF??? position.
Step 8
Prepare a durable container with an approved cleaning solution (example:
Note: The container must be deep enough to submerge the entire agitator and shaft.
Step 9
Submerge the agitator in the cleaning solution, all the way to the bottom of the motor chamber. Step on the foot pedal or place the control switch in the ???ON??? position. Allow the agitator to run for about 15 seconds. Repeat this step several times, making certain all portions of the agitator and shaft have been submerged in the cleaning solution.
WARNING: Never try to wipe clean the agitator while it is active. Failure to follow these instructions can lead to severe personal injury from hazardous moving parts, or damage to the unit.
030103
Cleaning
The Taylor Company recommends daily cleaning.
ALWAYS FOLLOW LOCAL HEALTH CODES
Step 1
Prepare a sink with an approved cleaning solution (example:
AND FOLLOW THE MANUFACTURER???S SPECIFICATIONS. Do not use a solution that contains ammonia, and avoid placing components in a dishwasher.
Step 2
Disconnect power from the wall receptacle. Failure to comply may result in electrical shock.
Step 3
Remove the splash guard.
Wall mount units only (BW11):
Remove the sliding splash guard cup by squeezing the travel rods together and sliding the guard downward. Take the cup to the sink for cleaning.
Step 4
Wash the splash guard in the approved cleaning solution.
Step 5
Using a single service towel (moistened with the cleaning solution), wipe clean the travel rods and the agitator shaft.
CAUTION: DO NOT REMOVE THE TRAVEL RODS
FROM THE UNIT. Step 6

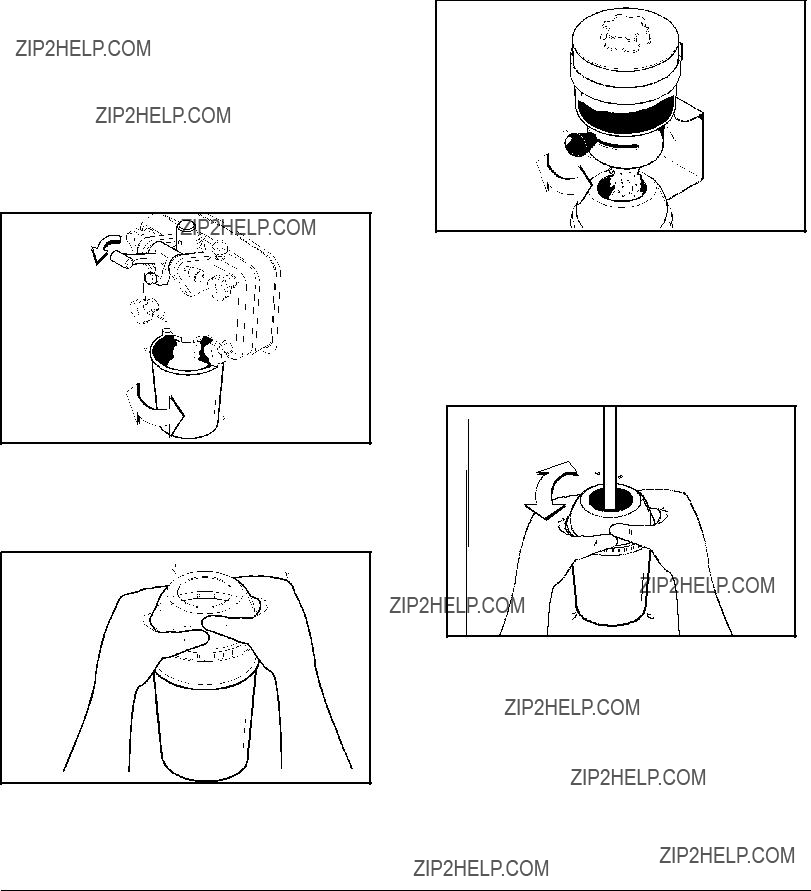

Remove the dispenser from the bracket by tilting it toward you and lifting upward.
Step 7
Discard any remaining topping.
Step 8
Remove the cover, shaft, dispensing plate, and dispensing puck. Unscrew the handle from the dispensing puck.
Step 9
Check all parts for cracks and damage, especially the puck. Replace damaged parts immediately.
Step 10
Wash all plastic parts in the approved cleaning solution. CAUTION: PLASTIC PARTS ARE NOT
DISHWASHER SAFE! HAND WASH ONLY!
Step 11
Note: Parts must be dry prior to assembling and refilling them with mix ingredients.
Step 12
Screw the handle through the slot and into the metal insert in the dispensing puck. Place the dispensing plate on top of the dispensing puck.
Step 13
Position the shaft through the plate and into the slot in the dispensing puck. Make certain the shaft is properly seated.
Step 14
Install the dispenser. Place the dispenser on the wall bracket with the locating pin facing the holding bracket. The dispenser must be tilted toward the operator to clear the handle. Insert the pin into the hole in the bracket.
Note: When loading the dispenser with product, keep powder away from the top of the shaft. Fill the canister only within one inch of the top. Do not overfill the canister.
Step 15
Wipe clean all stainless steel surfaces with an approved,
WARNING: Do not spray water or other liquid around the motor chamber. Do not use excess liquid around the switch, motor protector, power cords, or cord entry orifice. Make certain all areas in and around the motor are dry before connecting power to the wall receptacle. Failure to comply may cause equipment damage or personal injury due to electric shock.
Step 16
When foot pedal cleaning is required, disconnect it and wipe it with a damp single service towel. Make sure the foot pedal is thoroughly dry before
CAUTION: The foot pedal should be kept dry. Do not leave it on the floor during mopping. Failure to comply may result in electrical shock.
Permanent Agitator Cleaning
Step 1
Prepare a durable container with an approved cleaning solution (example:
Note: The container must be deep enough to submerge the entire agitator and shaft.
Step 2
Submerge the agitator in the cleaning solution, all the way to the bottom of the motor chamber. Step on the foot pedal or place the control switch in the ???ON??? position. Allow the agitator to run for about 15 seconds. Repeat this step several times, making certain all portions of the agitator and shaft have been submerged in the cleaning solution.
WARNING: Never try to wipe clean the agitator while it is active. Failure to follow these instructions can lead to severe personal injury from hazardous moving parts, or damage to the unit.
Step 3
Repeat Step 2 using cool, clean water in lieu of cleaning solution.
Sanitizing
Step 1
Repeat all steps of the cleaning procedure using an approved 100 PPM sanitizing solution (example:
MANUFACTURER???S SPECIFICATIONS.
Step 2
Reinstall the splash guard.
Step 3
Repeat the sanitizing procedures at the start of the day.
ALWAYS FOLLOW LOCAL HEALTH CODES
030103
24
BC10/BW11 Models
BC10 / BW11 Razzle Blenders
7 Section
List Parts
List Parts
26
BC10/BW11 Models
Candy Dispenser Blender Accessories

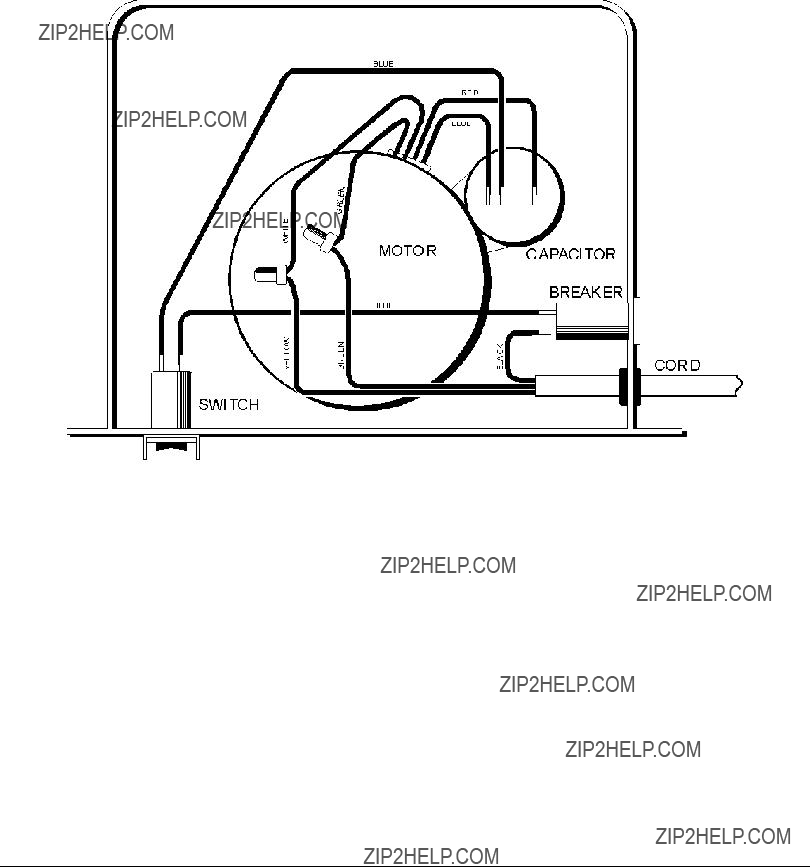

Wiring Diagram
