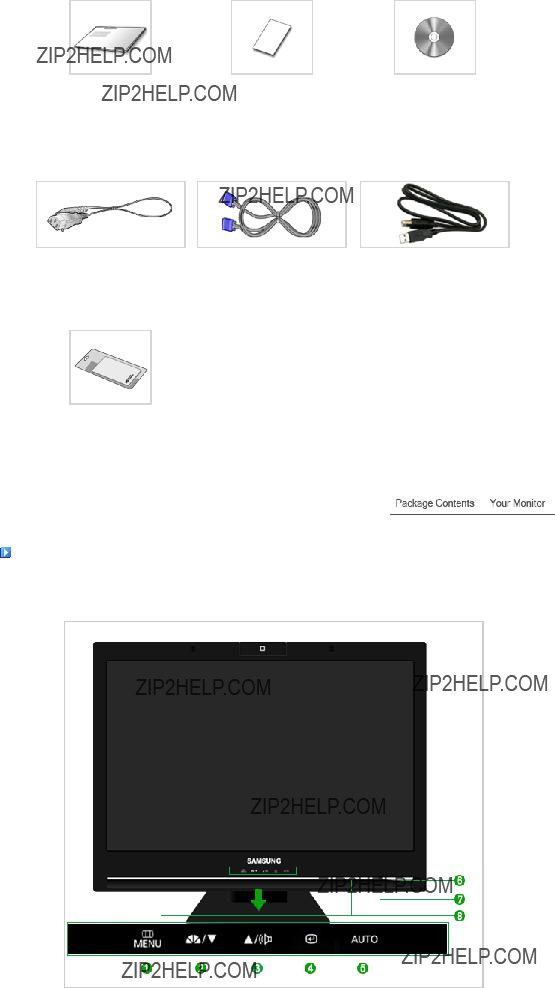

Package Contents

Please make sure the following items are included with your monitor. If any items are missing, contact your dealer.

Contact a local dealer to buy optional items.

Unpacking

Without Stand

Monitor

With Stand

Monitor & Simple stand

Manual

Volume button []

Enter button [] AUTO button [AUTO]

Although the values are carefully chosen by our engineers, the pre- configured values may not be comfortable to your eyes depending on your taste. If this is the case, adjust the brightness and contrast by using the OSD menu.

2)Text

For documentations or works involving heavy text.

3)Internet

For working with a mixture of images such as texts and graphics.

4)Game

For watching motion pictures such as a game.

5)Sports

For watching motion pictures such as a Sports.

6)Movie

For watching motion pictures such as a DVD or Video CD.

>> Click here to see an animation clip

When OSD is not on the screen, push the button to adjust volume. >> Click here to see an animation clip

Activates a highlighted menu item.

Use this button for auto adjustment. >> Click here to see an animation clip

See PowerSaver described in the manual for further information regarding power saving functions. For energy conservation, turn your monitor OFF when it is not needed, or when leaving it unattended for long periods.

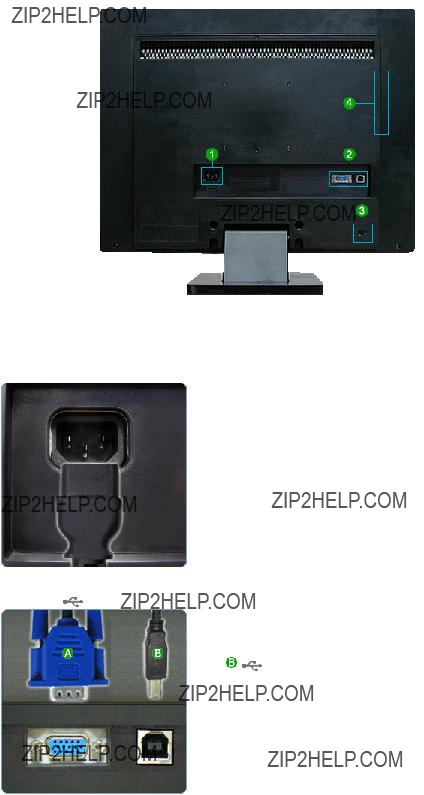

Rear

The configuration at the back of the monitor may vary from product to product.

POWER

zPOWER

: Connect the power cord for your monitor to the POWER on the back of the monitor.

RGB-IN /

RGB-IN

:Connect the signal cable to the 15-pin, RGB-IN port on the back of your monitor.

:Connect the of the monitor and the USB of the computer with the USB cable.

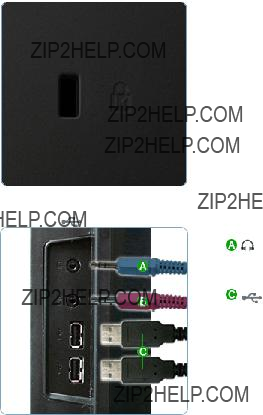

Kensington Lock

zThe Kensington lock is a device used to physically fix the system when using it in a public place.

(The locking device has to be purchased separately.)

For using a locking device, contact where you purchase it.

Connecting Cables

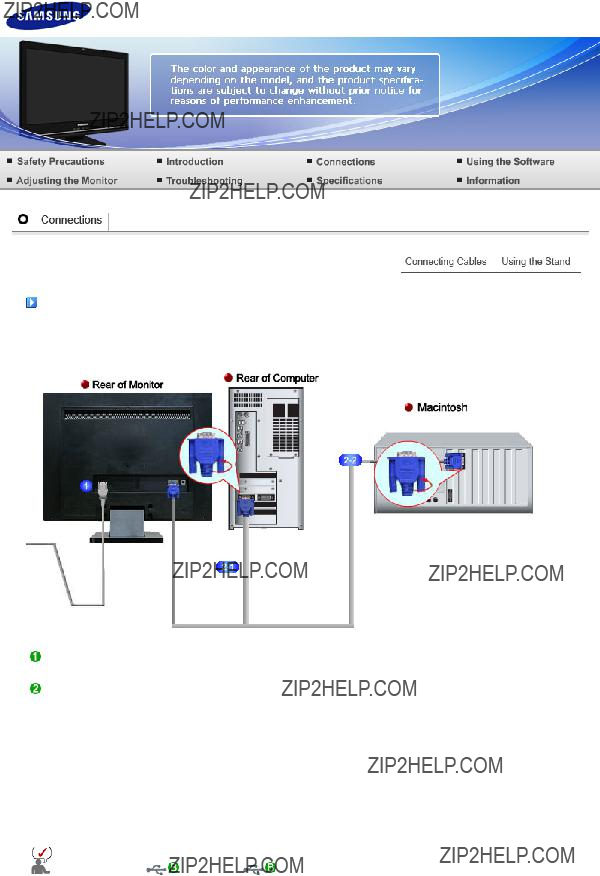

Connecting to a Computer

Connect the power cord for your monitor to the power port on the back of the monitor. Plug the power cord for the monitor into a nearby outlet.

Use appropriate connection for your computer.

Using the RGB-IN (Analog) connector on the video card.

- Connect the signal cable to the 15-pin, RGB-IN port on the back of your monitor.

[ RGB-IN ]

Connected to a Macintosh.

Connect the monitor to the Macintosh computer using the RGB-IN connection cable. If the monitor and the computer are connected, you can turn them on and use them.

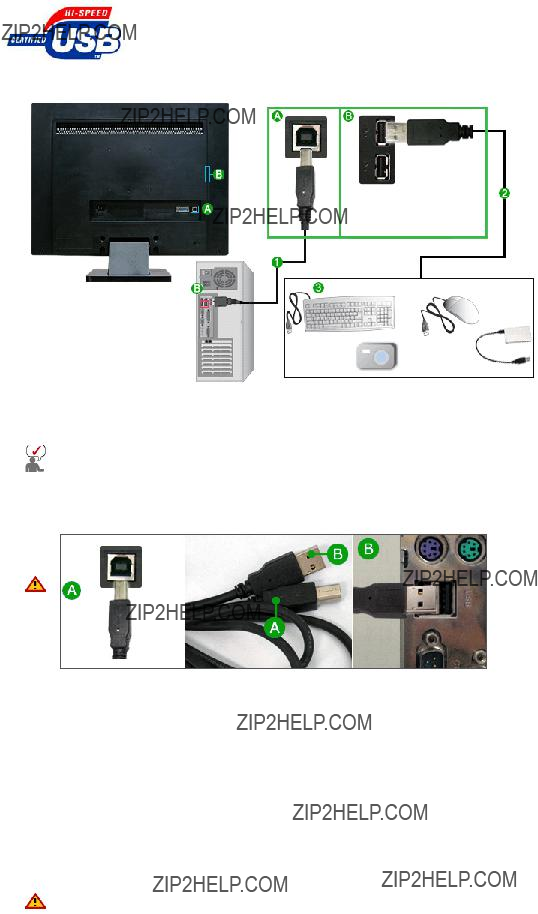

Connecting USB

Turn on your monitor and PC. If you connect the cable to the connector of your

to microphone and camcorder are performed automatically.

You can use a USB device such as a mouse, keyboard, Memory Stick, or external hard disk drive by connecting them to the port of the monitor without connecting them to the PC.

The USB port of the monitor supports High-Speed Certified USB 2.0.

Connect theport of the monitor and the USB port of the computer with the USB cable.

To useport, you have to connect the to the PC.

Make sure to use the USB cable supplied with this monitor to connect the monitor's port and your computer's USB port.

Connect the port of the USB monitor and a USB device with the USB cable.

The use procedures are as the same as those for using an external device connecting to the PC.

zYou can connect and use a keyboard and mouse.

zYou can play a file from a media device.

(Examples of media devices: MP3, digital camera, etc.)

zYou can run, move, copy or delete the files on the storage device.

(Examples of storage devices: external memory, memory card, memory reader, HDD-type MP3 player, etc.)

zYou can use other USB devices that can be connected to a computer.

z Do not disconnect the USB cable while the installation is in progress.

The program may not be installed completely or may not work normally.

zWhen connecting a device to the port of the monitor, connect the device using a cable appropriate to the device.

(For the purchase of the cable and external devices, ask the service center of the corresponding product.)

zThe company is not liable for problems or damages to an external device caused by using an unauthorized cable for the connection.

zSome products do not follow the USB standard, and it may cause a malfunction of the device.

zIf the device malfunctions even if it is connected to the computer, contact the service center of the device/computer.

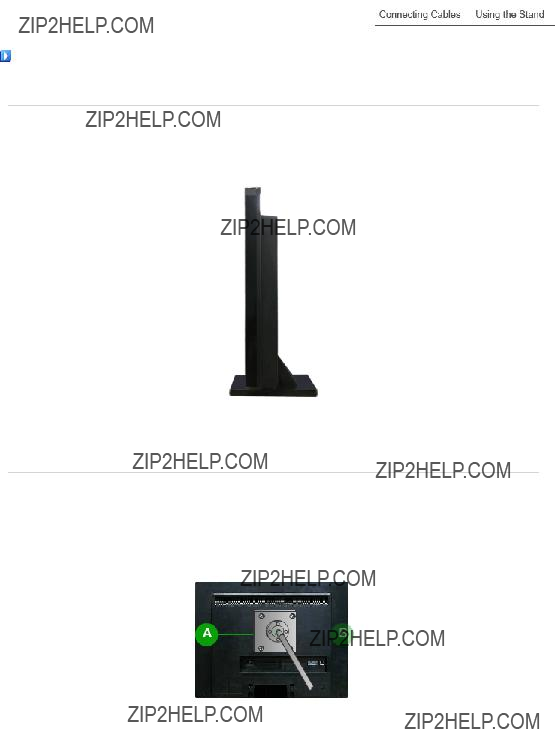

Using the Stand

This monitor supports various types of VESA-standard bases. You need to either fold or remove the base in use to install a VESA base.

Tilt angle

The monitor may be reclined -3 to 22 degrees

Attaching a Base

This monitor accepts a 100 mm x 100 mm VESA-compliant mounting interface pad.

Monitor

Mounting interface pad (Sold separately)

1.Turn off your monitor and unplug its power cord.

2.Lay the LCD monitor face-down on a flat surface with a cushion beneath it to protect the screen.

3.Remove four screws and then remove the stand from the LCD monitor.

4.Align the mounting interface Pad with the holes in the rear cover mounting pad and secure it with four screws that came with the arm-type base, wall mount hanger or other base.

zDo not use screws longer than the standard dimension, as they may damage the inside of the Monitor.

zFor wall mounts that do not comply with VESA standard screw specifications, the length of the screws may differ depending on their specifications.

zDo not use screws that do not comply with the VESA standard screw specifications.

Do not fasten the screws too tightly, as this may damage the product or cause the product to fall, leading to personal injury.

Samsung is not liable for these kinds of accidents.

zSamsung is not liable for product damage or personal injury when a non-VESA or non- specified wall mount is used or the consumer fails to follow the product installation instructions.

zTo mount the monitor on a wall, you should purchase the wall mounting kit that allows you to mount the monitor at least 10cm away from the wall surface.

zContact the nearest Samsung Service Center for more information. Samsung Electronics will not be responsible for damages caused by using a base other than those specified.

zPlease use Wall Mount according to the International standards.

Check List

Before calling for service, check the information in this section to see if you can remedy any problems yourself. If you do need assistance, please call the phone number on the Information section or contact your dealer.

If the power is on, reboot the computer to see the initial screen(the login screen), which can be seen.

If the initial screen (the login screen) appears, boot the computer in the applicable mode (the safe mode for Windows ME/XP/2000) and then change the frequency of the video card.

(Refer to the Preset Timing Modes)

If the initial screen (the login screen) does not appear, contact the Service Center or your dealer.

Then press any key on the keyboard again to activate the

monitor and restore the image on the screen.

Unlock the OSD by pressing the [ ] button for at least 5 seconds.

Check the signal cable connection.

Make sure the video card is fully inserted in its slot.

The screen can be unbalanced due to the cycle of the video card signals.

Readjust Position by referring to the OSD.

Adjust the resolution and frequency of the video card. (Refer to the Preset Timing Modes).

Adjust the frequency properly by referring to the video card manual and the Preset Timing Modes.

(The maximum frequency per resolution may differ from product to product.)

Windows XP :

Set the resolution at the Control Panel ??? Appearance and Themes ??? Display ??? Settings.

Windows ME/2000 :

Set the resolution at the Control Panel ??? Display ??? Settings.

Set the video card by referring to the video card manual.

There is a message that reads "Unrecognized monitor, Plug & Play (VESA DDC) monitor found".

Check when MagicTune??? does not function

Have you installed the monitor driver?

See the video card manual to see if the Plug & Play (VESA DDC) function can be supported.

MagicTune??? feature is found only on PC (VGA) with

Install the monitor driver according to the Driver Installation Instructions.

* To check whether your PC is available for MagicTune??? feature, follow the steps below (When Windows is XP);

Visit the MagicTune??? website and download the installation software for MagicTune??? MAC.

Check the following items if there is trouble with the monitor.

Check if the power cord and the video cables are properly connected to the computer.

Check if the computer beeps more than 3 times when booting.

(If it does, request an after-service for the main board of the computer.)

If you installed a new video card or assembled the PC, please check if the adapter(video) driver and the monitor driver are properly installed.

Check if the scanning ratio of the video screen is set at 56 Hz ~ 75 Hz. (Do not exceed 75 Hz when using the maximum resolution.)

If you have problems in installing the adapter (video) driver, boot the computer in Safe Mode, remove the Display Adapter at the "Control Panel ??? System ??? Device Administrator" and then reboot the computer to reinstall the adapter (video) driver.

If problems repeatedly occur, contact an authorized service center.

Q & A

Question

How can I change the frequency?

How can I adjust the resolution?

How can I set the Power Saving function?

Answer

Frequency can be changed by reconfiguring the video card.

Note that video card support can vary, depending on the version of the driver used.

(Refer to the computer or the video card manual for details.)

Windows XP :

Set the resolution at the Control Panel ??? Appearance and Themes ??? Display ??? Settings.

Windows ME/2000 :

Set the resolution at the Control Panel ??? Display ??? Settings.

Contact the video card manufacturer for details.

Windows XP :

Set the resolution at the Control Panel ??? Appearance and Themes ??? Display ??? Screen Saver.

Set the function at BIOS-SETUP of the computer.

Windows ME/2000 :

How can I clean the outer case/LCD Panel?

How can I completely remove the ???UC Monitor Installation Program????

Set the resolution at the Control Panel ??? Display ??? Screen Saver. Set the function at BIOS-SETUP of the computer.

Refer to Windows/Computer Manual

Disconnect the power cord and then clean the monitor with a soft cloth, using either a cleaning solution or plain water.

Do not leave any remains of the detergent nor scratch the case. Do not allow any water to go inside the monitor.

To completely remove the USB Device installation program for the UC monitor, Click ???Add/Remove Programs??? in the ???Control Panel??? and a list of currently installed programs is displayed.

Select the driver (USB video device and USB audio device) installed when your UC monitor was connected from the list and click on ???Remove???.

Self-Test

Self-Test Feature Check | Warning Messages | Environment | Useful Tips

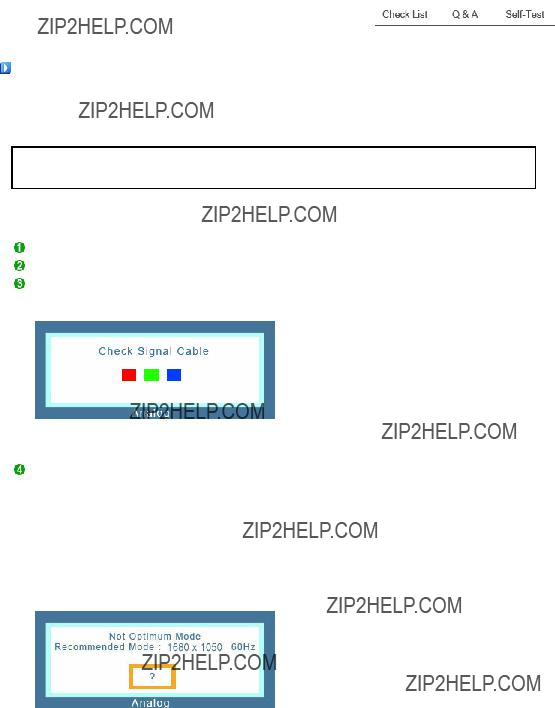

Your monitor provides a self test feature that allows you to check whether your monitor is functioning properly.

Self-Test Feature Check

Turn off both your computer and the monitor.

Unplug the video cable from the back of the computer.

Turn on the monitor.

If the monitor is functioning properly, you will see a box in the illustration below.

This box appears during normal operation if the video cable becomes disconnected or damaged.

Turn off your monitor and reconnect the video cable; then turn on both your computer and the monitor.

If your monitor screen remains blank after using the previous procedure, check your video controller and computer system; your monitor is functioning properly.

Warning Messages

If there is something wrong with the input signal, a message appears on the screen or the screen goes blank although the power indicator LED is still on. The message may indicate that the monitor is out of scan range or that you need to check the signal cable.

Environment

The location and the position of the monitor may influence the quality and other features of the monitor.

If there are any sub woofer speakers near the monitor, unplug and relocate the woofer to another room.

Remove all electronic devices such as radios, fans, clocks and telephones that are within 3 feet (one meter) of the monitor.

Useful Tips

A monitor recreates visual signals received from the computer. Therefore, if there is trouble with the computer or the video card, this can cause the monitor to become blank, have poor coloring, noise, Video mode not supported, etc. In this case, first check the source of the problem, and then contact the Service Center or your dealer.

Judging the monitor's working condition

If there is no image on the screen or a "Not Optimum Mode", "Recommended Mode 1680 x 1050 60 Hz" message comes up, disconnect the cable from the computer while the monitor is still powered on.

If there is a message coming up on the screen or if the screen goes white, this means the monitor is in working condition.

In this case, check the computer for trouble.
