WARNING

To reduce risk of ???re or shock hazard, do not expose this product to rain or moisture.

Cautions

Care and Cleaning:

Caution: To prevent electric shock, match wide blade of plug to wide slot, fully insert.

Attention: Pour ??viter les chocs ??lectriques, introduire la lame la plus large de la fiche dans la borne correspondante de la prise et pousser jusq?? au fond.

Refer to the identification/rating label located on the back panel of your product for its proper operating voltage.

FCC Regulations state that unauthorized changes or modifications to this equipment may void the user???s authority to operate it.

Cable TV Installer: This reminder is provided to call your attention to Article 820-40 of the National Electrical Code (Section 54 of the Canadian Electrical Code, Part 1) which provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building as close to the point of cable entry as practical.

Use a soft cloth or the dusting attachment of your vacuum cleaner to dust your VCR. Remove dust from the ventilation holes.

Plastic surfaces are easily scratched and can be marred by alcohol and various solvents. Avoid excessive use of oil-based furniture polishes since the materials used in the cabinet will accumulate more dust. A nonabrasive, antistatic cleaner/polisher is recommended.

FIRST THINGS FIRST

WELCOME TO YOUR

NEW VCR...

To help you get started using your VCR with as little reading as possible, we???ve put all the basic information needed in the first three sections. To help you along, there???s even an initial setup feature the first time you turn on your VCR which walks you through several setup steps at once.

GETTING STARTED

Before this first step, though, learning about the time and date, your remote control???s features, working with channels, and basic video tape operations are essential to get all you can out of the VCR. Once you are comfortable with these features, feel free to refer to other sections because they cover the more detailed information.

WHAT REMAINS?

The final sections of this manual contain playback and recording information, a detailed connections section, and a reference section including troubleshooting tips, warranty information, and an index.

1 FIRST THINGS FIRST

???

2 SETTING UP THE VCR

???

3 VCR BASICS

???

4 RECORDING

???

5 PROGRAM THE REMOTE

???

6 OTHER FEATURES

???

7 CONNECTIONS

???

8 REFERENCE

READ ME!

These note boxes give you tips for your new video cassette recorder.

FIRST THINGS FIRST

STEP 1: WHAT???S IN THE BOX?

The following items come packed in the box:

???VCR

???Remote control

???RF coaxial cable

STEP 2: INSTALL BATTERIES IN

THE REMOTE CONTROL

Follow these steps whenever you need to install or change the batteries in your VCR remote:

1.Remove the cover of the battery compartment.

2.Place the batteries into the remote control???s back panel. Match the positive (+) and negative (???) ends of each battery to the diagram inside the battery compartment.

3.Replace the cover.

STEP 3: CONNECT YOUR VCR

If the VCR is connected to an antenna or cable system and then to the TV, use the VCR???s ANT. IN and RF OUT jacks for a good signal (see the diagram to the right).

If the TV has AUDIO/VIDEO jacks, use A/V cables to connect the two for a better picture. See the Connections section in this manual for additional connection options.

STEP 4: PLUG IN THE VCR

The VCR???s power cord has a plastic band strung through the blades. Remove plastic band before plugging the cord into the power outlet. To remove band, cut with a pair of scissors and pull it free of the blades. Once the plastic is removed, match the wide blade of the power cord to the wide slot in the AC outlet. Be sure to insert the plug completely.

CABLE, CABLE BOX, OR ANTENNA

VCR

TV

CABLE/

ANTENNA

FIRST THINGS FIRST

STEP 5: TUNE THE TV

Tune the TV to the VCR viewing channel. The VCR viewing channel is channel 3 or 4 or the TV???s video line input.

???If you connect your VCR using the ANT. IN and RF OUT jacks with RF coaxial cable, set the CH. 3/4 switch to channel 3 or channel 4 ??? the channel you want to use on your TV.

???If the VCR is connected to the TV using the AUDIO/ VIDEO jacks and A/V cables, select the TV???s video line input with the remote control???s INPUT button to see the signal. See ???How to Find Your TV???s Video Input Channel??? in the References section of this manual for a detailed explanation of video line input.

STEP 6: TURN ON THE VCR

Press POWER on the VCR???s front panel or the VCR button on the remote control to turn on the VCR. The first time you turn the VCR on, a menu screen appears. This is the start of an initial set up which helps you set different options for your VCR.

STEP 7: INITIAL SETUP

The first on-screen menu during the initial set up asks which language you prefer to use for the VCR???s displays. Use the remote control???s number buttons to select the corresponding language.

Select a language.

Seleccione un idioma.

Choisissez une langue.

1English

2Espa??ol

3Fran??ais

1.Press 1 for English, 2 for Espa??ol (Spanish), or 3 for Fran??ais (French).

The remaining menus in the setup will appear in the chosen language. Just follow the step-by-step screens until setup is complete.

(Continues on Next Page)

VCR Viewing Channel

AUDIO/VIDEO OUT Jacks CH. 3/4 Switch

When using the ANT IN and RF OUT jacks to connect your VCR, tune your TV to channel 3 or 4.

The CH. 3/4 switch on the back of the VCR determines which TV channel is used to see the VCR???s output.

When using the AUDIO/VIDEO jacks to connect the VCR, tune the TV to the its Video Input Channel using the TV and INPUT buttons on the VCR???s remote control.

See ???How to Find Your TV???s Video Input Channel??? in the References section of this manual for more information about video line input.

SETTING UP THE VCR

SETUP FEATURES

Below is a list of features that need to be set up to get the most out of your VCR. Many of these menus are covered during the QuickSet Guide, but if you ever want to change a menu, refer to this section.

???Language Selection

???Setup for a Satellite Receiver Antenna

???Cable Box Set Up

???VCR Channel List Set Up (Auto Channel Search)

???Time Zone and Daylight Savings (Auto Clock)

???Manually Setting Time and Date

???Channel Set for the VCR Plus+ System

???Remote VCR1/VCR2 Feature

???Auto Play*

???Auto TV/VCR*

???EnergySaver*

???Front Panel Brightness*

???Preferred Tape Speed*

???Set Auto Repeat*

1 FIRST THINGS FIRST

???

2 SETTING UP THE VCR

???

3 VCR BASICS

???

4 RECORDING

???

5 PROGRAM THE REMOTE

???

6 OTHER FEATURES

???

7 CONNECTIONS

???

8 REFERENCE

SETTING UP THE VCR

SETUP FOR A DIGITAL

SATELLITE RECEIVER

With this setup, the VCR turns on an RCA, ProScan, or GE satellite receiver antenna and tunes it to the desired channel at the start time of a timer recording. For other brands, the VCR tunes the receiver to the desired channel only if the receiver is turned on. Position the satellite receiver above the VCR as shown in the Connections section.

1. Press MENU to display the VCR MAIN MENU.

VCR MAIN MENU

1 VCR Plus+

2 Timer Recordings

3Time

4Channels

5Setup

6Preferences

7Audio

8Language

0Exit

2.Press 4 to display CHANNELS menu.

0Exit

3.Press 6 to select the SAT SETUP menu.

SAT SETUP

On what channel does the VCR receive signals from the SAT receiver? (usually 3, 4, or video)

--

Enter 01-13 or INPUT

Press MENU to cancel

4.Enter the output channel of your satellite receiver, usually 03, 04, or video line input and press MENU. The VCR confirms that it receives all satellite signals on the specified channel.

Satellite Viewing Channels

Even though you are offered channels 1-125, most modern satellite systems can only broadcast to channels 3, 4 or the Video INPUT ???channel??? (Selected with the INPUT button on the remote control). It is highly recommended that you chose one of these three for your satellite system???s broadcast. For more information about Video line input, see ???How to Find Your TV???s Video Input Channel??? in the

References section of this manual.

SETTING UP THE VCR

SAT SETUP

The VCR will now receive all signals from the SAT receiver on channel 03.

Press MENU to continue

5.Press MENU and enter the code for your digital satellite receiver from the Satellite Receiver Code List.

SAT SETUP

Enter the code for your SAT receiver from the list in your User's Manual

--

Press MENU to cancel

6.Turn on your satellite receiver and tune it to channel 100 and then press MENU. Follow the on-screen directions.

SAT SETUP

Please turn on your SAT Receiver and tune it to channel 100.

Press MENU to continue

Once you have completed the setup, the VCR confirms the satellite receiver setup is completed or canceled.

CABLE BOX SETUP

This setup applies only when all channels are received through the cable box. There are two steps:

???The first sets up the VCR for the output channel of the cable box signal.

???The second sets up the VCR for a remote-controllable cable box so the VCR can control the cable box by changing channels for timer or VCR Plus+ system recordings. Position the remote-controllable cable box above the VCR as shown

in the Connections section.

Satellite Receiver Codes

This VCR may not control all models of the brands that are shown.

SETTING UP THE VCR

1. Press MENU to display the VCR MAIN MENU.

VCR MAIN MENU

1 VCR Plus+

2 Timer Recordings

3Time

4Channels

5Setup

6Preferences

7Audio

8Language

0Exit

2.Press 4 to display the CHANNELS menu.

0Exit

3.Press 5 to display CABLE BOX SETUP. Then select one of the three choices.

CABLE BOX SETUP

Do you use your cable box to receive ALL channels or only SOME channels?

1 ALL channels

2 Only SOME channels

3 Cancel setup

4.If you selected ALL CHANNELS, enter the output channel of your cable box, usually 03, 04, or video line input and press MENU.

5.Press MENU and select whether your cable box is remote controllable.

CABLE BOX SETUP

Can your cable box be operated with a remote control?

1Yes

2No

6.If your cable box is remote-controllable, turn it on and tune it to channel 2. Press MENU to continue.

(Continues on Next Page)

Cable Box Setup

All channels: enter two numbers for output channel of your cable box or press INPUT for Video Input.

Only SOME channels: if you only use the cable box to tune premium channels.

Cancel setup: select to cancel.

Video Input Channel

You can select the Video Input ???channel??? by hitting the INPUT button on your remote control. For more information about this feature, see, ???Finding Your TV???s Video Input Channel,??? in the Reference section of this manual.

SETTING UP THE VCR

(Continued from Previous Page)

CABLE BOX SETUP

Please turn on your Cable Box and tune it to channel 2.

Press MENU to continue

7.Enter the code for your cable box from the Cable Box Codes list then press MENU to continue.

CABLE BOX SETUP

Enter the code for your cable box from the list in your User's Manual.

--

Press MENU to cancel

8.Select one of the choices and follow the on-screen instructions.

CABLE BOX SETUP

Did the cable box tune to channel 9?

1 Yes, setup is complete

2 No, try again

3 No, cancel setup

Once you have completed the setup, the VCR confirms the CABLE BOX SETUP is completed or canceled.

VCR CHANNELS LIST

If you use a cable box for all channels, this step is not necessary. Your VCR may come with a channel list preset at the factory. Even though your VCR may come with a list, it???s possible that you may want to add or eliminate some channels depending on whether they are active.

This VCR may not control all models of the brands that are shown.

SETTING UP THE VCR

TO AUTO CHANNEL SEARCH

1. Press MENU to display the VCR MAIN MENU.

VCR MAIN MENU

1 VCR Plus+

2 Timer Recordings

3Time

4Channels

5Setup

6Preferences

7Audio

8Language

0Exit

2.Press 4 to display the CHANNELS menu.

0Exit

3.Press 1 to display the AUTO CHANNEL SEARCH menu.

AUTO CHANNEL SEARCH

What type of signal are you using?

1 Cable TV

2Antenna

3Detect Automatically

0Cancel

4.Select one of the three AUTO CHANNEL SEARCH options.

???Cable TV searches for cable channels

???Antenna searches for local broadcast stations

???Detect Automatically will make this decision for you

AUTO CHANNEL SEARCH

Now scanning channel 14

Press any key to cancel

The VCR begins scanning for the available channels??? this takes about one to two minutes. When the scan is complete, the VCR tunes to the lowest channel number. At this point, pressing CHAN up or down on the remote control or VCR should only select the active channels.

Auto Channel Search

Use the Auto Channel Search feature to place all available channels in memory.

If you ever change cable or antenna signals, you may need to Auto Channel Search again.

Detect Automatically

A strong cable or antenna signal in your area may cause Auto Detect to mis-detect. If this should happen, select 1 or 2 for the system you have.

ADD/REMOVE CHANNELS

Channel 115

is presently ADDED

Press CLEAR to remove Press MENU to exit

ADD/REMOVE CHANNELS

Channel 115

is presently REMOVED

Press INFO to add Press MENU to exit

4.When at the channel, it will be added if not already on the list or deleted if it was. If the channel was added, you can press CLEAR to remove it. If the channel was deleted, you can press INFO to add.

TIME AND DATE

The VCR gives you two ways to set the time and date. The Auto Clock feature which enables the VCR to update the clock each time you turn off the VCR. The Auto Clock feature is advantageous because it updates the time for you automatically. The second way is entering the time and date manually via the menu system.

The CHANNEL + and - buttons access those channels which are active in your VCR channel list.

You can still access channels not in the channel list by using the number buttons on the remote.

SETTING UP THE VCR

AUTO CLOCK SET FEATURE

The Auto Clock feature is set to ON at the factory. There are certain steps that are required before the Auto Clock feature works, such as Auto Channel Search, setting the time zone, and setting the Daylight-Saving feature.

SETTING THE TIME ZONE

To set the Time Zone:

1. Press MENU to display the VCR MAIN MENU.

VCR MAIN MENU

1 VCR Plus+

2 Timer Recordings

3Time

4Channels

5Setup

6Preferences

7Audio

8Language

0Exit

2.Press 3 to display the TIME menu.

TIME

1 Set Time and Date

2 Auto Clock Set: ON

3 Set Time Zone

4 Set Daylight Savings

Time Data was found on channel 20.

0Exit

3.Press 3 to display the SET TIME ZONE screen.

SET TIME ZONE

What is your Time Zone?

1Eastern

2Central

3Mountain

4Pacific

5Alaska

6Hawaii 7>Automatic

Press MENU to continue

4.Select your time zone.

If you select Automatic for your time zone, the VCR sets the clock using the first Coordinated Universal Time information it finds in a broadcast signal (usually on a PBS station). If the time is not correct, select another time zone or set the time and date through the menu system.

Auto Clock Info

With a cable box, the VCR will not reset the clock after a power outage unless the cable box is set to the channel carrying the broadcast signal.

If Auto Clock Set is unsuccessful, try tuning the VCR (or cable box) to a channel carrying Allset time data (usually PBS), then turn the VCR off. If the time does not set within 10 minutes, set the time and date manually through the Time menu.

Check local cable system or TV stations for availability of channels with Allset information.

SETTING UP THE VCR

SETTING DAYLIGHT SAVINGS

1. Press MENU to display the VCR MAIN MENU.

VCR MAIN MENU

1 VCR Plus+

2 Timer Recordings

3Time

4Channels

5Setup

6Preferences

7Audio

8Language

0Exit

2.Press 3 to display the TIME menu.

TIME

1 Set Time and Date

2 Auto Clock Set: ON

3 Set Time Zone

4 Set Daylight Savings

Time Data was not found.

0Exit

3.Press 4 to display the SET DAYLIGHT SAVINGS menu.

SET DAYLIGHT SAVINGS

Does your area observe Daylight Savings Time from April to October?

1 Yes, DST is observed

2 No 3>Automatic

Press MENU to continue

4. Select one of the options.

???DST stands for Daylight-Saving Time.

???If you choose Automatic, the VCR sets the clock using the DST information broadcast in the signal (channel).

SETTING TIME AND DATE MANUALLY

If the Auto Clock Set was unsuccessful, set the clock manually through the TIME menu option. The Auto Clock Set feature is set to OFF automatically when you set the clock this way.

1. Press MENU to display the VCR MAIN MENU.

Spring forward; Fall back

In the Spring, Daylight-Savings begins on the first Sunday in April. Because the clock automatically changes from 2 a.m. to 3 a.m. (forward one hour), remember to include the extra hour for timer recordings falling within this time frame.

In the Autumn, Daylight-Savings ends on the last Sunday in October. The VCR clock automatically changes from 2 a.m. to 1 a.m. (back one hour). Therefore, it can affect your recording length.

SETTING UP THE VCR

2.In the MAIN MENU, press 4 to display the CHANNELS menu.

0Exit

3.Press 4 to display the VCR Plus+ system SETUP screen.

VCR PLUS+ SETUP

1 Set Channel Lists

2 Auto VCR Plus+: ON

VCR Plus+ data was found on channel 05.

0Exit

4.Press 1 to display the Set Channel Lists screen

Press MENU to save

4.Enter the data following the on-screen directions using your worksheet.

Use CH +/- to select

Press 0-9 to change

Press MENU to save

Screen used is for an example only.

Two-Digit VCR Plus+ System

Channel Numbers for

Cable TV (U.S. List)

45Cinemax

98Cinemax 2

37The Discovery Channel

53The Disney Channel

63Entertainment Television

34ESPN Sports Network

47The Family Channel

33Home Box Office

95Home Box Office 2

96Home Box Office 3

51The Learning Channel

46Lifetime

58 The Movie Channel

48Music Television

49The Nashville Network

93Viewer???s Choice 1

94Viewer???s Choice 2

55WGN Chicago

43WTBS Atlanta

60WWOR-New York

See next page for Canadian List

VCR Plus+ Programming System

Channel List

Refer to your local television list for a complete VCR Plus+ system channel list for your viewing area or contact your cable company. Using the list may save you some time.

SETTING UP THE VCR

VCR Plus+ SYSTEM WORKSHEET

* Check your local or cable listing for the channel number you receive this station on.

**Check your local listing for broadcast or VCR Plus+ channel number assigned.

Two-Digit VCR Plus+ System

Channel Numbers for

Cable TV (Canadian List)

67 Allarcom Pay Television/

Superchannel

44 Arts & Entertainment

72 Cable News Network-

Headline News

61 Cable News Network

70 Canadian Home Shopping

Network

56 Canal Famille

69 Cathay International

Television Inc.

68 Chinavision Canada Corp

60 Country Music Television

63Family Channel

62First Choice

96First Choice Two

97First Choice Three

99First Choice Four

90House of Commons

91La Chaine Francaise

51The Learning Channel

65MeteoMedia/The Weather Network

48MuchMusic Network

55MusiquePlus

52Nashville Network

73Newsworld/CBC

53Le Reseau des Sports

43The Sports Network

64Super Ecran

37Super Ecran B

98Super Ecran C

66Telatino Network

46TV5 Montreal

92Viewer???s Choice 1

93Viewer???s Choice 2

94Viewer???s Choice 3

95Viewer???s Choice 4

71Vision TV: Canada???s Faith Network

38Youth TV, Canada Inc.

Remote Control Option

Remember you must press VCR1 or VCR2 on the remote???whichever you selected in the menu???before the remote will operate the VCR.

SETTING UP THE VCR

The VCR will only respond to the VCR2 button. To change the remote setting back to VCR1, display the PREFERENCES menu, press 1, and then press the VCR1 button on

the remote.

AUTO PLAY

This feature allows the VCR to automatically start playing when you insert a tape with the safety tab removed. Press 2 to switch between ON or OFF.

???Select ON if you want a tape with its safety tab removed to start playing automatically when the tape is inserted.

???Select OFF if you do not want a tape with its safety tab removed to start playing automatically.

AUTO TV/VCR

This feature controls whether the TV/VCR switch changes automatically to the VCR mode, when the VCR is turned on. Press 3 to switch between ON and OFF.

???Select ON if you want the VCR to switch to the VCR mode when the VCR is turned on. This only applies if you connect the IN FROM ANT. and OUT TO TV jacks of your VCR and TV and watch your VCR on channel 3 or 4 of your TV.

???Select OFF if you want the VCR to remain in the TV mode. This is useful if you watch your VCR on the TV???s video input and you don???t want your antenna/cable signal interrupted by the VCR.

Auto TV/VCR

Pressing TV???VCR on the VCR (ANTENNA on remote) will still switch between the VCR and TV modes.

VCR mode: VCR indicator in the display panel lights.

TV mode: VCR indicator turns off.

SETTING UP THE VCR

ENERGYSAVER

By default, this VCR automatically turns off after two hours of inactivity. Press 4 to change the time delay or to disable the feature.

???OFF: The VCR will remain turned on until you shut it off.

???1:00, 2:00, or 3:00: The VCR turns off after one, two, or three hours of inactivity.

Thirty seconds before shutting off, the VCR will warn you with a screen reading, ???The VCR will turn off in 30 seconds. Press any key to cancel.???

If you use the VCR???s tuner instead of your TV to tune channels, you may want to turn this feature off.

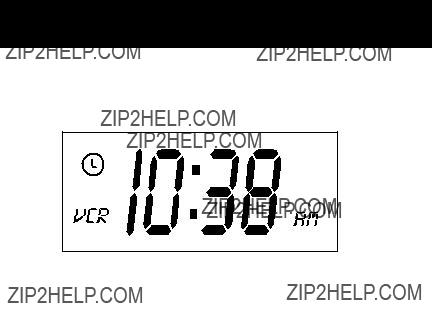

FRONT PANEL (VCR DISPLAY)

You can change the brightness level of the fluorescent display panel on the front of the VCR. Press 5 to switch between the options.

???AUTO brightens the display when the VCR is on and dims the display when the VCR is off.

???BRIGHT keeps the display bright.

???DIM keeps the display at a low brightness level.

TAPE SPEED

You can select a preferred tape speed for recording. The speed you select appears in the display panel and in the timer and VCR Plus+ recording menus. Press 6 to switch between SP and SLP.

You can override the preferred tape speed:

???Press the SPEED button on the remote.

???Set the tape speed in the timer or VCR Plus+ recording menu.

When you turn off the VCR, the tape speed reverts to the one you have selected.

Tape Speeds

SP (Standard Play)

Gives the best quality recording, but fewer programs can be recorded on the tape. Special effects such as pause, slow motion, picture search, and frame advance work well when you play back tapes recorded in

this speed.

SLP (Super Long Play)

Gives three times the recording time of tapes recorded in SP. Special effects such as pause, slow motion, picture search, and frame advance work well when you play back tapes recorded in this speed.

VCR BASICS

LEARN THE BASICS TO GET

YOU STARTED

These VCR basics should be enough for you to begin enjoying your VCR. Learning the remote control functions, playing a recorded tape, and recording a program should do just that.

This section shows you the basics of using your VCR. It discusses things like using the remote control, playing a tape, and recording programs.

1 FIRST THINGS FIRST

???

2 SETTING UP THE VCR

???

3 VCR BASICS

???

4 RECORDING

???

5 PROGRAM THE REMOTE

???

6 OTHER FEATURES

???

7 CONNECTIONS

???

8 REFERENCE

VCR Basics tells you what you need to know in order to watch a movie or tape your favorite show.

VCR BASICS

REMOTE BUTTONS

Your backlit remote has a light button () that glows in the dark. Press this button to light the buttons on the remote. The remote buttons remain lit when they are pressed within a few seconds of each other.

If a button is not pressed within approximately seven seconds, the light turns off to conserve battery power.

The remote control is capable of controlling more than just your VCR. If you have compatible ProScan, RCA, or GE components, you may be able to control them without having to program the remote.

COMPONENT BUTTONS

AUX Turns on a compatible RCA or ProScan amplifier/ receiver or audio/video receiver. Can be programmed to control a ProScan or RCA auxiliary component.

DVD Controls a compatible ProScan, RCA, or GE DVD player. Use arrow and OK buttons to move around and select items in DVD???s menu system.

ON???OFF Turns VCR on or off when remote is set to control the VCR. Also turns other compatible components on or off.

SAT???CABLE Turns on a compatible ProScan, RCA, or GE satellite receiver and sets the remote to control the receiver. Can be programmed to control different brands of receivers. Used with the ON???OFF button to turn on a compatible cable box (if programmed) and sets the remote to control the cable box.

TV Turns on a compatible ProScan, RCA, or GE TV and sets the remote to control the TV. Also used with the ON???OFF button to turn on a different brand of TV (if programmed) and sets the remote to control the TV.

VCR1 Turns on a compatible ProScan, RCA, or GE VCR and sets the remote to control the VCR.

VCR2 Turns on a compatible ProScan, RCA, or GE VCR and sets remote to control VCR when it has been set up. Used with ON???OFF button to turn on a compatible ProScan, RCA, or GE LaserDisc player and sets remote to control the player.

VCR BASICS

VCR FUNCTION BUTTONS

ANTENNA Switches the picture signal so that it either comes from the VCR or cable/antenna system. Turns VCR indicator in VCR display panel on or off.

Arrow Buttons () Allow you to move through the menus, enter data, and change settings of selected features.

CH + and ??? Selects next higher or lower channel in the VCR???s channel memory.

CLEAR Resets time counter to 0:00:00. Allows you to change entries when setting the clock or a timer recording.

EDIT Simultaneously pauses and unpauses two VCRs when dubbing.

FORWARD Fast forwards the tape when the VCR is stopped. Searches forward through a tape during playback. Starts slow motion during play-pause and increases slow- motion speed.

FR.ADV (Frame Advance) Advances the tape one frame at a time during play-pause.

GO BACK Switches between two channels. Select one channel and then select another using the number buttons. Press GO BACK to switch between the two channels.

INFO Shows the status displays on the TV screen.

INPUT Selects between the line inputs and the VCR???s tuner. Line input refers to the signal coming from the component connected to the audio/video input jacks on the back or front of the VCR.

MENU Displays and accesses menu system.

Numbers (0 through 9) Select a channel up to 99 by pressing two numbers. Select a cable channel over 99 by pressing and holding 1 until ???1 ??? ?????? appears on the screen. Then press the other two numbers.

ON???OFF Turns the VCR off or on.

PAUSE Pauses playback or recording. Press PAUSE again to return to playback or recording.

PLAY Plays a tape.

RECORD Starts VCR recording. Also used for Express Recording.

(Continues on Next Page)

If you have trouble getting a picture on the TV screen, refer to ???How to Find Your TV???s Video Input Channel??? or ???Troubleshooting??? in the References section of this manual for assistance..

Pause

If you pause, the VCR automatically switches from pause to stop after a few minutes to reduce tape wear.

VCR BASICS

(Continued from Previous Page)

REVERSE Rewinds the tape when the VCR is stopped. Searches backward through a tape during playback. Starts slow motion during play-pause and decreases slow-motion speed.

SEARCH Displays MOVIE ADVANCE screen for prerecorded movies or displays index and Zero search menus on TV screen. Starts COMMERCIAL ADVANCE skipping during playback.

SPEED Selects a recording speed (SP or SLP).

STOP Stops the current VCR function such as record, playback, rewind, or fast forward.

TRACKING - and + Lets you manually reduce the streaks that may appear on the picture during play or slow motion. Reduces picture ???jitter??? during stop-action (paused) playback.

TV FUNCTION BUTTONS

ANTENNA Switches between antenna system on some TVs.

CH + and ??? Selects next higher or lower channel in the TV???s channel memory.

CLEAR Removes menus or status displays from the screen.

GO BACK Switches between two channels. Select one channel and then select another using the number buttons. Press GO BACK to switch between the two channels.

GUIDE Displays channel guide on some TV???s.

INFO Shows the TV???s status displays on the TV screen.

MUTE Reduces volume to minimum level.

Numbers (0 through 9) Select a channel up to 99 by pressing two numbers. Select a cable channel over 99 by pressing and holding 1 until 1 ??? ??? appears on the screen. Then press the other two numbers.

ON???OFF Turns the TV on and off.

VOL < and > Raises and lowers sound of TV.

Automatic Tracking

The VCR has automatic tracking which adjusts the picture when playing back a tape recorded on another VCR.

Automatic tracking is turned on whenever a tape is inserted or the VCR???s power is turned on.

TV Buttons

The TV buttons may not control all features of all models of RCA, GE, or ProScan TVs.

VCR BASICS

RECORDING

If you want to record something that you???re watching, you can use basic recording. For more detailed information, refer to the ???Recording??? section starting on the next page.

1.Set the tape speed by pressing TAPE SPEED on the VCR (SPEED on the remote).

2.Press the RECORD button to begin recording.

3.Press STOP to stop recording.

If you just want to pause the recording for a short time (such as during a commercial), press PAUSE instead of STOP.

???For more information about in-depth recording features, refer to the next section.

CHECK THE SAFETY TAB

No matter which recording option you use, you need to make sure there is a tape in the VCR, and that the tape???s safety tab is in place. You cannot record on a tape with the safety tab removed.

Safety Tab

If the safety tab is removed and you want to record over it, simply cover the hole with vinyl tape.

Tape Speeds

SP (Standard Play)

Gives the best quality recording, but fewer programs can be recorded on the tape. Special effects such as pause, slow motion, picture search, and frame advance work well when you play back tapes recorded in

this speed.

SLP (Super Long Play)

Gives three times the recording time of tapes recorded in SP. Special effects such as pause, slow motion, picture search, and frame advance work well when you play back tapes recorded in this speed.

Recording Time

Cassette SP SLP

T-120 2Hr 6Hr

T-160 2Hr /40 Min 8Hr

RECORDING

SEVERAL RECORDING

OPTIONS

Now that you???ve gone through the necessary steps to operate your VCR, it???s time to look at the different recording features available to suit your needs.

Recording Features include:

???Recording (explained in

VCR Basics section)

???Express Recording

???Timer Recording

???Timer Recording with the VCR Plus+ Programming System

???Broadcast Stereo or Second Audio Program (SAP)

???Audio Only Recording

???Copying and Editing Tapes

1 FIRST THINGS FIRST

???

2 SETTING UP THE VCR

???

3 VCR BASICS

???

4 RECORDING

???

5 PROGRAM THE REMOTE

???

6 OTHER FEATURES

???

7 CONNECTIONS

???

8 REFERENCE

Press REC to set length

Record Length 1:30

Press REC to set length

Each time you press the RECORD button, you add 30 or 60 minutes to the recording time (up to 4 hours).

The VCR continues to record for the amount of time you indicate, and then automatically turns off.

To stop an Express Recording, press and hold STOP for several seconds until ???STOP??? appears on the VCR???s front panel.

Express Recording (XPR)

Express recording is a great way to tape the last quarter of the game, or the last part of a movie when you have to leave.

RECORDING

TIMER RECORDING

You can set up as many as eight timer recording programs.

1. Press MENU to display the VCR MAIN MENU.

VCR MAIN MENU

1 VCR Plus+

2 Timer Recordings

3Time

4Channels

5Setup

6Preferences

7Audio

8Language

0Exit

2.Press 2 to display the TIMER RECORDINGS menu.

TIMER RECORDINGS

1 Create a New Program

2 Review Existing Progs.

3 Use VCR Plus+ Code

0Exit

3.Select 1 to create a New Program.

How often should this program record?

1 One time

2 Daily (every day)

3 Weekdays (M-F)

4 Weekly (once per week)

0Cancel

4.Select how often you want the program to record.

Program 1 (One time)

5.Enter the data for the program with the number buttons.

The data includes the channel number (press INPUT to select the line input), start time including AM or PM, and end time. The start date is automatically entered based on the VCR clock. Both the date and speed can be changed.

(Continues on Next Page)

Timer Recording Information

The clock must be set correctly.

Insert a tape with the safety tab in place and enough tape to record the program.

The output of your cable box appears in the Channel item of the timer recording menu if you???ve set up the VCR for a cable box for all channels.

PROGRAMS OVERLAP appears if you have entered two programs where the times overlap.

TIMER appears in the display when you turn off the VCR and a timer recording has been set. TAPE flashes if there is no tape in the VCR.

For cable box or satellite receiver, turn it on and tune it to the channel you want to record before the recording is to begin.

Program 1 (One Time)

Press CLEAR to erase Press MENU for next prog

Program 1 has been saved

Remember to insert a recordable tape and turn the VCR off before the program start time.

Remember to leave your cable box on.

TIMER RECORDING WITH THE VCR Plus+

PROGRAMMING SYSTEM

You can use VCR Plus+ to simplify timer programming by using the PlusCode programming number shown in your local television programming guide.

SETTING UP THE CHANNEL LIST

If you did not set up the VCR Plus+ channel list, you can do it now.

1.Display the CHANNELS menu from the VCR MAIN MENU.

2.Display the VCR Plus+ Channel List menu.

3.Go to Setting Up Your VCR if you need more information on setting up your VCR Plus+ channel list.

USING THE VCR Plus+ SYSTEM

1. Press MENU to bring up the VCR MAIN MENU.

VCR MAIN MENU

1 VCR Plus+

2 Timer Recordings

3Time

4Channels

5Setup

6Preferences

7Audio

8Language

0Exit

2.Press 1 to display the VCR PLUS+ system menu.

VCR PLUS+

Enter PlusCode Number (from TV listing)

_

Press MENU to cancel

VCR MAIN MENU

1 VCR Plus+

2 Timer Recordings

3Time

4Channels

5Setup

Use CH +/- to select

Press 0-9 to change

Press MENU to save

RECORDING

3.Enter the PlusCode?? programming number shown in your local television programming guide.

VCR PLUS+

Enter PlusCode Number (from TV listing)

12876

Press CLEAR to correct

Press MENU when done

(Screen shown is just an example).

4. Press MENU after entering the number.

How often should this program record?

1 One time

2 Daily (every day)

3 Weekdays (M-F)

4 Weekly (once per week)

0Cancel

5.Indicate how often you want the program to be recorded.

Program 1 (One time)

Press CLEAR to adjust

Press MENU to save

6.Change the speed with the SPEED button on the remote or the program end time with the CLEAR button on the remote (if necessary).

Changing the end time comes in handy when you are recording a program, such as a sporting event, that may exceed the scheduled broadcast time.

7.Press MENU to save the program.

Program 1 has been saved

Remember to insert a recordable tape and turn the VCR off before the program start time.

Remember to leave your cable box on.

Continued on Next Page

PlusCode is a registered trademark of the Gemstar Development Corporation.

The VCR Plus+ system is manufactured under the license from Gemstar Development Corporation.

VCR Plus+ Recording

Clock must be set correctly.

Insert a tape with the safety tab in place and enough tape to record the program.

UNRECOGNIZED NUMBER... PLEASE RE-ENTER appears when the VCR does not recognize the PlusCode number.

PROGRAMS OVERLAP appears if you have entered two programs where the times overlap.

TIMER appears in the display when you turn off the VCR and a timer recording has been set. TAPE flashes if there is no tape in the VCR.

For a cable box, turn it on and tune it to the channel you want to record before the recording is to begin.

RECORDING

4.Press the SPEED button on the remote if you want to override the preferred Tape Speed setting. The tape speed indicator appears on the TV screen.

5.Select the channel or line input to be recorded.

6.Set the Reception: STEREO/MONO/SAP feature for the type of audio you want to record. See Other

Features section.

0Exit

7.Press RECORD to start recording.

8.Press STOP when you are finished.

Recording audio only will erase anything that was previously recorded on the tape.

RECORDING AUDIO ONLY

You can record audio only from another audio source connected to either the AUDIO IN 1 (R and L/MONO) jacks on the back of the VCR or the jacks on the front of the VCR.

1.Press the INPUT button once to record from the back AUDIO IN jacks. L1 will appear in the VCR???s display panel.

Press the INPUT button twice to record from the front AUDIO IN jacks. L2 will appear in the VCR???s display panel.

2.Press the SPEED button on the remote if you want to override the preferred Tape Speed setting.

3.Start audio source playing and press RECORD to begin recording.

4.Press STOP when you are finished.

PLAYING BACK AUDIO ONLY

To get stereo sound, connect the AUDIO OUT jacks of the VCR to the appropriate input on your amplifier or receiver. Do not use the phono input. Refer to your amplifier or receiver user???s guide.

Audio Connection

VCR

AMPLIFIER/

RECEIVER

LEFT

RIGHT

OUT IN

USING TWO VCRS FOR COPYING AND

EDITING TAPES

Use one VCR as the playback VCR and the other as the recording VCR.

1.Turn on the TV and VCRs.

2.Tune the TV to the VCR viewing channel (either 3, 4, or TV???s video input).

3.If you connected your VCR using the IN FROM ANT. and OUT TO TV jacks, tune recording VCR to channel 3 or 4???the one selected on the back of the playback VCR.

If you have connected your VCR using the audio/video jacks, press INPUT on the recording VCR???s remote to select the line input. Select L1 for the jacks on the back of the VCR or L2 for the jacks on the front.

4.Insert the tape you want to copy into the playback VCR. Insert a blank tape with safety tab in place into the recording VCR.

5.Press PLAY on the playback VCR to begin playback. When you reach the point on the tape or program where you want to begin copying, press PAUSE. You may need to adjust the tracking.

6.Press the RECORD button, then press PAUSE, on the recording VCR.

7.Press the PAUSE buttons on both VCRs at the same time to begin copying the tape.

8.To edit segments that you do not want to copy:

???Press PAUSE on recording VCR to pause copying.

???Locate the next segment you want to copy on playback VCR by using FWD, REV, and PLAY, and then press

PAUSE.

???Press PAUSE on both VCRs at the same time to resume copying.

9. Press STOP on both VCRs when you are finished.

Caution:

The unauthorized recording of satellite broadcasts, television programs, or other copyrighted materials may infringe the rights of others.

Two VCR Connection

CABLE BOX

IN

OUT OR ANTENNA

PLAYBACK VCR

Note that the two VCRs used in the diagram may not look exactly like the VCRs you are connecting. The important thing is to match the proper cable connections. Use the OUT jacks of the playback VCR to connect to IN jacks of the recording VCR. R output jacks connect to R INPUT jacks, L output to L input, and VIDEO out connects to VIDEO in.

PROGRAM THE REMOTE

CONTROLLING YOUR

OTHER COMPONENTS...

The remote???s TV and SAT???CABLE buttons can be programmed to control other brands of remote controllable TVs, digital satellite receivers, and cable boxes. The remote is already programmed to operate most ProScan, RCA, and GE televisions and satellite receivers.

The AUX button can be programmed to control a ProScan or RCA auxiliary component.

1 FIRST THINGS FIRST

???

2 SETTING UP THE VCR

???

3 VCR BASICS

???

4 RECORDING

???

5 PROGRAM THE REMOTE

???

6 OTHER FEATURES

???

7 CONNECTIONS

???

8 REFERENCE

PROGRAM THE REMOTE

ABOUT PROGRAMMING THE

REMOTE

The universal remote???s TV and SAT???CABLE buttons can be programmed to control other brands of remote controlled TVs, digital satellite receivers, and cable boxes. Your remote is already programmed to operate most ProScan, RCA, and GE televisions as well as digital satellite receivers.

The AUX button can be programmed to control a ProScan or RCA auxiliary component.

TESTING THE REMOTE

To determine whether the universal remote needs to be programmed, turn the component on (such as a TV), point the remote at the TV and press the TV button. Then press ON???OFF, CH +, or CH - to see if the TV responds to the remote commands. If the TV does not respond, then the remote control needs to be programmed.

PROGRAMMING THE REMOTE TO

CONTROL A TV, SATELLITE RECEIVER,

OR CABLE BOX

The remote features Code Search, a technology that largely automates the programming process. Follow these steps to program the remote to control a TV, digital satellite receiver, or cable box.

1.Turn on the component you want to control (TV, digital satellite receiver, or cable box).

2.Press and hold the button you want to program (TV or SAT???CABLE). While holding the component button, press and hold ON???OFF until the LED on the remote flashes, then release both buttons.

3.Press and release PLAY, then wait five seconds.

The remote searches through a set of codes. If, after five seconds, the component does not turn off, press PLAY again to tell the remote to search the next set of codes.

You can press FORWARD to individually search through the last ten codes that were transmitted when you pressed PLAY.

4.Repeat step 3 until the component turns off or you have searched through all of the codes.

SAT CABLE

LED

CH +

C H -

CLEAR

REVERSE PLAY FORWARD

STOP

You???ll use these buttons when you program the remote to control a TV, digital satellite receiver, or cable box.

PROGRAM THE REMOTE

To cancel Code Search, press and hold CLEAR until the LED turns off.

There are 20 total sets of codes. If the device does not turn off after pressing PLAY 20 times, the remote cannot control that particular component.

If the component you want to control does turn off:

1.Press and release REVERSE, then wait two seconds. Repeat this step until the component turns back on. This means the remote has identified the correct code.

2.To finish, press and hold STOP until the LED turns off.

USING DIRECT ENTRY

Direct Entry is another way to program your remote if the Automatic Code Search is unsuccessful.

1.Turn on the component to be programmed.

2.Look up the brand and code number(s) for the component in the code list at the end of this section of the manual.

3.Press and hold the component button on the remote you want to program.

4.Enter the code from the list at the end of this section of the manual.

5.Release the button, and then press ON???OFF to see if the component responds to the remote commands. If it doesn???t, try pressing the component button and then ON???OFF again.

6.Repeat these steps using the next code listed for your brand if you get no response.

OPERATING COMPONENTS

After programming the remote, see which buttons operate your component.

1.Point the remote at the component, and press its corresponding button on the remote.

2.Experiment to see which buttons operate your component. Try pressing buttons that relate directly to the component like the volume buttons for a television or stereo receiver.

This remote may not operate all models and/or brands of components.

Note the difference between the VCR and other component???s on-screen displays to determine which one the remote is operating.

PROGRAM THE REMOTE

PROGRAMMING THE REMOTE TO

CONTROL AUXILIARY COMPONENTS

Your remote can also control the brands of the equipment listed, such as a radio, CD player, tape player, or phonograph. It is already programmed to control some ProScan and RCA amplifiers and audio/video receivers.

1.Turn on the component to be programmed.

2.Look up your component???s code number on the code list.

3.Press and hold the AUX button.

4.Enter the 4-digit code from the code list on the next page.

5.Release the AUX button and press ON???OFF or CHAN up or down to see if the auxiliary component responds to the remote commands.

OPERATING THE AUXILIARY COMPONENT

After you have programmed your remote, see which buttons will operate your component.

1.Point the remote at the component and press AUX. If it does not turn on, press AUX and then ON???OFF.

2.You may want to experiment to see which buttons will operate your component. Try pressing buttons, such as play, REVERSE, and FORWARD.

ON OFF

AUX

CH +

C H -

REVERSE PLAY FORWARD

You???ll use these buttons when you program the remote to control an auxiliary component.

Auxiliary Component Codes

Proscan/RCA/Dimensia (Only)

This remote may not operate all models of the brands that are shown.

OTHER FEATURES

FEATURES TO ENHANCE

VCR OPERATION

???COMMERCIAL ADVANCE

???MOVIE ADVANCE

???Picture Search Options

???Tracking

???Pro-Tect Plus??? Locking

???Time Counter

???On-Screen Displays

???Audio Reception

???Audio Playback

1 FIRST THINGS FIRST

???

2 SETTING UP THE VCR

???

3 VCR BASICS

???

4 RECORDING

???

5 PROGRAM THE REMOTE

???

6 OTHER FEATURES

???

7 CONNECTIONS

???

8 REFERENCE

OTHER FEATURES

INDEX SEARCH

The VCR has a ???VHS Index Search System??? that automatically records an index mark on the tape every time you start a recording.

During playback you can locate the program you want to play by the number of index marks or by scanning. The VCR will search forward or reverse from the location you are on the tape.

To Search:

1.Press STOP.

2.Press SEARCH on the remote to display the INDEX SEARCH screen.

3.If you want to search through a certain number of index marks, press two number buttons to enter the number of marks you want to search. Press CLEAR on the remote to correct an entry.

4.Press FORWARD to search forward or REVERSE to search in reverse. The VCR will locate your index mark and begin playback. If you did not enter a specific index number, the VCR will locate the next index mark and begin playback.

5.Press STOP to end index searching.

Some index marks may be missed by the VCR:

???A mark too close to your location on the tape

???The mark at the beginning of a recorded segment of five minutes or less

???The first index mark on the tape when you start at the beginning of the tape

INDEX SEARCH

Press REV OR FWD to begin scanning

OR

enter a specific index number

_ _

Press SEARCH to exit

INDEX SEARCH

Searching for

index number 12...

Press STOP to cancel

INDEX SEARCH

Searching for

index marks...

Press STOP to cancel

If you insert a pre-recorded tape with the safety tab removed-- Index and Go-To searches are not available.

GO-TO SEARCH

The Go-To Search feature enables the VCR to quickly locate a counter reading anywhere on the tape. When the VCR locates the counter reading, it will begin playback.

1.Press STOP.

2.Press SEARCH on the remote until the GO-TO SEARCH screen appears on the screen.

3.Press number buttons to enter the hour and/or minute of the counter reading you want the VCR to ???go to.??? Press CLEAR on the remote to correct an entry.

4.Press FORWARD to search ahead or REVERSE to search behind.

5.Press STOP to end Go-To searching.

GO-TO SEARCH

Current tape counter is 2:17:25

Press REV or FWD to go to -:--:00

Press SEARCH to exit.

GO-TO SEARCH

Current tape counter is 2:17:25

Press REV or FWD to go to 0:00:00

Press SEARCH to exit.

OTHER FEATURES

TRACKING

Your VCR has automatic tracking which removes interference like streaks or ???snow??? from the picture. Automatic tracking is automatically activated when you insert a tape or turn on the VCR. Occasionally you may need to manually adjust tracking, especially if the tape was recorded on a different VCR. Just use the TRACKING buttons to reduce the distortion. You can also use tracking when you pause a tape to reduce jittering of the picture.

When you manually adjust the picture, automatic tracking is turned off. To turn automatic tracking back on, press both TRACKING buttons on the front of the VCR at the same time, or eject the tape and re-insert it. Tracking has no effect during recording??? only playback.

PRO-TECT PLUS??? LOCKING

FEATURE

To disable the usage of the VCR, or to protect your timer recordings, you can lock the VCR so that the buttons on the VCR or remote won???t work.

???To Lock: Press and hold the VCR button on the remote for approximately six seconds. SAFE appears.

???To Lock While a Timer Recording is in Progress: Press and hold the VCR button on the remote for approximately six seconds.

???To Unlock: Press and hold the VCR button on the remote for approximately six seconds.

TIME COUNTER

The time counter shows the actual time it takes to record a program or play back a segment of a recorded tape. It helps locate the beginning or end of programs you taped. The time counter resets to 0:00:00 whenever the tape is ejected from the VCR.

For example, if you record a 30???minute program at the beginning of the tape and you want to go to the end of that program to begin another recording, you would:

1.Press INFO twice to display only the time counter.

2.Press CLEAR to reset the time counter to 0:00:00.

(Continues on Next Page)

Locking Your VCR

If a timer recording is programmed, make sure your VCR is turned off. Locking your VCR prevents the VCR from being accidentally turned on.

CONNECTIONS

THINGS TO KNOW BEFORE

CONNECTING COMPONENTS

PROTECT YOUR COMPONENTS

FROM POWER SURGES

???Connect all components before plugging any power cords into the wall outlet.

???Always turn off the TV and other components before you connect or disconnect any cables.

POSITION CABLES CORRECTLY TO

AVOID AUDIO HUM OR

INTERFERENCE

???Insert all cable plugs firmly into their jacks.

???Place the audio/video cables to the sides of the TV???s back panel instead of straight down the middle after you connect your components.

???Try not to coil any twin-lead cables and keep them away from the audio/video cables as much as possible.

???Make sure all antennas and cables are properly grounded. Refer to the Safety Tips sheet packed with your unit.

PROTECT YOUR COMPONENTS

FROM OVERHEATING

???Do not block ventilation holes in any of the components. Arrange the components so that air can circulate freely.

???Do not stack components.

???Allow adequate ventilation when placing your components in a stand.

???Place an amplifier or satellite receiver on the top shelf of the stand so heated air rising from it will not flow around other components.

1 FIRST THINGS FIRST

???

2 SETTING UP THE VCR

???

3 VCR BASICS

???

4 RECORDING

???

5 PROGRAM THE REMOTE

???

6 OTHER FEATURES

???

7 CONNECTIONS

???

8 REFERENCE

CONNECTIONS

TV WITH RF JACK ONLY

THIS CONNECTION ASSUMES:

???You are connecting antenna, cable, or cable box system.

???Your television has only an RF input jack.

THIS CONNECTION PROVIDES:

???Mono sound playback from VCR.

???Record one channel while watching another (except when using a cable box for all channels).

TO USE THIS CONNECTION, YOU MUST HAVE:

???(1) coaxial cable for cable or antenna connection; (2) for cable box

IF YOUR CABLE BOX IS REMOTE CONTROLLABLE:

???Position it above the VCR as shown. Make sure not to block any of the VCR???s ventilation holes.

TO CONNECT:

1.Connect cables as shown.

2.Return to First Things First, then follow the steps.

USING THIS CONNECTION

???Tune your TV to channel 3 or 4, whichever one you selected with the CH. 3/4 switch on the back of the VCR.

???Set the Auto TV/VCR feature to ???ON.???

TO PLAY A TAPE:

1.Insert a tape.

2.If necessary, press PLAY.

TO RECORD ONE PROGRAM AND WATCH ANOTHER:

1.Begin recording a program using one of the recording features.

2.Press the TV???VCR button and select a different channel on the TV.

Position Remote-Controllable

Cable Box

CABLE, CABLE BOX, OR ANTENNA

VCR

R

L

RF OUT

OUT IN

CH.

TV

CABLE/

ANTENNA

CONNECTIONS

TV WITH AUDIO/VIDEO JACKS

THIS CONNECTION ASSUMES:

???You are connecting an antenna, cable, or cable box system.

???Your television has audio/video jacks.

THIS CONNECTION PROVIDES:

???Stereo sound playback from VCR.

???Record one channel while watching another (except when using a cable box for all channels).

TO USE THIS CONNECTION, YOU MUST HAVE:

???(1) coaxial cable for cable/antenna connection; (2) for cable box

???(3) audio/video cables

IF YOUR CABLE BOX IS REMOTE CONTROLLABLE:

???Position it above the VCR as shown. Make sure not to block any of the VCR???s ventilation holes.

TO CONNECT:

1.Connect cables as shown.

2.Return to First Things First, then follow the steps.

USING THIS CONNECTION

???Tune your TV to its video input channel.

???Use of TV???VCR button is not required.

???Set the Auto TV/VCR feature to ???OFF.???

TO PLAY A TAPE:

1.Insert a tape.

2.If necessary, press PLAY.

TO RECORD ONE PROGRAM AND WATCH ANOTHER:

1.Begin recording a program using one of the recording features.

2.Select a different channel on the TV.

Position Remote-Controllable

Cable Box

CABLE, CABLE BOX, OR ANTENNA

VCR

R

L

RF OUT

OUT IN

CH.

TV

CONNECTIONS

TV WITH AUDIO/VIDEO JACKS AND CABLE

BOX TO UNSCRAMBLE PAY CHANNELS

ONLY

THIS CONNECTION ASSUMES:

???You are using a cable box only to unscramble premium channels.

???Your TV has audio/video input jacks.

THIS CONNECTION PROVIDES:

???Stereo sound playback from VCR.

???Recording a scrambled or unscrambled channel through the cable box while watching an unscrambled channel.

TO USE THIS CONNECTION, YOU MUST HAVE:

???(3) coaxial cables

???(3) audio/video cables

???(1) splitter

IF YOUR CABLE BOX IS REMOTE CONTROLLABLE:

???Position it above the VCR as shown. Make sure not to block any of the VCR???s ventilation holes.

TO CONNECT:

1.Connect cables as shown.

2.Return to First Things First, then follow the steps.

USING THIS CONNECTION

???Tune your TV to its video input channel.

???Use of TV???VCR button is not required.

???Use of TV???VCR button is not required. Set the Auto TV/VCR feature to ???OFF.???

TO PLAY A TAPE:

1.Insert a tape.

2.If necessary, press PLAY.

TO RECORD A SCRAMBLED OR UNSCRAMBLED PROGRAM

AND WATCH ANOTHER UNSCRAMBLED PROGRAM:

1.Begin recording a scrambled or unscrambled program through the cable box using one of the recording features.

2.Select an unscrambled channel on the TV.

Position Remote-Controllable

Cable Box

All scrambled channels must be viewed through the VCR.

For Cable Box Setup, select ALL channels. See page 11.

CABLE

2-WAY

SPLITTER

CABLE BOX

IN

OUT

VCR

R

L

RF OUT

OUT IN

TV

CONNECTIONS

TV WITH RF JACK AND DIGITAL SATELLITE

RECEIVER

THIS CONNECTION ASSUMES:

???You have a basic digital satellite receiver and your TV does not have audio/video input jacks.

THIS CONNECTION PROVIDES:

???Stereo sound playback from VCR, recording from a digital satellite receiver, and recording one off-air or cable channel while watching another.

TO USE THIS CONNECTION, YOU MUST HAVE:

???(4) coaxial cables and (3) audio/video cables

IF THE VCR CAN CONTROL YOUR DIGITAL SATELLITE

RECEIVER:

???Position it above the VCR as shown. Make sure not to block any of the VCR???s ventilation holes.

TO CONNECT:

1.Connect cables as shown.

2.Return to the First Things First Section, then follow the steps.

USING THIS CONNECTION

???Tune your TV to channel 3 or 4, whichever one you selected with the CH. 3/4switch on the back of the VCR.

???To record and watch off-air or cable, tune your VCR to channel 3 or 4 whichever one you selected with the CH. 3/4switch on the back of the receiver. Turn off receiver.

???To watch and/or record from the digital satellite receiver, tune your VCR to its line input. L1 appears in display.

???Turn Auto TV/VCR feature to ???ON.???

TO PLAY A TAPE:

1.Insert a tape.

2.If necessary, press the VCR button and then PLAY.

TO RECORD ONE OFF-AIR OR CABLE PROGRAM AND

WATCH ANOTHER:

1.Turn off the digital satellite receiver and begin recording a program using a recording feature.

2.Press TV???VCR and select a different channel on the TV.

TO RECORD A DIGITAL SATELLITE RECEIVER PROGRAM:

1.Turn on the receiver, tune the VCR to its line input, and begin recording a program using a recording feature.

Position Remote-Controllable

Cable Box

Caution

The unauthorized recording of satellite broadcasts, television programs, or other copyrighted materials may infringe the rights of others.

CABLE,CABLE OR

ANTENNA BOX

TV

CABLE/

ANTENNA

CONNECTIONS

TV WITH AUDIO/VIDEO JACKS AND

DIGITAL SATELLITE RECEIVER

THIS CONNECTION ASSUMES:

???You have an advanced digital satellite receiver and your TV has audio/video input jacks.

THIS CONNECTION PROVIDES:

???Stereo sound playback from VCR, recording from receiver while watching cable or off-air channel, and recording one cable or off-air channel while watching another.

TO USE THIS CONNECTION, YOU MUST HAVE:

???(3) coaxial cables and (6) audio/video cables

IF THE VCR CAN CONTROL YOUR DIGITAL SATELLITE

RECEIVER:

???Position it above the VCR as shown. Make sure not to block any of the VCR???s ventilation holes.

TO CONNECT:

1.Connect cables as shown.

2.Return to the First Things First Section, then follow the steps.

USING THIS CONNECTION

???Tune your TV to its video input to record (or watch) the VCR or digital satellite receiver.

???To record from the digital satellite receiver, tune your VCR to its line input. L1 appears in the display.

???Turn Auto TV/VCR feature to ???OFF.???

TO PLAY A TAPE:

1.Insert a tape.

2.If necessary, press the VCR button and then PLAY to start.

TO RECORD ONE OFF-AIR OR CABLE PROGRAM AND

WATCH ANOTHER:

1.Begin recording a program using a recording feature.

2.Select a different channel on the TV.

TO RECORD A DIGITAL SATELLITE RECEIVER PROGRAM

AND WATCH A CABLE OR OFF-AIR CHANNEL:

1.Turn on the receiver, tune the VCR to its line input, and begin recording a program using a recording feature.

2.Select a different channel on the TV.

Position Remote-Controllable

Cable Box

CABLE OR ANTENNA

SATELLITE SIGNAL

VCR

OR

TV

APPENDIX: REFERENCE

This section gives you some additional information about the VCR, including a description of the unit???s controls and displays.

You will also find the section, Troubleshooting Tips, and a question and answer section about COMMERCIAL ADVANCE in this Appendix. These areas might help resolve some of those simple problems.

Finally, this section of the manual also contains your warranty information.

1 FIRST THINGS FIRST

???

2 SETTING UP THE VCR

???

3 VCR BASICS

???

4 RECORDING

???

5 PROGRAM THE REMOTE

???

6 OTHER FEATURES

???

7 CONNECTIONS

???

8 REFERENCE

You need to tune your TV to the Video Input Channel if you are using the VCR???s AUDIO/VIDEO OUT jacks to connect to the TV???s AUDIO/VIDEO INPUT jacks. You must select this ???channel??? before you can see the VCR???s menus, the cable or antenna reception, and the content that???s on a tape.

The Video Channel on TVs varies for different brands and different models. Below are some steps to try:

???If your TV brand is RCA, GE, or PROSCAN, press the TV button on the remote control that came with the VCR. Then press the INPUT button on the remote.

INDEX

INDEX

A

Adding/removing channels 14

ANT. IN and RF OUT jacks 60, 65

ANT. IN jack 4, 5, 6, 22, 38, 68

ANTENNA button 23, 27, 36, 61

Arrow buttons 26

Audio

playback type 57 selecting 57

Audio code list 44

Audio features, set up 55

AUDIO menu 56

Audio only playing back 37 recording 37

Audio/Video jacks 37, 60, 61, 63, 64, 66, 66, 68, 75 Auto channel search 13

Auto clock set 15

Auto play feature 22, 29

Auto TV/VCR feature 22, 61

AutoEdit feature 39

Automatic rewind 29

Automatic tracking 28

AUX button 26, 44

Auxiliary component codes 44

B

Back-lit remote 26

Batteries

remote control 4 Broadcast Stereo 36

C

Cable box codes 12, 45

Cable box setup 10

Cables

positioning 59 types of 60

CH + and - buttons 27, 42, 44 CH. 3/4 switch 62, 65

CHAN buttons 13

Channel number display 67 CHANNEL up and down buttons 14 Channel, VCR viewing 5 CHANNEL???TRACKING button 66 Channels, adding/removing 14 CHANNELS menu 9, 11, 13, 19, 34 Cleaning the VCR 74

CLEAR button 27, 35, 43, 54, 55 Clearing timer programs 36 Code search feature 42

Codes for remote 45

COMMERCIAL ADVANCE 48 questions and answers 73

Component buttons 26

Connecting your VCR 4

Connections 59

A/V cable advantages 61 choosing 61 information 60

TV with A/V jacks 63

TV with A/V jacks, cable box 64

TV with A/V jacks, satellite receiver 66 TV with RF jack only 62

TV with RF jack, satellite receiver 65 two VCRs 38

Copying/editing tapes 38

D

Date and time setting 14 Digital satellite receiver setup 9 Displays, on screen 56

Dual remote with AutoEdit 39 DVD button 26

INDEX

E

EDIT button 27, 39

Eject 29

EnergySaver feature 23

Express Recording (XPR) 32

F

FORWARD button 27, 29, 42, 44, 53, 56 Forward, reverse search 53

FR. ADV button 27, 53

Frame advance 53

Front panel diagram 66

FWD button 29, 38, 56, 66

G

GO BACK button 27

Go-To Search 54

GUIDE button 28

I

IN (FROM ANT) jack 61

Index search 54

Indicator Panel 66

INFO button 17, 27, 55

INPUT button 27, 33, 38, 75

J

Jacks

ANT. IN 68

ANT. IN, RF OUT 60, 65

Audio/Video 60, 61, 63, 64, 66, 68, 75 RF OUT 68

types of 60

L

L1, L2 indicator 38, 67

LANGUAGE choosing 6

Language feature 8

LED on remote 42

Light button 26

LINE indicator 67

Locking feature 55

M

Mapping VCR Plus+ System Channels 18 MENU button

6, 8, 11, 13, 16, 18, 21, 27, 33, 48, 56 MUTE button 28

N

Number buttons 6, 17, 27

O

OK button 26

ON???OFF button 26, 42, 44

On-screen displays 56

OUT (TO TV) jack 61

Overheating 59

P

PAUSE button 27, 29, 39, 53

Picture search options 53

PLAY button 27, 29, 38, 42, 53, 62, 66 PLAY???PAUSE button 29

Playing a tape 29

Plugging in the VCR 4

PlusCode number 34

POWER button 5, 29, 66

INDEX

Power surges 59

PREFERENCES menu 21, 48

Pro-Tect Plus??? Locking 55

Problem solving. See Troubleshooting tips PROGRAMS OVERLAP message 33, 35

Q

QuickSet guide 8

R

REC button 39

Reception: STEREO/MONO/SAP feature 37, 57 RECORD button 27, 30, 32, 37, 66

Record protection cassette safety tab 30

Recording 30 audio only 37 basic 30

broadcast stereo TV 36 copying and editing tapes 38 Express (XPR) 32

options 31 SAP 36 speeds 23 timer 33

timer with VCR Plus+ 34

Remote codes (other components) 45 Remote control

auxiliary component codes 44 buttons 26

cable boxes 42 installing batteries 4 programming 41 satellite receivers 42 sensor 66

TVs 42

Remote VCR1/VCR2 option 21

Removing/adding channels 14

REV button (VCR) 29, 38, 66

REVERSE button 28, 43, 44, 53

Reviewing timer programs 36

Rewind, automatic 29

RF OUT jack 4, 22, 38, 68

S

SAFE indicator 67

Safety tab 22, 29

SAP, recording 36

SAT???CABLE button 26, 42

Satellite receiver codes 10, 45

Search

forward and reverse 53 frame advance 53 go-to 54

index 54 slow-motion 53

SEARCH button 28, 54

Second Audio Program. See SAP (Second Audio

Program)

SET TIME AND DATE menu 17

SET TIME ZONE screen 15

Set up

auto play feature 22 auto TV/VCR feature 22 cable box 10 Daylight-saving 15 digital satellite 9 EnergySaver feature 23 features 21

front panel (VCR display) feature 23 language feature 8

remote VCR1/VCR2 21 tape speed 23

time and date 16 using menu system 8 VCR Plus+ channels 18

Setup

initial 5

INDEX

Signal type changing 14 selecting 14

Skipping commercials 48

Slow-motion search 53

SLP (tape speed) 30

SLP indicator 67

SP (tape speed) 30

SP indicator 67

Specifications 74

Speed

SLP 23

SP 23

SPEED button 23, 28, 30, 32, 35, 37 Speeds, recording 23

Status indicators 67

BYE 67

EJEC (Eject) 67

FF 67

PLAY 67

R0:30 67

REW 67

SAFE 67

SCH and SCH- 67

STOP 67

STOP button 28, 32, 36, 43, 54, 56 STOP???EJECT button 29, 66 Stopping a timer recording 36

T

Tape

ejecting 29 playing 29

recording/playback speeds 30 TAPE display 33, 35

Tape playback feature 57

Tape playback: HI-FI/LINEAR/MIX 57 Tape speed 23

button 30 indicator 67

Time and date setting 14

Time counter 55

Time counter display 56

Time display on TV 56

TIME menu 15

Time setting

set daylight saving 16 set time zone 15

TIMER display 33, 35

TIMER indicator 67

Timer programs

clearing 36 reviewing 36

Timer recording 33 stopping 36 VCR Plus+ 34

Tips, troubleshooting 69

Tracking 55

button 28, 53, 55 Troubleshooting 69

TV

video input channel 75 TV button 26, 42, 75

TV codes for remote 45

TV function buttons 28

TV???VCR button 23, 36, 61, 62, 67

U

UNRECOGNIZED NUMBER message 35

V

VCR

cleaning 74

function buttons 27???30 viewing channel 5

VCR button 5

VCR indicator 6, 23, 36, 67

VCR MAIN MENU

6, 8, 11, 13, 16, 18, 21, 33, 36, 56

If your VCR needs service, please contact your dealer or the nearest Servicenter from the yellow pages. Please do not send any products to the Indianapolis address listed in this manual or on the carton. This will only add delays in service for your product.

10330 North Meridian Street

Indianapolis, IN 46290

?? 2000 Thomson Consumer Electronics, Inc.

Trademark(s)?? Registered

Marca(s) Registrada(s)

Printed in the U.S.A.

TOCOM 15530150

As an ENERGY STAR?? Partner, Thomson Consumer Electronics has determined that this product or product model meets the ENERGY STAR?? guidelines for energy efficiency.
