Work Area

1.Keep your work area clean and well lit.

Cluttered benches and dark areas invite acci- dents.

2.Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases, or dust. Power tools create sparks which may ignite the dust or fumes.

3.Keep bystanders, children, and visitors away while operating a power tool. Distrac- tions can cause you to lose control.

Electrical Safety

4.Double insulated tools are equipped with a polarized plug (one blade is wider than the other.) This plug will fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified elec- trician to install a polarized outlet. Do not change the plug in any way. Double insula-

tion eliminates the need for the three wire grounded power cord and grounded power supply system.

5.Avoid body contact with grounded sur- faces such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is grounded.

6.Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.

7.Do not abuse the cord. Never use the cord to carry the tools or pull the plug from an outlet. Keep cord away from heat, oil, sharp edges or moving parts. Replace damaged cords immediately. Damaged cords increase the risk of electric shock.

8.When operating a power tool outside, use an outdoor extension cord marked ???W-A??? or ???W???. These cords are rated for outdoor use and reduce the risk of electric shock.

Personal Safety

9.Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use tool while tired or under the influence of drugs, alcohol, or medication. A moment of inattention while operating power tools may result in serious personal injury.

10.Dress properly. Do not wear loose cloth- ing or jewelry. Contain long hair. Keep your hair, clothing, and gloves away from moving parts. Loose clothes, jewelry, or long hair can be caught in moving parts.

11.Avoid accidental starting. Be sure switch is off before plugging in. Carrying tools with your finger on the switch or plugging in tools that have the switch on invites accidents.

12.Remove adjusting keys or wrenches before turning the tool on. A wrench or a key that is left attached to a rotating part of the tool may result in personal injury.

13.Do not overreach. Keep proper footing and balance at all times. Proper footing and balance enables better control of the tool in unexpected situations.

14.Use safety equipment. Always wear eye protection. Dust mask, non-skid safety shoes, hard hat, or hearing protection must be used for appropriate conditions. Ordinary eye or sun glasses are NOT eye protection.

Tool Use and Care

15.Use clamps or other practical way to secure and support the workpiece to a stable platform. Holding the work by hand or against your body is unstable and may lead to loss of control.

16.Do not force tool. Use the correct tool for your application. The correct tool will do the job better and safer at the rate for which it is designed.

17.Do not use tool if switch does not turn it on or off. Any tool that cannot be controlled with the switch is dangerous and must be repaired.

18.Disconnect the plug from the power source before making any adjustments, changing accessories, or storing the tool.

Such preventive safety measures reduce the risk of starting the tool accidentally.

19.Store idle tools out of reach of children and other untrained persons. Tools are dangerous in the hands of untrained users.

20.Maintain tools with care. Keep cutting tools sharp and clean. Properly maintained tools with sharp cutting edges are less likely to bind and are easier to control.

21.Check for misalignment or binding of moving parts, breakage of parts, and any other condition that may affect the tools operation. If damaged, have the tool ser- viced before using. Many accidents are caused by poorly maintained tools.

22.Use only accessories that are recom- mended by the manufacturer for your model. Accessories that may be suitable for one tool, may become hazardous when used on another tool.

SERVICE

23.Tool service must be performed only by qualified repair personnel. Service or main- tenance performed by unqualified personnel could result in a risk of injury.

24.When servicing a tool, use only identical replacement parts. Follow instructions in the Maintenance section of this manual.

Use of unauthorized parts or failure to follow Maintenance instructions may create a risk of electric shock or injury.

1.Hold tool by insulated gripping surfaces when performing an operation where the cutting tools may contact hidden wiring or its own cord. Contact with a ???live??? wire will make exposed metal parts of the tool ???live??? and shock the operator.

2.Always use safety glasses or goggles. Ordinary eye or sun glasses are NOT safety glasses.

3.Avoid cutting nails. Inspect workpiece for any nails and remove them before opera- tion.

4.Do not cut hollow pipe.

5.Do not cut oversize workpiece.

6.Check for the proper clearance beyond the workpiece before cutting so that the blade will not strike the floor, workbench, etc.

7.Hold the tool firmly.

8.Make sure the blade is not contacting the workpiece before the switch is turned on.

9.Keep hands away from moving parts.

10.Do not leave the tool running. Operate the tool only when hand-held.

11.Always switch off and wait for the blade to come to a complete stop before removing the blade from the workpiece.

12.Do not touch the blade or the workpiece immediately after operation; they may be extremely hot and could burn your skin.

13.Some material contains chemicals which may be toxic. Take caution to prevent dust inhalation and skin contact. Follow material supplier safety data.

FUNCTIONAL

DESCRIPTION

CAUTION:

???Always be sure that the tool is switched off and unplugged before adjusting or checking function on the tool.

002704

1

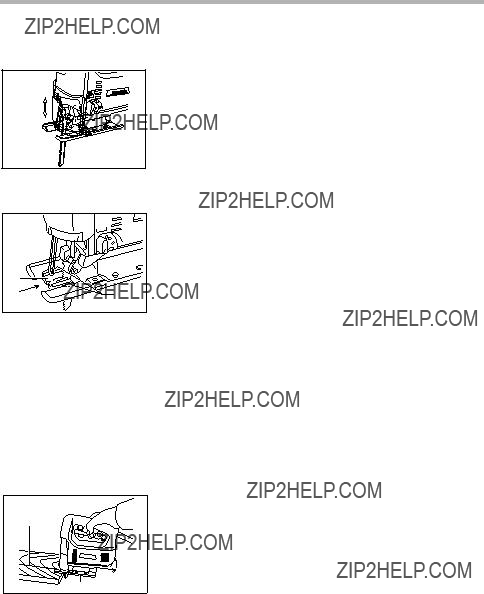

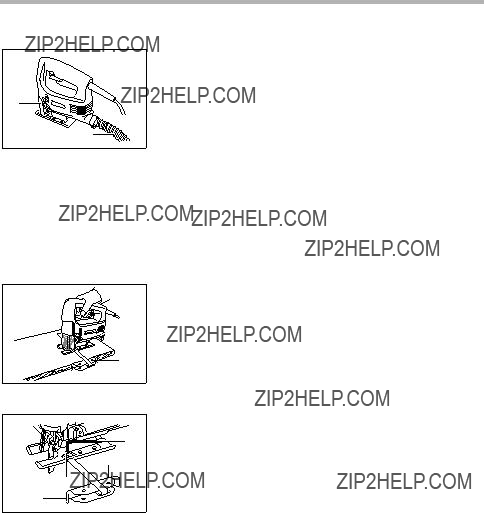

1. Cutting action changing lever

Selecting the cutting action

This tool can be operated with an orbital or a straight line (up and down) cutting action. The orbital cutting action thrusts the blade forward on the cutting stroke and greatly increases cutting speed.

To change the cutting action, just turn the cutting action changing lever to the desired cutting action position. Refer to the table to select the appropriate cutting action.

002707

1

2

1.Lock button

2.Switch trigger

Switch action

CAUTION:

???Before plugging in the tool, always check to see that the switch trigger actuates properly and returns to the ???OFF??? position when released.

???Switch can be locked in ???ON??? position for ease of operator comfort during extended use. Apply caution when locking tool in ???ON??? position and maintain firm grasp on tool.

To start the tool, simply pull the switch trigger. Release the switch trigger to stop.

For continuous operation, pull the switch trigger and then push in the lock button.

To stop the tool from the locked position, pull the switch trig- ger fully, then release it.

1

1. Speed adjusting dial

The tool speed can be infinitely adjusted between 500 and 3,100 strokes per minute by turning the adjusting dial. Higher speed is obtained when the dial is turned in the direction of number 6; lower speed is obtained when it is turned in the direction of number 1.

Refer to the table to select the proper speed for the work- piece to be cut. However, the appropriate speed may differ with the type or thickness of the workpiece. In general, higher speeds will allow you to cut workpieces faster but the service life of the blade will be reduced.

ASSEMBLY

CAUTION:

???If the tool is operated continuously at low speeds for a long time, the motor will get overloaded and heated up.

???The speed adjusting dial can be turned only as far as 6 and back to 1. Do not force it past 6 or 1, or the speed adjusting function may no longer work.

CAUTION:

???Always be sure that the tool is switched off and unplugged before carrying out any work on the tool.

002716

1

2

3

1.Bolt

2.Roller

3.Blade

002727

1

2

1.Hook

2.Hex wrench

With the blade teeth facing forward, insert the blade into the blade holder as far as it will go. Make sure that the back edge of the blade fits into the roller. Then tighten the bolt clockwise to secure the blade.

To remove the blade, follow the installation procedure in reverse.

NOTE:

???Occasionally lubricate the roller.

Hex wrench storage

When not in use, store the hex wrench as shown in the figure to keep it from being lost.

1

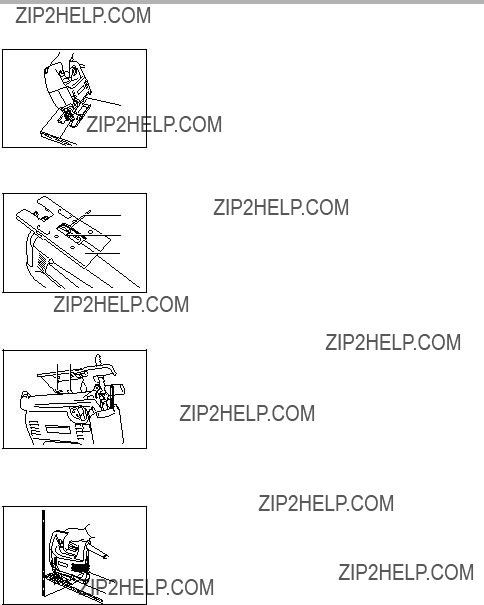

1. Dust cover

Dust cover

002730

CAUTION:

??? Always wear safety goggles even when operating the tool with the dust cover lowered.

Lower the dust cover to prevent chips from flying. However, when making bevel cuts, raise it all the way.

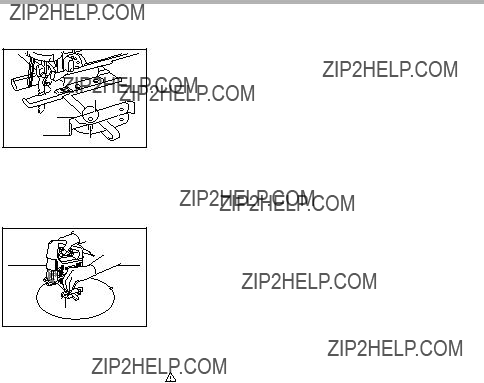

1.Anti-splintering device

2.Protrusions

Anti-splintering device (optional accessory)

For splinter-free cuts, the anti-splintering device can be used. To install the anti-splintering device, move the base all the way forward and insert it between the two protrusions of the base.

NOTE:

???The anti-splintering device cannot be used when making bevel cuts.

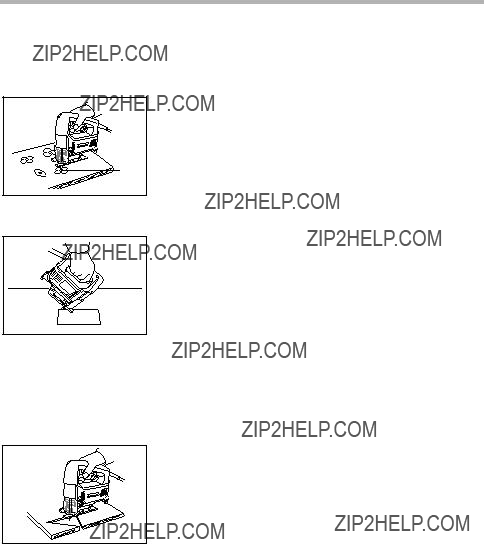

OPERATION

1.Cutting line

2.Base

CAUTION:

???Always hold the base flush with the workpiece. Failure to do so may cause blade breakage, resulting in a serious injury.

???Advance the tool very slowly when cutting curves or scrolling. Forcing the tool may cause a slanted cutting surface and blade breakage.

Turn the tool on without the blade making any contact and wait until the blade attains full speed. Then rest the base flat on the workpiece and gently move the tool forward along the previously marked cutting line.

002749

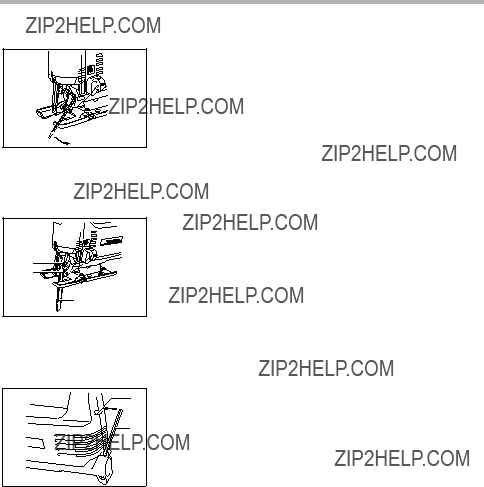

1.Hex wrench

2.Bolt

3.Base

002750

1 2

1.Graduation

2.Edge

002757

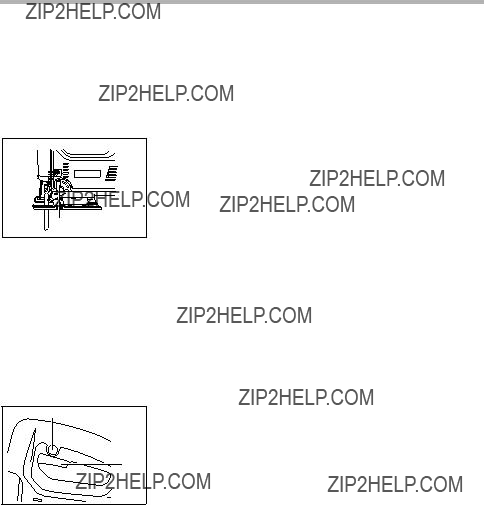

Bevel cutting

CAUTION:

???Always be sure that the tool is switched off and unplugged before tilting the base.

???Raise the dust cover all the way before making bevel cuts.

With the base tilted, you can make bevel cuts at any angle between 0?? and 45?? (left or right).

Loosen the bolt on the back of the base with the hex wrench. Move the base so that the bolt is positioned in the center of the cross-shaped slot in the base.

Tilt the base until the desired bevel angle is obtained. The edge of the motor housing indicates the bevel angle by grad- uations. Then tighten the bolt to secure the base.

Front flush cuts

Loosen the bolt on the back of the base with the hex wrench and slide the base all the way back. Then tighten the bolt to secure the base.

002762

1

1. Starting hole

002768

Cutouts

Cutouts can be made with either of two methods A or B.

A) Boring a starting hole

For internal cutouts without a lead-in cut from an edge, pre-drill a starting hole 12 mm (1/2???) or more in diameter. Insert the blade into this hole to start your cut.

B) Plunge cutting

You need not bore a starting hole or make a lead-in cut if you carefully do as follows.

(1)Tilt the tool up on the front edge of the base with the blade point positioned just above the workpiece sur- face.

(2)Apply pressure to the tool so that the front edge of the base will not move when you switch on the tool and gently lower the back end of the tool slowly.

(3)As the blade pierces the workpiece, slowly lower the base of the tool down onto the workpiece surface.

(4)Complete the cut in the normal manner.

Finishing edges

To trim edges or make dimensional adjustments, run the blade lightly along the cut edges.

Metal cutting

Always use a suitable coolant (cutting oil) when cutting metal. Failure to do so will cause significant blade wear. The underside of the workpiece can be greased instead of using a coolant.

002775

1

1. Rip fence (Guide rule)

002776

1

4

2

3

1.Hex wrench

2.Bolt

3.Rip fence (Guide rule)

4.Guide facing

Rip fence (optional accessory)

CAUTION:

???Always be sure that the tool is switched off and unplugged before installing or removing accessories.

1.Straight cuts

When repeatedly cutting widths of 160 mm (6 - 9/32???) or less, use of the rip fence will assure fast, clean, straight cuts.

To install, insert the rip fence into the rectangular hole on the side of the base with the fence guide facing down. Slide the rip fence to the desired cutting width position, then tighten the bolt to secure it.
