Makita_Sander

SPECIFICATIONS

???Manufacturer reserves the right to change specifications without notice.

???Specifications may differ from country to country.

(For All Tools)

WARNING:

Read and understand all instructions. Failure to follow all instructions listed below, may result in electric shock, fire and/or serious personal injury.

SAVE THESE INSTRUCTIONS

Work Area

1.Keep your work area clean and well lit.

Cluttered benches and dark areas invite acci- dents.

2.Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases, or dust. Power tools create sparks which may ignite the dust or fumes.

3.Keep bystanders, children, and visitors away while operating a power tool. Dis- tractions can cause you to lose control.

Electrical Safety

4.Double insulated tools are equipped with a polarized plug (one blade is wider than the other.) This plug will fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified elec- trician to install a polarized outlet. Do not change the plug in any way. Double insula-

tion eliminates the need for the three wire grounded power cord and grounded power supply system.

5.Avoid body contact with grounded sur- faces such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is grounded.

6.Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.

7.Do not abuse the cord. Never use the cord to carry the tools or pull the plug from an outlet. Keep cord away from heat, oil, sharp edges or moving parts. Replace damaged cords immediately. Damaged cords increase the risk of electric shock.

8.When operating a power tool outside, use an outdoor extension cord marked ???W-A??? or ???W???. These cords are rated for outdoor use and reduce the risk of electric shock.

Personal Safety

9.Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use tool while tired or under the influence of drugs, alcohol, or medication. A moment of inattention while operating power tools may result in serious personal injury.

10.Dress properly. Do not wear loose cloth- ing or jewelry. Contain long hair. Keep your hair, clothing, and gloves away from moving parts. Loose clothes, jewelry, or long hair can be caught in moving parts.

11.Avoid accidental starting. Be sure switch is off before plugging in. Carrying tools with your finger on the switch or plugging in tools that have the switch on invites accidents.

12.Remove adjusting keys or wrenches before turning the tool on. A wrench or a key that is left attached to a rotating part of the tool may result in personal injury.

13.Do not overreach. Keep proper footing and balance at all times. Proper footing and balance enables better control of the tool in unexpected situations.

14.Use safety equipment. Always wear eye protection. Dust mask, non-skid safety shoes, hard hat, or hearing protection must be used for appropriate conditions. Ordinary eye or sun glasses are NOT eye protection.

Tool Use and Care

15.Use clamps or other practical way to secure and support the workpiece to a stable platform. Holding the work by hand or against your body is unstable and may lead to loss of control.

16.Do not force tool. Use the correct tool for your application. The correct tool will do the job better and safer at the rate for which it is designed.

17.Do not use tool if switch does not turn it on or off. Any tool that cannot be controlled with the switch is dangerous and must be repaired.

18.Disconnect the plug from the power source before making any adjustments, changing accessories, or storing the tool.

Such preventive safety measures reduce the risk of starting the tool accidentally.

19.Store idle tools out of reach of children and other untrained persons. Tools are dangerous in the hands of untrained users.

20.Maintain tools with care. Keep cutting tools sharp and clean. Properly maintained tools with sharp cutting edges are less likely to bind and are easier to control.

21.Check for misalignment or binding of moving parts, breakage of parts, and any other condition that may affect the tools operation. If damaged, have the tool ser- viced before using. Many accidents are caused by poorly maintained tools.

22.Use only accessories that are recom- mended by the manufacturer for your model. Accessories that may be suitable for one tool, may become hazardous when used on another tool.

SERVICE

23.Tool service must be performed only by qualified repair personnel. Service or main- tenance performed by unqualified personnel could result in a risk of injury.

24.When servicing a tool, use only identical replacement parts. Follow instructions in the Maintenance section of this manual.

Use of unauthorized parts or failure to follow Maintenance instructions may create a risk of electric shock or injury.

USE PROPER EXTENSION CORD: Make sure your extension cord is in good condition. When using an extension cord, be sure to use one heavy enough to carry the current your product will draw. An undersized cord will cause a drop in line voltage resulting in loss of power and overheating. Table 1 shows the correct size to use depending on cord length and nameplate ampere rating. If in doubt, use the next heavier gage. The smaller the gage num- ber, the heavier the cord.

Table 1: Minimum gage for cord

DO NOT let comfort or familiarity with product (gained from repeated use) replace strict adherence to sander safety rules. If you use this tool unsafely or incorrectly, you can suffer serious personal injury.

1.Hold tool by insulated gripping surfaces when performing an operation where the cutting tool may contact hidden wiring or its own cord. Contact with a ???live??? wire will make exposed metal parts of the tool ???live??? and shock the operator.

2.Always use safety glasses or goggles. Ordinary eye or sun glasses are NOT safety glasses.

3.Hold the tool firmly.

4.Do not leave the tool running. Operate the tool only when hand-held.

5.This tool has not been waterproofed, so do not use water on the workpiece sur- face.

6.Ventilate your work area adequately when you perform sanding operations.

7.Use of this tool to sand some products, paints and wood could expose user to dust containing hazardous substances. Use appropriate respiratory protection.

FUNCTIONAL

DESCRIPTION

CAUTION:

???Always be sure that the tool is switched off and unplugged before adjusting or checking function on the tool.

003279

1. Slide switch

Switch action

CAUTION:

???Before plugging in the tool, always check to see that the tool is switched off.

???Switch can be locked in ???ON??? position for ease of operator comfort during extended use. Apply caution when locking tool in ???ON??? position and maintain firm grasp on tool.

To start the tool, slide the slide switch forward. To stop the tool, slide it backward.

ASSEMBLY

CAUTION:

???Always be sure that the tool is switched off and unplugged before carrying out any work on the tool.

003303

1 2

1.Lever clip

2.Paper clamp

3.Abrasive paper

4.Base

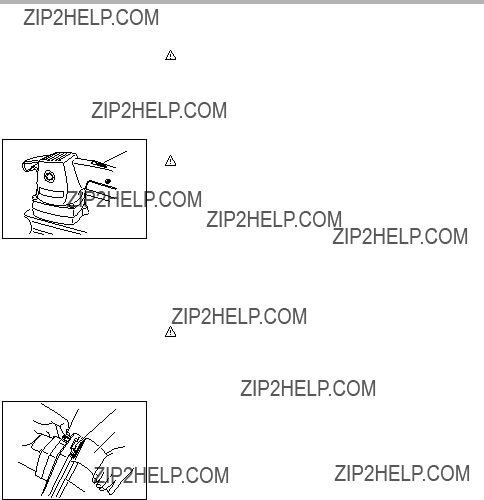

Installing or removing abrasive paper

To install the abrasive paper, pull back on the lever clip to open the paper clamp. Insert the paper end between the base and the paper clamp. Center the paper and align the edges parallel to the pad, then release the lever clip to secure the paper. (Prebending paper makes attachment easier.)

Repeat the same process for the other end of the base, maintaining the proper paper tension.

MAINTENANCE

CAUTION:

???Always be sure that the tool is switched off and unplugged before attempting to perform inspection or maintenance.

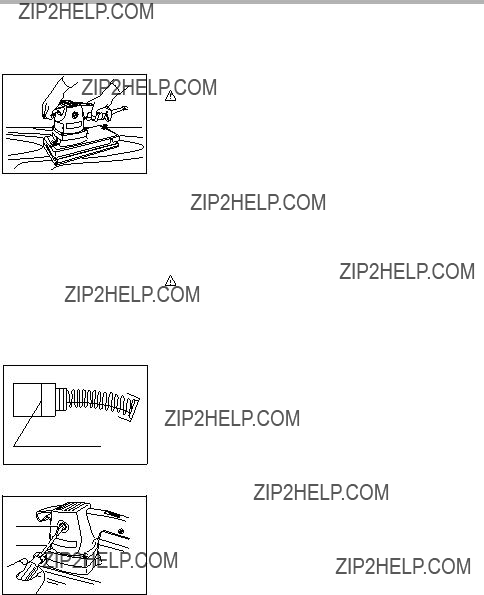

Replacing carbon brushes

Remove and check the carbon brushes regularly. Replace when they wear down to the limit mark. Keep the carbon brushes clean and free to slip in the holders. Both carbon brushes should be replaced at the same time. Use only iden- tical carbon brushes.

1. Limit mark

003345 Use a screwdriver to remove the brush holder caps. Take out the worn carbon brushes, insert the new ones and secure the brush holder caps.

To maintain product SAFETY and RELIABILITY, repairs, any other maintenance or adjustment should be performed by Makita Authorized or Factory Service Centers, always using Makita replacement parts.

1.Brush holder cap

2.Screwdriver

Factory Service Centres

For the authorized service centre nearest you please refer to the local yellow pages directory under ???tools??? or con- tact our customer service department (Tel) 1-800-263-3734

When you need service...

???Explain the problem in a letter

???Enclose the letter with the tool

???Package carefully and send prepaid to the nearest Makita factory or authorized service centre

CUSTOMER RECORD

DATE

PURCHASED:

DEALER???S NAME

& ADDRESS:

MODEL NO.:

SERIAL NO.:

MAKITA LIMITED ONE YEAR WARRANTY

Warranty Policy

Every Makita tool is thoroughly inspected and tested before leaving the factory. It is warranted to be free of defects from workmanship and materials for the period of ONE YEAR from the date of original purchase. Should any trouble develop during this one year period, return the COMPLETE tool, freight prepaid, to one of Makita???s Factory or Authorized Service Centres.

If inspection shows the trouble is caused by defective workmanship or material, Makita will repair (or at our option, replace) without charge.

This Warranty does not apply:

???where normal maintenance is required,

???repairs have been made or attempted by others,

???the tool has been abused, misused or improperly maintained,

???alterations have been made to the tool.

IN NO EVENT SHALL MAKITA BE LIABLE FOR ANY INDIRECT, INCIDENTAL OR CONSEQUENTIAL DAMAGES FROM

THE SALE OR USE OF THE PRODUCT. THIS DISCLAIMER APPLIES BOTH DURING AND AFTER THE TERM OF THIS

WARRANTY.

???The Makita Warranty is the only and the entire written warranty given by Makita for the Makita tools. No dealer or his agent or employee is authorized to extend or enlarge upon this warranty by any verbal or written statement or advertisement.???

MAKITA DISCLAIMS LIABILITY FOR ANY IMPLIED WARRANTIES INCLUDING IMPLIED WARRANTIES OF

???MERCHANTABILITY??? AND FITNESS FOR A SPECIFIC PURPOSE,??? AFTER THE ONE YEAR TERM OF THIS WARRANTY.

???This Warranty gives you specific rights. The provisions contained in this warranty are not intended to limit, modify, take away from, disclaim or exclude any warranties set forth in any provincial legislation. To the extent required by law, the provisions in any provincial or federal legislation with respect to warranties take precedence over the provisions in this warranty.???
