Makita_Planer

SPECIFICATIONS

???Manufacturer reserves the right to change specifications without notice.

???Specifications may differ from country to country.

(For All Tools)

WARNING:

Read and understand all instructions. Failure to follow all instructions listed below, may result in electric shock, fire and/or serious personal injury.

SAVE THESE INSTRUCTIONS

Work Area

1.Keep your work area clean and well lit.

Cluttered benches and dark areas invite acci- dents.

2.Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases, or dust. Power tools create sparks which may ignite the dust or fumes.

3.Keep bystanders, children, and visitors away while operating a power tool. Distrac- tions can cause you to lose control.

Electrical Safety

4.Double insulated tools are equipped with a polarized plug (one blade is wider than the other.) This plug will fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified elec- trician to install a polarized outlet. Do not change the plug in any way. Double insula-

tion eliminates the need for the three wire grounded power cord and grounded power supply system.

5.Avoid body contact with grounded sur- faces such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is grounded.

6.Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.

7.Do not abuse the cord. Never use the cord to carry the tools or pull the plug from an outlet. Keep cord away from heat, oil, sharp edges or moving parts. Replace damaged cords immediately. Damaged cords increase the risk of electric shock.

8.When operating a power tool outside, use an outdoor extension cord marked ???W-A??? or ???W???. These cords are rated for outdoor use and reduce the risk of electric shock.

Personal Safety

9.Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use tool while tired or under the influence of drugs, alcohol, or medication. A moment of inattention while operating power tools may result in serious personal injury.

10.Dress properly. Do not wear loose cloth- ing or jewelry. Contain long hair. Keep your hair, clothing, and gloves away from moving parts. Loose clothes, jewelry, or long hair can be caught in moving parts.

11.Avoid accidental starting. Be sure switch is off before plugging in. Carrying tools with your finger on the switch or plugging in tools that have the switch on invites accidents.

12.Remove adjusting keys or wrenches before turning the tool on. A wrench or a key that is left attached to a rotating part of the tool may result in personal injury.

13.Do not overreach. Keep proper footing and balance at all times. Proper footing and balance enables better control of the tool in unexpected situations.

14.Use safety equipment. Always wear eye protection. Dust mask, non-skid safety shoes, hard hat, or hearing protection must be used for appropriate conditions. Ordinary eye or sun glasses are NOT eye protection.

Tool Use and Care

15.Use clamps or other practical way to secure and support the workpiece to a stable platform. Holding the work by hand or against your body is unstable and may lead to loss of control.

16.Do not force tool. Use the correct tool for your application. The correct tool will do the job better and safer at the rate for which it is designed.

17.Do not use tool if switch does not turn it on or off. Any tool that cannot be controlled with the switch is dangerous and must be repaired.

18.Disconnect the plug from the power source before making any adjustments, changing accessories, or storing the tool.

Such preventive safety measures reduce the risk of starting the tool accidentally.

19.Store idle tools out of reach of children and other untrained persons. Tools are dangerous in the hands of untrained users.

20.Maintain tools with care. Keep cutting tools sharp and clean. Properly maintained tools with sharp cutting edges are less likely to bind and are easier to control.

21.Check for misalignment or binding of moving parts, breakage of parts, and any other condition that may affect the tools operation. If damaged, have the tool ser- viced before using. Many accidents are caused by poorly maintained tools.

22.Use only accessories that are recom- mended by the manufacturer for your model. Accessories that may be suitable for one tool, may become hazardous when used on another tool.

SERVICE

23.Tool service must be performed only by qualified repair personnel. Service or main- tenance performed by unqualified personnel could result in a risk of injury.

24.When servicing a tool, use only identical replacement parts. Follow instructions in the Maintenance section of this manual.

Use of unauthorized parts or failure to follow Maintenance instructions may create a risk of electric shock or injury.

USE PROPER EXTENSION CORD: Make sure your extension cord is in good condition. When using an extension cord, be sure to use one heavy enough to carry the current your product will draw. An undersized cord will cause a drop in line voltage resulting in loss of power and overheating. Table 1 shows the correct size to use depending on cord length and nameplate ampere rating. If in doubt, use the next heavier gage. The smaller the gage num- ber, the heavier the cord.

Table 1: Minimum gage for cord

DO NOT let comfort or familiarity with product (gained from repeated use) replace strict adherence to planer safety rules. If you use this tool unsafely or incorrectly, you can suffer serious personal injury.

1.Rags, cloth, cord, string and the like should never be left around the work area.

2.Avoid cutting nails. Inspect for and remove all nails from the workpiece before operation.

3.Use only sharp blades. Handle the blades very carefully.

4.Be sure the blade installation bolts are securely tightened before operation.

5.Hold the tool firmly with both hands.

6.Keep hands away from rotating parts.

7.Before using the tool on an actual work- piece, let it run for a while. Watch for vibration or wobbling that could indicate poor installation or a poorly balanced blade.

8.Make sure the blade is not contacting the workpiece before the switch is turned on.

9.Wait until the blade attains full speed before cutting.

10.Keep at least 200 mm (8???) away from the tool at all times.

11.Always switch off and wait for the blades to come to a complete stop before any adjusting.

12.Never stick your finger into the chip chute. Chute may jam when cutting damp wood. Clean out chips with a stick.

13.Do not leave the tool running. Operate the tool only when hand-held.

14.When leaving the planer, switch off and set it with the front base up on a wooden block, so that the blades do not contact anything.

15.Always change both blades or covers on the drum, otherwise the resulting imbal- ance will cause vibration and shorten tool life.

16.Wait for complete run-down before putting the tool aside.

17.Use only Makita blades specified in this manual.

18.Some material contains chemicals which may be toxic. Take caution to prevent dust inhalation and skin contact. Follow mate- rial supplier safety data.

SAVE THESE INSTRUCTIONS

WARNING:

MISUSE or failure to follow the safety rules stated in this instruction manual may cause serious personal injury.

The followings show the symbols used for tool.

FUNCTIONAL

DESCRIPTION

CAUTION:

???Always be sure that the tool is switched off and unplugged before adjusting or checking function on the tool.

1. Knob

Depth of cut may be adjusted by simply turning the knob on the front of the tool.

To start the tool, simply pull the switch trigger. Release the switch trigger to stop.

For continuous operation, pull the switch trigger and then push in the lock button.

To stop the tool from the locked position, pull the switch trig- ger fully, then release it.

ASSEMBLY

CAUTION:

???Always be sure that the tool is switched off and unplugged before carrying out any work on the tool.

002560

1.Hex wrench

2.Bolt

002561

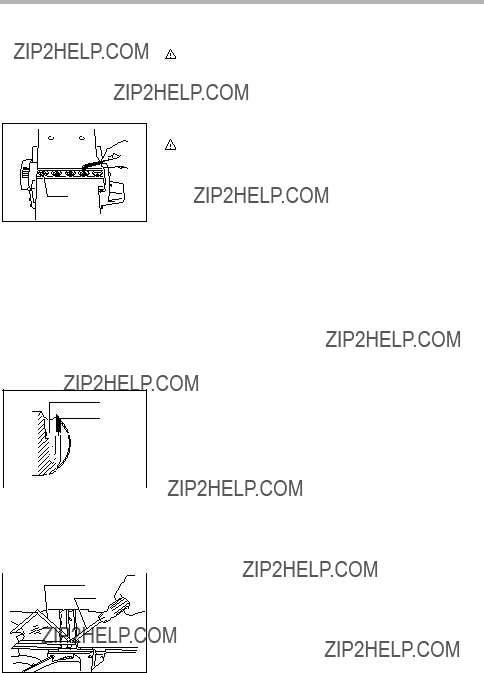

Removing or installing planer blades

CAUTION:

???Tighten the blade installation bolts carefully when attaching the blades to the tool. A loose installation bolt can be dangerous. Always check to see they are tightened securely.

???Handle the blades very carefully. Use gloves or rags to protect your fingers or hands when removing or installing the blades.

???Use only the Makita wrench provided to remove or install the blades. Failure to do so may result in overtightening or insufficient tightening of the installation bolts. This could cause an injury.

To remove the blades on the drum, unscrew the five installa- tion bolts with the hex wrench. The drum cover comes off together with the blades.

To install the blades, first clean out all chips or foreign matter

1adhering to the drum or blades. Use blades of the same

2dimensions and weight, or drum oscillation/vibration will

2screws to adjust the blade protrusion. The blade setting should be made so that the protrusion will be uniform all the

For the correct planer blade setting

Your planing surface will end up rough and uneven, unless the blade is set properly and securely. The blade must be mounted so that the cutting edge is absolutely level, that is, parallel to the surface of the rear base.

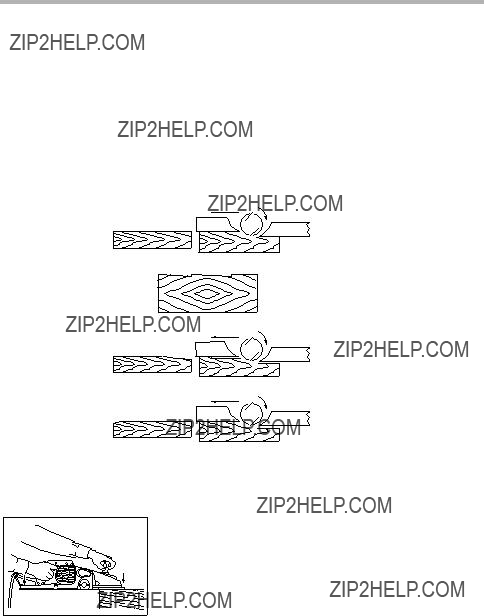

Below are some examples of proper and improper settings.

EN0004-1

(A)Front base (Movable shoe)

(B)Rear base (Stationary shoe)

Correct setting

Nicks in surface

Gouging at start

Gouging at end

Cause: One or both blades fails to have edge parallel to rear base line.

1.End

2.Start

Planing operation

First, rest the tool front base flat upon the workpiece surface without the blades making any contact. Switch on and wait until the blades attain full speed. Then move the tool gently forward. Apply pressure on the front of tool at the start of planing, and at the back at the end of planing. Planing will be easier if you incline the workpiece in stationary fashion, so that you can plane somewhat downhill.

The speed and depth of cut determine the kind of finish. The power planer keeps cutting at a speed that will not result in jamming by chips. For rough cutting, the depth of cut can be increased, while for a good finish you should reduce the depth of cut and advance the tool more slowly.

MAINTENANCE

002591

1. Sharpening holder

1.Wing nut

2.Blade (A)

3.Blade (B)

4.Side (D)

5.Side (C)

002592

CAUTION:

???Always be sure that the tool is switched off and unplugged before attempting to perform inspection or maintenance.

Sharpening the planer blades

Always keep your blades sharp for the best performance possible. Use the sharpening holder to remove nicks and produce a fine edge.

First, loosen the two wing nuts on the holder and insert the blades (A) and (B), so that they contact the sides (C) and (D). Then tighten the wing nuts.

Immerse the dressing stone in water for 2 or 3 minutes before sharpening. Hold the holder so that the blades both contact the dressing stone for simultaneous sharpening at the same angle.

1. Limit mark

002595

1.Chip cover

2.Screwdriver

002596

1.Brush holder cap

2.Screwdriver

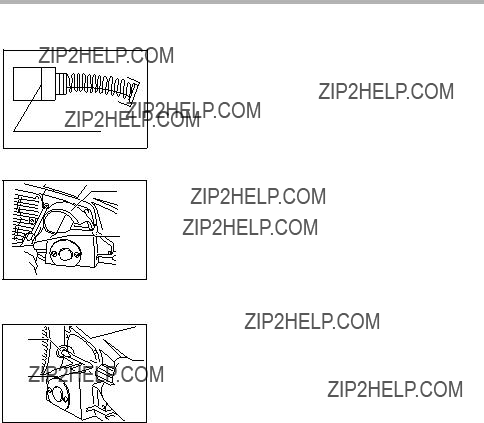

Replacing carbon brushes

Remove and check the carbon brushes regularly. Replace when they wear down to the limit mark. Keep the carbon brushes clean and free to slip in the holders. Both carbon brushes should be replaced at the same time. Use only iden- tical carbon brushes.

Use a screwdriver to remove the chip cover.

Use a screwdriver to remove the brush holder caps. Take out the worn carbon brushes, insert the new ones and secure the brush holder caps.

To maintain product SAFETY and RELIABILITY, repairs, any other maintenance or adjustment should be performed by Makita Authorized or Factory Service Centers, always using Makita replacement parts.

ACCESSORIES

CAUTION:

???These accessories or attachments are recommended for use with your Makita tool specified in this manual. The use of any other accessories or attachments might present a risk of injury to persons. Only use accessory or attachment for its stated purpose.

If you need any assistance for more details regarding these accessories, ask your local Makita service center.

???High-speed steel Planer blade

???Sharpening holder assembly

???Edge fence (Guide rule) set

???Dressing stone

???Triangular rule

???Hex wrench

???Wooden carrying case

FACTORY SERVICE CENTERS

1-800-4-MAKITA

RETAIN THIS PORTION FOR YOUR RECORDS

CUSTOMER???S RECORD

When you need service: Send complete tool (prepaid) to one of the Makita Factory Service Centers listed, or to an Authorized Makita Service Center. Be sure to attach a letter to the outside of the carton detailing the problem with your tool.

Date Purchased

Dealer???s Name & Address

Model No.

Serial No.

WARNING

Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are:

???lead from lead-based paints,

???crystalline silica from bricks and cement and other masonry products, and

???arsenic and chromium from chemically-treated lumber.

Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: work in a well ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to filter out microscopic particles.
