Work Area

1.Keep your work area clean and well lit.

Cluttered benches and dark areas invite acci- dents.

2.Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases, or dust. Power tools create sparks which may ignite the dust or fumes.

3.Keep bystanders, children, and visitors away while operating a power tool. Distrac- tions can cause you to lose control.

Electrical Safety

4.A battery operated tool with integral bat- teries or a separate battery pack must be recharged only with the specified charger for the battery. A charger that may be suit- able for one type of battery may create a risk of fire when used with another battery.

5.Use battery operated tool only with specif- ically designated battery pack. Use of any other batteries may create a risk of fire.

Personal Safety

6.Stay alert, watch what you are doing, and use common sense when operating a power tool. Do not use tool while tired or under the influence of drugs, alcohol, or medication. A moment of inattention while operating power tools may result in serious personal injury.

7.Dress properly. Do not wear loose cloth- ing or jewelry. Contain long hair. Keep your hair, clothing, and gloves away from moving parts. Loose clothes, jewelry, or long hair can be caught in moving parts.

8.Avoid accidental starting. Be sure switch is in the locked or off position before inserting battery pack. Carrying tools with your finger on the switch or inserting the bat- tery pack into a tool with the switch on invites accidents.

9.Remove adjusting keys or wrenches before turning the tool on. A wrench or a key that is left attached to a rotating part of the tool may result in personal injury.

10.Do not overreach. Keep proper footing and balance at all times. Proper footing and balance enable better control of the tool in unexpected situations.

11.Use safety equipment. Always wear eye protection. Dust mask, non-skid safety shoes, hard hat, or hearing protection must be used for appropriate conditions.

Tool Use and Care

12.Use clamps or other practical way to secure and support the workpiece to a stable platform. Holding the work by hand or against your body is unstable and may lead to loss of control.

13.Do not force tool. Use the correct tool for your application. The correct tool will do the job better and safer at the rate for which it is designed.

14.Do not use tool if switch does not turn it on or off. A tool that cannot be controlled with the switch is dangerous and must be repaired.

15.Disconnect battery pack from tool or place the switch in the locked or off posi- tion before making any adjustments, changing accessories, or storing the tool.

Such preventive safety measures reduce the risk of starting the tool accidentally.

16.Store idle tools out of reach of children and other untrained persons. Tools are dangerous in the hands of untrained users.

17.When battery pack is not in use, keep it away from other metal objects like: paper clips, coins, keys, nails, screws, or other small metal objects that can make a con- nection from one terminal to another.

Shorting the battery terminals together may cause sparks, burns, or a fire.

18.Maintain tools with care. Keep cutting tools sharp and clean. Properly maintained tools with sharp cutting edge are less likely to bind and are easier to control.

19.Check for misalignment or binding of moving parts, breakage of parts, and any other condition that may affect the tool???s operation. If damaged, have the tool ser- viced before using. Many accidents are caused by poorly maintained tools.

20.Use only accessories that are recom- mended by the manufacturer for your model. Accessories that may be suitable for

one tool may create a risk of injury when used on another tool.

SERVICE

21.Tool service must be performed only by qualified repair personnel. Service or main- tenance performed by unqualified personnel may result in a risk of injury.

22.When servicing a tool, use only identical replacement parts. Follow instructions in the Maintenance section of this manual.

Use of unauthorized parts or failure to follow Maintenance instructions may create a risk of shock or injury.

1.Hold tool by insulated gripping surfaces when performing an operation where the cutting tool may contact hidden wiring.

Contact with a ???live??? wire will also make exposed metal parts of the tool ???live??? and shock the operator.

2.Be aware that this tool is always in an operating condition, because it does not have to be plugged into an electrical out- let.

3.Always be sure you have a firm footing.

4.Be sure no one is below when using the tool in high locations.

5.Hold the tool firmly.

6.Keep hands away from rotating parts.

7.Do not leave the tool running. Operate the tool only when hand-held.

8.Do not touch the drill bit or the workpiece immediately after operation; they may be extremely hot and could burn your skin.

9.Some material contains chemicals which may be toxic. Take caution to prevent working dust inhalation and skin contact. Follow material supplier safety data.

1.SAVE THESE INSTRUCTIONS - This man- ual contains important safety and operat- ing instructions for battery charger.

2.Before using battery charger, read all instructions and cautionary markings on

(1)battery charger, (2) battery, and (3) product using battery.

3.CAUTION - To reduce risk of injury, charge only MAKITA rechargeable batteries marked on the charger label. Other types of batteries may burst causing personal injury and damage.

4.Do not expose charger to rain or snow.

5.Use of an attachment not recommended or sold by the battery charger manufac- turer may result in a risk of fire, electric shock, or injury to persons.

6.To reduce risk of damage to electric plug and cord, pull by plug rather than cord when disconnecting charger.

7.Make sure cord is located so that it will not be stepped on, tripped over, or other- wise subjected to damage or stress.

8.An extension cord should not be used unless absolutely necessary. Use of improper extension cord could result in a risk of fire and electric shock. If extension cord must be used, make sure:

a.That pins on plug of extension cord are the same number, size, and shape as those of plug on charger;

b.That extension cord is properly wired and in good electrical condition;

9.Do not operate charger with damaged cord or plug - replace them immediately.

10.Do not operate charger if it has received a sharp blow, been dropped, or otherwise damaged in any way; take it to a qualified serviceman.

11.Do not disassemble charger or battery cartridge; take it to a qualified serviceman when service or repair is required, Incor- rect reassembly may result in a risk of electric shock or fire.

12.To reduce risk of electric shock, unplug charger from outlet before attempting any maintenance or cleaning. Turning off con- trols will not reduce this risk.

13.The battery charger is not intended for use by young children or infirm persons without supervision.

14.Young children should be supervised to ensure that they do not play with the bat- tery charger.

15.If operating time has become excessively shorter, stop operating immediately. It may result in a risk of overheating, possi- ble burns and even an explosion.

16.If electrolyte gets into your eyes, rinse them out with clear water and seek medi- cal attention right away. It may result in loss of your eyesight.

BATTERY CARTRIDGE

1.Do not charge Battery Cartridge when temperature is BELOW 10??C (50??F) or ABOVE 40??C (104??F).

2.Do not attempt to use a step-up trans- former, an engine generator or DC power receptacle.

3.Do not allow anything to cover or clog the charger vents.

4.Always cover the battery terminals with the battery cover when the battery car- tridge is not used.

5.Do not short the battery cartridge:

(1)Do not touch the terminals with any conductive material.

(2)Avoid storing battery cartridge in a container with other metal objects such as nails, coins, etc.

(3)Do not expose battery cartridge to water or rain.

A battery short can cause a large current flow, overheating, possible burns and even a breakdown.

6.Do not store the tool and Battery Car- tridge in locations where the temperature may reach or exceed 50??C (122??F).

7.Do not incinerate the Battery Cartridge even if it is severely damaged or is com- pletely worn out. The battery cartridge can explode in a fire.

8.Be careful not to drop, shake or strike bat- tery.

9.Do not charge inside a box or container of any kind. The battery must be placed in a well ventilated area during charging.

FUNCTIONAL

DESCRIPTION

CAUTION:

???Always be sure that the tool is switched off and the battery cartridge is removed before adjusting or checking function on the tool.

1.Button

2.Battery cartridge

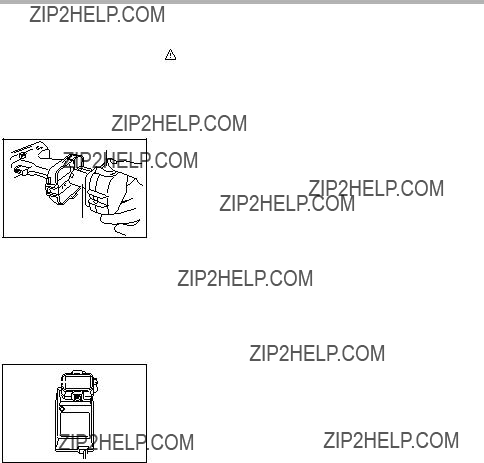

Installing or removing battery cartridge

???Always switch off the tool before insertion or removal of the battery cartridge.

???To remove the battery cartridge, withdraw it from the tool while pressing the buttons on both sides of the cartridge.

???To insert the battery cartridge, align the tongue on the battery cartridge with the groove in the housing and slip it into place. Always insert it all the way until it locks in place with a little click. If not, it may accidentally fall out of the tool, causing injury to you or someone around you.

???Do not use force when inserting the battery cartridge. If the cartridge does not slide in easily, it is not being inserted correctly.

1

2

3

1.Battery cartridge

2.Charging light

3.Battery charger

002063 Charging

1.Plug the battery charger into the proper AC voltage source.

2.Insert the battery cartridge so that the plus and minus terminals on the battery cartridge are on the same sides as their respective markings on the charger. Insert the cartridge fully into the port so that it rests on the charger port floor.

3.When the battery cartridge is inserted, the charging light color will flash in red color and charging will begin.

4.When charging is completed, the charging light goes out.

5.If you leave the battery cartridge in the charger after the charging cycle is complete, the charger will switch into its ???trickle charge (maintenance charge)??? mode.

6.After charging, unplug the charger from the power source.

NOTE:

???The battery charger is for charging Makita battery cartridge. Never use it for other purposes or for other manufacturer???s batteries.

1

1. Switch trigger

???When you charge a new battery cartridge or a battery cartridge which has not been used for a long period of time, it may not accept a full charge. This is a normal condition and does not indicate a problem. You can recharge the battery cartridge fully after discharging it completely and recharging a couple of times.

???When you charge a battery cartridge from a just operated tool or a battery cartridge which has been left in a location exposed to direct sunlight or heat for a long time, let it cool off. Then re-insert it and try to charge it once more.

???When you charge a battery cartridge which has not been used for a long period, sometimes the charging light will go out soon. If this occurs, remove the battery cartridge and re-insert it. If the charging light goes out within one minute even after repeating this procedure a couple of times, the battery cartridge is dead. Replace it with a new one.

Trickle charge (Maintenance charge)

If you leave the battery cartridge in the charger to prevent spontaneous discharging after full charge, the charger will switch into its ???trickle charge (maintenance charge)??? mode and keep the battery cartridge fresh and fully charged.

Tips for maintaining maximum battery life

1.Charge the battery cartridge before completely dis- charged.

Always stop tool operation and charge the battery car- tridge when you notice less tool power.

2.Never recharge a fully charged battery cartridge. Overcharging shortens the battery service life.

3.Charge the battery cartridge with room temperature at 10??C - 40??C (50??F - 104??F).

Let a hot battery cartridge cool down before charging it.

CAUTION:

??? Before inserting the battery cartridge into the tool, always check to see that the switch trigger actuates properly and returns to the ???OFF??? position when released.

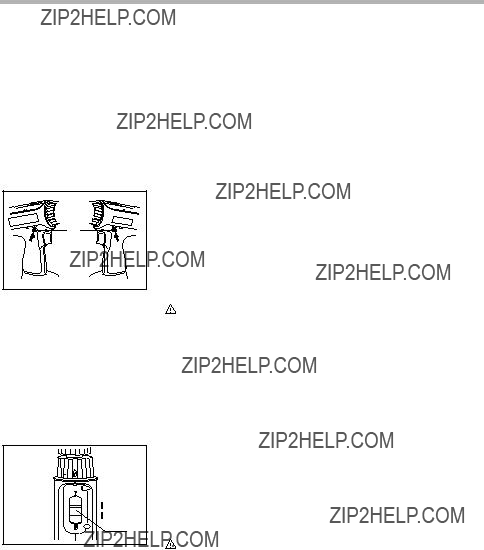

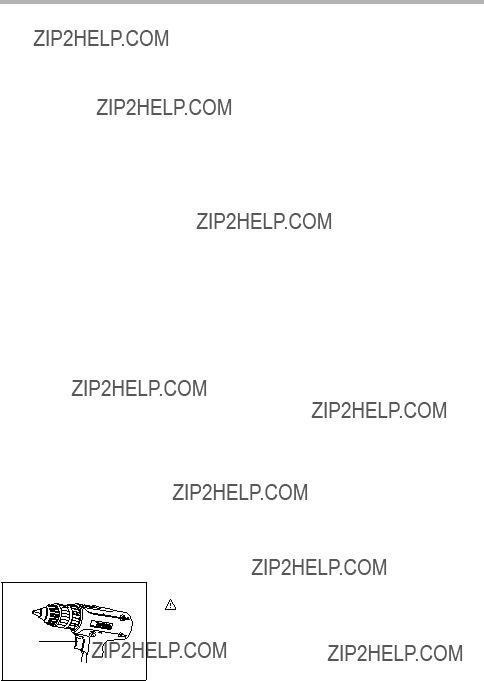

1. Reversing switch lever

To start the tool, simply pull the switch trigger. Tool speed is increased by increasing pressure on the switch trigger. Release the switch trigger to stop.

Electric brake

This tool is equipped with an electric brake. If the tool consis- tently fails to quickly stop after switch trigger release, have tool serviced at a Makita service center.

Reversing switch action

This tool has a reversing switch to change the direction of rotation. Depress the reversing switch lever from the A side for clockwise rotation or from the B side for counterclockwise rotation.

When the reversing switch lever is in the neutral position, the switch trigger cannot be pulled.

CAUTION:

???Always check the direction of rotation before operation.

???Use the reversing switch only after the tool comes to a complete stop. Changing the direction of rotation before the tool stops may damage the tool.

???When not operating the tool, always set the reversing switch lever to the neutral position.

002096

1

2

3

1.Low speed

2.High speed

3.Speed change lever

Speed change

To change the speed, first switch off the tool and then slide the speed change lever to the ???II??? side for high speed or ???I??? side for low speed. Be sure that the speed change lever is set to the correct position before operation. Use the right speed for your job.

CAUTION:

???Always set the speed change lever fully to the correct position. If you operate the tool with the speed change lever positioned halfway between the ???I??? side and ???II??? side, the tool may be damaged.

???Do not use the speed change lever while the tool is running. The tool may be damaged.

002118

3 1

2

1.Sleeve

2.Ring

3.Tighten

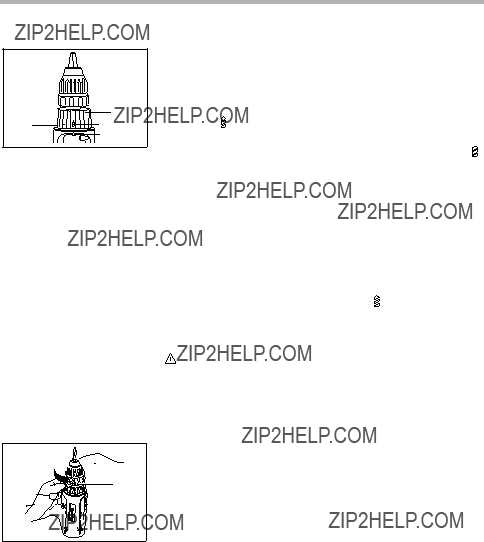

Installing or removing driver bit or drill bit

Hold the ring and turn the sleeve counterclockwise to open the chuck jaws. Place the bit in the chuck as far as it will go. Hold the ring firmly and turn the sleeve clockwise to tighten the chuck.

To remove the bit, hold the ring and turn the sleeve counter- clockwise.

002134 Screwdriving operation

Place the point of the driver bit in the screw head and apply pressure to the tool. Start the tool slowly and then increase the speed gradually. Release the switch trigger as soon as the clutch cuts in.

NOTE:

???Make sure that the driver bit is inserted straight in the screw head, or the screw and/or bit may be damaged.

???When driving wood screws, predrill pilot holes to make driving easier and to prevent splitting of the workpiece. See the chart.

???If the tool is operated continuously until the battery cartridge has discharged, allow the tool to rest for 15 minutes before proceeding with a fresh battery.

MAINTENANCE

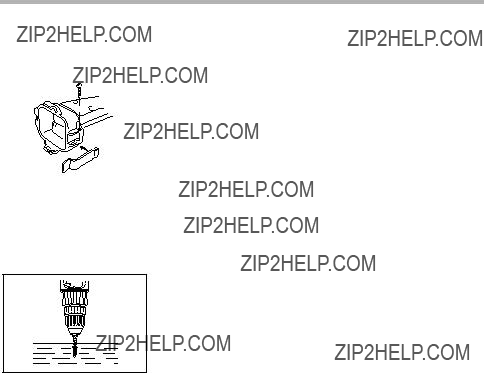

Drilling operation

First, turn the adjusting ring so that the pointer points to the marking. Then proceed as follows.

Drilling in wood

When drilling in wood, the best results are obtained with wood drills equipped with a guide screw. The guide screw makes drilling easier by pulling the bit into the workpiece.

Drilling in metal

To prevent the bit from slipping when starting a hole, make an indentation with a center-punch and hammer at the point to be drilled. Place the point of the bit in the indentation and start drilling.

Use a cutting lubricant when drilling metals. The exceptions are iron and brass which should be drilled dry.

CAUTION:

???Pressing excessively on the tool will not speed up the drilling. In fact, this excessive pressure will only serve to damage the tip of your bit, decrease the tool performance and shorten the service life of the tool.

???There is a tremendous force exerted on the tool/bit at the time of hole break through. Hold the tool firmly and exert care when the bit begins to break through the workpiece.

???A stuck bit can be removed simply by setting the reversing switch to reverse rotation in order to back out. However, the tool may back out abruptly if you do not hold it firmly.

???Always secure small workpieces in a vise or similar hold- down device.

???If the tool is operated continuously until the battery cartridge has discharged, allow the tool to rest for 15 minutes before proceeding with a fresh battery.

CAUTION:

???Always be sure that the tool is switched off and the battery cartridge is removed before attempting to perform inspection or maintenance.

Ni-Cd

ACCESSORIES

To maintain product SAFETY and RELIABILITY, repairs, any other maintenance or adjustment should be performed by Makita Authorized or Factory Service Centers, always using Makita replacement parts.

EN0001-1

Recycling the Battery

The only way to dispose of a Makita battery is to recycle it. The law prohibits any other method of disposal.

To recycle the battery:

1.Remove the battery from the tool.

2.a) Take the battery to your nearest Makita Factory Ser-

vice Center

or

b)Take the battery to your nearest Makita Authorized Service Center or Distributor that has been desig- nated as a Makita battery recycling location.

Call your nearest Makita Service Center or Distributor to determine the location that provides Makita battery recycling. See your local Yellow Pages under ???Tools-Electric???.

CAUTION:

???These accessories or attachments are recommended for use with your Makita tool specified in this manual. The use of any other accessories or attachments might present a risk of injury to persons. Only use accessory or attachment for its stated purpose.

If you need any assistance for more details regarding these accessories, ask your local Makita service center.

???Drill bits

???Screw bits

???Various type of Makita genuine batteries and chargers

???Set plate

???Rubber pad assembly

???Wool bonnet

???Foam polishing pad

???Plastic carrying case
