Section 1 Overview

Introduction

We are pleased that you have purchased the Kodak Imagelink Printer 7. We feel confident that you will find your new laser printer more than adequate to meet your printing needs.

In order to make the best use of the printer, we recommend that you read the information in this manual carefully and follow the instructions contained herein. This manual, along with the appropriate Kodak Imagelink Digital Workstation and Network Node manuals, provides information on operating the printer, setting up the printer, operator maintenance, and instructions on how to clear a jam.

Location/Description of parts???Front

1.Paper Supply Cabinet Door

2.Toner Collection Bottle

3.Printer Left Cover

4.Printer Top Cover

5.Operation Panel (See page 2-1 for detailed drawing.)

6.Printer Front Cover

7.Power ON/OFF Switch

8.Paper Cassette (Universal Cassette)

Location/Description of parts???Back

9.Paper Supply Cabinet Right Cover

10.Paper Exit Tray

11.Printer Right Cover

12.Printer Cable Interface Socket

13.Printer Rear Cover

14.Image Transfer/Paper Separator Ozone Filter Cover

15.Paper Supply Cabinet Rear Cover

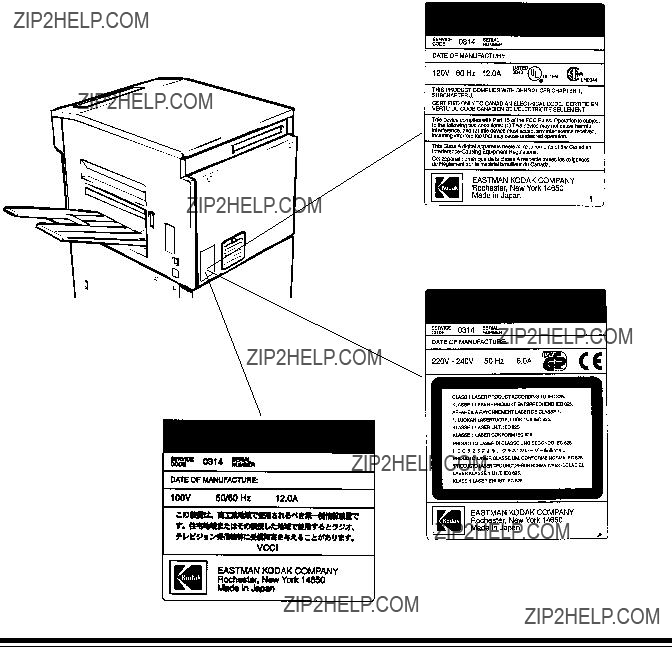

16.Dataplate

17.Circuit Breaker

18.Power Cord Socket

19.Adjustable Feet

Loading paper

This laser printer supplies paper to the printer by feeding paper into the unit automatically from one of four universal cassettes.

Universal cassette

The universal cassette can be used to feed the following paper sizes: A3T, B4T, A4T/Y, A5T, B5T/Y, B6T, LedgerT, LegalT, LetterT/Y, ExecutiveT/Y, InvoiceT, 7 x 8 1???2". (T means lengthwise feeding and Y means crosswise feeding.) See Appendix A for more information on paper sizes. 350 sheets of paper can be loaded in each of the 4 universal cassettes.

NOTE: B5Y and B6T feed from upper 3 cassettes only.

1.Pull the universal cassette out as far as it will go from the cabinet.

USA only

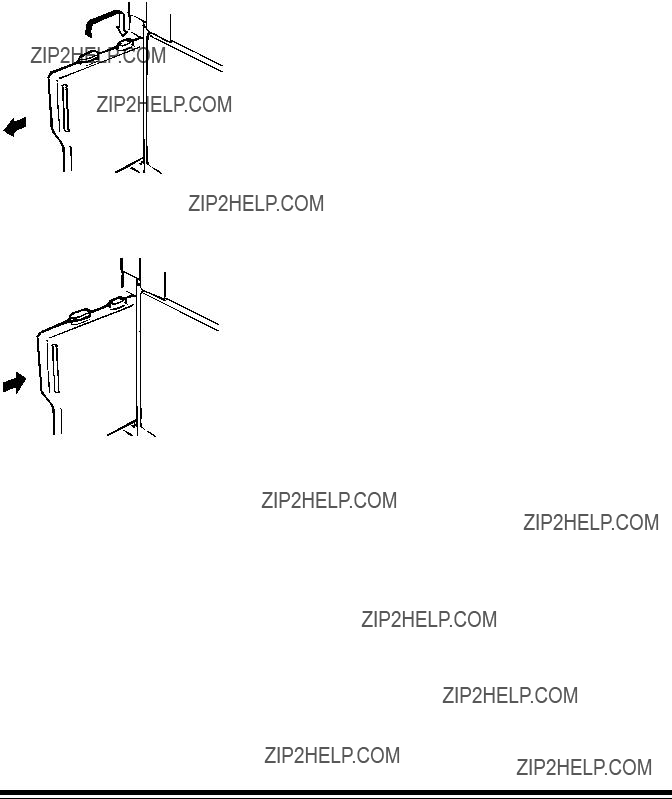

Swing up the lift-up plate release lever to lower the paper lift-up plate in the cassette.

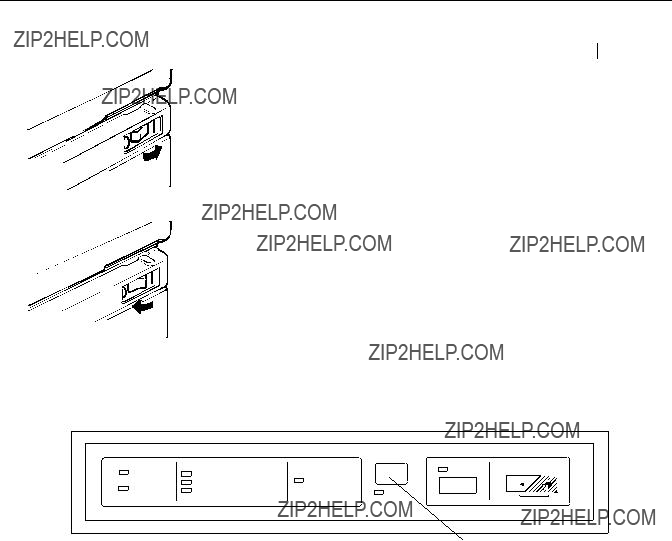

2.Change the switch position located on the rear right side in the cassette, depending on the paper size to be used.

Metric

Switch to ???Inch??? when paper size is 11 x 17" (LedgerT), 8-1/2 x 14" (LegalT), 8-1/2 x 11" (LetterT/Y), 7-1/4 x 10-1/2" (ExecutiveT/Y), 5-1/2 x 8-1/2" (InvoiceT), or 7 x 8 1/2".*

All trays must be set to ???Inch??? if the previous paper sizes are used.

*All trays must have the same size paper to use the Digital Workstation or Network Node AUTO feature.

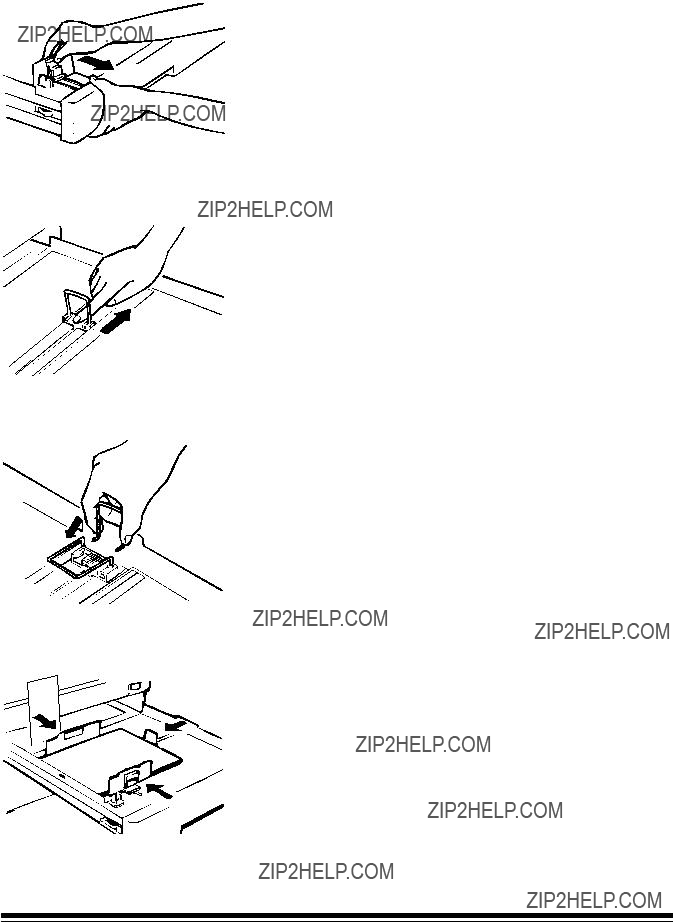

3.While holding the cassette, depress and spread the front paper guide wider than the paper size to be used.

4.Slide the green resin plate of the right paper guide toward the right side wider than the paper size to be used.

NOTE: Be sure to slide the resin plate and not to hold the lever part, as that may bend it.

5.When you load the ledgerT size paper, slide the right paper guide all the way to the right side and remove the lever by depressing it from the both sides. And insert the edges of the lever in the position shown in the illustration.

6.Align the stack of paper and set the paper in the cassette with the sealed surface down. While holding the cassette, slide and fit the front and right paper guides to the paper edges.

NOTE: Be sure to slide the resin plate to move the right paper guide. Check that the top level of the paper does not exceed the line marked on the rear paper guide.

Clearing paper jams

Inside the paper supply cabinet (J1 error)

When a paper jam occurs, remove the paper jammed in each section according to the following procedures.

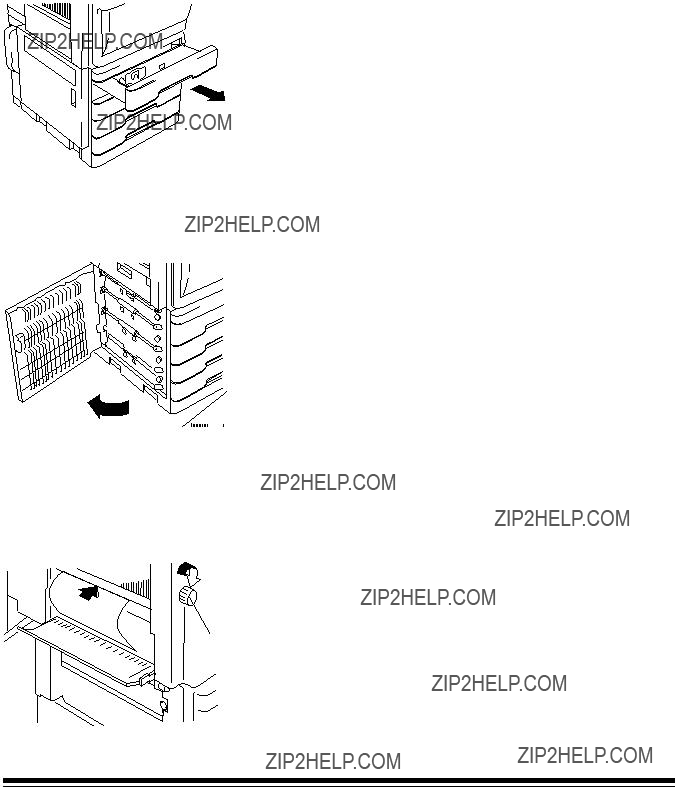

1.Pull the paper cassettes out from the printer and check if the paper in each cassette is stored correctly. If the paper is not stored correctly, remove the jammed piece of paper. Push the paper cassettes back into position.

2.Open the paper supply cabinet door (C2) and remove any paper. Close the paper supply cabinet door.

3.If the leading edge of jammed paper has been fed into the printer, open the front cover, send the paper into the printer by rotating the transport roller knob (M5), and remove the paper. (Refer to the ???Jam Removal Diagram??? label inside the printer front cover.) Close the front cover.

Inside the printer (J2 or J3 error)

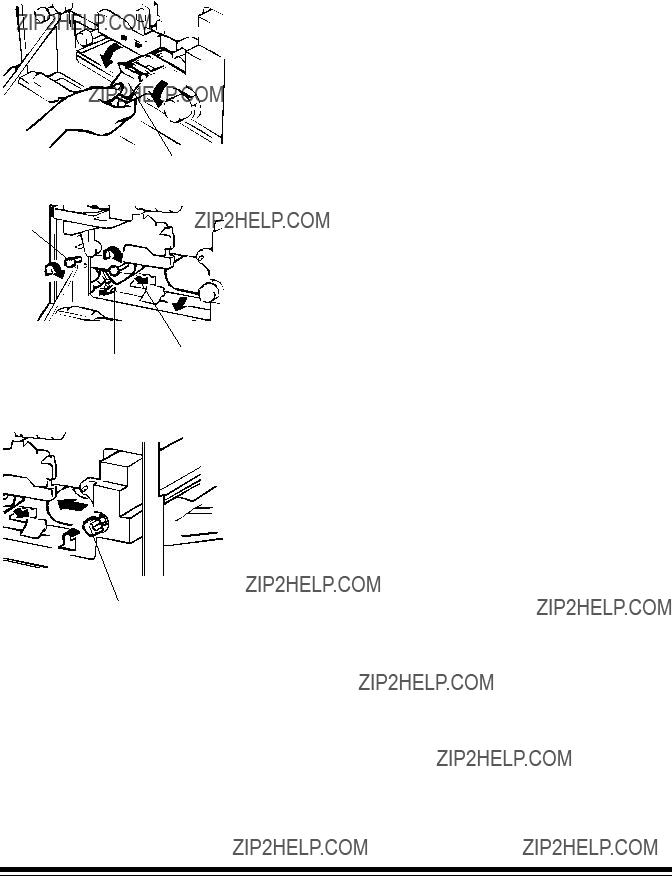

1.Open the front cover and release lever M2 to unlock the vacuum unit.

M4 M3

3. When the leading edge of jammed paper has reached into the fusing unit, remove the paper toward the inside of the printer while depressing and rotating the roller knob (M1) in the direction of the arrow.

NOTE: Rotate the roller knob (M1) only in the direction of the arrow and do not remove the paper by pulling it into the paper exit direction.

Inside the sorter and sorter interface unit (J4 or J6 error)

Lock Release Lever

1. Press the lock release lever of the 20-bin sorter to open the sorter.

2.Open the transport guide plates (upper and lower) of the sorter to check if the paper is jammed inside the option. If the

paper has jammed, remove the paper. Close the transport guide plates. (Refer to ???Removing Jammed Paper??? diagram label as shown in illustration.)

NOTE: Open the lower transport guide plate for the 20-bin sorter to check if the paper jammed inside. (Refer to ???Removing Jammed Paper??? diagram label as shown in illustration.)

???Removing Jammed Paper??? diagram

Changing a toner bottle

A toner bottle will print approximately 6,000 pages of A4 size paper when the black-to-white ratio on the prints is 12%. When the cartridge is out of toner, the toner empty indicator will light on the operation panel. Replace the toner bottle by following the steps below.

NOTE: Do not replace the toner bottle except when the toner empty indicator appears.

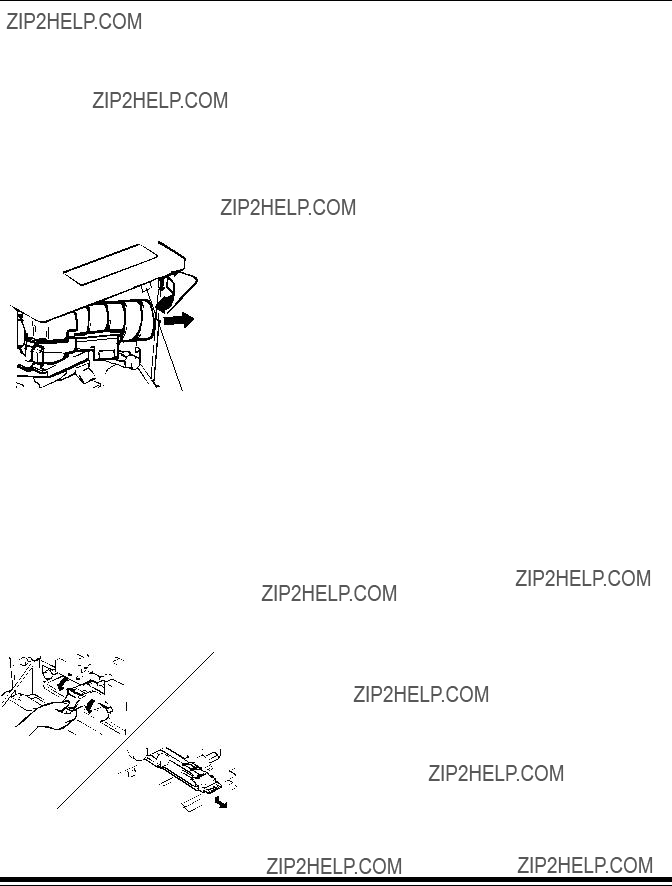

1. Open the front cover.

2. Pull the toner bottle holder lever to swing the toner bottle out 1 of the printer (1). Remove the toner bottle from the toner

holder (2).

Toner Bottle

Holder Lever

3.Turning the toner seal right side up, insert the new toner bottle into the holder so that the protrusions of the bottle fit in

the cutouts of the holder.

NOTE: Do not peel off the toner seal yet.

Appendix A Specifications

General specifications

Acoustic noise ......Printer alone

53 dB (A) or less (operation)

40 dB (A) or less (idle)

With options

58 dB (A) or less (operation)

40 dB (A) or less (idle)

Environment......... Temperature: 10???35??C (50???95??F)

Humidity: 15???85% RH

NOTE: Best performance will be obtained within the temperature range of 15???25??C at a humidity range of 15???70% RH. Some reduction of performance can be expected around 30??C with RH above 70%.

Paper sizes

Feed

Direction

*These papers can be fed in either direction (i.e., dimensions are interchangeable for these sizes).

??? Feeds from upper 3 cassettes only.

NOTE:

??? Dimension A cannot be greater than 11.7 in.

B(297 mm).

???Dimension B must be 8.25 in. (209.6 mm) or greater. Smaller sizes may cause paper jams.

Installation environment

Power source

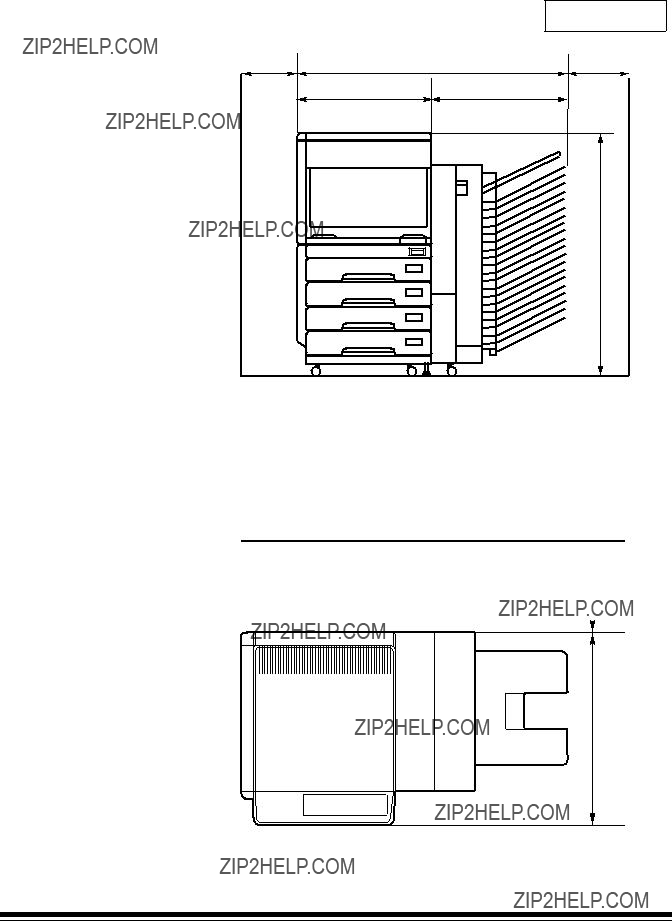

Select the proper environment for using the printer to obtain the optimum service from your printer. It should NOT be placed in a location:

???which is exposed to direct sunlight.

???which is in the direct air stream of a cooler, heater, or ventilator.

???where the temperature and the humidity are extremely high or low. The room temperature should be 10???35??C (50???95??F) and humidity should be 15???85% RH.

???which does not have a stable, level floor.

???which could easily get wet.

???which has poor ventilation and where ammonia gas might be generated.

???which is far from a power supply.

NOTE: Please contact your service representative when you need to move the printer to another place.

Before connecting the power cord of the printer to the outlet, check the following items:

???Only connect to a dedicated electrical socket-outlet.

???Use the printer in a place which is near an electrical outlet

and where there is little voltage fluctuation. (The power supply voltage should be specified voltage ??10% for imaging

and +10% or -15% for feeding. The power supply frequency should be specified ??1 Hz.)

???Do not plug the power cord into a multi-socket extension cord.

???At frequent intervals, check to see that the power plug is not abnormally hot, that there are not any cracks or scrapes on the cord, and that the power plug is fully inserted into the socket.

???Be sure to use an outlet made for a 3-pin plug.

Ordering information for the Printer 7 and accessories

Ordering information for consumables for the Printer 7

Handling of consumables Consumables such as paper and toner could affect the printer condition. Before using any consumable, please carefully read the label.

For paper and toner

???Do not keep paper and toner where they will be exposed to direct sunlight, or in a place which is close to any kind of heating device.

???To prevent absorption of moisture, paper which has been removed from its wrapper but not loaded in the cassette should be stored in a sealed plastic bag in a cool, dark place.

???Never use the toner used for any other model of printer.

Appendix D Maintenance

Before conducting any maintenance procedures, follow these precautions:

???Before beginning the maintenance procedures, be sure to turn OFF the power ON/OFF switch and unplug the printer???s power cord.

???Do not put any equipment that produces a magnetic field near the printer.

???Do not attempt to remove the units other than those described in the manual.

Use the mechanical print counter to check the number of prints made to determine when certain maintenance procedures should be performed.

Mechanical

Print Counter

Cleaning the image transfer/paper separator charger wires

1. Open the front cover. Release the lock of the vacuum unit release lever (M2) and lower the vacuum unit. Push down on the front edge of the image transfer/paper separator charger and pull the charger out of the printer.

2.Remove the (4) paper guides by lifting them straight up. Clean the outside of housing with a soft cloth.

3.Carefully clean the wires using the cleaning pen contained in the accessories for the machine as in the illustration.

4.Reinstall the four paper guides. Insert the image transfer/paper separator charger onto the guides of the suction unit until the charger is locked by the front edge of the guides. Lift up the vacuum unit release lever (M2) and lock it into the EP unit. Close the front cover.

NOTE: Be sure the charger is installed correctly. If the vacuum unit will not lock into place or if there are printing problems, reinstall the charger.

New equipment warranty???

Kodak Imagelink Printer 7

Warranty repair coverage

Days and hours of coverage

How to obtain service

Limitations

Kodak warrants this equipment to function properly for three months from date of shipment. However, certain requirements may dictate a different warranty period. This warranty covers the purchaser of this equipment as well as anyone else who owns it during the warranty period.

If this equipment does not function properly during the warranty period, Kodak will provide on-site repair service during Kodak???s normal working hours. Such repair service will include any adjustments and/or replacement of parts necessary to maintain the equipment in an operating condition which is consistent with Kodak???s specifications.

Warranty coverage is available Monday through Friday during Kodak???s normal working hours (usually 8:00 a.m. to 5:00 p.m.), excluding holidays celebrated locally.

Any on-site service performed after normal working hours will be billed at prevailing overtime rates.

In the U.S. call (800) 356-3253; or call your local Kodak Service Office.

Standard warranty service is limited to the contiguous United States, Hawaii, and certain areas of Alaska.

This warranty does not cover: circumstances beyond Kodak???s control (such as Customer overriding, bypassing or defeating interlock switches on equipment or devices sold by Kodak); problems due to failure of Customer to conform to Kodak???s site specifications; service or parts to correct problems resulting from the use of attachments, accessories or alterations not marketed by Kodak; relocation of equipment or service required as the result of relocation; unauthorized modifications or service; misuse; abuse; failure to follow Kodak???s operating instructions; or supply items (such as glass and projection lamps).

KODAK MAKES NO OTHER WARRANTIES, EXPRESS,

IMPLIED, OR OF MERCHANTABILITY OR FITNESS FOR A

PARTICULAR PURPOSE FOR THIS EQUIPMENT.

Repair or replacement without charge are Kodak???s only obligations under this warranty. KODAK WILL NOT BE

RESPONSIBLE FOR ANY CONSEQUENTIAL OR INCIDENTAL

DAMAGES RESULTING FROM THE SALE, USE, OR

IMPROPER FUNCTIONING OF THIS EQUIPMENT, REGARDLESS OF THE CAUSE. Such damages for which Kodak will not be responsible, include, but are not limited to, loss of revenue or profit, downtime costs, loss of use of the equipment, cost of any substitute equipment, facilities or services or claims of your customers for such damages.
