INSTRUCTIONS

For Customer Use:

Enter below the Model No. and Serial No. which are located on the rear of cabinet. Retain this information for future reference.

Model No.

CAUTIONS

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK.

DO NOT REMOVE COVER (OR BACK).

NO USER-SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

WARNING:

TO PREVENT FIRE OR SHOCK

HAZARD, DO NOT EXPOSE THIS

UNIT TO RAIN OR MOISTURE.

CAUTION:

This video cassette recorder should be used with AC 120V`, 60Hz only.

To prevent electric shocks and fire hazards, DO NOT use any other power source.

CAUTION:

TO PREVENT ELECTRIC SHOCK, MATCH WIDE

BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.

ATTENTION:

POUR ??VITER LES CHOCS ??LECTRIQUES, INTRODUIRE

LA LAME LA PLUS LARGE DE LA FICHE DANS LA BORNE

CORRESPONDANTE DE LA PRISE ET POUSSER

JUSQU'AU FOND.

Note to CATV system installer:

This reminder is provided to call the CATV system installer's attention to Article 820-40 of the NEC that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical.

CAUTION:

Changes or modifications not approved by JVC could void user's authority to operate the equipment.

Failure to heed the following precautions may result in damage to the recorder, remote control or video cassette.

1.DO NOT place the recorder . . .

... in an environment prone to extreme temperatures or humidity.

... in direct sunlight.

... in a dusty environment.

... in an environment where strong magnetic fields are generated.

... on a surface that is unstable or subject to vibration.

2.DO NOT block the recorder???s ventilation openings.

3.DO NOT place heavy objects on the recorder or remote control.

4.DO NOT place anything which might spill on top of the recorder or remote control.

5.AVOID violent shocks to the recorder during transport.

**MOISTURE CONDENSATION

Moisture in the air will condense on the recorder when you move it from a cold place to a warm place, or under extremely humid conditions???just as water droplets form on the surface of a glass filled with cold liquid. Moisture condensation on the head drum will cause damage to the tape. In conditions where condensation may occur, keep the recorder???s power turned on for a few hours to let the moisture dry before inserting a tape.

**ABOUT HEAD CLEANING

Accumulation of dirt and other particles on the video heads may cause the playback picture to become blurred or inter- rupted. Be sure to contact your nearest JVC dealer if such troubles occur.

VCR Plus+, C3 and PlusCode are registered trademarks of Gemstar Development Corporation.

The VCR Plus+ system is manufactured under license from Gemstar Development Corporation.

DSSTM is an official trademark of DIRECTV, Inc., a unit of GM Hughes Electronics. PRIMESTAR is a registered service mark of Primestar Partners, L.P. DISH NetworkTM is a trademark of Echostar Communications Corporation.

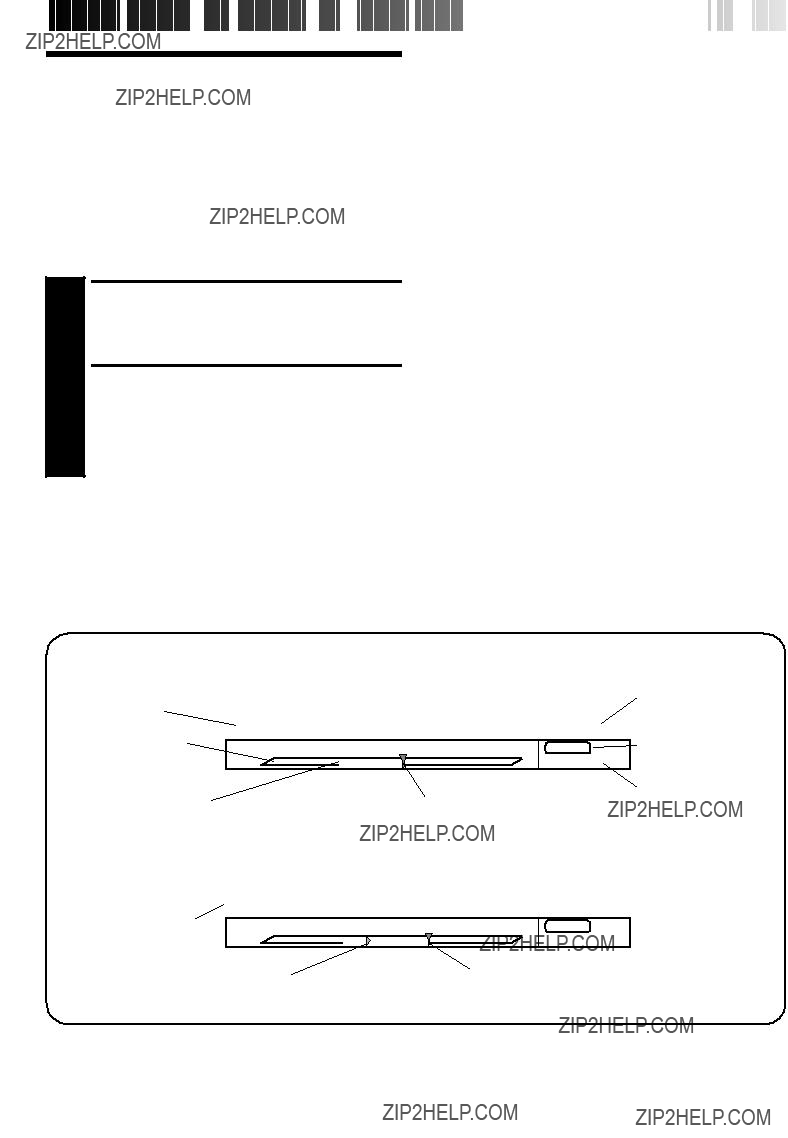

nCassettes marked ???S-VHS??? and ???VHS??? can be used with this recorder. However, S-VHS recordings are possible only with cassettes marked ???S-VHS???.

By using S-VHS ET it is possible to record and play back with S-VHS picture quality on VHS cassettes with this recorder.

This product incorporates copyright protection technology that is protected by method claimes of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing users only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.

IMPORTANT PRODUCT

SAFETY INSTRUCTIONS

Electrical energy can perform many useful functions. But improper use can result in potential electrical shock or fire hazards. This product has been engineered and manufactured to assure your personal safety. In order not to defeat the built-in safeguards, observe the following basic rules for its installation, use and servicing.

ATTENTION:

Follow and obey all warnings and instructions marked on your product and its operating instructions. For your safety, please read all the safety and operating instructions before you operate this product and keep this booklet for future reference.

EN3

2. Power Sources

Operate your product only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your product dealer or local power company. If your product is intended to operate from battery power, or other sources, refer to the operating instructions.

3. Overloading

Do not overload wall outlets, extension cords, or integral convenience receptacles as this can result in a risk of fire or electric shock.

4. Power Cord Protection

Power supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the product.

INSTALLATION

1. Grounding or Polarization

(A)Your product may be equipped with a polarized alternating- current line plug (a plug having one blade wider than the other). This plug will fit into the power outlet only one way. This is a safety feature.

If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the polarized plug.

(B)Your product may be equipped with a 3-wire grounding-type plug, a plug having a third (grounding) pin. This plug will only fit into a grounding-type power outlet. This is a safety feature.

If you are unable to insert the plug into the outlet, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the grounding-type plug.

5. Ventilation

Slots and openings in the cabinet are provided for ventilation. To ensure reliable operation of the product and to protect it from overheating, these openings must not be blocked or covered.

???Do not block the openings by placing the product on a bed, sofa, rug or other similar surface.

???Do not place the product in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer???s instructions have been adhered to.

6. Wall or Ceiling Mounting

The product should be mounted to a wall or ceiling only as recommended by the manufacturer.

ANTENNA INSTALLATION

INSTRUCTIONS

1. Outdoor Antenna Grounding

If an outside antenna or cable system is connected to the product, be sure the antenna or cable system is grounded so as to provide some protection against voltage surges and built-up static charges. Article 810 of the National Electrical Code, ANSI/ NFPA 70, provides information with regard to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding connec- tors, location of antenna discharge unit, connection to ground- ing electrodes, and requirements for the grounding electrode.

USE

1. Accessories

To avoid personal injury:

???Do not place this product on an unstable cart, stand, tripod, bracket, or table. It may fall, causing serious injury to a child or adult, and serious damage to the product.

???Use only with a cart, stand, tripod, bracket, or table recommended by the manufacturer or sold with the product.

???Use a mounting accessory recommended by the manufacturer and follow the manufacturer???s instructions for any mounting of the product.

???Do not try to roll a cart with small casters across thresholds or deep-pile carpets.

2. Lightning

For added protection for this product during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the product due to lightning and power-line surges.

3. Power Lines

An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal.

2. Product and Cart

Combination

A product and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the product and cart combination to overturn.

3. Water and Moisture

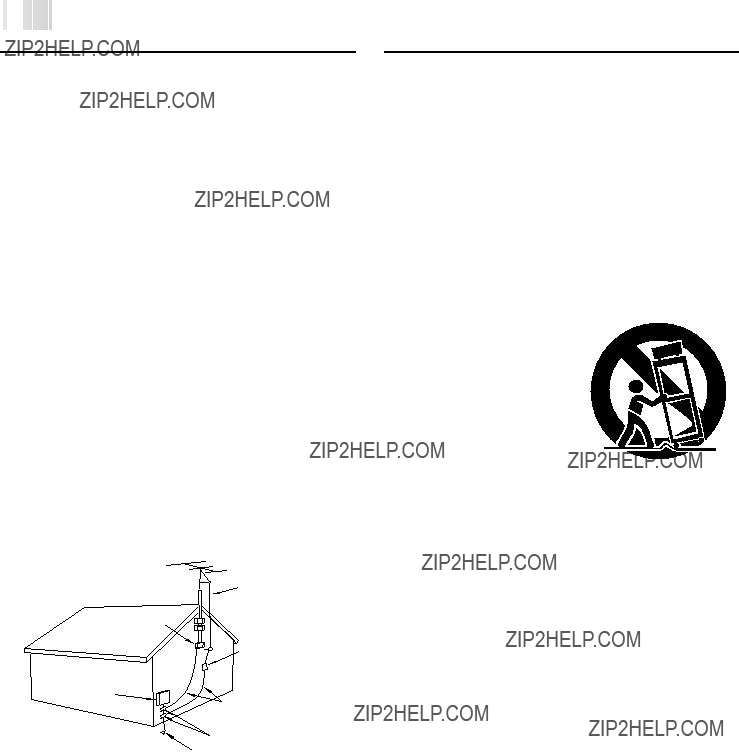

PORTABLE CART WARNING (Symbol provided by RETAC)

EXAMPLE OF ANTENNA GROUNDING AS PER

NATIONAL ELECTRICAL CODE, ANSI/NFPA 70

Do not use this product near water???for example, near a bath tub, wash bowl, kitchen sink or laundry tub, in a wet basement, or near a swimming pool and the like.

ANTENNA

LEAD IN WIRE

GROUND CLAMP

4. Object and Liquid Entry

Never push objects of any kind into this product through openings as they may touch dangerous voltage points or short- out parts that could result in a fire or electric shock. Never spill liquid of any kind on the product.

ELECTRIC SERVICE

EQUIPMENT

ANTENNA

DISCHARGE UNIT

(NEC SECTION 810-20)

5. Attachments

Do not use attachments not recommended by the manufacturer of this product as they may cause hazards.

GROUNDING

CONDUCTORS

(NEC SECTION 810-21)

GROUND CLAMPS

POWER SERVICE GROUNDING ELECTRODE SYSTEM (NEC ART 250. PART H)

NEC ??? NATIONAL ELECTRICAL CODE

6. Cleaning

Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.

7. Heat

The product should be situated away from heat sources such as radiators, heat registers, stoves, or other products (including amplifiers) that produce heat.

SERVICING

1. Servicing

If your product is not operating correctly or exhibits a marked change in performance and you are unable to restore normal operation by following the detailed procedure in its operating instructions, do not attempt to service it yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

2. Damage Requiring Service

Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following conditions:

a.When the power supply cord or plug is damaged.

b.If liquid has been spilled, or objects have fallen into the product.

c.If the product has been exposed to rain or water.

d.If the product does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions as an improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the product to its normal operation.

e.If the product has been dropped or damaged in any way.

f.When the product exhibits a distinct change in performance???this indicates a need for service.

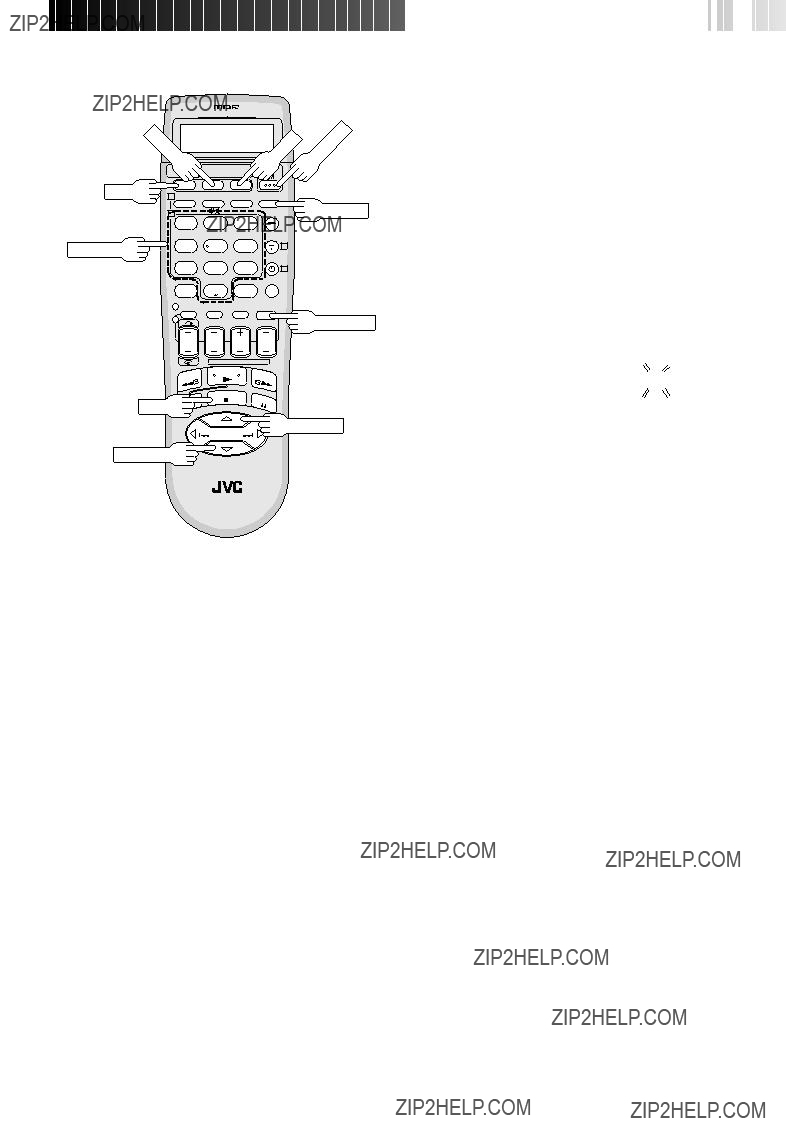

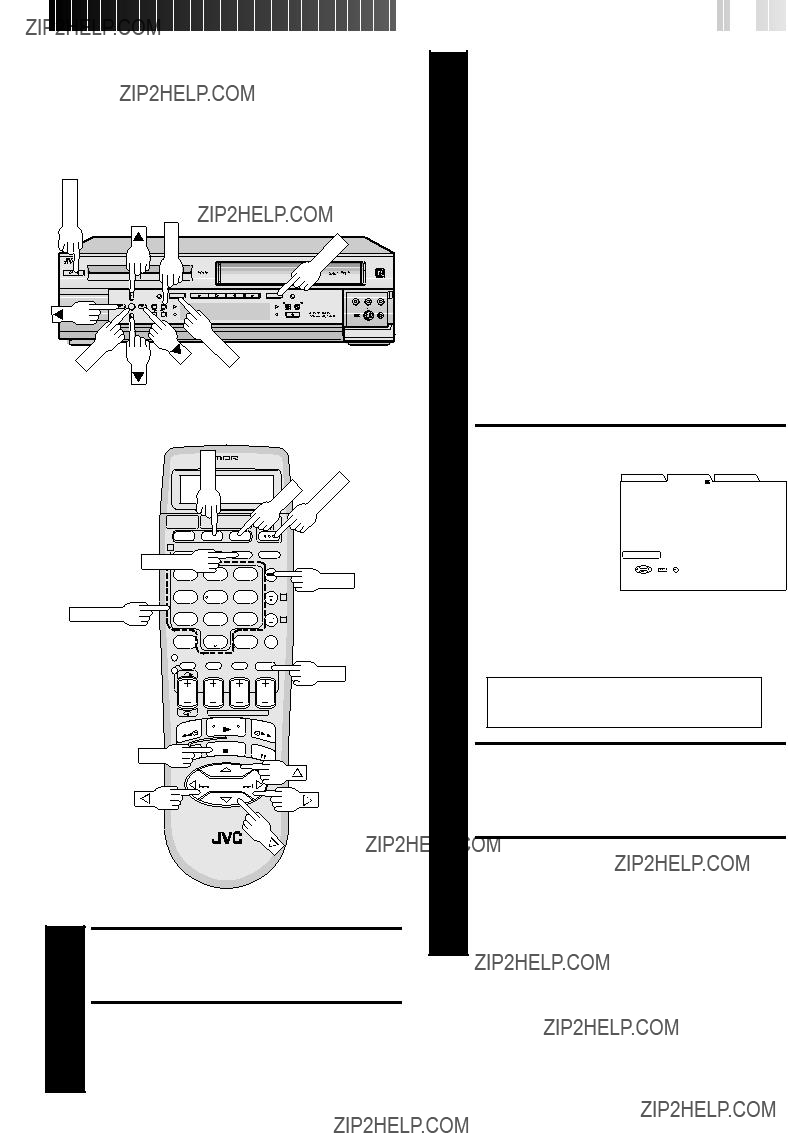

HOW TO USE THIS INSTRUCTION

MANUAL

cAll major sections and subsections are listed in the Table Of Contents on page 7. Use this when searching for information on a specific procedure or feature.

cThe Index on pages 90 ??? 94 lists frequently-used terms, and the number of the page on which they are used or explained in the manual. This section also illustrates the controls and connections on the front and rear panel, the front display panel and the remote control.

cThe Z mark signals a reference to another page for instructions or related information.

cOperation buttons necessary for the various procedures are clearly indicated through the use of illustrations at the beginning of each major section.

BEFORE YOU INSTALL YOUR NEW RECORDER . . .

. . . please read the sections/literature listed below.

c???Cautions??? on page 2

c???Important Product Safety Instructions??? on the previous pages

PRECAUTION FOR Hard Disk Drive

1.Before installing the recorder

This recorder has a built-in hard disk drive, which is a device to read minute magnetic changes.

The inside of the device is precision-built, which, when installing the recorder, requires you to note the following:

???DO NOT use the recorder in a location prone to vibration or dust.

???DO NOT place the recorder where difference in temperatures is large (condensation can occur), or where humidity is high.

???When condensation occurs

Water droplets form on the hard disc or head drums inside, possibly causing hard disc and heads to be damaged.

???About condensation

When well-cooled beer is poured into a glass, water droplets often form around its outside. This phenom enon is called condensation.

???DO NOT install the recorder where the cooling fans in its back may be blocked, or where the recorder may be closed in.

???DO NOT use the recorder placed vertically.

2.Before using the recorder

When the power of the unit is on, the hard disc is constantly rotating at high speed.

This requires you to note the following:

???DO NOT impart vibration or shock.

If given a heavy shock, not only is the data recorded damaged but also the hard disk itself can be damaged.

???DO NOT allow anything having strong magnetism or emitting strong electromagnetic waves (cell phones, etc.) near the recorder.

???DO NOT disconnect the power plug from the wall outlet when the power of the recorder is on.

If the power supply is cut off while the hard disc is in operation, it can be damaged or the data stored on it may be damaged. Be sure to push the POWER button before turning off the power.

3.While using the recorder

When viewing a program by selecting HDD (Hard Disk Drive), there occurs a slight time lag relative to the actual program being broadcast. This is because pictures received are once stored on the hard disk, and then played back.

The time lag is about three seconds. If you turn the power on with the hard disk already selected, it will take about 30 seconds before the pictures received appear on the screen. Up until then, any operation is disabled. But it is not a malfunction.

EN7

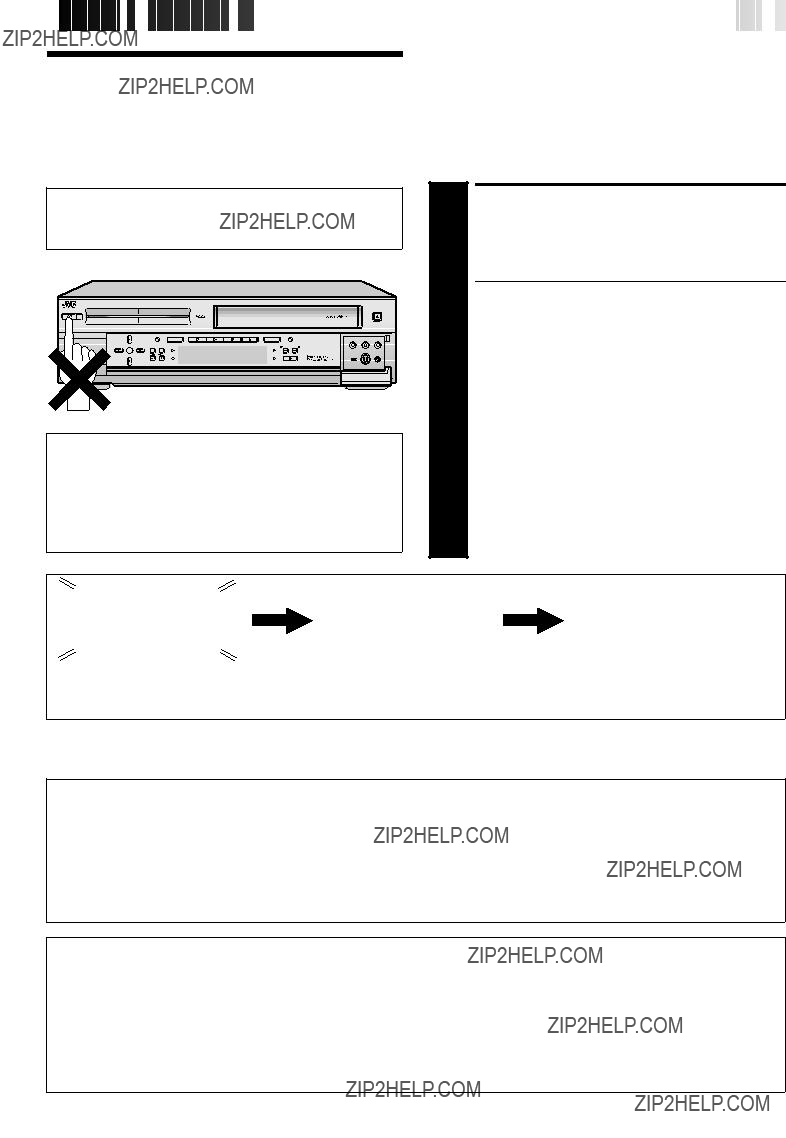

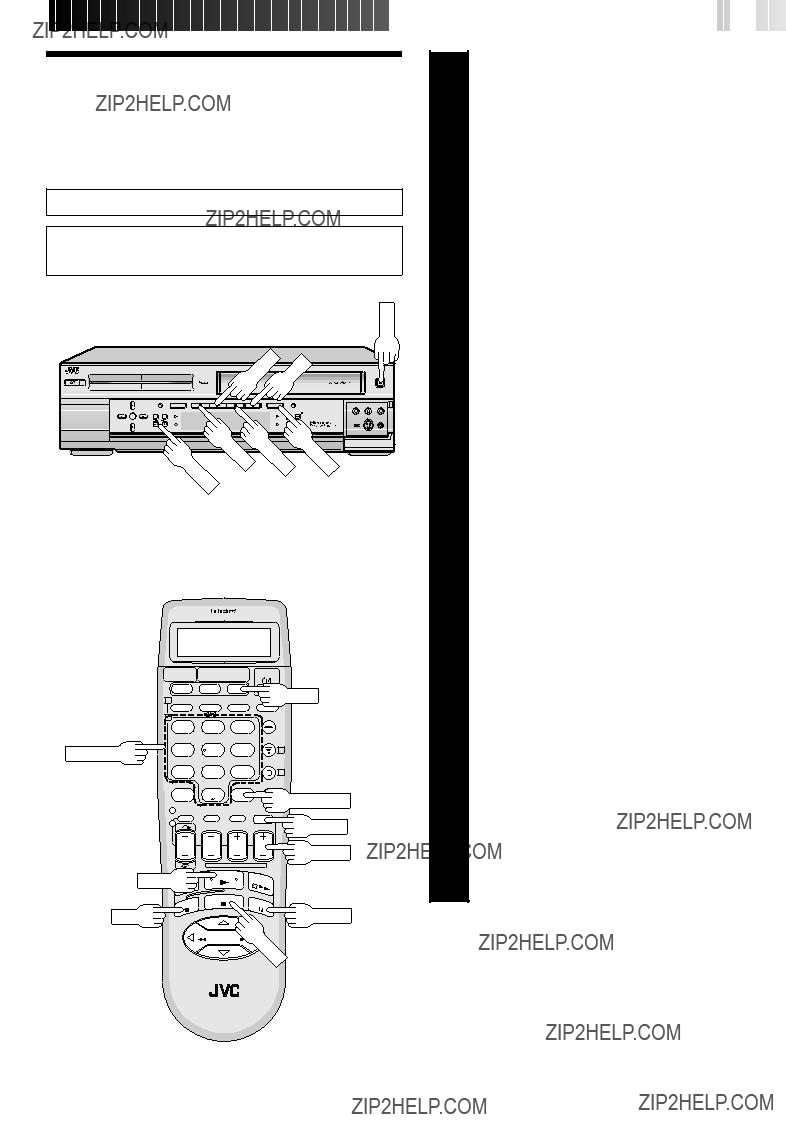

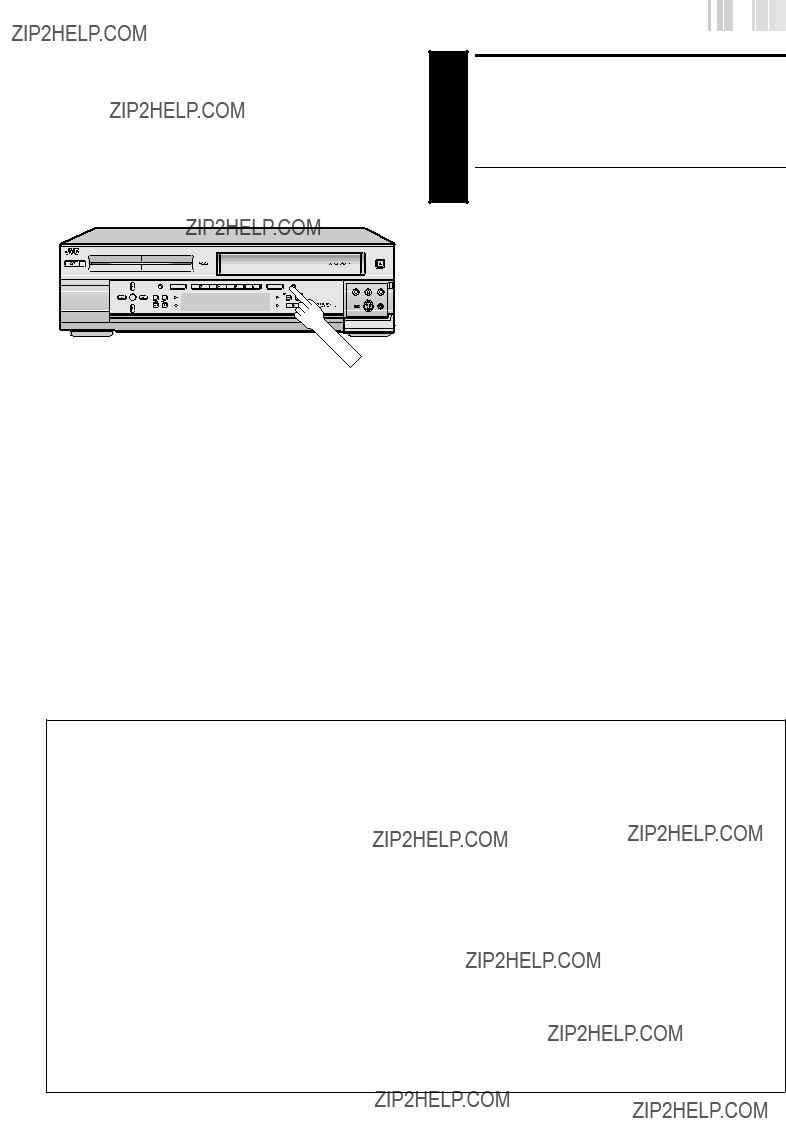

Plug & Play

Auto Clock Set/Auto Tuner Set

ATTENTION

If you use a cable box, Plug & Play will not function; set the clock and tuner channels manually. (Z pg.10 ??? 13)

IMPORTANT

cDon???t press any buttons on the recorder or remote while Plug & Play is in progress.

cIf you perform Plug & Play successfully, there???s no need to perform the Clock (Z pg. 10) and Tuner (Z pg. 13) procedures. If, however, you want to add or delete channels, refer to ???Add Or Delete A Channel??? on page 14.

The Plug & Play function sets the clock and tuner channels automatically when power is first connected to the recorder. The antenna cable must be connected for the Plug & Play function.

The time and date can be set automatically from clock setting data that is transmitted by one of the regular TV broadcast channels. We call this TV channel the ???Host Channel??? and it is a PBS channel in your area.

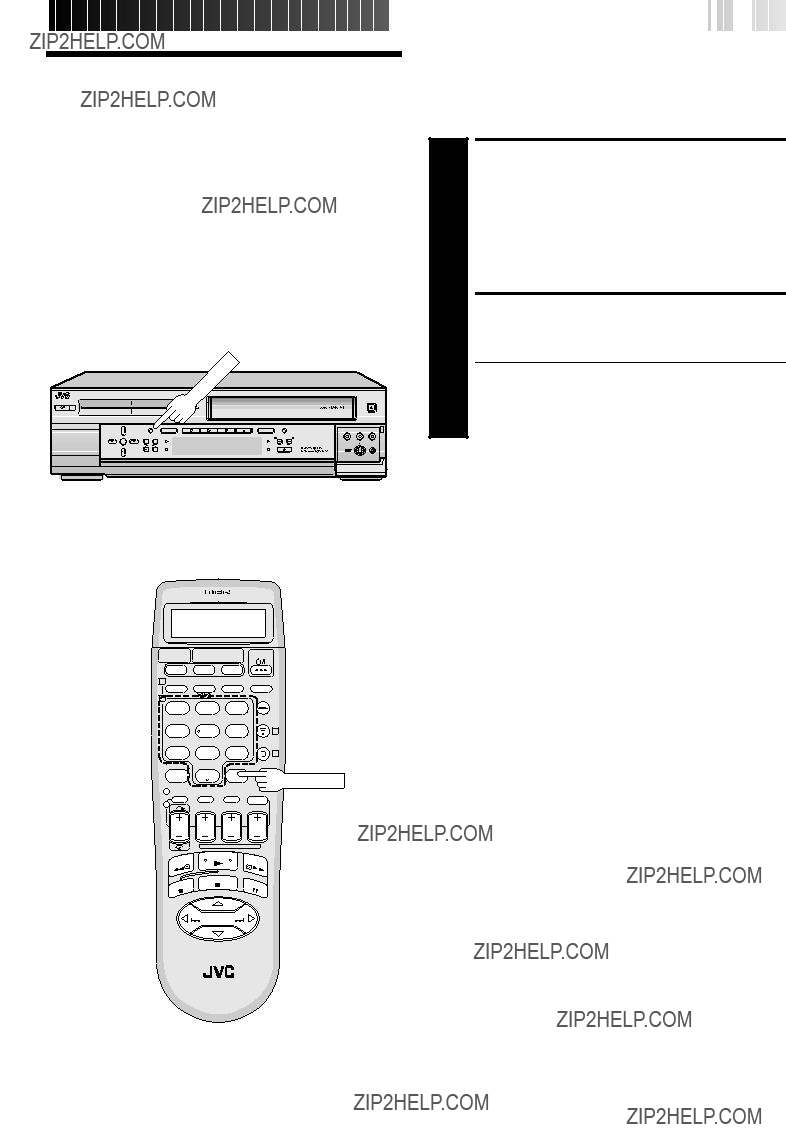

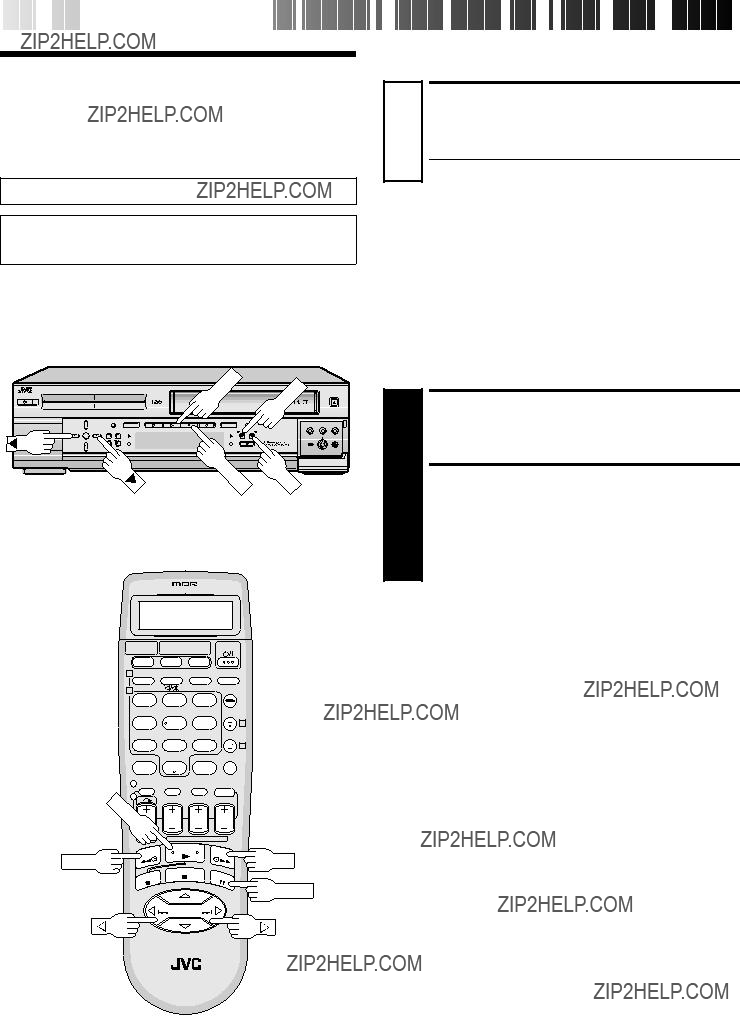

PLUG & PLAY SETUP

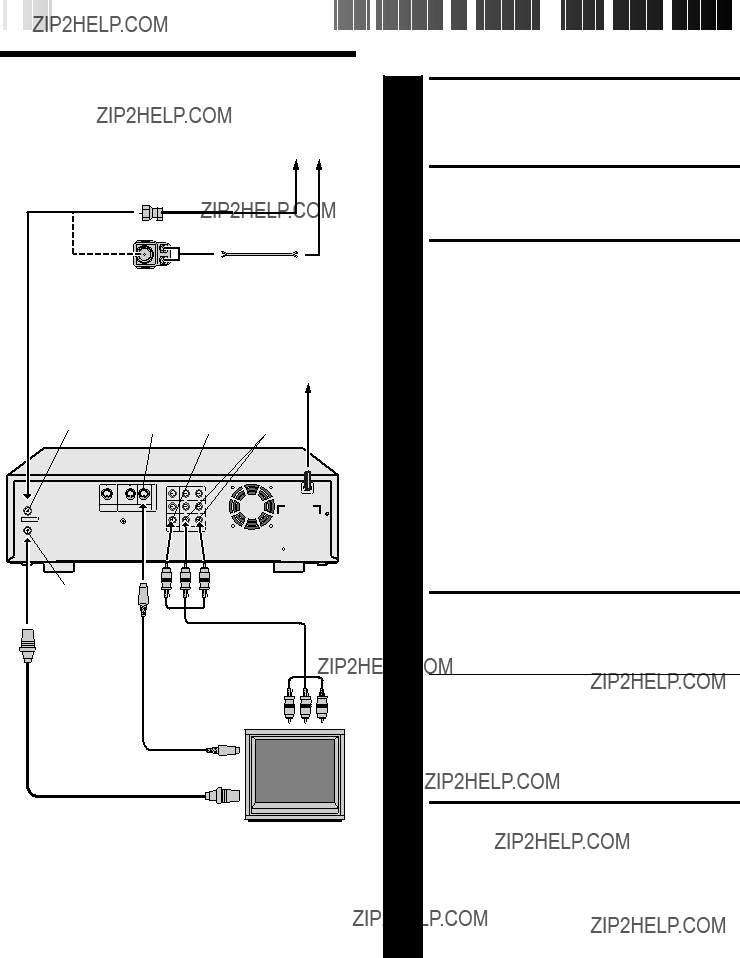

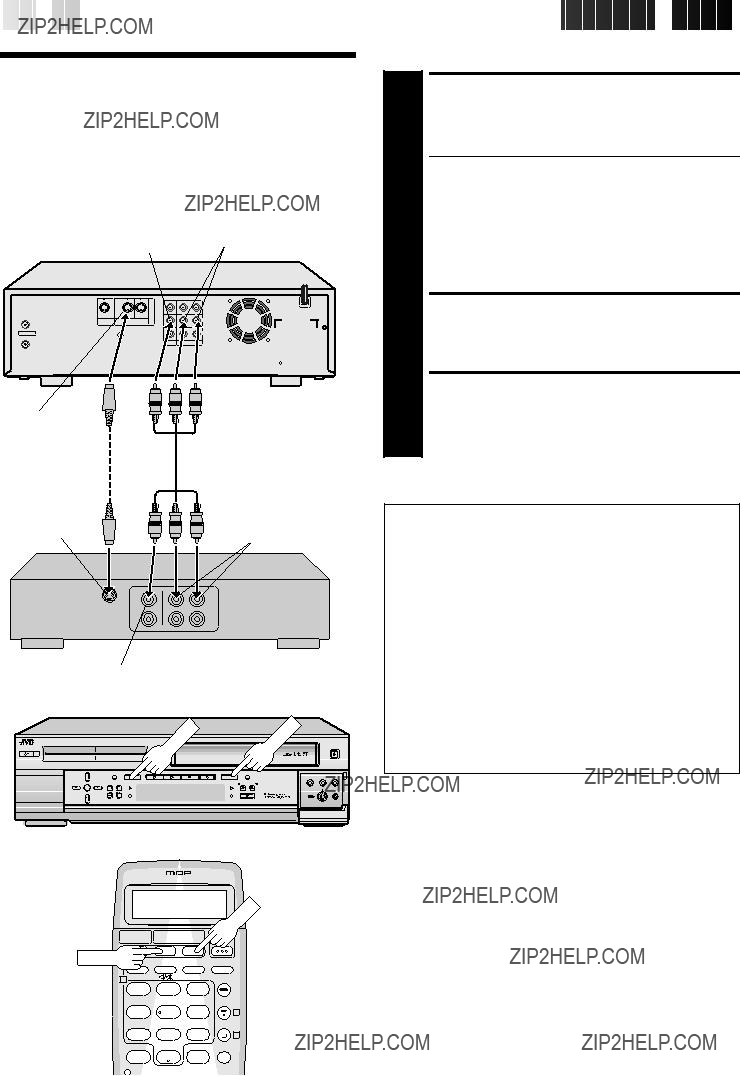

1 Connect the antenna cable to the recorder on the previous page. Then connect the recorder???s power plug to an AC outlet. Do not power on the recorder. The clock and tuner channels will be set automatically.

NOTES:

cAuto clock set is performed first. The auto clock set function scans all the channels received by your recorder to find the Host Channel and then sets the clock. "Auto" blinks on the front display panel during Auto clock set.

cAuto channel set is performed next. The auto channel set function scans all the channels that are receivable by your recorder. It then automatically assigns each receivable channels to the CH +/??? buttons. It skips non-receivable channels. During auto channel set the channel numbers are displayed as they are scanned and set.

cWhen Plug & Play has been completed successfully the correct time is displayed.

cIf an incorrect time or ?????? ???:??? ?????? appears on the display panel, see ???What To Do If Plug & Play Has Failed??? below.

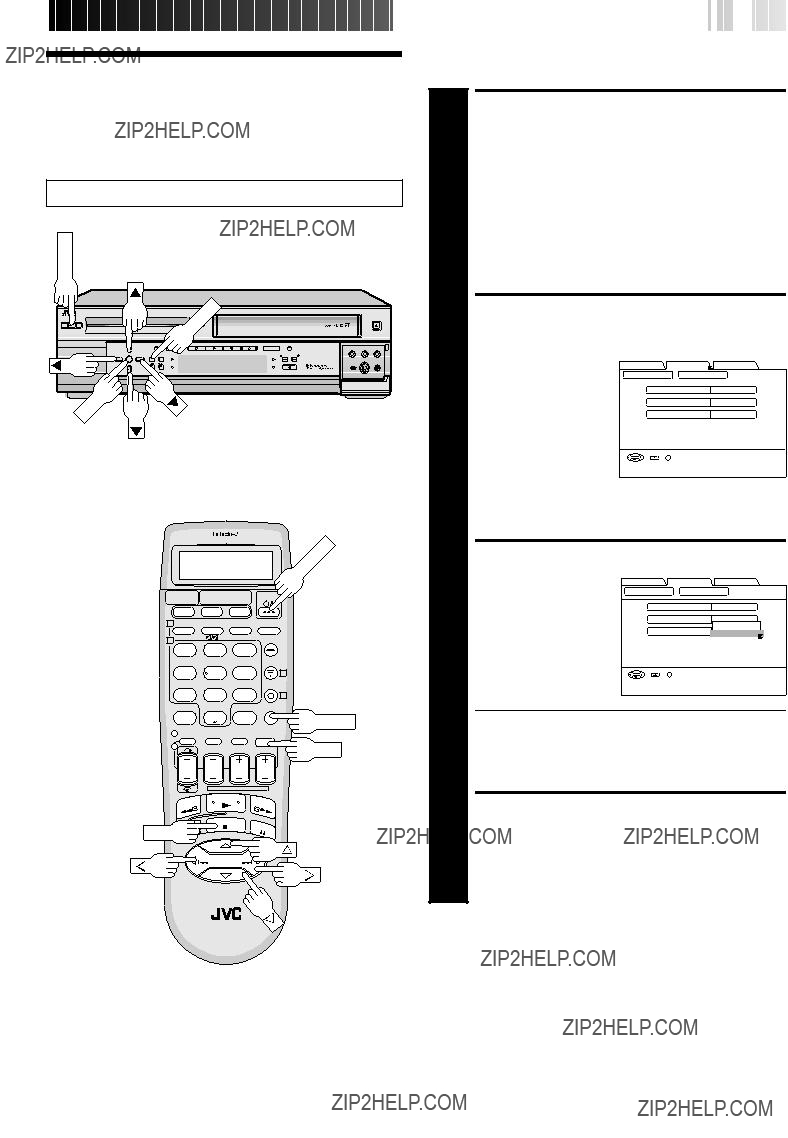

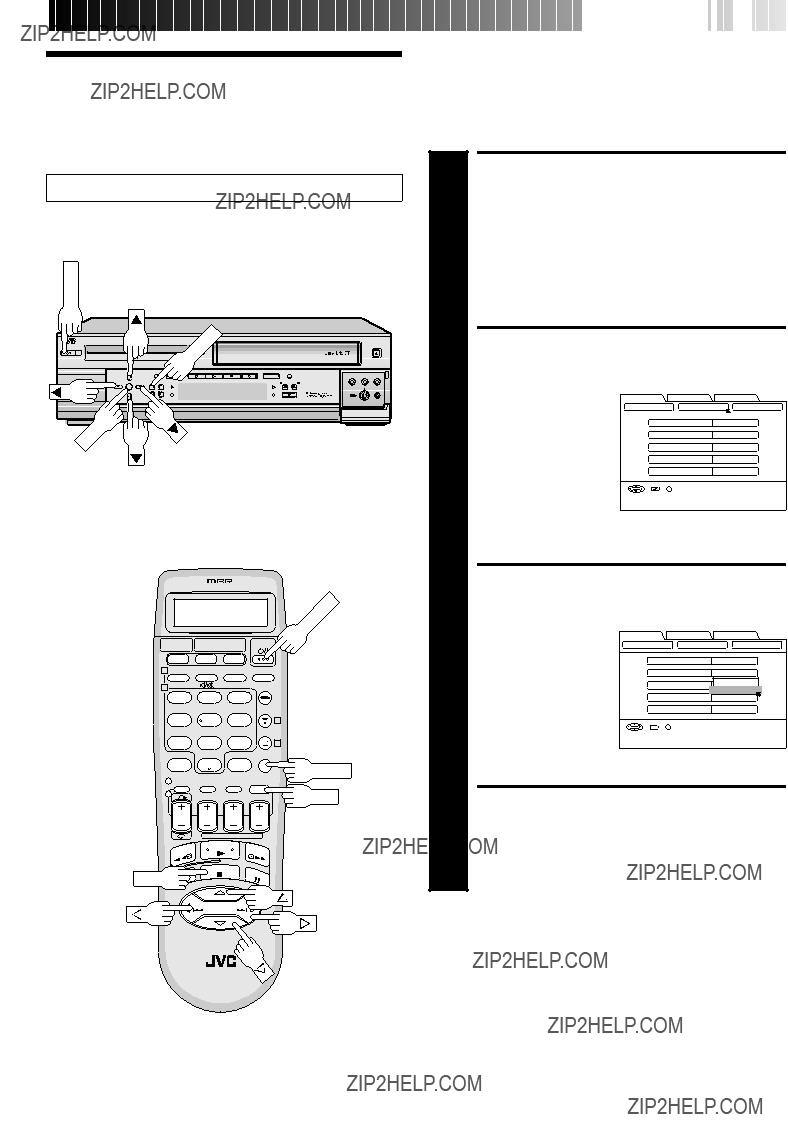

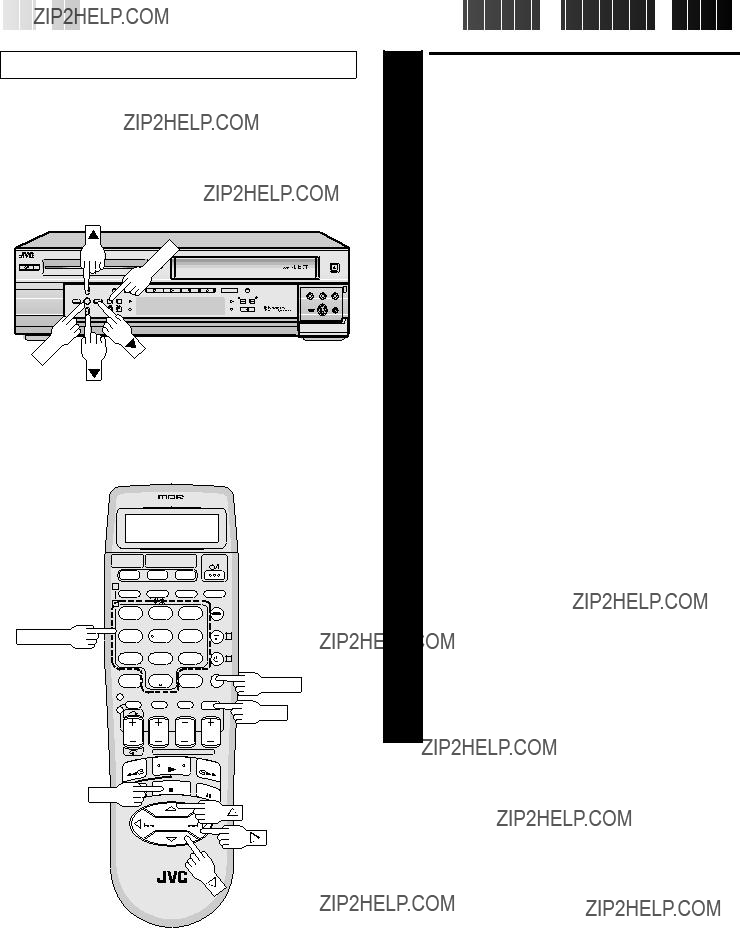

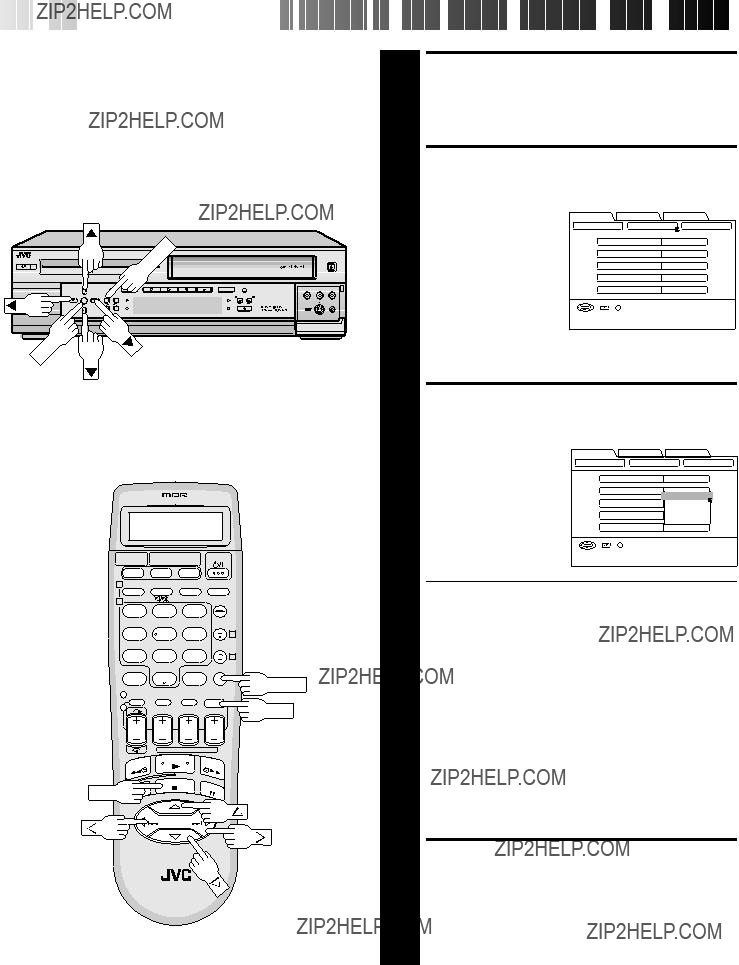

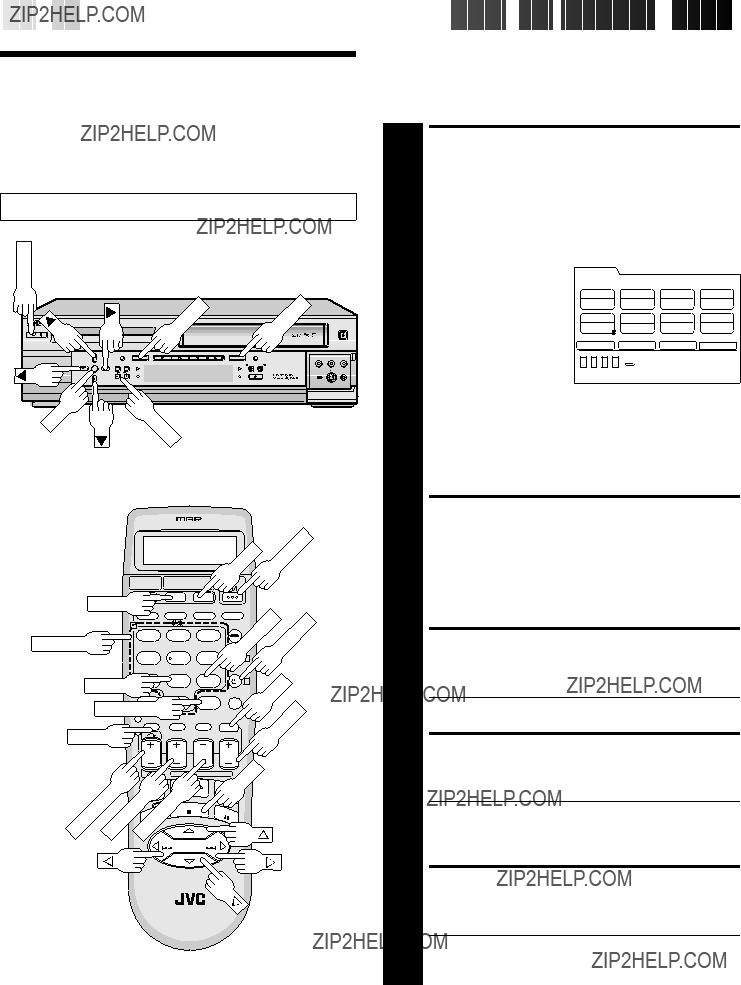

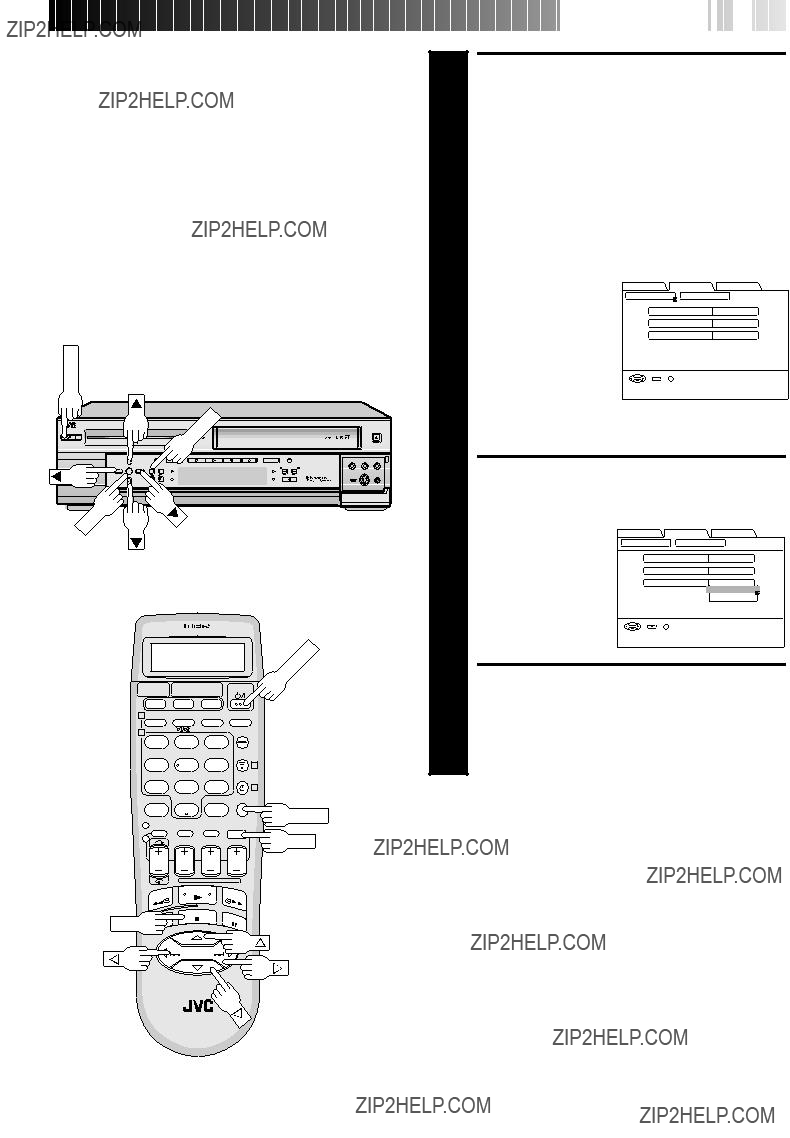

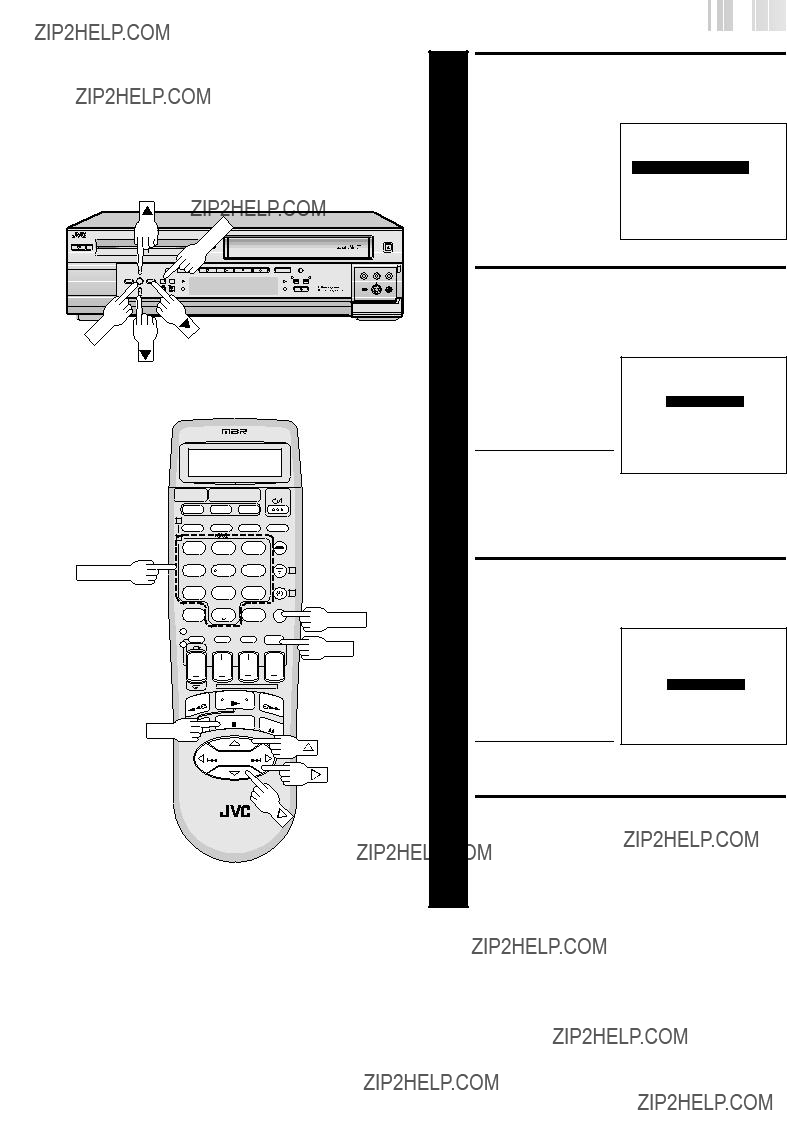

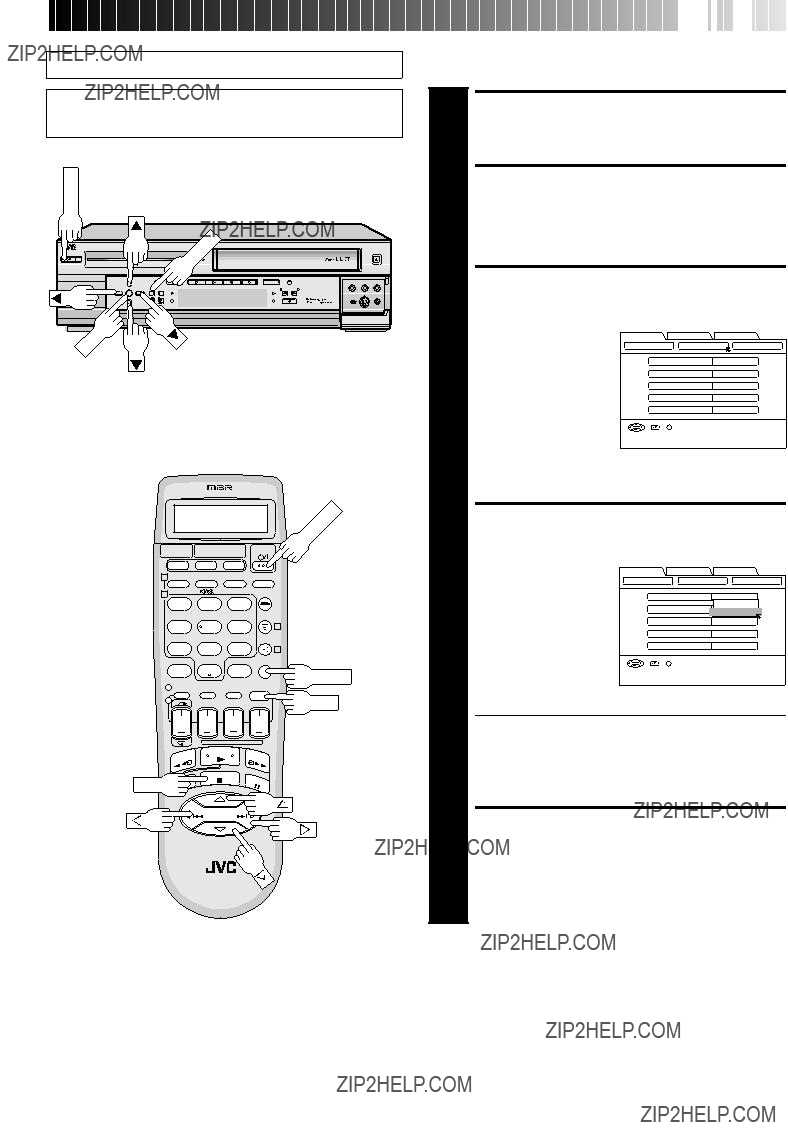

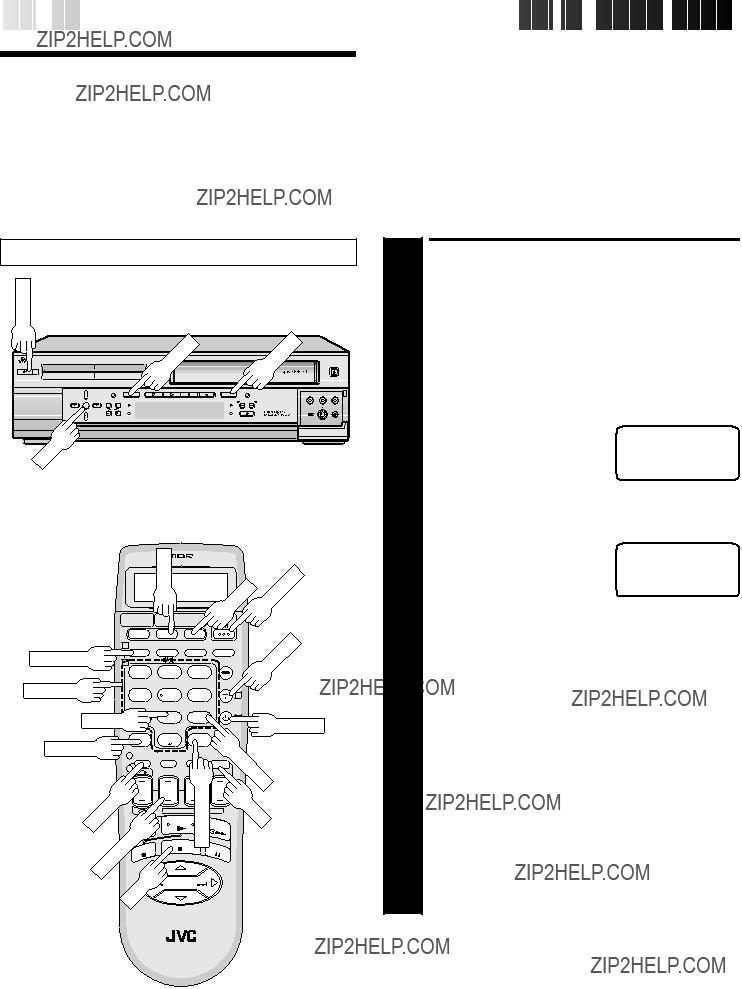

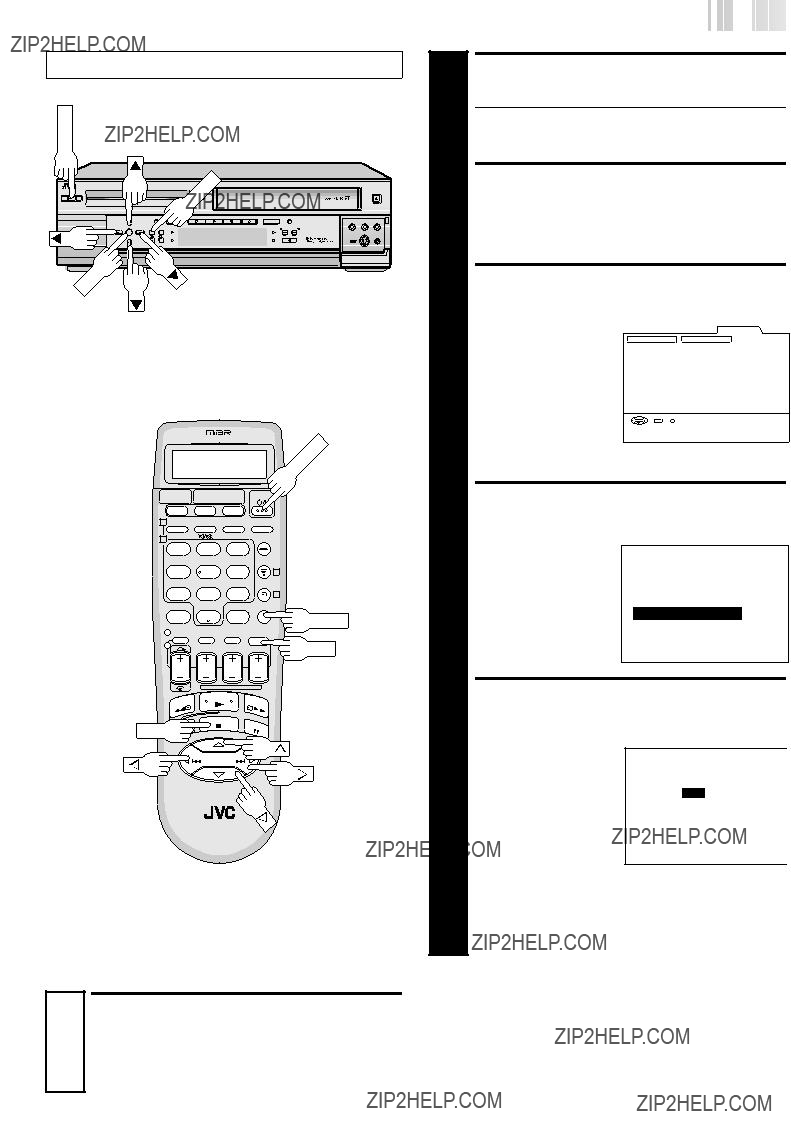

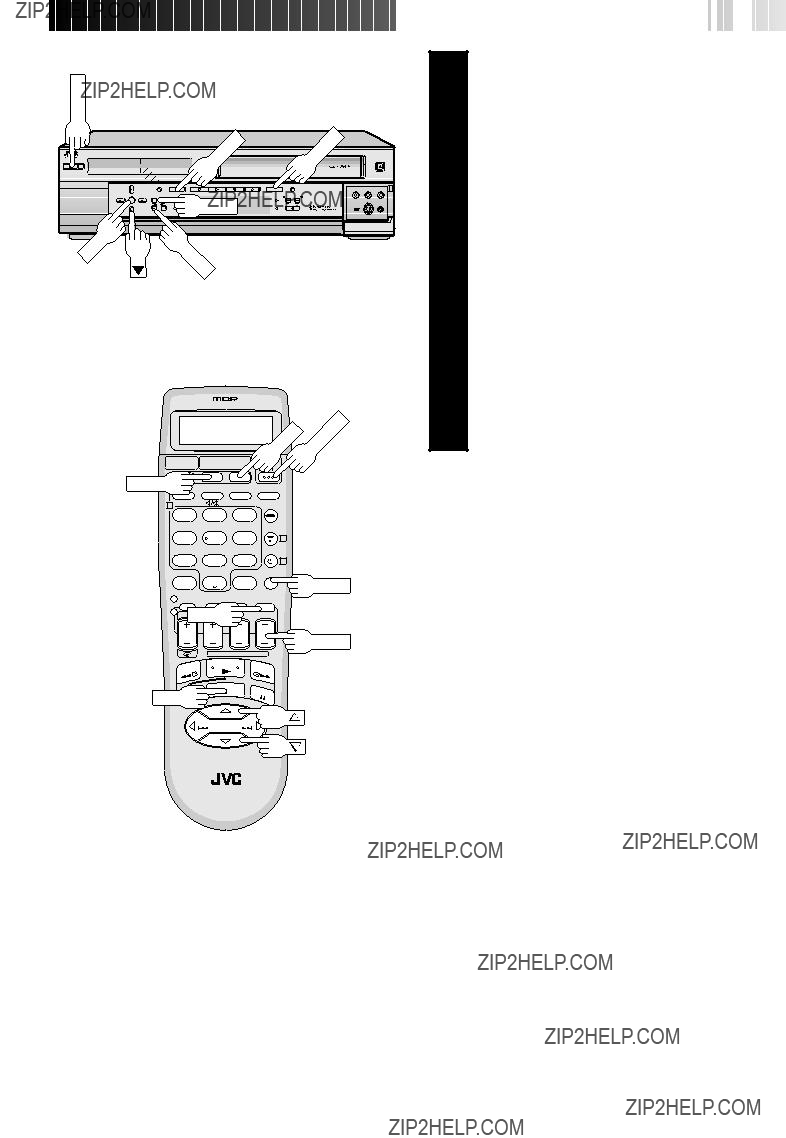

Clock

Turn on the TV and select the AV mode.

Perform clock setting only if the clock has not been set correctly by the Plug & Play function or you use a cable box. Access the Clock Set screen to perform the Semi-Auto or Manual clock setting procedure. Each procedure starts from step 5.

If you use a cable box, set the clock manually. (Z pg. 12)

Preparation

POWER

HM-HDS1

OK

POWER

1

2

1

2

3

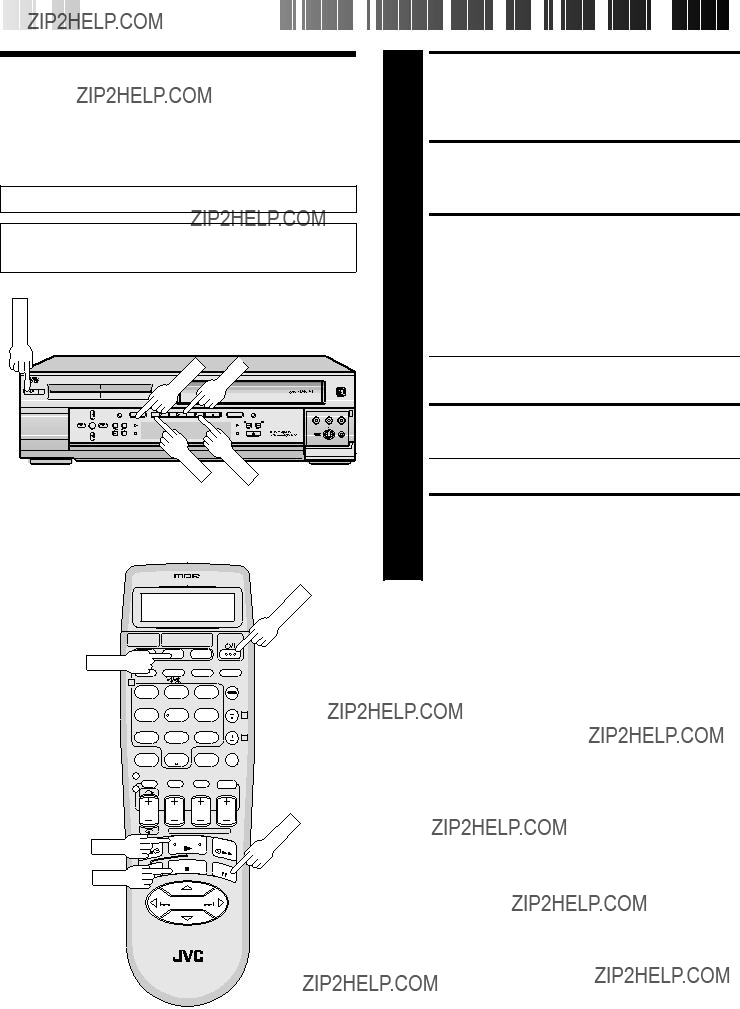

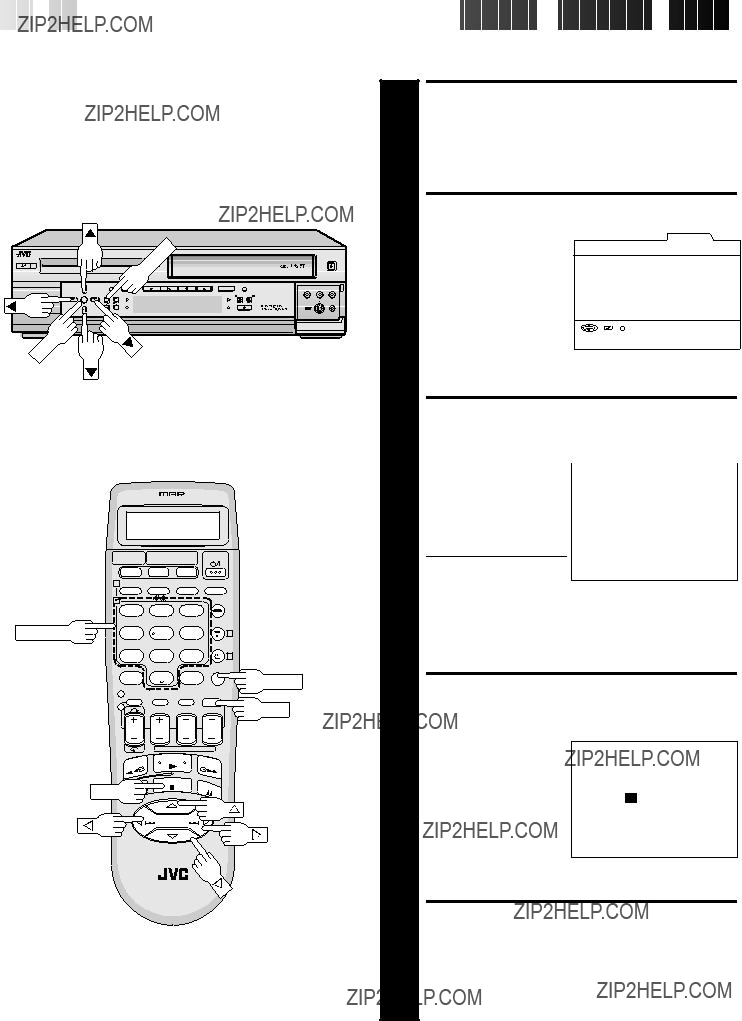

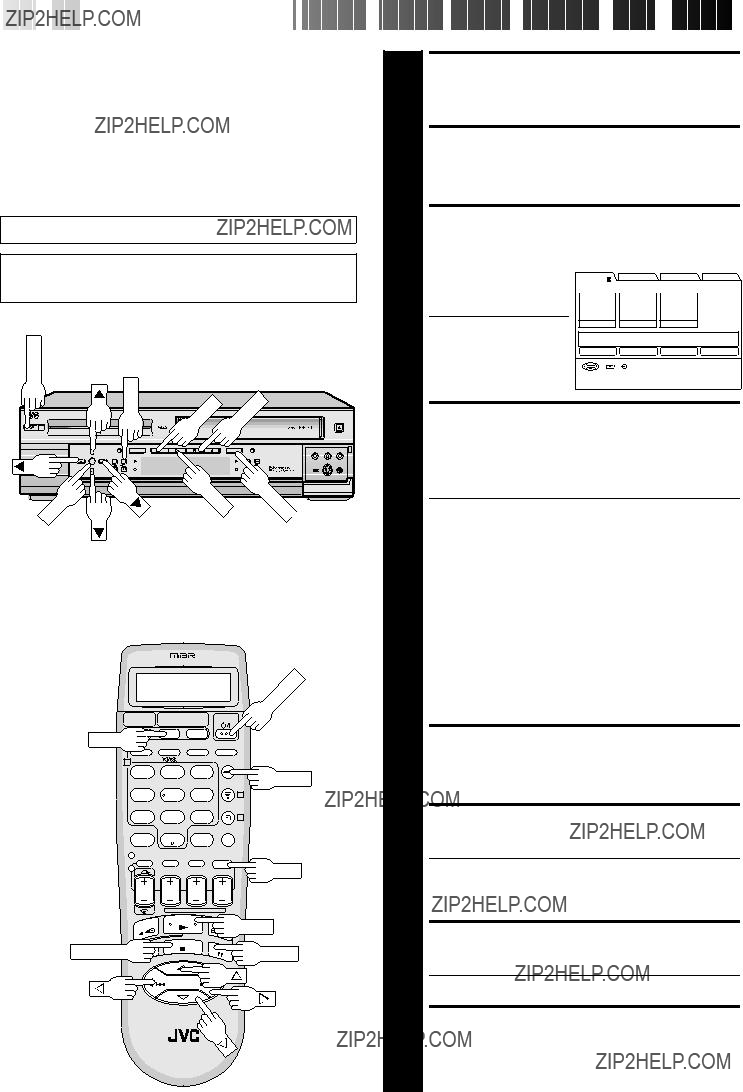

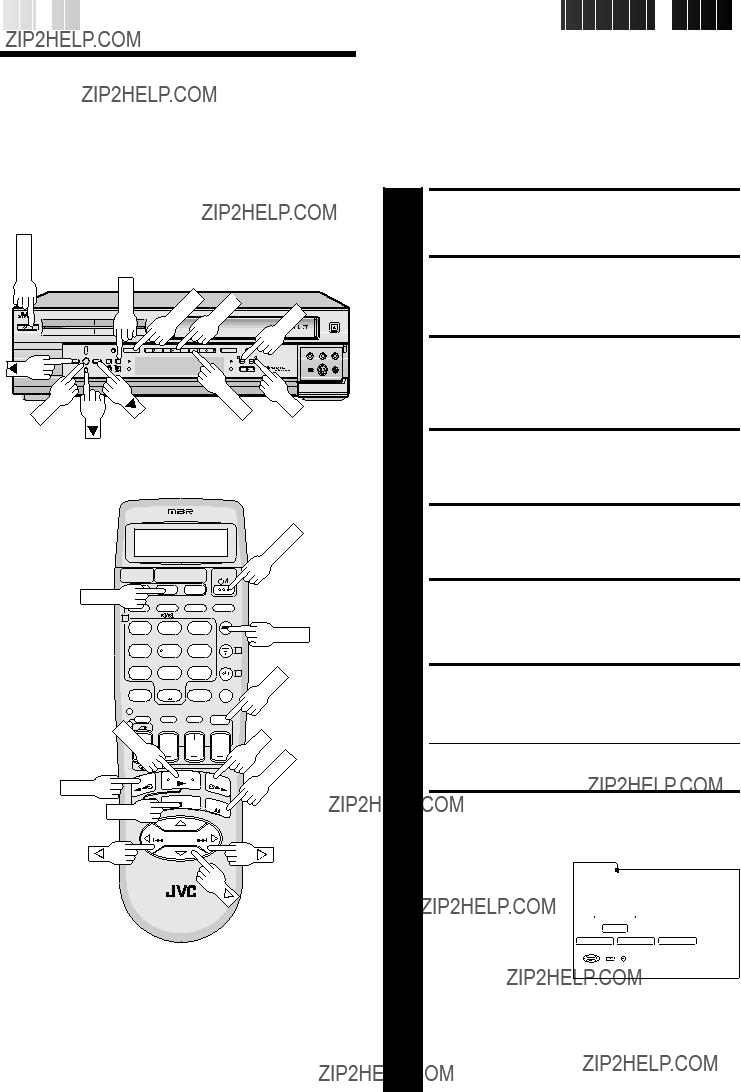

TURN ON THE RECORDER

Press POWER.

ACCESS MAIN MENU

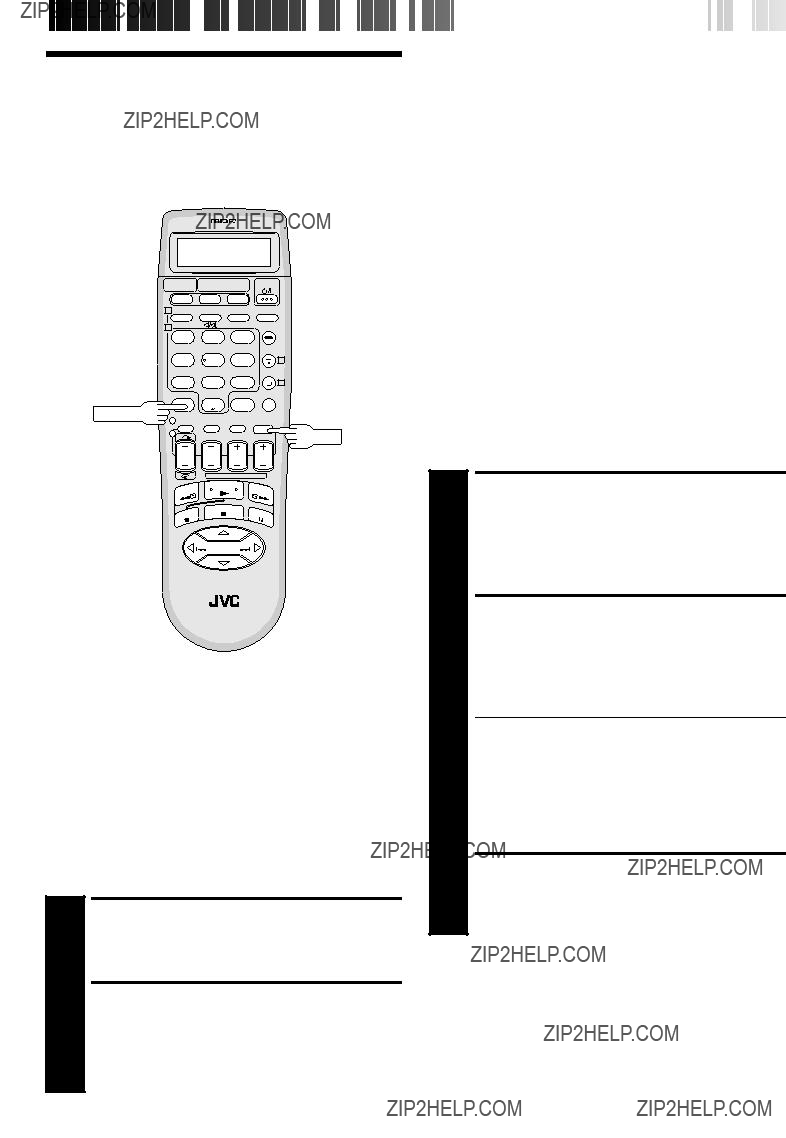

SCREEN

Press MENU.

cIf you want to stop the following procedure on its way, press MENU.

ACCESS INITIAL SET

SCREEN

1) At the top of Main Menu screen, move the arrow to ???INITIAL

SET UP??? by pressing @#(or 23), then press ??? (or ???) or OK.

2) At the Initial Set Up screen, move the

arrow to ???INITIAL SET???

by pressing @#(or 23), then press OK.

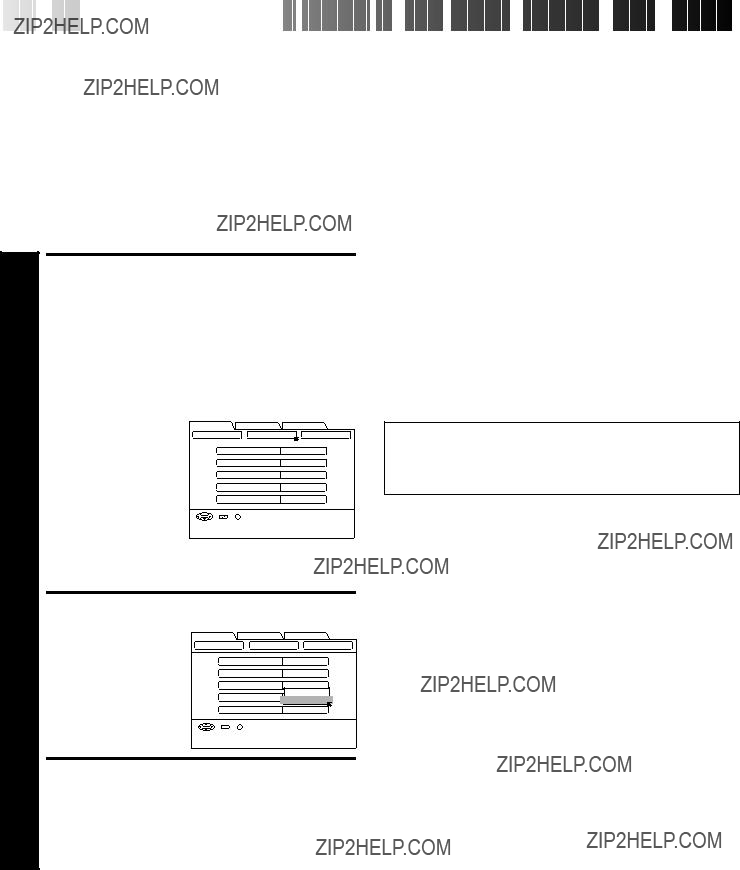

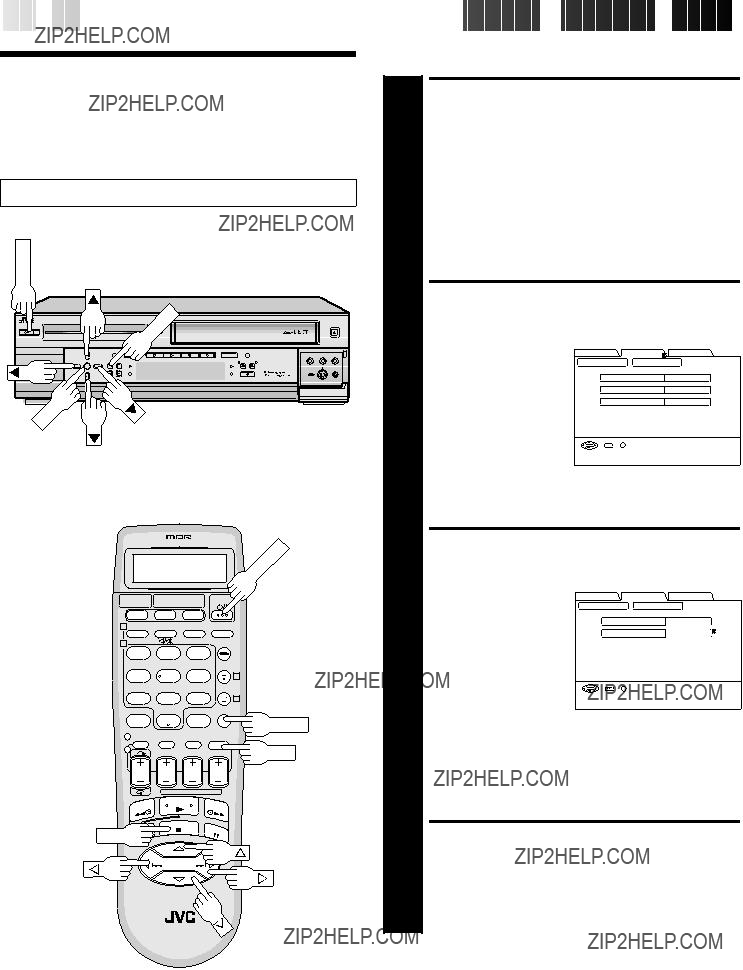

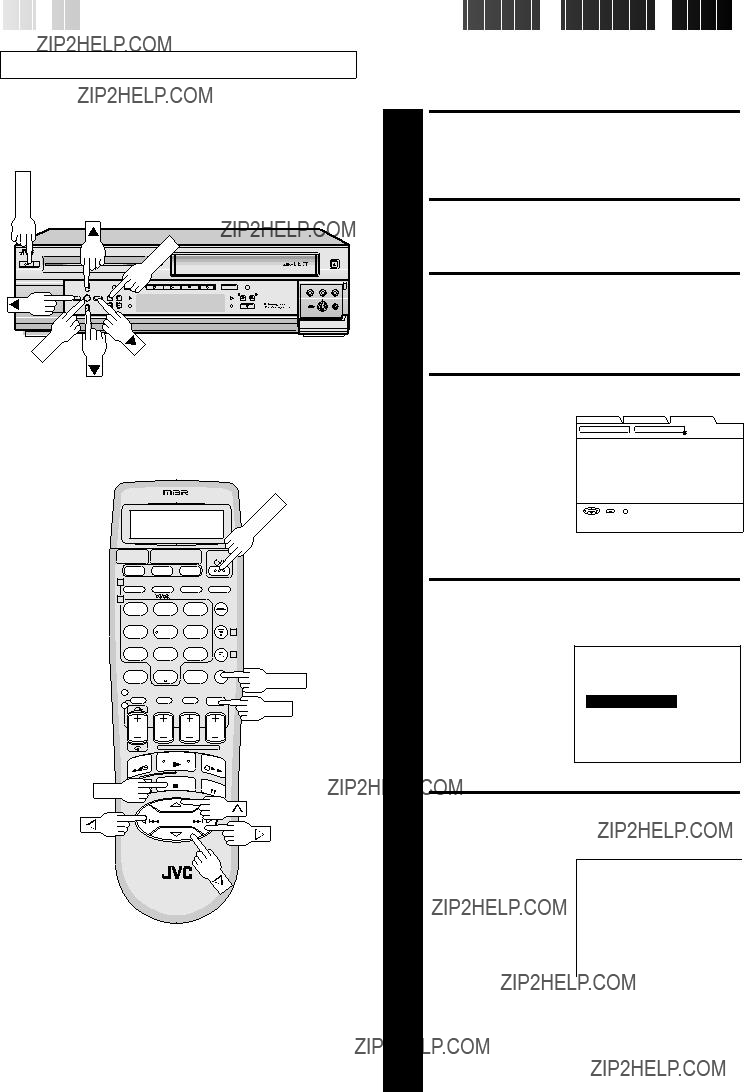

ACCESS CLOCK SET

SCREEN

At the Initial Set screen,

4

move the arrow to

INITIAL SET

OK

???+

???CLOCK SET??? by =CLOCK SET pressing %???(or 5???),

then press #(or 3) or

OK.

c ???CABLE BOX USERS

SET CLOCK

MANUALLY??? appears on the screen for about 5 seconds, then the Clock Set screen appears.

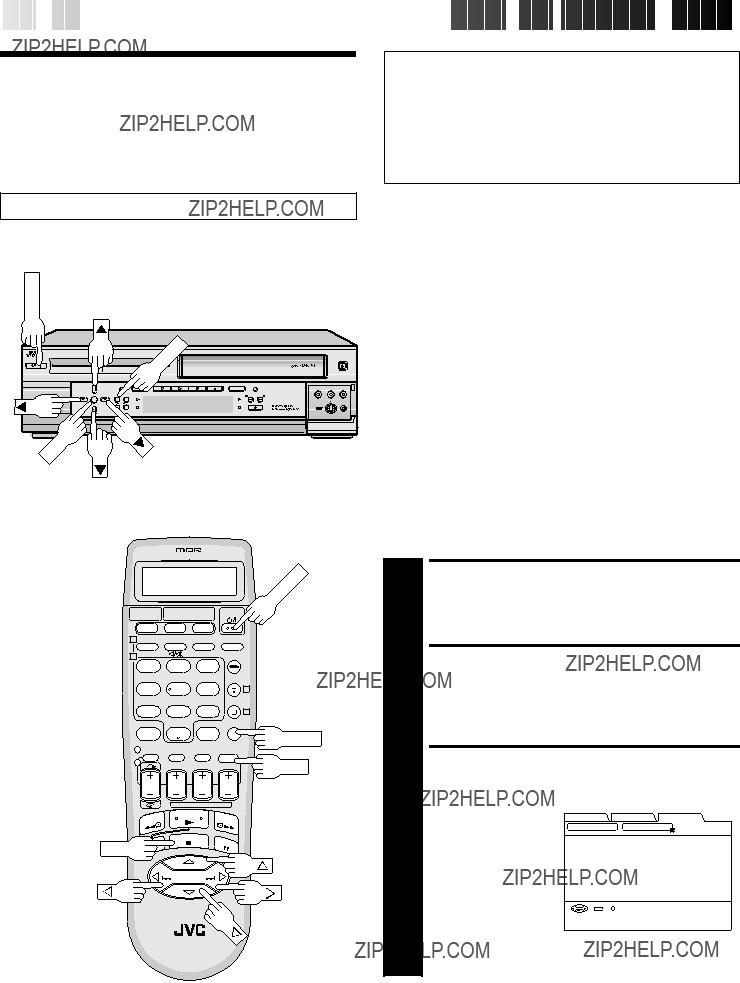

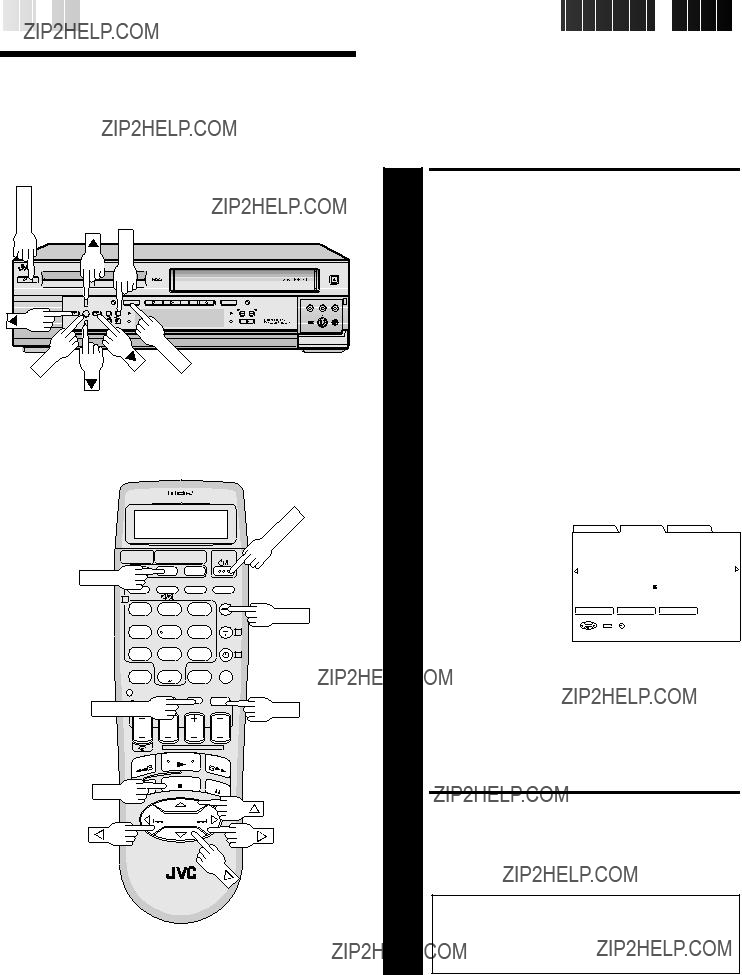

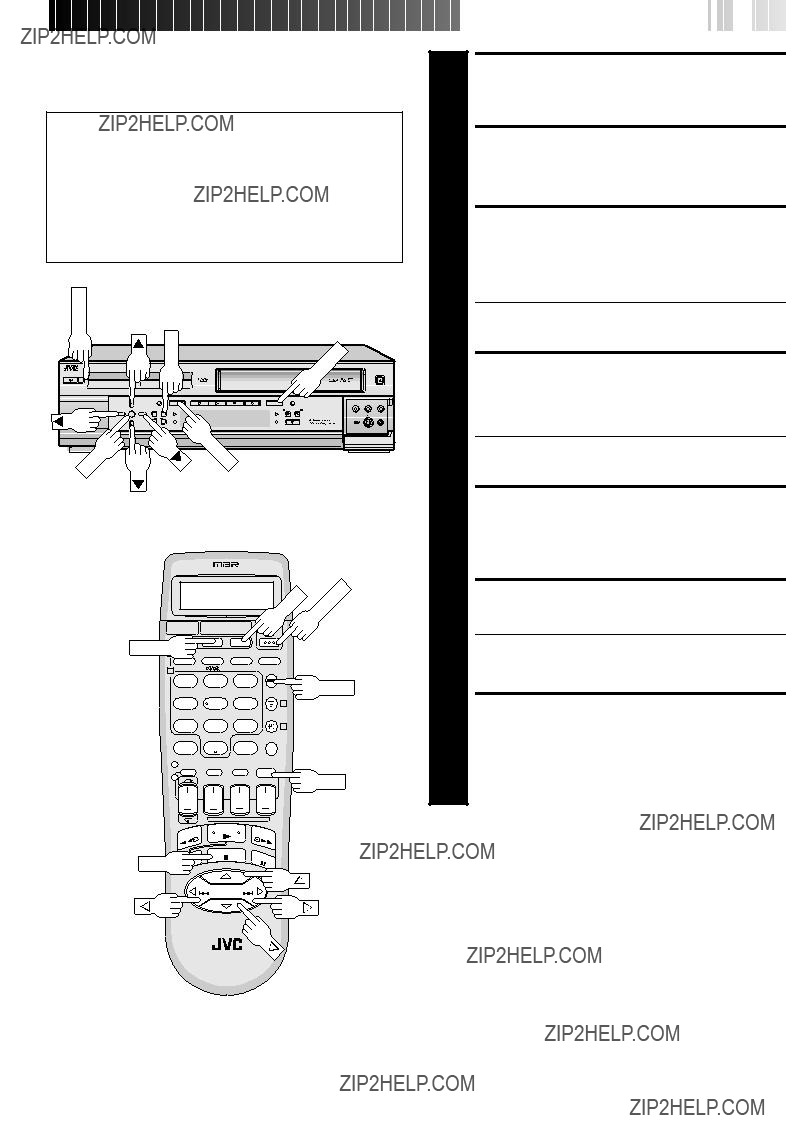

Semi-Auto

You can change the Host Channel/D.S.T. /Time Zone setting manually.

**AUTO DAYLIGHT SAVING TIME

This function enables automatic adjustment of the recorder???s clock at the start and end of Daylight Saving Time.

With Auto DST activated, . . .

. . . on the first Sunday of April at 2:00 AM, the clock is adjusted to 3:00 AM.

. . . on the last Sunday of October at 2:00 AM, the clock is adjusted to 1:00 AM.

EN11

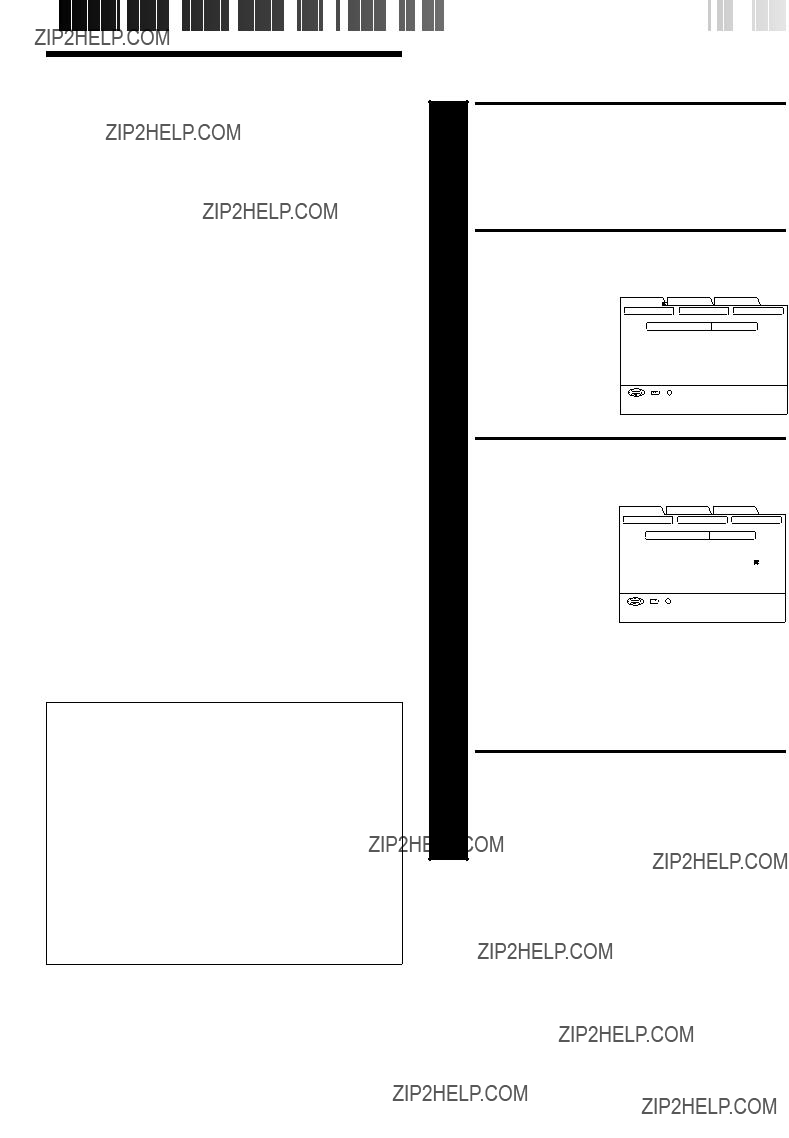

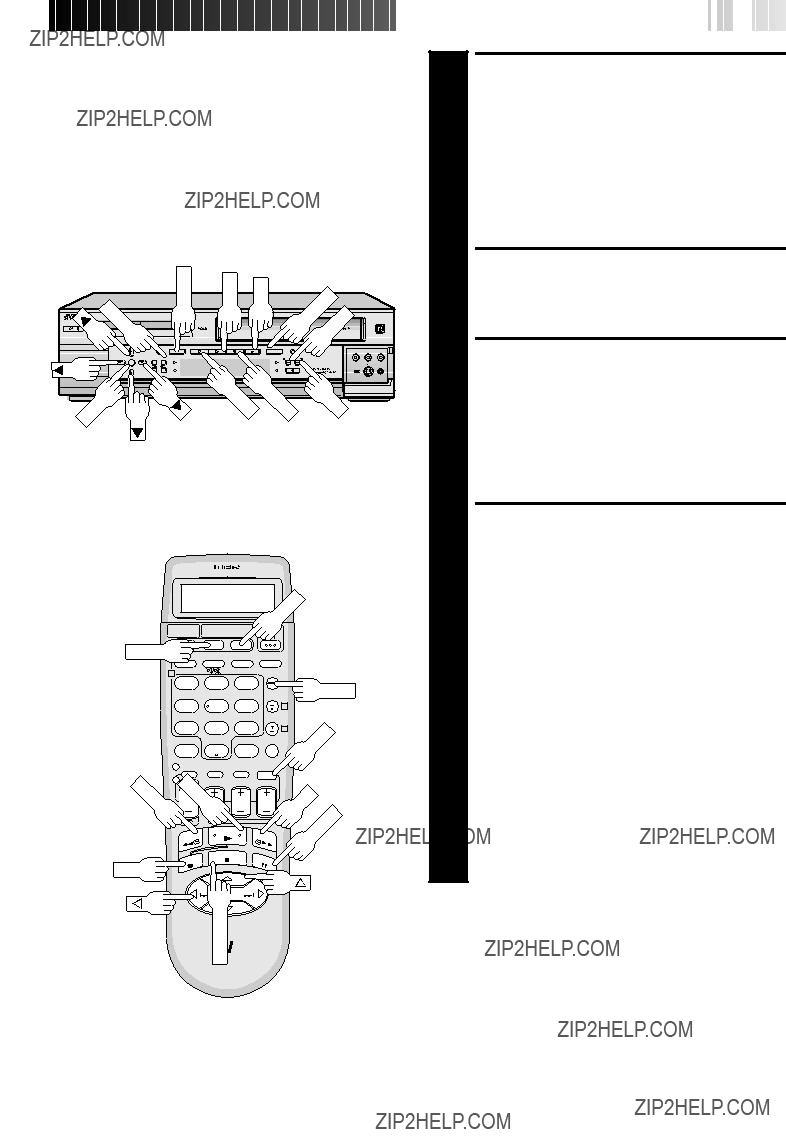

NOTE:

If an incorrect time is displayed by the Plug & Play function, you may be receiving the clock setting data of a PBS channel from an adjacent time zone or from an incorrect PBS channel from a cable TV system. If you selected ???AUTO??? for the host channel in step 6, be sure to select the correct time zone manually.

RETURN TO NORMAL

SCREEN

9 Press MENU. The Initial Set Up screen appears, then press MENU again.

IMPORTANT

Turn the recorder off after performing the Semi-Auto Clock Set procedure. ???AUTO??? will appear on the front display panel when the clock is being set. The current time will appear automatically when the clock is set.

POWER

yy,, yy,,

HM-HDS1

OK

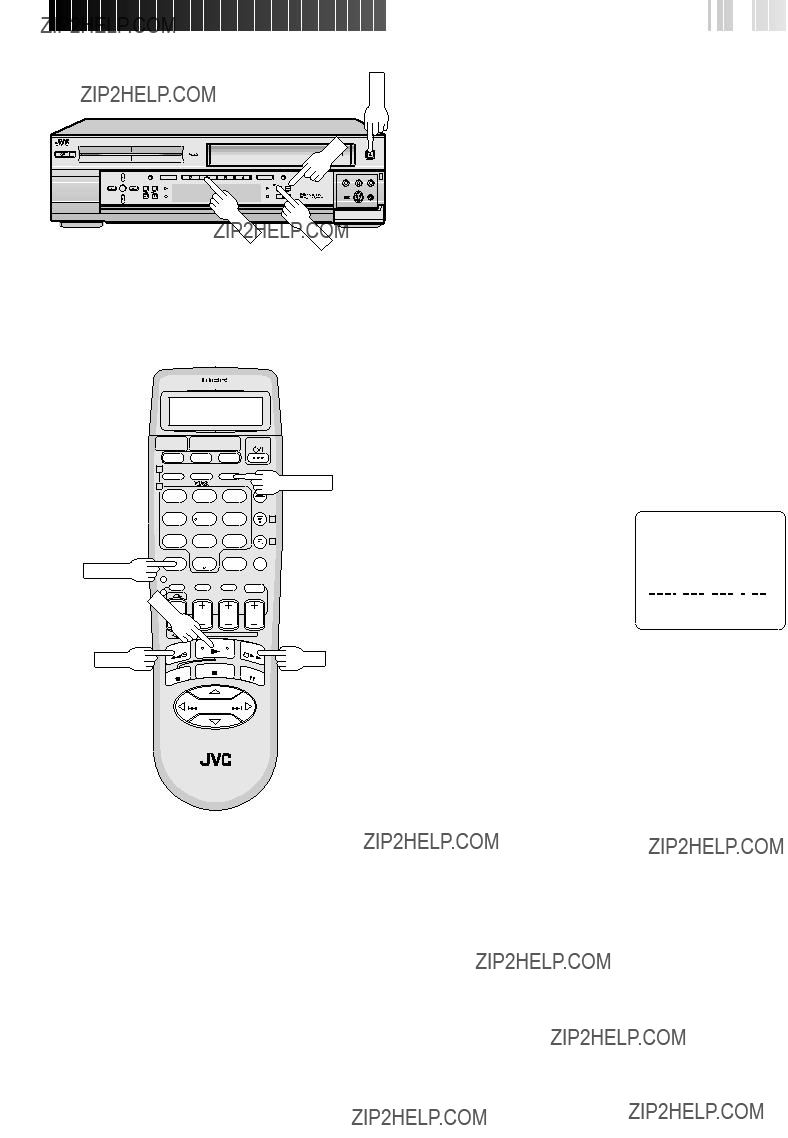

SET TIME

5 Press %???(or 5???) until the desired time appears, then press #(or 3) or

OK.

c Press and hold %???(or 5???) to change the time by 30-minute increments.

cWhen the time is entered manually, ???AUTO CLOCK??? will be automatically set to ???OFF???, and ???HOST CH??? and ???TIME ZONE??? will disappear.

SET DATE

6 Press %???(or 5???) until the desired date appears, then press #(or 3) or OK.

cPress and hold %???(or 5???) to change the date by 15- day increments.

1

2

OK

???+

To Make Corrections

Press #(or 3) or OK until the item you want to change blinks, then press %???(or 5???).

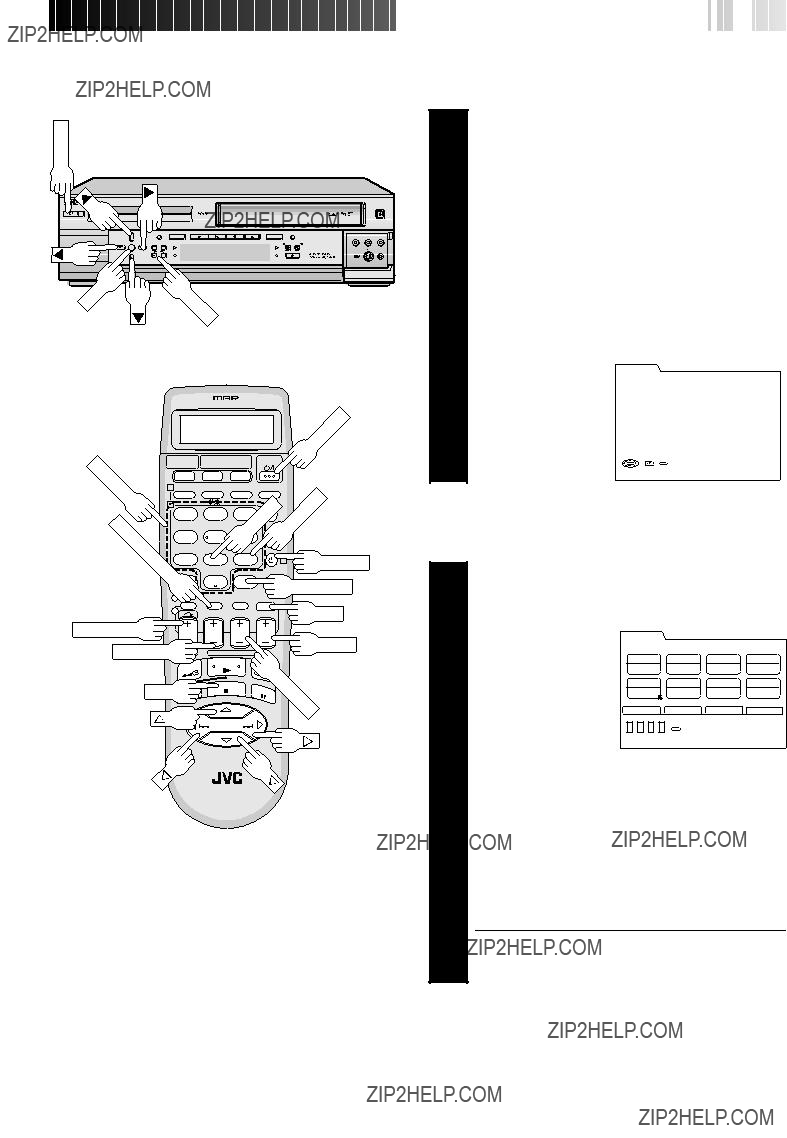

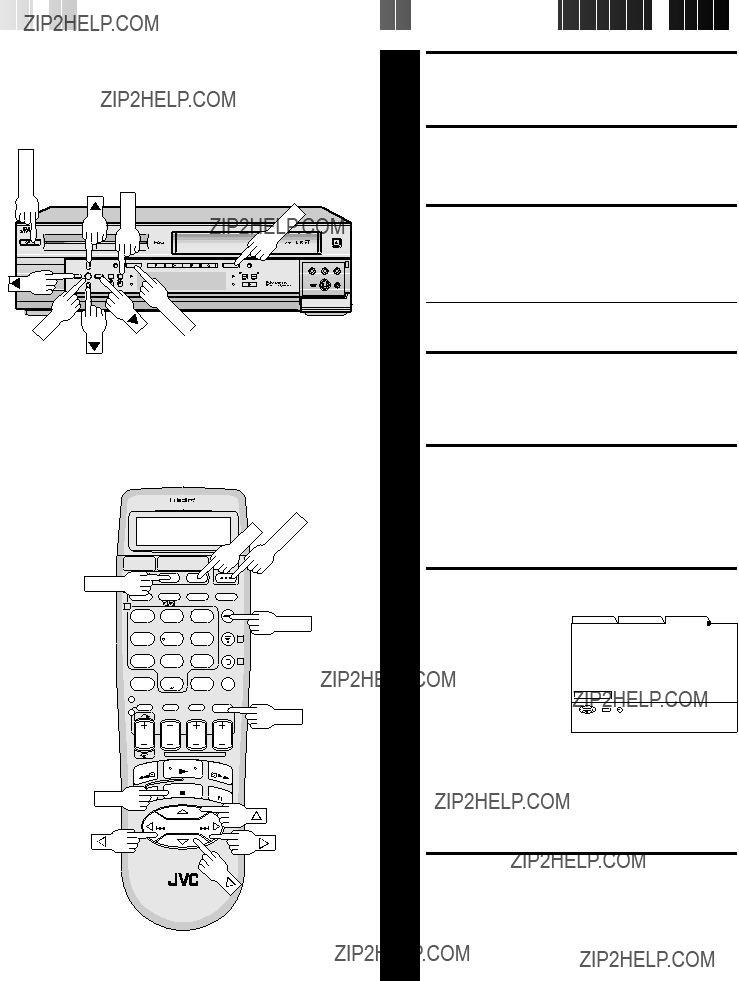

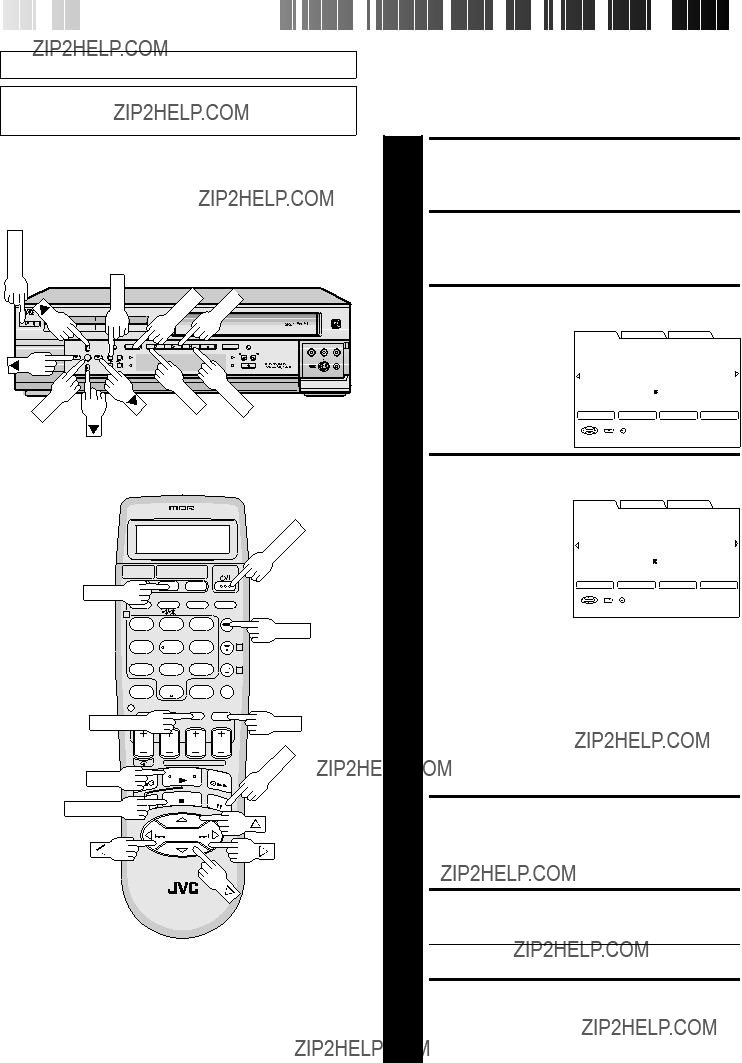

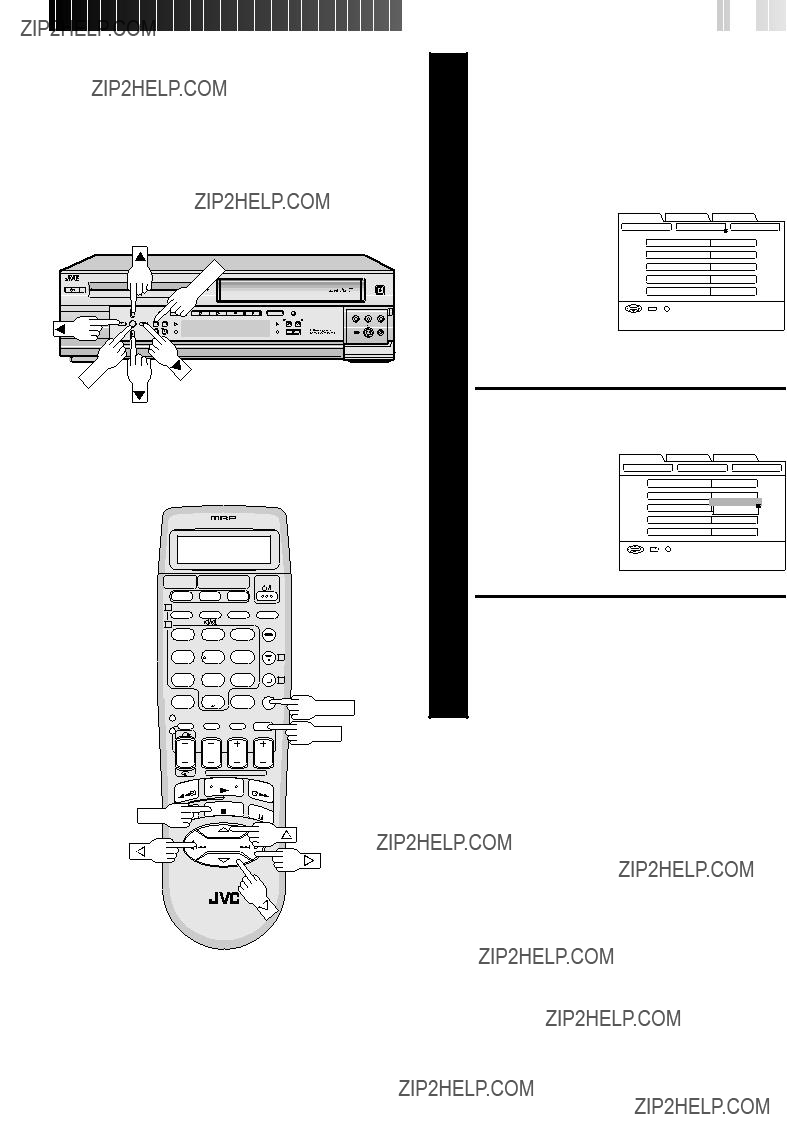

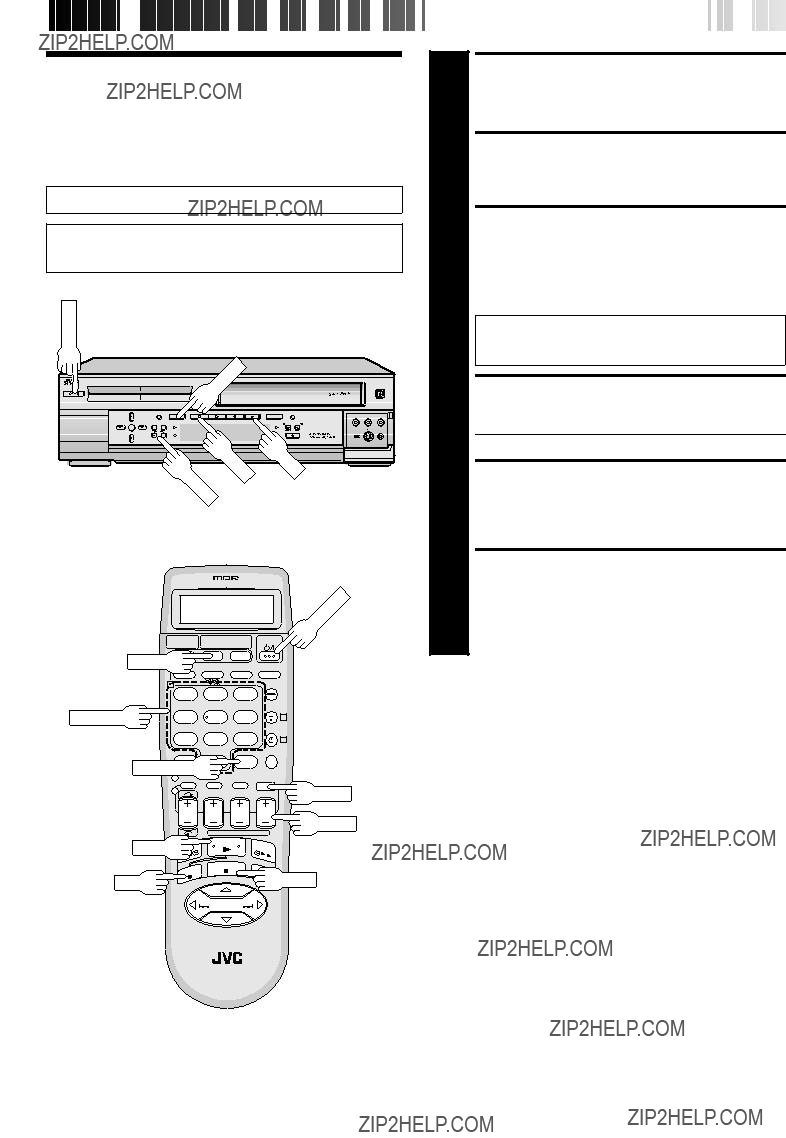

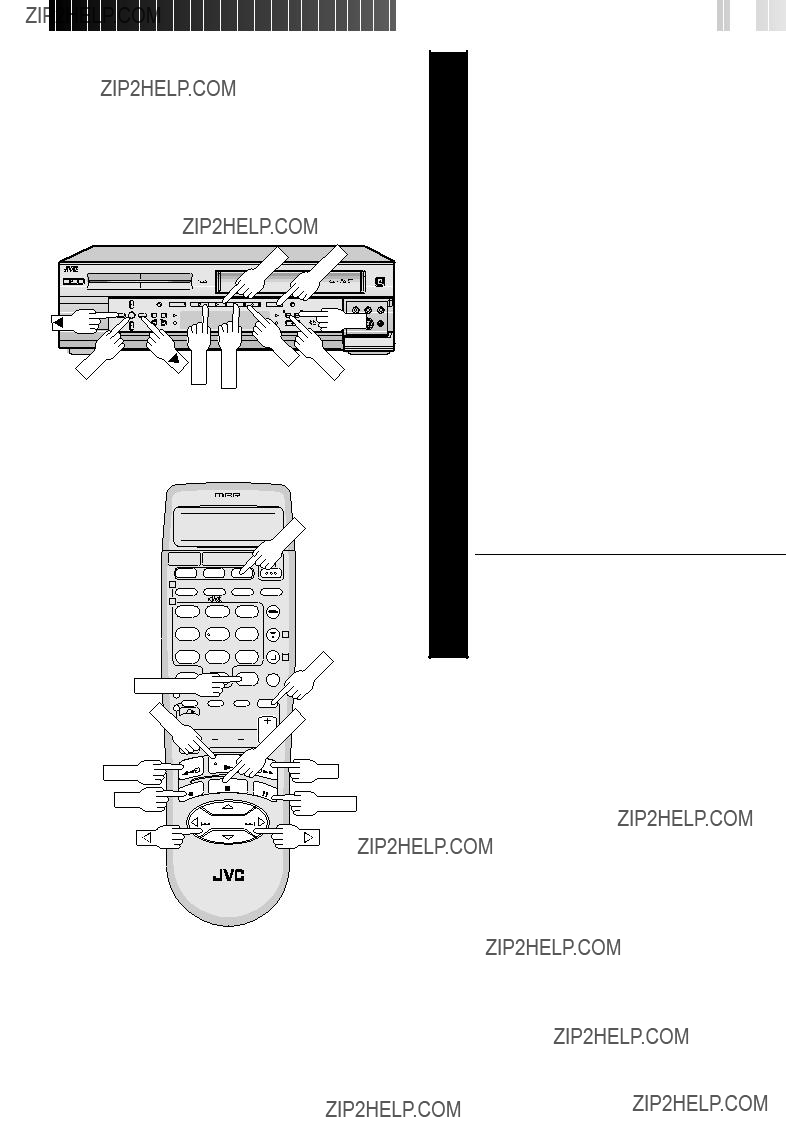

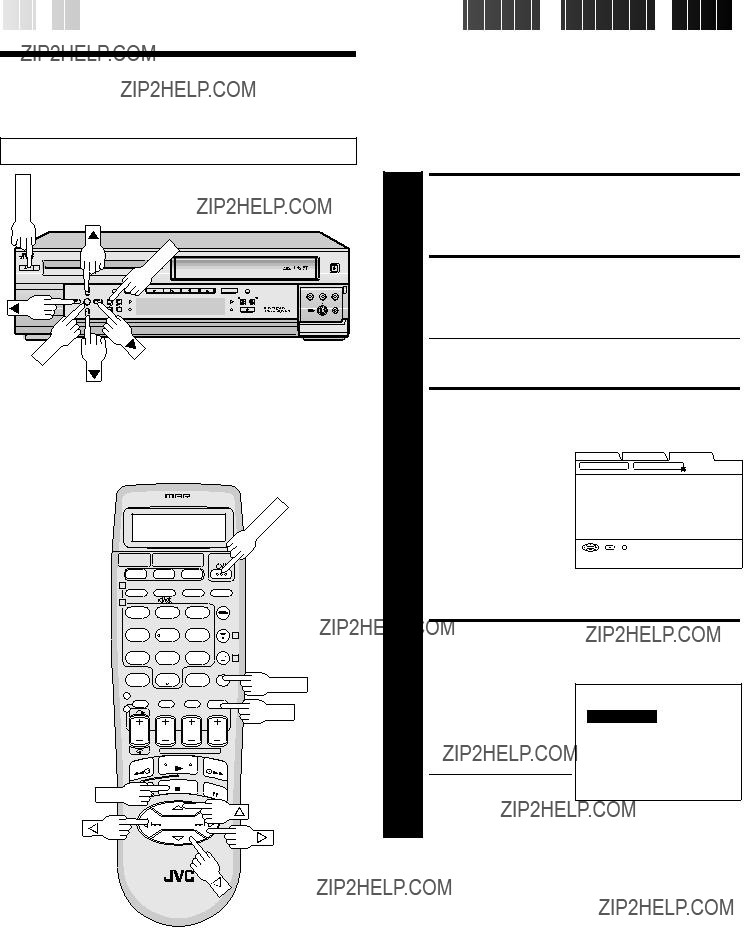

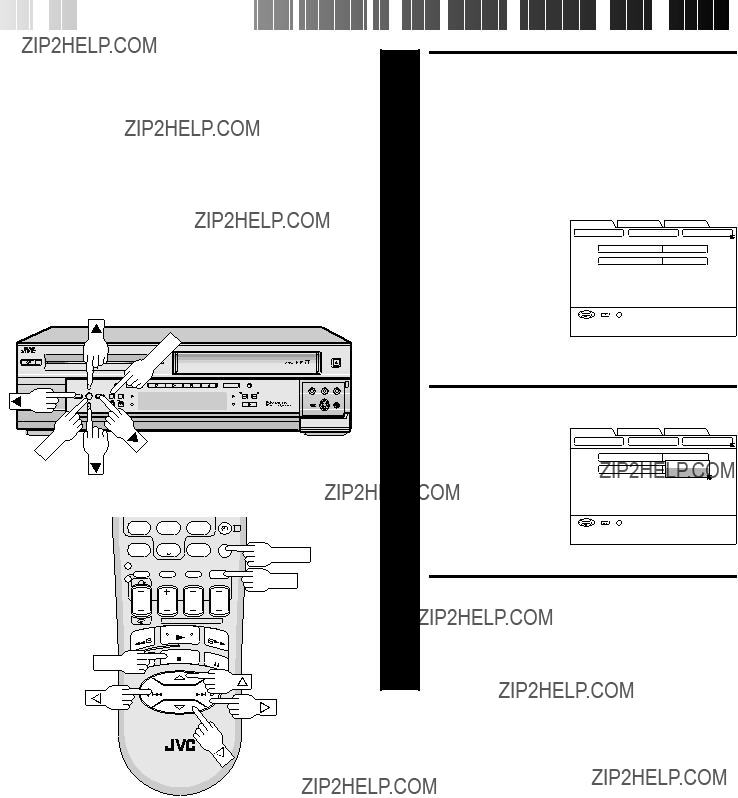

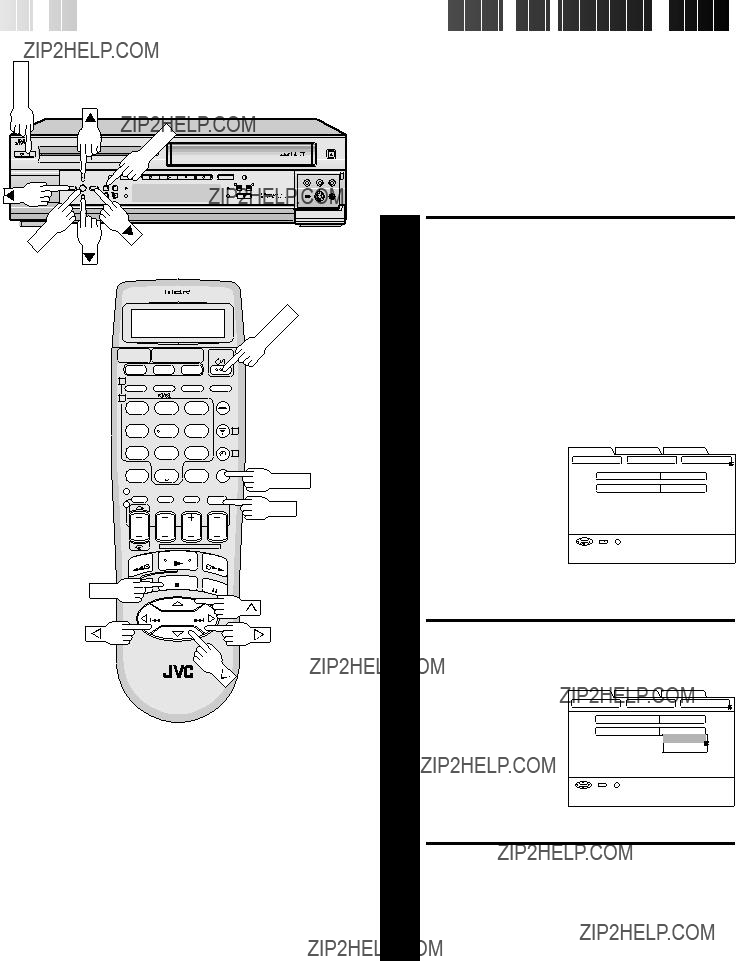

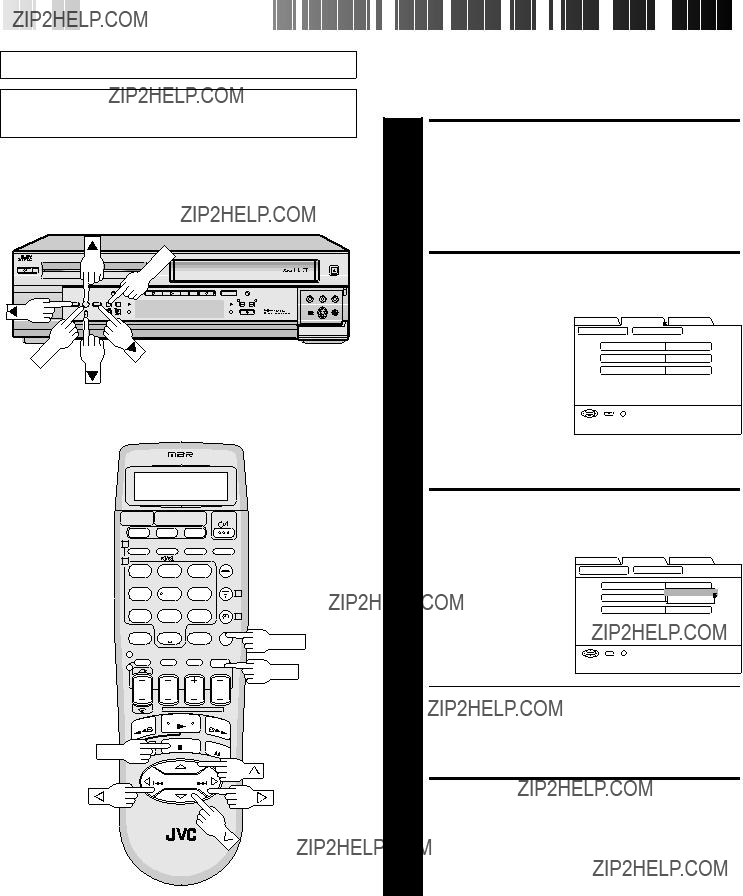

Tuner

Turn on the TV and select the AV mode.

POWER

HM-HDS1

OK

POWER

1

2

CH+/???

OK

???+

INFORMATION

The recorder detects the band (TV or CATV) and selects the correct band automatically during Auto Channel Set.

The selected band will be displayed on the right side of ???BAND??? on the Tuner Set screen.

EN13

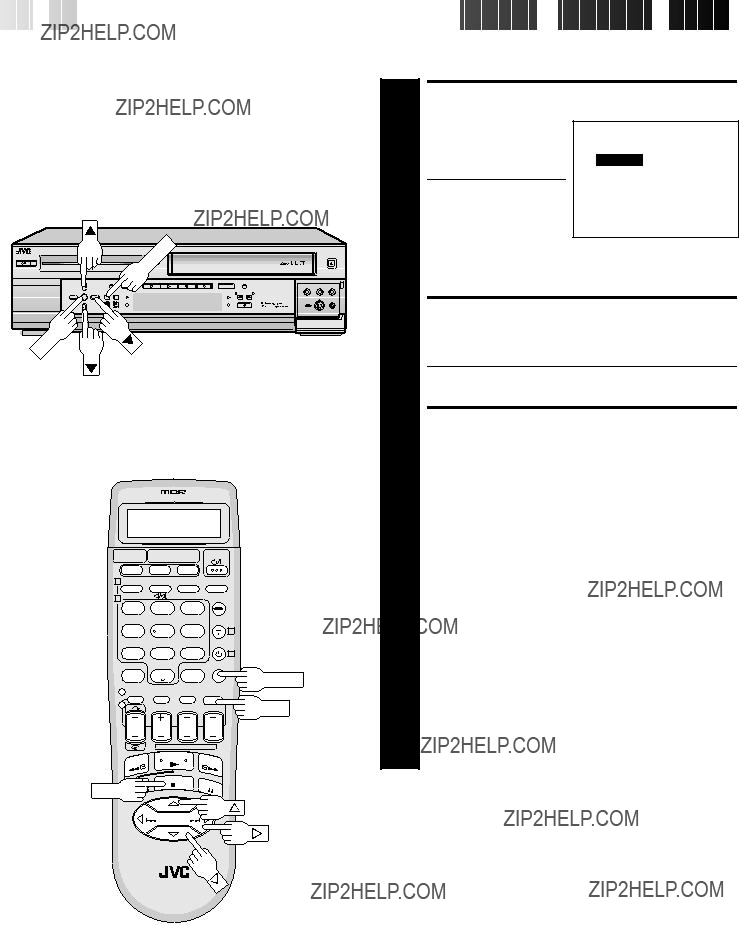

Set Receivable Channels

TURN ON THE RECORDER

c Receivable channels in your area are automatically assigned to the CH +/??? buttons, and non-receivable channels are skipped.

c If you want to set the CATV channels, change the BAND mode into CATV by moving the arrow to

???BAND??? and pressing #(or 3) or OK. The BAND mode alternates between TV and CATV by pressing # (or 3) or OK when BAND is highlighted.

NOTES:

cAt the end of Auto Channel Set, ???SCAN COM- PLETED??? appears on screen.

cIf the scan was unsuccessful, ???SCAN COMPLETED ??? NO SIGNAL ?????? appears on screen. Check the connections and start again.

RETURN TO NORMAL

SCREEN

5 Press MENU. The Initial Set Up screen appears, then press MENU again.

HM-HDS1

OK

OK

??? +

1

2

3

4

5

ACCESS MAIN MENU

SCREEN

Press MENU.

ACCESS TUNER SET SCREEN

1) At the top of Main Menu screen, move the arrow to ???INITIAL SET

UP??? by pressing @# (or 23), press ??? (or ???) or OK.

2) At the Initial Set Up screen, move the arrow to ???TUNER SET??? by

pressing @#(or 23), then press OK.

c If you want to set the CATV channels,

change the BAND mode into CATV by moving the arrow to ???BAND??? and pressing #(or 3) or OK. The BAND mode alternates between TV and CATV by pressing #(or 3) or OK when BAND is highlighted.

ADD OR SKIP DESIRED

CHANNEL

Input the channel number using the NUMBER keys or select ???L-1??? or ???F-1??? by

pressing %???(or 5???), then press OK to set to

???SKIP???. Repeat for each channel you want to skip. Input the channel

number using the NUMBER keys, then press OK to set to ???ADD??? the channel.

RETURN TO NORMAL

SCREEN

Press MENU. The Initial Set Up screen appears, then press MENU again.

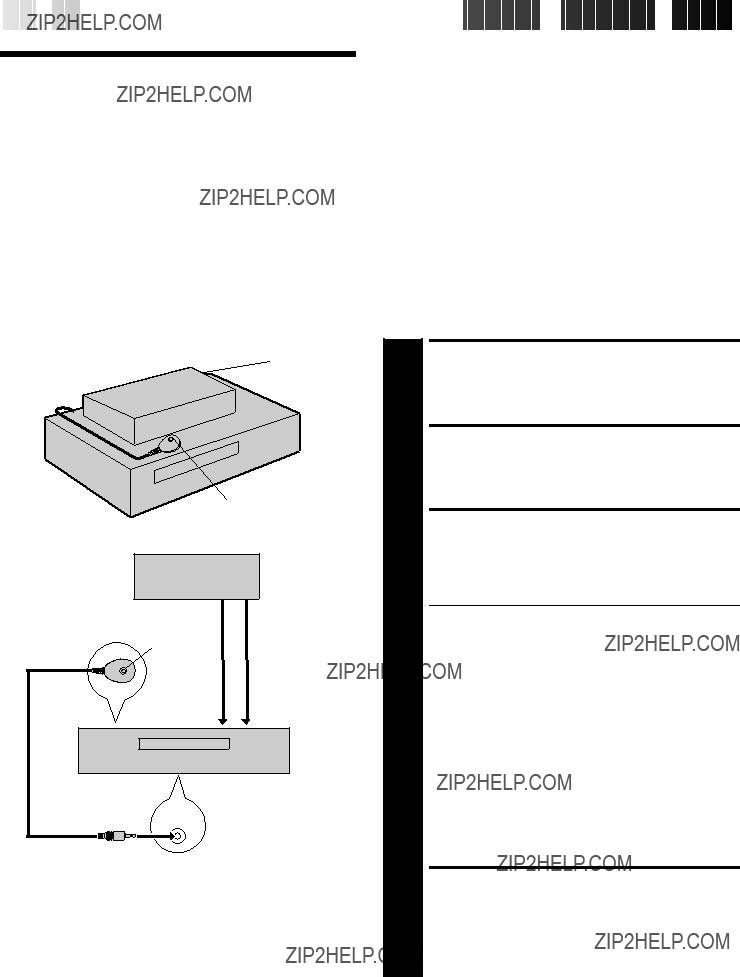

Cable Box

Control

Suggested Location

Place the cable box on top of the recorder. Attach the recorder???s Controller to the top of the recorder with the Controller???s transmitter pointed towards the cable box???s remote sensor.

ATTENTION:

The Controller can also control a DBS receiver. If both a cable box and a DBS receiver are used, position the controller so its signal reaches the remote control sensors of both the cable box and DBS receiver.

Cable box

Controller

Transmitter

Connected to

ANT. IN

Your recorder

CABLE

BOX

EN15

This procedure is required if you receive your TV channels through a cable box (descrambler). The Controller allows the recorder to automatically switch the cable box channel during timer-recording. The Controller is effective for recording shows that have been programmed using the VCR Plus+ system

(Z pg. 54) or Express Timer Programming (Z pg. 58).

Situate And Connect

Controller

SITUATE CONTROLLER

1 Place the Controller so that the path between its transmitter and the cable box???s remote sensor is unobstructed.

ATTACH CONTROLLER

2 Fasten securely using the supplied adhesive strip.

CONNECT CABLE BOX TO

RECORDER

3 The connection method depends on the type of cable box you have.

If your cable box has AUDIO and VIDEO OUT connectors . . .

. . . connect them to the AUDIO and VIDEO IN connectors on your recorder. Set the recorder to channel ???L-1??? for the rear AUDIO and VIDEO IN connectors to use the cable box.

If your cable box doesn???t have AUDIO and VIDEO

OUT connectors . . .

. . . connect the antenna output connector on the cable box to the ANTENNA IN connector on the rear of your recorder.

Set the recorder tuner to the same channel as the cable box RF output (see page 16 also).

NOTE:

When connecting your cable box refer to its instruction manual.

CONNECT CONTROLLER

TO RECORDER

4 Connect to the CABLE BOX connector on your recorder.

About Your Cable Box

This recorder has two separate methods to control your Cable Box.

cThe recorder???s Wireless Remote Control Unit can control your Cable Box.

This eliminates the need for a separate Cable Box Remote Control Unit.

cThe recorder???s Controller can also control your Cable Box.

This allows the recorder to change your Cable Box's channel number during timer recording.

Each method must be set up separately. To set up the recorder???s Remote Control unit, refer to page 83. To set up the Controller go to page 16.

CONTINUED ON NEXT PAGE

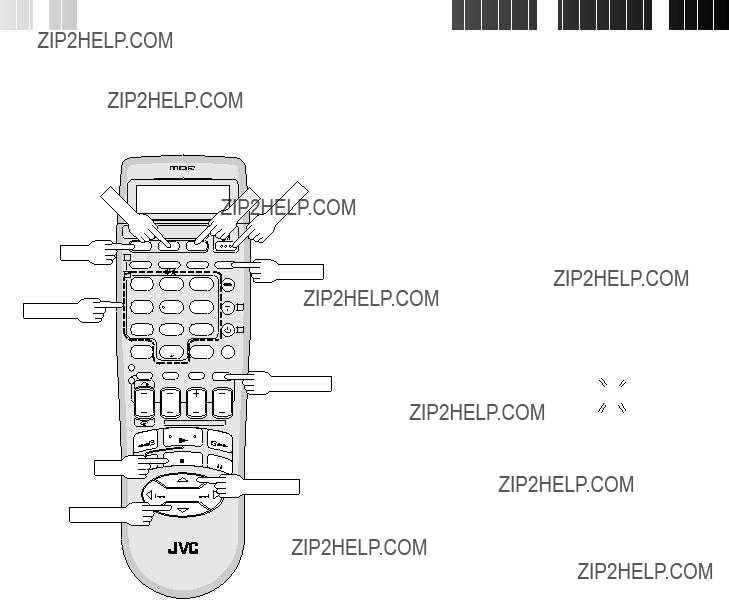

Turn on the TV and select the AV mode.

Set Cable Box Output

Channel & Cable Box Brand

POWER

HM-HDS1

OK

POWER

1

2

1

2

3

4

TURN ON CABLE BOX

Select a channel other than channel 9 on your cable box.

TURN ON THE RECORDER

Press POWER.

ACCESS MAIN MENU

SCREEN

Press MENU.

ACCESS INITIAL SET SCREEN

1) At the top of Main Menu screen, move the arrow to ???INITIAL SET UP??? by pressing @# (or 23), then press ??? (or ???) or OK.

2) At the Initial Set Up

to ???INITIAL SET??? by

pressing @#(or 23), then press OK.

ACCESS CABLE BOX SET

SCREEN

5

Press %???(or 5???) to move the arrow to ???CABLE BOX SET???, then press #(or 3) or OK.

INITIAL SET

CLOCK SET

GUIDE CHANNEL SET

=CABLE BOX SET

DBS RECEIVER SET

SELECT WITH[5,???] THEN[OK]

PRESS[MENU] TO END

OK

???+

SELECT CABLE BOX

OUTPUT CHANNEL

6

If your cable box is connected to your recorder using an RF connection,

press %???(or 5???) until the channel number representing the cable box???s output (CH2 ??? CH9) appears on the screen.

CABLE BOX SET

ON CH7

PRESS[5,???], THEN[OK]

PRESS[MENU] TO END

ACCESS CABLE BOX

BRAND SET SCREEN

7 Press #(or 3) or OK.

ENTER CABLE BOX BRAND

8 Press the appropriate NUMBER keys to enter the Cable Box Code from the CABLE BOX BRAND LIST shown below, then press #(or 3) or OK.

c If the cable box???s

channel changes to 9, setting is complete. Press #(or 3) or OK and ???CABLE BOX CONTROL IS ON??? appears on the screen for about 5 seconds, then the Initial Set Up screen appears. To returns to the normal screen, press MENU.

cIf the cable box???s channel does not change to 9, press %???(or 5???) to select ???NO???, then press #(or 3) or OK. By entering another code, repeat step 8 until the cable box???s channel changes to 9.

cIf the channel does not change after going through all the code numbers listed for your model of cable box, then try all the other numbers between 1 and 25.

CABLE BOX BRAND LIST

EN17

INFORMATION

When the recorder???s clock has not been set (with AUTO CLOCK set to ON), if you press OK in step 7, ???CABLE BOX USERS SET CLOCK MANUALLY??? will be displayed on the screen for about 5 seconds, then the Clock Set screen will appear; perform the manual clock setting procedure on page 12. If you press MENU after the clock has been set, the Cable Box Brand Set screen appears.

NOTES:

cAlthough the supplied Controller is compatible with many different cable box brands, it is possible that it will not work with your cable box.

cIf your cable box doesn???t respond to any code between 1 and 25, you can???t use the Controller to change cable box channels. In this case, make sure to leave the cable box turned on and tuned to the proper channel before the scheduled start of timer recording.

Please contact your cable company about the possibility of exchanging your current cable box with one that is compatible with your recorder.

cThe recorder can only change the cable box channel through the Controller during timer recording.

cIf your cable box is one that can???t be operated with a remote control (because it has no remote sensor), you can???t use the Controller to change its channels. Make sure to leave the cable box turned on and tuned to the proper channel before the scheduled start of timer recording.

cIf the recorder???s memory backup expires because of a power failure, set the cable box output channel and brand again.

cIf you are unable to set the Controller, please contact JVC toll free at 1-800-252-5722.

DBS Receiver

Control

Suggested Location

Place the DBS (Direct Broadcast Satellite) receiver on top of the recorder. Attach the recorder???s Controller to the top of the recorder with the Controller???s transmitter pointed towards the DBS receiver's remote sensor.

ATTENTION:

The following procedure is required if you receive satellite channels through a DBS (Direct Broadcast Satellite) Receiver. The Controller allows the recorder to automatically switch the DBS Receiver's channels during timer recording.

NOTES:

cThe recorder can automatically change the DBS Receiver channels using the controller when the recorder has been programmed using Express Timer Programming (Z pg. 58). Because satellite programming does not use PlusCode; the Controller cannot change the DBS Receiver channels during the VCR Plus+ Timer Recording.

cIf a cable box is also used it is recommended that you connect the DBS receiver to your recorder???s A/V inputs and the cable box to your recorder???s antenna input.

The Controller can also control a cable box. If both a DBS receiver and a cable box are used, position the controller so its signal reaches the remote control sensors of both the DBS receiver and cable box.

Situate And Connect

Controller

DBS receiver

Your recorder

CABLE

BOX

About Your DBS Receiver

This recorder has two separate methods to control your DBS Receiver.

cThe recorder???s Wireless Remote Control Unit can control the power and channel functions of your DBS Receiver.

For these functions, the need for a separate DBS Receiver Control Unit is eliminated.

cThe recorder???s Controller can also control your DBS Receiver. This allows the recorder to change your DBS receiver's channel number during timer recording.

Each method must be set up separately. To set up the recorder???s Remote Control unit, refer to page 84. To set up the Controller go to page 19.

1

2

3

4

SITUATE CONTROLLER

Place the Controller so that the path between its transmitter and the DBS receiver's remote sensor is unobstructed.

ATTACH CONTROLLER

Fasten securely using the supplied adhesive strips.

CONNECT DBS RECEIVER

TO RECORDER

The connection method depends on the type of DBS receiver you have.

If your DBS receiver has AUDIO and VIDEO OUT connectors . . .

. . . connect them to the AUDIO and VIDEO IN connectors on your recorder. Set the recorder to channel ???L-1??? for the rear AUDIO and VIDEO IN connectors to use the DBS receiver.

If your DBS receiver doesn???t have AUDIO and VIDEO OUT connectors . . .

. . . connect the antenna output connector on the DBS receiver to the ANT. IN connector on the rear of your recorder.

Set the recorder???s tuner to the same channel as the DBS receiver???s RF output. (See page 19 also.)

NOTE:

When connecting your DBS receiver refer to its instruction manual.

CONNECT CONTROLLER

TO RECORDER

Connect to the CABLE BOX connector on your recorder.

Turn on the TV and select the AV mode.

POWER

HM-HDS1

OK

POWER

1

2

2

3

4

EN19

TURN ON THE RECORDER

Press POWER.

c Set the recorder to the channel (3 or 4 or L-1 or F-1) on which the signals from the DBS receiver are received.

ACCESS MAIN MENU

SCREEN

Press MENU.

ACCESS INITIAL SET

SCREEN

1) At the top of Main Menu screen, move the arrow to ???INITIAL SET

UP??? by pressing @# (or 23), then press ??? (or ???) or OK.

2) At the Initial Set Up screen, move the arrow

to ???INITIAL SET??? by

pressing @#(or 23), then press OK.

ACCESS DBS RECEIVER SET

SCREEN

5

At the Initial Set screen, move the arrow to ???DBS RECEIVER SET??? by pressing %???(or 5???), then press #(or 3) or

OK.

INITIAL SET

CLOCK SET

GUIDE CHANNEL SET

CABLE BOX SET

=DBS RECEIVER SET

SELECT WITH[5,???] THEN[OK]

PRESS[MENU] TO END

OK

SELECT DBS RECEIVER

OUTPUT CHANNEL

???+

6

If your DBS receiver is connected to your recorder using an RF connection, press %???(or

5???) until the channel number representing the DBS receiver???s output (CH3 ??? CH4) appears on the screen.

DBS RECEIVER SET

PRESS[5,???], THEN[OK]

PRESS[MENU] TO END

Set DBS Receiver Output

Channel & DBS Receiver

Brand

TURN ON DBS RECEIVER

1 Select a channel other than channel 55, 100 or 205 on your DBS receiver.

If your DBS receiver is connected to your recorder???s REAR or FRONT AUDIO/VIDEO IN connectors, press

%???(or 5???) until ???ON L-1 REAR??? or ???ON F-1 FRONT??? appears on the screen.

CONTINUED ON NEXT PAGE

Turn on the TV and select the AV mode.

HM-HDS1

OK

OK

???+

cAfter OK is pressed, the program currently received through the DBS receiver will appear for about 10 seconds.

cIf the DBS receiver's channel changes to the channel listed below for your brand of DBS receiver, setting is complete. Press OK and ???DBS RECEIVER CONTROL IS ON??? appears on the screen for about 5 seconds, then it returns to the Initial Set Up screen. To returns to the normal screen, press MENU.

JVC [100

ECHOSTAR [100

PRIMESTAR [55

SONY [205

RCA [205

cIf the DBS receiver's channel does not change as shown above, press %???(or 5???) repeatedly until ???NO??? appears, then press OK. Re-enter the correct code.

NOTES:

cIt is possible that the Controller will not work with all types of DBS receiver.

cIf your DBS receiver doesn???t respond to the code, you can???t use the Controller to change satellite channels. In this case, make sure to leave the DBS receiver turned on and tuned to the proper channel before the scheduled start of timer recording.

cThe recorder can only change the satellite channel through the Controller during timer recording.

cIf your DBS receiver is one that can???t be operated with a remote control (because it has no remote sensor), you can???t use the Controller to change its channels. Make sure to leave the DBS receiver turned on and tuned to the proper channel before the scheduled start of timer recording.

cIf you are unable to set the Controller, please contact JVC toll free at 1-800-252-5722.

Setting Blue

Back

Turn on the TV and select the AV mode.

POWER

HM-HDS1

OK

POWER

1

2

OK

???+

EN21

The recorder changes the screen into the Blue Back screen automatically after/while the input signals do not come into.

TURN ON THE RECORDER

SELECT BLUE BACK MODE

a??? Select ???OFF??? if you do not want to use the Blue Back screen.

b??? Select ???ON??? if you want to use the Blue Back screen.

RETURN TO NORMAL

SCREEN

5 Press MENU.

Setting Video

Inputs Mode

Turn on the TV and select the AV mode.

POWER

HM-HDS1

OK

POWER

1

2

OK

???+

You can change the video inputs mode.

TURN ON THE RECORDER

b??? Select ???S-VIDEO??? if you use S VIDEO IN jacks for connecting the external equipment.

RETURN TO NORMAL

SCREEN

5 Press MENU.

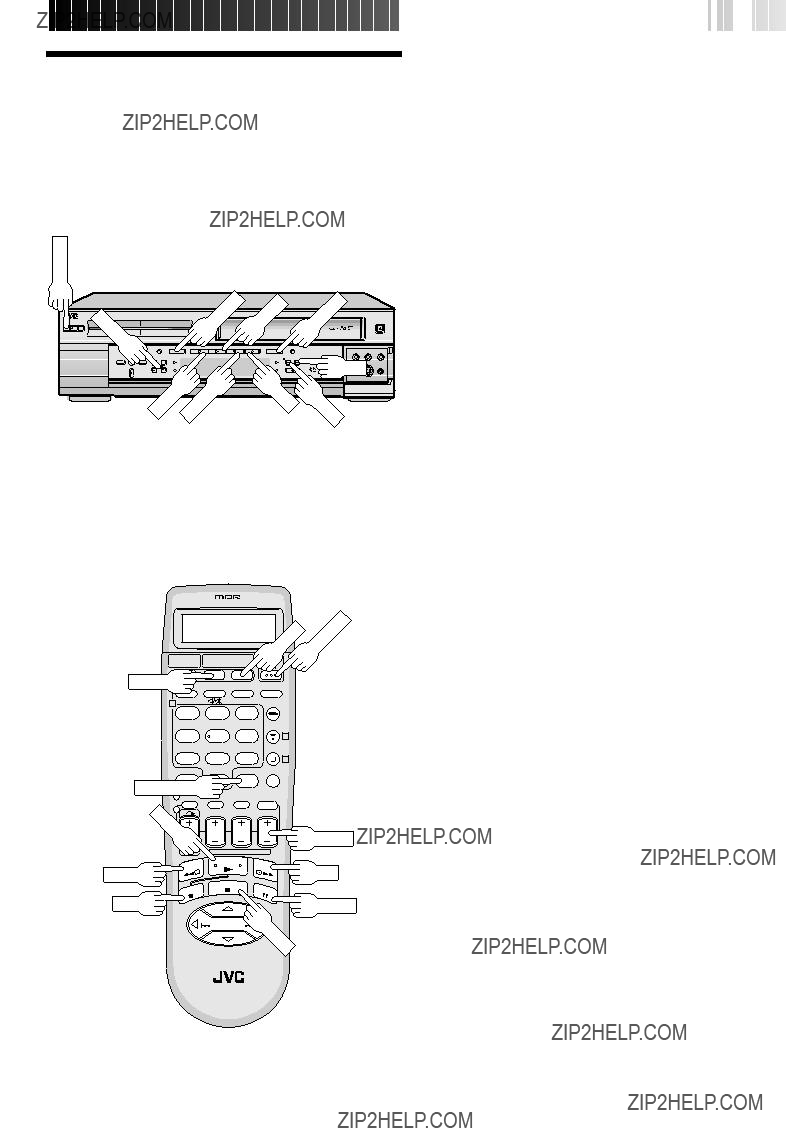

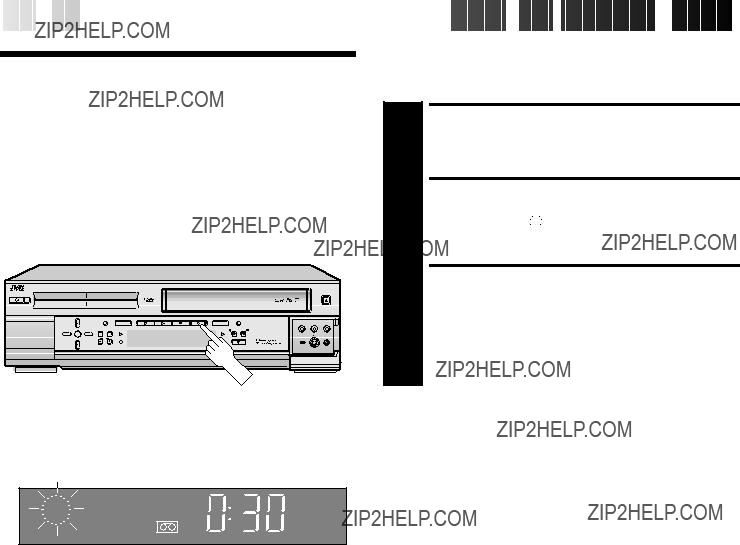

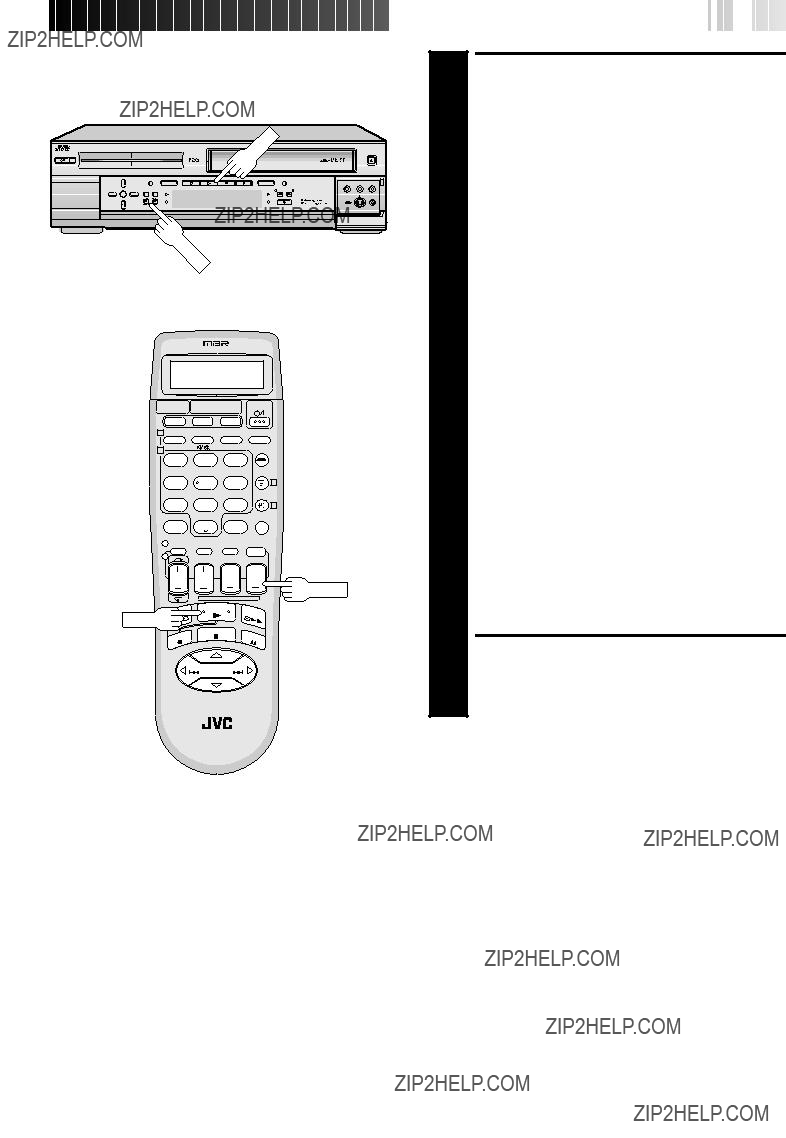

Simple

Recording

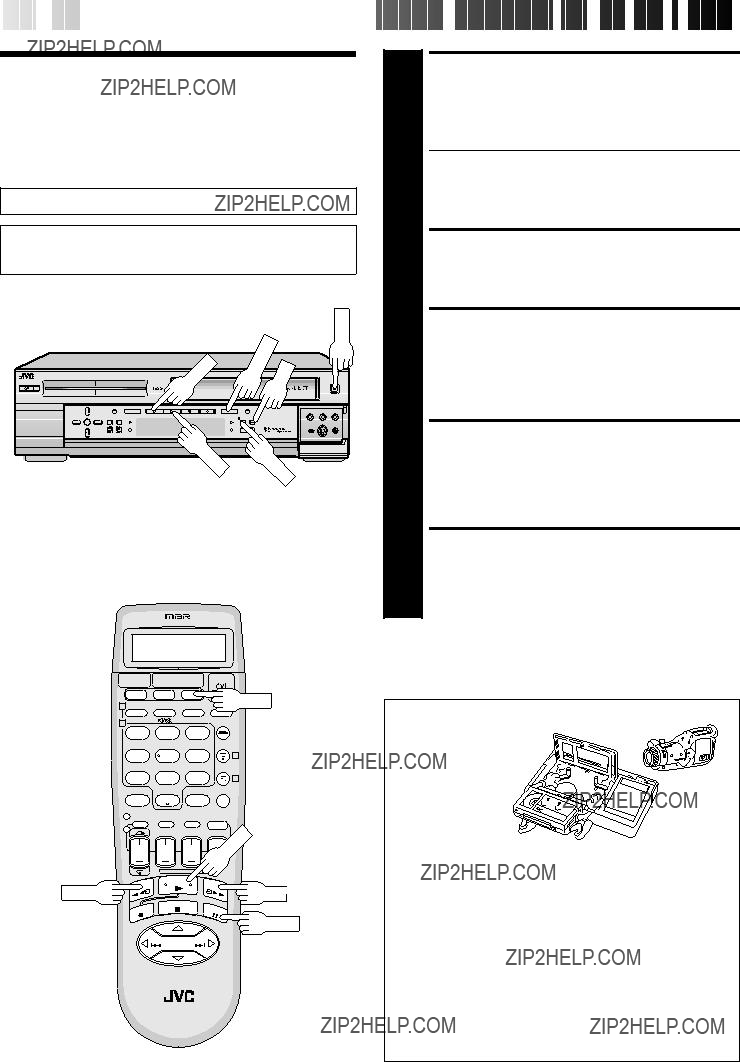

Turn on the TV and select the AV mode.

If the recorder is turned on with HDD deck selected, there may be about 30 seconds' delay in starting to show pictures on the screen.

POWER

POWER

yy,, yy,,

HM-HDS1

DIGITPURE TECHNOLOGY

POWER

HDD 1

???+

NOTES:

cIt is not possible to record a TV program on both the HDD deck and the VHS deck simultaneously.

In addition, it is not possible to record simultaneously from the same external input.

cIt is not possible to pause recording on the HDD deck while recording from the channels other than ???L-1???, ???F-1???, ???DUB???. See also pages 73 and 77.

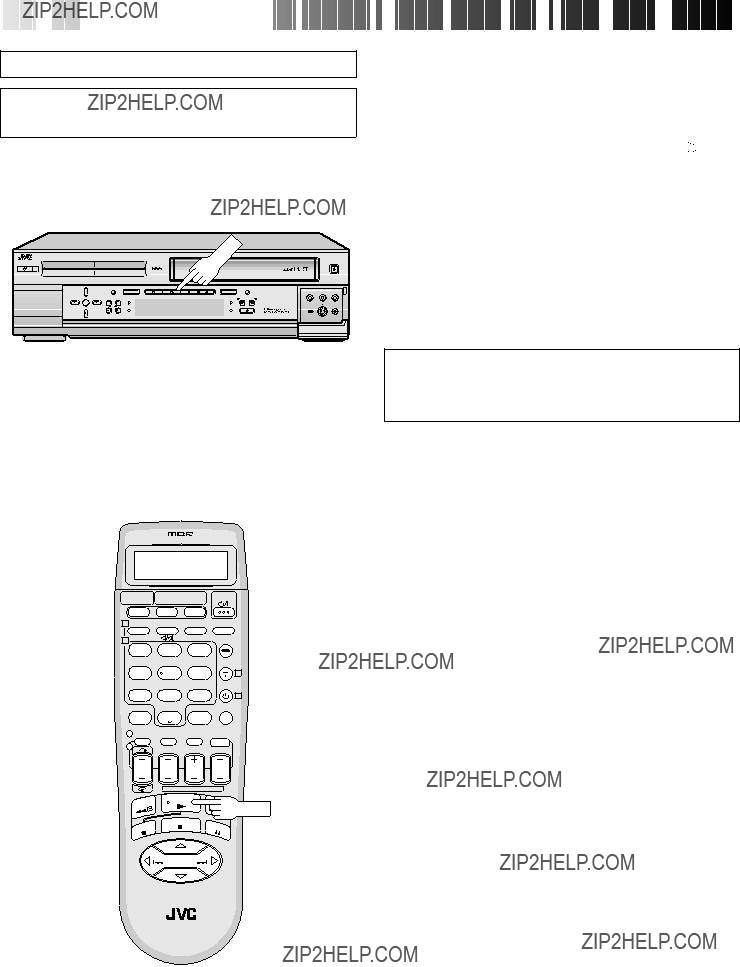

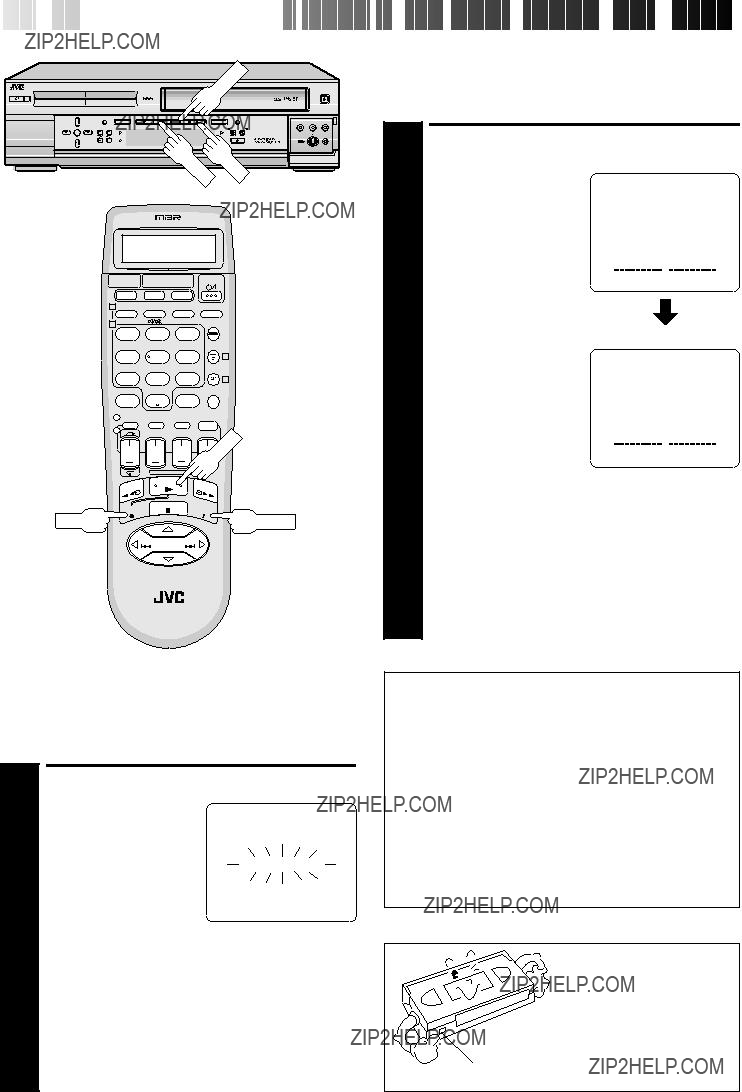

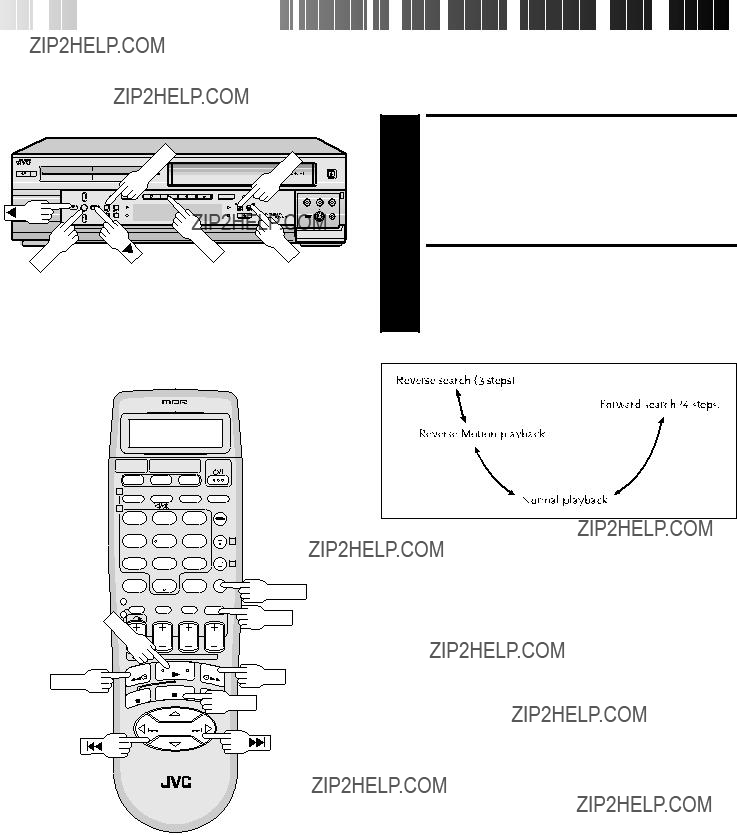

Simple

Playback

Turn on the TV and select the AV mode.

If the recorder is turned on with HDD deck selected, there may be about 30 seconds' delay in starting to show pictures on the screen.

1

2

3

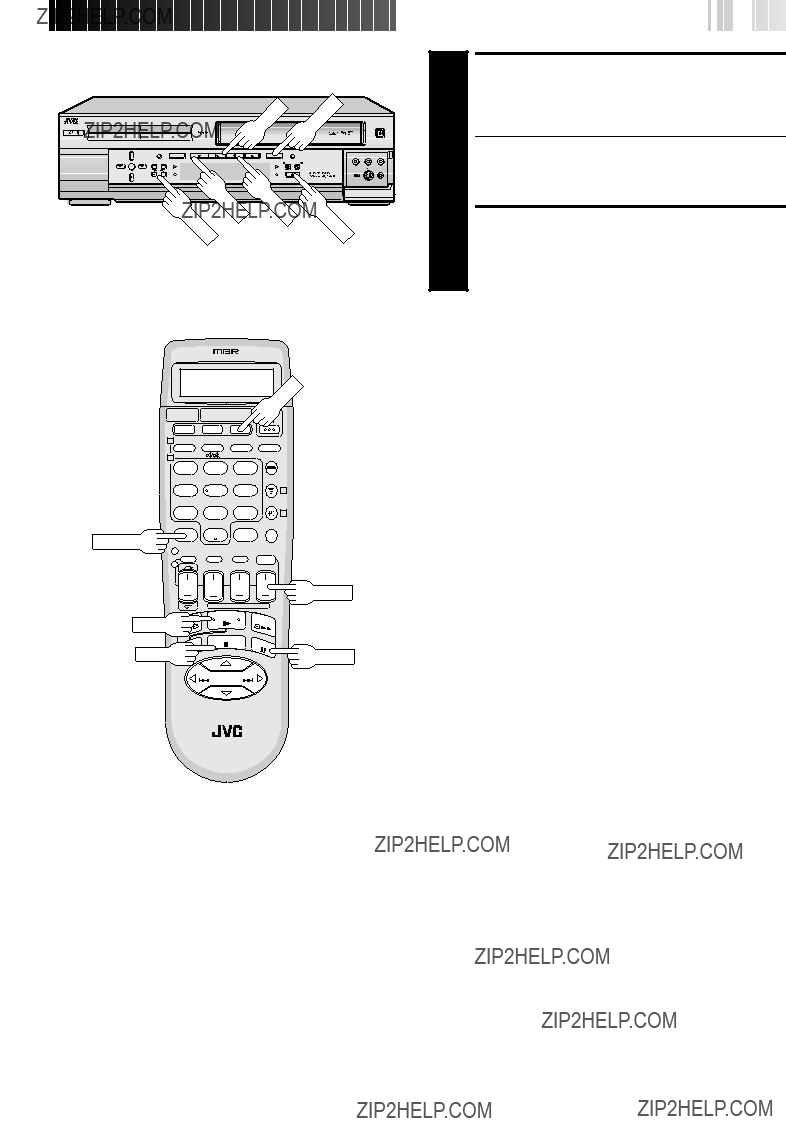

TURN ON THE RECORDER

Press POWER. The button corresponding to the previously selected deck lights on the front panel.

SELECT HDD DECK

Press HDD. The HDD button lights on the front panel.

START PLAYBACK

Press PLAY. The HDD playback indicator lights on the front panel.

One of the following screens will appear:

POWER

POWER

yy,, yy,,

HM-HDS1

EJECT

4

5

???the program which has been recorded on the HDD deck at the last and has not been played back yet

???the program which has been stopped during playback

???the HDD Navigation screen (See the next page.)

cThere are some programs for demonstration on the HDD deck when it is shipped from the factory.

PAUSE PLAYBACK

Press PAUSE.

c To resume normal playback, press PLAY.

STOP PLAYBACK

Press STOP. The HDD playback indicator turns off.

HDD 1

2

POWER

Recording Speed on the HDD deck

This recorder has a 40 Gbyte hard disk drive. The pictures and sounds recorded on the HDD deck and other information are written down on the hard disk drive.

1

2

PLAY

STOP

???+

PAUSE

As recording format for the HDD deck, MPEG2 format, the same for DVD, is used. As a guide for picture quality, the ???bps??? unit is used to represent how much data can be recorded per second. The larger this value, the better the picture quality is but the more capacity is required for recording. Select SP for programs where quick movement occurs, such as sports programs, and SEP for talk shows, etc. where relativity less movement.

The recording speeds of the recorder are set as follows:

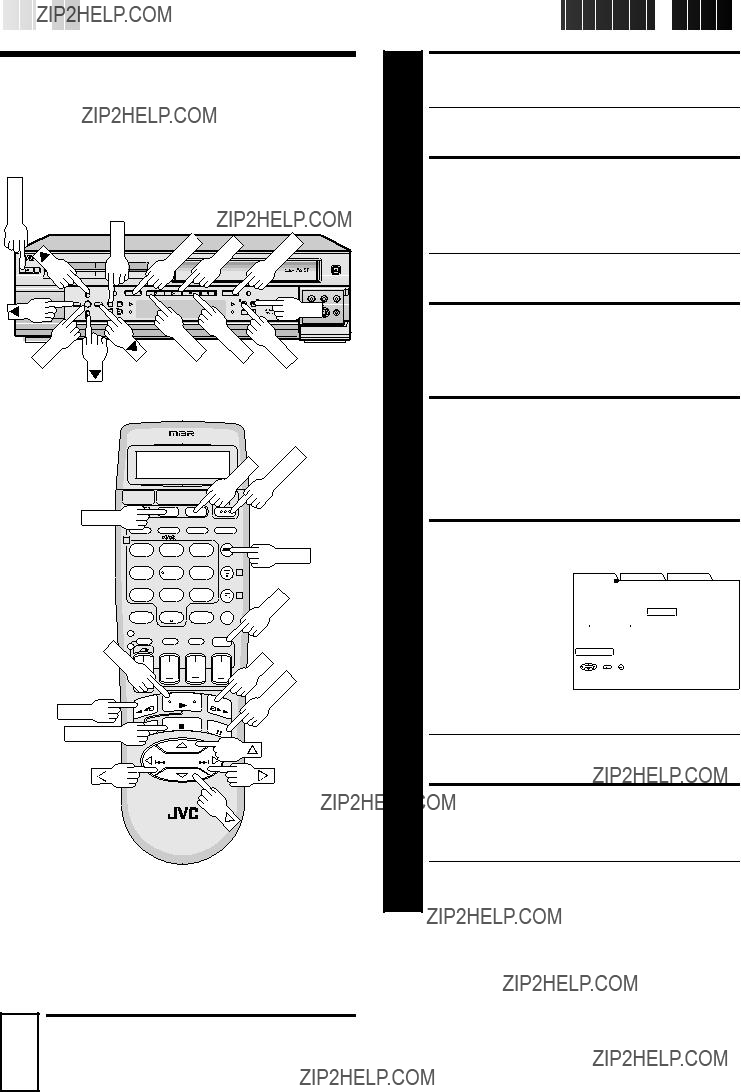

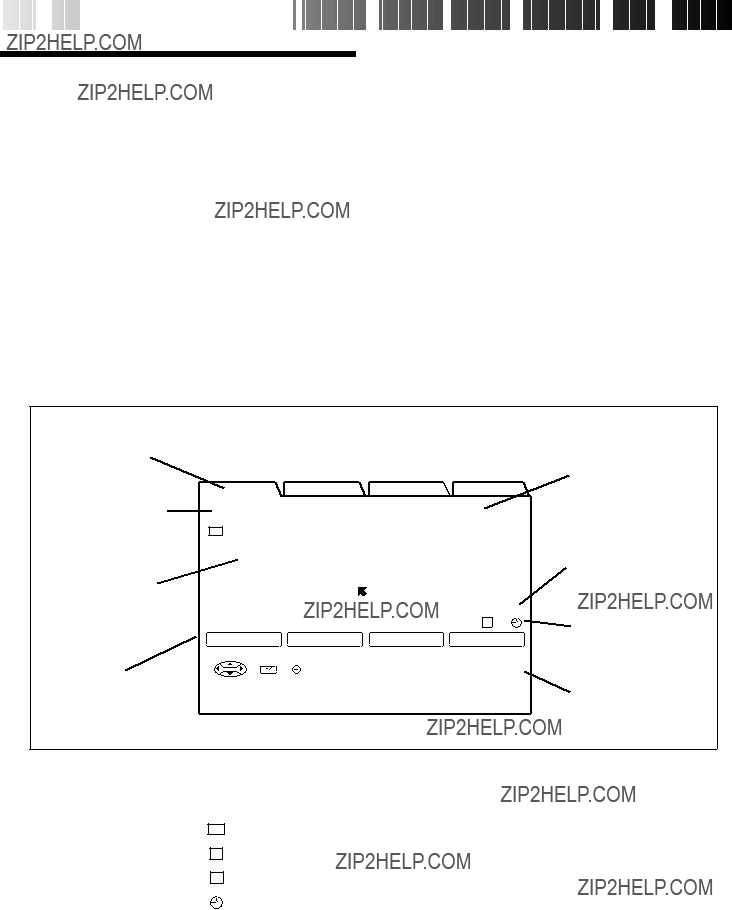

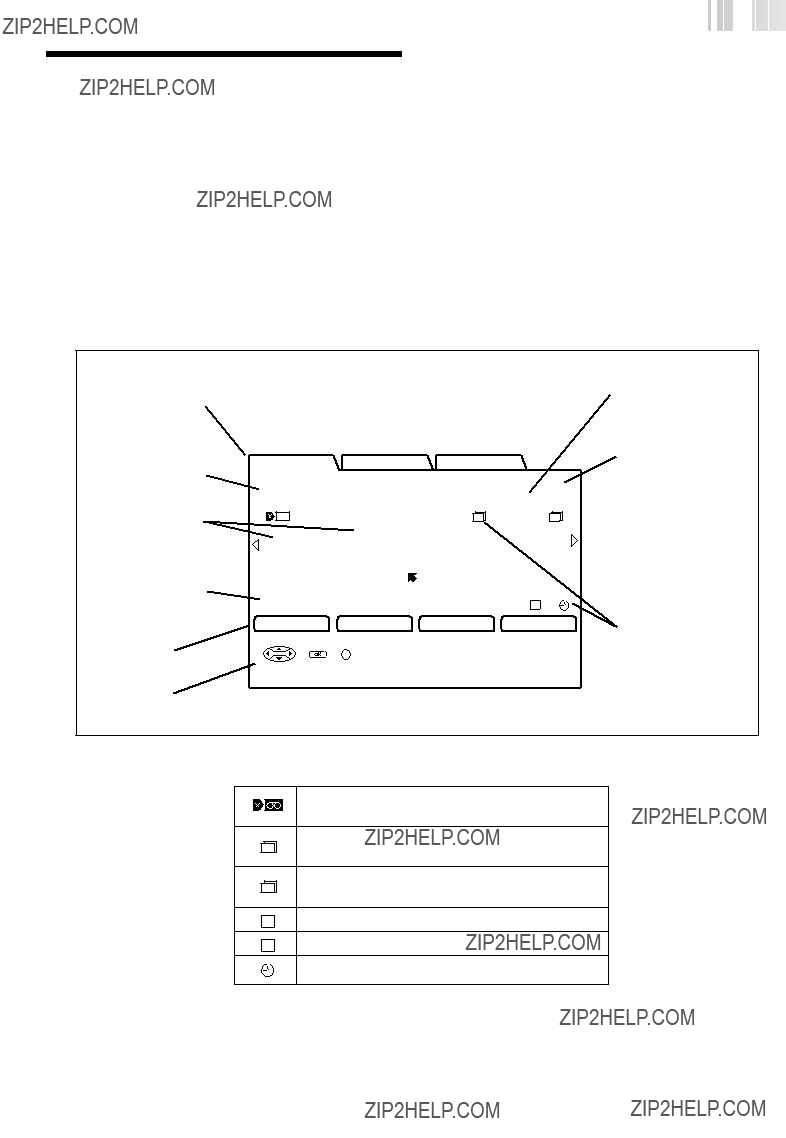

Playback with HDD Navigation

The HDD Navigation enables you to seach and select the desired programs recorded on the HDD deck very easily.

There is a 40 Gbyte hard disk drive on this recorder. You can record up to 60 programs for the HDD deck.

Each time a program is recorded on the HDD deck, the information of the program are registered in the HDD Navigation automatically.

So, you can confirm the information of the programs recorded on the HDD with the HDD Navigation Screen. And, you can also select one of the programs recorded on the HDD deck using the HDD Navigation.

You need to select ???SCAN??? to scan the beginning of the programs.

TOTAL TIME : for the selected programs

Index : small still picture of the each program

Recording Informa- tion for the program indicated by the arrow

Operational commands

Guidance for operations

REMAIN TIME : it is based on the recording speed currently selected.

There are 6 recorded programs and the program indicated by the arrow is the 3rd one.

This appears when there are over 4 registered programs. You can select the other program by pressing @#(or 23).

The icons : they show the recording situation for each program.

Turn on the TV and select the AV mode.

If the recorder is turned on with HDD deck selected, there may be about 30 seconds' delay in starting to show pictures on the screen.

Scan for Beginning(s) of Program(s)

You can scan the beginning of the program easily with the HDD Navigation.

POWER

EJECT

1

2

TURN ON THE RECORDER

Press POWER.

SELECT HDD DECK

Press HDD. The HDD button lights.

ACCESS SCAN SCREEN

HM-HDS1

3

1)Press NAVI. The HDD Navigation screen appears.

2)Confirm that ???SCAN??? screen appears. Then, press ??? (or ???) or OK.

HDD NAVI

POWER

HDD 1

NOTE:

4

5

6

7

ously, press MEMORY

on the remote control after selecting the desired program. The numbers of the playback order appear on the index. You can select up to 8 programs.

???When you want to correct the order, move the arrow on the desired index and press MEMORY on the remote control. Or, move the arrow on the desired index and press OK, then move the arrow to ???CANCEL??? and press OK.

The number disappears and the recorder re-numbers the other programs automatically.

START PLAYBACK

Press OK to move the arrow to ???PLAY??? on the Scan Screen, then press OK again. Or simply press PLAY. The playback starts.

PAUSE PLAYBACK

Press PAUSE.

c To resume normal playback, press PLAY.

STOP PLAYBACK

Press STOP.

Live Memory

Playback

Equipped with a hard disk drive, this recorder allows informa- tion to be written to and read from the hard disk at high speeds. Taking advantage of this feature, you can temporarily record programs received with the tuner or from an externally- connected equipment ??? CATV or DBS, and can watch them only a few seconds behind actual air time.

In this recorder, viewing a program through HDD (not a recorded program) means you are always watching the program temporarily recorded on it.

This feature enables you to reverse the program back to view any previous part of it ??? so called ???Live Memory Playback???, which was impossible until now.

To access ???Live Memory Playback???, all that you have to do is to turn on the recorder and select the HDD deck.

So, the temporary recording is started on the HDD deck. And, you can select the length of the time for temporary recording from off, 30 minutes, 1 hour, and 3 hours.

About ???Live Memory Playback???

With a certain amount of space (for 30 minutes, 1 hour, and 3 hours) reserved on the hard disk, the recorder records broad- casts being received or signals input from an externally connected equipment.

Even while you are reversing the program to review any previous part, the recorder continues recording the same program or externally-input signals.

When the reserved amount of time (or space) runs out, the recorder overwrites the previous recordings on the hard disk, starting with the oldest one, repeatedly if necessary. After having recorded a certain number of programs, if you try to increase the amount of your reserved time on HDD, you may not be allowed to do so because of possible lack of available space, and the recorder will inform you of this by displaying a message on the screen.

About limitation on Live Memory Playback

Recording to perform Live Memory playback, which means the use of temporary recording on the hard disk, works for signals from built-in tuners, external tuners and externally- connected equipment. This feature also works for copy- protected programs.

The temporary recording for Live Memory is canceled in the following cases, and will start all over again when it is to resume.

???When channels are changed

???When the power is turned off

???When the thumbnails are changed

???When the setting for Live Memory playback is changed

???When recording is started via the HDD deck or the VHS deck

???When a recorded program is played back or deleted

Setting Time for

Live Memory Playback

b??? Select ???30 MIN.??? if you want to use the Live Memory Playback for up to 30 minutes.

c??? Select ???1 HR.??? if you want to use the Live Memory Playback for up to an hour.

d??? Select ???3 HR.??? if you want to use the Live Memory Playback for up to 3 hours.

RETURN TO NORMAL

SCREEN

4 Press MENU.

Start Live Memory

Playback

You can start Live Memory Playback by pressing @(or 2) or 1, then press PLAY. When you press @(or 2) to start Live Memory Playback, the recorder will rewind the pictures to the point where Live Memory time counter shows ???00??? or ???30??? in its minutes??? place (or to the beginning of the program), then start Live Memory Playback automatically.

You can use various playback features during Live Memory Playback. (See pages 30 and 31.)

???To stop Live Memory Playback, press STOP. The on-air screen resumes.

Turn on the TV and select the AV mode.

If the recorder is turned on with HDD deck selected, there may be about 30 seconds' delay in starting to show pictures on the screen.

OK

1

2

Superimpose

This function, switchable between ON and OFF, determines whether or not operational indicators will appear on screen.

1

2

OK

OSD

a??? Select ???ON??? if you want the superimposed opera- tional indications on the screen for about 5 seconds when operating the recorder.

b??? Select ???OFF??? if you do not want the superimposed operational indications on the screen.

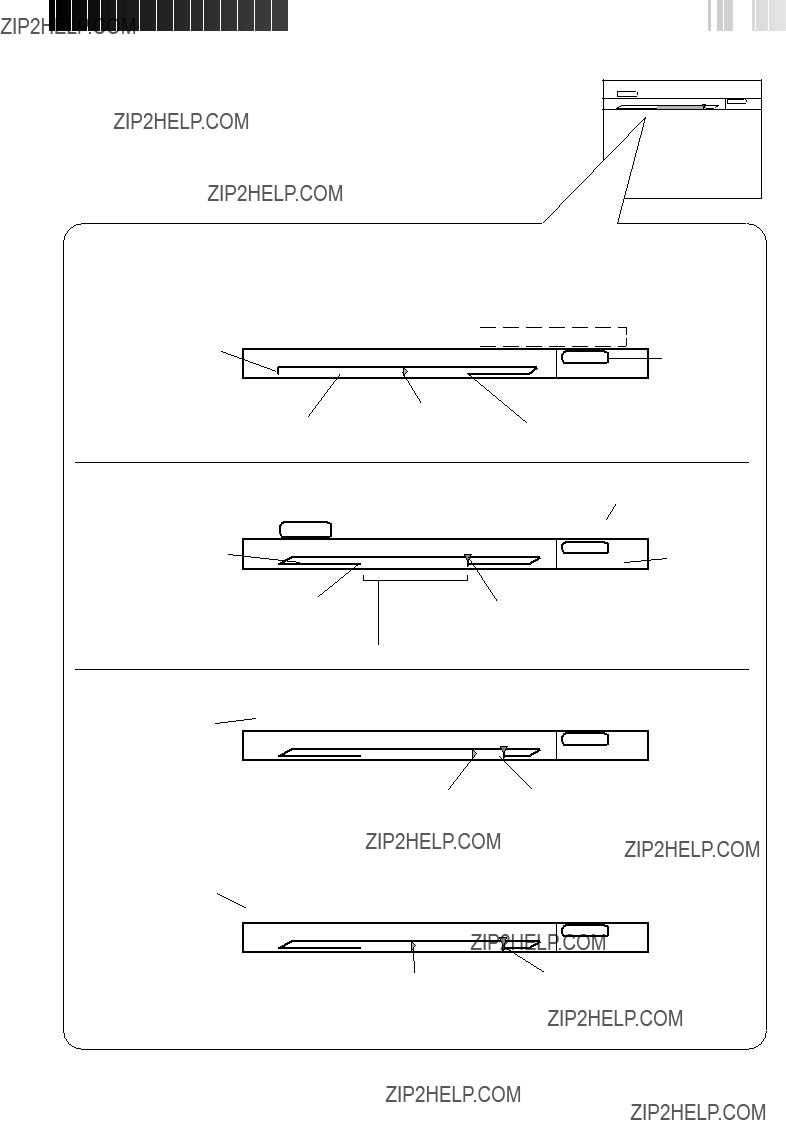

Press OSD. The indication appears on the top of the screen as follows.

To clear the indication, press OSD again.

Time scale

The end of the program

The beginning point of this program : The recorder starts receiving this program at about 8:30 PM.

Pointer for current time : The recorder has been receiving this program for an hour.

Playback

Features

Turn on the TV and select the AV mode.

If the recorder is turned on with HDD deck selected, there may be about 30 seconds' delay in starting to show pictures on the screen.

High-Speed Search

ACTIVATE HIGH-SPEED SEARCH

1 During playback (or Live Memory Playback), press FF for forward high-speed search, or REW for reverse high- speed search.

c The search speed is 15 times normal playback speed.

To resume normal playback, press PLAY.

NOTES:

cFor short searches, during playback or still, press and hold FF, or REW. When released, normal playback resumes.

cIf either end of the program is reached during high-speed search, normal playback will resume.

POWER

yy,, yy,,

HM-HDS1

Still Picture/Frame-By-Frame

Playback

PAUSE DURING PLAYBACK

1 Press PAUSE.

ACTIVATE FRAME-BY-

FRAME PLAYBACK

2 Press PAUSE or #(or 3) repeatedly to advance one frame at a time. Press @(or 2) repeatedly to reverse one frame at a time.

To resume normal playback, press PLAY.

PAUSE

???+

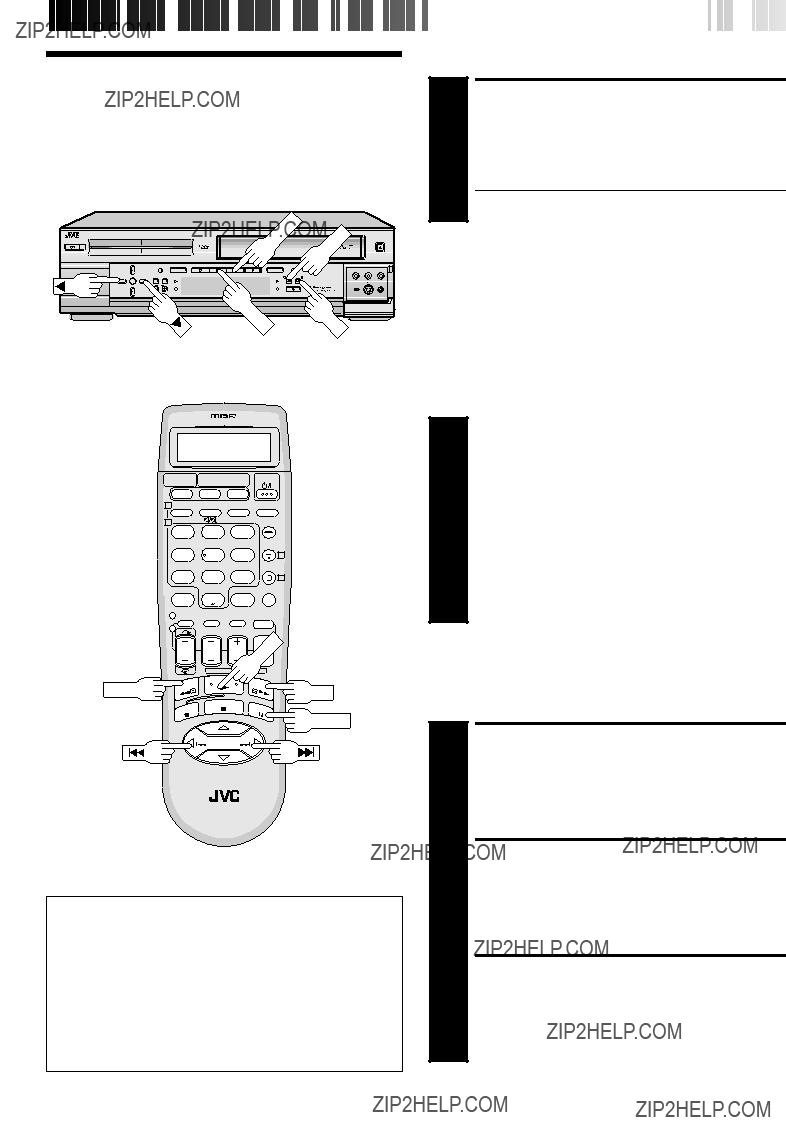

Slow Motion/Reverse Slow

Motion

Turn on the TV and select the AV mode.

If the recorder is turned on with HDD deck selected, there may be about 30 seconds' delay in starting to show pictures on the screen.

EN31

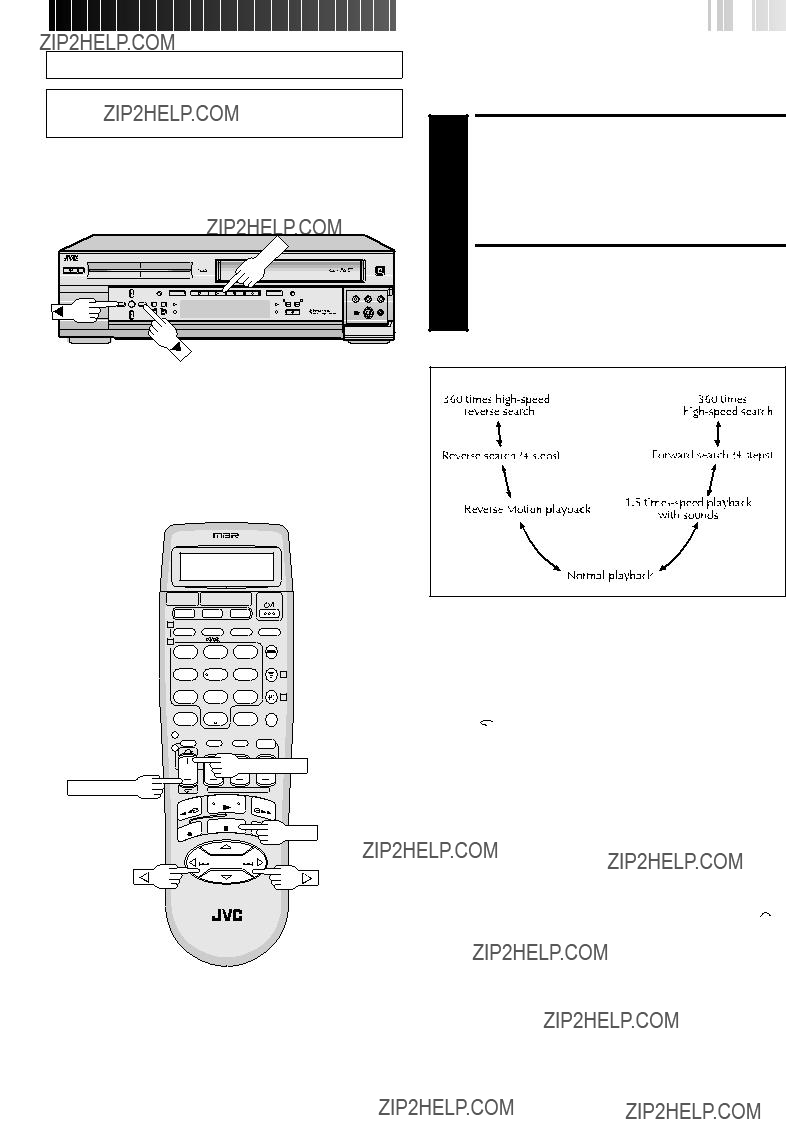

Variable-Speed Search/

Reverse Motion Playback

ACTIVATE VARIABLE-SPEED

SEARCH

1 During playback (or time-shift playback), press #(or 3) for forward variable-speed search or press @(or 2) for reverse motion playback.

CHANGE SPEED

2 Press #(or 3) or @(or 2) repeatedly to change playback speed as illustrated below.

To resume normal playback, press PLAY.

1

2

1

2

START +/

START ???/

PLAY

??? +

Quick Rewind a little

Turn on the TV and select the AV mode.

If the recorder is turned on with HDD deck selected, there may be about 30 seconds' delay in starting to show pictures on the screen.

Repeat Playback

(Normal Playback Only)

To resume normal playback, press PLAY.

Select The Soundtrack

The HDD deck can record two soundtracks simultaneously (L and R) and play back the selected one, or both together.

Recording

Features

Record One Program While

Watching Another

ENGAGE TV MODE

1 During recording...

c Change the TV???s input mode from AV to TV.

SELECT CHANNEL FOR

VIEWING

2 Use the TV???s channel selector to set the channel you want to watch.

Live Memory Playback (while recording)

You can use the following playback features as the Time-Shift Playback while you are recording a program.

???High-Speed Search

???Still Picture/Frame-By-Frame Playback

???Slow Motion/Reverse Slow Motion

???Variable-Speed Search/Reverse Motion Playback

???Quick Rewind a little

???Quick Skip Forward

While recording

REC indicator

Time scale around the current time

Starting point of recording this program

You can enjoy Live Memory Playback in this field.

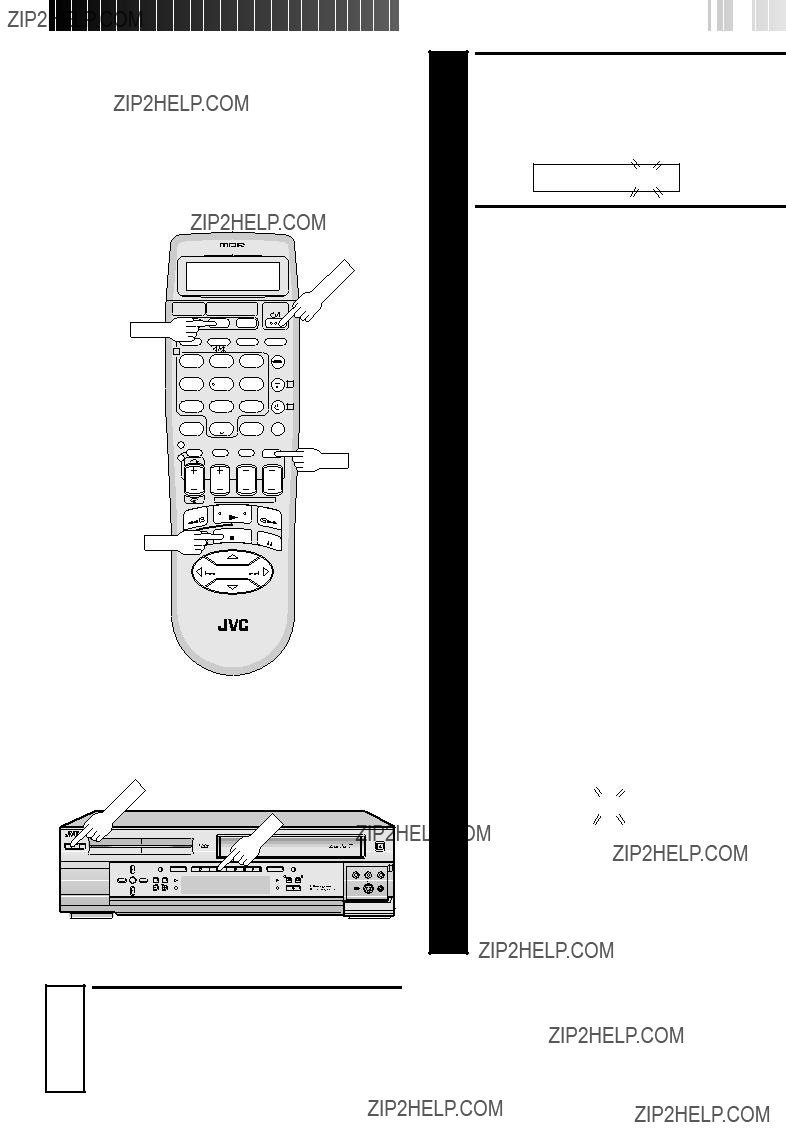

Simple

Playback

Turn on the TV and select the AV mode.

If the recorder is turned on with HDD deck selected, there may be about 30 seconds' delay in starting to show pictures on the screen.

1

2

LOAD A CASSETTE

Make sure the window side is up, the rear label side is facing you and the arrow on the front of the cassette is pointing towards the recorder. Don???t apply too much pressure when inserting.

cThe recorder???s power comes on automatically.

cThe counter is automatically reset to ???0:00:00???.

cIf the cassette???s record safety tab has been removed, playback begins automatically.

SELECT VHS DECK

Press VHS (or S-VHS). The S-VHS button lights on the front panel.

POWER

yy,, yy,,

HM-HDS1

3

4

5

FIND PROGRAM START

POINT

If the tape is advanced past the start point, press REW. To go forward, press FF.

START PLAYBACK

Press PLAY. ???VIDEO CALIBRATION??? appears on the screen (when VIDEO CALIBRATION is set to ???ON??? Z pg. 47). The VHS playback indicator lights on the front panel.

STOP PLAYBACK

Press STOP. Then press EJECT on the front panel to remove the cassette.

1

2

VHS

Usable cassettes

VHS deck

REW

1

2

PLAY

FF

STOP

???+

Full-Size VHS

T-30 (ST-30**)

T-60 (ST-60**)

T-90

T-120 (ST-120**)

T-160 (ST-160**)

ST-210**

Compact VHS*

TC-20 (ST-C20**)

TC-30 (ST-C30**)

TC-40 (ST-C40**)

*Compact VHS camcorder recordings can be played on this video recorder. Simply place the recorded cassette into a VHS Cassette Adapter and it can be used just like any full-sized VHS cassette.

**This recorder can record on regular VHS and Super VHS cassettes. While only VHS signals can be recorded on regular VHS cassettes*, both VHS and Super VHS signals can be recorded and played back using Super VHS cassettes.

*By using S-VHS ET it is possible to record and play back with S-VHS picture quality on VHS cassettes with this recorder.

Simple

Recording

Turn on the TV and select the AV mode.

If the recorder is turned on with HDD deck selected, there may be about 30 seconds' delay in starting to show pictures on the screen.

POWER

yy,, yy,,

HM-HDS1

EJECT

???+

STOP

NOTE:

cIt is not possible to record a TV program on both the VHS deck and the HDD deck simultaneously.

In addition, it is not possible to record simultaneously from the same external input.

Playback with VHS Navigation

The VHS Navigation enables you to seach and select the desired program recorded with the VHS deck very easily.

When you record a program with the VHS deck for more than 5 minutes in SP mode (for more than 15 minutes in EP mode) with ???NAVIGATION??? of ???VHS SET UP 1??? set to ???ON???, its information are registered in the VHS Naviga- tion automatically.

When the first program is recorded on a cassette, the VHS Navigation gives the register number to the cas- sette. The VHS Navigation memorizes the cassette by the number. You can confirm the register number of the cassette when the cassette is loaded or ejected.

The VHS Navigation can register up to 2000 programs or up tp 680 cassettes.

The number appears when the registered cassette is loaded.

This date shows when the loaded cassette is registered.

Index : Small still picture of the each program. In this case, there are two registered programs

Operational commands

operations

Turn on the TV and select the AV mode.

If the recorder is turned on with HDD deck selected, there may be about 30 seconds' delay in starting to show pictures on the screen.

HM-HDS1

OK

OK

???+

EN37

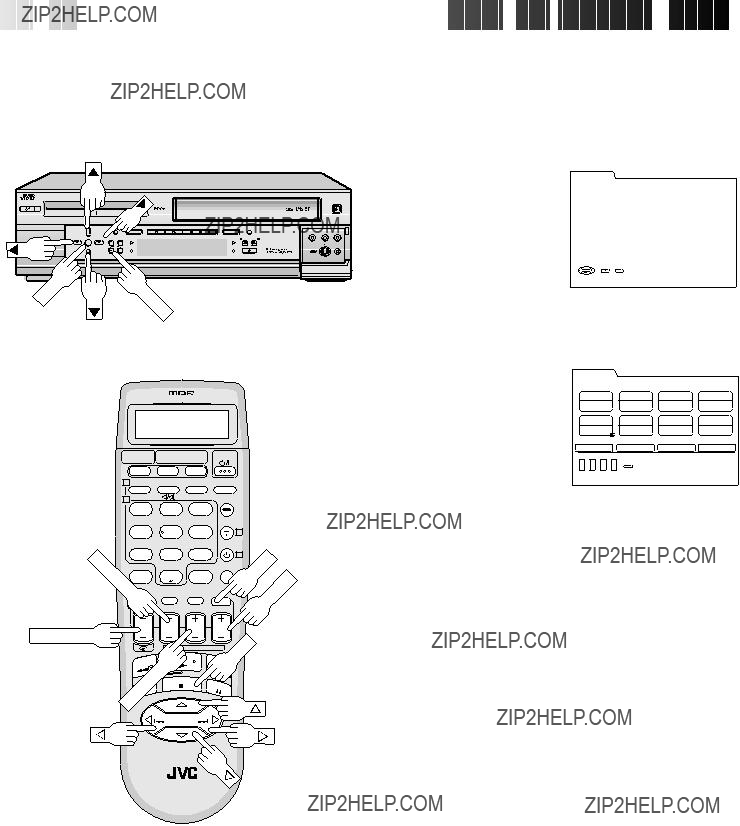

Set VHS Navigation

TURN ON THE RECORDER

a??? Select ???ON??? if you want to use the VHS Navigation. When you set the VHS Navigation to ???ON???, ???VN??? appears on the display of the front panel.

b??? Select ???OFF??? if you do not want to use VHS Navigation.

RETURN TO NORMAL

SCREEN

5 Press MENU.

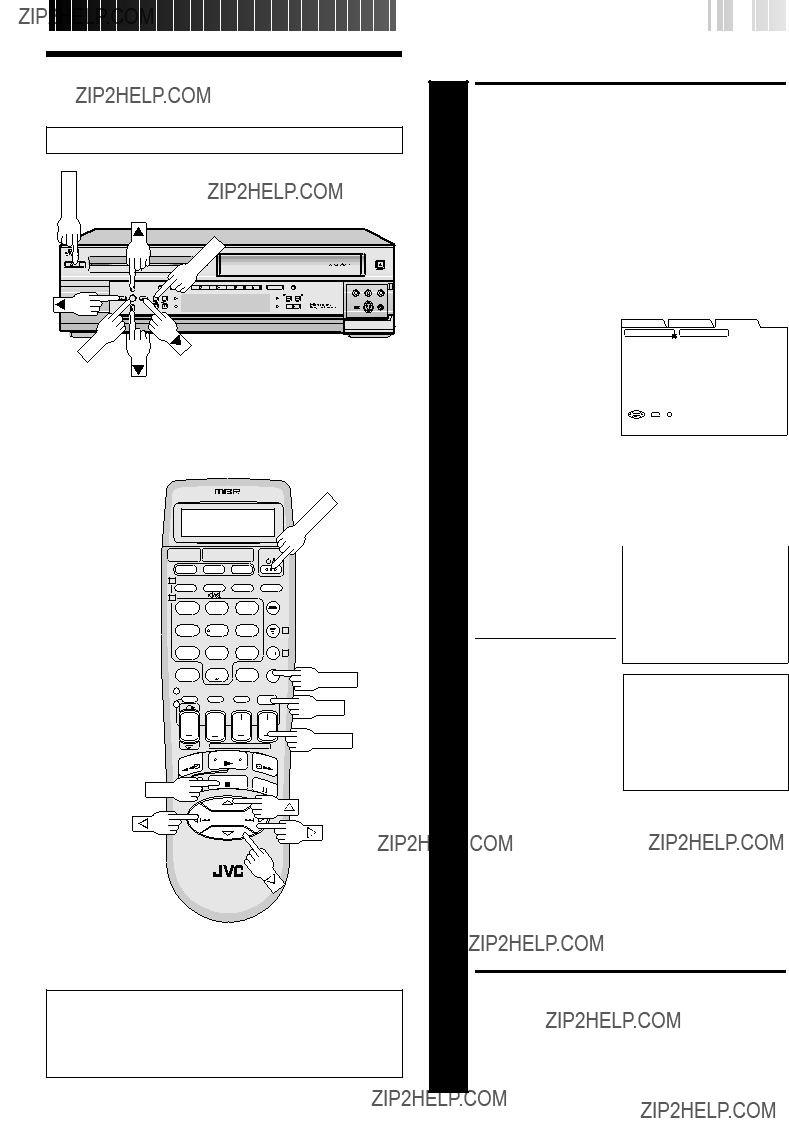

Scan for Beginning of Pro- gram with VHS Navigation

The VHS Navigation can take effect for the program which has been recorded, and whose information has been registered with this recorder. Once the VHS (S-VHS) cassettes have been used for recording with this recorder, they have the register number given by this recorder.

Turn on the TV and select the AV mode.

If the recorder is turned on with HDD deck selected, there

1

2

TURN ON THE RECORDER

Press POWER.

SELECT VHS DECK

Press VHS (or S-VHS). The S-VHS button lights on the front panel.

ACCESS VHS NAVIGATION

SCREEN

may be about 30 seconds' delay in starting to show pictures on the screen.

3

Press NAVI. The VHS Navigation screen appears.

VHS NAVI

POWER

cIf a registered cassette has been loaded, the contents of the loaded cassette will appear.

NAVI

POWER

yy,, yy,,

HM-HDS1

REC LINK

HDD

MENU NAVI

OK

CH

STOP

STOPPLAYPAUSEREC

PAUSEDIGITPURE TECHNOLOGY

S-VHS ET

S-VHS

REW FEW

A. DUB

EJECT

4

SEARCH FOR THE REGIS-

TERED PROGRAM

Press @# or 23to move the arrow to select one of the following search types, then press OK or ??? (or ???).

POWER

VHS 1

??? +

5

6

7

8

a??? Select the number if you want to select the regis- tered program from the currently loaded cassette. If no cassette is loaded, ???----??? will appear in this position and this is unable to be selected.

b??? Select ???DATE REC.??? if you want to search for the registered program by the recording date.

c??? Select ???CATEGORY??? if you want to search for the registered program by the category in which you have classified the program.

d??? Select ???CASSETTE #??? if you want to search for the program by each registered cassette.

If you select b, c, or d to search for the program, you must go to screen a after checking the number of the registered cassette including the desired program.

SELECT PROGRAM

Press @#(or 23) to move the arrow on the index of the desired program.

START PLAYBACK

Press PLAY or OK.

cIf no cassette has been loaded, the register number will be required. In this case, load the cassette with the required number on the VHS deck, then retry.

PAUSE PLAYBACK

Press PAUSE.

c To resume normal playback, press PLAY.

STOP PLAYBACK

Press STOP.

Playback

Features

High-Speed Search

ACTIVATE HIGH-SPEED

SEARCH

1 During playback (or Live Memory Playback), press FF for forward high-speed search, or REW for reverse high- speed search.

POWER

yy,, yy,,

HM-HDS1

cThe search speed is 11 times normal playback speed with SP recordings, and 31 times with EP recordings.

To resume normal playback, press PLAY.

NOTE:

cFor short searches, during playback or still, press and hold FF, REW. When released, normal playback resumes.

PAUSE

???+

ATTENTION

cIn the high-speed search, still, slow motion or frame-by- frame playback mode, the picture will be distorted, and there will be a loss of color.

cWhen normal playback resumes from search, still, slow motion or frame-by-frame playback, the picture may jitter vertically momentarily depending on the type of TV being used.

Still Picture/Frame-By-Frame

Playback

Press PAUSE for two seconds to start frame-by-frame playback.

To resume normal playback, press PLAY.

Slow Motion/Reverse Slow

Motion

ACCESS SLOW-MOTION

PLAYBACK

1 For hands-free slow-motion, press PAUSE during playback (or time-shift playback).

ACTIVATE SLOW-MOTION

PLAYBACK

2 Press ??(or 3) for forward slow-motion, or 4(or 2) for reverse slow-motion.

CHANGE SLOW-MOTION

SPEED

3 Press ??(or 3) or 4(or 2) repeatedly. The slow- motion speed changes in three steps for each direction.

To resume normal playback, press PLAY.

ACTIVATE VARIABLE-SPEED

SEARCH

1 During playback (or time-shift playback), press ??(or 3) for forward variable-speed search, 4(or 2) for reverse motion playback.

CHANGE SPEED

2 Press ?? (or 3) or 4(or 2) repeatedly to change playback speed as illustrated below.

To resume normal playback, press PLAY.

???+

Index Search

Index codes are placed on the tape at the start of each recording. You can find and automatically play back from the start of any recording using the Index Search function.

NOTE:

Superimpose

This function, switchable between ON and OFF, determines whether or not operational indicators will appear on screen.

a??? Select ???ON??? if you want the superimposed opera- tional indications on the screen about 5 seconds when operating the recorder.

b??? Select ???OFF??? if you do not want the superimposed operational indications on the screen.

RETURN TO NORMAL

SCREEN

4 Press MENU.

EN41

To recall an indication

1Press OSD.

n All indications corresponding to the current status are displayed for 5 seconds. After that, the counter information and RECORD/PAUSE if in the Record Pause mode, are left displayed on the screen.

2 Press OSD again to clear the display.

nThe RECORD/PAUSE indication is left displayed on the screen.

NOTES:

cIf you engage the Record Pause mode, RECORD/PAUSE is displayed regardless of the Superimpose mode setting.

cIf you select a channel on which no signal is received, the channel number is displayed regardless of the Superimpose mode setting.

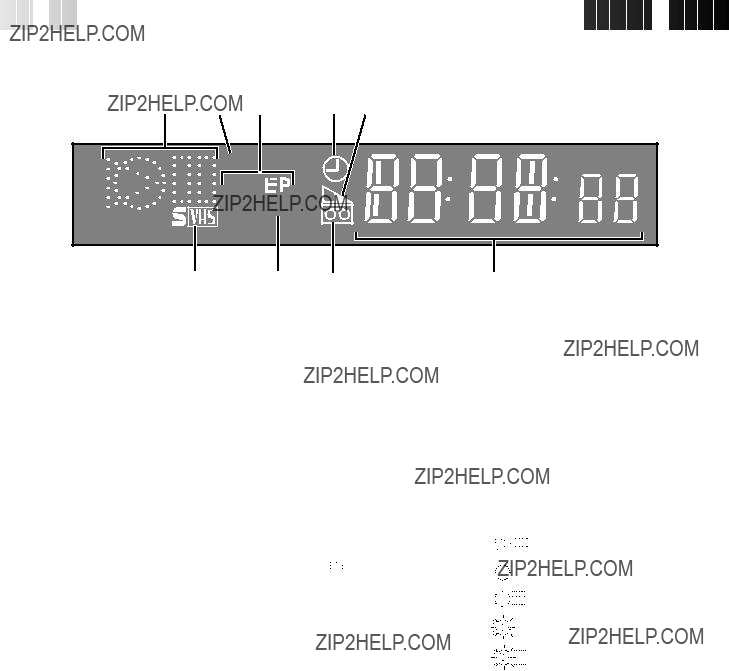

The superimposed indication on the TV screen tells you what the recorder is doing.

4SAP

VHS

VHS

1??? Tuned-in channel or AUX(iliary) mode

When the channel is changed, the new channel is displayed on the screen for 5 seconds.

2??? Clock time

3??? Stereo program indication

4??? Second Audio Program indication 5??? VHS indicator

6??? Audio mode indications 7??? ???Cassette Loaded??? mark

When a cassette is loaded, the mark is displayed for 5 seconds. It blinks when the recorder???s EJECT button is pushed.

8??? Operation mode

When the operation mode is changed, the new mode is displayed ??? RECORD (5 sec.), PLAY (5 sec.), FF/REW (5 sec. when engaged from Stop mode), RECORD PAUSE (for as long as Pause is engaged), and ITR *:** (5 sec.).

9??? Tape speed indication 10??? Tape position indicator 11??? INDEX indication

12??? Counter reading

Switchable to the tape remaining time display

POWER

yy,, yy,,

HM-HDS1

Once playback begins, the VCR???s automatic tracking function is engaged. If tracking noise appears in the picture, you can override this and make the adjustment manually.

1

2

1

2 PLAY

CH+/???

PAUSE

???+

NOTES:

cTo obtain a noiseless still picture it may be necessary to adjust tracking in slow playback and then engage Pause.

cManual tracking is possible during hands-free slow-motion. During hands-free slow-motion playback, simply press CH + or ??? on the recorder???s front panel or remote to adjust tracking.

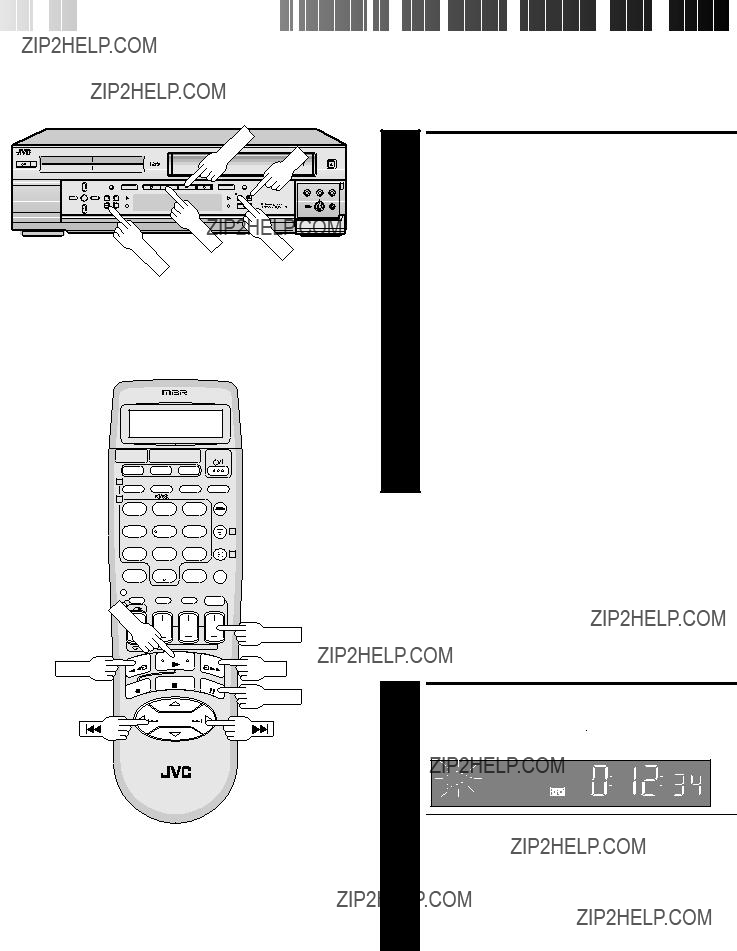

Repeat Playback

START REPEAT

1 Press and hold PLAY (until "" blinks on the front display panel) during playback, then release.

SP

VCR

POWER

yy,, yy,,

HM-HDS1

EN43

Counter Reset

Next-Function Memory

The Next Function Memory ???tells??? the recorder what to do after rewinding. Before continuing, ensure that the recorder is in stop mode.

a ??? For Automatic Start Of Playback After Tape Rewind . . .

. . . press REW, then press PLAY within 2 seconds.

b ??? For Automatic Ejection Of Cassette After Tape Rewind . . .

. . . press REW, then press EJECT within 2 seconds.

Tape Position Indicator

The Tape position indicator appears on screen when, from the stop mode, you press FF, REW, or perform an Index Search. The position of ??? ??? in relation to ???B???

NOTES:

COUNT 0:33:27

???+

c???SUPERIMPOSE??? must be set to ???ON???, or the indicator will not appear (Z pg. 41).

cIt may take a few seconds for the Tape Position Indicator to be displayed.

Picture Control

This feature helps you to adjust the playback picture quality according to your preference. *The default setting is ???AUTO.???

HM-HDS1

OK

1

2

ACCESS MAIN MENU

SCREEN

Press MENU.

ACCESS VHS SET UP 1

SCREEN

Set Up screen, move

the arrow to ???VHS SET UP 1??? by pressing @#(or 23), then press ??? (or ???) or OK.

SELECT PICTURE CONTROL

MODE

3

1)On the VHS Set Up 1 screen, move the arrow to ???PICTURE CONTROL??? by pressing %???(or 5???), then press OK.

2)Pressing %???(or 5???) to select the desired mode, then press OK.

1

2

OK

???+

4

AUTO*: Normally select ???AUTO???.

It automatically adjusts the picture quality.

*When ???VIDEO CALIBRATION??? is set to ???OFF??? (Z pg. 47), you can only select NORM instead of AUTO.

EDIT: Select when you dub tapes.

SOFT: Select when you want to soften the picture.

SHARP: Select when you want to sharpen the picture.

NOTE:

???When you select ???EDIT???, ???SHARP" or ???SOFT???, the selected mode will not change until you select again.

???When you select ???EDIT" to dub tapes, be sure to select ???AUTO??? (or ???NORM??? when ???VIDEO CALI- BRATION??? is set to ???OFF???) after you finish dubbing the tapes.

RETURN TO NORMAL

SCREEN

Press MENU.

Video Stabilizer

By activating the Video Stabilizer you can correct vertical vibrations in the picture when playing back unstable EP recordings that were made on another VCR. When this function is set to ???ON???, vertical vibration will be automatically cor- rected. *The default setting is ???OFF???.

HM-HDS1

OK

1

2

OK

???+

SELECT VIDEO STABILIZER

MODE

RETURN TO NORMAL

SCREEN

4 Press MENU.

NOTES:

cWhen you finish viewing the tape, be sure to set it back to ???OFF???.

cRegardless of the setting, this function has no effect during recording and during special-effects playback.

cThe Superimpose mode indications may jitter vertically when ???VIDEO STABILIZER??? is set to ???ON???.

cTo watch recordings with close-caption, it is necessary to set the Video Stabilizer function to ???OFF???.

TBC

Your recorder is equipped with the TBC (Time Base Corrector) that removes jitter from fluctuating video signals to deliver a stable picture even with old tapes and rental cassettes.

The on/off of Digital 3-DNR (Noise Reduction) which cuts noise and enables clear picture reproduction is also linked to this function.

* The default setting is ???ON???.

We recommend that you use the TBC feature when...

... playing back a tape recorded on a camcorder.

... playing back a tape repeatedly used.

... using this recorder as the player for editing.

RETURN TO NORMAL

SCREEN

4 Press MENU.

NOTES:

cIf you play back a tape recorded under poor TV reception condition, there may be cases where the picture becomes more stable with Digital TBC set to off.

cWhen Digital TBC is set to on, if you play back a tape where certain types of signals are recorded (using a PC or some character generators), the playback picture may be distorted. If this is the case, turn off Digital TBC.

cDigital TBC and Video Stabilizer (Z pg. 45) cannot be used at the same time; if you turn on Digital TBC when "VIDEO STABILIZER" is set to "ON", Video Stabilizer will be automati- cally turned "OFF". Make sure Digital TBC is off when you want to use Video Stabilizer.

Select The Soundtrack

The VHS deck can record two soundtracks simultaneously (Normal and Hi-Fi) and play back the selected one, or both together. Or, when viewing a pre-recorded tape that contains two separate Hi-Fi audio programs, you can choose to listen to either one by selecting either "Hi-Fi L" or "Hi-Fi R".

You can select the soundtrack by simply pressing the remote control's A. MONITOR button as follows:

Hi-Fi ??? Hi-Fi L ??? Hi-Fi R ??? Normal ??? Mix ??? Hi-Fi

NOTE:

If the tape being played back has no Hi-Fi soundtrack, the Normal soundtrack will be heard no matter what choice you make.

Active Video

Calibration

Turn on the TV and select the AV mode.

POWER

EN47

Preparation

Active Video Calibration checks the condition of the tape during recording and playback, and compensates for poor reproduction to provide the best quality recording and playback pictures. *The default setting is ???ON???.

TURN ON THE RECORDER

POWER

yy,, yy,,

HM-HDS1

OK

OK

RETURN TO NORMAL

SCREEN

5 Press MENU.

POWER

yy,, yy,,

HM-HDS1

EJECT

Recording

Perform steps 1 ??? 4 on page 35 (???Simple Recording???) before continuing.

REC PAUSE

???+

Playback

The recorder assesses the quality of the tape once you start playback.

Perform steps 1 ??? 3 on page 34 (???Simple Playback???) before continuing.

NOTES:

cWhen using rental tapes,

or tapes recorded on other VCRs, set ???VIDEO CALIBRATION??? in step 3 of the Preparation proce- dure to either ???ON??? or ???OFF??? as desired to give the best picture (Z pg. 47).

cThe Video Calibration screen only appears at the beginning of automatic tracking. Even though the screen doesn't appear after that, the Video Calibration function is operative.

cTo display the Video Calibration screen, ???SUPERIM- POSE??? must be set to ???ON??? or the Video Calibration screen will not appear (Z pg. 41.)

cCalibration occurs immediately prior to both the first SP and the first EP recording after inserting the cassette. It

takes place for both SP and EP before the first timer recording after inserting the cassette (regardless of the tape speed selected for that recording).

cOnce the cassette is ejected, the calibration data is canceled. The next time the cassette is used for recording, calibration is re-performed.

cWhile Video Calibration is operative, the PAUSE button will not function.

cTo display the Video Calibration screen, ???SUPERIM- POSE??? must be set to ???ON??? or the Video Calibration screen will not appear (Z pg. 41).

ATTENTION

nAs calibration takes place before recording actually starts, there is a delay of about 7 seconds after REC and PLAY on the remote, or REC on the recorder???s front panel, are pressed. To make sure you record the desired scene or program completely, first perform the following steps:

1)Press and hold PAUSE, and press REC to engage the RECORD PAUSE mode.

c The VCR then automatically checks the condition of the tape and, after about 7 seconds, re-enters

RECORD PAUSE.

2)Press PLAY to start recording.

nIf you want to bypass Video Calibration and start recording right away, set ???VIDEO CALIBRATION??? to "OFF" in step 3 of the Preparation procedure (Z pg. 47).

Accidental erasure prevention

c VHS/S-VHS

To prevent accidental recording on a recorded cassette, remove its safety tab. To record on it later, cover the hole with adhesive tape.

Record safety tab

Recording

Features

C.RESET

???+

Record One Program While

Watching Another

ENGAGE TV MODE

1 During recording...

c Change the TV's input mode from AV to TV.

SELECT CHANNEL FOR

VIEWING

2 Use the TV???s channel selector to set the channel you want to watch.

Display Elapsed Recording

Time

Display Tape Remaining Time

(VHS deck only)

DISPLAY COUNTER

INFORMATION

1 Press OSD.

All indications corresponding to the recorder???s current status are displayed for 5 seconds. The counter display remains on the screen indicating the elapsed time.

DISPLAY TAPE REMAINING

TIME

2 Press OSD repeatedly until ???REMAIN??? appears on screen. The approximate tape remaining time appears on the TV screen and also on the recorder display panel with a "" indicator.

cThe tape remaining time is calculated based on the tape speed (SP or EP) being used. The indicated remaining time is only an estimate.

cPress OSD to change the on-screen display from ???REMAIN??? to ???COUNT??? and vice versa; and to show counter reading, channel number, clock time or tape remaining time on the front display panel. Then channel number will not be displayed when the recorder is playing a tape.

EXIT THE DISPLAY

3 Press OSD again.

NOTES:

c???SUPERIMPOSE??? must be set to ???ON???, or the on-screen display will not appear (Z pg. 41).

cNear the beginning of the tape, the tape remaining estimate may be inaccurate. However, the estimate becomes more accurate as the tape comes closer to the end.

cDepending on the type of tape used, the tape remaining time reading may not appear right away, or may not be correct. "- -:- -" may sometimes appear, or the display may blink on occasion.

cThe tape remaining time indication is not accurate when using VHS-C tapes with VHS-C adapter.

S-VHS (Super VHS), S-VHS

ET and VHS

Your recorder can record in S-VHS, S-VHS ET or VHS.

S-VHS allows you to make high quality video recordings with a horizontal resolution of 400 lines. This compares with the 240 lines of resolution of normal VHS recordings. To achieve the highest quality picture we recommend that you record in S-VHS mode.

By using S-VHS ET it is possible to record and play back with S- VHS picture quality on VHS cassettes with this recorder. For details, refer to the next page.

HM-HDS1

OK

1

OK

???+

RETURN TO NORMAL

SCREEN

4 Press MENU.

NOTE:

When playing back a tape that has been recorded in S-VHS or S-VHS ET, the S-VHS indicator lights on the display panel regardless of the ???S-VHS MODE??? setting.

Super VHS ET

Your recorder is equipped with Super VHS ET that makes it possible to record with S-VHS picture quality on VHS cassettes.

ENGAGE S-VHS ET MODE

1 Press S-VHS ET on the front panel. You can check the current setting (???S-VHS ET : ON??? or ???S-VHS ET : OFF???) if ???SUPERIMPOSE??? is set to ???ON??? (pg. 41). If ???S-VHS ET : OFF??? appears on the TV screen, press S-VHS ET again in about 5 seconds later to set it ???ON???.

???The S-VHS indicator lights up on the front display panel.

To cancel S-VHS ET, press the button again.

NOTES:

cYou cannot activate the S-VHS ET function...

...while recording is in progress.

...while timer-recording (incl. Instant Timer Recording Z pg. 64) is in progress.

...while Video Calibration (Z pg. 47) is in progress.

...when the recorder???s power is off.

cS-VHS ET does not work with S-VHS tapes.

S-VHS ET

This facility allows recording with S-VHS picture quality on VHS cassettes. You can play back those cassettes recorded in S-VHS ET on a VCR equipped with S-VHS ET.

NOTES:

cTo obtain the highest quality recording and playback pictures over a longer period on this model, S-VHS recording on S-VHS tape is recommended.

cYou can play back S-VHS ET recordings not only on this recorder but also on another VHS VCR equipped with S-

VHS ET.

*It is recommended to specifically label S-VHS ET recordings so you can easily distinguish them from regular VHS recordings.

cS-VHS ET recordings can also be played back on an S- VHS VCR or a VHS VCR equipped with SQPB (S-VHS QUASI PLAYBACK) function. However, there may be cases where S-VHS ET playback is not possible on a particular VCR.

cFrequent still, frame-by-frame and slow-motion playback may damage the tape and cause picture degradation.

cWith some tapes, better picture quality may not be obtained even with S-VHS ET recording. It is recom- mended that you do test record beforehand to make sure whether better results can be obtained.

cHigh Grade tapes are recommended for superior results.

cMake sure that ???VIDEO CALIBRATION??? is set to ???ON??? at the Function screen (Z pg. 47).

cDuring S-VHS ET playback, noise may appear depending on tape quality.

cNoise may appear during still, frame-by-frame and slow- motion playback.

cIf the playback picture becomes blurred or interrupted, use a cleaning cassette.

Retake (VHS deck only)

You can cut out unnecessary parts of a TV program while you're recording it.

1

ENGAGE RECORD-PAUSE

MODE

Press PAUSE during recording.

LOCATE START POINT

POWER

yy,, yy,,

HM-HDS1

2

3

Hold down REW or FF and release it when you reach the point where you want to resume recording.

* Your recorder returns to the Record-Pause mode.

RESUME RECORDING

Press PLAY when you wish to resume recording.

1

2

Recorded part

Go back to end of program to cut out unnecessary part

Stereo And SAP

(Second Audio Program)

Your recorder???s built-in MTS decoder enables reception of Multichannel TV Sound broadcasts.

When the channel is changed on the recorder ...

cThe ???STEREO??? indication appears on the screen for about 5 seconds if the program is a stereo broadcast.

cThe ???SAP??? indication appears on the screen for about 5 seconds if the program is a SAP broadcast.

cBoth indications appear when a stereo program is accompanied by SAP audio.

To Record Stereo Programs . . .

. . . simply follow the basic recording procedure.

To Listen To Stereo Soundtrack During Recording . . .

. . . press A. MONITOR to select ???HI-FI??? (Z pg. 46).

HM-HDS1

OK

OK

EN53

TURN ON THE RECORDER

RETURN TO NORMAL

SCREEN

5 Press MENU.

NOTES:

cIf a SAP program is received and ???2ND AUDIO RECORD??? is set to ???ON???, the SAP audio is recorded on both the Normal and Hi-Fi tracks. The main audio program is not recorded.

cIf a non-SAP program is received, the main audio is recorded on both the Hi-Fi and Normal audio tracks.

VCR Plus+??

Timer

Programming

Timer recording allows you to program the recorder to automati- cally record a program that will be broadcast at some future time. The timer record function can be programmed using the VCR Plus+ or Express Timer programming (Z pg. 58) up to 16 shows each on the HDD and VHS decks as far as a year in advance. The VCR Plus+ timer programming system eliminates the need to input channel, date, start and stop time data when setting the timer record function. Simply key in the PlusCode number for the TV program you wish to record and the recorder???s timer will be automatically programmed. (The PlusCode programming numbers are the numbers next to the program in most TV listing.)

Turn on the TV and select the AV mode.

HM-HDS1

-VHS S

DIGITPURE TECHNOLOGY

EJECT

OK

TRANS

3

4

TIMER WEEKLY OK

CHECK PROGRAM DATA

EN55

IMPORTANT

6

The PlusCode number you entered and the matching Timer- Recording information are displayed on the Program screen. Check to make sure their correct.

PROGRAM

PLUS CODE NO. 1 2 3 6 5

If you have moved to a different area or if a broadcasting station??s channel number has been changed, the wrong VCR or CABLE CH number will be displayed on the VCR Plus+ program screen in step 6. When this happens, set the correct the Guide Channel number for that station. (Z pg. 56, ???Changing VCR Plus+?? Setting???)

7

8

cTo change the stop time, press STOP +/???.

cTo timer-record daily or weekly serials, press DAILY (NUMBER key ???8???) or WEEKLY (NUMBER key ???9???). ???DAILY??? or ???WEEKLY??? appears on the Program screen. Pressing the button again makes each corresponding display disappear.

cYou can also set category. 1) Press @#(or 23)

2)Confirm the arrow is on the ???RETURN???, then press OK. The Program screen resumes.

cIf you want to cancel this reservation, move the arrow to ???CANCEL??? by pressing @#(or 23), then press OK. Or, press PROG.

SET TAPE SPEED

Press REC SPEED. Each time the button is pressed, the recording speed changes as follows:

For HDD deck:

SP =LP = EP =SEP =SP =??????

For VHS deck:

SP =EP = SP =??????

RETURN TO NORMAL

SCREEN

Move the arrow to ???CONFIRM??? by pressing @%#??? (or 253???), then press OK. ???PROGRAM COMPLETED??? appears on the screen for a while, then normal screen appears.

cIf there is a conflict in the timer schedule and one program overlaps with another, the correction screen will appear. In this case, correct the program data. See page 60.

cIf you select VHS deck, press TIMER. The recorder turns off automatically and "???" is displayed on the display panel.

NOTES:

cTo disengage the timer before recording starts, press TIMER again. Pressing once more re-engages it.

cIn case of a power failure after programming, the recorder???s memory backup keeps your selections for approximately 60 minutes.

cWhen timer-recording cable channels received through a Cable Box, be sure to keep the Cable Box set to ON.

cIt is not possible to timer-record the same programme on both the VHS deck and the HDD deck simultaneously.

cIf the times that are programmed for recording on the HDD deck and on the VHS deck overlap, the earlier start time takes precedence. If the start times are the same, the VHS deck takes precedence.

Changing VCR

Plus+?? Setting

Turn on the TV and select the AV mode.

IMPORTANT

If you have moved to a different area or if a broadcasting station's channel number has been changed, the wrong VCR or CABLE CH number will be displayed on the VCR Plus+ program screen (Z step 6 on page 55). When this happens, perform the following steps to set the correct the Guide Channel number for that station.

To ensure that the VCR Plus+Timer Recording operates correctly it is necessary to set the VCR Plus+ ???Guide Channel Set??? for each station. Please read the following information carefully.

POWER

POWER

yy,, yy,,

HM-HDS1

VCR Plus+ Guide Channel Matching

VCR Plus+ programming system assigns a VCR Plus+ ???Guide Channel??? to broadcast and cable TV channels. These Guide Channel numbers are also called the VCR Plus+ Channel Codes. Most TV listings have a section, usually a chart, indicating the ???Guide Channel??? numbers assigned to each station. For accurate VCR Plus+ programming the VCR Plus+ Guide Channel number for each station should match the channel number on which it is received in your area.

NOTES:

OK

cIn many instances the VCR Plus+ Guide Channel numbers for cable and broadcast TV stations DO NOT match the channel number on which it is received by your recorder or cable box. Check your TV listing, or contact your cable supplier for details.

cMany broadcast TV stations can be viewed on cable. Check your TV listing, or contact your cable supplier for details.

1

2

TURN ON THE RECORDER

Press POWER.

ACCESS MAIN MENU

SCREEN

Press MENU.

2

OK

OK

3

ACCESS INITIAL SET

SCREEN

1) At the top of Main Menu screen, move the arrow to ???INITIAL SET UP??? by

??? +

pressing @#(or 23), then press ??? (or ???) or OK.

2) At the Initial Set Up SELECT screen, move the

arrow to ???INITIAL SET??? by pressing press OK.

HM-HDS1

4

Press %???(or 5???) to move the arrow to

???GUIDE CHANNEL SET???, then press #(or 3) or OK.

INITIAL SET

CLOCK SET

=GUIDE CHANNEL SET

CABLE BOX SET

DBS RECEIVER SET

SELECT WITH[5,???] THEN[OK]

PRESS[MENU] TO END

OK

5

INPUT GUIDE CHANNEL

NUMBER

Press %???(or 5???) or the appropriate NUMBER keys

to input the VCR Plus+ Guide Channel number as shown in the TV listing. Then press #(or 3) or OK.

c If you receive your channels with a cable

box and if you do not have properly set your Controller, ???CABLE CH??? appears in place of ???VCR CH???. If so, refer to pages 15 ??? 17 and re-perform the procedure.

INPUT RECEIVING CHANNEL

NUMBER (Ex.) If WNJU(Ind.) is received on channel 47

Press %???(or 5???) or the

2

OK

OK

6

appropriate NUMBER keys to input the number of the channel on which the Guide Channel???s broadcasts are received. Then press #(or 3) or

OK.

GUIDE CHANNEL SET

GUIDE CH: 6

CABLE CH: 47

PRESS NUMBER KEY(0-9) OR(5,???), THEN(OK)

PRESS(MENU) TO END

??? +

7

cRepeat steps 5 and 6 for each instance.

RETURN TO NORMAL

SCREEN

Press MENU twice.

Express Timer

Programming

Turn on the TV and select the AV mode.

POWER

HM-HDS1

EJECT

HDD 1

2

1 2

NUMBER

+

You can directly program the recorder???s timer to record up to 16 shows each on the HDD and VHS decks, as far as a year in advance. Remember, the clock must be set before you can program the timer (Z pg. 10 or 12).

cIf you have already

reserved 16 programs, the message and the program check screen will appear.

cIf you want to reset this reservation during this procedure, move the arrow to ???CANCEL??? by pressing @#(or 23), then press OK.

cIf you want to cancel this reservation, press PROG..

SET PROGRAM DATE

4 Press DATE +/???. (The current date is displayed on screen. The date you enter appears in its place.)

c If the date of the next year appears, press DATE +.

SET PROGRAM START TIME

5 Press START +/??? to enter the time you want recording to start.

c Press and hold START +/??? to move in 30-minute increments, or press and release repeatedly to move 1 minute at a time.

SET PROGRAM STOP TIME

6 Press STOP +/??? to enter the time you want recording to stop.

c Press and hold STOP +/??? to move in 30-minute increments, or press and release repeatedly to move 1 minute at a time.

7

8

9

10

11

SET CHANNEL NUMBER

Press CH +/???.

cIf you are using a DBS receiver, see ???ATTENTION FOR DBS RECEIVER USERS??? on next page.

cHolding down CH +/??? rapidly scans through the channels.

SET TAPE SPEED

Press REC SPEED to set the tape speed. Each time the button is pressed, the recording speed changes as follows:

For HDD deck:

SP =LP = EP =SEP =SP =??????

For VHS deck:

SP =EP = SP =??????

SET WEEKLY OR DAILY

Press WEEKLY (NUMBER ???9???) for weekly serials or DAILY(M-F) (NUMBER ???8???) for daily serials (Monday??? Friday).

cWhen WEEKLY is selected in the HDD deck recording, the recorder reserves certain space corresponding to one-program-period, then writes new data over the recorded data every week.

cWhen DAILY(M-F) is selected in the HDD deck recording, the unit reserves certain space corresponding to five-programs-periods, then writes new data over the recorded data everyday (from Monday to Friday).

cWhen index picture for a Weekly or Daily timer program is deleted, the index is assigned as ???RESERVED???.

SET CATEGORY

@%#??? (or 253???),

then press OK. The Program screen resumes.

RETURN TO NORMAL

SCREEN

Move the arrow to ???CONFIRM??? by pressing @%#??? (or 253???), then press OK. ???PROGRAM COMPLETED??? appears on the screen for a while, then normal screen appears.

???If there is a conflict in the timer schedule and one program overlaps with another, the correction screen will appear. In this case, correct the program data. See page 61.

???If you select VHS deck, press TIMER. The recorder turns off automatically and "???" is displayed on the display panel.

EN59

NOTES:

cTo disengage the timer before recording starts, press TIMER again. Pressing once more re-engages it.

cIn case of a power failure after programming, the recorder???s memory backup keeps your selections for approximately 60 minutes.

cPrograms that start after midnight must have the next day???s date.

cAfter timer recording is completed, the recorder???s power goes off automatically.

cYou can program the timer while a regular recording is in progress; the on-screen menu will not be recorded.

cIf the end of tape is reached during timer recording, the cassette is automatically ejected.

cWhen timer-recording cable or satellite channels through an external tuner, be sure to keep the cable box or satellite receiver's power ON.

ATTENTION FOR DBS RECEIVER USERS

If you are using a DBS receiver (unless ???DBS RECEIVER SET??? is set to ???OFF??? Z pg. 19), the SOURCE indication (TV or CATV or DBS) appears above the channel number display. If the channel number that has been entered requires that the source be set, ???7=DBS??? is displayed on the screen. Press the NUMBER key ???7??? to select the desired source.

b??? CATV : To timer-record a cable TV program received on the recorder, or through a cable box (unless ???CABLE BOX SET??? is set to ???OFF??? Z pg.16).

c??? DBS : To timer-record a satellite program received through a DBS receiver.

cIf ???BAND??? is set to ???TV??? at the Tuner Set screen (Z pg.13) and ???CABLE BOX SET??? is set to ???OFF??? at the Cable Box Set screen (Zpg. 16), CATV will not be displayed on the Program screen; If ???BAND??? is set to ???CATV??? or ???CABLE BOX SET??? is set to ???ON???, TV will not be displayed.

Check and Revise the Over- lapped Programs

POWER

POWER

EJECT

HM-HDS1

EN61

Check, Cancel And Revise

Programs

1

2

START +/???

STOP +/???

OK

???

+

cIf you have selected the VHS deck, press OK. The recorder turns off automatically and "???" is displayed on the display panel.

POWER

POWER

yy,, yy,,

HM-HDS1

Auto SP???EP Timer

(VHS deck only)

If, when recording in SP mode, there is not enough tape to record the entire program, the recorder automatically switches to EP mode to allow complete recording. This feature is especially handy when recording a program of more than 2 hours in length.

Make sure you set ???AUTO SP???EP TIMER??? to ???ON??? at the VHS Mode Set screen before the timer recording starts.

OK

TURN ON THE RECORDER

2

OK

OK

??? +

NOTES:

cIf you have programmed the recorder to timer-record 2 or

more programs, the second program and those thereafter may not fit on the tape if you set the Auto SP???EP Timer mode to ???ON???. In this case, make sure the mode is not engaged, then set the tape speed manually during timer programming.

cIn order to ensure that the recording fits on the tape, this feature may leave a slight non-recorded section at the end of the tape.

cThere may be some noise at the point on the tape where the VCR switches from SP to EP mode.

cThe Auto SP???EP Timer feature is not available during ITR (Instant Timer Recording), and the feature will work with the following tapes: T(ST)-30, T(ST)-60, T(ST)-90, and T(ST)-120.

RETURN TO NORMAL

SCREEN

5 Press MENU.

REC LINK

Timer

Recording

(HDD deck only)

HM-HDS1

EN63

REC LINK enables the unit to record automatically from the external equipment with timer function.

In REC LINK mode, when the signals come into the unit from the external equipment, the unit automatically turns on and starts recording on HDD deck.

PREPARE THE EXTERNAL

EQUIPMENT FOR TIMER

RECORDING

1 After timer recording is set, turn off the external equipment connected to the unit.

ENGAGE REC LINK MODE

2 Press REC LINK for about two seconds. The REC LINK button lights up.

cWhile the signals are coming into the unit, the REC LINK button is blinking.

cIf you want to change the recording speed, press REC SPEED on the remote control before pressing

REC LINK.

To cancel REC LINK mode, press REC LINK again.
