Mini DV & HDD & DVD VIDEO RECORDER
IN
INSTRUCTIONS
NTSC
For Customer Use:
Enter below the Model No. and Serial No. which are located on the rear of cabinet. Retain this information for future reference.
Model No.
Serial No.
Mini DV & HDD & DVD VIDEO RECORDER
IN
INSTRUCTIONS
NTSC
For Customer Use:
Enter below the Model No. and Serial No. which are located on the rear of cabinet. Retain this information for future reference.
Model No.
Serial No.
2 SAFETY FIRST
EN
Dear Customer,
Thank you for purchasing the JVC Mini DV & HDD & DVD video recorder. Before use, please read the safety information and precautions to ensure safe use of your new unit.
Cautions
This Class B digital apparatus complies with Canadian
Cet appareil num??rique de la classe B est conforme ?? la norme
The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated ???dangerous voltage??? within the product???s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.
CAUTION:
A UNIT IS A CLASS 1 LASER PRODUCT. HOWEVER THIS
UNIT USES A VISIBLE LASER BEAM WHICH COULD CAUSE
HAZARDOUS RADIATION EXPOSURE IF DIRECTED. BE
SURE TO OPERATE THE UNIT CORRECTLY AS
INSTRUCTED.
WHEN THIS UNIT IS PLUGGED INTO THE WALL OUTLET, DO
NOT PLACE YOUR EYES CLOSE TO THE OPENING OF THE
DISC TRAY AND OTHER OPENINGS TO LOOK INTO THE
INSIDE OF THIS UNIT.
USE OF CONTROLS OR ADJUSTMENTS OR
PERFORMANCE OF PROCEDURES OTHER THAN THOSE
SPECIFIED HEREIN MAY RESULT IN HAZARDOUS
RADIATION EXPOSURE.
DO NOT OPEN COVERS AND DO NOT REPAIR YOURSELF.
REFER SERVICING TO QUALIFIED PERSONNEL.
CLASS 1 LASER PRODUCT
REPRODUCTION OF LABELS
WARNING LABEL INSIDE OF THE UNIT
OR
KLASS 1 M
LASERSTR??LNING
N??R DEN ??R ??PPEN.
TITTA INTE DIREKT P??
DEN MED OPTISKA
INSTRUMENT.
(SW)
WARNING:
TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE
THIS UNIT TO RAIN OR MOISTURE.
CAUTION:
This unit should be used with AC 120VH, 60Hz only.
To prevent electric shocks and fire hazards, DO NOT use any other power source.
CAUTION:
TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF
PLUG TO WIDE SLOT, FULLY INSERT.
ATTENTION:
POUR ??VITER LES CHOCS ??LECTRIQUES, INTRODUIRE
LA LAME LA PLUS LARGE DE LA FICHE DANS LA BORNE
CORRESPONDANTE DE LA PRISE ET POUSSER
JUSQU???AU FOND.

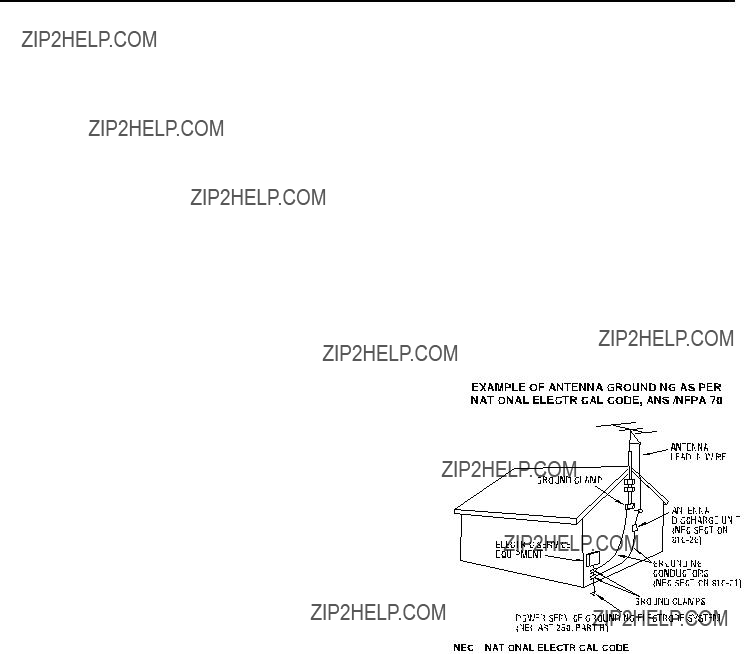

Note to CATV system installer:
This reminder is provided to call the CATV system installer???s attention to Article
CAUTION:
Changes or modifications not approved by JVC could void user???s authority to operate the equipment.
Declaration of Conformity
This device complies with Part 15 of FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
This unit apply to the standard
SAFETY FIRST 3
EN
4 SAFETY FIRST
EN
USE
1.Accessories
To avoid personal injury:
???Do not place this product on an unstable cart, stand, tripod, bracket, or table. It may fall, causing serious injury to a child or adult, and serious damage to the product.
???Use only with a cart, stand, tripod, bracket, or table recommended by the manufacturer or sold with the product.
???Use a mounting accessory recommended by the manufacturer and follow the manufacturer???s instructions for any mounting of the product.
???Do not try to roll a cart with small casters across thresholds or
2. Product and Cart Combination
A product and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the product and cart combination to overturn.
3.Water and Moisture
Do not use this product near water^for
example, near a bath tub, wash bowl, kitchen sink or laundry tub, in a wet
basement, or near a swimming pool and the like.
4.Object and Liquid Entry
Never push objects of any kind into this product through openings as they may touch dangerous voltage points or short- out parts that could result in a fire or electric shock. Never spill liquid of any kind on the product.
5.Attachments
Do not use attachments not recommended by the manufacturer of this product as they may cause hazards.
6.Cleaning
Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.
7.Heat
The product should be situated away from heat sources such as radiators, heat registers, stoves, or other products (including amplifiers) that produce heat.
SERVICING
1.Servicing
If your product is not operating correctly or exhibits a marked change in performance and you are unable to restore normal operation by following the detailed procedure in its operating instructions, do not attempt to service it yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.
2.Damage Requiring Service
Unplug this product from the wall outlet and refer servicing to
qualified service personnel under the following conditions:
a.When the power supply cord or plug is damaged.
b.If liquid has been spilled, or objects have fallen into the product.
c.If the product has been exposed to rain or water.
d.If the product does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions as an improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the product to its normal operation.
e.If the product has been dropped or damaged in any way.
f.When the product exhibits a distinct change in performance^this indicates a need for service.
3.Replacement Parts
When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer or which have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock or other hazards.
4.Safety Check
Upon completion of any service or repairs to this product, ask the service technician to perform safety checks to determine that the product is in safe operating condition.
HOW TO USE THIS INSTRUCTION MANUAL
???All major sections and subsections are listed in the Table Of Contents on page 6. Use this when searching for information on a specific procedure or feature.
???The Index on pages 12 - 15 illustrates the controls and connections on the front and rear panel, the front display panel and the remote control.
???The list of terms on page 86 lists
???The A mark signals a reference to another page for instructions or related information.
???Operation buttons necessary for the various procedures are clearly indicated through the use of illustrations at the beginning of each major section.
BEFORE YOU INSTALL YOUR NEW UNIT . . .
. . . please read the sections/literature listed below.
???ACautionsB on page 2
???AIMPORTANT PRODUCT SAFETY INSTRUCTIONSB on pages 3 - 4
SAFETY FIRST 5
EN
NTSC
???Manufactured under license from Dolby Laboratories. ADolbyB and the
???ADTSB and ADTS DIGITAL OUTB are trademarks of Digital Theater Systems, Inc.
???This unit can play back and record only NTSC signals. PAL signals can also be played back on the DVD deck.
???This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights. Use of this copyright protection technology must be authorized by Macrovision, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision. Reverse engineering or disassembly is prohibited.
MOISTURE CONDENSATION
Moisture in the air will condense on the unit when you move it from a cold place to a warm place, or under extremely humid conditions^just as water droplets form on the surface of a glass filled with cold liquid. In conditions where condensation may occur, disconnect the unit???s power plug from the wall and keep it disconnected for a few hours to let the moisture dry, then turn on the unit.
DISCLAIMER OF LIABILITY
JVC shall not be liable for any loss relating to the unit???s failure to properly record, store or playback any content (video, audio or otherwise) for any reason whatsoever. Any applicable warranties shall only cover replacement or repair of the effected unit, and shall not apply to recovery or replacement of lost content.
When the equipment is installed in a cabinet or a shelf, make sure that it has sufficient space on all sides to allow for ventilation
(10 cm or more on both sides, on top and at the rear).
When discarding batteries, environmental problems must be considered and the local rules or laws governing the disposal of these batteries must be followed strictly.
Failure to heed the following precautions may result in damage to the unit, remote control or disc/cassette.
1.DO NOT place the unit ^
^in an environment prone to extreme temperatures or humidity.
^in direct sunlight.
^in a dusty environment.
^in an environment where strong magnetic fields are generated.
^on a surface that is unstable or subject to vibration.
2.DO NOT block the unit???s ventilation openings or holes.
(If the ventilation openings or holes are blocked by a newspaper or cloth, etc., the heat may not be able to get out.)
3.DO NOT place heavy objects on the unit or remote control.
4.DO NOT place anything which might spill on top of the unit or remote control.
(If water or liquid is allowed to enter this equipment, fire or electric shock may be caused.)
5.DO NOT expose the apparatus to dripping or splashing.
6.DO NOT use this equipment in a bathroom or places with water. Also DO NOT place any containers filled with water or liquids (such as cosmetics or medicines, flower vases, potted plants, cups, etc.) on top of this unit.
7.DO NOT place any naked flame sources, such as lighted candles, on the apparatus.
8.AVOID violent shocks to the unit during transport.
ATTENTION:
8Using a mobile phone in the vicinity of the unit may cause picture vibration on the TV screen or change the screen to a black back display.
8Some TVs or other appliances generate strong magnetic fields. Do not place such appliances on top of the unit as it may cause picture disturbance.
8When moving the product, press A to turn off the power, and wait at least 30 seconds before unplugging the power cord. Then, wait at least 2 minutes before moving the product.
8If there is a power outage when using the unit, the recorded data may be erased.
8It is recommended to back up discs which contain important recordings periodically (every few years). As digital signals do not deteriorate, failure to play back or record might arise due to the effects of the disc aging through the years depending on the storage environment.
8Recorded programs and data cannot be restored once the disc or tape is damaged.
6 CONTENTS
EN
8 DISC INFORMATION
EN

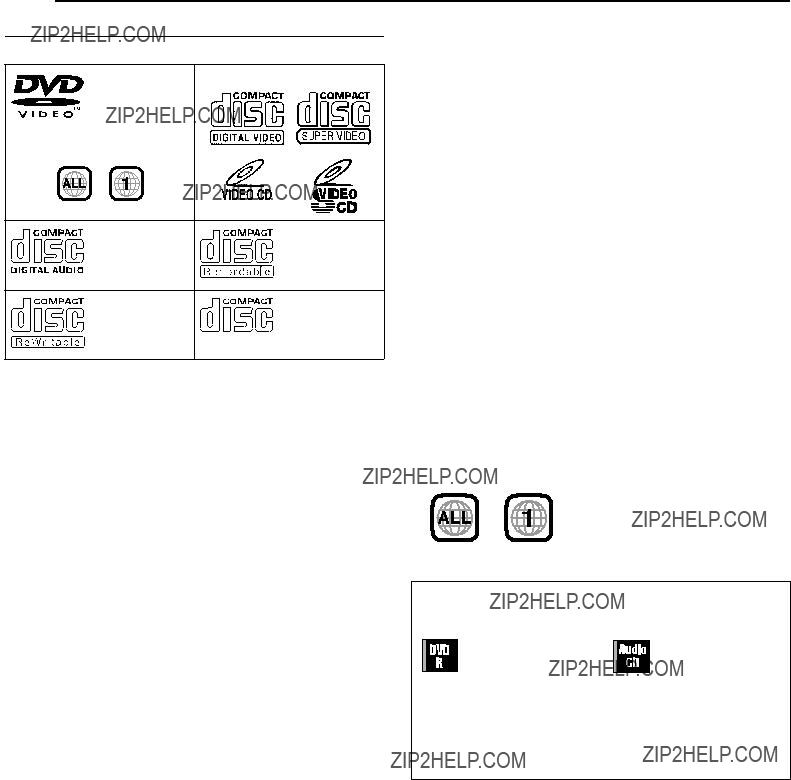

Discs For Playback Only
You can use discs with the following logos for playback only.
(example of region code indications)
???Playback may not be performed depending on the characteristics and condition of the disc used.
???DTS Audio CDs can also be played back (An optional DTS decoder is required).

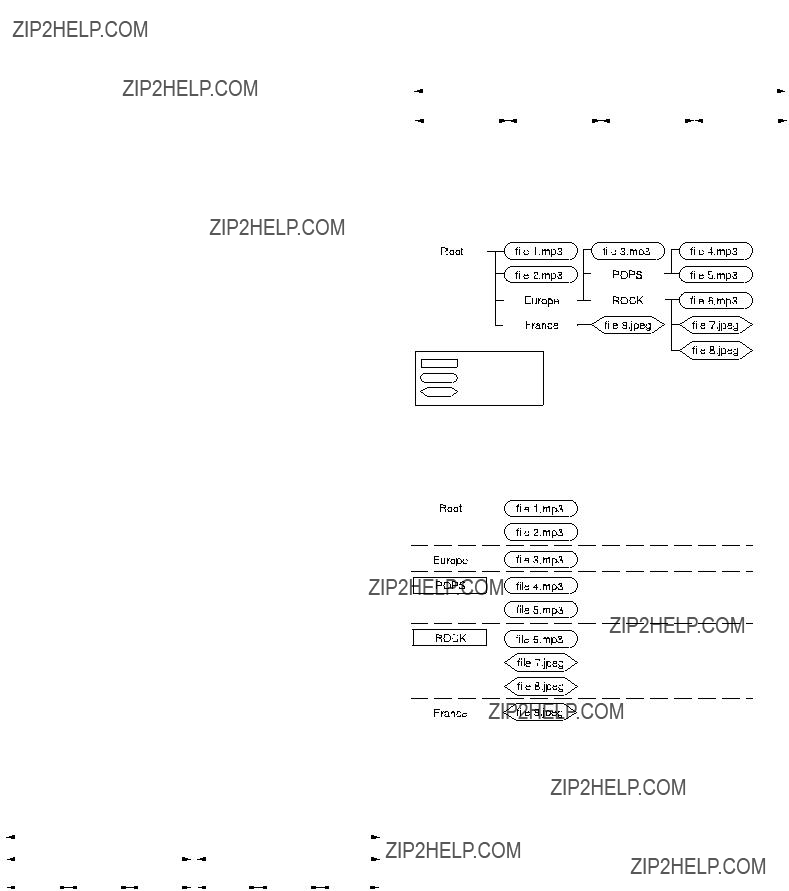

???MP3 and JPEG discs can be played back on this unit only when they have been recorded in the ISO9660 or Joliet format and finalized.
???JPEG files that can be played back on this unit must conform to JFIF/Baseline process, and the maximum resolution of a JPEG file is 2,812 pixels in width and 2,112 pixels in height.
???
???Operation and audio quality of this unit are not guaranteed for discs that do not conform to the Compact Disc specification
Before you play back a CD, check for the CD logo and read the notes on the package to confirm that it conforms to the Compact Disc specification.
???Depending on the intentions of the author of the software, recording conditions of DVD discs and Video CD/SVCD discs may be restricted. Since this unit plays back discs according to the intentions of the author of the software as indicated on the disc, some functions may not operate as commanded.
???When switching from the first layer to the second layer of double- layered DVD VIDEO discs, the image and sound may be momentarily distorted. This is not a malfunction.
???
???Super Audio CDs (SACD) compatible with conventional CD players can be played.
???+R/+RW discs recorded and finalized in Video mode can be played. ADVDB will light on the front display panel.
Unplayable Discs
The following types of discs cannot be played using this unit. Do not attempt to play back any kind of disc that is damaged (cracked, warped, or repaired with adhesive tape) or discs in
unusual shapes
???
???Discs recorded in Packet Write (UDF) format
???
???High density CDs (HDCD)
The following discs also cannot be played back.
???Discs of a region number other than A1B
???
???
Caution for DualDisc playback
The
Region Number
The world is divided into 6 regions for DVD VIDEO discs.
DVD VIDEO discs are assigned a region number to indicate which region they may be played back in. A disc cannot be played back on this unit unless the region number of the disc matches that of the unit. The region number for this unit is A1B. Only discs whose region number includes A1B or AALLB can be played back such as shown below.
Examples of DVD VIDEO labels which can be played back using this unit.

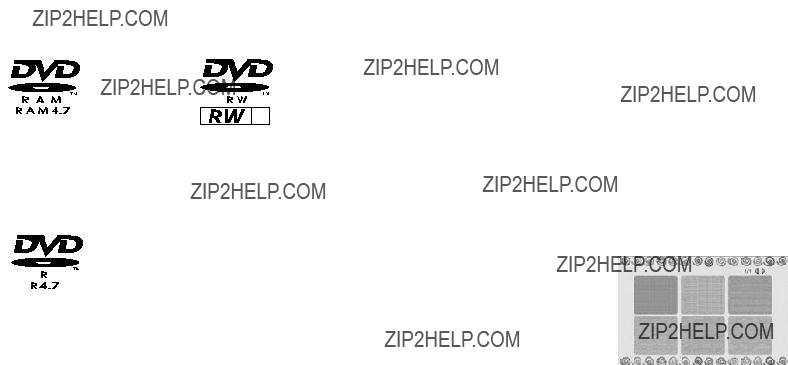

Marks of discs in this instruction manual
When you record a program on a
A single recording session results in a single title (a single chapter). However, chapter marks are automatically inserted when recording is paused, or audio changes from monaural to stereo due to commercial breaks, etc. It is also possible to insert chapter marks at desired locations during playback. (A pg. 25)
10 EN DISC INFORMATION

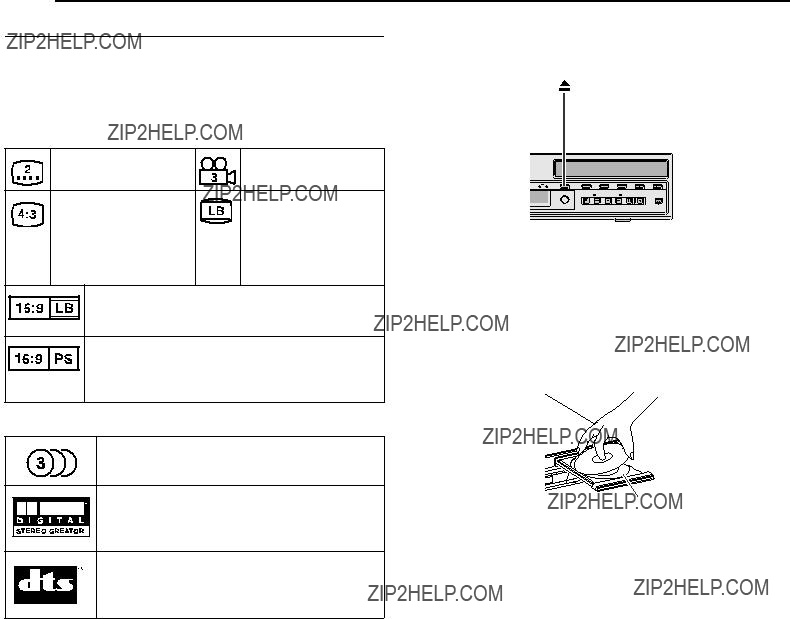

DVD VIDEO MarksPlacing A Disc
Sometimes marks are printed on a DVD disc and/or on its packaging to indicate information regarding the contents and functions of the disc. Check the marks indicating the contents and functions of the disc. Note, however, that in some cases a disc may not include a mark even for a function it supports.
Marks related to video
Video playback is in Wide video mode (16:9) on wide televisions, but in letter box on televisions with standard 4:3 aspect ratio.
Video playback is in Wide video mode (16:9) on wide televisions, but pan and scan is used on televisions with standard 4:3 aspect ratio (either the left or right side of the image is
Marks related to audio
Number of audio tracks
Dolby Digital Stereo Creator mark Developed by Dolby Laboratories. It enables audio recording in
DTS (Digital Theater Systems)

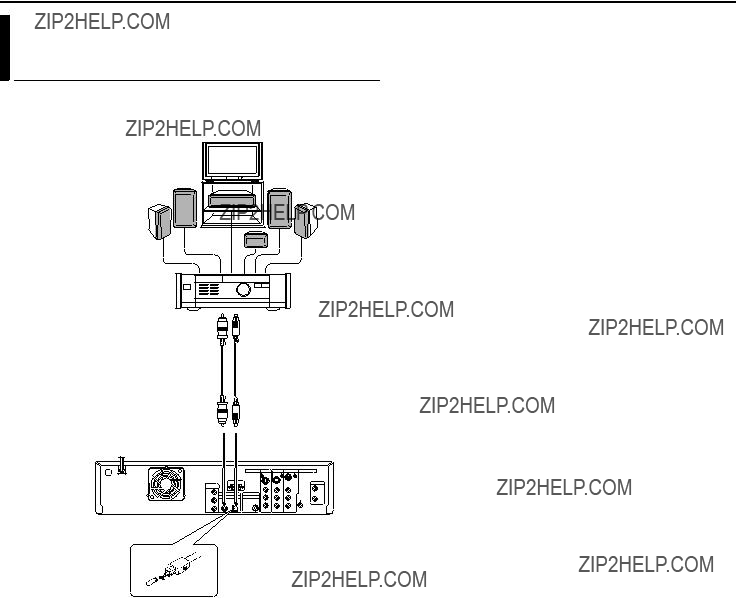

You can enjoy DTS audio if you connect an amplifier with a
Opening the disc tray
Press M to open the disc tray.
???Pressing the button again closes the disc tray.
???Use the button to open and close the disc tray.
???Do not block the disc tray with your hand while it is opening or closing as this may result in hardware failure.
???Do not place unplayable discs or any object other than a disc on the disc tray.
???Do not press down strongly on the disc tray or place any heavy objects on it.
Discs without cartridges
Disc tray
Place the disc on the disc tray with the label side facing up. Since disc size changes depending on the disc to be played back, be sure to correctly align the disc with the grooves for its size. If the disc is not in its groove, it may be scratched or otherwise damaged. To insert an 8 cm disc, place it according to the inner groove.
Remove the disc from the cartridge. Align the disc with the grooves on the disc tray as shown in the illustration and insert with the side you wish to play back or record facing down. If you insert the disc with ASide AB facing down, programs are recorded on the side A.
Remove the disc from the cartridge. Align the disc with the grooves on the disc tray as shown in the illustration and insert with the label side facing up.
DISC INFORMATION EN 11

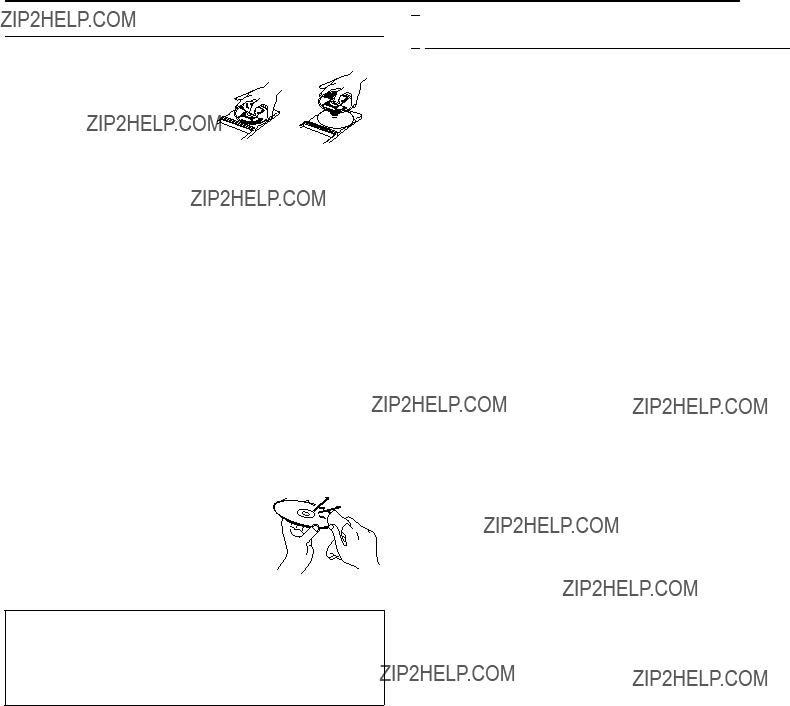

Care And Handling Of Discs
How to handle discs
When handling a disc, do not touch the surface of the disc.
Since discs are made of plastic, they are easily damaged. If a disc gets dirty, dusty, scratched or warped, the images and sound will not be
picked up correctly, and such a
disc may cause the unit to malfunction.
Label side
Do not damage the label side, stick paper to or use any adhesives on its surface.
Recording side
Make sure that discs are not scratched or dirty on the recording side before use. Scratches and dirt on the recording side of a disc may hinder proper playback and recording. Also be careful that a
Storage
Make sure that discs are kept in their cases. If discs are piled on top of one another without their protective cases, they can be damaged. Do not put discs in a location where they may be exposed to direct sunlight, or in a place where the humidity or temperature is high. Avoid leaving discs in your car!
Maintenance of discs
If there are fingerprints or other dirt adhering to a disc, wipe with a soft dry cloth, moving from the centre outwards.
If a disc is difficult to clean, wipe with a cloth moistened with water. Never use record cleaners, petrol, alcohol or any
CAUTION:
Sometimes during playback, noise may appear or images may be garbled. This is sometimes due to the disc. (It may not be up to industry standards.)
These symptoms are caused by the discs, not by the malfunction of the unit.
Life Span Of Parts
Cooling fan
Periodical inspection and maintenance are requisite to maintain the initial performance and reliability of the product.
We recommend the exchange of the fan motor every three years.
HDD
The HDD is a consumable part. Please arrange for maintenance after an estimated usage of 10,000 hours (this estimation is based on usage under the environment of 25f, it may differ depending on the usage environment).
Please consult your authorized dealer or nearest JVC service center on the maintenance and cost.
12 EN INDEX

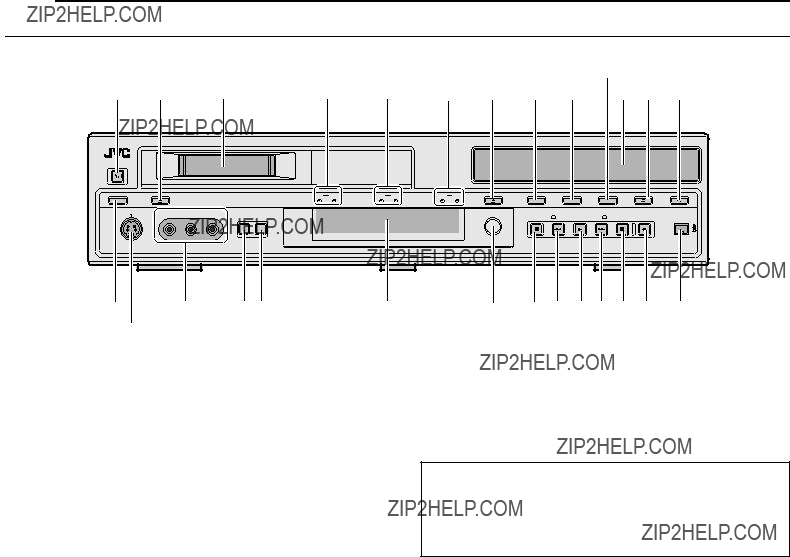

Front View
J
A B C D E F G H I K L M
ASTANDBY/ON Button (A)
BEject Button (M) (DV) A pg. 33
CMini DV Cassette Loading Slot
DDV Lamp (DV) A pg. 33
DV Recording Lamp (REC)
EHDD Lamp (HDD) A pg. 20
HDD Recording Lamp (REC)
FDVD Lamp (DVD) A pg. 20, 22
DVD Recording Lamp (REC)
GEject Button (M) (DVD) A pg. 10
HDV/HDD/DVD Select Button (DV/HDD/DVD) A pg. 22, 31, 33
???This button will not function during navigation mode or set up mode.
IRecording Mode Button (REC MODE) A pg. 50
JInstant Replay Button (INSTANT REPLAY) A pg. 24, 32, 34
KDisc Tray
LAudio Dubbing Button (AUDIO DUB.) A pg. 56
MInsert Button (INSERT) A pg. 57
NDisplay Button (DISPLAY) A pg. 25
O
PVideo/Audio Input Connectors [VIDEO/AUDIO ((MONO) L/R)] A pg. 52
QInput Select Button (INPUT SELECT) A pg. 50, 52
ROutput Select Button (OUTPUT SELECT)
???Switches between AALLB (DV/HDD/DVD output) and ADVB (DV output) when pressed. When AALLB is selected, DV, HDD or DVD signals are output from the [DV/HDD/DVD OUTPUT] connectors on the rear panel depending on the deck selected. When ADVB is selected, DV signals are output regardless of the deck selected.
ATTENTION:
If ADVB is selected, ADVB and AOUTPUT DVB blink on the front display panel and TV screen respectively when EDIT or NAVIGATION is pressed while in the HDD/DVD deck mode. Press OUTPUT SELECT to stop the blinking and return to the previous display.
SFront Display Panel A pg. 14
TInfrared Beam Receiving Window
UStop Button (o) A pg. 22, 31
VReverse Search Button (O) (HDD & DVD deck) A pg. 23, 36
Rewind Button (O) (DV deck) A pg. 33, 34
WPlay Button (I) A pg. 22, 31
XForward Search Button (N) (HDD & DVD deck) A pg. 23, 36
Fast Forward Button (N) (DV deck) A pg. 33, 34
YPause Button (W) A pg. 22, 31
ZRecord Button (R)
aDV Input/Output Connector [DV IN/OUT(A*)] A pg. 50
???This connector can also be used as a direct connection to NLE
editing and archiving.
* A (i.Link) refers to the
INDEX EN 13

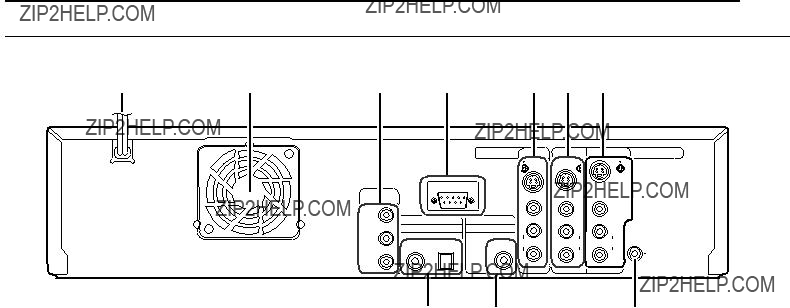

Rear View
PR
AAC Power Cord A pg. 18
BCooling Fan
???This prevents the temperature from rising inside the unit. Do not remove it.
???Install the unit so as not to block the area around the fan.
???The unit may become hot when it is turned off, as the cooling fan on the rear of the unit is not activated. However, the cooling fan may be activated in the standby mode when AQUICK STARTUPB is set to AONB.
CComponent Video Output Connectors [COMPONENT VIDEO OUT (Y/PB/PR)] (HDD & DVD deck only) A pg. 18

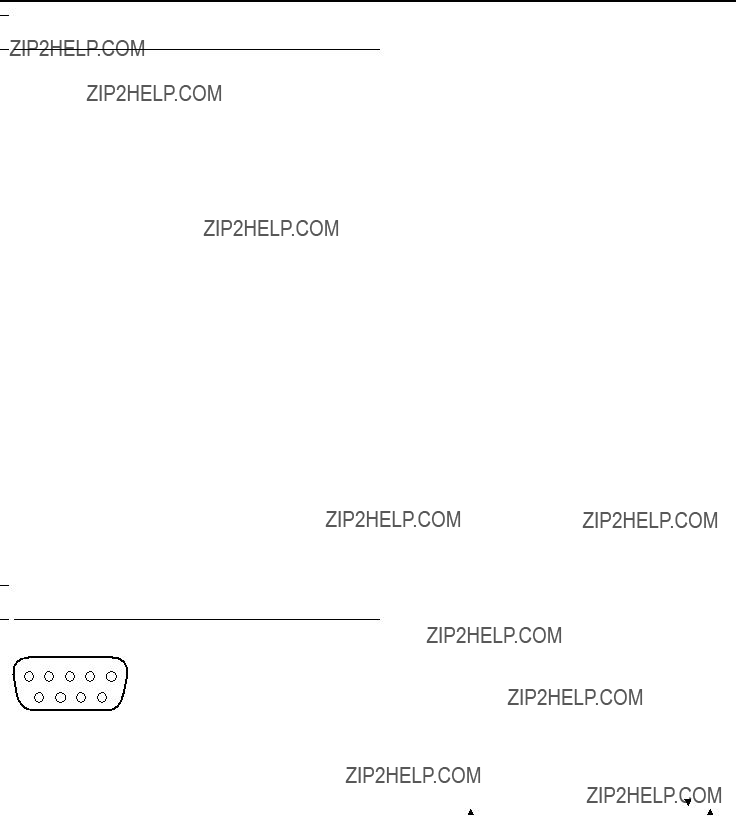

DSerial Command Connector
???Use this connector when controlling this unit via a computer. The cable to be used should be a
H I J
E
???These connectors only output DVD/HDD signals and can be used to connect to a second monitor.
F
G
HDigital Audio Output Connectors
[DIGITAL AUDIO OUTPUT (OPTICAL/COAXIAL)] (HDD & DVD deck only) A pg. 55, 59
IBNC Video Output Connector [VIDEO OUTPUT] A pg. 18
JRemote Input Connector* [REMOTE IN]
* There is currently no compatible remote control unit available.
14 EN INDEX

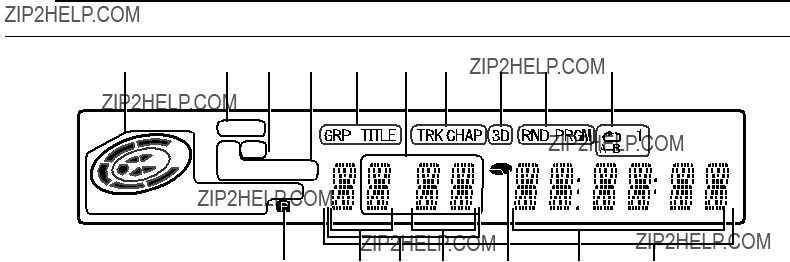

Front Display Panel
A B C D E F G H I J
LPCM
FR
XP SP LP EP
VR
ADisc Type Indicator
When a disc is loaded, the type of the disc is indicated.
Disc Status Indicator
When a disc is running, the disc marks rotate.
VR Mode Indicator (VR) A pg. 63
Lights when a
BLinear PCM Indicator (LPCM)
Lights when AXP MODE REC AUDIOB is set to ALINEAR PCMB (A pg. 61) for recording with HDD,
CCassette Loaded Mark (u)
Indicates the present of a cassette in the DV deck.
Lights when a cassette is loaded into the DV deck. It will remain lit as long as the cassette is loaded, even if the HDD or DVD deck is being selected.
DRecording Mode Indicator (XP/SP/LP/EP/FR) A pg. 51
Blinks when recording mode is being set.
While AFRB is blinking, the left 3 digits of the Multi Display (L N) indicate setting values ranging from A60B to A480B. After the value has been set, only AFRB lights.
EGroup/Title Indicator (GRP/TITLE)
AGRPB or ATITLEB lights depending on a disc loaded while the left 2 digits of the Multi Display (L) indicate the numbers explained below.
AGRPB: Total number of groups or group number being played back are displayed on the Multi Display.
ATITLEB: Total number of titles or title number being played back are displayed on the Multi Display.
FExternal Input Indicator
Indicates the external input selected.
GTrack/Chapter Indicator (TRK/CHAP)
ATRKB or ACHAPB lights depending on a disc loaded while the 3rd and 4th digits from the left of the Multi Display (N) indicate the numbers explained below.
ATRKB: Total number of tracks or track number being played back are displayed on the Multi Display.
ACHAPB: Chapter number being played back are displayed on the Multi Display.
HSimulated Surround Effect Indicator (3D) A pg. 29
Lights when a simulated surround effect is set to
IRandom/Program Playback Mode Indicator (RND/PRGM) A pg. 30
ARNDB: Lights when Random Playback mode is set.
APRGMB: Lights when Program Playback mode is set.
JRepeat Mode Indicator
Select Repeat Playback mode on the
repeatedly.
No display: Repeat Playback mode is off.
KVideo Output Indicator (q) A pg. 68
No display: Indicates that interlace mode is engaged.
q:Indicates that progressive mode is engaged. (Example) qlights when video output mode is in progressive
mode.
LGroup/Title Number Display
MAudio Dubbing/Insert Editing Indicator
AADUBB or AINSB lights up during Audio Dubbing or Insert Editing respectively.
NTrack/Chapter Number Display
ORemaining Time/Elapsed Time Indicator A pg. 25
Lights when remaining time of HDD,
The right 6 digits of the Multi Display (P) indicate elapsed or remaining time of each track.
No display: Indicates elapsed time of the disc.
Displayed: Indicates remaining time of the disc.
PRemaining Time/Elapsed Time Display A pg. 25 Time Code Display A pg. 34
QMulti Display
Displays clock, received channel, elapsed time, and remaining time.
Also displays status of the unit (NO DISC/OPEN/CLOSE/ READING).
INDEX EN 15

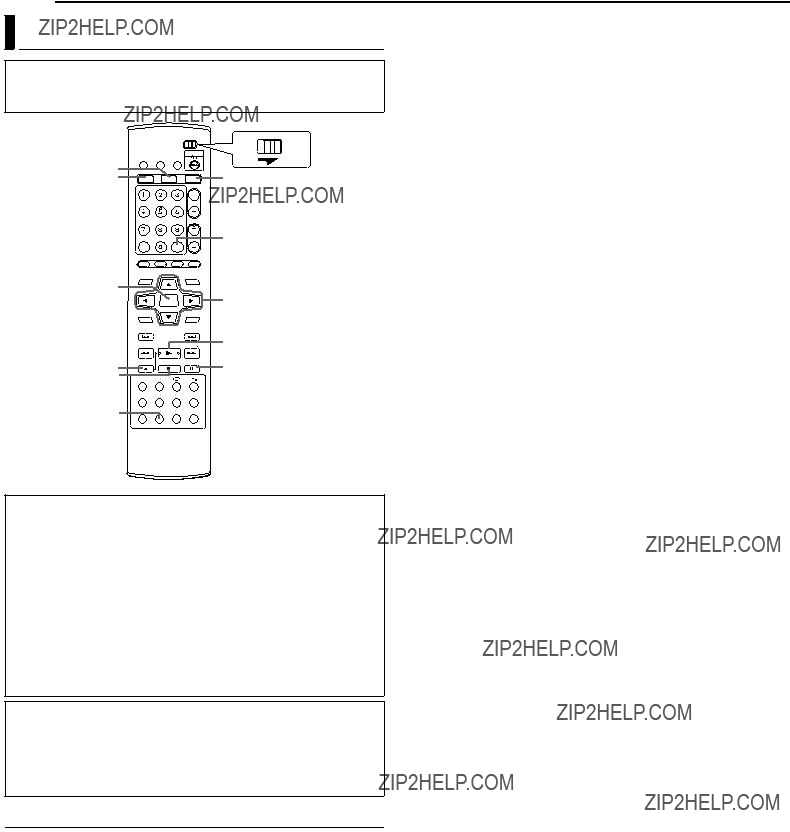

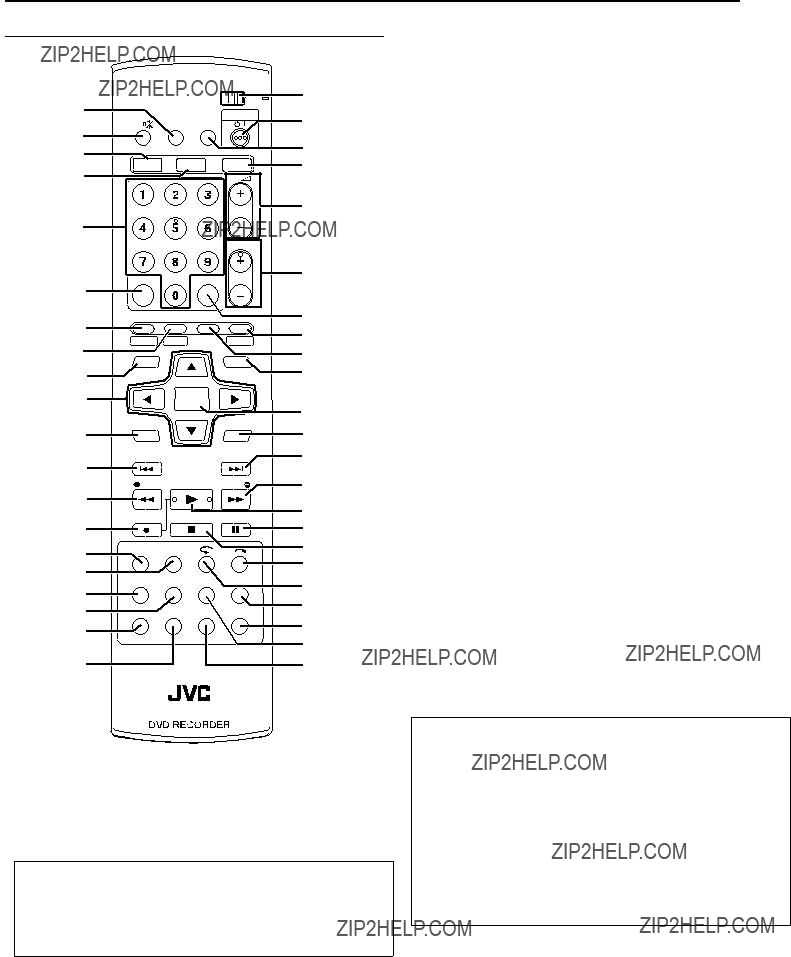

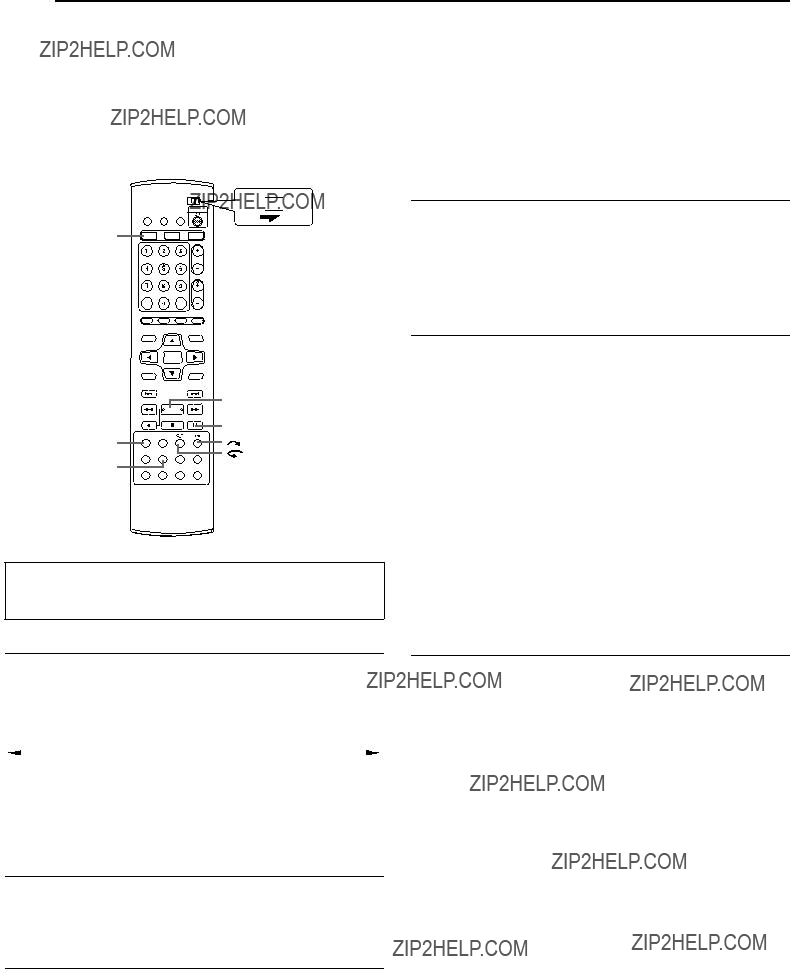

Remote Control
JSelection Keys (FGDE) A pg. 19
KMenu Button (MENU) A pg. 23
LReverse Skip Button (S) A pg. 23, 36, 32 Previous Button (PREVIOUS): A pg. 26
MReverse Search Button (O) (HDD & DVD deck) A pg. 23, 36
Rewind Button (O) (DV deck) A pg. 33 Reverse Slow Button (SLOW
NRecord Button (R)
ODisplay Button (DISPLAY) A pg. 25, 34
P
QRecording Mode Button (REC MODE) A pg. 50 Remain Button (REMAIN) A pg. 25
RAudio Button (AUDIO) A pg. 26
SEE Button A pg. 36
TDubbing Button (DUBBING) A pg. 46
UTV/DVD switch A pg. 20, 58
VSTANDBY/ON Button (A)
WTV/VIDEO Button A pg. 58
XDVD Button* A pg. 22
* This button will not function during navigation mode or set up mode.
YTV Volume Buttons (TV8
ZTV Program Buttons (PR/CH
Input Select Button (INPUT SELECT
aMemo Button (MEMO) A pg. 39, 43 Mark Button (MARK) A pg. 25
bProgramming Button (PROG): Not use on this unit.
cEdit Button (EDIT) A pg. 39
dNavigation Button (NAVIGATION) A pg. 38, 45
eEnter Button (ENTER) A pg. 20
fReturn Button (RETURN) A pg. 26, 28
gForward Skip Button (T) A pg. 23, 36 Next Button (NEXT): A pg. 26
hForward Search Button (N) (HDD & DVD deck) A pg. 23, 36
Fast Forward Button (N) (DV deck) A pg. 33 Forward Slow Button (SLOW +) A pg. 23
iPlay Button (I) A pg. 22, 31
jPause Button (W) A pg. 22, 31
kStop Button (o) A pg. 22, 31 Clear Button (CLEAR) A pg. 30
lSkip Search Button (v) A pg. 24, 31, 34, 36
mInstant Replay Button (w) A pg. 24, 32, 34, 36, 37
nAngle Button (ANGLE) (DVD deck only) A pg. 25 EE Check Button (EE CHECK) A pg. 36
oSet Up Button (SET UP) A pg. 20, 60
pSubtitle Button (SUBTITLE) A pg. 26
qProgressive Scan Button (PROGRESSIVE SCAN) A pg. 68
AOutput Select Button (OUTPUT SELECT)
???Switches between AALLB (DV/HDD/DVD output) and ADVB (DV output) when pressed. When AALLB is selected, DV, HDD or DVD signals are output from the [DV/HDD/DVD OUTPUT] connectors on the rear panel depending on the deck selected. When ADVB is selected, DV signals are output regardless of the deck selected.
ATTENTION:
If ADVB is selected, ADVB and AOUTPUT DVB blink on the front display panel and TV screen respectively when EDIT or NAVIGATION is pressed while in the HDD/DVD deck mode. Press OUTPUT SELECT to stop the blinking and return to the previous display.
BTV Muting Button (TV d) A pg. 58
CDV Button* A pg. 33
* This button will not function during navigation mode or set up mode.
How To Use
Before use, insert two AA size batteries into the remote control with the polarity (F and G) matched correctly as indicated on the battery compartment or on the lid.
The remote control can operate most of your unit???s functions, as well as basic functions of TV sets of JVC and other brands.
(A pg. 58)
???Point the remote control toward the receiving window.
???The maximum operating distance of the remote control is about 8 m.
NOTE:
If the remote control doesn???t work properly, remove its batteries, wait a short time, replace the batteries and then try again.
DHDD Button* A pg. 31
* This button will not function during navigation mode or set up mode.
ENumber Keys A pg. 58
FCancel Button (CANCEL) A pg. 30
GF1 Button: A pg. 68
HF2 Button: A pg. 64, 65
ITop Menu Button (TOP MENU) A pg. 23
16 EN INDEX

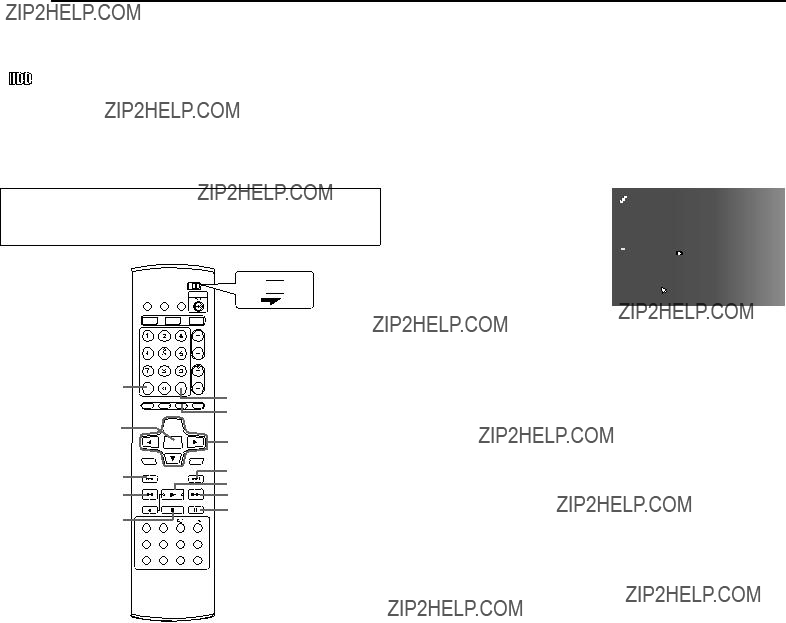

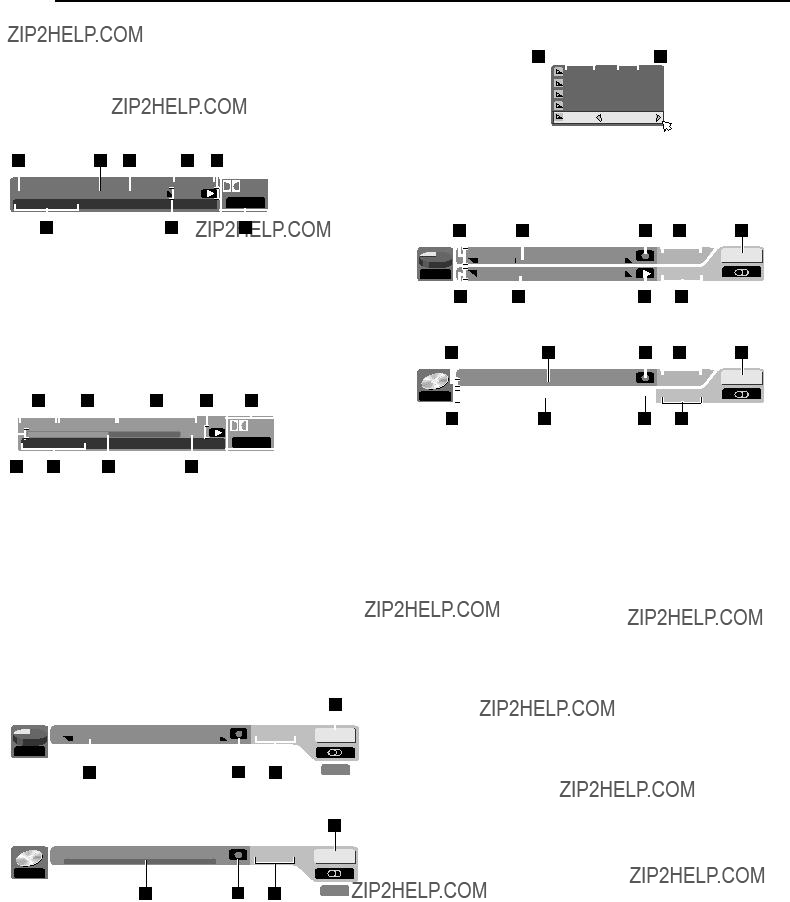

When playing back a recorded title
HDD
ATitle start
BCurrent playback point
CTitle end
DElapsed playing time
EPlay mode
FName of title currently being played back
GTime scale (This title is an hour and a half long.)
HAudio mode
DVD
APlayback title number
BPlayback chapter number
CDisc remaining time
DCurrent status (playback)
EAudio mode
FBar meter
GName of title (or play list) currently being played back
HCurrent playback point
IRecorded mode*
* Depending on the recording condition, the recorded mode may not always be displayed.

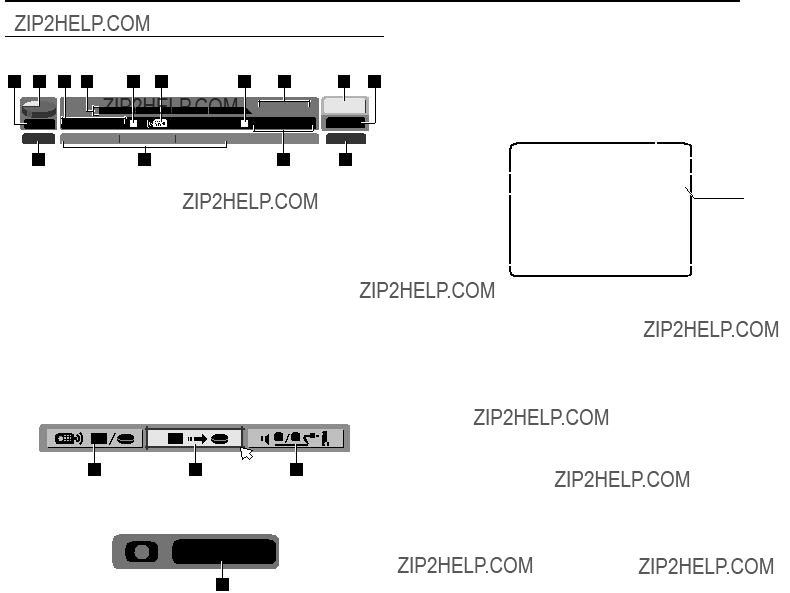

When recording
HDD
ARemaining disc time for each recording speed
BRecording speed
When using Live Memory playback
HDD
FR360
11:33AM
ATime scale for recording (HDD deck) Bar meter for recording (DVD deck)
BCurrent recording point
CRecording mode
DCurrent time
ECurrent playback channel position number
FTime scale for Live Memory Playback (HDD deck) Bar meter for Live Memory Playback (DVD deck)
GCurrent playback point
HLive Memory playback mode
ICurrent playback time
DVD
ARecording point
BCurrent status (recording)
CCurrent time
DRecording channel number
INDEX EN 17
ARecording speed
BHDD capacity graph
CHDD time counter
DRecording time scale
EHDD mode
FRemote control mode
GConnected DV equipment mode
HConnected DV equipment model information
IInput channel
JSound mode
KSound input
* Indicates the sound
LConnected DV equipment information*
* Maker name and model name, etc. may not appear depending on the connected equipment.
MTime counter for the connected DV equipment
NSound monitor mode
When ASUPERIMPOSEB is set to AONB or AAUTOB and
ON SCREEN on the remote control is pressed, various operational indicators appear on the TV screen. To clear the operational indicators, press ON SCREEN again.
AOperation Mode Indicators
BTape Speed (SP/LP)
CSound Mode Display A pg. 62
DCurrent Month/Day/Year/Clock Display/Time Code Display A pg. 34
EAudio Mode Display A pg. 34
FWarning Message
GAuxiliary Input Indicator
HACassette LoadedB Mark
ORemote control switch
PAuto capture button
QSound monitor switch
179 : 59 : 59
R Elapsed recording time
18 EN INSTALLING YOUR NEW UNIT
It???s essential that your unit be properly connected.
Connect the unit to a TV depending on the TV and cables you use.

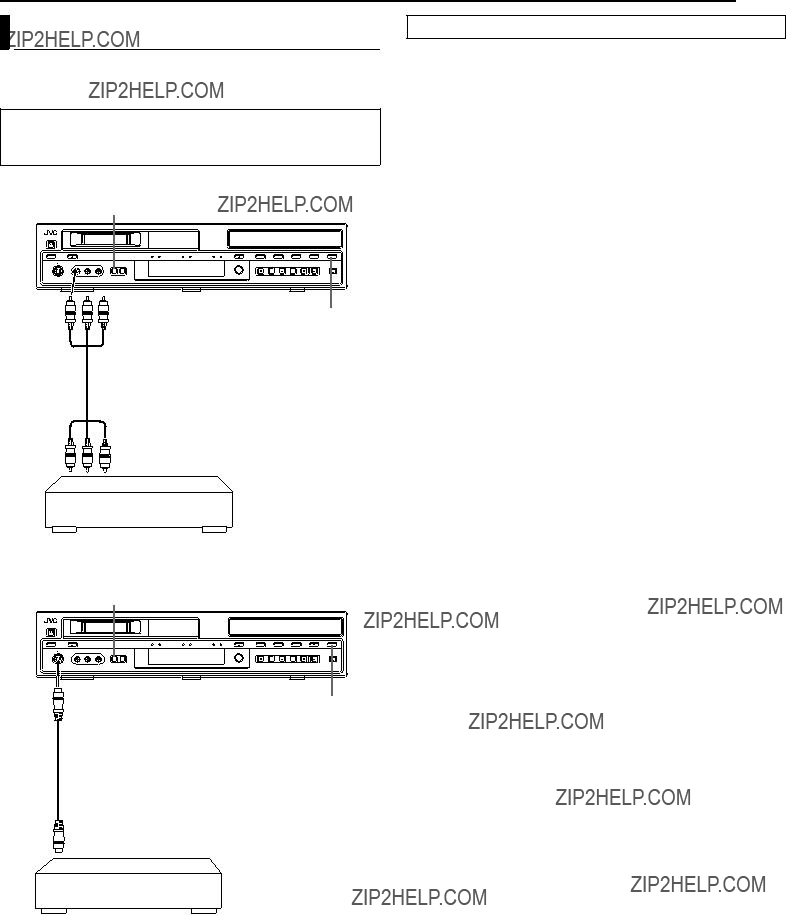

8 AV Connection
To connect to a TV with AV connector ^
AConnect the [AUDIO/VIDEO OUTPUT] connectors on the rear panel of the unit and the TV???s audio/video input connectors with the supplied Audio/Video cable.
To connect to a TV with BNC connector ^
AConnect an optional audio cable between the [AUDIO OUTPUT] connectors on the rear panel of the unit and the TV???s audio input connectors.
BConnect an optional BNC video cable between the unit???s BNC [VIDEO OUTPUT] connector and the TV???s BNC VIDEO input connector.
8
To connect to TV???s
AConnect the unit???s
BConnect the unit???s [AUDIO OUTPUT] connectors to the TV???s AUDIO input connectors.
???If your TV is not
8 Component Video Connection
To connect to TV???s component video input connectors ^
AConnect the unit???s [COMPONENT VIDEO OUT (Y/PB/PR)] connectors to the TV???s component video input connectors.
BConnect the unit???s [AUDIO OUTPUT] connectors to the TV???s AUDIO input connectors.
???You can obtain
???The [COMPONENT VIDEO OUT (Y/PB/PR)] connectors do not output DV signals.
???If your TV is not
???By using the component video connection, you can view the images in the progressive mode. For switching to the progressive mode, refer to AScan Mode Set (HDD & DVD Deck Only)B (A pg. 68).
ATTENTION:
Connect the AC plug only after all connections to the TV has been completed.
???Make sure the package contains all of the accessories listed in ASPECIFICATIONSB (A pg. 85).
???Place the unit on a stable, horizontal surface.

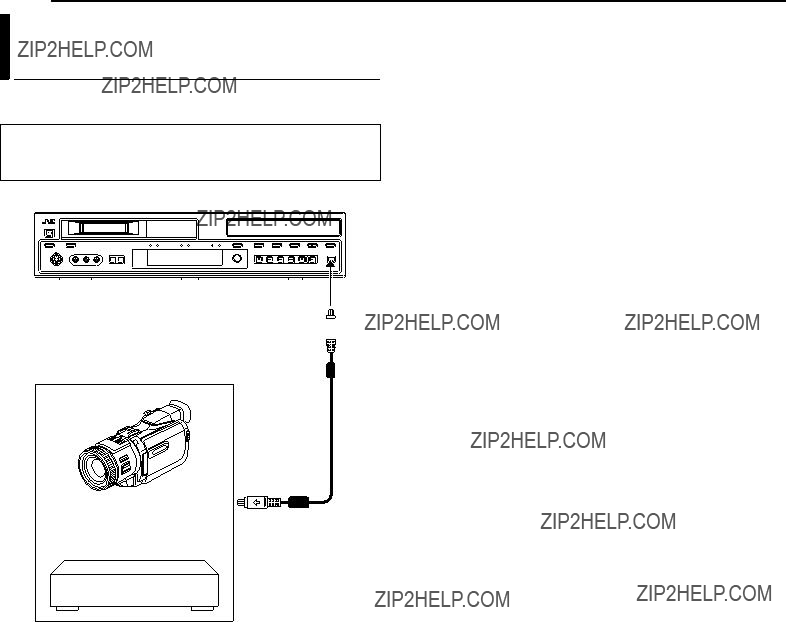

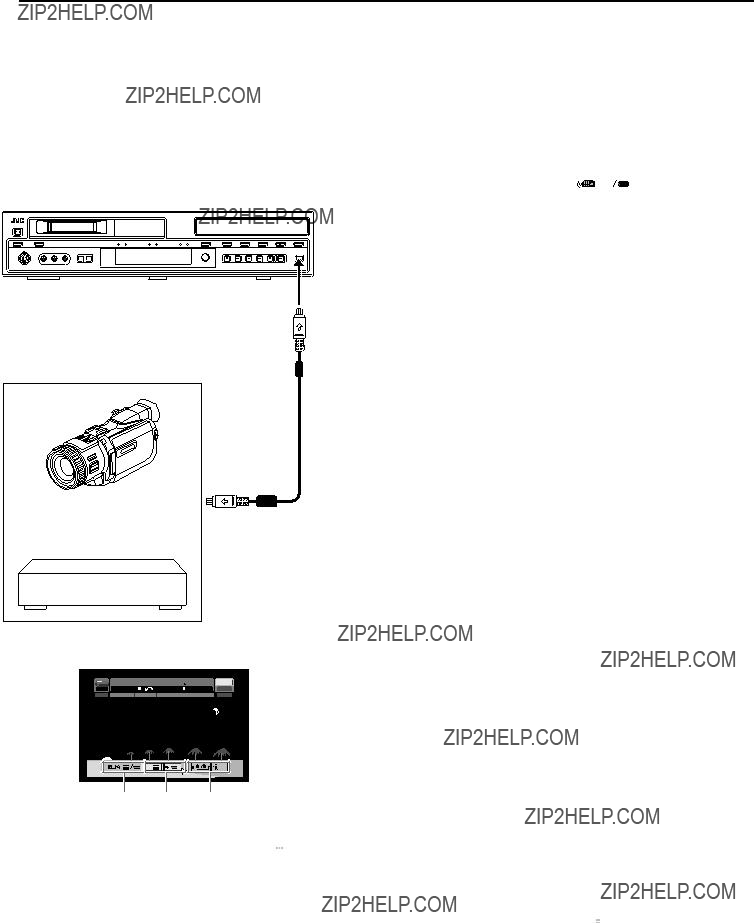

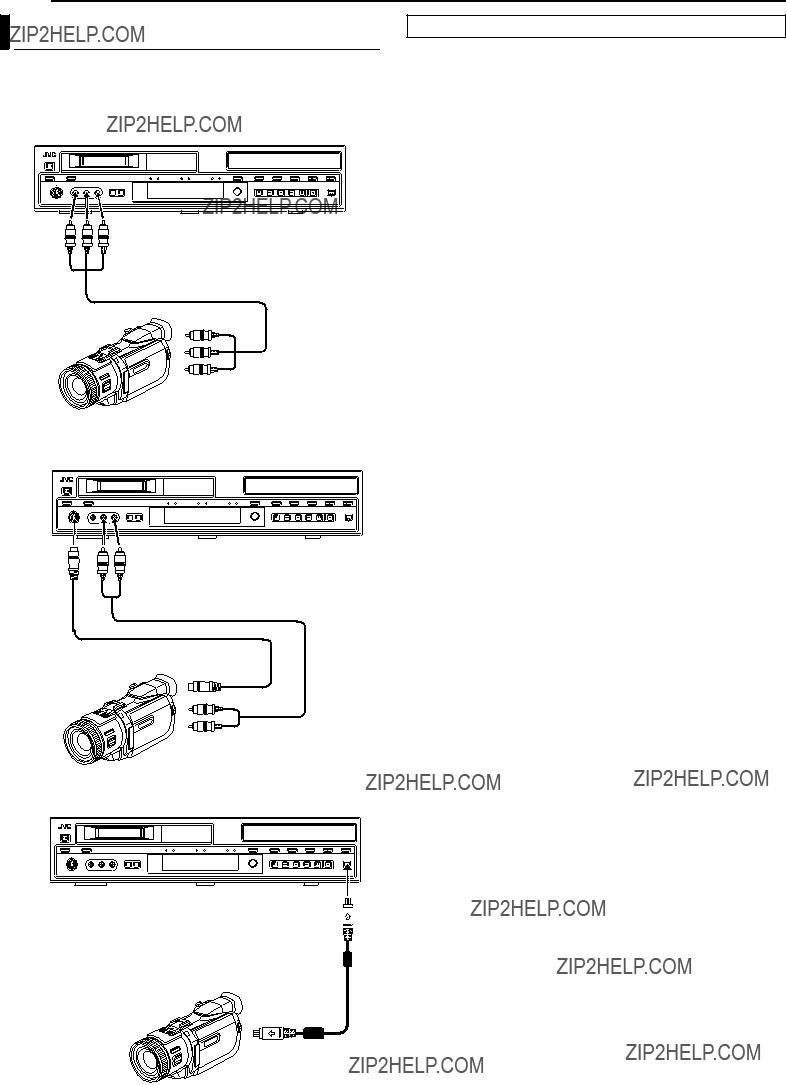

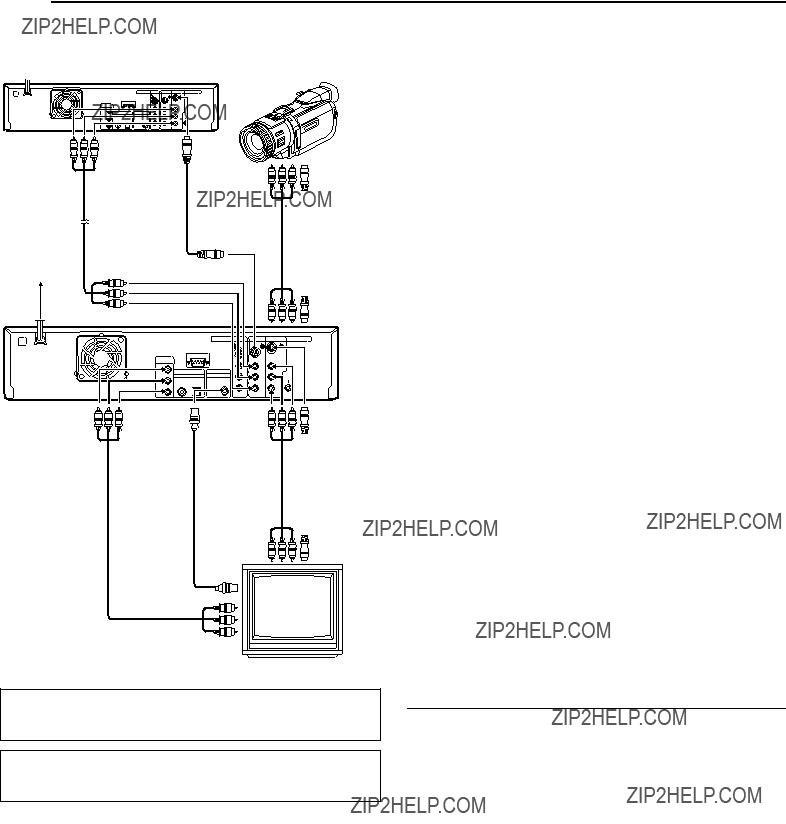

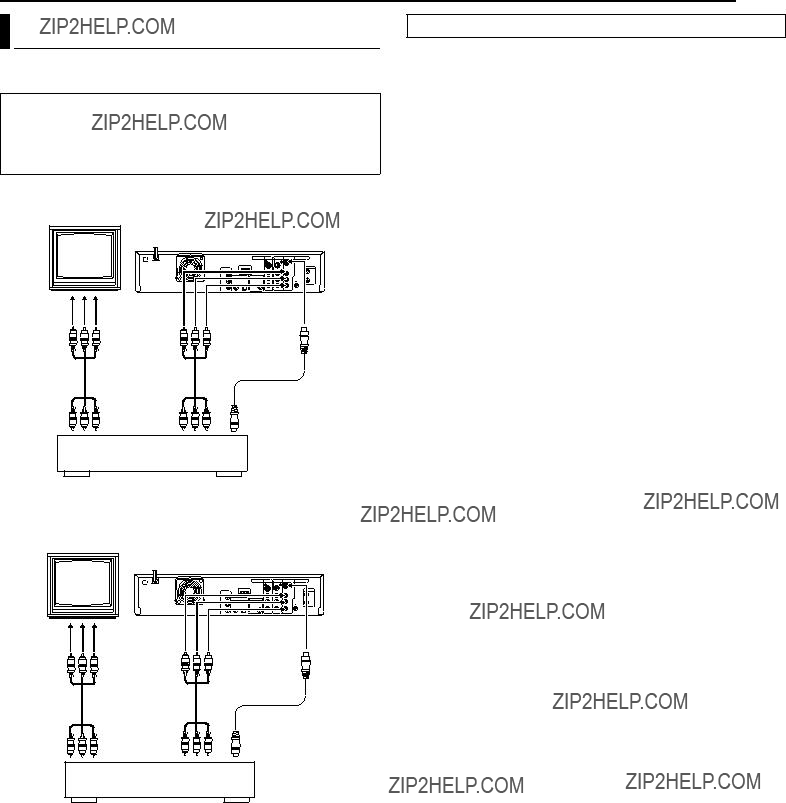

Connecting to a DV Device
AConnect the unit???s
BConnect the unit???s [AUDIO INPUT] connectors on the front panel to the camcorder???s audio output connectors.

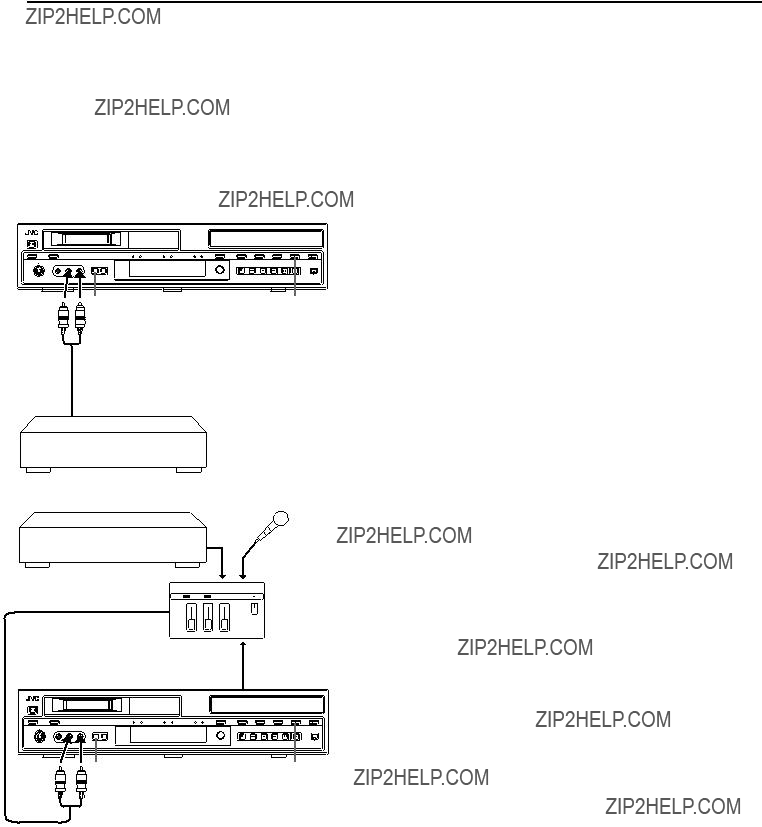

Connecting to Another Recorder
AConnect the unit???s
BConnect the unit???s [AUDIO INPUT] connectors to another recorder???s audio output connectors.
Plug the end of the AC power cord into an AC outlet.
???APLEASEB and AWAITB blink alternately on the front display panel when the AC plug of the AC power cord is connected into an AC outlet. After a short while, A32**B blinks on the front display panel and starts to count down.
It takes approximately 50 seconds for the unit to be turned on. This is not a malfunction.

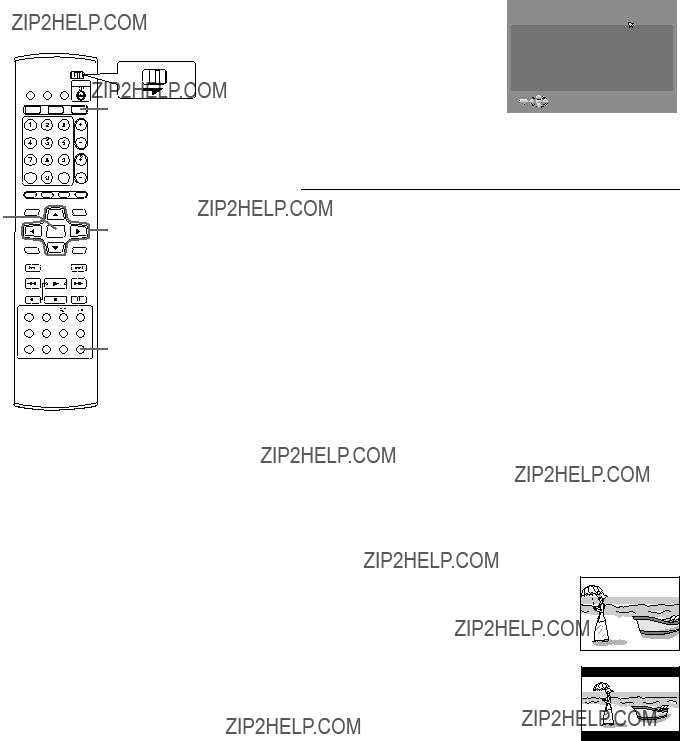

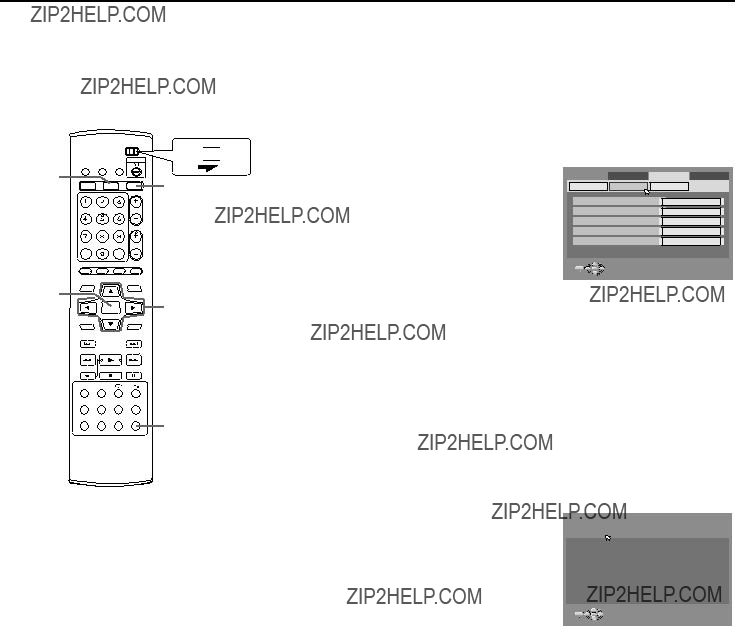

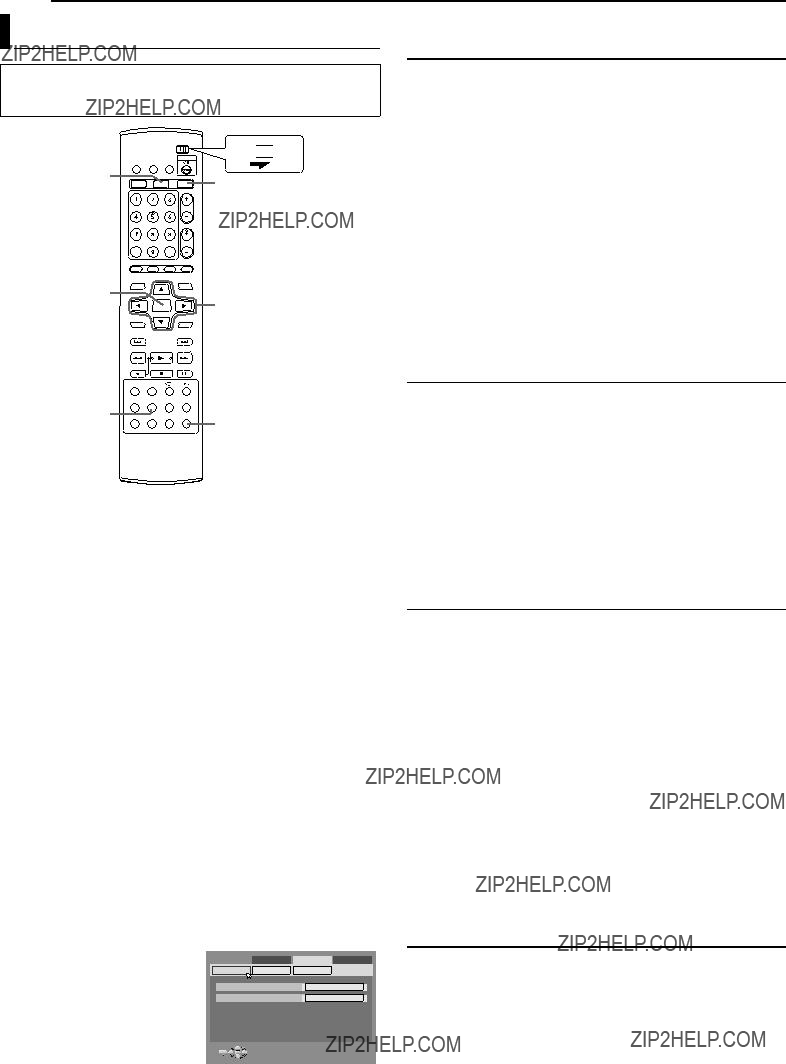

20 EN INITIAL SETTINGS
HDD
ENTER

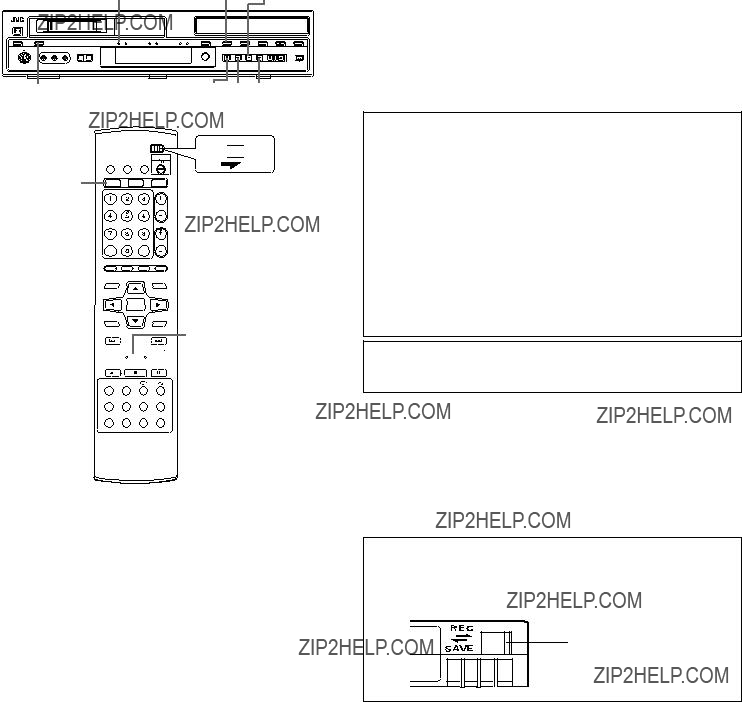

TV
DVD
DVD

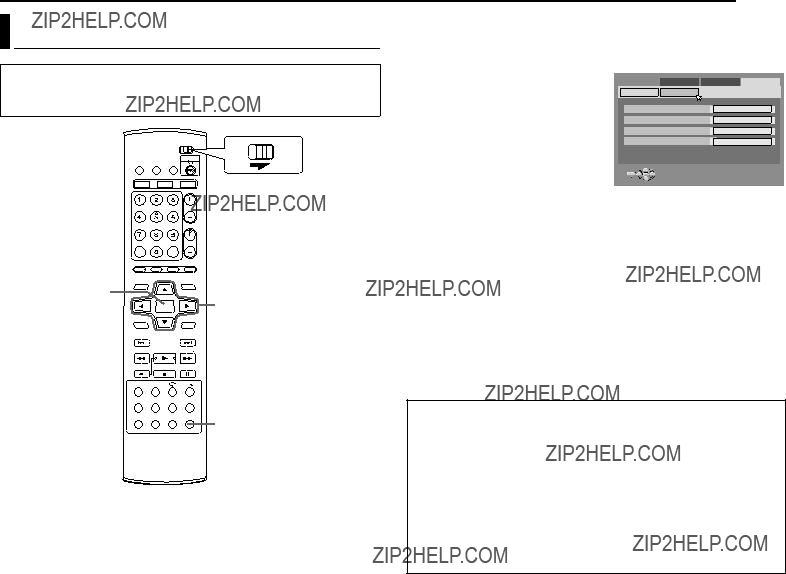

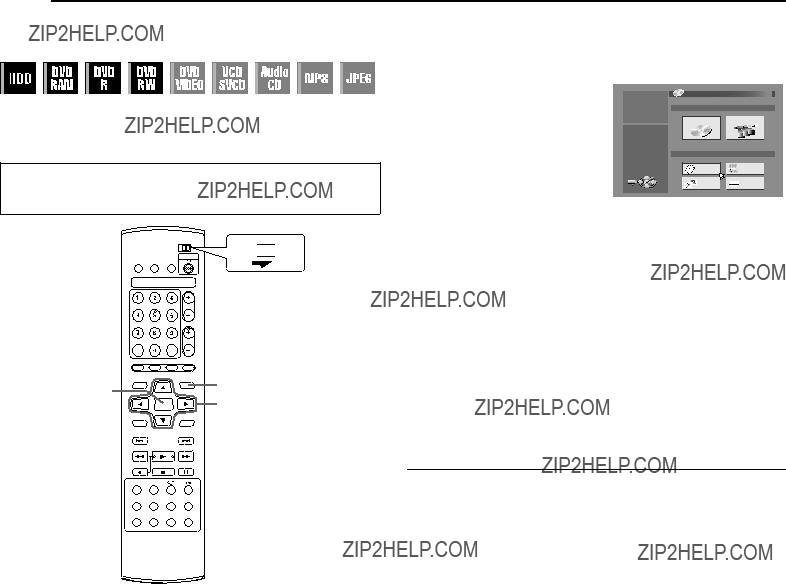

4Press selection keys to select ADISPLAY SETB, then press
G.
5Press selection keys to select
AON SCREEN LANGUAGEB, then press ENTER.
6Press selection keys to select your desired language, then press ENTER.
Selection Keys
FGDE
7 Press SET UP to complete the setting.

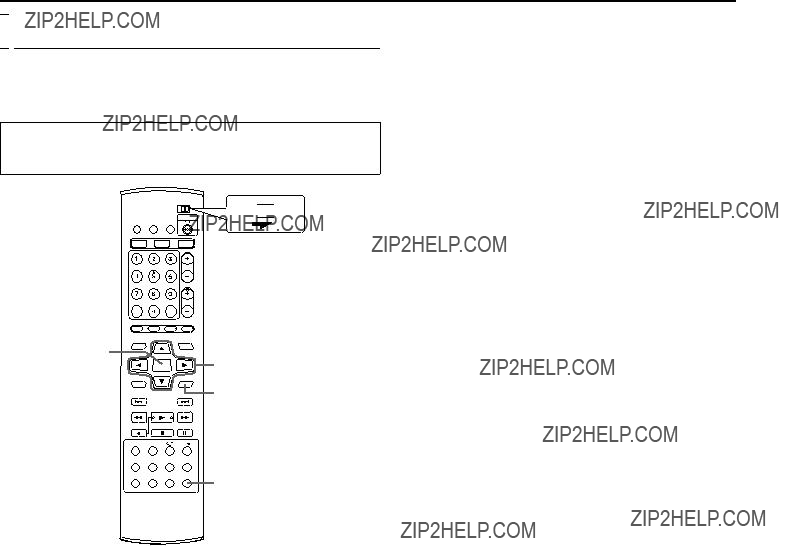

Menu/Audio/Subtitle Language Set (DVD deck only)
4Press selection keys to select ALANGUAGE SETB, then press G.
5Press selection keys to select AMENU LANGUAGEB, then press ENTER.
6 Press selection keys to select your desired language, then
press ENTER.
??? See ALanguage Code ListB (A pg. 72).
7 Press SET UP to complete the setting.
NOTE:
When the selected language is not available on the disc, the disc???s default menu language is played back.
6 Press selection keys to select DVDthe desired option, then press
ENTER.
7 Press SET UP to complete the setting.
* The boldface settings below indicate the settings at your purchase.
ENTER
Selection Keys
FGDE
SET UP
8 MONITOR TYPE - 4:3LB / 4:3PS / 16:9AUTO / 16:9FIX
4:3LB (Letter Box conversion):
Select this when the aspect ratio of your TV is 4:3 (conventional TV). While viewing a wide screen picture, the black bars appear on the top and the bottom of the screen.
4:3PS (Pan&Scan):
Select this when the aspect ratio of your TV is 4:3 (conventional TV). While viewing a wide screen picture, the black bars do not appear; however, the left and right edges of the pictures will not be shown on the screen.
16:9AUTO (Wide television conversion):
Select this when the aspect ratio of your TV is 16:9 (wide TV).
16:9FIX (Wide television conversion):
Select this when the aspect ratio of your TV is fixed to 16:9 (wide TV). The unit automatically adjusts the screen width of the output signal correctly when playing back a picture whose aspect ratio is 4:3.
Pan&Scan/Letter Box
In general, DVD VIDEO disc are produced for a
Material with this ratio will not fit to a TV with 4:3 aspect ratio. There are two styles to display the image, APan&ScanB (PS) and ALetter BoxB (LB).
Pan&Scan
The right and left side of the image are cut off. The image fills the screen.
??? The picture will be shown in the A4:3LBB mode depending on the disc even if the A4:3PSB mode is selected.
Letter Box
Black bands appear at the top and bottom of the image. The image itself appears in 16:9 aspect ratio.

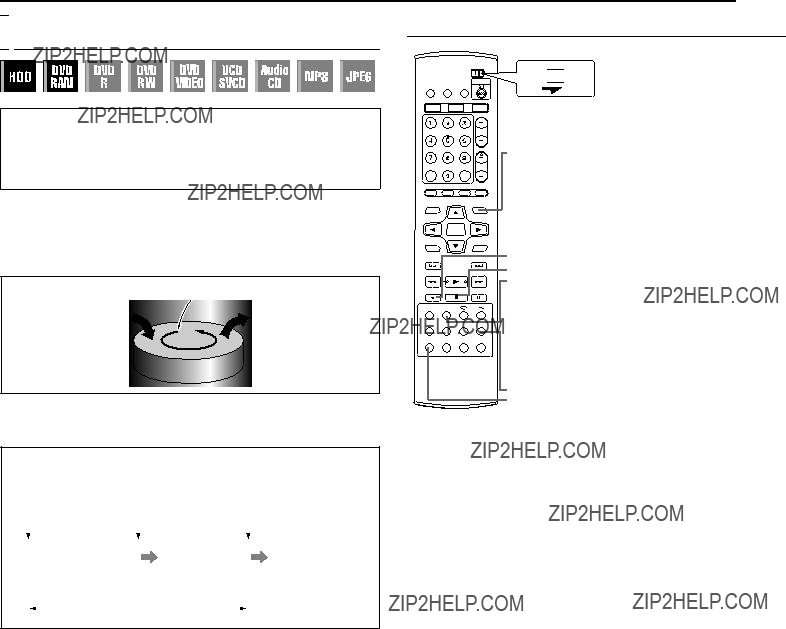

22 EN BASIC OPERATIONS ON DVD DECK
DVD during recording or Live Memory Playback on HDD.
??? It is possible to play back on the DV deck and the HDD/DVD deck simultaneously. However, either DVD or HDD can be played at the same time.
ATTENTION:
???It takes approximately 30 seconds to read a disc depending on the type and condition of the disc since this unit is
???It may take a few seconds to start playback. This is not a malfunction.
???Forward/reverse

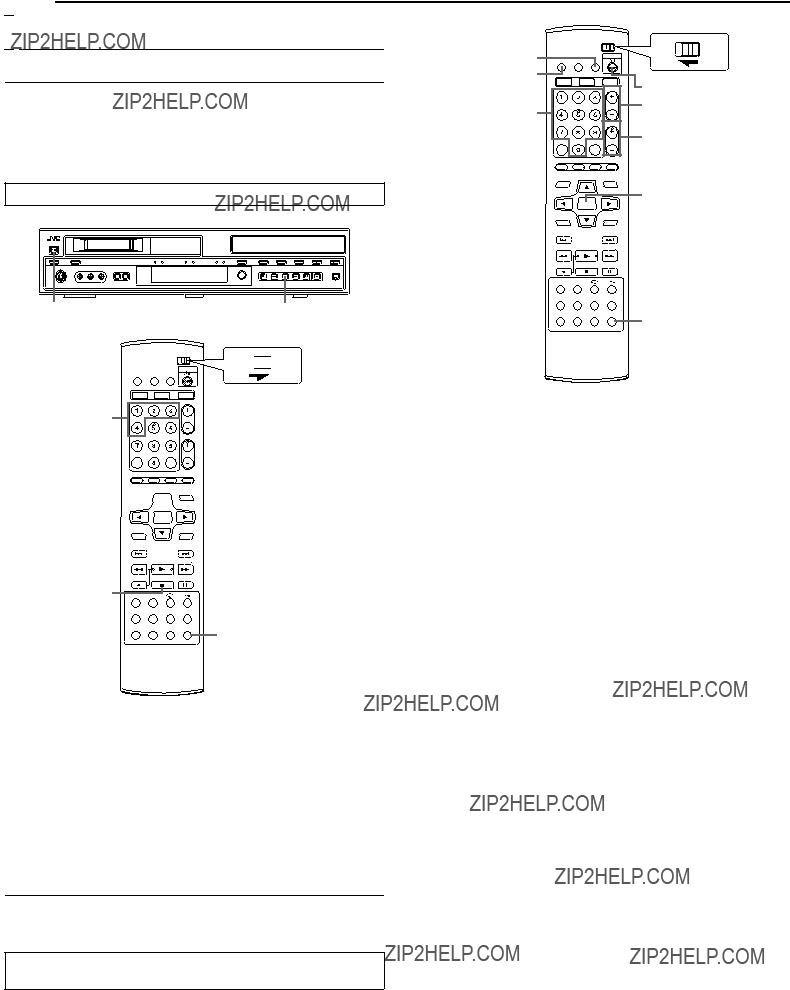

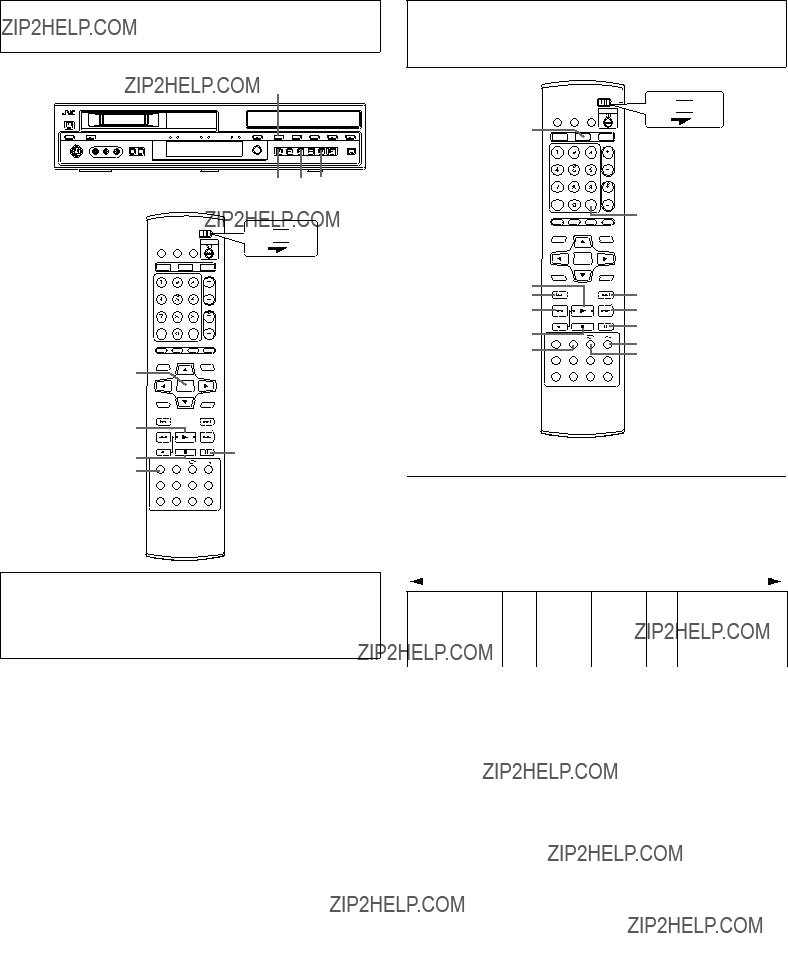

BASIC OPERATIONS ON DVD DECK EN 23

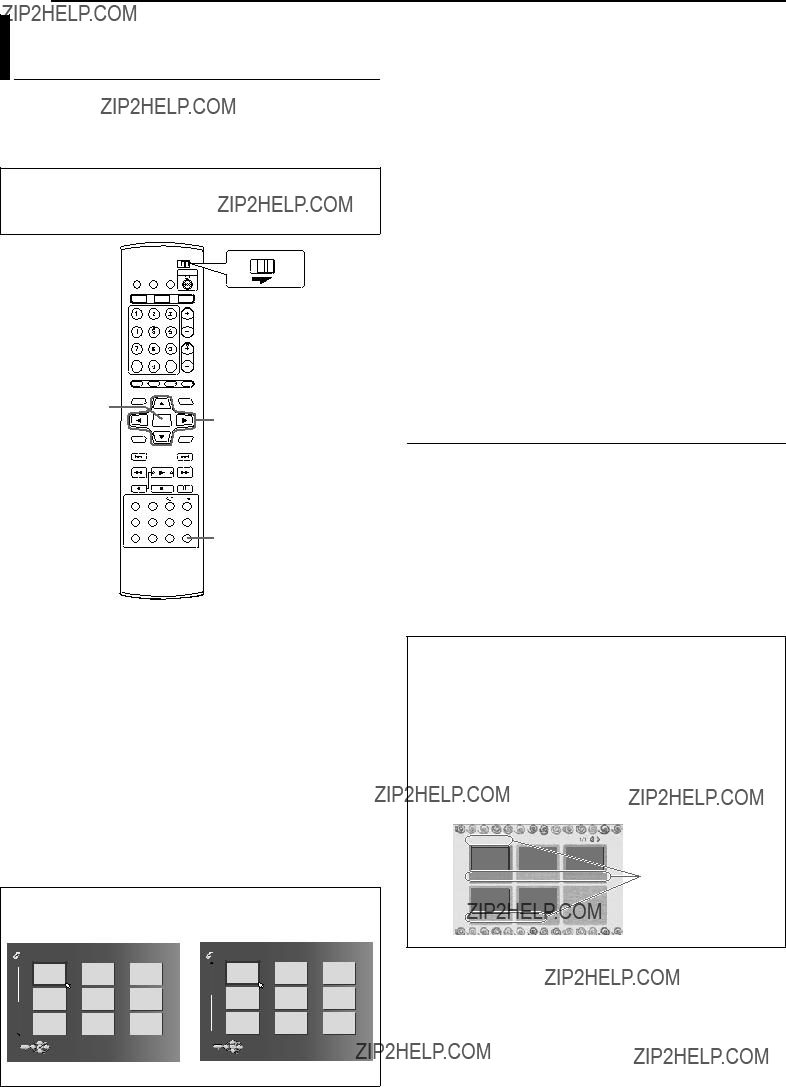

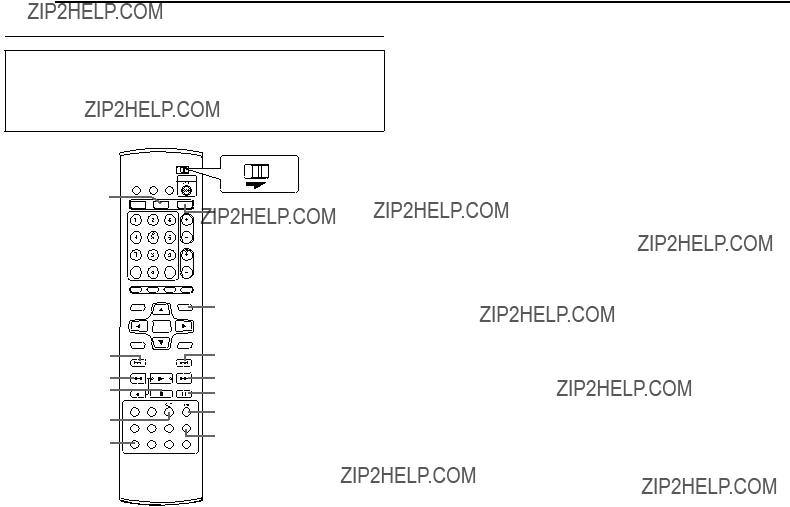

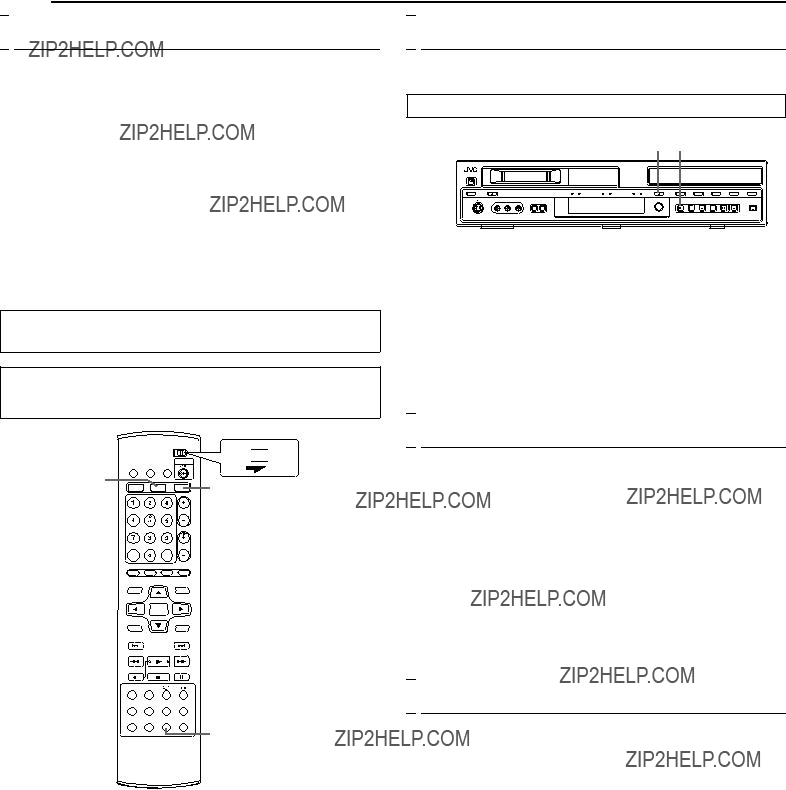

???Turn on the unit.
???Turn on the TV and select the AV mode.
???Slide the TV/DVD switch to DVD.
???Press DVD so that the DVD lamp lights up on the unit.
TV
DVD
DVD
??? : marked points if any (A pg. 25) or beginning of recording

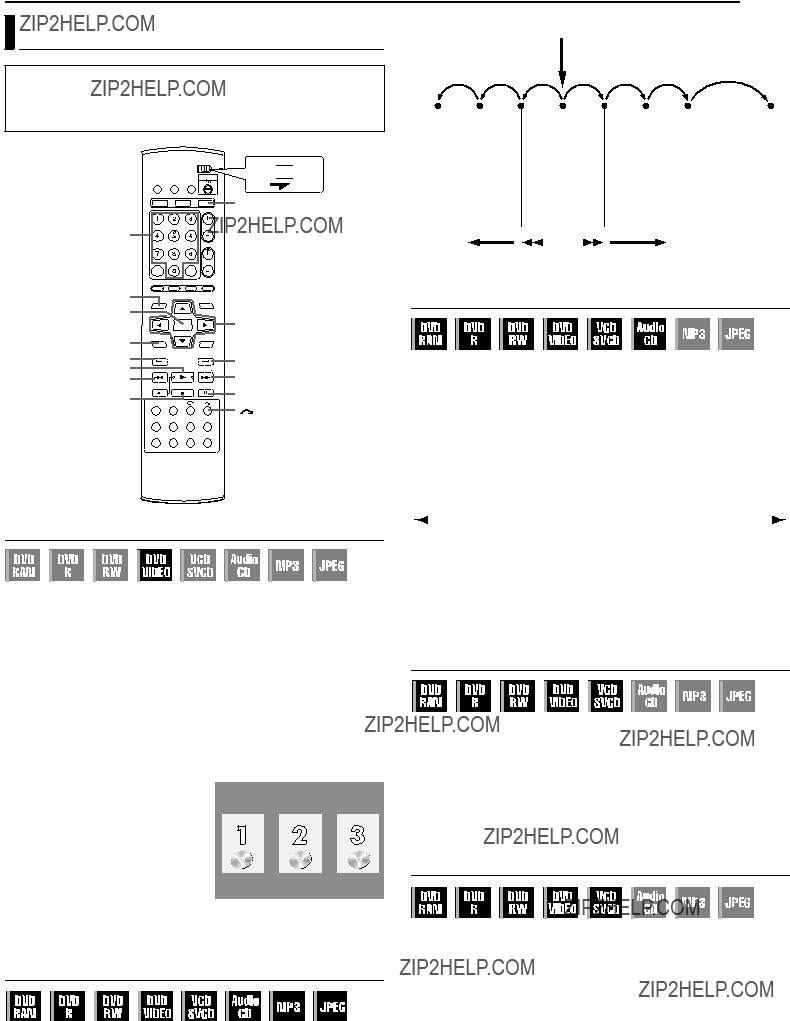

Locating A Desired Scene Using The DVD Menu
DVD VIDEO discs may have top menu and disc menu.
Top menu
DVD discs generally have their own menus which show the disc contents. These menus contain various items such as titles of a movie, names of songs, or artist information. You can locate a desired scene by using the top menu displayed on the TV screen. Press TOP MENU to access the top menu.
Disc menu
Disc menus include playback data (angle menu, subtitle menu, etc.) specific to each title.
Press MENU to access the disc menu.
1 Press TOP MENU or MENU to Example: access the DVD menu.
2 Press selection keys to select a desired title, then press
ENTER. Playback starts. ??? It may be possible to select the
desired item using the number keys depending on the menu display.
NOTE:
When A7B appears on the TV screen in step 1, the disc does not have a top menu or disc menu.
Locating The Start Point Of The Item Or Skip The Item
Press S or T during playback.
???Pressing T locates the start point or marked points of the item or skips the item in the forward direction, then resumes playback.
???Pressing S locates the start point or marked points of the item or skips the item in the reverse direction, then resumes playback.
Variable Speed Search
During playback, press N for forward variable speed search, or O for reverse variable speed search.
???Each press of the button increases the search speed for each direction.
???To resume normal playback, press I.
For Audio CD
You can perform 4 levels of speed search with Nand O. (Audio is active also during variable speed search.) You cannot perform slow motion for each direction.
NOTE:
Reverse play
Still
1 Press W to pause during playback.
2Press SLOW ??? (O) or SLOW + (N) to activate
???Each press of SLOW ??? (O) or SLOW + (N) advances/ reverses the still picture frame by frame.
???
???To resume normal playback, press I.
Slow Motion
1 Press W to pause during playback.
2Press SLOW ??? (O) or SLOW + (N) for 2 or more seconds.
???Each press of SLOW ??? (O) or SLOW + (N) increases the slow motion speed for each direction.
???Slow motion for reverse direction cannot be performed with Video CD/SVCD discs.
24 EN BASIC OPERATIONS ON DVD DECK
Skip SearchResume Function
During playback, press v.
???Each press initiates an approximately
???Skip search cannot be performed when a VCD/SVCD disc is being played back with the PBC function.
Instant Replay
You can move back the playback position slightly.
Press w on the remote control or INSTANT REPLAY on the unit.
???Each press skips back for approximately 7 seconds and resumes playback.
???Pressing while paused skips back for approximately 7 seconds and resumes pause.
???Instant replay cannot be performed when a VCD/SVCD disc is being played back with the PBC function.
Jump Search
You can locate a scene ahead or behind the current one by jumping scenes according to selected time intervals (A pg. 61) during playback (or Live Memory Playback).
Press S or T.
???To advance forward or back, press Sor Trepeatedly within 5 seconds of each press to continue jump.
???Depending on the time from where you want to start jump search, the first press of S or T will not necessarily lead to a jump of the selected time interval. The first press will lead to a jump to the nearest quarter points of an hour (15 min/ 30 min/ 45 min/ 00 min). The subsequent jumps will then be in accordance to the selected time interval.
???When you cannot advance any further (beginning or end of program reached), the message AUNABLE TO GO BACK ANY MOREB or AUNABLE TO GO FORWARD ANY MOREB appears on the screen. In such a case, press S, O, N, T or o.
Example:
Playback search when jump interval is set to 15 MIN jumps. Taking for instance, you want to start jump search 40 minutes after the beginning of the program. Pressing S or T will result in a jump to the scene at the 30 minutes point or 45 minutes point respectively as illustrated below. At the subsequent press, the scene will jump to the 15 minutes point or 1 hour point respectively, according to the selected time interval, which in this case is A15 MINB.
NOTES:
???Jump search cannot be performed with finalized
???Jump search functions only when chapters (marks) are not set.

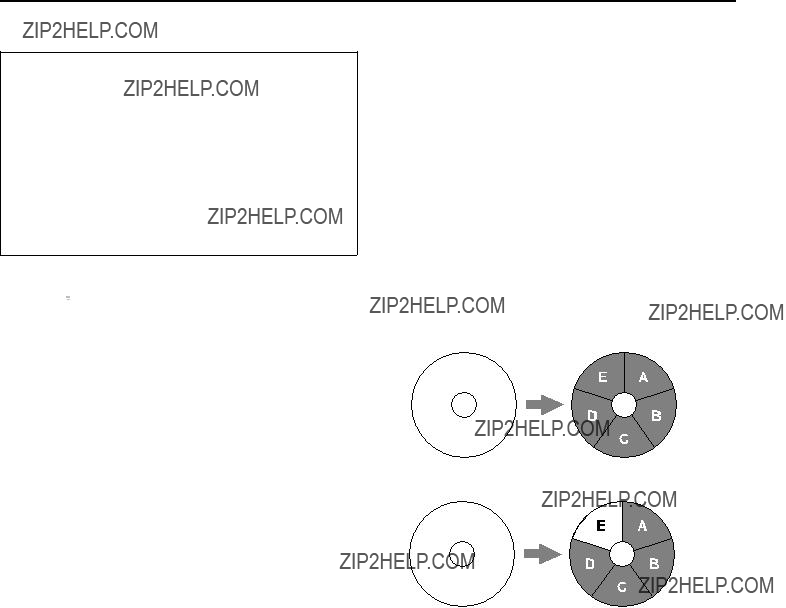

It is possible to memorize the position where you stop playback and resume playback from that position.
???Be sure to set ARESUMEB to AONB or ADISC RESUMEB. (A pg. 61)
???Resume function always works for
1Press o during playback to memorize a resume point.
???The unit enters Resume Stop mode and memorizes the position where you have stopped playback as a resume point. (The inside of the disc status indicator on the front display panel blinks while memorizing.)
???The unit retains a memory of the resume points of the last 30 discs played back, even though they have been ejected if ARESUMEB is set to ADISC RESUMEB. (A pg. 61)
???Performing the following steps would erase the resume points: (The inside of the disc status indicator stops blinking and lights.)
When ARESUMEB is set to AONB:
???Press Ato turn off the unit.
???Press Mto take out the disc.
???Press oin stop mode.
???Press TOP MENU to display the top menu, then start playback by selecting an item, etc.
???Press MENU to display the disc menu, then start playback by selecting an item, etc.
When ARESUMEB is set to ADISC RESUMEB:
???Set ARESUMEB to AOFFB. (A pg. 61)
???Press oin stop mode.
???Press TOP MENU to display the top menu, then start playback by selecting an item, etc.
???Press MENU to display the disc menu, then start playback by selecting an item, etc.
2Press I in stop mode to resume playback. The unit starts playback from the resume point.
NOTES:
???ADISC RESUMEB setting works on DVD VIDEO, VCD, SVCD and already finalized
(A pg. 61)
???If you stop the playback of a disc for which a resume point has already been memorized, the memory will be updated with the new resume point.
???After the unit has memorized the resume points for 30 discs, remembering a new resume point will cause the unit to delete the oldest memorized point. Stopping playback of a disc for which a resume point is already stored may change the order in which the points are stored. This may potentially change the order in which points are deleted.
???When the unit memorizes a resume point for a disc, it also remembers audio language, subtitle and angle settings.
???This function may not work for some Video CD/SVCDs.
???When ARESUMEB is changed to AONB or AOFFB (A pg. 61), resume points of the discs memorized with ARESUMEB set to ADISC RESUMEB will be cleared.
???Resume points are memorized for each side of a
???When you switch to HDD while playing back JPEG/MP3 files, playback stops. The Resume Function doesn???t work when you switch to DVD thereafter to playback the disc.
BASIC OPERATIONS ON DVD DECK EN 25

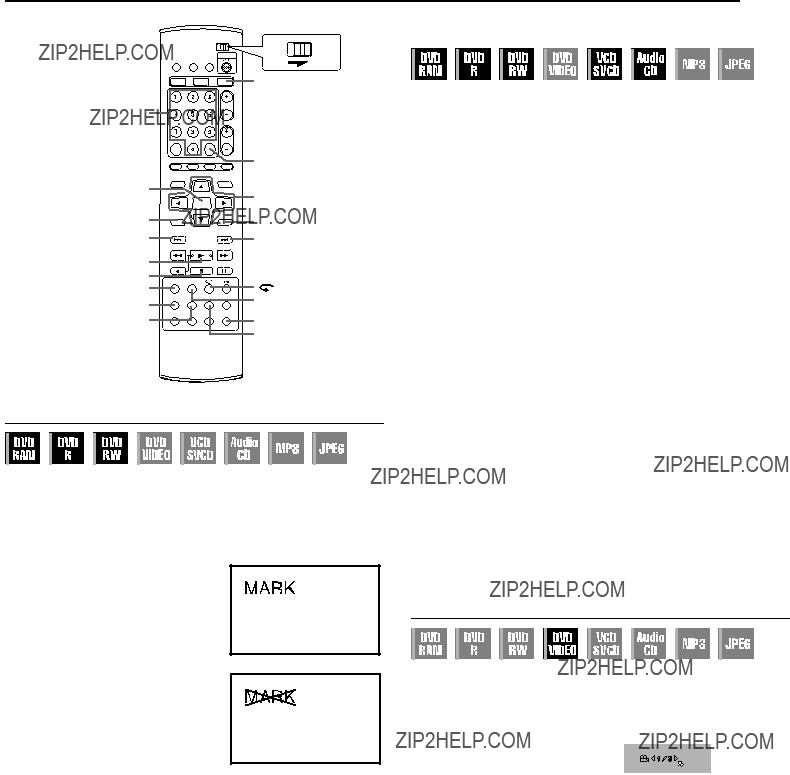

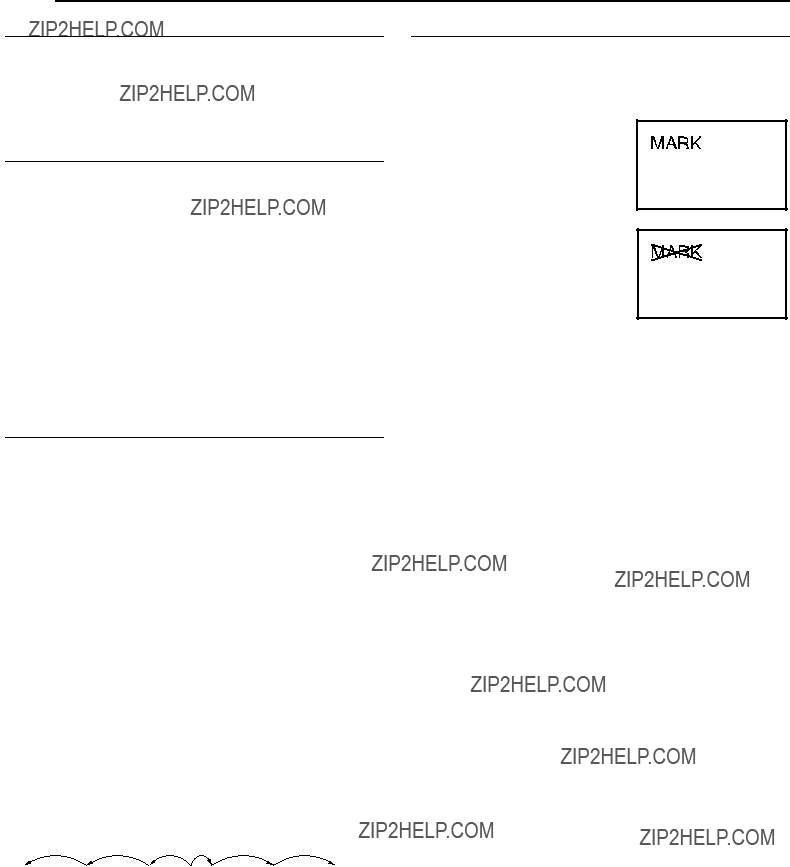

Marking Positions To Play Back Again Later
It is possible to mark positions (up to 999 points) where you want to play back once again later, and start playback from a marked position. Marking onto
To mark positions:
During playback, press MARK at positions you want to mark.
???AMARKB appears on the TV screen. You can easily locate the marked positions using S or T when you play back the disc.
To delete the marked positions:
While paused, press S or T to locate a marked position you want to delete, then press MARK.
???Crossed AMARKB appears on the TV screen, and the marked position is deleted.
NOTES:
???For
???If MARK is pressed when playing back a disc that does not allow marks to be inserted, A7B appears on the TV screen.
Checking The Time Information
You can check time information of a disc on the front display panel and the TV screen.
8
Each press of DISPLAY on the remote control or the unit changes the display as follows:
During recording
Clock time (front display panel only) N Current title elapsed time N Disc remaining time N (back to the beginning)
During playback
Each title elapsed time N Total remaining time N Remaining time* N (back to the beginning)
* only discs before finalizing
During recording/playback or in stop mode
Press REC MODE.
???The disc remaining time according to recording modes appears on the TV screen.
???It is possible to check disc remaining time according to recording modes also by pressing REMAIN.
???In FR mode, it is possible to set recording time in detail. While the recording mode and the disc remaining time are displayed by pressing REMAIN, press selection keys to select AFRB, then press DE to select the desired recording time. (A pg. 51)
???It is not possible to switch the recording mode during playback or while recording.
8 Video CD/SVCD/Audio CD
During playback or in stop mode
Current track elapsed time N Current track remaining time N Total elapsed time N Total remaining time N (back to the beginning)
NOTES:
???When a
???For

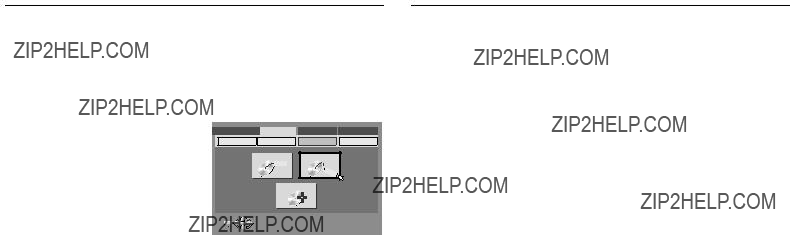

Angle Selection
You can enjoy a variety of scene angles if a DVD VIDEO disc contains
If the disc contains
1 Press ANGLE during playback.
The angle selection display appears on the TV screen.
2 Press ANGLE or selection keys to select your desired angle.
???Each time you press ANGLE or the selection keys, the angle changes.
???When A7B appears on the TV screen, the current scene is not recorded from multiple angles. In addition, some discs prohibit angle selection.
???To clear the angle selection display, press ENTER. In addition, the angle selection display disappears automatically if no operation is done for 10 seconds.
26 EN BASIC OPERATIONS ON DVD DECK

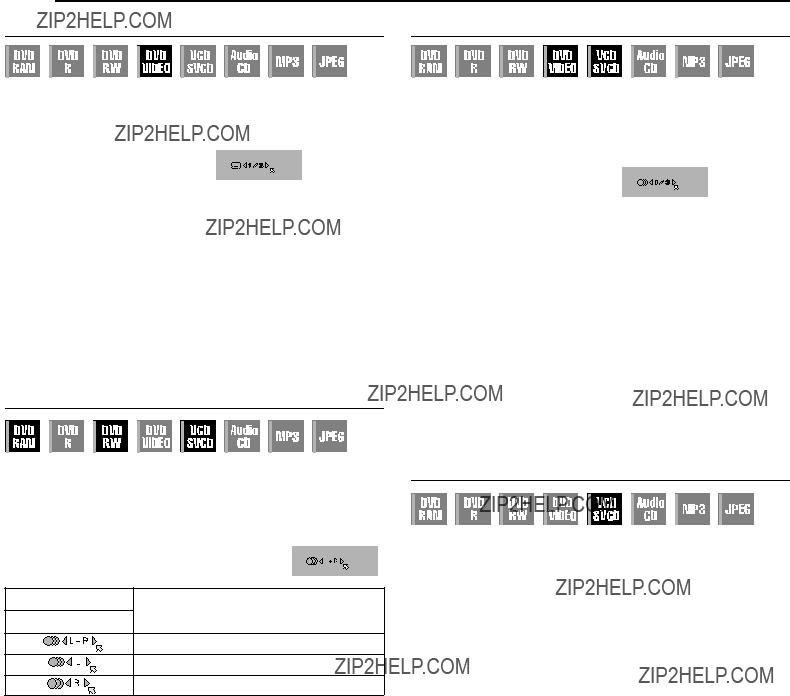

Subtitle SelectionAudio Language/Sound Selection
Some DVD VIDEO discs contain more than one subtitle language, from among which you can choose the desired subtitle language. AhB appears on the TV screen at the beginning of the part where more than one subtitle language are recorded.
1 Press SUBTITLE during
???Each time you press SUBTITLE, the subtitle display is switched on and off.
2Press selection keys to select your desired language.
???To clear the subtitle selection display, press ENTER.
NOTES:
???When A7B appears on the TV screen, no subtitle language is recorded.
???When the subtitle language won???t be changed with the procedure above, change the subtitle on a disc menu displayed by pressing
MENU.
Audio Channel Selection
When watching bilingual programs or playing discs on which you recorded bilingual or stereo programs, you can choose the desired audio channel.
???When ASUPERIMPOSEB is set to AONB or AAUTOB, you can confirm on the TV screen the audio channel you have chosen. (A pg. 61)
???Each time you press AUDIO, the audio
channel changes.
TRACK
USE
For stereo discs
For audio of left channel
For audio of right channel
NOTE:
It is not possible for
When you can???t switch the audio channel of a bilingual program
When the unit is connected with a digital audio device using an optional optical cable and ADIGITAL AUDIO OUTB is set to ADOLBY DIGITAL/PCMB, it is not possible to switch the audio channel of a bilingual program recorded on a
APress SET UP to access the Main Menu screen.
BPress selection keys to select ADVD VIDEO SET UPB, then press G.
CPress selection keys to select AAUDIO OUTPUTB, then press
G.
DPress selection keys to select ADIGITAL AUDIO OUTB, then press ENTER.
EPress selection keys to select APCM ONLYB, then press ENTER. (A pg. 60)
FPress SET UP to complete the setting.
GPress AUDIO to select the desired audio channel.
Some DVD VIDEO discs contain the multiple audio language or sound. You can select the desired audio language or sound. For some Video CD/SVCD discs, you can switch the audio channel to choose Karaoke either with or without the vocal.
1 Press AUDIO during playback. The Audio Language/Sound selection display appears.
2 Press AUDIO or selection keys to select your desired audio language/sound.
???Each time you press AUDIO or the selection keys, the audio language/sound changes.
???To clear the Audio Language/Sound selection display, press
ENTER.
NOTES:
???When A7B appears on the TV screen, no other audio language is recorded.
???When the audio language won???t be changed with the procedure above, change the audio on a disc menu displayed by pressing
MENU.
???Pressing AUDIO to select the audio language/sound is only possible during playback. It is not possible to select by pressing AUDIO in stop mode. However, you can select the desired audio language/sound from the setup menu while in stop mode.
Playback Control (PBC) Function
Some Video CD/SVCD discs support the PBC function. PBC is an abbreviation of APlay Back ControlB. A Video CD/SVCD disc recorded with PBC has its own menus, such as a list of the songs on the disc. You can locate a specific scene by using the menu.
1 Press I in stop mode. The PBC menu appears.
2Press the number keys to enter the number of the desired scene, then press ENTER. The unit starts playback of the selected item.
???APBCB appears on the front display panel.
???When ANEXTB or APREVIOUSB appears on the TV screen: Pressing NEXT (T) advances to the next page.
Pressing PREVIOUS (S) returns to the previous page.
???You can return to the menu by pressing RETURN.
???The method of the operation is different depending on the disc.
NOTE:
If you want to playback a

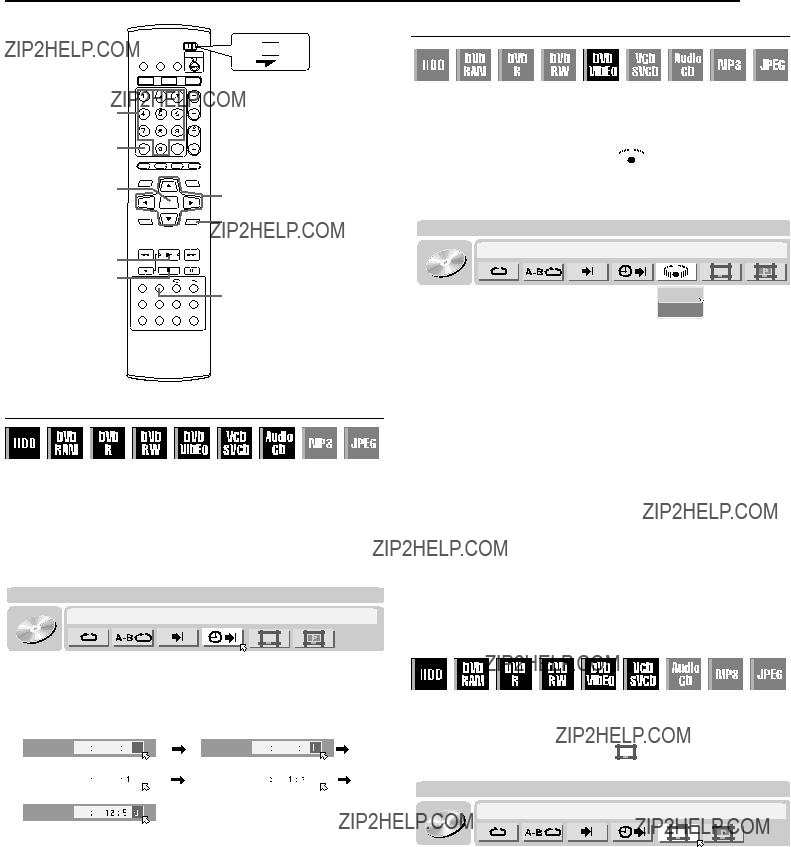

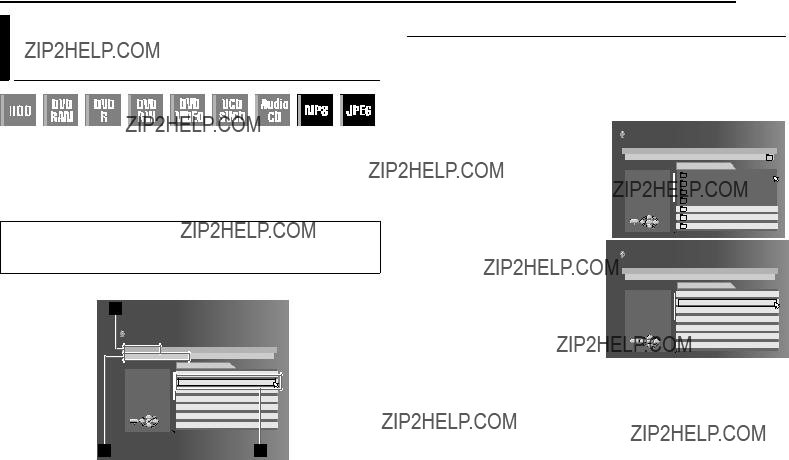

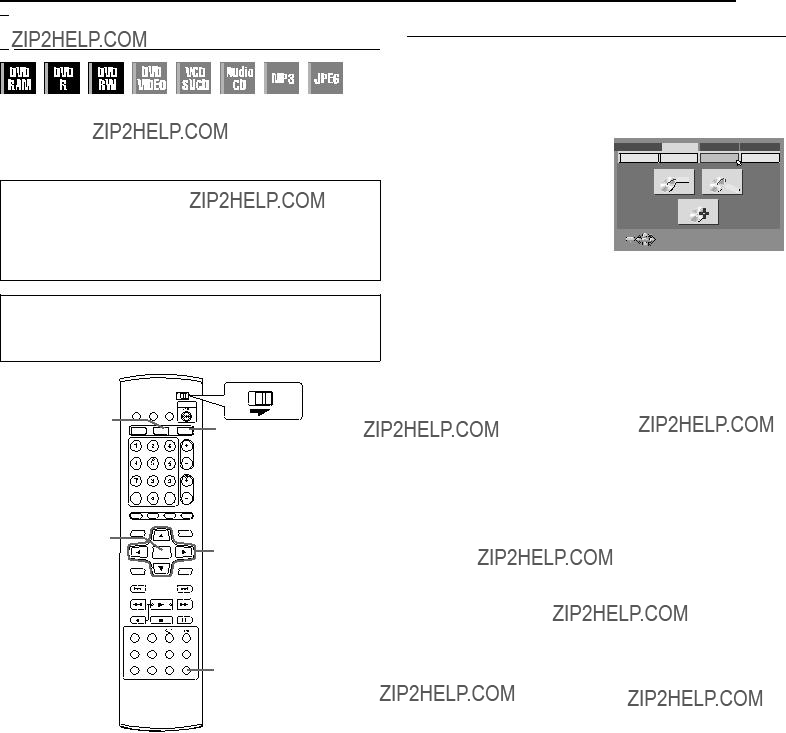

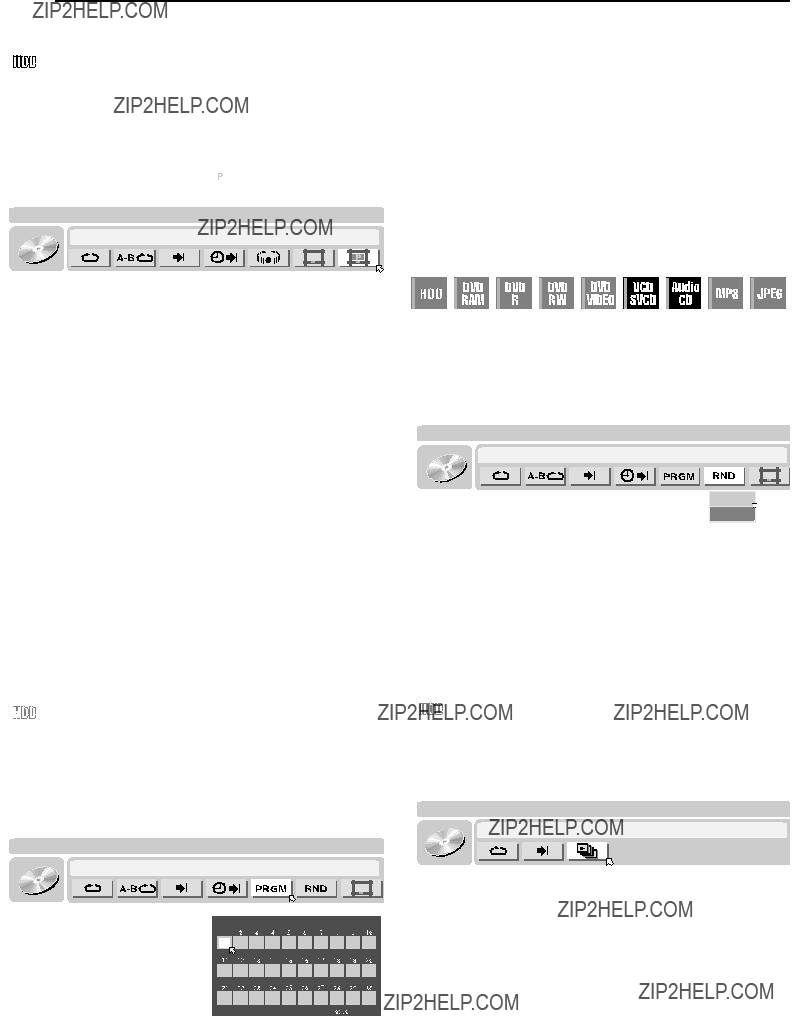

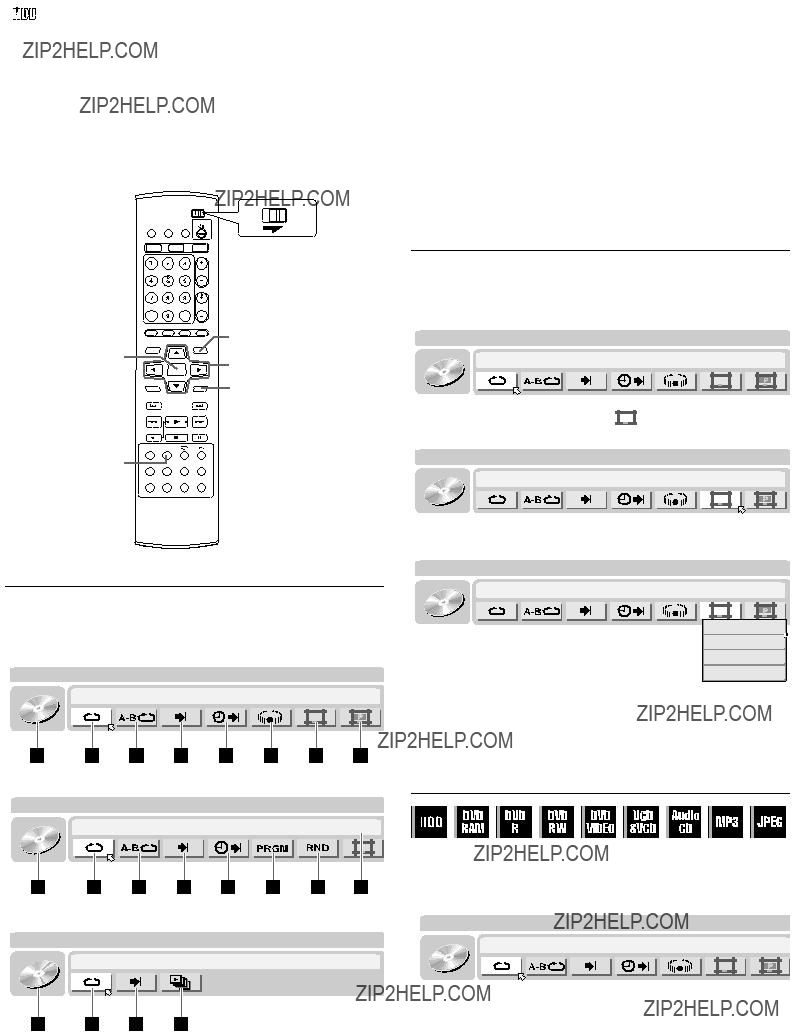

Basic Operation On The
Example: When selecting Picture Control function of DVD
During playback or while stopped
1 Press ON SCREEN twice to access the
NAVIGATION
How To Access The
1 Press ON SCREEN twice whenever a disc is loaded.
Contents of the
DVD VIDEO
TITLE 99CHAPTER 99 EACH 0:00
Video CD/SVCD
CINEMA
VCD
3Press selection keys to select the desired option, then press
ENTER.
TITLE 99CHAPTER 99 EACH 0:00
NORMAL
CINEMA
SHARP
SOFT
To clear the
Press ON SCREEN.
NOTE:
See the corresponding pages for details on each menu item.

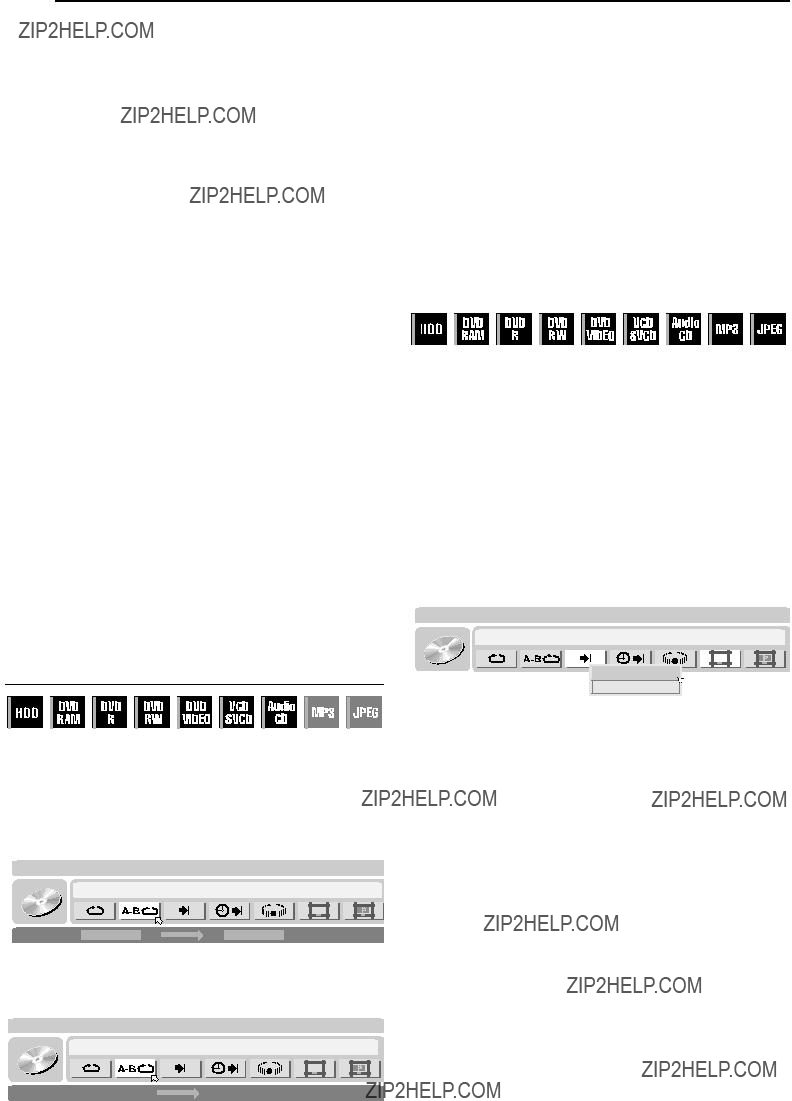

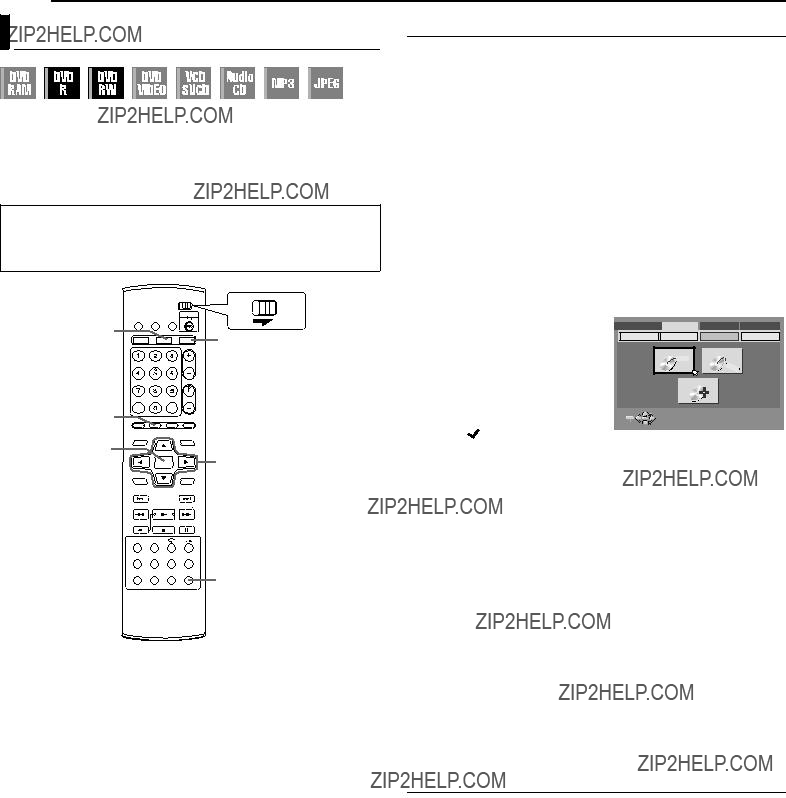

Repeat Playback
You can repeat playback as you like according to the type of disc.
1 Press ON SCREEN twice to access the
2Press selection keys to select AxB, then press ENTER. The
3 Press selection keys repeatedly to select the desired Repeat mode, then press ENTER.
28 EN BASIC OPERATIONS ON DVD DECK
OFF:
Repeat playback is not performed.
ALL REPEAT:
The whole disc is played back repeatedly.
TITLE REPEAT:
The current title is played back repeatedly.
DVD VIDEO
OFF:
Repeat playback is not performed.
TITLE REPEAT:
The current title is played back repeatedly.
CHAPTER REPEAT:
The current chapter is played back repeatedly.
Audio CD/Video CD/SVCD
OFF:
Repeat playback is not performed.
ALL REPEAT:
The whole disc is played back repeatedly.
TRACK REPEAT:
The current track is played back repeatedly.
JPEG/MP3
OFF:
Repeat playback is not performed.
FOLDER REPEAT:
The whole folder is played back repeatedly.
TRACK REPEAT*:
The current track is played back repeatedly.
* ATRACK REPEATB cannot be selected for JPEG discs.
To clear the
Press ON SCREEN.
To cancel Repeat Playback
Repeat the above procedure from step 1, select AOFFB in step 3, then press ENTER.
NOTES:
???Repeat Playback is not possible for a Video CD/SVCD with PBC function.
???Repeat Playback may not work properly depending on the type of the disc being used.
???It is possible to use the Mode Lock function. (A pg. 68)
To clear the
Press ON SCREEN.
To cancel
Press selection keys to select
NOTES:
???
???The subtitles recorded around the
???When the end of the item is reached before the end point is set, the
???The point B must be set at least 3 seconds after the point A.
???When playing back a DVD,
???
???
Locating The Beginning Of A Desired Selection
You can locate the beginning of a title, chapter, group or track.
During playback or while stopped
1 Press ON SCREEN twice to access the
2 Press selection keys to select A9B, then press ENTER.
3Press selection keys to select the desired item, then press
ENTER.
???Skip this step for Video CD/SVCD and Audio CD.
For
ATITLE SEARCHB or ACHAPTER SEARCHB is selectable. (However, ACHAPTER SEARCHB is not selectable while stopped.)
For Video CD/SVCD, Audio CD, JPEG, MP3
ATRACKB is selectable.
NOTE:
Settings that are selectable during playback and stop mode differ depending on the type of disc and search used.
You can repeat the desired part.
During playback
1 Press ON SCREEN twice to access the
2 Press selection keys to select
3Press ENTER at the beginning of the desired part you want to repeat (point A). The elapsed playing time of the point A appears.
4Press ENTER at the end of the desired part you want to repeat (point B). The elapsed playing time of the point B appears.
???The selected part of the disc (between point A and B) is played repeatedly.
TITLE 99 CHAPTER 99 EACH 0:00
4Press the number keys to enter the desired item number, then press ENTER.
???Playback starts from the selected section.
Examples:
ATo select track 5, press the number key A5B.
BTo select track 15, press the number key A1B and A5B.
CTo select track 25, press the number key A2B and A5B.
If you have specified a wrong selection
Press RETURN on the remote control and repeat the above procedures from step 2.
To clear the
Press ON SCREEN.
NOTES:
???When A7B is displayed on the TV screen in step 4, the chapter you have selected is not contained in the disc, or chapter search does not work on the disc.
???Before you press ENTER, playback may start automatically when you enter the section???s number depending on the disc.
???This function is not possible for a Video CD/SVCD with PBC function.
BASIC OPERATIONS ON DVD DECK EN 29
Simulated Surround Effect
TV
DVD
RETURN
S
T
It is possible to get a simulated surround effect from your stereo system. You can enjoy the virtual surround sound with your 2- channel stereo system.
3Press selection keys to select AONB, then press ENTER.
???
I
DVD-
CINEMA AUTO
CLEAR
ON SCREEN
Time Search
You can play back a disc from the desired point by specifying the elapsed playing time from the beginning of a program
1 Press ON SCREEN twice to access the
2Press selection keys to select Aj9B, then press ENTER. The
TITLE 99CHAPTER 99 EACH 0:00
3 Press the number keys to enter the time, then press ENTER. Playback starts from the specified time.
Example:
To play back from a point 12 (minutes): 50 (seconds) elapsed.
TIME
If you have specified a wrong selection,
Press RETURN on the remote control and repeat the above procedures from step 2.
To clear the
Press ON SCREEN.
NOTES:
???When A7B is displayed on the TV screen in step 3, you have selected a point that exceeds the recording time of the disc. However, for HDD;
???Some DVD VIDEO discs do not contain time information, and it is not possible to use the Time Search function. In such cases, A7B is displayed on the TV screen as well.
???This function is not possible for a Video CD/SVCD with PBC function.
To clear the
Press ON SCREEN.
To cancel the simulated surround effect
Press selection keys to select AOFFB, then press ENTER to clear
NOTES:
???Simulated Surround Effect works correctly only when playing back a title recorded in multichannels.
???Simulated Surround Effect does not affect the DVD VIDEO bitstream signal from the [DIGITAL AUDIO OUTPUT] connectors.
???When Simulated Surround Effect is activated, the settings of AANALOG AUDIO OUTB and AD. RANGE CONTROLB are disabled. (A pg. 60)
???Simulated Surround Effect cannot be activated under the following conditions:
???When the HDD deck is in the recording mode.
???When a disc containing both the Dolby Digital 5.1CH and 2CH sound formats is playing back a scene that is not in the 5.1CH sound format.
Adjusting The Picture Quality
You can obtain optimal picture quality by selecting an appropriate picture mode.
TITLE 99CHAPTER 99 EACH 0:00
3Press selection keys to select the desired option, then press
ENTER.
NORMAL:
Normally select this option.
CINEMA:
Suitable for a movie disc, etc.
SHARP:
Clearer,
SOFT:
Select this option when too much noise appears.
To clear the
Press ON SCREEN.
30 EN BASIC OPERATIONS ON DVD DECK
4Press selection keys to select the desired option, then press
ENTER.
AUTO:
This mode automatically detects film and video content for progressive playback. When film content is found, flag detection is used to invoke playback of film data in full screen. When video content is found, pictures from multiple fields are used to detect sections with movement, and then this movement undergoes advanced image processing for output of sharp, detailed progressive images without any reduction in image quality where movement occurs. Normally, operation in this mode is recommended.
FILM:
Suitable for playing back a progressive scanned film source disc.
VIDEO:
Suitable for playing back a video source disc. The outlines on the played back pictures will be soft.
Random Playback
You can play back all the tracks on the disc in random order.
While stopped
1 Press ON SCREEN twice to access the
2 Press selection keys to select ARNDB, then press ENTER.
3Press selection keys to select AONB, then press ENTER. Playback starts in random order.
CINEMA
VCD
To clear the
Press ON SCREEN.
To clear the
Press ON SCREEN.
NOTE:
Progressive scan is output only from [COMPONENT VIDEO OUT] connectors.
To cancel Random Playback
Press selection keys to select AOFFB, then press ENTER.
NOTE:
The same track will not be played back more than once during Random Playback.
You can program up to 30 tracks (Video CD/SVCD or Audio CD) to play back in the desired order.
While stopped
1 Press ON SCREEN twice to access the
2Press selection keys to select APRGMB, then press ENTER. The program table appears under
TRACK 99EACH 0:00
CINEMA
VCD
3 Press the number keys to enter the track numbers in the desired order.
Examples:
A To select track 5, press the
number key A5B and ENTER.
B To select track 15, press the number key A1B and A5B.
C To select track 25, press the number key A2B and A5B.
If you have specified a wrong selection
Press CANCEL. The last selection is erased.
Or press CLEAR (o). The whole selection is erased.
You can control the switching interval of the slide show.
1 Press ON SCREEN twice to access the
2Press selection keys to select A
B, then press ENTER. The
GROUP 99 TRACK 99
5 sec
JPEG
3Press selection keys to select the desired option, then press
ENTER.
???Each time you press the selection keys, the interval changes as follows:
5 sec Y 10 sec Y 15 sec Y 20 sec Y 25 sec Y 30 sec Y (Back to the beginning)
To clear the
Press ON SCREEN.
NOTE:
JPEG files are played back as a slide show. It may take more time to display an image with larger file size.
???Turn on the unit.
???Turn on the TV and select the AV mode.
???Slide the TV/DVD switch to DVD.
DV/HDD/DVD
o I W
TV
DVD
HDD
???Turn on the unit.
???Turn on the TV and select the AV mode.
???Slide the TV/DVD switch to DVD.
???Press HDD so that the HDD lamp lights up on the unit.
TV
DVD
HDD
MARK
ENTER
I
o
DISPLAY
ATTENTION:
W
Variable Speed Search
During playback, press N for forward variable speed search, or O for reverse variable speed search.
???Each press of the button increases the search speed for each direction.
???To resume normal playback, press I.
???It may take a few seconds to start playback. This is not a malfunction.
???Forward/reverse
1 Press DV/HDD/DVD on the unit repeatedly or HDD on the remote so that the HDD lamp lights up on the unit.
2Press I to start playback.
???The Library Database Navigation also enables you to search and select the desired programs. (A pg. 39)
3Press W to pause playback.
???To resume normal playback, press I.
4 Press o to stop playback.
NOTES:
???When the Library Database Navigation screen appears, choose a thumbnail image of the desired title on the TV screen, then press ENTER. (A pg. 39)
???During HDD playback, the current title elapsed time is displayed on the TV screen when ON SCREEN is pressed. However, each press of DISPLAY changes the time display on the front display panel as follows:
Current title elapsed time N Disc remaining time N Current title remaining time N (back to the beginning)
???It is possible to play back on the DV deck and the HDD/DVD deck simultaneously. However, either DVD or HDD can be played at the same time.
Still
1 Press W to pause during playback.
2Press SLOW ??? (O) or SLOW + (N) to activate
???Each press of SLOW ??? (O) or SLOW + (N) advances/ reverses the still picture frame by frame.
???To resume normal playback, press I.
Slow Motion
1 Press W to pause during playback.
2Press SLOW ??? (O) or SLOW + (N) for 2 or more seconds.
???Each press of SLOW ??? (O) or SLOW + (N) increases the slow motion speed for each direction.
Skip Search
During playback, press v.
???Each press initiates an approximately
32 EN BASIC OPERATIONS ON HDD DECK
Instant ReplayMarking Positions To Play Back Again Later
You can move back the playback position slightly.
Press w on the remote control or INSTANT REPLAY on the unit.
???Each press skips back for approximately 7 seconds and resumes playback.
???Pressing while paused skips back for approximately 7 seconds and resumes pause.
1.5x Speed Playback
You can play back a title quickly. The sound will also be played back faster than normal speed during 1.5x speed playback. 1.5x speed playback cannot be performed during recording on HDD or DVD.
1 Press O to locate the point to start 1.5x speed playback from.
2 Press I to resume playback.
3Press N once.
???Pressing ON SCREEN displays AX1.5B on the top right corner of the screen.
NOTES:
???When the unit is connected with a digital audio device using an optional optical cable, set ADIGITAL AUDIO OUTB to APCM ONLYB. (A pg. 26)
???For programs recorded in DV mode, 1.5x speed playback with sound is not possible.
It is possible to mark positions (up to 999 points) where you want to play back once again later, and start playback from a marked position. Marking onto the disc when recording is helpful to locate a start point when you play back the disc later.
To mark positions:
During playback, press MARK at positions you want to mark.
???AMARKB appears on the TV screen. You can easily locate the marked positions using S or T when you play back the disc.
To delete the marked positions:
While paused, press S or T to locate a marked position you want to delete, then press MARK.
???Crossed AMARKB appears on the TV screen, and the marked position is deleted.
Jump Search
You can locate a scene ahead or behind the current one by jumping scenes according to selected time intervals (A pg. 61) during playback (or Live Memory Playback).
Press S or T.
???To advance forward or back, press Sor Trepeatedly within 5 seconds of each press to continue jump.
???Depending on the time from where you want to start jump search, the first press of S or T will not necessarily lead to a jump of the selected time interval. The first press will lead to a jump to the nearest quarter points of an hour (15 min/ 30 min/ 45 min/ 00 min). The subsequent jumps will then be in accordance to the selected time interval.
???When you cannot advance any further (beginning or end of program reached), the message AUNABLE TO GO BACK ANY MOREB or AUNABLE TO GO FORWARD ANY MOREB appears on the screen. In such a case, press S, O, N, T or o.
Example:
Playback search when jump interval is set to 15 MIN jumps. Taking for instance, you want to start jump search 40 minutes after the beginning of the program. Pressing S or T will result in a jump to the scene at the 30 minutes point or 45 minutes point respectively as illustrated below. At the subsequent press, the scene will jump to the 15 minutes point or 1 hour point respectively, according to the selected time interval, which in this case is A15 MINB.
NOTE:
Jump search functions only when chapters (marks) are not set.
TV
DVD
DV
I
O
N o
2Press DV/HDD/DVD on the unit repeatedly or DV on the remote control so that the DV lamp lights up on the unit.
3Find the program start point. If the tape is advanced past the start point, press O. To go forward, press N.
4 Press I to start playback.
5Press o to stop playback.
???To eject the cassette, press M (DV). You can also eject the cassette when the unit is turned off.
Clean the video heads using a dry cleaning cassette -
???No picture during playback.
???Block noise appears during playback.
???AUSE CLEANING CASSETTEB appears on the screen.
???AU01B lights on the front display panel.
NOTES:
???The heads get dirty in the following cases:
???in an environment prone to extreme temperature or humidity
???in a dusty environment
???flaw, dirt or mould on video tapes
???continuous usage for a long time
???AU01B will also light on the front display panel when you attempt to play back a tape recorded with PAL signals. This unit cannot play back tapes recorded with PAL signals.
Usable cassettes
???Cassettes marked P can be used with the DV deck.
???Tapes recorded in the DVCAM format can be played.
NOTES:
???When you record a tape on the DV deck with the recording speed set to ALPB, it is recommended to play back that tape back on this DV deck. Digital video recorder from other manufacturers may not be able to play back the tape properly.
???It is possible to play back on the DV deck and the HDD/DVD deck simultaneously. However, either DVD or HDD can be played at the same time.
Accidental erasure prevention
To prevent accidental recording on a recorded cassette, set its erase protection switch to ASAVEB. To record on it later, set the switch to ARECB.
Erase protection switch
34 EN BASIC OPERATIONS ON DV DECK
TV
DVD
DV
I
O
N
W
DISPLAY
AUDIO
ATTENTION:
In the search, still,
Next Function Memory
The Next Function Memory AtellsB the unit what to do after rewinding. Before continuing, make sure the unit is in the Stop mode.
For Automatic Start Of Playback
Press O, then press I within 2 seconds.
For Automatic Cassette Ejection After Tape Rewind
Press O, then press M (DV) within 2 seconds.
Soundtrack Selection
Your unit is capable of recording two soundtracks (L and R) and will play back the one you select.
During Playback
Pressing AUDIO changes the soundtrack as follows:
To select the audio mode (SOUND1/SOUND2/MIX), refer to AAUDIO MODEB under ADV SET UPB (A pg. 62).
Variable Speed Search
During playback, press N for forward variable speed search, or O for reverse variable speed search.
???Each press of the button increases the search speed for each direction.
???To resume normal playback, press I.
Still
1 Press W to pause during playback.
2Press W to activate
???To resume normal playback, press I.
Slow Motion
1 Press W to pause during playback.
2Press and hold W for 2 seconds, then release. Press W and release again to return to still picture.
???Press N for forward slow motion or O for reverse slow motion.
???To resume normal playback, press I.
Time Code
During recording, a time code is recorded on the tape. This time code is used to confirm the position on the tape when playing back or editing a tape.
1Press DISPLAY on the remote control or the unit until the time code on the tape appears on the front display panel and the TV screen.
???Each time you press DISPLAY, the indication changes as follows:
Time code N Tape remaining time N Clock time N (Back to the beginning)
LIVE MEMORY PLAYBACK ON HDD/DVD DECK EN 35
Live Memory Playback
Recording/playback Status Display
TV
DVD
???Turn on the unit.
???Turn on the TV and select the AV mode.
???Slide the TV/DVD switch to DVD.
???Press DV/HDD/DVD on the unit repeatedly to select the HDD or DVD deck.
This unit records pictures onto the hard disk and
It is called ALive Memory PlaybackB to start playback of the program being recorded, with a
Current playback point (Live Memory Playback)
Not only can this unit play back a program previously recorded while recording another program, but the unit also allows you to play back from the beginning of a program while continuing to record the same program.
NAVIGATION
Press NAVIGATION to display Library Database Navigation menu, then choose a program to play back. (A pg. 38)
R o
ON SCREEN
Live Memory Playback status can be checked by pressing ON SCREEN to display the bar meter on the superimpose display. The current status is superimposed on the TV screen. (A pg. 16, AWhen using Live Memory playbackB)
EE CHECK
EE
NOTES:
???Live Memory Playback could be performed approximately 30 seconds after recording has started on the
???Although
???Playback may be paused for a moment during Live Memory Playback, which does not interfere with recording.
???Live Memory Playback cannot be performed while recording the source from DV input. (A pg. 50, ADV Dubbing (HDD & DVD Deck Only)B)
???When EE CHECK is pressed to display the picture currently being recorded, the picture size may not be correct.
???Press o or EE to stop Live Memory Playback.
???Live Memory Playback cannot be performed while the DVD deck is recording as temporary recording on HDD stops during recording on DVD.
36 EN LIVE MEMORY PLAYBACK ON HDD/DVD DECK
???Pressing down for 2 or more seconds reverses playback at 1/16 times the normal speed. Releasing the button resumes normal playback.
Backward Jump
???Each press of the button during Live Memory Playback jumps back for the selected time interval and resumes playback.
(A pg. 32, AJump SearchB)
CT
???Pressing once skips forward to the beginning of the next chapter being played back.
???Pressing down for 2 or more seconds during playback advances playback at 5 times the normal speed while pressed. Releasing the button resumes normal playback.
Available only when paused
???Pressing down for 2 or more seconds advances playback at 1/ 16 times the normal speed. Releasing the button resumes normal playback.
Forward Jump
???Each press of the button during Live Memory Playback jumps forward for the selected time interval and resumes playback. (A pg. 32, AJump SearchB)
DO
???Each press of the button during playback advances the playback speed in 6 steps in the reverse direction.
Available only when paused
???Each press of the button reverses the still picture frame by frame.
???Pressing down for 2 or more seconds reverses playback at 1/16 times the normal speed. Then, each press of the button reverses
LIVE MEMORY PLAYBACK ON HDD/DVD DECK EN 37
Temporary recording for Live Memory (HDD deck only) Simultaneous Recording and Playback
This unit automatically records the AV input being received, within the specified range of time, to the reserved space on the hard disk. The time range can be set for 30 minutes, 1 hour, and 3 hours.
(A pg. 61)
You can play back the previous part of the AV input you are recording or other programs available in the Library Database.
1Press NAVIGATION. The Library Database Navigation screen appears.
NOTE:
Previous temporary recordings will be overwritten since the unit is always recording the AV input being received. Thus, it is not possible to play back programs recorded beyond the specified range of time since they are already overwritten. To avoid this in order to save titles, perform normal recording or RetroActive Recording (See below).
2Press selection keys to select AORIGINALB, then press
ENTER.
3Press selection keys to select the desired title, then press
ENTER.
???For
(A pg. 61).
About limitation on temporary recording
The temporary recording for Live Memory is canceled in the following cases, and will start all over again when it is to resume.
???When the power is turned off
???When the system is powered again after a power failure was occurred
???When normal recording or RetroActive Recording is performed
???When the ALIVE MEMORYB setting is changed (A pg. 61)
???When dubbing is performed by pressing DUBBING (A pg. 46)
???When ADVB is selected by pressing INPUT SELECT +/??? (A pg. 50)
4Press selection keys to select the desired playback method (ABEGINNINGB, ARESUMEB or AREPEATB), then press
ENTER.
???Playback of the selected title begins automatically.
5Press o to stop playback.
???The external input screen resumes.
NOTES:
???You can use various playback features during Live Memory Playback.
???To stop simultaneous playback, press o. The external input screen resumes. To stop actual recording, press o twice again.
RetroActive Recording (HDD deck only)
You can start recording from the previous part of the AV input you are currently watching (temporarily recorded on the background). (See ATemporary recording for Live Memory (HDD deck only)B above.)
1Press S or O to locate the point to start recording from.
???Each press of O increases the reverse search speed.
2Press R on the unit to start RetroActive Recording. Or while holding R, press I on the remote control.
3Press o twice to stop RetroActive Recording.
???The external input screen resumes.
NOTES:
???You cannot use RetroActive Recording for inputs other than the one you are currently watching.
???Recording speed is automatically set to FR65 mode when RetroActive Recording is started.
???Temporarily recorded data prior to the beginning of RetroActive Recording is erased when RetroActive Recording started.
Instant Replay
You can move back the playback position slightly during recording or Live Memory Playback.
Press w on the remote control or INSTANT REPLAY on the unit.
8
???Pressing once during recording skips back for approximately 30 seconds and starts Live Memory Playback. While pressing once during Live Memory Playback skips back for approximately 7 seconds and resumes playback.
???Each subsequent press skips back for approximately 7 seconds and resumes playback.
???Pressing while paused skips back for approximately 7 seconds and resumes pause.
8 HDD
???Pressing during recording skips back for approximately 7 seconds and starts Live Memory Playback. While pressing during Live Memory Playback skips back for approximately 7 seconds and resumes playback.
???Each press skips back for approximately 7 seconds and resumes playback.
???Pressing while paused skips back for approximately 7 seconds and resumes pause.
Resuming Playback (HDD deck only)
You can resume playback of an AV input you were recording or watching from the point you have paused.
1Press W to pause an AV input.
???Recording continues when recording.
2Press I to start Live Memory Playback.
???Playback resumes from the paused position.
3 Press o to resume the external input screen.
38 EN NAVIGATION ON HDD/DVD DECK

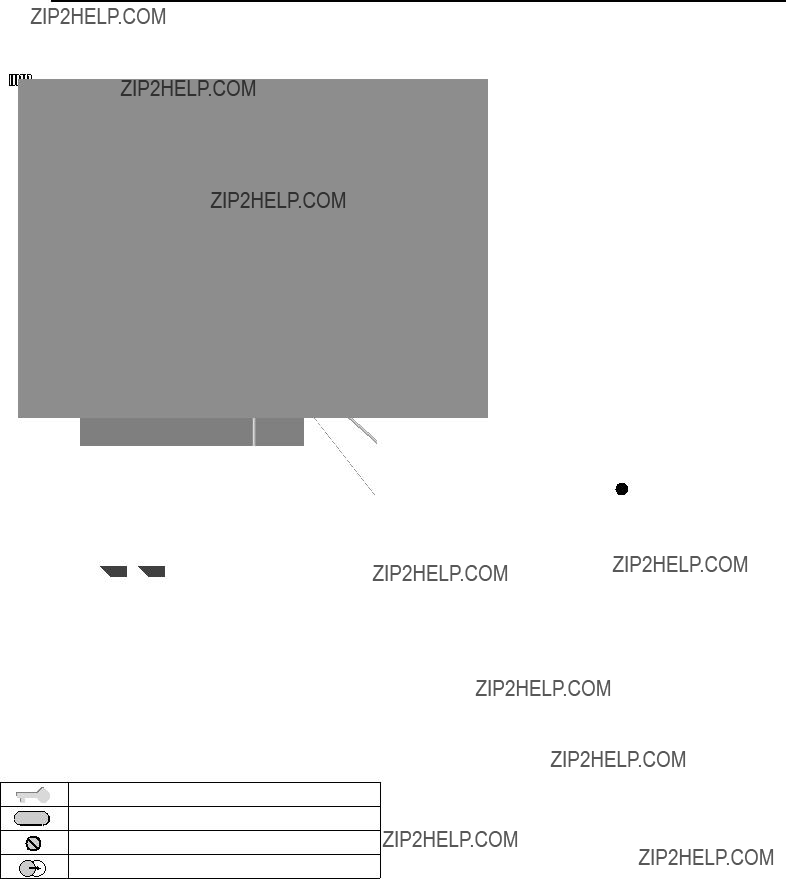

NAVIGATION
ENTER
DH
APlayback screen
(Indicates currently received AV input.)
BGuidance for operations
CScroll bar
(Appears when there are over nine registered titles (or play lists). The scroll bar only indicates that there are more titles (or play lists) hidden off the current screen display. To show hidden titles (or play lists), press selection keys repeatedly.)
D Title number ( 001 , 002 , ???)
(Number assigned to titles for selecting directly via
ERecording information for the title indicated by the arrow
FIndex list
(Thumbnail still of each title) Thumbnail still is not to be played back.
GIndex
: Indicates no index is registered.
: Indicates no title is registered.
HIcons
(Indicate the record condition of each title.)
???Once a
???When a
was moved to the DVD disc will become a
to
.
???Sound of received channel may be interrupted while the Library Database Navigation screen is displayed.
???The order of index which are displayed by pressing DUBBING differs from the images displayed by pressing NAVIGATION or
EDIT.
The Icons and their meanings
This title is
NEW This title has not been played back.
This title is
This title can only be recorded once
NAVIGATION ON HDD/DVD DECK EN 39

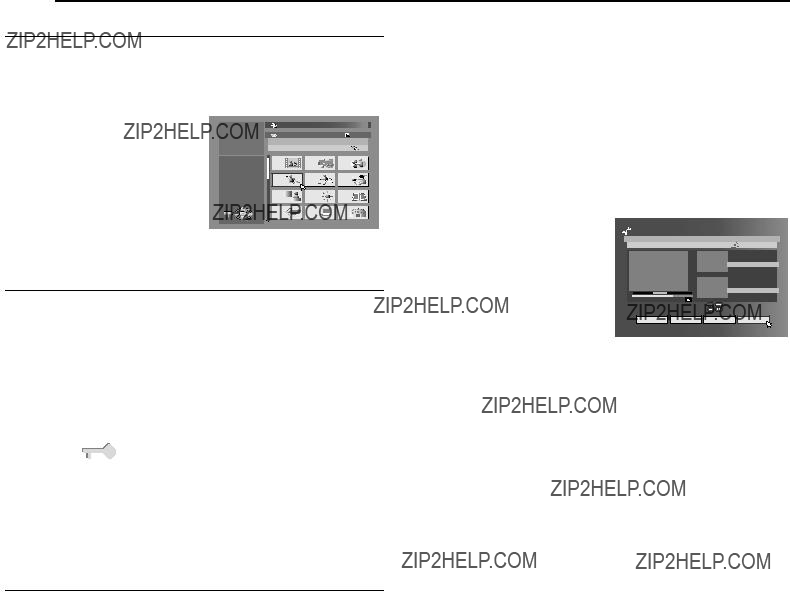

Scan For Beginning Of Title
Edit Original Information
???Turn on the TV and select the AV mode.
???Slide the TV/DVD switch to DVD.
???Press HDD or DVD to choose the corresponding deck.
???Load a DVD disc to scan.
HDD
TV
DVD
DVD
???Turn on the TV and select the AV mode.
???Slide the TV/DVD switch to DVD.
???Press HDD or DVD to choose the corresponding deck.
???Load a DVD disc to modify.
ATTENTION:
It is not possible to modify discs recorded on DVD units from other manufacturers.
CANCEL
ENTER
MEMO
EDIT
NAVIGATION
Modify Index
1 Press EDIT. The Editing screen appears.
Selection Keys
FGDE
RETURN
I
O
N
3Press selection keys to select AMODIFYB under AORIGINALB, then press ENTER.
o
W
5 Press selection keys to select AINDEXB, then press ENTER.
6Press I to start playback. Press O or N to search for the picture from the title, then press W.
???The pictures of the title appear
SP
You can scan the beginning of the title easily with the Library Database Navigation.
1Press NAVIGATION. The Library appears.
2Press selection keys to select A
ENTER.
3 Press selection keys to select the index (small pictures) of the desired title, then press
ENTER.
Press EDIT to return to the normal screen.
Title Name
??? When you want the plural titles to be played back continuously, press MEMO after selecting the desired title. The numbers of the playback order appear on the index. You
???When you want to correct the desired index and press MEMO. the unit
???When you want to cancel the order, press CANCEL.
4 Press selection keys to select ABEGINNINGB, then press
SP
ENTER.
??? To resume playback from the point where playback was previously stopped, press selection keys to select
ARESUMEB, then press
ENTER.
???To repeat playback of a selected title, press selection keys to select AREPEATB, then press ENTER.
5Press W to pause playback.
???To resume normal playback, press I.
6 Press o to stop playback.
Perform steps 1 ??? 4 of AModify Press selection keys to select A
Press selection keys to select desired letter or symbol,
then press ENTER. Repeat process to complete the
name.
correct a letter, press selection keys to select
ADELETEB, then press
ENTER.
??? You can enter the letters up to 64.
4 Press selection keys to select A
5 Press EDIT to return to the
EDITING > MODIFY NAME
12/25/03 THU 10:00AM - 10:15AM
SELECT WITH @
THEN PRESS [ENTER]
PRESS [EDIT]
TO EXIT
EDIT
ENTER
1 Press EDIT. The Editing screen appears.
2(DVD deck only) Press selection keys to select AMODIFYB under AORIGINAL/PLAY LISTB, then press ENTER.
3Press selection keys to select ADELETEB under AORIGINALB, then press ENTER.
4Press selection keys to select a title you want to delete, then press ENTER.
5Press selection keys to select ADELETEB, then press ENTER.
???When you cancel the deletion, select ACANCELB, then press
ENTER.
6 Press EDIT to return to the normal screen.
NAVIGATION ON HDD/DVD DECK EN 41
Divide Title (HDD deck only)
You can divide titles that are recorded continuously.
1 Press EDIT. The Editing screen appears.
2 Press selection keys to select ADIVIDEB, then press ENTER.
3Press selection keys to select a title to divide, then press
ENTER.
4Press I to start playback. Press O or N to locate a point to divide, then press W.
5Confirm the arrow is on ADIVIDEB, then press ENTER.
???The first picture (start) of the newly created title appears in the bottom right window.
???Select APREVIEWB, then press ENTER. The first several seconds of the newly created title is played back, then the playback pauses at the dividing point.
???To undo the division, press selection keys to select ARETRYB, then press ENTER. Repeat the above procedure to locate another point to divide.
6 Press selection keys to select AOKB, then press ENTER.
7Press selection keys to select ADIVIDEB, then press ENTER.
???Select ACANCELB, then press ENTER to return to the previous screen.
8 Press EDIT to return to the normal screen.
NOTES:
???There may be a discrepancy of several seconds between the scene you intend to edit, and the scene which is actually edited.
???It is not possible to divide titles that are used in the play list.
Modify Chapter
(HDD,
You can create and delete chapter marks in titles.
1Perform steps 1 ??? 4 of AModify IndexB (A pg. 39) before continuing.
2Press selection keys to select ACHAPTERB, then press
ENTER.
selection keys to select
ARETRYB, then press ENTER.
??? Repeat the above steps 3 and 4 to locate another point to mark.
5Press S or T to select one chapter you want to delete, press selection keys to select AERASEB, then press ENTER.
???To undo the deletion, press selection keys to select ARETRYB, then press ENTER.
6 Press EDIT to return to the normal screen.
NOTE:
There may be a discrepancy of several seconds between the scene you intend to edit, and the scene which is actually edited.
42 EN NAVIGATION ON HDD/DVD DECK
ATTENTION:
It is not possible to modify discs recorded on DVD units from other manufacturers.
TV
DVD
HDD
DVD
CANCEL
MEMO
EDIT
ENTER
NAVIGATION
Selection Keys
6 Confirm the arrow is on AIN/
Press O or N to find the
point where you want the created play list to end, then press W.
8Confirm the arrow is on AIN/OUTB, then press ENTER.
???The
???The
???Select APREVIEWB, then press ENTER to preview the play list.
9 Press selection keys to select AOKB, then press ENTER.
10 Press selection keys to select AEXITB, then press ENTER.
11 Press EDIT to return to the normal screen.
NOTES:
???There may be a discrepancy of several seconds between the scene you intend to edit, and the scene which is actually edited.
???The title, index and category of the play list can be modified in the same way as AORIGINALB. (A pg. 39)
???You can modify the play list that has just been created here by adding, moving, or deleting unwanted parts to create a digest edition, etc.
Play List
It is a collection of the scenes. A play list can be freely edited and played back without ever changing any original recording data. Using the random access of a disc (which allows video data to be instantly read no matter where it is on the disc), a play list includes information such as the timer counter for the playback start point and end point, indexes for checking the contents of recorded data, category information, and more. Playback according to a play list you have created allows you to enjoy various combinations of video images from a single title.
Edit Scenes
1 Press EDIT. The Editing screen appears.
2(DVD deck only) Press selection keys to select AMODIFYB under AORIGINAL/PLAY LISTB, then press ENTER.
3Press selection keys to select AMODIFYB under APLAY LISTB, then press ENTER.
4Press selection keys to select a play list to modify, then press
ENTER.
5 Press selection keys to select ASCENEB, then press ENTER.
6 Press selection keys to select AMODIFYB, then press ENTER.
7Press selection keys to select the start or end point of a scene to modify, then press ENTER.
8 Perform steps 5 ??? 11 of ACreate Play ListB above.
NAVIGATION ON HDD/DVD DECK EN 43
Add scenes
1Perform steps 1 ??? 5 of AEdit ScenesB (A pg. 42) before continuing.
2Press selection keys to select ASEL. TITLEB, then press
ENTER.
3 Perform steps 4 ??? 11 of ACreate Play ListB (A pg. 42).
Move Scenes
1Perform steps 1 ??? 5 of AEdit ScenesB (A pg. 42) before continuing.
2 Press selection keys to select AMOVEB, then press ENTER.
3Press selection keys to select a scene to move, then press
ENTER.
4Press selection keys to select another scene to which the scene is to be moved, then press ENTER.
???To cancel the move, press selection keys to select ARETRYB, then press ENTER.
5 Perform steps 9 ??? 11 of ACreate Play ListB (A pg. 42).
Delete Scenes
1Perform steps 1 ??? 5 of AEdit ScenesB (A pg. 42) before continuing.
2 Press selection keys to select ADELETEB, then press ENTER.
3Press selection keys to select a scene to delete, then press
ENTER.
4 Perform steps 9 ??? 11 of ACreate Play ListB (A pg. 42).
Play Back Play List
1Press NAVIGATION. The Library Database Navigation screen appears.
2Press selection keys to select APLAY LISTB, then press
ENTER.
3 Press selection keys to select
lists. The numbers of the
Play list number
playback order appear on the index. You can select up to 8 play lists.
???When you want to correct the order, move the arrow to the desired index and press MEMO. The number disappears and the unit
???When you want to cancel the order, press CANCEL.
Delete Play List
1 Press EDIT. The Editing screen appears.
2(DVD deck only) Press selection keys to select AMODIFYB under AORIGINAL/PLAY LISTB, then press ENTER.
3Press selection keys to select ADELETEB under APLAY LISTB, then press ENTER.
4Press selection keys to select one play list you want to delete, then press ENTER.
5Press selection keys to select ADELETEB, then press ENTER.
???When you cancel the deletion, select ACANCELB, then press
ENTER.
6 Press EDIT to return to the normal screen.
NOTE:
Even if a play list is deleted, the titles recorded and the library information are not affected at all.
Modify Index
APerform steps 1 ??? 4 of AEdit ScenesB (A pg. 42) before continuing.
BPerform steps 5 ??? 8 of AModify IndexB (A pg. 39).
Modify Play List Name
APerform steps 1 ??? 4 of AEdit ScenesB (A pg. 42) before continuing.
BPerform steps 2 ??? 5 of AModify Title NameB (A pg. 39).
Modify Category
APerform steps 1 ??? 4 of AEdit ScenesB (A pg. 42) before continuing.
BPerform steps 2 ??? 4 of AModify CategoryB (A pg. 40).
4Press selection keys to select ABEGINNINGB, then press ENTER. The playback starts.
???Upon completing play list playback, the normal screen will resume.
???The normal screen will also resume when o is pressed to stop play list playback.
NOTE:
The play list number on the top right corner of the index is for selecting directly via
44 EN NAVIGATION ON HDD/DVD DECK
Title information can be registered in the unit???s memory for up to 600 DVD discs, 2,000 titles. It is helpful when finding a desired title (or play list) by sorting according to the sort options registered during (or after) recording.
???Turn on the TV and select the AV mode.
???Slide the TV/DVD switch to DVD.
???Press HDD or DVD to choose the corresponding deck.
TV
DVD
HDD
DVD
3Press selection keys to select the desired title, then press
ENTER.
???For HDD deck, playback begins automatically after the selected title is located.
???For DVD deck, the title information will be displayed after the selected title is located. However, playback will not begin automatically.
NOTE:
If a disc registered in the library is recorded or modified on DVD units from other manufacturers, it may become impossible to operate properly.
Register Disc
When a disc that is not registered in the library is loaded, a message appears confirming if the disc should be registered. If registering, perform the following procedure.
1Press selection keys to select AREGISTERB, then press ENTER to confirm the registration.
2 Press NAVIGATION to return to the normal screen.
NOTES:
???It is not possible to register discs formatted on devices other than JVC???s DVD recorders.
???It is not possible to register discs recorded on devices other than JVC???s DVD recorders.
???It is not possible to register discs when ASAVE AS LIBRARYB is set to AOFFB. (A pg. 61)
NAVIGATION ON HDD/DVD DECK EN 45
Playback With MP3/WMA/JPEG
Navigation
Locating The Desired Folders And Tracks
1 Load a disc.
2 Press NAVIGATION.
3Press selection keys to select AORIGINALB, then press
ENTER.
This unit can play back discs that MP3/WMA sound files and JPEG image files taken with digital still cameras or other devices are recorded.
The MP3/WMA/JPEG Navigation enables you to search and select the desired files recorded on
4Press selection keys to select the desired folder, then press
ENTER.
???A list of files in the selected folder appears.
NAVIGATION > ORIGINAL (INSERTED DISC)
TRACK:
01 Whose Side Are You On
NAVIGATION > ORIGINAL (INSERTED DISC)
> 01 Whose Side Are You On
ASelected file number/total number of files in the group that contains the selected file
BName of the selected file
CSelected file
NOTES:
???If you press I instead of ENTER in step 4, the unit starts playback from the first file of the folder.
???JPEG files are played back as a slide show at the set intervals. (A pg. 30)
???If a file name includes any
???The order of the folders and items shown in steps 4 and 5 may differ from the order shown on your PC.
NOTES:
???If there are more than 100 files, the rest of the files are not displayed. In this case, press ON SCREEN to display them on the TV screen.
???The
???If both MP3/WMA files and JPEG files are recorded on the same disc, you can select to play back either of the file types using the AMP3&WMA/JPEGB setting. (A pg. 61)
46 EN EDITING
FINALIZEB, then press ENTER to start dubbing.
ENTER
NOTES:
???Play lists are dubbed as programs.
???In Video mode, if the selected play list includes the scenes recorded in the different transfer rate, the dubbing is performed in the highest transfer rate of the scenes in the selected play list.
???During dubbing, it is not possible to play back on HDD or DVD.
???It is not possible to discontinue dubbing once it has been started.
DUBBING
Auto Finalizing
When dubbing from a Mini DV or HDD to a
It is also possible to set the operation method of a
NOTE:
You can select and set the background to be used when Auto Finalizing a
NOTES:
???It is not possible to dub
???The order of the index which is displayed by pressing DUBBING differs from the images displayed by pressing
NAVIGATION or EDIT.
High Speed Dubbing (From HDD To DVD)
It is possible to dub the original recordings and/or play lists on the HDD deck to DVD discs. The dubbing is performed in high speed, keeping the original transfer rate.
NOTES:
???After accessing the Dubbing Menu screen, it is not possible to take out a disc.
???It is not possible to dub
???When dubbing a
???When you cancel dubbing a
???It is not possible to dub play lists which contain
???It is not possible to dub the following programs to
???which contains more than one audio language.
???which is on the play list.
???which is edited (also RetroActive Recording).
???which is recorded in LP mode or
Just Dubbing (From HDD To DVD)
By using Just Dubbing function, when dubbing all selected original recordings and/or play lists, the unit automatically sets the appropriate recording mode depending on the combination of the total time of the selected recordings and/or play lists to be dubbed and the available disc space.
1 Load a recordable disc.
2 Press DUBBING to access the Dubbing Menu screen.
3Press selection keys to select AHDDNDVDB, then press
ENTER.
4 Press selection keys to select AJUSTB, then press ENTER.
5Perform steps 5 ??? 6 of AHigh Speed Dubbing (From HDD To DVD)B.
NOTES:
???Play lists are dubbed as programs.
???In Video mode, if the selected play list includes the scenes recorded in the different transfer rate, the dubbing is performed in the highest transfer rate of the scenes in the selected play list. However, the lower transfer rate cannot be dubbed in the higher transfer rate.
???The recordable time of the disc is displayed on the bar meter. For details, refer to AAbout Disc Remaining DisplayB (A pg. 49).
???During dubbing, it is not possible to play back on HDD or DVD.
???It is not possible to discontinue dubbing once it has been started.
Manual Dubbing (From HDD To DVD)
It is possible to perform dubbing in the desired transfer rate.
1 Load a recordable disc.
2 Press DUBBING to access the Dubbing Menu screen.
3Press selection keys to select AHDDNDVDB, then press
ENTER.
4Press selection keys to select AMANUALB, then press
ENTER.
5Perform step 5 of AHigh Speed Dubbing (From HDD To DVD)B. The Manual Dubbing screen appears.
6Press selection keys to select AREC MODEB, then press ENTER. Press selection keys to select the desired option, then press ENTER.
???For details on the recording mode, see ARecording ModeB (A pg. 51)
7 Press G to select ACONFIRMB, then press ENTER.
8Press selection keys to select AEXECUTEB or AAUTO FINALIZEB, then press ENTER to start dubbing.
NOTES:
???It is not possible to dub play lists on DVD discs.
???It is not possible to dub
???It is not possible to dub Video CDs/SVCDs or Audio CDs.
???It is not possible to dub from +R/+RW discs.
???It is not possible to discontinue dubbing once it has been started.
48 EN EDITING
It is possible to select the images on the DV cassette to be dubbed from the DV deck to the DVD deck using AMANUALB dubbing.
1Load the Mini DV cassette you want to dub. Make sure its erase protection switch is set to ASAVEB.
???Set ADV AUDIO RECB to the appropriate mode. (A pg. 62)
2 Press DUBBING to access the Dubbing Menu screen.
3Press selection keys to select ADVNDVDB, then press
ENTER.
4 Select AMANUALB, then press ENTER.
5Press selection keys to select ASELECT RECORDING MODEB, then press ENTER. Press selection keys to select the desired option, then press ENTER.
6Press selection keys to select ASELECT SOUND MODEB, then press ENTER. Press selection keys to select the desired option, then press ENTER.
7Press G to select ACONFIRMB, then press ENTER. The confirmation screen appears.
8Press selection keys to select AEXECUTEB or AAUTO FINALIZEB, then press ENTER for confirmation.
???If the DV deck is in the stop mode, the unit will start dubbing from the current tape position.
???If the DV deck is in the pause mode, the unit will start dubbing from the point where the tape was paused after automatically rewinding the tape for 2 seconds.
???To cancel the dubbing, press o then selection keys to select ACANCELB and press ENTER to confirm.
21%
Dark green: Length of already recorded item
Light green: Length of selected item
Yellow: Length of the item now being selected by arrow
Red: Excess over the capacity
When performing the Just Dubbing
TOTAL 105MIN
???The unit displays the status on the assumption that the selected items are dubbed in the lowest transfer rate.
???The total time of a loaded disc is displayed on the right of the bar meter.
When performing the Manual Dubbing
MAX FR240
???The unit displays the status on the assumption that the selected items are dubbed in the lowest transfer rate.
???The available highest transfer rate is displayed on the right of the bar meter.
9Upon completing dubbing, the tape stops and ADUBBING COMPLETEDB appears on the TV screen. Press ENTER to end.
???The tape will automatically be rewound.
NOTES:
???The program information at the DV deck will not be dubbed.
???When there are blanks on the tape of more than 2 seconds, the DVD deck will enter into pause mode while playback on DV deck continues. This also applies to portions of the DV tape that are damaged or unreadable. The last image is displayed on the TV screen. Dubbing will resume once recorded portion is detected. If the blank portion continues until the end of the tape, ADUBBING COMPLETEDB appears on the TV screen when the tape end is reached and the tape rewinds automatically.
???Dubbing copyright guarded tape is not possible.
???When dubbing is in progress, o and ON SCREEN buttons are functional.
50 EN EDITING
6Press REC MODE repeatedly to set the recording mode. For DV deck, press REC MODE on the remote control to set the recording mode.
???Each time you press REC MODE, the recording mode changes
as follows:
DV*1 N XP N SP N LP NEP N FR
*1 Selectable when dubbing to the HDD deck.
*2 The value is selectable from 1 to 6 hours in 5 minutes interval by pressing DErepeatedly after selecting
???For details on the recording mode, see ARecording ModeB (A pg. 51).
7Locate the point from where you want to start dubbing, then stop or pause playback by pressing the following buttons on the remote control: I, N, O, o, W.
???To play back in slow speed (1/10 of the normal speed), press W to pause playback, then press O or N.
???To play back
???To change the playback direction, press O or N.
8Press selection keys to select
, then press ENTER repeatedly until the desired sound track appears on the TV screen.
SOUND1:
Select this to record the original stereo sound played back on the connected DV equipment.
The following
A B C
ARemote control switch
To switch between the devices operable by the remote control
unit. The unit is operable when the remote icon (
) displayed faces to the left, while the DV device is operable when the remote icon is facing to the right.
BAuto capture button
Select to start or pause the dubbing. If ENTER is pressed when the DV device is in the pause condition, preroll editing* where it is possible to dub with a start time that is highly accurate will be activated. When the DV device cannot be operated from the unit (such as in camera mode), proceed with normal recording.
???Do not start dubbing at the portion with no time code (A???
* Preroll editing refers to the playback after the DV tape is slightly rewind. (For DV devices that do not support the
CSound monitor switch
For selecting the desired sound format for dubbing.
SOUND2:
Select this to record the dubbed stereo sound played back on the connected DV equipment.
MIX:
Select this to record the sound of both ASOUND1B and ASOUND2B.
???Note that this selection is not available when the source program is recorded in 16BIT (48 kHz) mode.
9Press selection keys to select
, then press ENTER. The dubbing starts.
???Playback on the external DV equipment and recording on the unit should start simultaneously.
???To pause dubbing, press selection keys to select
, then press ENTER. Both the unit and the external DV equipment pause dubbing. Pressing W on the unit also works the same way.
10 Press selection keys to select
, then press ENTER. Then press o. The DV equipment stops.
11 Press selection keys to select
, then press
ENTER.
12 Press o twice on the remote control to stop dubbing.
??? Both the unit and the external DV equipment stop dubbing.
NOTES:
???To create chapters (marks) automatically, set ADV AUTO CHAPTERINGB to AONB. (A pg. 61)
???Dubbing copyright guarded programs is not possible.
???Original DV information such as the recording date and time are not recorded.
???The superimposed indication during the operation or dubbing is not recorded.
EDITING EN 51
???If the dubbing is paused while the channel is set to ADVB, you cannot switch channels.
Free Rate Function
When you dub from DV equipment other than a camcorder
APerform steps 1 ??? 4.
BLocate the point from where you want to start dubbing, then stop on the DV equipment.
???If you pause the DV equipment in this step, a few second???s still picture will be recorded at the beginning of the recorded program.
CSet the input mode to ADV INPUTB on the DV equipment.
???If you select an input mode other than ADV INPUTB, unwanted pictures may be recorded at the beginning of the recorded program.
DPerform steps 9 ??? 12.
To skip unwanted part of the source picture
Press ENTER to stop both equipment, then press selection keys to select
.
Locate the point where you want to restart dubbing by pressing I, N, or O, then press o.
Press selection keys to select
, then press ENTER to restart dubbing.
Recording Mode
MPEG2 format is used as recording format. As a guide for picture quality, the AbpsB unit is used to represent how much data can be recorded per second. The larger this value is, the better the picture quality becomes but more capacity is required for the recording.
Select XP or SP for programs where quick movement occurs, such as sports programs, and LP or EP for talk shows, etc. with relatively less movement.
The recording modes for a 4.7 GB disc are set as follows:
???For details on FR mode, refer to AFree Rate FunctionB on the right column.
The recording modes for the HDD are set as follows:
To record the entire program, the unit automatically sets the appropriate recording mode depending on the combination of the total time of the program to be recorded and either the remaining disc space or the specified recording time (from 60 minutes to 480 minutes).
8To record the entire program within the actual remaining disc space (DVD deck only)
Select AFR (JUST)B in a recording mode selection procedure.
???Note that this function is available only when dubbing from HDD to DVD (A pg. 46).
8To record the entire program by specifying the desired recording time
Select
8To record a
Be sure to set the recording mode to AFR125B to fit the total recording time to the whole disc space.
A: 1st
BlankB: 2nd
C: 3rd
D: 4th
E: 5th
When the same program is recorded in SP mode instead of in AFR125B, the 5th program cannot be recorded.
A: 1st
BlankB: 2nd C: 3rd
D: 4th
E: Blank (20 min.)
NOTES:
???The maximum recording time of FR (JUST) mode is the same as the recording time of FR480 mode. When dubbing a long program in FR (JUST) mode on a disc whose remaining time is short, it is recommended to check the disc remaining time in FR480 mode to see if the remaining time is enough for the program.
???In order to ensure that the recording fits on the disc, this feature may leave a slight
???There may be some noise and sound disturbance at the point on the disc where the unit switches the mode.
??? For details on FR mode, refer to AFree Rate FunctionB.
NOTE:
The maximum recording time stated in the above table are the approximate time under unused condition.
52 EN EDITING
AUDIO/VIDEO OUTPUT
Player
B If the camcorder has an
AUDIO OUTPUT
Player
C If the camcorder has a DV IN/OUT connector:
Recorder/Player
To [DV IN]
DV cable
(not supplied)
3Press INPUT SELECT +/??? on the remote control or INPUT SELECT on the unit to select
???Set AFRONT AUX
4Press REC MODE repeatedly to set the recording mode. For DV deck, press REC MODE on the remote control to set the recording mode.
5Start playback on the camcorder slightly before the actual point from where you wish to start dubbing.
6Press Ron the unit to start recording. Or while holding R, press I on the remote control. The dubbing starts.
7 Press o on the unit, then stop playback on the camcorder.
NOTES:
???All necessary cables can be obtained from your dealer.
???Refer to the camcorder???s instruction manual for operating procedure.
???The quality of dubbed picture becomes poorer than that of the original.
???When you are editing through the [DV IN/OUT] connector, the unit will stop if the player begins playing a blank portion of tape or the signal is interrupted.
???When connecting the unit to a device equipped with a DV input connector, be sure to use the optional DV cable
???To edit through the [DV IN/OUT] connector using the HDD or DVD deck, refer to ADV Dubbing (HDD & DVD Deck Only)B (A pg. 50).
???When using your unit as the recording deck, chapters (marks) can be automatically created. Set ADV AUTO CHAPTERINGB to AONB. (A pg. 61)
DV connector
Player/Recorder
3 Press REC MODE repeatedly to set the recording mode.
4 Engage the Play mode on the source player.
5 Engage the Record mode on the recording deck.
6 Stop recording on the recording deck, then stop playback on the source player.
NOTES:
??? All necessary cables can be obtained from your dealer.
??? When you use this unit as the source player for editing, be sure to set ASUPERIMPOSEB to AOFFB before starting. (A pg. 61)
Another recorder
Recorder
B When using your unit as the recording deck
Another recorder
Player
54 EN EDITING
Dubbing DV Format Contents To A DV Device (HDD Deck Only)
You can dub programs recorded in DV mode on the HDD deck to a camcorder or DV equipment.
NOTE:
When connecting the unit to a device equipped with a DV input connector, be sure to use the optional DV cable
1Connect the camcorder or DV equipment???s DV input connector to the unit???s [DV IN/OUT] connector.
2Press DV/HDD/DVD on the unit repeatedly or HDD on the remote so that the HDD lamp lights up on the unit.
3Press INPUT SELECT +/??? on the remote control or INPUT SELECT on the unit to select ADVB.
4 Set the camcorder or DV equipment???s input channel to DV.
5Select and play back the program (DV mode) from the Library Database Navigation.
6 Start recording on the camcorder or DV equipment.
7When dubbing is completed, stop recording on the camcorder or DV equipment, then stop playback on the HDD deck.
NOTES:
???The channel of this unit must be set to ADVB in order to output the images (DV mode).
???Images other than those recorded in DV mode will not be output.
To [DV IN/OUT]
DV cable
(not supplied)
To DV input
Player
Rear of unit

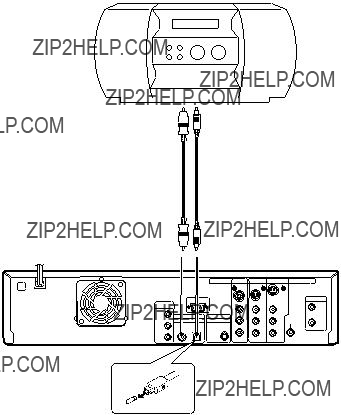

Note for connection:
Remove the protection cap from the optical cable.
56 EN EDITING
wish to start dubbing.
To [AUDIO]
input
6 Press W to pause playback.
7Press AUDIO DUB. to engage the audio dubbing mode.
???Your unit enters the Audio Dubbing Pause mode.
???To perform Audio Dubbing with audio mixing, press AUDIO to select AL W X RB at this point. When using the DV deck as the recording deck, also make sure that AAUDIO MODEB is set to ASOUND1B (A pg. 62).
AUDIO OUT
CD player, etc.
8Engage the audio device???s playback, then press I to start the tape in the unit. Audio dubbing starts at this point.
???To stop dubbing temporarily, press W. Press I to resume dubbing.
9Press o on the unit, then stop playback on the audio device to end the audio dubbing.
NOTES:
???When monitoring the audio dubbed sound on the DV deck, set AAUDIO MODEB to ASOUND2B (A pg. 62).
???When playing back an audio dubbed Mini DV tape on the DV deck, set AAUDIO MODEB to ASOUND2B (A pg. 62).
???Audio dubbing is not possible using the [DV IN/OUT] connector.
???Audio dubbing is not possible on a blank portion of the tape.
Audio/video cable
(not supplied)
7Load the source cassette and play back the segment that is to be inserted. When you reach the start of the section of the source tape that you wish to insert, press I to start the tape in your unit. Insert editing begins at this point.
8 Press o to stop recording on the DV deck to end insert editing.
VIDEO OUT
Another recorder
Player
B If the player has an
NOTES:
???All necessary cables can be obtained from your dealer.
???Insert Editing cannot be performed on a Mini DV cassette that has had its erase protection switch set to ASAVEB.
???When Insert Editing is performed on a tape that has been recorded on another video recorder, the inserted portion may appear distorted.
???A small portion of the recording which precedes an insert edit may become erased.
???Insert Editing is not possible using the [DV IN/OUT] connector.
???Insert Editing is not possible on a blank portion of the tape.
Another recorder
Player
58 EN REMOTE CONTROL
Remote Control Functions
Remote Control 1/2/3/4 Code Switching
The remote control is capable of controlling four JVC video units independently. Each of the units can respond to one of the four codes (1, 2, 3 or 4). The remote control is preset to send code 3 signals because your unit is initially set to respond to code 3 signals. You can easily modify your unit to respond to code 1, 2 or
4signals.
???Slide the TV/DVD switch to DVD.
SET UP
TV
DVD
1 ??? 4
ENTER
??? Keep pressing SET UP down during step 1.
1Enter your TV???s brand code using the number keys, then press
ENTER.
2Press A on the unit???s remote control to turn on the TV and try operations (A step 3).
???Once you have set the remote control to operate the TV, you do not have to repeat this step until you replace your remote control???s batteries.
???Some brands of TVs have more than one code. If the TV does not function with one code, try entering another.
o
SET UP
??? Keep pressing SET UP down during step 1.
1Press the number key A1B for 1, A2B for 2, A3B for 3 or A4B for 4 to change the remote control code, then press ENTER.
2 Press A on the unit to turn off the unit.
3Press I on the unit for over 5 seconds while the unit is turned off. The current code appears on the front display panel.
4Press o on the remote control to change the unit???s code. The new code blinks on the front display panel for approximately 5 seconds, and is applied to the unit.
TV
Your remote control can operate the basic functions of your TV set. In addition to JVC TVs, other manufacturer???s TVs can also be controlled.
???Turn off the TV using its remote control.
???Slide the TV/DVD switch to TV.
IMPORTANT:
Although the provided remote control unit is compatible with JVC televisions, as well as many other models, it may not work with your TV, or in some instances, may have limited function capability.
3Press the corresponding buttons to operate the TV: A, TV/ VIDEO, PR/CH
???For some brands of TVs, you must press ENTER after having pressed the number keys.
Note for connection:
Remove the protection cap from the optical cable.
60 EN SUBSIDIARY SETTINGS
Mode Set
* The boldface settings below indicate the settings at your purchase.
AUDIO OUTPUT
???Turn on the unit.
???Turn on the TV and select the AV mode.
???Slide the TV/DVD switch to DVD.
8 DIGITAL AUDIO OUT ^ DOLBY DIGITAL/PCM / STREAM/
PCM / PCM ONLY
Set to the appropriate mode according to the type of the device connected to [DIGITAL AUDIO OUTPUT] connector.
DOLBY DIGITAL/PCM:
HDD
ENTER
TV
DVD
DVD
Selection Keys
Select this when you connect the digital input connector of a Dolby Digital Decoder or an amplifier with a
STREAM/PCM:
Select this when you connect the digital input connector of an amplifier with a
PCM ONLY:
Select this when you connect the linear PCM digital input of other audio equipment (amplifier, MD or DAT deck, etc.).
NOTES:
FGDE
AUDIO
SET UP
Various modes of this unit are categorized into menus nested in 2 levels shown in the following table. To change the settings of these modes, find the desired mode in the menu (for details on each menu, see pages 60 through 62), then follow the procedure below.
???The procedure below shows how to set the desired option of the AJUMP TIMEB mode as an example.
1Press HDD or DVD so that the HDD or DVD lamp lights up on the unit.
2
3Press selection keys to select AFUNCTION SET UPB, then press G.
???This setting also functions when HDD is active.
???If you watch or play back a title which contains multiple audio languages, select APCM ONLYB in advance and choose main or sub audio with AUDIO.
8 ANALOG AUDIO OUT ^ STEREO / DOLBY SURROUND
Select the appropriate setting to accommodate the unit to the connected A/V equipment. This function takes effect when a DVD VIDEO disc is played back.
STEREO:
Select this when listening to conventional
DOLBY SURROUND:
Select this when listening to multichannel surround audio with the unit???s [AUDIO OUTPUT] connectors connected to an amplifier/receiver with a
8 D. RANGE CONTROL ^ NORMAL / WIDE RANGE / TV MODE
The dynamic range (the difference between the loudest sound and the quietest one) can be compressed during playback of a program encoded in Dolby Digital format.
This function takes effect when a DVD VIDEO disc recorded in Dolby Digital format is played back at low or middle volume.
NORMAL:
Normally select this setting to activate this function.
WIDE RANGE:
Select this to deactivate this function when you enjoy wide dynamic range program.
TV MODE:
Select this when you hear the sound through the TV???s speaker(s).
NOTES:
???This function has no effect on programs other than those recorded in Dolby Digital format.
???This function does not work when Simulated Surround Effect is activated. (A pg. 29)
???The effect of ANORMALB and AWIDE RANGEB may not be different depending on discs.
4Press selection keys to select AREC/PLAY SET UPB, then press G.
5Press selection keys to select AJUMP TIMEB, then press
ENTER.
6Press selection keys to select the desired option, then press
ENTER.
8 OUTPUT LEVEL ^ STANDARD / LOW
You can lower the output level of analog audio to accommodate the unit to the connected A/V equipment.
STANDARD:
Normally select this setting.
LOW:
The output level of analog audio is lowered.
7 Press SET UP to complete the setting.
SUBSIDIARY SETTINGS EN 61
DISC PLAY SET UP
8 RESUME ^ OFF / ON / DISC RESUME
When this function is set to AONB or ADISC RESUMEB, you can use the resume function. (A pg. 24)
OFF:
You cannot use the resume function.
ON:
You can start playback from the resume point of the placed disc.
DISC RESUME:
The unit retains a memory of the resume points of the last 30 discs played back, even though they have been ejected.
NOTE:
ADISC RESUMEB setting works on DVD VIDEO, VCD, SVCD and already finalized
HDD SET UP
8 LIVE MEMORY ^ OFF / 30 MIN / 1 HR / 3 HR
When this function is set to A30 MINB, A1 HRB or A3 HRB, you can apply the selected time length to ATemporary recording for Live Memory (HDD deck only)B (A pg. 37).
8 DV
You can select the desired sound mode when playing back a program recorded on the HDD in DV mode.
SOUND1:
Original recorded sound.
SOUND2:
MIX:
Original recorded sound and
8 MOTION INDEX ^ OFF / ON
When this function is set to AONB, you can set the picture on the top left corner of the Library Database Navigation screen or the Editing screen to that of the selected title.
REC/PLAY SET UP
8 XP MODE REC AUDIO ^ DOLBY DIGITAL / LINEAR PCM
You can select the audio format when you record a title in XP mode. When this function is set to ALINEAR PCMB, you can obtain a
DOLBY DIGITAL:
To record in Dolby Digital format.
DVD SET UP
8 SAVE AS LIBRARY ^ OFF / ON
When this function is set to AONB, the recording information is automatically stored in the library. For details, refer to ANavigate Library InformationB (A pg. 44).
8 CONTINUOUS PLAY ^ OFF / ON
When this function is set to AONB, multiple titles on a disc are played back continuously one after another.
8 VIDEO MODE RECORDING ASPECT ^ PRIORITIZE 4:3 /
PRIORITIZE 16:9
This is the setting for the aspect ratio used when you dub titles to DVD discs in video mode. If the titles you want to dub are recorded in both 16:9 and 4:3, you must select one aspect ratio.
PRIORITIZE 4:3:
If you select APRIORITIZE 4:3B, even a title recorded in 16:9 is dubbed in 4:3.
PRIORITIZE 16:9:
If you select APRIORITIZE 16:9B, even a title recorded in 4:3 is dubbed in 16:9.
8 MP3&WMA / JPEG ^ MP3&WMA / JPEG
You can select files to play back, when both MP3&WMA files and JPEG files are recorded on a disc.
MP3&WMA:
Select this to play back MP3/WMA files.
JPEG:
Select this to play back JPEG files.
COMMON SET UP
8 DV AUTO CHAPTERING ^ OFF / ON
When this function is set to AONB, you can create chapters (marks) when dubbing from the DV deck or via the DV input terminal connecting the external DV camcorder.
OFF:
Do not create chapters (marks).
ON:
Create chapters (marks).
NOTE:
Marks cannot be created for direct recording to the DVD in Video mode. Record to the HDD, then dub to the DVD.
LINEAR PCM:
To record in Linear PCM format.
8 JUMP TIME ^ 15 MIN / 30 MIN / 1 HR
You can locate a scene ahead of or behind the currently viewed one by jumping a selected time interval during playback (or Live Memory Playback). For details, refer to AJump SearchB (A pg. 24, 32).
DISPLAY SET
8 SUPERIMPOSE ^ OFF / ON / AUTO
When this function is set to AAUTOB, various operational indicators appear on the TV screen. Messages appear in the selected language. (A pg. 20)
OFF:
To turn off superimposed indications.
ON:
To turn on superimposed indications.
AUTO:
To superimpose operational indications for approximately five seconds just after the corresponding operation.
NOTES:
???When you use this unit as the source player for editing, be sure to set ASUPERIMPOSEB to AOFFB before starting. (A pg. 53)
???When you select AAUTOB, during playback, the operation mode indicators may be disturbed depending on the type of disc being used.
8 DIMMER (DURING POWER ON) ^ BRIGHT / DIMMED
You can change the brightness of the front display panel.
BRIGHT:
Normally select this.
DIMMED:
To dim the front display panel.
8 DIMMER (DURING POWER OFF) ^ OFF / ON
You can select to light up or turn off the light of the front display panel when the unit is off.
OFF:
To turn off the light of the front display panel when the unit is off.
ON:
To light up the front display panel when the unit is off.
62 EN SUBSIDIARY SETTINGS
You can select the monitor type depending on the TV used when you play back DVD VIDEO discs recorded for
8 FRONT AUX
Select the appropriate mode depending on the connector
VIDEO:
To use the [VIDEO] input connector on the front panel.
To use the
8 REAR AUX
Select the appropriate mode depending on the connector
VIDEO:
To use the [VIDEO INPUT] connector on the rear panel.
SOUND1:
Original recorded sound.
SOUND2:
Audio dubbed sound.
MIX:
Original recorded sound and
NOTES:
???When AAUDIO MODEB is set to AMIXB, both the main and sub audio will be audible for bilingual tapes.
???To select only the main audio or only the sub audio of bilingual tapes, set AAUDIO MODEB to ASOUND1B.
To use the
SUBSIDIARY SETTINGS EN 63
Format A Disc (DVD Deck Only)
Some
Format the disc when you use an unformatted disc or you want to
Format A
1Press HDD or DVD so that the HDD or DVD lamp lights up on the unit.
2 Press SET UP to access the Main Menu screen.
3Press selection keys to select AHDD/DVD SET UPB, then press G.
delete all recordings and data on the disc.
To use a
ATTENTION:
4Press selection keys to select ADISC SET UPB, then press
G.
5Press selection keys to select AFORMATB, then press
ENTER. Press selection keys to select AEXECUTEB, then press ENTER.
6Press selection keys to select AEXECUTEB, then press ENTER.
Format A
1Perform steps 1 ??? 4 of AFormat A
HDD
ENTER
DVD
2Press selection keys to select AFORMATB, then press ENTER. Press selection keys to choose AVR MODEB or AVIDEO MODEB, then press ENTER.
AVR MODEB:
To be chosen when you want to record, erase, or edit data on the disc repeatedly.
AVIDEO MODEB:
To be chosen when you want to erase all the data on the disc once played back to record new data, or play back the disc on other DVD players.
Selection Keys
FGDE
NOTES:
???It is impossible to format Version 1.0
???All the titles on a disc will be deleted once the disc is formatted even if they are protected titles. (A pg. 40)
Format A
SET UP
1 Perform steps 1 ??? 4 of AFormat A
2Press selection keys to select AFORMATB, then press ENTER. Press selection keys to select AEXECUTEB, then press
ENTER.
64 EN SUBSIDIARY SETTINGS
SET UP
Before finalizing
???It is possible to record on a blank space.
???It is possible to enter title names. (A pg. 39)
???It is possible to delete titles. (A pg. 40)
???It is impossible to overwrite recorded areas of
???Available recording capacity does not increase even if a recorded title is deleted from a
???It is impossible to record or edit
After finalizing (For
???Video and audio that have been recorded by then are recorded in conformity to the DVD Video standard, enabling you to play back the discs as DVD VIDEO discs.
???Although
???Marked points marked before finalizing will be deleted, and titles will be divided automatically into AchaptersB approximately every 5 minutes. (A pg. 25)
???Depending on the DVD players and
???Additional recordings become impossible.
9 Press selection keys to select AOKB, then press ENTER.
10 Upon completing finalization, ACOMPLETEDB appears on the TV screen. Press ENTER to end.
11 Press SET UP to return to the normal screen.
???Once a
???Once a
???Once a
* The boldface settings below indicate the settings at your purchase.
8DISC TYPE ^ MANUAL START / MENU STOP / AUTO
REPEAT
You can set the operation method of a
MANUAL START:
When the DVD disc is loaded, the disc will stop after it has been read. To play back the disc, press I.
MENU STOP:
When the DVD disc is loaded, the disc will be played back automatically after it has been read. Playback will stop when the disc menu is displayed.
AUTO REPEAT:
When the DVD disc is loaded, the disc will be played back automatically after it has been read. The disc will be played repeatedly.
1Load a
2Press selection keys to select AHDD/DVD SET UPB, then press G.
3 Press selection keys to select ADISC SET UPB, then press G.
6 Upon completing cancellation
COMPLETEDB appears on the
TV screen. Press ENTER to end.
7Press SET UP to return to the normal screen.
???When the disc finalization is canceled, the mode in which the disc was formatted is restored, making the disc recordable. (A pg. 9, 63)
NOTE:
It is not possible to cancel the finalization of a
When you wish to finalize or cancel the finalization of a disc, besides accessing the ADISC SET UPB screen through the SET UP button, you can also use the F2 button on the remote
control. This F2 button enables you to access the ADISC SET UPB screen directly after loading the disc.
To finalize a disc
ALoad the disc.
BPress HDD or DVD so that the HDD or DVD lamp lights up on the unit.
CPress F2 to access the ADISC SET UPB screen.
???The screen in step 8 of AFinalize A
DPerform steps 8 ??? 11 of AFinalize A
To cancel finalization
APerform steps A ??? C of ATo finalize a discB above.
???The screen in step 4 of ACancel The Finalization Of A
BPerform steps 4 ??? 7 of ACancel The Finalization Of A
NOTES:
???The direct access (F2) function works only when in the HDD or DVD deck mode, on the condition that the Main Menu, Editing, Library Database Navigation or Dubbing screen is not displayed.
???The direct access (F2) function will not work in the following
cases, and an operation prohibition mark A
B appears on the TV screen.
???During DVD recording or playback.
???Disc is not loaded.
???A
???Disc reading in progress.
???Disc information acquisition failure when
???When this unit is in the DV deck mode or when dubbing is in progress, the direct access (F2) function will also not work. However, A
B will not be displayed.
66 EN SUBSIDIARY SETTINGS
Usable image format, text format and disc
??? Usable image format
File name: User01.bmp ~ User18.bmp
Size: 720x480
Mode: RGB (24Bit)
The file names do not have to be sequentially numbered. ??? Usable text format
???Usable disc
Use a UDF2.0
The
After updating has been completed, the backgrounds will be arranged in the sequence as illustrated. The file names will not be displayed on the TV screen.
1: User01.bmp ~ 18: User18.bmp
5 Press SET UP to return to the normal screen.
Background and text color
You can choose to customize the background or text color or both. To customize both the background and text color, the disc used for update must contain both the image and text data. To customize either the background or text color, the disc should contain only the respective data.
The text data corresponds to the image data; Text01.bmp to User01.bmp and Text18.bmp to User18.bmp.
Example:
If Text01.bmp is set to yellow color and User01.bmp is selected as the background, the disc name (if any) and all the title names will be displayed in yellow.
SUBSIDIARY SETTINGS EN 67
Setting The Background And Text Color
You can select a desired background from the 18 original backgrounds or the backgrounds and/or text colors that you have created (A pg. 66), and set it as the default background to be used during finalization (A pg. 46, 64).
???Turn on the unit.
???Turn on the TV and select the AV mode.
???Slide the TV/DVD switch to DVD.
TV
DVD
ENTER
Selection Keys
FGDE
RETURN
SET UP
Registering Default Background And Text Color
1 Press SET UP to access the Main Menu screen.
2Press selection keys to select AINITIAL SET UPB, then press
G.
3Press selection keys to select AMENU BACKGROUNDB, then press G.
4Press selection keys to select AREGISTERB, then press
ENTER.
???The background selection screen appears. The current background selected is indicated by a check mark A
B superimposed on it.
???To return to the previous screen, press RETURN.
5Press selection keys to select the desired background, then press ENTER.
???The A
B mark is superimposed on the newly selected background.
???A preview screen of the selected background will be displayed for approximately 2 seconds.
???The selected background will be used as the default background for finalization.
6 Press SET UP to return to the normal screen.
NOTE:
When you update the backgrounds/text color or restore the original backgrounds/text color, the default setting registered in the above procedures will be cleared.
Previewing the background effect
This unit allows you to preview the effect of the background and/or text color you have selected before proceeding with finalization. This preview function is only possible when finalizing a
After selecting a background in step 8 of AFinalize A
APress selection keys to select APREVIEWB, then press
ENTER.
???A preview screen of the final result of your selected background will appear.
???To exit the preview screen, press ENTER.
???To preview again, press selection keys to select
ARECONFIRMB, then press ENTER.
BPress selection keys to select AOKB, then press ENTER to continue with finalization.
CProceed to perform steps 9 ??? 11 of AFinalize A
68 EN SUBSIDIARY SETTINGS
Scan Mode Set (HDD & DVD Deck Only)
If you connect the unit and TV with Component Video Connection (A pg. 18), you can select the scan mode from two modes: Interlaced scan mode which is used in the conventional TV system, and Progressive scan mode which enables reproduction of
8 Interlaced scan
In the conventional video system, a picture is shown on the display monitor in two halves. The Interlaced scan system places lines of the second half of the picture
Tray Lock (DVD Deck Only)
You can lock the disc tray to prohibit the unwanted disc ejection by children.
??? Turn off the unit.
8 Progressive scan
Progressive scan displays all the horizontal lines of a picture at one time, as a single frame. This system can convert the interlaced video from DVD into progressive format for connection to a progressive display. It dramatically increases the vertical resolution.
ATTENTION:
Your TV needs to be compatible with NTSC Progressive.
???Turn on the unit.
???Turn on the TV and select the AV mode.
???Slide the TV/DVD switch to DVD.
TV
DVD
To lock tray
While the unit is turned off, press and hold o, then press M on the unit. ALOCKB appears on the front display panel and the disc tray is locked.
To unlock tray
While the unit is turned off, press and hold o, then press M on the unit. AUNLOCKB appears on the front display panel.
Mode Lock
During playback or recording, press and hold F1 for more than 5 seconds. ALOCKB appears on the front display panel.
???No buttons will function and playback and recording will not be interrupted.
???When the unit is in the stop mode, all buttons will not function
except R and I.
To cancel Mode Lock, press and hold F1 again for more than 5 seconds.
NOTE:
It is also possible to use Mode Lock during Repeat Playback (A pg. 27).
PROGRESSIVE SCAN
1Press HDD or DVD so that the HDD or DVD lamp lights up on the unit.
2Press PROGRESSIVE SCAN for 3 or more seconds.
???Video output indicator (q) lights on the front display panel if Progressive scan mode has been established. (A pg. 14)
???Each press of PROGRESSIVE SCAN for 3 or more seconds switches the scan mode.
NOTES:
???Interlaced scan mode is the setting at your purchase.
???Interlaced scan mode might be suitable depending on video material.
???Scan mode cannot be set while menu screen is displayed.
???When the Progressive scan mode is engaged, no video signal is output from
Last Function Memory
When the power plug is disconnected from unit or when power failure occurs, your settings for the following functions are kept in the memory. These settings will resume when the unit is turned on again.
???Input selection (channel or auxiliary input;
???Recorder selection (The last selected deck is memorized.)
???Recording mode (A pg. 50)
???Mode settings (A pg. 60 ??? 62)
Playback (DVD Deck)
The DVD deck cannot be operated.
??? The DVD deck is not selected.
]Press DV/HDD/DVD on the unit repeatedly or DVD on the remote control so that the DVD lamp lights up on the unit.
Images do not appear on the TV screen.
??? The TV receiver???s channel selector is not set to the AV mode. ] Set the TV to its AV mode.
??? The video heads may be dirty.
]Use a dry cleaning cassette
Recording (DVD Deck)
Recording cannot be made.
???No disc or a disc not being compatible with the unit is loaded. ] Load a recordable disc on the unit. (A pg. 7)
???The disc loaded is not formatted.
] Format the disc. (A pg. 63)
70 EN TROUBLESHOOTING
Camcorder recording is not possible.
???The camcorder has not been properly connected. ] Confirm that the camcorder is properly connected.
???The input mode is not correct.
] Set the input mode to
Whistling or howling is heard from the TV during camcorder recording.
??? The camcorder???s microphone is too close to the TV.
] Position the camcorder so its microphone is away from the TV. ??? The TV???s volume is too high.
] Turn the TV???s volume down.
Recording (DV Deck)
During recording, the tape does not run. The DV recording lamp lights up on the unit.
??? The unit is in the Record Pause mode. ] Press I to resume recording.
Recording cannot be done.
??? There is no cassette loaded, or the cassette loaded has had its erase protection switch set to ASAVEB.
]Insert a Mini DV cassette, or set the erase protection switch set to ARECB.
Camcorder recording is not possible.
???The camcorder has not been properly connected. ] Confirm that the camcorder is properly connected.
???The input mode is not correct.
] Set the input mode to
The tape is automatically rewound, then the unit is shut off.
??? The end of the tape was reached during recording.
]The program may not have been recorded in its entirety. Next time make sure you have enough time on the tape to record the entire program.
Audio dubbing is not possible.
??? ADV AUDIO RECB had been set to A16BITB at the original recording.
] Set ADV AUDIO RECB to A12BITB at the original recording. ??? The tape speed had been set to LP at the original recording. ] Set the tape speed to SP at the original recording.
Monitoring the audio dubbed sound is not possible during audio dubbing.
] This is normal. Monitor the sound using the connected devices.
The AV input cannot be changed.
??? Recording or RetroActive Recording* is in progress.
]Press Wto pause recording, change the AV input, then press I to resume recording.
* HDD deck only .
Malfunction occurs and the unit cannot be power off.
]Reset the unit by disconnecting the AC power plug from the AC outlet and connect again.
Buttons and controls do not function at all.
??? Mode Lock is activated.
]Press and hold F1 for more than 5 seconds to cancel Mode Lock. Or disconnect the power cord and connect again.
TROUBLESHOOTING EN 71
???When a
REGION CODE ERROR
CHECK DISC
???A disc loaded cannot be played back on this unit since the region number of the disc does not match that of the unit. (A pg. 8)
UNREADABLE DISC
CHECK THE DISC
???When an incompatible disc is loaded, I has been pressed. (A pg. 8)
???An attempt has been made to record
???An attempt has been made to record
THE i.LINK DEVICE THAT YOU HAVE CONNECTED IS NOT
RECOGNIZED
MAKE SURE THAT THE DEVICE IS CONNECTED PROPERLY
AND POWERED ON
???An attempt has been made to start DV dubbing when a digital video camera is not properly connected to the unit.
???Check the connection. (A pg. 50)
72 EN APPENDIX
Language Code List
NOTES:
???When using the Serial Command Connector, the cable to be used should be a
???It takes about 10 seconds for the communication to be established after turning on the unit.
???During command transmission, a minimum interval of 50 mm/second is required between each command.
74 EN
??? Operation Commands
Commands for operating functions such as PLAY and REC on the HDD/DVD/Mini DV deck.
76 EN
81: Title Search under AORIGINALB
E.g.: When searching the 345th title, as indicated by the title number on the top right corner of the index, under AORIGINALB. (A pg. 38)
81: Title Search in APLAY LISTB
E.g.: When searching the 28th play list, as indicated by the play list number on the top right corner of the index, in the APLAY LISTB. (A pg. 43)
8E: Date Preset
E.g.: When setting the time to 12 hrs 34 min and 56 sec.
78 EN
B8: Input/Output Selection
B8: Audio Language Selection
See ALanguage Code ListB (A pg. 72).
80 EN
B8: Subtitle Selection
See ALanguage Code ListB (A pg. 72).
??? System Commands
Commands relating to
??? Response Commands
Commands for acquiring information such as deck status.
E.g.: When the current chapter is the 12th chapter.
82 EN
Title/Track Sense under AORIGINALB
E.g.: When the current title under AORIGINALB is the 345th title.
Title/Track Sense in APLAY LISTB
E.g.: When the current title under APLAY LISTB is the 28th title.
Select Sense
When the current time is not set, the value is fixed as
Status Data Sense
E.g.: When remaining time is 1 hr 23 min 45 sec.
Mini DV (hr and min only)
HDD/DVD (hr, min and sec only)
Frame is fixed as 0.
84 EN
86 EN LIST OF TERMS
AP
MEMO EN 87
EN
