Chapter 1 <Introduction>

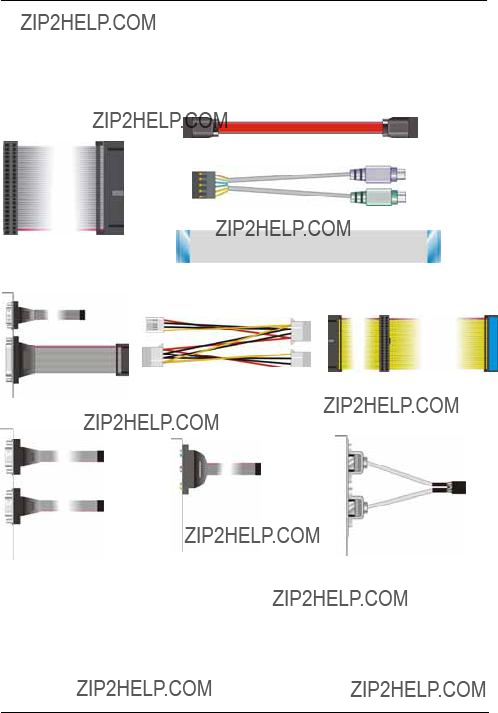

1.1 <Product Overview>

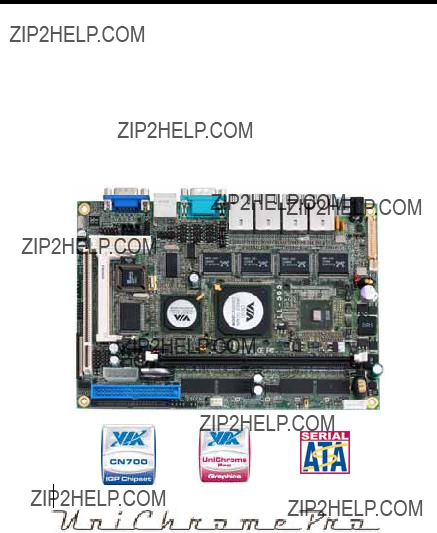

LE-565 is the 5.25 inch embedded miniboard based on VIA chipset. It integrates VIA embedded chipset for CN700 with VT8237R Plus, DDR 333/400 SDRAM, and serial ATA with RAID to provide the economical embedded platform.

VIA CN700 & VT8237R Plus Chipset

The board comes with the VIA embedded chipset of CN700, supports DDR 333/400 SDRAM, integrated the S3 Graphics UniChrome Pro IGP graphics core, hardware MPEG-2 acceleration.

The VT8237R Plus provides the board to support Ultra V-Link (533MB/s) with CN700, two serial ATA ports with RAID array function, 6 x USB2.0 ports and 5.1 channel AC97 audio.

Multimedia solution

Based on VIA CN700 chipset, the board provides 18/24-bit LVDS interface, which supports dual independent display with CRT.

Onboard AC97 codec provides the high quality of sound including 5.1-channel stereo DACs.

Four LAN Interface

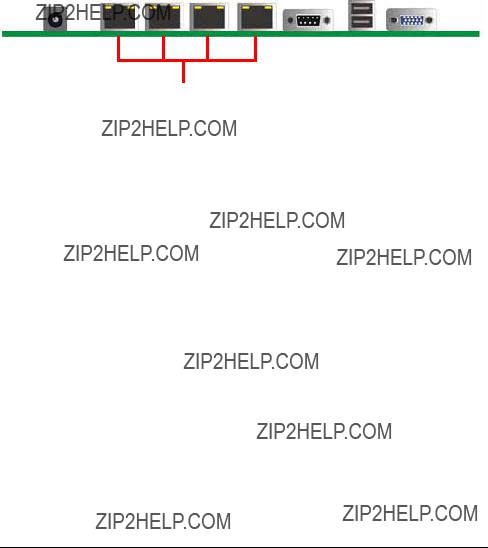

LE-565 also comes with four Giga LAN interface, support boot-on-LAN and wake-on-LAN

function.

High Speed Hot-plug Interface

Based on VIA VT8237R Plus the board provides 6 USB2.0 interfaces with up to 480Mbps of transferring rate.

Expanded UCR for remote Operating SETUP Bios Feature

Expanded Universal Console Redirection (UCR) is a feature for monitoring POST messages and running Setup and an operation system from a remote serial terminal.

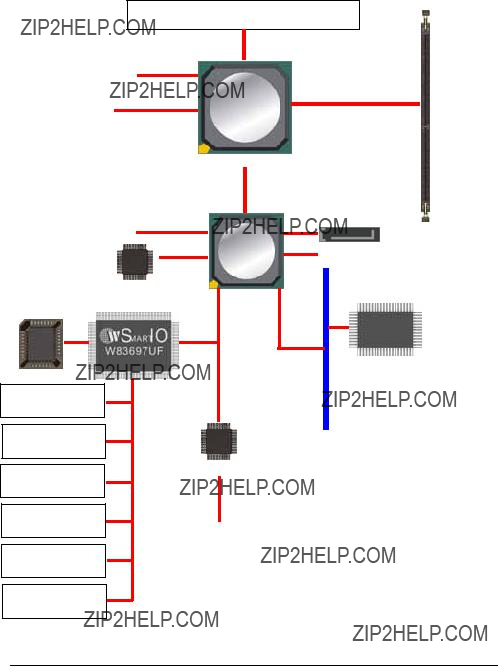

1.4 <Block Diagram>

CRT/LCD Monitor

VT1636 LVDS

6 x USB2.0 Ports

AC97 ALC655

BIOS

4 x Serial ports

1 x Floppy port

1 x Parallel port

8-bit GPIO

PS/2 , KB/MS

IrDA

Eden nanoBGA2

1 x 184-pin DDR333/400 Up to 1GB

CN700

Ultra V-Link 533MB/s

2 x SATA

2 x IDE

VT8237R+

LAN1/2/3/4

4 x 8110S-32

PCI

W83782G

Hardware Monitor

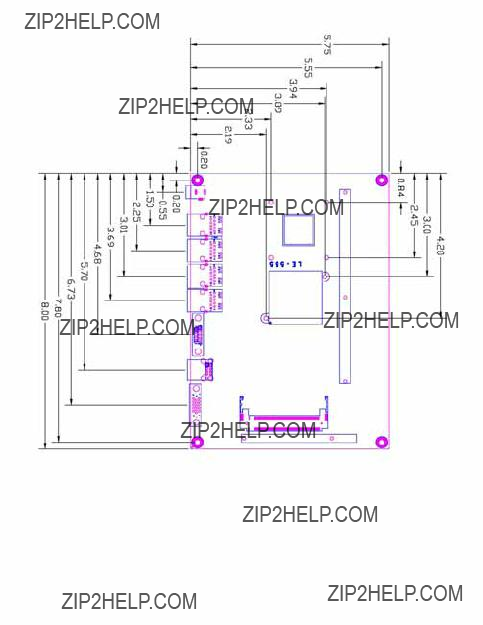

2.4 <CPU and Memory Setup>

2.4.1< CPU>

The board supports VIA Eden processor, default ratio is Eden 1G (400MHz) with heatsink

only.

2.4.2 <Memory>

The board supports one 184-pin DDR333/400 SDRAM and up to 1GB of capacity, only

non-ECC, unbuffered memory is supported.

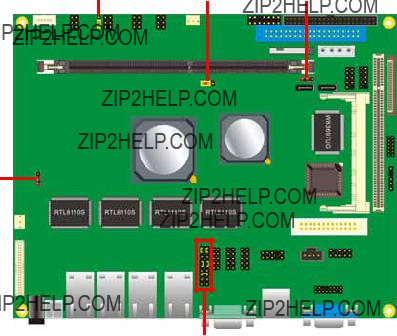

DIMM

Please check the pin number to match the socket side well before installing memory module.

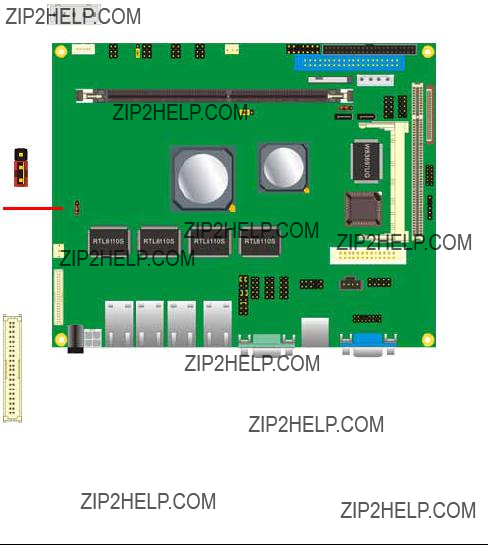

2.6 <Enhanced IDE & CF Interface>

The board supports two enhanced IDE interface, dual channel for 4 ATAPI devices with ATA33. Based on embedded application, the board has one 44-pin IDE connector +5V supported for disk on module.

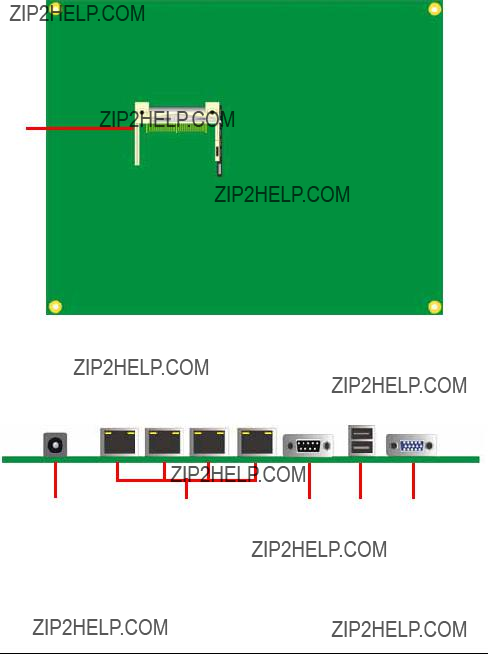

The board also provides a Compact Flash Type II socket with jumper (JCFSEL) selectable slave/Master mode on secondary IDE channel.

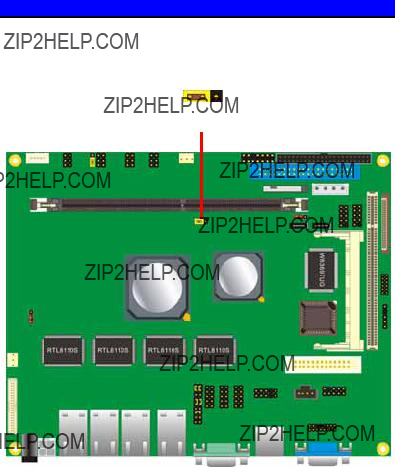

Jumper: JCFSEL

Type: onboard 3-pin header

JCFSEL Mode

Default setting

3 1

JCFSEL

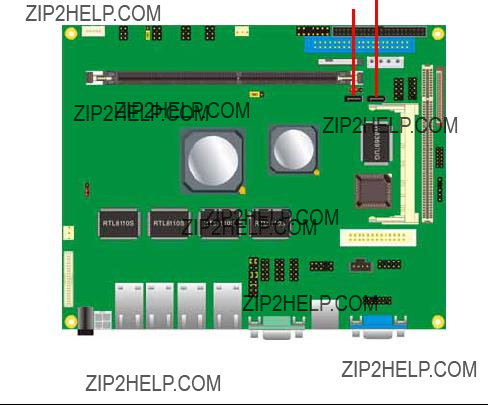

2.7 <Serial ATA Interface>

Based on VIA VT8237R Plus Southbridge, the board supports two Serial ATA interfaces with RAID 0 and 1 array function. The following is the list of the specification of the Serial ATA.

1.Complies with Serial ATA Specification Revision 1.0

2.Dual Channel master mode PCI

3.On-chip two-channel Serial ATA (S-ATA) PHY for support of up to two S-ATA devices directly.

4.S-ATA drive transfer rate is capable of up to 150 MB/s per channel (serial speed of 1.5 Gbit/s).

For more information please visit VIA website (www.via.com.tw)

SATA1

SATA2

2.8 <Floppy Port>

The board provides a slim type floppy port; please use the 26-pin ribbon cable in the

package to connect the floppy device.

Floppy rear side

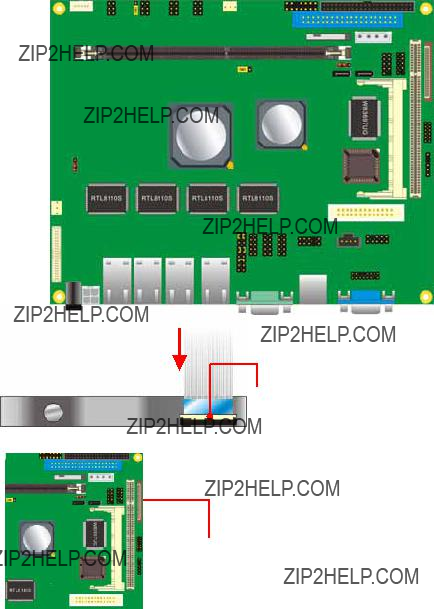

FDD

4. Lift up this plastic bar

5. Slot the cable in (Blue paste for outside)

6. Press back the plastic bar

1.Lift up the brown plastic bar

2.Slot the cable in (Blue paste for brown bar side)

3.Press back the plastic bar

2.10 <Onboard Display Interface>

Based on VIA CN700, the board supports integrated S3 Graphics UniChrome Pro IGP graphics, with BIOS selectable 16/32/64MB shared with system memory for frame buffer.

2.10.1 <Analog VGA Interface>

The board provides a DB15 CRT connector on the rear I/O panel.

CRT

2.10.2 <Digital Display>

The board provides one 40-pin LVDS connector for 18/24-bit single/dual channel panels, supports up to 1600 x 1200 (UXGA) of resolution, with one LCD backlight inverter connector and one jumper for panel voltage setting

5 1

CN_INV

JVLCD JVLCD

CN_LVDS

2 1

40 39

For the cables, please follow the pin assignment of the connector to make a cable, because every panel has its own pin assignment, so we do not provide a standard cable; please find a local cable manufacture to make cables.

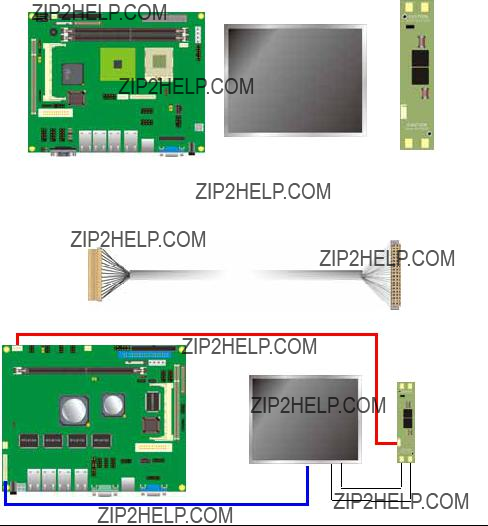

LCD Installation Guide:

1.Preparing the LS-570, LCD panel and the backlight inverter.

2.Please check the datasheet of the panel to see the voltage of the panel, and set the jumper JVLCD to +5V or +3.3V.

3.You would need a LVDS type cable.

For sample illustrator only

4.To connect all of the devices well.

2.11 <Onboard Audio Interface>

The board provides the onboard AC97 5.1-channel audio interface with Realteck ALC655.

Connector: CDIN

Type: 4-pin header (pitch = 2.54mm)

Pin Description

1CD ??? Left

2Ground

3Ground

4CD ??? Right

CDIN

CN_AUDIO 1

4 1

2.12 <USB2.0 Interface>

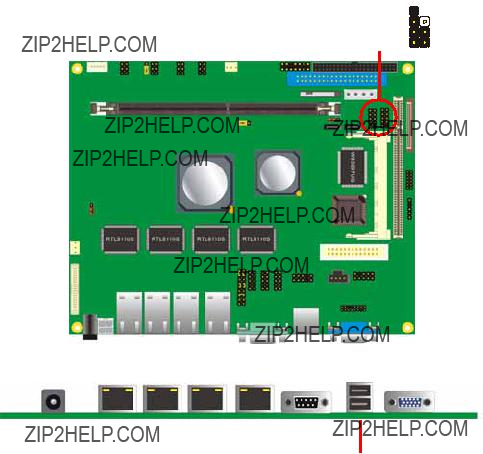

Based on VIA VT8237R Plus, the board provides 6 USB2.0 ports. The USB2.0 interface

provides up to 480Mbps of transferring rate.

CN_USB

USB

2.13 <GPIO Interface>

The board provides a programmable 8-bit digital I/O interface; you can use this general

purpose I/O port for system control like POS or KIOSK.

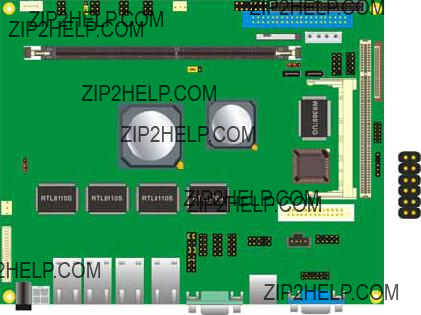

Connector: CN_DIO

Type: onboard 2 x 6-pin header, pitch=2.0mm

CN_DIO

1 2

11 12

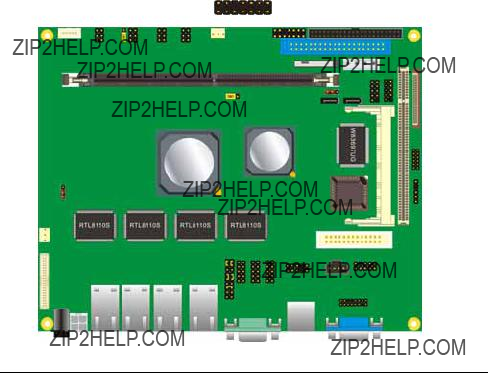

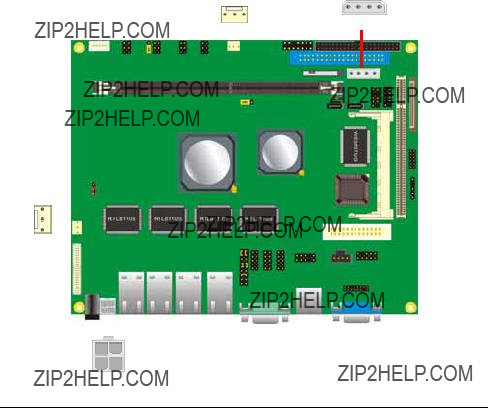

2.15 <Power and Fan Connector>

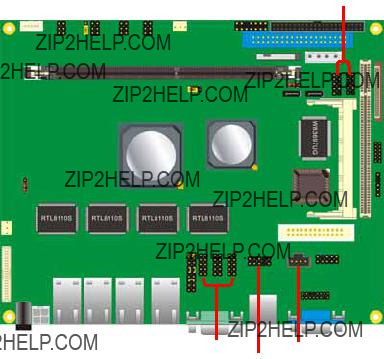

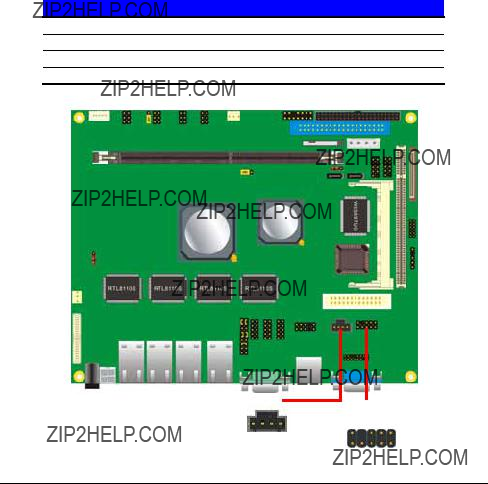

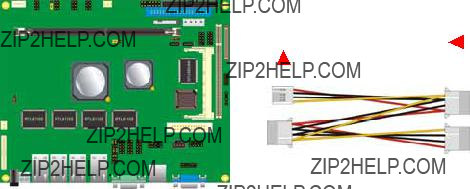

The board comes with a 2-pin DC-Jack power connector for DC 12V input, it also has one 4-pin P4 additional use power connector for internal power supply, you can choose one pf them to meet your plication.

2.15.1 <Power Input>

Connector:CN_12V

Type: 4-pin DC power connector

CN_PWR

SYSFAN

CPUFAN

CN_12V

1 2

3 4

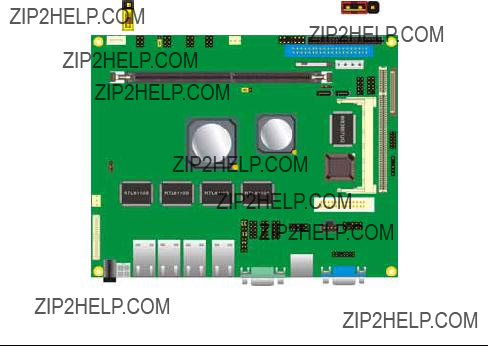

2.16 <Indicator and Switch>

The JFRNT provides front control panel of the board, such as power button, reset and

beeper, etc. Please check well before you connecting the cables on the chassis.

Connector: JFRNT

Type: onboard 14-pin (2 x 7) 2.54-pitch header

Chapter 3 <System Configuration>

3.1 <SATA RAID Configuration>

The board supports two Serial ATA ports onboard, and supports RAID 0, 1 and JBOD disk array, the RAID 0, 1 and JBOD are specified below:

RAID 0 (Stripping): Two hard drives operating as one drive for optimized data R/W performance. It needs two unused drives to build this operation.

RAID 1 (Mirroring): Copies the data from first drive to second drive for data security, and if one drive fails, the system would access the applications to the workable drive. It needs two unused drives or one used and one unused drive to build this operation. The second drive must be the same or lager size than first one.

JBOD (Span): As different as RAID 0, the JBOD combines two disks as one without any fault tolerance and I/O performance enhancement.

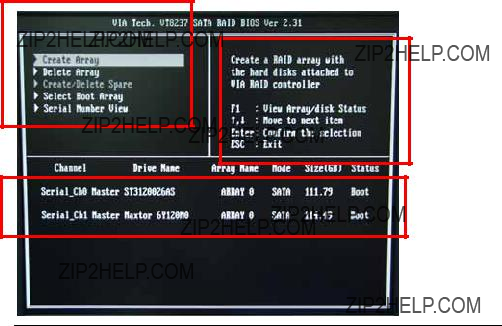

To build Serial ATA disk array, please press <TAB> while booting up the system before entering OS, and follow the instructions to edit the RAID function.

(Selectable Functions)

(Option Instruction)

(Disk Statement)

LE-565 User???s Manual

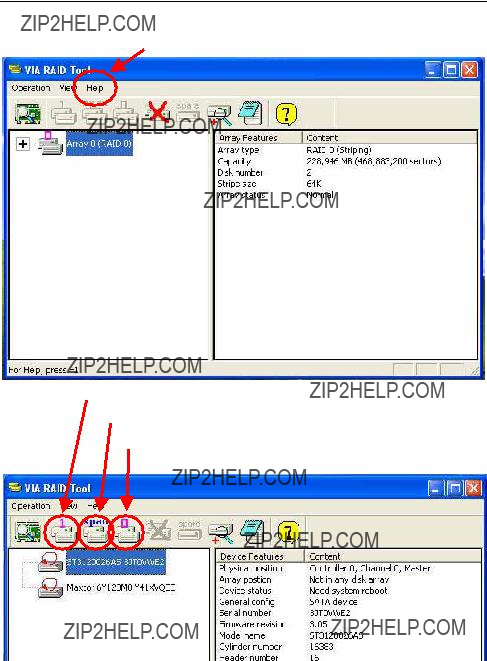

You also can edit disk array under OS, please install the VIA RAID Utility in the driver CD.

(To getting start, please click here to learn more information)

(Click here to build RAID 0)

(Click here to build RAID JBOD)

(Click here to build RAID 0)

LE-565 User???s Manual

3.3 <Display Configuration>

The board provides onboard analog VGA interface, and optional digital display interface with LVDS , please install the VIA video driver before enjoy the vivid display.

Based on the VIA CN700 with S3 UniChrome Pro graphic, the board provides dual display function for clone or extended desktop modes with secondary display device attached.

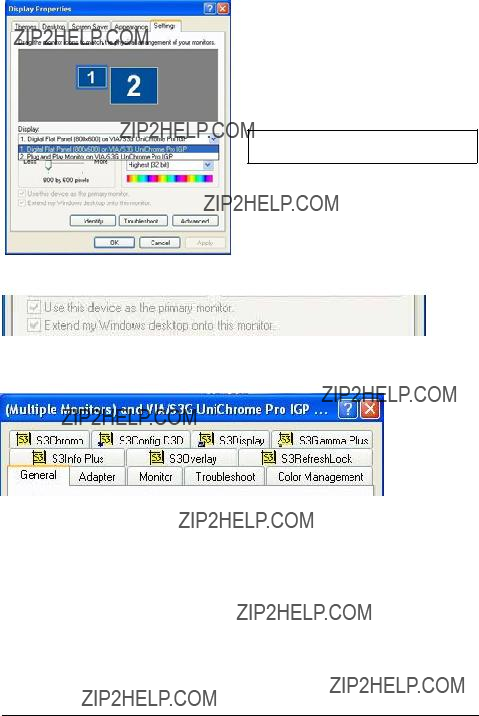

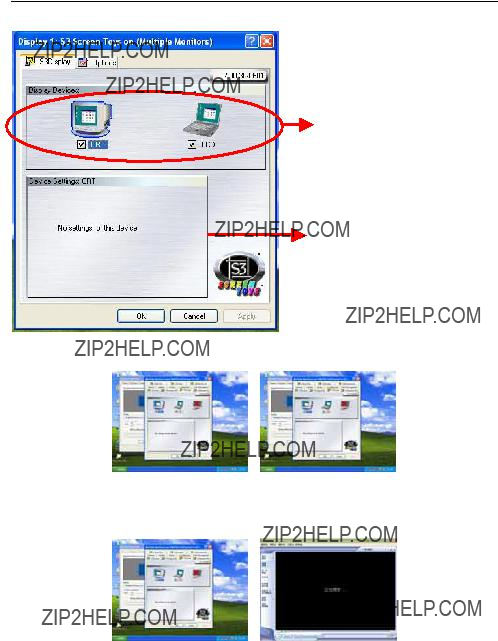

After installing video driver, please launch the desktop display properties. For secondary display device, you have two options selectable.

or more display properties setting, please click ???Advanced??? button. Please select S3Display for advanced device setting.

When you set dual display clone mode, you???ll see the same screen display on two devices.

When you set the dual display for extended desktop mode, you can have the independent desktop on the second device.

LE-565 User???s Manual

Please select S3Display for advanced device setting.

Connected Devices Click check box to enable/disable device

Specified display setup if available

When you set dual display clone mode, you???ll see the same screen display on two devices.

When you set the dual display for extended desktop mode, you can have the independent desktop on the second device.

Chapter 4 <BIOS Setup>

The motherboard uses the Award BIOS for the system configuration. The Award BIOS in the single board computer is a customized version of the industrial standard BIOS for IBM PC AT-compatible computers. It supports Intel x86 and compatible CPU architecture based processors and computers. The BIOS provides critical low-level support for the system central processing, memory and I/O sub-systems.

The BIOS setup program of the single board computer let the customers modify the basic configuration setting. The settings are stored in a dedicated battery-backed memory, NVRAM, retains the information when the power is turned off. If the battery runs out of the power, then the settings of BIOS will come back to the default setting.

The BIOS section of the manual is subject to change without notice and is provided here for reference purpose only. The settings and configurations of the BIOS are current at the time of print, and therefore they may not be exactly the same as that displayed on your screen.

To activate CMOS Setup program, press ???DEL??? key immediately after you turn on the system. The following message ???Press DEL to enter SETUP??? should appear in the lower left hand corner of your screen. When you enter the CMOS Setup Utility, the Main Menu will be displayed as Figure 4-1. You can use arrow keys to select your function, press ???Enter??? key to accept the selection and enter the sub-menu.

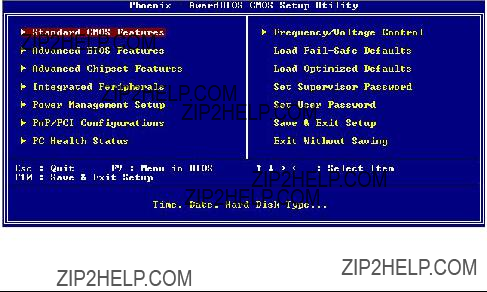

Figure 4-1 CMOS Setup Utility Main Screen

Appendix B <Flash BIOS>

B.1 BIOS Auto Flash Tool

The board is based on Award BIOS and can be updated easily by the BIOS auto flash tool. You can download the tool online at the address below:

http://wwwUT.award.comTU

http://wwwUT.commell.com.tw/support/support.htmTU

File name of the tool is ???awdflash.exe???, it???s the utility that can write the data into the BIOS flash ship and update the BIOS.

B.2 Flash Method

1.Please make a bootable floppy disk.

2.Get the last .bin files you want to update and copy it into the disk.

3.Copy awardflash.exe to the disk.

4.Power on the system and flash the BIOS. (Example: C:/ awardflash XXX.bin)

5.Re-star the system.

Any question about the BIOS re-flash please contact your distributors or visit the web-site at below:

http://www.commell.com.tw/support/support.htm
