Preface

You knew you might need extra processing power to meet the demands of your e-business and you didn???t want

to impact your current operational commitments to get it ...

IBM offers a fast, non-disruptive method of activating "extra" processor capacity that is built directly into IBM eServer iSeries.

CUoD or On/Off CoD enable you to activate (no IPL and/or database reconfiguration) one or more central processors of a Model 825, 870 and 890 up to the maximum number of available standby processors.

CUoD (permanent capacity on demand)

1) Order an activation code to permanently turn on extra capacity

On/Off CoD (temporary capacity on demand)

1)Enable your server for the use of temporary capacity

2)Turn on and off capacity as you need it ... it's immediate!

3)Pay for the requested capacity at the end of each quarter

12/15/2003

Where to Get Help

The following information will help you quickly find the assistance you need.

Problem with collecting/transmitting required CUoD Data (VPD)

=> Manual Process: Fax required information to 507-253-4553 (If problems and/or questions, call the CUoD administrator at 507-253-7019)

=> Electronic Process: Use Electronic Service Agent to automatically send required information (Electronic Service Agent Users Guide is available at: http://publib.boulder.ibm.com/as400_sd/sdsadoc.html

Problem with a Capacity Card (part failure)

#1) Call your service provider

#2) IBM service personnel can contact Level II hardware support, in Rochester, to reset the

appropriate capacity after the card has been replaced (refreshed Activation/Enablement Codes )

Problem with function of Capacity Upgrade on Demand

#1) Review appropriate sections in this Planning Guide

#2) Contact product offering support at TCOD@US.IBM.COM #3) Work with Level II and/or Techline support in your geography

Problem with selling/marketing Capacity Upgrade on Demand

=> Review appropriate sections in this Planning Guide and other available materials at the following

website: http://www.ibm.com/servers/eserver/iseries/ondemand/cod

=> Work with account teams and/or marketing specialists in your Geography

Planning Guide Feedback

You may directly contact the author of this Planning Guide if you have information that may be of assistance in updating the guide or making it a more useful Planning Guide.

Randy Grimm

Tieline 8-553-5137 or outside (507) 253-5137

Internet address: grimmr@us.ibm.com

12/15/2003

iSeries Capacity Planning

Capacity planning is a 'business as usual' value-add function of IBM???s sales team. Any special considerations specific to iSeries Capacity Upgrade on Demand will be pointed out in this section. There is a comprehensive set of tools, resources and offerings available to aid IBMers, customers, and partners with capacity planning assistance.

When doing capacity planning for models with standby processors, one must plan ahead for any potential disruptive actions that would inhibit the full utilization of activated processor capacity. Some actions you may want to take prior to ever activating any processors are:

-Perform any I/O conditioning (e.g., new cages, or other I/O infrastructure)

-Perform memory upgrades

-Prepare LPAR partitions

Planning Ahead

By planning ahead, customers can accommodate the growth of existing workloads as well as handle new workloads without requiring a server outage.

Simply activating standby processors may not provide you with the full potential of capacity improvements you require. Other components of a server affect performance and overall throughput of workloads. By planning ahead and taking into account the complete server configuration, a customer can ensure they get the full benefit of

processor activations.

iSeries Benchmark Center

IBM facilitates bench marking of customer and solution provider application environments. For more information, see their website at http://www.as400.ibm.com/developer/cbc.

iSeries Solutions Center -- Capacity Planning Services

Information regarding an IBM consulting service which can assist customers with their capacity planning needs can be found at the following website: http://www-1.ibm.com/services/its/us/as400solutionctr.html

12/15/2003

Capacity Upgrade on Demand (CUoD)

iSeries CUoD was first introduced for the iSeries in the fall of 2002. At that time, CUoD was synonymous with permanent processor capacity. CUoD provided iSeries customers who purchased an iSeries model with standby capacity (un-activated at the time of purchase). This standby capacity, could be permanently activated for Planned Growth by purchasing a processor activation feature and entering the generated key at the server whenever the capacity was needed.

What???s new in 2003

!CUoD and On/Off CoD are available on iSeries Model 825, 870, 890 (new processor features)

!On/Off CoD ... ability to temporarily activate processor capacity

!Low cost processor activations for Linux

!Simpler fulfillment process for permanent activations (no field VPD required)

With the introduction of the 2003 product line, iSeries once again will be among the leaders in this space by complementing the existing offering called CUoD with a brand new capability called On/Off CoD. On/Off CoD, means a customer, can turn processor capacity on/off to satisfy business peaks. You simply request a number of processors be temporarily made available for a specific number of days ... you will be billed for whatever you requested at the end of each calendar quarter. Like renting, this flexibility is more expensive in the long run than buying, the approximate break-even point is 45 Processor Days (if you request/pay for 45 Processor Days you will have paid approximately the same price you would have paid for permanently activating a processor).

An added benefit of the new function called On/Off CoD, are Bonus Processor Days. There is nothing else like it in the market today. With the initial order and fulfillment of a TCOD Enablement Feature (no charge feature) comes fourteen bonus days of temporary capacity ... you will not be billed for the first 14 days of temporary capacity you request from the server.

12/15/2003

CUoD (aka. permanent capacity on demand)

IBM eServer iSeries

Ordering permanent capacity

Once you have determined that you want to permanently activate some or all of your standby processors, you must contact your IBM Business Partner, IBM Sales rep, or place an order at IBM.com for the purchase of a quantity of POD Activation Features (one or more).

Once an order reaches the IBM manufacturing site, a POD Activation Code unique to the target server is generated, mailed, and posted at the following web-site for quick access:

http://www.ibm.com/servers/eserver/iseries/ondemand/cod

Several days should be allowed for order processing and the resulting POD Activation Code posting to take place. This is an important consideration when determining if you should also enable your server for temporary capacity (On/Off CoD). Temporary capacity can be used to satisfy any peak workload requirements while an order for the activation of permanent capacity is being fulfilled.

?? 2003 IBM Corporation

The next generation iSeries...simplicity in an on demand world

12/15/2003

Permanent Capacity Pricing

IBM eServer iSeries

Permanent capacity pricing

It's very simple ... whether you purchase a POD Activation Feature to permanently activate a processor when the server is initially purchased or sometime later ... you pay the then current list price for the POD Activation Feature.

There are no pricing penalties or benefits either way.

1.When a processor is permanently activated, additional operating system licensing is required if using an OS that is licensed by processor and/or additional software licensing is required if using SW that is licensed by processor

2.When an iSeries is purchased with an Enterprise Edition, a FC 9603 is included (activates a processor for LinuxJ at no additional charge)

?? 2003 IBM Corporation

The next generation iSeries...simplicity in an on demand world

Trial Capacity is not offered on new models

Pre-2003 hardware continues to offer trial capacity, a means of "trying" on demand capacity before permanently activating it. Trial capacity, allows you to temporarily activate 100% of your standby processors for a period of 14 elapsed days.

In 2003, the new models (i825, i870, and the new processors of the i890), will not have trial capacity. It has been replaced with Bonus Days (14 Processor Days of credit) that is available when/if a customer enables their machine for temporary capacity ... On/Off CoD.

12/15/2003

Guidelines for Ordering a POD Activation Feature

Permanent Capacity can be activated by ordering POD Activation Features in any of the following order scenarios.

Each scenario described below highlights the fact that it is now possible to order a POD Activation Feature along with new Box Orders, Upgrades, and Conversions .. this means you are no longer requ ired to send CUoD Data (VPD) along with a POD Activation Feature order to have it fulfilled.

New Box Orders

=> The order for the new server can include new POD Activation Features, with the resulting POD Activation Code applied directly in manufacturing

Model-to-Model Upgrade ( new footprint)

=> 100% activation of all standby processors is required on the old hardware prior to ordering a conversion/upgrade. => All records of POD Activation Features ordered prior to the converion/upgrade are removed from the machine

records (upgrade/conversion pricing takes into account the fact that 100% of the standby processors were previously activated

=> The order for the upgrade can include new POD Activation Features, with the resulting POD Activation Code applied directly in manufacturing

Processor-to-Processor Conversion or Model-to-Model Upgrade (no new footprint)

=> 100% activation of all standby processors is required on the old hardware prior to ordering a conversion/upgrade. => All records of POD Activation Features ordered prior to the converion/upgrade

are removed from the machine records (upgrade/conversion pricing takes into account the fact that 100% of the standby processors were previously activated

=> The order for the conversion/upgrade can include new POD Activation Features, with the resulting POD Activation Code mailed/posted without requiring CUoD Data (VPD) to be collected from the server and sent to IBM

Package-to-Package Conversion

=> All records of POD Activation Features ordered prior to the conversion remain on the machine records

=> The order for the conversion can include new POD Activation Features, with a resulting POD Activation Code that accounts for both old and new POD Activation Features being mailed/posted without requiring CUoD Data (VPD) to be collected from the server and sent to IBM

Activation Feature Orders

=> For orders that have POD Activation Features but don't contain a Processor or Package Feature .. if the Machine Serial# and/or the Capacity Card Serial# have not been altered outside of the IBM manufacturing or field maintenance process, then a POD Activation Code will be generated and mailed/posted without requiring

CUoD Data (VPD) to be collected from the server and sent to IBM

8 2002 IBM Corporation

IBM & IBM Business Partner Internal Use Until Announced

12/15/2003

Ordering Permanent Capacity

Once you have determined that you want to permanently activate some or all of your standby processors, you must contact your IBM business partner, IBM Sales rep, or visit IBM.com (US only) to place an order for the purchase of a POD Activation Feature (one or more).

Once an order reaches the IBM manufacturing site, a POD Activation Code unique to the target server is generated, mailed, and posted at the following web-site for quick access: http://www.ibm.com/servers/eserver/iseries/ondemand/cod

temporary capacity.

Step-by-Step Instructions

Step1: Customer determines the number of stand-by processors they wish to activate

Step2: Customer contacts their Sales Channel (Distributor/Partner or IBM) or goes to IBM.com (US only) to place an order for a quantity of POD Activation F eatures

12/15/2003

Step3: Sales Channel places an order in the IBM configurator for a specific quantity of POD Activation Features.

If the Machine Serial# and/or the Capacity Card Serial# have not been altered outside of the IBM manufacturing/field maintenance process ... then Skip to Step4

A)Sales Channel/Customer prints VPD from the server, by following these steps:

1)Start System Service Tools (SST) with the STRSST command or start Dedicated Service Tools (DST) with Function 21 on the control panel (key in manual position)

2)Sign on using service tools user profile of System capacity - administration

3)Select the option to WORK WITH SYSTEM CAPACITY

4)Select the option to DISPLAY SYSTEM CAPACITY INFORMATION

5)Record information presented or enter F6 to print the information

B)Sales Channel/Customer faxes VPD collected from the server to the following fax number:

Fax Number: 507-253-4553

COVER SHEET INFORMATION:

Location: Rochester, Minnesota

FAX From Information

C ustomer Name:

Customer Contact Name:

Customer Address:

Customer PHONE Number:

Customer FAX Number:

12/15/2003

Step4: Customer retrieves the POD Activation Code from the web or waits for the POD Activation Code

to be sent by mail. The POD Activation Code will be posted on the web usually within one business day of receiving the order on the manufacturing floor. To retrieve the POD Activation Code follow these steps: 1) Go to the following Web-site: http: //www.ibm.com/servers/eserver/iseries/ondemand/cod

2)Enter the Machine Type and Serial number of the target server on the web page

3)Print and/or record the POD Activation Code displayed on the web page

Step5: Customer enters the POD Activation Code at the System Console for the target server:

Note: Prior to entering the new code, stop any currently active requests for temporary capacity (On/Off CoD)

1)Start System Service Tools (SST) with the STRSST command or start

Dedicated Service Tools (DST) with Function 21 on the control panel (key in manual position)

2)Sign on using service tools user profile of System capacity - administration

3)Select the option to WORK WITH SYSTEM CAPACITY

4)Enter POD Activation Code and press Enter

5)Press Enter to confirm change and exit the System Capacity service function

Step6: Customer assigns the Activated Processors to a partition ... you must do these steps even if

your machine is not configured for LPAR!

A)Start the Work with system partitions option in DST or SST

B)Enter Option 3 (Work with partition configuration)

C)Enter Option 2 (Change partition processing resources) next to the PRIMARY

D)Enter a value for "New number of processors" (The value should represent TOTAL active processors) ... press Enter

Note: If a configuration error is signaled at the bottom of the screen, refer to LPAR trouble shooting article at

http://publib.boulder.ibm.com/iseries/v5r2/ic2924/info/rzaj8/rzaj8overview.htm

E)Press Enter to confirm the change

F)Exit SST or DST

12/15/2003

Important Considerations

If the server is in bypass mode for the System Password, DST option 12 may not be available (no access to the DST screens associated with the CUoD functionality). If this is the case, you should obtain a valid System Password by contacting you IBM business partner or IBM Sales rep.

After entering a POD Activation Code, the server must be run for 15 minutes to insure that the POD Activation Code is persistently stored (remembered) within the server. If you enter a POD Activation Code and shut down the server before it has run for 15 minutes, on your next IPL, the POD Activation Code may be forgotten and may have to

be re-entered

Displaying Capacity Information

Information about how many standby processors are activated can be reviewed by using the following steps:

1)Start System Service Tools (SST) with the STRSST command or start Dedicated Service Tools (DST) with F21 on the control panel

2)Sign on using service tools user profile of System capacity - administration or System capacity - operator

3)Select the option to WORK WITH SYSTEM CAPACITY

4)Select the option to DISPLAY SYSTEM CAPACITY INFORMATION

12/15/2003

Converting Features

ibm.com/eserver/iseries

Converting Hardware Features

A two step process is used to convert Model 825, 870, and 890 Processor Features

Step1: All standby processors must be activated

the possible paths for feature conversions will not be shown in the configurator until enough POD Activation Feaures have been ordered to activate 100% of the standby processors

The Processor Feature conversion price in Step2 will take into account the price paid for all standby processors to be activated in Step1

Step2: Processor Feature to Processor Feature Conversion

What happens to machine records

Old POD Activation Features will not be carried forward Old TCOD Enablement Features will not be carried forward

Old TCOD Billing Features will be carried forward but no TCOD Data will remain on the server (customer

is requried, per contract, to report any temporary capacity activity prior to the conversion)

A one step process is used to convert Model 825, 870, and 890 Package Features

Step1: Package Feature to Package Feature Conversion

What happens to machine records

Old POD Activation Features will be carried forward and a new Activation Code will be generated Old TCOD Enablement Features will not be carried forward

Old TCOD Billing Features will be carried forward but no TCOD data will remain on the server (customer is requried, per contract, to report any temporary capacity activity prior to the conversion)

8 2002 IBM Corporation

IBM & IBM Business Partner Internal Use Until Announced

12/15/2003

Moving Hardware

iSeries server to iSeries server interchange of processor and/or package features is iSeries system password protected. iSeries server to iSeries server interchange of processor and/or package features outside IBM standard practices and procedures, may void the server warranty or service contracts.

Any unauthorized (Non IBM conversion/upgrade) movement of processor features (processor parts) and/or package features (capacity card) will disable any previously activated/enabled standby processor capacity.

Any physical addition/removal of processor features (processor parts) and/or package features (capacity card) that results in an invalid configuration will make the server itself unusable (server will not IPL without a valid

configuration).

Parts resulting from the fulfillment of an order for a processor conversion are directly tied to a target server (serial number), the parts are not transferable to a server with a different serial number. Installing the parts on a server with a different serial number is not supported by IBM.

Results of Moving iSeries Hardware

Adding/Removing just the Processor Feature (Processor Parts)

A) Non-CUoD Models: Removing hardware from machine "A" and putting them into machine "B":

NOT POSSIBLE TO GET A VALID CONFIGURATION on MACHINE "A" WHEN ADDING ONLY PROCESSOR PARTS (machine will not IPL) B) CUoD Models: Removing Hardware from machine "A" and putting them into machine "B":

NOT POSSIBLE TO GET A VALID CONFIGURATION on MACHINE "A" WHEN ADDING ONLY PROCESSOR PARTS (machine will notIPL)

Adding/Removing just the Package Feature (Capacity Card) ....... or .....

Adding/Removing a Processor Feature (Processor Parts) with associated Package Feature (Capacity Card)

A) Non-CUoD Models: Removing hardware from machine "A" and putting it into machine"B":

1) If machine"B" ends up with a valid configuration and it's original serial number ...

then machine "B" will IPL with 100% of the installed processor capacity as well as 100% of the function associated with the Package Feature (Capacity Card)

NOTE: the machine will IPL in 70 day bypass mode and a new system password will be required (because the hardware changed)

then machine "B" will IPL with 100% of the start-up processor capacity, 0% of any previously activated standby processor capacity, and 100% of the function associated with the Package Feature (Capacity Card)

NOTE1: the machine will IPL in 70 day bypass mode and a new system password will be required (because the hardware changed)

NOTE2: To refresh previously purchased activations, a maintenance action would be required to replace the Capacity Card

and recieve a refreshed set of Activation Codes from IBM Level II (Activation Codes will not be provided if the Serial# of the Capacity Card being returned as part of maintenance action does not match the Capacity Card Serial# stored in the IBM machine records reviewed by Level II)

NOTE3: To purchase new activation/enablement features, a maintenance action would be required (if not done for NOTE 2) to replace the Capacity Card and then an order would have to be placed in the iSeries configurator for theproper features

2) If machine "B" ends up with an invalid configuraiton (not something that could be ordered in the iSeries configurator) ... then machine "B" will not IPL

Exchanging an Entire Server

A) Non-CUoD Models: Machine will IPL with 100% of installed processor capacity as well as 100% of the function associated with the

Package Feature (CCapacity Card

B) CUoD Models: Machine will IPL with 100% of startup processor capacity, 100% of any previously activated standby processor capacity, and 100% of the function associated with the Processor Feature (Capacity Card)

NOTE: To purchase new activation/enablement features, an order would be placed in theiSeries configurator

12/15/2003

Logical Partitions

Assign Processors

Starting with V5R1, every server has a primary partition (whether or not a customer is actively using logical partitions). As a result, it is necessary to assign any activated processors to the primary (or a secondary) partition to utilize the processors.

STEP1: Standby processors must be activated to become available to the server

STEP2: Activated processors must be assigned to a partition.

If your server is logically partitioned, refer to your logical partition plan and assign the newly activated processors accordingly.

If your server is not logically partitioned, perform the following steps (Service tools authority is required with operator authority to system partitions).

A)Start the Work with system partitions option in DST or SST

B)Enter Option 3 (Work with partition configuration)

C)Enter Option 2 (Change partition processing resources) next to PRIMARY

D)Enter a value for "New number of processors" (The value should represent TOTAL active processors) ... press Enter

Note: If a configuration error is signaled at the bottom of the screen, refer to LPAR trouble shooting article at

http://publib.boulder.ibm.com/iseries/v5r2/ic2924/info/rzaj8/rzaj8overview.htm

E)Press Enter to confirm the change

5250 OLTP Capacity

5250 OLTP capacity is allocated across partitions by specifying a percentage of the overall available capacity.

The methodology to allocate 5250 OLTP capacity to an LPAR partition works the same on all models, whether or not the models have standby processors or not.

!For servers with Interactive Features, you can allocate a percentage of the Interactive Feature capacity to be made available for 5250 OLTP processing

!For servers with Enterprise Editions, you can allocate a percentage of the active processor capacity to be made available for 5250 OLTP processing

!For servers with Standard Editions, there is zero 5250 OLTP processing capacity to allocate

(Single Job Exception: Up to 100% of the active processor capacity is automatically available to any partition with a single job doing 5250 OLTP processing)

LPAR does impose a maximum 5250 OLTP percentage allocation to prevent the customer from wasting 5250 OLTP capacity by restricting you from assigning more 5250 OLTP capacity to a partition than the assigned processor capacity in the same partition.

Example: For a server with six installed/activated processors, each processor has approximately 16.7% of the total server capacity (Processor CPW). For a single-processor partition on this server with an Enterprise Edition, the maximum 5250 OLTP allocation could be 17% of the total 5250 OLTP capacity, which

12/15/2003

SW Licenses

Activating a processor does not change the software tier for Model 825, 870, or 890.

Many partners use the Processor Feature Code value available on the server to set SW licensing fees for software developers software. This value continues to be available for all iSeries servers. It is important to understand that this value does not change, no matter how many standby processors get permanently or temporarily activated. The Processor Feature Code value (QPRCFEAT) can be displayed using the command WRKSYSVAL or retrieved using the RTVSYSVAL command.

Software providers that charge SW licensing fees (ie. Operating Systems, middleware, applications, etc.) on a per processor basis, have historically utilized a "soft" compliance approach. With each permanent or temporary processor activation, it remains the customer's responsibility to inform and pay the required SW licensing fees associated with software that will be used on the activated processor(s).

Point1: When a permanent processor activation (POD Activation Feature) is ordered, any required charges for IBM software (licensed by processor), is automatically initiated via IBM configurator

Point2: When a temporary processor activation is requested on the server, any required

charges for IBM software (licensed by processor), is the sole responsibility of the customer ... with the exception of OS/400 ... there are no additional OS/400 licensing charges associated

with a temporary processor activation

The MATMATR Option OXO1F4 can be used to determine what capacity is active at any moment in time. Permanent: Check the field at offset 0x38, to determine how many processors have

been permanently activated (this field represents the quantity of permanently activated processors at any point in time)

Temporary: Check the field at offset 0x47, to determine how many processors have been temporarily activated (this field represents the quantity of temporarily activated processors

at any point in time)

12/15/2003

Performance Considerations

CPW

Relative performance measurements are derived from commercial processing workloads (CPW) running on iSeries servers. CPW is representative of commercial applications, particularly those that do significant database processing in conjunction with journaling and committment control. CPW values may not be realized in all environments.

IBM will publish the Processor CPW value for the start-up number of processors as well as a Processor CPW value that represents the full capacity of the server when all processors are active (Start-up + Stand-by). IBM is not publishing Processor CPW values associated with each incremental processor activation. If needed, for capacity planning purposes, one could calculate the approximate CPW associated with each activated processor by subtracting the Processor CPW published for the start-up number of processors from the maximum Processor CPW for the server and then dividing by the number of stand-by processors.

CPU Utilization

Standby processors are NOT considered within the various system functions that report CPU utilization percentages until they are activated and assigned to a partition.

CPU percent is a calculated metric based on the amount of time the processor was active within an elapsed time. This is normally reported as a percentage where 100% indicates the processor was busy for the entire sample interval. When multiple processors are present, CPU time must be adjusted to be the average usage of all processors so that utilization is always reported as the percentage of total available capacity.

5250 OLTP (???interactive???) capability is determined by the edition feature purchased. This capability is not impacted by the number of standby processors and does not change when standby processors become active. Interactive utilization reported as a percentage of interactive capability is not affected by the Capacity on Demand technology. Within Management Central, this metric is called ???CPU Utilization (Interactive Feature)???.

Interactive CPU utilization is also reported as a percentage of total system CPU. Within Management Central this metric is called ???CPU Utilization (Interactive Jobs)???.

12/15/2003

Tools

There are several tools that can be used to help project which model/processor is appropriate for an initial installation and for projecting when standby processors should be activated. The Workload Estimator is typically used for sizing an initial installation. PATROL is a capacity planner that can often be used for both initial planning and upgrade planning. PM/400 is a trending tool that helps predict growth across workloads. Management Central is a monitoring tool that can be used to identify workload growth. In addition, IBM offers a variety of service options to assist with capacity planning tasks.

Workload Estimator

The Workload Estimator supports models with CUoD. However, only the performance capacity for startup processors will be represented. Capacity for standby processors is not represented in the tool. This tool is designed for initial sizing estimates and is not intended to achieve single-processor granularity with its estimates. When the Workload Estimator ???recommends??? a server as having sufficient capacity to contain a set of workloads, it includes a pull-down list of other supported servers that have at least the same capacity as the recommended server.

The Workload Estimator and associated on-line documentation can be found at:

http://www.ibm.com/eserver/iseries/support/estimator

PM/400

For more detailed information about PM/400e, visit their website at http://www.ibm.com/eserver/iseries/pm400

Management Central

Use of Management Central to aid in Capacity Planning and point out where an activation of standby processors should be considered can be illustrated in the following example:

Consider the model 840-2416 with eight startup processors and four standby processors. The maximum CPU utilization attainable would be 8/12 or approximately 67%. Typical thresholds for system CPU monitoring would be 70% and 90% of total capacity. Sustained usage above 70% is an indicator that additional capacity should be considered. Usage above 90% indicates the system is reaching its capacity maximum.

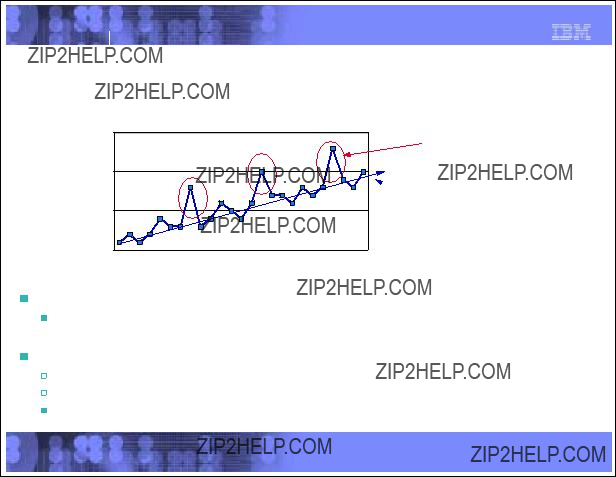

Applying the above thresholds to the Model 840 with one of these Processor Features (FC 2416, 2417, or 2419) would yield thresholds of 47% and 60% respectively. These values can be seen in the following Management Central Monitor example.

When the initial threshold is reached, assuming the tool has been set up correctly, the line graph goes red indicating that additional processors may be needed. In addition, a message can be triggered and logged when the thresholds are reached, so that an accounting can be done over time of how often the thresholds are crossed. If it reaches the

final threshold value often, an upgrade should definitely be considered.

12/15/2003

License, Warranty, Maintenance

License

BUILT-IN-CAPACITY

A machine may include computing resources or capabilities that are to remain inactive, or whose use is restricted, until the right to access and use the resources or capabilities is purchased (Built-in-Capacity). Examples of such computing resources and capabilities include but are not limited to processors, memory, storage, processing capacity identified as interactive processing capacity, and/or workload specific resources or capabilities (such as limitations on the use for a specific operating system, programming language or application). You are licensed to use the Program only to the extent of authorizations you have acquired for access to and use of Built-in-Capacity. You agree that if your use of Built-in-Capacity exceeds the authorizations you have acquired, you will be liable to IBM for the full price of permanent, unrestricted use of the Built-in-Capacity at IBM's current list price.

BUILT-IN-CAPACITY RESTRICTIONS

Built-in-Capacity is protected by certain technological measures. As a condition for your license to the Program under the Agreement, you may not circumvent such technological measures, or use a third party or third party product to do so, or otherwise access or use unauthorized Built-in-Capacity. In the event IBM determines that changes are necessary to the technological measures designed to limit access or use of Built-in-Capacity to that which has been purchased or otherwise authorized, IBM may provide you with changes to such technological measures. As a condition for your license to the Program hereunder, you agree, at IBM's option, to apply or allow IBM to apply such changes.

IBM SUPPLIED PROGRAM TEMPORARY FIXES (PTFs)

Application of PTFs may disable or render ineffective programs that use system memory addresses not generated by the IBM translator, including programs that circumvent control technology designed to limit interactive capacity to purchased levels. By applying PTFs you authorize and agree to the foregoing.

Warranty

Warranty for all processors (start-up and stand-by) begin when the server is installed. By having the Warranty/Service start immediately upon installation, the customer is better positioned to receive prompt service for the repair/replacement of any failing parts, ensuring the full complement of stand-by processors are available for

immediate activation.

Maintenance

Maintenance agreement charges are based on the number of processors actually activated, maintenance prices will be adjusted for each processor activation, just like any other hardware feature add.

12/15/2003

CE: Conversion Instructions

Model 825, 870, and 890 (with V5R2) Processor or Package Feature Conversion Instructions

A)Print LPAR config

B)Power off any secondary partitions and set to hold (don't IPL on system IPL)

C)Instruct customer to make "Available" (LPAR state) all standby processors that

have been activated and assigned to partitions

D)Power off the system

For assistance with LPAR, see Information Center articles at: http://publib.boulder.ibm.com/iseries/v5r2/ic2924/info/rzaj9/rzaj9iclpar.htm

Install new Hardware and IPL

yes

3)CE determines if the Op Panel or PAL displays a 4730 SRC?

If this path is performed within a powered on window of 48 hours .. SRC 4730

will not be shown, and an IPL will not be required to

eliminate the SRC and reestablish the proper machine status

Enter code(s) on the server by using the proper CUoD screen(s)

Wait 5 Minutes for the server to register the new Activation and/or

Enablement Code(s) or the LPAR configuration change

Enter code(s) on the server by using the proper CUoD screen(s)

12/15/2003
