Instructions - Parts

For recirculation of polyurethane materials from proportioner to 55 gal. (200 liter) fluid supply drums.

4000 psi (27.6 MPa, 276 bar) Maximum Fluid Working Pressure

Important Safety Instructions

Read all warnings and instructions in this manual.

Save these instructions.

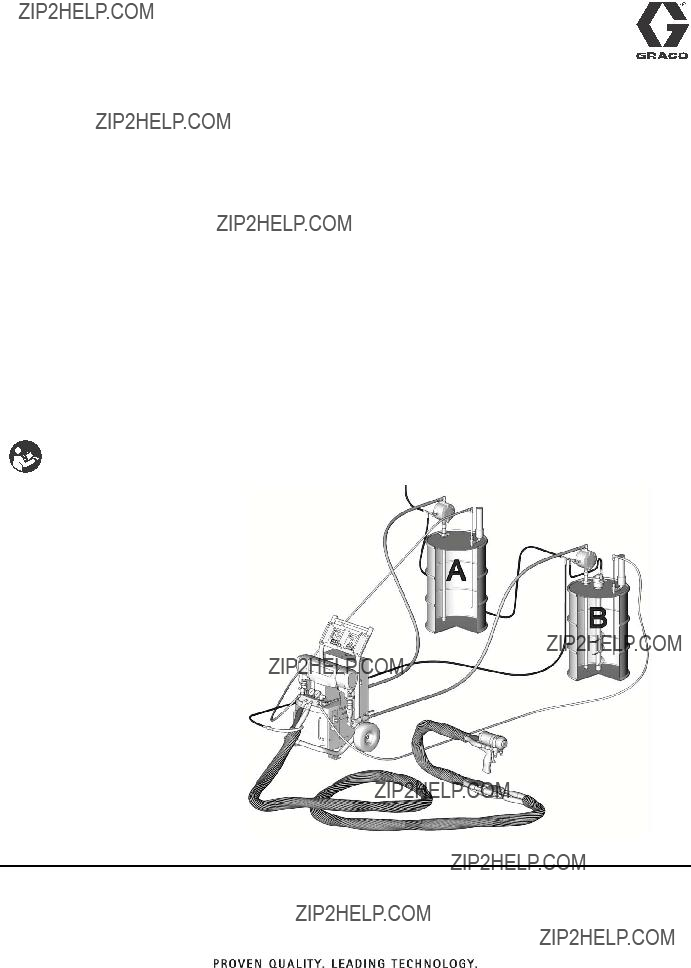

246978 Kit shown installed in Reactor??? proportioning system. Some parts shown are not included in kit.

TI3465a

Return Tube Kit

Return Tube Kit

The Return Tube Kit can be installed singly or as a pair. Two are included in the Circulation Kit, page 3.

1.Keep A and B compo- nents separate

CAUTION

To prevent cross-contamination of fluid, mark A com- ponent (ISO) connections with red tape. Mark B com- ponent (RES) connections with blue tape. Do not interchange or cross-connect A component and B component parts.

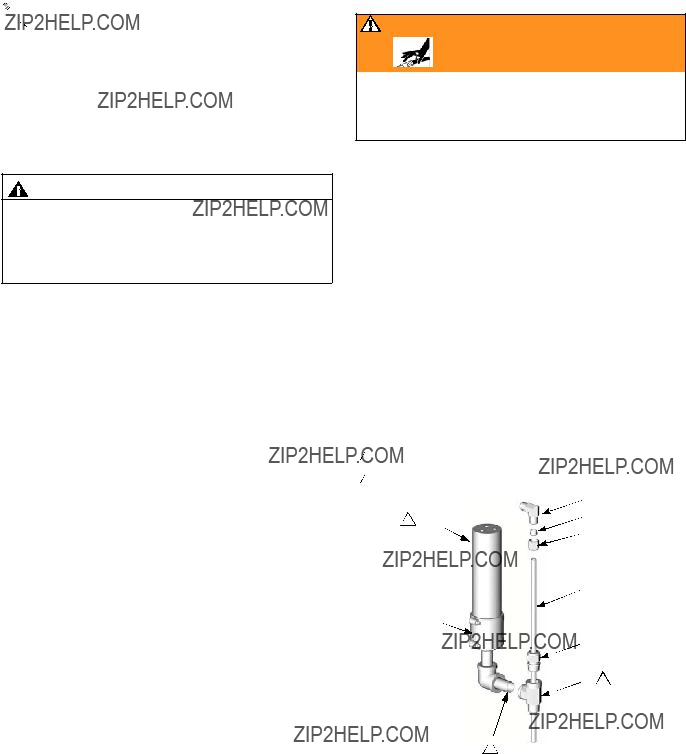

2.Assemble return tube kit

Remove dryer carriage (C). Using awl or similar tool, punch a few small holes in each end of car- riage. Reinstall carriage.

Remove large fitting included with dryer (10). It is not needed for this application.

Apply thread sealant (8) to threads. Assemble return tube kit as shown at right.

3.Install kit in drum

Open drum port. Lower kit into drum. Screw tee

(6) into drum port to secure. Use bushing (5) to adjust position of tube (4) in tank.

4.Install circulation kit, page 3

WARNING

To reduce the risk of serious injury including fluid injection, use high pressure return hoses rated to with- stand the maximum working pressure of the propor- tioner. See proportioner operation manual.

1Apply thread sealant (8) to threads.

2Punch holes in ends of carriage (C).

1

TI3446a

1

Circulation Kit

Circulation Kit

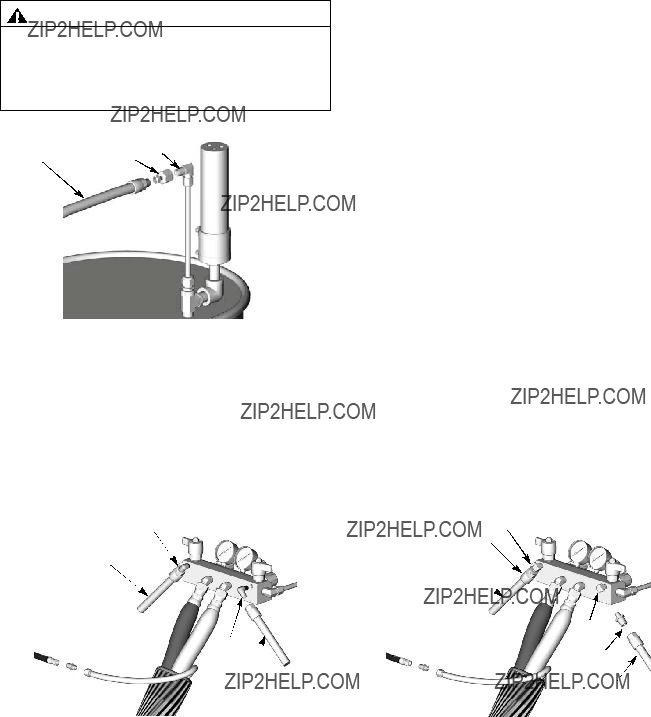

1.Install two return tube 2. Connect circulation kit

kits, page 2

CAUTION

To prevent cross-contamination of fluid, mark A com- ponent (ISO) connections with red tape. Mark B com- ponent (RES) connections with blue tape. Do not interchange or cross-connect A component and B component parts.

TI15106a

Remove fittings from elbows (A, B) at the pro- portioner fluid manifold. Only used with 24697

For 246978: Screw reducing nipples (104) into elbows. Connect one end of hoses (102) to each nipple.

For 24E379 and 24D107: Connect elbows (105) to the proportioner fluid manifold. Connect fitting (106) to return tube. Connect one end of hoses (102) to each elbow.

Connect other end of A side hose (102) to elbow (E) of A component return tube kit. Repeat for B side hose.

??? 246978 Circulation Kit only. ??? 24E379 Circulation Kit only. ??? 24D107 Circulation Kit only.
