Toddler Bed

OWNER???S MANUAL

Model No. ___________

Serial No. ___________

Dear Customer,

Please fill in the model and serial numbers above from the label on the side tube of your new toddler bed.

Model No. 8833

Congratulations on your purchase of a Graco?? toddler bed!

Graco is a leader in juvenile products designed for your child???s comfort and convenience. We believe your Graco?? toddler bed is a wise choice, promising many hours of enjoyment for your child.

Before using your toddler bed, please take a few minutes to read this Owner???s Manual. The short time you spend reading these instructions will help you use your

toddler bed properly.

Please save your Owner???s Manual for future use.

Customer Satisfaction

Our goal is to make every product the best it can be! We are also committed to supporting our products after purchase. If you would like to speak to Graco about your product, please contact our Customer Service Department at 1-800-345-4109 or visit our Internet website, www.gracobaby.com. Our knowledgeable staff will be ready to answer any questions you may have concerning parts, use or maintenance. When you call, please have the model and serial numbers ready so your call

may be processed quickly and efficiently.

Failure to follow these warnings and result in serious injury or death fr

Strings can cause strangulation! DO NOT place items with a string around a child???s neck, such as hood strings or pacifier cords. DO NOT suspend strings over toddler bed or attach strings to toys.

ALWAYS use a full-size crib mattress, being at least 515/8 in. (131 cm) in length, 271/4 in. (69 cm) in width, and 4 in. (10 cm) in thickness.

DISCONTINUE USE OF THE TODDLER BED when your child weighs more than 50 pounds (23 kg). Use the bed with only one child at a time.

USE ONLY bed rails provided by Graco??.

and the assembly instructions could from entrapment or strangulation.

Less than 12" (31 cm)

DO NOT use with less than 12 inches (31 cm) of space between the toddler bed and solid objects such as a wall or dresser. Child could slide into smaller spaces and suffocate.

CARE AND MAINTENANCE

BEFORE ASSEMBLY AND EACH USE, inspect bed for damaged hardware, loose joints, missing parts or sharp edges. DO NOT use bed if any parts are missing or damaged. DO NOT substitute parts. Use only Graco?? replacement parts.

TO CLEAN BED FRAME AND BED RAILS, use only household soap or detergent and warm water. NO

BLEACH.

PARTS LIST

CHECK that you have all the parts listed below BEFORE assembling your toddler bed.

If any parts are missing,

call Customer Service at 1-800-345-4109

or visit our Internet website, www.gracobaby.com.

THIS PRODUCT REQUIRES ADULT ASSEMBLY. Tools required: Hex wrench (included)

Side tube (2)

Crossbar (6)

Mattress support

Bed rail (2)

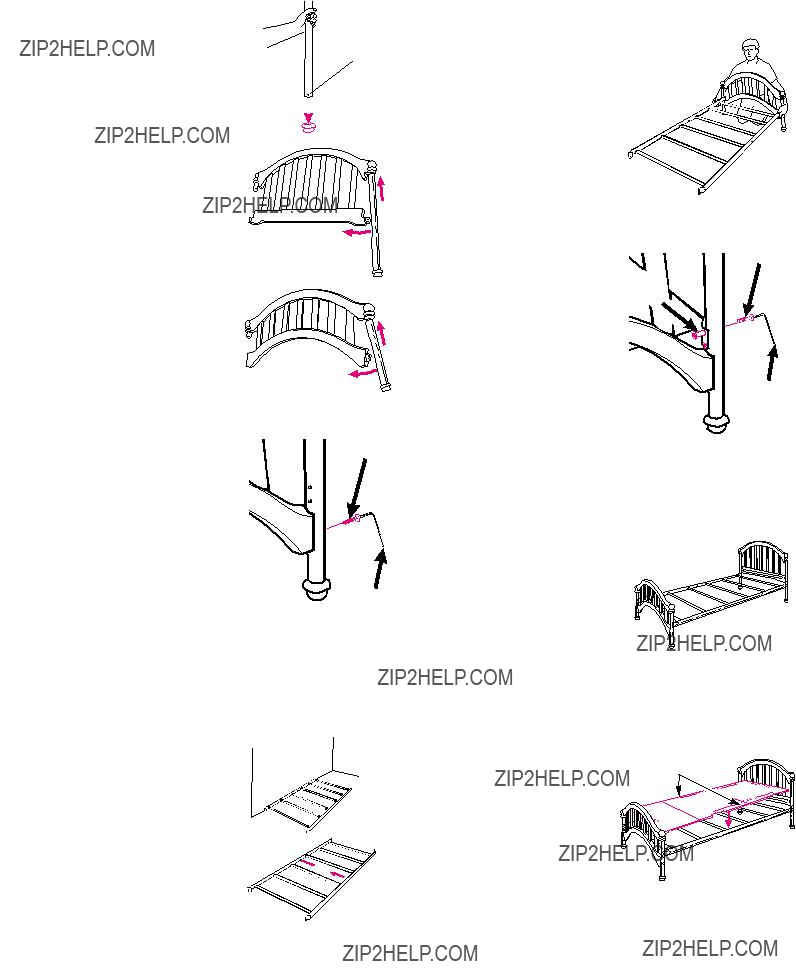

Assembling the Headboard and Footboard

Step 2.

Assemble headboard and long legs. Push open end of one long leg onto plastic plug under ???knob??? on one side of headboard.

Then push leg sideways so the rectangular plug on lower side of headboard goes into hole on side of the leg.

Attach other long leg in the same way to other side of the headboard.

Assemble the footboard and short legs the same way.

Step 3.

For footboard (shown at right), insert a screw into the lowest

hole on each short leg and intoScrew plastic footboard. For head-

board, insert screws into the

highest hole on each long leg.

Tighten screw securely with the included hex wrench, but do not over-tighten.

Repeat for other three legs.

Assembling the Frame

Step 1.

Line up the side tubes and crossbars on the floor as shown at right. It may be helpful to brace one side tube against

a wall or stationary object. Holes in side tubes must face each other.

Step 2.

Insert ends of the crossbars into holes in the side tubes.

Attaching the Headboard and Footboard

Step 1.

Begin by attaching the frame to the footboard.

Stand the footboard at one end of the metal frame. (It does not matter which side of footboard faces the frame.) Holding the footboard upright, grasp the two side tubes as shown and lift carefully. Rest the ends of the side tubes on the footboard.

Step 3.

With the Graco?? name on the headboard facing away from the bed frame, attach the side tubes to the legs as in Step 2 above.

After the headboard and foot- board have been attached to the frame, FIRMLY TIGHTEN all eight bolts into their T-nuts with the hex wrench.

The toddler bed will look like illustration.

Position mattress support with printed side up as shown. Fold edges down at creases, and place on bed so notches in edges fit over the crossbars.

6

There are left and right bed rails. When installed correctly, the Graco?? name on each rail will be on the outside of the bed.

Step 1.

With the Graco?? name facing away from the bed frame, hold one bed rail at an angle to the bed frame as shown. Insert the curved ends of the bed rail into the slots at side of headboard. (The curved ends will match the shape of the metal leg.)

Step 2.

Move bed rail toward bed frame until hole at bottom of bed rail lines up with the hole in the center of the side rail. Put a T-nut into the hole on the inside of the bed, and use the hex wrench to screw in a bolt from the outside.

Instructions for ordering toddler bed parts:

Complete form below. Your toddler bed model number MUST be included on the form to ensure proper replacement parts. Your model number can be found on the label on the side tube of your toddler bed.

Payment must accompany your order.

Step 3.

Repeat on other side. Both bed rails must be used.

REMINDER: Keep the hex wrench in a location where you will be able to find it if you wish to disassemble the bed.

Finishing Assembly

Place a standard full-size crib mattress???at least 271/4 inches (69 cm) wide by 515/8 inches (131 cm) long by 4 inches

(10 cm) thick???on the finished toddler bed frame. Your toddler bed is now ready to use.

REMINDER: Before each use, inspect the toddler bed for damaged hardware, loose joints, missing parts, or sharp edges.

GRACO CHILDREN???S PRODUCTS INC.

CUSTOMER SERVICE DEPARTMENT

P.O. BOX 100, MAIN STREET

ELVERSON, PA 19520

*$15.00 outside the continental U.S.
