GE_Washer_EWA2500

www.GEAppliances.com

Write the model and serial numbers here:

Model # ____________________

Serial # ______________________

You can find them in the upper right corner on the back of your washer.

Owner???s Manual

WBSE2090

WBXE2070

WCSE3100

WCSE4230

WJSE3110

WWSE3160

EWA2500

WBB3300

175D1807P342 49-90081 12-00 JR

Safety Instructions

Operating Instructions

Troubleshooting Tips

Consumer Support

IMPORTANT SAFETY INFORMATION.

READ ALL INSTRUCTIONS BEFORE USING.

WARNING! For your safety, the information in this manual must be followed to minimize the risk of fire or explosion, electric shock, or to prevent

property damage, personal injury, or loss of life.

WATER HEATER SAFETY

Under certain conditions hydrogen gas may be produced in a water heater that has not been used for two weeks or more. Hydrogen gas can be explosive under these circumstances.

If the hot water has not been used for two weeks or more, prevent the possibility of damage or injury by turning on all hot water faucets and allowing them to run for several minutes. Do this before using any electrical appliance which is connected to the hot water system. This simple procedure will allow any built-up hydrogen gas to escape. Since the gas is flammable, do not smoke or use an open flame or appliance during this process.

PROPER INSTALLATION

This washer must be properly installed and located in accordance with the Installation Instructions before it is used. If you did not receive an Installation Instructions sheet, you can receive one by calling, toll-free, the GE Answer Center??, 800.626.2000.

YOUR LAUNDRY AREA

www.GEAppliances.com

WHEN USING THE WASHER

Safety

Use this appliance only for its intended purpose as described in this Owner???s Manual.

???Never reach into washer while it is moving. Wait until the machine has completely stopped before opening the lid.

???Do not mix chlorine bleach with ammonia or acids such as vinegar and/or rust remover. Mixing different chemicals can produce a toxic gas which may cause death.

???Do not wash or dry articles that have been cleaned in, washed in, soaked in, or spotted with combustible or explosive substances (such as wax, oil, paint, gasoline, degreasers, dry-cleaning solvents, kerosene, etc.) which may ignite or explode. Do not add these substances to the wash water. Do not use or place these substances around your washer or dryer during operation.

???The laundry process can reduce the flame retardancy of fabrics. To avoid such a result, carefully follow the garment manufacturer???s wash and care instructions.

???To minimize the possibility of electric shock, unplug this appliance from the power supply or disconnect the washer at the household distribution panel by removing the fuse or switching off the circuit breaker before attempting any maintenance or cleaning. NOTE: Pressing PAUSE does NOT disconnect the appliance from the power supply.

???Never attempt to operate this appliance if it is damaged, malfunctioning, partially

disassembled, or has missing or broken parts, including a damaged cord or plug.

Instructions

Instructions Operating

WHEN NOT IN USE

???Turn off water faucets to relieve pressure on hoses and valves and to minimize leakage if a break or rupture should occur. Check the condition of the fill hoses; they may need replacement after 5 years.

???Before discarding a washer, or removing it from service, remove the washer lid to prevent children from hiding inside.

???Do not attempt to repair or replace any part of this appliance unless specifically recommended in this Owner???s Manual, or in published user-repair instructions that you understand and have the skills to carry out.

???Do not tamper with controls.

Troubleshooting

READ AND FOLLOW THIS SAFETY INFORMATION CAREFULLY.

SAVE THESE INSTRUCTIONS

Tips

Support Consumer

Safety Instructions

Operating Instructions

Troubleshooting Tips

Consumer Support

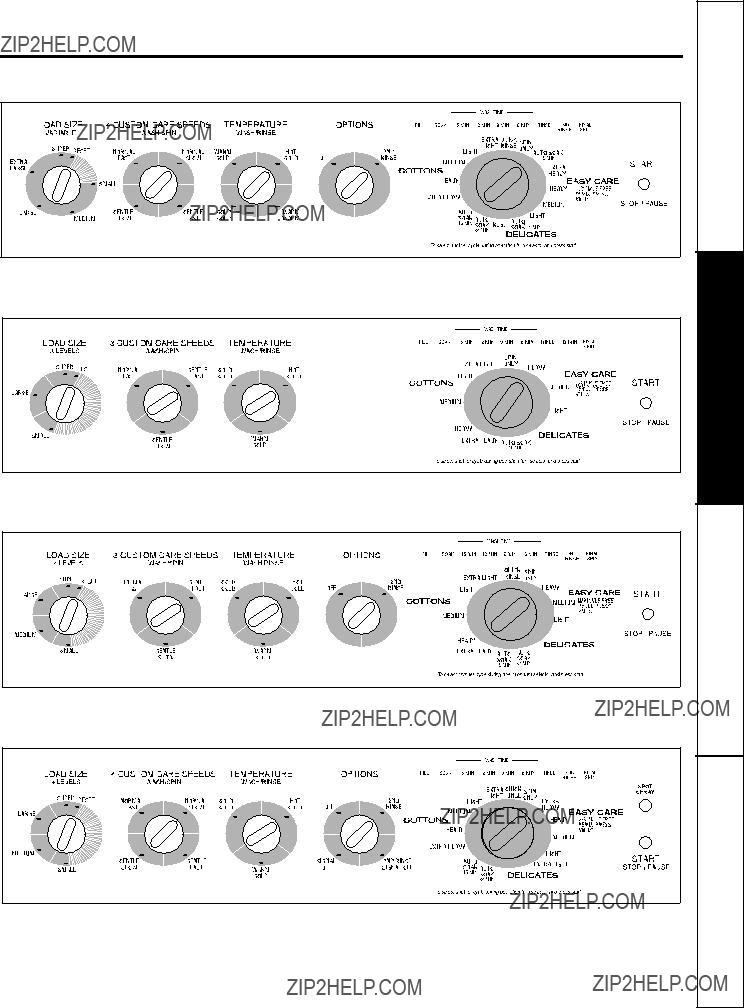

About the control settings.

Load Size

Loosely load clothes no higher than the top row of holes in the washer tub. The water level should just cover the clothes.

Custom Care Wash/Spin Speeds (on some models)

The agitator moves clothes around for a cleaner wash; the basket spins later in the cycle to release water from the load. The Wash/Spin Speed dial sets the speed of both the agitator and the basket.

With Normal wash speed, the agitator will move at a high speed for the first few minutes, then it steps down to a moderate speed. This reduces the wear on your clothing. Use for cottons, denims and play clothes.

With Gentle wash speed, the agitator moves slower. Use for delicate and knit items.

The Fast spin speed is for durable items.

The Slow spin speed is for delicate items like sweaters and lingerie. When using Slow spin speed, clothes will be less dry than when using Fast spin speed.

Temperature

Select the water temperature for the wash and rinse cycles. Always follow fabric manufacturer???s care label or instructions when laundering.

Wash Cycle

The wash cycle controls the length of the washing process. The knob can be turned in either direction. Turning the Cycle Selector knob after starting a cycle will stop the washer and reset the cycle to the new selection. Press START to begin the new cycle selection.

REMEMBER: When choosing the cycle, the Cycle Selector knob can be pointed anywhere within the shaded range for the cycle setting.

The Cycle Indicator Lights show what stage the washer is in. The wash time is the length of the wash agitation. The 6 MIN light will remain lit during drain and spin. When the Selector knob is set to a new cycle the Indicator Lights will flash momentarily, showing what stages the cycle will go through.

On models without an Auto Soak option, the SOAK light will not light up.

The chart below will help you match the wash cycle setting with your clothing.

COTTONS For heavy to lightly soiled cottons, household linens, work and play clothes.

EASY CARE For wrinkle-free and permanent press items, and knits.

DELICATES For lingerie and special-care fabrics with light soils. Provides periods of agitation and soak during wash and rinse.

EXTRA HEAVY For heavily soiled and heavy-duty fabrics. This cycle provides a longer agitation.

15 MIN/30 MIN For heavily soiled clothes. Begins with a brief agitation, soaks for a specified period of time, then moves AUTO SOAK through the rest of the cycle automatically.

START

Press START to begin the cycle. Pressing START again or raising the lid will PAUSE the cycle and the Cycle indicator light will blink.

Instructions Safety

???Add detergent

???Add diluted fabric softener

Quick Start Guide

???Close lid

???Push START

Operating

NOTE: When making a selection with any knob, simply point the knob anywhere within the shaded range for that setting.

Model WBB3300

Instructions

Tips Troubleshooting

Support Consumer

Safety Instructions

Operating Instructions

Troubleshooting Tips

Consumer Support

About the control settings.

Load Size

Loosely load clothes no higher than the top row of holes in the washer tub. The water level should just cover the clothes.

Temperature

Select the water temperature for the wash and rinse cycles. Always follow fabric manufacturer???s care label or instructions when laundering.

Wash Cycle

REMEMBER: When choosing the cycle, the Cycle Selector knob can be pointed anywhere within the shaded range for the cycle setting.

On models without an Auto Soak option, the SOAK light will not light up.

The chart below will help you match the wash cycle setting with your clothing.

WHITES For heavy to lightly soiled cottons, household linens, work and play clothes.

COLORS For wrinkle-free and permanent press items, knits and cottons.

DELICATES For lingerie and special-care fabrics with light soils. Provides periods of agitation and soak during wash and rinse.

EXTRA HEAVY For heavily soiled and heavy-duty fabrics. This cycle provides a longer agitation.

15 MIN For heavily soiled clothes. Begins with a brief agitation, soaks for a specified period of time, then moves AUTO SOAK through the rest of the cycle automatically.

START

Press START to begin the cycle. Pressing START again or raising the lid will PAUSE the cycle and the Cycle indicator light will blink.

Spot Spray (on some models)

favorite pretreatment product into soiled area.

NOTE: The SPOT SPRAY option will not work if:

???the washer lid is down

???the washer tub is filling

???the water has already reached the level you selected.

Instructions Safety

2nd Rinse Option (on some models)

When you use extra detergent or bleach to clean heavily soiled clothes, you may want to use the 2nd Rinse option. It provides a second deep cold rinse.

Signal Off Option (on some models)

Some models have a signal that will sound at the end of the cycle. Use this option to turn off the signal.

Liquid Bleach Dispenser (on some models)

Instructions Operating

The dispenser dilutes liquid chlorine bleach before it reaches into your wash load.

1 Check clothing care labels for special instructions.

2 Measure liquid bleach carefully, following instructions on the bottle.

???Never pour undiluted liquid chlorine bleach directly onto clothes or into the wash basket.

???Do not pour powdered bleach into bleach dispenser.

3 Before starting the washer, pour measured amount of bleach directly into bleach dispenser. Avoid splashing or over-filling dispenser. If you prefer to use powdered bleach, add it into the wash basket with your detergent.

???Do not mix chlorine bleach with ammonia or acids such as vinegar and/or rust remover. Mixing can produce a toxic gas which may cause death.

Tips Troubleshooting

Support Consumer

About washer features.

Safety Instructions

Operating Instructions

Do not pour anything into the agitator if the agitator cap or dispenser is removed.

The Agitator Cap or Fabric Softener Dispenser

The agitator cap fits into the top of the agitator. If it accidentally comes off, simply put it back on.

The fabric softener dispenser automatically releases liquid fabric softener at the proper time during the cycle.

Do not stop the washer during the first spin. This will cause the dispenser to empty

too soon.

To use, follow these steps:

1 Make sure dispenser is securely attached to agitator.

2 Use only liquid fabric softener. Pour into dispenser, using amount recommended on package.

Never pour fabric softener directly on clothes. It may stain them.

3 Add water to dispenser until it reaches the maximum fill line.

Troubleshooting Tips

Consumer Support

Separate for cleaning.

Cleaning the Fabric Softener Dispenser

1 Remove the dispenser from the top of the agitator.

2 Separate the dispenser cup from the cover by grasping the top and pushing down on the inside of the cup with your fingers. Dispenser cup will pop free from the cover.

3 To clean the dispenser, soak both the dispenser cup and the dispenser cover in the following solution:

???1 US gallon (3.8 liters) warm water

???1/4 cup (60 ml) heavy duty liquid detergent

???1 cup (240 ml) bleach

If necessary, loosen build-up with a clean, soft cloth after soaking. Do not use a stiff brush; you may roughen the surface of the dispenser.

Rinse and reassemble dispenser. Place dispenser back on the agitator.

Loading and using the washer.

Always follow fabric manufacturer???s care label when laundering.www.GEAppliances.com

Sorting Wash Loads

Proper Use of Detergent

Loading the Washer

Instructions Safety

Instructions Operating

Load dry items loosely, no higher than the top row of holes in the washer tub. When loading wet items, make sure you set the load/water level high enough to allow the items to move freely. Water level should just cover the clothes. To add items after washer has started, lift the lid and submerge additional items next to the agitator.

???Do not wrap large items like sheets around the agitator.

???Do not wash fabrics containing flammable materials (waxes, cleaning fluids, etc.).

???Agitation will not start with the lid up.

Tips Troubleshooting

Support Consumer

Instructions

Loading and using the washer. Always follow fabric manufacturer???s care label when laundering.

Care and Cleaning of the Washer

Safety

Instructions

Wash Basket: Leave the lid open after washing to allow moisture to evaporate. If you want to clean the basket use a clean soft cloth dampened with liquid detergent, then rinse. (Do not use harsh or gritty cleaners.)

Fill Hoses: Hoses connecting washer to faucet should be replaced every 5 years.

Lint Filter: The lint filter is located under the agitator. It is self-cleaning and requires no maintenance.

Exterior: Immediately wipe off any spills. Wipe with damp cloth. Try not to hit surface with sharp objects.

Moving and Storage: Ask the service technician to remove water from drain pump and hoses. Do not store the washer where it will be exposed to the weather. Call the GE Answer Center??, 800.626.2000 for information on how to keep the tub stationary when moving the washer.

Long Vacations: Be sure water supply is shut off at faucets. Drain all water from hoses if weather will be below freezing.

Operating

Troubleshooting Tips

Consumer Support

Fabric Care Labels

Below are fabric care label ???symbols??? that affect the clothing you will be laundering.

WASH LABELS

GE Service Protection Plus???

GE, a name recognized worldwide for quality and dependability, offers you Service Protection Plus??????comprehensive protection on all your appliances???

No Matter What Brand!

Benefits Include:

???Backed by GE

???All brands covered

???Unlimited service calls

???All parts and labor costs included

???No out-of-pocket expenses

???No hidden deductibles

???One 800 number to call

We???ll Cover Any Appliance.

Anywhere. Anytime.*

You will be completely satisfied with our service protection or you may request your money back on the remaining value of your contract. No questions asked. It???s that simple.

Protect your refrigerator, dishwasher, washer and dryer, range, TV, VCR and much more???any brand! Plus there???s no extra charge for emergency service and low monthly financing is available. Even icemaker coverage and food spoilage protection is offered. You can rest easy, knowing that all your valuable household products are protected against expensive repairs.

Place your confidence in GE and call us in the U.S. toll-free at 800-626-2224 for more information.

*All brands covered, up to 20 years old, in the continental U.S.

???Cut here

Please place in envelope and mail to:

General Electric Company

Warranty Registration Department

P.O. Box 32150

Louisville, KY 40232-2150

After mailing the registration below, store this document in a safe place. It contains information you will need should you require service. Our service number is 800 GE CARES (800-432-2737).

Consumer Product Ownership Registration

Dear Customer:

Thank you for purchasing our product and thank you for placing your confidence in us. We are proud to have you as a customer!

Follow these three steps to protect your new appliance investment:

1Complete and mail2 3 your Consumer

Product Ownership Registration today.

Have the peace of mind of knowing we can contact you in the unlikely event of a safety modification.

Read your Owner???s Manual carefully. It will help you operate your new appliance properly.

Important: If you did not get a registration card with your product, detach and return the form below to ensure that your product is registered, or register online at www.GEAppliances.com.

???Cut here

Consumer Product Ownership Registration

Important

Mail

Today!

Occasionally, we may allow selected companies to send you information. ??? Check here if you do not want this information.

General Electric Company

Louisville, Kentucky

www.GEAppliances.com

GE Washer Warranty.

This warranty is extended to the original purchaser and any succeeding owner for products purchased for home use within the USA. In Alaska, the warranty excludes the cost of shipping or service calls to your home.

Some states do not allow the exclusion or limitation of incidental or consequential damages. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. To know what your legal rights are, consult your local or state consumer affairs office or your state???s Attorney General.

Warrantor: General Electric Company. Louisville, KY 40225

Support Consumer Tips Troubleshooting Instructions Installation Instructions Operating Instructions Safety

Consumer Support.

Have a question or need assistance with your appliance? Try the GE Appliances Website 24 hours a day, any day of the year! For greater convenience and faster service, you can now download Owner???s Manuals, order parts, catalogs, or even schedule service on-line. You can also ???Ask Our Team of Experts??????

your questions, and so much more...

Expert GE repair service is only one step away from your door. Get on-line and schedule your service at your convenience 24 hours any day of the year! Or call 800-GE-CARES (800-432-2737) during normal business hours.

GE supports the Universal Design concept???products, services and environments that can be used by people of all ages, sizes and capabilities. We recognize the need to design for a wide range of physical and mental abilities and impairments. For details of GE???s Universal Design applications, including kitchen design ideas for people with disabilities, check out our Website today. For the hearing impaired, please call 800-TDD-GEAC (800-833-4322).

Purchase a GE extended warranty and learn about special discounts that are available while your warranty is still in effect. You can purchase it on-line anytime, or call 800-626-2224 during normal business hours. GE Consumer Home Services will still be there after your warranty expires.

Individuals qualified to service their own appliances can have parts or accessories sent directly to their homes (VISA, MasterCard and Discover cards are accepted). Order on-line today, 24 hours every day or by phone at 800-626-2002 during normal business hours.

Instructions contained in this manual cover procedures to be performed by any user. Other servicing generally should be referred to qualified service personnel. Caution must be exercised, since improper servicing may cause unsafe operation.

If you are not satisfied with the service you receive from GE, contact us on our Website with all the details including your phone number, or write to: General Manager, Customer Relations

GE Appliances, Appliance Park Louisville, KY 40225

Register your new appliance on-line???at your convenience! Timely product registration will allow for enhanced communication and prompt service under the terms of your warranty, should the need arise. You may also mail in the pre-printed registration card included in the packing material, or detach and use the form in this Owner???s Manual.
