ZET2SL
GE Monogram?? 30??? Built-In Double Oven
Dimensions and Installation Information (in inches)
23-1/2" Min.
Locate Junction Box 47"
Above Cutout Floor, Within 5"
of Right Rear Wall
28-1/2" Min.
28-5/8" Max.
52-7/8
30"
23-1/4" 29-3/4"
CL
Suitable Bracing
to Support Runners
21-5/8"
Over Centerline
of Cabinet
(Must support 350 lbs.)
Install a solid bottom or 2" x 4"
or equivalent runners level with bottom of cutout
23-1/4" Recessed
Depth
For answers to your Monogram,?? GE Profile??? or GE?? appliance questions, visit our website at ge.com or call GE Answer Center?? service, 800.626.2000.
Listed by
Underwriters
RLaboratories
ZET2SL
GE Monogram?? 30??? Built-In Double Oven

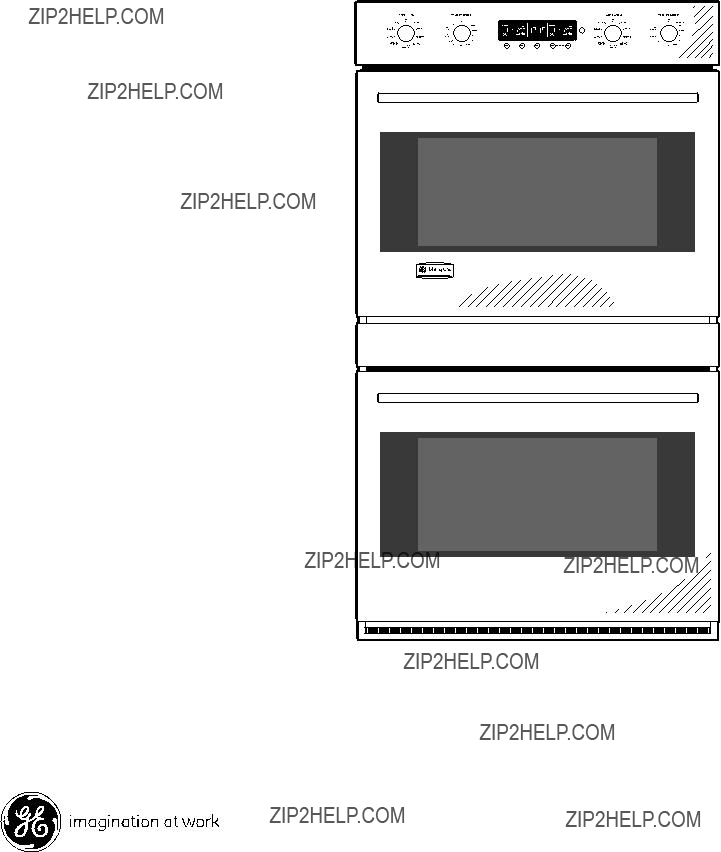

Features and Benefits
??? Electronic Dial Controls - As elegant as they are ergonomic
???Exclusive Self-Cleaning, Full-Extension Oven Racks - Glide in and out smoothly on stainless steel ball bearings, and are designed to be left in the oven during the self-clean cycle for added convenience after meal preparation
???4.4 Cu. Ft. Total Capacity - Provides an expanded cooking area to easily accommodate even the largest meals
???True Hidden Bake Element - Concealed beneath the oven floor, allows quick and easy ash
removal after the self-clean cycle
??? Reverse-Air Convection System - Uses a dedicated third heating element and a bidirectional fan to provide a consistent temperature throughout the oven
???Six-Element Design - Two bake, two broil and two convection elements provide precise cooking control, with fast preheating
???Performance Compensation - For 208V installation boost power as needed in multifamily dwellings
???Sleek Tubular Handles - Smooth, rugged and easy to grasp
???Hand-Finished Edges - Reflect the meticulous
quality and craftsmanship for which Monogram products are renowned
???Broil Element with Reflector Shield - Provides complete and even
cooking coverage
???Large Viewing Window - Allows you to view your culinary work in progress
???Model ZET2SLSS ??? Stainless steel
