Icemaker Accessory Kit

IM-6

Safety Information . . . . . . . . . 1

Operating Instructions . . . . .2 Before You Call For Service . . . . .3, 4 Normal Sounds You May Hear . . . .2 Preparing for Vacation . . . . . . . . . .2 When You Should Set the Icemaker Power Switch

to OFF . . . . . . . . . . . . . . . . . . . . . . . . . .2

Installation Instructions

Cold Water Line . . . . . . . . . . . .66???69

Fill Tube Templates . . . . . . . . . . . . .70

Fill Tube Extension

Templates . . . . . . . . . . . . . . . . . . . . .71

Icemaker C . . . . . . . . . . . . . . .10???13 Icemaker F . . . . . . . . . . . . . . .14???17 Icemaker G . . . . . . . . . . . . . . .18???21 Icemaker H . . . . . . . . . . . . . . .22???25 Icemaker J . . . . . . . . . . . . . . .26???29 Icemaker K . . . . . . . . . . . . . . .30???33 Icemaker L . . . . . . . . . . . . . . .34???37 Icemaker M . . . . . . . . . . . . . . .38???41 Icemaker N . . . . . . . . . . . . . . .42???45 Icemaker P . . . . . . . . . . . . . . .46???49 Icemaker Q . . . . . . . . . . . . . . .50???53 Icemaker R . . . . . . . . . . . . . . .54???57 Icemaker S . . . . . . . . . . . . . . .58???61 Icemaker T . . . . . . . . . . . . . . .62???65 Parts List . . . . . . . . . . . . . . . . . . . . .6, 7 Removing Existing

Ice Cube Tray Holder . . . . . . . . . . . .8 Repositioning or Removing

the Freezer Shelf . . . . . . . . . . . . . . . .9

Consumer Support

Consumer Support . . . . Back Cover

Warranty . . . . . . . . . . . . . . . . . . . . . 72

Which instructions should you follow?

Look for a label on the back of the refrigerator that will tell you which instructions to use:

C F G H J K L M N P Q R S or T

Owner???s Manual and

Installation Instructions

Kit IM-6

This kit fits most models calling for UK-KIT-1, UK-KIT-2, UK-KIT-4, and all models calling for Kit IM-1, IM-2, IM-3, IM-4 or IM5SS. If you are replacing an icemaker with Kit IM-1 or IM-2, see page 5.

Trousse

Machine ?? gla??ons

Manuel d???utilisation et d???installation

La section fran??aise commence ?? la page 73

Equipo de Accesorios

M??quina de Hielos

Manual del propietario e instalaci??n

La secci??n en espa??ol empieza en la p??gina 159

197D6260P003 49-60554 12-07 JR ???

Do not place fingers or hands in the automatic icemaking mechanism while the refrigerator is plugged in. This will help protect you from possible injury.

It will also prevent interference with moving parts of the ejector mechanism and the heating element that releases the cubes, located on the bottom of the icemaker.

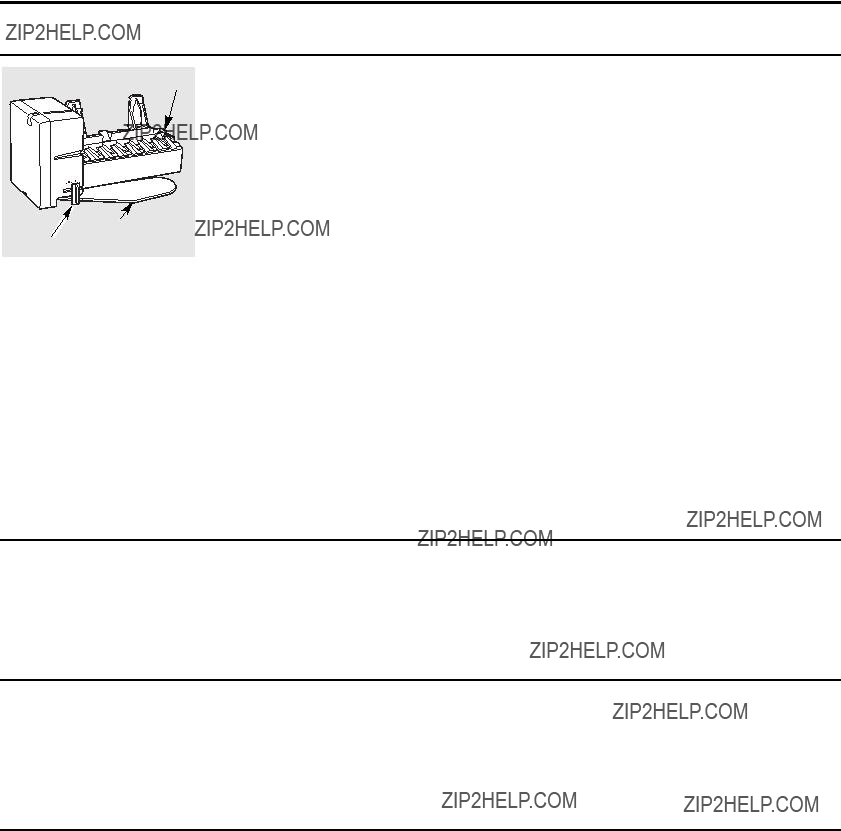

Icemaker

Feeler Arm

Power Switch

(Appearance may vary)

Automatic Icemaker

The icemaker will produce seven cubes per cycle???approximately 100???130 cubes in a 24-hour period, depending on freezer compartment temperature, room temperature, number of door openings and other use conditions.

If the refrigerator is operated before the water connection is made to the icemaker, set the power switch to OFF.

When the refrigerator has been connected to the water supply, set the power switch to ON.

The icemaker will fill with water when it cools to freezing. A newly-installed refrigerator may take 12 to 24 hours to begin making ice cubes.

Throw away the first few batches of ice to allow the water line to clear.

Be sure nothing interferes with the sweep of the feeler arm.

When the bin fills to the level of the feeler arm, the icemaker will stop producing ice.

It is normal for several cubes to be joined together.

If ice is not used frequently, old ice cubes will become cloudy, taste stale and shrink.

NOTE: In homes with lower-than-average water pressure, you may hear the icemaker cycle multiple times when making one batch of ice.

Preparing for Vacation

Set the icemaker power switch to OFF and shut off the water supply to the refrigerator.

If the temperature can drop below freezing, have a qualified servicer drain the water supply system (on some models) to prevent serious property damage due to flooding.

???When the ice storage bin is removed for more than a minute or two.

???When the water supply will be shut off for several hours.

???When the refrigerator will not be used for several days.

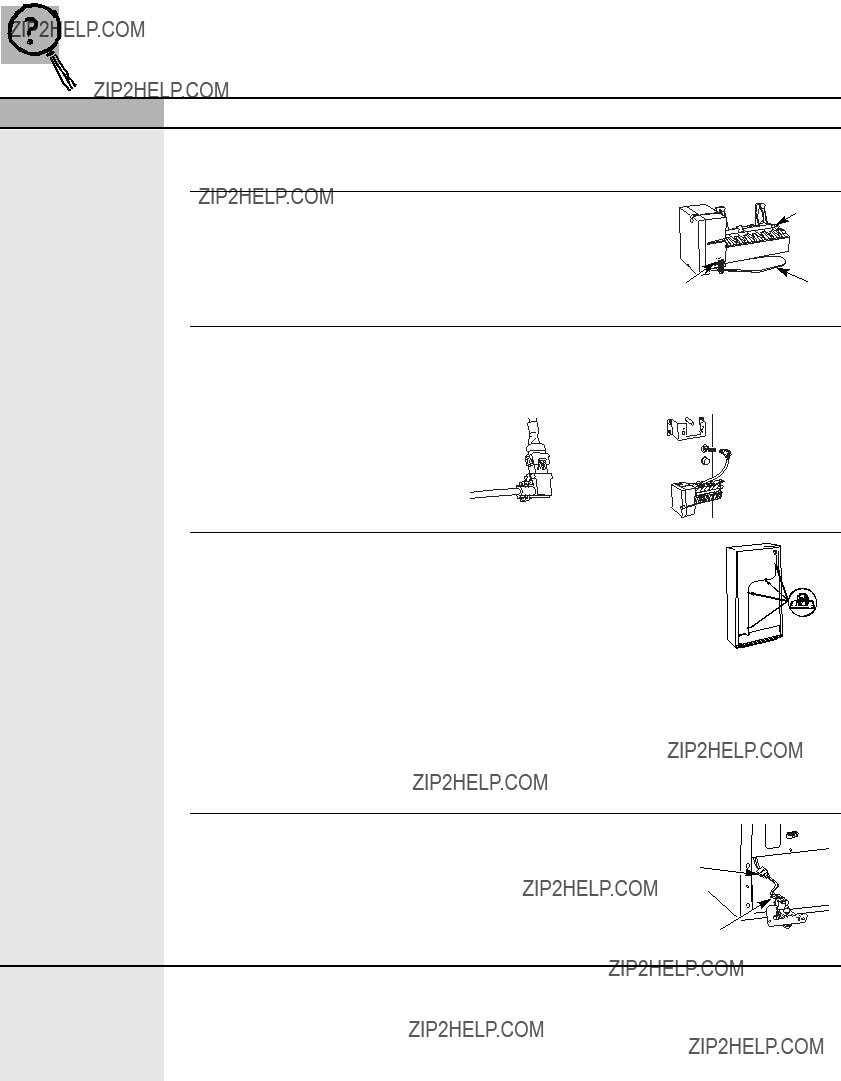

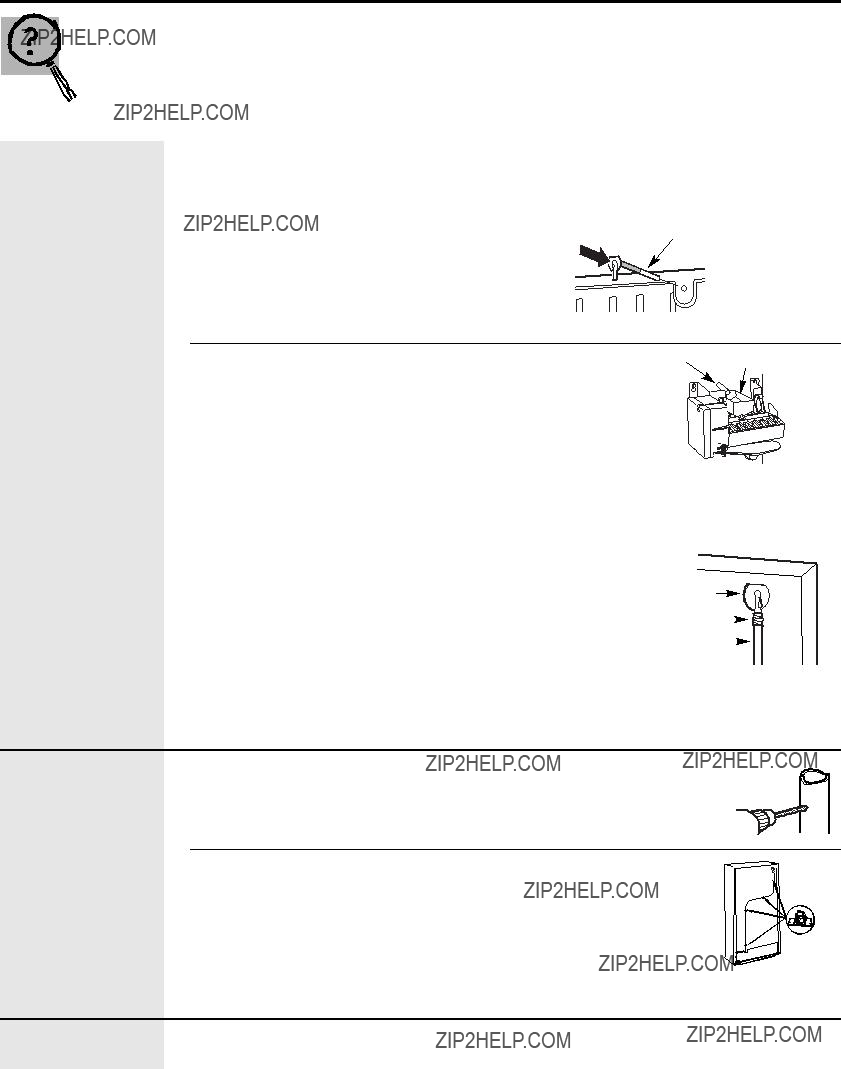

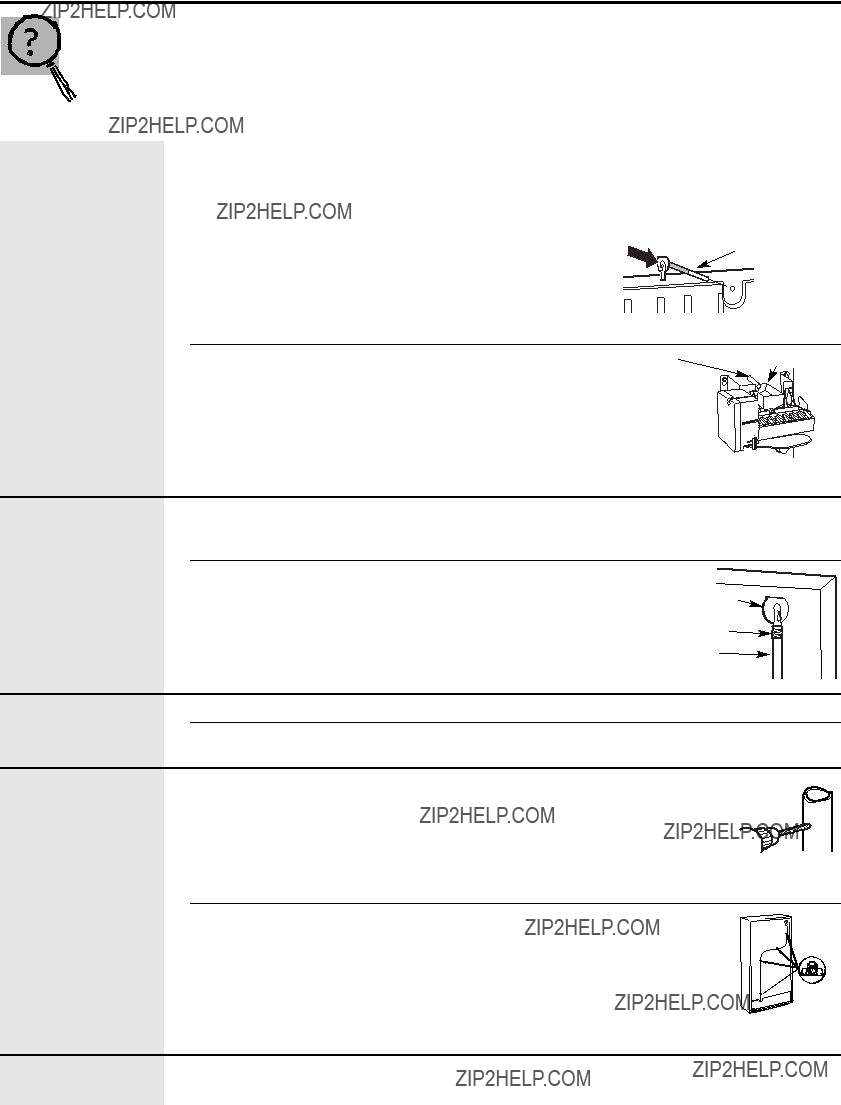

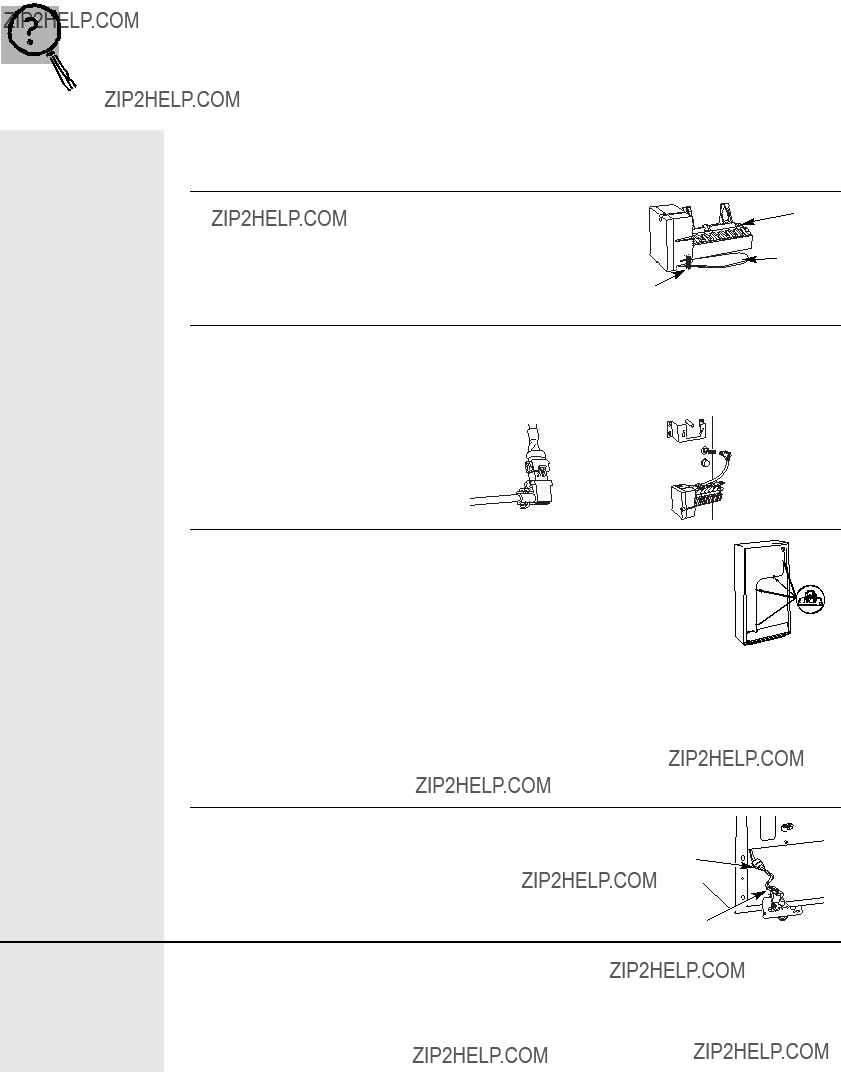

Normal sounds you may hear

???The icemaker water valve will buzz when the icemaker fills with water. If the power switch is in the ON position, it will buzz even if it has not yet been hooked up to water. Keeping the power switch in the ON position before it is hooked up to water can damage the icemaker. To prevent this, move the power switch to the OFF position. This will stop

the buzzing.

???The sound of cubes dropping into the bin and water running in the pipes as the icemaker refills.

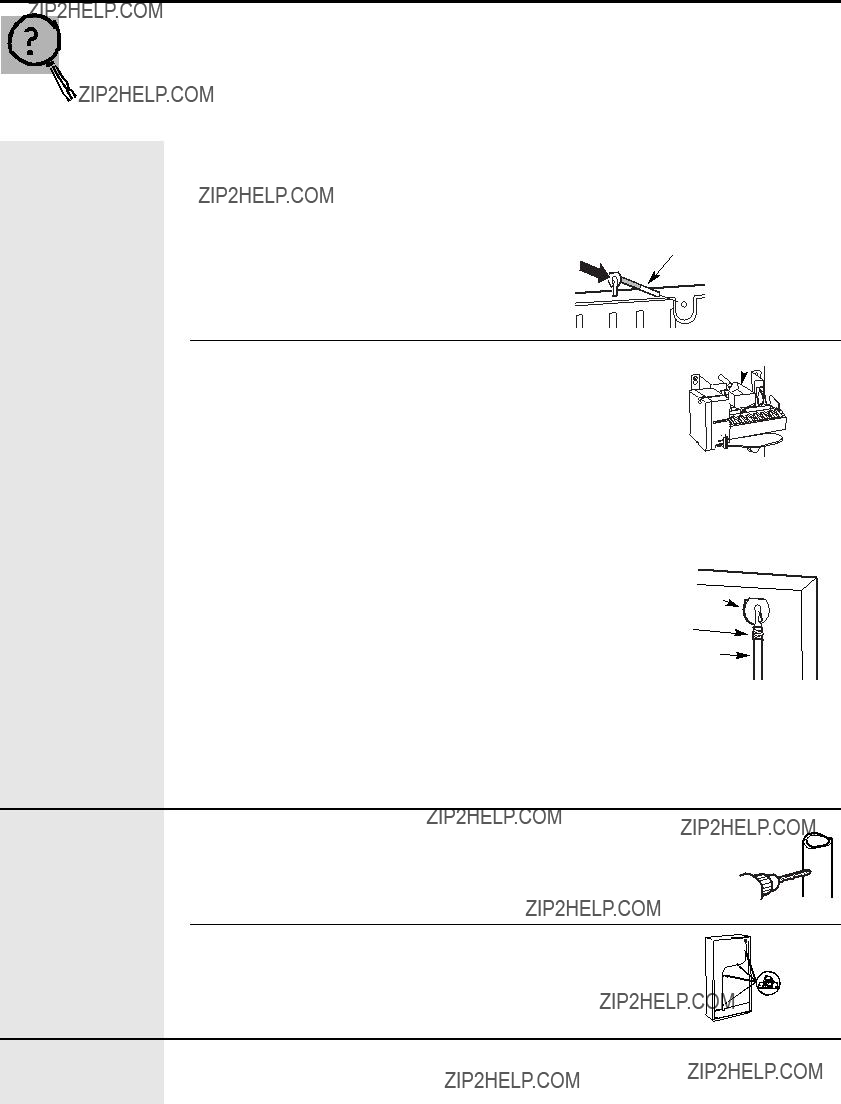

Water valve is not plugged in correctly.

???Check that the valve wire adapter is completely plugged onto the male connector plug and the terminals on the water valve. See Attach the water valve.

Male

Connector

Plug

Valve Terminals

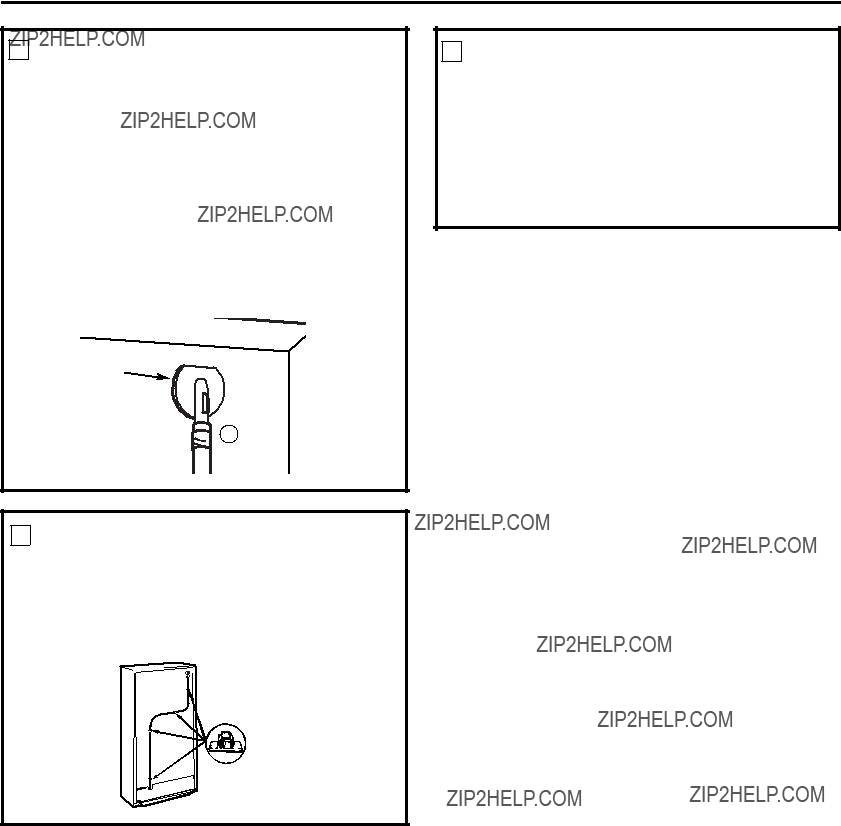

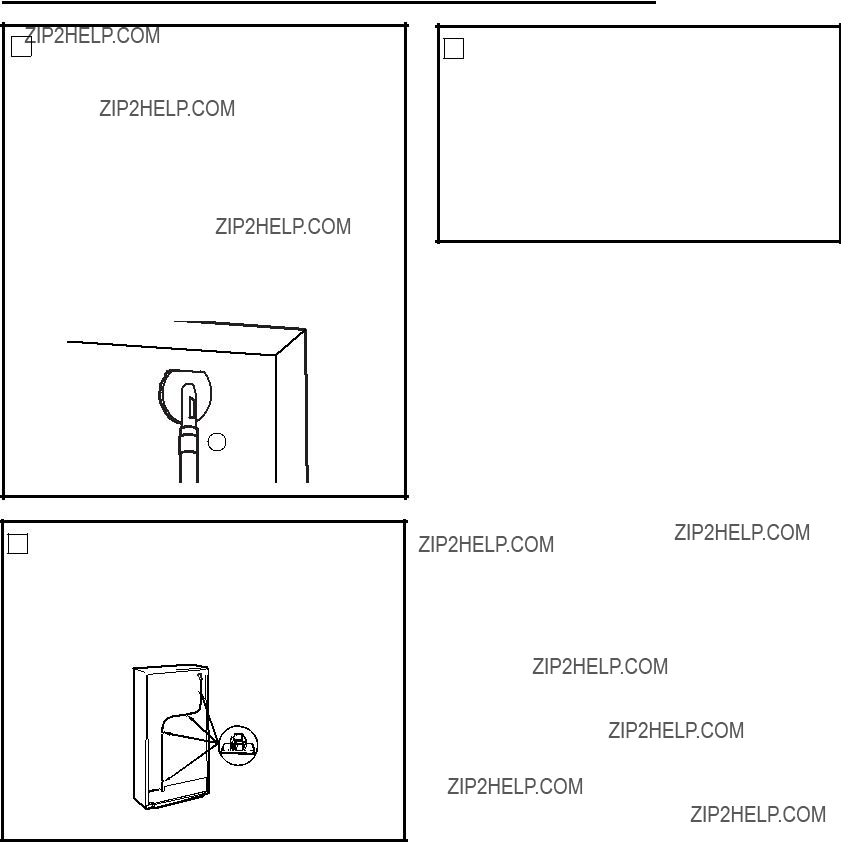

???If the fill tube was installed by sliding it through the back of the refrigerator, it may have picked up pieces of foam as it was pushed through. This foam can interfere with the water flow in the fill cup. Check the fill cup to make sure

there are no foam pieces.

Fill tube not correctly seated in fill cup.

???Check that the fill tube is correctly inserted in the fill cup opening. See

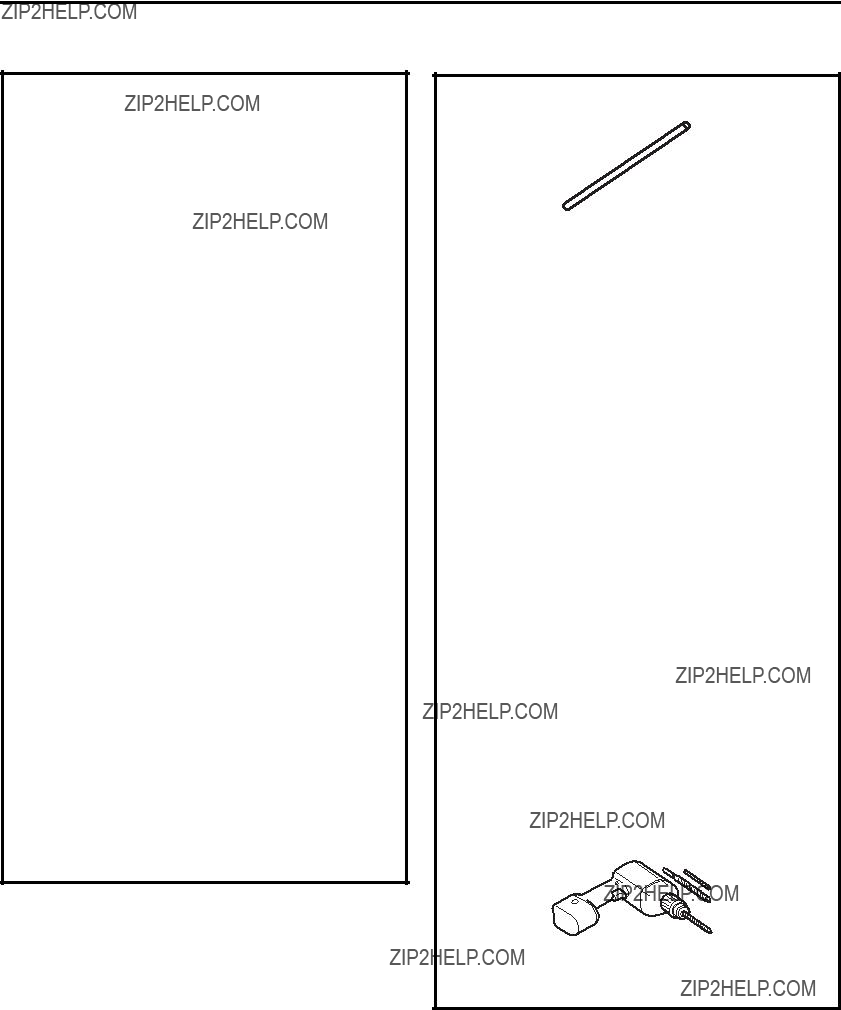

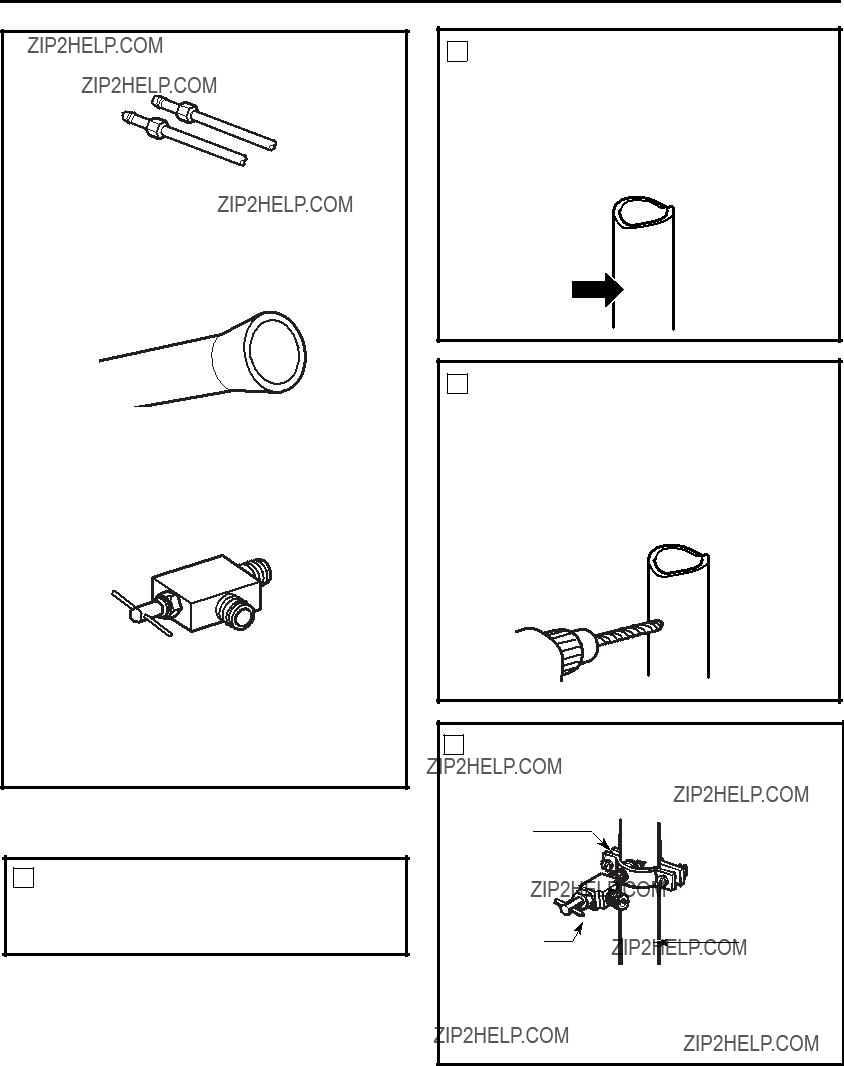

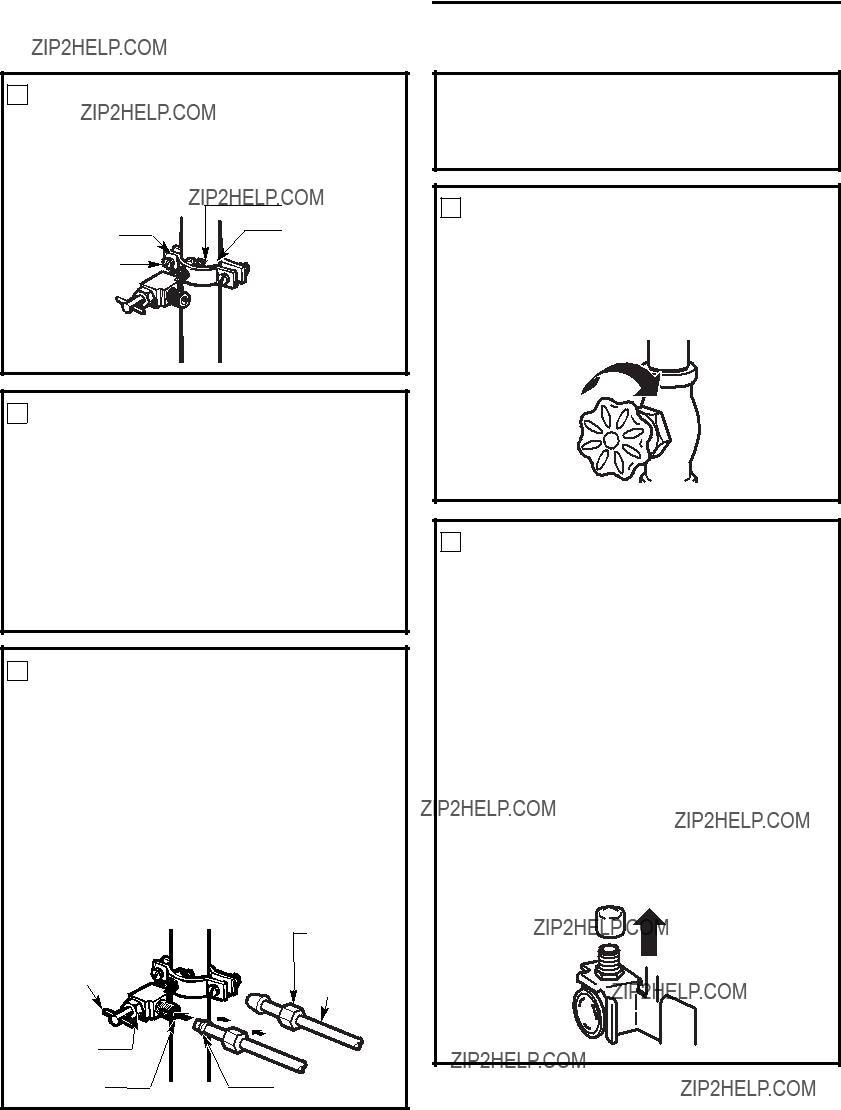

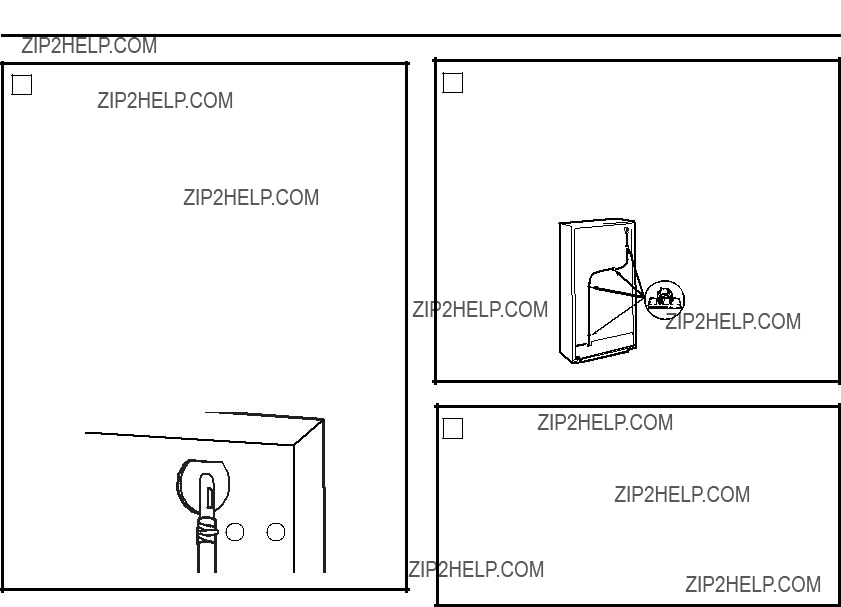

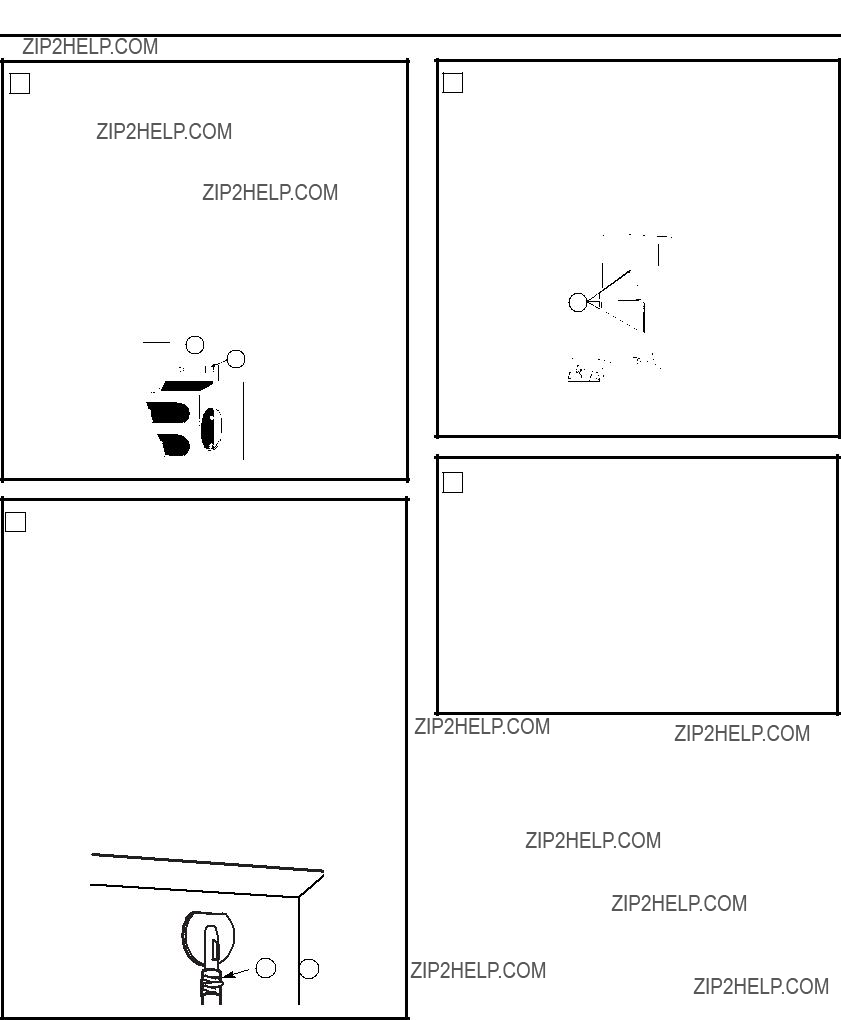

Mount the icemaker.

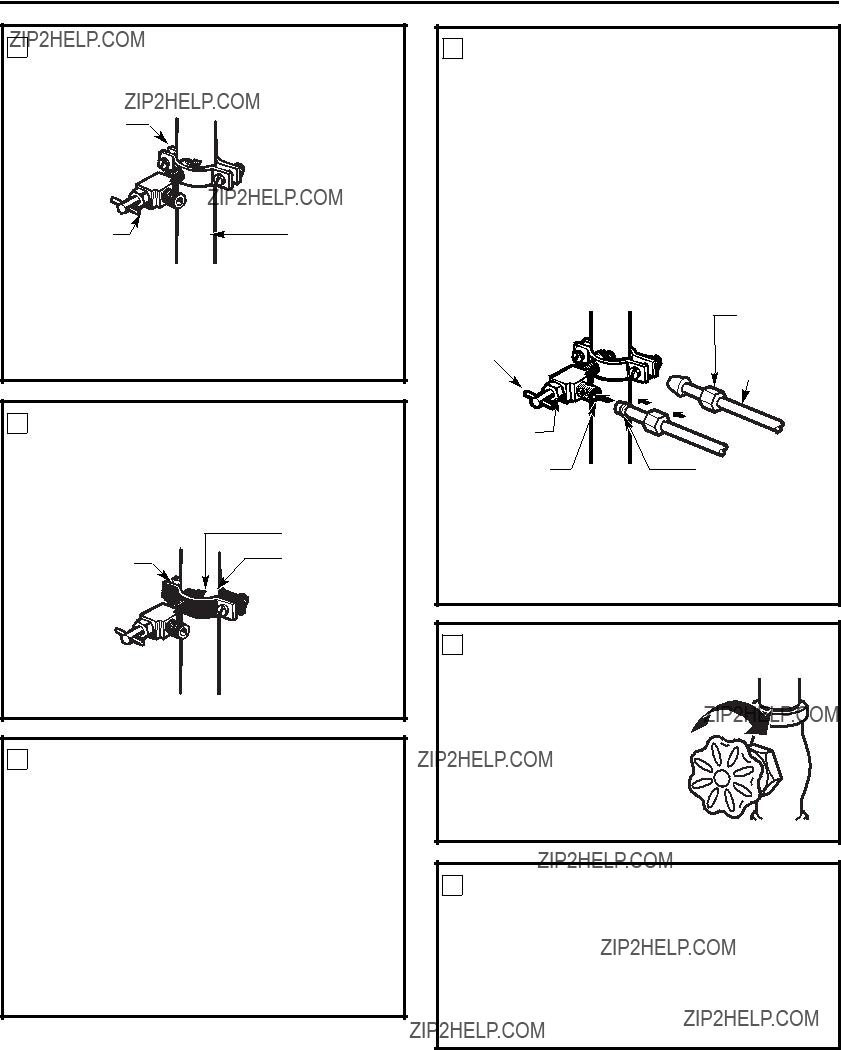

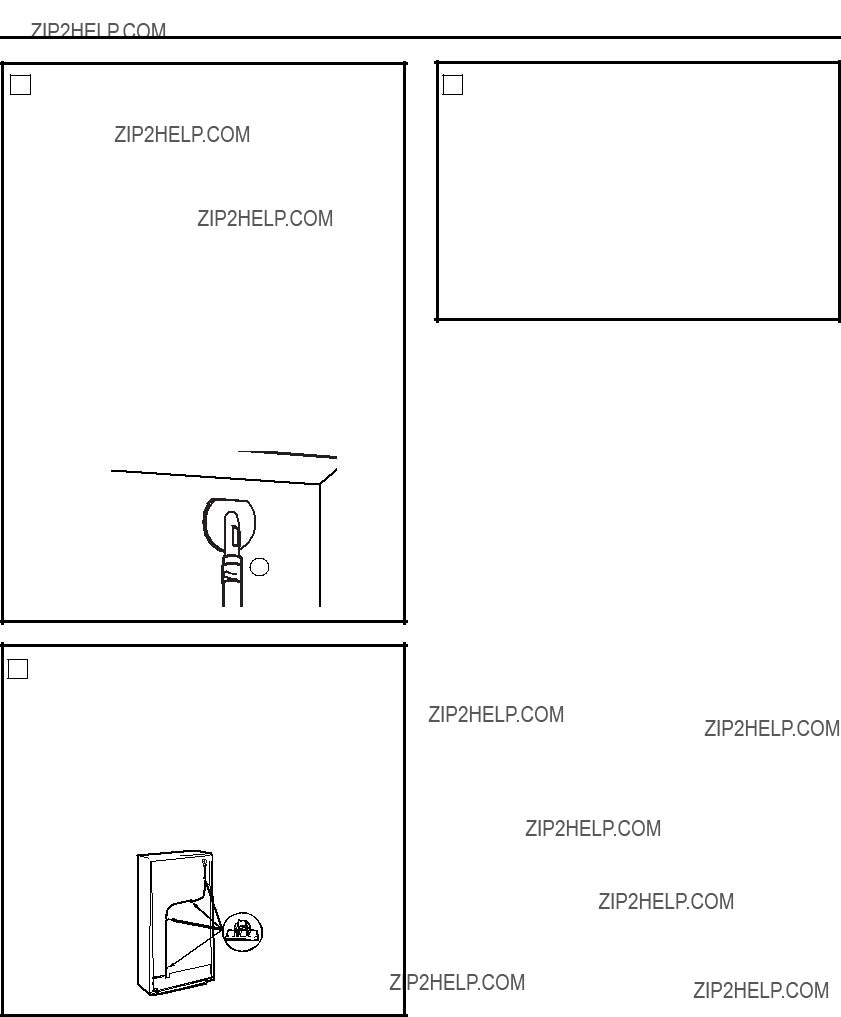

???We recommend drilling a 1/4??? hole

in the water pipe to connect the water shutoff valve. Failure to drill a 1/4??? hole may result in reduced ice production or smaller cubes. See Installing the water line.

Drill 1/4???

Hole in

Water Pipe

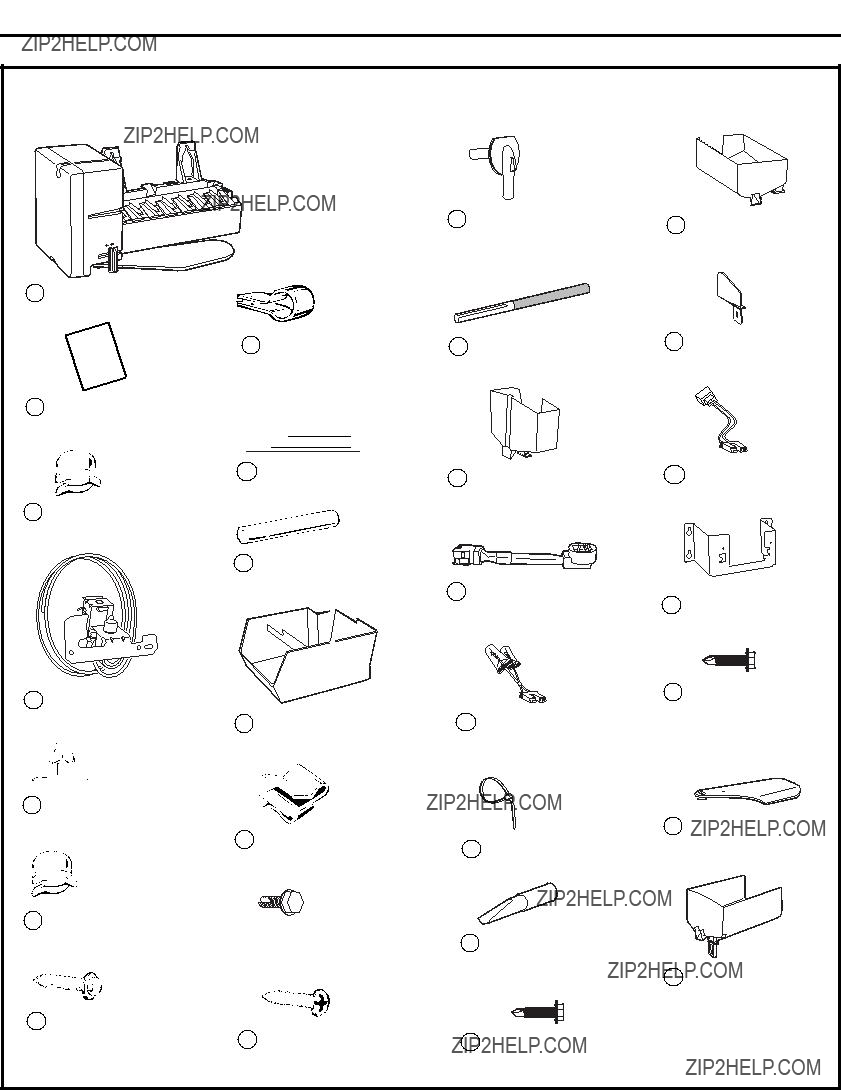

CONTENTS OF KIT IM-6

15 Water Tube Inlet

23Icemaker Fill Cup (center-mounted)

1Icemaker

(Appearance may vary)

Installation

Instructions

2Owner???s Manual & Installation Instructions

3Hose Clamp (black)

4Water Valve and Tube Assembly

5Adhesive-Backed Water Line Fasteners

6Hose Clamp (not black)

7Hex-Head Screw for

Water Line Clamp

8Water Line Clamp (strain relief)

ICEMAKER

WARRANTY VERIFICATION

Date Installed

Dealer

9Warranty Label

10Fill Tube Extension (3/4??? O.D. [20 mm])

11 Ice Bucket

12Water Line Clamp (strain relief)

13Hex-Head Screw

14Phillips Head Screws (2)

16Fill Tube with Foil (5/8??? O.D.)

17Icemaker Fill Cup (side-mounted)

18Icemaker Power Cord Adapter (4 pin)

19Water Valve Wire Extension

20 Wire Ties (2)

21Insulated Fill Tube (5/8??? O.D.)

22 Hex-Head Screw (2)

24 Icemaker Insert

25Water Valve Wire Adapter

26 Icemaker Bracket

27Screws to Install Bracket to Refrig. Wall (3)

28 Feeler Arm (Curved)

29Icemaker Fill Cup (end-mounted ??? 2-3/4??? long)

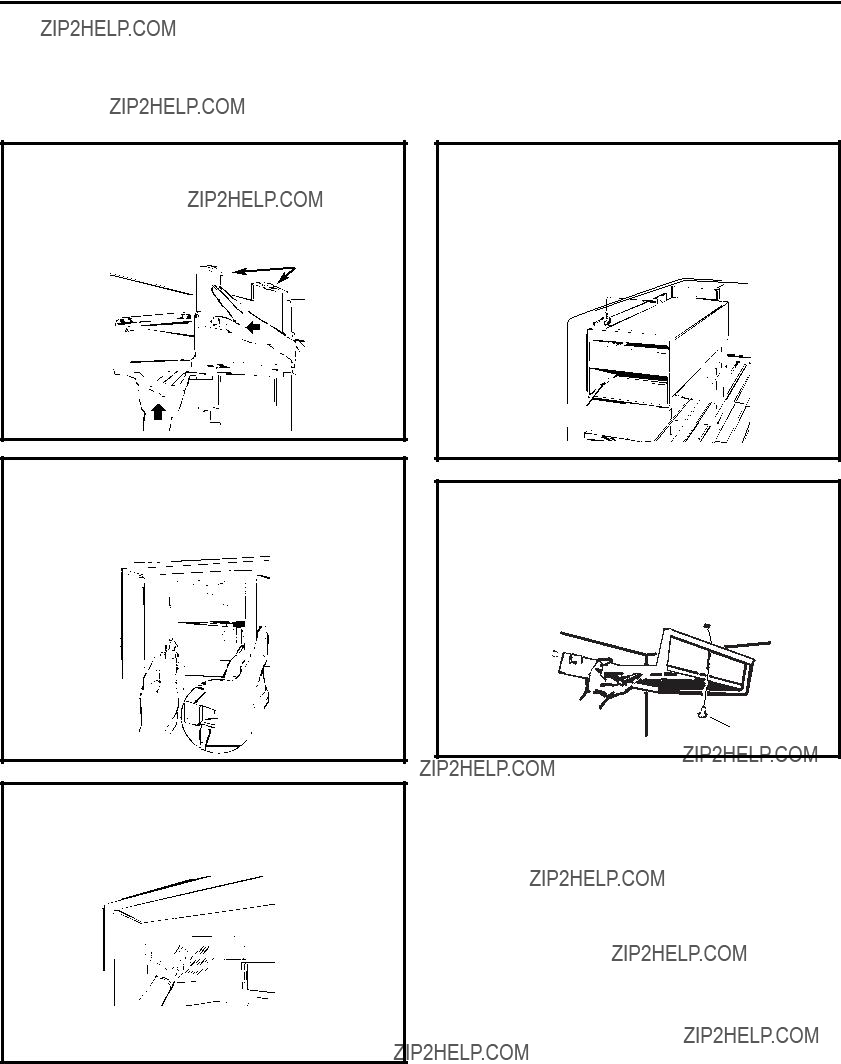

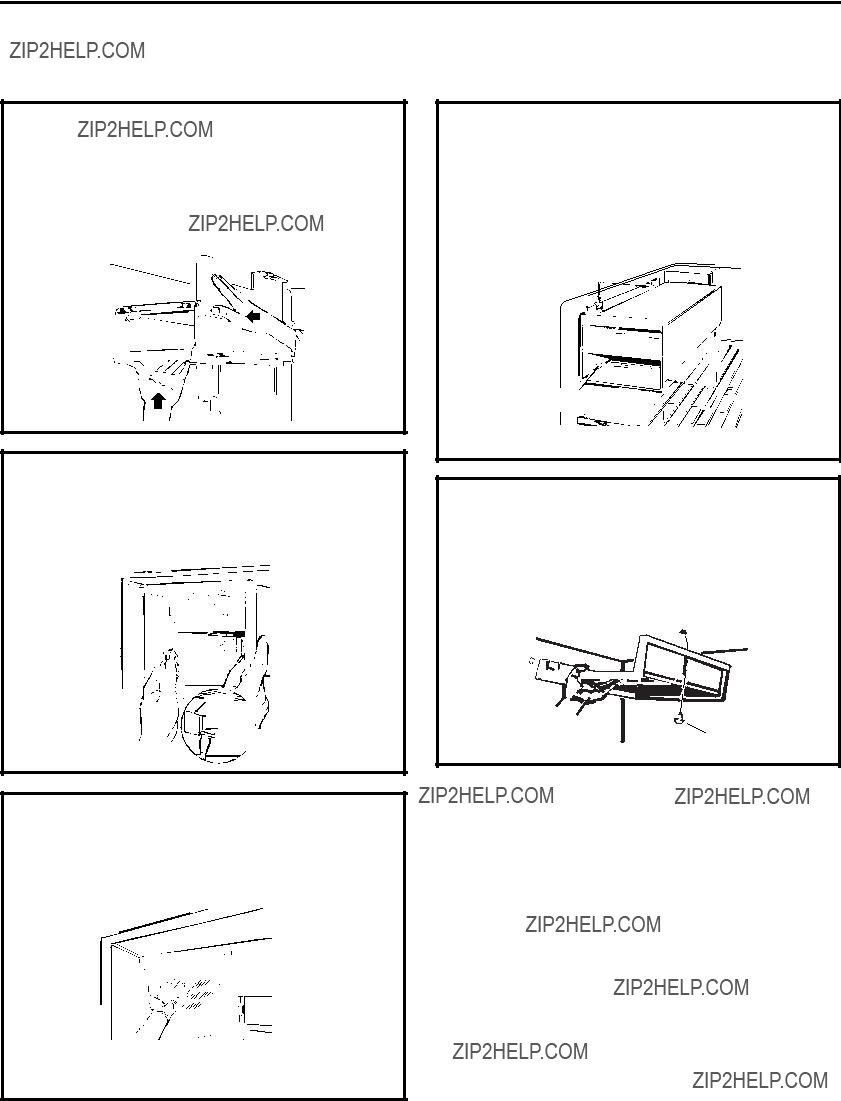

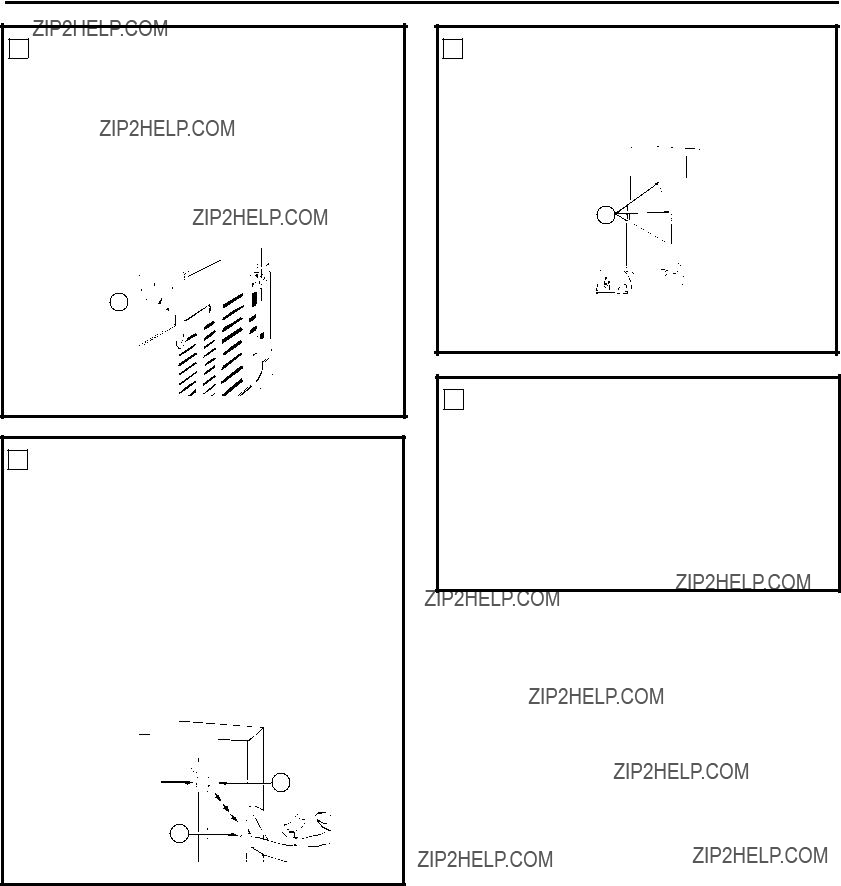

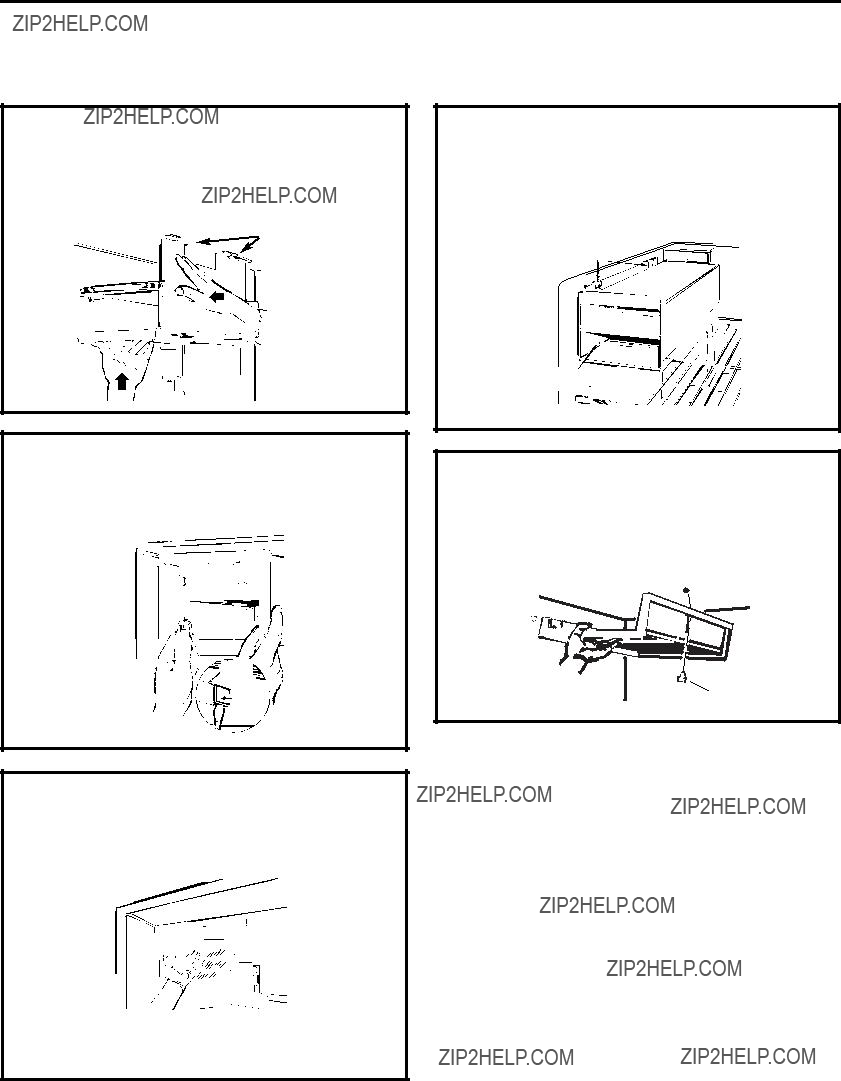

Type 1

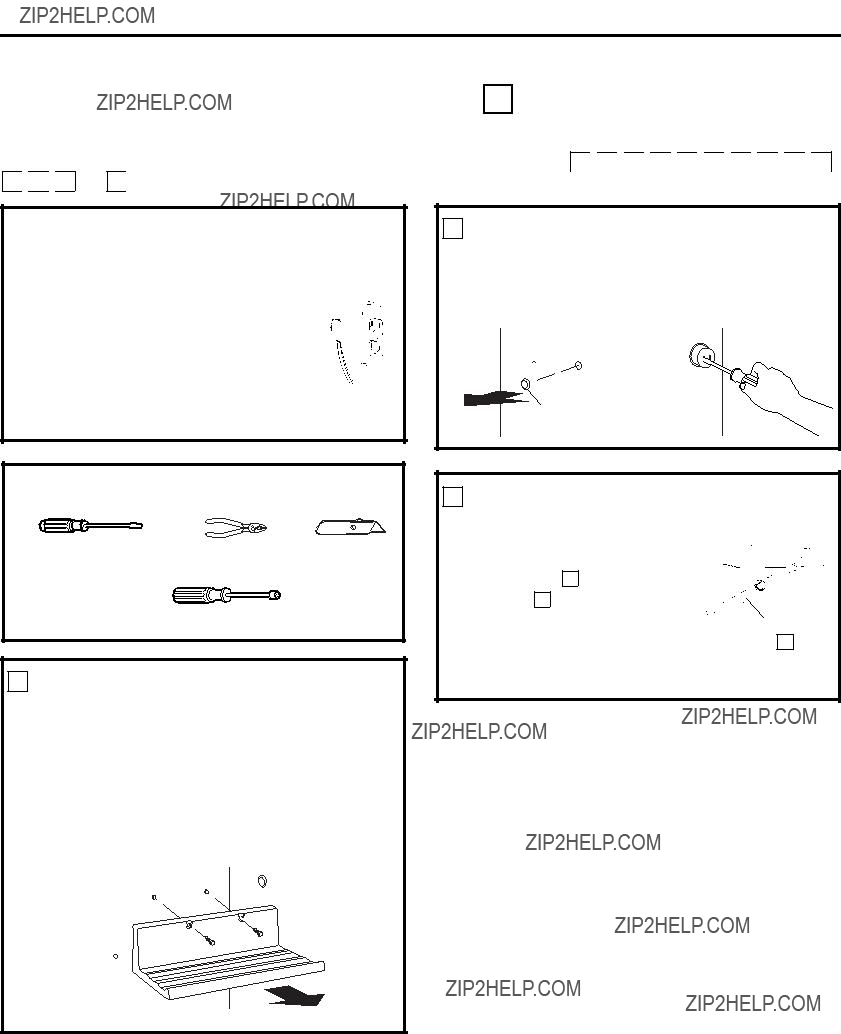

???Unhook the ice tray holder side and bottom from the retaining hooks. Lower the holder until the side is clear of the freezer shelf and remove it from the freezer. You will not need this part.

Retaining hooks

Type 2

???As you lift the tab on the left side in the holder with the blade of a screwdriver, pull the holder forward and out. You will not need this part.

Type 4

???Remove the 2 screws and save them for installation of the icemaker.

???Lift the ice tray holder off the plastic hook. You will not need this part.

Screws

Plastic hook

Type 5

???Remove the screw with a 1/4??? nutdriver.

???Pull the ice tray shelf away from the wall. Remove the shelf. You will not need this part.

???Replace the screw.

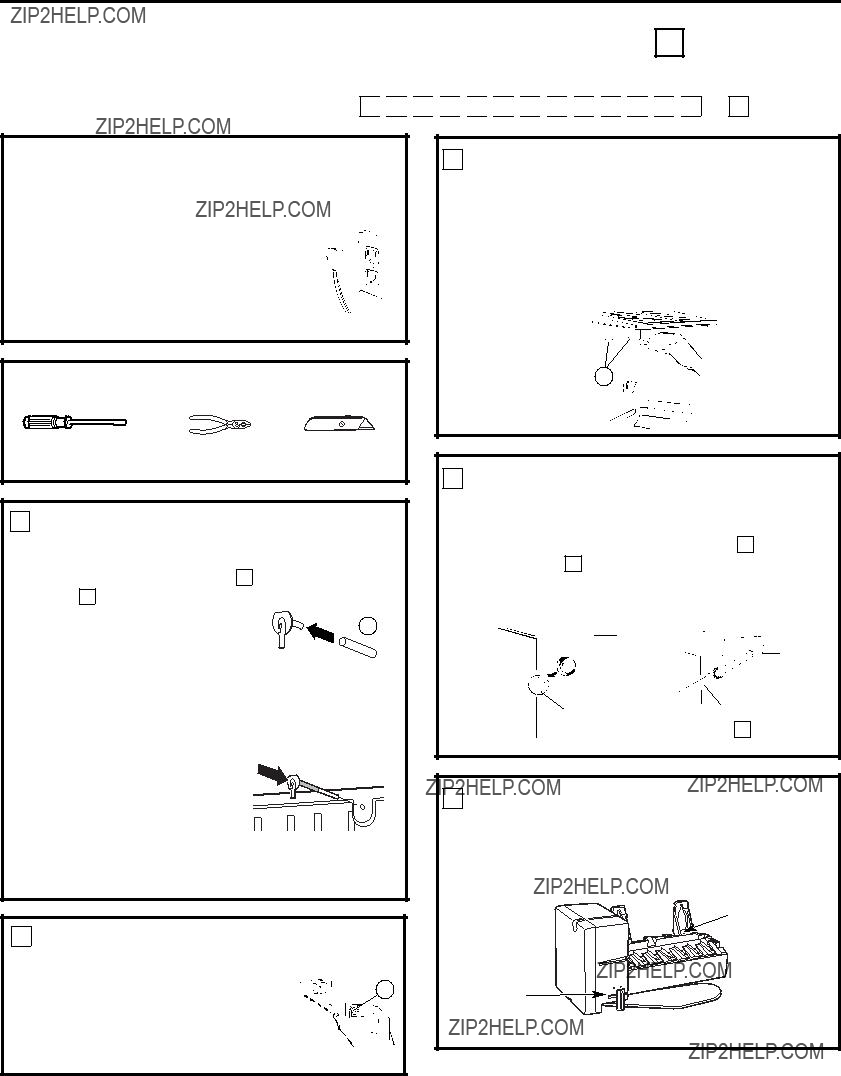

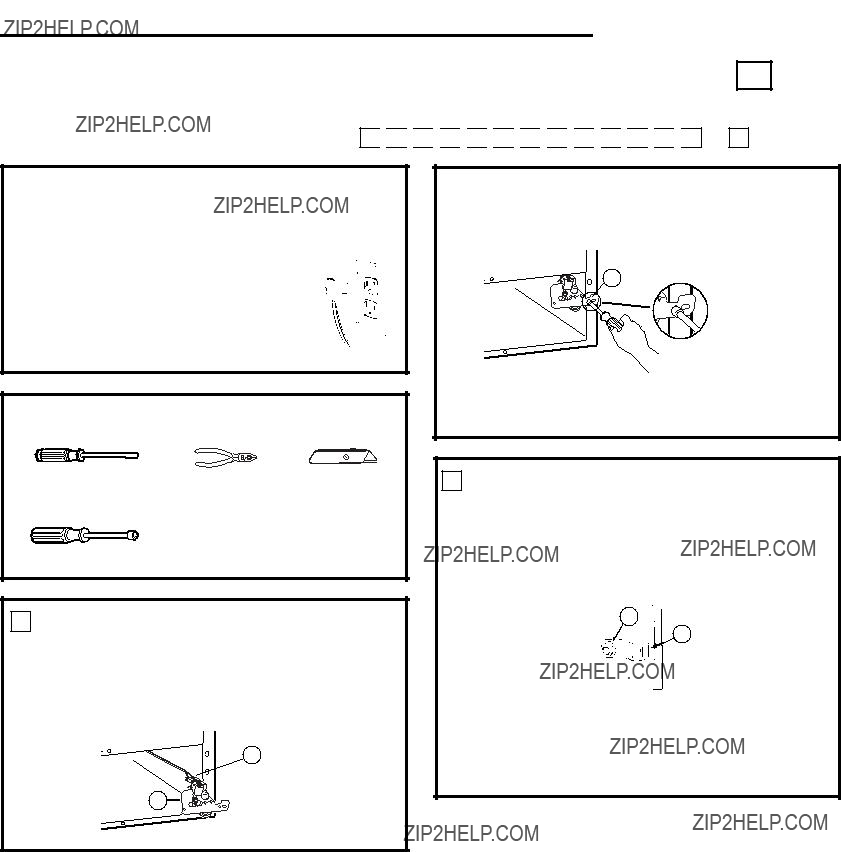

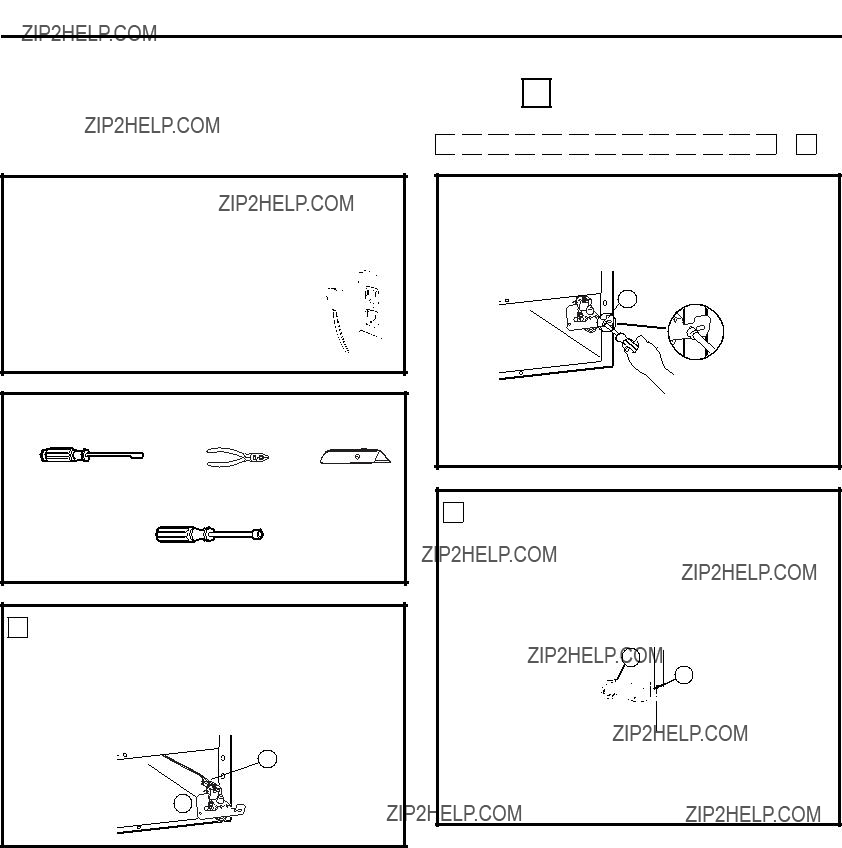

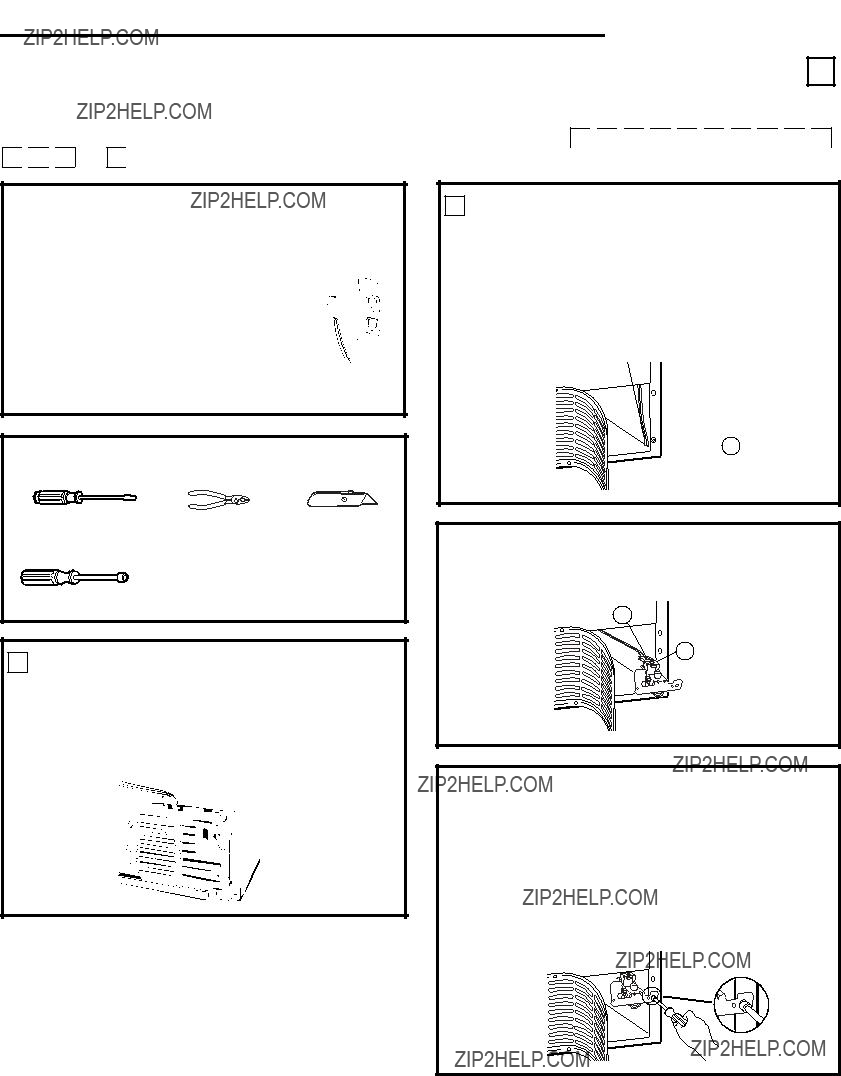

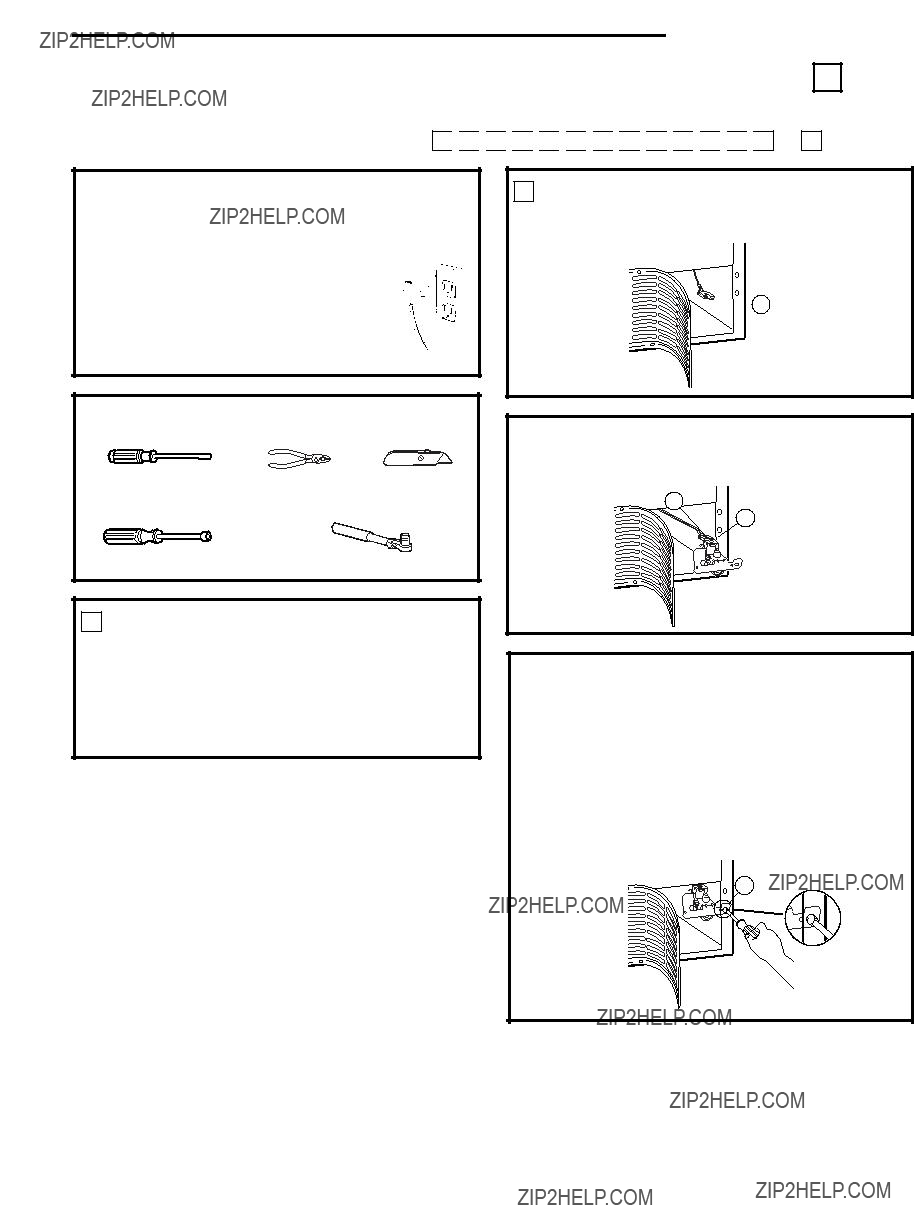

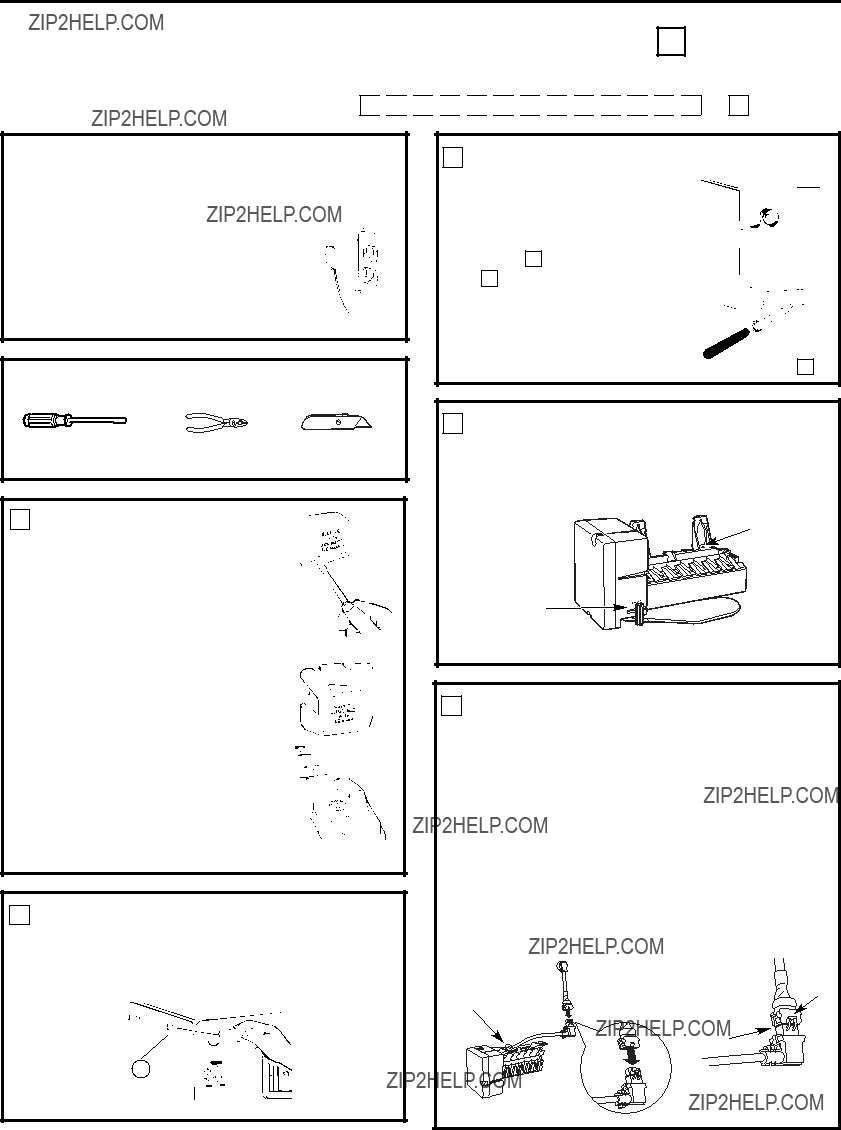

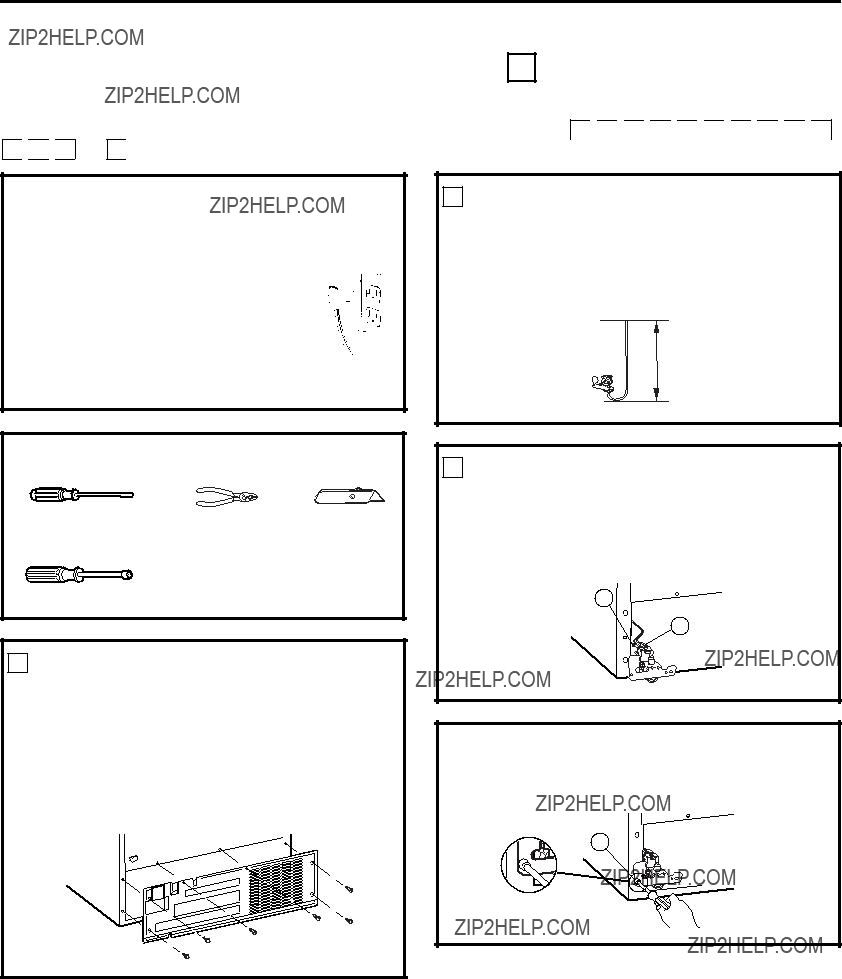

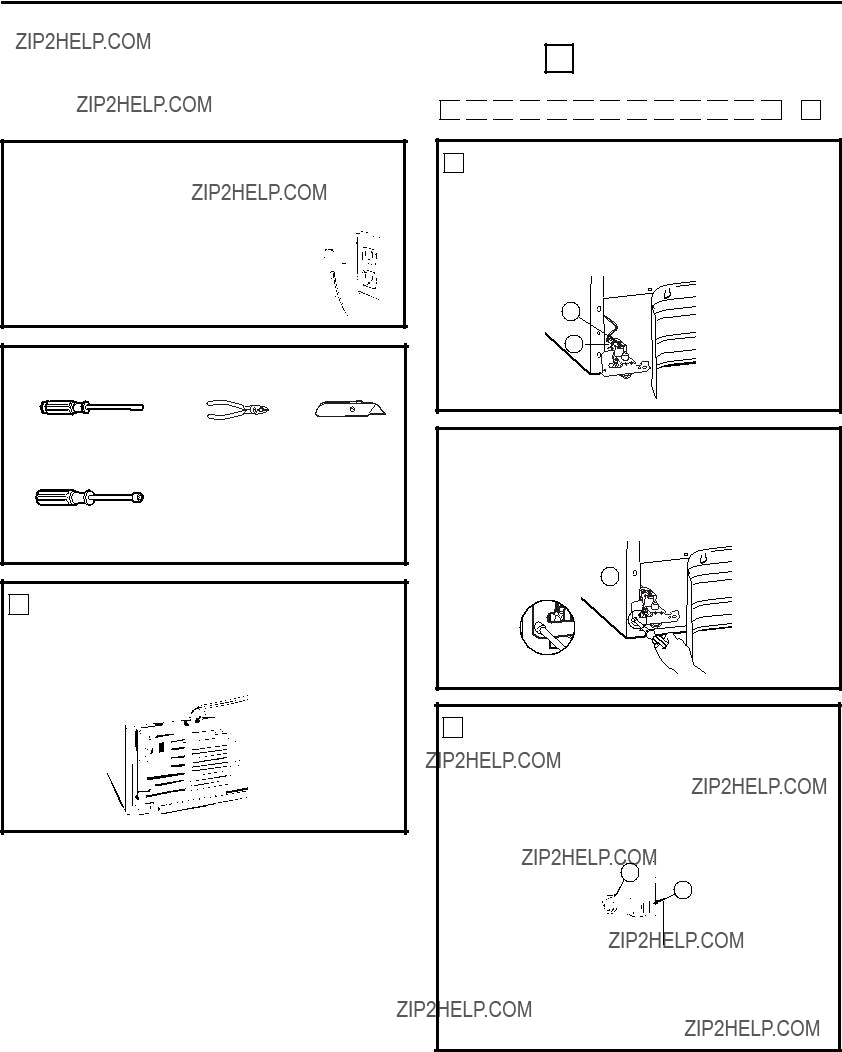

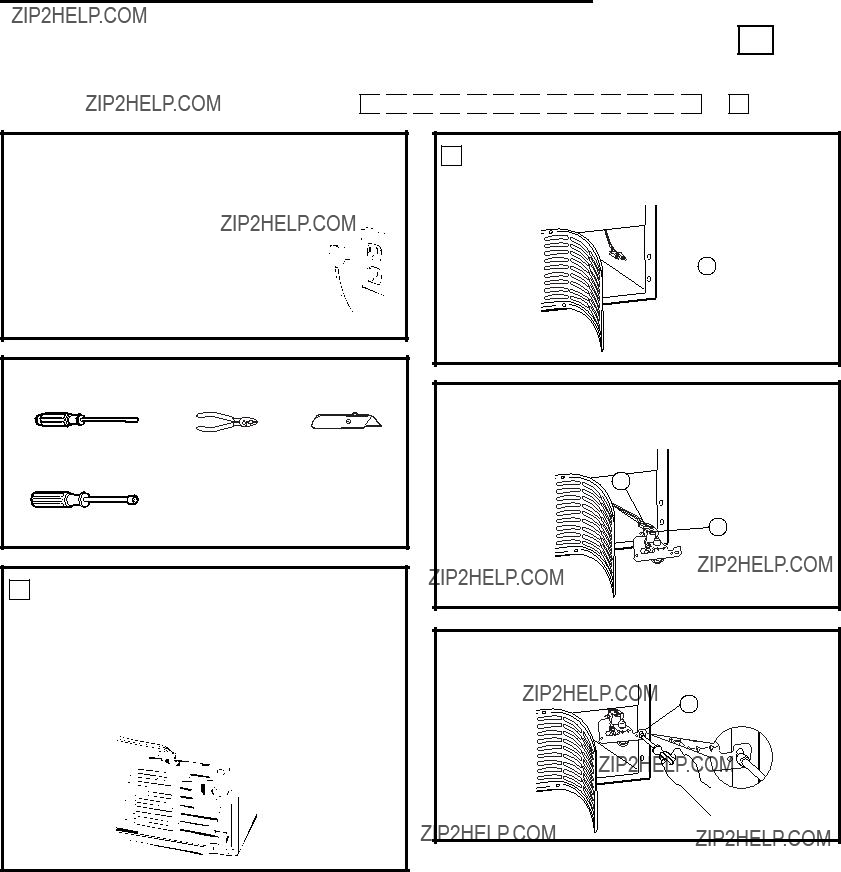

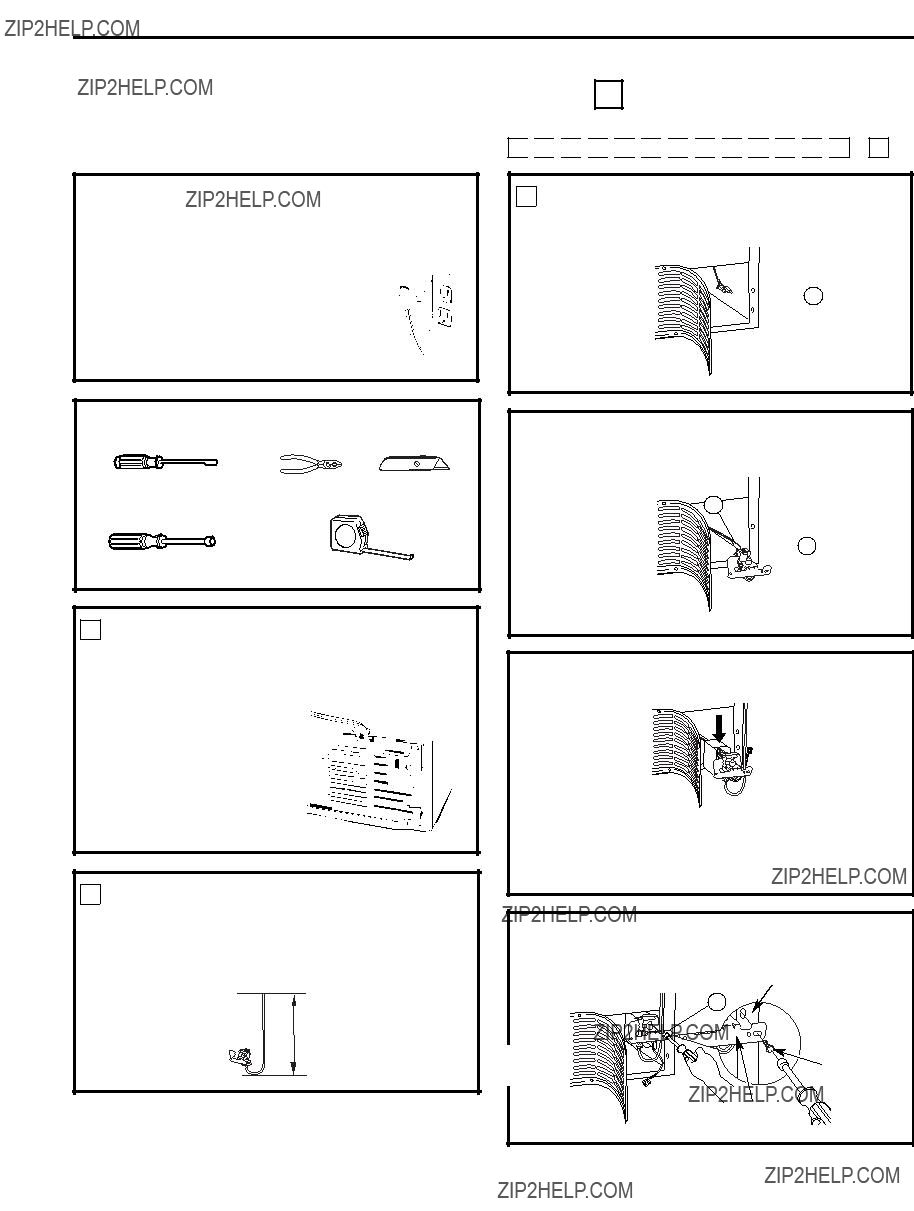

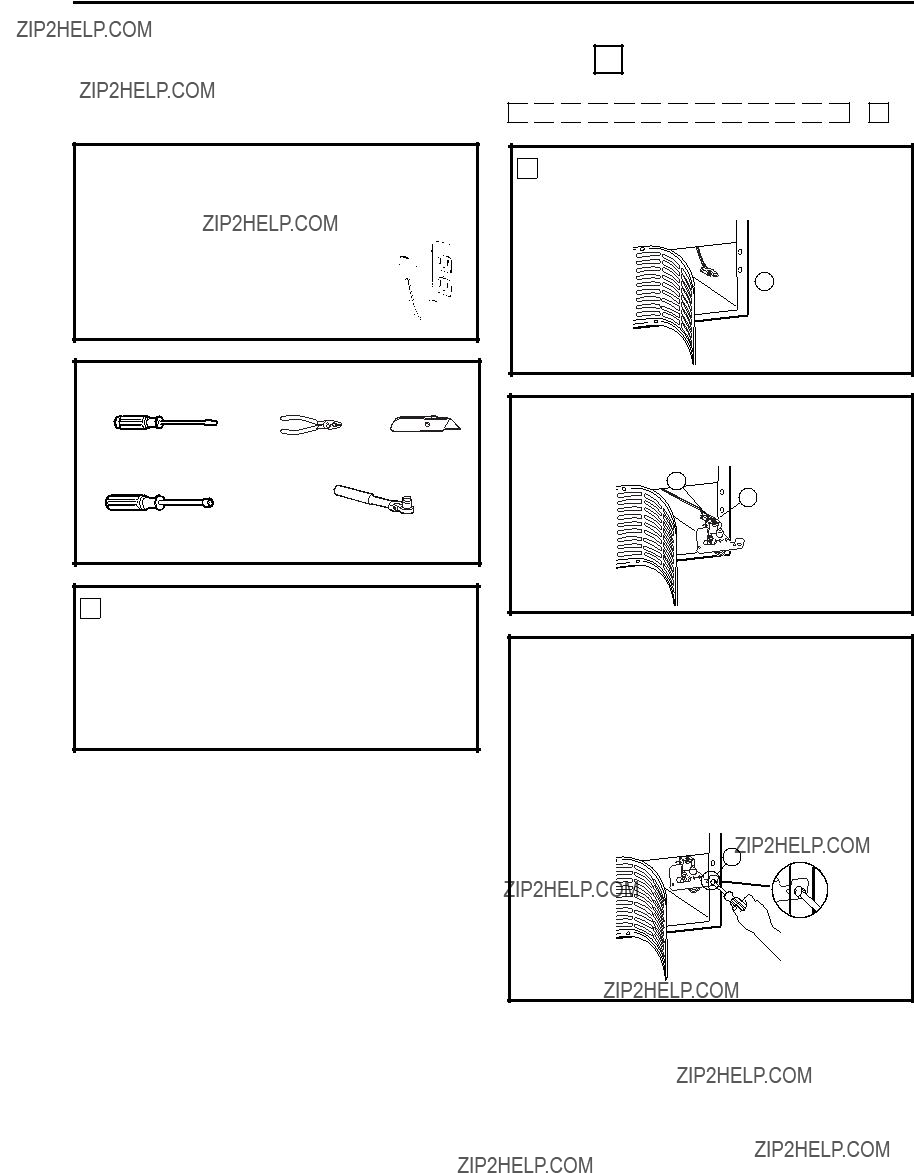

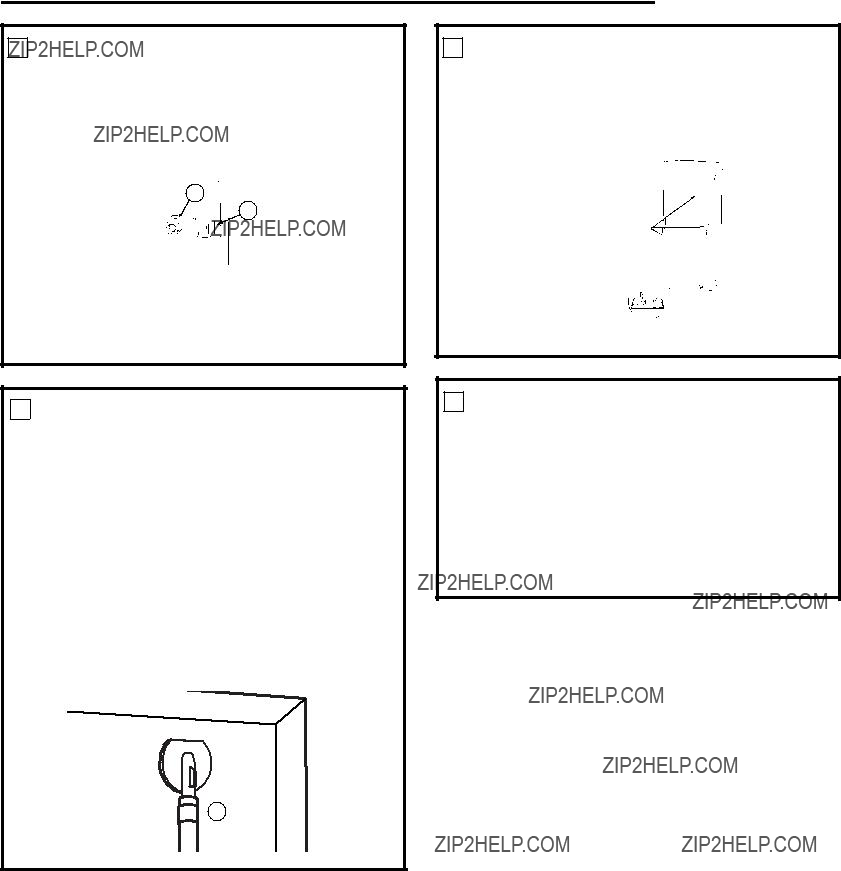

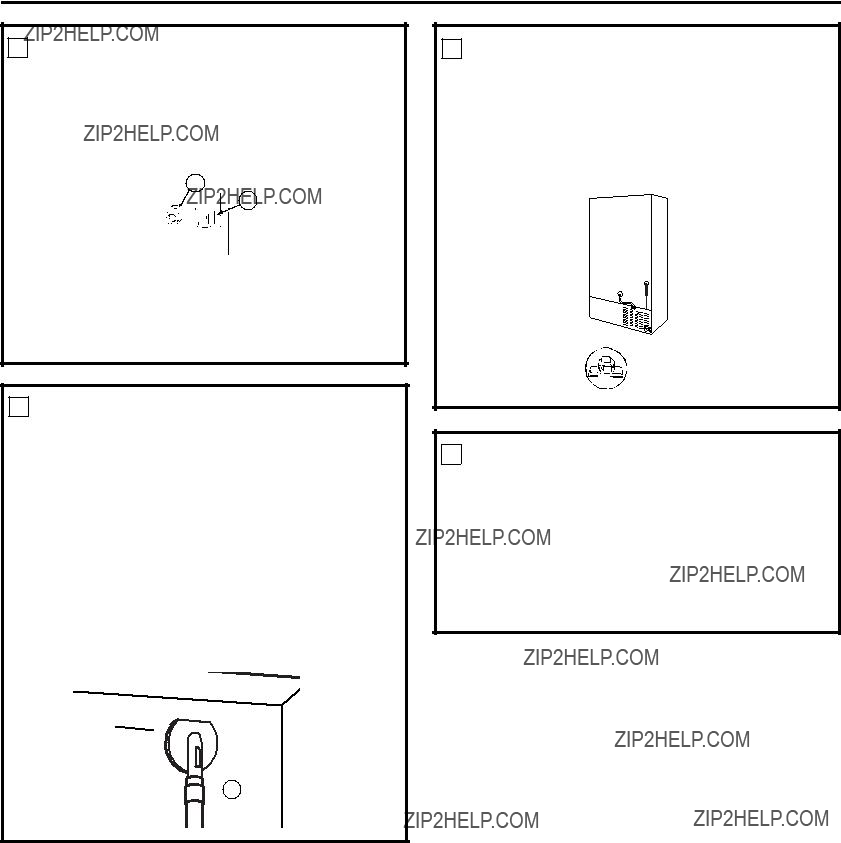

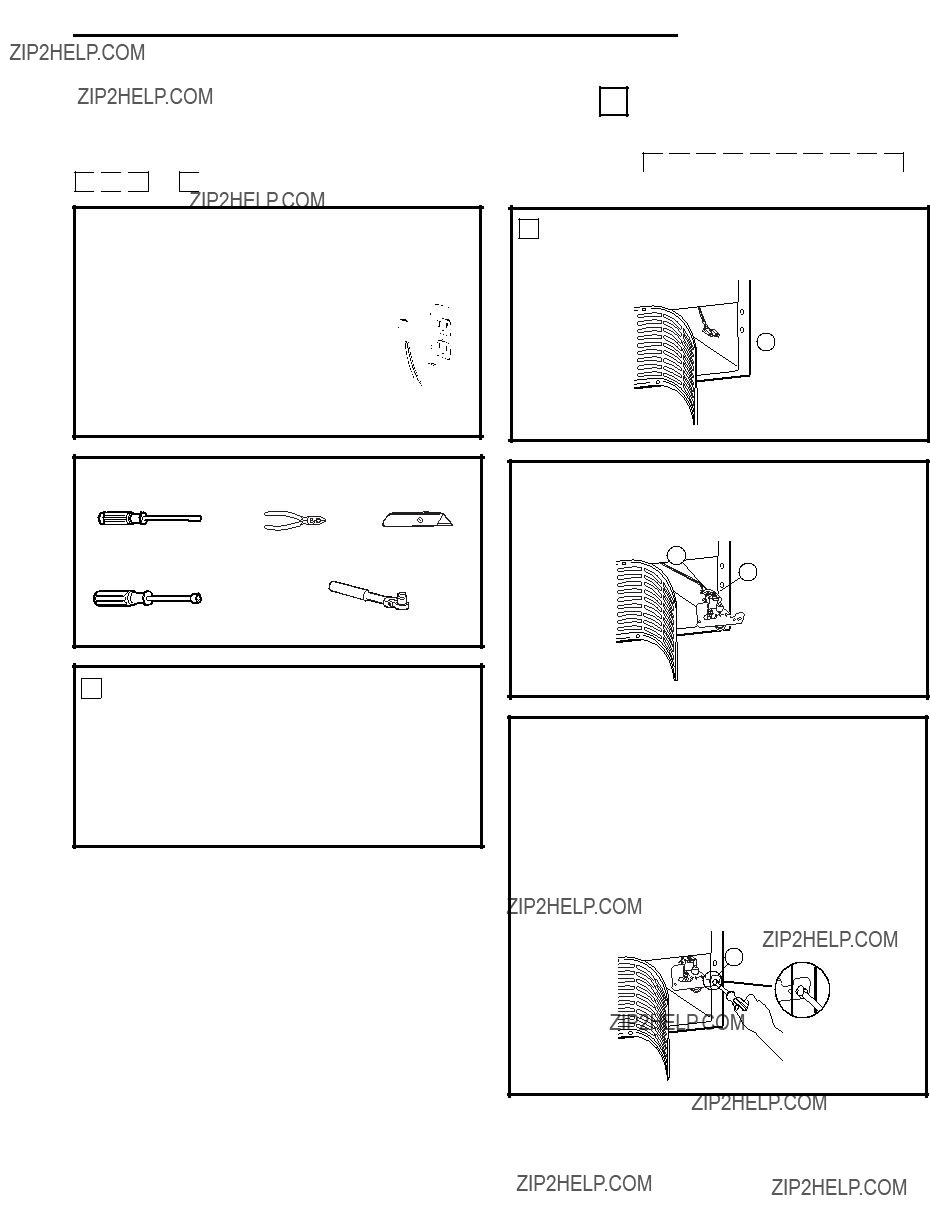

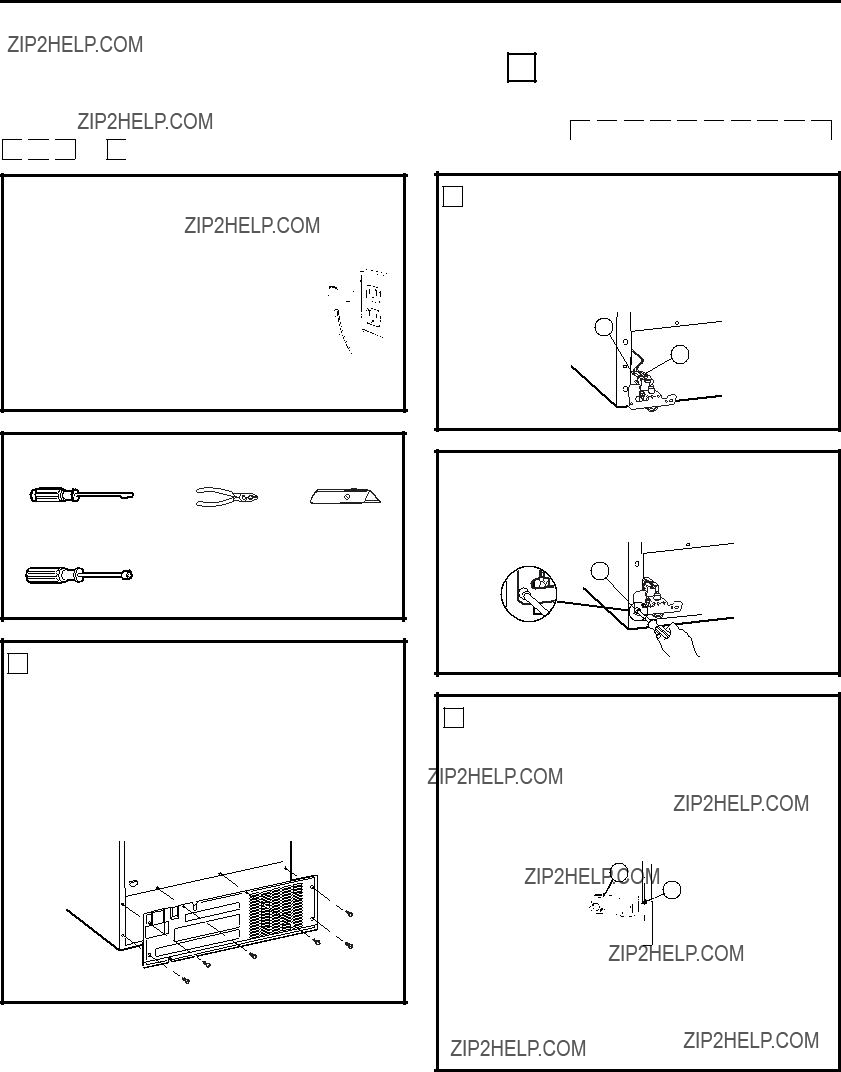

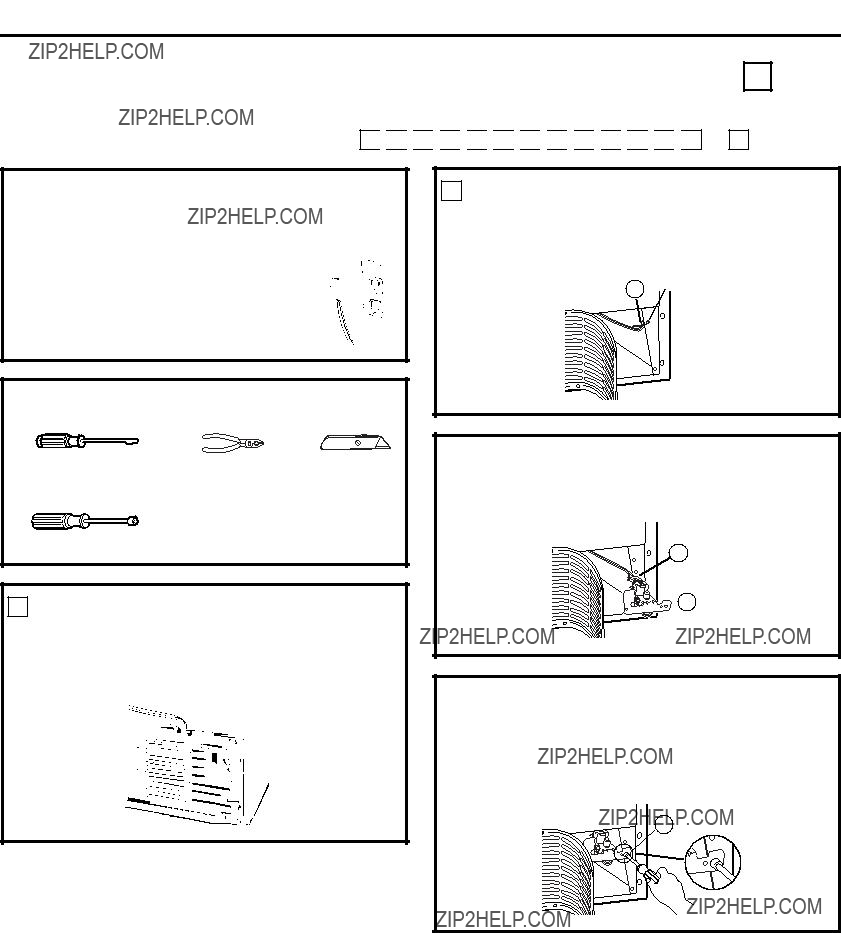

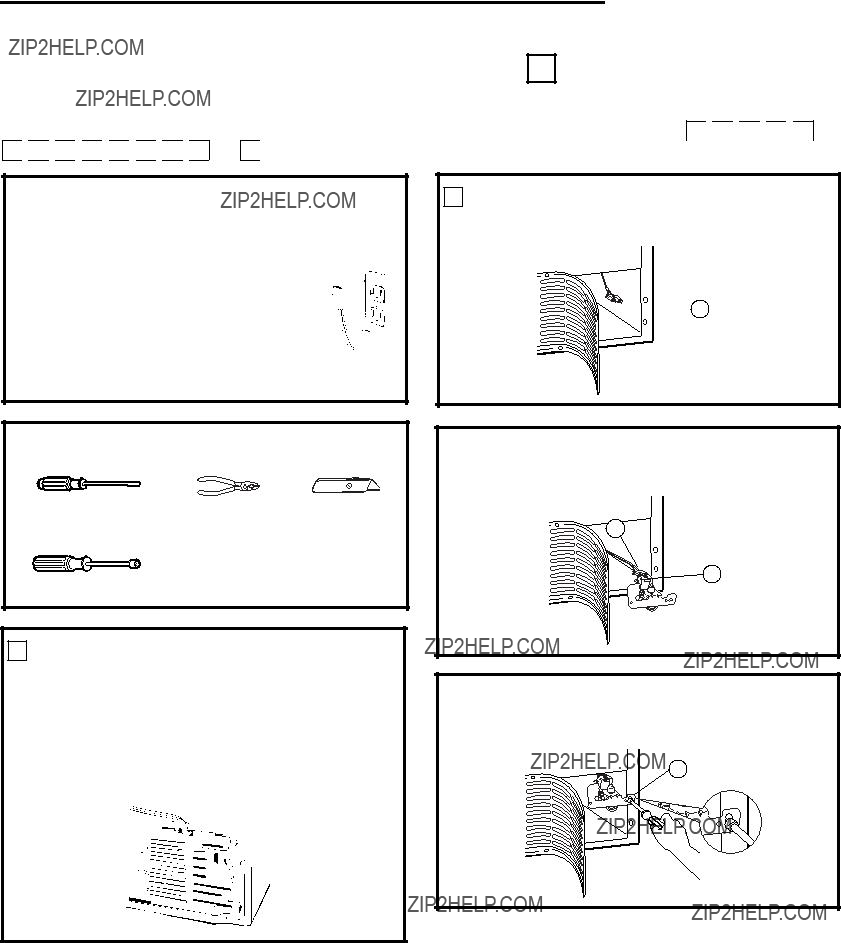

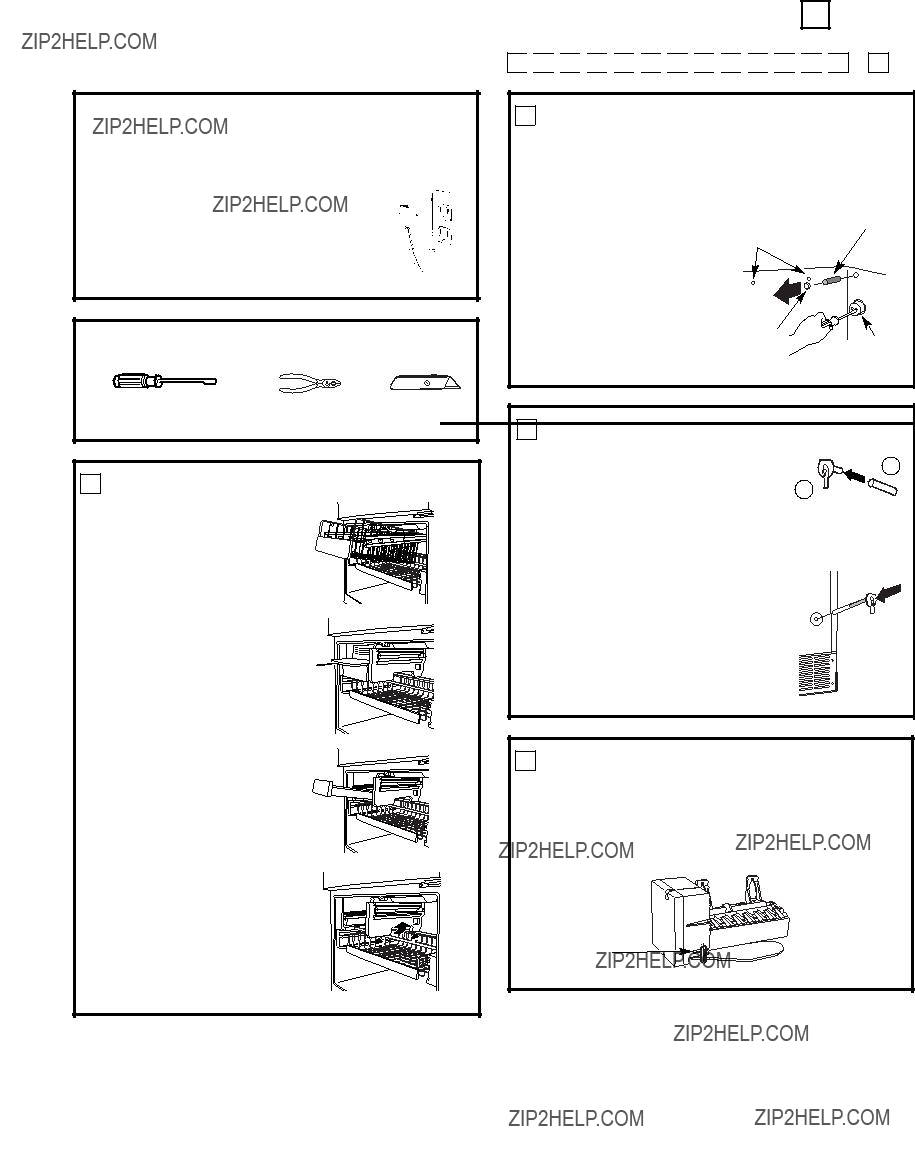

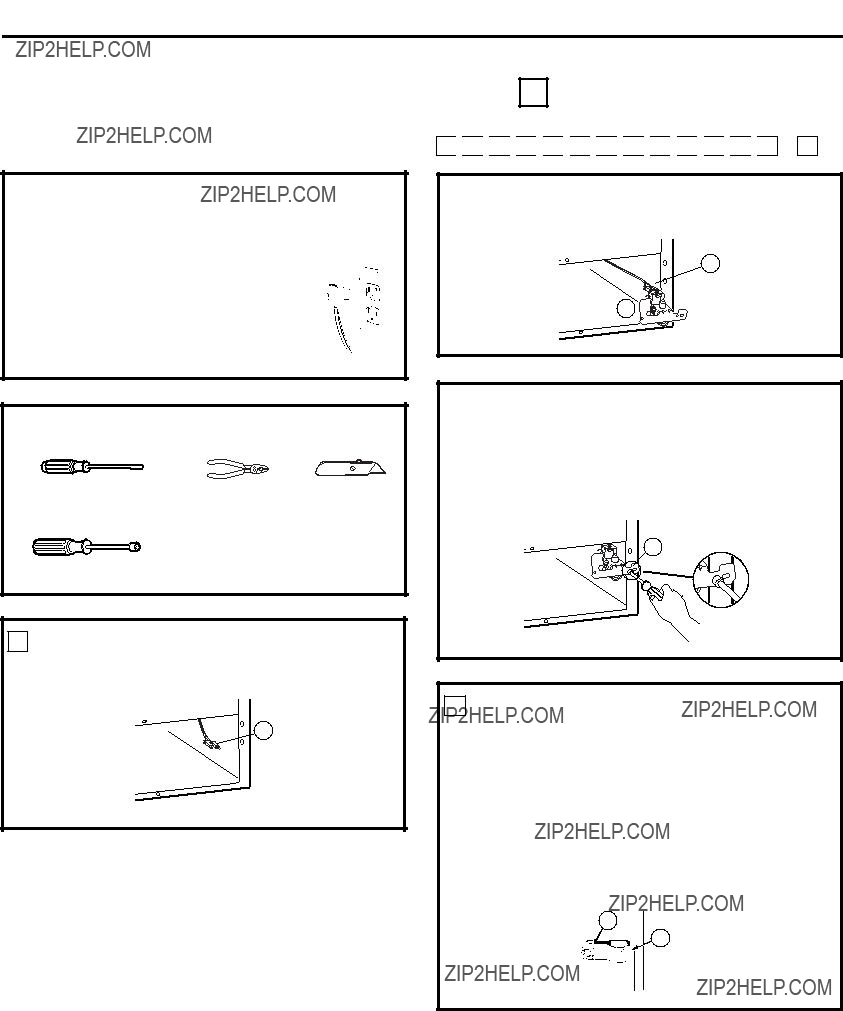

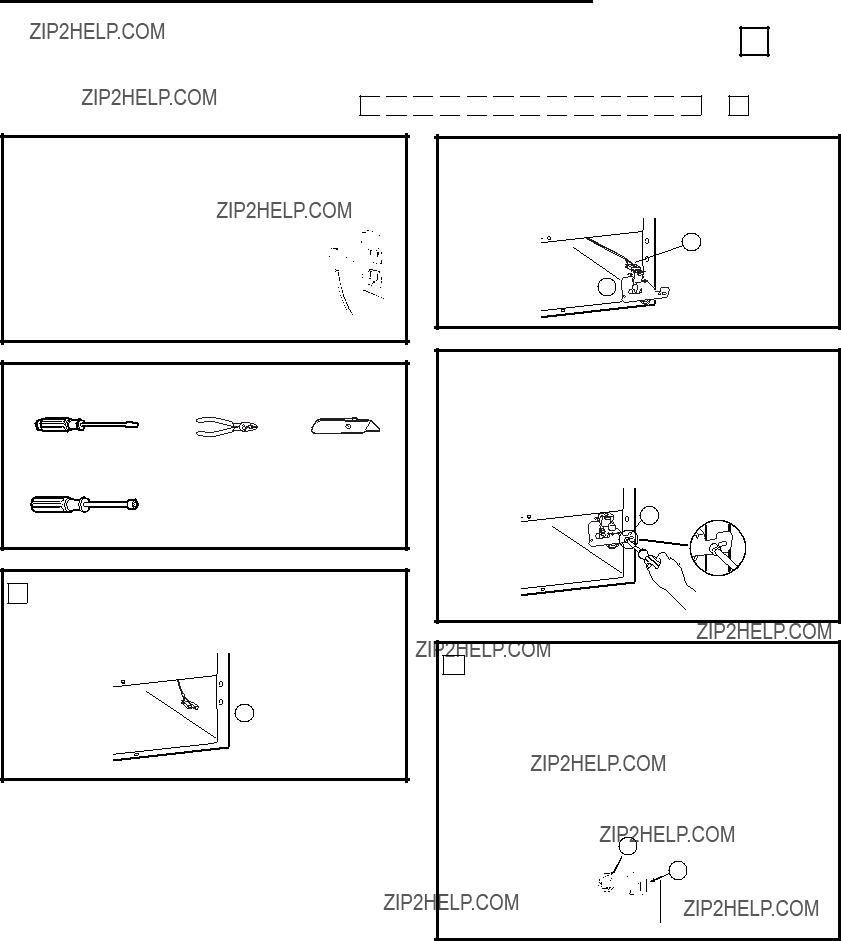

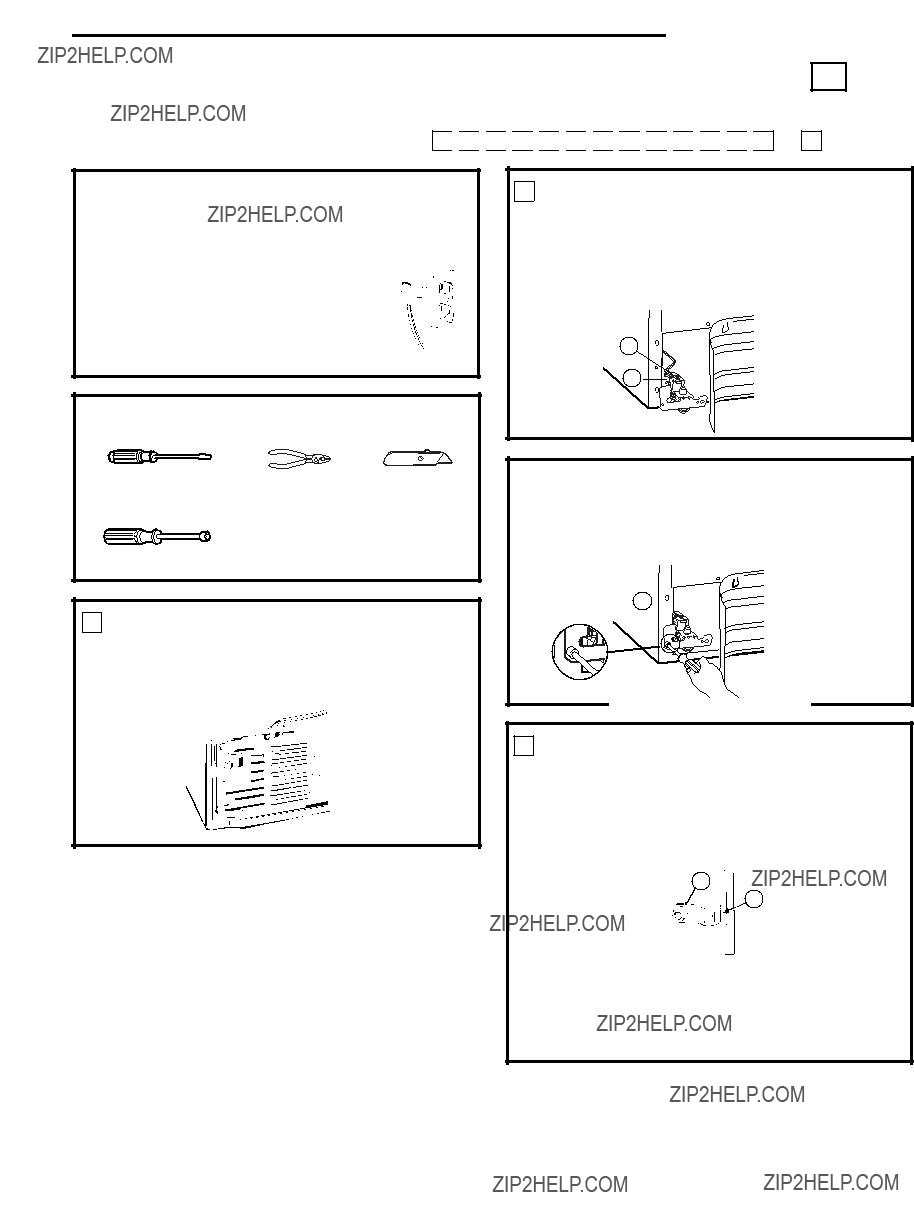

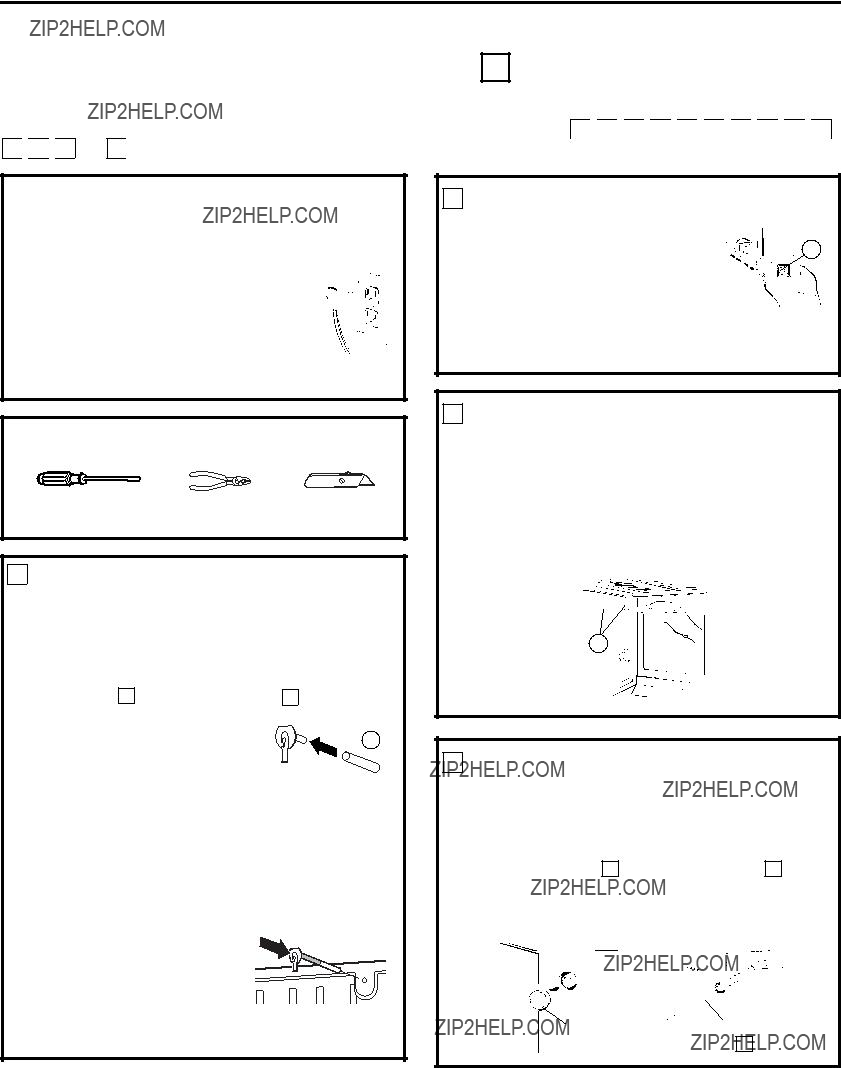

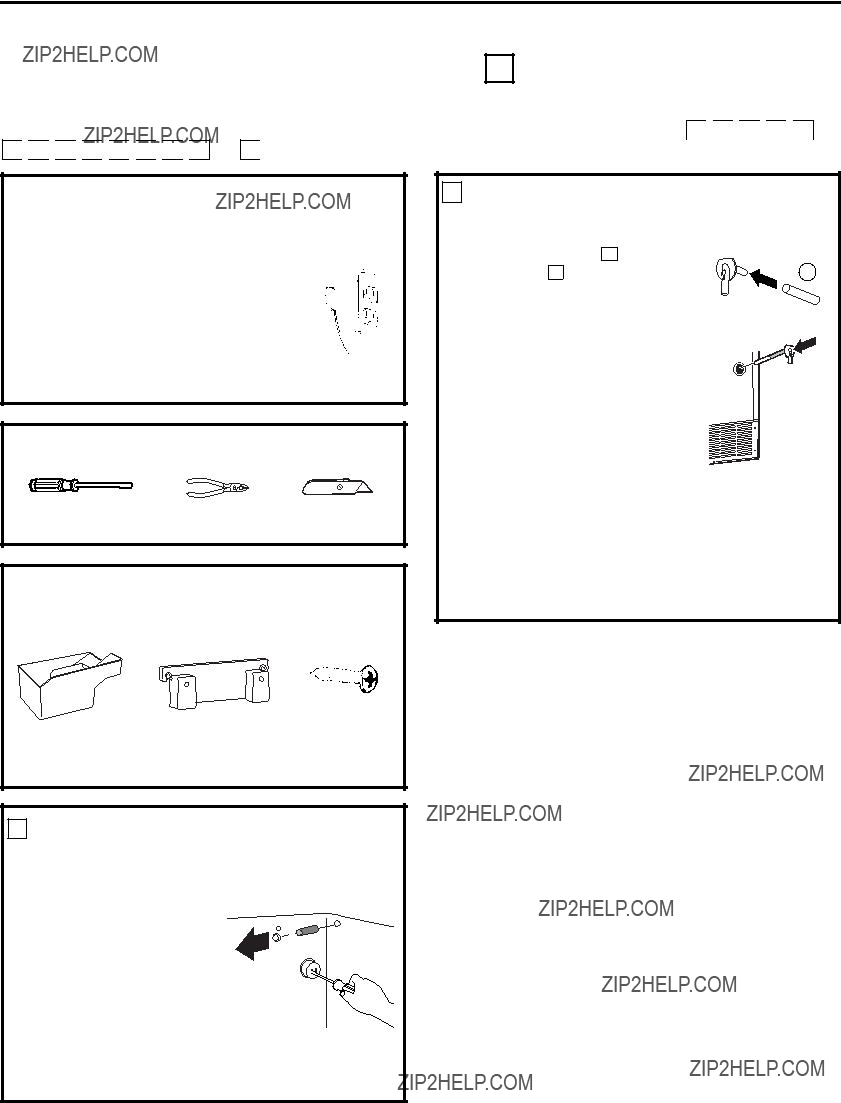

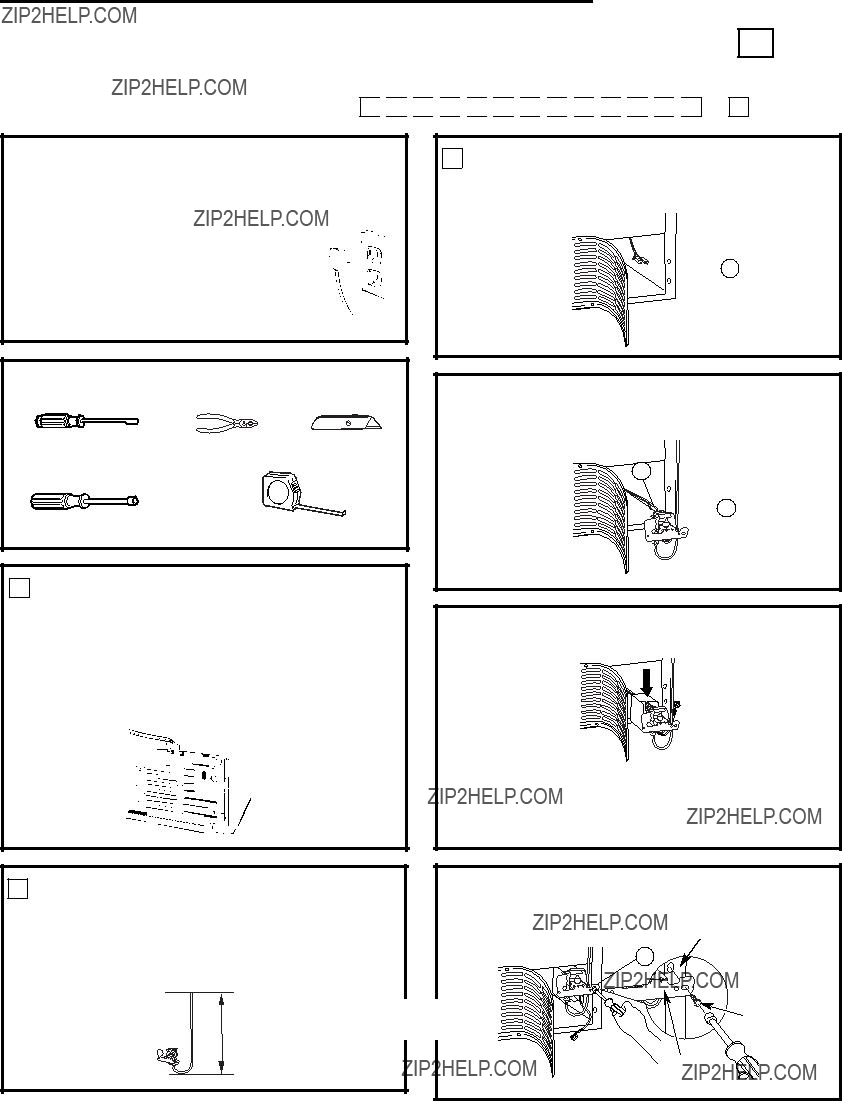

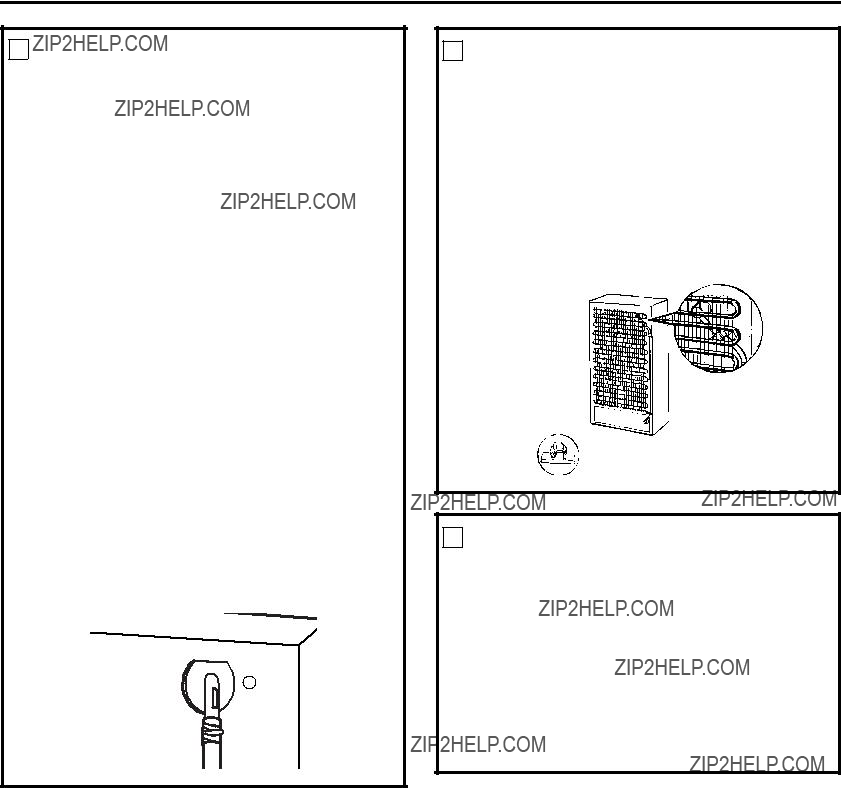

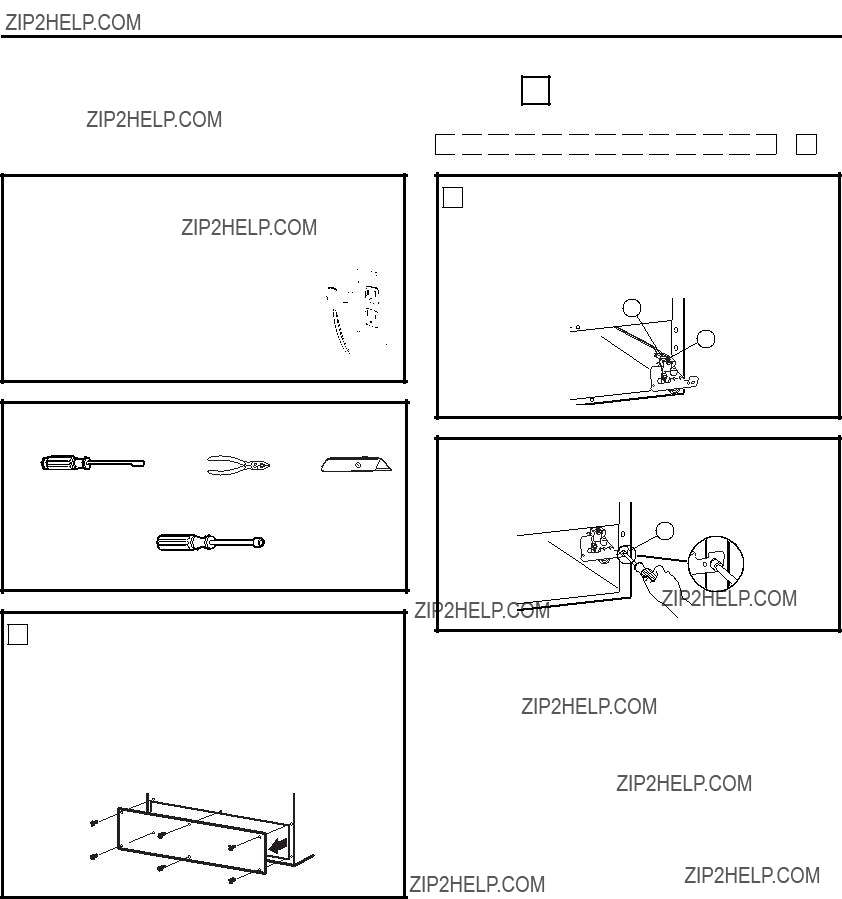

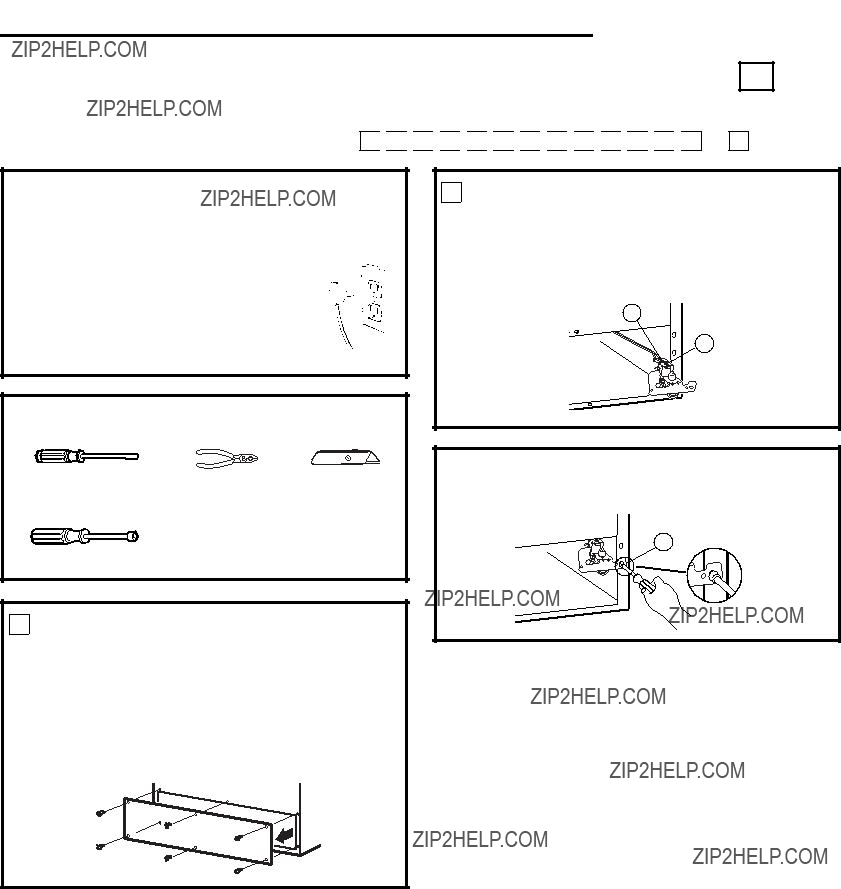

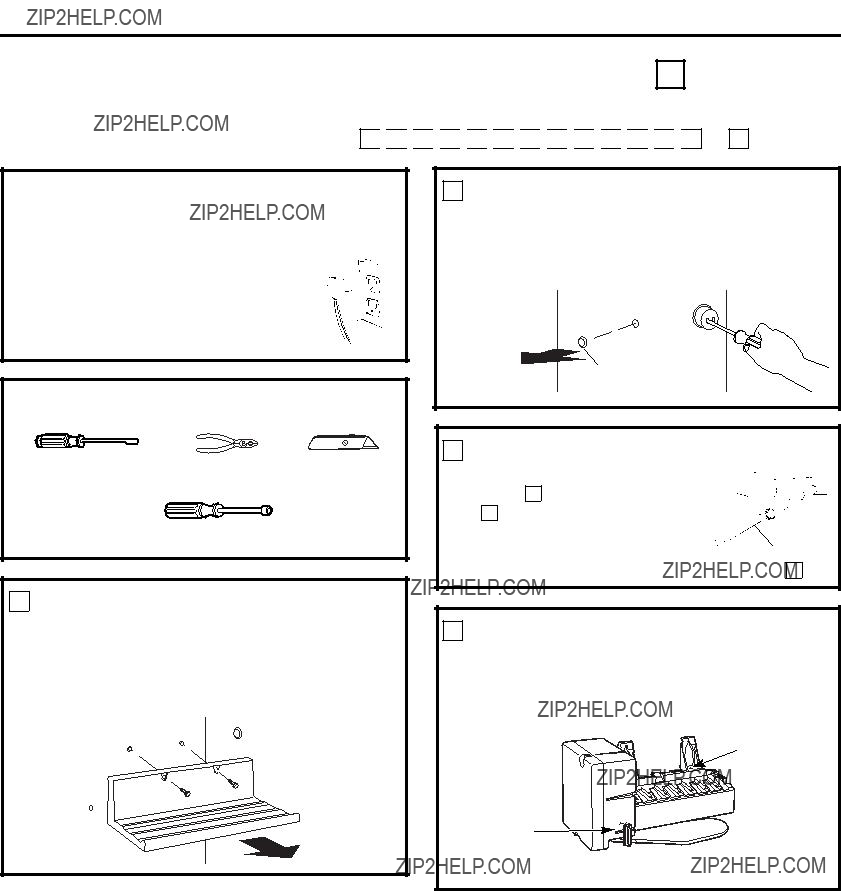

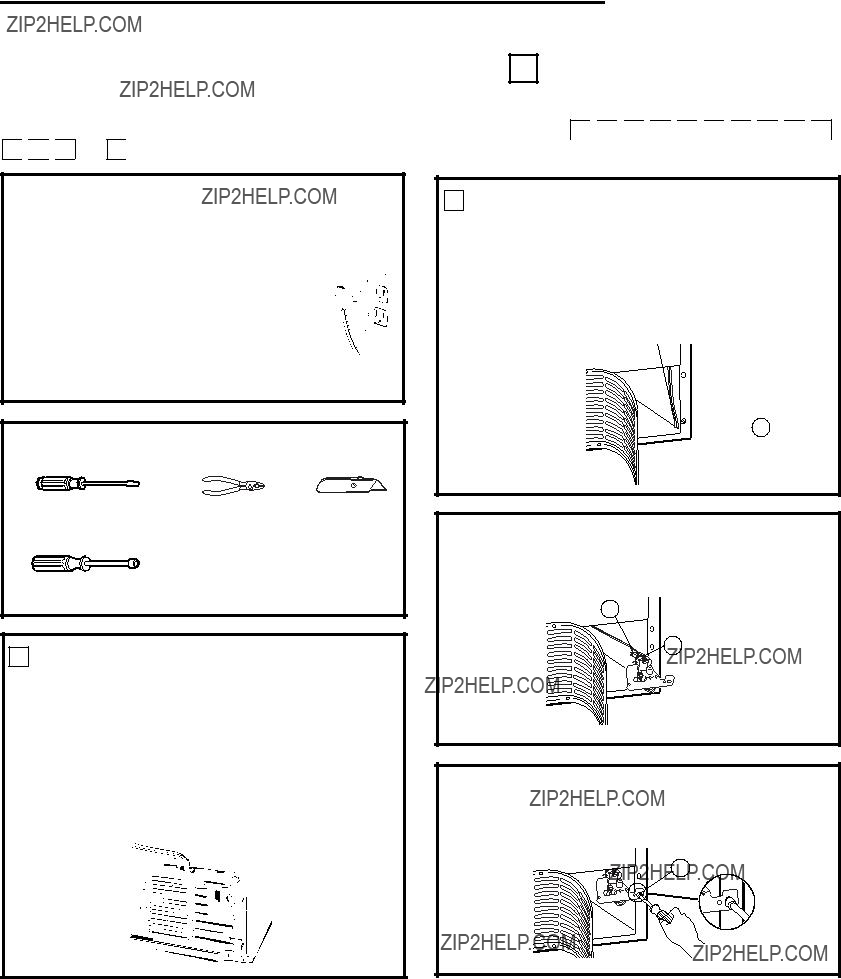

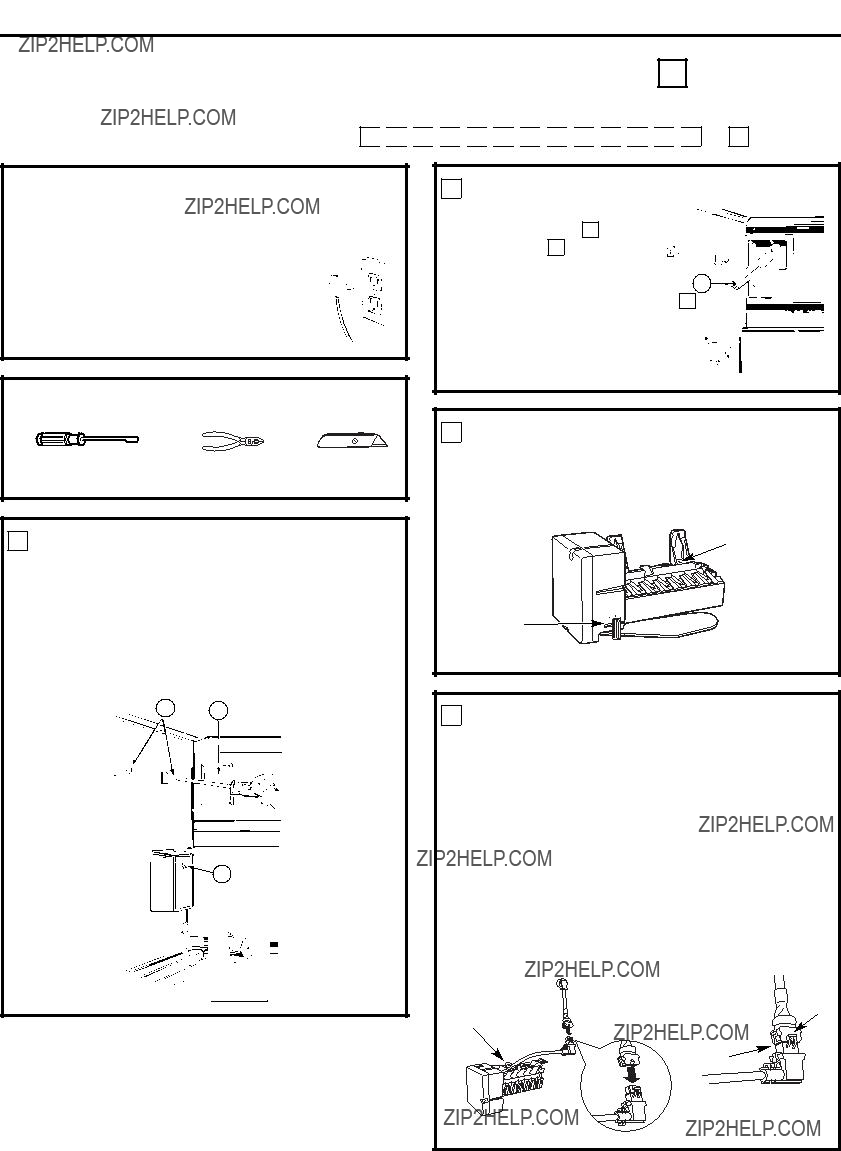

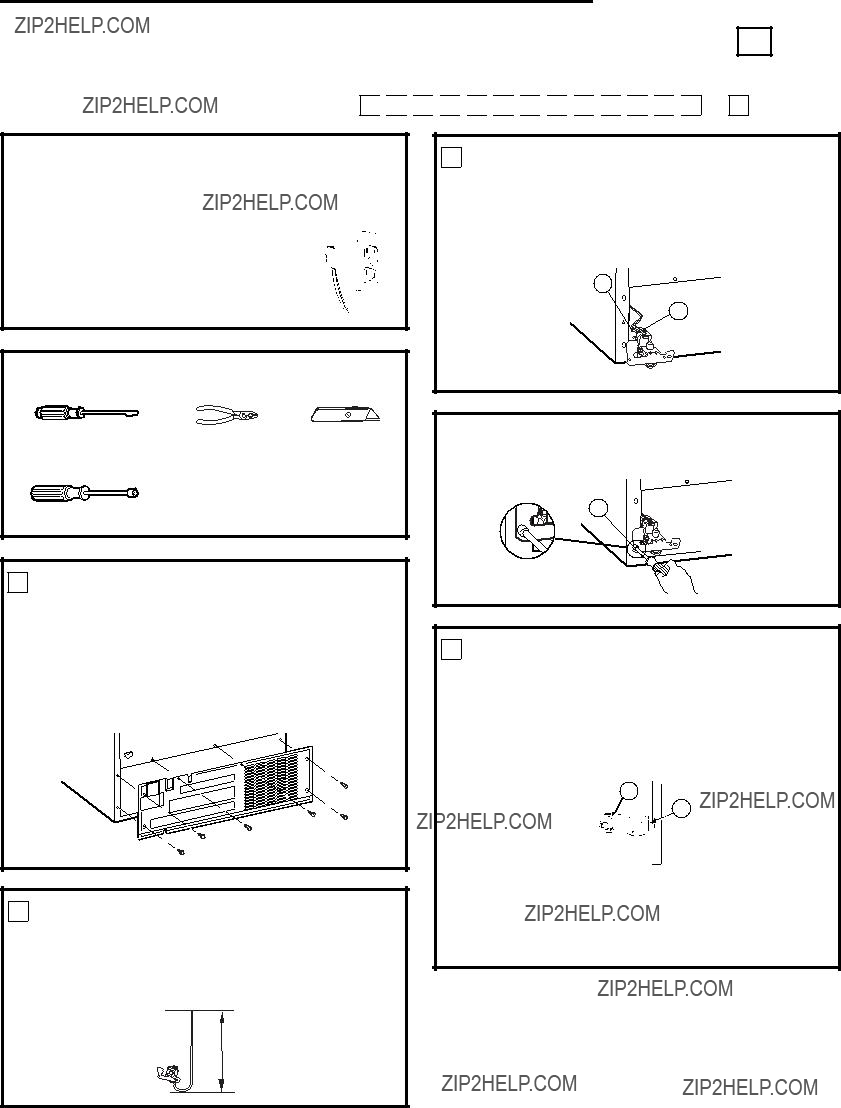

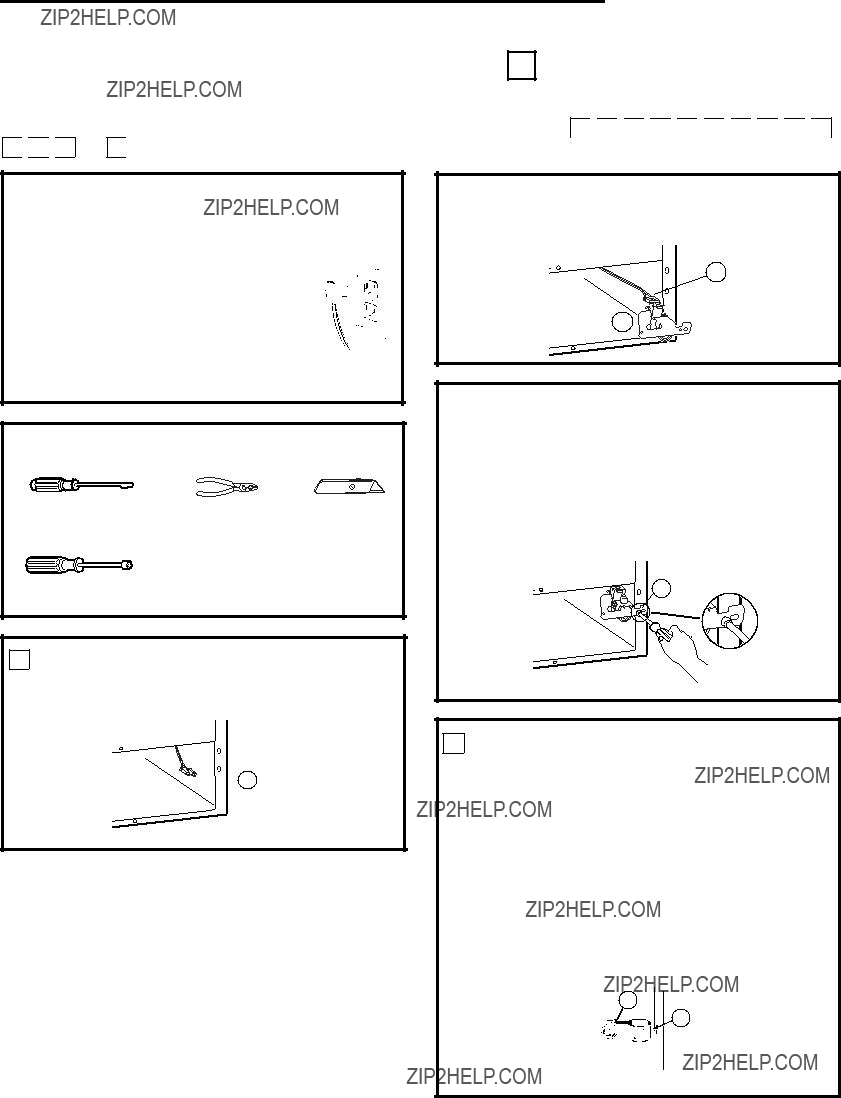

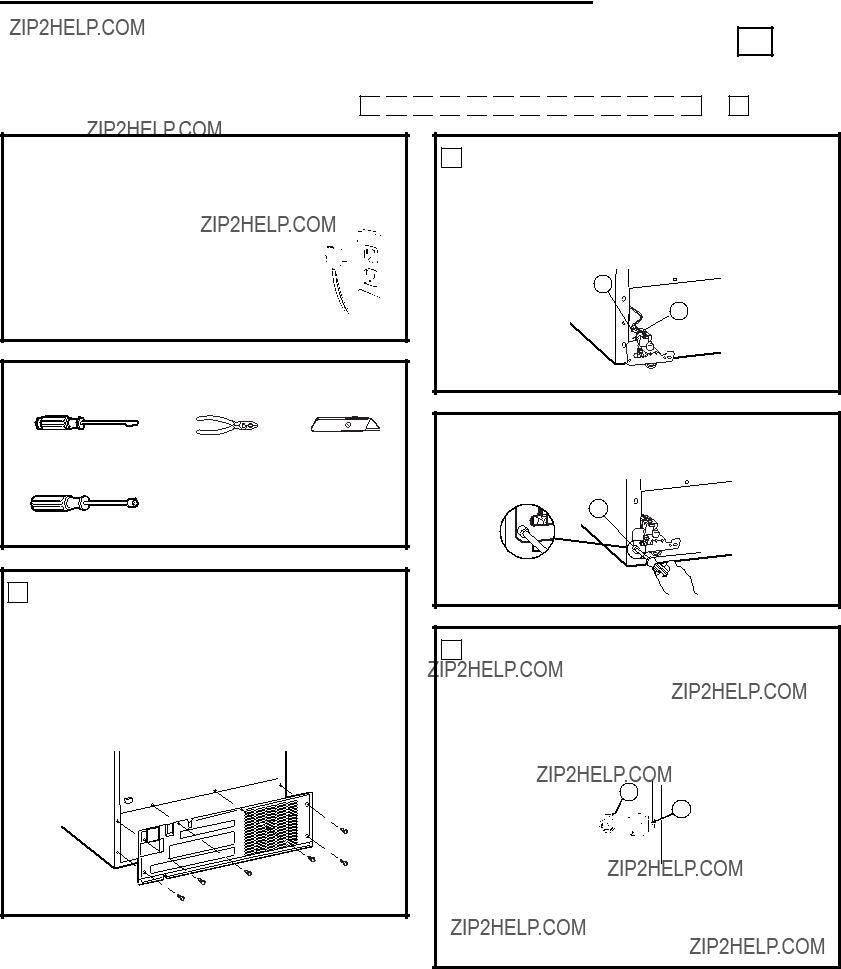

BEFORE YOU BEGIN

Read each step thoroughly before proceeding.

??? CAUTION ??? Unplug the Refrigerator. To eliminate the danger of electric shock during installation, you must unplug the refrigerator from its electrical outlet.

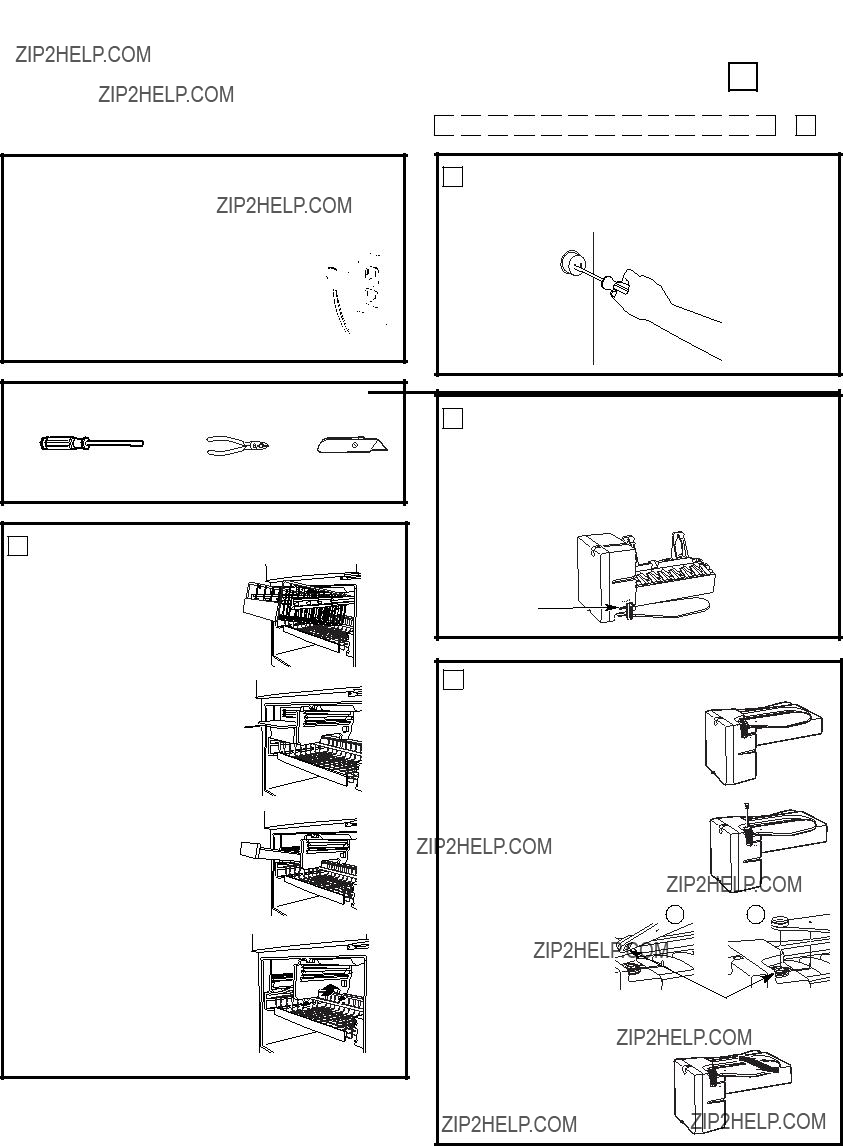

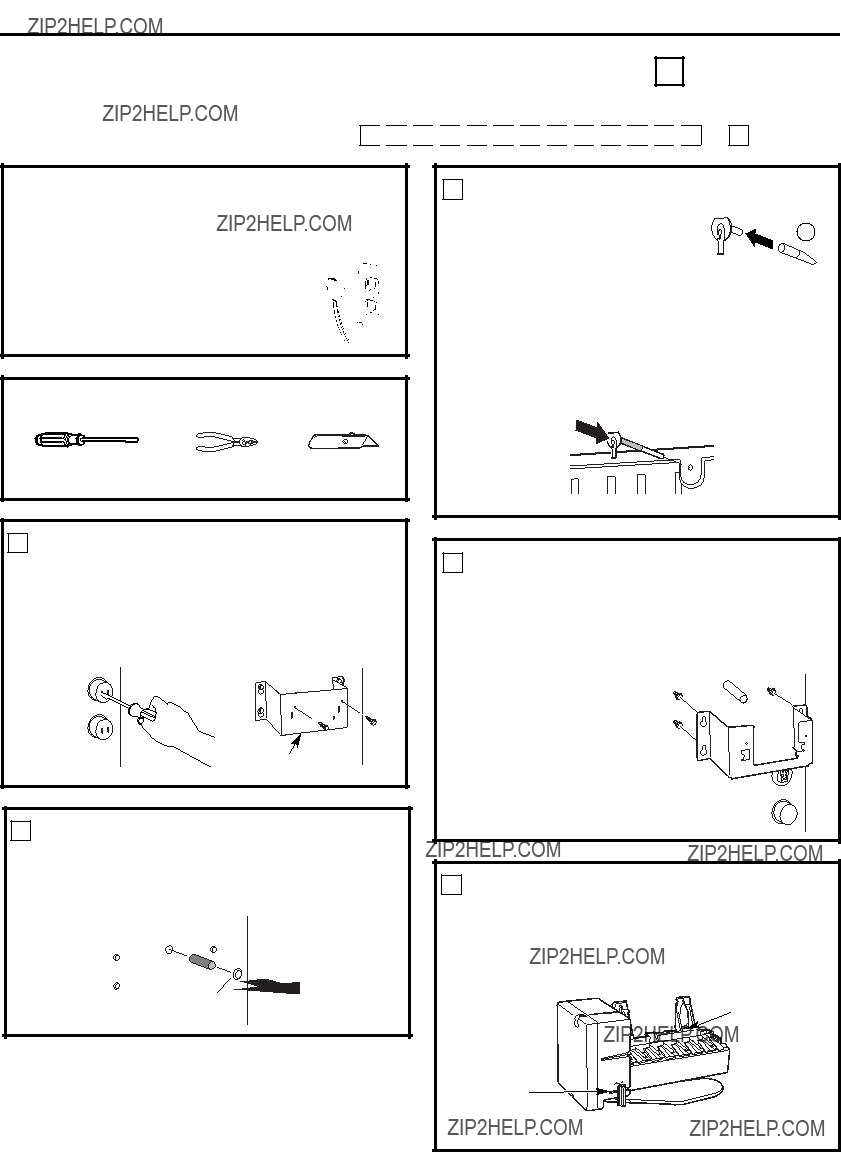

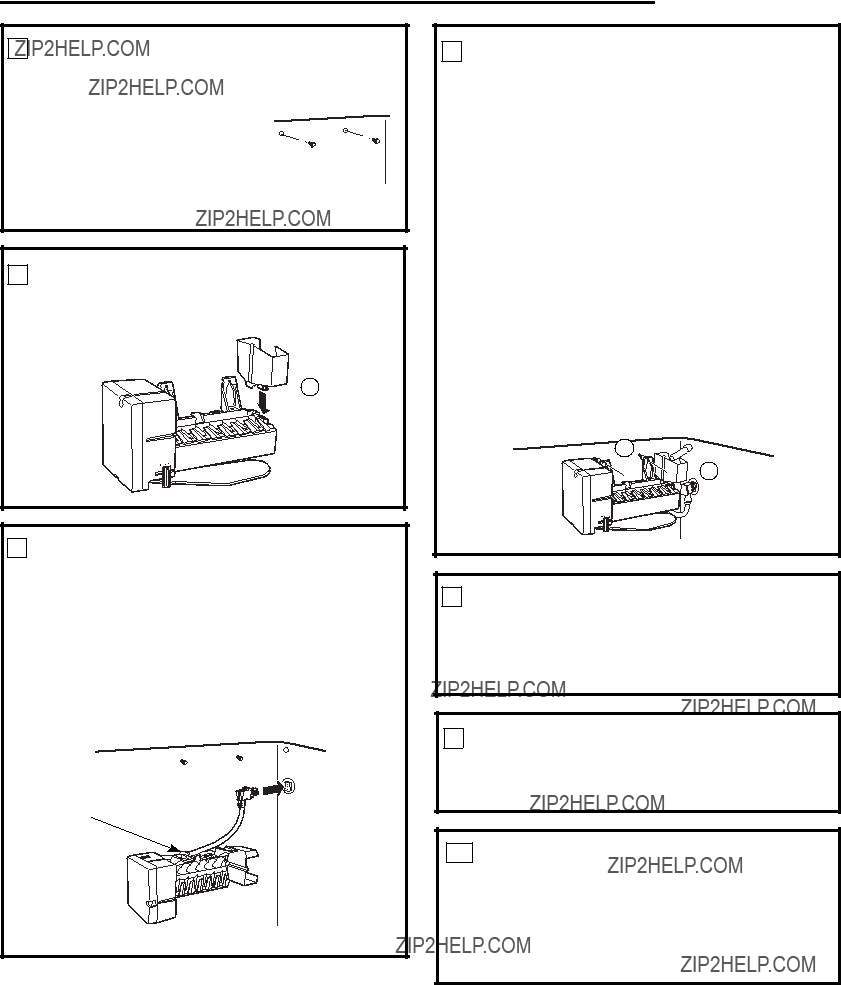

2 INSTALL FILL TUBE EXTENSION

Cut the fill tube extension

(10) to the length C (refer to the C

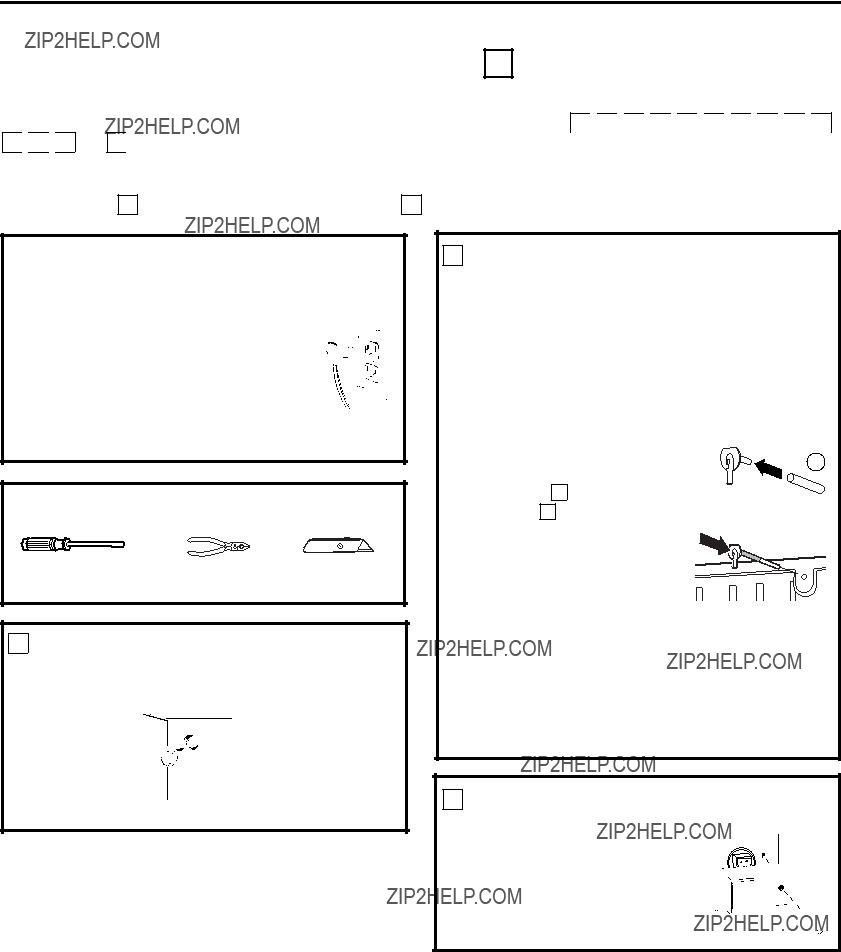

TOOLS YOU WILL NEED

1PREPARE FOR INSTALLATION

???Remove the screw (A) that holds the electrical plug cover in place. You will not need this screw and cover.

???Remove the light shield insert (B) and discard it.

???Loosen the two mounting screws (C) approximately 1/2??? (13 mm). DO NOT REMOVE

THESE SCREWS.

CB

A

Cover removed

3 SET POWER SWITCH TO OFF

Set the icemaker power switch to OFF. Leave the power switch in the OFF position until the refrigerator is connected to the water supply to prevent premature operation.

Hole for wire tie

Power

Switch

(Appearance may vary)

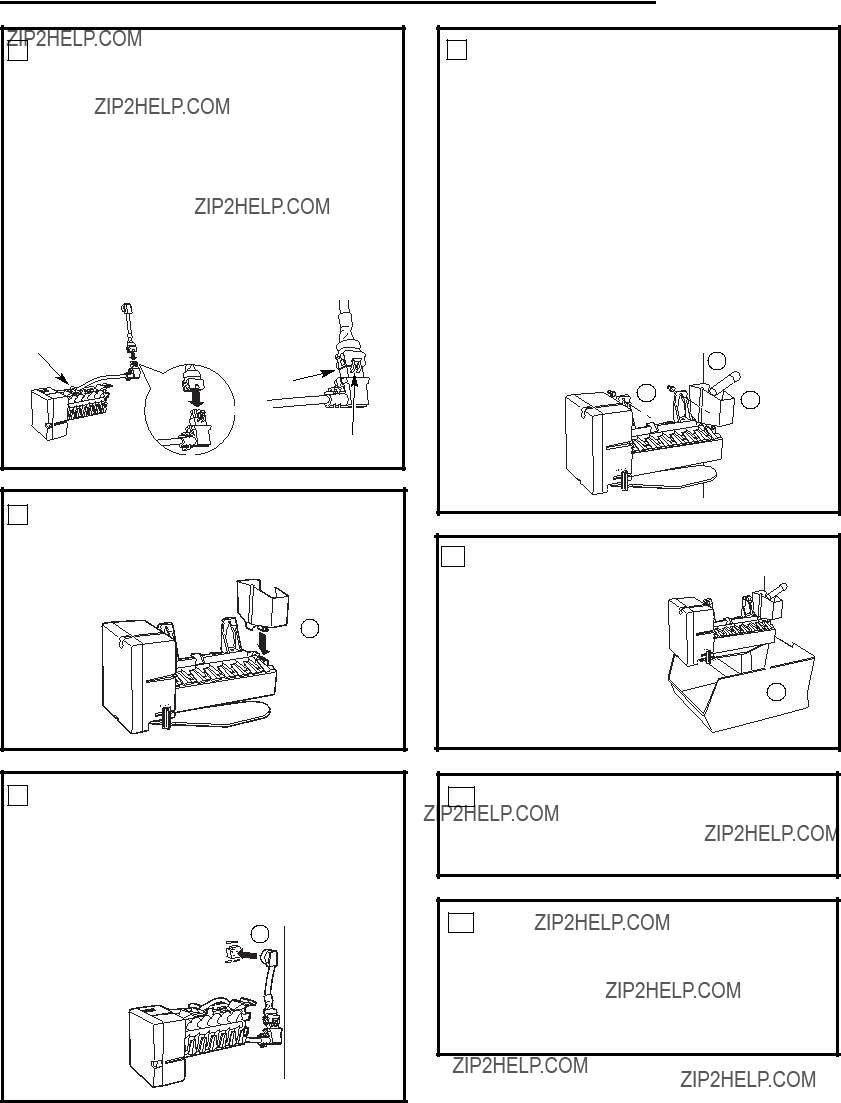

4 POWER CORD ADAPTER

(on some models)

There is a power cord adapter (18) included with

the kit. Visually inspect to see if the power cord on the icemaker matches the socket on the side wall of the freezer compartment. If needed, secure the adapter to the side of the icemaker power cord. When connecting the adapter to the power cord, make sure the seal is in place between the connectors, and ensure that both connector locks are snapped in place. Secure the power cord adapter to the icemaker by putting it into the hook at the back of the icemaker and attaching it to the icemaker with a wire tie (20).

Locks

Hook

Seal

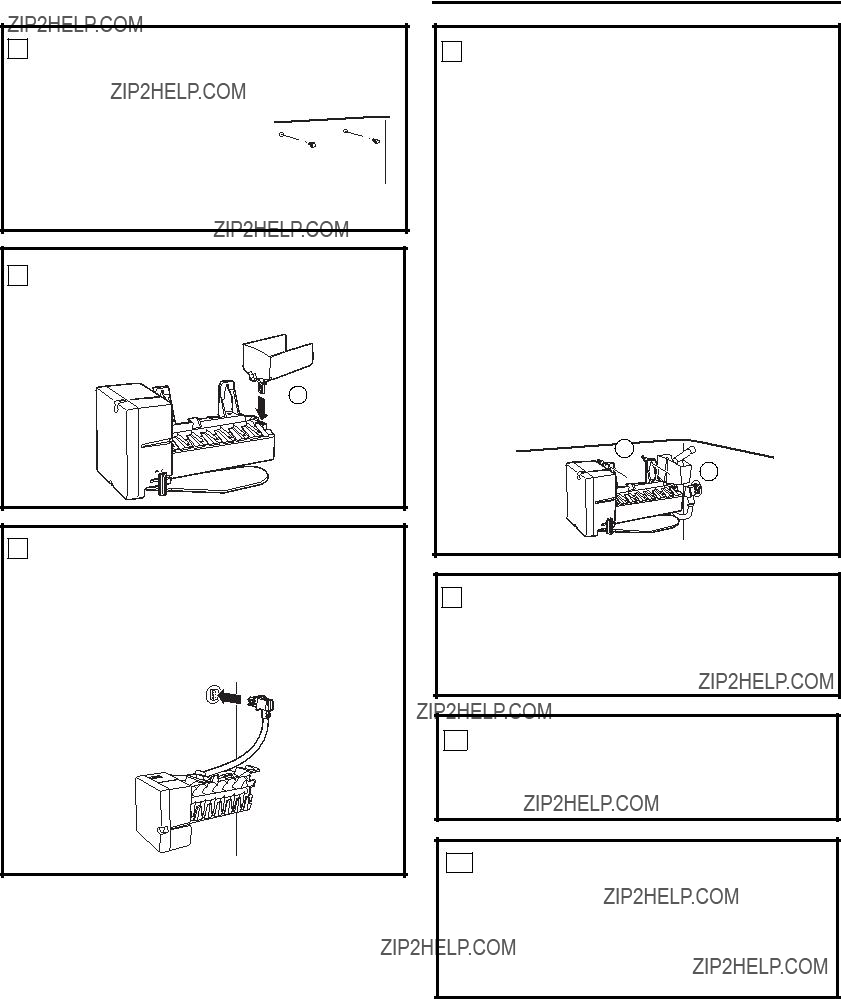

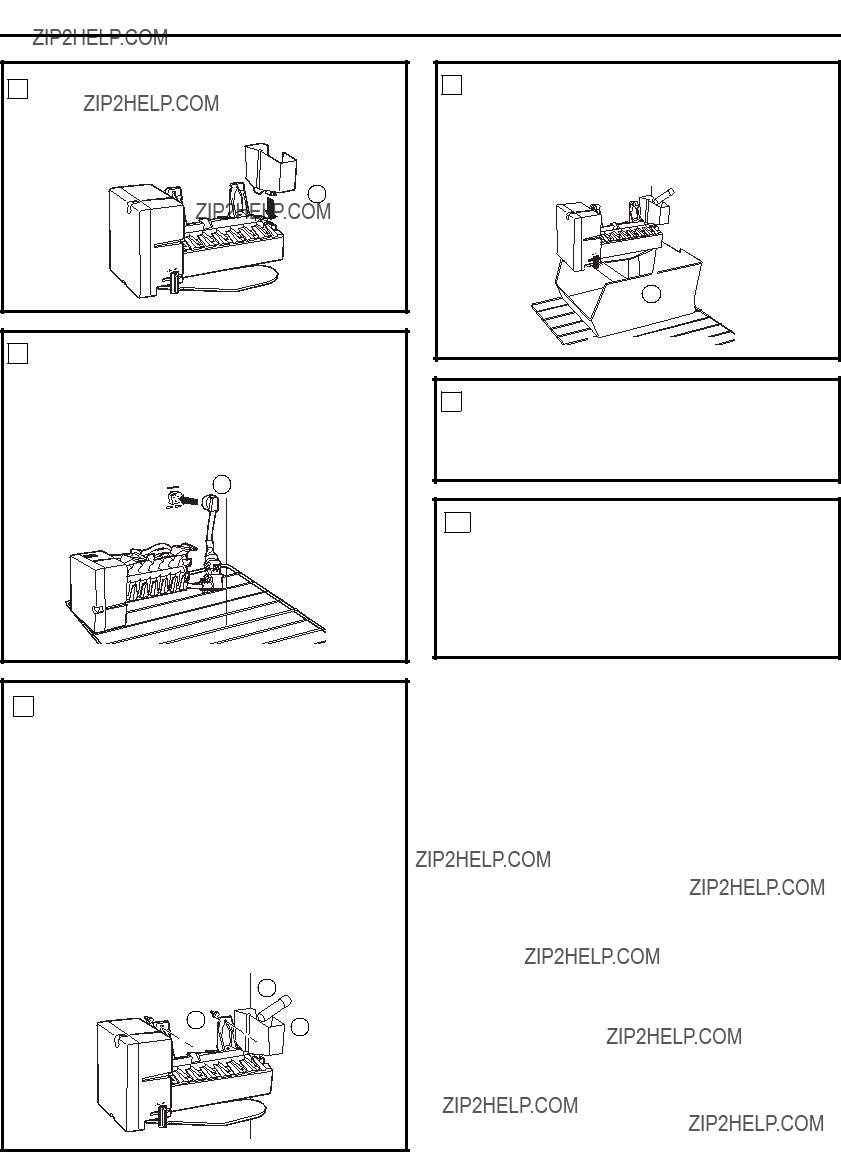

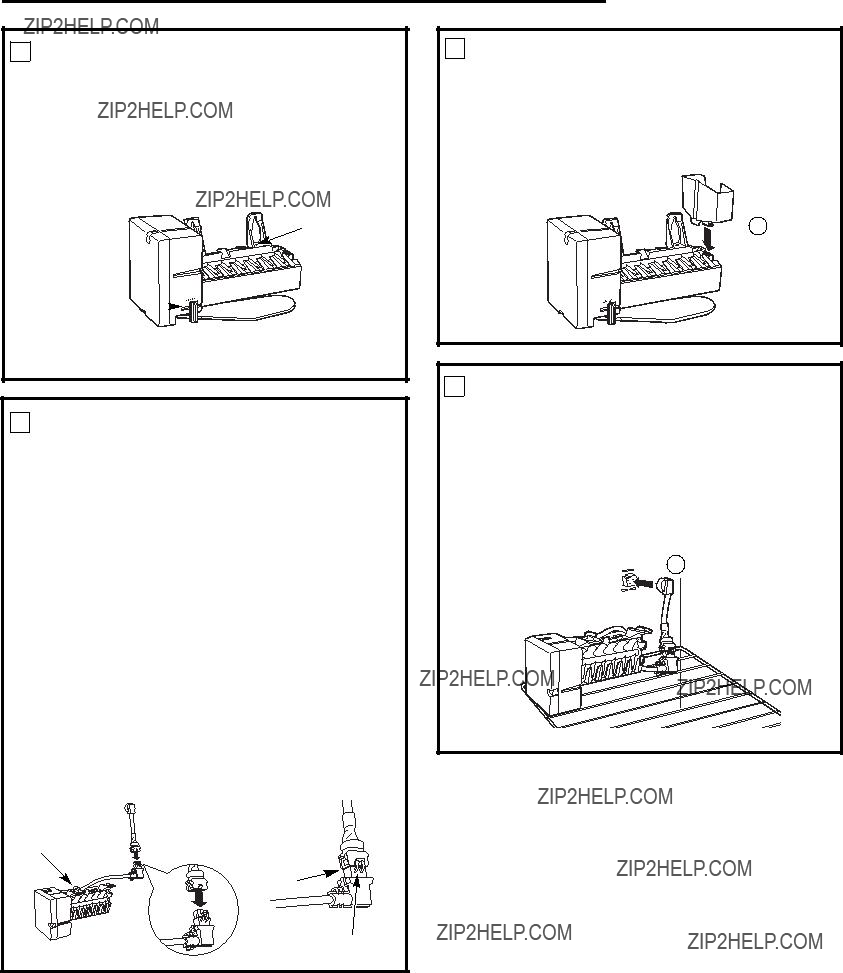

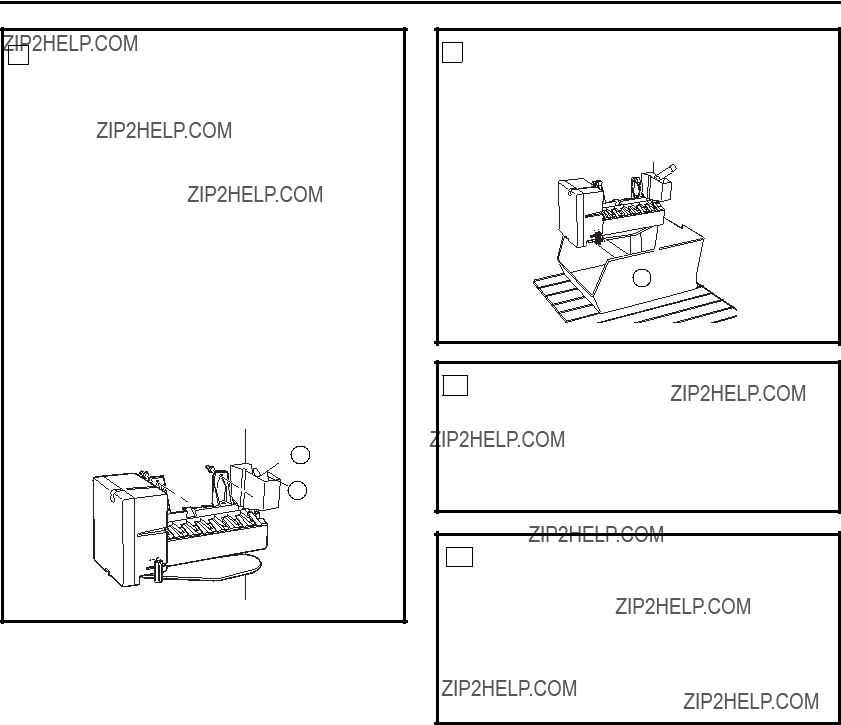

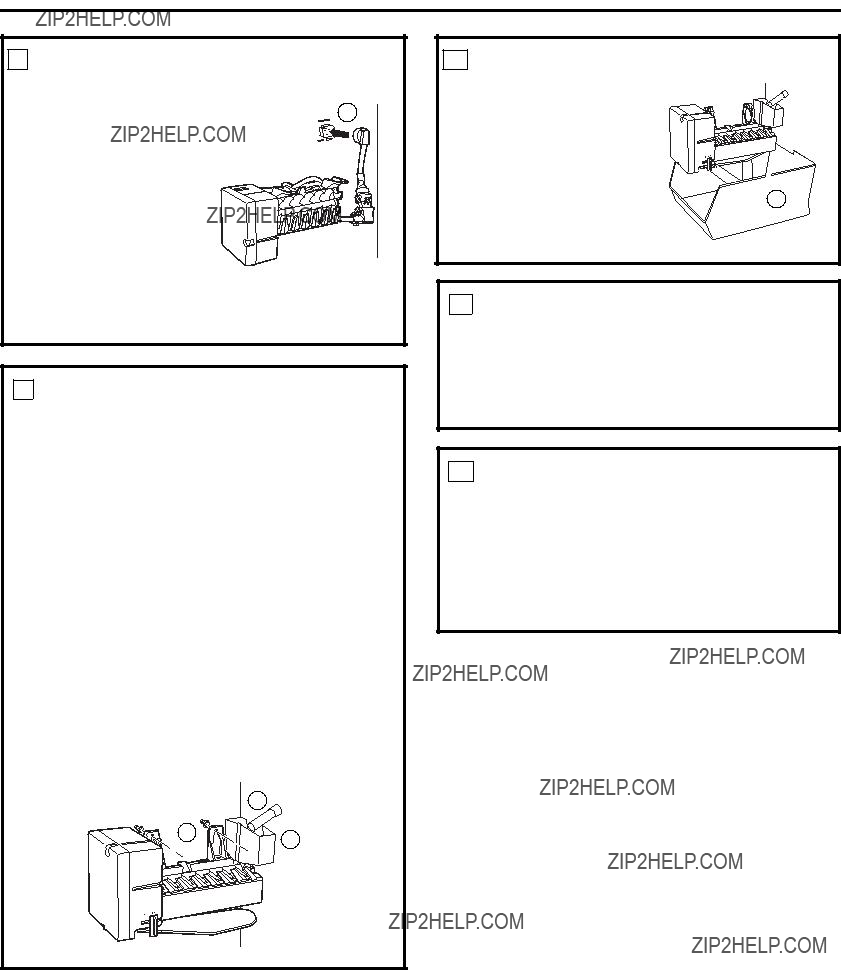

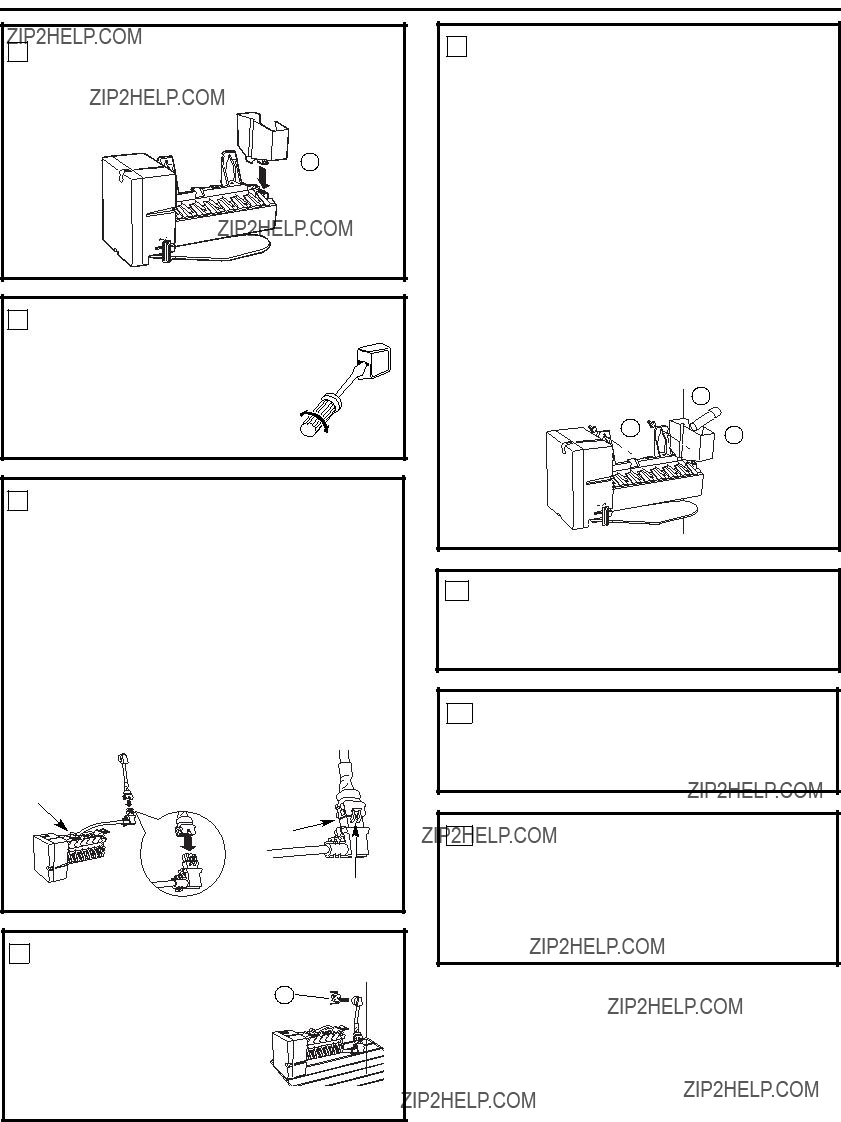

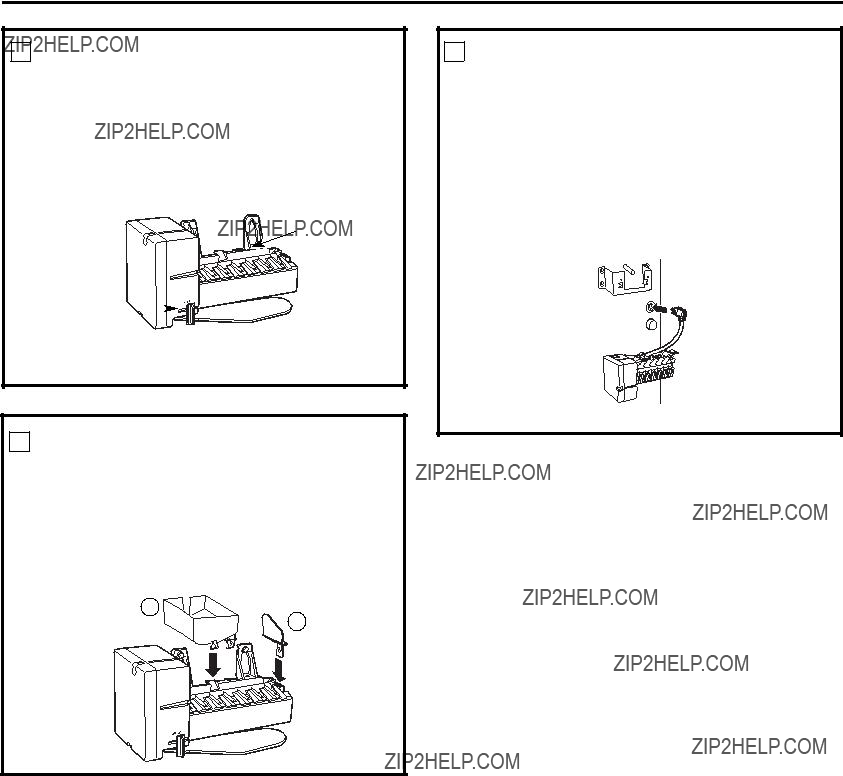

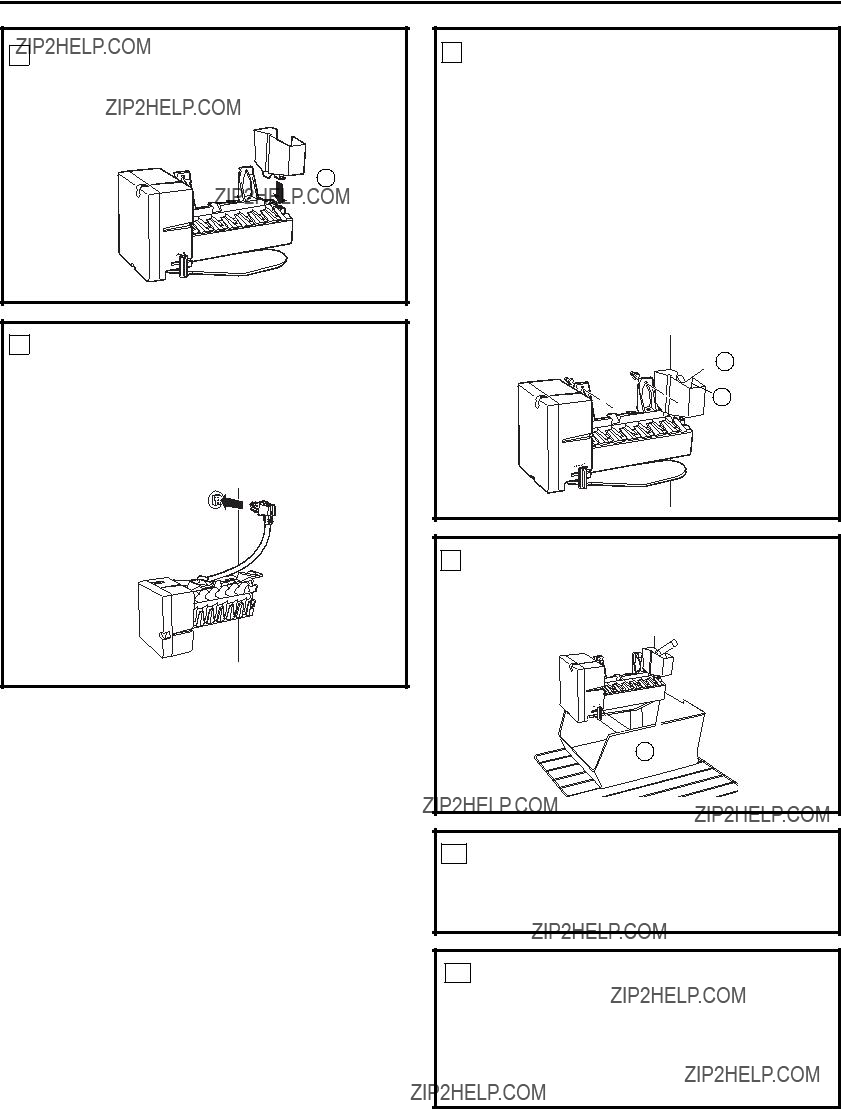

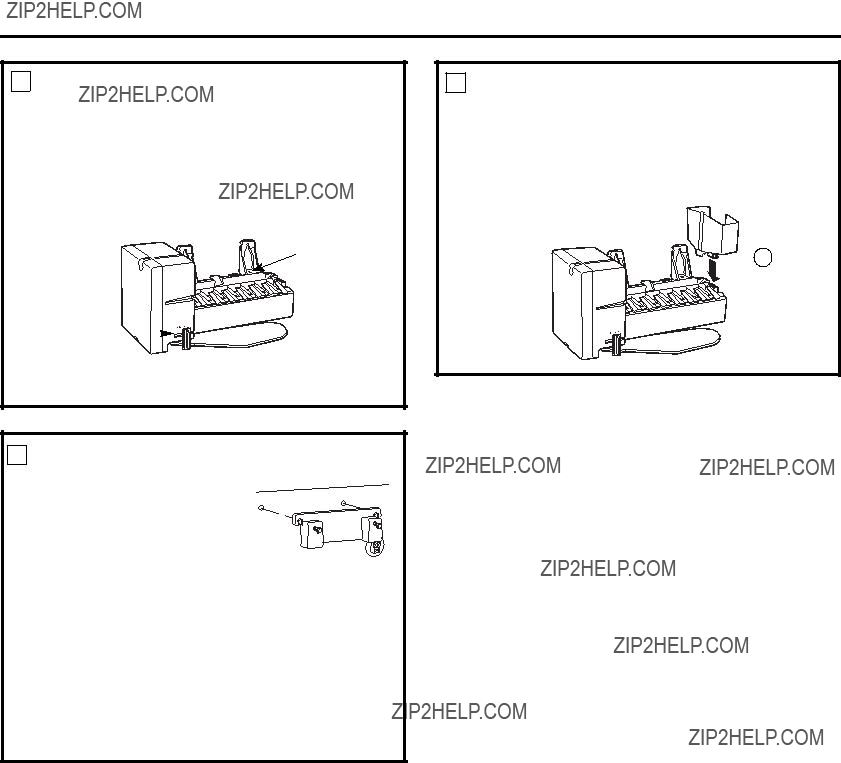

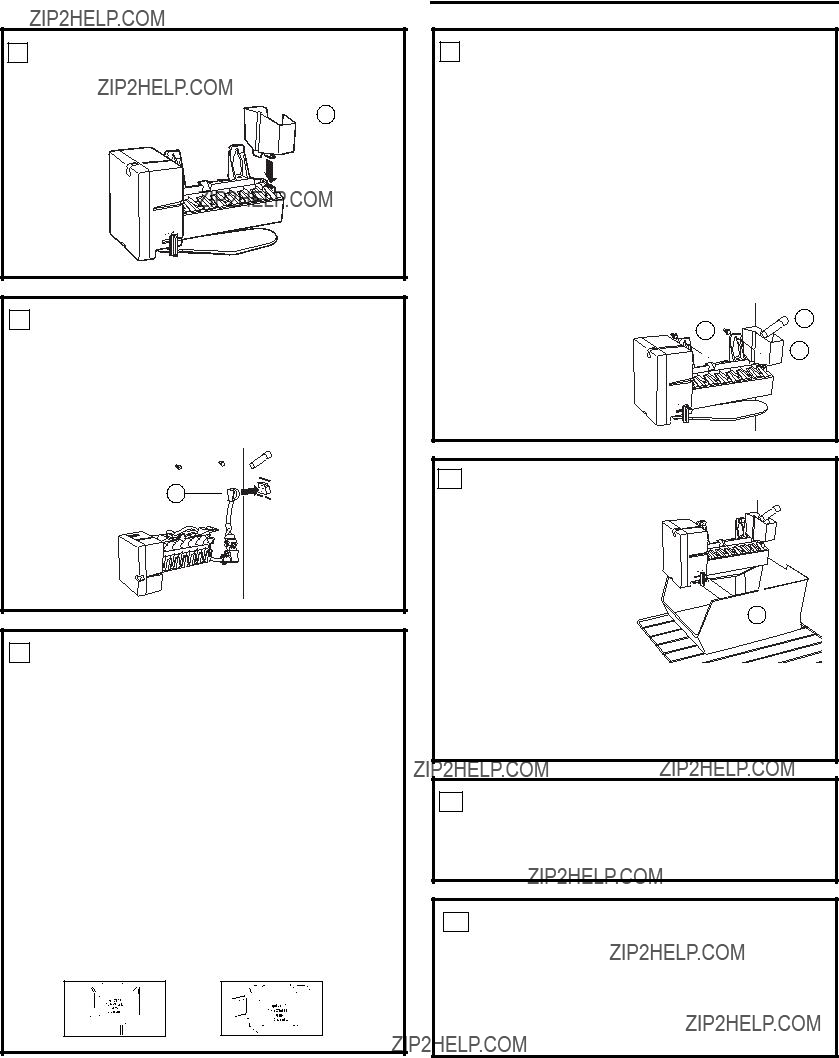

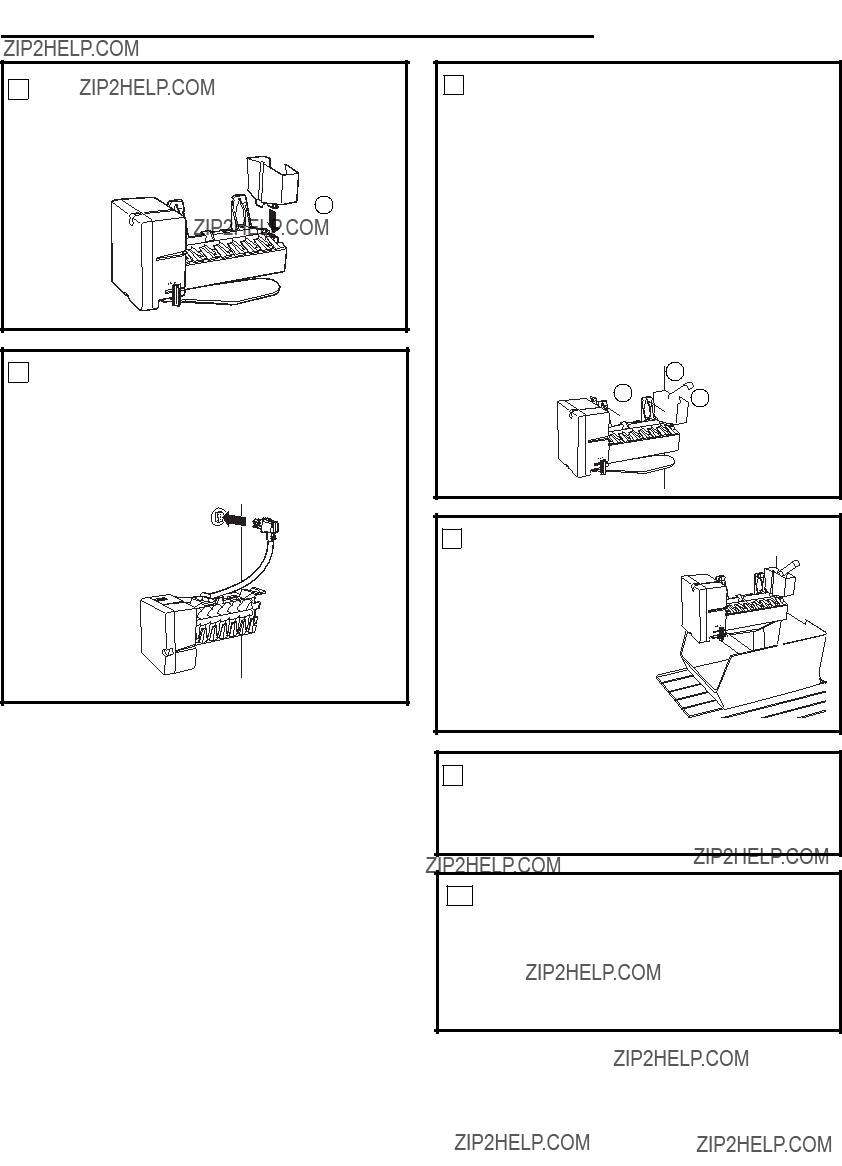

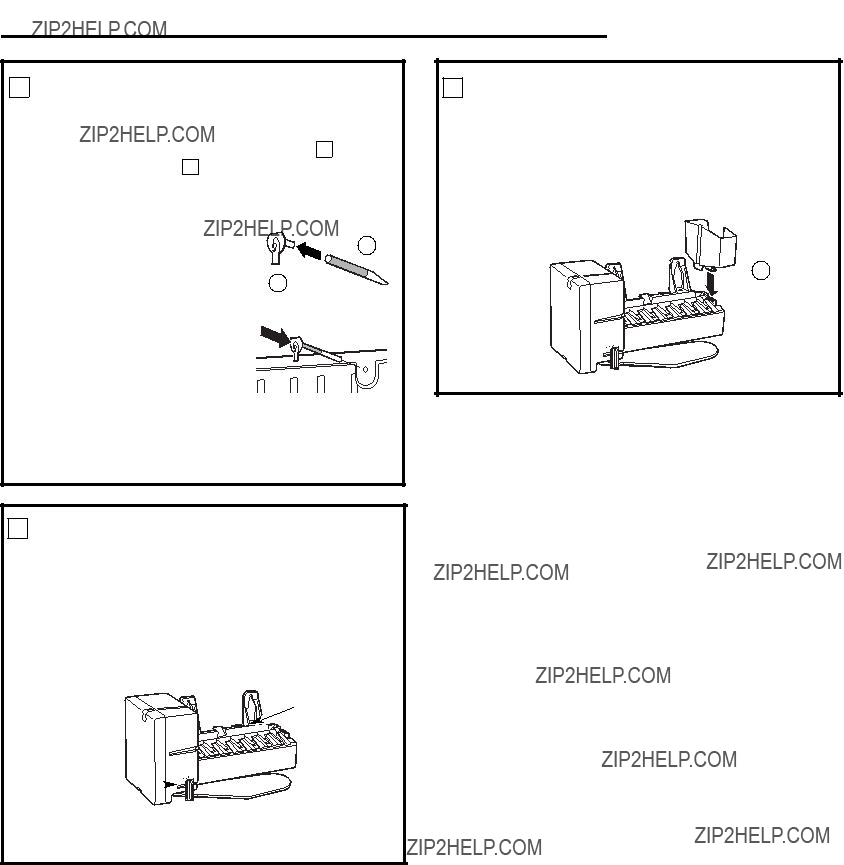

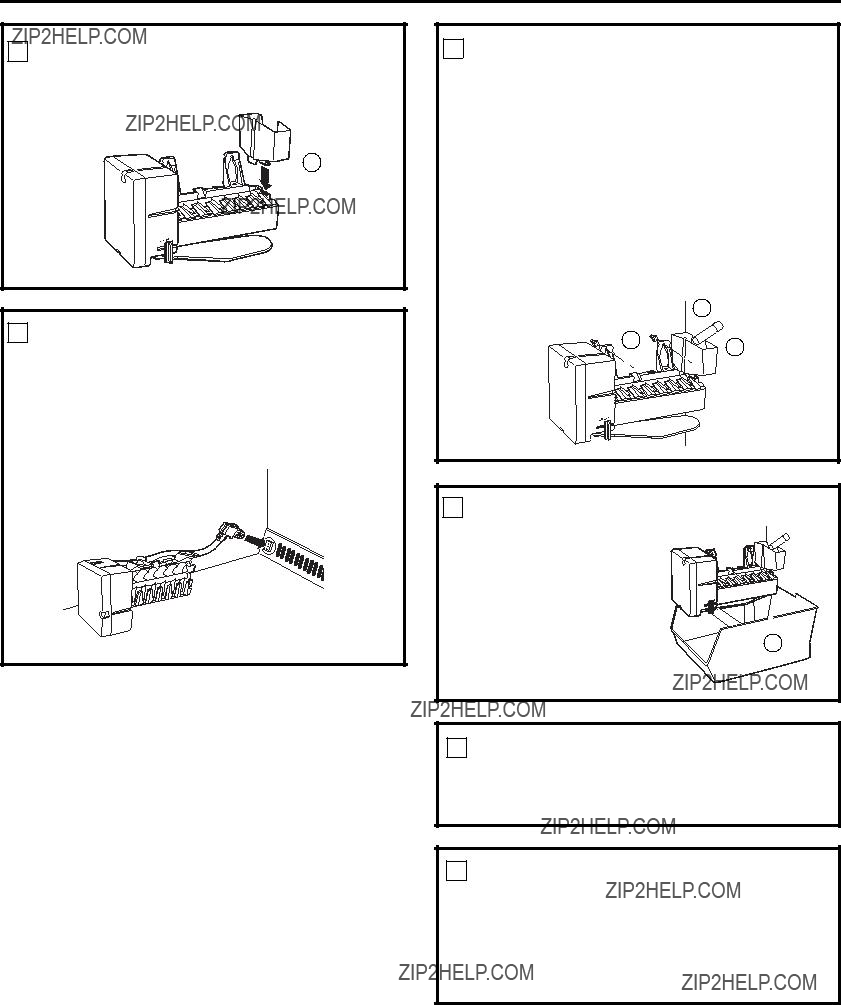

5 INSTALL THE ICEMAKER FILL CUP

Install the icemaker fill cup (side-mounted) (17) into the icemaker as shown.

17

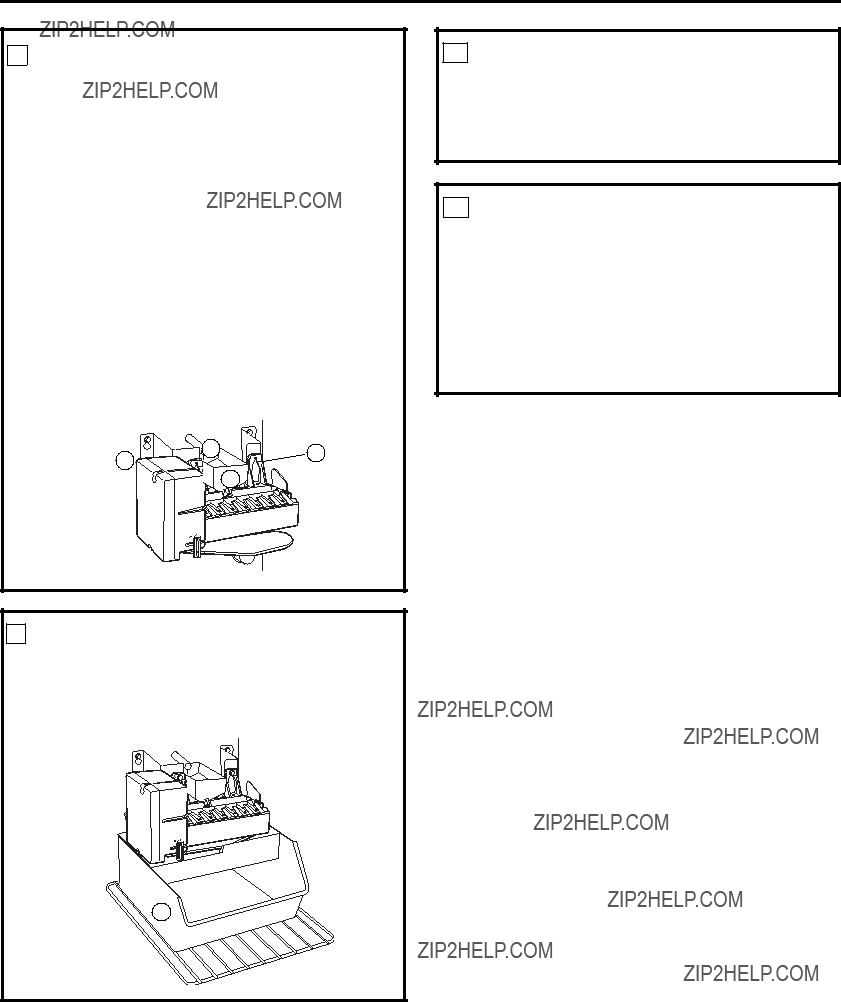

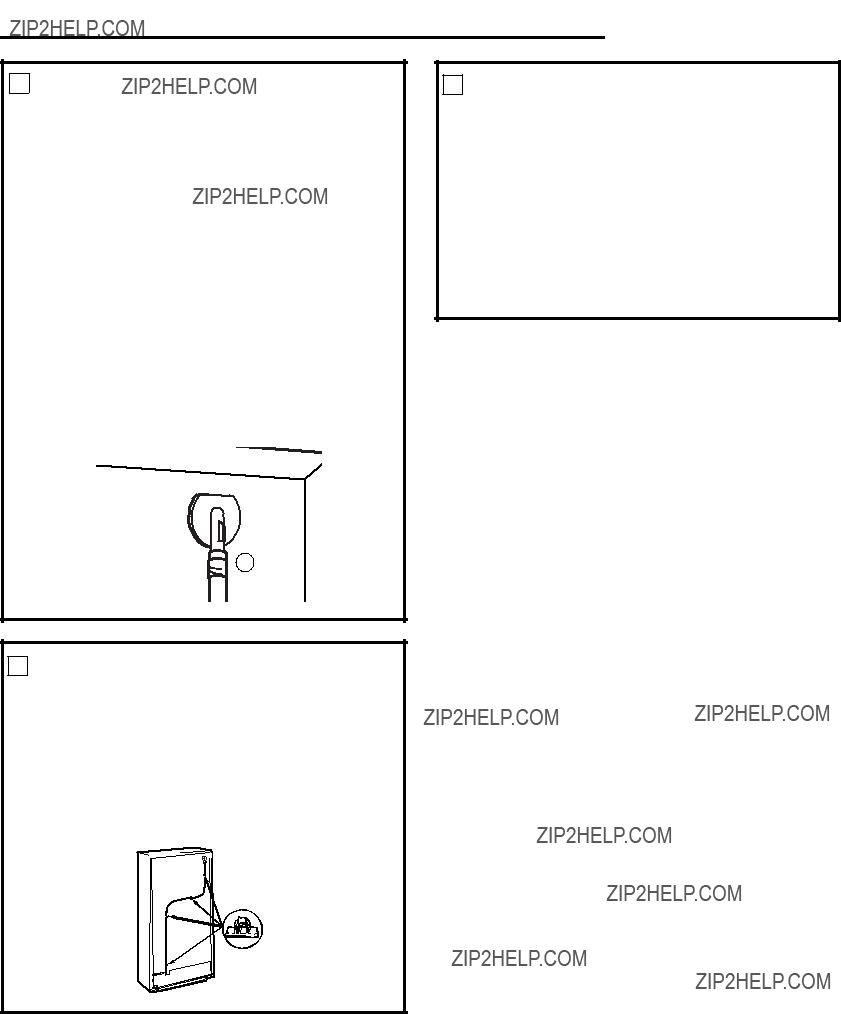

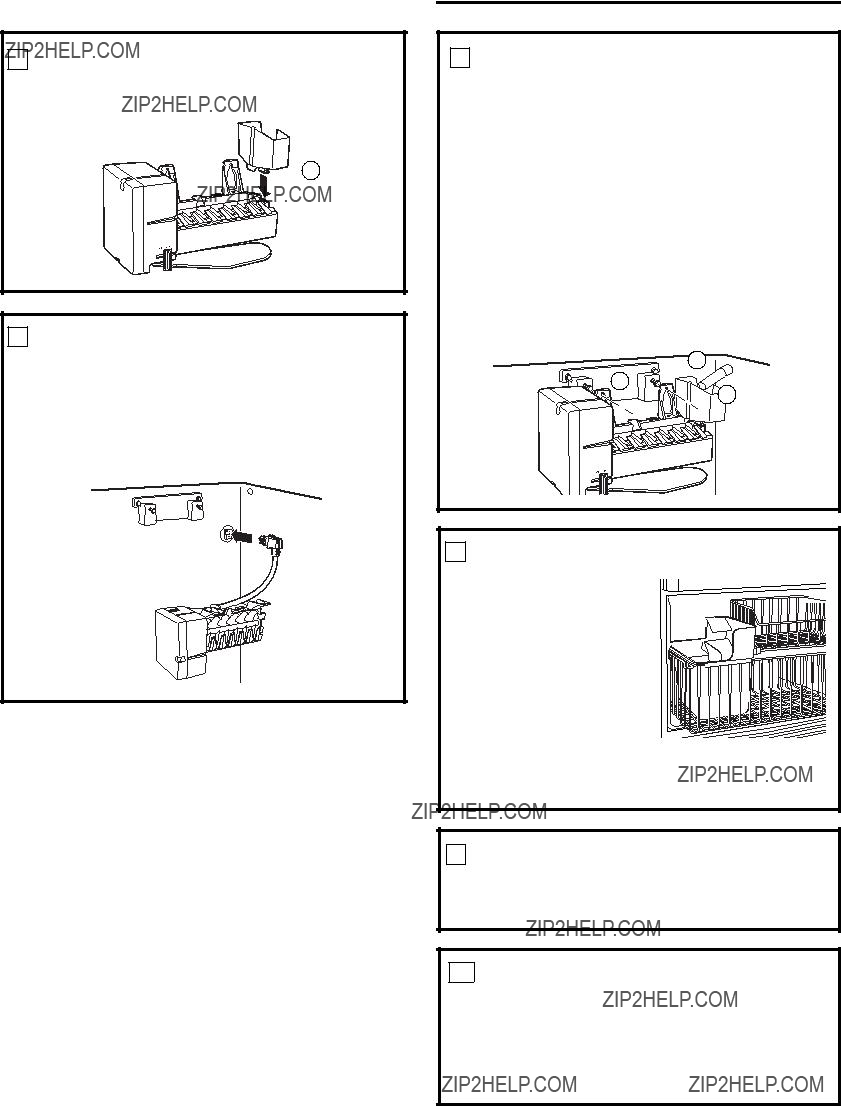

6 PLUG IN THE ICEMAKER

Place the icemaker in the freezer compartment on its side as shown. Insert the icemaker power cord plug

(D) into the socket on the side wall, making sure the prongs and holes are matched. If holes do not match, see Step 4. Press the plug firmly into the socket.

D

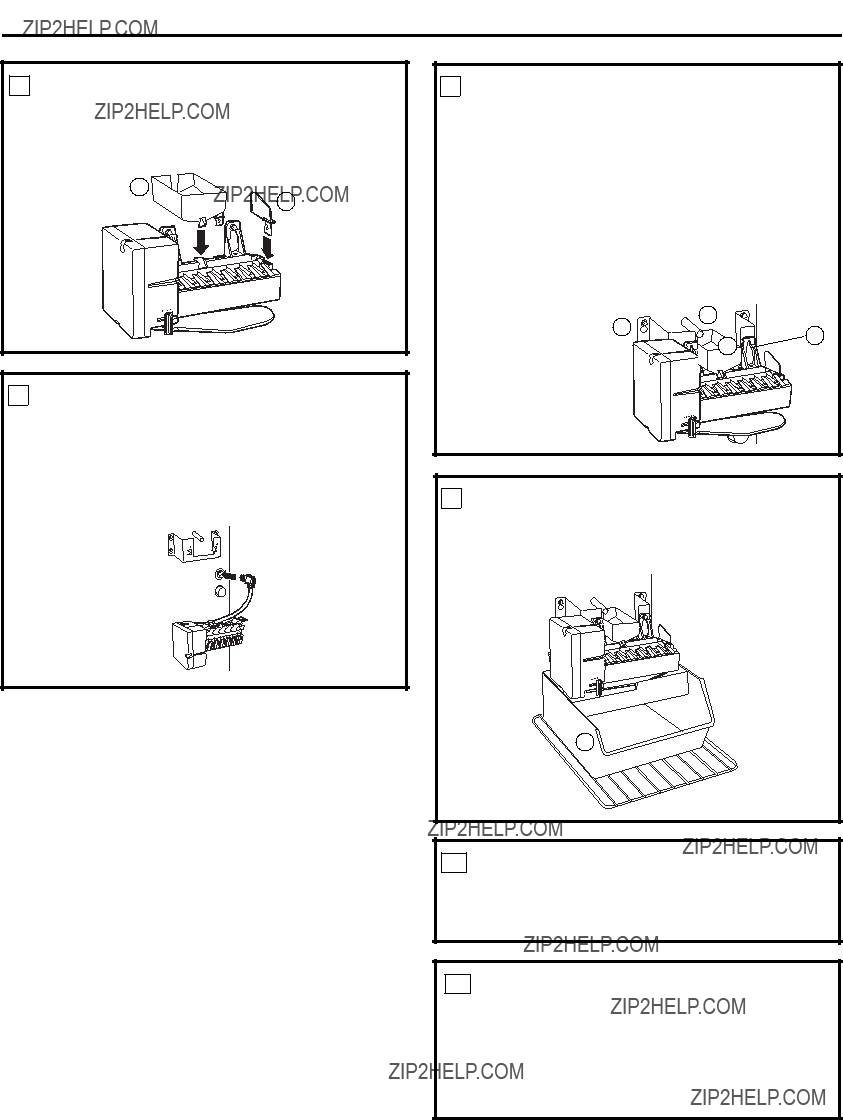

8 INSTALL THE ICE BUCKET

Put the ice bucket (11) directly under the icemaker (to the left and all the way to the rear of the shelf under the icemaker).

Make sure the icemaker power switch is set to OFF.

11

9 ATTACH WARRANTY LABEL

A label (9) is provided with this kit to record the date of installation for warranty purposes. Apply it to the back of the refrigerator.

10 KEEP THIS MANUAL

The warranty for the icemaker is printed in this manual. Keep this manual with your Refrigerator Owner???s Manual.

The icemaker installation inside the freezer is now complete. Continue to the Water Valve Assembly section.

BEFORE YOU BEGIN

Read each step thoroughly before proceeding.

??? CAUTION ??? Unplug the Refrigerator. To eliminate the danger of electric shock during installation, you must unplug the refrigerator from its electrical outlet.

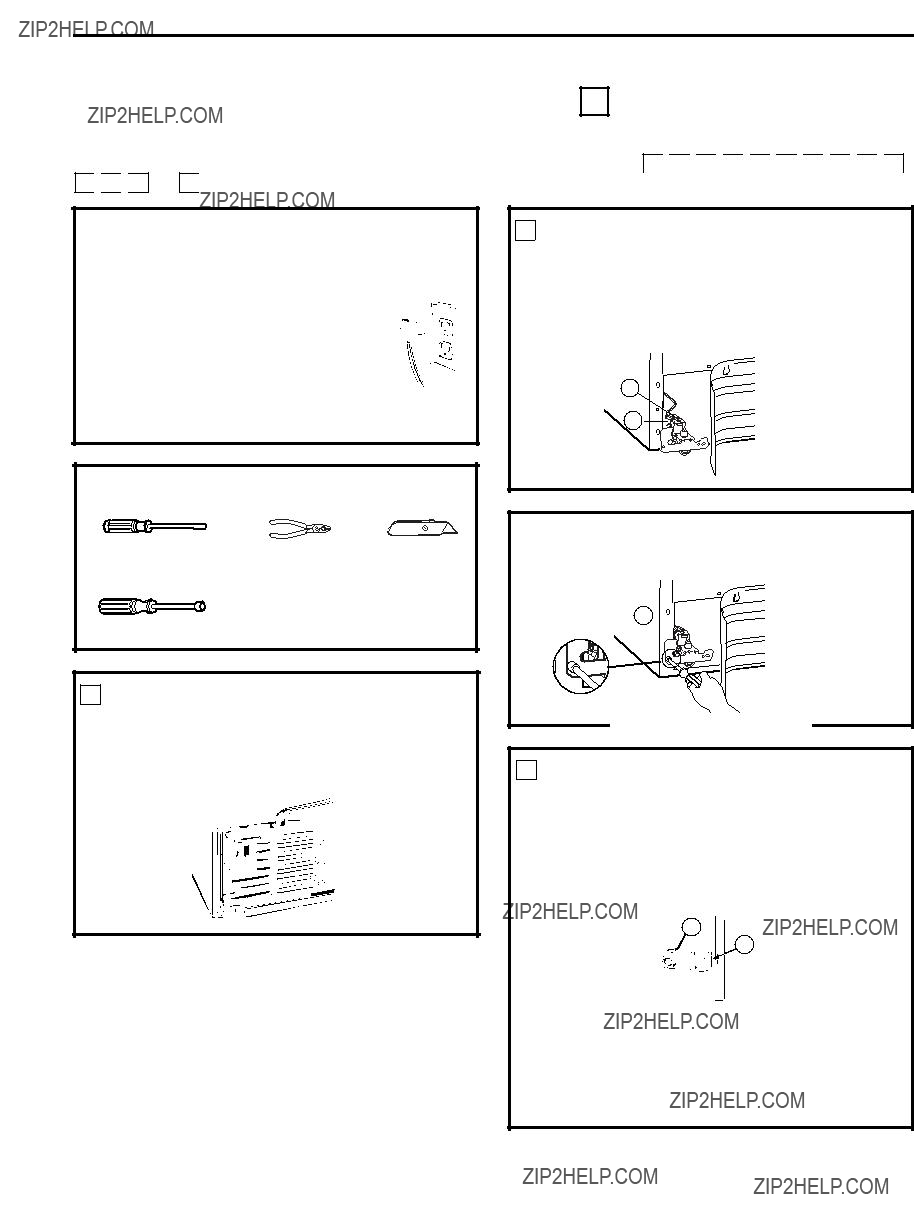

TOOLS YOU WILL NEED

5/16??? Nutdriver

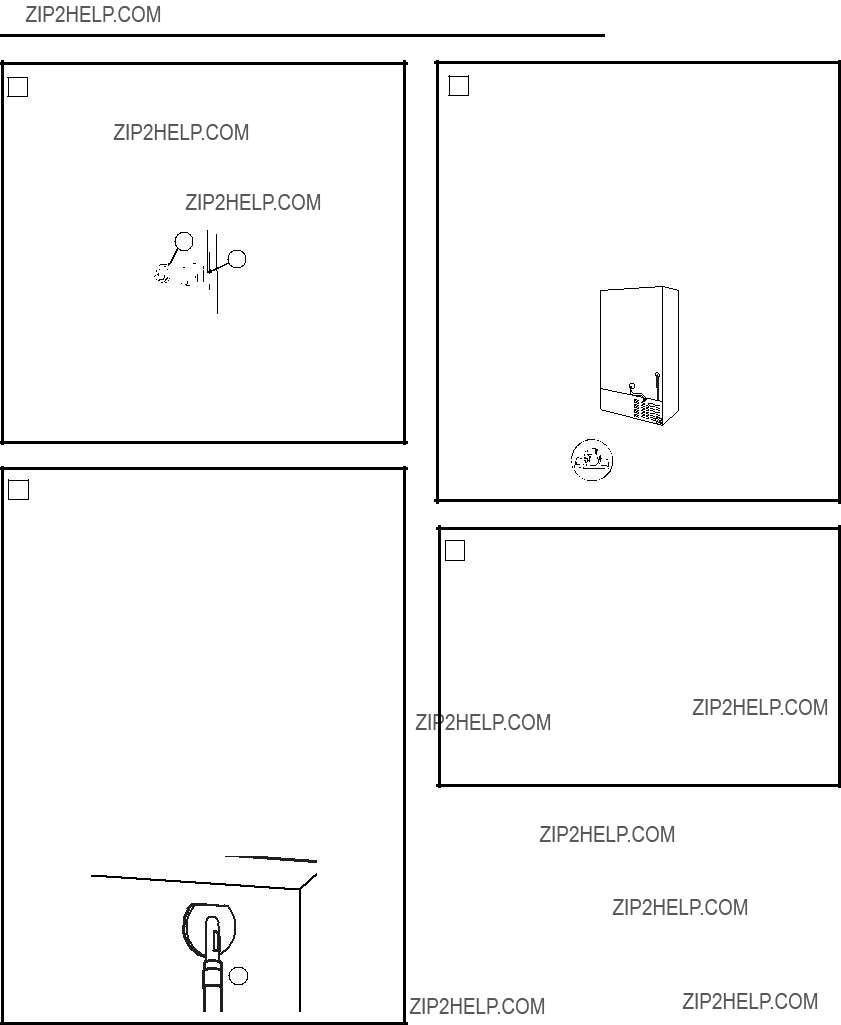

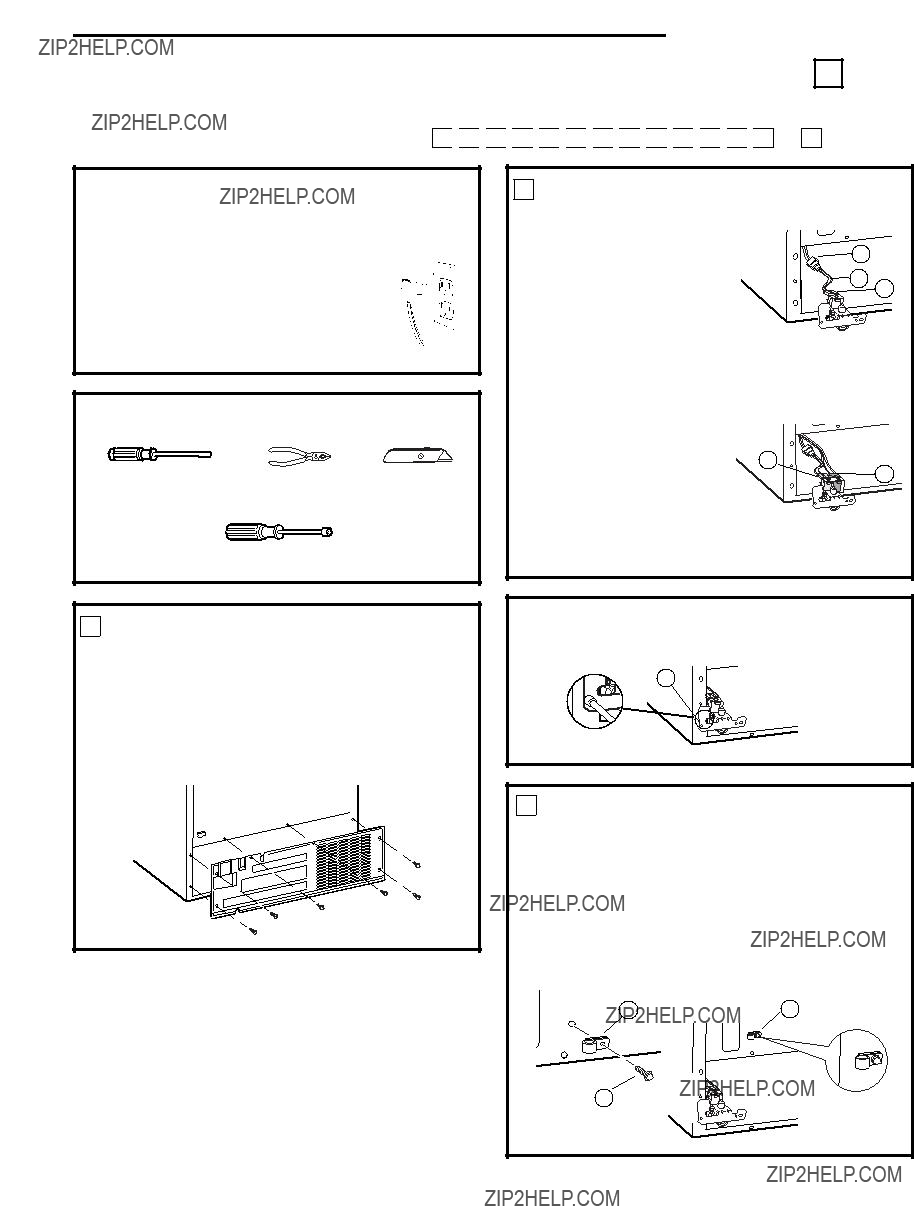

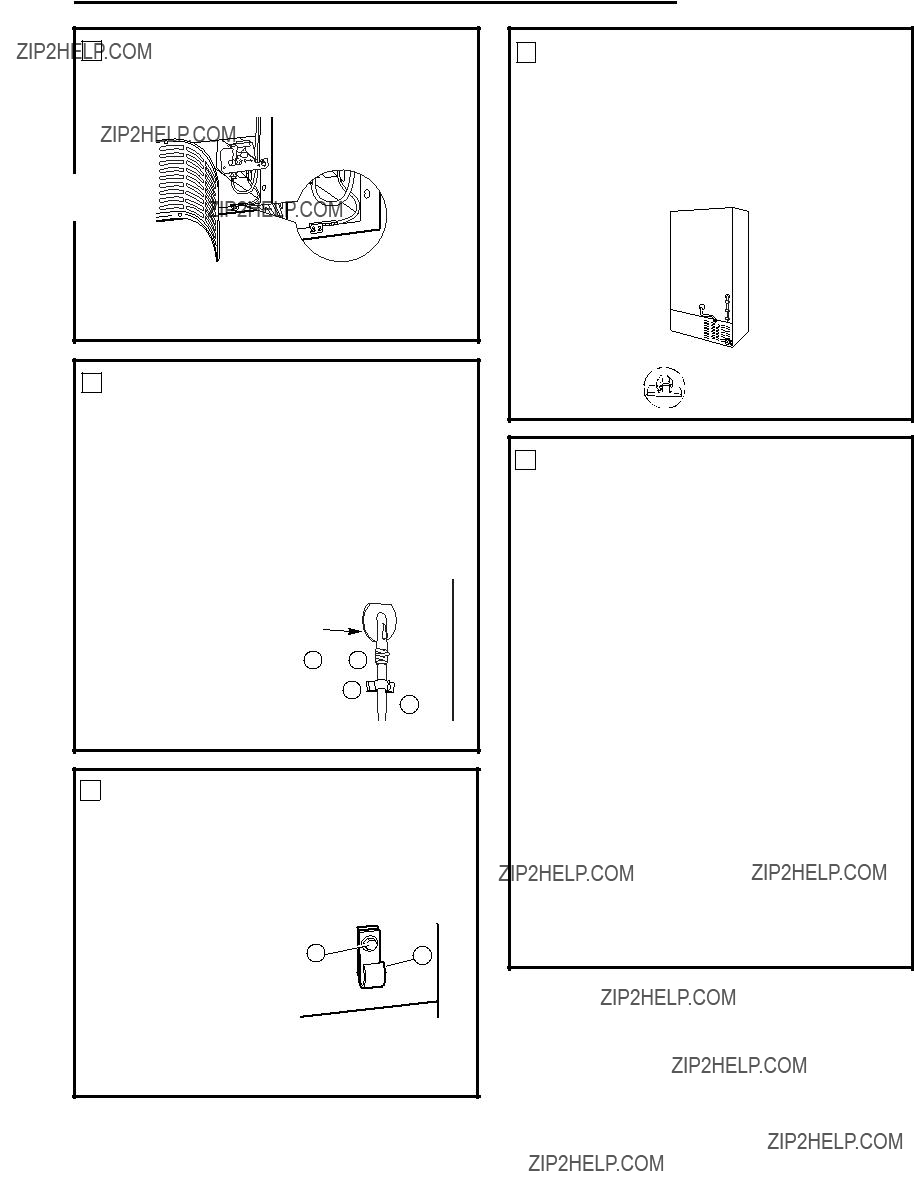

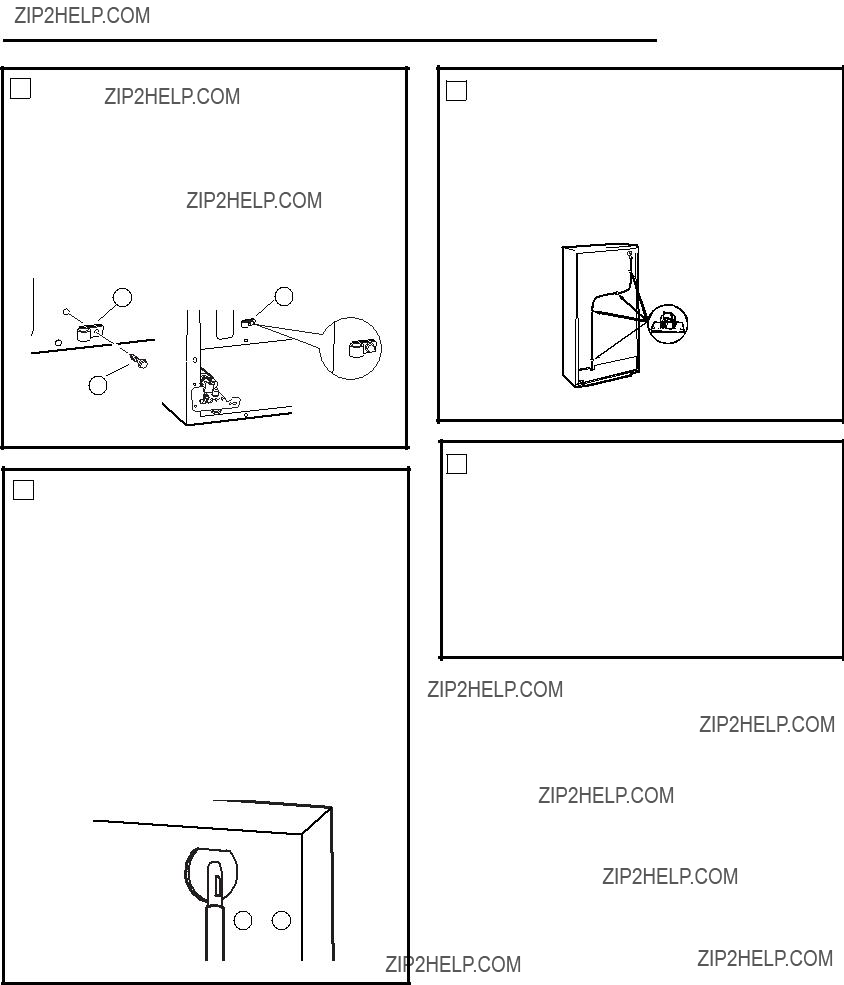

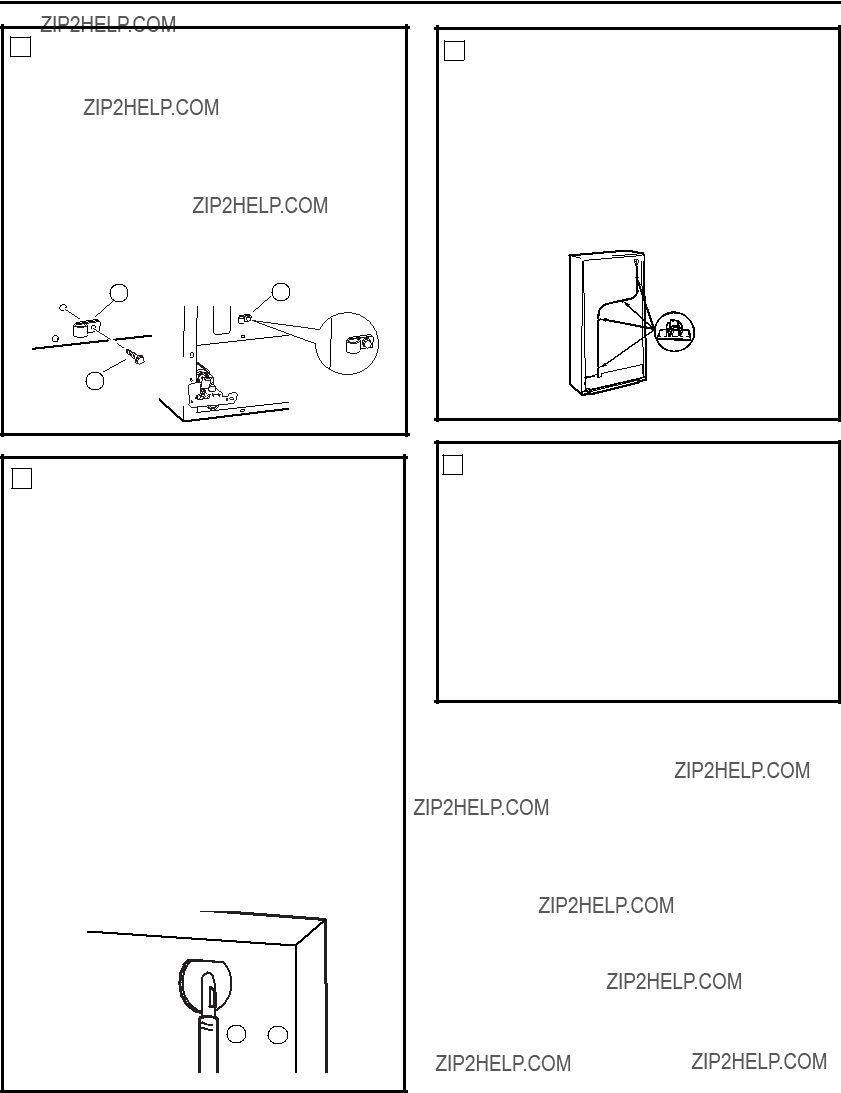

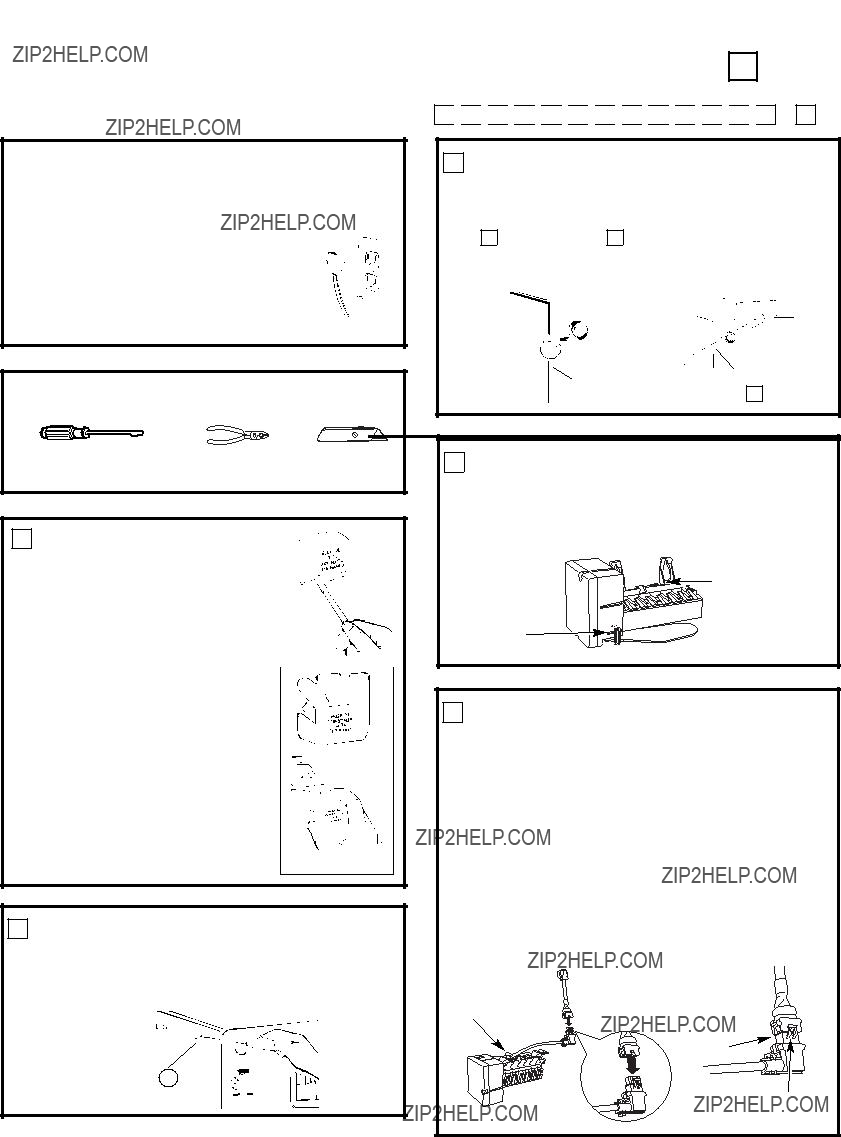

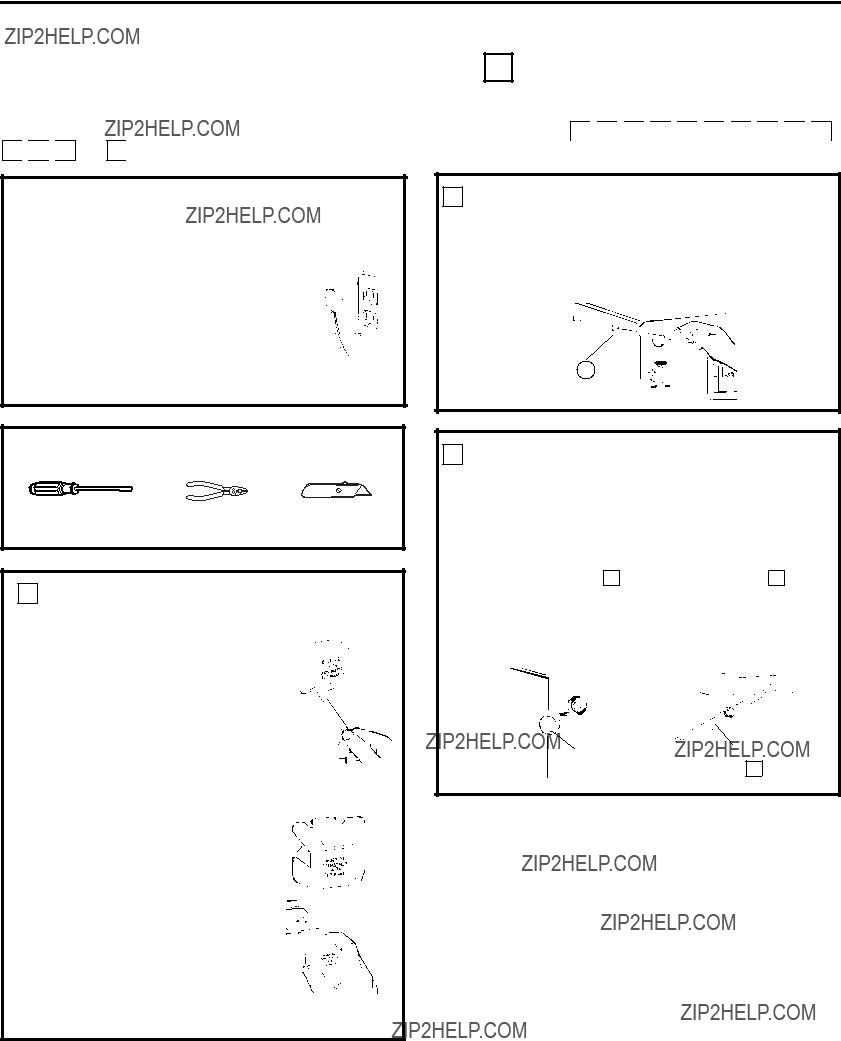

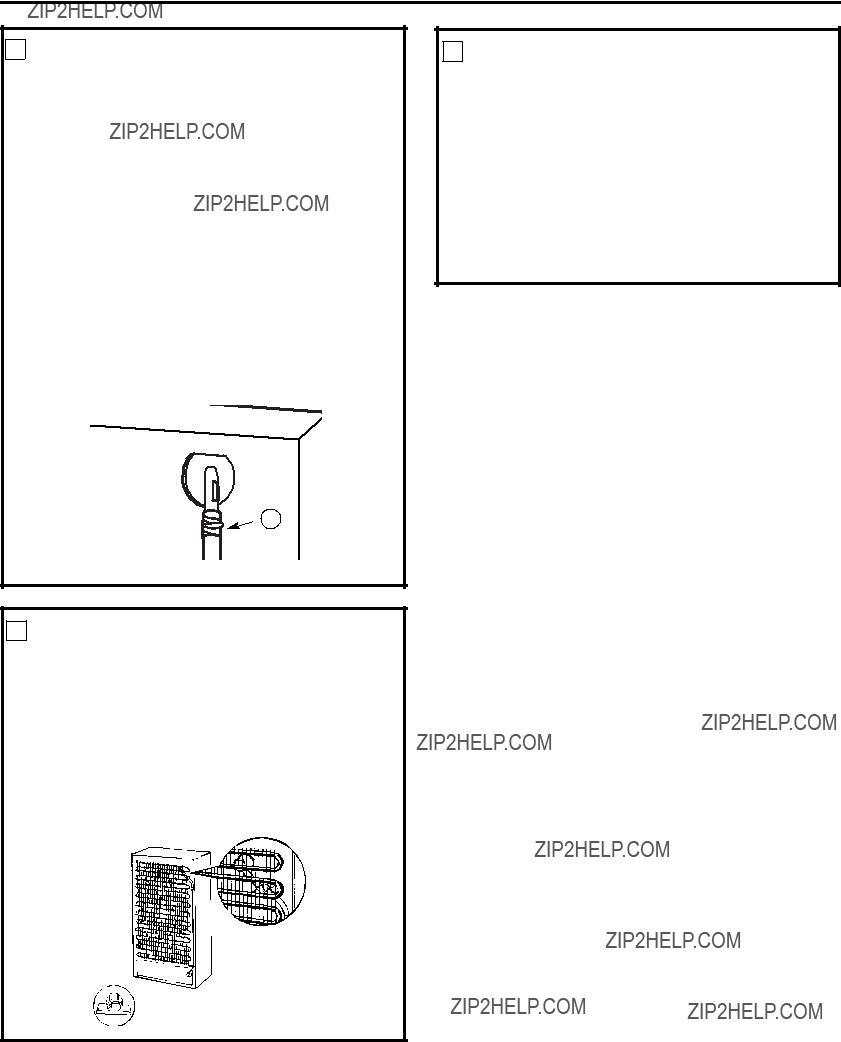

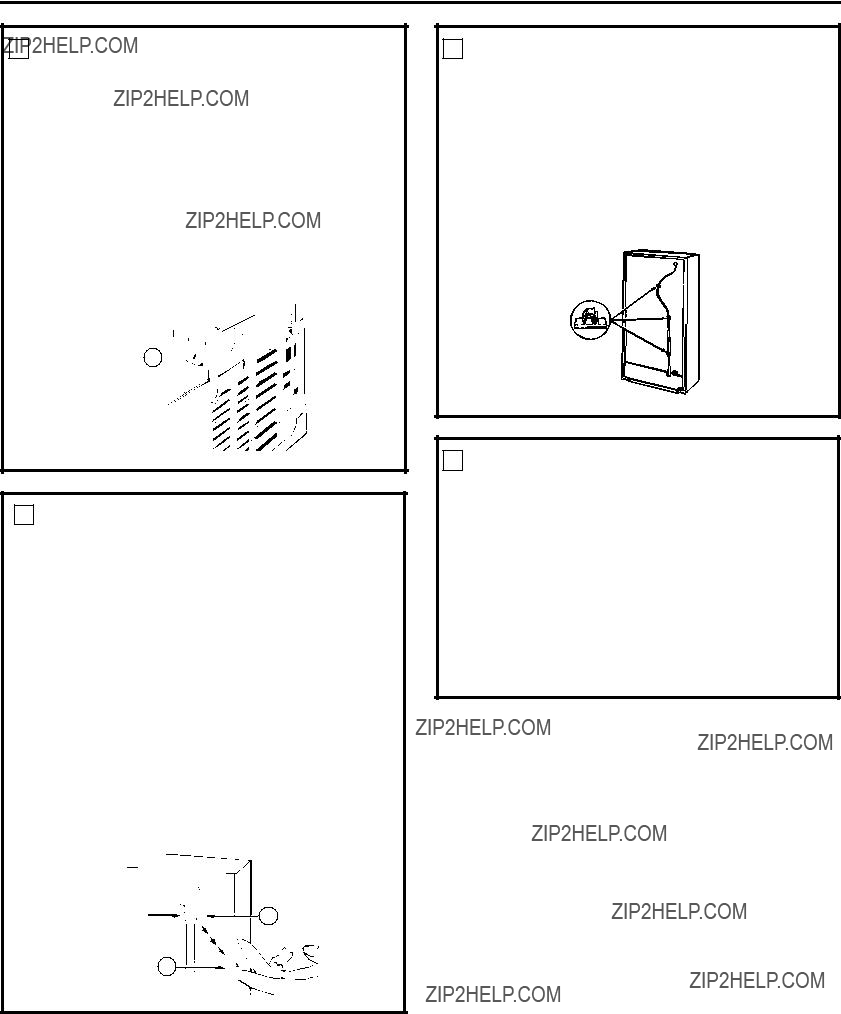

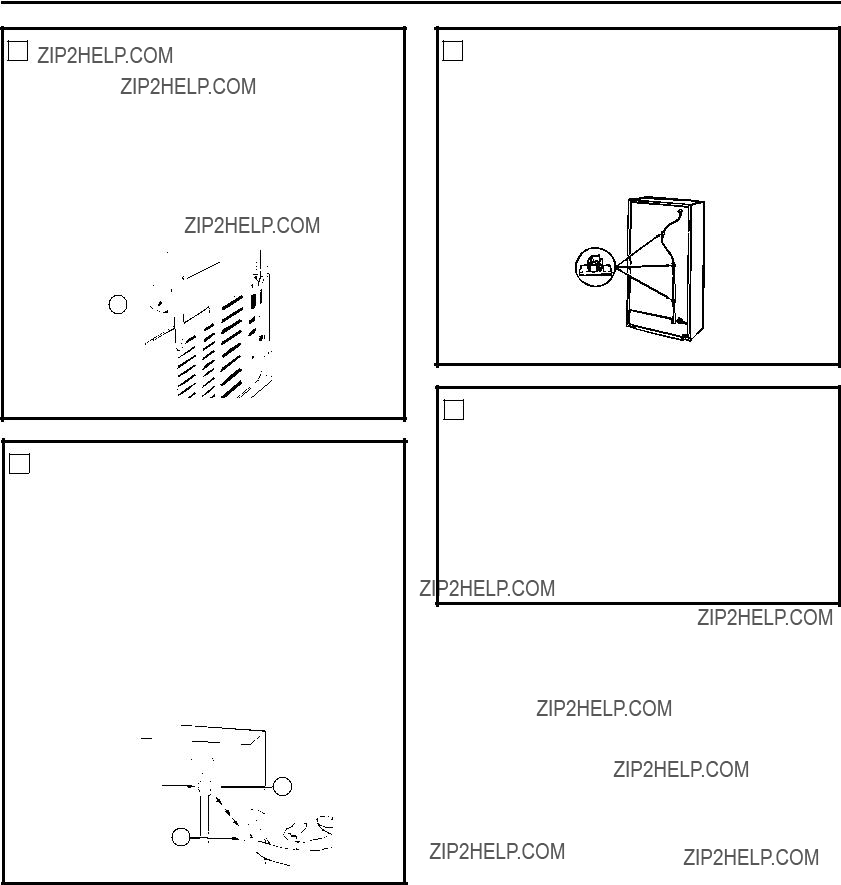

1 REMOVE THE COVER

At the bottom rear of the refrigerator, remove the screw(s) holding the compressor compartment cover (if covered) and save for reinstallation later. Bend the cover back for access to the compartment.

2ATTACH THE WATER VALVE

???Locate the female connector plug (A) which is attached to the cabinet with a wire tie. Remove the wire tie and discard it.

Wire tie

A

???Remove and discard the tape from the female connector (A) and plug onto the male terminals on the water valve (4). Either wire can go on either terminal.

A

4

???Fasten the water valve to the cabinet edge hole using the hex-head screw (13) from the kit.

DO NOT DRILL ANY ADDITIONAL HOLES.

???Check the plastic water line nut on the bottom of the water valve to be sure it is hand tight.

DO NOT USE TOOLS.

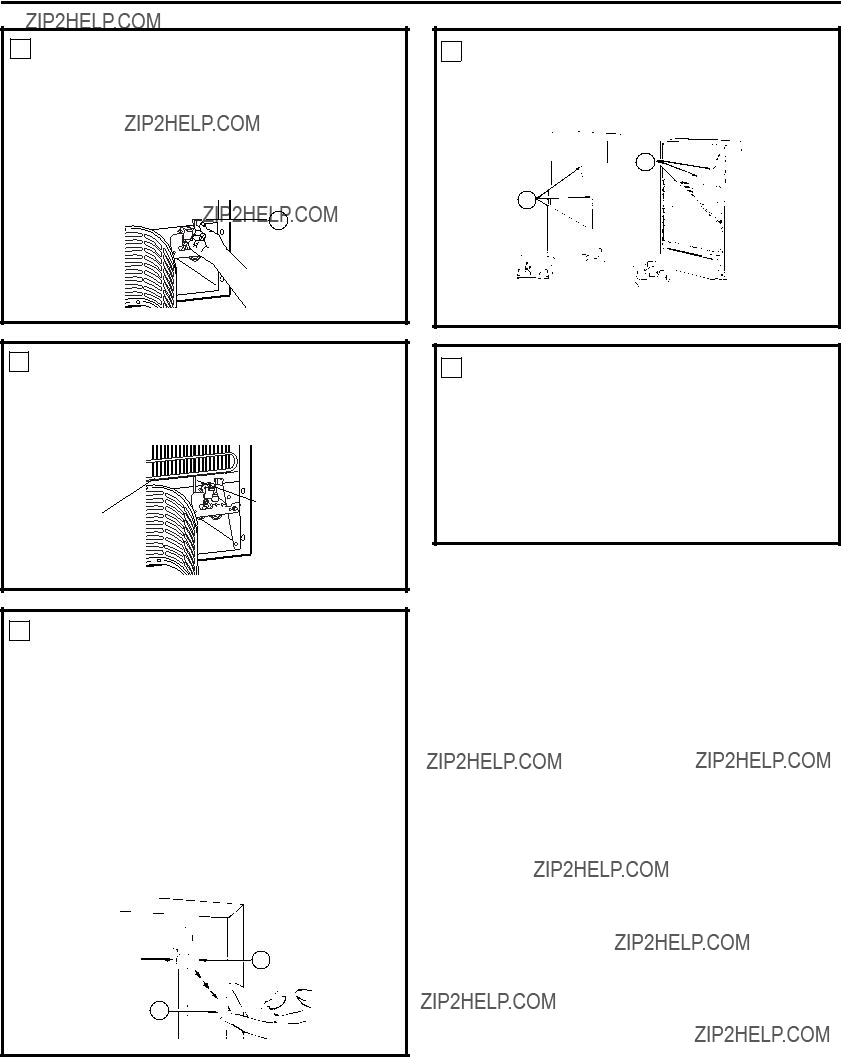

3INSTALL WATER LINE CLAMP

???Push the metal water line clamp (strain relief) (12) onto the lower flange of the cabinet back, directly in line with the water valve.

???The metal clamp is for the house water line. (See the Water Line Installation Instructions). It is not to be used for the tubing from the water valve up to the icemaker.

12

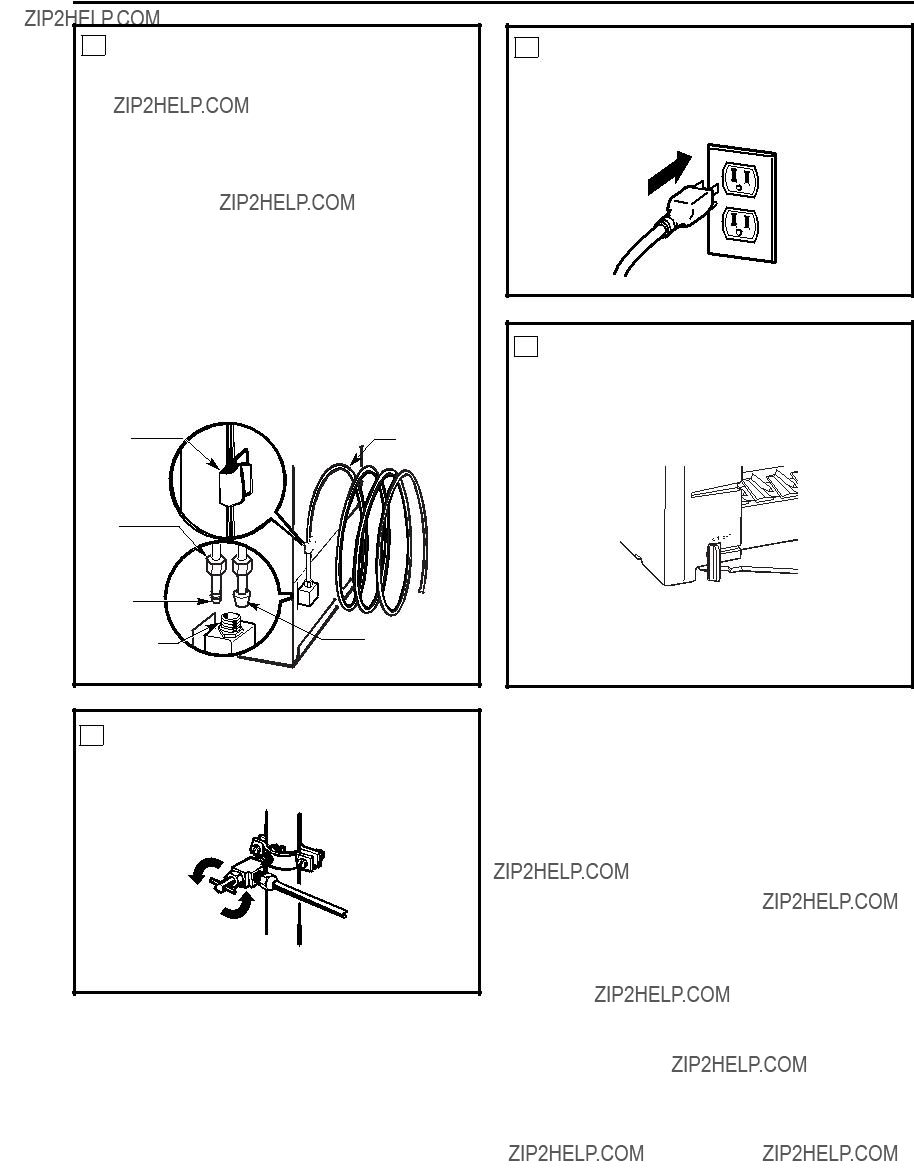

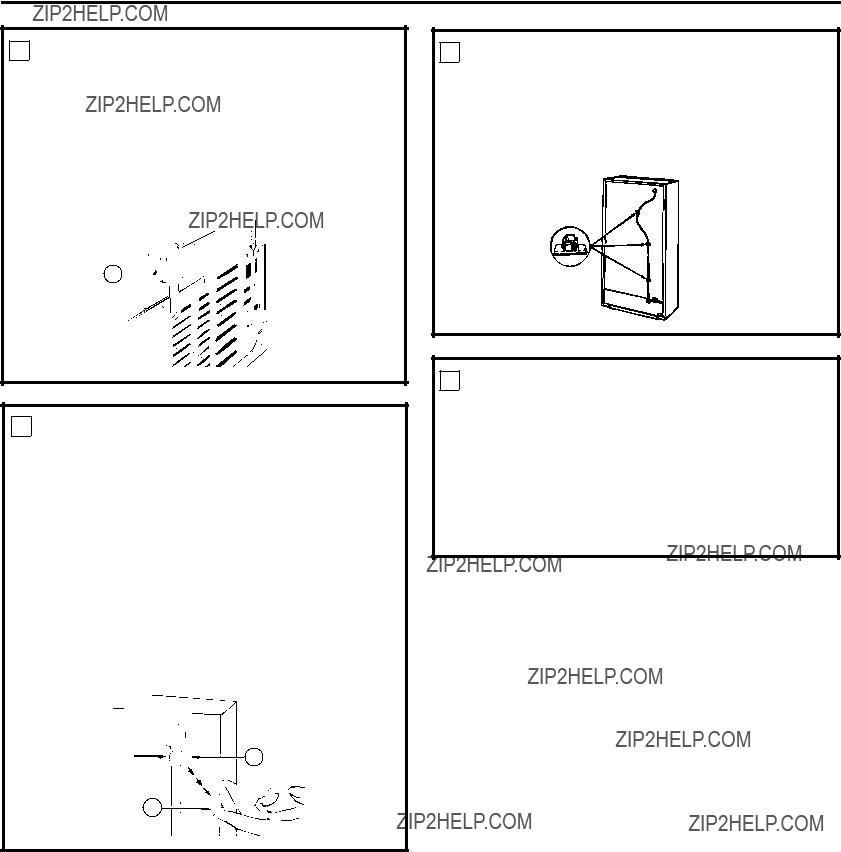

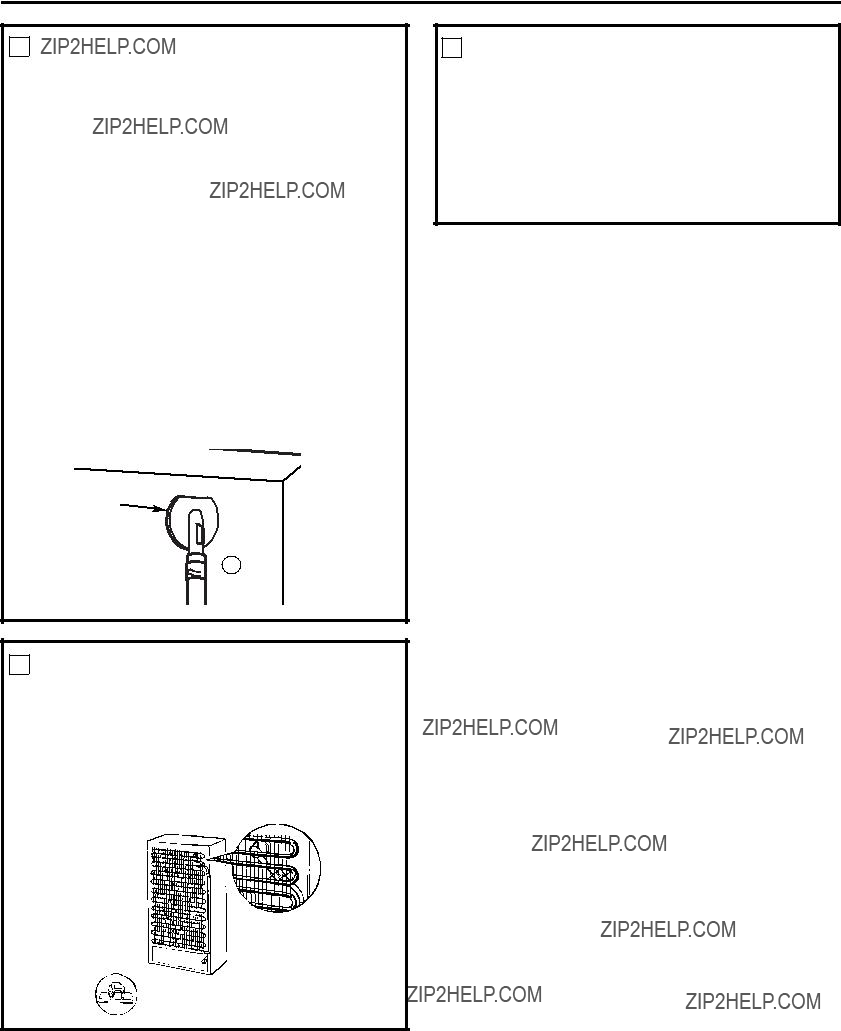

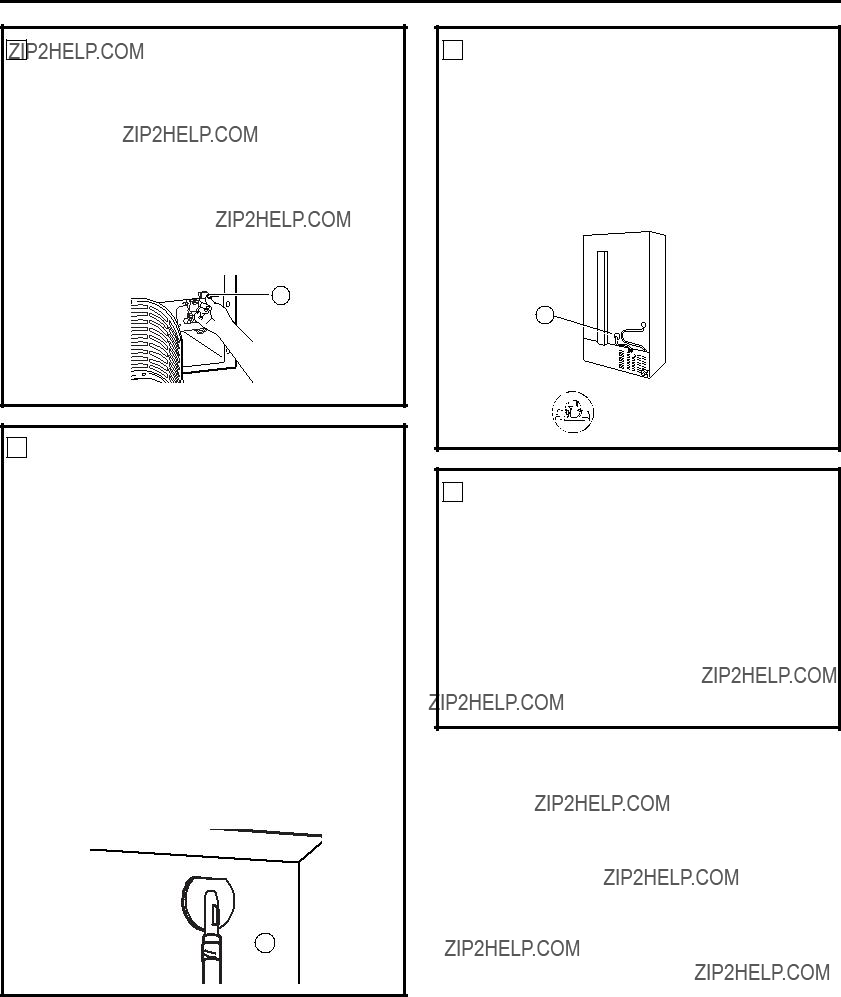

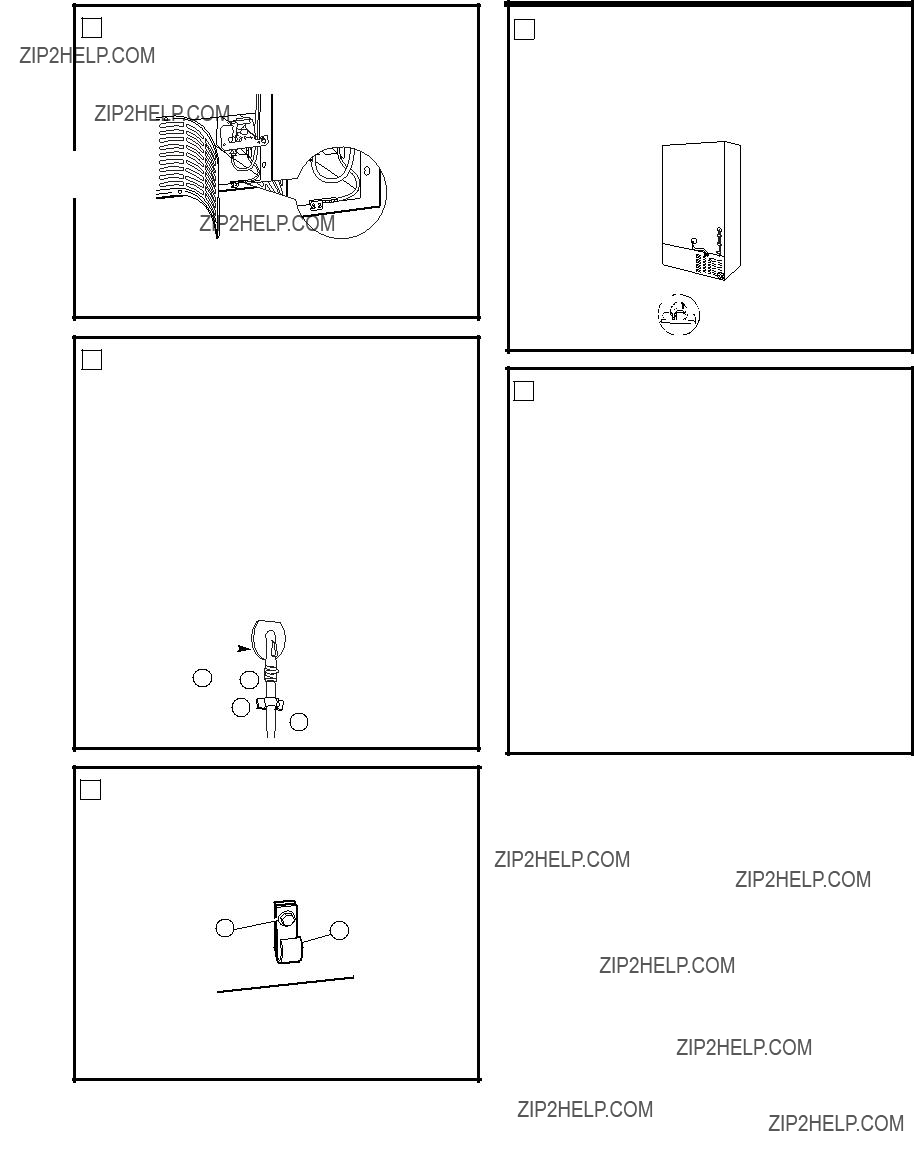

4 ROUTE THE PLASTIC WATER LINE

On models that have condenser tubing on the back of the cabinet, insert the plastic water line between the tubing and the back of the cabinet.

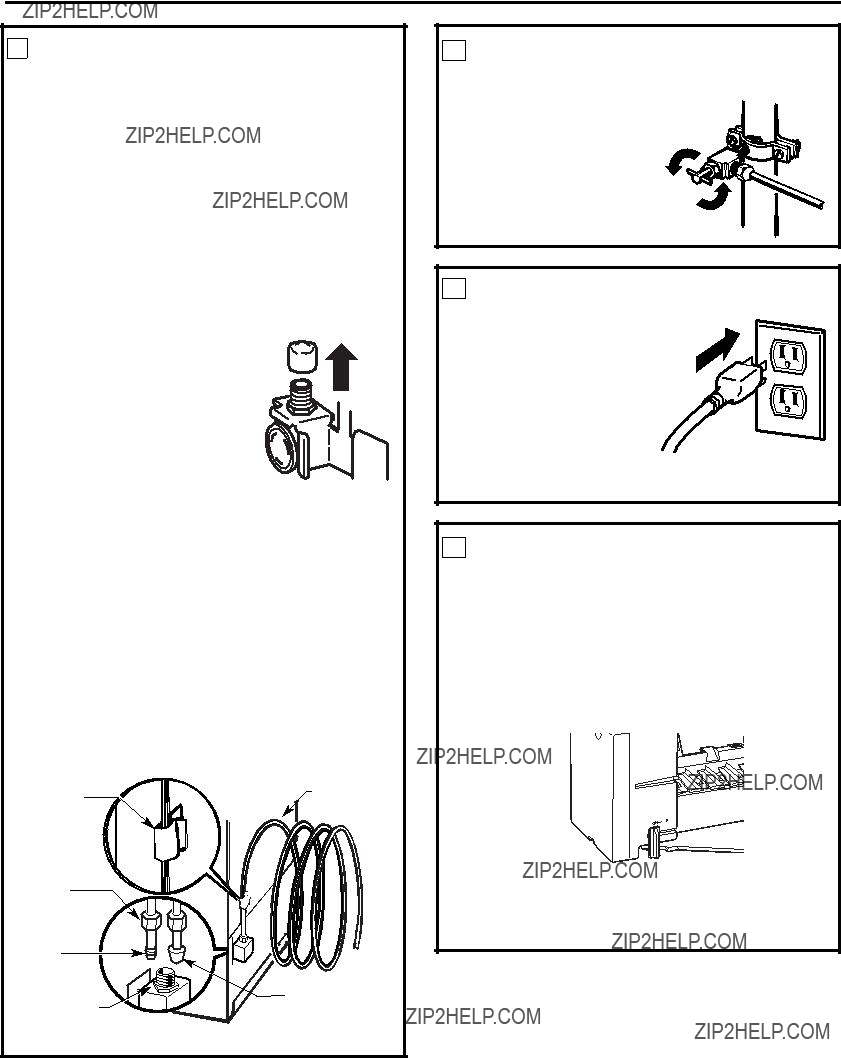

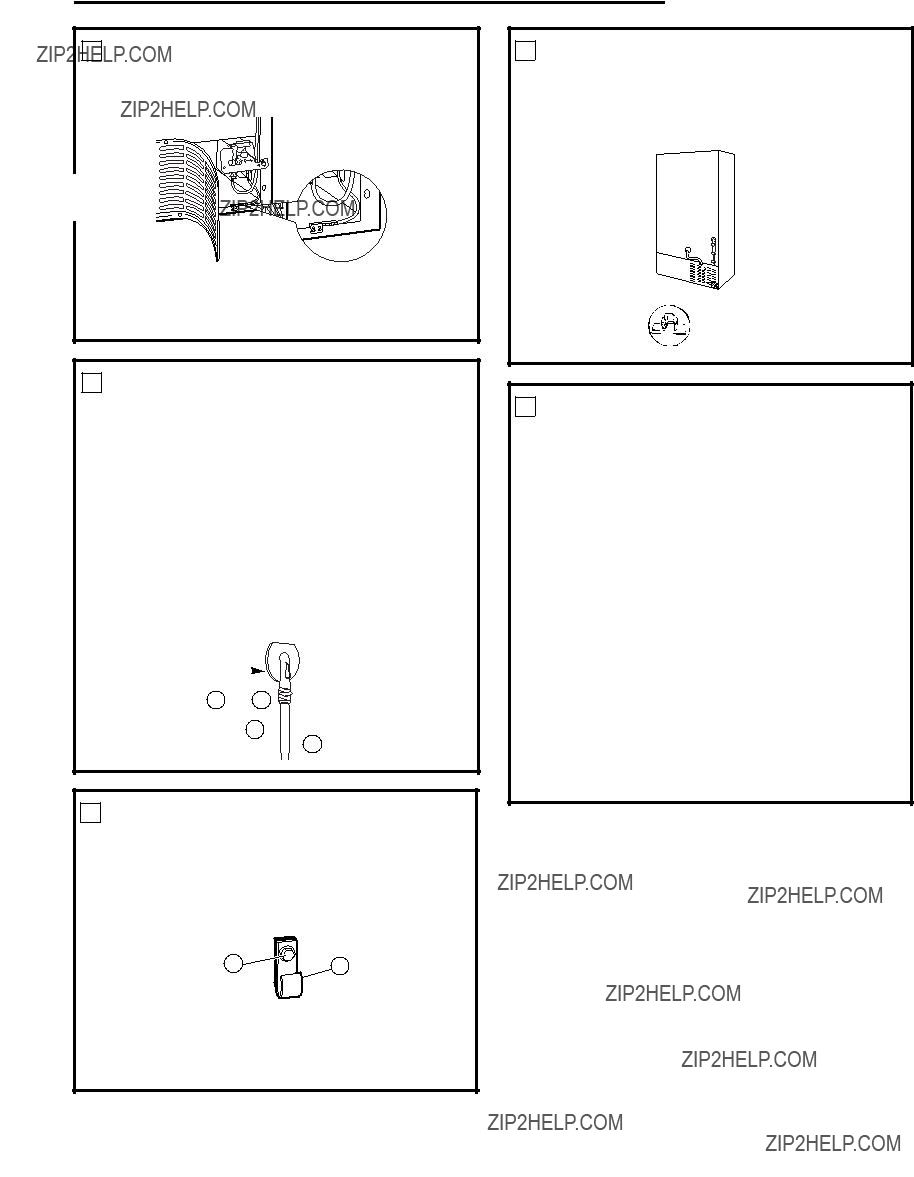

5CONNECT THE WATER LINE

???Remove the small plastic cap (B) from the bottom of the water tube inlet located in the upper-right rear corner of the refrigerator.

???Squeeze the ends of the hose clamp (6) from the kit with pliers and slide the clamp over the water tube inlet.

???While still squeezing the clamp, insert the

plastic water line into the inlet as far as it will go (approximately 1??? [25 mm]).

???Then slide the clamp downward to capture the plastic water line in place.

???Make sure the fill tube is aimed down.

6 ATTACH THE PLASTIC WATER LINE

Fasten the plastic water line to the back of the cabinet with adhesive-backed fasteners (5), spacing the fasteners as shown to take up the slack in the line.

5

5

Adhesive-backed fasteners for plastic water line

7 WATER VALVE INSTALLED

Refer to the Water Line Installation Instructions for connection to the home water supply. After water line installation is completed, set the icemaker power switch to ON.

The icemaking cycle will not begin until the icemaker and freezer compartment reach operating temperature, then icemaking will begin automatically.

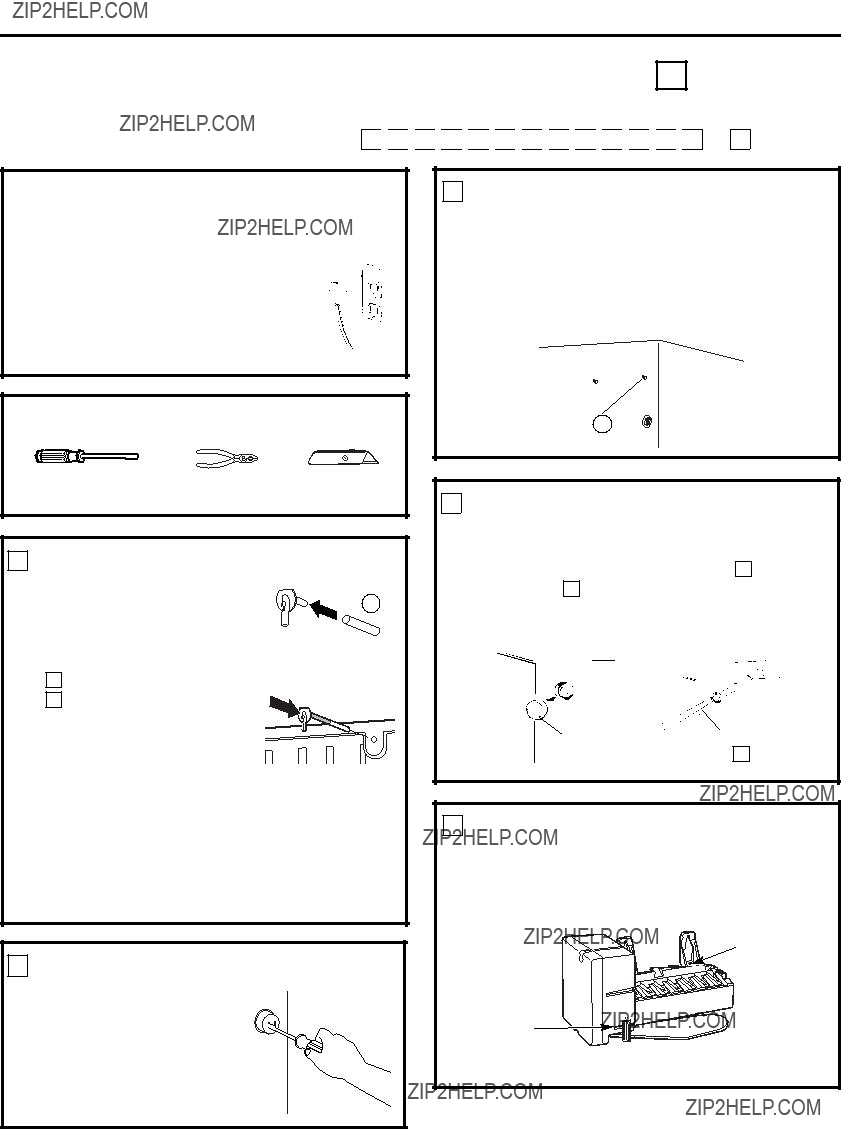

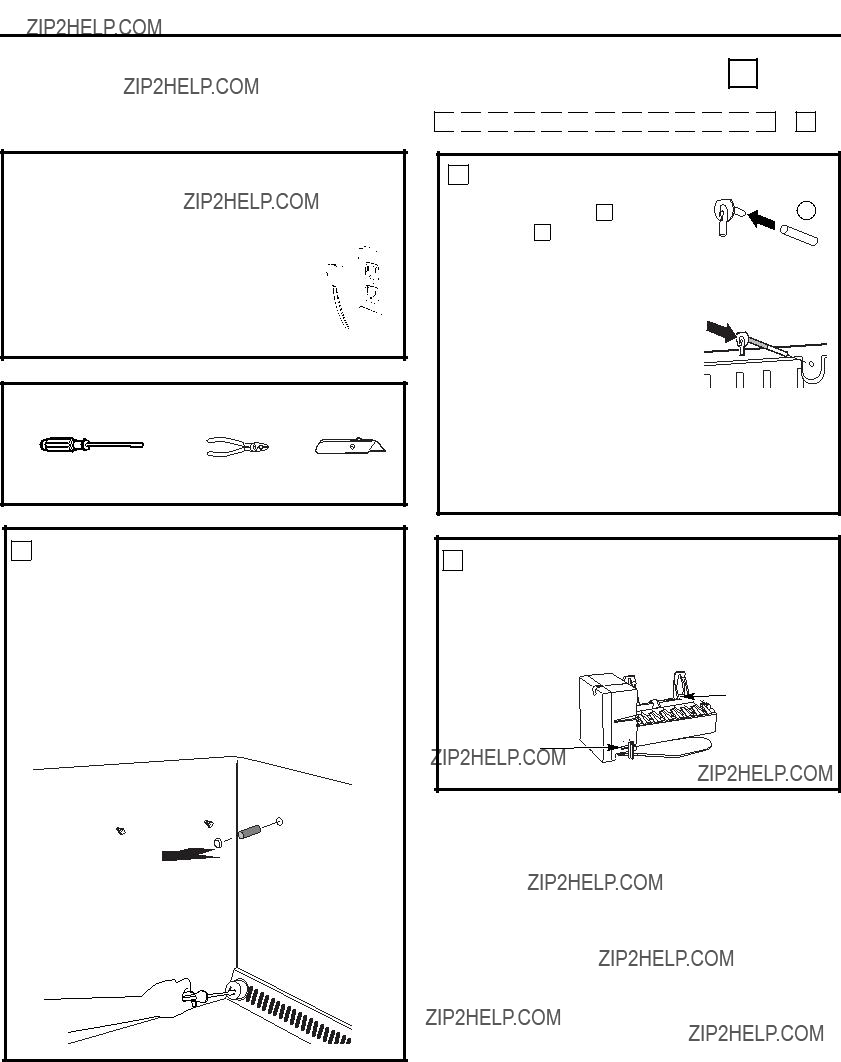

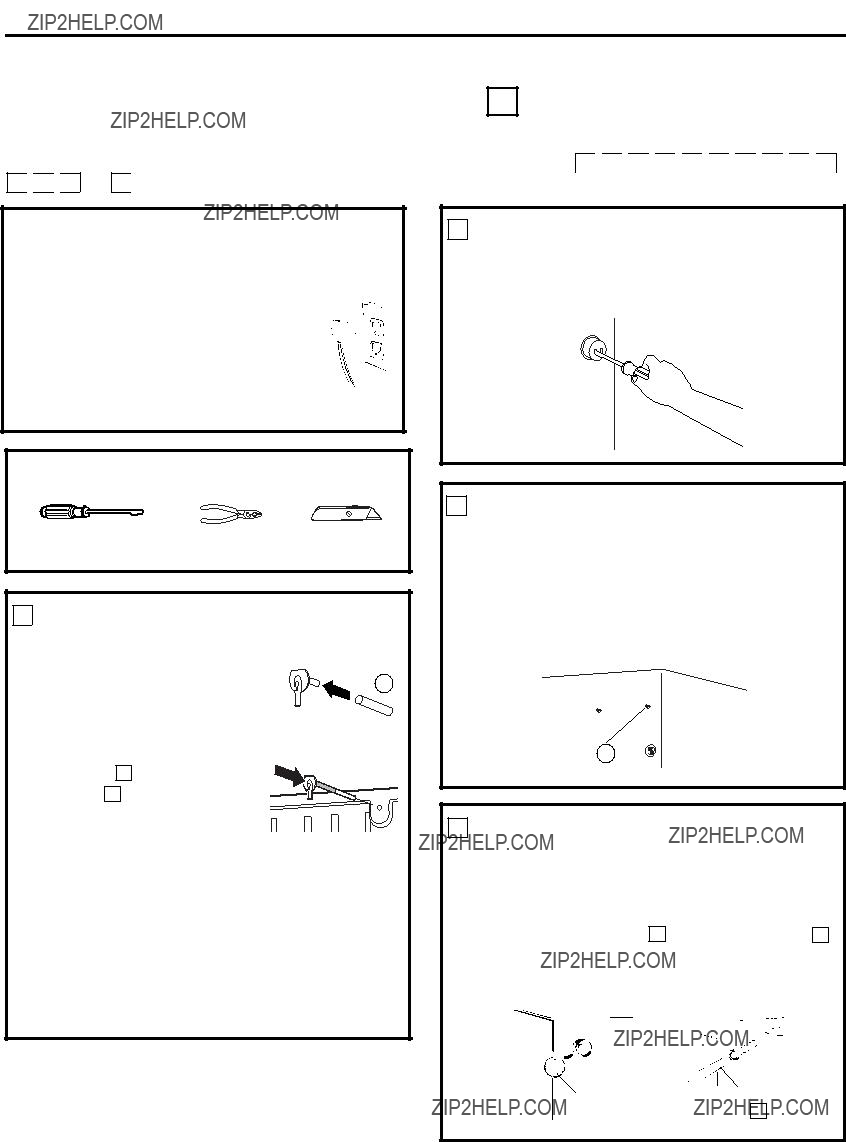

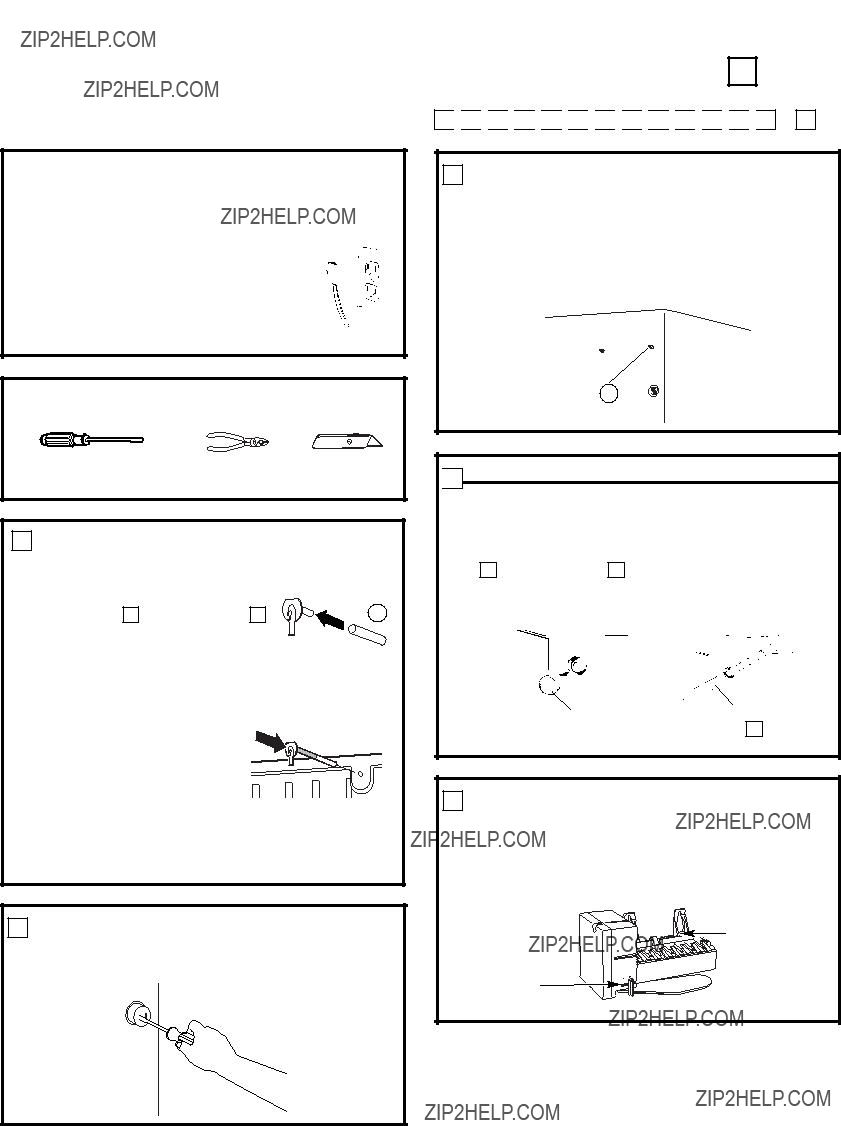

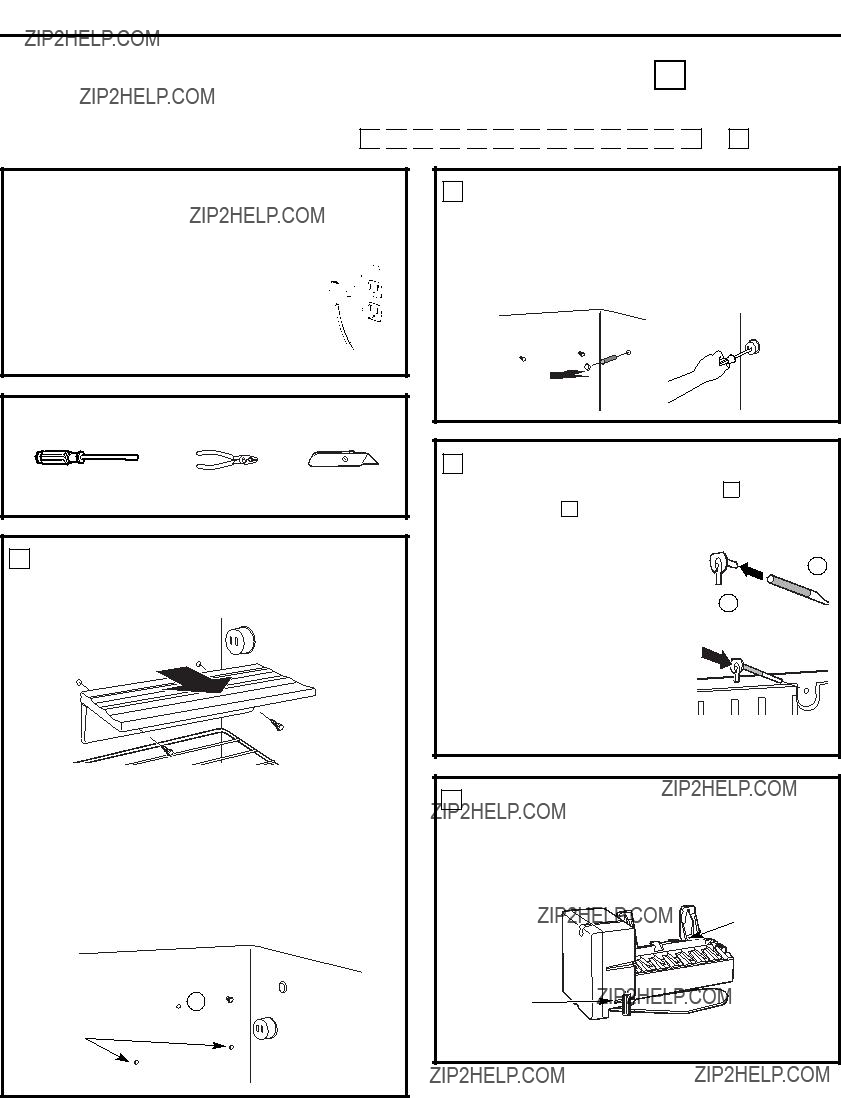

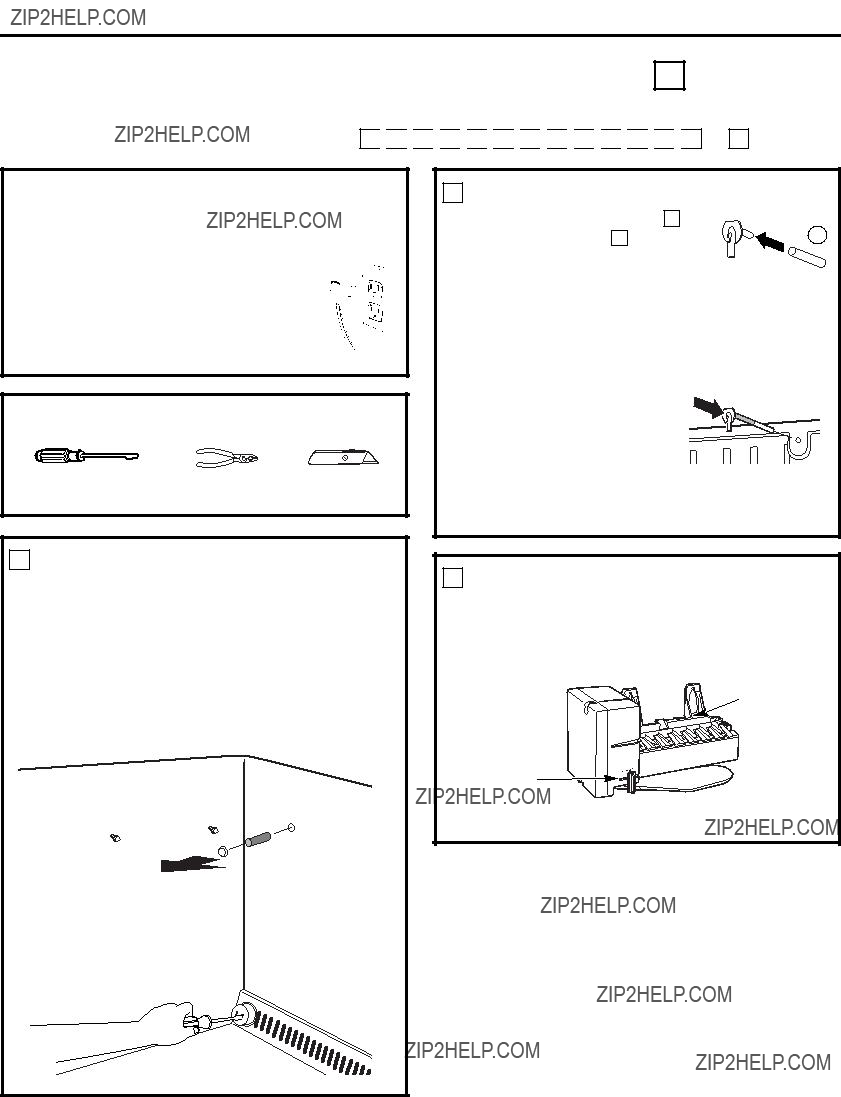

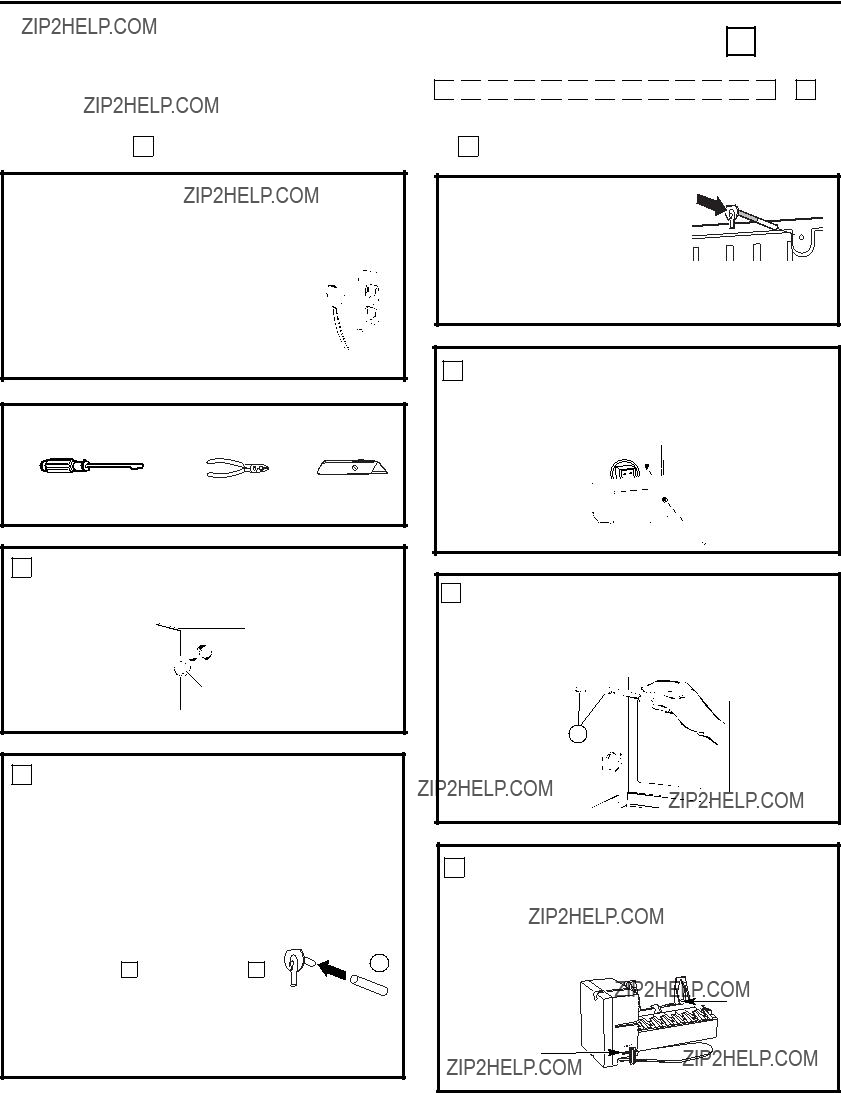

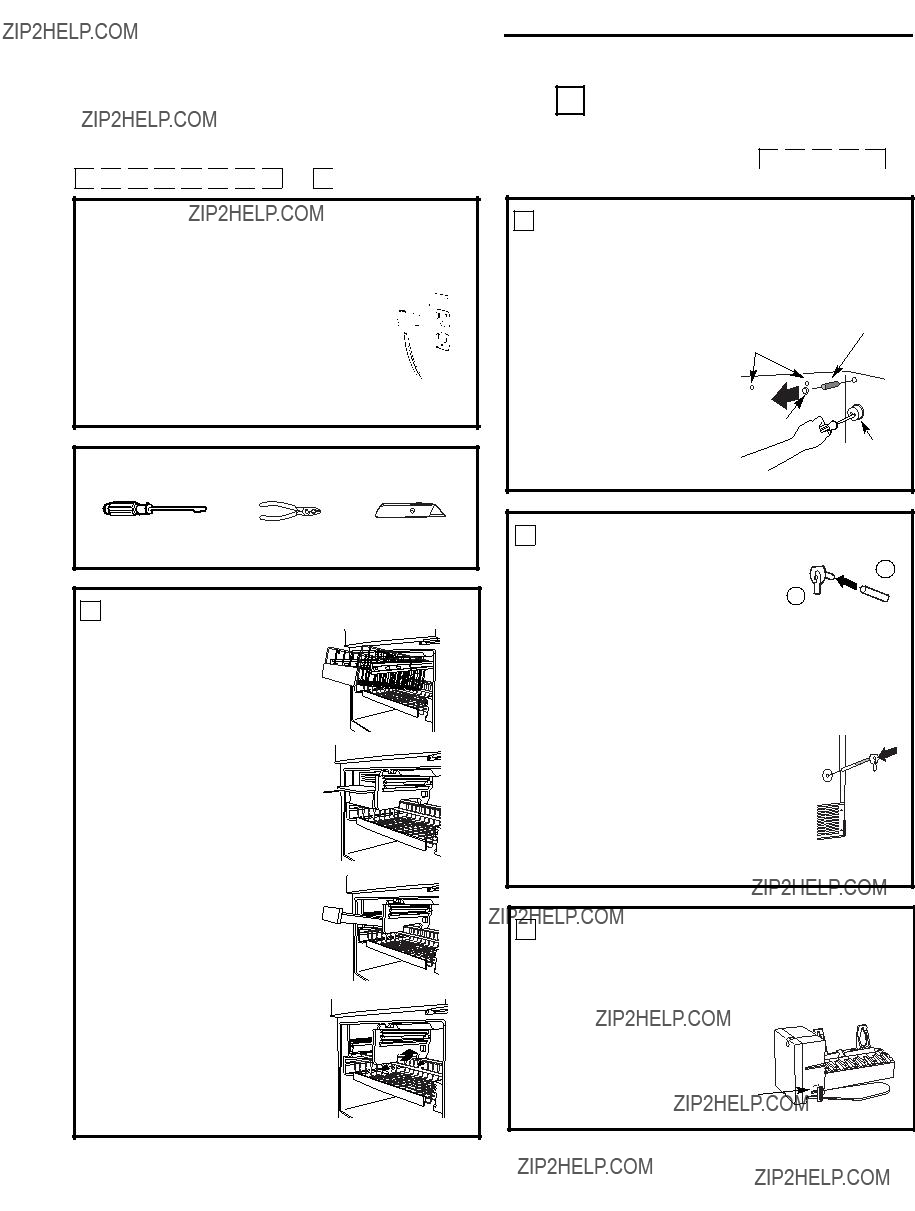

BEFORE YOU BEGIN

3 INSTALL FILL TUBE EXTENSION

Read each step thoroughly before proceeding.

??? CAUTION ??? Unplug the Refrigerator. To eliminate the danger of electric shock during installation, you must unplug the refrigerator from its electrical outlet.

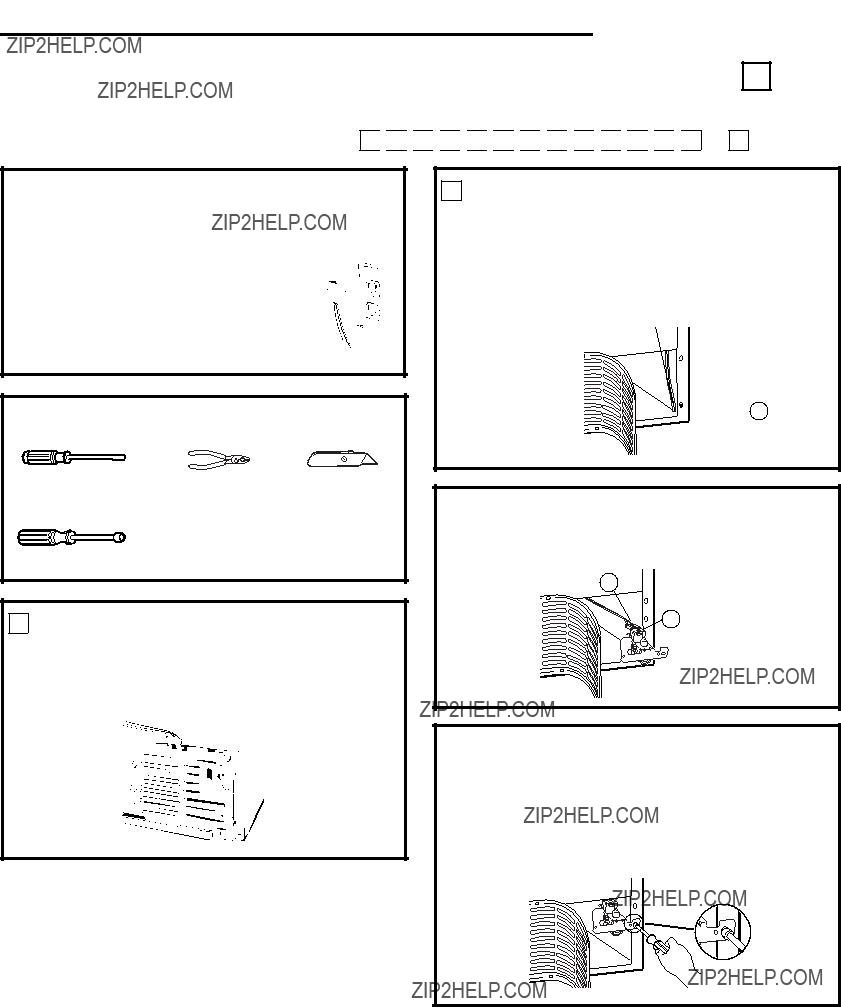

TOOLS YOU WILL NEED

???Remove and discard the white plug from the upper left corner of the freezer wall.

???Cut the fill tube extension (10)

to the F length (refer to the

F template on page 67) with a sharp knife or a single-edge razor blade and slide it onto the fill tube against the stop.

Remove

plug

10

F

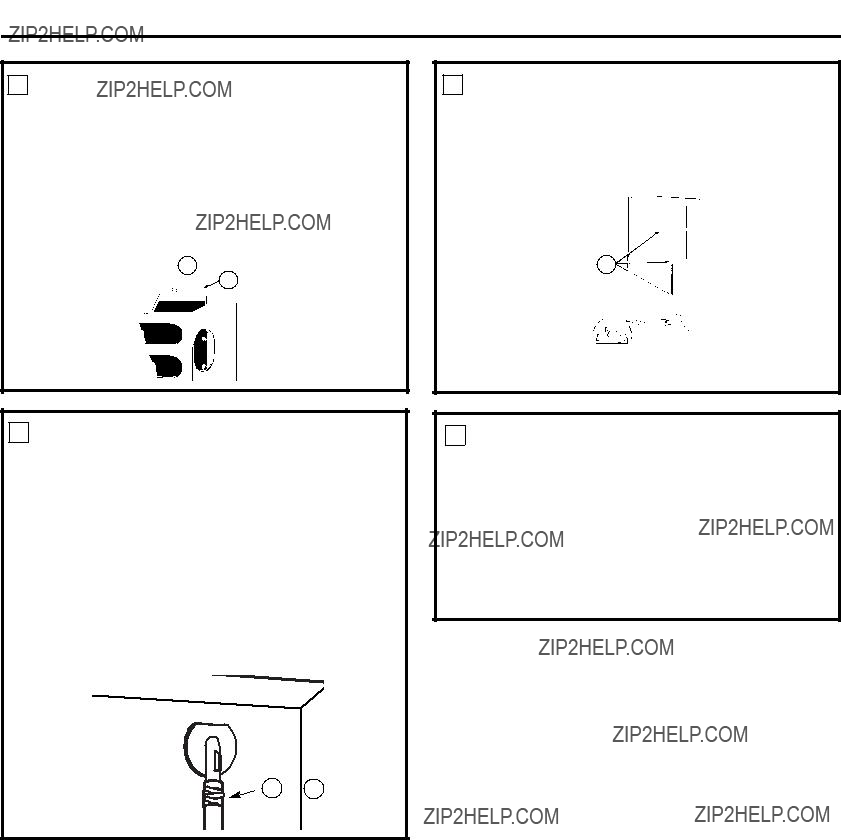

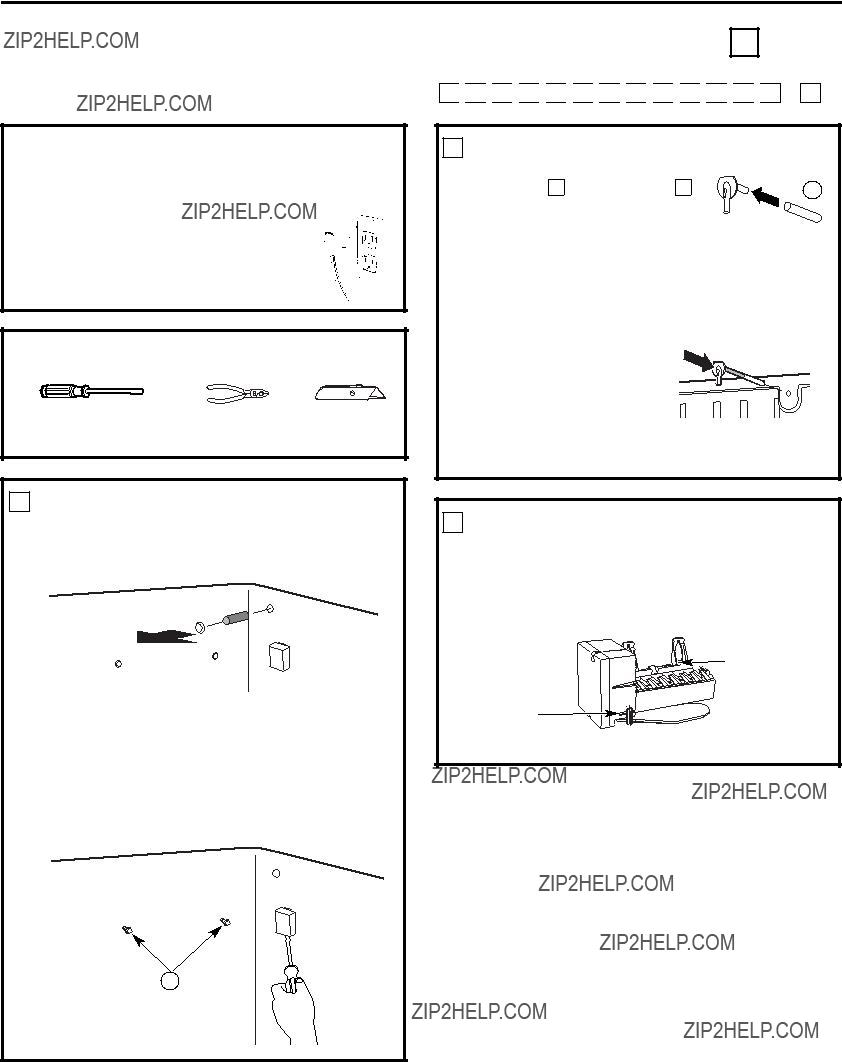

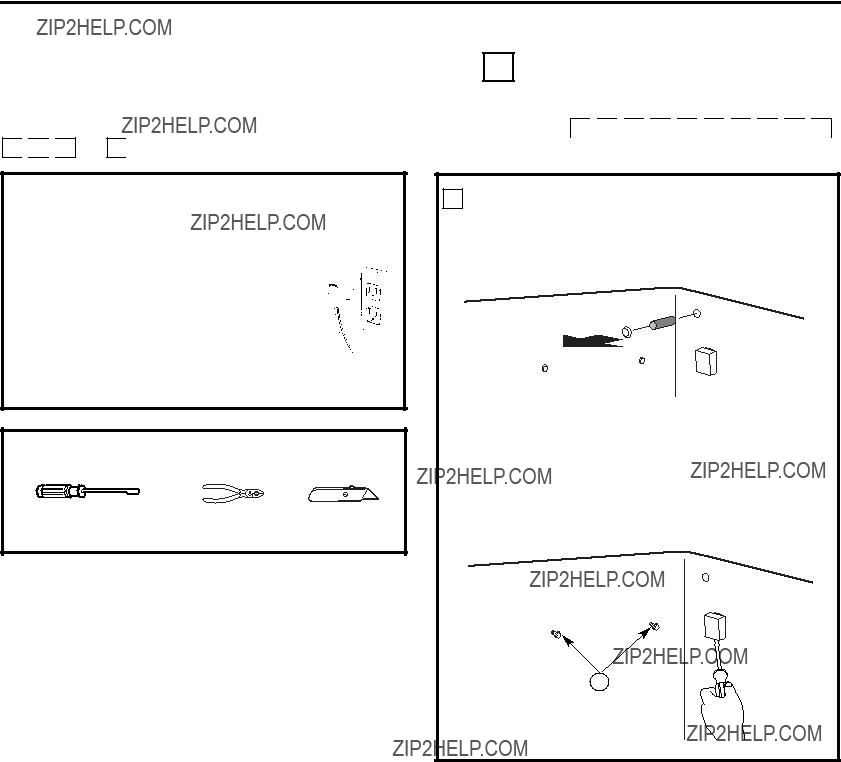

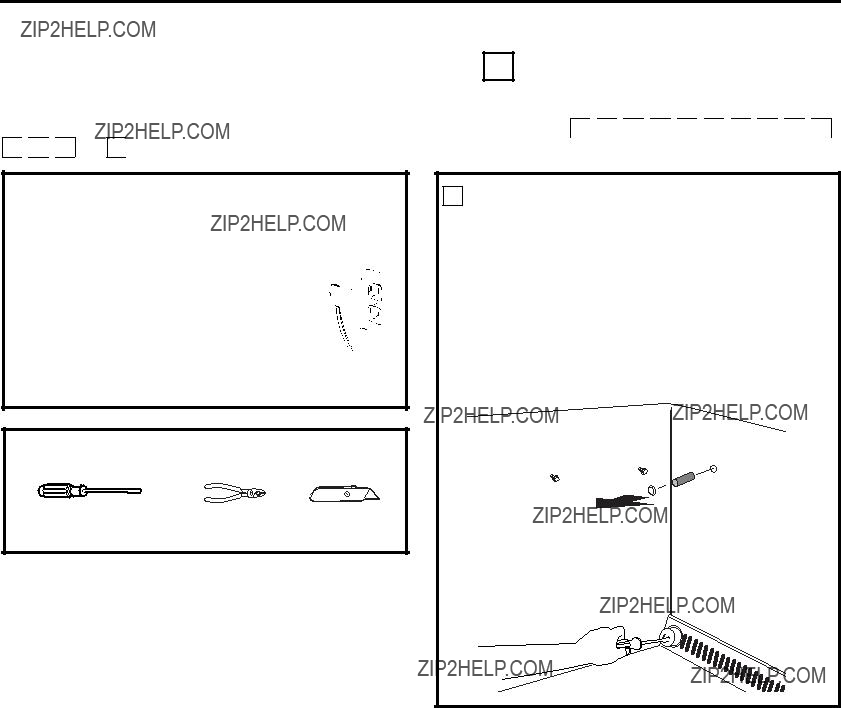

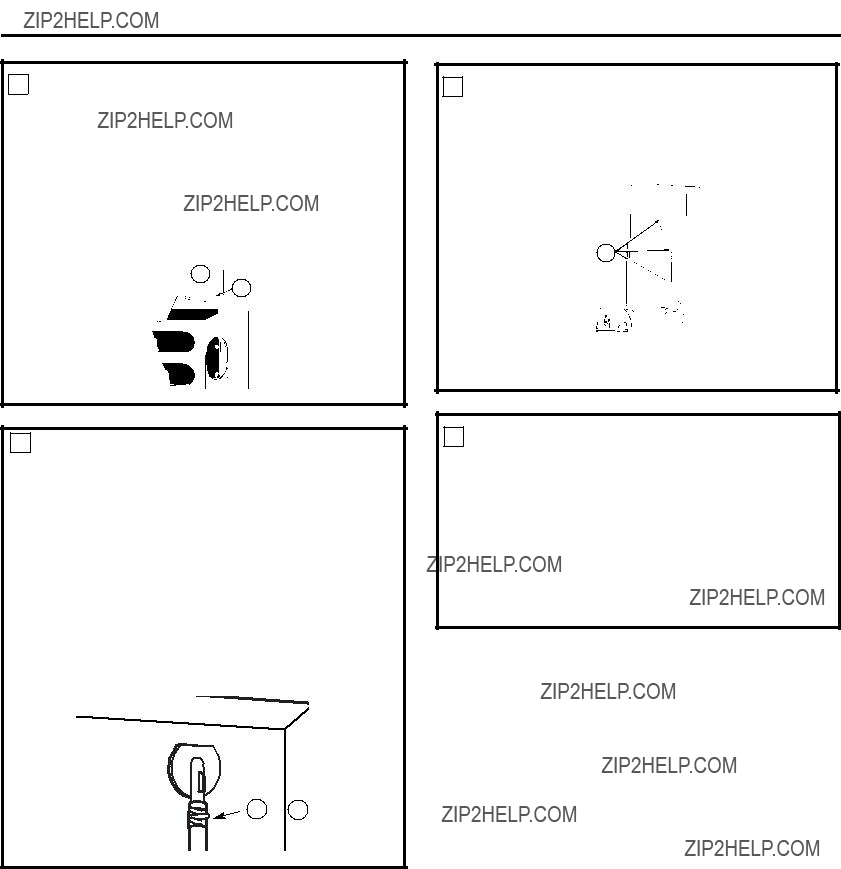

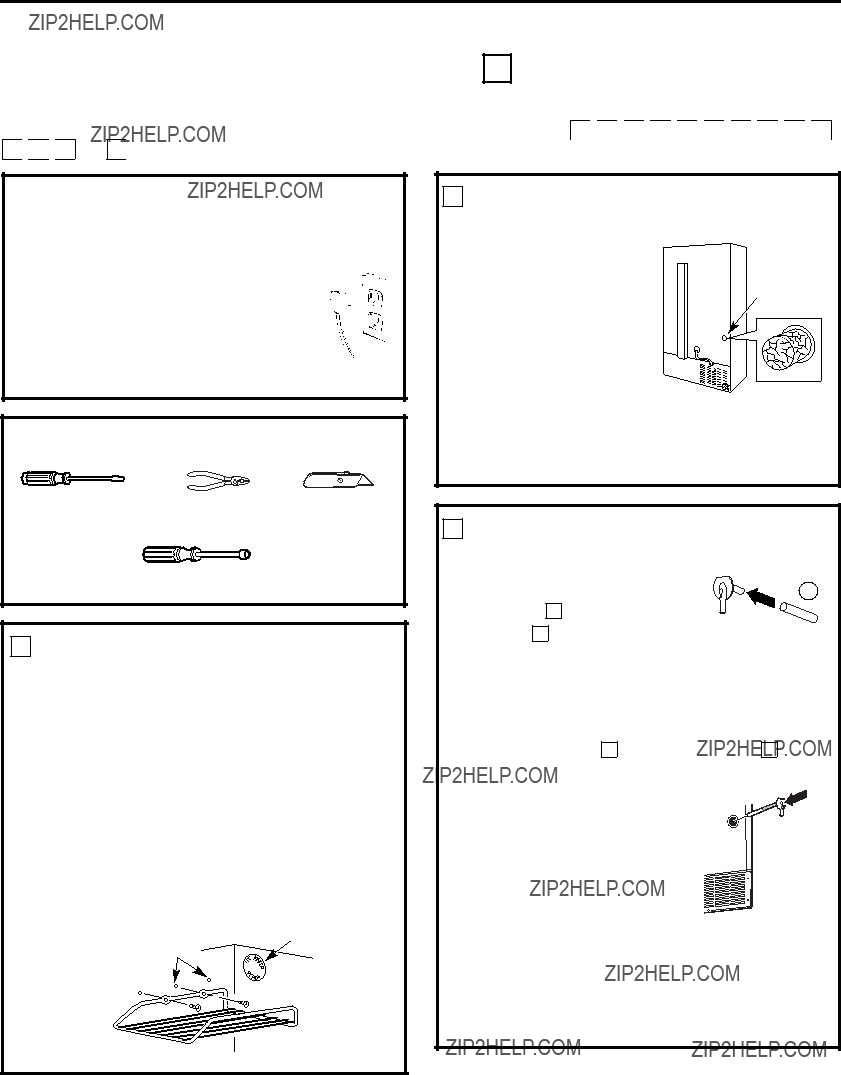

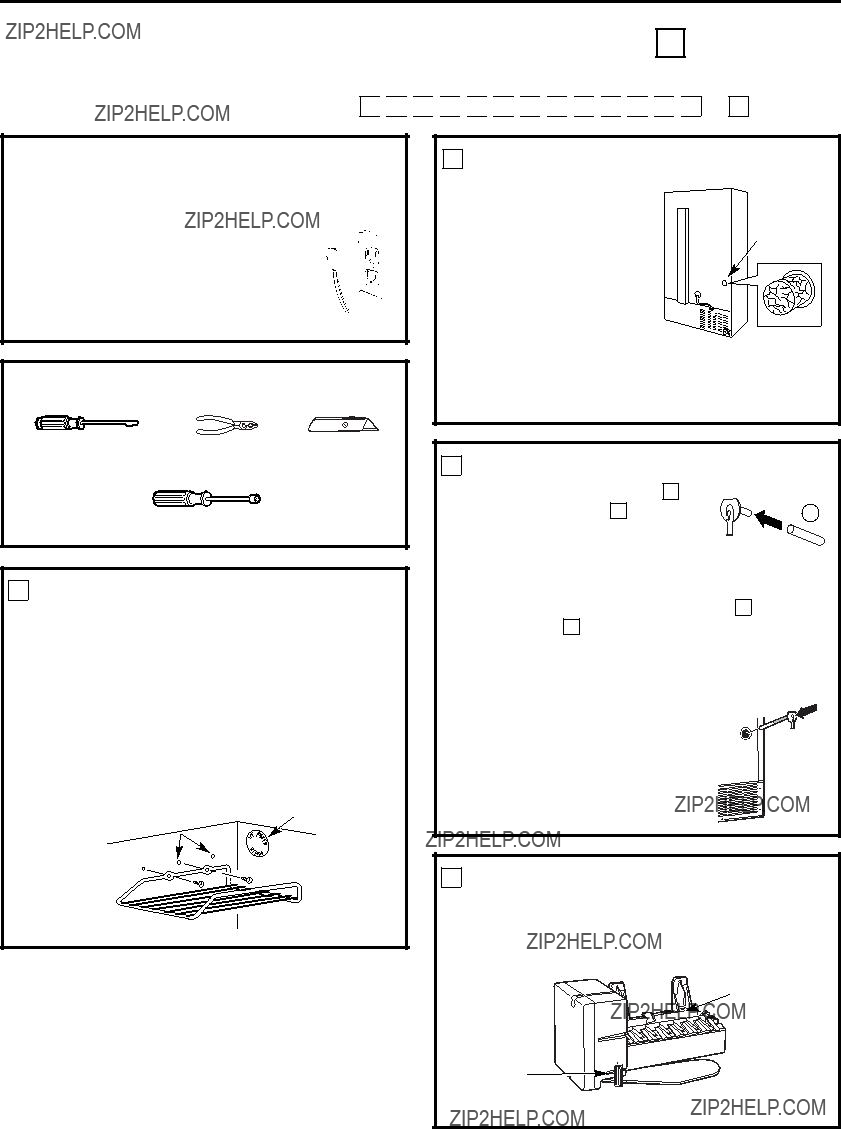

1 REMOVE PLUG COVER

Remove the electric plug cover.

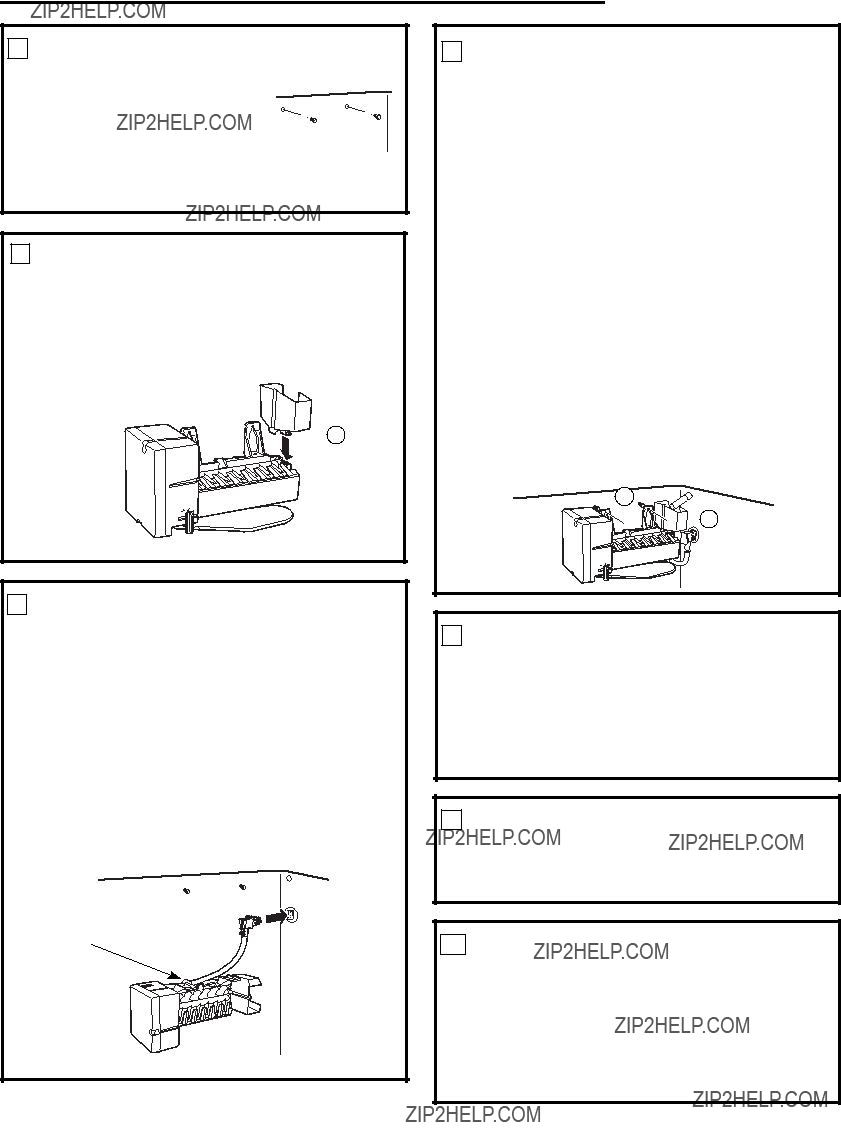

2 LOOSEN MOUNTING SCREWS

Loosen the two mounting screws (A) but do not screw them all the way out. The screws should extend approximately 1/2??? (13 mm) out from the freezer wall.

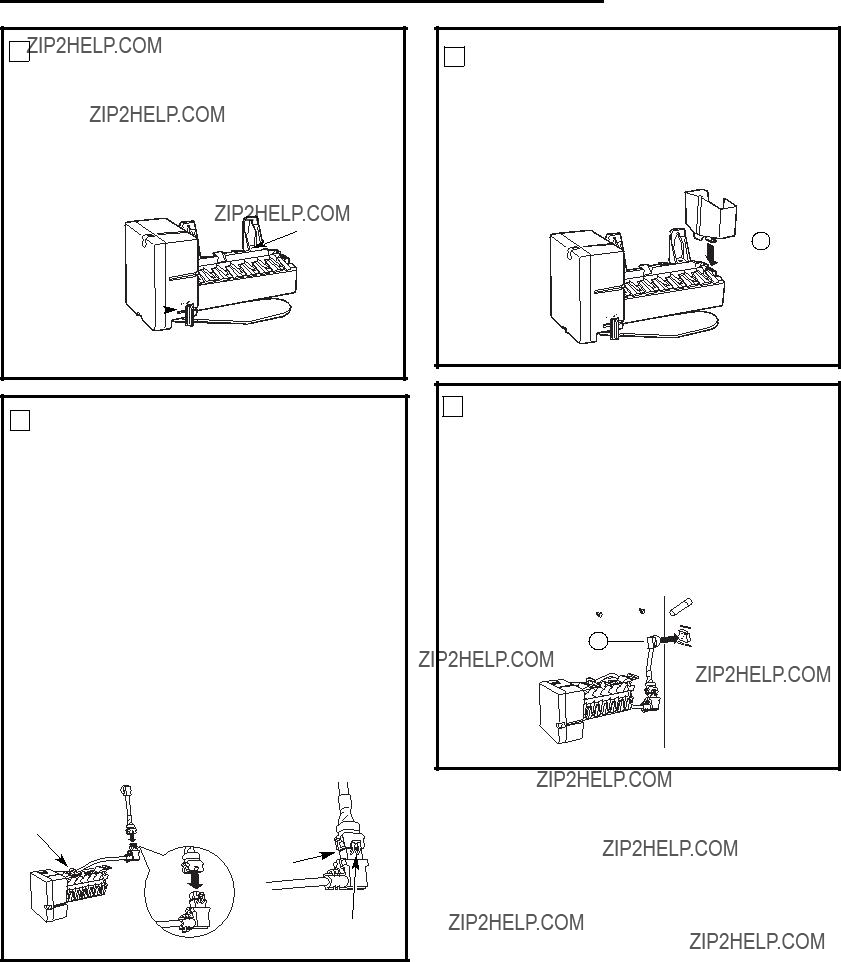

4 SET POWER SWITCH TO OFF

Set the icemaker power switch to OFF. Leave the power switch in the OFF position until the refrigerator is connected to the water supply to prevent premature operation.

Hole for wire tie

Power

Switch

(Appearance may vary)

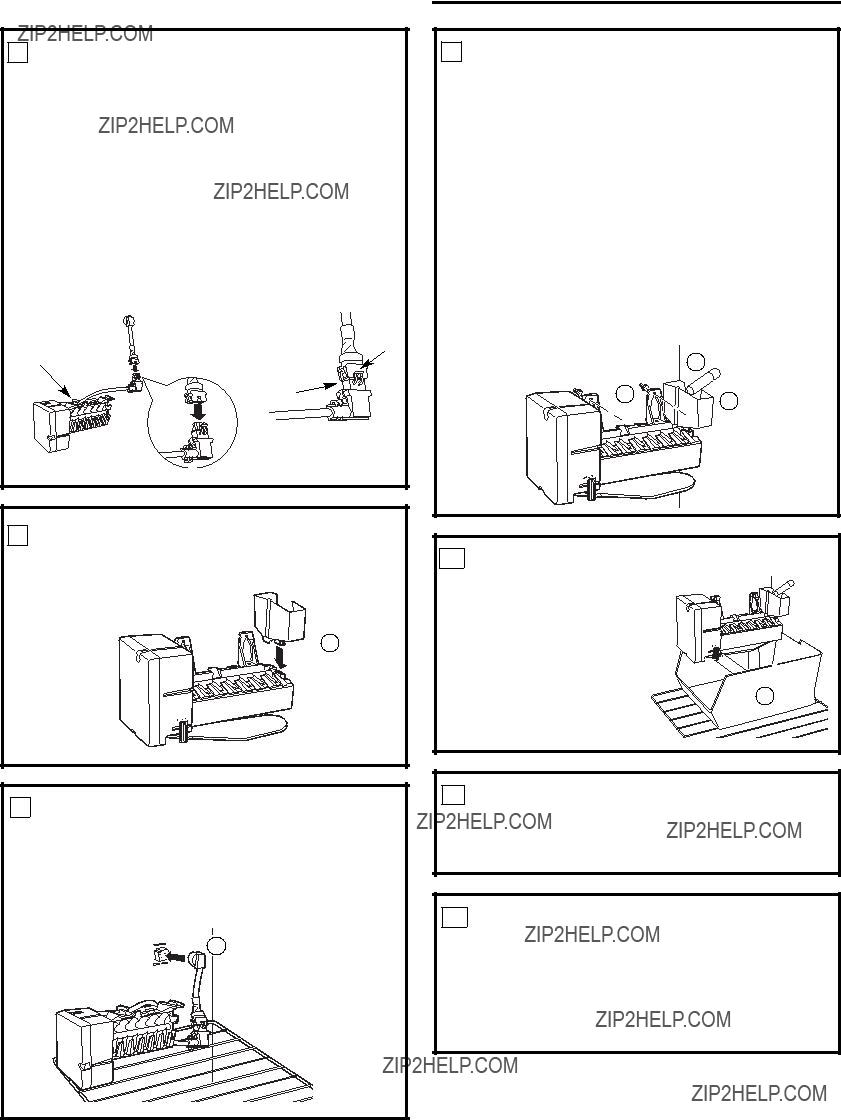

5 POWER CORD ADAPTER

(on some models)

There is a power cord adapter (18) included with the kit. Visually inspect to see if the power cord on the icemaker matches the socket on the rear wall of the freezer compartment. If needed, secure the adapter to the side of the icemaker power cord. When connecting the adapter to the power cord, make sure the seal is in place between the connectors, and ensure that both connector locks are snapped in place. Secure the power cord adapter to the icemaker by putting it into the hook at the back of the icemaker and attaching it to the icemaker with a wire tie (20).

Locks

Hook

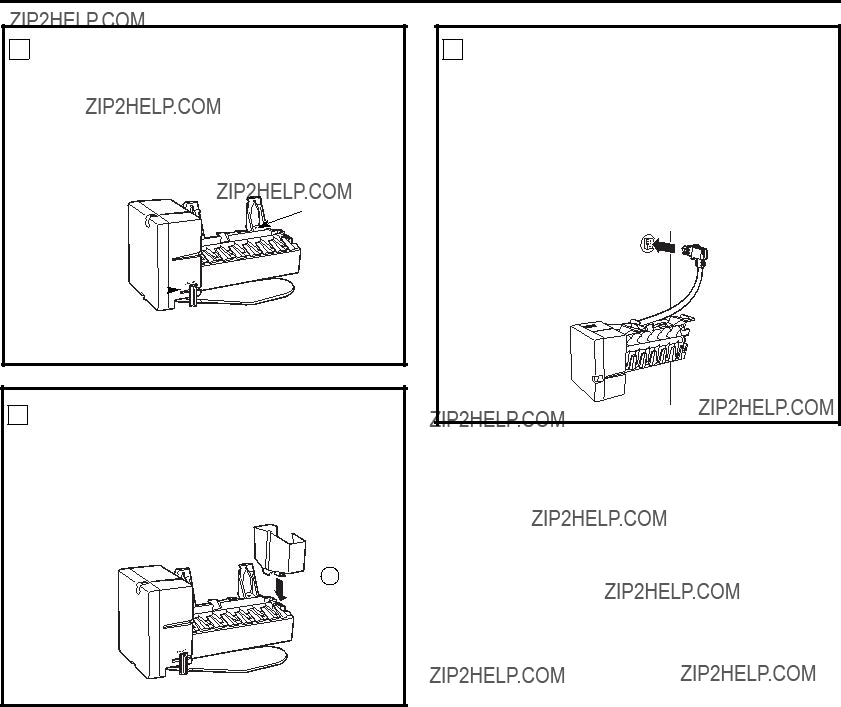

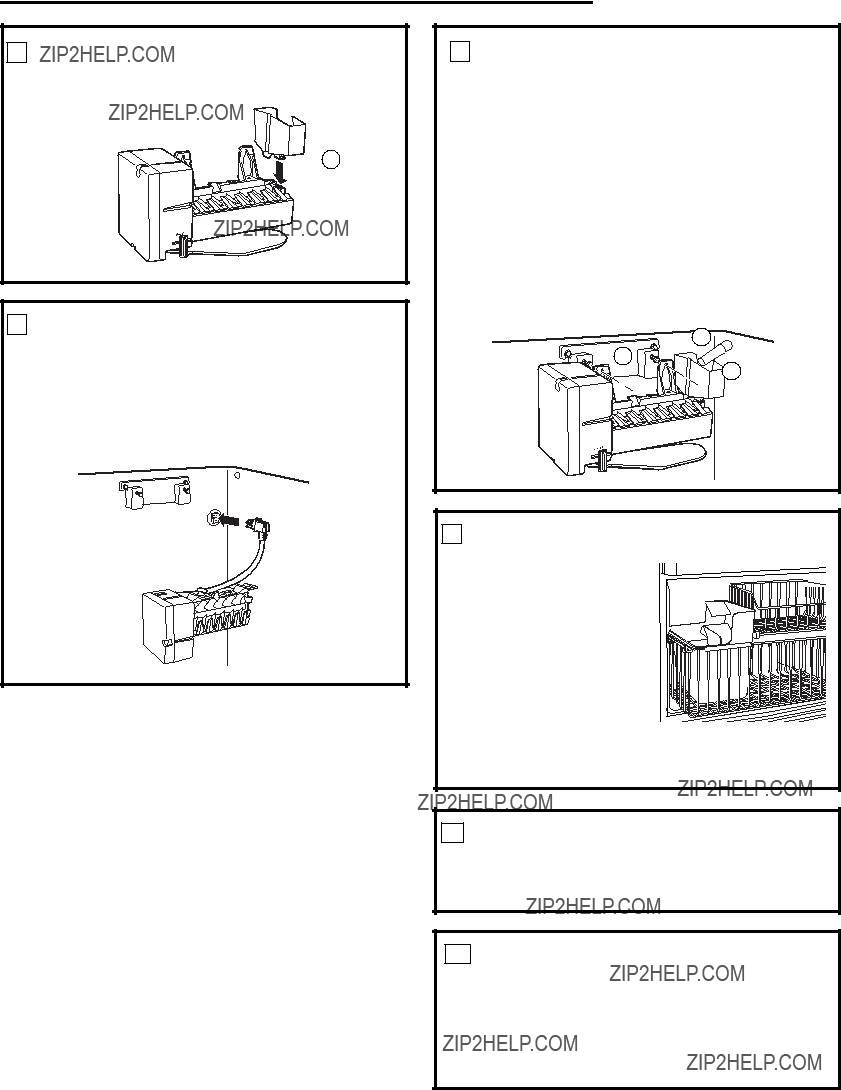

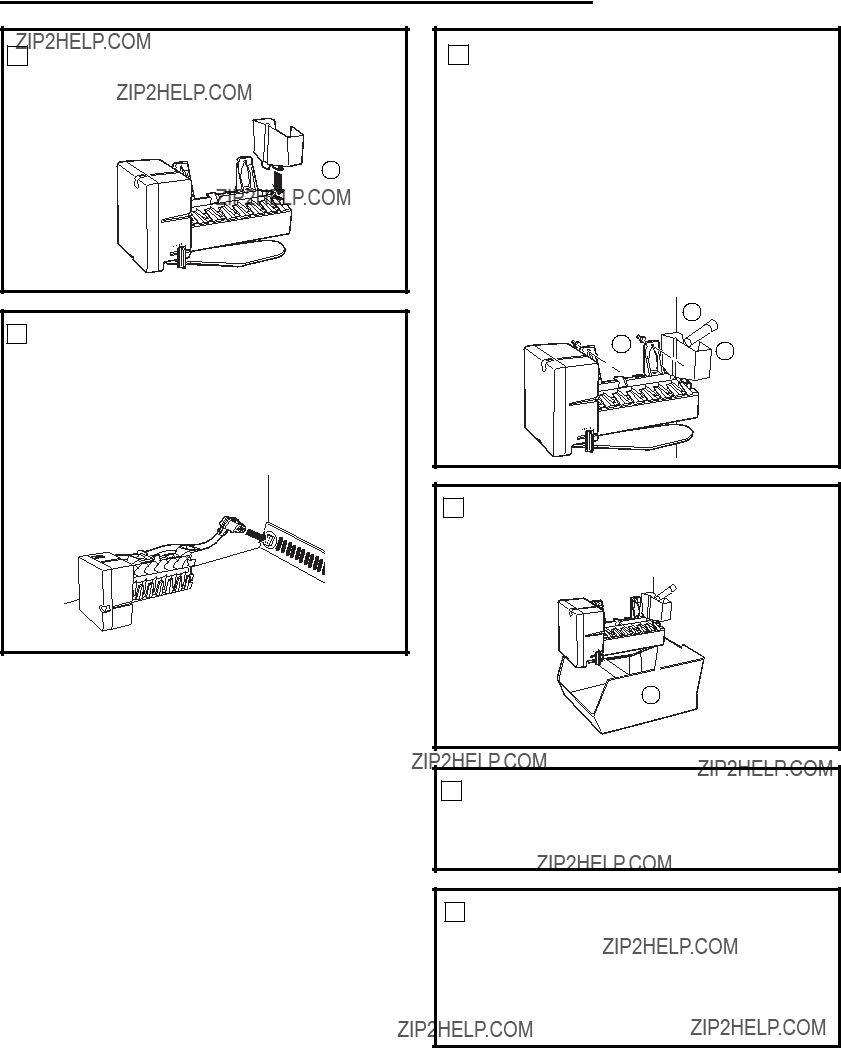

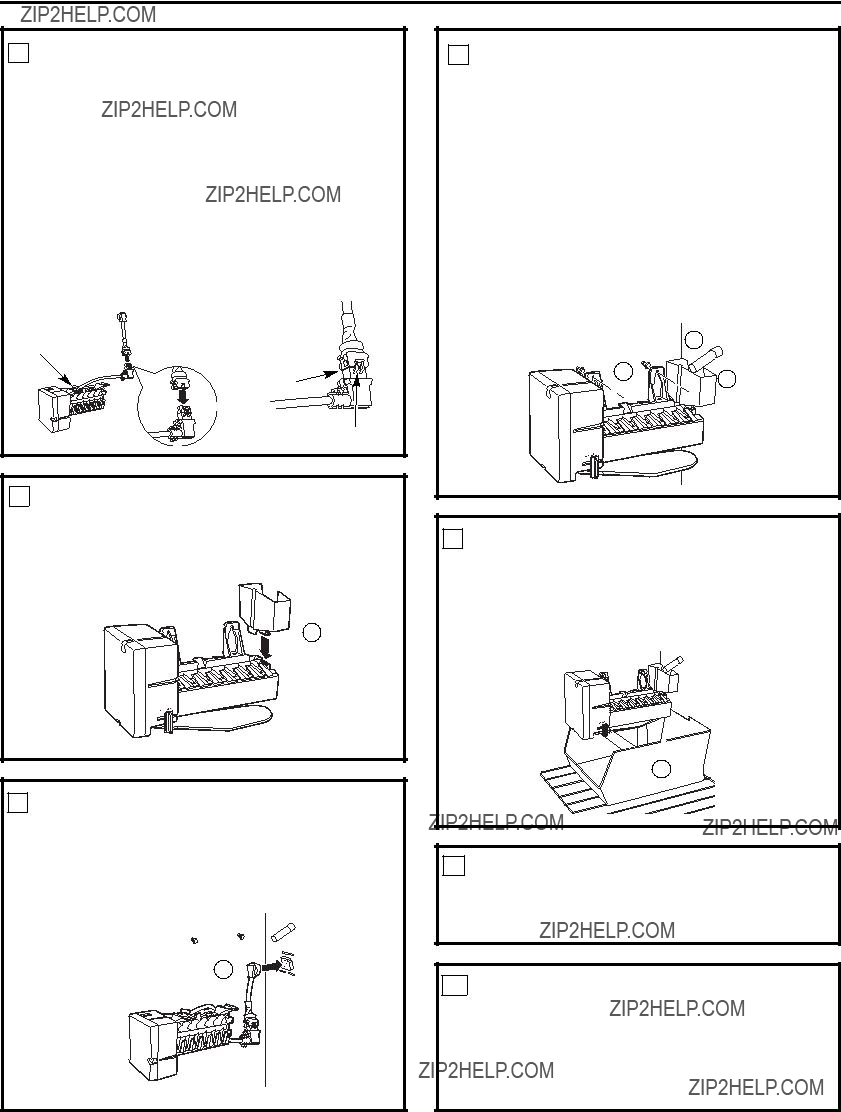

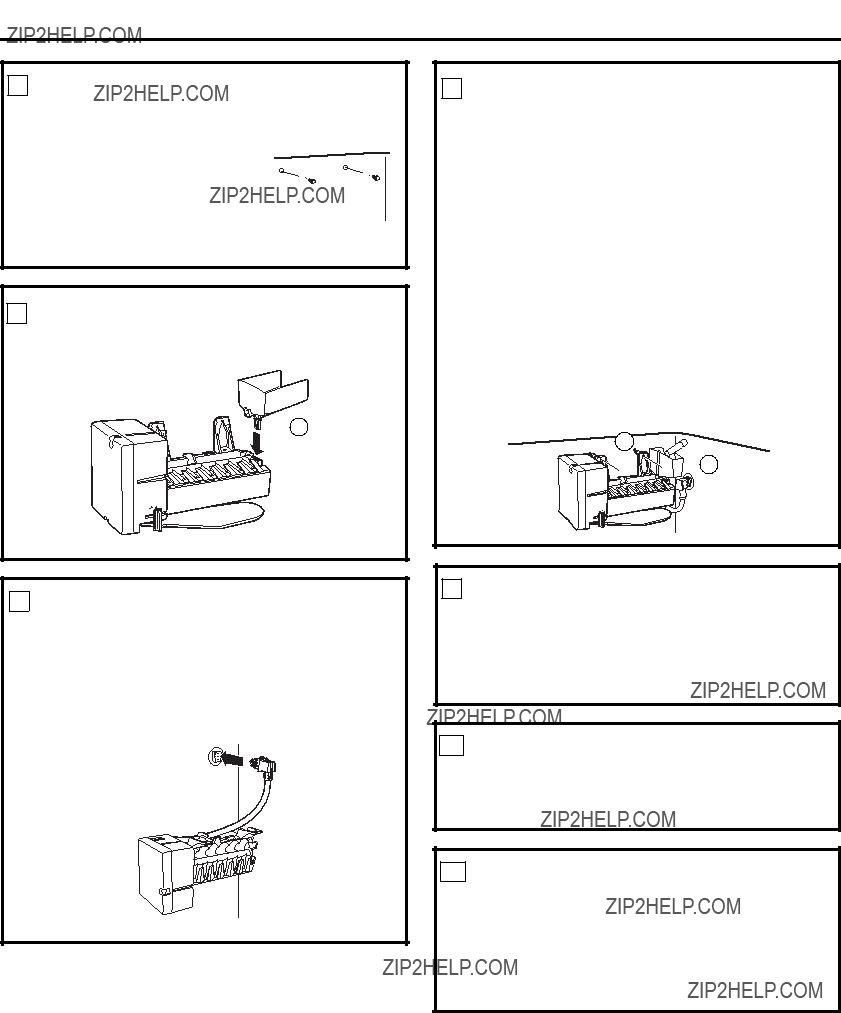

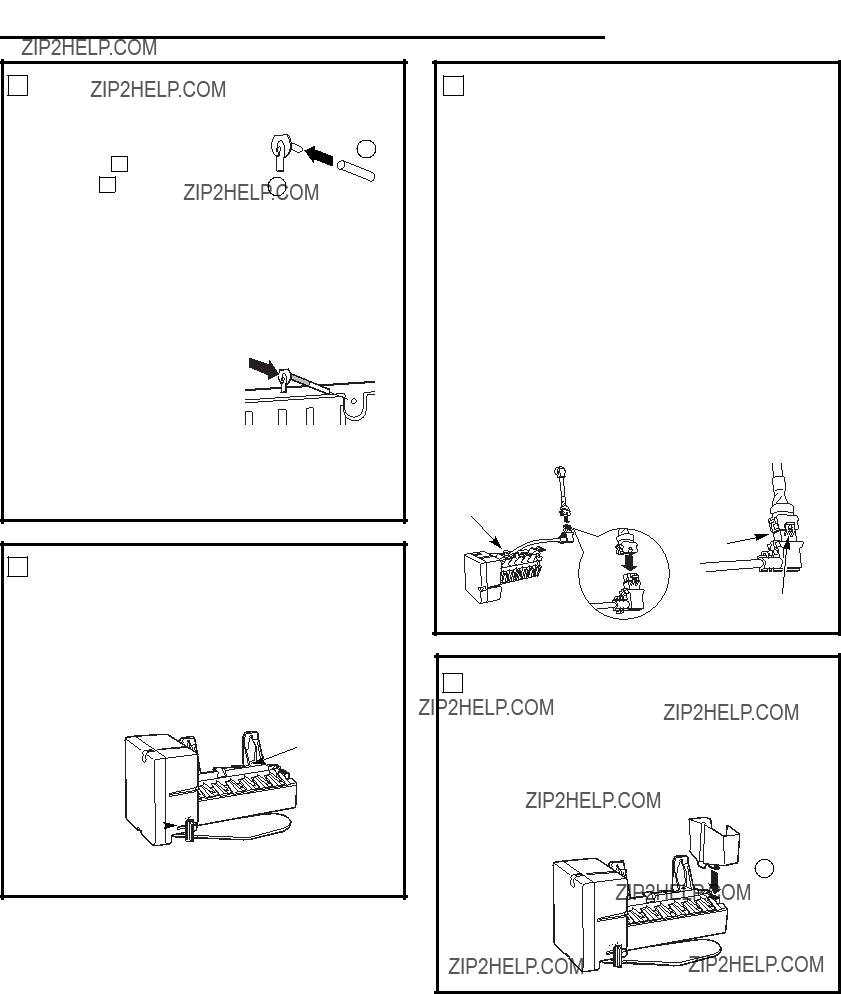

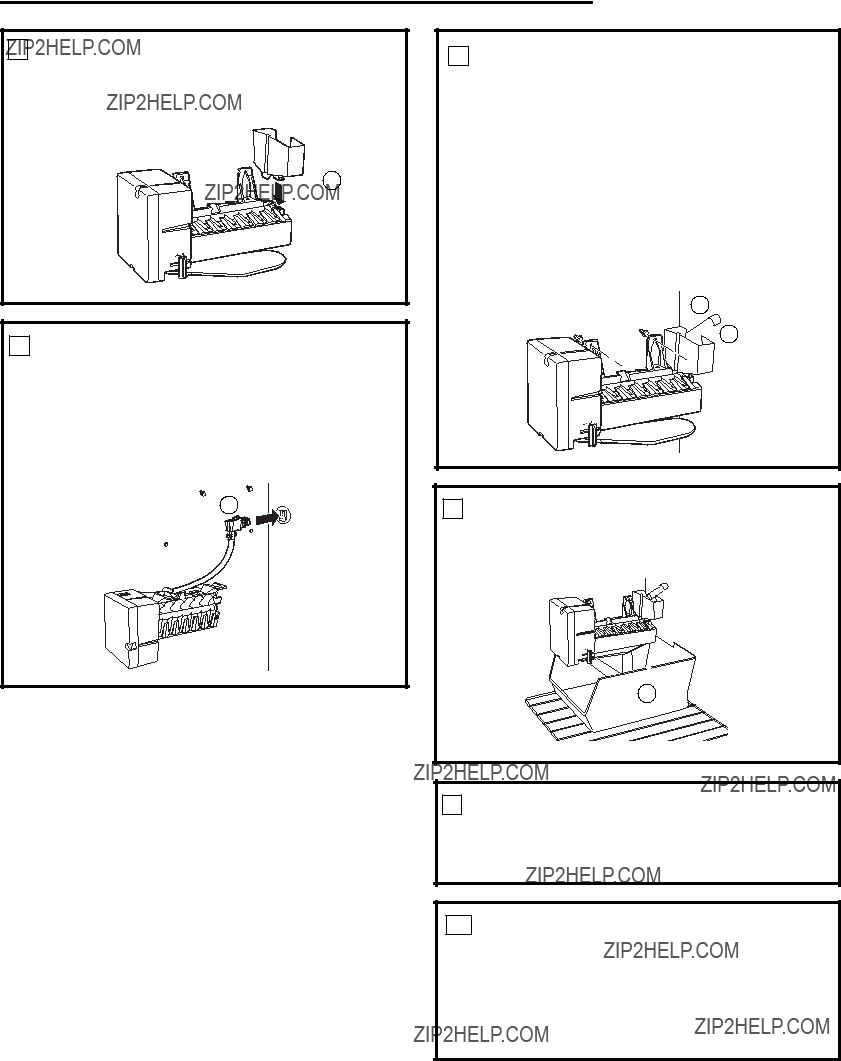

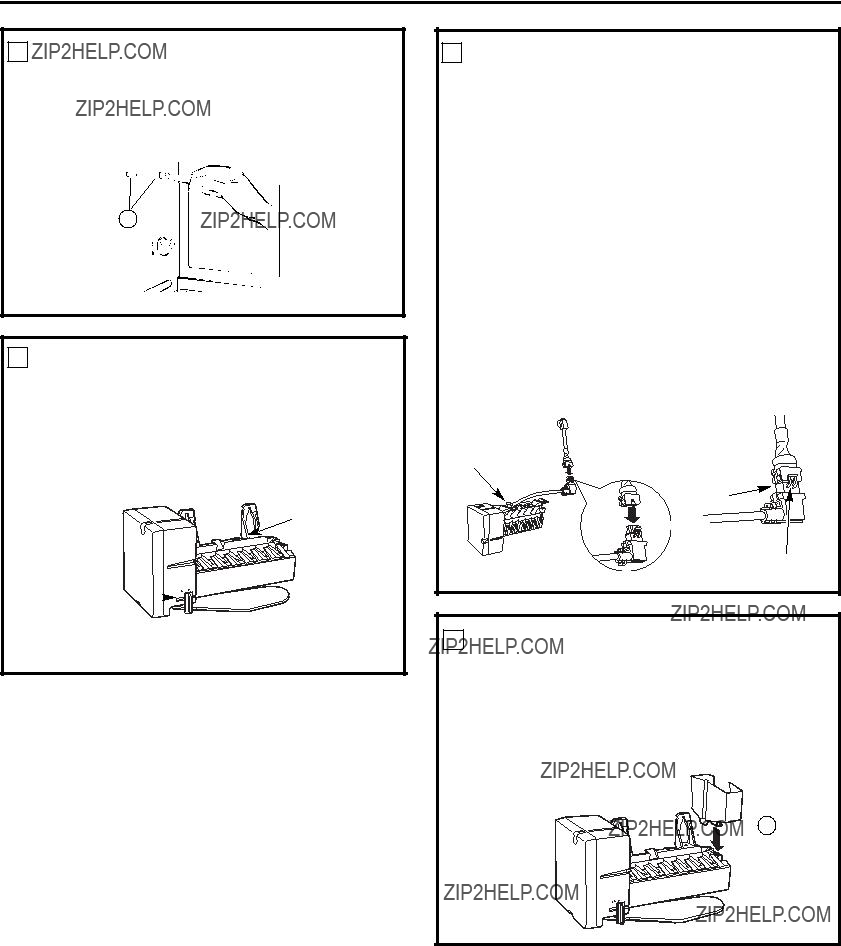

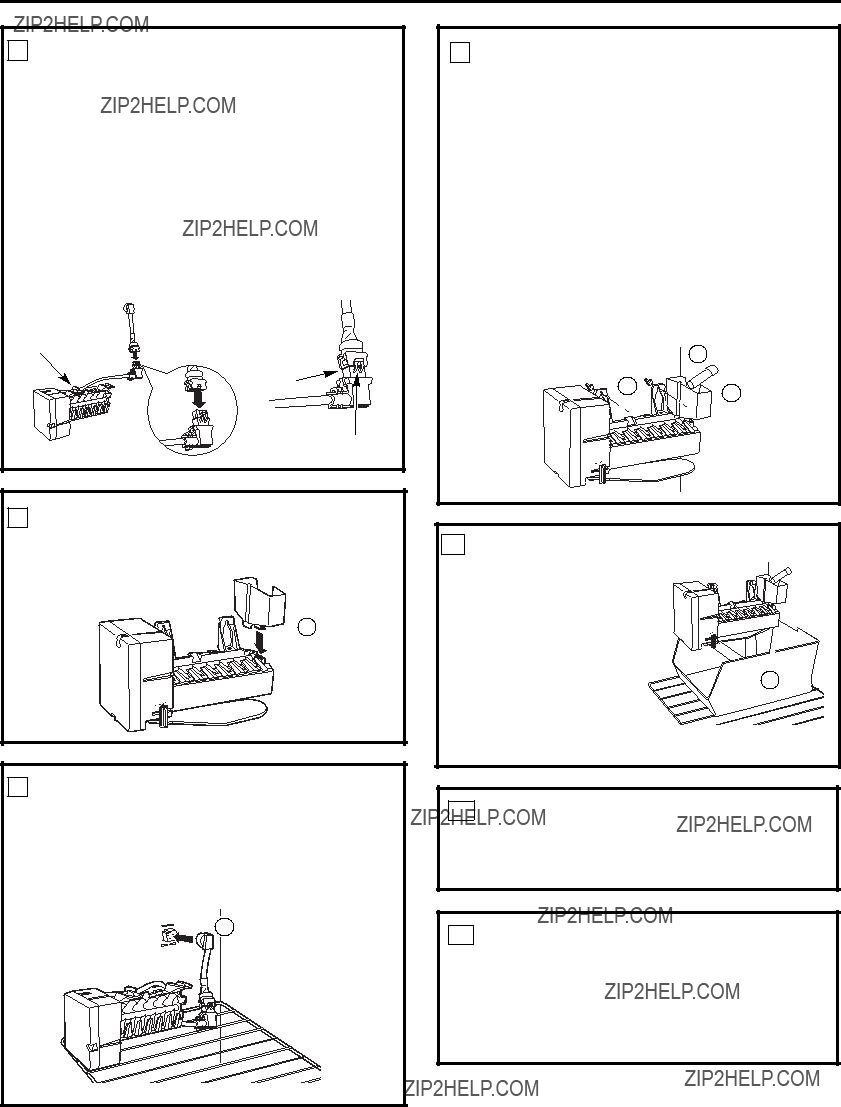

6 INSTALL THE ICEMAKER FILL CUP

Install the icemaker fill cup (side-mounted) (17) into the icemaker as shown.

17

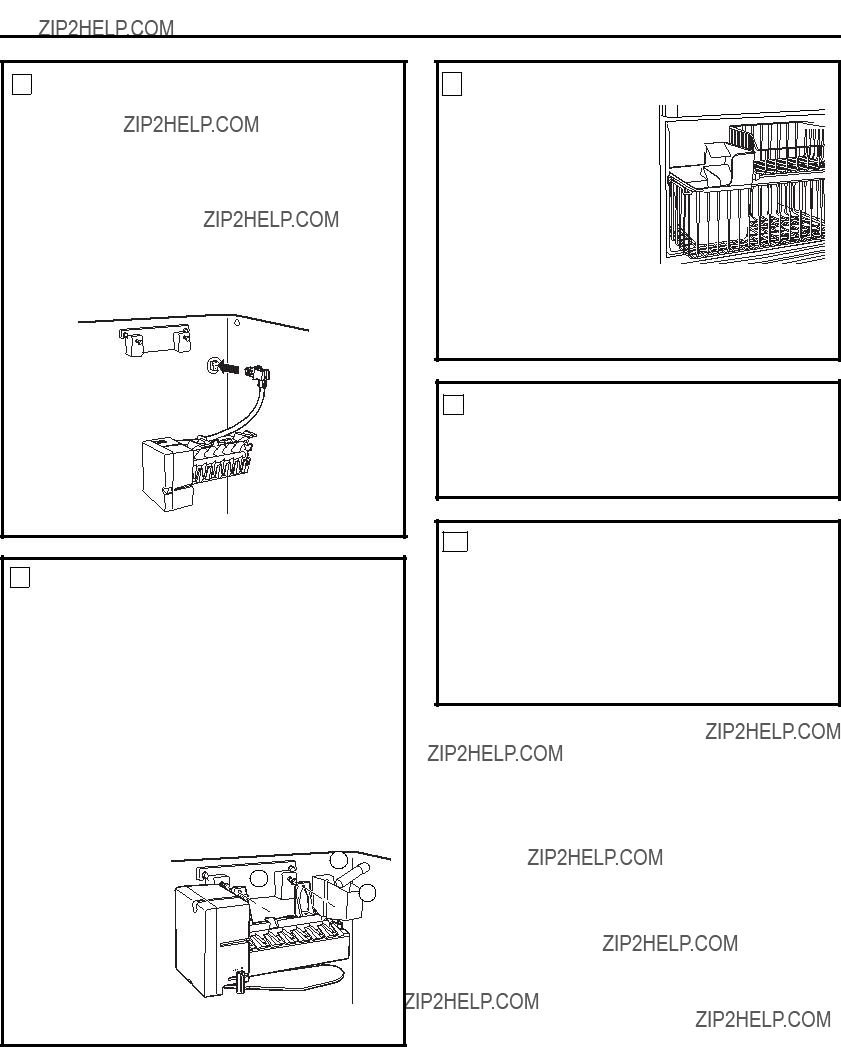

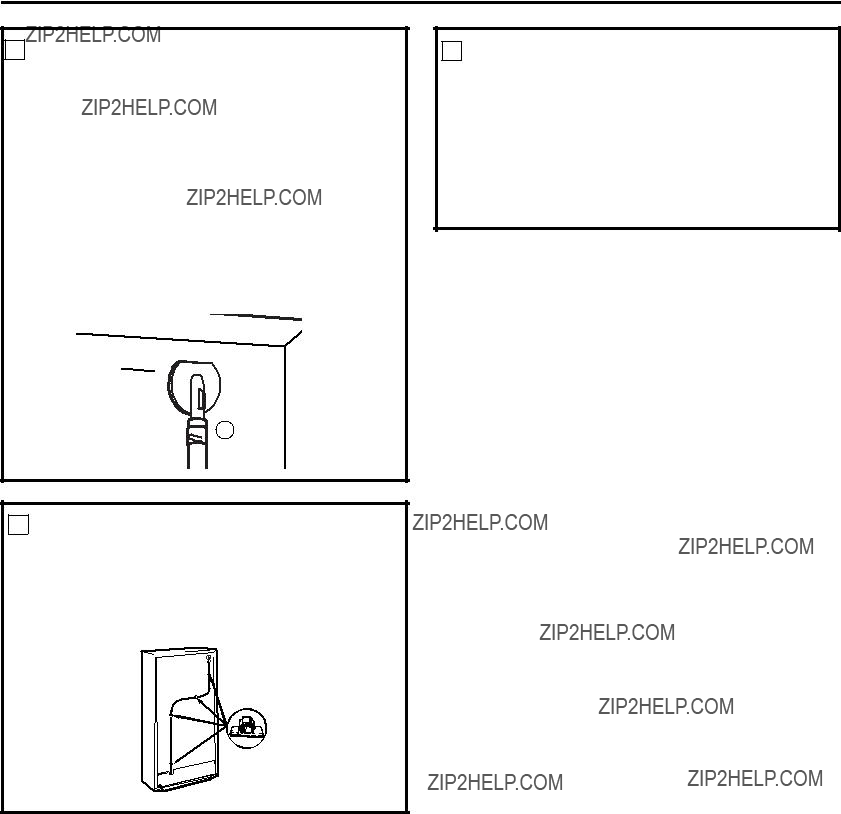

7 PLUG IN THE ICEMAKER

Hold the icemaker in the freezer compartment as shown. Insert the icemaker power cord plug (B) into the socket on the rear wall, making sure the prongs and holes are matched. If holes do not match, see Step 5. Press the plug firmly into

the socket.

B

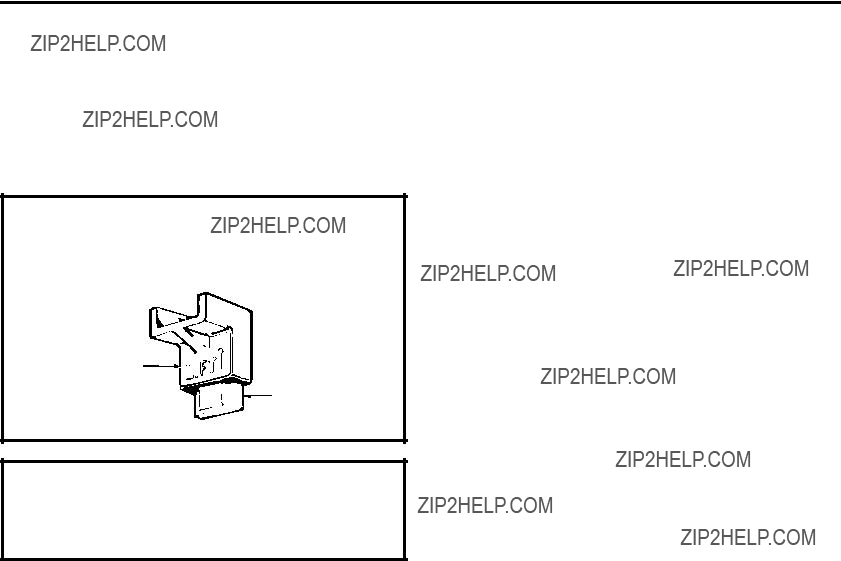

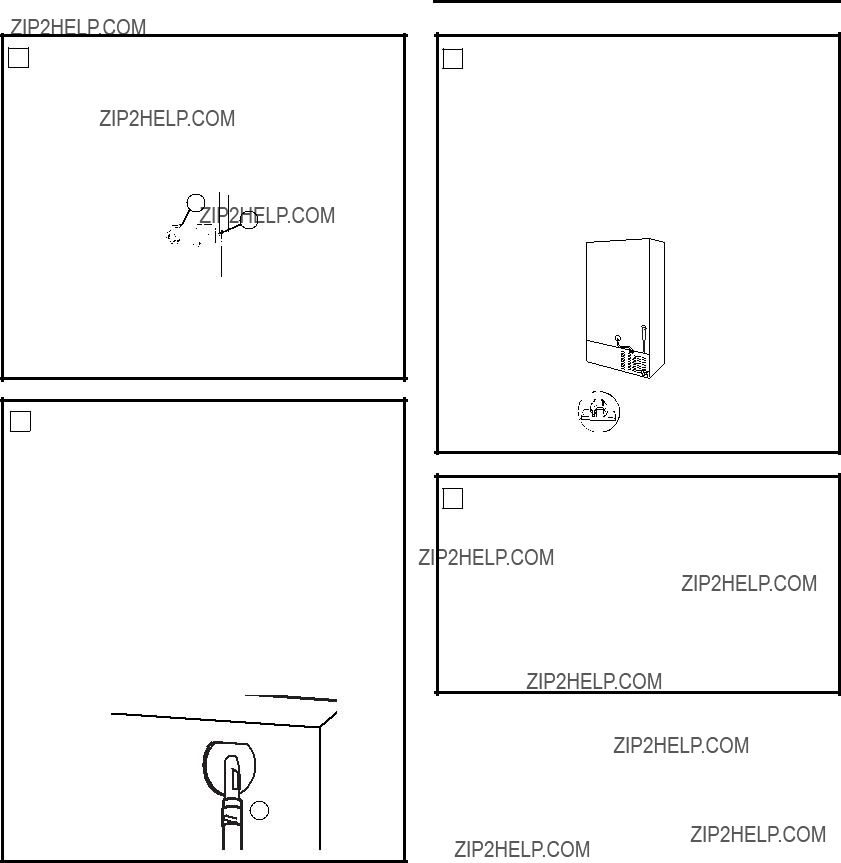

8REINSTALL THE ELECTRIC PLUG

COVER

If the plug cover removed in Step 1 matched Figure 1, continue to Step 9.

If the plug cover removed in Step 1 matched Figure 2, it must be reinstalled.

???Remove the break-out tab on the left side of the cover. Hold the cover and twist off the tab with pliers.

???Place the cover over the electric plug with the power cord running through the opening.

???Insert the tabs in the top or bottom and snap the other end in place.

IMPORTANT: This cover will help keep the electric plug from coming out of the socket when mounting the icemaker. Be sure to install it now.

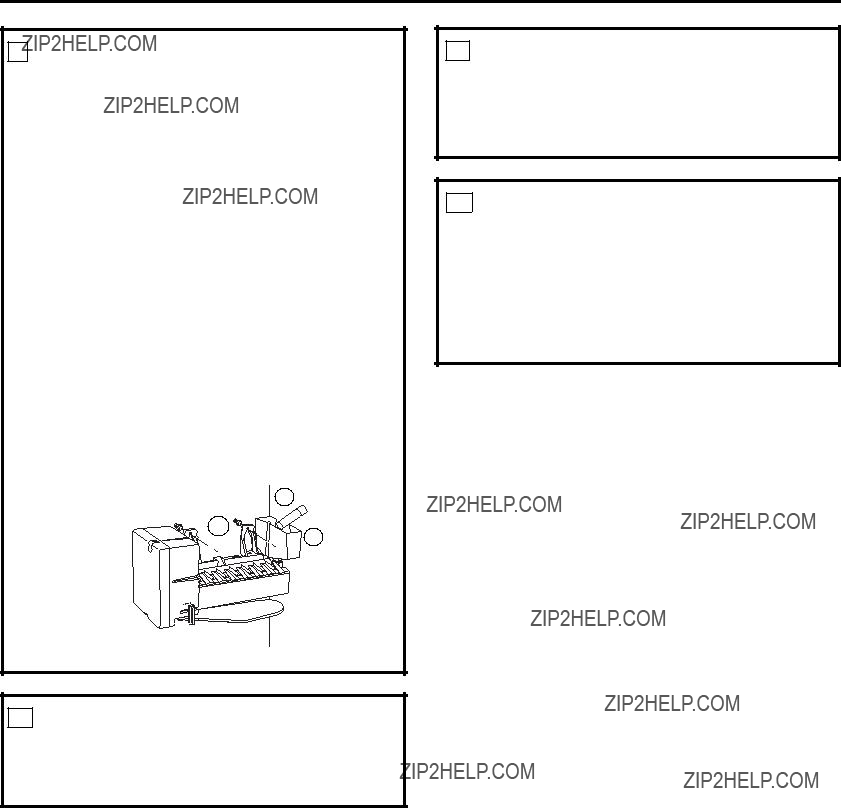

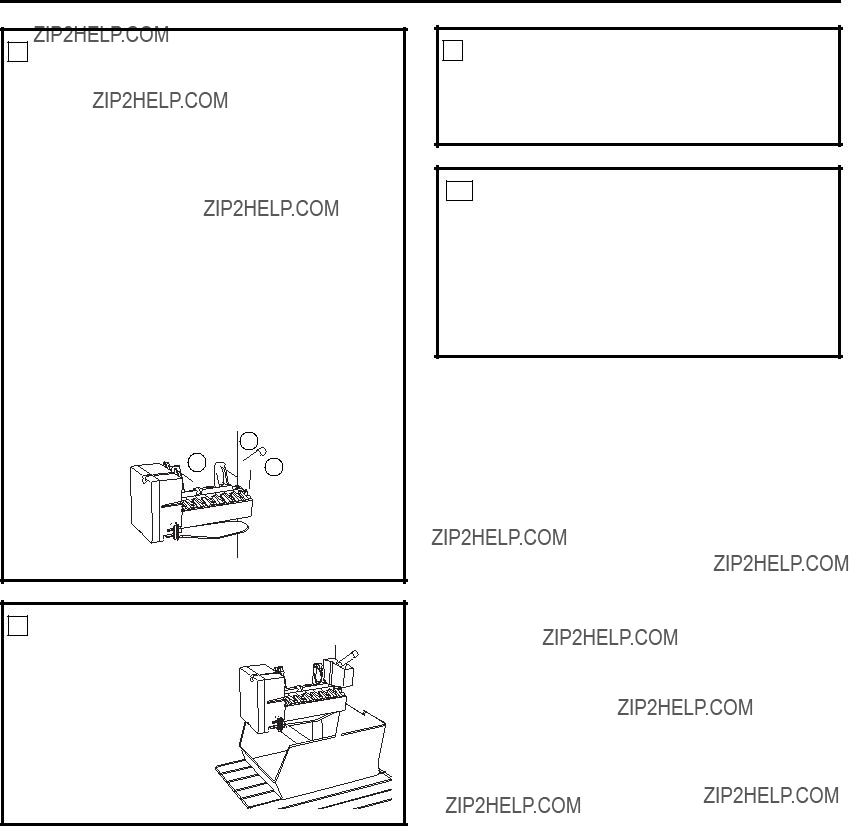

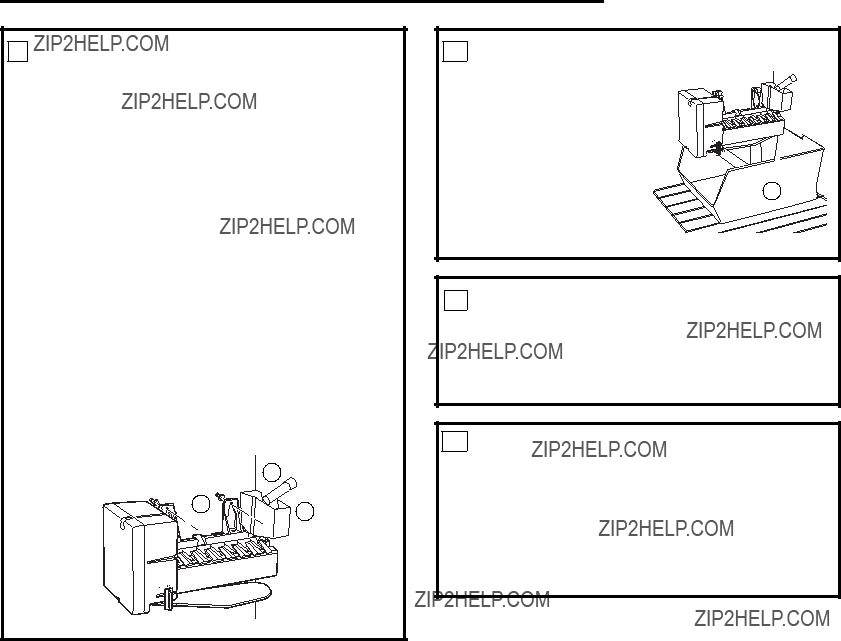

9 MOUNT THE ICEMAKER

???Lift the icemaker so the fill tube extension (10) fits in the fill cup opening (C). Hang the icemaker on the two mounting screws (A).

Make sure:

???The power cord is still firmly in the socket.

???The fill tube extension (10) is still in the fill cup opening. (Check the rear of the refrigerator to make sure the fill tube has not been pushed out of the back of the refrigerator.)

???The icemaker mounting screws are located in the uppermost position of the mounting slots.

10 INSTALL THE ICE BUCKET

Put the ice bucket (11) directly under the icemaker (to the left and all the way to the rear of the shelf under the icemaker).

The cantilever shelf???s top hooks should be in the 6th slot up from the bottom of the track.

Make sure the icemaker power switch is set to OFF.

11 ATTACH WARRANTY LABEL

A label (9) is provided with this kit to record the date of installation for warranty purposes. Apply it to the back of the refrigerator.

12 KEEP THIS MANUAL

The warranty for the icemaker is printed in this manual. Keep this manual with your Refrigerator Owner???s Manual.

The icemaker installation inside the freezer is now complete. Continue to the Water Valve Assembly section.

BEFORE YOU BEGIN

Read each step thoroughly before proceeding.

??? CAUTION ??? Unplug the Refrigerator. To eliminate the danger of electric shock during installation, you must unplug the refrigerator from its electrical outlet.

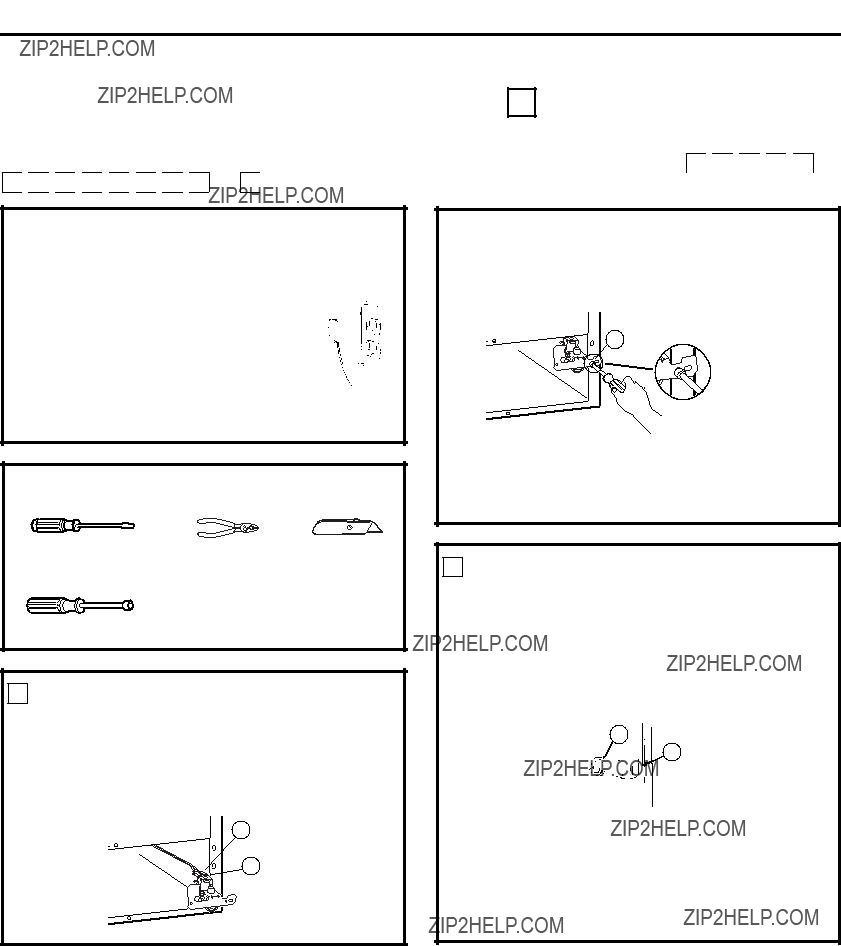

TOOLS YOU WILL NEED

1/4??? Nutdriver

1 REMOVE THE COVER

At the bottom rear of the refrigerator, remove the screw(s) holding the compressor compartment cover (if covered) and save for reinstallation later. Bend the cover back for access to the compartment.

2 ATTACH THE WATER VALVE

???Locate the female connector plug (C) which is attached to the cabinet by a metal or plastic clip. Remove the clip by removing the screw. Save the screw for mounting the water valve later. Discard

the clip.

C

???Plug the female connector (C) onto the male terminals on the water valve (4). Either wire can go on either terminal.

C

4

???Fasten the water valve to the cabinet edge hole using the hex-head screw that you removed at the beginning of Step 2.

DO NOT DRILL ANY ADDITIONAL HOLES.

???Check the plastic water line nut on the bottom of the water valve to be sure it is hand tight.

DO NOT USE TOOLS.

3INSTALL WATER LINE CLAMP

???Attach the metal water line clamp (strain relief)

(8) to the refrigerator. Drive one of the screws, removed in Step 1, into the cabinet edge through the clamp and hole in compressor cover.

???The metal clamp is for the house water line (see Water Line Installation Instructions). It is not to be used for the tubing from the water valve up to the icemaker.

Screw

8

4CONNECT THE WATER LINE

???Remove the small plastic cap (B) from the bottom of the water tube inlet located in the upper-right rear corner of the refrigerator.

???Squeeze the ends of the hose clamp (6) from the kit with pliers and slide the clamp over the water tube inlet.

???While still squeezing the clamp, insert the

plastic water line into the inlet as far as it will go (approximately 1??? [25 mm]).

???Then slide the clamp downward to capture the plastic water line in place.

???Make sure the fill tube is aimed down.

5 ATTACH THE PLASTIC WATER LINE

Fasten the plastic water line to the back of the cabinet with adhesive-backed fasteners (5), spacing the fasteners as shown to take up the slack in the line.

5

Adhesive-backed fasteners for plastic water line

6 WATER VALVE INSTALLED

Refer to the Water Line Installation Instructions for connection to the home water supply. After water line installation is completed, set the icemaker power switch to ON.

The icemaking cycle will not begin until the icemaker and freezer compartment reach operating temperature, then icemaking will begin automatically.

BEFORE YOU BEGIN

Read each step thoroughly before proceeding.

??? CAUTION ??? Unplug the Refrigerator. To eliminate the danger of electric shock during installation, you must unplug the refrigerator from its electrical outlet.

TOOLS YOU WILL NEED

1 INSTALL WATER TUBE INLET

If the refrigerator already has a water tube inlet on the back of the refrigerator, go to Step 2.

??? Cut the fill tube (16) to the G length (refer to

???Find the small label in the

upper right hand corner on the back of the refrigerator. Peel off the label.

???On the tube side of the water tube inlet (15) there

is an adhesive backing. Remove the adhesive backing and slide the

tube into the hole near

the top at the back of the refrigerator. Firmly press on the inlet to secure it.

2 REMOVE PLUG COVER

3 LOOSEN MOUNTING SCREWS

Loosen the two mounting screws (B) but do not screw them all the way out. If your model does not have the screws already in the freezer wall, look for two plug buttons. Remove the plug buttons and insert the two Phillips head screws (14). The screws should extend approximately 1/2??? (13 mm) out from the freezer wall.

B

4INSTALL FILL TUBE EXTENSION

???Remove and discard the white plug from the upper left corner of the freezer wall.

???Cut the fill tube extension (10) to the G length (refer to the G template on page 67) with a sharp knife or a single-edge razor blade and slide it onto the fill tube against the stop.

5 SET POWER SWITCH TO OFF

Set the icemaker power switch to OFF. Leave the power switch in the OFF position until the refrigerator is connected to the water supply to prevent premature operation.

Hole for wire tie

Power

Switch

(Appearance may vary)

6 POWER CORD ADAPTER

(on some models)

There is a power cord adapter (18) included with

the kit. Visually inspect to see if the power cord on the icemaker matches the socket on the side wall of the freezer compartment. If needed, secure the adapter to the side of the icemaker power cord. When connecting the adapter to the power cord, make sure the seal is in place between the connectors, and ensure that both connector locks are snapped in place. Secure the power cord adapter to the icemaker by putting it into the hook at the back of the icemaker and attaching it to the icemaker with a wire tie (20).

Locks

Hook

Seal

9MOUNT ICEMAKER

???Lift the icemaker so the fill tube extension (10) fits in the fill cup opening (C). Hang the icemaker on the two mounting screws (A).

Make sure:

???The power cord is still firmly in the socket.

???The fill tube extension (10) is still in the fill cup opening. (Check the rear of the refrigerator to make sure the fill tube has not been pushed out of the back of the refrigerator.)

???The icemaker mounting screws are located in the uppermost position of the mounting slots.

THEN TIGHTEN THE ICEMAKER MOUNTING SCREWS

SECURELY.

10

A

C

7 INSTALL THE ICEMAKER FILL CUP

Install the icemaker fill cup (side-mounted) (17) into the icemaker as shown.

17

10 INSTALL THE ICE BUCKET

Put the ice bucket (11) directly under the icemaker (to the left and all the way to the rear of the shelf under the icemaker).

8 PLUG IN THE ICEMAKER

Hold the icemaker in the freezer compartment as shown. Insert the icemaker power cord plug (D) into the socket, making sure the prongs and holes are matched. If holes do not match, see Step 6. Press the plug firmly into the socket.

D

11 ATTACH WARRANTY LABEL

A label (9) is provided with this kit to record the date of installation for warranty purposes. Apply it to the back of the refrigerator.

12 KEEP THIS MANUAL

The warranty for the icemaker is printed in this manual. Keep this manual with your Refrigerator Owner???s Manual.

The icemaker installation inside the freezer is now complete. Continue to the Water Valve Assembly section.

19

BEFORE YOU BEGIN

Read each step thoroughly before proceeding.

??? CAUTION ??? Unplug the Refrigerator. To eliminate the danger of electric shock during installation, you must unplug the refrigerator from its electrical outlet.

2ATTACH THE WATER VALVE

??? Locate the female connector plug (B).

B

TOOLS YOU WILL NEED

1/4??? and 5/16??? Nutdrivers

???Plug the female connector (B) onto the male terminals on the water valve wire extension (19). Either wire can go on either terminal.

???Plug the female connector on the water valve wire extension (19) onto the male terminals on the water valve (4). Either wire can go on either terminal.

1 REMOVE THE COVER

At the bottom rear of the refrigerator, remove the screw(s) holding the compressor compartment cover (if covered) and save for reinstallation later. Bend the cover back for access to the compartment.

B

19

4

3INSTALL WATER LINE CLAMP

???Attach the metal water line clamp (strain relief)

(8) to the refrigerator. Drive the screw (7) from the kit through the clamp (8) at the indent into the back of the cabinet.

???The metal clamp is for the house water line (see the Water Line Installation Instructions). It is not to be used for the tubing from the water valve up to the icemaker.

7 8

4CONNECT THE WATER LINE

???Squeeze the ends of the hose clamp (3) or (6) from the kit with pliers and slide the clamp over the water tube inlet. (Use the black clamp (3) with

the black fill tube inlet, use the other clamp (6) with the other fill tube inlet.)

???While still squeezing the clamp, insert the

plastic water line into the inlet as far as it will go (approximately 1??? [25 mm]).

???Then slide the clamp downward to capture the plastic water line in place.

???Make sure the fill tube is aimed down.

Water tube inlet

3 or 6

5 ATTACH THE PLASTIC WATER LINE

Fasten the plastic water line to the back of the cabinet with adhesive-backed fasteners (5), spacing the fasteners as shown to take up the slack in the line.

5

Adhesive-backed fasteners for plastic water line

6 WATER VALVE INSTALLED

Refer to the Water Line Installation Instructions for connection to the home water supply. After water line installation is completed, set the icemaker power switch to ON.

The icemaking cycle will not begin until the icemaker and freezer compartment reach operating temperature, then icemaking will begin automatically.

BEFORE YOU BEGIN

Read each step thoroughly before proceeding.

??? CAUTION ??? Unplug the Refrigerator. To eliminate the danger of electric shock during installation, you must unplug the refrigerator from its electrical outlet.

TOOLS YOU WILL NEED

1 PREPARE FOR INSTALLATION

??? Remove and discard the white plug from the upper left corner of the freezer wall.

Remove

plug

2INSTALL WATER TUBE INLET

???Locate the hole in the upper right corner on the back of the refrigerator and, using a knife, clear the foil from the hole.

???Remove the gray insulation plug from the hole. NOTE: It may be necessary to remove the screw from the top right condenser mounting clip for better access to the hole (see page 25, Step 4).

??? Cut the fill tube (16) to the H length (refer to the

H template on page 66), with a sharp knife or a

3 REMOVE PLUG COVER

??? Remove the electric plug cover from the left side wall and discard it.

??? Remove the screw and pull the cover off.

4 LOOSEN MOUNTING SCREWS

Loosen the two mounting screws (A) but do not screw them all the way out. The screws should extend approximately 1/2??? (13 mm) out from the freezer wall.

A

5 SET POWER SWITCH TO OFF

Set the icemaker power switch to OFF. Leave the power switch in the OFF position until the refrigerator is connected to the water supply to prevent premature operation.

Hole for wire tie

Power

Switch

(Appearance may vary)

6 POWER CORD ADAPTER

(on some models)

There is a power cord adapter (18) included with

the kit. Visually inspect to see if the power cord on the icemaker matches the socket on the side wall of the freezer compartment. If needed, secure the adapter to the side of the icemaker power cord. When connecting the adapter to the power cord, make sure the seal is in place between the connectors, and ensure that both connector locks are snapped in place. Secure the power cord adapter to the icemaker by putting it into the hook at the back of the icemaker and attaching it to the icemaker with a wire tie (20).

Locks

Hook

Seal

7 INSTALL THE ICEMAKER FILL CUP

Install the icemaker fill cup (side-mounted) (17) into the icemaker as shown.

17

9MOUNT ICEMAKER

???Lift the icemaker so the fill tube (16) fits in the fill cup opening (C). Hang the icemaker on the two mounting screws (A).

Make sure:

???The power cord is still firmly in the socket.

???The fill tube (16) is still in the fill cup opening. (Check the rear of the refrigerator to make sure the fill tube has not been pushed out of the back of the refrigerator.)

???The icemaker mounting screws are located in the uppermost position of the mounting slots.

THEN TIGHTEN THE ICEMAKER MOUNTING SCREWS

SECURELY.

16

A

C

10 INSTALL THE ICE BUCKET

Put the ice bucket (11) in place under the icemaker. Make sure the icemaker power switch is set to OFF.

11

8 PLUG IN THE ICEMAKER

Place the icemaker on its side as shown. Insert the icemaker power cord plug (B) into the socket, making sure the prongs and holes are matched.

If holes do not match, see Step 6. Press the plug firmly into the socket.

B

11 ATTACH WARRANTY LABEL

A label (9) is provided with this kit to record the date of installation for warranty purposes. Apply it to the back of the refrigerator.

12 KEEP THIS MANUAL

The warranty for the icemaker is printed in this manual. Keep this manual with your Refrigerator Owner???s Manual.

The icemaker installation inside the freezer is now complete. Continue to the Water Valve Assembly section.

BEFORE YOU BEGIN

Read each step thoroughly before proceeding.

??? CAUTION ??? Unplug the Refrigerator. To eliminate the danger of electric shock during installation, you must unplug the refrigerator from its electrical outlet.

TOOLS YOU WILL NEED

1/4??? and 5/16??? Nutdriver

1ATTACH THE WATER VALVE

??? Locate the female connector plug (B).

B

???Plug the female connector (B) onto the male terminals on the water valve (4). Either wire can go on either terminal.

B

4

???Fasten the water valve to the cabinet edge hole using the hex-head screw (13) from the kit.

DO NOT DRILL ANY ADDITIONAL HOLES.

???Check the plastic water line nut on the bottom of the water valve to be sure it is hand tight. DO NOT

USE TOOLS.

13

2INSTALL WATER LINE CLAMP

???Attach the metal water line clamp (strain relief)

(8) to the refrigerator. Drive the screw (7) from the kit through the clamp (8) at the indent into the back of the cabinet.

???The metal clamp is for the house water line (see the Water Line Installation Instructions). It is not to be used for the tubing from the water valve up to the icemaker.

7

8

3CONNECT THE WATER LINE

???Squeeze the ends of the hose clamp (3) from the kit with pliers and slide the clamp over the water tube inlet.

???While still squeezing the clamp, insert the

plastic water line into the inlet as far as it will go (approximately 1??? [25 mm]).

???Then slide the clamp downward to capture the plastic water line in place.

???Make sure the fill tube is aimed down.

???If the condenser mounting screw was removed, secure the condenser to the refrigerator by replacing the mounting clip and screw.

DO NOT OVER-TIGHTEN THE SCREW.

Water tube inlet

3

4 ATTACH THE PLASTIC WATER LINE

Fasten the plastic water line to the back of the cabinet with adhesive-backed fasteners (5), spacing the fasteners as shown to take up the slack in the line. (It may be necessary to remove the screw from the top right condenser mounting clip for better access to the water tube inlet).

5 WATER VALVE INSTALLED

Refer to the Water Line Installation Instructions for connection to the home water supply. After water line installation is completed, set the icemaker power switch to ON.

The icemaking cycle will not begin until the icemaker and freezer compartment reach operating temperature, then icemaking will begin automatically.

BEFORE YOU BEGIN

2 PREPARE THE REFRIGERATOR

Read each step thoroughly before proceeding.

??? CAUTION ??? Unplug the Refrigerator. To eliminate the danger of electric shock during installation, you must unplug the refrigerator from its electrical outlet.

Find the sticker located on the back of the refrigerator about midway up on the right hand side. Remove the sticker and clear away any foil tape from the opening. Also remove the sticker from the top left corner of the freezer compartment.

Remove sticker

Remove insulation plug

TOOLS YOU WILL NEED

1/4???and 5/16??? Nutdriver or adjustable wrench

1 REMOVE ICE CUBE TRAY SHELF

If your refrigerator has an installed ice cube tray shelf, use a Phillips screwdriver to remove the two screws. Remove the ice tray shelf. Install the screws in the back two holes until the screw heads are about 1/2??? (13 mm) from the side wall of the freezer. If your refrigerator was not originally equipped with an installed ice cube tray shelf, use the screws (14) that are supplied in the kit.

Place the shelf, flat side up, in the lower basket with the sloped end at the back.

Remove the gray insulation plug that fills the hole through the cabinet.

3 INSTALL FILL TUBE

???Slide the fill tube (16) onto the water tube inlet (15).

???Cut the fill tube extension (10) to the J length (refer to the J template on page 67) with a sharp knife or a single-edge razor blade.

???Slide the fill tube extension (10) completely over the fill tube on the water tube inlet (15).

???On the tube side of the water

tube inlet (15) there is an adhesive backing. Remove the backing and slide the tube into the hole on the back of the refrigerator as shown. Firmly press on the inlet to secure it.

4 SET POWER SWITCH TO OFF

Set the icemaker power switch to OFF. Leave the power switch in the OFF position until the refrigerator is connected to the water supply to prevent premature operation.

Hole for wire tie

Power

Switch

(Appearance may vary)

26

5 INSTALL THE ICEMAKER FILL CUP

Install the icemaker fill cup (side-mounted) (17) into the icemaker as shown.

17

6 REMOVE PLUG COVER

Remove the electric plug cover from the side wall of the freezer compartment. Insert a standard screwdriver blade into the slot in the cover and twist the screwdriver, opening the slot. The cover will pop off. Discard this cover.

7 POWER CORD ADAPTER

(on some models)

There is a power cord adapter (18) included with

the kit. Visually inspect to see if the power cord on the icemaker matches the socket on the side wall of the freezer compartment. If needed, secure the adapter to the side of the icemaker power cord. When connecting the adapter to the power cord, make sure the seal is in place between the connectors, and ensure that both connector locks are snapped in place. Secure the power cord adapter to the icemaker by putting it into the hook at the back of the icemaker and attaching it to the icemaker with a wire tie (20).

Locks

Hook

Seal

8 PLUG IN THE ICEMAKER

9MOUNT THE ICEMAKER

???Lift the icemaker so the fill tube extension (10) fits in the fill cup opening (C). Hang the icemaker on the two mounting screws (A).

Make sure:

???The power cord is still firmly in the socket.

???The fill tube extension (10) is still in the fill cup opening. (Check the rear of the refrigerator to make sure the fill tube has not been pushed out of the back of the refrigerator.)

???The icemaker mounting screws are located in the uppermost position of the mounting slots.

???Make sure the icemaker power switch is set to OFF.

THEN TIGHTEN THE ICEMAKER MOUNTING

SCREWS SECURELY.

10

A C

10 INSTALL THE ICE BUCKET

Place the ice bucket that came with your refrigerator in the lowest position on the left side of the freezer compartment.

11 ATTACH WARRANTY LABEL

A label (9) is provided with this kit to record the date of installation for warranty purposes. Apply it to the back of the refrigerator.

BEFORE YOU BEGIN

Read each step thoroughly before proceeding.

??? CAUTION ??? Unplug the Refrigerator. To eliminate the danger of electric shock during installation, you must unplug the refrigerator from its electrical outlet.

TOOLS YOU WILL NEED

1 REMOVE THE ACCESS COVER

Remove the rear access cover. This requires removing six screws which attach the cover to the back of the refrigerator case. Use a 5/16??? socket or an adjustable wrench. Be sure to save the screws as the access cover must be reinstalled later to ensure your refrigerator will function properly.

2ATTACH THE WATER VALVE

??? Locate the female connector plug (A).

A

???Plug the female connector (A) onto the male terminals on the water valve (4). Either wire can go on either terminal.

A

4

???Fasten the water valve to the cabinet by driving the hex-head screw (13).

DO NOT DRILL ANY ADDITIONAL HOLES

NOTE: There may be some internal refrigerant tubing that will need to be moved slightly in order to provide enough room to install the water valve.

???Check the plastic water line nut on the bottom of the water valve to be sure it is hand tight.

DO NOT USE TOOLS.

3INSTALL WATER LINE CLAMP

???Push the metal water line clamp (strain relief) (12) onto the lower flange of the cabinet back, directly in line with the water valve.

???The metal clamp is for the house water line. (See the Water Line Installation Instructions). It is not to be used for the tubing from the water valve up to the icemaker.

12

4CONNECT THE WATER LINE

???Ensure that you have sufficient length of plastic tube to extend well into the water tube inlet. Cut off excess tubing.

???Squeeze the ends of the hose clamp (3) from the kit with pliers and slide the clamp over the water tube inlet.

???While still squeezing the clamp, insert the

plastic water line into the inlet as far as it will go (approximately 1??? [25 mm]).

???Then slide the clamp downward to capture the plastic water line in place.

???Make sure the fill tube is aimed down.

Water tube inlet

3

5 ATTACH THE PLASTIC WATER LINE

Route the plastic water line along the back of the refrigerator to the icemaker hole in the case back. Use three of the adhesive-backed fasteners (5) to secure the tube to the case back.

5

Adhesive-backed fasteners for plastic water line

6 WATER VALVE INSTALLED

Refer to the Water Line Installation Instructions for connection to the home water supply. After water line installation is completed, set the icemaker power switch to ON.

The icemaking cycle will not begin until the icemaker and freezer compartment reach operating temperature, then icemaking will begin automatically.

BEFORE YOU BEGIN

Read each step thoroughly before proceeding.

??? CAUTION ??? Unplug the Refrigerator. To eliminate the danger of electric shock during installation, you must unplug the refrigerator from its electrical outlet.

TOOLS YOU WILL NEED

3 INSTALL FILL TUBE

???Go to the back of the refrigerator. On the tube side

of the water tube inlet (15) there is an adhesive backing. Remove the adhesive backing and slide the tube into the hole near the top at the back of the refrigerator. Firmly press on the inlet to secure it to the refrigerator.

1PREPARE FOR INSTALLATION

???Remove the upper outlet cover with a flat-blade screwdriver.

???If there is already an icemaker bracket (26) installed in the freezer, remove the two screws holding on the cover. Remove and discard the cover. Go to Step 5.

Cover

2REMOVE FILL HOLE PLUG

???Remove and discard the large white plug from the rear freezer wall. Pull out the gray insulation plug and remove any debris.

Remove plug

4 INSTALL MOUNTING BRACKET

???Remove the three small plug buttons on the rear wall of the freezer and replace them with three screws (27) supplied with the icemaker kit. Do

not screw them all the way in. The screws should extend approximately 1/4??? (6 mm) out from

the freezer wall.

??? Install the icemaker bracket (26) by hanging it from the three screws that were just installed. Tighten the three screws securely.

5 SET POWER SWITCH TO OFF

Set the icemaker power switch to OFF. Leave the power switch in the OFF position until the refrigerator is connected to the water supply to prevent premature operation.

Hole for wire tie

Power

Switch

(Appearance may vary)

30

6INSTALL THE ICEMAKER FILL CUP

AND INSERT

Install the icemaker fill cup (center-mounted) (23) and icemaker insert (24) into the icemaker as shown.

23

24

7 PLUG IN THE ICEMAKER

Holding the icemaker in place, insert the power

cord plug into the socket, making sure that the prongs and holes are matched. Press the plug firmly into the socket. Lock the plug in place by clipping the restraints onto each side of the plug. Make sure the restraints click into place.

8MOUNT THE ICEMAKER

???Lift the icemaker up and hang it on the icemaker bracket (26). Make sure the insulated fill tube (21) goes into the fill cup (23) opening. To secure the icemaker to the bracket (26), use two screws (22) and install as shown.

Make sure:

???The power cord is still firmly in the socket.

???The insulated fill tube (21) extends into the fill cup opening at the back of the icemaker. (Check the rear of the refrigerator to make sure that the fill tube has not

9 INSTALL THE ICE BUCKET

Place the ice bucket (11) under the icemaker.

Make sure the icemaker power switch is set to OFF.

11

4CONNECT THE WATER LINE

???Make sure there is enough plastic water line to extend from the water valve to well into the water tube inlet (15). Cut off any excess tubing.

???Squeeze the ends of the hose clamp (3) or (6) from the kit with pliers and slide the clamp over the water tube inlet. (Use the black clamp (3) with the black water tube inlet, use the other clamp (6) with the other water tube inlet.)

???While still squeezing the clamp, insert the

plastic water line into the inlet as far as it will go (approximately 1??? [25 mm]).

???Then slide the clamp downward to capture the plastic water line in place.

???Make sure the fill tube is aimed down.

Water tube inlet

3 or 6

5ROUTE AND ATTACH THE PLASTIC

WATER LINE

???Route the plastic water line along the back of the refrigerator to the water tube inlet.

???Use the three adhesive backed fasteners (5) to secure the plastic water line to the case back.

Adhesive-backed fasteners for plastic water line

6 WATER VALVE INSTALLED

Refer to the Water Line Installation Instructions for connection to the home water supply. After water line installation is completed, set the icemaker power switch to ON.

The icemaking cycle will not begin until the icemaker and freezer compartment reach operating temperature, then icemaking will begin automatically.

BEFORE YOU BEGIN

Read each step thoroughly before proceeding.

??? CAUTION ??? Unplug the Refrigerator. To eliminate the danger of electric shock during installation, you must unplug the refrigerator from its electrical outlet.

TOOLS YOU WILL NEED

Flat blade and PhillipsPliersSharp knife screwdrivers

1/4??? Nutdriver or adjustable wrench

2PREPARE FOR INSTALLATION

???Remove and discard the large white plug from the rear freezer wall.

???Remove the outlet cover with a flat-blade screwdriver.

Remove plug

3 INSTALL FILL TUBE EXTENSION

??? Cut the fill tube extension (10)

1REMOVE ICE CUBE TRAY SHELF

???Remove the two screws securing the ice cube tray to the side wall of the freezer. Remove the tray.

???Replace the screws but do not screw them all the

way in. The screw heads should extend about 1/2??? (13 mm) from the side wall of the freezer.

4 SET POWER SWITCH TO OFF

Set the icemaker power switch to OFF. Leave the power switch in the OFF position until the refrigerator is connected to the water supply to prevent premature operation.

Hole for wire tie

Power

Switch

(Appearance may vary)

5 INSTALL THE ICEMAKER FILL CUP

Install the icemaker fill cup (side-mounted) (17) into the icemaker as shown.

17

6 PLUG IN THE ICEMAKER

Holding the icemaker in place, insert the power

cord plug into the socket, making sure that the prongs and holes are matched. Press the plug firmly into the socket. Lock the plug in place by clipping the restraints onto each side of the plug. Make sure the restraints click into place.

7MOUNT THE ICEMAKER

???Lift the icemaker so the fill tube extension (10) fits in the fill cup opening (C). Hang the icemaker on the two mounting screws (A).

Make sure:

???The power cord is still firmly in the socket.

???The fill tube extension (10) is still in the fill cup opening. (Check the rear of the refrigerator to make sure the fill tube has not been pushed out of the back of the refrigerator.)

???The icemaker mounting screws are located in the uppermost position of the mounting slots.

THEN TIGHTEN THE ICEMAKER MOUNTING

SCREWS SECURELY.

10

A C

8 INSTALL THE ICE BUCKET

Put the ice bucket in place under the icemaker.

Make sure the icemaker power switch is set to

OFF.

9 ATTACH WARRANTY LABEL

A label (9) is provided with this kit to record the date of installation for warranty purposes. Apply it to the back of the refrigerator.

10 KEEP THIS MANUAL

The warranty for the icemaker is printed in this manual. Keep this manual with your Refrigerator Owner???s Manual.

The icemaker installation inside the freezer is now complete. Continue to the Water Valve Assembly section.

BEFORE YOU BEGIN

Read each step thoroughly before proceeding.

??? CAUTION ??? Unplug the Refrigerator. To eliminate the danger of electric shock during installation, you must unplug the refrigerator from its electrical outlet.

TOOLS YOU WILL NEED

1/4??? and 5/16??? Nutdrivers

1 REMOVE THE COVER

At the bottom rear of the refrigerator, remove the screw(s) holding the access cover.

Bend the cover back for access to the compartment.

Be sure to save the screws as the access cover must be reinstalled later to ensure your refrigerator will function properly.

2 ATTACH THE WATER VALVE

???Locate the female connector plug (C) which is attached to the cabinet by a metal or plastic clip. Remove the clip by removing the screw.

Metal or plastic clip

C

???Plug the female connector (C) onto the male terminals on the water valve (4). Either wire can go on either terminal.

C

4

???Fasten the water valve to the cabinet by driving the hex-head screw (13) from the kit into the hole

in the cabinet leg.

3INSTALL WATER LINE CLAMP

???Attach the metal water line clamp (strain relief)

(8) to the refrigerator. Drive one of the screws, removed in Step 1, into the cabinet edge through the clamp and hole in compressor cover.

???The metal clamp is for the house water line (see Water Line Installation Instructions). It is not to be used for the tubing from the water valve up to the icemaker.

Screw

8

4CONNECT THE WATER LINE

???Remove the small plastic cap (B) from the bottom of the water tube inlet located in the upper-right rear corner of the refrigerator.

???Squeeze the ends of the hose clamp (6) from the kit with pliers and slide the clamp over the water tube inlet.

???While still squeezing the clamp, insert the

plastic water line into the inlet as far as it will go (approximately 1??? [25 mm]).

???Then slide the clamp downward to capture the plastic water line in place.

???Make sure the fill tube is aimed down.

5ROUTE AND ATTACH THE PLASTIC

WATER LINE

???Route the plastic water line along the back of the refrigerator to the water tube inlet.

???Use the three adhesive backed fasteners (5) to secure the plastic water line to the case back.

Adhesive-backed fasteners for plastic water line

6 WATER VALVE INSTALLED

Refer to the Water Line Installation Instructions for connection to the home water supply. After water line installation is completed, set the icemaker power switch to ON.

The icemaking cycle will not begin until the icemaker and freezer compartment reach operating temperature, then icemaking will begin automatically.

BEFORE YOU BEGIN

Read each step thoroughly before proceeding.

??? CAUTION ??? Unplug the Refrigerator. To eliminate the danger of electric shock during installation, you must unplug the refrigerator from its electrical outlet.

TOOLS YOU WILL NEED

1 INSTALL FILL TUBE

???Cut the fill tube (16) to the M length (refer to the

M template on page 66)

with a sharp knife or

a single-edge razor blade.

???Slide the fill tube (16) onto the water tube inlet (15).

???Go to the back of the refrigerator. Find the small label in the upper right hand corner and peel it off. On the tube side of the water tube inlet (15) there is an adhesive backing. Remove the adhesive backing and slide the tube into the hole near the top at the back of the refrigerator. Firmly press on the inlet to secure it to the refrigerator.

2 REMOVE THE OUTLET COVER

??? Remove the outlet cover with a flat-blade screwdriver.

3 PREPARE FOR INSTALLATION

Inside the freezer, loosen the two mounting screws

(B) but do not screw them all the way out. If your model does not have the screws already in the freezer wall, look for two plug buttons. Remove the plug buttons and insert the two Phillips head screws (14). The screws should extend approximately

1/2??? (13mm) out from the freezer wall.

B

4INSTALL FILL TUBE EXTENSION

???Remove and discard the white plug from the upper left corner of the freezer wall.

???Cut the fill tube extension (10) to the M length (refer to the M template on page 67) with a sharp knife or a single-edge razor blade and slide it onto the fill tube against the stop.

5 SET POWER SWITCH TO OFF

Set the icemaker power switch to OFF. Leave the power switch in the OFF position until the refrigerator is connected to the water supply to prevent premature operation.

Hole for wire tie

Power

Switch

(Appearance may vary)

6 INSTALL THE ICEMAKER FILL CUP

Install the icemaker fill cup (side-mounted) (17) into the icemaker as shown.

17

7 PLUG IN THE ICEMAKER

Holding the icemaker in place, insert the icemaker power cord plug into the socket on the side wall, making sure the prongs and holes are matched. Press the plug firmly into the socket. Lock the plug in place by clipping the restraints onto each side of the plug. Make sure the restraints click into place.

8MOUNT THE ICEMAKER

???Lift the icemaker so the fill tube extension (10) fits in the fill cup opening (D). Hang the icemaker on

the two screws.

Make sure:

???The power cord is still firmly in the socket.

???The fill tube extension (10) extends into the fill cup opening at the back of the icemaker. (Check the rear of the refrigerator to make sure the fill tube has not been pushed out of the back of the refrigerator).

???The icemaker mounting screws are located in the uppermost position of the mounting slots.

THEN SECURELY TIGHTEN THE ICEMAKER

MOUNTING SCREWS.

10

D

9 INSTALL THE ICE BUCKET

Place the ice bucket (11) under the icemaker. Make sure the icemaker power switch is in the OFF position.

BEFORE YOU BEGIN

Read each step thoroughly before proceeding.

??? CAUTION ??? Unplug the Refrigerator. To eliminate the danger of electric shock during installation, you must unplug the refrigerator from its electrical outlet.

TOOLS YOU WILL NEED

1/4??? and 5/16??? Nutdrivers

1 REMOVE THE COVER

Use a 5/16??? nutdriver or an adjustable wrench to remove the compressor compartment access cover. This requires removing six screws which attach the cover to the back of the refrigerator case.

Be sure to save the screws as the access cover must be reinstalled later to ensure your refrigerator will function properly.

2ATTACH THE WATER VALVE

???Locate the female connector plug. Plug the female connector (C) onto the male terminals on the water valve (4). Either wire can go on either terminal.

C

4

???Fasten the water valve to the cabinet by driving the hex-head screw (13) from the kit into the hole in the cabinet leg.

13

3INSTALL WATER LINE CLAMP

???Attach the metal water line clamp (strain relief)

(8) to the refrigerator. Drive the screw (7) from the kit through the clamp (8) at the indent into the back of the cabinet.

???The metal clamp is for the house water line (see the Water Line Installation Instructions). It is not to be used for the tubing from the water valve up to the icemaker.

7

8

4CONNECT THE WATER LINE

???Make sure there is enough plastic water line to extend from the water valve to well into the water tube inlet (15). Cut off any excess tubing.

???Squeeze the ends of the hose clamp (3) from the kit with pliers and slide the clamp over the water tube inlet.

???While still squeezing the clamp, insert the plastic

water line into the inlet as far as it will go (approximately 1??? [25 mm]).

???Then slide the clamp downward to capture the plastic water line in place.

???Make sure the fill tube is aimed down.

Water tube inlet

3

5ROUTE AND ATTACH THE PLASTIC

WATER LINE

???Fasten the plastic water line to the back of the cabinet with adhesive-backed fasteners (5), spacing the fasteners as shown to take up slack in the line.

Adhesive-backed fasteners for plastic water line

6 WATER VALVE INSTALLED

Refer to the Water Line Installation Instructions for connection to the home water supply. After water line installation is completed, set the icemaker power switch to ON.

The icemaking cycle will not begin until the icemaker and freezer compartment reach operating temperature, then icemaking will begin automatically.

BEFORE YOU BEGIN

Read each step thoroughly before proceeding.

??? CAUTION ??? Unplug the Refrigerator. To eliminate the danger of electric shock during installation, you must unplug the refrigerator from its electrical outlet.

TOOLS YOU WILL NEED

1REMOVE ICE CUBE TRAY SHELF

???Remove the two screws securing the ice cube tray to the side wall of the freezer. Remove the tray.

???There are two white plug buttons above the screw holes. Remove these plug buttons and install them in the two screw holes that were used to hold the ice cube tray shelf.

???Install two Phillips head screws (14) in the holes that the plug buttons were in, but do not screw

them all the way in. The screw heads should extend about 1/2??? (13 mm) from the side wall of the freezer.

14

Plug

Buttons

2PREPARE FOR INSTALLATION

???Remove and discard the large white plug from the rear freezer wall. Pull out the gray insulation plug and remove any debris.

???Remove the outlet cover with a flat-blade screwdriver.

3INSTALL FILL TUBE

???Cut the fill tube with foil (16) to the N length (refer to the N template on page 66) with a sharp knife or a single-edge razor blade.

???Slide the fill tube with foil (16)

??? Go to the back of the refrigerator. On the tube side of the water 15 tube inlet (15) there is an

adhesive backing. Remove the adhesive backing and slide the tube into the hole near the top at the back of the refrigerator.

Firmly press on the inlet to secure it to the refrigerator.

4 SET POWER SWITCH TO OFF

Set the icemaker power switch to OFF. Leave the power switch in the OFF position until the refrigerator is connected to the water supply to prevent premature operation.

Hole for wire tie

Power

Switch

(Appearance may vary)

5INSTALL THE ICEMAKER

FILL CUP

Install the icemaker fill cup (side-mounted) (17) into the icemaker as shown.

17

6 PLUG IN THE ICEMAKER

Holding the icemaker in place, insert the icemaker power cord plug (D) into the socket on the rear wall, making sure the prongs and holes are matched. Press the plug firmly into the socket. Lock the plug in place by clipping the restraints onto each side of the plug. Make sure the restraints click into place.

D

7MOUNT THE ICEMAKER

???Lift the icemaker so the fill tube (16) goes into the fill cup opening (17). Hang the icemaker on the two screws (14).

Make sure:

???The power cord is still firmly in the socket.

???The fill tube (16) extends into the fill cup opening at the back of the icemaker. (Check the rear of the refrigerator to make sure the fill tube has not been pushed out of the back of the refrigerator).

THEN SECURELY TIGHTEN THE ICEMAKER

MOUNTING SCREW.

16

17

8 INSTALL THE ICE BUCKET

Place the ice bucket (11) under the icemaker.

Make sure the icemaker power switch is set to OFF.

11

9 ATTACH WARRANTY LABEL

A label (9) is provided with this kit to record the date of installation for warranty purposes. Apply it to the back of the refrigerator.

BEFORE YOU BEGIN

Read each step thoroughly before proceeding.

??? CAUTION ??? Unplug the Refrigerator. To eliminate the danger of electric shock during installation, you must unplug the refrigerator from its electrical outlet.

TOOLS YOU WILL NEED

1/4??? and 5/16??? Nutdrivers

1 REMOVE THE COVER

Use a 5/16??? nutdriver or an adjustable wrench to remove the compressor compartment access cover. This requires removing six screws which attach the cover to the back of the refrigerator case.

Be sure to save the screws as the access cover must be reinstalled later to ensure your refrigerator will function properly.

2ATTACH THE WATER VALVE

???Locate the female connector plug. Plug the female connector (C) onto the male terminals on the water valve (4). Either wire can go on either terminal.

C

4

???Fasten the water valve to the cabinet by driving the hex-head screw (13) from the kit into the hole in the cabinet leg.

13

3INSTALL WATER LINE CLAMP

???Attach the water line clamp (strain relief) (8) from the kit to the refrigerator. With the clamp directly in line with the water valve, drive the screw (7) from the kit through the clamp (8) at the indent into the back of the cabinet.

7

8

???The metal clamp is for the house water line (see Water Line Installation Instructions). It is not to be used for the tubing from the water valve up to the icemaker.

4CONNECT THE WATER LINE

???Make sure there is enough plastic water line to extend from the water valve to well into the water tube inlet (15). Cut off any excess tubing.

???Squeeze the ends of the hose clamp (3) from the kit with pliers and slide the clamp over the water tube inlet.

???While still squeezing the clamp, insert the plastic

water line into the inlet as far as it will go (approximately 1??? [25 mm]).

???Then slide the clamp downward to capture the plastic water line in place.

???Make sure the fill tube is aimed down.

Water tube inlet

3

5ROUTE AND ATTACH THE PLASTIC

WATER LINE

???Fasten the plastic water line to the back of the cabinet with adhesive-backed fasteners (5), spacing the fasteners as shown to take up slack in the line.

Adhesive-backed fasteners for plastic water line

6 WATER VALVE INSTALLED

Refer to the Water Line Installation Instructions for connection to the home water supply. After water line installation is completed, set the icemaker power switch to ON.

The icemaking cycle will not begin until the icemaker and freezer compartment reach operating temperature, then icemaking will begin automatically.

BEFORE YOU BEGIN

Read each step thoroughly before proceeding.

??? CAUTION ??? Unplug the Refrigerator. To eliminate the danger of electric shock during installation, you must unplug the refrigerator from its electrical outlet.

TOOLS YOU WILL NEED

1PREPARE FOR INSTALLATION

???Remove and discard the large white plug from the rear freezer wall. Pull out the gray insulation plug and remove any debris.

???Remove the two small white plug buttons on the side wall. Install two Phillips head screws (14) in the holes that the plug buttons were in, but do not screw them

all the way in. The screw heads should extend about 1/2??? (13 mm) from the side wall of the freezer.

???Remove the outlet cover with a flat-blade screwdriver.

2 INSTALL FILL TUBE

???Slide the fill tube (16) onto the water tube inlet (15).

???Go to the back of the refrigerator. In the upper right hand corner, remove the label covering the hole. Pull out the insulation plug and any debris.

???On the tube side of the

water tube inlet (15) there is an adhesive backing.

Remove the adhesive backing and slide the

tube into the hole near

the top at the back of the refrigerator. Firmly press on the inlet to secure it to the refrigerator.

3 SET POWER SWITCH TO OFF

Set the icemaker power switch to OFF. Leave the power switch in the OFF position until the refrigerator is connected to the water supply to prevent premature operation.

Hole for wire tie

Power

Switch

(Appearance may vary)

4 POWER CORD ADAPTER

(on some models)

There is a power cord adapter (18) included with

the kit. Visually inspect to see if the power cord on the icemaker matches the socket on the rear wall of the freezer compartment. If needed, secure the adapter to the side of the icemaker power cord. When connecting the adapter to the power cord, make sure the seal is in place between the connectors, and ensure that both connector locks are snapped in place. Secure the power cord adapter to the icemaker by putting it into the hook at the back of the icemaker and attaching it to the icemaker with a wire tie (20).

Locks

Hook

Seal

7MOUNT THE ICEMAKER

???Lift the icemaker so the fill tube (16) fits in the fill cup opening (E). Hang the icemaker on the two mounting screws (C).

Make sure:

???The power cord is still firmly in the socket.

???The fill tube (16) extends into the fill cup opening on the back of the icemaker. (Check the rear of the refrigerator to make sure the fill tube has not been pushed out of the back of the refrigerator).

THEN SECURELY TIGHTEN THE ICEMAKER

MOUNTING SCREWS.

5 INSTALL THE ICEMAKER FILL CUP

Install the icemaker fill cup (side-mounted) (17) into the icemaker as shown.

17

8 INSTALL THE ICE BUCKET

Install the freezer shelf in the lowest position. Place the ice bucket (11) on the shelf under the icemaker.

Make sure the icemaker power switch is set to OFF.

11

6 PLUG IN THE ICEMAKER

Holding the icemaker in place, insert the icemaker

power cord plug (D) into

the socket on the rear

9 ATTACH WARRANTY LABEL

A label (9) is provided with this kit to record the date of installation for warranty purposes. Apply it to the back of the refrigerator.

wall, making sure the prongs and holes are

D

10 KEEP THIS MANUAL

matched. If holes do not match, see Step 4. Press the plug firmly into the socket.

The warranty for the icemaker is printed in this manual. Keep this manual with your Refrigerator

Owner???s Manual.

The icemaker installation inside the freezer is now complete. Continue to the Water Valve Assembly section.

BEFORE YOU BEGIN

Read each step thoroughly before proceeding.

??? CAUTION ??? Unplug the Refrigerator. To eliminate the danger of electric shock during installation, you must unplug the refrigerator from its electrical outlet.

TOOLS YOU WILL NEED

1/4??? and 5/16??? Nutdrivers

1 REMOVE THE COVER

Remove the screws holding the left side of the compressor cover and save them for reinstallation later. Bend the cover back to access the compartment.

2ATTACH THE WATER VALVE

???Locate the female connector plug (B). If there are 2 female connectors, use the colored one. Plug the female connector (B) onto the male terminals on the water valve (4). Either wire can go on either terminal.

B

4

???Fasten the water valve to the cabinet by inserting the bracket hook on the left inner side of the compressor compartment. Drive the hex-head screw (13) from the kit through the hole in the bracket into the hole on the cabinet.

13

3INSTALL WATER LINE CLAMP

???Attach the water line clamp (strain relief) (8) from the kit to the refrigerator. With the clamp directly in line with the water valve, drive the screw (7) from the kit through the clamp (8) at the indent into the back of the cabinet.

4CONNECT THE WATER LINE

???Make sure there is enough plastic water line to extend from the water valve to well into the water tube inlet (15). Cut off any excess tubing.

???Squeeze the ends of the hose clamp (3) from the kit with pliers and slide the clamp over the water tube inlet.

???While still squeezing the clamp, insert the

plastic water line into the inlet as far as it will go (approximately 1??? [25 mm]).

???Then slide the clamp downward to capture the plastic water line in place.

???Make sure the fill tube is aimed down.

Water tube inlet

3

5ROUTE AND ATTACH THE PLASTIC

WATER LINE

???Fasten the plastic water line to the back of the cabinet with adhesive-backed fasteners (5), spacing the fasteners as shown to take up slack in the line.

Adhesive-backed fasteners for plastic water line

6 WATER VALVE INSTALLED

Refer to the Water Line Installation Instructions for connection to the home water supply. After water line installation is completed, set the icemaker power switch to ON.

The icemaking cycle will not begin until the icemaker and freezer compartment reach operating temperature, then icemaking will begin automatically.

BEFORE YOU BEGIN

Read each step thoroughly before proceeding.

??? CAUTION ??? Unplug the Refrigerator. To eliminate the danger of electric shock during installation, you must unplug the refrigerator from its electrical outlet.

TOOLS YOU WILL NEED

1PREPARE FOR INSTALLATION

???Remove and discard the large white plug or foil sticker from the rear freezer wall. Pull out the gray insulation plug and remove any debris.

???Loosen the two mounting screws but do not

screw them all the way out. The screws should extend approximately 1/2??? (13 mm) out from the freezer wall.

???Remove the outlet cover with a flat-blade screwdriver.

2 INSTALL FILL TUBE

???Slide the fill tube (16) onto the water tube inlet (15).

???Go to the back of the refrigerator. In the upper right hand corner, remove the label covering the hole. Pull out the insulation plug and any debris.

???On the tube side of the

water tube inlet (15) there is an adhesive backing.

Remove the adhesive backing and slide the tube into the hole near the top at

the back of the refrigerator. Firmly press on the inlet to secure it to the refrigerator.

3 SET POWER SWITCH TO OFF

Set the icemaker power switch to OFF. Leave the power switch in the OFF position until the refrigerator is connected to the water supply to prevent premature operation.

Hole for wire tie

Power

Switch

(Appearance may vary)

4 INSTALL THE ICEMAKER FILL CUP

Install the icemaker fill cup (side-mounted) (17) into the icemaker as shown.

17

5 PLUG IN THE ICEMAKER

Holding the icemaker in place, insert the icemaker power cord plug into the socket on the rear wall, making sure the prongs and holes are matched. Press the plug firmly into the socket. Lock the plug in place by clipping the restraints onto each side of the plug. Make sure the restraints click into place.

6MOUNT THE ICEMAKER

???Lift the icemaker so the fill tube (16) fits in the fill cup opening (E). Hang the icemaker on the two mounting screws (C).

Make sure:

???The power cord is still firmly in the socket.

???The fill tube (16) extends into the fill cup opening on the back of the icemaker. (Check the rear of the refrigerator to make sure the fill tube has not been pushed out of the back of the refrigerator).

THEN SECURELY TIGHTEN THE ICEMAKER

MOUNTING SCREWS.

7 INSTALL THE ICE BUCKET

Put the ice bucket (11) under the icemaker.

Make sure the icemaker power switch is set to OFF.

BEFORE YOU BEGIN

Read each step thoroughly before proceeding.

??? CAUTION ??? Unplug the Refrigerator. To eliminate the danger of electric shock during installation, you must unplug the refrigerator from its electrical outlet.

TOOLS YOU WILL NEED

1/4??? and 5/16??? Nutdrivers

1ATTACH THE WATER VALVE

???Locate the female connector plug (C). Plug the female connector (C) onto the male terminals on the water valve (4). Either wire can go on either terminal.

C

???Fasten the water valve to the cabinet edge hole with the hex-head screw (13) from the kit.

DO NOT DRILL ANY ADDITIONAL HOLES.

13

???Check the plastic water line nut on the bottom of the water valve to be sure it is hand tight.

DO NOT USE TOOLS.

2INSTALL WATER LINE CLAMP

???Attach the water line clamp (strain relief) (8) from the kit to the refrigerator. With the clamp directly in line with the water valve, drive the screw (7) from the kit through the clamp (8) at the indent into the back of the cabinet.

7

8

???The metal clamp is for the house water line (see Water Line Installation Instructions). It is not to be used for the tubing from the water valve up to the icemaker.

3CONNECT THE WATER LINE

???It may be necessary to remove the screw from the top right condenser mounting clip for better access to the water tube inlet.

???Make sure there is enough plastic water line to extend from the water valve to well into the water tube inlet (15). Cut off any excess tubing.

???Squeeze the ends of the hose clamp (3) from the kit with pliers and slide the clamp over the water tube inlet.

???While still squeezing the clamp, insert the plastic

water line into the inlet as far as it will go (approximately 1??? [25 mm]).

???Then slide the clamp downward to capture the plastic water line in place.

???Make sure the fill tube is aimed down.

???If the condenser mounting screw was removed, secure the condenser to the refrigerator by replacing the mounting clip and screw.

???Do not overtighten the screw.

Water tube inlet

3

4ROUTE AND ATTACH THE PLASTIC

WATER LINE

???Fasten the plastic water line to the back of the cabinet with adhesive-backed fasteners (5), spacing the fasteners as shown to take up slack in the line. (It may be necessary to remove the screw from the top right condenser mounting clip for better access to the water tube inlet.)

5 WATER VALVE INSTALLED

Refer to the Water Line Installation Instructions for connection to the home water supply. After water line installation is completed, set the icemaker power switch to ON.

The icemaking cycle will not begin until the icemaker and freezer compartment reach operating temperature, then icemaking will begin automatically.

BEFORE YOU BEGIN

Read each step thoroughly before proceeding.

??? CAUTION ??? Unplug the Refrigerator. To eliminate the danger of electric shock during installation, you must unplug the refrigerator from its electrical outlet.

TOOLS YOU WILL NEED

PARTS REQUIRED THAT CAME WITH

THE REFRIGERATOR

1PREPARE FOR INSTALLATION

???Remove all freezer baskets for greater accessibility to the rear of the freezer.

???Remove and discard the

large white plug from the rear freezer wall. Pull out the gray insulation plug and remove any debris.

???Remove the outlet cover with a flat-blade screwdriver.

2 INSTALL FILL TUBE

???Slide the fill tube (16) onto the water tube inlet (15).

??? On the tube side of the water tube inlet (15) there is an adhesive backing. Remove the adhesive backing and slide the

tube into the hole near the top at the back of the refrigerator. Firmly press on the inlet to secure it to the refrigerator.

3 SET POWER SWITCH TO OFF

Set the icemaker power switch to OFF. Leave the power switch in the OFF position until the refrigerator is connected to the water supply to prevent premature operation.

Hole for wire tie

Power

Switch

(Appearance may vary)

4 INSTALL THE MOUNTING BLOCK

???Inside the freezer, remove the two small white plug buttons from the side wall.

5 INSTALL THE ICEMAKER FILL CUP

Install the icemaker fill cup (side-mounted) (17) into the icemaker as shown.

17

6 PLUG IN THE ICEMAKER

Holding the icemaker in place, insert the icemaker power cord plug into the socket on the rear wall, making sure the prongs and holes are matched. Press the plug firmly into the socket. Lock the plug in place by clipping the restraints onto each side of the plug. Make sure the restraints click into place.

7MOUNT THE ICEMAKER

???Lift the icemaker so the fill tube (16) fits in the fill cup opening (E). Hang the icemaker on the two mounting screws (C) on the mounting block.

Make sure:

???The power cord is still firmly in the socket.

???The fill tube (16) extends into the fill cup opening on the back of the icemaker. (Check the rear of the refrigerator to make sure the fill tube has not been pushed out of the back of the refrigerator).

Make sure the icemaker power switch is set to OFF.

THEN SECURELY TIGHTEN THE ICEMAKER

MOUNTING SCREWS.

16

C

E

8 INSTALL THE ICE BUCKET

Place the lower freezer basket back into the freezer drawer.

The upper freezer basket is actually 2 baskets hooked together. Remove basket on the left by unhooking it.

Place the remaining upper basket in the freezer

drawer on the right side. Place the ice bucket in the left side of the lower basket.

9 ATTACH WARRANTY LABEL

A label (9) is provided with this kit to record the date of installation for warranty purposes. Apply it to the back of the refrigerator.

10 KEEP THIS MANUAL

The warranty for the icemaker is printed in this manual. Keep this manual with your Refrigerator Owner???s Manual.

The icemaker installation inside the freezer is now complete. Continue to the Water Valve Assembly section.

BEFORE YOU BEGIN

Read each step thoroughly before proceeding.

??? CAUTION ??? Unplug the Refrigerator. To eliminate the danger of electric shock during installation, you must unplug the refrigerator from its electrical outlet.

2ATTACH THE WATER VALVE

??? Locate the female connector plug (C).

C

TOOLS YOU WILL NEED

1/4??? and 5/16??? Nutdrivers

1 REMOVE THE COVER

At the bottom rear of the refrigerator, remove the screws holding the access cover.

Bend the cover back to access the compartment.

Be sure to save the screws as the access cover must be reinstalled later to ensure that your refrigerator will function properly.

???Plug the female connector (C) onto the male terminals on the water valve (4). Either wire can go on either terminal.

C

???Fasten the water valve to the cabinet using the hex-head screw (13) from the kit.

13

3INSTALL WATER LINE CLAMP

???Attach the water line clamp (strain relief) (8) from the kit to the refrigerator. With the clamp directly in line with the water valve, drive the screw (7) from the kit through the clamp (8) at the indent into the back of the cabinet.

7

8

???The metal clamp is for the house water line (see Water Line Installation Instructions). It is not to be used for the tubing from the water valve up to the icemaker.

4CONNECT THE WATER LINE

???Make sure there is enough plastic water line to extend from the water valve to well into the water tube inlet (15). Cut off any excess tubing.

???Squeeze the ends of the hose clamp (3) from the kit with pliers and slide the clamp over the water tube inlet.

???While still squeezing the clamp, insert the

plastic water line into the inlet as far as it will go (approximately 1??? [25 mm]).

???Then slide the clamp downward to capture the plastic water line in place.

???Make sure the fill tube is aimed down.

Water tube inlet

3

5ROUTE AND ATTACH THE PLASTIC

WATER LINE

???Route the plastic water line along the back of the refrigerator to the water tube inlet.

???Fasten the plastic water line to the back of the cabinet with three of the adhesive-backed fasteners (5).

Adhesive-backed fasteners for plastic water line

6 WATER VALVE INSTALLED

Refer to the Water Line Installation Instructions for connection to the home water supply. After water line installation is completed, set the icemaker power switch to ON.

The icemaking cycle will not begin until the icemaker and freezer compartment reach operating temperature, then icemaking will begin automatically.

BEFORE YOU BEGIN

Read each step thoroughly before proceeding.

??? CAUTION ??? Unplug the

1PREPARE FOR INSTALLATION (cont.)

???Inside the freezer, remove the two small white plug buttons (on some models) from the side wall. (If screws are present instead of plugs, leave them in place.)

Refrigerator. To eliminate the danger of electric shock during installation, you must unplug the refrigerator from its electrical outlet.

TOOLS YOU WILL NEED

???Remove and discard the large white plug from the rear freezer wall. Pull out the gray insulation plug and remove any debris.

???Remove the outlet cover with a flat-blade screwdriver.

Remove side wall plug buttons or leave screws in place

Rear wall plug button

Insulation plug

Outlet cover

1 PREPARE FOR INSTALLATION

??? Remove the storage basket (on some models) by pulling it out to the stop position and lifting it up and out.

Note: After removing the basket, push the extension arms back into the freezer compartment.

??? Remove the chiller shelf (on some models) by pulling it straight out.

??? Remove the ice bucket by pulling it out and lifting it up and out.

??? Remove the center vertical shelf support (on some models) by lifting it and rotating its bottom to the right.

2 INSTALL FILL TUBE

??? Slide the fill tube (16) onto the

???On the tube side of the water tube inlet (15), there is an adhesive

backing. Remove the adhesive backing and slide the tube into the hole at the back of the refrigerator. Firmly press on the inlet to secure it to the refrigerator.

3 SET POWER SWITCH TO OFF

Set the icemaker power switch to OFF. Leave the power switch in the OFF position until the refrigerator is connected to the water supply to prevent premature operation.

Power

Switch

(Appearance may vary)

4INSTALL THE MOUNTING SCREWS

???Skip to Step 5 if screws are already in place in the freezer side wall.

???Install two self-tapping Phillips

head screws (14) from the kit in the holes in the side wall. The screw heads should extend about 1/2??? (13 mm) from the side wall.

5 INSTALL THE ICEMAKER FILL CUP

Install the icemaker fill cup (side-mounted) (17) into the icemaker as shown.

17

7MOUNT THE ICEMAKER

???Lift the icemaker so the fill tube shipped with the refrigerator fits in the fill cup opening (E). Hang the icemaker on the two mounting screws (14) in the side wall.

Make sure:

???The power cord is still firmly in the socket.

???The fill tube extends into the fill cup opening on the back of the icemaker. (Check the rear of the refrigerator to make sure the fill tube has not been pushed out of the back of the refrigerator).

???The icemaker mounting screws are located in the uppermost position of the mounting slots.

???The icemaker is level.

???The icemaker power switch is set to OFF.

THEN SECURELY TIGHTEN THE ICEMAKER

MOUNTING SCREWS.

14

E

6 PLUG IN THE ICEMAKER

Holding the icemaker in place, insert the icemaker power cord plug into the socket on the rear wall, making sure the prongs and holes are matched. Press the plug firmly into the socket. Lock the plug in place by clipping the restraints onto each side of the plug. Make sure the restraints click into place. Make sure the power cord is still in the hook on the back of the icemaker.

Hook

8 RE-INSTALL THE SHELF SUPPORT,

BUCKET, SHELF AND BASKET

Replace the center vertical shelf support, ice bucket, chiller shelf and storage basket by reversing the steps in Step 1.

9 ATTACH WARRANTY LABEL

A label (9) is provided with this kit to record the date of installation for warranty purposes. Apply it to the back of the refrigerator.

10 KEEP THIS MANUAL

The warranty for the icemaker is printed in this manual. Keep this manual with your Refrigerator Owner???s Manual.

The icemaker installation inside the freezer is now complete. Continue to the Water Valve Assembly section.

BEFORE YOU BEGIN

Read each step thoroughly before proceeding.

??? CAUTION ??? Unplug the Refrigerator. To eliminate the danger of electric shock during installation, you must unplug the refrigerator from its electrical outlet.

TOOLS YOU WILL NEED

1 REMOVE THE COVER

At the bottom rear of the refrigerator, remove the screws holding the access cover.

Bend the cover back to access the compartment.

Be sure to save the screws as the access cover must be reinstalled later to ensure that your refrigerator will function properly.

3ATTACH THE WATER VALVE

??? Locate the female connector plug (C).

C

???Plug the female connector (C) onto the male terminals on the water valve (4). Either wire can go on either terminal.

C

4

???Slide the water valve shield with ground wire shipped with the refrigerator completely onto the water valve.

NOTE: If the water valve shield (part WR02X11753) has been misplaced and/or the ground wire (part WR23X10347) is missing from the water valve shield, call 1.800.626.2002 and order the appropriate part(s).

2CUT PLASTIC WATER TUBING

???Measure 25??? (64 cm) of water tubing starting from where it is secured to the water valve. Cut off excess tubing with a sharp knife or single-edge razor blade.

25??? (64 cm)

???Fasten the water valve to the cabinet by driving the hex-head screw (13) from the kit into the hole in the cabinet leg.

Cabinet

13

Hex-head screw

Water valve bracket

3ATTACH THE WATER VALVE (cont.)

???Clip the end of the ground wire to the refrigerator cabinet.

IMPORTANT: To ensure a proper ground, the end of the ground wire MUST be secured to the refrigerator cabinet.

4CONNECT WATER TUBE

TO INLET

???Squeeze the ends of the hose clamp (3 or 6) from the kit with pliers and slide the clamp over the inlet, located on the right side of the refrigerator.

???While still squeezing the clamp, insert the free end of the water tube (4) into the inlet as far as it will go.

???Then slide the clamp downward to capture the water tube in place.

???Using one of the adhesive-backed fasteners (5),

secure the water tube to the back of the refrigerator about 1/2??? below the inlet.

Inlet

3 or 6

5

4

6ROUTE AND ATTACH THE WATER

TUBE

???Fasten the plastic water tube to the back of the refrigerator with three of the adhesive-backed fasteners (5), spacing the fasteners as shown.

Adhesive-backed fasteners for water tube

7 WATER VALVE INSTALLED

Refer to the Water Line Installation Instructions for connection to the home water supply. After water line installation is completed, set the icemaker power switch to ON.

Even when the icemaker power switch is in the ON position, power to the icemaker will be interrupted when the freezer door/drawer is open. This prevents ice ejecting from the icemaker from missing the ice bucket and dropping into the back

of the freezer. To make sure the icemaker is working properly, press the freezer light switch located on the upper right side of the freezer compartment. The power light on the icemaker will come on.

Note: After installing the icemaker, do not open the door/drawer for approximately 4 hours. This will allow the freezer to reach the correct operating temperature for making ice, and will prevent water from spilling out of the icemaker mold.

BEFORE YOU BEGIN

Read each step thoroughly before proceeding.

??? CAUTION ??? Unplug the Refrigerator. To eliminate the danger of electric shock during installation, you must unplug the refrigerator from its electrical outlet.

2 REMOVE THE OUTLET COVER

??? Remove the outlet cover with a flat-blade screwdriver.

TOOLS YOU WILL NEED

1 PREPARE FOR INSTALLATION

??? Remove the storage basket (on some models) by pulling it out to the stop position and lifting it up and out.

Note: After removing the basket, push the extension arms back into the freezer compartment.

??? Remove the chiller shelf (on some models) by pulling it straight out.

??? Remove the ice bucket by pulling it out and lifting it up and out.

??? Remove the center vertical shelf support (on some models) by lifting it and rotating its bottom to the right.

3 SET POWER SWITCH TO OFF

Set the icemaker power switch to OFF. Leave the power switch in the OFF position until the refrigerator is connected to the water supply to prevent premature operation.

Power

Switch

(Appearance may vary)

4 REPLACE FEELER ARM

??? Turn over icemaker.

??? Remove Phillips head screw. Hold feeler arm (to keep it from rotating) while loosening the screw.

??? Remove the feeler arm by lifting it straight up.

Note: Do not remove the spring.

??? Insert end of coil spring into hole in feeler arm (curved) (28) and position

of motion of feeler arm.

5INSTALL THE MOUNTING SCREWS

???Skip to Step 6 if screws are already in place in the freezer side wall.

???Install two self-tapping Phillips

head screws (14) from the kit in the holes in the side wall. The screw heads should extend about 1/2??? (13 mm) from the side wall.

6 INSTALL THE ICEMAKER FILL CUP

Install the icemaker fill cup (end-mounted) (29) into the icemaker as shown.

29

8MOUNT THE ICEMAKER

???Lift the icemaker so the fill tube shipped with the refrigerator fits in the fill cup opening (E). Hang the icemaker on the two mounting screws (14) in the side wall.

Make sure:

???The power cord is still firmly in the socket.

???The fill tube extends into the fill cup opening on the back of the icemaker. (Check the rear of the refrigerator to make sure the fill tube has not been pushed out of the back of the refrigerator).

???The icemaker mounting screws are located in the uppermost position of the mounting slots.

???The icemaker is level.

???The icemaker power switch is set to OFF.

THEN SECURELY TIGHTEN THE ICEMAKER

MOUNTING SCREWS.

14

E

7 PLUG IN THE ICEMAKER

Holding the icemaker in place, insert the icemaker power cord plug into the socket on the side wall, making sure the prongs and holes are matched. Press the plug firmly into the socket. Lock the plug in place by clipping the restraints onto each side of the plug. Make sure the restraints click into place.

9 RE-INSTALL THE SHELF SUPPORT,

BUCKET, SHELF AND BASKET

Replace the center vertical shelf support, ice bucket, chiller shelf and storage basket by reversing the steps in Step 1.

10 ATTACH WARRANTY LABEL

A label (9) is provided with this kit to record the date of installation for warranty purposes. Apply it to the back of the refrigerator.

11 KEEP THIS MANUAL

The warranty for the icemaker is printed in this manual. Keep this manual with your Refrigerator Owner???s Manual.

The icemaker installation inside the freezer is now complete. Continue to the Water Valve Assembly section.

BEFORE YOU BEGIN

Read each step thoroughly before proceeding.

??? CAUTION ??? Unplug the Refrigerator. To eliminate the danger of electric shock during installation, you must unplug the refrigerator from its electrical outlet.

TOOLS YOU WILL NEED

1/4??? and 5/16??? Nutdrivers

1 REMOVE THE COVER

Use a 5/16??? nutdriver or an adjustable wrench to remove the compressor compartment access cover. This requires removing six screws which attach the cover to the back of the refrigerator case.

Be sure to save the screws as the access cover must be reinstalled later to ensure your refrigerator will function properly.

2CUT PLASTIC WATER TUBING

???Measure 45??? (114.3 cm) of water tubing starting from where it is secured to the water valve.

Cut off excess tubing with a sharp knife or single-edge razor blade.

3ATTACH THE WATER VALVE

???Locate the female connector plug. Plug the female connector (C) onto the male terminals on the water valve (4). Either wire can go on either terminal.

C

4

???Fasten the water valve to the cabinet by driving the hex-head screw (13) from the kit into the hole in the cabinet leg.

13

4INSTALL WATER LINE CLAMP

???Attach the water line clamp (strain relief) (8) from the kit to the refrigerator. With the clamp directly in line with the water valve, drive the screw (7) from the kit through the clamp (8) at the indent into the back of the cabinet.

7

8

???The metal clamp is for the house water line (see Water Line Installation Instructions). It is not to be used for the tubing from the water valve up to the icemaker.

5REMOVE THE TUBE COVER

???At the bottom right rear of the refrigerator, remove the screws holding the tube cover (A) to the case back.

???Remove the cover to gain access to the water tube inlet.

???Be sure to save the screws, as the tube cover must be reinstalled after the water line has been connected to the water tube inlet.

A

6CONNECT THE WATER LINE

???Remove the small plastic cap (B) from the bottom of the water tube inlet located behind the tube cover.

???Squeeze the ends of the hose clamp (6) from the kit with pliers and slide the clamp over the water tube inlet.

???While still squeezing the clamp, insert the

plastic water line into the inlet as far as it will go (approximately 1??? [25 mm]).

???Then slide the clamp downward to capture the plastic water line in place.

???Make sure the fill tube is aimed down.

Water tube inlet

6

B

7ROUTE AND ATTACH THE PLASTIC

WATER LINE

???Fasten the plastic water line to the back of the cabinet with adhesive-backed fastener (5).

Adhesive-backed fastener for plastic water line

8 WATER VALVE INSTALLED

Refer to the Water Line Installation Instructions for connection to the home water supply. After water line installation is completed, set the icemaker power switch to ON.

The icemaking cycle will not begin until the icemaker and freezer compartment reach operating temperature, then icemaking will begin automatically.

BEFORE YOU BEGIN

Recommended copper water supply kits are WX8X2, WX8X3 or WX8X4, depending on the amount of tubing you need. Approved plastic water supply lines are GE SmartConnect??? Refrigerator Tubing (WX08X10002, WX08X10006, WX08X10015 and WX08X10025).

When connecting your refrigerator to a GE Reverse Osmosis Water System, the only approved installation is with a GE RVKit. For other reverse osmosis water systems, follow the manufacturer???s recommendations.

If the water supply to the refrigerator is from a Reverse Osmosis Water Filtration System AND the refrigerator also has a water filter, use the refrigerator???s filter bypass plug. Using the refrigerator???s water filtration cartridge in conjunction with the RO filter can result in hollow ice cubes and slower water flow from the water dispenser.

This water line installation is not warranted by the refrigerator or icemaker manufacturer. Follow these instructions carefully to minimize the risk of expensive water damage.

Water hammer (water banging in the pipes) in house plumbing can cause damage to refrigerator parts and lead to water leakage or flooding. Call a qualified plumber to correct water hammer before installing the water supply line to the refrigerator.

To prevent burns and product damage, do not hook up the water line to the hot water line.

If you use your refrigerator before connecting the water line, make sure the icemaker power switch is in the OFF position.

Do not install the icemaker tubing in areas where temperatures fall below freezing.

When using any electrical device (such as a power drill) during installation, be sure the device is double insulated or grounded in a manner to prevent the hazard of electric shock, or is battery powered.

All installations must be in accordance with local plumbing code requirements.

WHAT YOU WILL NEED

???Copper or GE SmartConnect??? Refrigerator Tubing kit, 1/4??? outer diameter to connect the refrigerator to the water supply. If using copper, be sure both ends of the tubing are cut square.

To determine how much tubing you need: measure the distance from the water valve on the back of the refrigerator to the water supply pipe. Then add

8 feet (2.4 m). Be sure there is sufficient extra tubing (about 8 feet [2.4 m] coiled into 3 turns of about 10??? [25 cm] diameter) to allow the refrigerator to move out from the wall after installation.

GE SmartConnect??? Refrigerator Tubing Kits are available in the following lengths:

Be sure that the kit you select allows at least 8 feet (2.4 m) as described above.

NOTE: The only GE approved plastic tubing is that supplied in GE SmartConnect??? Refrigerator Tubing kits. Do not use any other plastic water supply line because the line is under pressure at all times.

Certain types of plastic will crack or rupture with age and cause water damage to your home.

???A GE water supply kit (containing tubing, shutoff valve and fittings listed below) is available at extra cost from your dealer or from Parts and Accessories, 800.626.2002.

???A cold water supply. The water pressure must be between 20 and 120 p.s.i. (1.4???8.2 bar) on models without a water filter and between 40 and 120 p.s.i. (2.8???8.2 bar) on models with a water filter.

??? Power drill.

???1/2??? or adjustable wrench.

???Straight and Phillips blade screwdriver.

WHAT YOU WILL NEED (CONT.)

???Two 1/4??? outer diameter compression nuts and 2 ferrules (sleeves)???to connect the copper tubing to the shutoff valve and the refrigerator water valve.

OR

???If you are using a GE SmartConnect??? Refrigerator Tubing kit, the necessary fittings are preassembled to the tubing.

???If your existing copper water line has a flared fitting at the end, you will need an adapter (available at plumbing supply stores) to connect the water line to the refrigerator OR you can cut off the flared fitting with a tube cutter and then use a compression fitting. Do not cut formed end from GE SmartConnect??? Refrigerator tubing.

???Shutoff valve to connect to the cold water line.

The shutoff valve should have a water inlet with a minimum inside diameter of 5/32??? at the point of connection to the COLD WATER LINE. Saddle-type shutoff valves are included in many water supply kits. Before purchasing, make sure a saddle-type valve complies with your local plumbing codes.

Install the shutoff valve on the nearest frequently used drinking water line.

1 SHUT OFF THE MAIN WATER SUPPLY

Turn on the nearest faucet long enough to clear the line of water.

2 CHOOSE THE VALVE LOCATION

Choose a location for the valve that is easily accessible. It is best to connect into the side of a vertical water pipe. When it is necessary to connect into a horizontal water pipe, make the connection to the top or side, rather than at the bottom, to avoid drawing off any sediment from the water pipe.

3 DRILL THE HOLE FOR THE VALVE

Drill a 1/4??? hole in the water pipe (even if using a self-piercing valve) using a sharp bit. Remove any burrs resulting from drilling the hole in the pipe. Take care not to allow water to drain into the drill. Failure to drill a 1/4??? hole may result

in reduced ice production or smaller cubes.

4 FASTEN THE SHUTOFF VALVE

Fasten the shutoff valve to the cold water pipe with the pipe clamp.

Pipe Clamp

NOTE: Commonwealth of Massachusetts Plumbing Codes 248CMR shall be adhered to. Saddle valves are illegal and use is not permitted in Massachusetts. Consult with your licensed plumber.

5 TIGHTEN THE PIPE CLAMP

Tighten the clamp screws until the sealing washer begins to swell.

NOTE: Do not overtighten or you may crush the tubing.

6 ROUTE THE TUBING

Route the tubing between the cold water line and the refrigerator.

Route the tubing through a hole drilled in the wall or floor (behind the refrigerator or adjacent base cabinet) as close to the wall as possible.

NOTE: Be sure there is sufficient extra tubing [about 8 feet (244 cm) coiled into 3 turns of about 10 ??? (25 cm) diameter] to allow the refrigerator

to move out from the wall after installation.

7 CONNECT THE TUBING TO

THE VALVE

Place the compression nut and ferrule (sleeve) for copper tubing onto the end of the tubing and connect it to the shutoff valve.

Make sure the tubing is fully inserted into the valve. Tighten the compression nut securely.

For plastic tubing from a GE SmartConnect??? Refrigerator Tubing kit, insert the molded end of the tubing into the shutoff valve and tighten

compression nut until it is hand tight, then tighten one additional turn with a wrench. Overtightening may cause leaks.

NOTE: Commonwealth of Massachusetts Plumbing Codes 248CMR shall be adhered to. Saddle valves are illegal and use is not permitted in Massachusetts. Consult with your licensed plumber.

8 FLUSH OUT THE TUBING

Turn the main water supply on and flush out the tubing until the water is clear.

Shut the water off at the water valve after about one quart (1 liter) of water has been flushed through the tubing.

9CONNECT THE TUBING TO THE

REFRIGERATOR

NOTES:

???Before making the connection to the refrigerator, be sure the refrigerator power cord is not plugged into the wall outlet.

???If your refrigerator does not have a water filter we recommend installing one. If your water supply has sand or particles that could clog the screen of the refrigerator???s water valve. Install it in the water line near the refrigerator. If using GE SmartConnect??? Refrigerator Tubing kit, you will need an additional tube (WX08X10002) to connect the filter. Do not cut plastic tube to install filter.

Remove the plastic flexible cap from the water valve (refrigerator connection).

68

9CONNECT THE TUBING TO THE

REFRIGERATOR (CONT.)

Place the compression nut and ferrule (sleeve) onto the end of the tubing as shown. On GE SmartConnect??? Refrigerator Tubing kit,

the nuts are already assembled to the tubing.

Insert the end of the tubing into the water valve connection as far as possible. While holding the tubing, tighten the fitting.

For plastic tubing from a GE SmartConnect Refrigerator Tubing kit, insert the molded end of the tubing into the refrigerator connection

and tighten compression nut until it is hand tight, then tighten one additional turn with a wrench. Overtightening may cause leaks.

Fasten the tubing into the clamp provided to hold it in a vertical position. You may need to pry open the clamp.

10 TURN THE WATER ON AT THE

SHUTOFF VALVE

Tighten any connections that leak.

Reattach the compressor compartment access cover.

11 PLUG IN THE REFRIGERATOR

Arrange the coil of tubing so that it does not vibrate against the back of the refrigerator or against the wall. Push the refrigerator back to the wall.

12 START THE ICEMAKER

Set the icemaker power switch to the ON position. The icemaker will not begin to operate until it reaches its operating temperature of 15??F (-9??C) or below. It will then begin operation automatically if the icemaker power switch is in the ON position.

NOTE: In lower water pressure conditions, the water valve may turn on up to 3 times to deliver enough water to the icemaker.

70

All warranty service provided by our Factory Service Centers, or an authorized Customer Care?? technician. To schedule service, on-line, visit us at ge.com, or call 800.GE.CARES (800.432.2737). In Canada, call 1.800.561.3344. Please have serial number and model number available when calling for service.

Staple your receipt here. Proof of the original purchase date is needed to obtain service under the warranty.

One Year

From the date of the original purchase

Any part of the icemaker which fails due to a defect in materials or workmanship.

During this limited one-year warranty, GE will provide, free of charge, replacement parts for any defective part in your icemaker kit.

???Service trips to your home to teach you how to use the product.

???Improper installation.

You are responsible for providing adequate electrical, plumbing, and other connecting facilities, including the water line to the icemaker and the water line installation.

???Failure of the product if it is abused, misused, or used for other than the intended purpose or used commercially.

???Replacement of house fuses or resetting of circuit breakers.

???Damage to the product caused by accident, fire, floods or acts of God.

???Incidental or consequential damage caused by possible defects with this appliance.

???Product not accessible to provide required service.

???Service trips to your home to teach you how to use the product.

Read your Owner???s Manual. If you then have any questions about operating the product, please contact your dealer or our Consumer Relations office at:

Manager, Consumer Relations

Mabe Canada Inc.

1 Factory Lane, Suite 310

Moncton, N.B.

E1C 9M3

???Improper installation.

If you have an installation problem, contact your dealer or installer. You are responsible for providing adequate electrical, exhausting and other connecting facilities.

???Replacement of house fuses or resetting of circuit breakers.

???Failure of the product if it is misused, or used for other than the intended purpose or used commercially.

???Damage to product caused by accident, fire, floods or acts of God.

Mesures de s??curit?? . . . . . . . . . . . 73

Instructions de fonctionnement . . . . . . . . . . . . . . . .74 Avant d???appeler un r??parateur . . . .75, 76 Bruits normaux que vous

pouvez entendre . . . . . . . . . . . . . . . . . . .74 Pr??paration ?? un d??part

de longue dur??e . . . . . . . . . . . . . . . . . . .74 Vous devez mettre le commutateur

Machine ?? gla??ons Machine ?? gla??ons Machine ?? gla??ons Machine ?? gla??ons Machine ?? gla??ons Machine ?? gla??ons Machine ?? gla??ons Machine ?? gla??ons

de marche de la machine ?? gla??ons en position OFF (arr??t) . . . . . . . . . . . . . .74

Instructions d???installation

Changement de place ou enl??vement de la clayette du

compartiment cong??lation . . . . . . . . .81 Conduite d???eau froide . . . . . . . .150???153 Enl??vement du support

actuel de plateau ?? gla??ons . . . . . . .80 Gabarits de conduite

d???alimentation . . . . . . . . . . . . . . . . . . . .154 Gabarits de rallonge de

conduite d???alimentation . . . . . . . . . .155 Liste de pi??ces . . . . . . . . . . . . . . . . .78, 79

Services aux consommateurs

Garantie . . . . . . . . . . . . . . . . . . . . . . . . .157

Soutien des consommateurs . . . . . .158

Trousse IM-6

Cette trousse convient ?? la plupart des mod??les qui ont besoin de UK-KIT-1, UK-KIT-2, UK-KIT-4 et ?? tous les mod??les qui ont besoin de trousse IM-1, IM-2, IM-3, IM-4 ou IM-5SS. Si vous remplacez une machine ?? gla??ons avec une trousse IM-1 ou IM-2, consultez la page 77.

Quelles instructions devez- vous suivre?

Consultez l?????tiquette plac??e ?? l???arri??re de votre r??frig??rateur.

Elle vous dira si vous devez utiliser les instructions :

C F GH J K L M

N P Q R S ou T

Ne mettez jamais vos doigts ou vos mains dans la machine ?? gla??ons automatique quand le r??frig??rateur est branch??. Vous ??viterez ainsi de vous blesser.

Vous ??viterez ??galement de g??ner le fonctionnement du m??canisme d?????jection et de l?????l??ment de chauffage qui lib??re les gla??ons qui sont situ??s en bas de la machine ?? gla??ons.

Machine ?? gla??ons

Bras palpeur

Commutateur de marche

(L???aspect peut varier)

Machine ?? gla??ons automatique

La machine ?? gla??ons produit sept gla??ons par cycle, soit environ 100 ?? 130 gla??ons par 24 heures, selon la temp??rature

du compartiment cong??lation, la temp??rature de la pi??ce, le nombre de fois que la porte est ouverte et les autres conditions d???utilisation.

Si vous faites fonctionner le r??frig??rateur avant de raccorder l???eau ?? la machine ?? gla??ons, mettez le commutateur de marche en position OFF (arr??t).

Apr??s avoir raccord?? le r??frig??rateur ?? l???alimentation d???eau, mettez le commutateur de marche en position ON (marche).

La machine ?? gla??ons se remplit d???eau quand elle atteint le point de cong??lation. Un r??frig??rateur nouvellement install?? prend de 12 ?? 24 heures pour commencer ?? produire des gla??ons.

Jetez les premiers lots de gla??ons pour permettre ?? la conduite d???eau de se purger.

Assurez-vous que rien ne g??ne la course du bras palpeur.

Quand le bac se remplit jusqu???au niveau du bras palpeur, la machine ?? gla??ons s???arr??te de produire des gla??ons.

Il est normal de trouver des gla??ons qui soient soud??s ensemble.

Si vous n???utilisez pas souvent vos gla??ons, les vieux gla??ons deviennent opaques, prennent un mauvais go??t et r??tr??cissent.

NOTE : Dans les maisons qui ont une pression d???eau plus faible que la moyenne, vous pouvez entendre la machine ?? gla??ons recommencer plusieurs fois son cycle pour produire un lot de gla??ons.

Mettez le commutateur de marche de la machine ?? gla??ons en position OFF (arr??t) et coupez l???alimentation d???eau du r??frig??rateur.

Si la temp??rateur risque de s???abaisser en dessous de la temp??rature de cong??lation, demandez ?? un technicien qualifi?? de purger votre syst??me d???alimentation d???eau (sur certains mod??les) pour emp??cher toute inondation pouvant occasionner des d??g??ts s??rieux.

???Quand le bac ?? gla??ons est enlev?? pendant plus d???une minute ou deux.

???Quand l???alimentation d???eau est coup??e pendant plusieurs heures.

???Quand vous n???utilisez pas votre r??frig??rateur pendant plusieurs jours.

???Le robinet d???alimentation d???eau de la machine ?? gla??ons ??met un bourdonnement quand la machine ?? gla??ons se remplit d???eau. Si le

commutateur est en position ON (marche), un bourdonnement se fait entendre m??me si la machine n???a pas encore ??t?? branch??e ?? l???alimentation d???eau. Si vous conservez le commutateur en position ON (marche) avant de brancher la machine ??

l???alimentation d???eau, vous risquez d???endommager votre machine. Pour ??viter tout d??g??t, mettez le commutateur en position OFF (arr??t). Le bourdonnement s???arr??tera.

???Les gla??ons qui tombent dans le bac et l???eau qui coule dans les tuyaux quand la machine ?? gla??ons se remplit font un bruit normal.

La machine ?? gla??ons n???est pas bien branch??e.

???Assurez-vous que l???adaptateur du cordon d???alimentation soit bien branch??. V??rifiez ??galement que la fiche du cordon d???alimentation soit bien entr??e dans la prise. Consultez

la section Branchez la machine ?? gla??ons.

La conduite d???eau est tordue.

???V??rifiez que la conduite d???eau en mati??re plastique qui va du robinet

??l???entr??e d???eau ne soit pas tordue. Consultez la section Branchez la conduite d???eau. Un coude dans la conduite r??duit le d??bit d???eau allant

??la machine ?? gla??ons.

Le robinet d???eau n???est pas bien branch??.

???Assurez-vous que l???adaptateur en fil du robinet soit compl??tement branch?? dans la prise du connecteur m??le et que les contacts soient branch??s sur le robinet d???eau. Consultez

la section Fixez le robinet d???eau.

Contacts du robinet

Les gla??ons ont une odeur ou un go??t

???Si vous avez install?? la conduite d???alimentation en le faisant glisser ?? travers l???arri??re du r??frig??rateur, il peut avoir amass??e des morceaux de mousse pendant que vous la poussiez.

Cette mousse peut g??ner le d??bit d???eau dans le r??cipient de remplissage. V??rifiez le r??cipient de remplissage pour

vous assurer qu???il ne contient pas de

morceaux de mousse.

La conduite d???eau est tordue.

??? V??rifiez que la conduite d???eau en mati??re plastique qui va du robinet ?? l???entr??e d???eau ne soit pas tordue. Consultez la section Montez la machine ?? gla??ons. Un coude dans la conduite r??duit le d??bit d???eau allant ?? la machine ?? gla??ons.

Dispositifs de fixation de conduite d???eau avec envers adh??sif

AVANT DE COMMENCER

Lisez ces instructions compl??tement et attentivement.

??? IMPORTANT ???Conservez ces instructions pour votre inspecteur local.

??? IMPORTANT ???Observez tous les codes et les ordonnances en vigueur.

??? Note ?? l???installateur ??? Assurez-vous de

laisser ces instructions au consommateur.

??? Note au consommateur ??? Conservez ces

instructions pour r??f??rences futures.

???Niveau de comp??tence ??? L???installation de cet appareil ??lectrom??nager n??cessite des comp??tences m??caniques et ??lectriques de base.

???Dur??e requise pour l???installation ??? 20???60 minutes

???L???installateur est responsable d???une bonne installation.

???Toute panne de l???appareil due ?? une mauvaise installation est exclue de la garantie.

QUELLES INSTRUCTIONS DEVEZ-VOUS

SUIVRE?

Consultez l?????tiquette plac??e ?? l???arri??re de votre r??frig??rateur. Elle vous dira si vous devez utiliser les instructions

C F G H J K L M N P Q R S ou T

Vous trouverez pages 82 ?? 149 quatorze Instructions d???installation diff??rentes.

L???installation de votre machine ?? gla??ons d??pend de votre mod??le de r??frig??rateur.

REMPLACEZ-VOUS UNE MACHINE ??

GLA??ONS EXISTANTE PAR CETTE

TROUSSE?

Il est important que vous utilisiez le robinet d???eau et la rallonge de conduite qui sont contenus dans cette trousse, m??me si votre r??frig??rateur a d??j?? un robinet d???eau et une rallonge d??j?? install??s.

Le vieux robinet peut occasionner une alimentation d???eau insuffisante pour un bon remplissage de la machine ?? gla??ons et cela risque de provoquer des dommages.

La rallonge de conduite d???eau doit ??tre d???une longueur diff??rente que celle qui existe, pour permettre une bonne alimentation d???eau. Coupez la conduite ?? la longueur indiqu??e pour votre mod??le de r??frig??rateur.

DOMMAGES ??? EXP??DITION/

INSTALLATION

???Si votre appareil a ??t?? endommag?? pendant son exp??dition, renvoyez-le au magasin o?? vous l???avez achet??. Il le r??parera ou le remplacera.

???Si c???est le client qui a endommag?? votre appareil, il est responsable de sa r??paration ou de son remplacement.

???Si c???est l???installateur (autre que le client) qui a endommag?? l???appareil, c???est l???accord qui lie l???installateur au client qui d??termine celui qui est responsable de la r??paration ou du remplacement.

1Machine ?? gla??ons (L???aspect peut varier)

15 Raccord d???arriv??e de conduite d???eau

(2)

Instructions

d???installation

2Manuel du propri??taire et instructions d???installation

8Collier de serrage de conduite d???eau (collier de serrage)

ICEMAKER

WARRANTY VERIFICATION

Date Installed

Dealer

9??tiquette de garantie

(diam : 5/8 po)

3Collier de serrage de tuyau (noir)

4Ensemble de robinet et de conduite d???eau

5Dispositif de fixation de conduite d???eau avec envers adh??sif

6Collier de serrage de tuyau (pas noir)

7Vis ?? t??te hexagonale pour collier de serrage

de conduite d???eau

10Rallonge de conduite d???alimentation

(diam : 3/4 po)

11 Bac de gla??ons

12Collier de serrage de conduite d???eau (collier de serrage)

13Vis ?? t??te hexagonale

14Vis ?? t??te Phillips (2)

17R??cipient de remplissage de la machine ?? gla??ons (montage de c??t??)

18Adaptateur de cordon d???alimentation ??lectrique de la machine ?? gla??ons (4 broches)

19Extension en fil du robinet d???eau

20 Liens m??talliques (2)

21Tuyau d???alimentation isol?? (diam : 5/8 po)

24Insertion de la machine ?? gla??ons

25Adaptateur en fil du robinet d???eau

26Support de la machine ?? gla??ons

27Vis pour monter le support ?? la paroi du r??frig??rateur (3)

28Bras palpeur recourb??

29R??cipient de remplissage de la machine ?? gla??ons (montage sur le bout ??? Longueur : 7 cm

[2-3/4 po])

Type 1

???D??crochez le c??t?? et le bas du support de plateau ?? gla??ons des crochets de fixation. Abaissez le support jusqu????? ce que son c??t?? soit d??gag?? de la clayette du compartiment cong??lateur et enlevez-le du compartiment cong??lateur. Vous n???aurez plus

besoin de cette pi??ce.

Crochets de

fixation

Type 2

???En soulevant le taquet situ?? de c??t?? gauche du support avec la lame d???un tournevis, tirez le support vers l???avant et sortez-le. Vous n???aurez plus besoin de cette pi??ce.

Type 4

???Enlevez les 2 vis et mettez-les de c??t?? pour installer la machine ?? gla??ons.

???Soulevez le support de plateau ?? gla??ons pour l???enlever du crochet en mati??re plastique. Vous n???aurez plus besoin de cette pi??ce.

Vis

Crochet en mati??re plastique

Type 5

???Enlevez la vis avec un tourne-??crou de 1/4 po.

???Tirez la clayette de plateau ?? gla??ons pour la s??parer de la paroi. Enlevez la clayette. Vous n???aurez plus besoin de cette pi??ce.

???Remettez la vis.

AVANT DE COMMENCER

Lisez soigneusement chaque ??tape avant de commencer.

??? MISE EN GARDE ???

D??branchez le r??frig??rateur. Pour ??liminer tout danger de secousse ??lectrique pendant l???installation, vous devez d??brancher la fiche de votre

r??frig??rateur de sa prise ??lectrique murale.

OUTILS N??CESSAIRES

1PR??PAREZ VOTRE INSTALLATION

???Enlevez la vis (A) qui tient en place le couvercle de la fiche ??lectrique. Vous n???aurez pas besoin de cette vis et du couvercle.

???Enlevez l???insertion du pare-lumi??re (B) et mettez-la de c??t??.

???Desserrez les deux vis de montage (C) d???environ 13 mm (1/2 po). N???ENLEVEZ PAS CES VIS.

CB

2INSTALLEZ LA CONDUITE

D???ALIMENTATION D???EAU

Coupez la rallonge de conduite d???alimentation (10) ?? la longueur C (consultez le gabarit C page 155)

avec un couteau aiguis?? ou une simple lame de rasoir et faites-la glisser dans la conduite d???alimentation d???eau jusqu????? ce qu???elle s???arr??te.

10

C

3METTEZ LE COMMUTATEUR DE MARCHE EN POSITION OFF (arr??t)

Mettez le commutateur de marche de la machine ?? gla??ons en position OFF (arr??t). Laissez le commutateur de marche en position OFF (arr??t) tant que vous n???avez pas branch?? le r??frig??rateur ?? l???alimentation d???eau, pour ??viter tout fonctionnement pr??matur??.

Trou pour lien m??tallique

Commutateur de marche

4ADAPTATEUR DE CORDON

D???ALIMENTATION ??LECTRIQUE

(sur certains mod??les)

Un adaptateur de cordon d???alimentation ??lectrique

(18) est compris dans la trousse. Inspectez-le visuellement pour v??rifier que le cordon d???alimentation de la machine ?? gla??ons correspond au culot de la paroi du c??t?? du compartiment cong??lation. Le cas ??ch??ant, fixez l???adaptateur au c??t?? du cordon d???alimentation de la machine ?? gla??ons. Assurez-vous que le bourrelet soit bien plac?? entre les parties quand vous faites la connection entre l???adaptateur et le cordon d???alimentation ??lectrique, et assurez-vous que les deux verrouillages de contact sont bloqu??s en place. Fixez l???adaptateur de cordon d???alimentation ??lectrique ?? la machine ?? gla??ons en le mettant dans le crochet situ?? ?? l???arri??re de la machine ?? gla??ons et en l???attachant ?? la machine ?? gla??ons au moyen d???un lien m??tallique (20).

Crochet

Bourrelet

Verrouillages

5INSTALLEZ LE R??CIPIENT DE

REMPLISSAGE DE LA MACHINE ??

GLA??ONS

Installez le r??cipient de remplissage (montage de c??t??) (17) dans la machine ?? gla??ons comme l???indique la figure.

17

6 BRANCHEZ LA MACHINE ?? GLA??ONS

Placez la machine ?? gla??ons dans le compartiment cong??lation, de c??t?? comme l???indique la figure. Ins??rez la fiche de cordon d???alimentation ??lectrique de la machine ?? gla??ons (D) dans la prise situ??e sur la paroi de c??t?? du r??frig??rateur, en vous assurant de bien faire entrer les bonnes broches dans les bons trous. Si les trous ne correspondent pas, consultez l?????tape 4. Pressez fort la fiche dans la prise.

D

7MONTEZ LA MACHINE ?? GLA??ONS

???Soulevez la machine ?? gla??ons de mani??re ?? mettre la rallonge de conduite d???alimentation d???eau (10) dans l???ouverture du r??cipient de remplissage (E). Accrochez la machine ?? gla??ons aux deux vis de montage (C).

Assurez-vous bien que :

???Le cordon d???alimentation ??lectrique soit toujours bien fix?? dans sa prise.

???La rallonge de conduite d???alimentation (10) se trouve toujours bien dans l???ouverture du r??cipient de remplissage. (V??rifiez ?? l???arri??re

du r??frig??rateur que la conduite d???alimentation d???eau n???ait pas ??t?? pouss??e ?? l???ext??rieur du r??frig??rateur).

???Les vis de montage de la machine ?? gla??ons soient bien plac??es dans la position la plus ??lev??e des fentes de montage.

SERREZ ALORS FORT LES VIS DE MONTAGE

DE LA MACHINE ?? GLA??ONS.

10

C

E

8 INSTALLEZ LE BAC ?? GLA??ONS

Mettez le bac ?? gla??ons directement en dessous de la machine ?? gla??ons (?? gauche et tout au fond de la clayette sous la machine ?? gla??ons).

Assurez-vous que le commutateur de marche de la machine ?? gla??ons soit bien en position OFF (arr??t).

11

9 COLLEZ L?????TIQUETTE DE GARANTIE

Vous trouverez dans cette trousse une ??tiquette (9), sur laquelle vous devez noter la date de l???installation, ?? des fins de garantie. Collez-la ?? l???arri??re du r??frig??rateur.

10 CONSERVEZ CE MANUEL

La garantie de la machine ?? gla??ons est imprim??e sur ce Manuel. Conservez ce Manuel avec votre Manuel du propri??taire du r??frig??rateur.

Vous avez maintenant termin?? d???installer votre machine ?? gla??ons ?? l???int??rieur de votre compartiment cong??lation. Passez ?? la section l???ensemble de robinet d???eau.

AVANT DE COMMENCER

Lisez soigneusement chaque ??tape avant de commencer.

??? MISE EN GARDE ???

D??branchez le r??frig??rateur. Pour ??liminer tout danger de secousse ??lectrique pendant l???installation, vous devez d??brancher la fiche de votre

r??frig??rateur de sa prise ??lectrique murale.

1 ENLEVEZ LE COUVERCLE

En bas ?? l???arri??re du r??frig??rateur, enlevez la/les vis qui retient/retiennent le couvercle du

compartiment du compresseur (s???il y a un couvercle) et mettez-le de c??t?? pour le remettre en place plus tard. Pliez le dos du couvercle pour avoir acc??s au compartiment.

2FIXEZ LE ROBINET D???EAU

???Trouvez la prise du connecteur femelle (A) qui est fix?? ?? l???armoire du r??frig??rateur par un lien m??tallique. Enlevez le lien m??tallique et jetez-le.

Lien m??tallique

A

???Enlevez et jetez le ruban adh??sif du connecteur femelle (A) et branchez le connecteur aux contacts m??les du robinet d???eau (4). Les fils correspondent indiff??remment ?? l???un ou l???autre contact.

A

4

???Fixez le robinet d???eau au trou situ?? sur le rebord de l???armoire du r??frig??rateur ?? l???aide de la vis ?? t??te hexagonale (13) de la trousse. NE PERCEZ AUCUN

TROU ADDITIONNEL.

???V??rifiez l?????crou de conduite d???eau en mati??re plastique situ?? sous le robinet d???eau pour vous assurer qu???il est serr??, ?? la main uniquement.

N???UTILISEZ PAS D???OUTIL.

13

3FIXEZ LE COLLIER DE SERRAGE

???Poussez le collier de serrage de conduite d???eau en m??tal (12) sur le rebord inf??rieur de l???arri??re de l???armoire du r??frig??ragteur, en l???alignant au robinet d???eau.

???Vous devez utiliser le collier de serrage de conduite d???eau en m??tal sur la conduite d???eau de la maison (consultez Instructions d???installation de la conduite d???eau). Vous ne devez pas l???utiliser sur la conduite qui va du robinet d???eau ?? la machine ?? gla??ons.

12

4 PLACEZ LA CONDUITE D???EAU

EN MATI??RE PLASTIQUE

Sur les mod??les qui ont une canalisation de condensateur derri??re l???armoire, ins??rez la conduite d???eau en mati??re plastique entre la canalisation et l???arri??re de l???armoire.

5BRANCHEZ LA CONDUITE D???EAU

???Enlevez le petit bouchon en mati??re plastique (B) en bas du raccord d???arriv??e de conduite d???eau situ?? en haut du coin arri??re droit du r??frig??rateur.

???Pincez les extr??mit??s du collier de serrage de tuyau

(6) de la trousse avec des pinces et faites glisser le collier de serrage sur le raccord d???arriv??e de conduite d???eau.

???Tout en continuant de pincer le collier de serrage, ins??rez la conduite d???eau en mati??re plastique dans le raccord d???arriv??e de conduite d???eau aussi loin qu???elle peut aller (environ 25 mm [1 po]).

???Faites ensuite glisser le collier de serrage vers le bas de mani??re ?? attraper la conduite d???eau en mati??re plastique et la tenir bien en place.

???Assurez-vous que la conduite d???alimentation d???eau soit dirig??e vers le bas.

6 FIXEZ LA CONDUITE D???EAU EN

MATI??RE PLASTIQUE

Attachez la conduite d???eau en mati??re plastique

?? l???arri??re de l???armoire du r??frig??rateur avec les dispositifs de fixation avec envers adh??sif (5), en espa??ant les dispositifs de fixation comme l???indique la figure pour emp??cher la conduite d?????tre d??tendue.

5

5

Dispositifs de fixation de conduite d???eau avec envers adh??sif

7 UNE FOIS LE ROBINET D???EAU

INSTALL??

Consultez Instructions d???installation de la conduite d???eau pour brancher ?? l???alimentation d???eau de la maison. Apr??s avoir termin?? de brancher la conduite d???eau, mettez le commutateur de marche de la machine ?? gla??ons en position ON (marche).

Le cycle de formation des gla??ons ne commence que lorsque la machine ?? gla??ons et le compartiment cong??lation atteignent leur temp??rature de fonctionnement. La formation de gla??ons commence alors automatiquement.

AVANT DE COMMENCER

Lisez soigneusement chaque ??tape avant de commencer.

??? MISE EN GARDE ???

D??branchez le r??frig??rateur. Pour ??liminer tout danger de secousse ??lectrique pendant l???installation, vous devez d??brancher la fiche de votre

r??frig??rateur de sa prise ??lectrique murale.

2 D??VISSEZ LES VIS DE MONTAGE

Desserrez les deux vis de montage (A) sans les d??visser compl??tement. Ces vis doivent sortir d???environ 13 mm (1/2 po) de la paroi du compartiment cong??lation.

A

OUTILS N??CESSAIRES

1ENLEVEZ LE COUVERCLE DE LA

PRISE ??LECTRIQUE

3INSTALLEZ LA CONDUITE

D???ALIMENTATION

???Enlevez et jetez le capuchon blanc du coin situ?? en haut ?? gauche de la paroi du compartiment cong??lation.

???Coupez la rallonge de conduite d???alimentation

(10) ?? la longueur F (consultez le gabarit F page 155) avec un couteau aiguis?? ou une simple lame de rasoir et faites-la glisser dans la conduite d???alimentation d???eau jusqu????? ce qu???elle s???arr??te.

4METTEZ LE COMMUTATEUR DE MARCHE EN POSITION OFF (arr??t)

Mettez le commutateur de marche de la machine ??

gla??ons en position OFF (arr??t). Laissez le commutateur de marche en position OFF (arr??t) tant que vous n???avez pas branch?? le r??frig??rateur ?? l???alimentation d???eau, pour ??viter tout fonctionnement pr??matur??.

Trou pour lien m??tallique

Commutateur de marche

(L???aspect peut varier)

5 ADAPTATEUR DE CORDON

D???ALIMENTATION ??LECTRIQUE

(sur certains mod??les)

Un adaptateur de cordon d???alimentation ??lectrique

(18) est compris dans la trousse. Inspectez-le visuellement pour v??rifier que le cordon d???alimentation de la machine ?? gla??ons correspond au culot de la paroi de l???arri??re du compartiment cong??lation. Le cas ??ch??ant, fixez l???adaptateur au c??t?? du cordon d???alimentation de la machine ?? gla??ons. Assurez-vous que le bourrelet soit bien plac?? entre les parties quand vous faites la connection entre l???adaptateur et le cordon d???alimentation ??lectrique, et assurez-vous que les deux verrouillages de contact sont bloqu??s en place. Fixez l???adaptateur de cordon d???alimentation ??lectrique ?? la machine ?? gla??ons en le mettant dans le crochet situ?? ?? l???arri??re de la machine ?? gla??ons et en l???attachant ?? la machine ?? gla??ons au moyen d???un lien m??tallique (20).

Crochet

Bourrelet

6INSTALLEZ LE R??CIPIENT DE

REMPLISSAGE DE LA MACHINE

?? GLA??ONS

Installez le r??cipient de remplissage (montage de c??t??) (17) dans la machine ?? gla??ons comme l???indique la figure.

17

7 BRANCHEZ LA MACHINE ?? GLA??ONS

Placez la machine ?? gla??ons dans le compartiment cong??lation, de c??t?? comme l???indique la figure. Ins??rez la fiche de cordon d???alimentation ??lectrique de la machine ?? gla??ons (B) dans la prise situ??e sur la paroi de c??t?? du r??frig??rateur, en vous assurant de bien faire entrer les bonnes broches dans les bons trous. Si les trous ne correspondent pas, consultez l?????tape 5. Pressez fort la fiche dans

la prise.

B

8 MONTEZ ?? NOUVEAU LE COUVERCLE

DE PRISE ??LECTRIQUE

Si le couvercle de prise enlev?? pendant la premi??re ??tape correspond ?? la figure 1, passez ?? l?????tape 9.

Si le couvercle de prise enlev?? pendant la premi??re ??tape correspond ?? la figure 2, il faut le monter ?? nouveau.

???Enlevez le taquet ?? enlever situ?? du c??t?? gauche du couvercle. En tenant le couvercle, pliez le taquet avec des pinces pour l???enlever.

???Placez le couvercle sur la prise ??lectrique avec le cordon d???alimentation ??lectrique qui passe par l???ouverture.

???Ins??rez les taquets en haut ou en bas et poussez l???autre c??t?? en place.

IMPORTANT : Ce couvercle vous aide ?? emp??cher la fiche ??lectrique ?? sortir de la prise quand vous montez la machine ?? gla??ons. Assurez-vous de le monter maintenant.

10 INSTALLEZ LE BAC ?? GLA??ONS

La clayette droite ??

deux positions doit se trouver en position

inf??rieure. Le niveau inf??rieur de la clayette ?? deux niveaux doit ??tre sous la machine ?? gla??ons. La clayette en porte-??-faux doit se trouver dans la sixi??me fente vers le haut ?? partir du bas du rail.

Assurez-vous que le commutateur de marche de la machine ?? gla??ons soit bien en position OFF (arr??t).

11 COLLEZ L?????TIQUETTE DE GARANTIE

Vous trouverez dans cette trousse une ??tiquette (9), sur laquelle vous devez noter la date de l???installation, ?? des fins de garantie. Collez-la ?? l???arri??re du r??frig??rateur.

9MONTEZ LA MACHINE ?? GLA??ONS

???Soulevez la machine ?? gla??ons de mani??re ?? mettre la rallonge de conduite d???alimentation (10) dans l???ouverture du r??cipient de remplissage

(C). Accrochez la machine ?? gla??ons aux deux vis de montage (A).

Assurez-vous bien que :

???Le cordon d???alimentation ??lectrique soit toujours bien fix?? dans sa prise.

???La rallonge de conduite d???alimentation (10) se trouve toujours bien dans l???ouverture du r??cipient de remplissage. (V??rifiez ?? l???arri??re du

r??frig??rateur que la conduite d???alimentation d???eau n???ait pas ??t?? pouss??e ?? l???ext??rieur du r??frig??rateur).

???Les vis de montage de la machine ?? gla??ons soient bien plac??es dans la position la plus ??lev??e des fentes de montage.

SERREZ ALORS FORT LES VIS DE MONTAGE DE LA

MACHINE ?? GLA??ONS.

10

A

C

12 CONSERVEZ CE MANUEL

La garantie de la machine ?? gla??ons est imprim??e sur ce Manuel. Conservez ce Manuel avec votre Manuel du propri??taire du r??frig??rateur

Vous avez maintenant termin?? d???installer votre machine ?? gla??ons ?? l???int??rieur de votre compartiment cong??lation. Passez ?? la section L???ensemble de robinet d???eau.

AVANT DE COMMENCER

Lisez soigneusement chaque ??tape avant de commencer.

??? MISE EN GARDE ???

D??branchez le r??frig??rateur. Pour ??liminer tout danger de secousse ??lectrique pendant l???installation, vous devez d??brancher la fiche de votre

r??frig??rateur de sa prise ??lectrique murale.

OUTILS N??CESSAIRES

Tourne-??crou de 1/4???

1 ENLEVEZ LE COUVERCLE

En bas ?? l???arri??re du r??frig??rateur, enlevez la/les vis qui retient/retiennent le couvercle du compartiment du compresseur (s???il y a un couvercle) et mettez-le de c??t?? pour le remettre en place plus tard. Pliez le dos du couvercle pour avoir acc??s au compartiment.

2 FIXEZ LE ROBINET D???EAU

???Trouvez la prise du connecteur femelle (C) qui est fix?? ?? l???armoire du r??frig??rateur par une

agrafe en m??tal ou en mati??re plastique. Enlevez l???agrafe en enlevant la vis. Conservez la vis pour monter le robinet d???eau plus tard. Jetez l???agrafe.

Agrafe en m??tal ou en mati??re plastique

C

???Branchez le connecteur femelle (C) aux contacts m??les du robinet d???eau (4). Les fils correspondent indiff??remment ?? l???un ou l???autre contact.

C

4

???Fixez le robinet d???eau au trou situ?? sur le rebord de l???armoire du r??frig??rateur ?? l???aide de la vis ?? t??te hexagonale que vous avez enlev??e au d??but de la deuxi??me ??tape.

NE PERCEZ AUCUN TROU ADDITIONNEL.

???V??rifiez l?????crou de conduite d???eau en mati??re plastique situ?? sous le robinet d???eau pour vous assurer qu???il est serr??, ?? la main uniquement.

N???UTILISEZ PAS D???OUTIL.

3MONTEZ LE COLLIER DE SERRAGE

DE LA CONDUITE D???EAU

???Fixez le collier de serrage de la conduite d???eau en m??tal (8) au r??frig??rateur. Vissez l???une des vis, enlev??e pendant la premi??re ??tape, dans le rebord de l???armoire du r??frig??rateur en la faisant passer ?? travers le collier de serrage et le trou du couvercle du compresseur.

???Vous devez utiliser ce collier de serrage sur la conduite d???eau de la maison (consultez Instructions d???installation de la conduite d???eau). Vous ne pouvez pas l???utiliser sur la conduite allant du robinet d???eau jusqu????? la machine ?? gla??ons.

Vis

8

4BRANCHEZ LA CONDUITE D???EAU

???Enlevez le petit bouchon en mati??re plastique (B) en bas du raccord d???arriv??e de conduite d???eau situ?? en haut du coin arri??re droit du r??frig??rateur.

???Pincez les extr??mit??s du collier de serrage de tuyau

(6) de la trousse avec des pinces et faites glisser le collier de serrage sur le raccord d???arriv??e de conduite d???eau.

???Tout en continuant de pincer le collier de serrage, ins??rez la conduite d???eau en mati??re plastique dans le raccord d???arriv??e de conduite d???eau aussi loin qu???elle peut aller (environ 25 mm [1 po]).

???Faites ensuite glisser le collier de serrage vers le bas de mani??re ?? attraper la conduite d???eau en mati??re plastique et la tenir bien en place.

???Assurez-vous que la conduite d???alimentation d???eau soit dirig??e vers le bas.

5 FIXEZ LA CONDUITE D???EAU EN

MATI??RE PLASTIQUE

Attachez la conduite d???eau en mati??re plastique

?? l???arri??re de l???armoire du r??frig??rateur avec les dispositifs de fixation avec envers adh??sif (5), en espa??ant les dispositifs de fixation comme l???indique la figure pour emp??cher la conduite d?????tre d??tendue.

5

Dispositif de fixation de conduite d???eau en mati??re plastique avec envers adh??sif

6 UNE FOIS LE ROBINET D???EAU

INSTALL??

Consultez Instructions d???installation de la conduite d???eau pour brancher ?? l???alimentation d???eau de la maison. Apr??s avoir termin?? de brancher la conduite d???eau, mettez le commutateur de marche de la machine ?? gla??ons en position ON (marche).

Le cycle de formation des gla??ons ne commence que lorsque la machine ?? gla??ons et le compartiment cong??lation atteignent leur temp??rature de fonctionnement. La formation de gla??ons commence alors automatiquement.

AVANT DE COMMENCER

Lisez soigneusement chaque ??tape avant de commencer.

??? MISE EN GARDE ???

D??branchez le r??frig??rateur. Pour ??liminer tout danger de secousse ??lectrique pendant l???installation, vous devez d??brancher la fiche de votre

r??frig??rateur de sa prise ??lectrique murale.

2ENLEVEZ LE COUVERCLE

DE LA PRISE

OUTILS N??CESSAIRES

1INSTALLEZ LE RACCORD DE

CONDUITE D???ALIMENTATION D???EAU

Si votre r??frig??rateur a d??j?? un raccord de conduite d???alimentation d???eau ?? l???arri??re du r??frig??rateur, passez ?? l?????tape 2.

???Coupez la conduite d???alimentation (16) ?? la longueur G (consultez le gabarit G page 154) avec un couteau aiguis?? ou

??? Faites glisser la conduite d???alimentation (16) dans le 15 raccord de conduite d???alimentation d???eau (15).

???Trouvez la petite ??tiquette coll??e sur le coin sup??rieur de droite ?? l???arri??re du r??frig??rateur et d??collez-la.

???Du c??t?? de la conduite du raccord d???arriv??e

de conduite d???eau (15) vous trouverez un endos adh??sif. Enlevez cet endos

adh??sif et faites glisser la

conduite dans le trou situ?? pr??s du haut derri??re le r??frig??rateur. Pressez fort sur le raccord pour bien le fixer au r??frig??rateur.

3 DESSERREZ LES VIS DE MONTAGE

Desserrez les deux vis de montage (B), sans les d??visser compl??tement. Si votre mod??le n???a pas de vis d??j?? dans la paroi du compartiment cong??lation, trouvez deux capuchons. Enlevez les capuchons et ins??rez deux vis ?? t??te Phillips (14). Les vis doivent sortir d???environ 13 mm (1/2 po)

de la paroi du compartiment cong??lation.

B

4INSTALLEZ LA CONDUITE

D???ALIMENTATION

???Enlevez le capuchon blanc du c??t?? sup??rieur de gauche de la paroi du compartiment cong??lation.

???Coupez la rallonge de conduite d???alimentation

(10) ?? la longueur G (consultez le gabarit G page 155) avec un couteau aiguis?? ou une simple lame de rasoir et faites-la glisser dans la conduite d???alimentation d???eau jusqu????? ce qu???elle s???arr??te.

5METTEZ LE COMMUTATEUR DE MARCHE EN POSITION OFF (arr??t)

Mettez le commutateur de marche de la machine ??

gla??ons en position OFF (arr??t). Laissez le commutateur de marche en position OFF (arr??t) tant que vous n???avez pas branch?? le r??frig??rateur ?? l???alimentation d???eau, pour ??viter toute mise en marche pr??matur??e.

Trou pour lien m??tallique

Commutateur de marche

(L???aspect peut varier)

6 ADAPTATEUR DE CORDON

D???ALIMENTATION ??LECTRIQUE

(sur certains mod??les)

Un adaptateur de cordon d???alimentation ??lectrique

(18) est compris dans la trousse. Inspectez-le visuellement pour v??rifier que le cordon d???alimentation de la machine ?? gla??ons correspond au culot de la paroi du c??t?? du compartiment cong??lation. Le cas ??ch??ant, fixez l???adaptateur au c??t?? du cordon d???alimentation de la machine ?? gla??ons. Assurez-vous que le bourrelet soit bien plac?? entre les parties quand vous faites la connection entre l???adaptateur et le cordon d???alimentation ??lectrique, et assurez-vous que les deux verrouillages de contact sont bloqu??s en place. Fixez l???adaptateur de cordon d???alimentation ??lectrique ?? la machine ?? gla??ons en le mettant dans le crochet situ?? ?? l???arri??re de la machine ?? gla??ons et en l???attachant ?? la machine ?? gla??ons au moyen d???un lien m??tallique (20).

Crochet

Verrouillages

7INSTALLEZ LE R??CIPIENT DE

REMPLISSAGE ET L???INSERTION

DE LA MACHINE ?? GLA??ONS

Installez le r??cipient de remplissage de la machine ?? gla??ons (montage de c??t??) (17) dans la machine ?? gla??ons comme l???indique la figure.

17

8 BRANCHEZ LA MACHINE ?? GLA??ONS

En tenant la machine ?? gla??ons dans le compartiment cong??lation comme l???indique la figure, ins??rez la fiche de cordon d???alimentation ??lectrique (D) dans la prise, en vous assurant de mettre les bonnes broches dans les bons trous. Si les trous ne correspondent pas, consultez l?????tape 6. Pressez fort la fiche dans la prise.

D

9MONTEZ LA MACHINE ?? GLA??ONS

???Soulevez la machine ?? gla??ons de mani??re ?? ce que la rallonge de conduite d???alimentation (10) entre dans l???ouverture du r??cipient de remplissage (C). Accrochez la machine ?? gla??ons aux deux vis de montage (A).

Assurez-vous bien que :

???Le cordon d???alimentation ??lectrique soit toujours bien fix?? ?? la prise.

???La rallonge de conduite d???alimentation (10) se trouve toujours bien dans l???ouverture du r??cipient de remplissage ?? l???arri??re de la machine ?? gla??ons (v??rifiez ?? l???arri??re du r??frig??rateur

que la conduite d???alimentation d???eau n???ait pas ??t?? pouss??e ?? l???ext??rieur du r??frig??rateur).

???Les vis de montage se trouvent dans la position sup??rieure des fentes de montage.

SERREZ ALORS FORT LES VIS DE MONTAGE DE LA

MACHINE ?? GLA??ONS.

10

A

C

10 INSTALLEZ LE BAC ?? GLA??ONS

Mettez le bac ?? gla??ons

(11) directement sous la machine ?? gla??ons (?? la gauche et tout au fond de la clayette sous la machine ?? gla??ons).

11 COLLEZ L?????TIQUETTE DE GARANTIE

Vous trouverez dans cette trousse une ??tiquette (9), sur laquelle vous devez noter la date de l???installation, ?? des fins de garantie. Collez-la ?? l???arri??re du r??frig??rateur.

12 CONSERVEZ CE MANUEL

La garantie de la machine ?? gla??ons est imprim??e sur ce Manuel. Conservez ce Manuel avec votre Manuel du propri??taire du r??frig??rateur.

Vous avez maintenant termin?? d???installer votre machine ?? gla??ons ?? l???int??rieur de votre compartiment cong??lation. Passez ?? la section L???ensemble de robinet d???eau.

AVANT DE COMMENCER

Lisez soigneusement chaque ??tape avant de commencer.

??? MISE EN GARDE ???

D??branchez le r??frig??rateur. Pour ??liminer tout danger de secousse ??lectrique pendant l???installation, vous devez d??brancher la fiche de votre

r??frig??rateur de sa prise ??lectrique murale.

2FIXEZ LE ROBINET D???EAU

???Trouvez la prise du connecteur femelle (B).

B

OUTILS N??CESSAIRES

Tourne-??crou de 1/4 po et 5/16 po

???Branchez le connecteur femelle (B) aux contacts m??les sur l???extension en fil du robinet d???eau (19). Les fils correspondent indiff??remment ?? l???un ou l???autre contact.

???Branchez le connecteur femelle sur l???extension en fil du robinet d???eau (19) aux contacts m??les du robinet d???eau (4). Les fils correspondent indiff??remment ?? l???un ou l???autre contact.

1 ENLEVEZ LE COUVERCLE

En bas ?? l???arri??re du r??frig??rateur, enlevez la/les vis qui retient/retiennent le couvercle du compartiment du compresseur (s???il y a un couvercle) et mettez-le de c??t?? pour le remettre en place plus tard. Pliez le dos du couvercle pour avoir acc??s au compartiment.

B

19

4

3MONTEZ LE COLLIER DE SERRAGE

DE LA CONDUITE D???EAU

???Fixez le collier de serrage de la conduite d???eau en m??tal (8) au r??frig??rateur. Vissez la vis (7) de la trousse, en la faisant passer ?? travers le collier de serrage, dans l???indentation ?? l???arri??re de l???armoire du r??frig??rateur.

???Vous devez utiliser ce collier de serrage en m??tal sur la conduite d???eau de la maison (consultez Instructions d???installation de la conduite d???eau). Vous ne pouvez pas l???utiliser sur la conduite allant du robinet d???eau jusqu????? la machine ?? gla??ons.

7 8

4BRANCHEZ LA CONDUITE D???EAU

???Pincez les extr??mit??s du collier de serrage de tuyau (3) ou (6) de la trousse avec des pinces et faites glisser le collier de serrage sur le raccord d???arriv??e de conduite d???eau. (Utilisez le collier de serrage noir (3) sur le tuyau noir d???alimentation, utilisez l???autre collier de serrage (6) sur l???autre tuyau d???alimentation.)

???Tout en continuant de pincer le collier de serrage, ins??rez la conduite d???eau en mati??re plastique dans le raccord d???arriv??e de conduite d???eau aussi loin qu???elle peut aller (environ 25 mm [1 po]).

???Faites ensuite glisser le collier de serrage vers le bas de mani??re ?? attraper la conduite d???eau en mati??re plastique et la tenir bien en place.

???Assurez-vous que la conduite d???alimentation d???eau soit dirig??e vers le bas.

Raccord d???arriv??e de conduite d???eau

3 ou 6

5 FIXEZ LA CONDUITE D???EAU

EN MATI??RE PLASTIQUE

Attachez la conduite d???eau en mati??re plastique

?? l???arri??re de l???armoire du r??frig??rateur avec les dispositifs de fixation avec envers adh??sif (5), en espa??ant les dispositifs de fixation comme l???indique la figure pour emp??cher la conduite d?????tre d??tendue.

5

Dispositif de fixation de conduite d???eau en mati??re plastique avec envers adh??sif

6 UNE FOIS LE ROBINET D???EAU

INSTALL??

Consultez Instructions d???installation de la conduite d???eau pour brancher ?? l???alimentation d???eau de la maison. Apr??s avoir termin?? de brancher la conduite d???eau, mettez le commutateur de marche de la machine ?? gla??ons en position ON (marche).

Le cycle de formation des gla??ons ne commence que lorsque la machine ?? gla??ons et le compartiment cong??lation atteignent leur temp??rature de fonctionnement. La formation de gla??ons commence alors automatiquement.

AVANT DE COMMENCER

Lisez soigneusement chaque ??tape avant de commencer.

??? MISE EN GARDE???

D??branchez le r??frig??rateur. Pour ??liminer tout danger de secousse ??lectrique pendant l???installation, vous devez d??brancher la fiche de votre

r??frig??rateur de sa prise ??lectrique murale.

OUTILS N??CESSAIRES

1PR??PAREZ VOTRE INSTALLATION

???Enlevez le capuchon blanc situ?? en haut du coin gauche de la paroi du compartiment cong??lation.

Enlevez le capuchon

2INSTALLEZ LE RACCORD DE

CONDUITE D???ALIMENTATION

???Trouvez le trou en haut du c??t?? droit derri??re le r??frig??rateur et, ?? l???aide d???un couteau, enlevez le papier aluminium du trou.

???Enlevez le capuchon d???isolement gris du trou.

NOTE : Vous aurez peut-??tre ?? enlever la vis de l???agrafe de montage ?? droite en haut du condensateur pour mieux avoir acc??s au trou (consultez la page 101, ??tape 4).

un couteau aiguis?? ou une simple lame de rasoir.

??? Faites glisser la conduite

d???alimentation (16) dans le raccord de conduite d???alimentation d???eau (15).

???Du c??t?? de la conduite du raccord d???arriv??e de conduite d???eau (15) vous trouverez un endos adh??sif. Enlevez cet endos adh??sif et faites glisser la conduite dans le trou situ?? pr??s du haut derri??re le r??frig??rateur. Pressez fort sur le raccord pour bien le fixer au r??frig??rateur.

3ENLEVEZ LE COUVERCLE

DE LA PRISE

??? Enlevez le couvercle de la prise ??lectrique du c??t?? gauche de la paroi et jetez-le.

??? Enlevez la vis et tirez sur le couvercle.

4 DESSERREZ LES VIS DE MONTAGE

Desserrez les deux vis de montage (A) sans les d??visser compl??tement. Ces vis doivent sortir d???environ 13 mm (1/2 po) de la paroi du compartiment cong??lation.

A

5METTEZ LE COMMUTATEUR DE MARCHE EN POSITION OFF (arr??t)

Mettez le commutateur de marche de la machine ?? gla??ons en position OFF (arr??t). Laissez le commutateur de marche en position OFF (arr??t) tant que vous n???avez pas branch?? le r??frig??rateur ?? l???alimentation d???eau, pour ??viter tout fonctionnement pr??matur??.

Trou pour lien m??tallique

Commutateur de marche

(L???aspect peut varier)

6ADAPTATEUR DE CORDON

D???ALIMENTATION ??LECTRIQUE

(sur certains mod??les)

Un adaptateur de cordon d???alimentation ??lectrique

(18) est compris dans la trousse. Inspectez-le visuellement pour v??rifier que le cordon d???alimentation de la machine ?? gla??ons correspond au culot de la paroi du c??t?? du compartiment cong??lation. Le cas ??ch??ant, fixez l???adaptateur au c??t?? du cordon d???alimentation de la machine ?? gla??ons. Assurez-vous que le bourrelet soit bien plac?? entre les parties quand vous faites la connection entre l???adaptateur et le cordon d???alimentation ??lectrique, et assurez-vous que les deux verrouillages de contact sont bloqu??s en place. Fixez l???adaptateur de cordon d???alimentation ??lectrique ?? la machine ?? gla??ons en le mettant dans le crochet situ?? ?? l???arri??re de la machine ?? gla??ons et en l???attachant ?? la machine ?? gla??ons au moyen d???un lien m??tallique (20).

Crochet

Bourrelet

Verrouillages

7INSTALLEZ LE R??CIPIENT DE

REMPLISSAGE DE LA MACHINE

?? GLA??ONS

Installez le r??cipient de remplissage (montage de c??t??) (17) dans la machine ?? gla??ons comme l???indique la figure.

17

8 BRANCHEZ LA MACHINE ?? GLA??ONS

Placez la machine ?? gla??ons dans le compartiment cong??lation, de c??t??

10 INSTALLEZ LE BAC ?? GLA??ONS

Mettez le bac ?? gla??ons

(11) en place en dessous

comme l???indique la figure. Ins??rez la fiche de cordon

d???alimentation

B

de la machine ?? gla??ons.

??lectrique de la machine ?? gla??ons (B) dans la prise, en vous assurant de bien faire

entrer les bonnes broches dans les bons trous. Si les

trous ne correspondent pas, consultez l?????tape 6. Pressez fort la fiche dans la prise.

9 MONTEZ LA MACHINE ?? GLA??ONS

???Soulevez la machine ?? gla??ons de mani??re ?? mettre la conduite d???alimentation (16) dans l???ouverture du r??cipient de remplissage (C). Accrochez la machine ?? gla??ons aux deux vis de montage (A).

Assurez-vous bien que :

???Le cordon d???alimentation ??lectrique soit toujours bien fix?? dans son support.

???La conduite d???alimentation (16) se trouve toujours bien dans l???ouverture du r??cipient de remplissage. (V??rifiez ?? l???arri??re du r??frig??rateur que la conduite d???alimentation d???eau n???ait pas ??t?? pouss??e ?? l???ext??rieur du r??frig??rateur).

???Les vis de montage de la machine ?? gla??ons soient bien plac??es dans la position la plus ??lev??e des fentes de montage.

SERREZ ALORS FORT LES VIS DE MONTAGE DE LA

MACHINE ?? GLA??ONS.

16

A

C

11COLLEZ L?????TIQUETTE

DE GARANTIE

Vous trouverez dans cette trousse une ??tiquette (9), sur laquelle vous devez noter la date de l???installation, ?? des fins de garantie. Collez-la

?? l???arri??re du r??frig??rateur.

12 CONSERVEZ CE MANUEL

La garantie de la machine ?? gla??ons est imprim??e sur ce Manuel. Conservez ce Manuel avec votre Manuel du propri??taire du r??frig??rateur.

Vous avez maintenant termin?? d???installer votre machine ?? gla??ons ?? l???int??rieur de votre compartiment cong??lation. Passez ?? la section L???ensemble de robinet d???eau.

AVANT DE COMMENCER

Lisez soigneusement chaque ??tape avant de commencer.

??? MISE EN GARDE ???

D??branchez le r??frig??rateur. Pour ??liminer tout danger de secousse ??lectrique pendant l???installation, vous devez d??brancher la fiche de votre

r??frig??rateur de sa prise ??lectrique murale.

OUTILS N??CESSAIRES

Tourne-??crou de 1/4 po et 5/16 po

1FIXEZ LE ROBINET D???EAU

??? Trouvez la prise du connecteur femelle (B).

B

???Branchez le connecteur femelle (B) aux contacts m??les du robinet d???eau (4). Les fils correspondent indiff??remment ?? l???un ou l???autre contact.

B

4

???Fixez le robinet d???eau au trou situ?? sur le rebord de l???armoire du r??frig??rateur ?? l???aide de la vis ?? t??te hexagonale (13) de la trousse.

NE PERCEZ AUCUN TROU ADDITIONNEL.

???V??rifiez l?????crou de conduite d???eau en mati??re plastique situ?? sous le robinet d???eau pour vous assurer qu???il est serr??, ?? la main uniquement.

N???UTILISEZ PAS D???OUTIL.

13

2MONTEZ LE COLLIER DE SERRAGE

DE LA CONDUITE D???EAU

???Fixez le collier de serrage de la conduite d???eau en m??tal (8) au r??frig??rateur. Vissez la vis (7)

de la trousse dans l???indentation de l???armoire du r??frig??rateur en la faisant passer ?? travers le collier de serrage (8).

???Vous devez utiliser ce collier de serrage sur la conduite d???eau de la maison (consultez

Instructions d???installation de la conduite d???eau). Vous ne pouvez pas l???utiliser sur la conduite allant du robinet d???eau jusqu????? la machine ?? gla??ons.

7 8

3BRANCHEZ LA CONDUITE D???EAU

???Pincez les extr??mit??s du collier de serrage de tuyau (3) de la trousse avec des pinces et faites glisser le collier de serrage sur le raccord d???arriv??e de conduite d???eau.

???Tout en continuant de pincer le collier de serrage, ins??rez la conduite d???eau en mati??re plastique dans le raccord d???arriv??e de conduite d???eau aussi loin qu???elle peut aller (environ 25 mm [1 po]).

???Faites ensuite glisser le collier de serrage vers le bas de mani??re ?? attraper la conduite d???eau en mati??re plastique et la tenir bien en place.

???Assurez-vous que la conduite d???alimentation d???eau soit dirig??e vers le bas.

???Si vous avez enlev?? la vis de montage du condensateur, fixez le condensateur au r??frig??rateur en remettant en place l???agrafe de montage et la vis.

NE SERREZ PAS TROP FORT LA VIS.

Raccord d???arriv??e de conduite d???eau

3

4 FIXEZ LA CONDUITE D???EAU EN

MATI??RE PLASTIQUE

Attachez la conduite d???eau en mati??re plastique

?? l???arri??re de l???armoire du r??frig??rateur avec les dispositifs de fixation avec envers adh??sif (5), en espa??ant les dispositifs de fixation comme l???indique la figure pour emp??cher la conduite d?????tre d??tendue. (Vous aurez peut-??tre ?? enlever la vis de l???agrafe

de montage en haut ?? droite du condensateur pour avoir un meilleur acc??s au raccord de conduite d???eau).

5 UNE FOIS LE ROBINET D???EAU

INSTALL??

Consultez Instructions d???installation de la conduite d???eau pour brancher ?? l???alimentation d???eau de la maison. Apr??s avoir termin?? de brancher la conduite d???eau, mettez le commutateur de marche de la machine ?? gla??ons en position ON (marche).

Le cycle de formation des gla??ons ne commence que lorsque la machine ?? gla??ons et le compartiment cong??lation atteignent leur temp??rature de fonctionnement. La formation de gla??ons commence alors automatiquement.

AVANT DE COMMENCER

Lisez soigneusement chaque ??tape avant de commencer.

??? MISE EN GARDE ???

D??branchez le r??frig??rateur. Pour ??liminer tout danger de secousse ??lectrique pendant l???installation, vous devez d??brancher la fiche de votre

r??frig??rateur de sa prise ??lectrique murale.

OUTILS N??CESSAIRES

Tourne-??crous de 5/16 po et de 1/4 po ou cl?? anglaise

1ENLEVEZ LA CLAYETTE DU

PLATEAU ?? GLA??ONS

Si votre r??frig??rateur a une clayette de plateau

??gla??ons, utilisez un tournevis Phillips pour enlever les deux vis. Enlevez la clayette du plateau

??gla??ons. Remettez en place les vis dans les deux trous jusqu????? ce que les t??tes de vis sortent d???environ 13 mm (1/2 po) de la paroi de c??t?? du compartiment cong??lation. Si votre r??frig??rateur n???est pas ??quip?? d???une clayette ?? plateau ?? gla??ons, utilisez les vis (14) qui sont fournies dans la trousse.

Placez la clayette, c??t?? plat vers le haut, dans le bac du bas, avec l???extr??mit?? inclin??e en arri??re.

2 PR??PAREZ VOTRE R??FRIG??RATEUR

Trouvez l?????tiquette situ??e ?? l???arri??re du r??frig??rateur, au milieu environ du

c??t?? droit. Enlevez l?????tiquette et enlevez tout papier d???aluminium de l???ouverture. Enlevez

??galement l?????tiquette situ??e dans le coin du haut ?? gauche du compartiment cong??lation.

Enlevez le capuchon gris isolant qui bouche

le trou ?? travers l???armoire du r??frig??rateur.

3INSTALLEZ LA CONDUITE

D???ALIMENTATION

un couteau aiguis?? ou une simple lame de rasoir.

???Faites glisser la conduite d???alimentation d???eau (16) dans le raccord d???arriv??e de conduite d???eau (15).

???Coupez la rallonge de conduite d???alimentation

(10) ?? la longueur J (consultez le gabarit J page 155) avec un couteau aiguis?? ou une simple lame de rasoir.

??? Faites glisser la rallonge de conduite d???alimentation d???eau (10) compl??tement au dessus de la conduite d???alimentation d???eau sur

le raccord de conduite d???alimentation d???eau (15).

???Du c??t?? de la conduite du raccord d???arriv??e de conduite d???eau (15) vous trouverez un endos adh??sif. Enlevez cet endos adh??sif et faites glisser la conduite dans le trou situ?? pr??s du haut derri??re le r??frig??rateur. Pressez fort sur le raccord pour bien le fixer au r??frig??rateur.

4METTEZ LE COMMUTATEUR DE MARCHE EN POSITION OFF (arr??t)

Mettez le commutateur de marche de la machine

??gla??ons en position OFF (arr??t). Laissez le commutateur de marche en position OFF (arr??t) tant que vous n???avez pas branch?? le r??frig??rateur

??l???alimentation d???eau, pour ??viter toute mise en marche pr??matur??e.

Trou pour lien m??tallique

Commutateur de marche

(L???aspect peut varier)

5INSTALLEZ LE R??CIPIENT DE

REMPLISSAGE ET L???INSERTION

DE LA MACHINE ?? GLA??ONS

Installez le r??cipient de remplissage de la machine ?? gla??ons (montage de c??t??) (17) dans la machine ?? gla??ons comme l???indique la figure.

17

6ENLEVEZ LE COUVERCLE DE

LA PRISE ??LECTRIQUE

Enlevez le couvercle de la prise ??lectrique du c??t?? gauche de la paroi du compartiment cong??lation. Ins??rez un tournevis ?? lame plate dans la fente du couvercle et faites tourner le tournevis, en ouvrant la fente.

Le couvercle sort. Jetez le couvercle.
