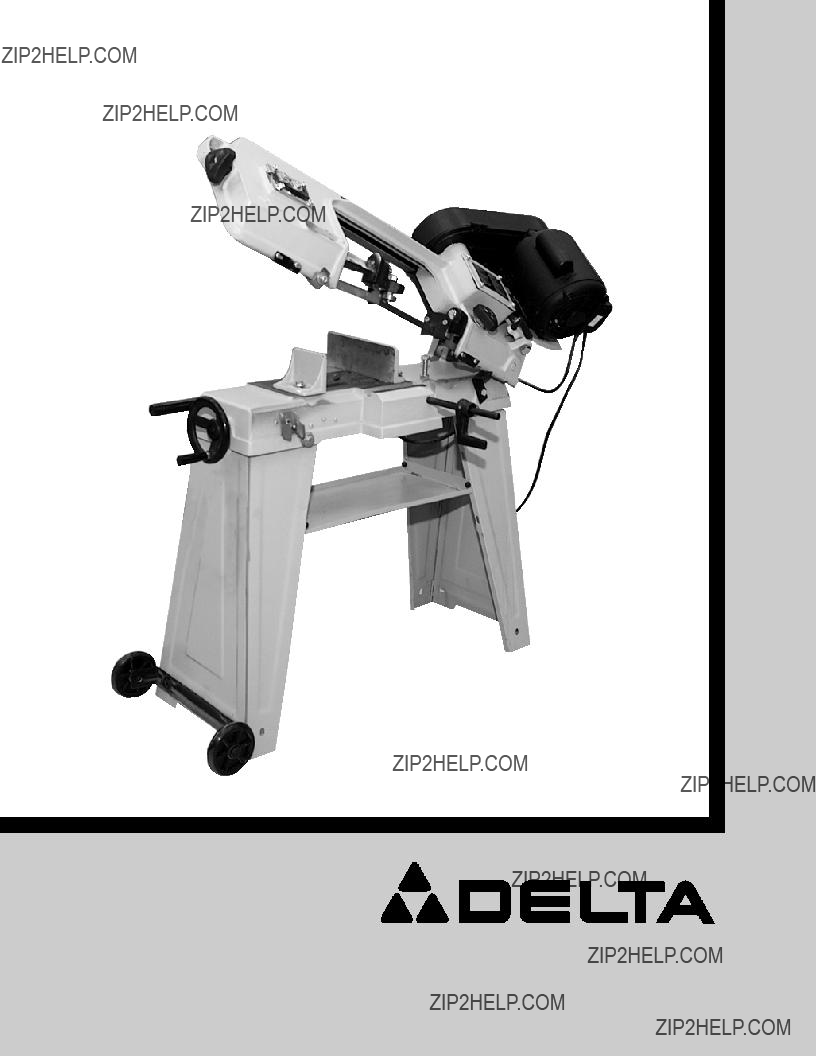

5" x 6" Horizontal Band Saw

(Model 20-330)

PART NO. 902126 05-31-05

Copyright ?? 2005 Delta Machinery

To learn more about DELTA MACHINERY

visit our website at: www.deltamachinery.com.

For Parts, Service, Warranty or other Assistance,

please call 1-800-223-7278 (In Canada call 1-800-463-3582).

MANUAL INSTRUCTION

Delta may cause damage to the machine or injury to the user.

14.USE THE PROPER EXTENSION CORD. Make sure your extension cord is in good condition. When using an extension cord, be sure to use one heavy enough to carry the current your product will draw. An undersized cord will cause a drop in line voltage, resulting in loss of power and overheating. See the Extension Cord Chart for the correct size depending on the cord length and nameplate ampere rating. If in doubt, use the next heavier gauge. The smaller the gauge number, the heavier the cord.

15.SECURE THE WORKPIECE. Use clamps or a vise to hold the workpiece when practical. Loss of control of a workpiece can cause injury.

16.FEED THE WORKPIECE AGAINST THE DIRECTION OF

THE ROTATION OF THE BLADE, CUTTER, OR ABRASIVE SURFACE. Feeding it from the other direction will cause the workpiece to be thrown out at high speed.

17.DON???T FORCE THE WORKPIECE ON THE MACHINE.

Damage to the machine and/or injury may result.

18.DON???T OVERREACH. Loss of balance can make you fall into a working machine, causing injury.

19.NEVER STAND ON THE MACHINE. Injury could occur if the tool tips, or if you accidentally contact the cutting tool.

20.NEVER LEAVE THE MACHINE RUNNING UNATTENDED. TURN THE POWER OFF. Don???t leave the machine until it comes to a complete stop. A child or visitor could be injured.

21.TURN THE MACHINE ???OFF???, AND DISCONNECT THE MACHINE FROM THE POWER SOURCE before installing or removing accessories, before adjusting or changing set-ups, or when making repairs. An accidental start-up can cause injury.

22.MAKE YOUR WORKSHOP CHILDPROOF WITH

PADLOCKS, MASTER SWITCHES, OR BY REMOVING STARTER KEYS. The accidental start-up of a machine by a child or visitor could cause injury.

23. STAY ALERT, WATCH WHAT YOU ARE DOING, AND

USE COMMON SENSE. DO NOT USE THE

MACHINE WHEN YOU ARE TIRED OR UNDER THE

INFLUENCE OF DRUGS, ALCOHOL, OR MEDICATION. A moment of inattention while operating power tools may result in injury.

24. USE OF THIS TOOL CAN GENERATE

4

AND DISBURSE DUST OR OTHER AIRBORNE

PARTICLES, INCLUDING WOOD DUST,

CRYSTALLINE SILICA DUST AND ASBESTOS DUST.

Direct particles away from face and body. Always operate tool in well ventilated area and provide for proper dust removal. Use dust collection system wherever possible. Exposure to the dust may cause serious and permanent respiratory or other injury, including silicosis (a serious lung disease), cancer, and death. Avoid breathing the dust, and avoid prolonged contact with dust. Allowing dust to get into your mouth or eyes, or lay on your skin may promote absorption of harmful material. Always use properly fitting NIOSH/OSHA approved respiratory protection appropriate for the dust exposure, and wash exposed areas with soap and water.

1.DO NOT OPERATE THIS MACHINE UNTIL it is assembled and installed according to the instructions.

2.OBTAIN ADVICE from your supervisor, instructor, or another qualified person if you are not familiar with the operation of this tool.

3.FOLLOW ALL WIRING CODES and recommended electrical connections.

4.USE THE GUARDS WHENEVER POSSIBLE. Check to see that they are in place, properly adjusted, secured, and working correctly.

5.USE PROPER BLADE SIZE and type.

6.ADJUST THE UPPER BLADE GUIDE so that it is about 1/8" above the workpiece.

7.PROPERLY ADJUST the blade tension, tracking, blade guides, and blade support bearings.

8.KEEP ARMS, HANDS, AND FINGERS away from the blade.

9.AVOID AWKWARD OPERATIONS and hand positions where a sudden slip could cause a hand to move into the blade.

10.NEVER START THE MACHINE before clearing the table of all objects (tools, scrap pieces, etc.).

11.NEVER START THE MACHINE with the workpiece against the blade.

12.HOLD WORKPIECE FIRMLY against the table. DO NOT attempt to saw a workpiece that does not have a flat surface against the table.

13.HOLD WORKPIECE FIRMLY and feed into blade at a moderate speed.

14.NEVER REACH UNDER THE TABLE while the machine is running.

15.TURN THE MACHINE ???OFF??? to back out of an uncompleted or jammed cut.

16.MAKE ???RELIEF??? CUTS prior to cutting long curves.

17.TURN THE MACHINE ???OFF??? and wait for the blade to stop prior to cleaning the blade area, removing debris near the blade, removing or securing workpiece, or changing the angle of the table. A coasting blade can be dangerous.

18.NEVER PERFORM LAYOUT, ASSEMBLY, or set- up work on the table/work area when the machine is running.

19. TURN THE MACHINE ???OFF??? AND DISCONNECT THE MACHINE from the power source before installing or removing accessories, before adjusting or changing set-ups, or when making repairs.

20.TURN THE MACHINE ???OFF???, disconnect the machine from the power source, and clean the table/work area before leaving the machine. LOCK THE SWITCH IN THE ???OFF??? POSITION to prevent unauthorized use.

21.ADDITIONAL INFORMATION regarding the safe and proper operation of power tools (i.e. a safety video) is available from the Power Tool Institute, 1300 Sumner Avenue, Cleveland, OH 44115-2851 (www.powertoolinstitute.com). Information is also available from the National Safety Council, 1121 Spring Lake Drive, Itasca, IL 60143-3201. Please refer to the American National Standards Institute ANSI 01.1 Safety Requirements for Woodworking Machines and the U.S. Department of Labor OSHA 1910.213 Regulations.

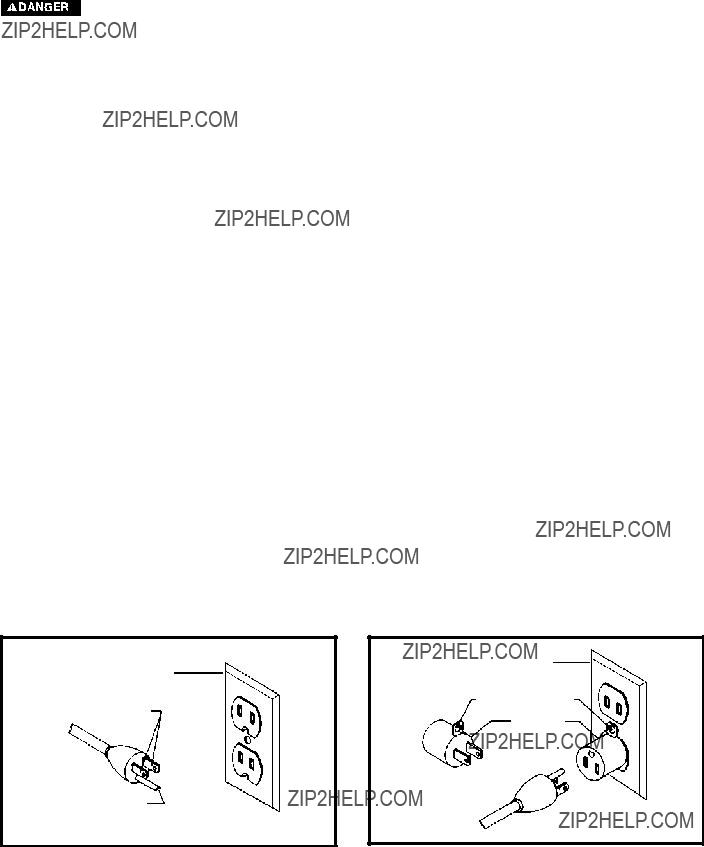

1. All grounded, cord-connected machines:

In the event of a malfunction or breakdown, grounding provides a path of least resistance for electric current to reduce the risk of electric shock. This machine is equipped with an electric cord having an equipment- grounding conductor and a grounding plug. The plug must be plugged into a matching outlet that is properly installed and grounded in accordance with all local codes and ordinances.

Do not modify the plug provided - if it will not fit the outlet, have the proper outlet installed by a qualified electrician.

Improper connection of the equipment-grounding conductor can result in risk of electric shock. The conductor with insulation having an outer surface that is green with or without yellow stripes is the equipment- grounding conductor. If repair or replacement of the electric cord or plug is necessary, do not connect the equipment-grounding conductor to a live terminal.

Check with a qualified electrician or service personnel if the grounding instructions are not completely understood, or if in doubt as to whether the machine is properly grounded.

Use only 3-wire extension cords that have 3-prong grounding type plugs and matching 3-conductor receptacles that accept the machine???s plug, as shown in Fig. A.

Repair or replace damaged or worn cord immediately.

GROUNDED OUTLET BOX

CURRENT

CARRYING

PRONGS

2. Grounded, cord-connected machines intended for use on a supply circuit having a nominal rating less than 150 volts:

If the machine is intended for use on a circuit that has an outlet that looks like the one illustrated in Fig. A, the machine will have a grounding plug that looks like the plug illustrated in Fig. A. A temporary adapter, which looks like the adapter illustrated in Fig. B, may be used to connect this plug to a matching 2-conductor receptacle as shown in Fig. B if a properly grounded outlet is not available. The temporary adapter should be used only until a properly grounded outlet can be installed by a qualified electrician. The green-colored rigid ear, lug, and the like, extending from the adapter must be connected to a permanent ground such as a properly grounded outlet box. Whenever the adapter is used, it must be held in place with a metal screw.

NOTE: In Canada, the use of a temporary adapter is not permitted by the Canadian Electric Code.

IN ALL CASES, MAKE CERTAIN THE

R E C E P TA C L E I N Q U E S T I O N I S P R O P E R LY

GROUNDED. IF YOU ARE NOT SURE HAVE A

QUALIFIED ELECTRICIAN CHECK THE RECEPTACLE.

GROUNDED OUTLET BOX

GROUNDING

MEANS

ADAPTER

EXTENSION CORDS

Use proper extension cords. Make sure your extension cord is in good condition and is a 3-wire extension cord which has a 3-prong grounding type plug and matching receptacle which will accept the machine???s plug. When using an extension cord, be sure to use one heavy enough to carry the current of the machine. An undersized cord will cause a drop in line voltage, resulting in loss of power and overheating. Fig. D-1 or D-2, shows the correct gauge to use depending on the cord length. If in doubt, use the next heavier gauge. The smaller the gauge number, the heavier the cord.

MINIMUM GAUGE EXTENSION CORD

RECOMMENDED SIZES FOR USE WITH STATIONARY ELECTRIC MACHINES

Fig. D-1

ASSEMBLING STAND

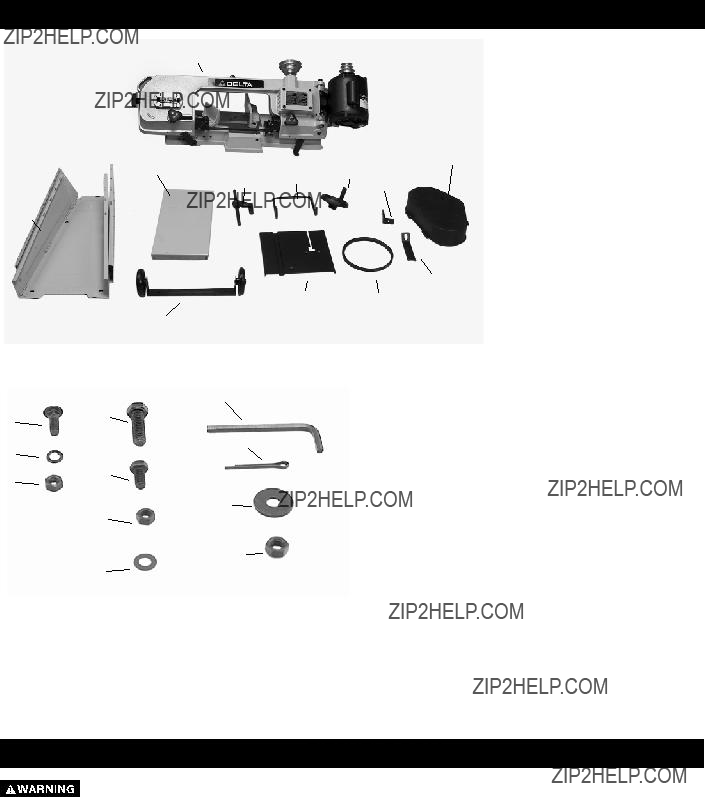

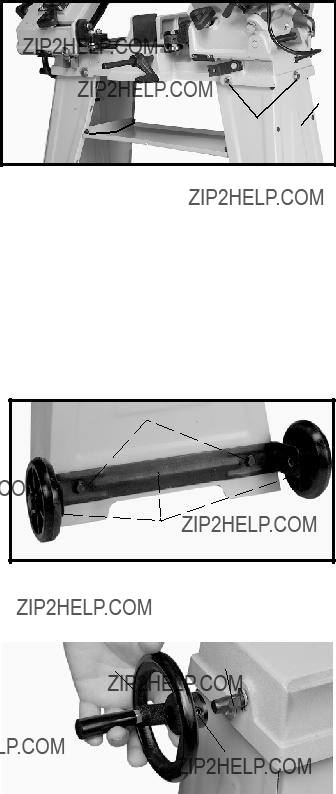

1.Assemble the two legs (A) and (B) Fig. 2, to the band saw base using the six 5/16-18x1" hex head cap screws, three of which are shown at (C) Fig. 2, twelve 5/16" flat washers and six 5/16-18" hex nuts. Align the holes in the band saw with the holes in the legs. Place a 5/16" flat washer onto a 5/16-18x1" hex head cap screw, insert screw through the hole in the band saw and the hole in the leg, place a 5/16" flat washer onto the screw, thread a 5/16" hex nut onto the screw, and tighten securely. Repeat this process for the five remaining holes.

2.Assemble the shelf (D) Fig. 2, to the two legs (A) and

(B). Align the four holes in the shelf (D) with the four holes in the two legs (A) and (B). Insert a M6x10mm hex head screw, two of which are shown at (E) through the hole in the shelf and leg. Place a 6mm lockwasher onto the screw, thread a M6 hex nut onto the screw, and tighten securely. Repeat this process for the three remaining holes.

C

A

E

B

C

D

Fig. 2

ASSEMBLING WHEELS

Assemble the wheel assembly (A) Fig. 3, to the bottom of the left leg. Align the holes in the wheel assembly with the holes in the left leg. Place a 1/4" flat washer onto a 1/4-20x1/2" hex head screw, insert the screw through the holes (B) in the wheel assembly and the hole in the left leg, place a 1/4" flat washer onto the screw, thread a 1/4-20 hex nut onto the screw, and tighten securely. Repeat this process for the remaining hole.

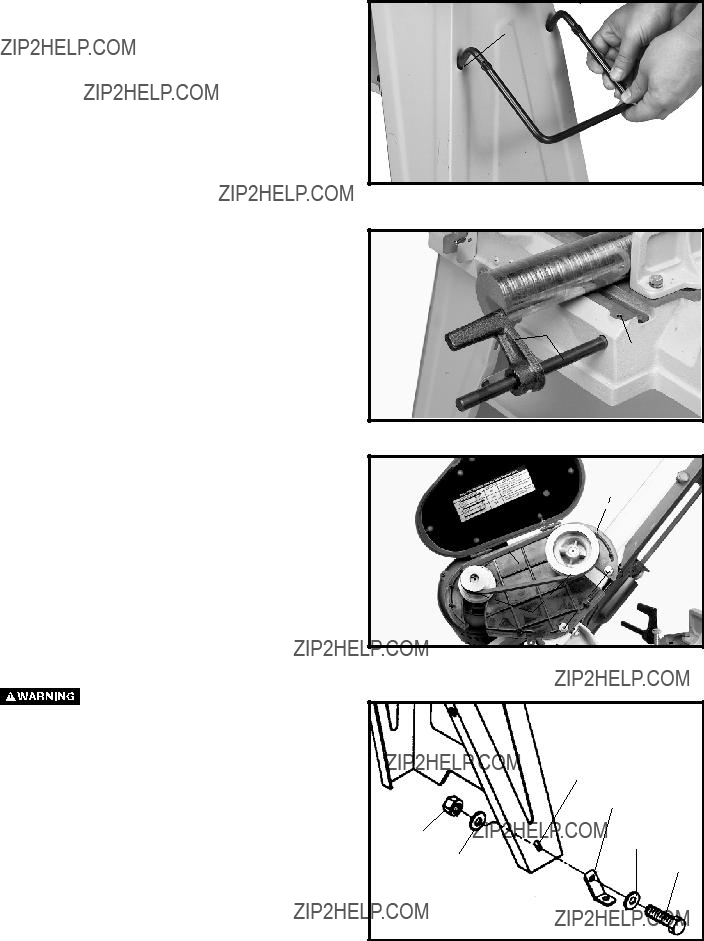

ASSEMBLING STAND HANDLE

Insert ends of handle (A) Fig. 5, into the two holes (B) on the right leg and fasten in place using the two cotter pins supplied.

ASSEMBLING STOCK ADVANCE STOP

Assemble the stock advance stop assembly (A) to the hole on the front of the table and tighten the two set screws (B), as shown in Fig. 6.

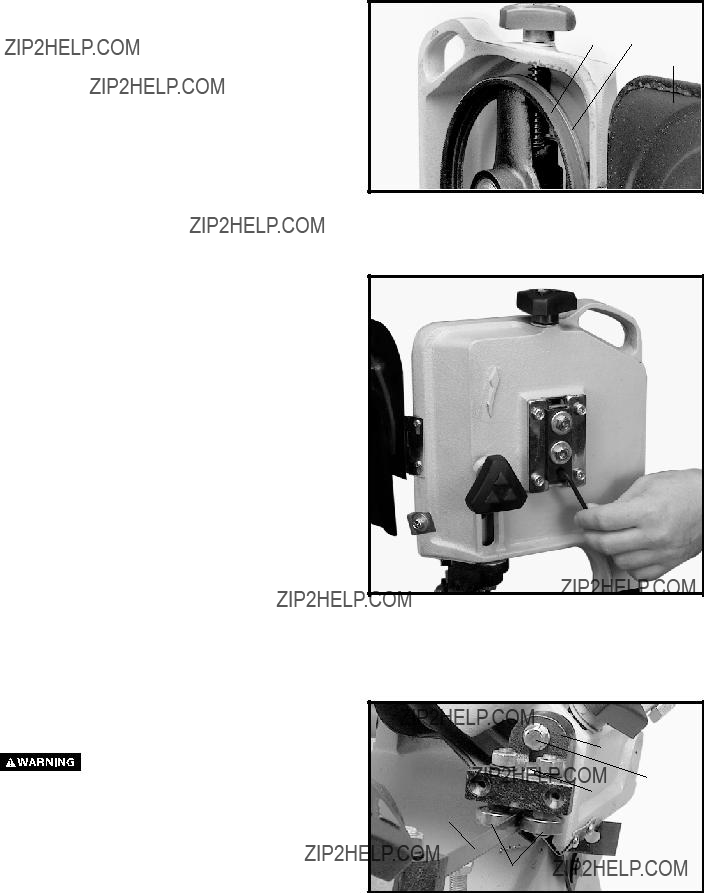

ASSEMBLING GUARD AND BELT

Open the belt and pulley guard (A) Fig. 7, and position the bottom half of the guard assembly behind the pulleys (B) as shown. Line up the two holes in the bottom of the guard with the two threaded holes in the casting. NOTE: DO NOT COMPLETELY TIGHTEN THE

PULLEY GUARD TO THE CASTING AT THIS TIME.

Place a 1/4" flat washer onto a 1/4-20x1/2" hex head screw and insert screw through hole in pulley guard and thread screw into the tapped hole in the casting. Repeat this process for the remaining hole. Raise the motor and assemble the belt (D) Fig. 7, to the desired steps of the two pulleys then release the motor. A speed selection chart (E) is located on the inside of the guard cover. When the belt is tensioned, tighten screws (C).

FASTENING BAND SAW TO

SUPPORTING SURFACE

IF DURING OPERATION THERE IS ANY

TENDENCY FOR THE BAND SAW TO

TIP OVER, SLIDE OR WALK ON THE SUPPORTING

SURFACE, THE RIGHT LEG OF THE BAND SAW

MUST BE SECURED TO A SUPPORTING SURFACE.

Align the hole in the ???L??? shaped floor mounting bracket

(A) Fig. 8, with the hole in the bottom of the right leg (B). Insert a 5/16??? flat washer (C) onto a 5/16-18x1/2??? hex head screw (D). Insert screw through the floor mounting bracket (A) and the right leg. Place a 5/16??? flat washer

(E) onto the screw (D) and tighten securely. Repeat this process for the remaining hole on the other side of the right leg. Then secure the two brakcets to the supporting surface.

B

A

Fig. 5

A

B

B

Fig. 6

A

E

D

C

B

Fig. 7

B

A

F

C

E

D

Fig. 8

STARTING AND STOPPING MACHINE

1.The on/off switch (A) Fig. 13 is located on the front of the band saw. To turn the machine ???ON,??? move the switch up to the ???ON??? position.

2.To turn the machine ???OFF???, move the switch (A) down to the ???OFF??? position.

MAKE SURE THAT THE SWITCH IS IN

THE ???OFF??? POSITION BEFORE

PLUGGING IN THE POWER CORD. IN THE EVENT OF A

POWER FAILURE, MOVE THE SWITCH TO THE ???OFF???

POSITION. AN ACCIDENTAL START-UP CAN CAUSE

INJURY.

B

B

A

Fig. 13

LOCKING SWITCH IN ???OFF??? POSITION

IMPORTANT: When the machine is not in use, the switch should be locked in the ???OFF??? position to prevent unauthorized use, using a padlock with a 3/16" diameter shackle through the holes at (B) FIg. 13.

AUTOMATIC SHUT-OFF

When the band saw is in the horizontal position, the saw should shut itself off automatically. After a completed cut has been made, and the saw is in the down or horizontal position, the shut-off bracket (B) Fig. 14 will contact the toggle switch (A) and push it to the down position, turning off the power. IMPORTANT: THE

SHUT-OFF BRACKET (B) SHOULD NOT REST ON OR

BE SUPPORTED BY THE TOGGLE SWITCH (A).

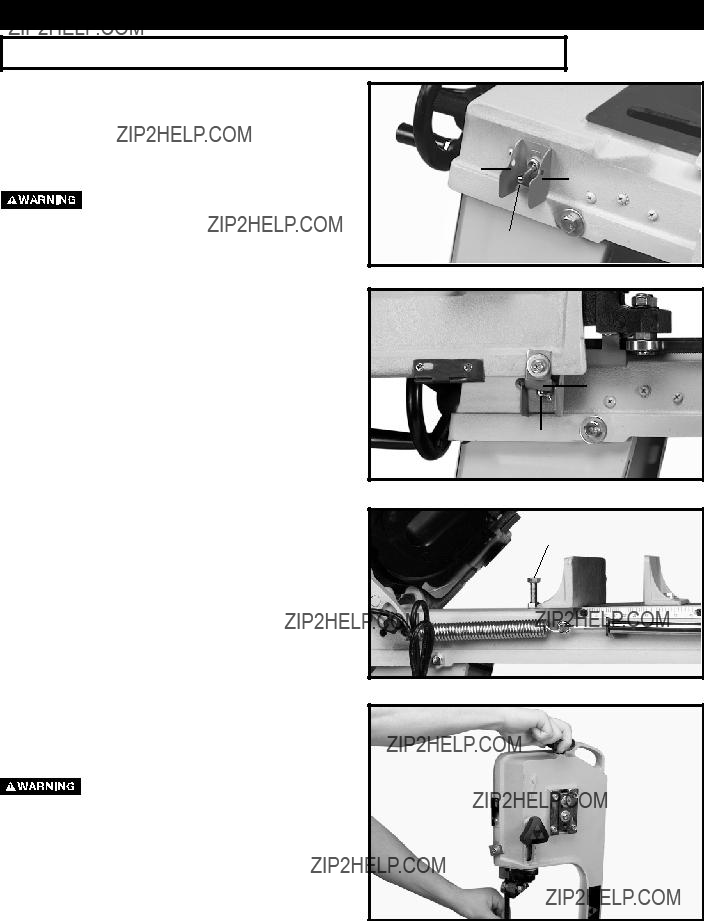

The downward travel of the saw should be adjusted to just trip the toggle switch at its lowest position. To adjust the downward travel of the saw arm, loosen lock nut (C) Fig. 15, and turn the stop screw (D) in or out until the correct adjustment is made; then tighten lock nut (C).

ADJUSTING BLADE TENSION

DISCONNECT MACHINE FROM

POWER SOURCE.

1.Turn blade tension handwheel (A) Fig. 16, clockwise to increase or counterclockwise to decrease blade tension. Correct tension is obtained when the blade is just tight enough that no slippage occurs between the blade and the wheels.

2.When the machine is not in use, release the blade tension.

B

A

Fig. 14

D

C

Fig. 15

A

Fig. 16

ADJUSTING BLADE TRACKING

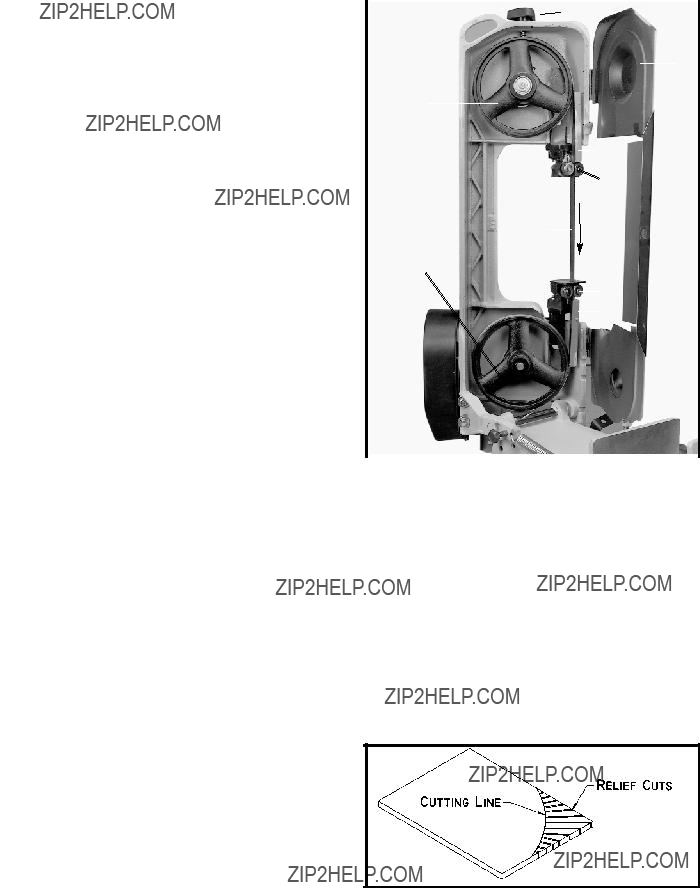

1.Place the saw arm in the vertical position and open the wheel cover (A) Fig. 17.

2.Turn on the band saw. The blade is tracking properly when the back of the blade (B) Fig. 17, is just touching the edge of the wheel flange (C). The back of the blade should not be rubbing against the flange.

3.If an adjustment is necessary the blade guide bearings and blade support bearings (E) Fig. 19 (two of which are shown) should be clear of the blade.

4.Loosen screw (D) Fig. 18.

5.With the band saw running, turn adjusting screw (E) until the blade is tracking properly making certain blade tension is maintained by turning blade tension knob. (F). The blade is tracking properly when the back side of the saw blade just touches the flange on the wheel.

6.Tighten screw (D) Fig. 18, when adjustment is complete.

7.IMPORTANT: IT IS POSSIBLE WHEN MAKING

THIS ADJUSTMENT TO OVER TIGHTEN THE ADJUSTING SCREW (E), FIG. 18, AND CAUSE THE BLADE TO BE MIS-ALIGNED. If this happens, loosen the adjusting screw (E) several turns but do not remove it from its threaded hole and loosen screw (D). Turn screw (D) clock-wise until it stops but do not tighten. Then turn the adjusting screw (E) clockwise until it bottoms. Turn on the machine and turn adjusting screw

(E) clockwise a small amount at a time until the blade is tracking correctly and tighten screw (D) Fig. 18.

8.After the blade is tracking properly make sure to ad- just the blade guide bearings and blade support bearings.

ADJUSTING BLADE SUPPORT

BEARINGS

DISCONNECT MACHINE FROM

POWER SOURCE.

1.The blade support bearing (A) Fig. 19, should be ad- justed so it just touches the back of the saw blade after the blade is tracking properly. To adjust, loosen screw

(C) and move the bracket (D) up or down until the support bearing (A) just touches the back of the blade

(B). Then tighten screw (C).

2.Adjust the other blade support bearing in the same manner.

B C

A

Fig. 17

F

D

E

Fig. 18

D

C

A

B

E

Fig. 19

ADJUSTING BLADE GUIDE

BEARINGS

DISCONNECT MACHINE FROM

POWER SOURCE.

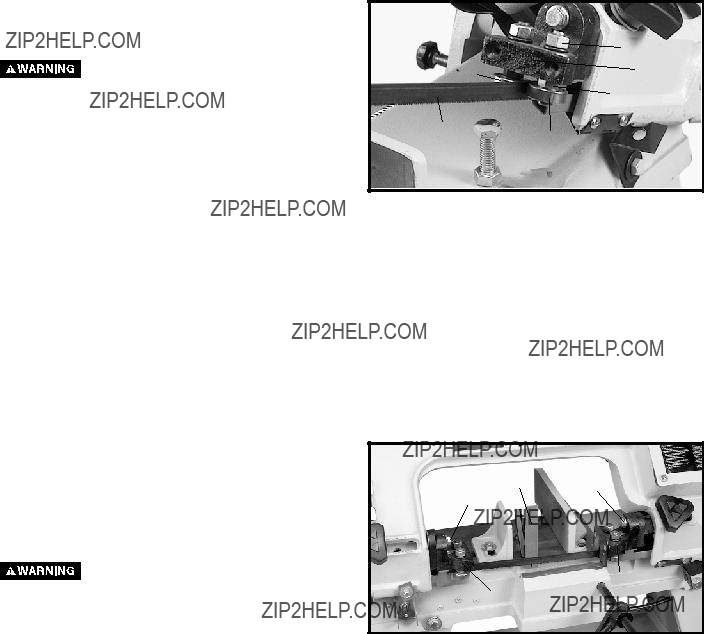

1.The blade guide bearings (A) and (B) Fig. 20 should be adjusted so they just touch the sides of the blade (C) after the blade is tracking properly and the blade support bearing has been adjusted. To adjust, proceed as follows:

2.Remove the cover plate that is attached to the face of the right guide bracket (D) Fig. 20.

3.The inside guide bearing (A) Fig. 20, is mounted to a fixed shaft and cannot be adjusted. The outside guide bearing (B) is mounted on an eccentric shaft and should be adjusted so that the sides of the blade (C) just contact the guide bearings (A) and (B). To adjust, loosen nut (E) and turn adjusting nut (F) until proper adjustment is made. Then tighten nut (E).

4.Adjust the other blade guide bearings in the same manner.

ADJUSTING BLADE 90 DEGREES TO

THE TABLE SURFACE

In order for accurate work to be accomplished on your saw the blade must be at 90 degrees to the table surface. To check and adjust, proceed as follows:

DISCONNECT MACHINE FROM

POWER SOURCE.

1.Lower the saw arm to the horizontal position. Place a square (A) Fig. 21, on the table with one end of the square against the blade, as shown.

2.If the blade is not at 90 degrees to the table, loosen the two screws (B) Fig. 21, that attach the blade guide brackets to the guide arms and rotate both guide brackets (C) until the blade is at 90 degrees to the table. Then tighten the two screws (B). NOTE: CARE SHOULD

BE TAKEN NOT TO DISTURB THE BLADE GUIDE

SUPPORT BEARINGS WHEN MAKING THIS

ADJUSTMENT.

Fig. 20

A B

B

C

C

Fig. 21

ADJUSTING BLADE GUIDE

BRACKETS

DISCONNECT MACHINE FROM

POWER SOURCE.

The left and right blade guide brackets (A) and (B) Fig. 22, are adjustable by loosening the two lock knobs (C) and sliding the brackets to accommodate the width of the work piece. The guide brackets (A) and (B) should be set as close as possible to the workpiece, without interfering or touching the workpiece, or contacting the table. Once the adjustment is made, tighten the lock knobs (C).

ADJUSTING FEED RATE

DISCONNECT MACHINE FROM

POWER SOURCE.

The feed rate of the saw arm can be adjusted by turning the control arm (A) Fig. 23, counterclockwise to increase or clockwise to decrease the feed rate. Do not turn the control arm more than one turn at a time. Excessive feed pressure can break or stall the blade. Insufficient feed pressure dulls the blade rapidly.

OPERATING AND

ADJUSTING THE VISE

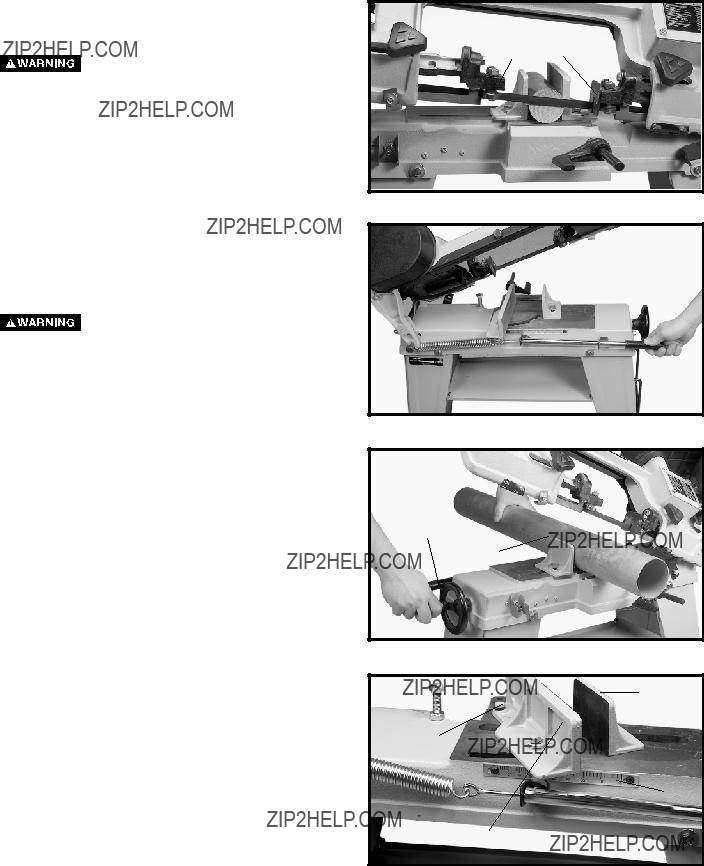

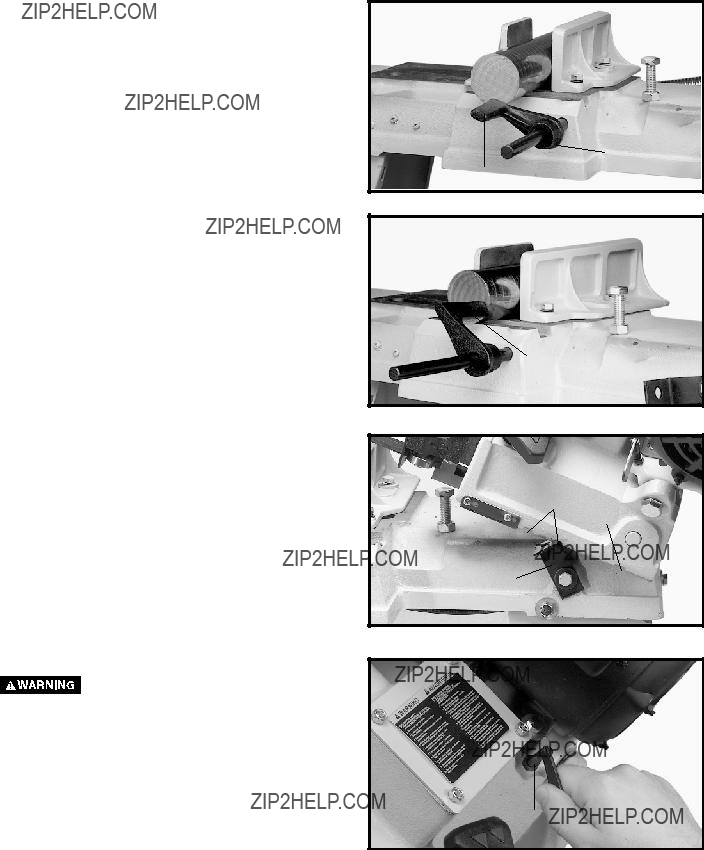

The workpiece (A) is placed between the vise jaws with the required amount to be cut-off extending out past the blade, as shown in Fig. 24. To tighten the workpiece in the vise, turn handwheel (B).

The vise can be adjusted to cut any angle from 0 degrees to 45 degrees by loosening the two screws (C) Fig. 25, and positioning the vise jaw (D) to the desired angle. A scale (E) is positioned on the rear of the table to give the proper cutting angle. lt may also be necessary when angle cutting to move the left vise jaw (F) to the rear to clear the blade guide bracket.

C

A B C

Fig. 22

A

Fig. 23

B

A

Fig. 24

F

C

E

D

Fig. 25

ADJUSTING STOCK STOP

The stock stop is used when more than one piece is to be cut to the same length. Position the stop block (A) Fig. 26, the desired distance away from the blade. lt is good practice to have the work contact the stop at the bottom of the work, as shown. The stop may be repositioned in or out by loosening set screw (B) and moving the stop accordingly. When not using the stock stop, rotate the stop below the table surface.

For cuts when the work will not extend beyond the table, the stop (C) Fig. 27, can be turned around, as shown, to contact the workpiece.

ARM POSITIONING LEVER

An arm positioning lever (A) Fig. 28, is supplied on the front of the base and can be engaged with one of the two notches (B) depending on the size of the workpiece, for positioning the arm during set-up. The lever (A) should be engaged with notch (C) when operating the saw in the vertical position.

CHANGING SPEEDS AND

ADJUSTING BELT TENSION

DISCONNECT MACHINE FROM

POWER SOURCE BEFORE CHANGING

SPEEDS AND ADJUSTING BELT TENSION.

Proper belt tension is obtained when there is approximately 1/4" deflection of the belt using light finger pressure at the center span of the pulleys. To adjust belt tension, loosen lock nut (C) Fig. 29, and turn adjusting screw (D) clockwise to increase tension and counterclockwise to decrease tension. Tighten locknut

(C) Fig. 29, after belt tension is obtained.

B

A

Fig. 26

C

Fig. 27

B

C

A

Fig. 28

C

D

Fig. 29

When changing speeds, release belt tension and open belt and pulley guard cover (D) Fig. 30. Speed rates of 80, 120, and 200 feet per minute are available with your band saw. When the belt is on the largest step of the motor pulley (A) Fig. 30, and the smallest step of the gear box pulley (B) the blade speed will be 200 feet per minute. When the belt is on the smallest step of the motor pulley (A) and the largest step of the gear box pulley (B) the blade speed will be 80 feet per minute. When changing speeds, first release belt tension. After the desired speed is obtained, adjust belt tension and close belt and pulley guard cover (D).

SPEED AND MATERIAL CHART

Fig. 31 illustrates the correct speeds and the position of the belt on the motor and gear box pulleys for most common materials cut on the band saw.

BLADE SELECTION

1.Your band saw uses blades 1/2" wide, 64??" long and .020-.025 thick. Accessory blades with a pitch (number of teeth per. inch of the blade) of 10 and 14 are available from Delta.

2.Never use a blade so coarse that less than three consecutive teeth are engaged in the workpiece at one time. (Too few teeth will cause the teeth to strip out).

3.Never use a blade finer than required to obtain a satisfactory surface finish or satisfactory flatness (Too many teeth engaged in the workpiece will prevent attainment of a satisfactory sawing rate; frequently produce "dished" cuts or cuts which are neither square or parallel).

4.When thin rectangular solid bar is to be sawed, the work should, whenever possible, be loaded with the thinnest cross section exposed to the blade teeth. The pitch (number of teeth per. inch of the blade) selected must provide engagement of at least three consecutive teeth in the workpiece. Should application of this rule not be possible because the thinnest cross section is too thin, the piece must be loaded with the wider dimension exposed to the saw teeth and a coarser blade selected.

5.When thin wall pipe or tubing or channel iron are cut, a 14 pitch (number of teeth per inch) blade is used. Fewer than 14 teeth per inch will almost never be satisfactory.For standard wall pipe or tubing 10 teeth per inch is satisfactory.

CHANGING BAND SAW FROM

HORIZONTAL TO VERTICAL

POSITION

Your saw can be changed to the vertical position for notching, slitting or contour work as follows:

DISCONNECT MACHINE FROM

POWER SOURCE.

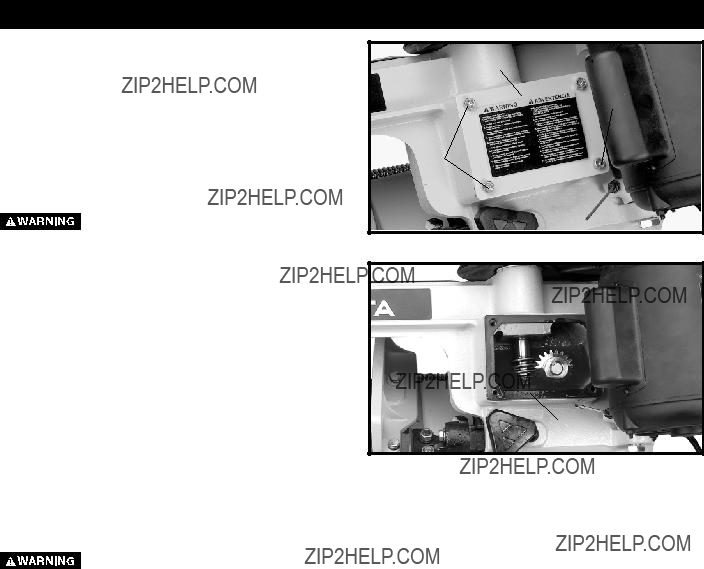

1.Move the cutting arm to the vertical position and lock in place with the arm positioning lever (C) Fig. 32. Stop screw (A) Fig. 32 should bear against base casting when arm is in the vertical position. If adjustment is needed loosen lock nut (B) and adjust screw (A).

2.Remove two screws (C) and bearing cover plate (D) Fig. 33.

3.Assemble the vertical table (E) to the guide bracket using the two screws (C) that were removed in STEP 2, as shown in Fig. 34.

4.Assemble one end of the table support bracket (G) Fig. 35 to the table using a 1/4-20x1/2" flat head screw and 1/4-20 nut (H) and the other end underneath the guide bracket lock knob (J), as shown in Fig. 35.

C

B

A

Fig. 32

D

C

C

Fig. 33

C

E

Fig. 34

H

J

G

Fig. 35

CUTTING CURVES

When cutting curves, turn the workpiece carefully so that the blade follows without twisting. If a curve is so abrupt that it is necessary to repeatedly back up and cut a new kerf, a narrower blade, a blade with more set, or additional relief cuts Fig. 37, may be necessary to allow the blade to cut more efficiently. The more set a blade has, the easier it will allow the stock to be turned, but the cut is usually rougher than where a medium amount of set is used.

When withdrawing the piece being cut, changing the cut, or for any other reason, be careful not to accidentally draw the blade off the wheels. In most

Fig. 37

cases, it is easier and safer to turn the stock and saw out through the waste material, rather than try to withdraw the stock from the blade.

1.Saw not plugged in.

2.Fuse blown or circuit breaker tripped.

3.Cord damaged.

1.Plug in saw.

2.Replace fuse or reset circuit breaker.

3.Have cord replaced.

Probable Cause

1.Blade not tensioned properly.

2.Blade guides improperly adjusted.

3.Blade support bearing improperly adjusted.

4.Blade wheel tracking adjustment improperly set.

5.Bad weld on blade.

6.Worn tires.

7.Forcing wide blade around short radius.

8.Dull blade or insufficient set.

9.Upper blade guide set too high.

10.Continuous running of machine when not actually cutting.

Remedy

1.Adjust blade tension.

2.Check and adjust blade guides.

3.Adjust blade support bearing.

4.Check and adjust blade tracking.

5.Replace the blade.

6.Replace tires.

7.Change to a narrower blade.

8.Replace blade.

9.Set upper blade guide within 1/8" of workpiece.

10.Turn off machine when not performing cutting operation.

Trouble: BLADE WILL NOT TRACK.

Probable Cause

1.Blade too loose

2.Upper wheel not properly adjusted.

3.Improperly adjusted blade support bearing.

Trouble: BLADE WILL NOT STAY ON WHEEL.

Probable Cause

1.Blade not tensioned properly.

2.Blade guides improperly adjusted.

3.Blade support bearing improperly adjusted.

4.Blade wheel not tracking properly.

5.Bad weld on blade.

6.Worn tires.

Trouble: BAND SAW MAKES UNSATISFACTORY CUTS.

Probable Cause

1.Blade not tensioned properly.

2.Blade guides improperly adjusted.

3.Blade support bearing improperly set.

4.Blade wheel not tracking properly.

5.Bad weld on blade.

6.Worn tires.

7.Incorrect blade for work being done.

8.Dull blade or insufficient set.

9.Upper blade guide set too high.

Remedy

1.Adjust tension

2.Adjust upper wheel.

3.Adjust blade support bearing.

Remedy

1.Adjust blade tension.

2.Check and adjust blade guides.

3.Adjust blade support bearing.

4.Check and adjust blade tracking.

5.Replace the blade.

6.Replace tires.

Remedy

1.Adjust blade tension.

2.Check and adjust blade guides.

3.Adjust blade support bearing.

4.Check and adjust blade tracking.

5.Replace the blade.

6.Replace tires.

7.Change the blade.

8.Replace blade.

9.Set upper blade guide within 1/8" of work piece.

LUBRICATING THE VISE SCREW

The vise lead screw should be lubricated using light machine oil as needed.

The drive gears run in an oil bath gear box and it should not be necessary to change this oil more than once a year unless the oil becomes contaminated or a leak occurs due to improper replacement of the gear box cover. To change oil in the gear box, proceed as follows:

DISCONNECT MACHINE FROM

POWER SOURCE.

1.Position cutting arm in the horizontal position.

2.Remove the four screws (A) Fig. 38, and the gear box cover (B) and gasket.

3.Remove the old oil from inside the gear box and replace the oil using 140 weight gear oil, available from Delta. The new oil should just come to the edge (C) Fig. 39, of the gear box. Do not overflow. Replace the gasket, cover and four screws that were removed in

STEP 3.

KEEP MACHINE CLEAN

Periodically blow out all air passages with dry compressed air. All plastic parts should be cleaned with a soft damp cloth. NEVER use solvents to clean plastic parts. They could possibly dissolve or otherwise damage the material.

WEAR ANSI Z87.1 SAFETY GLASSES

WHILE USING COMPRESSED AIR.

FAILURE TO START

Should your machine fail to start, check to make sure the prongs on the cord plug are making good contact in the outlet. Also, check for blown fuses or open circuit breakers in the line.

LUBRICATION

Apply household floor paste wax to the machine table and extension table or other work surface weekly.

B

A

A

Fig. 38

C

Fig. 39
