12" Bench Drill Press

(Model 11-990C)

PART NO. 1234956 (011)

Copyright ?? 2001 Delta Machinery

MANUAL INSTRUCTION

1.FOR YOUR OWN SAFETY, READ INSTRUCTION MANUAL BEFORE OPERATING THE TOOL. Learn the tool???s application and limitations as well as the specific hazards peculiar to it.

2.KEEP GUARDS IN PLACE and in working order.

3.ALWAYS WEAR EYE PROTECTION.

4.REMOVE ADJUSTING KEYS AND WRENCHES. Form habit of checking to see that keys and adjusting wrenches are removed from tool before turning it ???on???.

5.KEEP WORK AREA CLEAN. Cluttered areas and benches invite accidents.

6.DON???T USE IN DANGEROUS ENVIRONMENT. Don???t use power tools in damp or wet locations, or expose them to rain. Keep work area well-lighted.

7.KEEP CHILDREN AND VISITORS AWAY. All children and visitors should be kept a safe distance from work area.

8.MAKE WORKSHOP CHILDPROOF ??? with padlocks, master switches, or by removing starter keys.

9.DON???T FORCE TOOL. It will do the job better and be safer at the rate for which it was designed.

10.USE RIGHT TOOL. Don???t force tool or attachment to do a job for which it was not designed.

11.WEAR PROPER APPAREL. No loose clothing, gloves, neckties, rings, bracelets, or other jewelry to get caught in moving parts. Nonslip footwear is recommended. Wear protective hair covering to contain long hair.

12.ALWAYS USE SAFETY GLASSES. Wear safety glasses. Everyday eyeglasses only have impact resistant lenses; they are not safety glasses. Also use face or dust mask if cutting operation is dusty. These safety glasses must conform to ANSI Z87.1 requirements. Note: Approved glasses have Z87 printed or stamped on them.

13.SECURE WORK. Use clamps or a vise to hold work when practical. It???s safer than using your hand and frees both hands to operate tool.

14.DON???T OVERREACH. Keep proper footing and balance at all times.

15.MAINTAIN TOOLS IN TOP CONDITION. Keep tools sharp and clean for best and safest performance. Follow instructions for lubricating and changing accessories.

16.DISCONNECT TOOLS before servicing and when changing accessories such as blades, bits, cutters, etc.

17.USE RECOMMENDED ACCESSORIES. The use of accessories and attachments not recommended by Delta may cause hazards or risk of injury to persons.

18.R E D U C E T H E R I S K O F U N I N T E N T I O N A L STARTING. Make sure switch is in ???OFF??? position before plugging in power cord.

19.NEVER STAND ON TOOL. Serious injury could occur if the tool is tipped or if the cutting tool is accidentally contacted.

20.CHECK DAMAGED PARTS. Before further use of the tool, a guard or other part that is damaged should be carefully checked to ensure that it will operate properly and perform its intended function ??? check for alignment of moving parts, binding of moving parts, breakage of parts, mounting, and any other conditions that may affect its operation. A guard or other part that is damaged should be properly repaired or replaced.

21.DIRECTION OF FEED. Feed work into a blade or cutter against the direction of rotation of the blade or cutter only.

22.NEVER LEAVE TOOL RUNNING UNATTENDED. TURN POWER OFF. Don???t leave tool until it comes to a complete stop.

23.DRUGS, ALCOHOL, MEDICATION. Do not operate tool while under the influence of drugs, alcohol or any medication.

24.MAKE SURE TOOL IS DISCONNECTED FROM POWER SUPPLY while motor is being mounted, connected or re-connected.

25.THE DUST GENERATED by certain woods and wood products can be injurious to your health. Always operate machinery in well ventilated areas and provide for proper dust removal. Use wood dust collection systems whenever possible.

26. WARNING: SOME DUST CREATED BY POWER

SANDING, SAWING, GRINDING, DRILLING, AND OTHER CONSTRUCTION ACTIVITIES contains chemicals known to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are:

???lead from lead-based paints,

???crystalline silica from bricks and cement and other masonry products, and

???arsenic and chromium from chemically-treated lumber.

Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: work in a well ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to filter out microscopic particles.

SAVE THESE INSTRUCTIONS

1. DO NOT operate your tool until it is completely assembled and installed according to the instructions.

2.IF YOU ARE NOT thoroughly familiar with the operation of drill presses, obtain advice from your supervisor, instructor or other qualified person.

3.YOUR TOOL MUST be securely fastened to a stand or workbench. If there is any tendency for the stand or workbench to move during operation, the stand or workbench MUST be fastened to the floor.

4.NEVER turn the tool ???ON??? before clearing the table of all objects (tools, scrap pieces, etc.).

5.NEVER start the tool with the drill bit or cutting tool in contact with the workpiece.

6.USE ONLY drill bits, cutters, sanding drums and other accessories with 1/2" shank or less.

7.ALWAYS keep hands and fingers away from the drill bit or cutting tool.

8.DO NOT ATTEMPT to drill material that does not have a flat surface, unless a suitable support is used.

9.AVOID awkward hand positions where a sudden slip could cause a hand to move into the drill bit or cutting tool.

10.TO PREVENT ROTATION OF THE WORKPIECE,

ALWAYS clamp work securely to table if it is too short to contact the column (see ???OPERATION??? section of this manual) or when using hole saw or cutting tools larger than 1/2" in diameter.

11.USE recommended speed for drill, accessory or workpiece material.

12.MAKE CERTAIN all lock handles are tightened before starting the machine.

13.NEVER perform layout, assembly or set-up work on the table while the drill is operating.

14.BE SURE drill bit or cutting tool is not damaged and is properly locked in the chuck before operating.

15.MAKE SURE chuck key is removed from chuck before starting drill press. ONLY use chuck key provided with your drill press. It is equipped with a self-ejecting pin which eliminates the hazard of the key being left in the chuck.

16.ADJUST the table or depth stop to avoid drilling into the table.

17.ALWAYS allow the drill press to stop before removing scrap pieces from the table.

18.WHEN drilling large workpieces, MAKE SURE the material is supported at table height.

19.SHUT OFF the power, remove the drill bit or cutting tool, and clean the table and work area before leaving the machine.

20.DON???T wear gloves, necktie, or loose clothing when operating the drill press.

21.WHEN THE TOOL IS NOT IN USE the switch should be locked in the ???OFF??? position to prevent unauthorized use of the tool.

22.SHOULD any part of your tool be missing, damaged or fail in anyway, or any electrical component fail to perform properly, shut off switch and remove plug from power supply outlet. Replace missing, damaged or failed parts before resuming operation.

23.ADDITIONAL INFORMATION regarding the safe and proper operation of this product is available from the National Safety Council, 1121 Spring Lake Drive, Itasca, Illinois 60143-3201, in the Accident Prevention Manual for Industrial Operations and also in the Safety Data Sheets provided by the NSC. Please also refer to the American National Standards Institute ANSI 01.1 Safety Requirements for Woodworking Machinery and the U.S. Department of Labor OSHA 1910.212 and 1910.213 Regulations.

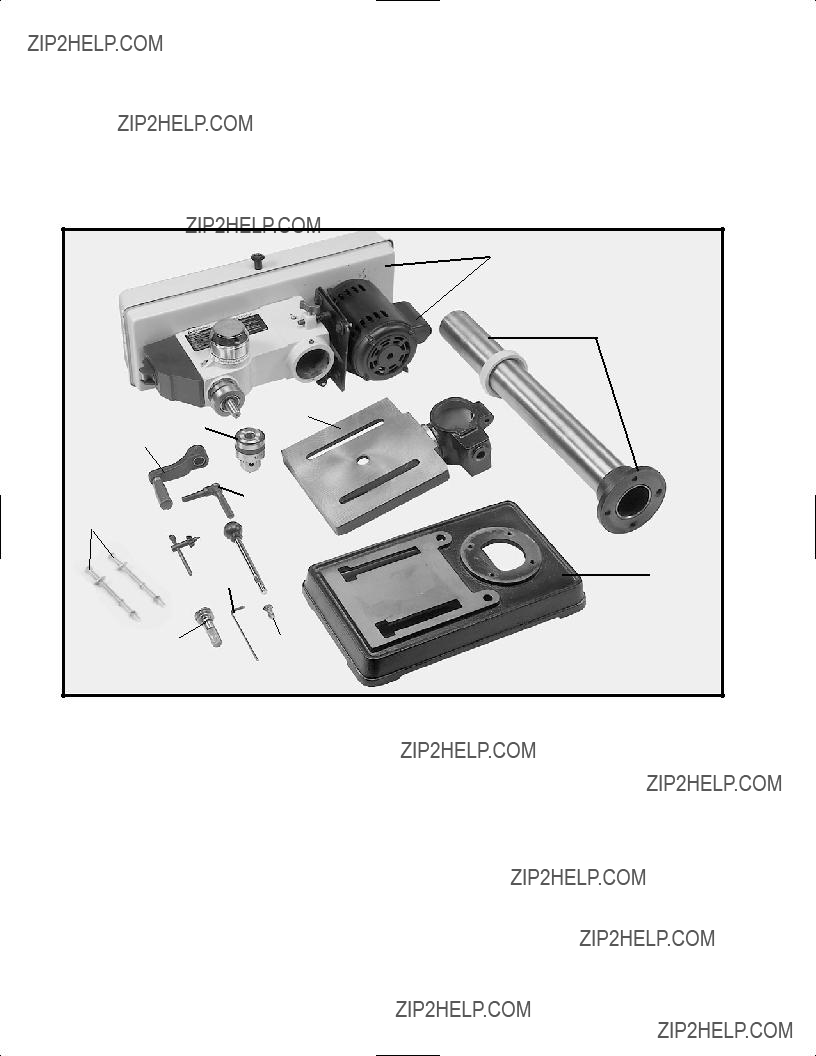

1 - Drill Press Head and Motor

2 - Column, Base Flange and Table Raising

Mechanism

3 - Clamp Handle

4 - Table

5 - Base

6 - Pinon Shaft Handles (3)

7 - Chuck

8 - Chuck Key

9 - Wrenches (2)

10 - Worm Gear for Table Raising and Lowering Mechanism

11 - Table Raising and Lowering Handle

12 - 25mm (1") long Hex Head Cap Screws (4)

13 - 125mm (5") long Carriage Screws (2), Flat Washers (2), Lock Washers (2), Hex Nuts (2)

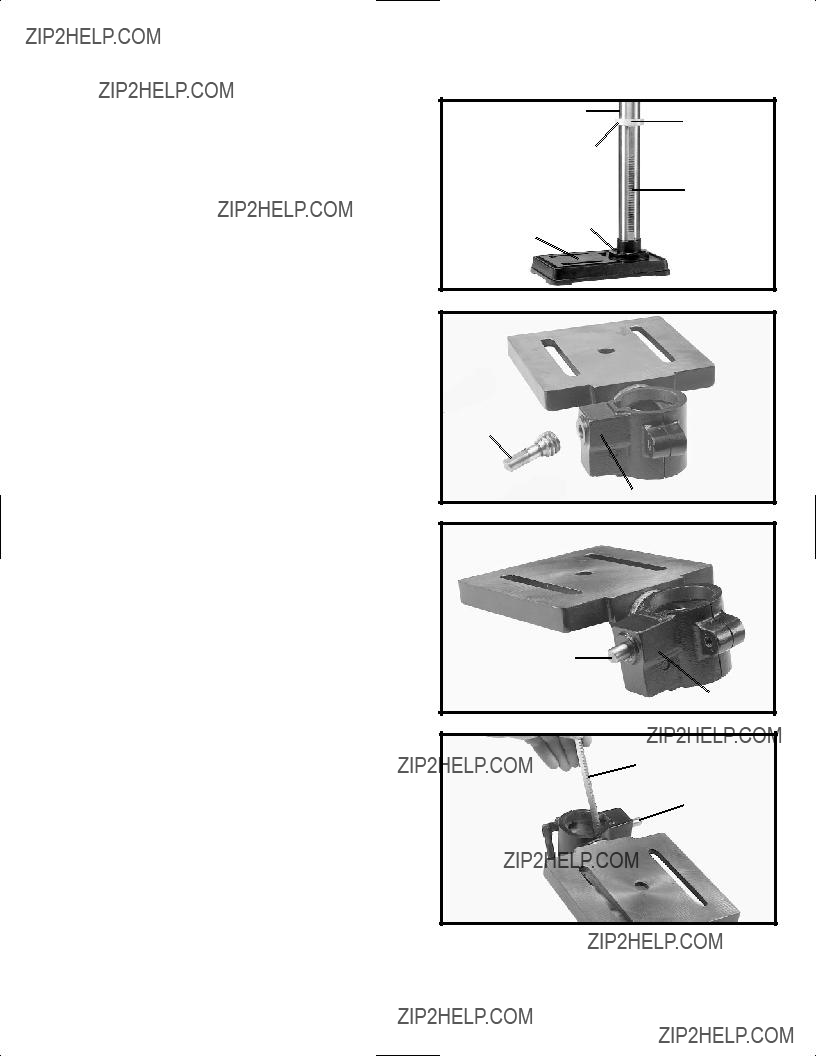

1. Assemble the column (A) Fig. 3, to the base (B) using the four screws (C), three of which are shown. Loosen set screw (D) and remove ring (E) and raising rack (F).

2. Make certain worm gear (G) Figs. 4 and 5, is in place in table bracket (H) as shown.

3. Insert raising rack (F) Fig. 6, which was removed in STEP 1, into groove in table bracket making sure teeth of worm gear (G) located inside table bracket are engaged with teeth of raising rack (F).

A

D

E

F

C

B

C

Fig. 3

G

H

Fig. 4

G

H

Fig. 5

F

G

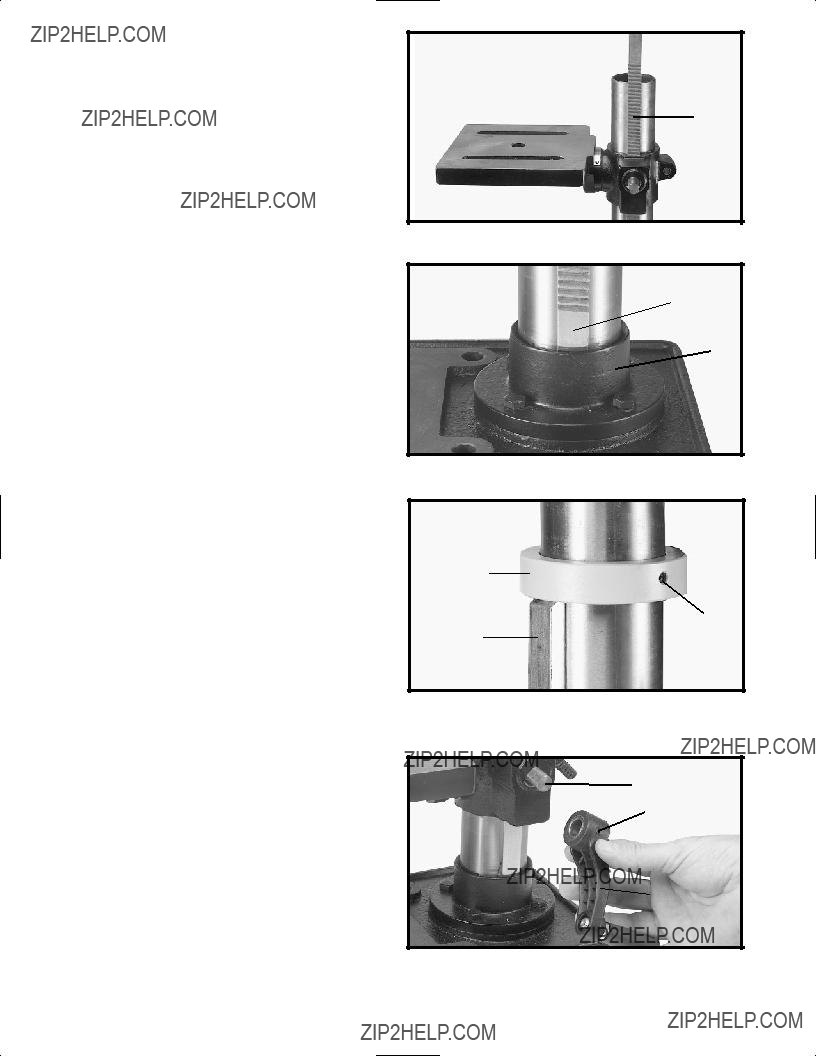

4. Slide raising rack (F) Fig. 7, table and table bracket onto drill press column, as shown. Make sure bottom of raising rack (F) Fig. 8, is engaged with flange (J) on drill press base.

5. Re-assemble ring (E) Fig. 9, which was removed in

STEP 1. IMPORTANT: Bottom of ring (E) MUST NOT be pushed all the way down onto top of raising rack (F). MAKE SURE top of raising rack (F) is under bottom of ring (E) and that there is enough clearance to allow rack (F) to rotate around the column. THEN TIGHTEN SET SCREW (D).

6. Assemble table raising and lowering handle (K) Fig. 10, to worm gear shaft (G) and tighten screw (L) against flat on shaft.

F

Fig. 7

F

J

Fig. 8

E

D

F

Fig. 9

G

L

K

Fig. 10

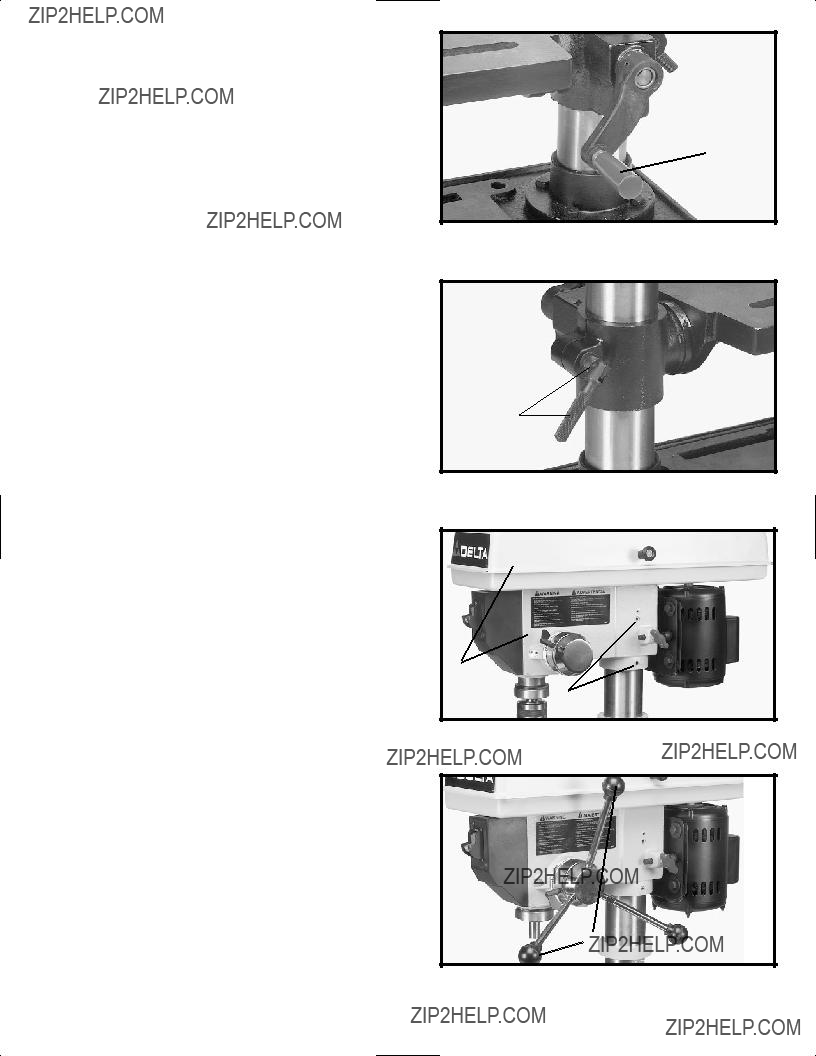

8. Thread clamp handle (M) Fig. 12, into hole in rear of table bracket, as shown.

9. Place the drill press head (N) Fig. 13, onto the column as far as it will go. Align head to table and base and tighten the two head locking screws (O) with wrench supplied.

10. Thread the three pinion shaft handles (P) Fig. 14, into the three tapped holes located in the pinion shaft, as shown.

M

Fig. 12

N

O

Fig. 13

P

Fig. 14

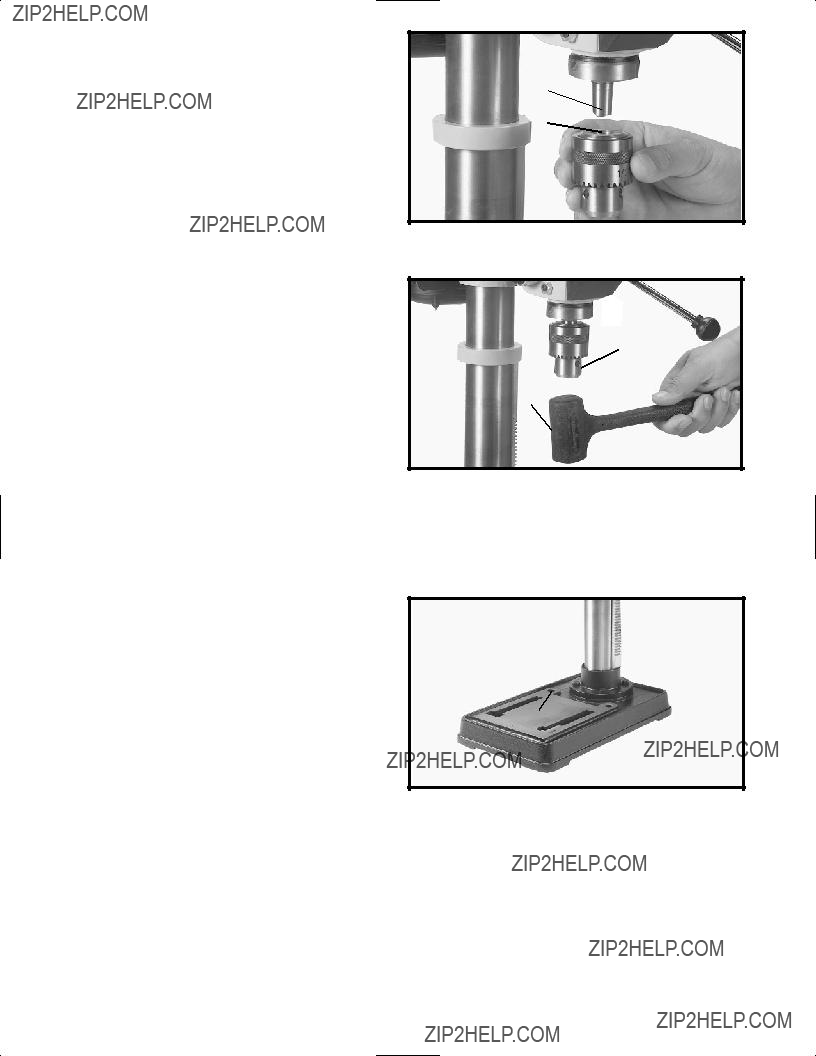

11.IMPORTANT: Make certain the spindle taper (Q) Fig. 15, and tapered hole in chuck (R) are clean and free of any grease, lacquer or rust preventive coatings. NOTE: Household oven cleaner can effectively remove any substance from the spindle and chuck; however, carefully follow the manufacturer's safety rules concerning its use.

12.IMPORTANT: OPEN THE CHUCK JAWS AS WIDE

AS POSSIBLE MAKING SURE THE CHUCK JAWS

ARE UP INSIDE CHUCK.

13.Carefully drive chuck (S) Fig. 16, onto the spindle with a block of wood and hammer, or a rubber mallet (T) as shown. This will seat the chuck properly on the spindle. IMPORTANT: To avoid damage to the chuck, NEVER drive the chuck onto the spindle with a metal hammer.

Q

R

Fig. 15

S

T

Fig. 16

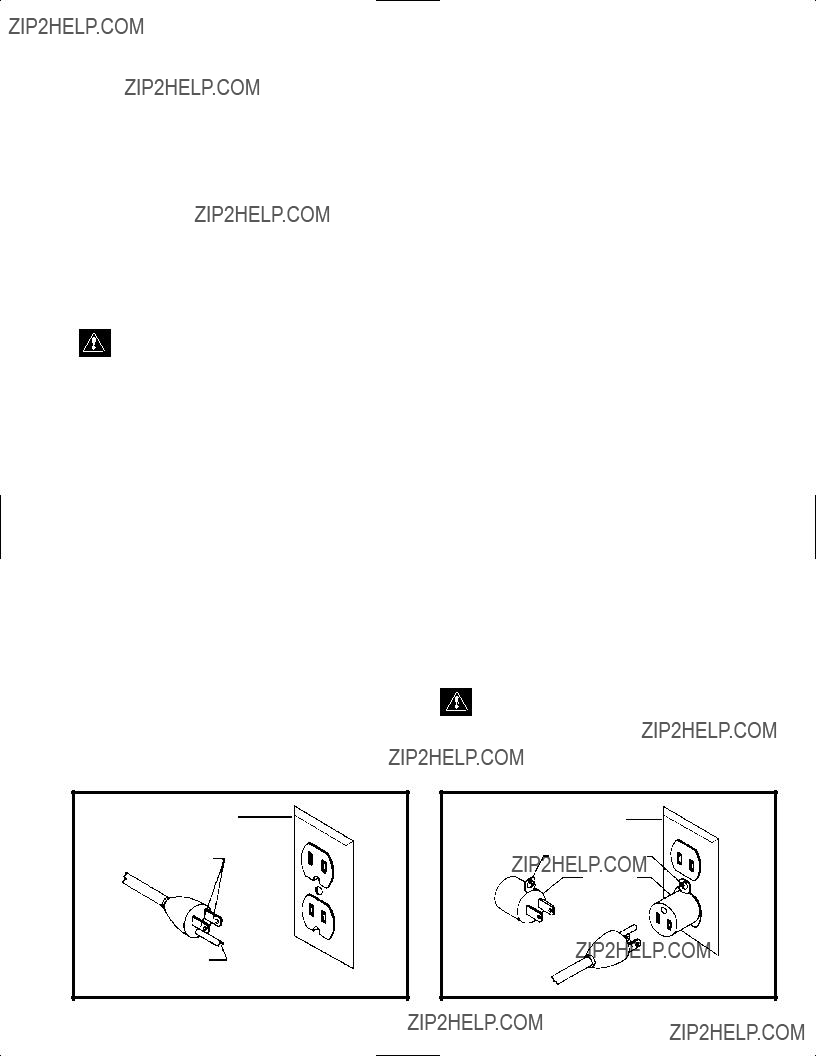

1. All grounded, cord-connected tools:

In the event of a malfunction or breakdown, grounding provides a path of least resistance for electric current to reduce the risk of electric shock. This tool is equipped with an electric cord having an equipment-grounding conductor and a grounding plug. The plug must be plugged into a matching outlet that is properly installed and grounded in accordance with all local codes and ordinances.

Do not modify the plug provided - if it will not fit the outlet, have the proper outlet installed by a qualified electrician.

Improper connection of the equipment-grounding conductor can result in risk of electric shock. The conductor with insulation having an outer surface that is green with or without yellow stripes is the equipment- grounding conductor. If repair or replacement of the electric cord or plug is necessary, do not connect the equipment-grounding conductor to a live terminal.

Check with a qualified electrician or service personnel if the grounding instructions are not completely understood, or if in doubt as to whether the tool is properly grounded.

Use only 3-wire extension cords that have 3-prong grounding type plugs and 3-pole receptacles that accept the tool???s plug, as shown in Fig. 18.

Repair or replace damaged or worn cord immediately.

GROUNDED OUTLET BOX

CURRENT

CARRYING

PRONGS

2. Grounded, cord-connected tools intended for use on a supply circuit having a nominal rating less than 150 volts:

This tool is intended for use on a normal 120-volt circuit and has a grounded plug that looks like the plug illustrated in Fig. 18.

If a properly grounded outlet is not available, a temporary adapter, shown in Fig. 19, may be used for connecting the 3-prong grounding type plug to a 2-pole receptacle. The temporary adapter should be used only until a properly grounded outlet can be installed by a qualified electrician. The green colored rigid ear, lug, or the like extending from the adapter must be connected to a permanent ground such as a properly grounded outlet box cover. Whenever the adapter is used, it must be held in place with a metal screw.

NOTE: In Canada, the use of a temporary adapter is not permitted by the Canadian Electric Code.

WARNING: IN ALL CASES, MAKE CERTAIN

THE RECEPTACLE IN QUESTION IS PROPERLY

GROUNDED. IF YOU ARE NOT SURE HAVE A

CERTIFIED ELECTRICIAN CHECK THE RECEPTACLE.

GROUNDED OUTLET BOX

GROUNDING

MEANS

ADAPTER

EXTENSION CORDS

Use proper extension cords. Make sure your extension cord is in good condition and is a 3-wire extension cord which has a 3-prong grounding type plug and a 3-pole receptacle which will accept the tool???s plug. When using an extension cord, be sure to use one heavy enough to carry the current of the machine. An undersized cord will cause a drop in line voltage, resulting in loss of power and overheating. Fig. 20, shows the correct gauge to use depending on the cord length. If in doubt, use the next heavier gauge. The smaller the gauge number, the heavier the cord.

MINIMUM GAUGE EXTENSION CORD

RECOMMENDED SIZES FOR USE WITH STATIONARY ELECTRIC TOOLS

Fig. 20

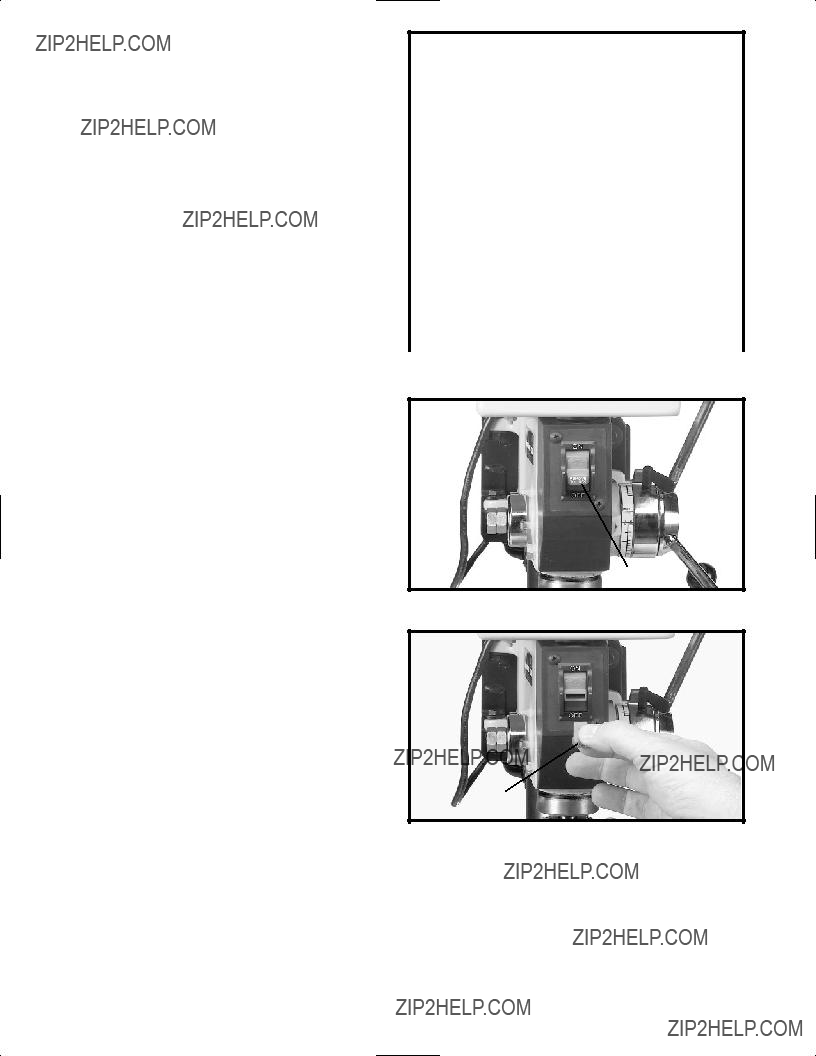

STARTING AND

STOPPING DRILL

PRESS

The switch (A) Fig. 21, is located on the front of the drill press head. To turn the drill press ???ON??? move the switch to the up position. To turn the drill press ???OFF??? move the switch to the down position.

LOCKING SWITCH IN

THE ???OFF??? POSITION

When the tool is not in use, the switch should be locked in the ???OFF??? position to prevent unauthorized use. This can be done by grasping the switch toggle (B) and pulling it out of the switch, as shown in Fig. 22. With the switch toggle (B) removed, the switch will not operate. However, should the switch toggle be removed while the drill press is operating, the switch can be turned ???OFF??? once, but cannot be restarted without inserting the switch toggle (B).

A

Fig. 21

B

Fig. 22

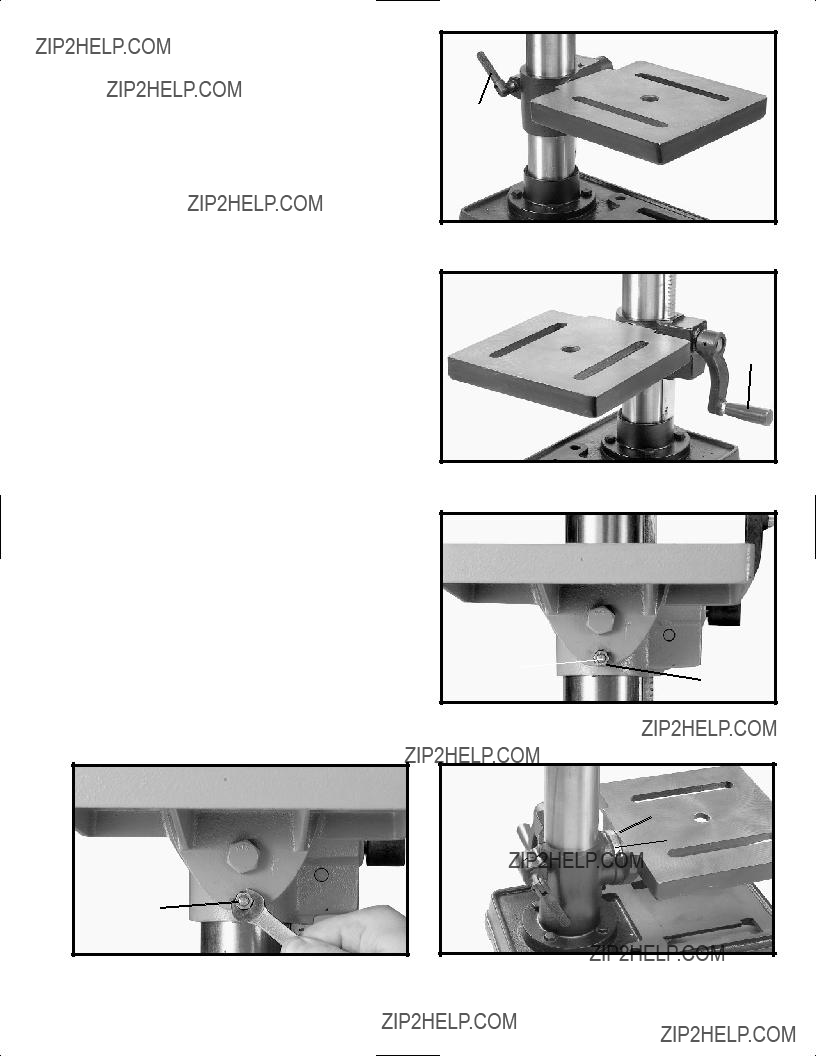

TABLE ADJUSTMENTS

1.The table can be raised or lowered on the drill press column by loosening the table clamp handle (A) Fig. 23, and turning the table raising and lowering handle (B) Fig.

24.After the table is at the desired height, tighten handle

(A) Fig. 23. NOTE: Final positioning of the drill press table should always be from the bottom to the up position.

2.The table can be rotated 360 degrees on the column by loosening clamp handle (A) Fig. 23, rotate table to desired position and tighten clamp handle (A).

3.The table can be tilted right or left by pulling out and removing table alignment pin (C) Fig. 25, and loosening table locking bolt (D). NOTE: If pin (C) is difficult to remove, turn nut (E) clockwise to pull pin out of casting. Tilt table to the desired angle and tighten bolt (D).

4.When returning table to the level position, loosen pin (C) Fig. 26, and loosen locking bolt (D). Position the table to the 0 degree mark on the tilt scale and then replace pin (C) and tighten locking bolt (D) Fig. 25.

5.A tilt scale (E) Fig. 27, is provided on the table bracket casting to indicate the degree of tilt. A witness line (F) is also provided on the table to line up with scale

(E).

D

C

Fig. 26

A

Fig. 23

B

Fig. 24

D

C

E

Fig. 25

F

E

Fig. 27

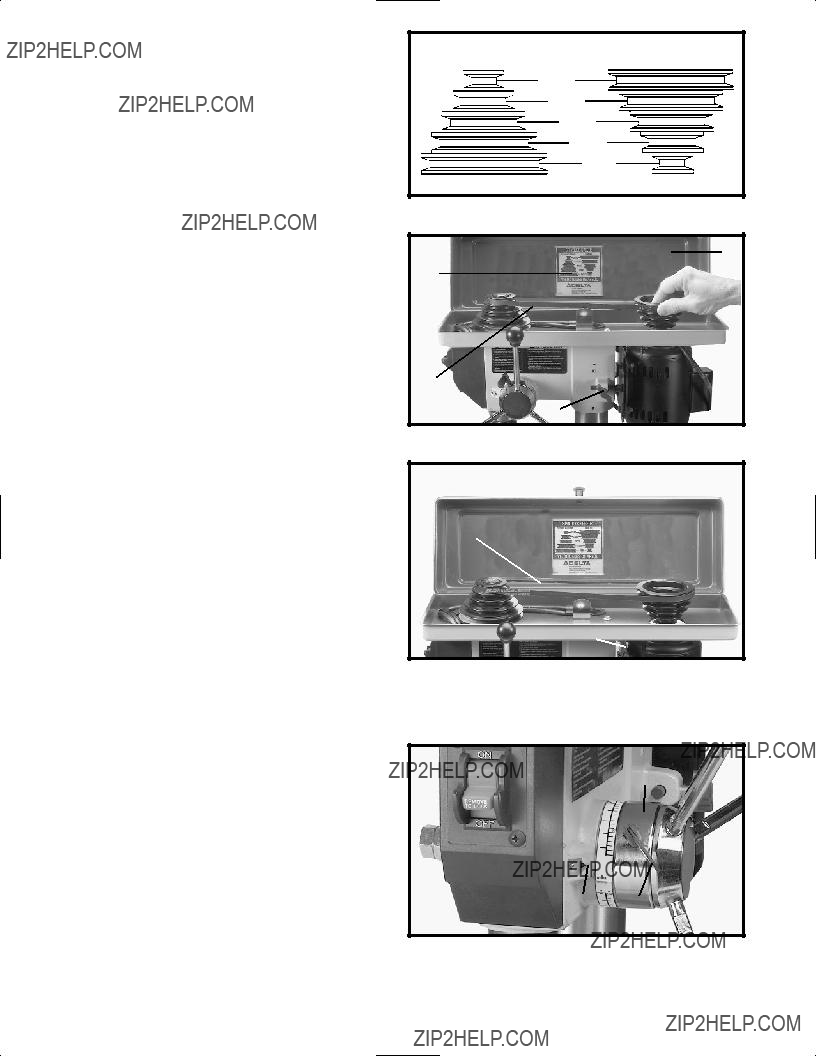

SPINDLE SPEEDS

Five spindle speeds of 620, 1100, 1720, 2340 and 3100 RPM are available. The highest speed is obtained when the belt is on the largest step of the motor pulley and the smallest step of the spindle pulley, as shown in Fig. 28. Fig. 28, illustrates which steps the pulleys the belt must be placed to obtain the five speeds available.

CHANGING SPEEDS AND

ADJUSTING BELT TENSION

1.Disconnect the tool from the power source.

2.Lift up the belt and pulley guard (A) Fig. 29.

3.Release belt tension by loosening tension lock knob

(B) Fig. 29, and pivoting the motor toward the front of the drill press, as shown.

4.While holding the motor toward the front of the drill press head, position the belt (C) on the desired steps of the motor and spindle pulleys, as shown in Fig. 29. A belt positioning chart (D) is provided on the inside top cover of the drill press for your convenience.

5.After the belt is positioned on the desired steps of the motor and spindle pulleys, pivot motor away from the drill press head until the belt is properly tensioned and tighten tension lock knob (B) Fig. 30. The belt should be just tight enough to prevent slipping. Excessive tension will reduce the life of the belt, pulleys and bearings. Correct tension is obtained when the belt

(C) can be flexed about one inch out of the line midway between the pulleys using light finger pressure.

SPINDLEMOTOR

3100

2340

1720

1100

620

Fig. 28

A

D

C

B

Fig. 29

C

B

Fig. 30

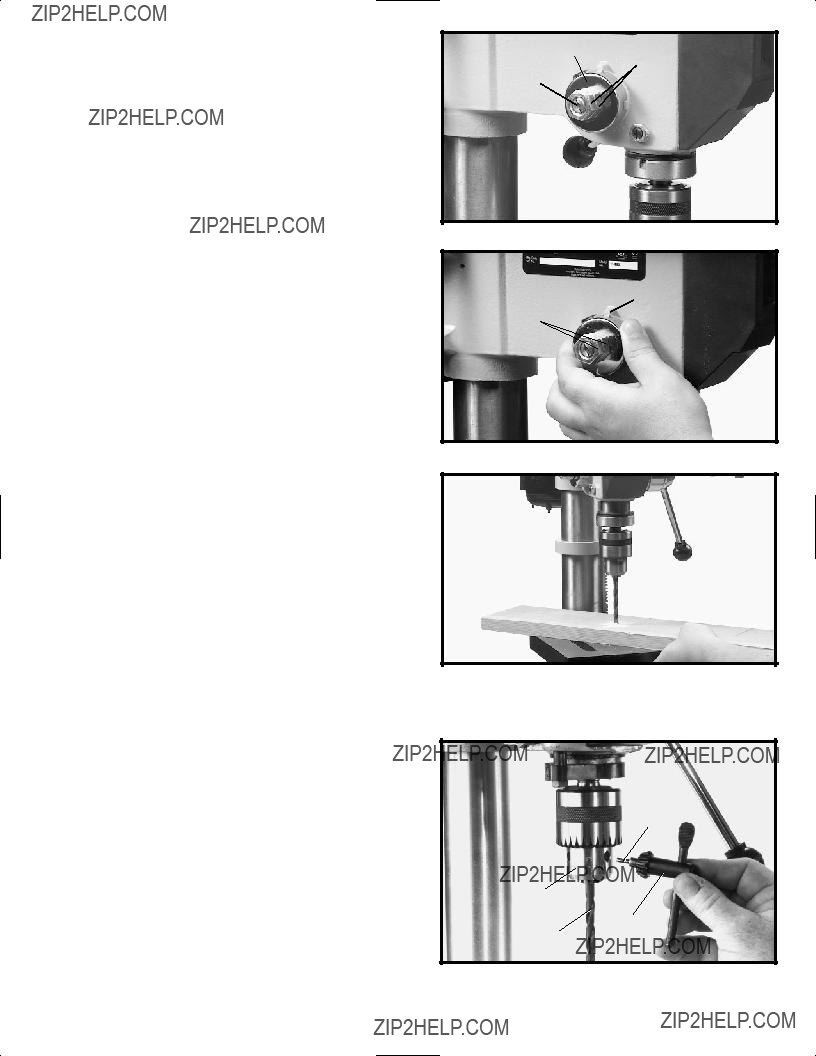

DRILLING HOLES TO DEPTH

Where a number of holes are to be drilled to exactly the same depth, a depth stop is provided in the pinion shaft housing and is used as follows:

1.Loosen lock screw (A) Fig. 31, and rotate housing (B) until the pointer (C) lines up with the desired depth indicated on scale (D). Then tighten lock screw (A).

2.All holes will then be drilled to the exact depth as indicated on scale (D) Fig. 31. NOTE: Scale (D) is calibrated in both inches and millimeters.

B

D

C A

Fig. 31

ADJUSTING SPINDLE

RETURN SPRING

The spindle is automatically returned to its upper most position upon release of the handle. It is recommended that the handle be allowed to slowly return to the top position after all holes have been bored in the material. This spring has been properly adjusted at the factory and should not be disturbed unless absolutely necessary. To adjust the return spring, proceed as follows:

1.Disconnect the tool from the power source.

2.Loosen the two nuts (B) Fig. 32, approximately 1/4". Do not remove nuts (B) from shaft (C).

3.While firmly holding spring housing (A) Fig. 33, pull out housing and rotate it until the boss (D) is engaged with the next notch on the housing. Turn the housing counterclockwise to increase and clockwise to decrease spring tension. Then tighten the two nuts (B) to hold the housing in place. IMPORTANT: Inside nut (B) should not contact spring housing (A) when tight.

OPERATION

The following directions will give the inexperienced operator a start on common drill press operations. Use scrap material for practice to get a feel of the machine before attempting regular work.

WARNING: The use of accessories and attach- ments not recommended by Delta may result in risk of injury.

IMPORTANT: When the workpiece is long enough it should always be positioned on the table with one end against the column, as shown in Fig. 34. This prevents the workpiece from rotating with the drill bit or cutting tool, causing damage to the workpiece or personal injury to the operator. If it is not possible to support the workpiece against the column, the workpiece should always be fastened to the table using clamps or a vise.

A

B

C

Fig. 32

D

B

A

Fig. 33

Fig. 34

1.Insert smooth end of drill bit (A) Fig. 35, as far as it will go into the chuck (B), and then back the bit out 1/16", or up to the flutes for small bits.

2.Make certain that the drill bit (A) Fig. 35, is centered in the chuck (B) before tightening the chuck with the key

(C).

3.Turn the chuck key (C) Fig. 35, clockwise to tighten and counterclockwise to loosen the chuck jaws.

4.Tighten all three chuck jaws to secure the drill bit sufficiently so that it does not slip while drilling.

5.MAKE SURE chuck key (C) Fig. 35, is removed from chuck before starting drill press. Your chuck key (C) is equipped with a self-ejecting pin (D) which eliminates the hazard of the key being left in the chuck.

D

B

C

A

Fig. 35
