Advanced Features

Dell??? OptiPlex??? 740 Systems

User's Guide

LegacySelect Technology Control

LegacySelect technology control offers legacy-full, legacy-reduced, or legacy-free solutions based on common platforms, hard-drive images, and help desk procedures. Control is provided to the administrator through system setup, Dell OpenManage??? IT Assistant, or Dell custom factory integration.

LegacySelect allows administrators to electronically activate or deactivate connectors and media devices that include serial and USB connectors, a parallel connector, a floppy drive, PCI slots, and a PS/2 mouse. Connectors and media devices that are deactivated make resources available. You must restart the computer to effect the changes.

Manageability

Alert Standard Format

ASF is a DMTF management standard that specifies "pre-operating system" or "operating system-absent" alerting techniques. The standard is designed to generate an alert on potential security and fault conditions when the operating system is in a sleep mode or the system is turned off. ASF is designed to supersede previous operating-system-absent alerting technologies.

Your computer supports the following ASF version 1.03 and 2.0 alerts and remote capabilities:

For more information about Dell's ASF implementation, see the ASF User's Guide and the ASF Administrator's Guide, which are available on the Dell Support website at support.dell.com.

Dell OpenManage??? IT Assistant

IT Assistant configures, manages, and monitors computers and other devices on a corporate network. IT Assistant manages assets, configurations, events (alerts), and security for computers equipped with industry-standard management software. It supports instrumentation that conforms to SNMP, DMI, and CIM industry standards.

Dell OpenManage Client instrumentation, which is based on DMI and CIM, is available for your computer. For information on IT Assistant, see the Dell OpenManage IT Assistant User's Guide available on the Dell Support website at support.dell.com.

Dell OpenManage Client Instrumentation

Dell OpenManage Client Instrumentation is software that enables remote management programs such as IT Assistant to do the following:

???Access information about your computer, such as how many processors it has and what operating system it is running.

???Monitor the status of your computer, such as listening for thermal alerts from temperature probes or hard-drive failure alerts from storage devices.

???Change the state of your computer, such as updating its BIOS or shutting it down remotely.

A managed system is one that has Dell OpenManage Client Instrumentation set up on a network that uses IT Assistant. For information about Dell OpenManage Client Instrumentation, see the Dell OpenManage Client Instrumentation User's Guide available on the Dell Support website at support.dell.com.

Security

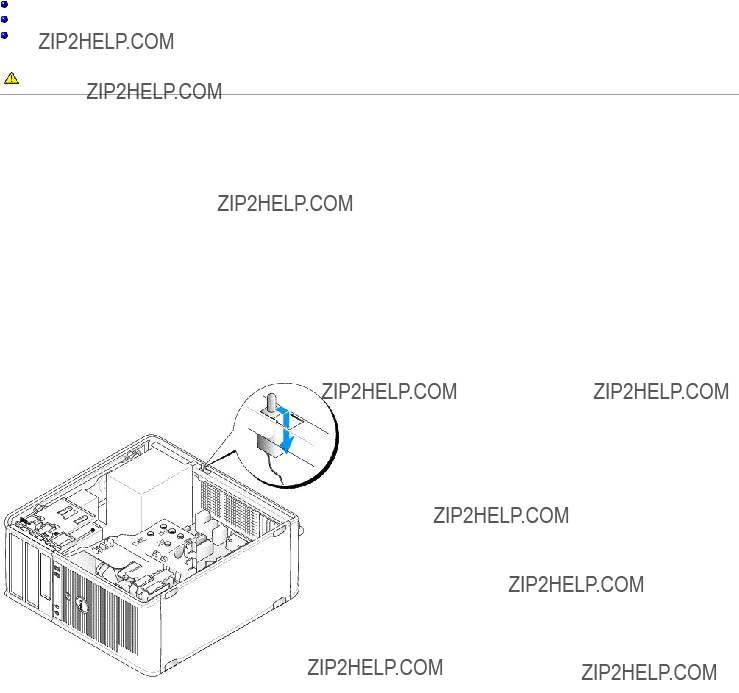

Chassis Intrusion Detection

NOTE: When the administrator password is enabled, you must know the administrator password before you can reset the Chassis Intrusion setting.

This feature, if installed and enabled, detects that the chassis was opened and alerts the user. To change the Chassis Intrusion setting:

1.Enter system setup (see Entering System Setup).

2.Press the down-arrow key to move to the Security option.

3.Press <Enter> to access the Security option's pop-up menu.

4.Press the down-arrow key to move to the Chassis Intrusion setting.

5.Press <Enter> to select an option setting.

6.Press <Enter> again after you update the option setting.

7.Exit and save system setup.

Option Settings

??? On ??? If the computer cover is opened, the setting changes to Detected, and the following alert message displays during the boot routine at the next computer start-up:

Alert! Cover was previously removed.

To reset the Detected setting, enter system setup (see Entering System Setup). In the Chassis Intrusion option, press the left- or right-arrow key to select Reset, and then choose On, On-Silent, or Off.

???On-Silent (default setting) ??? If the computer cover is opened, the setting changes to Detected. No alert message appears during the boot sequence at the next computer start-up.

???Off ??? No intrusion monitoring occurs and no messages appear.

Padlock Ring and Security Cable Slot

Use one of the following methods to secure your computer:

???Use a padlock alone or a padlock and looped security cable with the padlock ring.

A padlock alone prevents the computer from being opened.

A security cable looped around a stationary object is used in conjunction with a padlock to prevent unauthorized movement of the computer.

???Attach a commercially available antitheft device to the security cable slot on the back of the computer.

NOTE: Before you purchase an antitheft device, make sure that it works with the security cable slot on your computer.

Antitheft devices usually include a segment of metal-stranded cable with an attached locking device and key. The documentation that comes with the device contains instructions for installing it.

Password Protection

NOTICE: Although passwords provide security for the data on your computer, they are not foolproof. If your data requires more security, it is your responsibility to obtain and use additional forms of protection, such as data encryption programs.

System Password

NOTICE: If you leave your computer running and unattended without having a system password assigned, or if you leave your computer unlocked so that someone can disable the password by changing a jumper setting, anyone can access the data stored on your hard drive.

Option Settings

You cannot change or enter a new system password if either of the following two options is displayed:

???Set ??? A system password is assigned.

???Disabled ??? The system password is disabled by a jumper setting on the system board.

You can only assign a system password when the following option is displayed:

???Not Set ??? No system password is assigned and the password jumper on the system board is in the enabled position (the default setting).

Assigning a System Password

NOTE: To escape from the field without assigning a system password, press <Tab> or the <Shift><Tab> key combination to move to another field, or press <Esc> at any time before you complete step 5.

1.Enter system setup and verify that Password Status is set to Unlocked.

2.Highlight System Password, and then press the left- or right-arrow key.

The option heading changes to Enter Password, followed by an empty 32-character field in square brackets.

3.Type your new system password.

You can use up to 32 characters. To erase a character when entering your password, press <Backspace> or the left-arrow key. The password is not case sensitive.

Certain key combinations are not valid. If you enter one of these combinations, the speaker emits a beep.

As you press each character key (or the spacebar for a blank space), a placeholder appears in the field.

4.Press <Enter>.

If the new system password is less than 32 characters, the whole field fills with placeholders. Then the option heading changes to Verify Password, followed by another empty 32-character field in square brackets.

5.To confirm your password, type it a second time and press <Enter>.

The password setting changes to Set.

6.Exit system setup.

Password protection takes effect when you restart the computer.

Typing Your System Password

When you start or restart your computer, the following prompt appears on the screen.

If Password Status is set to Locked:

Type the password and press <Enter>.

If you have assigned an administrator password, the computer accepts your administrator password as an alternate system password.

If you type a wrong or incomplete system password, the following message appears on the screen:

** Incorrect password. **

If you again type an incorrect or incomplete system password, the same message appears on the screen. The third and subsequent times you type an incorrect or incomplete system password, the computer displays the following message:

** Incorrect password. **

Number of unsuccessful password attempts: 3

System halted! Must power down.

Even after your computer is turned off and on, the previous message is displayed each time you type an incorrect or incomplete system password.

NOTE: You can use Password Status in conjunction with System Password and Admin Password to further protect your computer from unauthorized changes.

Deleting or Changing an Existing System Password

1.Enter system setup (see Entering System Setup).

2.Highlight System Password and press <Enter>.

3.When prompted, type the system password.

4.Press <Enter> twice to clear the existing system password. The setting changes to Not Set.

If Not Set is displayed, the system password is deleted. If Not Set is not displayed, press <Esc>, press the left- and right-arrow keys to highlight Save/Exit, and then press <Enter> to restart the computer and implement your changes. Then repeat steps 3 and 4.

5.To assign a new password, follow the procedure in Assigning a System Password.

6.Exit system setup.

Administrator Password

Option Settings

You cannot change or enter a new administrator password if either of the following two options is displayed:

???Set ??? An administrator password is assigned.

???Disabled ??? The administrator password is disabled by a jumper setting on the system board.

You can only assign an administrator password when the following option is displayed:

???Not Set ??? No administrator password is assigned and the password jumper on the system board is in the enabled position (the default setting).

Assigning an Administrator Password

NOTE: To escape from the field without assigning an administrator password, press <Tab> or the <Shift><Tab> key combination to move to another field, or press <Esc> at any time before you complete step 3.

The administrator password can be the same as the system password.

NOTE: If the two passwords are different, the administrator password can be used as an alternate system password. However, the system password cannot be used in place of the administrator password.

1.Enter system setup and verify that Admin Password is set to Not Set (see Entering System Setup).

2.Highlight Admin Password and press the left- or right-arrow key.

The computer prompts you to type and verify the password. If you enter a character that is not permitted, the computer emits a beep.

3.Type and then verify the password.

After you verify the password, the Admin Password setting changes to Set. The next time you enter system setup, the computer prompts you for the administrator password.

4.Exit system setup.

A change to Admin Password becomes effective immediately (no need to restart the computer).

Operating Your Computer With an Administrator Password Enabled

When you enter system setup, the Admin Password option is highlighted, prompting you to type the password (see Entering System Setup).

If you do not type the correct password, the computer lets you view, but not modify, system setup options.

NOTE: You can use Password Status in conjunction with Admin Password to protect the system password from unauthorized changes.

Deleting or Changing an Existing Administrator Password

To change an existing administrator password, you must know the administrator password.

1.Enter system setup (see Entering System Setup).

2.Type the administrator password at the prompt.

3.Highlight Admin Password and press the left- or right-arrow key to delete the existing administrator password.

The setting changes to Not Set.

To assign a new administrator password, perform the steps in Assigning an Administrator Password.

4.Exit system setup.

Disabling a Forgotten Password and Setting a New Password

To reset system and/or administrator passwords, see Clearing Forgotten Passwords.

Trusted Platform Module (TPM)

NOTE: Computers shipping into China are not equipped with TPM.

NOTE: The TPM feature supports encryption only if the operating system supports TPM. For more information, see the TPM software documentation and the help files that came with the software.

TPM is a hardware-based security feature that can be used to create and manage computer-generated encryption keys. When combined with security software, the TPM enhances existing network and computer security by enabling features such as file protection capabilities and protected e-mail. The TPM feature is enabled through a system setup option.

NOTICE: To secure your TPM data and encryption keys, follow the backup procedures documented in the Archive and Restore section of the EMBASSY Security Center help file. In the event of these backups being incomplete, lost, or damaged, Dell will be unable to assist in the recovery of encrypted data.

Enabling the TPM Feature

1.Enable the TPM software:

a.Restart the computer and press <F2> during the Power On Self Test to enter the system setup program.

b.Select Security, then select TPM Security and press <Enter>.

c.Under TPM Security, select On.

d.Press <Esc> to exit the setup program.

e.If prompted, click Save/Exit.

2.Activate the TPM setup program:

a.Restart the computer and press <F2> during the Power On Self Test to enter the system setup program.

b.Select Security, then select TPM Activation and press <Enter>.

c.Under TPM Activation, select Activate and press <Enter>.

NOTICE: You only need to activate TPM once.

Once the process is complete, the computer either restarts automatically or prompts you to restart your computer.

System Setup

Overview

Use system setup as follows:

???To change the system configuration information after you add, change, or remove any hardware in your computer

???To set or change a user-selectable option such as the user password

???To read the current amount of memory or set the type of hard drive installed

Before you use system setup, it is recommended that you write down the system setup screen information for future reference.

Entering System Setup

1.Turn on (or restart) your computer.

2.When the blue DELL??? logo is displayed, you must watch for the F2 prompt to appear.

3.Once this F2 prompt appears, press <F2> immediately.

NOTE: The F2 prompt indicates that the keyboard has initialized. This prompt can appear very quickly, so you must watch for it to display, and then press <F2>. If you press <F2> before you are prompted, this keystroke will be lost.

4.If you wait too long and the operating system logo appears, continue to wait until you see the Microsoft?? Windows?? desktop, then, shut down your computer (see Turning Off Your Computer) and try again.

System Setup Screen

The system setup screen displays current or changeable configuration information for your computer. Information on the screen is divided into four areas: the menu at the top, the main window, the Item Help field on the right, and key functions listed on the bottom.

Options List ??? This field appears on the left side of the system setup window. The field is a scrollable list containing features that define the configuration of your computer, including installed hardware, power conservation, and security features.

Scroll up and down the list by using the up- and down-arrow keys. As an option is highlighted, the Option Field displays more information about that option and the option's current and available settings.

Option Field ??? This field contains information about each option. In this field you can view your current settings and make changes to your settings.

Use the right- and left-arrow keys to highlight an option. Press <Enter> to make that selection active.

Key Functions ??? This field appears below the Option Field and lists keys and their functions within the active system setup field.

System Setup Options

NOTE: Depending on your computer and installed devices, the items listed in this section may not appear, or may not appear exactly as listed.

System

Admin Password Displays the current status of your system setup program's password security feature and allows you to verify and assign a new admin password.

System Password Displays the current status of the system's password security feature and allows a new system password to be assigned and verified.

(On-Silent default)

Intrusion Alert Acknowledges and clears a chassis intrusion alert.

TPM Security Enables or disables the Trusted Platform Module security device.

(Off default)

TPM Activation Activates or deactivates the Trusted Platform Module security device. The Clear option clears any data stored by a user that has previously activated and used TPM.

(Deactivate default)

NOTE: In order to activate Trusted Platform Module, the TPM Security option must be set to On.

Non-Execute Enables or disables Execute Disable memory protection technology.

Disable

(On default)

Power Management

Maintenance

Service Tag Displays the service tag for your computer.

NOTE: To boot to a USB device, the device must be bootable. To ensure that a device is bootable, check the device documentation.

Changing Boot Sequence for the Current Boot

You can use this feature, for example, to restart your computer to a USB device, such as a floppy drive, memory key, or CD-RW drive.

NOTE: If you are booting to a USB floppy drive, you must first set Diskette Drive to Off in system setup (see System Setup).

1.If you are booting to a USB device, connect the USB device to a USB connector (see Front View for mini tower computers, or Front View for desktop computers).

2.Turn on (or restart) your computer.

3. When F2 = Setup, F12 = Boot Menu appears in the upper-right corner of the screen, press <F12>.

If you wait too long and the operating system logo appears, continue to wait until you see the Microsoft Windows desktop, then shut down your computer (see Turning Off Your Computer) and try again.

4.Use the arrow keys to select Continue.

The Boot Device Menu appears, listing all available boot devices.

5.Use the arrow keys to select the appropriate device (for the current boot only).

NOTE: To boot to a USB device, the device must be bootable. To ensure that a device is bootable, check the device documentation.

Changing Boot Sequence for Future Boots

1.Enter system setup (see Entering System Setup).

2.Use the left- and right-arrow keys to highlight the Boot menu option, then press <Enter> to access the menu.

NOTE: Write down your current boot sequence in case you want to restore it.

3.Press the up- and down-arrow keys to highlight the appropriate Boot Device option (1st - 4th Boot Device are available options).

4.Press the up- and down-arrow keys to move through the list of devices.

5.Press <Enter> to select a device to be the 1st, 2nd, 3rd, or 4th Boot Device, (as applicable).

Booting to a USB Device

NOTE: To boot to a USB device, the device must be bootable. To ensure that your device is bootable, check the device documentation.

Memory Key

1.Insert the memory key into a USB port and restart the computer.

2.When F12 = Boot Menu appears in the upper-right corner of the screen, press <F12>.

The BIOS detects the device and adds the USB device option to the boot menu.

3.From the boot menu, select the number that appears next to the USB device.

The computer boots to the USB device.

Floppy Drive

1.In system setup, set the Diskette Drive option to USB.

2.Save and exit system setup.

3.Connect the USB floppy drive, insert a bootable floppy, and re-boot the system.

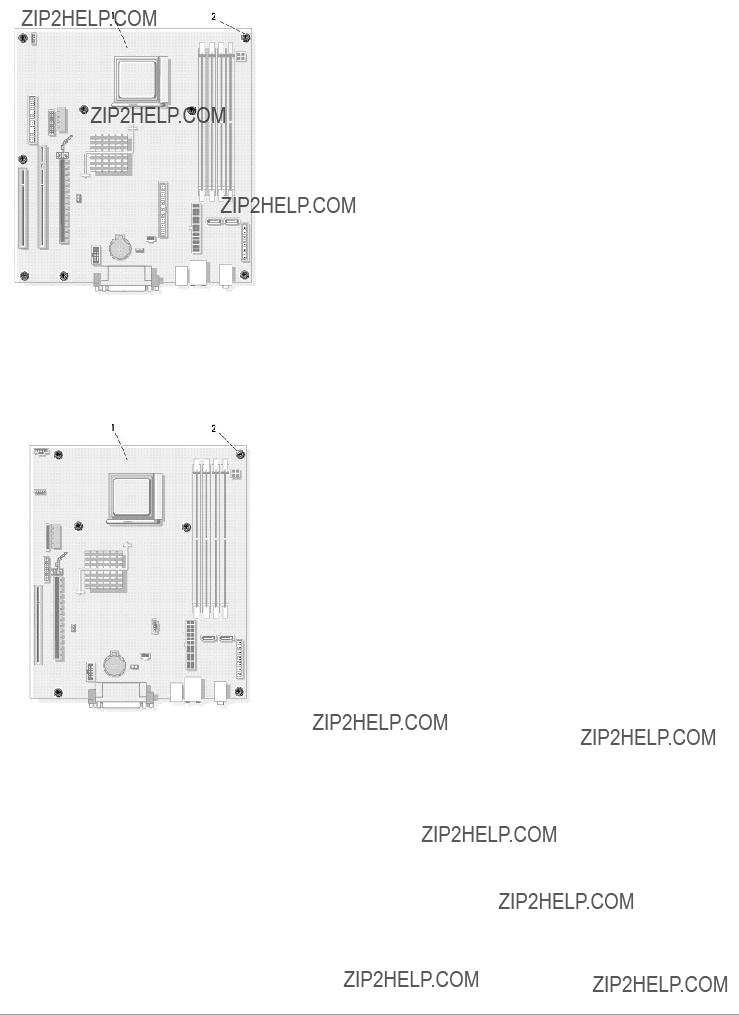

Jumper Settings

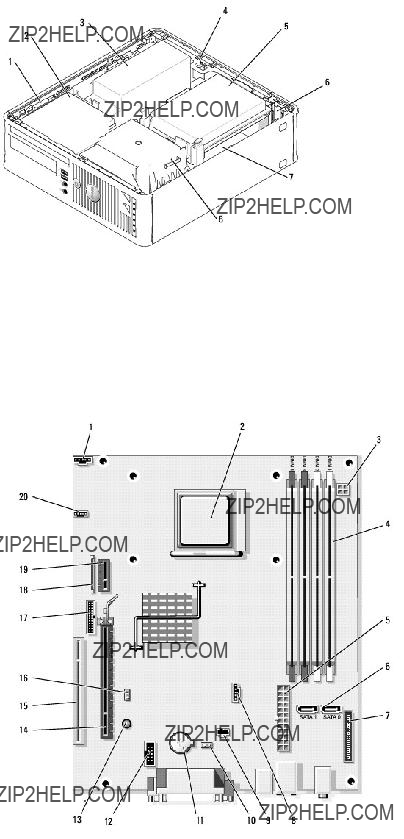

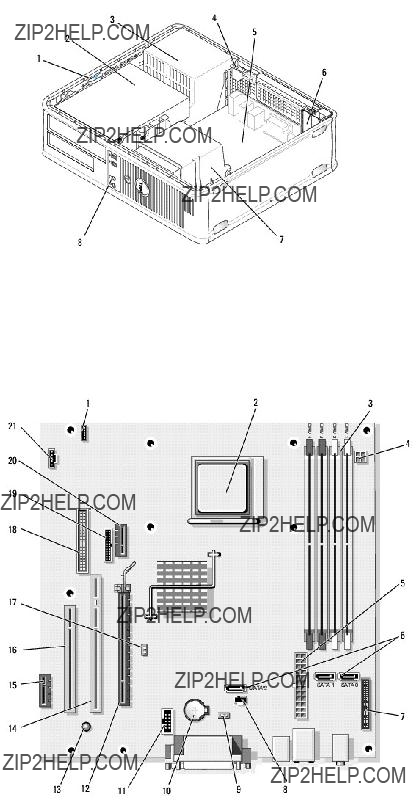

Mini Tower, Desktop, and Small Form Factor Computers

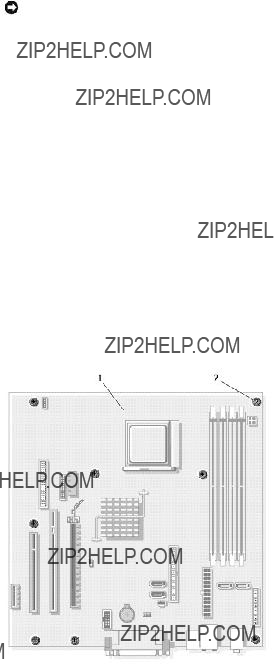

NOTE: The mini tower system board is displayed, but the jumper location is in the same location for all computers.

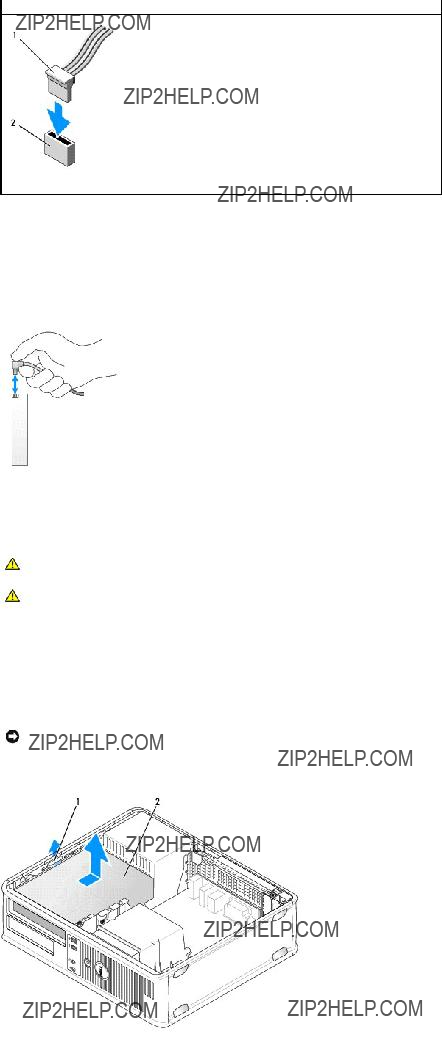

Clearing Forgotten Passwords

CAUTION: Before you begin any of the procedures in this section, follow the safety instructions located in the Product Information Guide.

NOTICE: This process erases both the system and administrator passwords.

1.Follow the procedures in Before You Begin.

2.If clearing the password on a small form factor computer, remove the hard drive (see Drives).

3.Locate the 2-pin password jumper (PSWD) on the system board, and remove the jumper to clear the password (see Jumper Settings).

4.If clearing the password on a small form factor computer, install the hard drive (see Drives).

5.Replace the computer cover (see Replacing the Computer Cover).

6.Connect your computer and monitor to electrical outlets, and turn them on.

7.After the Microsoft?? Windows?? desktop appears on your computer, shut down your computer. (see Turning Off Your Computer)

8.Turn off the monitor and disconnect it from the electrical outlet.

9.Disconnect the computer power cable from the electrical outlet, and press the power button to ground the system board.

10.Open the computer cover (see Removing the Computer Cover for mini tower computers, Removing the Computer Cover for desktop computers and Removing the Computer Cover for small form factor computers).

11.Remove the hard drive (Removing a Hard Drive).

12.Locate the 2-pin password jumper on the system board and attach the jumper to reenable the password feature.

13.Replace the hard drive (Installing a Hard Drive).

14.Replace the computer cover (see Replacing the Computer Cover).

NOTICE: To connect a network cable, first plug the cable into the network wall jack and then plug it into the computer.

15. Connect your computer and devices to electrical outlets, and turn them on.

NOTE: This procedure enables the password feature. When you enter system setup, both system and administrator password options appear as Not Set???meaning that the password feature is enabled but no password is assigned (see Entering System Setup).

16. Assign a new system and/or administrator password.

Clearing CMOS Settings

CAUTION: Before you begin any of the procedures in this section, follow the safety instructions located in the Product Information Guide.

1. Follow the procedures in Before You Begin.

NOTE: CMOS settings will not be cleared, if power is not removed from the system.

2.If clearing the CMOS setting on a small form factor computer, remove the hard drive (see Removing a Hard Drive).

3.Reset the current CMOS settings:

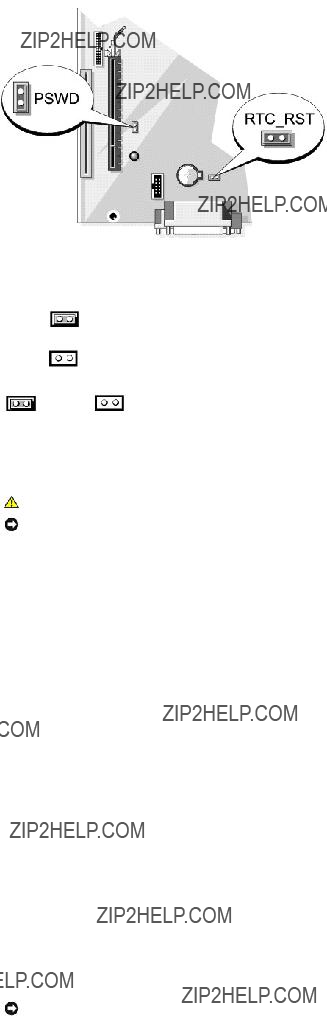

a.Locate the password and CMOS jumpers. Password (PSWD) and CMOS (RTC_RST) jumpers are on the system board (see Jumper Settings).

b.Remove the password jumper plug from its pins.

c.Place the password jumper plug on the RTC_RST pins and wait approximately 5 seconds.

d.Remove the jumper plug from the RTC_RST pins and place it back on the password pins.

4.If clearing the CMOS setting on a small from factor computer, install the hard drive (see Installing a Hard Drive).

5.Replace the computer cover (see Replacing the Computer Cover).

NOTICE: To connect a network cable, first plug the cable into the network wall jack and then plug it into the computer.

6. Connect your computer and devices to electrical outlets, and turn them on.

HyperTransport??? and Dual-Core Technology

HyperTransport technology can increase overall computer performance by removing I/O bottlenecks, increasing system bandwidth, and reducing system latency. A fully integrated DDR memory controller allows a direct connection between the processor and the main memory. Dual-Core is a technology in which two physical computational units exist inside a single processor package, thereby increasing computing efficiency and multi-tasking ability.

While many programs can benefit from HyperTransport and dual-core technology, some programs may have not been optimized for them and may require an update from the software manufacturer. Contact the software manufacturer for updates and information about using HyperTransport or dual-core technology with your software. To determine if your computer is using HyperTransport technology, check the system setup option for HyperTransport under the Performance tab (see System Setup).

Power Management

Your computer can be set to use less power when you are not working. You control the power usage through the operating system installed on your computer and certain option settings in system setup. These periods of reduced power are called "sleep modes."

NOTE: All components installed in the computer must support the hibernate and/or standby mode feature(s) and have the appropriate drivers loaded to enter either of these sleep modes. For more information, see the manufacturer's documentation for each component.

???Standby. In this sleep mode, power is reduced or turned off for most components, including the cooling fans. However, system memory remains active.

???Hibernate. This sleep mode reduces power consumption to a minimum by writing all data in system memory to a hard drive and then removing system power. Waking up from this mode restarts the computer, and the memory contents are restored. Operation then resumes where the computer left off when it entered the hibernation mode.

???Shutdown. This sleep mode removes all power from the computer except a small auxiliary amount. As long as the computer remains connected to an electrical outlet, it can be automatically or remotely started. For example, the Auto Power On option in system setup allows the computer to automatically start at a specified time. Also, your network administrator can remotely start your computer using a power management event such as Remote Wake Up.

The following table lists the sleep modes and the methods you can use to wake the computer from each mode.

Sleep Mode Wake-Up Methods (Windows XP)

NOTE: For more information on power management, see your operating system documentation.

About RAID Configurations

NOTICE: In order to use the migrating option to convert a RAID configuration without losing data, your hard drive must initially be set up as a single drive RAID 0 array before the operating system is loaded onto the drive (see Using the NVIDIA MediaShield ROM Utility for instructions).

This section provides an overview of the RAID configuration that you may have selected when you purchased your computer. A number of RAID configurations are available in the computer industry for different types of uses. The Dell mini tower and desktop models of your OptiPlex computer support RAID level 0 and RAID level 1. (RAID support is not available for the small form factor model.) A RAID level 0 configuration is recommended for high-performance programs, while RAID level 1 is recommended for users that desire a high level of data integrity.

NOTE: RAID levels do not represent a hierarchy. A RAID level 1 configuration is not inherently better or worse than a RAID level 0 configuration.

The NVIDIA RAID controller on your computer can only create a RAID level configuration using two physical drives. The drives should be the same size to ensure that the larger drive does not contain unallocated (and therefore unusable) space.

NOTE: If you purchased your Dell computer with RAID, your computer has been configured with two hard drives that are the same size.

Verifying That RAID Is Working

Your computer displays information pertaining to your RAID configuration at start-up, before loading the operating system. If RAID is not configured, the message none defined appears under RAID Volumes, followed by a list of the physical drives installed in your computer. If a RAID volume is identified, you can then check the Status field to determine the current state of your RAID configuration. The Status field contains information about the following conditions:

???Normal ??? Your RAID configuration is functioning properly.

???Degraded ??? One of your hard drives has failed. The computer is still bootable; however, RAID is not functioning and data is not being copied to the other drive.

???Rebuild ??? Following a degraded condition, the computer has detected the replacement/connection of a secondary hard drive and will automatically restore the RAID configuration the next time the operating system loads.

RAID Level 0 Configuration

NOTICE: Because a RAID level 0 configuration provides no data redundancy, a failure of one drive results in the loss of all data. To protect your data when using a RAID level 0 configuration, perform regular backups.

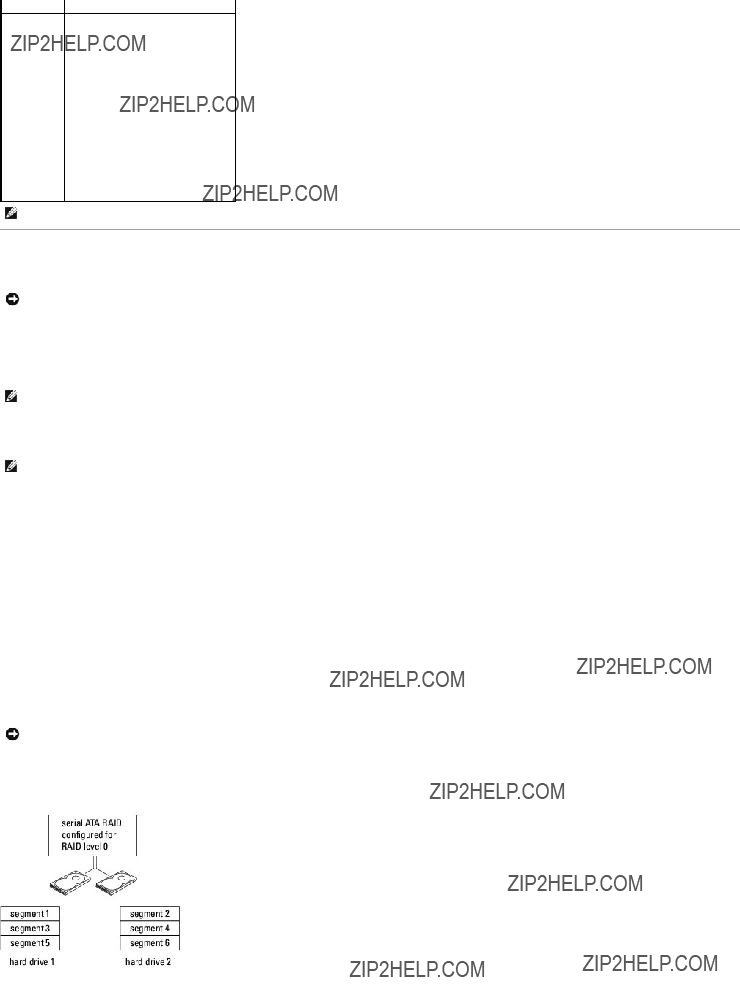

RAID level 0 uses a storage technique known as data striping to provide a high data-access rate. Data striping is a method of writing consecutive segments, or stripes, of data sequentially across the physical drive(s) to create a large virtual drive. Data striping allows one of the drives to read data while the other drive is searching for and reading the next block.

Another advantage of a RAID level 0 configuration is that it utilizes the full storage capacities of the drives. For example, two 120-GB hard drives combine to provide 240 GB of hard drive space on which to store data.

NOTE: In a RAID level 0 configuration, the size of the configuration is equal to the size of the smallest drive multiplied by the number of drives in the configuration.

RAID Level 1 Configuration

RAID level 1 uses a data-redundancy storage technique known as mirroring to enhance data integrity. When data is written to the primary drive, the data is also duplicated, or mirrored, on the second drive in the configuration. A RAID level 1 configuration sacrifices high data-access rates for its data redundancy advantages.

If a drive failure occurs, subsequent read and write operations are directed to the surviving drive. A replacement drive can then be rebuilt using the data from the surviving drive.

NOTE: In a RAID level 1 configuration, the size of the configuration is equal to the size of the smallest drive in the configuration.

Configuring Your Hard Drives for RAID

Your computer can be configured for RAID, even if you did not select a RAID configuration when the computer was purchased. For an explanation of RAID levels and their requirements, see About RAID Configurations. For information on how to install a hard drive, see Installing a Hard Drive for your mini tower computer or Installing a Hard Drive for your desktop computer.

You can use one of two methods to configure RAID hard drive volumes. The first method uses the NVIDIA MediaShield ROM utility and is performed before you install the operating system onto the hard drive. The second method uses NVIDIA MediaShield and is performed after you have installed the operating system and NVIDIA RAID drivers.Both methods require that you set your computer to RAID-enabled mode before you begin.

Setting Your Computer to RAID-Enabled Mode

1.Enter system setup (see Entering System Setup).

2.Press the up- and down-arrow keys to highlight Drives, then press <Enter>.

3.Press the up- and down-arrow keys to highlight the applicable SATA drive, then press <Enter>.

4.Press the left- and right-arrow keys to highlight RAID On, and then press <Enter>. Repeat the process, as needed, for each SATA hard drive.

NOTE: For more information about RAID options, see System Setup Options.

5.Press <Esc>, press the left- and right-arrow keys to highlight Save/Exit, and then press <Enter> to exit system setup and resume the boot process.

Using the NVIDIA MediaShield ROM Utility

NOTICE: The following procedure will result in the loss of all data on your hard drive(s). Back up any data you want to keep before continuing.

NOTE: Do not use the following procedure to migrate an existing RAID configuration. See Converting From One RAID Configuration to Another RAID Configuration .

Hard drives of any size may be used to create a RAID configuration. Ideally, however, the drives should be of equal size to avoid unallocated or unused space. For an explanation of RAID levels and their requirements, see About RAID Configurations . For information on how to install a hard drive, see Installing a Hard Drive for your mini tower computer or Installing a Hard Drive for your desktop computer.

1.Enable RAID for each applicable hard drive on your computer (see Setting Your Computer to RAID- Enabled Mode).

2.Restart the computer.

3. Press <Ctrl><n> when prompted to enter the RAID BIOS.

NOTE: If the operating system logo appears, continue to wait until you see the Microsoft Windows desktop; then shut down your computer and try again.

The Define a New Array window appears.

4.Press <Tab> to navigate to the RAID Mode field.

To create a RAID 0 configuration, use the arrow keys to select Striping.

To create a RAID 1 configuration, use the arrow keys to select Mirroring.

5.Press <Tab> to navigate to the Free Disks field.

6.Use the up- and down-arrow keys to select a hard drive to include in the RAID array and then use the right-arrow key to move the selected drive from the Free Disks field to the Array Disks field. Repeat for each disk you want to include in the RAID array.

NOTE: Your computer supports a maximum of two drives per RAID array.

7.After assigning the hard drives to an array, press <F9>.

The Clear disk data prompt appears.

NOTICE: You will lose all data on the selected drives in the next step.

8.Press <y> to clear all data from the selected drives.

The Array List window appears.

9.To review the details of the array that you set up, use the arrow keys to highlight the array in the Array Detail window and press <Enter>.

The Array Detail window appears.

NOTE: To delete an array, use the arrow keys to select the array and press <d>.

10.Press <Enter> to return to the previous screen.

11.Press <Ctrl><x> to exit the RAID BIOS.

Using NVIDIA MediaShield

NVIDIA MediaShield allows you to create, view, and manage RAID configurations.

NOTE: Use NVIDIA MediaShield to create a RAID configuration only when you are adding a new hard drive to an existing (non-RAID) single-hard-drive computer, and you want to configure the new drive into a RAID array.

Hard drives of any size may be used to create a RAID configuration using NVIDIA MediaShield. Ideally, however, the drives should be of equal size to avoid unallocated or unused space. For an explanation of RAID levels and their requirements, see About RAID Configurations.

Creating a RAID Array

NOTICE: The following procedure will result in the loss of all data on your hard drive(s). Back up any data you want to keep before continuing.

NOTE: Do not use the following procedure to migrate an existing RAID configuration (see Converting From One RAID Configuration to Another RAID Configuration .

1.Enable RAID on your hard drives (see Setting Your Computer to RAID-Enabled Mode).

2.After rebooting your computer, launch NVIDIA MediaShield.

3.Click Create under System Tasks.

The NVIDIA Create Array Wizard appears and lists the disks that are available for configuration.

4.Click Next.

5.Click Custom, then click Next.

6.Use the drop-down box to select Striping (RAID 0) or Mirroring (RAID 1).

7.Click Next.

The Free Disk Selection window appears.

NOTE: Only RAID-enabled hard drives are listed as free disks.

8.Click to select the drives that will make up the RAID configuration, click Next, and then click Next again.

NOTE: Your computer supports a maximum of two drives per RAID array.

The Clearing System Data window appears.

NOTICE: The Clear System Data option deletes all data on the selected drive.

9.Click Next.

10.Click Finish to create the RAID configuration.

The MediaShield RAID management utility window appears and lists the array along with any other installed hard drives.

Deleting a RAID Array

NOTICE: While this procedure deletes the RAID 1 volume, it also splits the RAID 1 volume into two non-RAID hard drives with a partition, and leaves any existing data files intact. Deleting a RAID 0 volume, however, destroys all data on the volume.

NOTICE: If your computer currently boots to RAID and you delete the RAID volume, your computer will become unbootable.

1.Launch NVIDIA MediaShield.

2.Click to select the array you want to delete.

3.Click Delete Array in the System Tasks pane.

The NVIDIA Delete Array Wizard appears.

4.Click Next.

A confirmation screen appears with the name and size of the array that you have marked for deletion.

5.Click Finish to delete the RAID configuration.

The MediaShield RAID management utility window appears and lists any remaining arrays along with any other installed hard drives.

Converting From One RAID Configuration to Another RAID Configuration

NVIDIA MediaShield utilizes a one-step process known as migrating to change the current state of a disk or array without losing any data. If needed, additional hard drives can be added to an existing array, including a single-drive RAID 0 configuration for conversion to a two-drive RAID 0 configuration; however, the capacity of the resulting array must be equal to or greater than the size of the original configuration.

RAID 1 to RAID 1 conversions cannot be performed using the migrating process.

NOTICE: Additional hard drives to be used in the (migrated) array must be no smaller than any of the drives in the current configuration.

NOTE: Ensure that all drives to be used in the RAID configuration are RAID-enabled (see Setting Your Computer to RAID-Enabled Mode.)

1.Launch NVIDIA MediaShield.

2.Click to select the array you want to convert.

3.Click Convert Array in the System Tasks pane.

The NVIDIA Convert Array Wizard appears.

4.Click Next.

5.Under RAID Mode Selection, select Mirroring or Striping from the drop-down menu.

6.Click Next.

NOTICE: You will lose all data on the selected drives in the next step.

7.Under Free Disk Selection, select the hard drive(s) you want to include in the (migrated) array by clicking the checkbox beside it.

8.Click Finish.

The MediaShield RAID management utility window appears and displays the status of the upgrade/migration process along with any other installed hard drives.

NOTE: The time it takes to convert an array depends on several factors, such as the speed of the processor, the type and size of the hard drive being used, the operating system, and so on.

Rebuilding a RAID Configuration

If one of the hard drives in a RAID array fails, you can rebuild the array by restoring the data to a replacement drive.

NOTE: Rebuilding an array can be performed only on RAID 1 configurations.

1.Launch NVIDIA MediaShield.

2.Click to select your RAID configuration (Mirroring) in the management utility window.

3.Select Rebuild Array in the System Tasks pane.

The NVIDIA Rebuild Array Wizard appears.

4.Click Next.

5.Select the hard drive you want to rebuild by clicking the checkbox beside it.

6.Click Next.

7.Click Finish.

The MediaShield RAID management utility window appears and displays the status of the rebuild process.

NOTE: You can use your computer while the computer is rebuilding the array.

NOTE: You can use any available (RAID-enabled) free disk to rebuild an array.

Enabling Cool 'n' Quiet??? Technology

The Cool 'n' Quiet technology controls your computer's processor performance automatically, dynamically adjusting the operating frequency and voltage, according to the task at hand. When an application does not require full performance, significant amounts of power can be saved. performance is designed to still be responsive, with maximum processor performance being delivered when required, and automatic power savings when possible.

1.Click on the Start???Settings???Control Panel???Power Options to access the Power Options Properties window.

2.From the Power Schemes tab, click the Power Schemes drop-down menu and select Minimal Power Management and then click OK.

Cool 'n' Quiet technology is now enabled.

Back to Contents Page

Battery

Dell??? OptiPlex??? 740 Systems

User's Guide

Replacing the Battery

CAUTION: Before you begin any of the procedures in this section, follow the safety instructions in the Product Information Guide.

NOTICE: To prevent static damage to components inside your computer, discharge static electricity from your body before you touch any of your computer's electronic components. You can do so by touching an unpainted metal surface on the computer chassis.

A coin-cell battery maintains computer configuration, date, and time information. The battery can last several years.

The battery may need replacing if an incorrect time or date is displayed during the boot routine along with a message such as:

Time-of-day not set - please run SETUP program

Invalid configuration information - please run SETUP program

Strike the F1 key to continue,

F2 to run the setup utility

To determine whether you need to replace the battery, reenter the time and date in system setup and exit the program to save the information. Turn off your computer and disconnect it from the electrical outlet for a few hours; then reconnect the computer, turn it on, and enter system setup (see Entering System Setup). If the date and time are not correct in system setup, replace the battery.

You can operate your computer without a battery; however, without a battery, the configuration information is erased if the computer is turned off or unplugged from the electrical outlet. In this case, you must enter system setup and reset the configuration options.

CAUTION: A new battery can explode if it is incorrectly installed. Replace the battery only with the same or equivalent type recommended by the manufacturer. Discard used batteries according to the manufacturer's instructions.

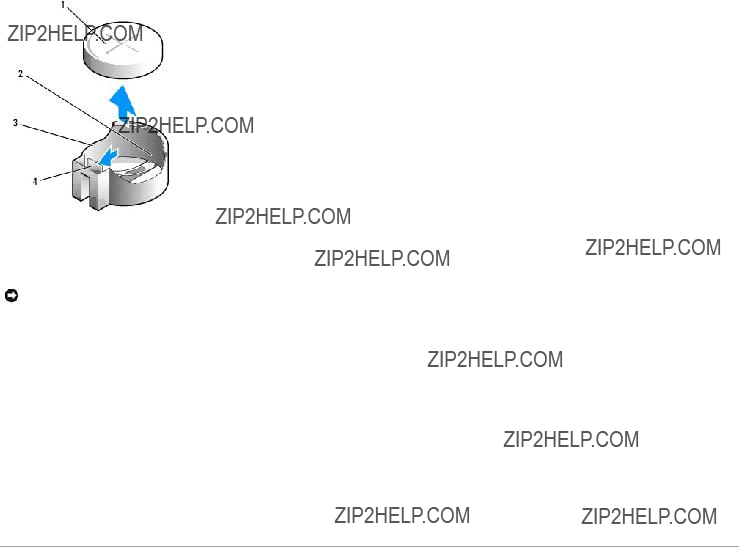

To remove the battery:

1.If you have not already done so, make a copy of your configuration information, found in system setup (see System Setup).

2.Follow the procedures in Before You Begin.

3.If you have a Small Form Factor chassis, remove the hard disk drive to access the battery on the system board (see Removing a Hard Drive).

4.Locate the battery socket (see System Board Components for mini tower computers or System Board Components for desktop computers or System Board Components for small form factor computers).

NOTICE: If you pry the battery out of its socket with a blunt object, be careful not to touch the system board with the object. Ensure that the object is inserted between the battery and the socket before you attempt to pry out the battery. Otherwise, you may damage the system board by prying off the socket or by breaking circuit traces on the system board.

NOTICE: To avoid damage to the battery connector, you must firmly support the connector while removing the battery.

5.Remove the system battery.

a.Support the battery connector by pressing down firmly on the positive side of the connector.

b.While supporting the battery connector, press the battery tab away from the positive side of the connector and pry the battery it up out of the securing tabs at the negative side of the connector.

Back to Contents Page

Before You Begin

Dell??? OptiPlex??? 740 Systems

User's Guide

Recommended Tools

Turning Off Your Computer

Before Working Inside Your Computer

This chapter provides procedures for removing and installing the components in your computer. Unless otherwise noted, each procedure assumes that the following conditions exist:

???You have performed the steps in Turning Off Your Computer and Before Working Inside Your Computer.

???You have read the safety information in your Dell??? Product Information Guide.

???A component can be replaced by performing the removal procedure in reverse order.

Recommended Tools

The procedures in this document may require the following tools:

???Small flat-blade screwdriver

???Phillips screwdriver

???Flash BIOS update program floppy disk, CD, USB key

Turning Off Your Computer

NOTICE: To avoid losing data, save and close any open files and exit any open programs before you turn off your computer.

1.Shut down the operating system:

a.Save and close any open files, and exit any open programs.

b.Click the Start button, and then click Shut Down.

c.In the Shut Down Windows window, select Shut down, and then click OK.

The computer turns off after the operating system shutdown process finishes.

2.Ensure that the computer and any attached devices are turned off.

If your computer and attached devices did not automatically turn off when you shut down your operating system, turn them off now.

NOTICE: To turn off your computer without shutting down the operating system is not recommended, because you may lose data. If, however, it is necessary to do so, it may be done by pressing down and holding the power button for 6 seconds.

Before Working Inside Your Computer

Use the following safety guidelines to help protect your computer from potential damage and to help ensure your own personal safety.

CAUTION: Before you begin any of the procedures in this section, follow the safety instructions in the Product Information Guide.

CAUTION: Handle components and cards with care. Do not touch the components or contacts on a card. Hold a card by its edges or by its metal mounting bracket. Hold a component such as a processor by its edges, not by its pins.

NOTICE: Only a certified service technician should perform repairs on your computer. Damage due to servicing that is not authorized by Dell is not covered by your warranty.

NOTICE: When you disconnect a cable, pull on its connector or on its strain-relief loop, not on the cable itself. Some cables have a connector with locking tabs; if you are disconnecting this type of cable, press in on the locking tabs before you disconnect the cable. As you pull connectors apart, keep them evenly aligned to avoid bending any connector pins. Also, before you connect a cable, ensure that both connectors are correctly oriented and aligned.

NOTICE: To avoid damaging the computer, perform the following steps before you begin working inside the computer.

1. Turn off your computer.

NOTICE: To disconnect a network cable, first unplug the cable from your computer and then unplug it from the network wall jack.

2.Disconnect any telephone or telecommunication lines from the computer.

3.Disconnect your computer and all attached devices from their electrical outlets, and then press the power button to ground the system board.

4.If applicable, remove the computer stand (for instructions, see the documentation that came with the stand).

CAUTION: To guard against electrical shock, always unplug your computer from the electrical outlet before removing the cover.

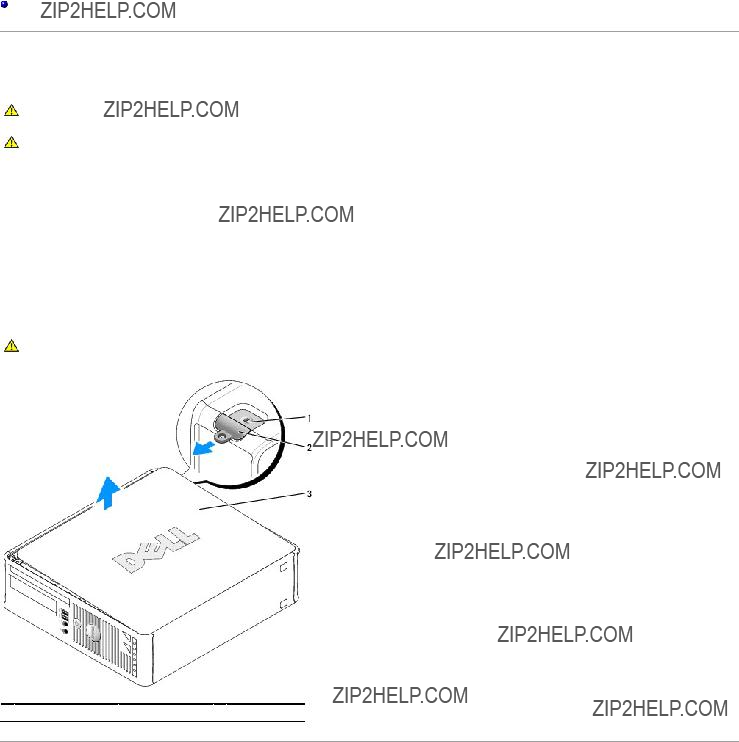

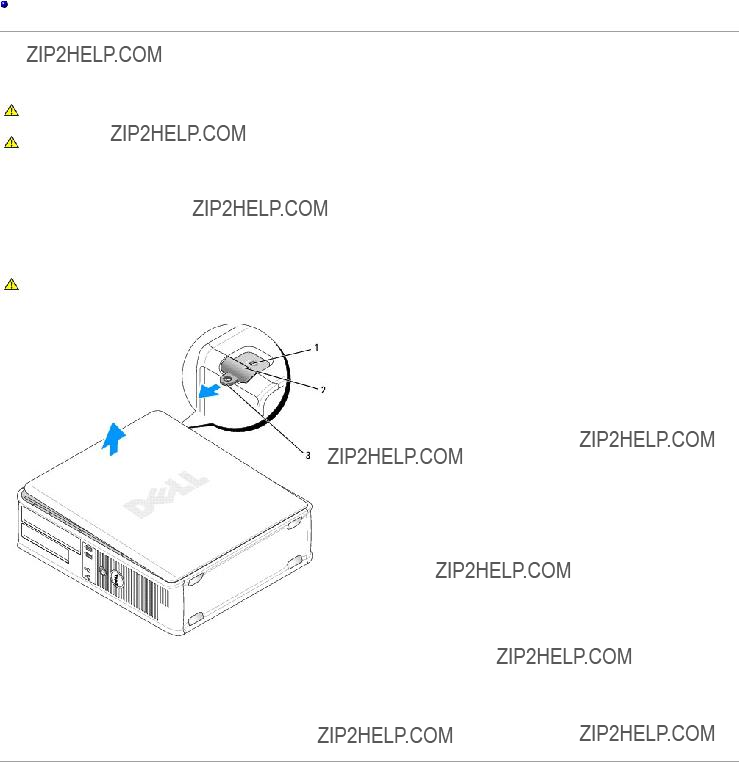

5. Remove the computer cover:

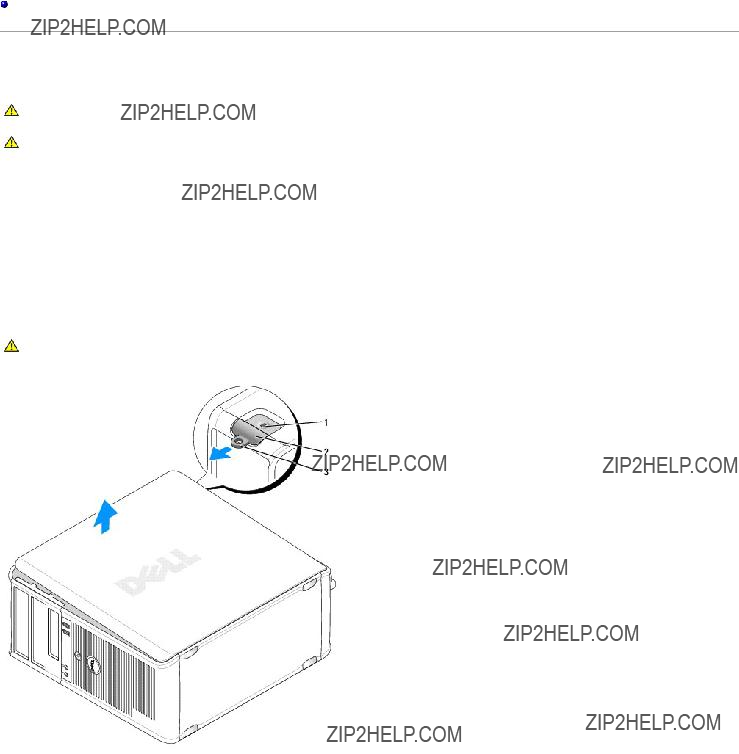

???Remove the mini tower computer cover (see Removing the Computer Cover).

???Remove the desktop computer cover (see Removing the Computer Cover).

???Remove the small form factor computer cover (see Removing the Computer Cover).

NOTICE: Before touching anything inside your computer, ground yourself by touching an unpainted metal surface, such as the metal at the back of the computer. While you work, periodically touch an unpainted metal surface to dissipate any static electricity that could harm internal components.

Back to Contents Page

Cleaning Your Computer

Dell??? Optiplex??? 740 Systems

User's Guide

Computer, Keyboard, and Monitor

Mouse

Floppy Drive

CDs and DVDs

CAUTION: Before you begin any of the procedures in this section, follow the safety instructions in the Product Information Guide.

Computer, Keyboard, and Monitor

CAUTION: Before you clean your computer, disconnect the computer from the electrical outlet. Clean your computer with a soft cloth dampened with water. Do not use liquid or aerosol cleaners, which may contain flammable substances.

???Use a can of compressed air to remove dust from between the keys on the keyboard.

NOTICE: To prevent damage to the antiglare coating, do not wipe the display with soap or alcohol.

???To clean your monitor screen, lightly dampen a soft, clean cloth with water. You can also use a special screen-cleaning tissue or solution suitable for the monitor's antistatic coating.

???Wipe the keyboard, computer, and monitor plastics with a soft cleaning cloth moistened with a solution of three parts water and one part dishwashing detergent.

Do not soak the cloth or let water drip inside your computer or keyboard.

Mouse

NOTICE: Disconnect the mouse from the computer before cleaning the mouse

If your screen cursor skips or moves abnormally, clean the mouse.

Cleaning a Non-Optical Mouse

1.Clean the outside casing of the mouse with a cloth moistened with a mild cleaning solution.

2.Turn the retainer ring on the underside of your mouse counterclockwise, and then remove the ball.

3.Wipe the ball with a clean, lint-free cloth.

4.Blow carefully into the ball cage or use a can of compressed air to dislodge dust and lint.

5.If the rollers inside the ball cage are dirty, clean the rollers with a cotton swab moistened lightly with isopropyl alcohol.

6.Recenter the rollers in their channels if they are misaligned. Ensure that fluff from the swab is not left on the rollers.

7.Replace the ball and retainer ring, and turn the retainer ring clockwise until it clicks into place.

Cleaning an Optical Mouse

Clean the outside casing of the mouse with a cloth moistened with a mild cleaning solution.

Floppy Drive

NOTICE: Do not attempt to clean drive heads with a swab. You might accidentally misalign the heads which, prevents the drive from operating.

Clean your floppy drive using a commercially available cleaning kit. These kits contain pretreated floppy disks to remove contaminants that accumulate during normal operation.

CDs and DVDs

NOTICE: Always use compressed air to clean the lens in the optical drive, and follow the instructions that come with the compressed-air product. Never touch the lens in the drive.

If you notice problems, such as skipping, with the playback quality of your CDs or DVDs, try cleaning the discs.

1. Hold the disc by its outer edge. You can also touch the inside edge of the center hole.

NOTICE: To avoid damaging the surface, do not wipe in a circular motion around the disc.

2.With a soft, lint-free cloth, gently wipe the bottom of the disc (the unlabeled side) in a straight line from the center to the outer edge of the disc.

For stubborn dirt, try using water or a diluted solution of water and mild soap. You can also purchase commercial products that clean discs and provide some protection from dust, fingerprints, and scratches. Cleaning products for CDs are also safe to use on DVDs.

Back to Contents Page

PCI, PCI Express Cards, and PS/2 Serial Port Adapters

CAUTION: Before you begin any of the procedures in this section, follow the safety instructions in the Product Information Guide.

Your Dell??? computer supports a PS/2 serial port adapter and provides the following connectors for PCI and PCI Express cards:

???Two low-profile PCI card slots

???One low-profile PCI Express x16 card slot

NOTE: Your Dell computer uses only PCI and PCI Express slots. ISA cards are not supported.

PCI Cards

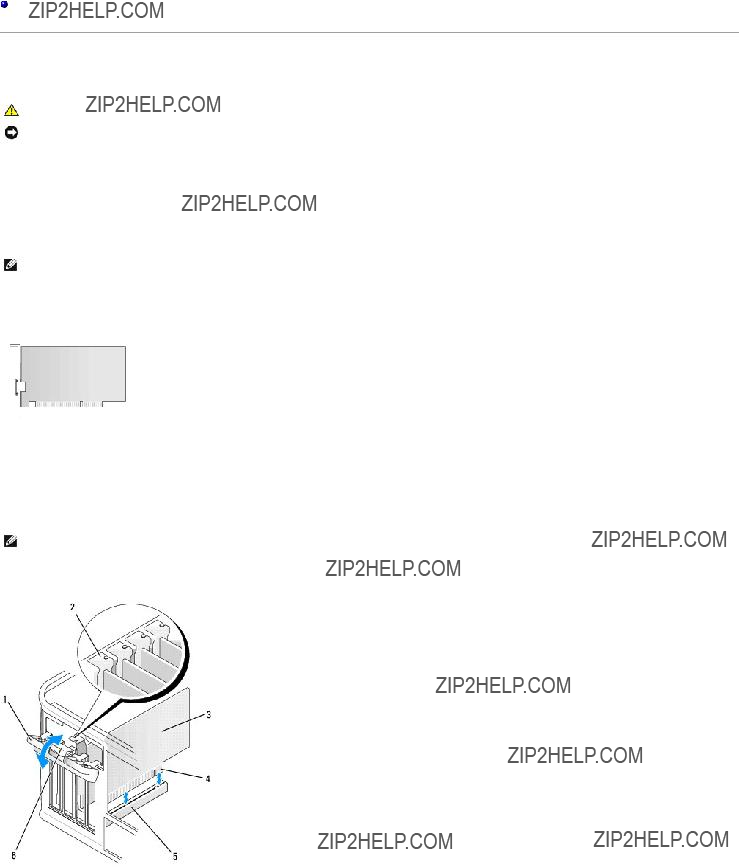

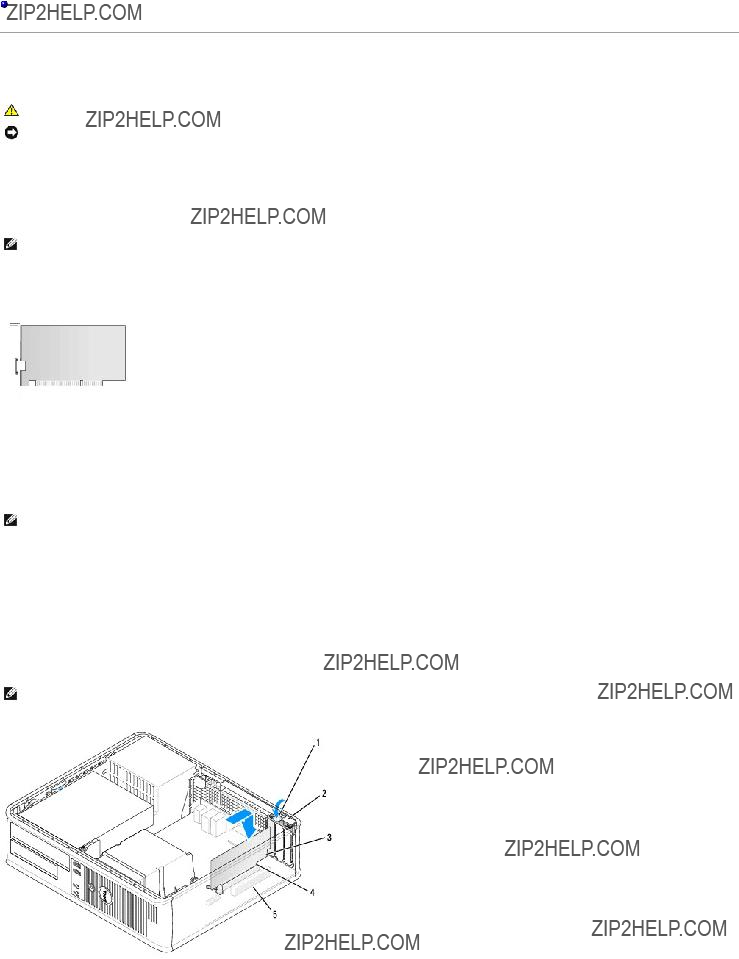

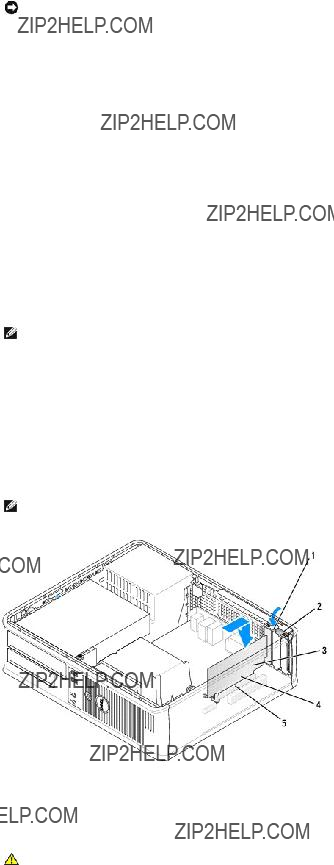

Installing a PCI Card

1. Follow the procedures in Before You Begin.

NOTE: For PCI card locations, see System Board Components.

2.Gently lift the release tab on the card retention latch from the inside to pivot the latch open. Pivot the latch until it snaps into the open position.

3.If you are installing a new card, remove the filler bracket to create a card-slot opening. Then continue with step 5.

4.If you are replacing a card that is already installed in the computer, remove the card (see Removing a PCI Card). If necessary, disconnect any cables connected to the card. Then continue with step 6.

5.Prepare the card for installation.

NOTE: See the documentation that came with the card for information on configuring the card, making internal connections, or customizing it for your computer.

CAUTION: Some network adapters automatically start the computer when they are connected to a network. To guard against electrical shock, be sure to unplug your computer from its electrical outlet before installing any cards.

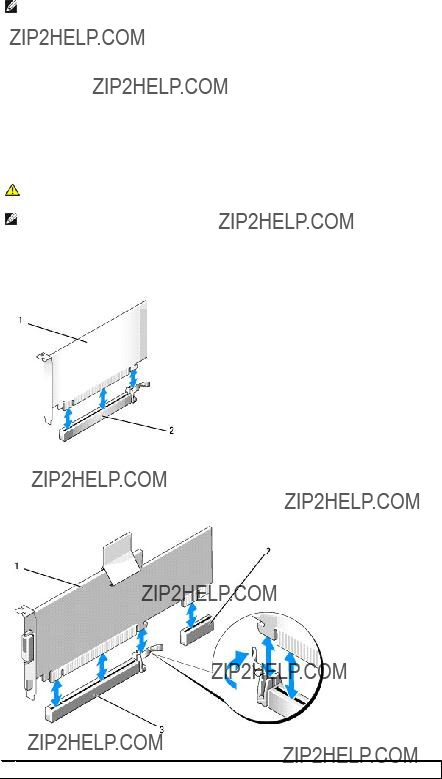

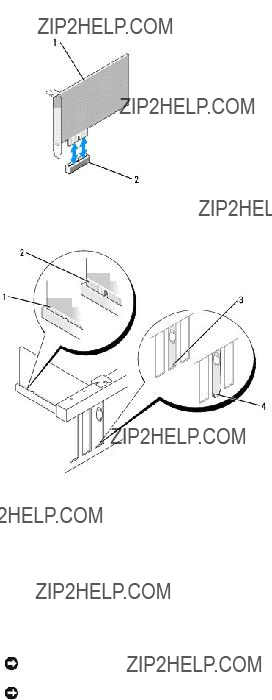

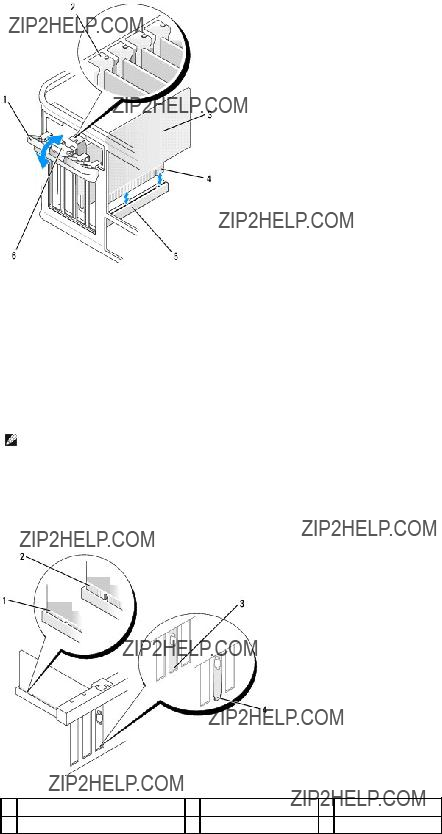

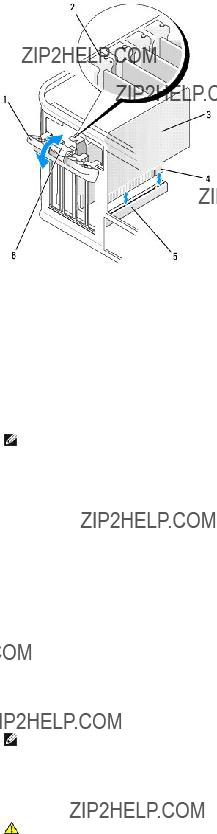

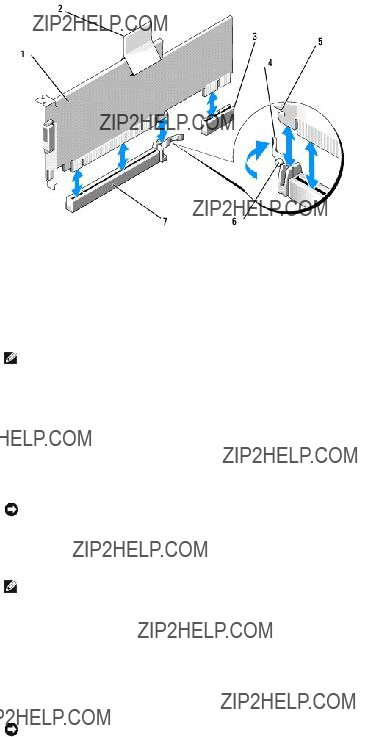

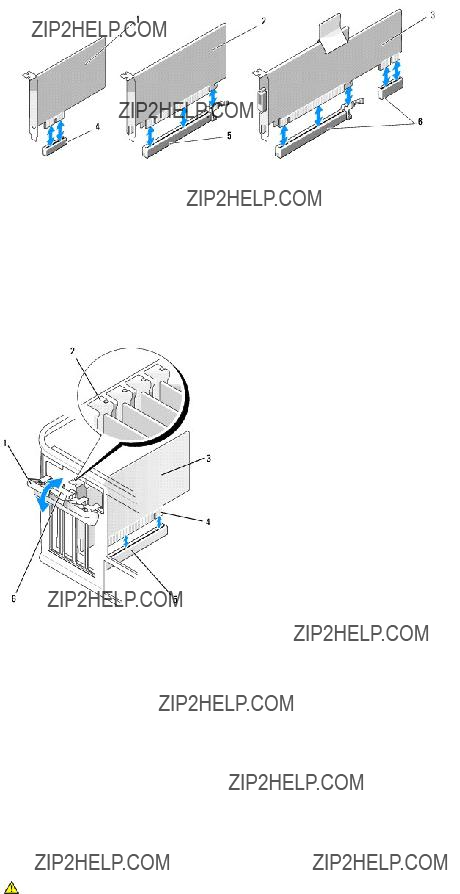

6. Place the card in the connector and press down firmly. Ensure that the card is fully seated in the slot.

7. Secure the card(s) by closing the card retention latch and snapping it into place.

NOTICE: Do not route card cables over the cards. Cables routed over the cards can prevent the computer cover from closing properly or cause damage to the equipment.

8.Connect any cables that should be attached to the card.

9.Replace the computer cover (see Replacing the Computer Cover).

NOTE: See the documentation for the card for information about the card's cable connections.

10.If you installed a sound card:

a.Enter system setup, select Integrated Audio from the Onboard Devices group, and change the setting to Off (see System Setup).

b.Connect external audio devices to the sound card's connectors. Do not connect external audio devices to the line-in connector on the back panel of the computer (see Back-Panel Connectors).

NOTICE: To connect a network cable, first plug the cable into the network wall jack and then plug it into the computer.

11.If you installed a network adapter card and want to turn off the integrated network adapter:

a.Enter system setup, select Integrated NIC from the Onboard Devices group, and change the setting to Off (see System Setup).

b.Connect the network cable to the network adapter card's connectors. Do not connect the network cable to the integrated network connector on the back panel of the computer.

12.Install any drivers required for the card as described in the card documentation.

Removing a PCI Card

1. Follow the procedures in Before You Begin.

NOTE: For PCI card locations, see System Board Components.

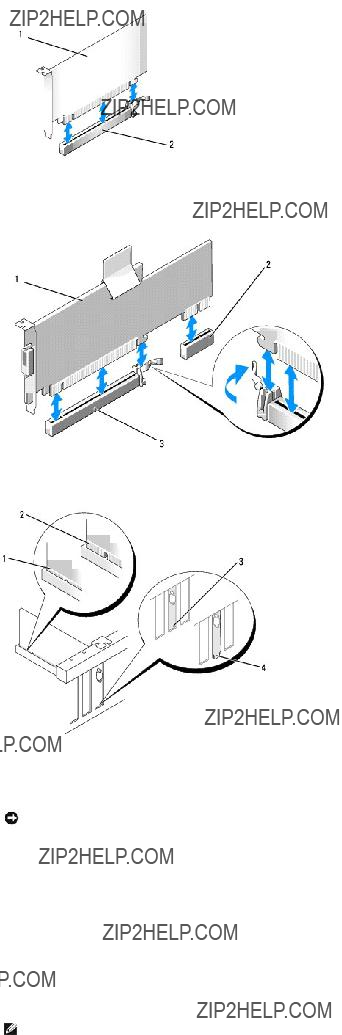

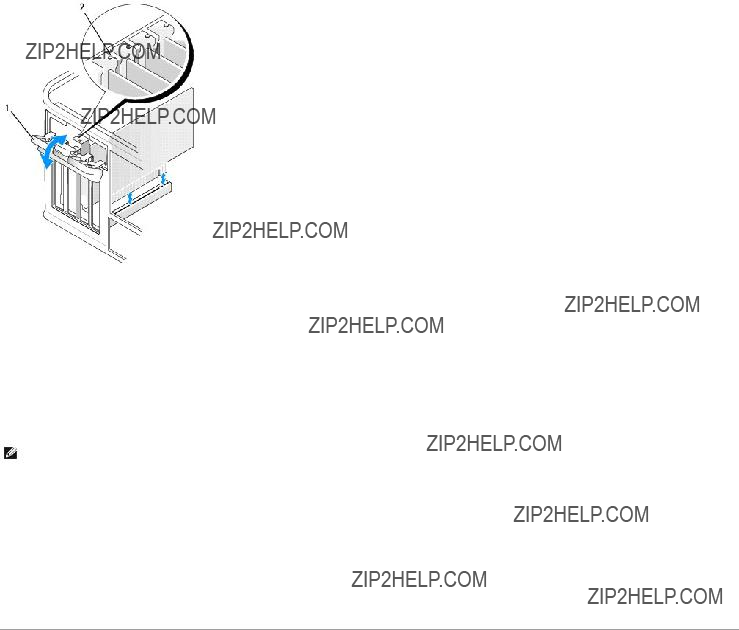

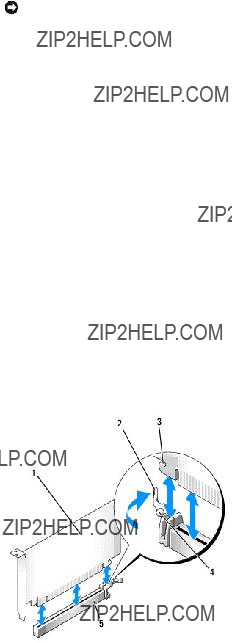

2.Gently lift the release tab on the card retention latch from the inside to pivot the latch open. Pivot the latch until it snaps into the open position.

3.If necessary, disconnect any cables connected to the card.

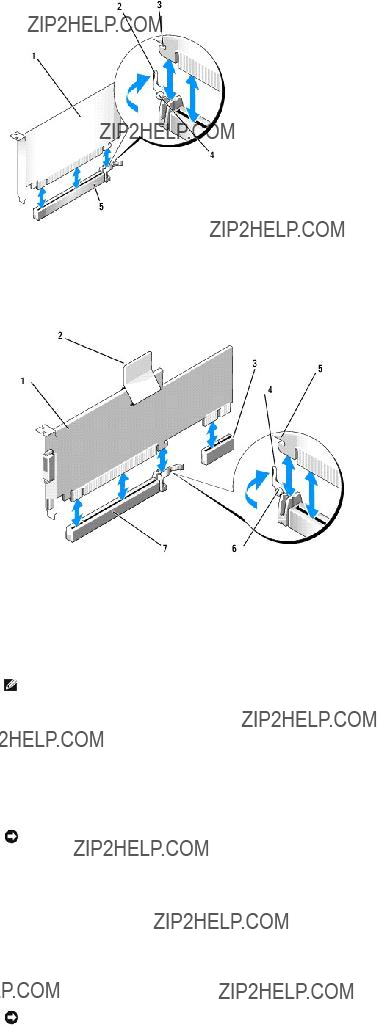

4.Grasp the card by its top corners, and ease it out of its connector.

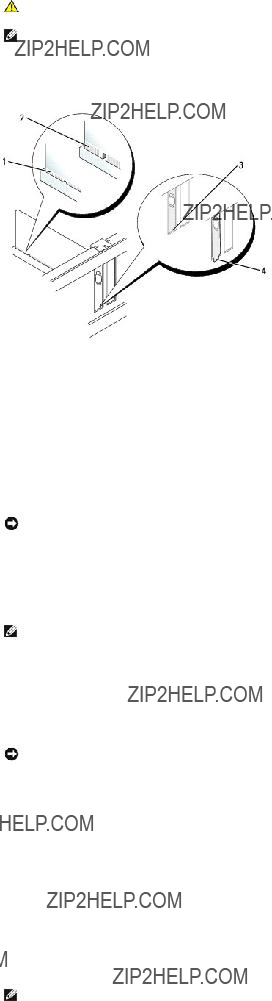

5. If you are removing the card permanently, install a filler bracket in the empty card-slot opening.

NOTE: Installing filler brackets over empty card-slot openings is necessary to maintain FCC certification of the computer. The brackets also keep dust and dirt out of your computer.

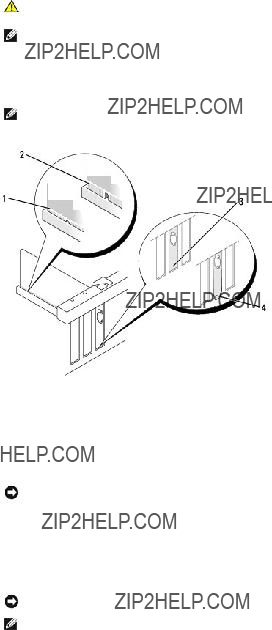

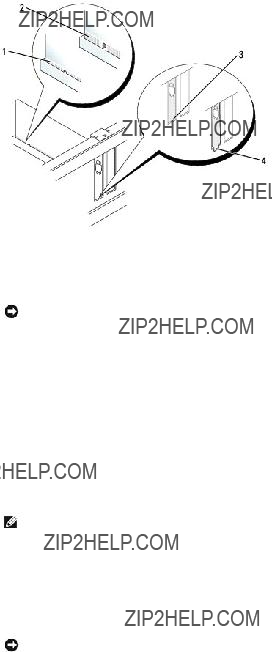

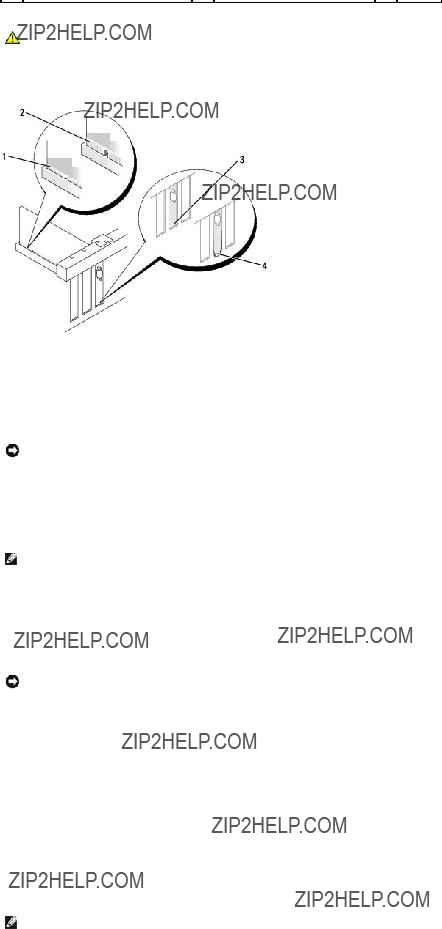

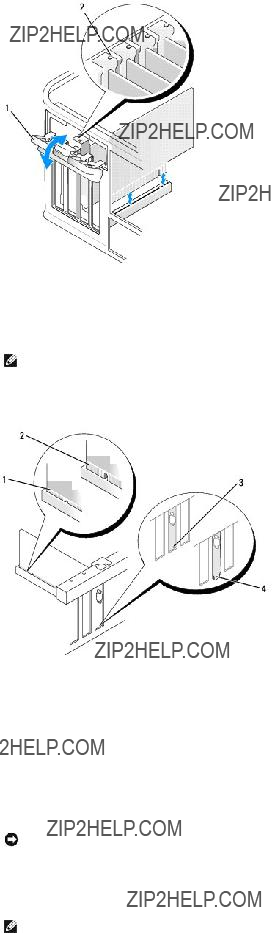

6. Before you close the card retention mechanism, ensure that:

???The tops of all cards and filler brackets are flush with the alignment bar.

???The notch in the top of the card or filler bracket fits around the alignment guide.

NOTICE: Do not route card cables over the cards. Cables routed over the cards can prevent the computer cover from closing properly or cause damage to the equipment.

7.Secure any remaining card(s) by closing the card retention latch and snapping it into place.

8.Replace the computer cover (see Replacing the Computer Cover).

9.Uninstall the card's driver. See the documentation that came with the card for instructions.

10.If you removed a sound card:

a.Enter system setup, select Integrated Audio from the Onboard Devices group, and change the setting to On (see System Setup).

b.Connect external audio devices to the audio connectors on the back panel of the computer.

NOTICE: To connect a network cable, first plug the cable into the network wall jack and then plug it into the computer.

11.If you removed an network-adapter card connector:

a.Enter system setup, select Integrated NIC from the Onboard Devices group, and change the setting to On (see System Setup).

b.Connect the network cable to the integrated network connector on the back panel of the computer.

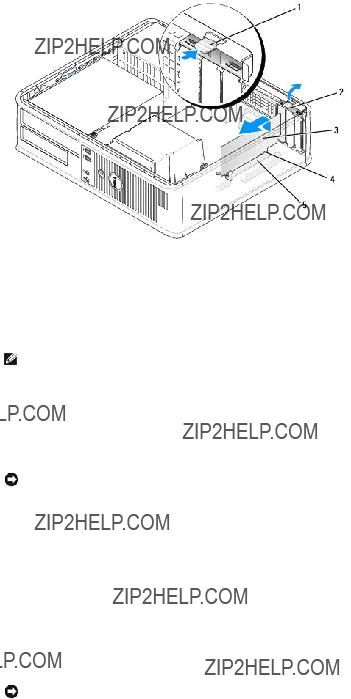

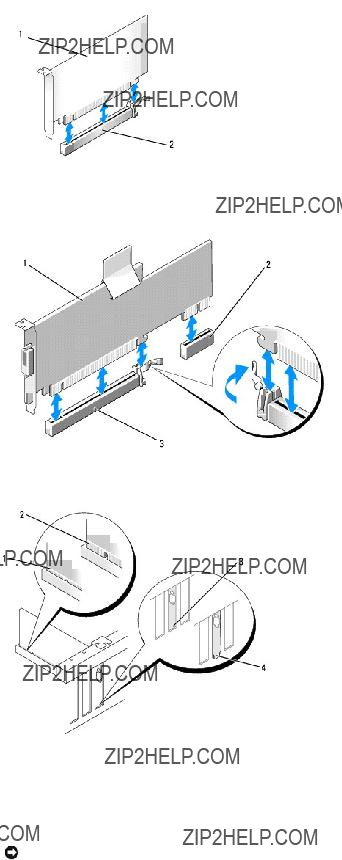

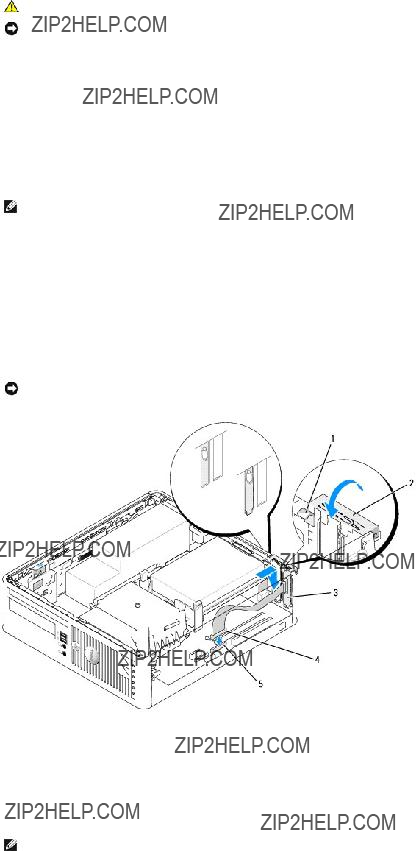

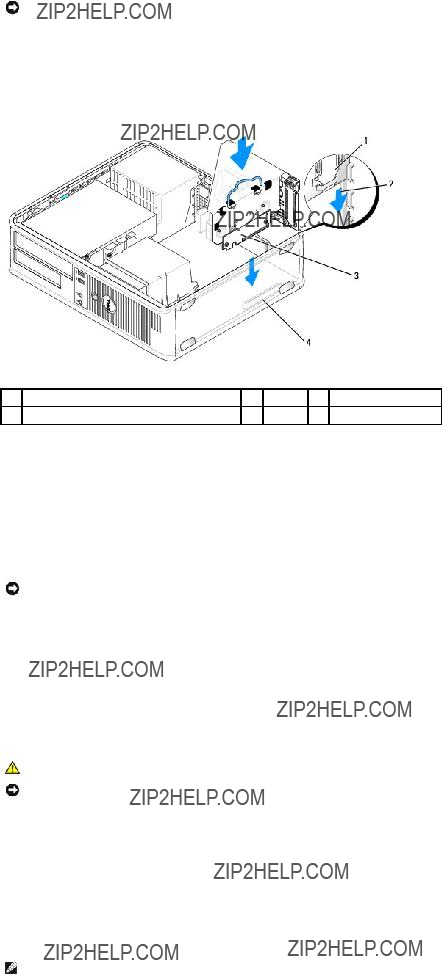

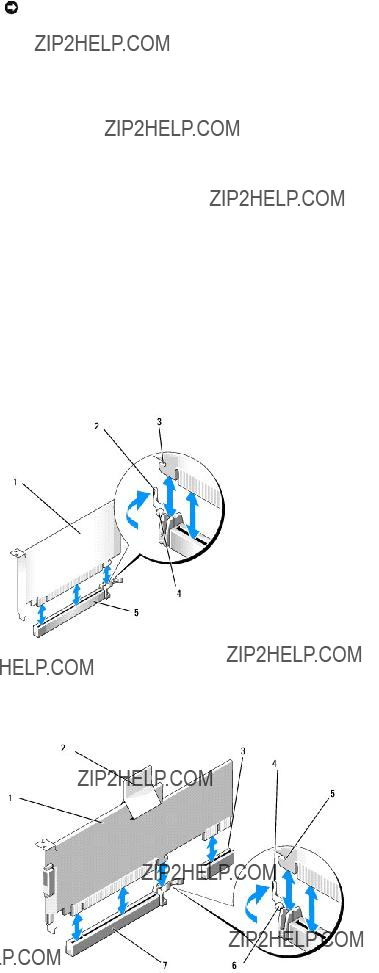

Installing a PCI Card in the Riser-Card Cage

1.Follow the procedures in Before You Begin.

2.If applicable, remove the card installed in the PCI3 connector on the system board (see Removing a PCI Card).

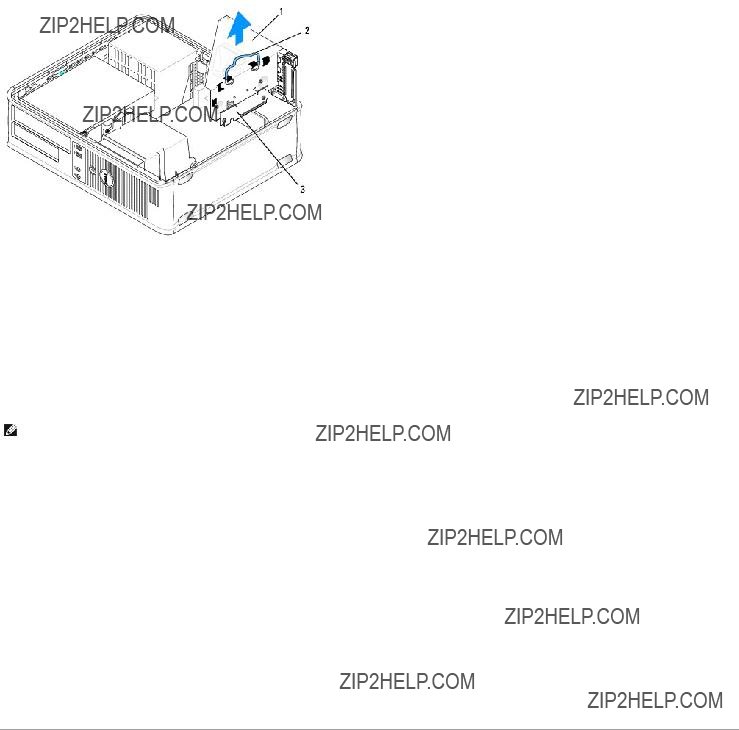

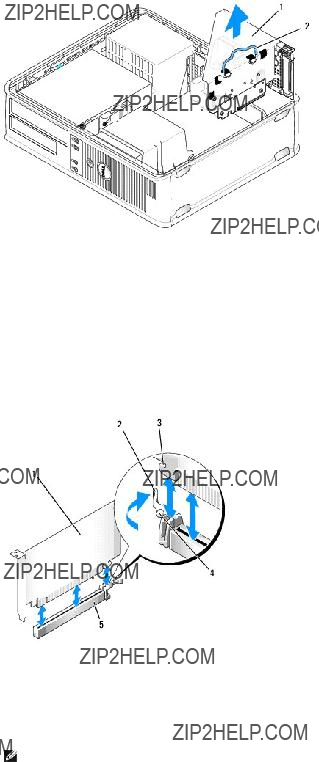

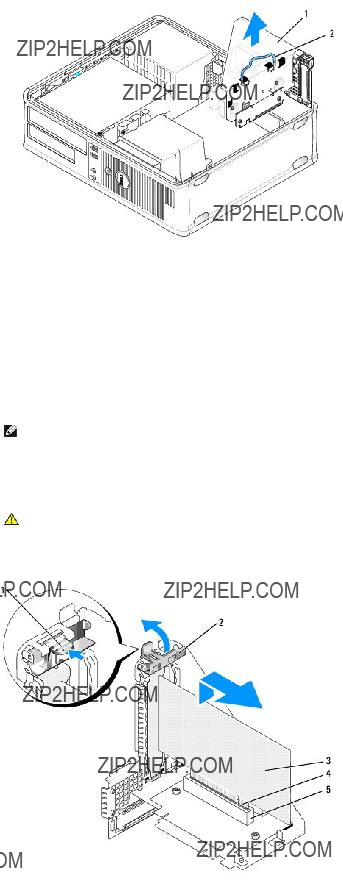

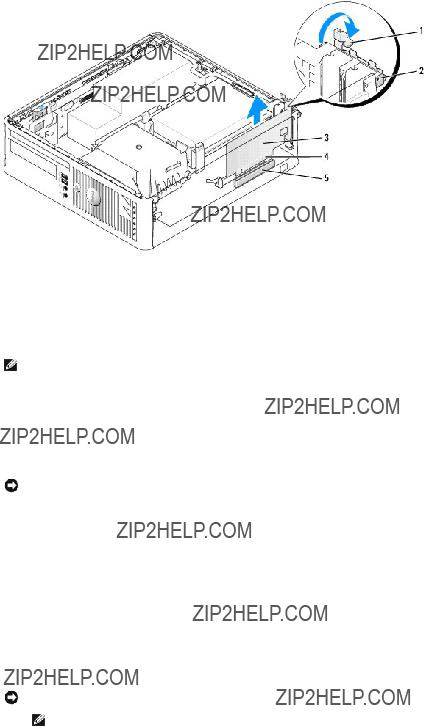

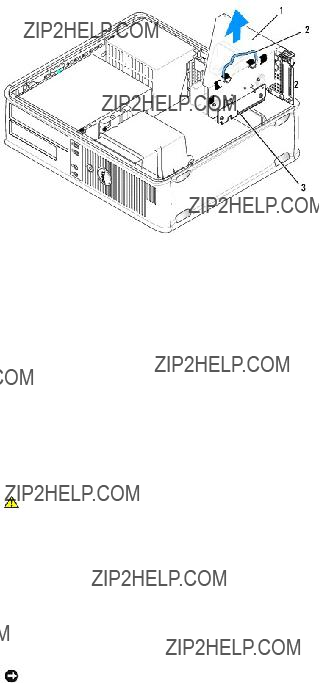

3.Remove the riser-card cage:

a.Check any cables connected to cards through the back-panel openings. Disconnect any cables that will not reach the riser-card cage once they are removed from the computer.

b.Rotate the riser-card cage handle up and gently pull on the handle and lift the riser-card cage up and away from the computer.

4.If you are installing a new card, remove the filler bracket to create an empty card-slot opening.

5.If you are replacing a card that is already installed in the computer, remove the card.

6.If necessary, disconnect any cables connected to the card.

7.Grasp the card by its corners, and ease it out of its connector.

NOTE: See the documentation that came with the card for information on configuring the card, making internal connections, or customizing it for your computer.

8. Prepare the new card for installation.

9. Gently lift the release tab on the card retention latch from the inside to pivot the latch open. Pivot the latch until it snaps into the open position.

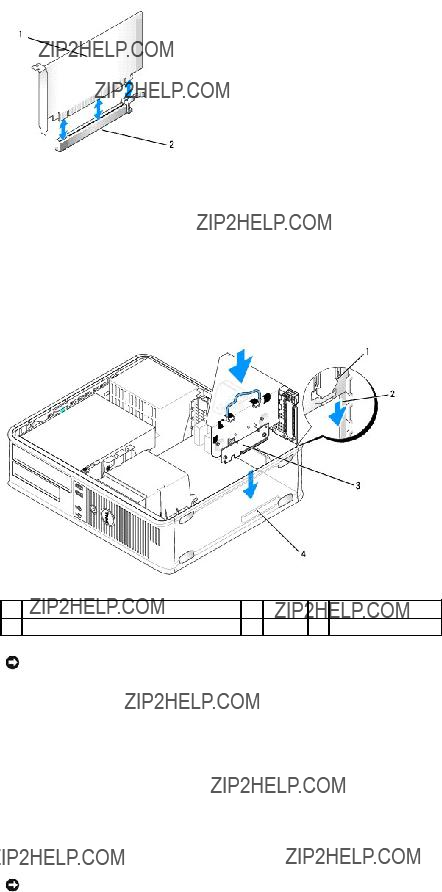

10.Insert the card firmly into the card connector on the riser-card cage.

11.Secure the card(s) by closing the card retention latch and snapping it into place.

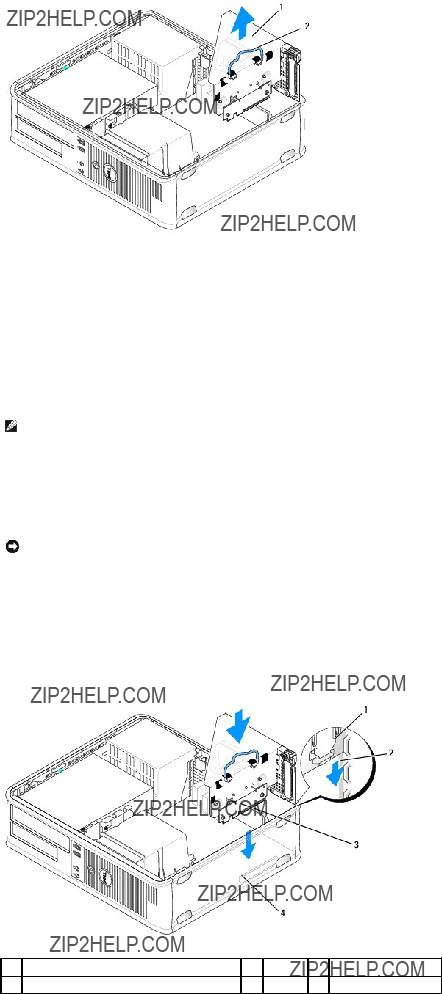

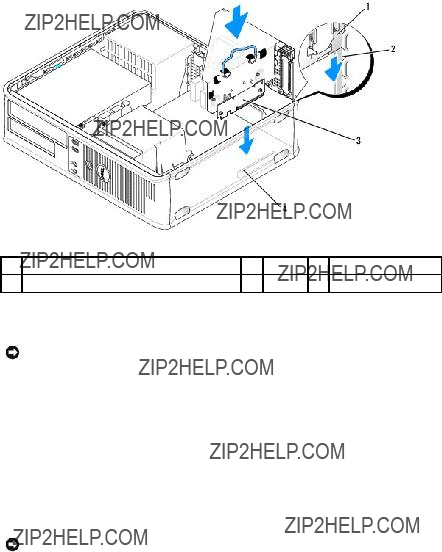

12.Replace the riser-card cage:

a.Align the tabs in the side of the riser-card cage with the slots on the side of the computer, and slide the riser-card cage down into place.

b.Ensure that the riser-card connectors are fully seated in the connectors on the system board.

c.Rotate the riser-card cage handle to the down position.

4system board connectors (2)

13.Reconnect any cables that you removed in step 3.

NOTICE: Do not route card cables over the cards. Cables routed over the cards can prevent the computer cover from closing properly or cause damage to the equipment.

14.Connect any cables that should be attached to the card.

15.Replace the computer cover (see Replacing the Computer Cover).

16.If you installed a sound card:

a.Enter system setup, select Integrated Audio from the Onboard Devices group, and change the setting to Off (see System Setup).

b.Connect external audio devices to the sound card's connectors. Do not connect external audio devices to the line-in connector on the back panel of the computer (see Back-Panel Connectors).

NOTICE: To connect a network cable, first plug the cable into the network wall jack and then plug it into the computer.

17.If you installed a network adapter card and want to turn off the integrated network adapter:

a.Enter system setup, select Integrated NIC from the Onboard Devices group, and change the setting to Off (see System Setup).

b.Connect the network cable to the network adapter card's connectors. Do not connect the network cable to the integrated network connector on the back panel of the computer.

18.Install any drivers required for the card as described in the card documentation.

Removing a PCI Card From the Riser-Card Cage

1.Follow the procedures in Before You Begin.

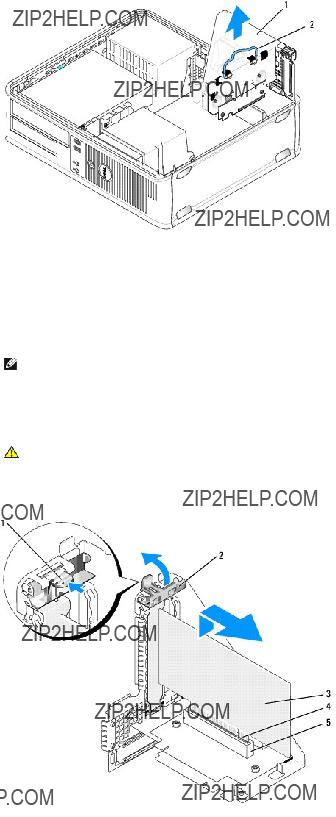

2.Remove the riser-card cage:

a.Check any cables connected to cards through the back-panel openings. Disconnect any cables that will not reach the riser-card cage once they are removed from the computer.

b.Rotate the riser-card cage handle up and gently pull on the handle and lift the riser-card cage up and away from the computer.

3.Gently lift the release tab on the card retention latch from the inside to pivot the latch open. Pivot the latch until it snaps into the open position.

4.If necessary, disconnect any cables connected to the card.

5.Grasp the card by its top corners, and ease it out of its connector.

6.If you are removing the card permanently, install a filler bracket in the empty card-slot opening.

NOTE: Installing filler brackets over empty card-slot openings is necessary to maintain FCC certification of the computer. The brackets also keep dust and dirt out of your computer.

7. Before you close the card retention mechanism, ensure that:

???The tops of all cards and filler brackets are flush with the alignment bar.

???The notch in the top of the card or filler bracket fits around the alignment guide.

NOTICE: Do not route card cables over the cards. Cables routed over the cards can prevent the computer cover from closing properly or cause damage to the equipment.

8.Secure any remaining card(s) by closing the card retention latch and snapping it into place.

9.Replace the riser-card cage:

a.Align the tabs in the side of the riser-card cage with the slots on the side of the computer, and slide the riser-card cage down into place.

b.Ensure that the riser-card connectors are fully seated in the connectors on the system board.

c.Rotate the riser-card cage handle to the down position.

4system board connectors (2)

10.Replace the computer cover (see Replacing the Computer Cover).

11.Uninstall the card's driver. See the documentation that came with the card for instructions.

12.If you removed a sound card:

a.Enter system setup, select Integrated Audio from the Onboard Devices group, and change the setting to On (see System Setup).

b.Connect external audio devices to the audio connectors on the back panel of the computer.

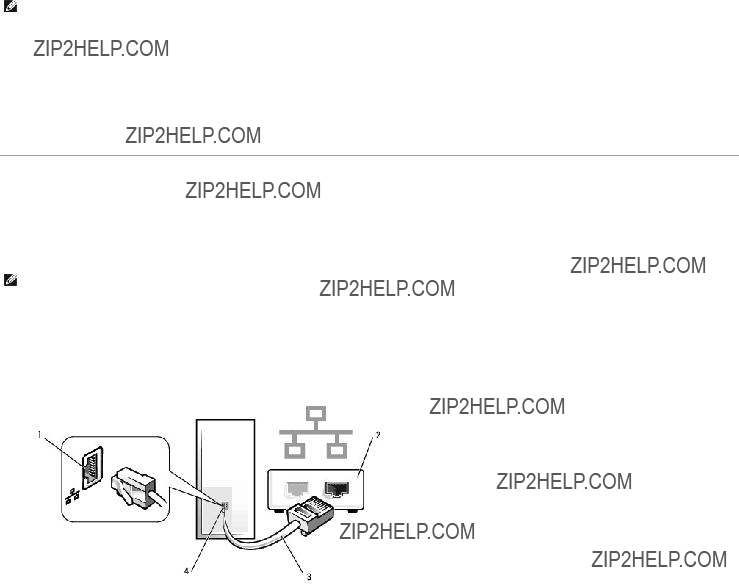

NOTICE: To connect a network cable, first plug the cable into the network wall jack and then plug it into the computer.

13.If you removed a network-adapter card connector:

a.Enter system setup, select Integrated NIC from the Onboard Devices group, and change the setting to On (see System Setup).

b.Connect the network cable to the integrated network connector on the back panel of the computer.

PCI Express and DVI Cards

Your computer supports one low-profile PCI Express x16 card. If your computer contains a riser-card cage, you can not install a PCI Express DVI card because the riser-card cage blocks the DVI-card (DVI_HDR) connector on the system board.

If you are replacing a PCI Express card with a different type of PCI Express card, remove the current driver for the card from the operating system. See the documentation that came with the card for information.

Installing a PCI Express x16 Card or DVI-Card

1. Follow the procedures in Before You Begin.

NOTE: For PCI card locations, see System Board Components.

2.Gently lift the release tab on the card retention latch from the inside and pivot the latch open.

3.If you are installing a new PCI Express x16 card or DVI-card, remove the filler bracket to create a card-slot opening. Then continue with step 5.

4.If you are replacing a PCI Express x16 card or DVI-card, remove the installed card (see Removing a PCI Express x16 Card or DVI-Card). If necessary, disconnect any cables connected to the card. Then continue with step 6.

5.Prepare the card for installation.

NOTE: See the documentation that came with the card for information on configuring the card, making internal connections, or customizing it for your computer.

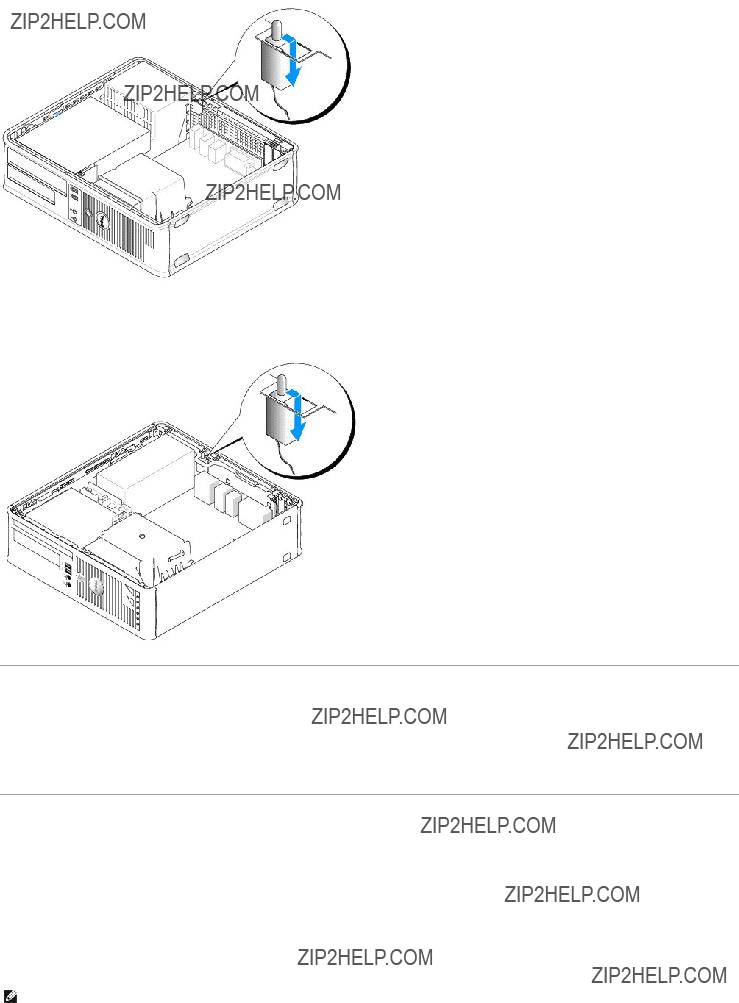

6. Place the card in the connector and press down firmly. Ensure that the card is fully seated in the slot.

11.If you installed a sound card:

a.Enter system setup, select Integrated Audio from the Onboard Devices group, and change the setting to Off (see System Setup).

b.Connect external audio devices to the sound card's connectors. Do not connect external audio devices to the line-in connector on the back panel of the computer (see Back-Panel Connectors).

NOTICE: To connect a network cable, first plug the cable into the network wall jack and then plug it into the computer.

12.If you installed a network adapter card and want to turn off the integrated network adapter:

a.Enter system setup, select Integrated NIC from the Onboard Devices group, and change the setting to Off (see System Setup).

b.Connect the network cable to the network adapter card's connectors. Do not connect the network cable to the integrated network connector on the back panel of the computer.

13.Install any drivers required for the card as described in the card documentation.

Removing a PCI Express x16 Card or DVI-Card

1.Follow the procedures in Before You Begin.

2.Gently lift the release tab on the card retention latch from the inside to pivot the latch open. Pivot the latch until it snaps into the open position.

3.If necessary, disconnect any cables connected to the card.

4.Press the lever with your thumb until you release the securing tab.

If you are removing a PCI Express x16 card, go to step 5.

If you are removing a DVI card, go to step 6

5.While pressing the lever, pull the card up and out of the card connector.

6. While pressing the lever, pull the removal pull tab up and remove the card out of the card connector.

7. If you are removing the card permanently, install a filler bracket in the empty card-slot opening.

NOTE: Installing filler brackets over empty card-slot openings is necessary to maintain FCC certification of the computer. The brackets also keep dust and dirt out of your computer.

8. Before you close the card retention mechanism, ensure that:

???The tops of all cards and filler brackets are flush with the alignment bar.

???The notch in the top of the card or filler bracket fits around the alignment guide.

9.Secure any remaining card(s) by closing the card retention latch and snapping it into place.

NOTICE: Do not route card cables over the cards. Cables routed over the cards can prevent the computer cover from closing properly or cause damage to the equipment.

10. Replace the computer cover (see Replacing the Computer Cover).

NOTE: See the documentation for the card for information about the card's cable connections.

11.Uninstall the card's driver. See the documentation that came with the card for instructions.

12.If you removed a sound card:

a.Enter system setup, select Integrated Audio from the Onboard Devices group, and change the setting to On (see System Setup).

b.Connect external audio devices to the audio connectors on the back panel of the computer.

NOTICE: To connect a network cable, first plug the cable into the network wall jack and then plug it into the computer.

13.If you removed a network-adapter card:

a.Enter system setup, select Integrated NIC from the Onboard Devices group, and change the setting to On (see System Setup).

b.Connect the network cable to the integrated network connector on the back panel of the computer.

Installing a PCI Express Card in the Riser-Card Cage

1.Follow the procedures in Before You Begin.

2.If applicable, remove the card installed in the PCI3 connector on the system board (see Removing a PCI Card).

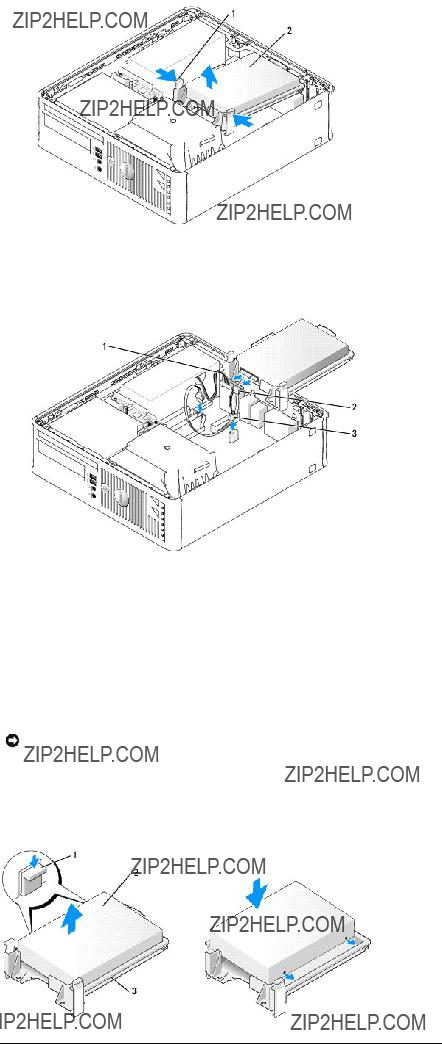

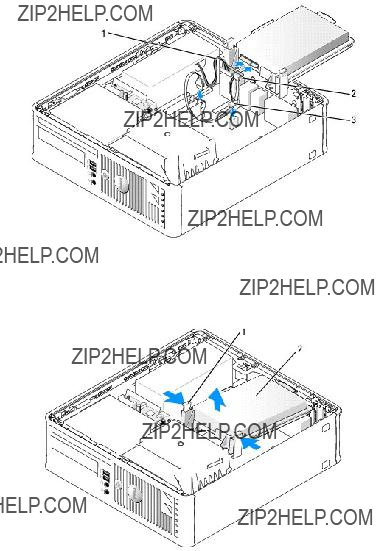

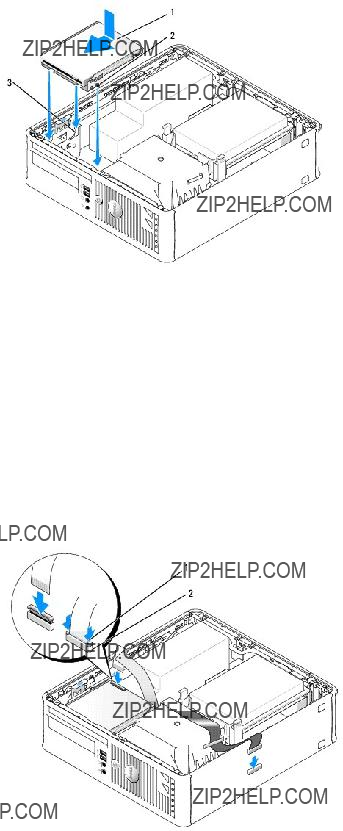

3.Remove the riser-card cage:

a.Check any cables connected to cards through the back-panel openings. Disconnect any cables that will not reach the riser-card cage once they are removed from the computer.

b.Rotate the riser-card cage up and gently pull on the handle and lift the riser-card cage up and away from the computer.

8.Secure the card(s) by closing the card retention latch and snapping it into place.

9.Replace the riser-card cage:

a.Align the tabs in the side of the riser-card cage with the slots on the side of the computer, and slide the riser-card cage down into place.

b.Ensure that the riser-card connectors are fully seated in the connectors on the system board.

c.Rotate the riser-card cage handle to the down position.

4system board connectors (2)

NOTICE: Do not route card cables over the cards. Cables routed over the cards can prevent the computer cover from closing properly or cause damage to the equipment.

10.Reconnect any cables that you removed in step 3.

11.Connect any cables that should be attached to the card.

12.Replace the computer cover (see Replacing the Computer Cover).

13.If you installed a sound card:

a.Enter system setup, select Integrated Audio from the Onboard Devices group, and change the setting to Off (see System Setup).

b.Connect external audio devices to the sound card's connectors. Do not connect external audio devices to the line-in connector on the back panel of the computer (see Back-Panel Connectors).

NOTICE: To connect a network cable, first plug the cable into the network wall jack and then plug it into the computer.

14.If you installed a network adapter card and want to turn off the integrated network adapter:

a.Enter system setup, select Integrated NIC from the Onboard Devices group, and change the setting to Off (see System Setup).

b.Connect the network cable to the network adapter card's connectors. Do not connect the network cable to the integrated network connector on the back panel of the computer.

15.Install any drivers required for the card as described in the card documentation.

Removing a PCI Express Card From the Riser-Card Cage

1.Follow the procedures in Before You Begin.

2.Remove the riser-card cage:

a.Check any cables connected to cards through the back-panel openings. Disconnect any cables that will not reach the riser-card cage once they are removed from the computer.

b.Rotate the riser-card cage handle up and gently pull on the handle and lift the riser-card cage up and away from the computer.

3.Gently lift the release tab on the card retention latch from the inside to pivot the latch open. Pivot the latch until it snaps into the open position.

4.If necessary, disconnect any cables connected to the card.

5.Press the lever with your thumb until you release the securing tab.

6.While pressing the lever, pull the card up and out of the card connector.

7. If you are removing the card permanently, install a filler bracket in the empty card-slot opening.

NOTE: Installing filler brackets over empty card-slot openings is necessary to maintain FCC certification of the computer. The brackets also keep dust and dirt out of your computer.

8. Before you close the card retention mechanism, ensure that:

???The tops of all cards and filler brackets are flush with the alignment bar.

???The notch in the top of the card or filler bracket fits around the alignment guide.

9.Secure any remaining card(s) by closing the card retention latch and snapping it into place.

NOTICE: Do not route card cables over the cards. Cables routed over the cards can prevent the computer cover from closing properly or cause damage to the equipment.

10.Replace the riser-card cage:

a.Align the tabs in the side of the riser-card cage with the slots on the side of the computer, and slide the riser-card cage down into place.

b.Ensure that the riser-card connectors are fully seated in the connectors on the system board.

c.Rotate the riser-card cage handle to the down position.

4system board connectors (2)

11.Replace the computer cover (see Replacing the Computer Cover).

12.Uninstall the card's driver. See the documentation that came with the card for instructions.

13.If you removed a sound card:

a.Enter system setup, select Integrated Audio from the Onboard Devices group, and change the setting to On (see System Setup).

b.Connect external audio devices to the audio connectors on the back panel of the computer.

NOTICE: To connect a network cable, first plug the cable into the network wall jack and then plug it into the computer.

14.If you removed a network-adapter card connector:

a.Enter system setup, select Integrated NIC from the Onboard Devices group, and change the setting to On (see System Setup).

b.Connect the network cable to the integrated network connector on the back panel of the computer.

PS/2 Serial Port Adapters

CAUTION: Before you begin any of the procedures in this section, follow the safety instructions in the Product Information Guide.

Installing a PS/2 Serial Port Adapter

1.Follow the procedures in Before You Begin.

2.Gently lift the release tab on the card retention latch from the inside to pivot the latch open. Pivot the latch until it snaps into the open position.

3.Remove the filler bracket (if applicable).

NOTE: See the documentation that came with the adapter for information on configuring the adapter, making internal connections, or customizing it for your computer.

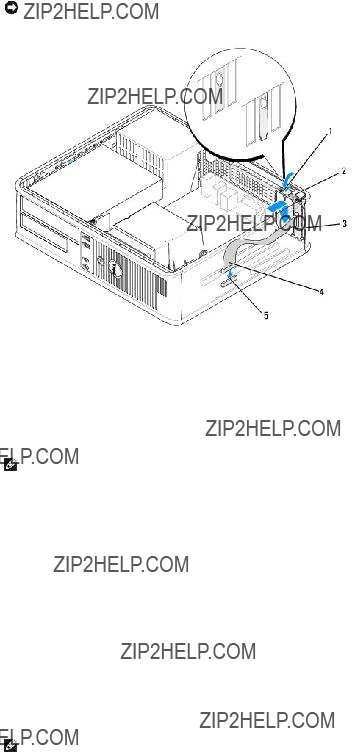

4. Align the PS/2 serial-port adapter bracket in the retention slot and press down firmly. Ensure that the adapter is fully seated in the slot.

5. Before you close the card retention mechanism, ensure that:

???The tops of all cards and filler brackets are flush with the alignment bar.

???The notch in the top of the card or filler bracket fits around the alignment guide.

6.Secure the card(s) by closing the card retention latch and snapping it into place.

NOTICE: Do not route card cables over the cards. Cables routed over the cards can prevent the computer cover from closing properly or cause damage to the equipment.

7. Connect the adapter cable to the PS/2 serial port adapter connector (PS2/SER2) on the system board (see System Board Components).

NOTE: See the documentation for the PS/2 serial port adapter for information about the cable connections.

8. Replace the computer cover (see Replacing the Computer Cover).

Removing a PS/2 Serial Port Adapter

1.Follow the procedures in Before You Begin.

2.Gently lift the release tab on the card retention latch from the inside to pivot the latch open. Pivot the latch until it snaps into the open position.

3.Disconnect the PS/2 serial-port cable from the system board (see System Board Components).

4.Grasp the PS/2 serial-port adapter bracket by its top corners, and ease it out of its connector.

5.If you are removing the adapter permanently, install a filler bracket in the empty card-slot opening.

NOTE: Installing filler brackets over empty card-slot openings is necessary to maintain FCC certification of the computer. The brackets also keep dust and dirt out of your computer.

6. Before you close the card retention mechanism, ensure that:

???The tops of all cards and filler brackets are flush with the alignment bar.

???The notch in the top of the card or filler bracket fits around the alignment guide.

7.Secure any remaining card(s) by closing the card retention latch and snapping it into place.

8.Replace the computer cover (see Replacing the Computer Cover).

Installing a Serial Port Adapter in the Riser-Card Cage

1.Follow the procedures in Before You Begin.

2.Remove the riser-card cage:

a.Check any cables connected to cards through the back-panel openings. Disconnect any cables that will not reach the riser-card cage once they are removed from the computer.

b.Rotate the riser-card cage handle up and gently pull on the handle and lift the riser-card cage up and away from the computer.

3.Gently lift the release tab on the card retention latch from the inside to pivot the latch open. Pivot the latch until it snaps into the open position.

4.If you are installing a new serial port adapter, remove the filler bracket to create an empty card-slot opening.

5.If you are replacing an adapter that is already installed in the computer, remove the adapter.

6.If necessary, disconnect any cables connected to the adapter.

7.Grasp the serial port adapter by its top corners, and ease it out of its connector.

8.Prepare the serial port adapter for installation.

CAUTION: To guard against electrical shock, be sure to unplug your computer from its electrical outlet before installing any cards or adapters.

9.Align the PS/2 serial-port adapter bracket in the retention slot and press down firmly. Ensure that the adapter is fully seated in the slot.

10.Before you close the card retention mechanism, ensure that:

???The tops of all cards and filler brackets are flush with the alignment bar.

???The notch in the top of the card or filler bracket fits around the alignment guide.

11.Secure the card(s) by closing the card retention latch and snapping it into place.

NOTICE: Do not route card cables over the cards. Cables routed over the cards can prevent the computer cover from closing properly or cause damage to the equipment.

12.Connect the adapter cable to the PS/2 serial port adapter connector (PS2/SER2) on the system board (see System Board Components).

13.Replace the riser-card cage:

a.Align the tabs in the side of the riser-card cage with the slots on the side of the computer, and slide the riser-card cage down into place.

b.Ensure that the riser-card connectors are fully seated in the connectors on the system board.

c.Rotate the riser-card cage handle to the down position.

14.Connect any disconnected cables.

15.Replace the computer cover (see Replacing the Computer Cover).

16. Install any drivers required for the serial port adapter.

Removing a Serial Port Adapter From the Riser-Card Cage

1.Follow the procedures in Before You Begin.

2.Remove the riser-card cage:

a.Check any cables connected to cards through the back-panel openings. Disconnect any cables that will not reach the riser-card cage once they are removed from the computer.

b.Rotate the riser-card cage handle up and gently pull on the handle and lift the riser-card cage up and away from the computer.

3.Gently lift the release tab on the card retention latch from the inside to pivot the latch open. Pivot the latch until it snaps into the open position.

4.Disconnect the PS/2 serial-port cable from the system board (see System Board Components).

5.Grasp the PS/2 serial-port adapter bracket by its top corners, and ease it out of its connector.

6.If you are removing the adapter permanently, install a filler bracket in the empty card-slot opening.

NOTE: Installing filler brackets over empty card-slot openings is necessary to maintain FCC certification of the computer. The brackets also keep dust and dirt out of your computer.

7. Before you close the card retention mechanism, ensure that:

???The tops of all cards and filler brackets are flush with the alignment bar.

???The notch in the top of the card or filler bracket fits around the alignment guide.

8.Secure the card(s) by closing the card retention latch and snapping it into place.

9.Replace the riser-card cage:

a.Align the tabs in the side of the riser-card cage with the slots on the side of the computer, and slide the riser-card cage down into place.

b.Ensure that the riser-card connectors are fully seated in the connectors on the system board.

c.Rotate the riser-card cage handle to the down position.

10.Replace the computer cover (see Replacing the Computer Cover).

11.Uninstall the adapter's driver. See the documentation that came with the adapter for instructions.

Back to Contents Page

Dell??? Optiplex??? 740 Systems

User's Guide

Processor

CAUTION: Before you begin any of the procedures in this section, follow the safety instructions located in the Product Information Guide.

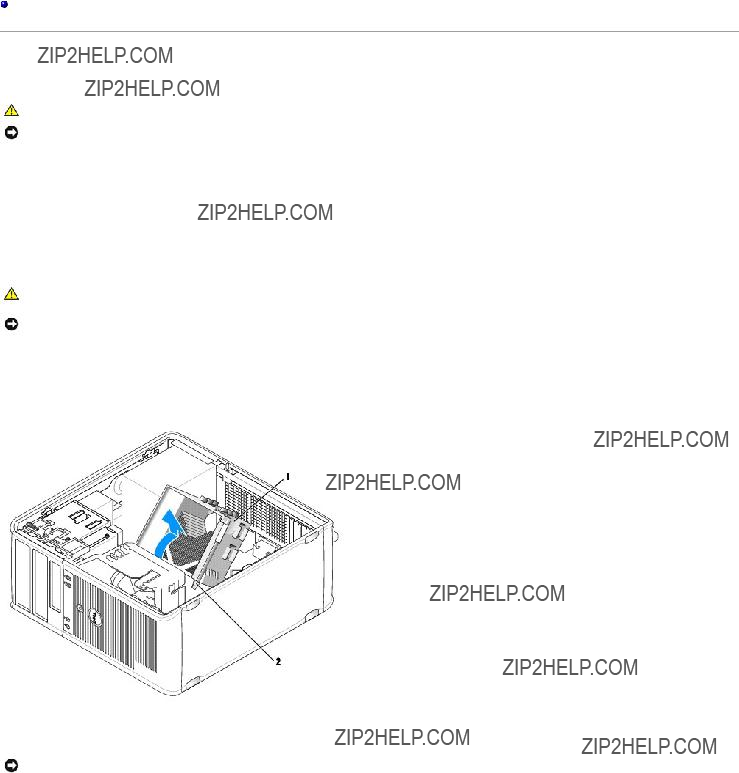

Removing the Processor

1.Follow the procedures in Before You Begin.

2.Loosen the captive screw on each side of the heat sink assembly.

CAUTION: Despite having a plastic shield, the heat sink assembly may be very hot during normal operation. Be sure that it has had sufficient time to cool before you touch it.

NOTICE: Before rotating the heat sink assembly upward, twist the assembly side to side to help break the thermal grease bond between the heat sink and the processor. This is to prevent damage to the processor due to pulling the processor out of the socket while rotating the heat sink assembly upward.

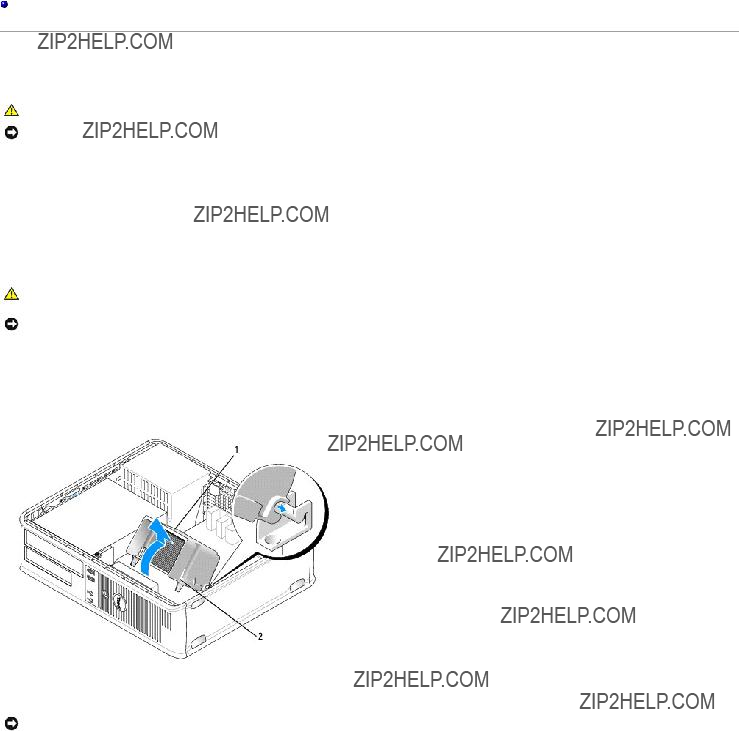

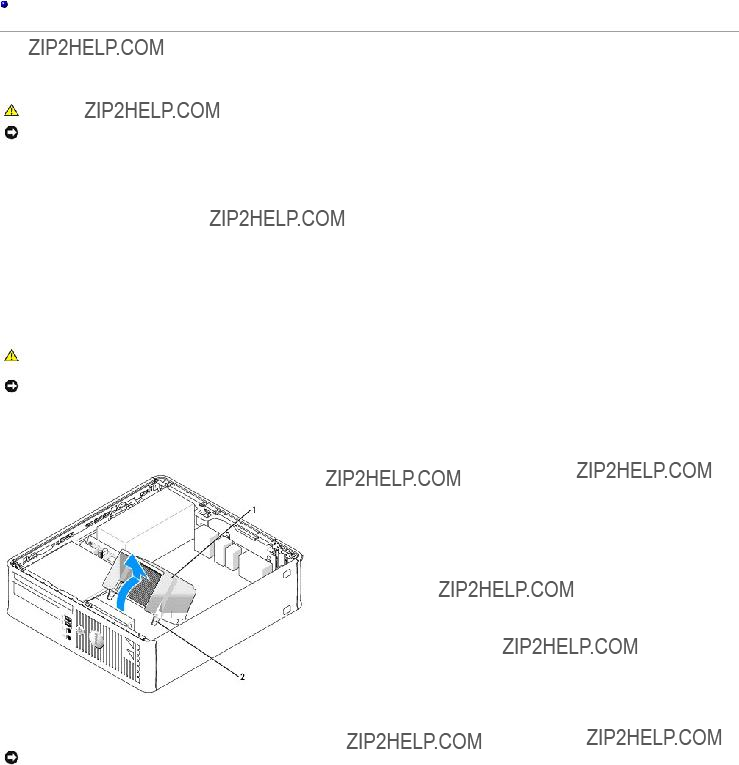

3.Rotate the heat sink assembly upward, and remove the assembly from the computer.

Lay the heat sink assembly down on its top, with the thermal grease facing upward.

NOTICE: Unless a new heat sink is required for the new processor, reuse the original heat sink assembly when you replace the processor.

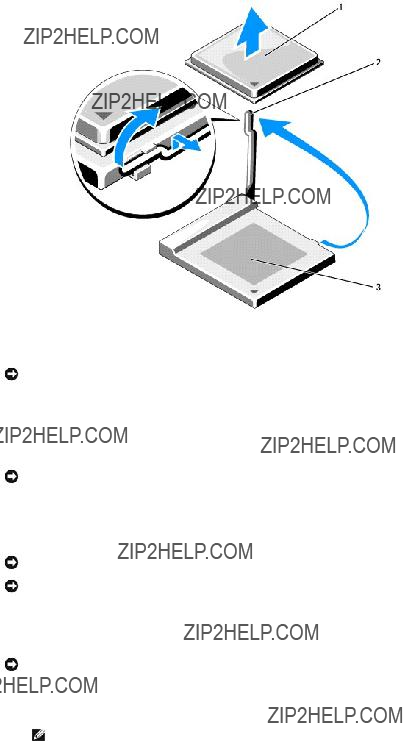

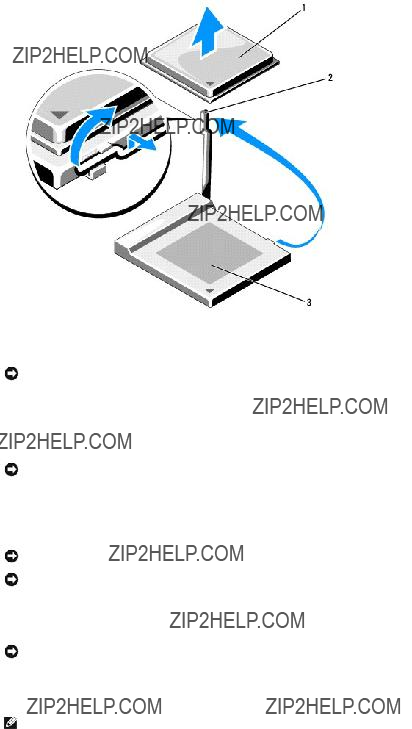

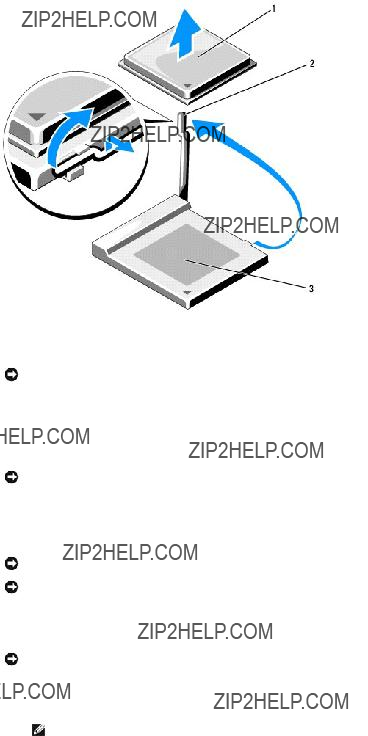

4. Pull the release lever straight up until the processor is released.

NOTICE: Be careful not to bend any of the pins when you remove the processor from the socket. Bending the pins can permanently damage the processor.

5.Remove the processor from the socket.

Leave the release lever extended in the release position so that the socket is ready for the new processor, and go to Installing the Processor.

NOTICE: After removing the processor, be careful not to get any thermal grease on the processor pins. Thermal grease on the pins can permanently damage the processor.

Installing the Processor

NOTICE: Ground yourself by touching an unpainted metal surface on the back of the computer.

NOTICE: Be careful not to bend any of the pins when you replace the processor. Bending the pins can permanently damage the processor.

1. Follow the procedures in Before You Begin.

NOTICE: Be careful not to bend any of the pins when you unpack the processor. Bending the pins can permanently damage the processor.

2. Unpack the new processor, being careful not to bend any of the processor pins.

NOTE: You must position the processor correctly in the socket to avoid permanent damage to the processor and the computer when you turn on the computer.

3.If the release lever on the socket is not fully extended, move it to that position.

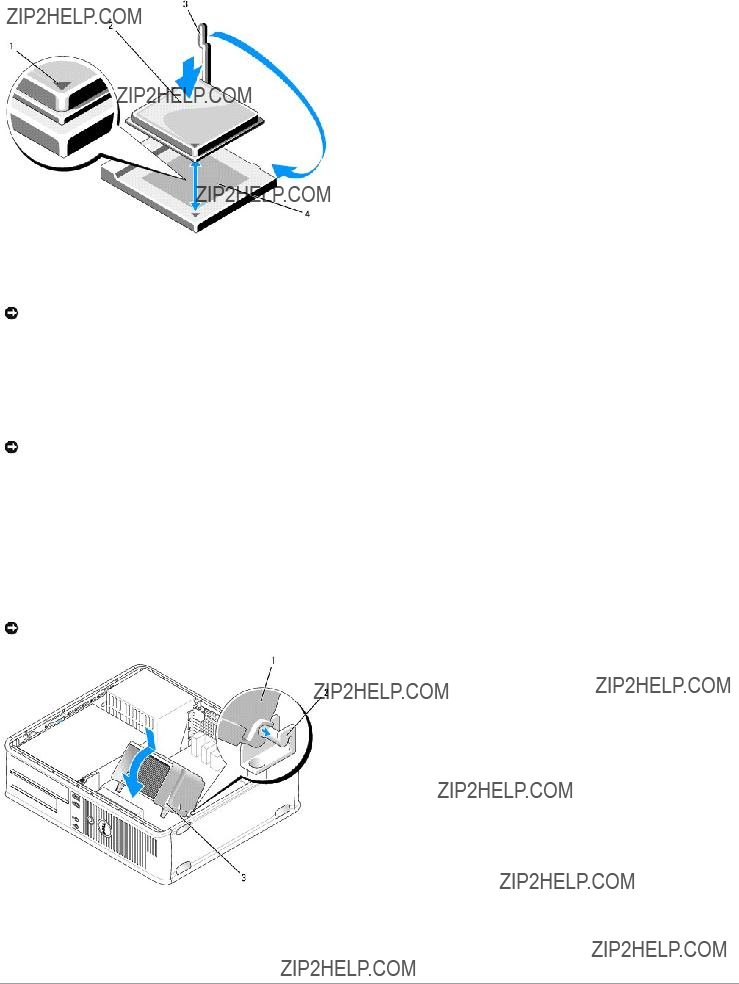

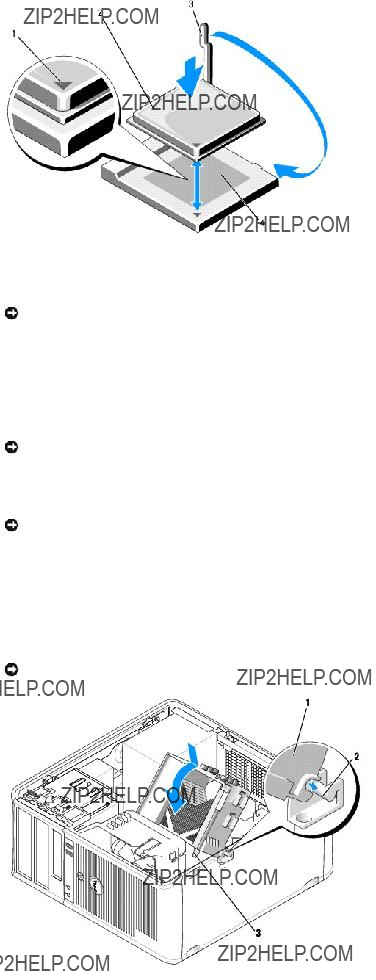

4.Align the pin-1 corners of the processor and socket.

NOTICE: To avoid damage, ensure that the processor aligns properly with the socket, and do not use excessive force when you install the processor.

5.Set the processor lightly in the socket and ensure that the processor is positioned correctly.

6.While lightly pressing down on the processor, rotate the release lever back toward the system board until it snaps into place, securing the processor.

7.Clean the thermal grease from the bottom of the heat sink.

NOTICE: Ensure that you apply new thermal grease. New thermal grease is critical for ensuring adequate thermal bonding, which is a requirement for optimal processor operation.

8.Apply the new thermal grease to the top of the processor.

9.Install the heat sink assembly:

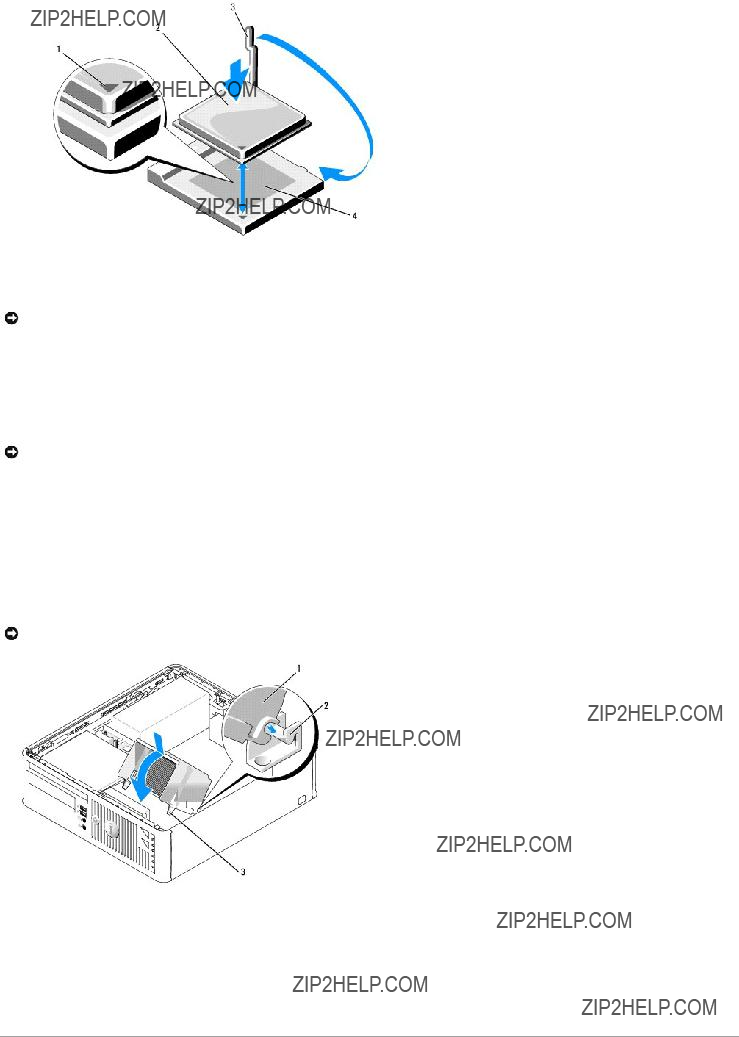

a.Place the heat sink assembly back onto the heat-sink assembly bracket.

b.Rotate the heat sink assembly down towards the computer base and ensure that the two captive screws are properly aligned with the holes in the system board.

c.Tighten the two captive screws.

NOTICE: Ensure that the heat sink assembly is correctly seated and secure.

10. Replace the computer cover (see Replacing the Computer Cover).

Back to Contents Page

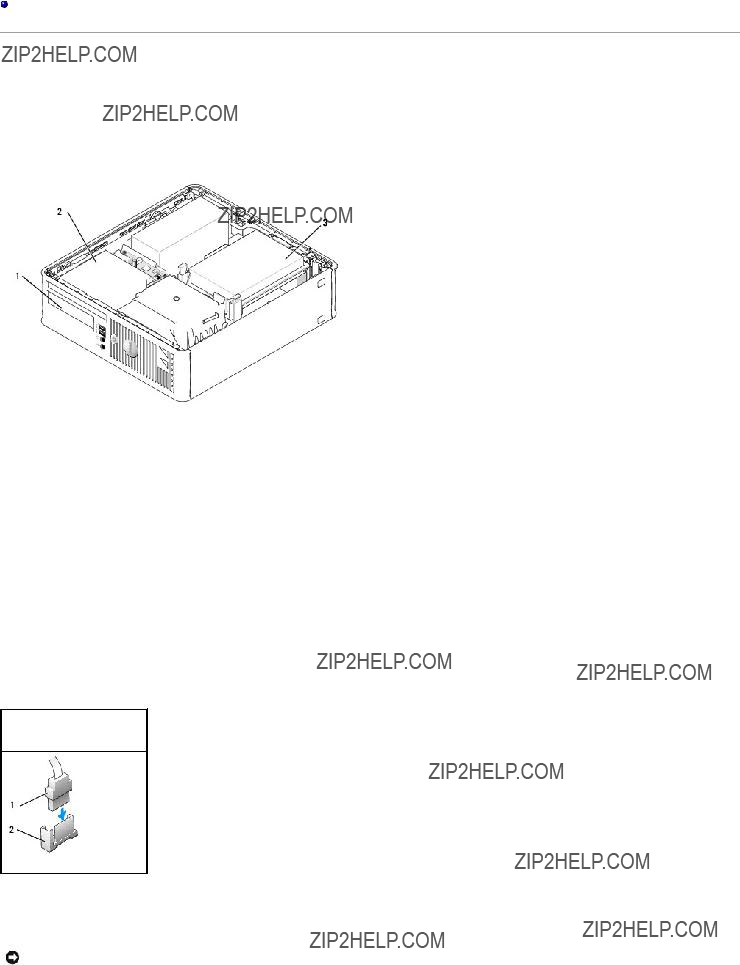

Drives

Your computer supports:

???One SATA hard drive

???One optional floppy drive or media card reader or one second SATA hard drive

???One optional optical (CD or DVD) drive

General Installation Guidelines

Connect the SATA hard drive to the connector labeled "SATA0." Connect the SATA CD or DVD drives to the connector labeled "SATA1" on the system board. Connect a second optional hard drive to the connector labeled "SATA2." See System Board Components for information about system board connectors.

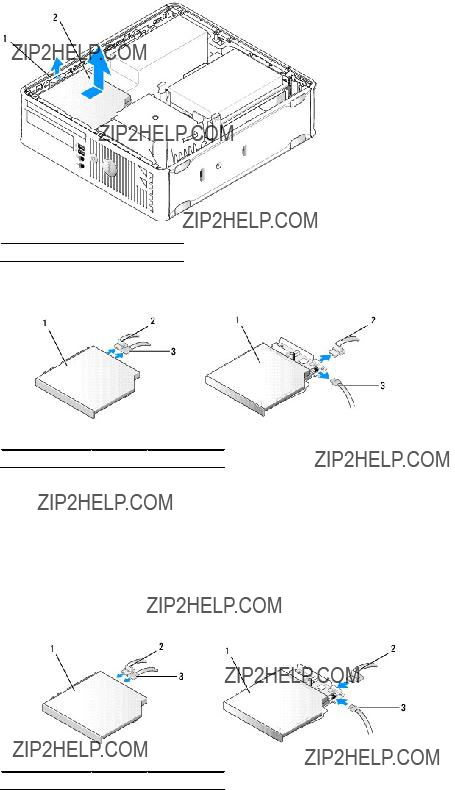

Connecting Drive Cables

When you install a drive, you connect two cables???a DC power cable and a data cable???to the back of the drive and to the system board.

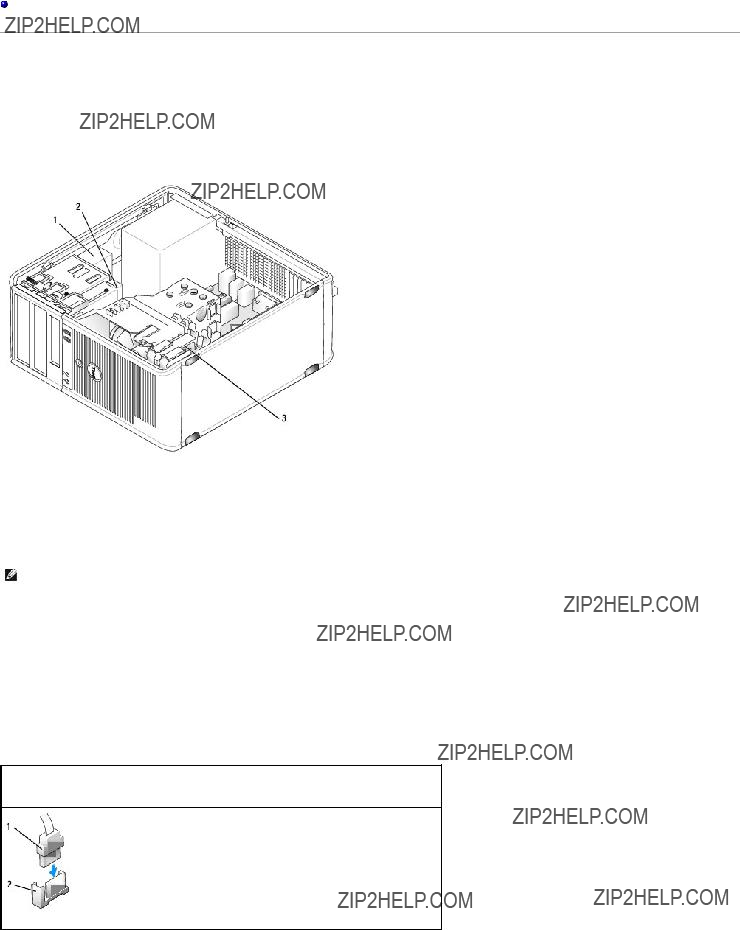

Drive Interface Connectors

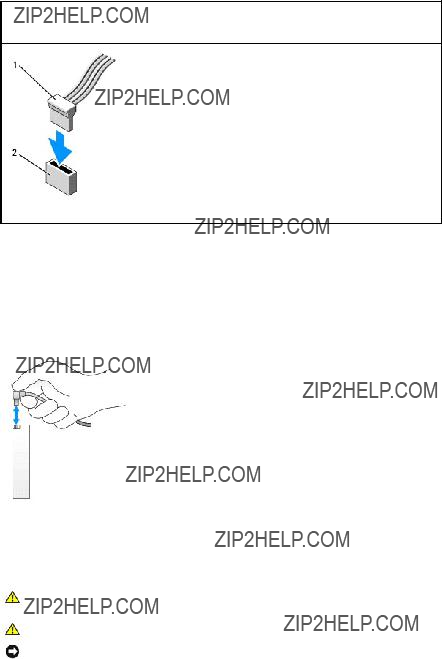

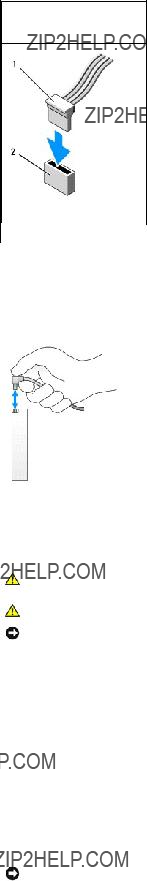

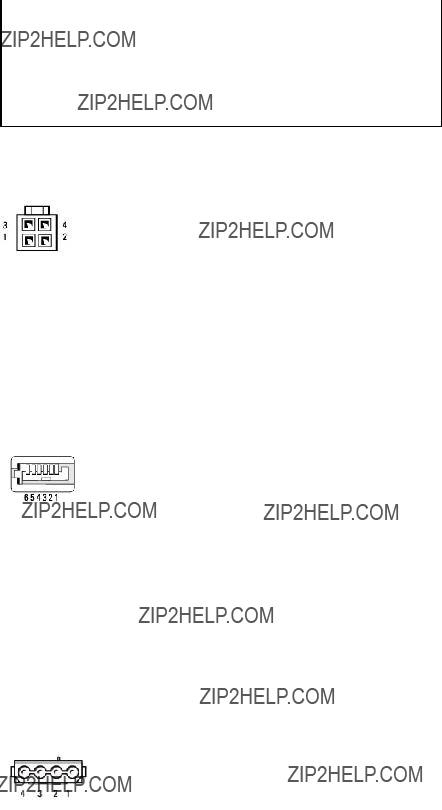

Serial ATA Connector

Interface connectors are keyed for correct insertion.

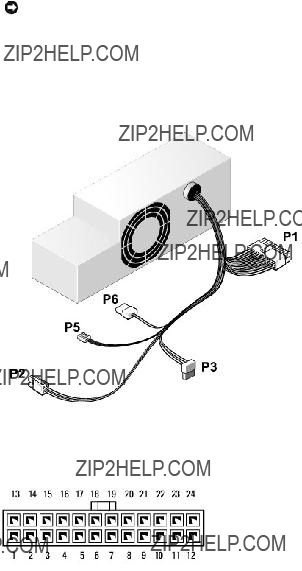

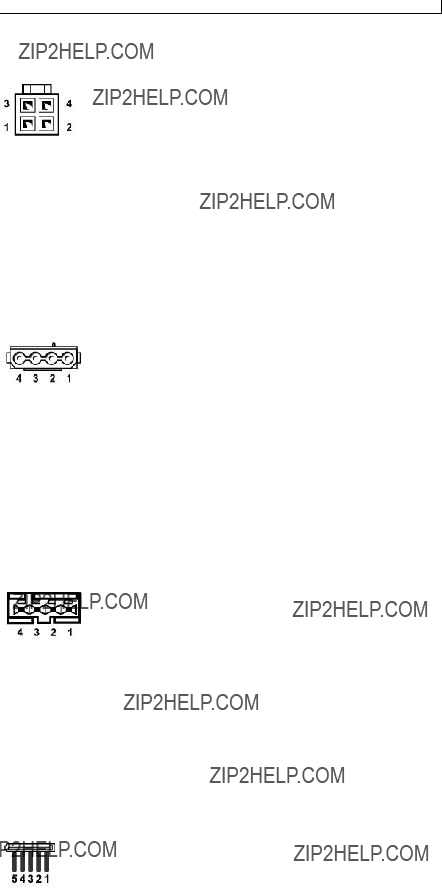

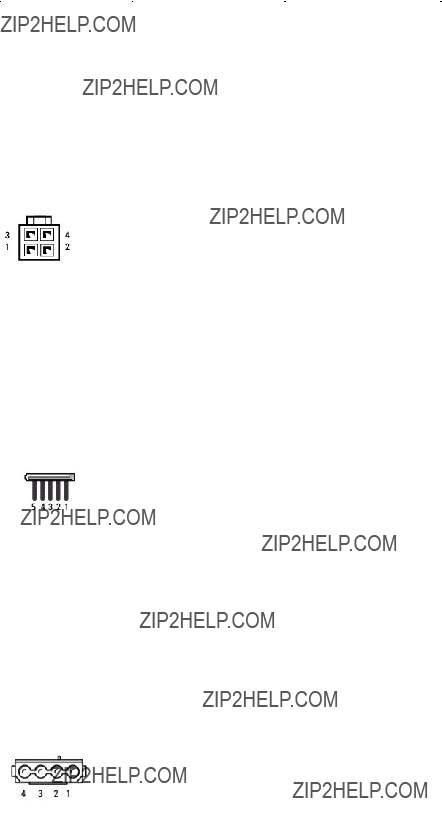

Power Cable Connectors

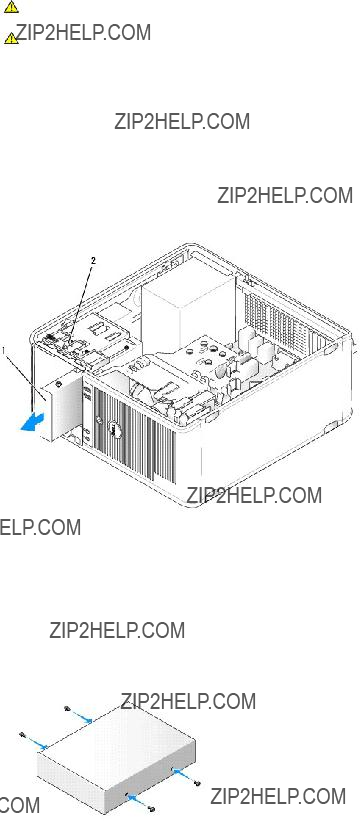

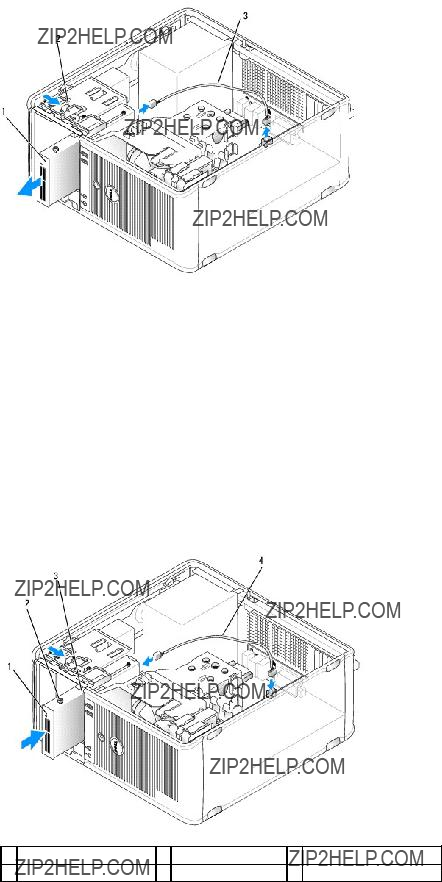

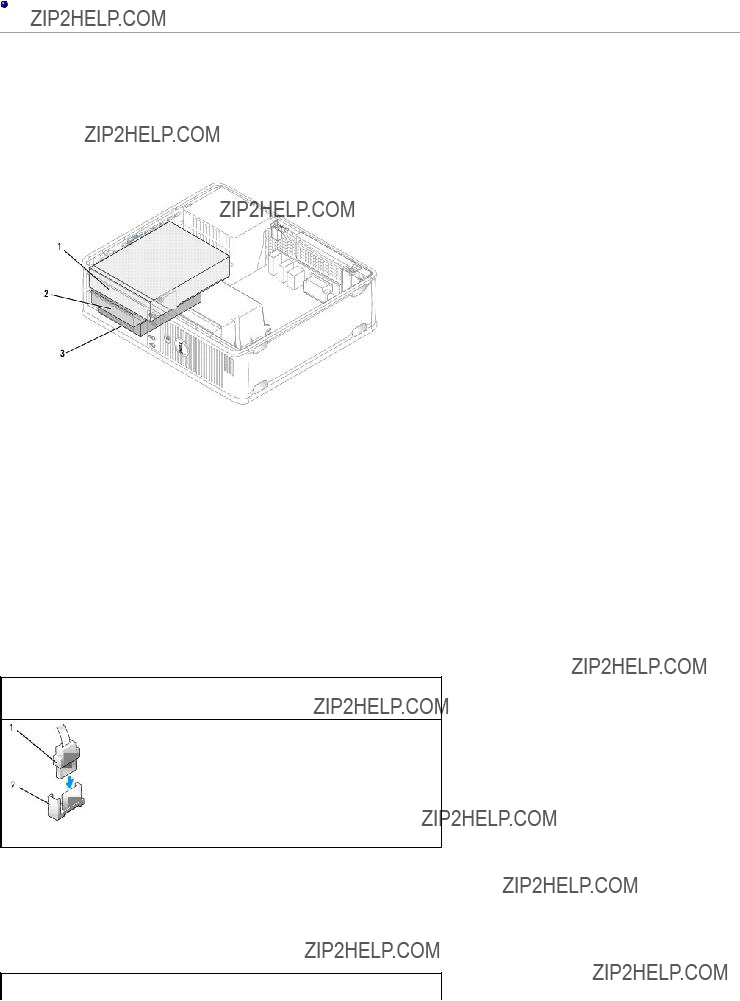

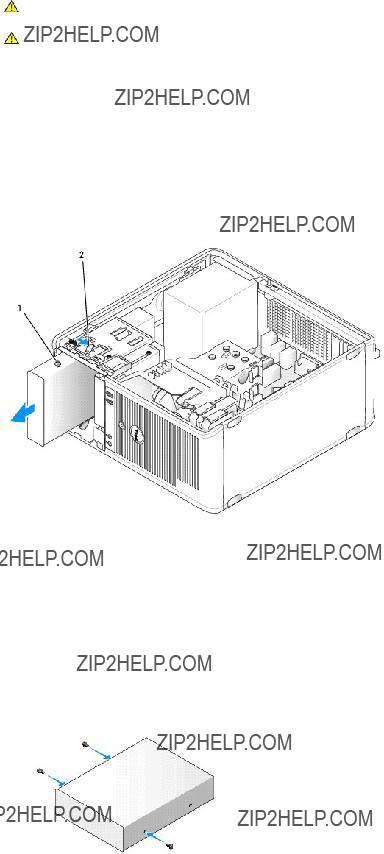

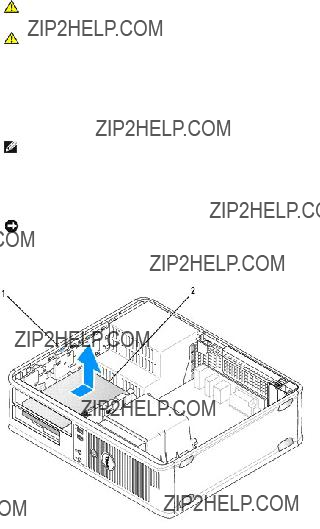

1drive release latch

2optical drive

4.Disconnect the power and data cables from the back of the drive.

5.If you are not replacing the optical drive at this time, install the optical drive insert by lowering it into the drive bay until it clicks into place. Contact Dell if you need a drive bay insert.

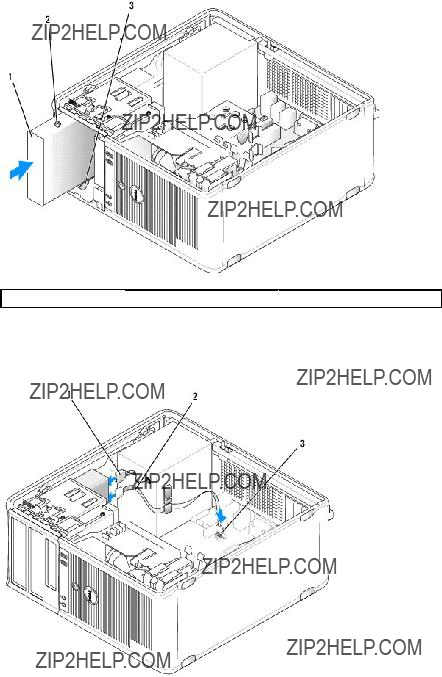

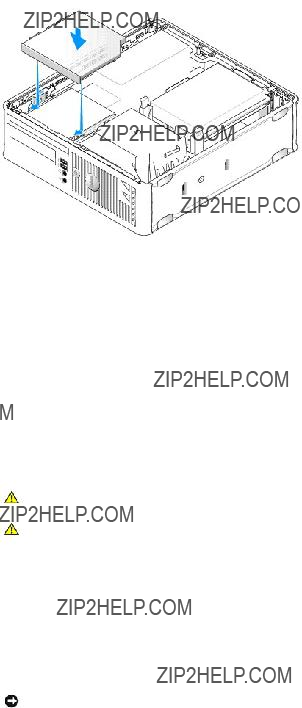

Installing an Optical Drive

1.Unpack the drive and prepare it for installation.

Check the documentation that accompanied the drive to verify that the drive is configured for your computer.

2.Pull up on the drive-release latch and slide the drive towards the back of the computer. Then, lift up to remove the drive from the computer.

3.If you are installing a new drive:

a.Remove the inserts.

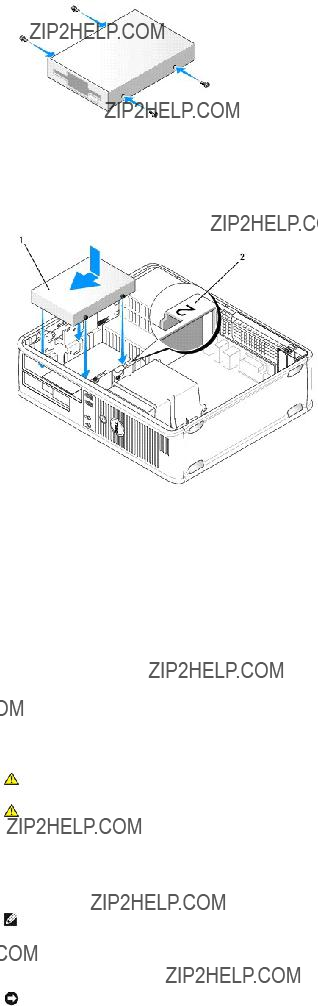

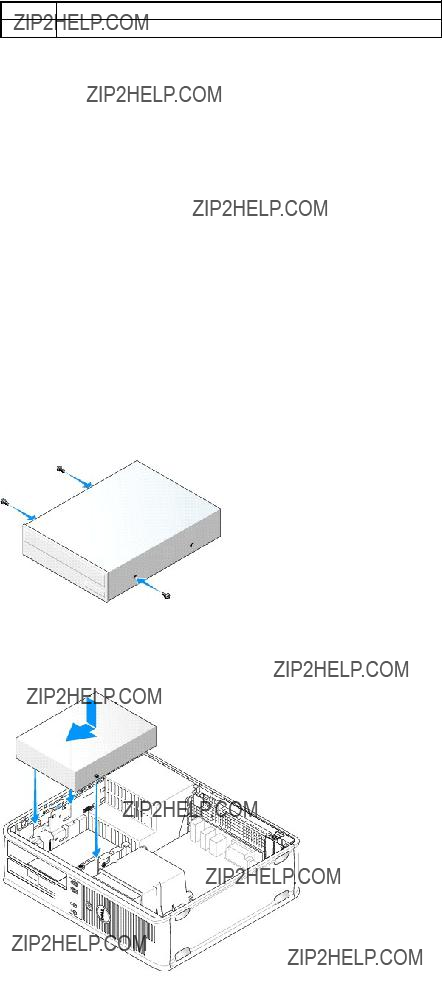

b.Insert the three shoulder screws removed from the insert into the sides of the new drive and tighten them.

c.Lift the drive release latch up and insert the new optical device.

4.If you are replacing an existing drive:

a.Follow procedures in Removing an Optical Drive to remove the existing drive.

b.Remove the three shoulder screws from the existing drive.

c.Insert the three shoulder screws into the sides of the new drive and tighten them.

5.Connect the power and data cables to the drive.

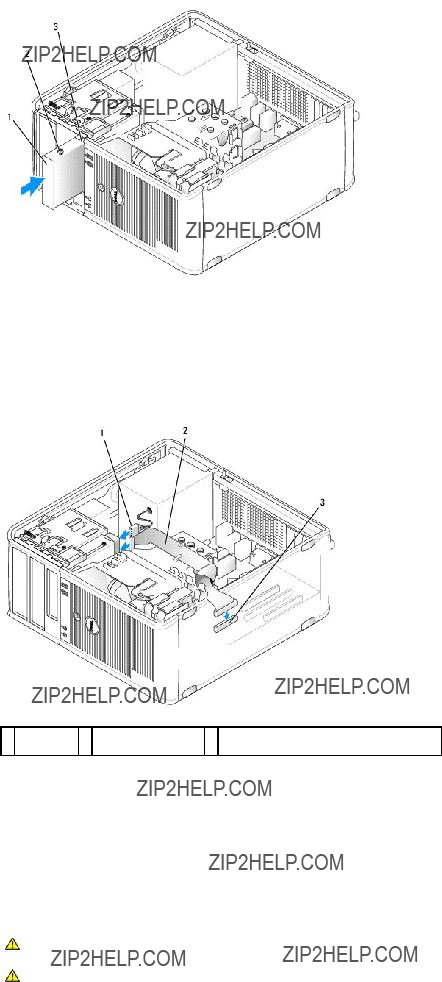

6.Align the shoulder screws with the screw guides, and slide the drive into the bay until it clicks into place.

7. Check all cable connections, and fold cables out of the way to provide airflow for the fan and cooling vents.

8.Replace the computer cover (see Replacing the Computer Cover).

9.Update your configuration information by setting the appropriate Drive option (0 or 1) under Drives. See Entering System Setup for more information.

10.Verify that your computer works correctly by running the Dell Diagnostics (see Dell Diagnostics).

Floppy Drive

CAUTION: Before you begin any of the procedures in this section, follow the safety instructions in the Product Information Guide.

CAUTION: To guard against electrical shock, always unplug your computer from the electrical outlet before removing the computer cover.

Removing a Floppy Drive

1. Follow the procedures in Before You Begin.

NOTE: Since the following steps do not require the complete removal of the optical drive, it is not necessary to disconnect the cables connecting the optical drive.

2. Remove the optical drive (see Removing an Optical Drive) and carefully set it aside.

NOTICE: Do not pull the drive out of the computer by the drive cables. Doing so may cause damage to cables and the cable connectors.

3. Pull up on the drive release latch and slide the floppy drive towards the back of the computer. Then, lift up to remove the drive from the computer.

4. Disconnect the power and data cables from the back of the floppy drive.

Installing a Floppy Drive

1.If you are installing a new drive:

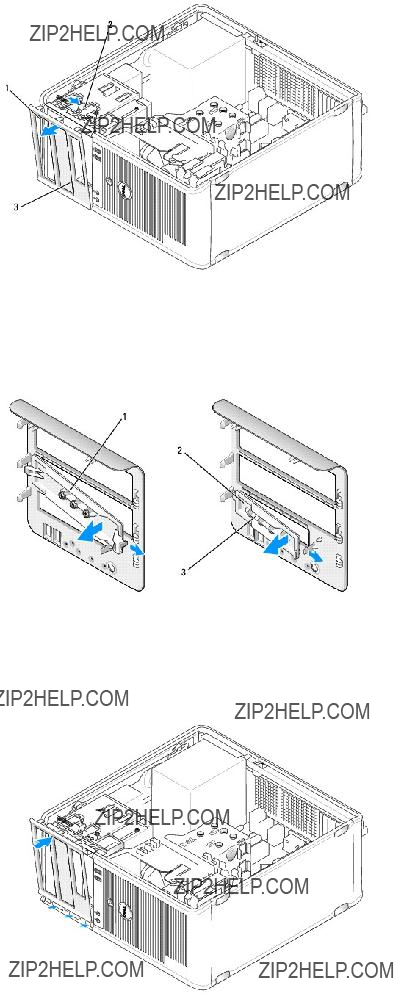

a.Use a small flat-edge screw driver on the back side of the drive-panel insert to gently pop off the insert.

b.Remove the four shoulder screws from the drive-panel insert.

2.If you are replacing an existing drive:

Remove the four shoulder screws from the existing drive.

3.Insert the four shoulder screws into the sides of the new floppy drive and tighten them.

4.Attach the power and floppy-drive cables to the floppy drive.

5.Connect the floppy drive cable to the DSKT connector on the system board (see System Board Components for the connector locations).

6.Align the shoulder screws with the screw guides, and slide the drive into the bay until it clicks into place.

7.Replace the optical drive (see Installing an Optical Drive).

8.Check all cable connections, and fold cables out of the way to provide airflow for the fan and cooling vents.

9.Replace the computer cover (see Replacing the Computer Cover).

10.Enter system setup and set the Diskette Drive option to enable your new floppy drive (see Entering System Setup).

11.Verify that your computer works correctly by running the Dell Diagnostics (see Dell Diagnostics).

Media Card Reader

CAUTION: Before you begin any of the procedures in this section, follow the safety instructions located in the Product Information Guide.

CAUTION: To guard against electrical shock, always unplug your computer from the electrical outlet before removing the computer cover.

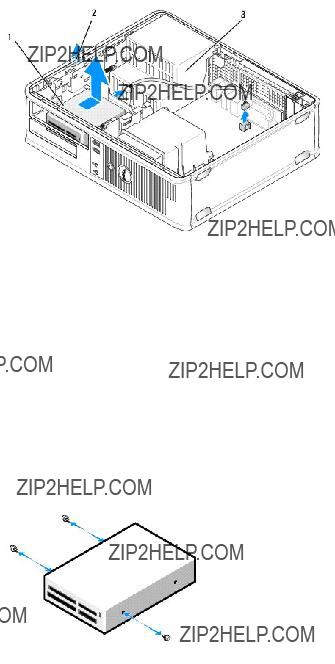

Removing the Media Card Reader

1. Follow the procedures in Before You Begin.

NOTE: Since the following steps do not require the complete removal of the optical drive, it is not necessary to disconnect the cables connecting the optical drive.

2. Remove the optical drive (see Removing an Optical Drive) and carefully set it aside.

NOTICE: Do not pull the drive out of the computer by the drive cables. Doing so may cause damage to cables and the cable connectors.

3.Pull up on the drive release latch and slide the media card reader towards the back of the computer. Then, lift up to remove the media card reader from the computer.

4.Disconnect the media card reader cable from the back of the media card reader.

Installing the Media Card Reader

1.If you are installing a new media card reader:

a.Use a small flat-edge screw driver on the back side of the drive-panel insert to gently pop off the insert.

b.Remove the four shoulder screws from the drive-panel insert.

2.If you are replacing an existing media card reader:

Remove the four shoulder screws from the existing media card reader.

3.Insert the four shoulder screws into the sides of the new media card reader and tighten them.

4.Attach the media card reader cable to the media card reader.

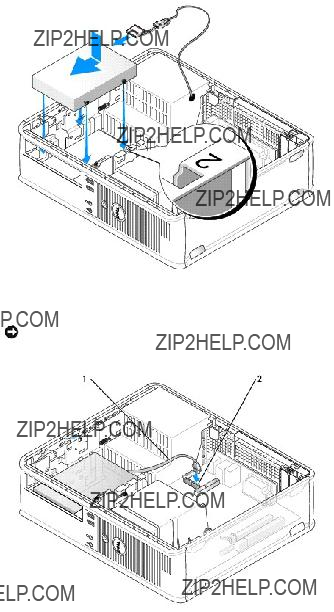

5.Connect the card reader cable to the USB1 connector on the system board (see System Board Components for the connector location).

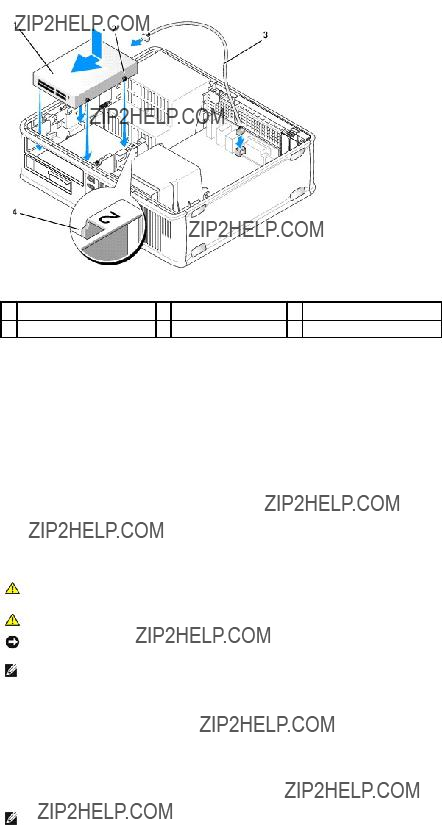

6.Align the shoulder screws with the screw guides numbered as 2, and slide the media card reader forward into the bay until it clicks into place.

4shoulder screw slots (2)

7.Replace the optical drive (see Installing an Optical Drive).

8.Check all cable connections, and fold cables out of the way to provide airflow for the fan and cooling vents.

9.Replace the computer cover (see Replacing the Computer Cover).

10.Enter system setup and set the Diskette Drive option to enable your new media card reader (see Entering System Setup).

11.Verify that your computer works correctly by running theDell Diagnostics (see Dell Diagnostics).

Hard Drive

CAUTION: Before you begin any of the procedures in this section, follow the safety instructions in the Product Information Guide.

CAUTION: To guard against electrical shock, always unplug your computer from the electrical outlet before removing the computer cover.

NOTICE: To avoid damage to the drive, do not set it on a hard surface. Instead, set the drive on a surface, such as a foam pad, that will sufficiently cushion it.

NOTE: If you have two hard drives installed, see Removing and Replacing a Second Hard Drive for removal and replacement instructions for the second hard drive.

Removing the Hard Drive

1.If you are replacing a hard drive that contains data you want to keep, back up your files before you begin this procedure.

2.Follow the procedures in Before You Begin.

NOTE: Since the following steps do not require the complete removal of the optical drive and the floppy drive, it is not necessary to disconnect the cables connecting the two drives.

3.Remove the optical drive (see Removing an Optical Drive) from the bay and carefully set it aside.

4.Remove the floppy drive, media card reader, or second hard drive, if installed, (see Removing a Floppy Drive, Removing the Media Card Reader, or Removing and Replacing a Second Hard Drive) and carefully set it aside.

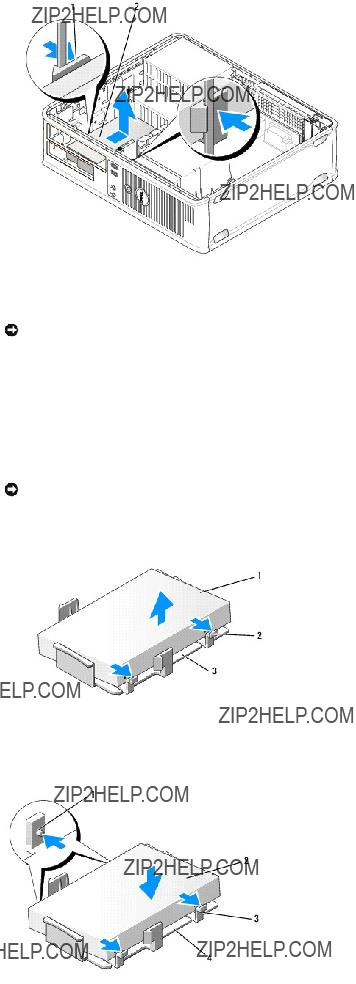

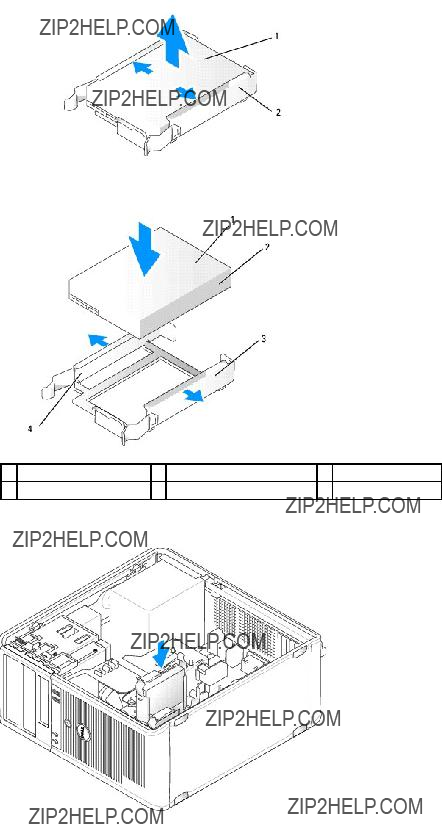

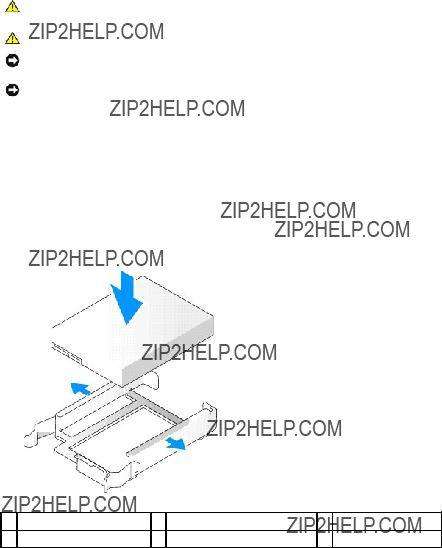

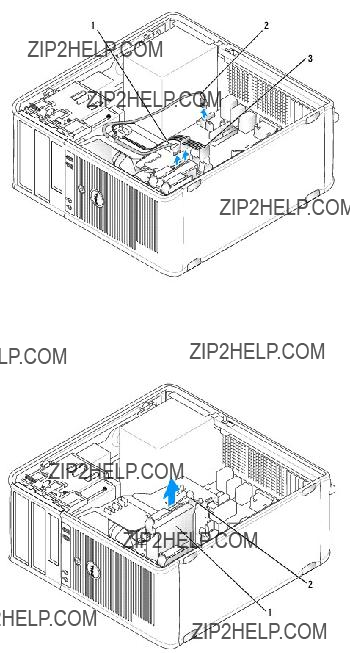

5.Squeeze the two plastic securing clips on each side of the hard drive and slide the drive towards the back of the computer.

4.Connect the power and data cables to the drive.

5.Locate the correct slot for the drive, and slide the drive into the bay until it clicks into place.

6.Replace the floppy drive, media card reader, or second hard drive (see Installing a Floppy Drive , Installing the Media Card Reader , or Removing and Replacing a Second Hard Drive ).

7.Replace the optical drive (see Installing an Optical Drive).

8.Check all connectors to be certain that they are properly cabled and firmly seated.

9.Replace the computer cover (see Replacing the Computer Cover).

10.If the drive you just installed is the primary drive, insert a bootable medium into your boot drive.

11.Turn on the computer.

12.Enter system setup and update the appropriate Primary Drive option (0 or 2) (see Entering System Setup).

13.Exit system setup, and reboot the computer.

14.Partition and logically format your drive before you proceed to the next step.

For instructions, see the documentation that came with your operating system.

15.Verify that your computer works correctly by running the Dell Diagnostics (see Dell Diagnostics).

16.Install your operating system on the hard drive.

For instructions, see the documentation that came with your operating system.

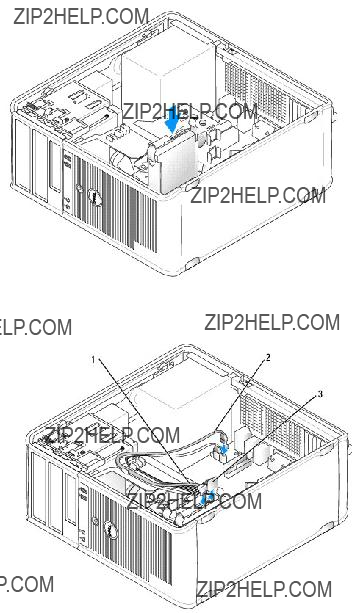

Removing and Replacing a Second Hard Drive

For information on RAID configuration, see About RAID Configurations

CAUTION: Before you begin any of the procedures in this section, follow the safety instructions in the Product Information Guide.

CAUTION: To guard against electrical shock, always unplug your computer from the electrical outlet before removing the computer cover.

NOTICE: To avoid damage to the drive, do not set it on a hard surface. Instead, set the drive on a surface, such as a foam pad, that will sufficiently cushion it.

NOTICE: If you are replacing a hard drive that contains data you want to keep, back up your files before you begin this procedure.

NOTE: Installation of a second hard drive is restricted to certain configurations of the desktop computer.

1.Check the documentation or the drive to verify that it is configured for your computer.

2.Follow the procedures in Before You Begin.

3.Remove the computer cover (see Removing the Computer Cover).

4.Remove the optical drive (if your configuration has one) (see Removing an Optical Drive).

5.To remove the second hard drive:

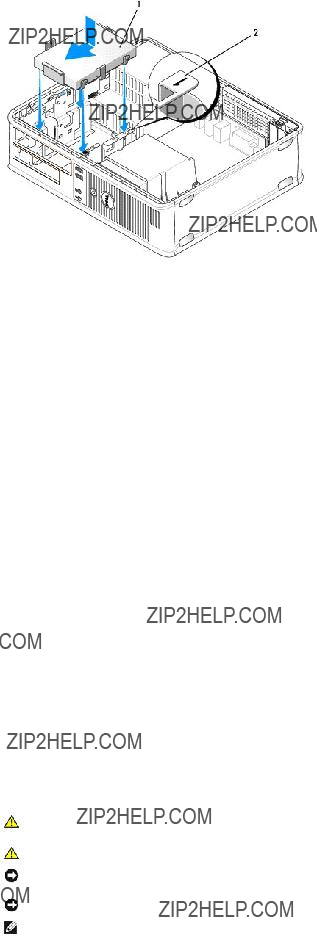

a.Pull up on the drive release latch and slide the hard drive towards the back of the computer.

b.Disconnect the data and power cables from the back of the drive.

c.Then, lift up to remove the drive from the computer.

6.To replace the second hard drive:

a.Align the shoulder screws with the screw guides, and slide the drive into the bay until it clicks into place.

b.Connect the power and data cables to the back of the drive.

7. Ensure that the data cable from the second hard drive remains connected to the SATA1 connector on the system board.

NOTICE: Always connect the data cable to the SATA1 connector when installing (replacing) a second hard drive.

8.Replace the optical drive (if your configuration has one). See Installing an Optical Drive.

9.Replace the computer cover (see Replacing the Computer Cover).

10.Turn on the computer.

Dell??? OptiPlex??? 740 User's Guide

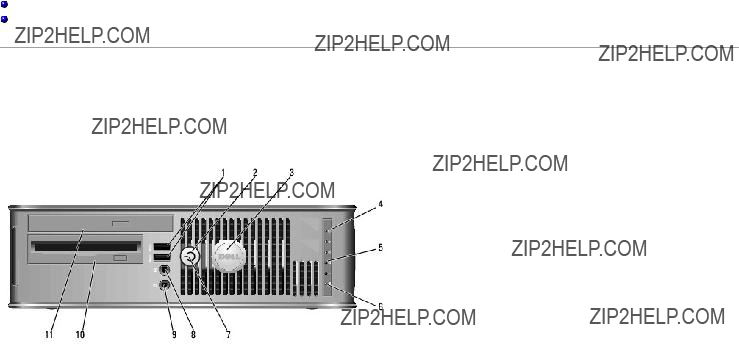

Desktop Computer

Notes, Notices, and Cautions

NOTE: A NOTE indicates important information that helps you make better use of your computer.

NOTICE: A NOTICE indicates either potential damage to hardware or loss of data and tells you how to avoid the problem.

CAUTION: A CAUTION indicates a potential for property damage, personal injury, or death.

Information in this document is subject to change without notice.

Reproduction in any manner whatsoever without the written permission of Dell Inc. is strictly forbidden.

Trademarks used in this text: Dell, the DELL logo, OptiPlex, Inspiron, Dimension, Latitude, Dell Precision, DellNet, TravelLite, Dell OpenManage, PowerVault, Axim, PowerEdge, PowerConnect, and PowerApp are trademarks of Dell Inc.; AMD, AMD Athlon, AMD Phenom, and combinations thereof, and Cool 'n' Quiet are trademarks of Advanced Micro Devices, Inc; Microsoft and Windows are registered trademarks of Microsoft Corporation; IBM is a registered trademark of International Business Machines Corporation; Bluetooth is a trademark owned by Bluetooth SIG, Inc. and is used by Dell Inc. under license. ENERGY STAR is a registered trademark of the U.S. Environmental Protection Agency. As an ENERGY STAR partner, Dell Inc. has determined that this product meets the ENERGY STAR guidelines for energy efficiency.

Other trademarks and trade names may be used in this document to refer to either the entities claiming the marks and names or their products. Dell Inc. disclaims any proprietary interest in trademarks and trade names other than its own.

March 2008 RP699 Rev. A03

Back to Contents Page

I/O Panel

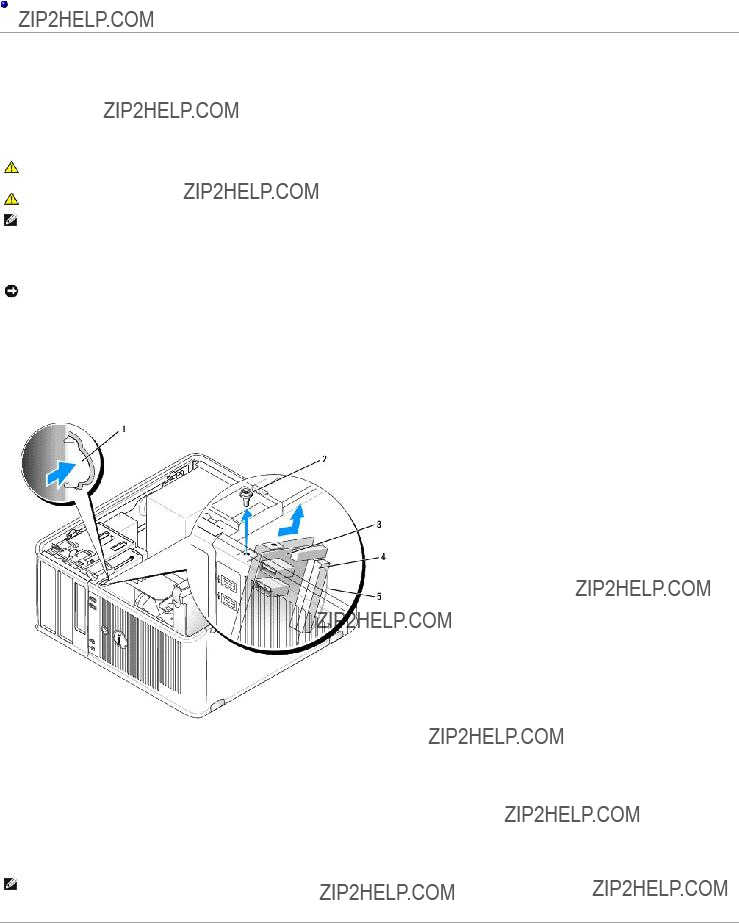

Removing the I/O Panel

CAUTION: Before you begin any of the procedures in this section, follow the safety instructions located in the Product Information Guide.

CAUTION: To guard against electrical shock, always unplug your computer from the electrical outlet before removing the cover.

NOTE: Note the routing of all cables before disconnecting them, so that you can re-route them correctly when installing the new I/O panel.

1.Follow the procedures in Before You Begin.

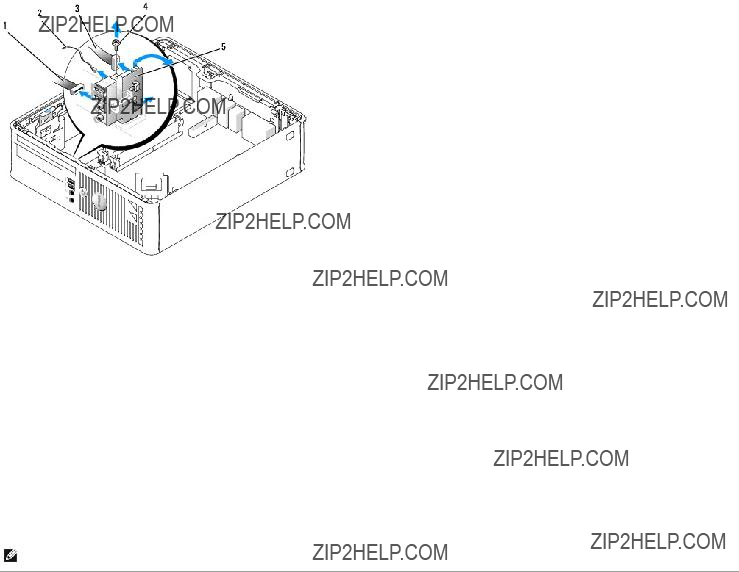

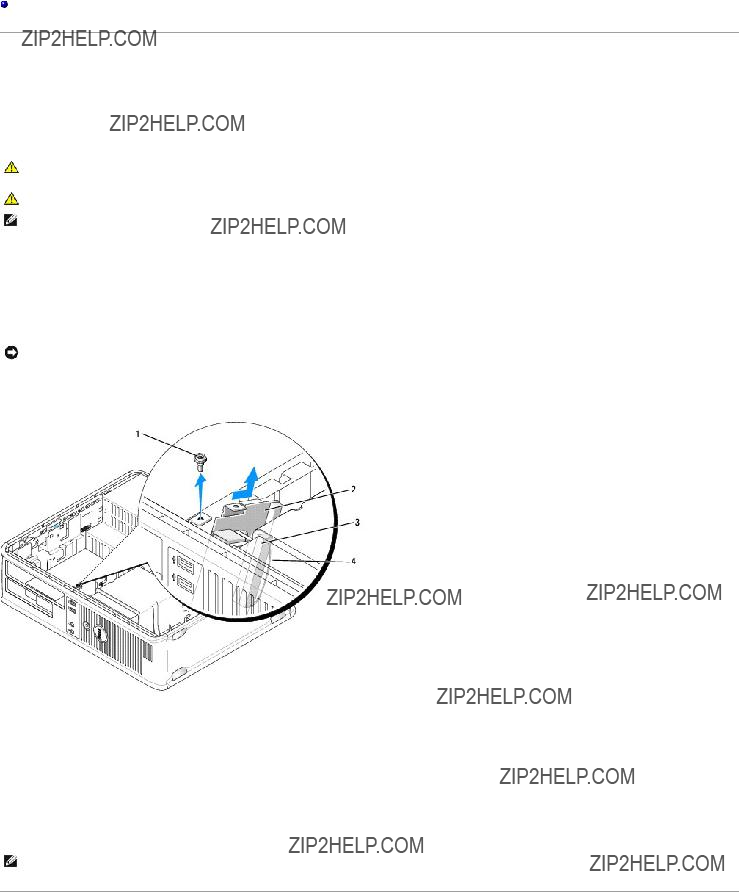

2.Remove the cable from the I/O panel by pulling on the pull-loop.

3.Remove the screw that secures the I/O panel to the desktop computer.

NOTICE: When sliding the I/O panel out of the computer, be extremely careful. Carelessness may result in damage to the cable connectors and the cable routing clips.

4. Gently rotate and slide the I/O panel away from the computer.

Replacing the I/O Panel

1. To replace the I/O panel, follow the removal procedures in the reverse order.

NOTE: Use the guides on the I/O panel bracket to help position the I/O panel in place and use the notch on the I/O panel bracket to help seat the card.

Back to Contents Page

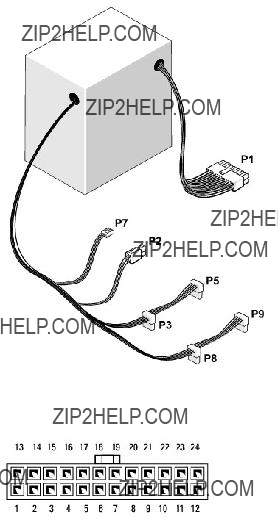

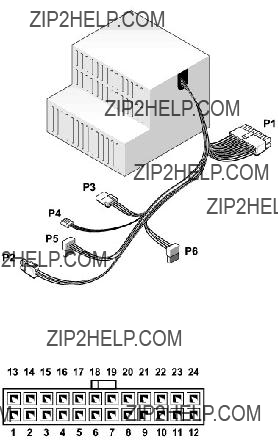

Power Supply

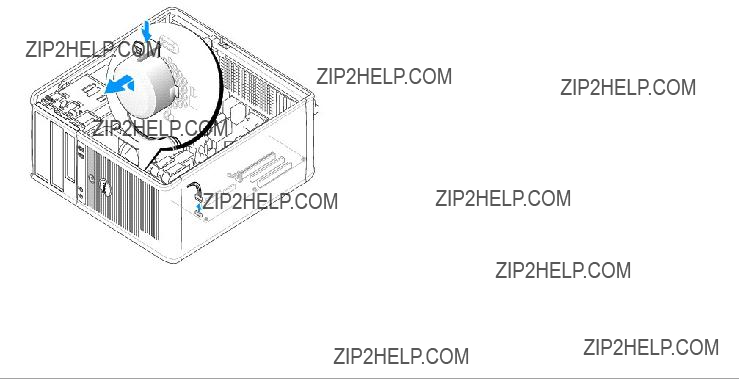

Replacing the Power Supply

CAUTION: Before you begin any of the procedures in this section, follow the safety instructions located in the Product Information Guide.

1.Follow the procedures in Before You Begin.

2.Disconnect the DC power cables from the system board and the drives.

Note the routing of the DC power cables underneath the tabs in the computer chassis as you remove them from the system board and drives. You must route these cables properly when you replace them to prevent their being pinched or crimped.

3.Remove the two screws that attach the power supply to the back of the computer chassis.

4.Remove the optical drive and carefully set it aside (see Removing an Optical Drive).

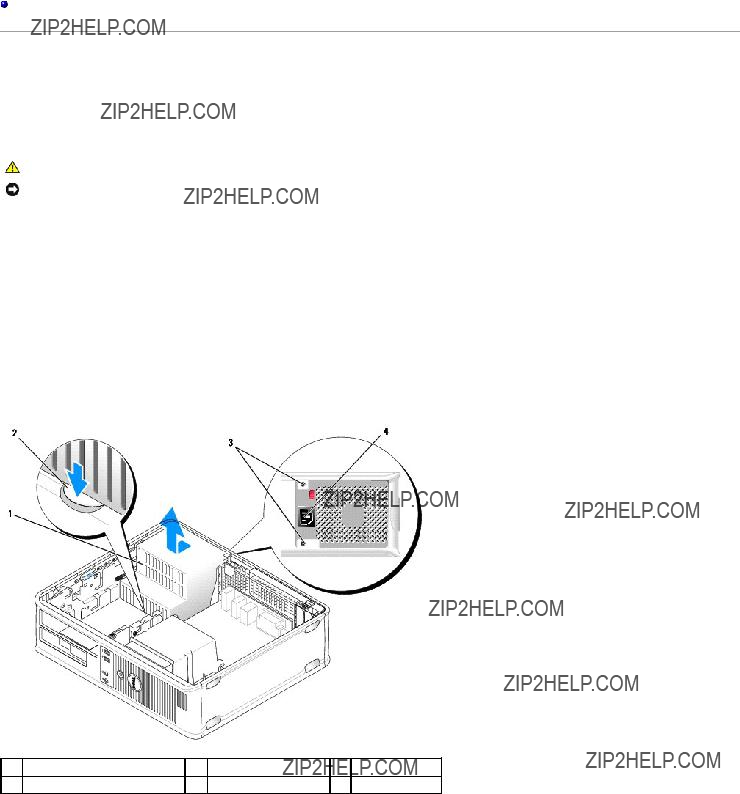

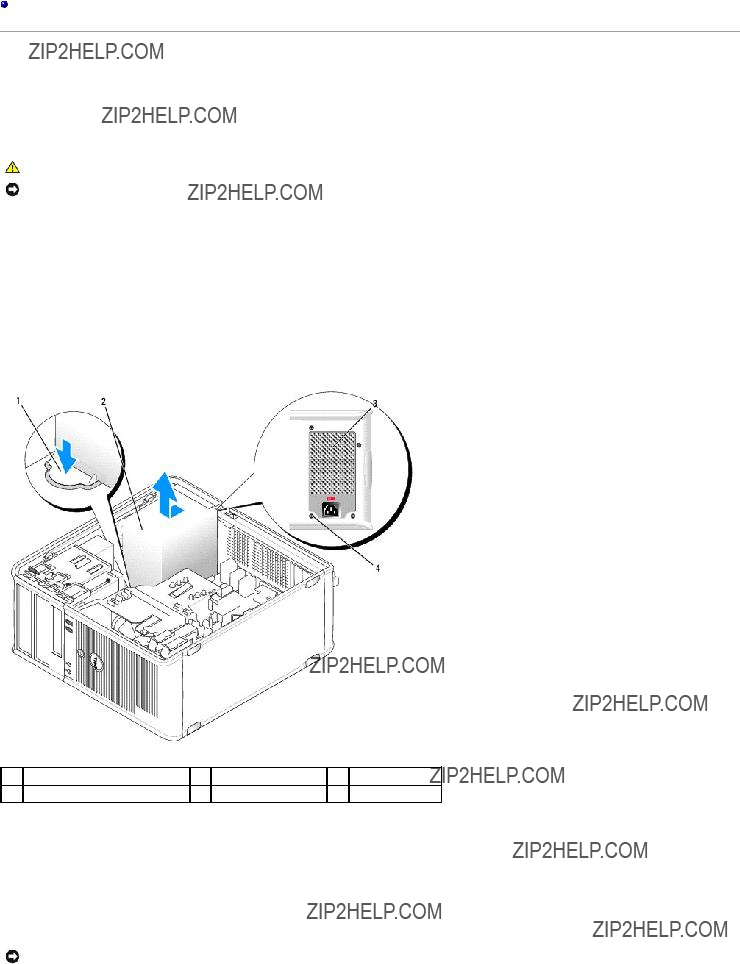

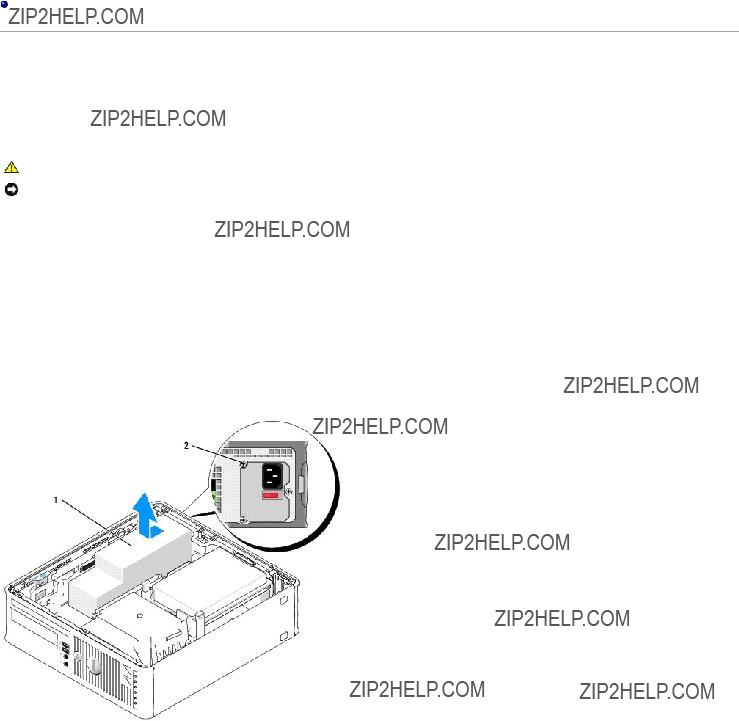

5.Press the release button located on the floor of the computer chassis.

4AC power connector

6.Slide the power supply toward the front of the computer by approximately 1 inch.

7.Lift the power supply up and out of the computer.

8.Slide the replacement power supply into place.

9.Replace the screws that secure the power supply to the back of the computer chassis.

10.Reconnect the DC power cables (see System Board Components for connector locations).

11.Replace the optical drive (see Installing an Optical Drive).

Back to Contents Page

Dell??? Optiplex??? 740 Systems

User's Guide

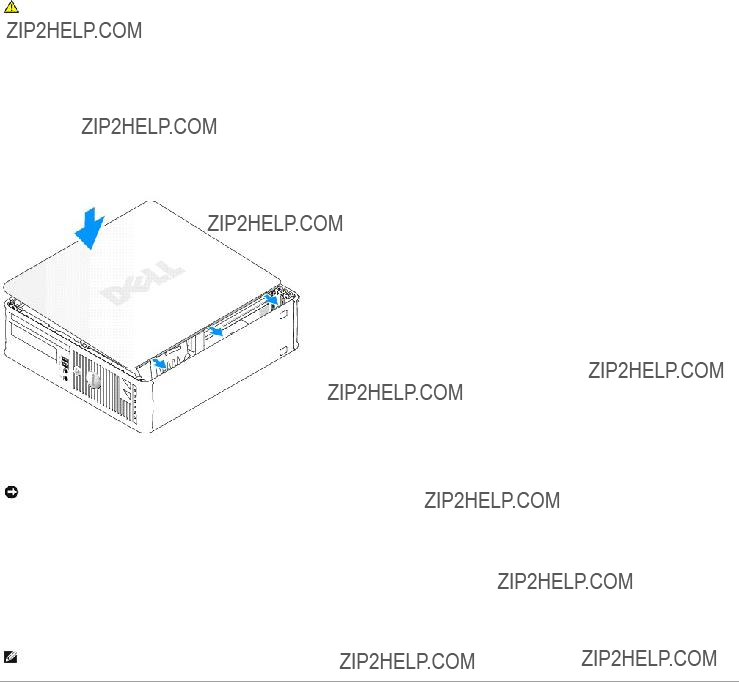

Removing the Computer Cover

CAUTION: Before you begin any of the procedures in this section, follow the safety instructions in the Product Information Guide.

CAUTION: To guard against electrical shock, always unplug your computer from the electrical outlet before removing the computer cover.

1.Follow the procedures in Before You Begin.

2.If you have installed a padlock through the padlock ring on the back panel, remove the padlock.

3.Locate the cover release latch shown in the illustration. Then, slide the release latch back as you lift the cover.

CAUTION: Graphic card heat sinks can become very hot during normal operation. Ensure that a graphic card heat sink has had sufficient time to cool before you touch it.

4.Grip the sides of the computer cover and pivot the cover up using the hinge tabs as leverage points.

5.Remove the cover from the hinge tabs and set it aside on a soft nonabrasive surface.

Back to Contents Page

Dell??? Optiplex??? 740 Systems

User's Guide

Speaker

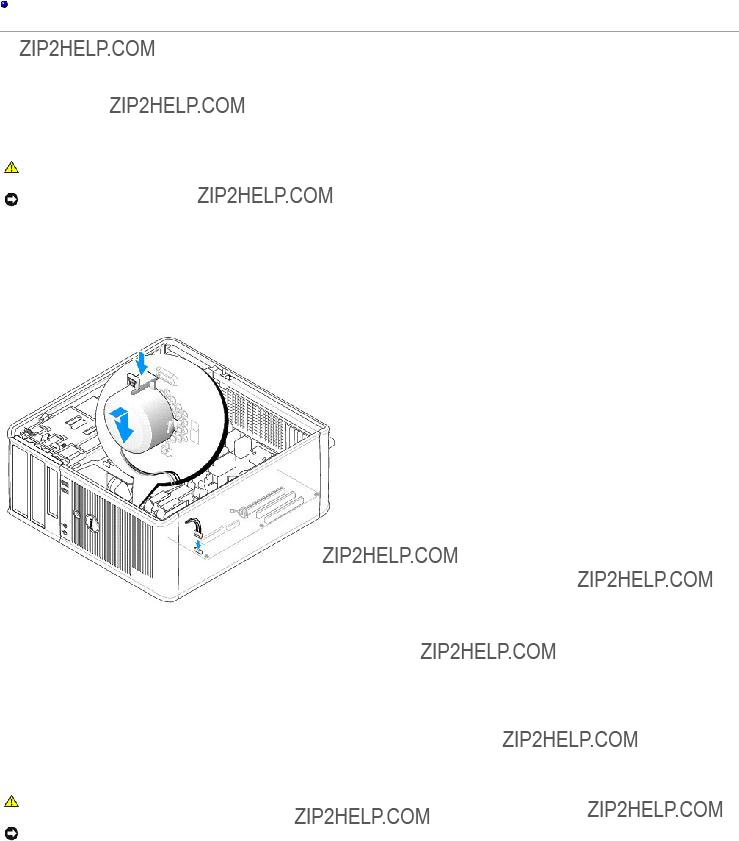

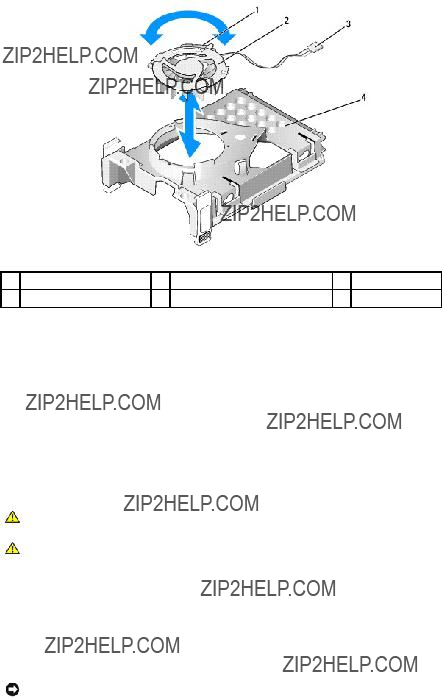

Installing a Speaker

CAUTION: Before you begin any of the procedures in this section, follow the safety instructions located in the Product Information Guide.

1.Follow the procedures in Before You Begin.

2.Remove the cover of your computer (see Removing the Computer Cover).

3.Attach the speaker to the system fan in the chassis of the computer.

4.Connect the cables to the system board.

5.Replace the computer cover.

6.Turn on power to the computer.

Removing a Speaker

CAUTION: Before you begin any of the procedures in this section, follow the safety instructions located in the Product Information Guide.

1.Follow the procedures in Before You Begin.

2.Remove the cover of your computer (see Removing the Computer Cover).

3.Disconnect the cables from the system board.

4.Remove the speaker from the system fan in the chassis of the computer.

5.Replace the computer cover.

6.Turn on power to the computer.

Back to Contents Page

located on your computer.

Your computer's Service Tag contains both a Service Tag number and an Express

Service Code.

???Use the Service Tag to identify your computer when you use support.dell.com or contact support.

???Enter the Express Service Code to direct your call when contacting support.

Use the product key on the Microsoft Windows License Label if you need to reinstall your operating system.

???Community ??? Online discussion with other Dell customers

???Upgrades ??? Upgrade information for components, such as memory, the hard drive, and the operating system

???Customer Care ??? Contact information, service call and order NOTE: Select your region or business segment to view the appropriate support

???Service and support ??? Service call status and support history, service contract, online discussions with technical support

???Dell Technical Update Service ??? Proactive e-mail notification of software and hardware updates for your computer

???Reference ??? Computer documentation, details on my computer configuration, product specifications, and white papers

???Downloads ??? Certified drivers, patches, and software updates

???Desktop System Software (DSS)??? If you reinstall the operating system for your computer, you should also reinstall the DSS utility. DSS provides critical updates for your operating system and support for Dell??? 3.5-inch USB floppy drives, AMD??? processors, optical drives, and USB devices. DSS is necessary for correct operation of your Dell computer. The software automatically detects your computer and operating system and installs the updates appropriate for your configuration.

To download Desktop System Software:

1.Go to support.dell.com and click Drivers and Downloads.

2.Click Select Model.

3.Select your product model and click Confirm, or enter a service tag and click Go.

4.Click System Utilities.

5.Click Desktop System Software under Dell - Utility, and click Download Now.

6.Click Run to run the driver, or Save to save the driver to your computer.

NOTE: The support.dell.com user interface may vary depending on your selections.

Back to Contents Page

Getting Help

Dell??? Optiplex??? 740 Systems

User's Guide

Obtaining Assistance

Problems With Your Order

Product Information

Returning Items for Warranty Repair or Credit

Before You Call

Contacting Dell

Obtaining Assistance

CAUTION: If you need to remove the computer covers, first disconnect the computer power and modem cables from all electrical outlets.

1.Complete the procedures in Before You Begin.

2.Run the Dell Diagnostics (see Dell Diagnostics).

3.Make a copy of the Diagnostics Checklist (see Diagnostics Checklist) and fill it out.

4.Use Dell's extensive suite of online services available at Dell Support (support.dell.com) for help with installation and troubleshooting procedures.

5.If the preceding steps have not resolved the problem, contact Dell.

NOTE: Call the support service from a telephone near or at the computer so that the support staff can assist you with any necessary procedures.

NOTE: Dell's Express Service Code system may not be available in all countries.

When prompted by Dell's automated telephone system, enter your Express Service Code to route the call directly to the proper support personnel. If you do not have an Express Service Code, open the Dell Accessories folder, double-click the Express Service Code icon, and follow the directions.

For instructions on using the support service, see Support Service.

NOTE: Some of the following services are not always available in all locations outside the continental U.S. Call your local Dell representative for information on availability.

Online Services

You can access Dell Support at support.dell.com. Select your region on the WELCOME TO DELL SUPPORT page, and fill in the requested details to access help tools and information.

You can contact Dell electronically using the following addresses:

???World Wide Web

www.dell.com/

www.dell.com/ap/ (Asian/Pacific countries only)

www.dell.com/jp (Japan only)

www.euro.dell.com (Europe only)

www.dell.com/la/ (Latin American and Caribbean countries)

www.dell.ca (Canada only)

???Anonymous file transfer protocol (FTP)

ftp.dell.com/

??? Electronic Support Service

mobile_support@us.dell.com

support@us.dell.com

la-techsupport@dell.com (Latin America and Caribbean countries only)

apsupport@dell.com (Asian/Pacific countries only)

support.jp.dell.com (Japan only)

support.euro.dell.com (Europe only)

???Electronic Quote Service

apmarketing@dell.com (Asian/Pacific countries only)

sales_canada@dell.com (Canada only)

AutoTech Service

Dell's automated support service???AutoTech???provides recorded answers to the questions most frequently asked by Dell customers about their portable and desktop computers.

When you call AutoTech, use your touch-tone telephone to select the subjects that correspond to your questions.

The AutoTech service is available 24 hours a day, 7 days a week. You can also access this service through the support service. For the telephone number to call for your region, see Contacting Dell.

Automated Order-Status Service

To check on the status of any Dell??? products that you have ordered, you can go to support.dell.com, or you can call the automated order-status service. A recording prompts you for the information needed to locate and report on your order. For the telephone number to call for your region, see Contacting Dell.

Support Service

Dell's support service is available 24 hours a day, 7 days a week, to answer your questions about Dell hardware. Our support staff uses computer-based diagnostics to provide fast, accurate answers.

To contact Dell's support service, see Obtaining Assistance and then call the number for your country as listed in Contacting Dell.

Problems With Your Order

If you have a problem with your order, such as missing parts, wrong parts, or incorrect billing, contact Dell for customer assistance. Have your invoice or packing slip handy when you call. For the telephone number to call for your region, see Contacting Dell.

Product Information

If you need information about additional products available from Dell, or if you would like to place an order, visit the Dell website at www.dell.com. For the telephone number to call for your region or to speak to a sales specialist, see Contacting Dell.

Returning Items for Warranty Repair or Credit

Prepare all items being returned, whether for repair or credit, as follows:

1.Call Dell to obtain a Return Material Authorization Number, and write it clearly and prominently on the outside of the box.

For the telephone number to call for your region, see Contacting Dell.

2.Include a copy of the invoice and a letter describing the reason for the return.

3.Include a copy of the Diagnostics Checklist (see Diagnostics Checklist), indicating the tests that you have run and any error messages reported by the Dell Diagnostics (see Dell Diagnostics).

4.Include any accessories that belong with the item(s) being returned (power cables, software floppy disks, guides, and so on) if the return is for credit.

5.Pack the equipment to be returned in the original (or equivalent) packing materials.

You are responsible for paying shipping expenses. You are also responsible for insuring any product returned, and you assume the risk of loss during shipment to Dell. Collect On Delivery (C.O.D.) packages are not accepted.

Returns that are missing any of the preceding requirements will be refused at Dell's receiving dock and returned to you.

Before You Call

NOTE: Have your Express Service Code ready when you call. The code helps Dell's automated-support telephone system direct your call more efficiently. You may also be asked for your Service Tag (located on the back or bottom of your computer).

Remember to fill out the Diagnostics Checklist (see Diagnostics Checklist). If possible, turn on your computer before you call Dell for assistance and call from a telephone at or near the computer. You may be asked to type some commands at the keyboard, relay detailed information during operations, or try other troubleshooting steps possible only at the computer itself. Ensure that the computer documentation is available.

CAUTION: Before working inside your computer, follow the safety instructions in your Product Information Guide.

Diagnostics Checklist

Name:

Date:

Address:

Phone number:

Service Tag (bar code on the back or bottom of the computer):

Express Service Code:

Return Material Authorization Number (if provided by Dell support technician):

Operating system and version:

Devices:

Expansion cards:

Are you connected to a network? Yes No

Network, version, and network adapter:

Programs and versions:

See your operating system documentation to determine the contents of the system's start-up files. If the computer is connected to a printer, print each file. Otherwise, record the contents of each file before calling Dell.

Error message, beep code, or diagnostic code:

Description of problem and troubleshooting procedures you performed:

Contacting Dell

For customers in the United States, call 800-W W W-DELL (800-999-3355).

NOTE: If you do not have an active Internet connection, you can find contact information on your purchase invoice, packing slip, bill, or Dell product catalog.

Dell provides several online and telephone-based support and service options. Availability varies by country and product, and some services may not be available in your area. To contact Dell for sales, technical support, or customer service issues:

1.Visit support.dell.com.

2.Verify your country or region in the Choose A Country/Region drop-down menu at the bottom of the page.

3.Click Contact Us on the left side of the page.

4.Select the appropriate service or support link based on your need.

5.Choose the method of contacting Dell that is convenient for you.

Back to Contents Page

Glossary

Terms in this Glossary are provided for informational purposes only and may or may not describe features included with your particular computer.

AC ??? alternating current ??? The form of electricity that powers your computer when you plug the AC adapter power cable in to an electrical outlet.

ACPI ??? advanced configuration and power interface ??? A power management specification that enables Microsoft?? Windows?? operating systems to put a computer in standby or hibernate mode to conserve the amount of electrical power allocated to each device attached to the computer.

AGP ??? accelerated graphics port ??? A dedicated graphics port that allows system memory to be used for video-related tasks. AGP delivers a smooth, true-color video image because of the faster interface between the video circuitry and the computer memory.

AHCI ??? Advanced Host Controller Interface ??? An interface for a SATA hard drive Host Controller which allows the storage driver to enable technologies such as Native Command Queuing (NCQ) and hot plug.

ALS ??? ambient light sensor ??? A feature that helps to control display brightness.

antivirus software ??? A program designed to identify, quarantine, and/or delete viruses from your computer.

ASF ??? alert standards format ??? A standard to define a mechanism for reporting hardware and software alerts to a management console. ASF is designed to be platform- and operating system-independent.

battery life span ??? The length of time (years) during which a portable computer battery is able to be depleted and recharged.

battery operating time ??? The length of time (minutes or hours) that a portable computer battery powers the computer.

BIOS ??? basic input/output system ??? A program (or utility) that serves as an interface between the computer hardware and the operating system. Unless you understand what effect these settings have on the computer, do not change them. Also referred to as system setup.

bit ??? The smallest unit of data interpreted by your computer.

Bluetooth?? wireless technology ??? A wireless technology standard for short-range (9 m [29 feet]) networking devices that allows for enabled devices to automatically recognize each other.

boot sequence ??? Specifies the order of the devices from which the computer attempts to boot.

bootable media ??? A disk that you can use to start your computer. In case your hard drive is damaged or your computer has a virus, ensure that you always have a bootable DVD, CD, or floppy disk available. Your Drivers and Utilities media.

bps ??? bits per second ??? The standard unit for measuring data transmission speed.

BTU ??? British thermal unit ??? A measurement of heat output.

bus ??? A communication pathway between the components in your computer.

bus speed ??? The speed, given in MHz, that indicates how fast a bus can transfer information.

byte ??? The basic data unit used by your computer. A byte is usually equal to 8 bits.

C ??? Celsius ??? A temperature measurement scale where 0?? is the freezing point and 100?? is the boiling point of water.

cache ??? A special high-speed storage mechanism which can be either a reserved section of main memory or an independent high-speed storage device. The cache enhances the efficiency of many processor operations.

L1 cache ??? Primary cache stored inside the processor.

L2 cache ??? Secondary cache which can either be external to the processor or incorporated into the processor architecture.

carnet ??? An international customs document that facilitates temporary imports into foreign countries. Also known as a merchandise passport.

CD-R ??? CD recordable ??? A recordable version of a CD. Data can be recorded only once onto a CD-R. Once recorded, the data cannot be erased or written over.

CD-RW ??? CD rewritable ??? A rewritable version of a CD. Data can be written to a CD-RW disc, and then erased and written over (rewritten).

CD-RW drive ??? A drive that can read CDs and write to CD-RW (rewritable CDs) and CD-R (recordable CDs) discs. You can write to CD-RW discs multiple times,

but you can write to CD-R discs only once.

CD-RW/DVD drive ??? A drive, sometimes referred to as a combo drive, that can read CDs and DVDs and write to CD-RW (rewritable CDs) and CD-R (recordable CDs) discs. You can write to CD-RW discs multiple times, but you can write to CD-R discs only once.

clock speed ??? The speed, given in MHz, that indicates how fast computer components that are connected to the system bus operate.

COA ??? Certificate of Authenticity ??? The Windows alpha-numeric code located on a sticker on your computer. Also referred to as the Product Key or

Product ID.

Control Panel ??? A Windows utility that allows you to modify operating system and hardware settings, such as display settings.

controller ??? A chip that controls the transfer of data between the processor and memory or between the processor and devices.

CRIMM ??? continuity rambus in-line memory module ??? A special module that has no memory chips and is used to fill unused RIMM slots.

cursor ??? The marker on a display or screen that shows where the next keyboard, touch pad, or mouse action will occur. It often is a blinking solid line, an underline character, or a small arrow.

DDR SDRAM ??? double-data-rate SDRAM ??? A type of SDRAM that doubles the data burst cycle, improving system performance.

DDR2 SDRAM ??? double-data-rate 2 SDRAM ??? A type of DDR SDRAM that uses a 4-bit prefetch and other architectural changes to boost memory speed to over 400 MHz.

device ??? Hardware such as a disk drive, printer, or keyboard that is installed in or connected to your computer.

device driver ??? See driver.

DIMM ??? dual in-line memory module ??? A circuit board with memory chips that connects to a memory module on the system board.

DIN connector ??? A round, six-pin connector that conforms to DIN (Deutsche Industrie-Norm) standards; it is typically used to connect PS/2 keyboard or mouse cable connectors.

disk striping ??? A technique for spreading data over multiple disk drives. Disk striping can speed up operations that retrieve data from disk storage. Computers that use disk striping generally allow the user to select the data unit size or stripe width.

DMA ??? direct memory access ??? A channel that allows certain types of data transfer between RAM and a device to bypass the processor.

docking device ??? See APR.

DMTF ??? Distributed Management Task Force ??? A consortium of hardware and software companies who develop management standards for distributed desktop, network, enterprise, and Internet environments.

domain ??? A group of computers, programs, and devices on a network that are administered as a unit with common rules and procedures for use by a specific group of users. A user logs on to the domain to gain access to the resources.

DRAM ??? dynamic random-access memory ??? Memory that stores information in integrated circuits containing capacitors.

driver ??? Software that allows the operating system to control a device such as a printer. Many devices do not work properly if the correct driver is not installed in the computer.

DSL ??? Digital Subscriber Line ??? A technology that provides a constant, high-speed Internet connection through an analog telephone line.

dual-core ??? A technology in which two physical computational units exist inside a single processor package, thereby increasing computing efficiency and multi- tasking ability.

dual display mode ??? A display setting that allows you to use a second monitor as an extension of your display. Also referred to as extended display mode.

DVD-R ??? DVD recordable ??? A recordable version of a DVD. Data can be recorded only once onto a DVD-R. Once recorded, the data cannot be erased or written over.

DVD+RW ??? DVD rewritable ??? A rewritable version of a DVD. Data can be written to a DVD+RW disc, and then erased and written over (rewritten). (DVD+RW technology is different from DVD-RW technology.)

DVD+RW drive ??? drive that can read DVDs and most CD media and write to DVD+RW (rewritable DVDs) discs.

DVI ??? digital video interface ??? A standard for digital transmission between a computer and a digital video display.

ECC ??? error checking and correction ??? A type of memory that includes special circuitry for testing the accuracy of data as it passes in and out of memory.

ECP ??? extended capabilities port ??? A parallel connector design that provides improved bidirectional data transmission. Similar to EPP, ECP uses direct memory access to transfer data and often improves performance.

EIDE ??? enhanced integrated device electronics ??? An improved version of the IDE interface for hard drives and CD drives.

EMI ??? electromagnetic interference ??? Electrical interference caused by electromagnetic radiation.

ENERGY STAR?? ??? Environmental Protection Agency requirements that decrease the overall consumption of electricity.

EPP ??? enhanced parallel port ??? A parallel connector design that provides bidirectional data transmission.

ESD ??? electrostatic discharge ??? A rapid discharge of static electricity. ESD can damage integrated circuits found in computer and communications equipment.

expansion card ??? A circuit board that installs in an expansion slot on the system board in some computers, expanding the capabilities of the computer. Examples include video, modem, and sound cards.

expansion slot ??? A connector on the system board (in some computers) where you insert an expansion card, connecting it to the system bus.

ExpressCard ??? A removable I/O card adhering to the PCMCIA standard. Modems and network adapters are common types of ExpressCards. ExpressCards support both the PCI Express and USB 2.0 standard.

Express Service Code ??? A numeric code located on a sticker on your Dell??? computer. Use the Express Service Code when contacting Dell for assistance.

Express Service Code service may not be available in some countries.

extended display mode ??? A display setting that allows you to use a second monitor as an extension of your display. Also referred to as dual display mode.

extended PC Card ??? A PC Card that extends beyond the edge of the PC Card slot when installed.

Fahrenheit ??? A temperature measurement scale where 32?? is the freezing point and 212?? is the boiling point of water.

FBD ??? fully-buffered DIMM ??? A DIMM with DDR2 DRAM chips and an Advanced Memory Buffer (AMB) that speeds communication between the DDR2 SDRAM chips and the system.

FCC ??? Federal Communications Commission ??? A U.S. agency responsible for enforcing communications-related regulations that state how much radiation computers and other electronic equipment can emit.

fingerprint reader ??? A strip sensor that uses your unique fingerprint to authenticate your user identity to help secure your computer.

folder ??? A term used to describe space on a disk or drive where files are organized and grouped. Files in a folder can be viewed and ordered in various ways, such as alphabetically, by date, and by size.

format ??? The process that prepares a drive or disk for file storage. When a drive or disk is formatted, the existing information on it is lost.

FSB ??? front side bus ??? The data path and physical interface between the processor and RAM.

FTP ??? file transfer protocol ??? A standard Internet protocol used to exchange files between computers connected to the Internet.

G ??? gravity ??? A measurement of weight and force.

GB ??? gigabyte ??? A measurement of data storage that equals 1024 MB (1,073,741,824 bytes). When used to refer to hard drive storage, the term is often rounded to 1,000,000,000 bytes.

GHz ??? gigahertz ??? A measurement of frequency that equals one thousand million Hz, or one thousand MHz. The speeds for computer processors, buses, and interfaces are often measured in GHz.

graphics mode ??? A video mode that can be defined as x horizontal pixels by y vertical pixels by z colors. Graphics modes can display an unlimited variety of shapes and fonts.

GUI ??? graphical user interface ??? Software that interacts with the user by means of menus, windows, and icons. Most programs that operate on the Windows operating systems are GUIs.

hard drive ??? A drive that reads and writes data on a hard disk. The terms hard drive and hard disk are often used interchangeably.

heat sink ??? A metal plate on some processors that helps dissipate heat.

hibernate mode ??? A power management mode that saves everything in memory to a reserved space on the hard drive and then turns off the computer. When you restart the computer, the memory information that was saved to the hard drive is automatically restored.

HTTP ??? hypertext transfer protocol ??? A protocol for exchanging files between computers connected to the Internet.

HyperTransport ??? HyperTransport is an AMD??? technology that can increase overall computer performance by removing bottlenecks, increasing system bandwidth, and reducing system latency.

Hz ??? hertz ??? A unit of frequency measurement that equals 1 cycle per second. Computers and electronic devices are often measured in kilohertz (kHz), megahertz (MHz), gigahertz (GHz), or terahertz (THz).

IC ??? integrated circuit ??? A semiconductor wafer, or chip, on which thousands or millions of tiny electronic components are fabricated for use in computer, audio, and video equipment.

IDE ??? integrated device electronics ??? An interface for mass storage devices in which the controller is integrated into the hard drive or CD drive.

IEEE 1394 ??? Institute of Electrical and Electronics Engineers, Inc. ??? A high-performance serial bus used to connect IEEE 1394-compatible devices, such as digital cameras and DVD players, to the computer.

infrared sensor ??? A port that allows you to transfer data between the computer and infrared-compatible devices without using a cable connection.

integrated ??? Usually refers to components that are physically located on the computer's system board. Also referred to as built-in.

I/O ??? input/output ??? An operation or device that enters and extracts data from your computer. Keyboards and printers are I/O devices.

I/O address ??? An address in RAM that is associated with a specific device (such as a serial connector, parallel connector, or expansion slot) and allows the processor to communicate with that device.

IrDA ??? Infrared Data Association ??? The organization that creates international standards for infrared communications.

IRQ ??? interrupt request ??? An electronic pathway assigned to a specific device so that the device can communicate with the processor. Each device connection must be assigned an IRQ. Although two devices can share the same IRQ assignment, you cannot operate both devices simultaneously.

ISP ??? Internet service provider ??? A company that allows you to access its host server to connect directly to the Internet, send and receive e-mail, and access websites. The ISP typically provides you with a software package, user name, and access phone numbers for a fee.

Kb ??? kilobit ??? A unit of data that equals 1024 bits. A measurement of the capacity of memory integrated circuits.

KB ??? kilobyte ??? A unit of data that equals 1024 bytes but is often referred to as 1000 bytes.

key combination ??? A command requiring you to press multiple keys at the same time.

kHz ??? kilohertz ??? A measurement of frequency that equals 1000 Hz.

LAN ??? local area network ??? A computer network covering a small area. A LAN usually is confined to a building or a few nearby buildings. A LAN can be connected to another LAN over any distance through telephone lines and radio waves to form a wide area network (WAN).

LCD ??? liquid crystal display ??? The technology used by portable computer and flat-panel displays.

LED ??? light-emitting diode ??? An electronic component that emits light to indicate the status of the computer.

local bus ??? A data bus that provides a fast throughput for devices to the processor.

LPT ??? line print terminal ??? The designation for a parallel connection to a printer or other parallel device.

Mb ??? megabit ??? A measurement of memory chip capacity that equals 1024 Kb.

Mbps ??? megabits per second ??? One million bits per second. This measurement is typically used for transmission speeds for networks and modems.

MB ??? megabyte ??? A measurement of data storage that equals 1,048,576 bytes. 1 MB equals 1024 KB. When used to refer to hard drive storage, the term is often rounded to 1,000,000 bytes.

MB/sec ??? megabytes per second ??? One million bytes per second. This measurement is typically used for data transfer ratings.

media bay ??? A bay that supports devices such as optical drives, a second battery, or a Dell TravelLite??? module.

memory ??? A temporary data storage area inside your computer. Because the data in memory is not permanent, it is recommended that you frequently save your files while you are working on them, and always save your files before you shut down the computer. Your computer can contain several different forms of memory, such as RAM, ROM, and video memory. Frequently, the word memory is used as a synonym for RAM.

memory address ??? A specific location where data is temporarily stored in RAM.

memory mapping ??? The process by which the computer assigns memory addresses to physical locations at start-up. Devices and software can then identify information that the processor can access.

memory module ??? A small circuit board containing memory chips, which connects to the system board.

MHz ??? megahertz ??? A measure of frequency that equals 1 million cycles per second. The speeds for computer processors, buses, and interfaces are often measured in MHz.

Mini PCI ??? A standard for integrated peripheral devices with an emphasis on communications such as modems and NICs. A Mini PCI card is a small external card that is functionally equivalent to a standard PCI expansion card.

Mini-Card ??? A small card designed for integrated peripherals, such as communication NICs. The Mini-Card is functionally equivalent to a standard PCI expansion card.

modem ??? A device that allows your computer to communicate with other computers over analog telephone lines. Three types of modems include: external, PC Card, and internal. You typically use your modem to connect to the Internet and exchange e-mail.

module bay ??? See media bay.

MP ??? megapixel ??? A measure of image resolution used for digital cameras.

ms ??? millisecond ??? A measure of time that equals one thousandth of a second. Access times of storage devices are often measured in ms.

network adapter ??? A chip that provides network capabilities. A computer may include a network adapter on its system board, or it may contain a PC Card with an adapter on it. A network adapter is also referred to as a NIC (network interface controller).

NIC ??? See network adapter.

notification area ??? The section of the Windows taskbar that contains icons for providing quick access to programs and computer functions, such as the clock, volume control, and print status. Also referred to as system tray.

ns ??? nanosecond ??? A measure of time that equals one billionth of a second.

NVRAM ??? nonvolatile random access memory ??? A type of memory that stores data when the computer is turned off or loses its external power source. NVRAM is used for maintaining computer configuration information such as date, time, and other system setup options that you can set.

optical drive ??? A drive that uses optical technology to read or write data from CDs, DVDs, or DVD+RWs. Example of optical drives include CD drives, DVD drives, CD-RW drives, and CD-RW/DVD combo drives.

parallel connector ??? An I/O port often used to connect a parallel printer to your computer. Also referred to as an LPT port.

partition ??? A physical storage area on a hard drive that is assigned to one or more logical storage areas known as logical drives. Each partition can contain multiple logical drives.

PC Card ??? A removable I/O card adhering to the PCMCIA standard. Modems and network adapters are common types of PC Cards.

PCI ??? peripheral component interconnect ??? PCI is a local bus that supports 32-and 64-bit data paths, providing a high-speed data path between the processor and devices such as video, drives, and networks.

PCI Express ??? A modification to the PCI interface that boosts the data transfer rate between the processor and the devices attached to it. PCI Express can transfer data at speeds from 250 MB/sec to 4 GB/sec. If the PCI Express chip set and the device are capable of different speeds, they will operate at the slower speed.

PCMCIA ??? Personal Computer Memory Card International Association ??? The organization that establishes standards for PC Cards.

PIO ??? programmed input/output ??? A method of transferring data between two devices through the processor as part of the data path.

pixel ??? A single point on a display screen. Pixels are arranged in rows and columns to create an image. A video resolution, such as 800 x 600, is expressed as the number of pixels across by the number of pixels up and down.

Plug-and-Play ??? The ability of the computer to automatically configure devices. Plug and Play provides automatic installation, configuration, and compatibility with existing hardware if the BIOS, operating system, and all devices are Plug and Play compliant.

POST ??? power-on self-test ??? Diagnostics programs, loaded automatically by the BIOS, that perform basic tests on the major computer components, such as memory, hard drives, and video. If no problems are detected during POST, the computer continues the start-up.

processor ??? A computer chip that interprets and executes program instructions. Sometimes the processor is referred to as the CPU (central processing unit).

PS/2 ??? personal system/2 ??? A type of connector for attaching a PS/2-compatible keyboard, mouse, or keypad.

PXE ??? pre-boot execution environment ??? A WfM (Wired for Management) standard that allows networked computers that do not have an operating system to be configured and started remotely.

RAID ??? redundant array of independent disks ??? A method of providing data redundancy. Some common implementations of RAID include RAID 0, RAID 1, RAID 5, RAID 10, and RAID 50.

RAM ??? random-access memory ??? The primary temporary storage area for program instructions and data. Any information stored in RAM is lost when you shut down your computer.

readme file ??? A text file included with a software package or hardware product. Typically, readme files provide installation information and describe new product enhancements or corrections that have not yet been documented.

read-only ??? Data and/or files you can view but cannot edit or delete. A file can have read-only status if:

??It resides on a physically write-protected floppy disk, CD, or DVD.

??It is located on a network in a directory and the system administrator has assigned rights only to specific individuals.

refresh rate ??? The frequency, measured in Hz, at which your screen's horizontal lines are recharged (sometimes also referred to as its vertical frequency). The higher the refresh rate, the less video flicker can be seen by the human eye.

resolution ??? The sharpness and clarity of an image produced by a printer or displayed on a monitor. The higher the resolution, the sharper the image.

RFI ??? radio frequency interference ??? Interference that is generated at typical radio frequencies, in the range of 10 kHz to 100,000 MHz. Radio frequencies are at the lower end of the electromagnetic frequency spectrum and are more likely to have interference than the higher frequency radiations, such as infrared and light.

ROM ??? read-only memory ??? Memory that stores data and programs that cannot be deleted or written to by the computer. ROM, unlike RAM, retains its contents after you shut down your computer. Some programs essential to the operation of your computer reside in ROM.

RPM ??? revolutions per minute ??? The number of rotations that occur per minute. Hard drive speed is often measured in rpm.

RTC ??? real time clock ??? Battery-powered clock on the system board that keeps the date and time after you shut down the computer.

RTCRST ??? real-time clock reset ??? A jumper on the system board of some computers that can often be used for troubleshooting problems.

SAS ??? serial attached SCSI ??? A faster, serial version of the SCSI interface (as opposed to the original SCSI parallel architecture).

SATA ??? serial ATA ??? A faster, serial version of the ATA (IDE) interface.

ScanDisk ??? A Microsoft utility that checks files, folders, and the hard disk's surface for errors. ScanDisk often runs when you restart the computer after it has stopped responding.

SCSI ??? small computer system interface ??? A high-speed interface used to connect devices to a computer, such as hard drives, CD drives, printers, and scanners. The SCSI can connect many devices using a single controller. Each device is accessed by an individual identification number on the SCSI controller bus.

SDRAM ??? synchronous dynamic random-access memory ??? A type of DRAM that is synchronized with the optimal clock speed of the processor.

serial connector ??? An I/O port often used to connect devices such as a handheld digital device or digital camera to your computer.

Service Tag ??? A bar code label on your computer that identifies your computer when you access Dell Support at support.dell.com or when you call Dell for customer service or technical support.

setup program ??? A program that is used to install and configure hardware and software. The setup.exe or install.exe program comes with most Windows software packages. Setup program differs from system setup.

shortcut ??? An icon that provides quick access to frequently used programs, files, folders, and drives. When you place a shortcut on your Windows desktop and double-click the icon, you can open its corresponding folder or file without having to find it first. Shortcut icons do not change the location of files. If you delete a shortcut, the original file is not affected. Also, you can rename a shortcut icon.

SIM ??? Subscriber Identity Module ??? A SIM card contains a microchip that encrypts voice and data transmissions. SIM cards can be used in phones or portable computers.

smart card ??? A card that is embedded with a processor and a memory chip. Smart cards can be used to authenticate a user on computers equipped for smart cards.

S/PDIF ??? Sony/Philips Digital Interface ??? An audio transfer file format that allows the transfer of audio from one file to another without converting it to and from an analog format, which could degrade the quality of the file.

standby mode ??? A power management mode that shuts down all unnecessary computer operations to save energy.

Strike Zone??? ??? Reinforced area of the platform base that protects the hard drive by acting as a dampening device when a computer experiences resonating shock or is dropped (whether the computer is on or off).

surge protectors ??? Prevent voltage spikes, such as those that may occur during an electrical storm, from entering the computer through the electrical outlet. Surge protectors do not protect against lightning strikes or against brownouts, which occur when the voltage drops more than 20 percent below the normal AC-line voltage level.

Network connections cannot be protected by surge protectors. Always disconnect the network cable from the network connector during electrical storms.

SVGA ??? super-video graphics array ??? A video standard for video cards and controllers. Typical SVGA resolutions are 800 x 600 and 1024 x 768.

The number of colors and resolution that a program displays depends on the capabilities of the monitor, the video controller and its drivers, and the amount of video memory installed in the computer.

S-video TV-out ??? A connector used to attach a TV or digital audio device to the computer.

SXGA ??? super-extended graphics array ??? A video standard for video cards and controllers that supports resolutions up to 1280 x 1024.

SXGA+ ??? super-extended graphics array plus ??? A video standard for video cards and controllers that supports resolutions up to 1400 x 1050.

system board ??? The main circuit board in your computer. Also known as the motherboard.

system setup ??? A utility that serves as an interface between the computer hardware and the operating system. System setup allows you to configure user- selectable options in the BIOS, such as date and time or system password. Unless you understand what effect the settings have on the computer, do not change the settings for this program.

TAPI ??? telephony application programming interface ??? Enables Windows programs to operate with a wide variety of telephony devices, including voice, data, fax, and video.

text editor ??? A program used to create and edit files that contain only text; for example, Windows Notepad uses a text editor. Text editors do not usually provide word wrap or formatting functionality (the option to underline, change fonts, and so on).

TPM ??? trusted platform module ??? A hardware-based security feature that when combined with security software enhances network and computer security by enabling features such as file and e-mail protection.

travel module ??? A plastic device designed to fit inside the module bay of a portable computer to reduce the weight of the computer.

UMA ??? unified memory allocation ??? System memory dynamically allocated to video.

UPS ??? uninterruptible power supply ??? A backup power source used when the electrical power fails or drops to an unacceptable voltage level. A UPS keeps a computer running for a limited amount of time when there is no electrical power. UPS systems typically provide surge suppression and may also provide voltage regulation. Small UPS systems provide battery power for a few minutes to enable you to shut down your computer.

USB ??? universal serial bus ??? A hardware interface for a low-speed device such as a USB-compatible keyboard, mouse, joystick, scanner, set of speakers, printer, broadband devices (DSL and cable modems), imaging devices, or storage devices. Devices are plugged directly in to a 4-pin socket on your computer or in to a multi-port hub that plugs in to your computer. USB devices can be connected and disconnected while the computer is turned on, and they can also be daisy-chained together.

UTP ??? unshielded twisted pair ??? Describes a type of cable used in most telephone networks and some computer networks. Pairs of unshielded wires are twisted to protect against electromagnetic interference, rather than relying on a metal sheath around each pair of wires to protect against interference.

UXGA ??? ultra extended graphics array ??? A video standard for video cards and controllers that supports resolutions up to 1600 x 1200.

video controller ??? The circuitry on a video card or on the system board (in computers with an integrated video controller) that provides the video capabilities???in combination with the monitor???for your computer.

video memory ??? Memory that consists of memory chips dedicated to video functions. Video memory is usually faster than system memory. The amount of video memory installed primarily influences the number of colors that a program can display.

video mode ??? A mode that describes how text and graphics are displayed on a monitor. Graphics-based software, such as Windows operating systems, displays in video modes that can be defined as x horizontal pixels by y vertical pixels by z colors. Character-based software, such as text editors, displays in video modes that can be defined as x columns by y rows of characters.

video resolution ??? See resolution.

virus ??? A program that is designed to inconvenience you or to destroy data stored on your computer. A virus program moves from one computer to another through an infected disk, software downloaded from the Internet, or e-mail attachments. When an infected program starts, its embedded virus also starts.

A common type of virus is a boot virus, which is stored in the boot sectors of a floppy disk. If the floppy disk is left in the drive when the computer is shut down and then turned on, the computer is infected when it reads the boot sectors of the floppy disk expecting to find the operating system. If the computer is infected, the boot virus may replicate itself onto all the floppy disks that are read or written in that computer until the virus is eradicated.

V ??? volt ??? The measurement of electric potential or electromotive force. One V appears across a resistance of 1 ohm when a current of 1 ampere flows through that resistance.

W ??? watt ??? The measurement of electrical power. One W is 1 ampere of current flowing at 1 volt.

WHr ??? watt-hour ??? A unit of measure commonly used to indicate the approximate capacity of a battery. For example, a 66-WHr battery can supply 66 W of power for 1 hour or 33 W for 2 hours.

wallpaper ??? The background pattern or picture on the Windows desktop. Change your wallpaper through the Windows Control Panel. You can also scan in your favorite picture and make it wallpaper.

WLAN ??? wireless local area network. A series of interconnected computers that communicate with each other over the air waves using access points or wireless routers to provide Internet access.

write-protected ??? Files or media that cannot be changed. Use write-protection when you want to protect data from being changed or destroyed. To write- protect a 3.5-inch floppy disk, slide its write-protect tab to the open position.

WWAN ??? wireless wide area network. A wireless high-speed data network using cellular technology and covering a much larger geographic area than WLAN.

WXGA ??? wide-aspect extended graphics array ??? A video standard for video cards and controllers that supports resolutions up to 1280 x 800.

XGA ??? extended graphics array ??? A video standard for video cards and controllers that supports resolutions up to 1024 x 768.

ZIF ??? zero insertion force ??? A type of socket or connector that allows a computer chip to be installed or removed with no stress applied to either the chip or its socket.

Zip ??? A popular data compression format. Files that have been compressed with the Zip format are called Zip files and usually have a filename extension of .zip. A special kind of zipped file is a self-extracting file, which has a filename extension of .exe. You can unzip a self-extracting file by double-clicking it.

Zip drive ??? A high-capacity floppy drive developed by Iomega Corporation that uses 3.5-inch removable disks called Zip disks. Zip disks are slightly larger than regular floppy disks, about twice as thick, and hold up to 100 MB of data.

Back to Contents Page

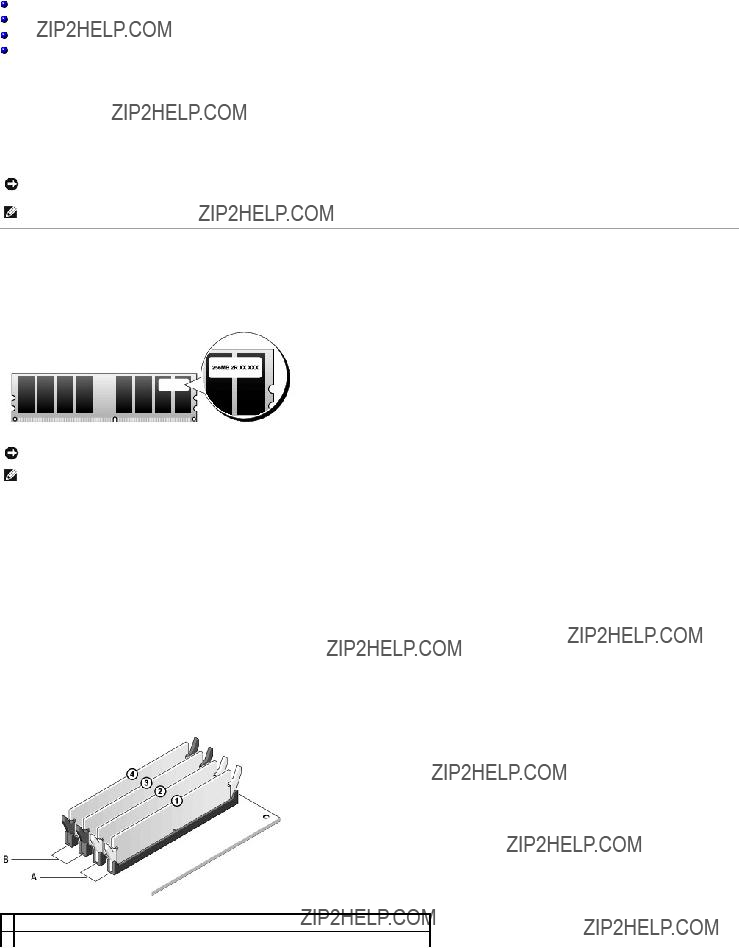

Memory

Dell??? Optiplex??? 740 Systems

User's Guide

DDR2 Memory Overview

Addressing Memory With 4-GB or Greater Configurations (32-bit Operating Systems Only)

Removing Memory

Installing Memory

Your computer supports non-ECC DDR2 memory only. For more information on the type of memory supported by your computer, see the "Memory" section of the specifications for your computer:

???Mini Tower Computer (Model #DCSM) Specifications

???Desktop Computer (Model # DCNE) Specifications

???Small Form Factor Computer (Model # DCCY) Specifications

NOTICE: Before you install new memory modules, download the most recent BIOS for your computer from the Dell Support website at support.dell.com.

NOTE: Memory purchased from Dell is covered under your computer warranty.

DDR2 Memory Overview

Dual-channel DDR2 memory modules should be installed in pairs of matched memory size. If the DDR2 memory modules are not installed with the same amount of memory in each channel, the computer will continue to operate, but with a slight reduction in performance. See the label in the upper-right corner of the module to determine the module's capacity.

NOTICE: Do not install ECC memory modules. Doing so may cause the system not to boot or otherwise impact performance.

NOTE: Always install DDR2 memory modules in the order indicated on the system board.

The recommended memory configurations are:

??? A pair of matched memory modules installed in connectors DIMM1 and DIMM2

???A memory module installed in connector DIMM1

???A pair of matched memory modules installed in connectors DIMM1 and DIMM2 and another matched pair installed in connectors DIMM3 and DIMM4

Be sure to install a single memory module in DIMM1, the connector closest to the edge of the system board, before you install modules in the other connectors.

Mini Tower, Desktop, and Small Form Factor Matched Pairs

Amatched pair of memory modules in connectors DIMM1 and DIMM2 (white securing clips)

Bmatched pair of memory modules in connectors DIMM3 and DIMM4 (black securing clips).

Addressing Memory With 4-GB or Greater Configurations (32-bit Operating Systems Only)

This computer supports a maximum of 8 GB of memory. Current 32-bit operating systems, such as Microsoft?? Windows?? XP, can use a maximum of 4 GB of address space; however, the amount of memory available to the operating system is less than that installed. Certain components within the computer require address space in the 4-GB range. Any address space reserved for these components cannot be used by computer memory.

The following components require memory address space:

???System ROM

???APIC(s)

???Integrated PCI devices, such as network connectors and SCSI controllers

???PCI cards

???Graphics card(s)

???PCI Express cards (if applicable)

At start-up, the BIOS identifies the components that require address space. The BIOS dynamically calculates the amount of reserved address space required. The BIOS then subtracts the reserved address space from 4 GB to determine the amount of usable space.

???If the total installed computer memory is less than the usable address space, all installed computer memory is available for use only by the operating system.

???If the total installed computer memory is equal to or greater than the usable address space, a portion of installed memory is not available for use by the operating system.

Removing Memory

CAUTION: Before you begin any of the procedures in this section, follow the safety instructions in the Product Information Guide.

NOTICE: If you remove your original memory modules from the computer during a memory upgrade, keep them separate from any new modules that you may have, even if you purchased the new modules from Dell. If possible, do not pair an original memory module with a new memory module. Otherwise, your computer may not start properly.

You should install your original memory modules in pairs either in connectors DIMM1 and DIMM2 or connectors DIMM3 and DIMM4.

NOTICE: Removing memory modules from DIMM3 and DIMM4 on the desktop computer requires you to remove the optical drive (see Optical Drive). Failure to do so may cause damage to the memory module and the DIMM socket.

1.Follow the procedures in Before You Begin.

2.If you are using:

???a desktop computer: remove the optical drive (see Removing an Optical Drive).

???a small form factor computer: first remove the optical drive (see Removing an Optical Drive)then remove the floppy drive or Media Card Reader. (see Removing a Floppy Drive or Media Card Reader).

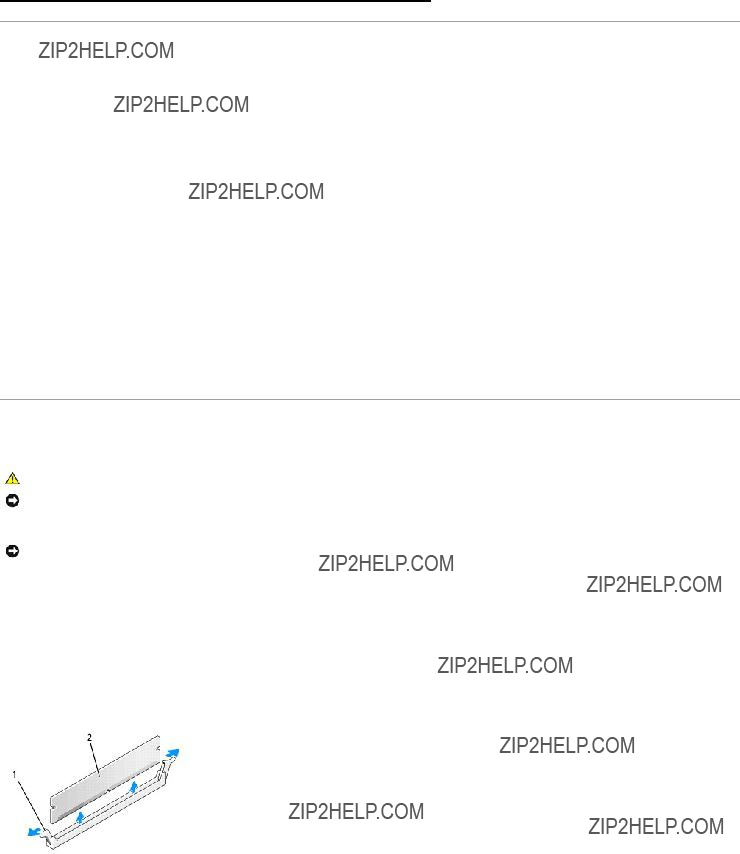

3.Carefully press out the securing clip at each end of the memory module connector.

4.Remove the memory module. If you are replacing a memory module, see Installing Memory.

5.If you are using:

???a desktop computer: replace the optical drive (see Installing an Optical Drive).

???a small form factor computer: first replace the floppy drive or media card reader (see Installing a Floppy Drive or Media Card Reader) and then replace the optical drive (see Installing an Optical Drive).

6.Replace the computer cover (see Replacing the Computer Cover).

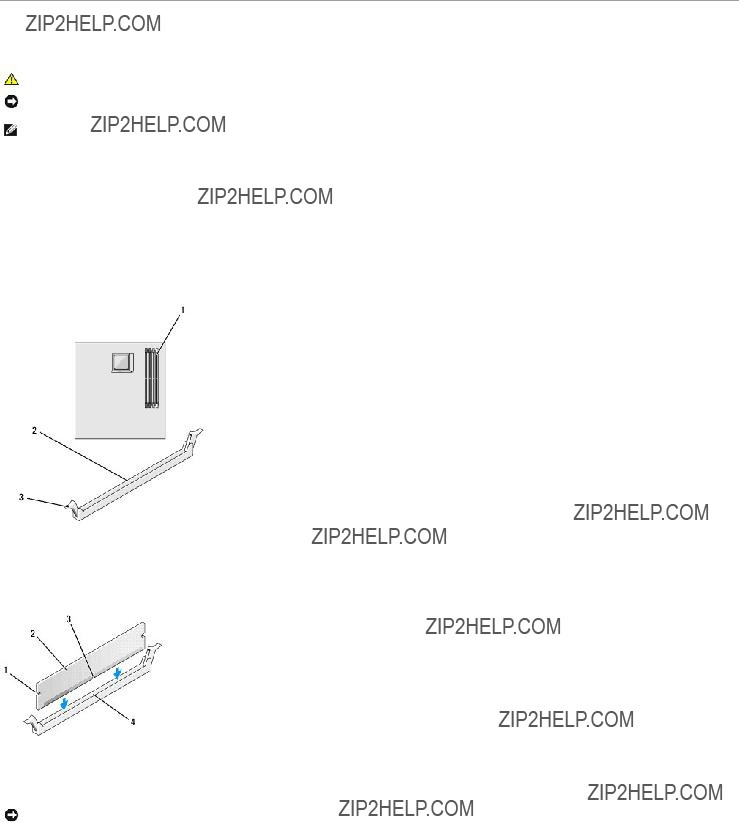

Installing Memory

CAUTION: Before you begin any of the procedures in this section, follow the safety instructions in the Product Information Guide.

NOTE: Memory purchased from Dell is covered under your computer warranty.

1.Follow the procedures in Before You Begin.

2.If you are using:

???a desktop computer: remove the optical drive (see Removing an Optical Drive).

???a small form factor computer: first remove the optical drive (see Removing an Optical Drive) and then remove the floppy drive or media card reader (see Removing a Floppy Drive or Media Card Reader).

3.Press out the securing clip at each end of the memory module connector.

4. Align the notch on the bottom of the module with the crossbar in the connector.

NOTICE: To avoid damage to the memory module, press the module straight down into the connector while you apply equal force to each end of the module.

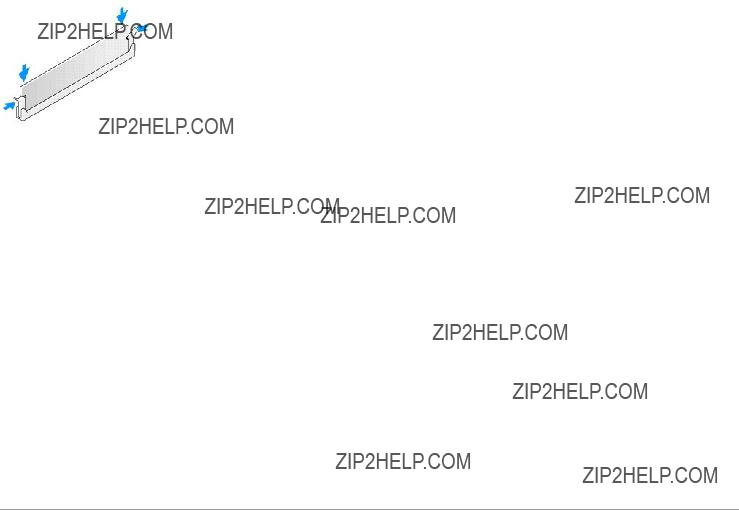

5.Insert the module into the connector until the module snaps into position.

If you insert the module correctly, the securing clips snap into the cutouts at each end of the module.

6. If you are using:

???a desktop computer: replace the optical drive (see Installing an Optical Drive).

7.Replace the computer cover (see Replacing the Computer Cover).

8.The computer detects that the new memory does not match the existing configuration information and generates the following message:

The amount of system memory has changed.

Strike the F1 key to continue, F2 to run the setup utility

9.Press <F2> to enter system setup and check the value for System Memory.

The computer should have changed the value of System Memory to reflect the newly installed memory. Verify the new total. If it is correct, skip to step 11.

10.If the memory total is incorrect, turn off and disconnect your computer and devices from their electrical outlets. Open the computer cover and check the installed memory modules to ensure that they are seated properly in their sockets. Then repeat steps 7, 8, and 9.

11.When the System Memory total is correct, press <Esc> to exit system setup.

12.Run the Dell Diagnostics (see Dell Diagnostics) to verify that the memory modules are operating properly.

Back to Contents Page

PCI, PCI Express Cards, and PS/2 Serial Port Adapters

CAUTION: Before you begin any of the procedures in this section, follow the safety instructions located in the Product Information Guide.

Your Dell??? computer supports a PS/2 serial adapter and provides the following connectors for PCI and PCI Express cards.

???Two PCI card slots

???One PCI Express x16 card slot

???One PCI Express x1 card slot

NOTE: Your Dell computer uses only PCI and PCI Express slots. ISA cards are not supported.

PCI Cards

Installing a PCI Card

1. Follow the procedures in Before You Begin.

NOTE: For PCI card locations, see System Board Components.

2. Gently push the release tab on the card retention latch from the inside to pivot the latch open. The latch will remain in the open position.

3.If you are installing a new card, remove the filler bracket to create a card-slot opening. Then continue with step 5.

5. Prepare the new card for installation.

NOTE: See the documentation that came with the card for information on configuring the card, making internal connections, or customizing it for your computer

6. Place the card in the connector and press down firmly. Ensure that the card is fully seated in the slot.

NOTE: If the card is full-length, insert the end of the card into the card-guide bracket as you lower the card toward its connector on the system board. Insert the card firmly into the card connector on the system board.

7. Secure the card(s) by closing the card retention latch and snapping it into place.

NOTICE: Do not route card cables over the cards. Cables routed over the cards can prevent the computer cover from closing properly or cause damage to the equipment.

8.Connect any cables that should be attached to the card.

9.Replace the computer cover (see Replacing the Computer Cover).

NOTICE: To connect a network cable, first plug the cable into the network wall jack and then plug it into the computer.

NOTE: See the documentation for the card for information about the card's cable connections.

10.If you installed a sound card:

a.Enter system setup, select Integrated Audio from the Onboard Devices group, and change the setting to Off (see System Setup).

b.Connect external audio devices to the sound card's connectors. Do not connect external audio devices to the line-in connector on the back panel of the computer (see Back-Panel Connectors).

11.If you installed a network adapter card and want to turn off the integrated network adapter:

a.Enter system setup, select Integrated NIC from the Onboard Devices group, and change the setting to Off (see System Setup).

b.Connect the network cable to the network adapter card's connectors. Do not connect the network cable to the integrated network connector on the back panel of the computer.

12.Install any drivers required for the card as described in the card documentation.

Removing a PCI Card

1.Follow the procedures in Before You Begin

2.Gently push the release tab on the card retention latch from the inside to pivot the latch open. The latch will remain in the open position.

3.If necessary, disconnect any cables connected to the card.

4.Grasp the card by its top corners, and ease it out of its connector.

5.If you are removing the card permanently, install a filler bracket in the empty card-slot opening.

NOTE: Installing filler brackets over empty card-slot openings is necessary to maintain FCC certification of the computer. The brackets also keep dust and dirt out of your computer.

6. Before you close the card retention mechanism, ensure that:

???The tops of all cards and filler brackets are flush with the alignment bar.

???The notch in the top of the card or filler bracket fits around the alignment guide.

4bracket caught outside of slot

7.Secure the card(s) by closing the card retention latch and snapping it into place.

8.Replace the computer cover (see Replacing the Computer Cover).

9.Uninstall the card's driver. See the documentation that came with the card for instructions.

10.If you removed a sound card:

a.Enter system setup, select Integrated Audio from the Onboard Devices group, and change the setting to On (see System Setup).

b.Connect external audio devices to the audio connectors on the back panel of the computer.

11.If you removed an network-adapter card connector:

a.Enter system setup, select Integrated NIC from the Onboard Devices group, and change the setting to On (see System Setup).

b.Connect the network cable to the integrated network connector on the back panel of the computer.

PCI Express Cards

Your computer supports one PCI Express x16 card and one PCI Express x1 card. See System Board Components for the location of the PCI Express card slots.

If you are replacing a card, uninstall the driver for the existing card. See the documentation that came with the card for instructions.

Installing a PCI Express x1 Card

1. Follow the procedures in Before You Begin.

2.Gently push the release tab on the card retention latch from the inside to pivot the latch open. The latch will remain in the open position.

3.If you are installing a new card, remove the filler bracket to create a card-slot opening. Then continue with step 5.

4.If you are replacing a card that is already installed in the computer, remove the card (see Removing a PCI Express x1 Card).

If necessary, disconnect any cables connected to the card. Then continue with step 6.

5.Prepare the new card for installation.

See the documentation that came with the card for information on configuring the card, making internal connections, or otherwise customizing it for your computer.

6. Place the card in the connector and press down firmly. Ensure that the card is fully seated in the slot.

7. Before you close the card retention mechanism, ensure that:

???The tops of all cards and filler brackets are flush with the alignment bar.

???The notch in the top of the card or filler bracket fits around the alignment guide.

8.Close the card retention latch and gently press until it clicks into place.

NOTICE: Do not route card cables over the cards. Cables routed over the cards can prevent the computer cover from closing properly or cause damage to the equipment.

NOTICE: To connect a network cable, first plug the cable into the network wall jack and then plug it into the computer.

9.Connect any cables that should be attached to the card.

See the documentation for the card for information about the card's cable connections.

10.Replace the computer cover (see Replacing the Computer Cover).

11.If you installed a sound card:

a.Enter system setup, select Integrated Audio from the Onboard Devices group, and change the setting to Off (see System Setup.

b.Connect external audio devices to the sound card's connectors. Do not connect external audio devices to the line-in connector on the back panel of the computer. Back-Panel Connectors.

12.If you installed a network adapter card and want to turn off the integrated network adapter:

a.Enter system setup, select Integrated NIC from the Onboard Devices group, and change the setting to Off (see System Setup.

b.Connect the network cable to the network adapter card's connectors. Do not connect the network cable to the integrated network connector on the back panel of the computer.

13.Install any drivers required for the card as described in the card documentation.

Removing a PCI Express x1 Card
