System I/O Modules

Systems support a maximum of 11 I/O channels with three KFTHA-AA modules installed and no internal storage, and 10 I/O channels with internal storage.

System I/O module (included) with four KFTHA-AA I/O channels for DWLPB-DA shelf

mount boxes, maximum three per system

Storage Controllers

PCI UltraSCSI Controllers

Tru64 UNIX V4.0E or later supports eight KZPBA-Cx SCSI controllers per PCI, maximum of 64 per system.

OpenVMS V7.1.2 or later supports eight KZPBA-Cx SCSI controllers per PCI, maximum of 26 per system.

Tape and optical devices are not supported with KZPAC SCSI RAID controllers.

For cluster configurations, use Y cable (BN39A-0G) or SCSI Hub (BA35X-03/05).

Manufacturing may substitute correct cable lengths depending on configuration.

..

Storage Controllers (continued)

DSSI and CI Adapters (OpenVMS only)

External Storage Controllers

HSZ70 UltraSCSI RAID Array controllers are supported under Tru64 UNIX V3.2G, V4.0B or later and OpenVMS V6.2-1H3 for direct attachments or OpenVMS V7.1-1H1 or later for cluster support.

HSJ50 CI Storage Array Controllers are supported under OpenVMS V6.2-1H3 or later with CIPCA- AA/BA or CIXCD-AC CI controllers; QB-5C4AA- SA software kits are required for each external cache (one for HSJ50, two for HSJ52, four for HSJ54).

Controllers require KZPSA, KZPBA, KFPSA, or CIPCA SCSI adapters or controllers, as appropriate.

HSZ70 requires QB-5SBAB-SA/SB for Tru64 UNIX, or QB-5SBAC-SA/SB for OpenVMS.

to 128 MB; requires 400569-001 for Tru64 UNIX or 400571-001 for OpenVMS.

StorageWorks UltraSCSI RAID Array DS-HSZ70-AH controller, includes 64-MB cache

expandable to 128 MB; requires DS-HS35X-BC external cache battery and HSZ70 kit .

Internal Storage (continued)

UltraSCSI hubs are supported with KZPBA-CB PCI differential SCSI adapters.

UltraSCSI Hub with three differential ports (two host ports and one storage port), no single-ended ports, in 3.5??? SBB, UltraSCSI cables not included

UltraSCSI Hub with five differential ports, no single ended ports, consists of four host ports and one storage port in 5.25??? SBB, UltraSCSI cables not included

UltraSCSI Hub with one differential port and two single-ended ports in 3.5??? SBB, UltraSCSI cables not included

16-bit Wide Drives

36.4-GB 10,000 rpm 16-bit UltraSCSI disk drive SBB (not supported on KZPAC controllers)

18.2-GB 10,000 rpm 16-bit UltraSCSI disk drive SBB (not supported on KZPAC controllers)

18.2-GB 7200 rpm 16-bit UltraSCSI disk drive SBB (not supported on KZPAC controllers)

9.1-GB 10,000 rpm 16-bit UltraSCSI disk drive SBB

9.1-GB 7200 rpm 16-bit UltraSCSI disk drive SBB

Tape Devices

DS-DWZZH-03

DS-DWZZH-05

DS-DWZZH-21

DS-RZ1FB-VW

DS-RZ1ED-VW

DS-RZ1EA-VW

DS-RZ1DD-VW

DS-RZ1DA-VW

..

Tape drives not supported with KZPAC RAID controller

......................

Networks and Communications (continued)

PCI LAN Communications Controllers (continued)

..

Networks and Communications (continued)

PCI LAN Communications Controllers (continued)

Local and Wide Area Communications

Servers/Network Connectivity Products

Each communications server requires 802.3/Ethernet connection. Depending on server selected, either ThinWire BNC type connection (e.g., BC16M cable) or thick wire 15-pin AUI transceiver cable (e.g., BNE3x) is required. Additional items also required???see the Network Products Guide.

MEMORY CHANNEL

Up to two PCI System Area Network controllers are supported on GS60E with Console Firmware V5.5- x or later.

Tru64 UNIX Systems

Requires Tru64 UNIX V4.0F with TruCluster V1.6 or later

Each system node in a MEMORY CHANNEL cluster requires a TruCuster Production Server (QB-3RLAG-KA) or TruCluster MEMORY CHANNEL (QB-4ZCAG-AA) software license.

TruCluster MEMORY CHANNEL license (QB-4ZCAG-AA), normally used for high- performance technical computing applications, is not required if systems include a TruCluster Production Server license (QB-3RLAG-KA).

The following options are currently not supported with MEMORY CHANNEL: DJ-ML200, CIPCA.

OpenVMS Systems

Requires OpenVMS V7.1-2 or later and OpenVMS Cluster license (QL-MUZAG-AA)

2-node clusters can be configured by ordering a CCMAB-AA for each system and one BN29B-04 or BN29B-10 cable; cable connects directly to CCMAB-AA in each system.

For three or four system clusters, order one CCMAB- AA adapter and one BN29B-04 or BN29B-10 cable for each system and one CCMHB-AA hub for the cluster.

CCMHB-AA includes four CCMLB-AA line cards and supports up to four nodes; expansion up to eight system nodes can be achieved by adding up to four additional CCMLB-AA line cards

If two or more CCMAB-AA controllers are configured in each system, a second CCMHB-AA hub is required for clusters with more than two nodes; in 2-node clusters the CCMAB-AA may be directly connected.

MEMORY CHANNEL (continued)

Console Terminal

VT console terminal with EIA-232 25-pin DSUB connector is required, (even with KFE72 installed) for system power-up, diagnostics and console display, order unless otherwise available.

Shielded console cable included for connection to console terminal.

Graphics Support for Tru64 UNIX

Graphics support for GS60E running Tru64 UNIX V4.0E or later can be provided through combined use of

3X-KFE72-LA port option and SN-PBXGB-AA graphics adapter.

SN-PBXGB-AA requires 17??? or 21??? Professional Series monitor and keyboard for graphics support, unless available on-site

Selection of video extension cable and country- specific power cord is required for all monitor variants.

...........................

17??? (16??? viewable image size) professional series auto- scanning color monitor, Trinitron CRT, 0.25 mm aperture grill pitch, VGA to 1280 x 1024 at 75 Hz, TCO 95, MPR-II, Energy Star, attached

1.8-m video cable; requires video extension cable and country-specific power cord; Northern Hemisphere without power cord

Same as above except Southern Hemisphere without power cord

SN-VRQP7-24

SN-VRQP7-23

................

Keyboards (continued)

..........

Expansion???System Cabinet and I/O

Expansion Cabinet

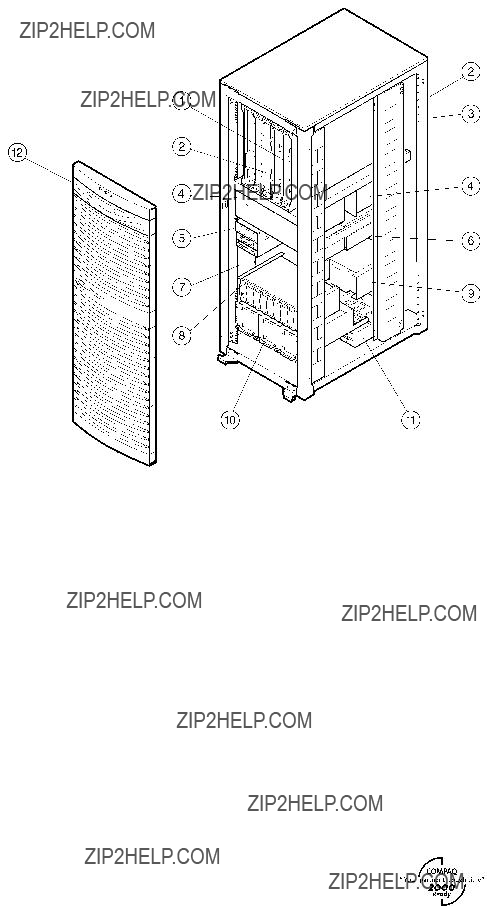

System Cabinet

System Cabinet includes PCI I/O shelf and StorageWorks shelf, and three 1600W 48 VDC power regulators for redundant hot-swappable power support

Provides space for four BA36R-RC/RD UltraSCSI StorageWorks Shelves, one DWLPB-DA (PCI shelf mount boxes), or two BA36R-RC/RD StorageWorks shelves and two PCI shelves

I/O Expansion Cabinet

Includes two 1600W 48 VDC power regulators providing N+1 hot swappable power redundancy; third space available for additional power supply for added power protection

Maximum of two I/O Expansion Cabinets per system PCI I/O shelf included in I/O Expansion Cabinet

Maximum of four PCI I/O shelves and three StorageWorks shelves or four StorageWorks shelves and three PCI I/O shelves supported in each I/O Expansion Cabinet

StorageWorks shelves mount from top of cabinet downward, front mount only.

PCI I/O shelves mount from bottom of cabinet upward, rear mount only.

Cabinet Power Options

System Cabinet with three power supplies and I/O Expansion Cabinet with two power supplies include necessary power and power redundancy required for all internal system components.

maximum of three per cabinet; option can be used to replace an existing power regulator in the System Cabinet and I/O Expansion Cabinet or provide additional power redundancy in the I/O Expansion Cabinet

Software

Tru64 UNIX

Tru64 UNIX systems include Traditional Unlimited User License, Server Extension, and Open Source Internet Solutions Software Kit.

Media and documentation are required for first system on-site.

Software (continued)

OpenVMS (continued)

Concurrent Use 1-user license Concurrent Use 2-user license Concurrent Use 4-user license Concurrent Use 8-user license Concurrent Use 16-user license Concurrent Use 32-user license Concurrent Use 64-user license Concurrent Use 128-user license Concurrent Use 256-user license Traditional unlimited user license

OpenVMS V7.1-2 media and online documentation on CD-ROM

QL-MT3AA-3B QL-MT3AA-3C QL-MT3AA-3D QL-MT3AA-3E QL-MT3AA-3F QL-MT3AA-3G QL-MT3AA-3H QL-MT3AA-3J QL-MT3AA-3K QL-MT2AG-AA QA-MT1AR-H8

OpenVMS V7.2-1 media and online QA-MT1AT-H8 documentation on CD-ROM

OpenVMS media and documentation on CD-ROM

OpenVMS base hard copy documentation

Layered products media and documentation for OpenVMS on CD-ROM; includes Compaq Enterprise Integration Server for OpenVMS media and documentation

QA-MT1AA-H8

QA-09SAA-GZ

QA-03XAA-H8

................

Hardware and Software Supplemental

Support Services

Installation or Installation and Startup is required for all AlphaServer GS60E systems. Consult a Compaq Customer Service Account Representative for assistance in selecting the support plan that is most appropriate. For more information on Compaq Services, see http://www.compaq.com/services.

Hardware Supplemental Support??? 4-GB memory Americas and Asia Pacific only

Systems include one-year hardware warranty, on-site, same day, 4-hour response time; select optional Hardware Supplemental Support Services, if required.

Hardware and Software Supplemental

Support Services (continued)

Software Supplemental Support??? 2 CPU Systems

(OpenVMS) (continued)

Hardware and Software Supplemental Support

Services??? Europe only

Europe does not offer specific part numbers for Hardware and Software Supplemental Support Services; prices are quoted based on worldwide service reference pricing. Contact MCS Sales in your country for information on Hardware and Software Supplemental Support Services.

Recommended Online Power Protection/UPS Solutions for GS60E

For complete protection, UPS products should be used with data line surge protectors.

Powerware Plus UPS Models

Models are hardwired on input and rated 50/60 Hz; North American models are rated 176V-256V in, 100/200V, 120/208V, 127/220V out; International models are rated 380/415V in, 380/415/220V out.

..

18kVA/12kW, seven minutes battery time at full load, two batteries, North America or other 60-Hz applications

15kVA/10kW, 16 minutes battery time at full load, two batteries, North America or other 60-Hz applications

4N-AEAAP-BA

4N-AEAAN-BC

..

Recommended Online Power Protection/UPS Solutions for GS60E

(continued)

UPS Receptacle Options/ Extended Battery

Options (continued)

UPS Monitoring and Unattended Shutdown Software (for previous UPS systems only)

Power Management software is included with all Alpha Servers in ServerWORKS manager kit. Software communicates with recommended UPS. Network adapter is required for Tru64 UNIX; multi- interface module (connects via terminal server) is required for OpenVMS. Software includes toolbar plug-in for ServerWORKS Manager on Tru64 UNIX only.
