9946 Series
Propane Stove
INSTRUCTIONS FOR USE
?? 2002 The Coleman Company, Inc. www.coleman.com
IMPORTANT
Read this manual carefully before assembling, using or servic- ing these stoves. Keep this manual for future reference. If you have questions about assembly, operation, servicing or repair of these stoves, please call Coleman at
Model
ANS
Contents
General Safety Information
To Set Up
To Light
To Turn Off
To Clean
Things You Should Know
Parts List
Warranty
General Safety Information
FOR YOUR SAFETY
If you smell gas:
1.Do not attempt to light appliance.
2.Extinguish any open flame.
3.Disconnect from fuel supply.
FOR YOUR SAFETY
Do not store or use gasoline or other liquids with flammable vapors in the vicinity of this or any other appliance.
2
DANGER
???CARBON MONOXIDE HAZARD
???This appliance can produce carbon monoxide which has no odor.
???Using it in an enclosed space can kill you.
???Never use this appliance in an enclosed space such as a camper, tent, car or home.
This manual contains important information about the assembly, opera- tion and maintenance of these propane stoves. General safety information is presented in these first few pages and is also located throughout the manual. Particular attention should be paid to information accompanied by the safety alert symbol ???
DANGER???, ???
WARNING???, ???
CAUTION???.
Keep this manual for future reference and to educate new users of this product. This manual should be read in conjunction with the labeling on the product.
Safety precautions are essential when any mechanical or propane fueled equipment is involved. These precautions are necessary when using, stor- ing, and servicing. Using this equipment with the respect and caution demanded will reduce the possibilities of personal injury or property damage.
The following symbols shown below are used extensively throughout this manual. Always heed these precautions, as they are essential when using any mechanical or propane fueled equipment.
General Safety Information cont.
DANGER
DANGER indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.
WARNING
WARNING indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.
CAUTION
CAUTION indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate personal injury, or property damage.
DANGER
Failure to comply with the precautions and instructions provided with these stoves can result in death, serious bodily injury and property loss or damage from hazards of fire, explosion, burn, asphyxiation, and/or carbon monoxide poisoning.
Only persons who can understand and follow the instructions should use or service these stoves.
If you need assistance or information such as an instruction manual or labels, contact the Coleman Co., Inc.
DANGER
???EXPLOSION - FIRE HAZARD
???Never store propane near high heat, open flames, pilot lights, direct sunlight, other ignition sources or where temperatures exceed 120 degrees F (49??C).
???Propane is heavier than air and can accumulate in low places. If you smell gas, leave the area immediately.
???Never install or remove propane tank while outdoor stove is lighted, near flame, pilot lights, other ignition sources or while outdoor stove is hot to touch.
???During operation, this product can be a source of ignition. Never use the stove in spaces that contain or may contain volatile or airborne com- bustibles, or products such as gasoline, solvents, paint thinner, dust par- ticles or unknown chemicals. Minimum clearances from combustible materials: 12 inches from the sides & 48 inches from the top.
???Provide adequate clearances around air openings into the combustion chamber.
WARNING
Not for home or recreational vehicle use.
We cannot foresee every use which may be made of our products.
Check with your local fire safety authority if you have questions about use.
Other standards govern the use of fuel gases and heat producing prod- ucts for specific uses. Your local authorities can advise you about these.
???Never refill disposable cylinders.
???Use the present regulator that came with the stove. Do not attempt to adjust.
3
General Safety Information cont.
DANGER
???CARBON MONOXIDE HAZARD
???This stove is a combustion appliance. All combustion appliances produce carbon monoxide (CO) during the combustion process. This product is designed to produce extremely minute,
???Carbon Monoxide (CO) poisoning produces
???For outdoor use only.
???Never use inside house, camper, tent, vehicle or other unventilated or enclosed areas. This stove consumes air (oxygen). Do not use in unventilated or enclosed areas to avoid endangering your life.
WARNING
???This product is fueled by propane gas. Propane gas is invisible, odorless, and flammable. An odorant is normally added to help detect leaks and can be described as a ???rotten egg??? smell. The odorant can fade over time so leaking gas is not always detectable by smell alone.
???Propane gas is heavier than air and leaking propane will sink to the lowest level possible. It can ignite by ignition sources including matches, lighters, sparks or open flames of any kind many feet away from the original leak. Use only propane gas set up for vapor withdrawal.
???Propane gas should be stored or used in compliance with local ordinances 4 and codes or with ANSI/NFPA 58. Turn off propane when not in use.
CALIFORNIA PROPOSITION 65:
WARNING: This fuel, and byproducts of combustion of this fuel, contain chemicals known to the state of California to cause cancer, birth defects, or other reproductive harm.
WARNING
???BURN HAZARD
???Never leave stove unattended when hot or in use.
???Keep out of reach of children.
CAUTION
???SERVICE SAFETY
???Keep all connections and fittings clean. Inspect propane cylinder and stove propane connections for damage before attaching.
???During set up, check all connections and fittings for leaks using soapy water. Bubbles indicate a leak. Never use a flame. Check that the connection is not
???Use as a cooking appliance only. Never alter in any way or use with any device or part not expressly approved by Coleman.
???Clean stove frequently to avoid grease accumulation and possible grease fires.
To Set Up
DANGER
???CARBON MONOXIDE HAZARD
???For outdoor use only.
???Never use inside house, camper, tent, vehicle or other unventilated or enclosed areas. This stove consumes air (oxygen). Do not use in unventilated or enclosed areas to avoid endangering your life.
Note: Use Coleman 16.4 oz disposable propane cylinders. The
???For outdoor use only.
???Remove components from carton.

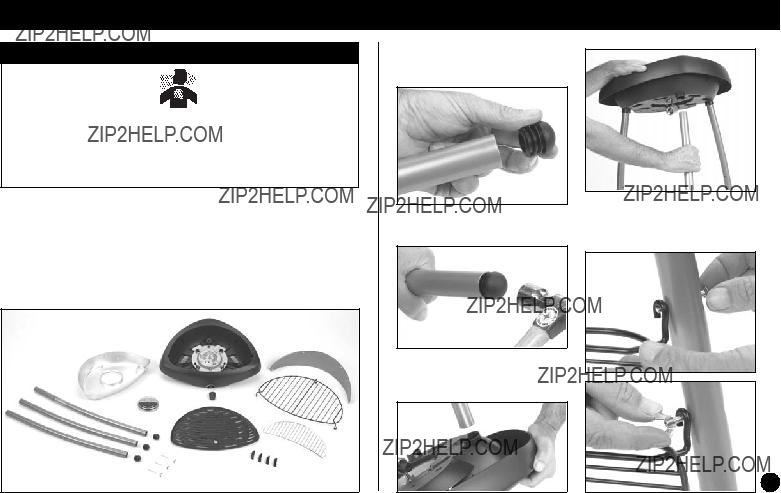

Installing Legs
??? Insert PLUGS into one end of each leg as shown.
??? Tap PLUG with hammer to drive into place
??? Insert LEGS into slots on bottom of stove as shown. Make sure legs are positioned solidly.
Installing Bottom Rack
??? Attach BOTTOM RACK with screws & wingnuts as shown
5

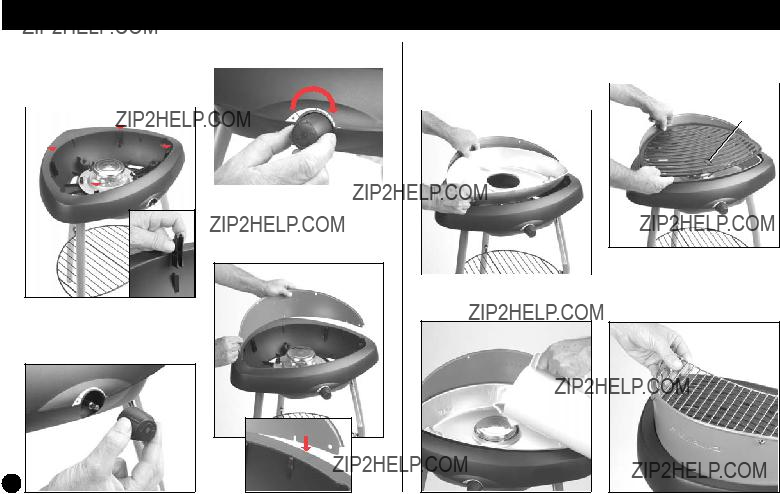

To Set Up cont.
Installing Windscreen
??? Align notch on WINDSCREEN with channel on base. Push down to secure.

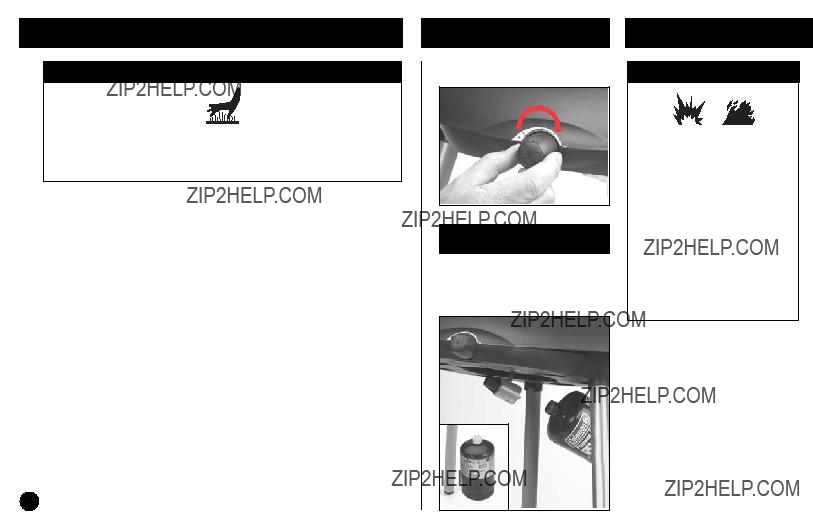

Installing Control Knob
??? Push KNOB onto regulator as shown.
6
To Set Up cont.
Attach propane cylinder
??? Make sure burner valve is turned to off position.
??? Check the connection between the cylinder and the regulator with soapy water. Bubbles indicate a leak. Never use a flame. Check that the connection is not
To Light
DANGER
???EXPLOSION - FIRE HAZARD
???Propane is heavier than air and can accumulate in low places. If you smell gas, leave the area immediately.
???Always attach or detach propane source outdoors; never while stove is lighted, near flame, pilot lights, other ignition sources or while stove is hot to touch.
???This stove is red hot during use and can ignite flammables too close to the burners. Keep flammables at least 12 inches from the sides and 48 inches from the top of the stove. Keep gasoline and other flammable liquids and vapors well away from stove.
??? Remove plastic cap from top of propane cylinder and screw propane cylinder into REGULATOR hand tight.
???Set on sturdy, flat area.
For outdoor use only.
???Insert lighted match through hole in GRILLING SURFACE and open
BURNER VALVE.
???Adjust flame with BURNER
VALVE.
???Flame should be blue with hint of yellow on tips.
A
Leak Check
??? Make
CAUTION
??? SERVICE SAFETY
Keep all connections and fittings clean. Inspect propane cylinder and stove propane connections for damage before attaching.
During set up, check all connec- tions and fittings for leaks using soapy water. Bubbles indicate a leak. Never use a flame.
7
To Light cont.
WARNING
??? BURN HAZARD
???Never leave stove unattended when hot or in use.
???Keep out of reach of children.
To Turn Off
??? Close BURNER VALVE firmly.
To Clean cont.
DANGER
??? EXPLOSION - FIRE HAZ-
ARD
Preheating:
??? Allow the grilling surface to pre- heat on full power for 1 minute to reach the ideal cooking tempera- ture for grilling food.
Cooking:
???The grilling surface has been treated with a high quality, non- stick coating on which food can be cooked in a healthy way without adding fat.
???As the fat is collected in the water tray, the food is cooked (with no residual or burned fat) and remains tasty and tender.
???The grilling surface reaches its highest temperature (ideal for sear- ing grilled meat) after one minute of
???Never leave the cooking plate on without food placed on it for longer
than the one minute preheating time, otherwise you will damage the special coating.
???Place the food on the grilling sur- face and then use the knob that controls the gas output to adjust the cooking temperature to suit your requirements.
???It is also possible to adjust the cooking intensity by positioning the food at different places on the grilling surface. The temperature is higher in the center and lower towards the outer edge.
???Do not handle the grilling surface when it is in use. To add water to the water tray, pour into the hole marked ???A???.
To Clean
??? Remove propane cylinder from REGULATOR and replace plastic cap on cylinder.
8
To Clean cont.
???Be sure GRILLING SURFACE and stove are cool (approximately 15 minutes) and PROPANE CYLINDER has been removed.
???Lift off GRILLING SURFACE &
WATER PAN.
??? Wipe clean with soft cloth and mild dish detergent. Do not use abrasives.
??? GRILL and DRIP TRAY are dish- washer safe.
Things You Should Know
1.It is unsafe and illegal in some places to store or use propane cylinders of greater than 1.14 kg (2.5 lbs) water capacity (approximately 1 lb. propane) in occupied enclosures.
2.If using refillable propane cylinder, use only Coleman parts and accessories.
3.The usual storage areas for camping and picnic equipment are the basement, attic, or garage. To avoid the accumulation of dust, cobwebs, etc., that is common in these areas, place your stove in a plastic bag and seal it with a rubber band.
4.For repair service call one of the numbers on the front cover for loca- tion of your nearest Coleman Service Center. If product must be mailed to Service Center, attach to product your name, address and a description of problem and mail to Service center with shipping and insurance pre- paid. If necessary to write the Service Center or factory, refer to your stove by model number. Do not send propane cylinder.
5.If not completely satisfied with the performance of this product, please call one of the numbers listed on the cover.
9

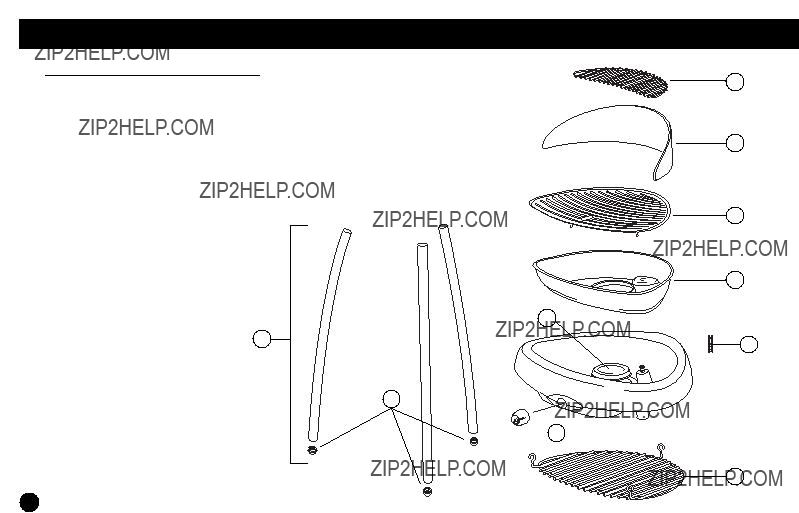

Parts List
8
7
6
5
9
1
4
3
10
Warranty
Limited Lifetime Warranty
The Coleman Company, Inc. (???Coleman???) warrants that for the period that you own this product, it will be free from defects in material and workmanship. Coleman, at its option, will repair or replace this product or any component of the product found to be defective during the warranty period. Replacement will be made with a new or remanufactured product or component. If the product is no longer available, replacement may be made with a similar product of equal or greater value. This is your exclusive warranty.
This warranty is valid for the original retail purchaser from the date of initial retail purchase and is not transferable. Keep the original sales receipt. Proof of purchase is required to obtain warranty performance. Coleman dealers, service centers, or retail stores selling Coleman products do not have the right to alter, modify or in any way change the terms and conditions of this warranty.
This warranty does not cover normal wear of parts or damage resulting from any of the following: negligent use or misuse of the product, use on improper voltage or current, use contrary to the operating instructions, disassembly, repair or alteration by anyone other than Coleman or an authorized service center. Further, the warranty does not cover Acts of God, such as fire, flood, hurricanes and tornadoes.
Coleman shall not be liable for any incidental or consequential damages caused by the breach of any express or implied warranty or conditions. Except to the extent prohibited by applicable law, any implied warranty of mer- chantability or fitness for a particular purpose is limited in duration to the dura- tion of the above warranty or conditions. Some states, provinces or jurisdictions do not allow the exclusion or limitation of incidental or consequential damages or limitations on how long an implied warranty lasts, so the above limitations or exclusion may not apply to you. This warranty gives you specific legal rights, and you may also have other rights that vary from state to state or province to province.
How to Obtain Warranty Service
Take the product to an authorized Coleman service center. You can find the nearest authorized Coleman service center by calling
For products purchased in the United States:
The Coleman Company, Inc.
3600 North Hydraulic
Wichita, KS 67219
For products purchased in Canada:
Sunbeam Corporation (Canada) Limited
5975 Falbourne Street
Mississauga, Ontario
Canada L5R 3V8
Do not mail products with fuel in tanks, or with disposable propane cylinders. Remove glass globes from lanterns and wrap separately.
DO NOT RETURN THIS PRODUCT TO THE PLACE OF PURCHASE.
If you have any questions regarding this warranty please call
11
