CP220 / CP240 Series Zero client display
User Guide
CP220 / CP240 Series Zero client display
User Guide
Table of contents
ii
Copyright ?? 2013 ASUSTeK COMPUTER INC. All Rights Reserved.
No part of this manual, including the products and software described in it, may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language in any form or by any means, except documentation kept by the purchaser for backup purposes, without the express written permission of ASUSTeK COMPUTER INC. (???ASUS???).
Product warranty or service will not be extended if: (1) the product is repaired, modified or altered, unless such repair, modification of alteration is authorized in writing by ASUS; or (2) the serial number of the product is defaced or missing.
ASUS PROVIDES THIS MANUAL ???AS IS??? WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS
OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OR CONDITIONS OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT SHALL ASUS, ITS
DIRECTORS, OFFICERS, EMPLOYEES OR AGENTS BE LIABLE FOR ANY INDIRECT, SPECIAL,
INCIDENTAL, OR CONSEQUENTIAL DAMAGES (INCLUDING DAMAGES FOR LOSS OF PROFITS,
LOSS OF BUSINESS, LOSS OF USE OR DATA, INTERRUPTION OF BUSINESS AND THE LIKE),
EVEN IF ASUS HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES ARISING FROM ANY
DEFECT OR ERROR IN THIS MANUAL OR PRODUCT.
SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUAL ARE FURNISHED FOR
INFORMATIONAL USE ONLY, AND ARE SUBJECT TO CHANGE AT ANY TIME WITHOUT NOTICE, AND
SHOULD NOT BE CONSTRUED AS A COMMITMENT BY ASUS. ASUS ASSUMES NO
RESPONSIBILITY OR LIABILITY FOR ANY ERRORS OR INACCURACIES THAT MAY APPEAR IN THIS
MANUAL, INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT.
Products and corporate names appearing in this manual may or may not be registered trademarks or copyrights of their respective companies, and are used only for identification or explanation and to the owners??? benefit, without intent to infringe.
iii
Notices
Federal Communications Commission Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
???This device may not cause harmful interference, and
???This device must accept any interference received including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with manufacturer???s instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will
not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
???Reorient or relocate the receiving antenna.
???Increase the separation between the equipment and receiver.
???Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.
???Consult the dealer or an experienced radio/TV technician for help.
As an Energy Star?? Partner, our company has determined that this product meets the Energy Star?? guidelines for energy efficiency.
Canadian Department of Communications Statement
This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus set out in the Radio Interference Regulations of the Canadian Department of Communications.
This class B digital apparatus complies with Canadian
Warning: This client complies with the EMC directive only when you use a shielded Ethernet cable.
iv
Safety information
Use only the AC/DC adapter model: EXA1203YH
???Before setting up the display, carefully read all the documentation that came with the package.
???To prevent fire or shock hazard, never expose the display to rain or moisture.
???Never try to open the display cabinet. The dangerous high voltages inside the display may result in serious physical injury.
???If the power supply is broken, do not try to fix it by yourself. Contact a qualified service technician or your retailer.
???Before using the product, make sure all cables are correctly connected and the power cables are not damaged. If you detect any damage, contact your dealer immediately.
???Slots and openings on the back or top of the cabinet are provided for ventilation. Do not block these slots. Never place this product near or over a radiator or heat source unless proper ventilation is provided.
???The display should be operated only from the type of power source indicated on the label. If you are not sure of the type of power supply to your home, consult your dealer or local power company.
???Use the appropriate power plug which complies with your local power standard.
???Do not overload power strips and extension cords. Overloading can result in fire or electric shock.
???Avoid dust, humidity, and temperature extremes. Do not place the display in any area where it may become wet. Place the display on a stable surface.
???Unplug the unit during a lightning storm or if it will not be used for a long period of time. This will protect the display from damage due to power surges.
???Never push objects or spill liquid of any kind into the slots on the display cabinet.
???To ensure satisfactory operation, use the display only with UL listed computers which have appropriate configured receptacles marked between 100 - 240V AC.
???The
???If you encounter technical problems with the display, contact a qualified service technician or your retailer.
v
Care and cleaning
???Before you lift or reposition your display, it is better to disconnect the cables and power cord. Follow the correct lifting techniques when positioning the display. When lifting or carrying the display, grasp the edges of the display. Do not lift the display by the stand or the cord.
???Cleaning. Turn your display off and unplug the power cord. Clean the display surface with a
???Avoid using a cleaner containing alcohol or acetone. Use a cleaner intended for use with the screen. Never spray cleaner directly on the screen, as it may drip inside the display and cause an electric shock.
The following symptoms are normal with the display:
???The screen may flicker during the initial use due to the nature of the fluorescent light. Turn off the power switch and turn it on again to make sure that the flicker disappears.
???You may find slightly uneven brightness on the screen depending on the desktop pattern you use.
???When the same image is displayed for hours, an afterimage of the previous screen may remain after switching the image. The screen will recover slowly or you can turn off the power switch for hours.
???When the screen becomes black or flashes, or cannot work anymore, contact your dealer or service center to fix it. Do not try to repair the display by yourself!
Conventions used in this guide
WARNING: Information to prevent injury to yourself when trying to complete a task.
CAUTION: Information to prevent damage to the components when trying to complete a task.
IMPORTANT: Information that you MUST follow to complete a task.
NOTE: Tips and additional information to aid in completing a task.
vi
Where to find more information
Refer to the following sources for additional information and for product and software updates.
1.ASUS websites
The ASUS websites worldwide provide updated information on ASUS hardware and software products. Refer to http://www.asus.com
2.Optional documentation
Your product package may include optional documentation that may have been added by your dealer. These documents are not part of the standard package.
vii
1.1Welcome
Thank you for purchasing the ASUS?? display.
The latest display from ASUS provides a crisper, broader, and brighter screen, plus a host of features that enhance your viewing experience.
With these features, you can enjoy the convenience and delightful visual experience that the display brings you!
1.2Package contents
Check your package for the following items:
Display set
Display base and screw
Quick start guide
Warranty card
Power cord
Adapter
DVI Cable
VGA Cable
??? If any of the above items is damaged or missing, contact your retailer immediately..

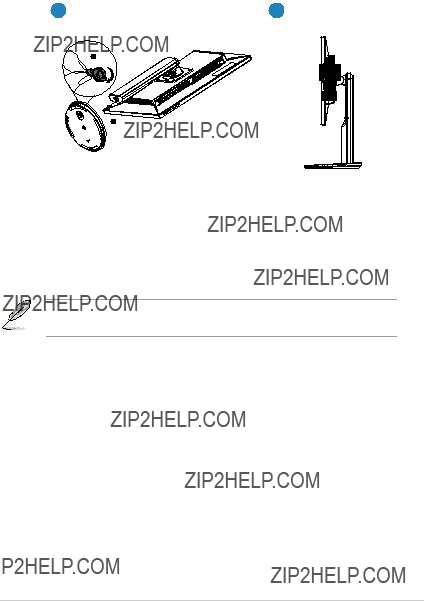

1.3Assembling the base of the display
1.Attach the base to the arm and fix with the screw to join them tightly. You can easily tighten the screw by fingers.
2.Adjust the monitor to the angle that is most comfortable for you.
??? We recommend that you cover the table surface with soft cloth to prevent from damaging the display.
1.4Display introduction

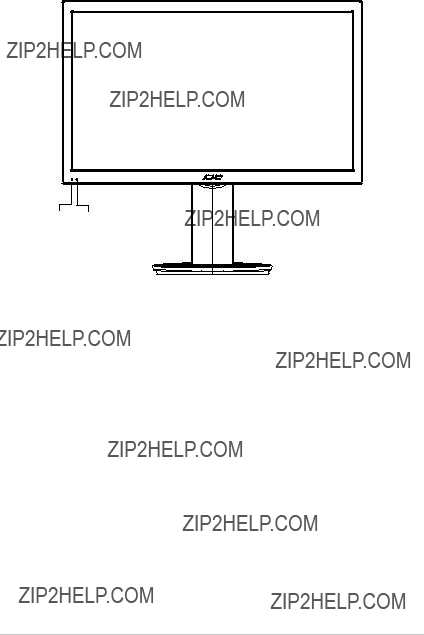

1.4.1Front of the display
1.Client LED Indicator:
???The color of client LED Indicator is as below.
2.Power Indicator:
???The color of power indicator is as below.
1.4.2Rear of the display
11
1.RJ45
2.DVI connector
3.VGA connector
4.Microphone input
5.
6.
7.USB connector
8.
9.Screw holes of mounting interface
10.USB connector
11.Kensington lock
12.Control keypad
1.4.3Get start with client system
1.4.4Client Indicator Behavior
2.1Detaching the arm/stand (for wall mounting)
To detach the arm/stand.
1.Disconnect power and signal cables. Carefully put the front of the monitor face down on a clean table.
2.Use your fingers gently pull away the plate that covers the stand neck. Use a screwdriver to remove the four screws that secure the stand to the monitor.
3.Detach the stand from the monitor.
??? We recommend that you cover the table surface with soft cloth to prevent from damaging the display.
???Hold the stand while removing the screws.
3
??? The (100 x 100 mm) wall mount kit is not included in the product purchased.
??? Use only the UL listed wall mount bracket with minimum weight/load 14kg (Screw size: M4 x 10 mm).

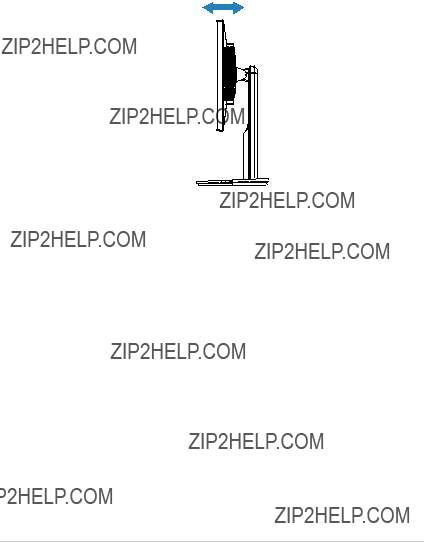

2.2Adjusting the display
???For optimal viewing, we recommend that you look at the full face of the display, and then adjust the display to the angle that is the most comfortable to you.
???Hold the stand to prevent the display from falling while changing its angle.
???You may adjust the display???s angle from
~
3.1OSD
3.1.1How to reconfigure
1.Press the MENU button to activate the OSD menu.
2.Press ??? and ??? button to navigate through the functions. Press the OK button to highlight and activate the desired function. If the selected function has a
navigate through the
3.Press ??? and ??? button to change the settings of the selected function.
4.To exit from the OSD menu, press the MENU button. Repeat step 2 and step 3 to adjust any other function.

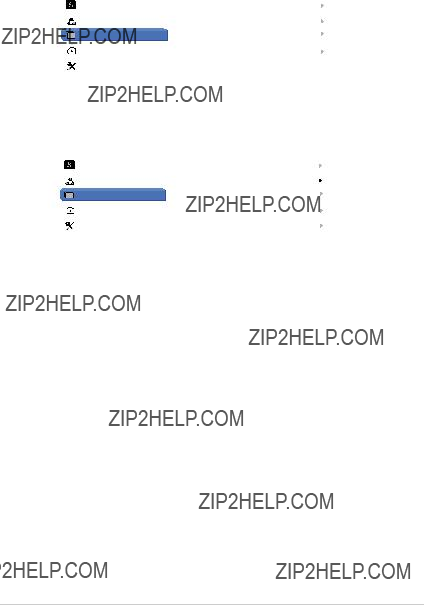

3.1.2OSD Function Introduction
1.Splendid
This function contains six
???Scenery Mode:This is the best choice for scenery photo displaying with SPLENDID??? Video Intelligence.
???Standard Mode: This is the best choice for document editing with SPLENDID??? Video Intelligence.
???Theater Mode: This is the best choice for movie watching with SPLENDID??? Video Intelligence.
???Game Mode: This is the best choice for game playing with SPLENDID??? Video Intelligence.
???Night View Mode: This is the best choice for playing
???sRGB: This is the best choice for viewing photos and graphics from PCs.
??? In the User Mode of the Color Temp., the user may configure the value of the prime color R (red), G (green), and B (blue) ranging from 0 to 100.
2.Color
Select the image color you like from this function.
???Brightness: The adjusting range is from 0 to 100. The
button is also a hot key to activate this function.
???Contrast:The adjusting range is from 0 to 100.
???ASCR: To adjust the horizontal
???Saturation: The adjusting range is from 0 to 100.
???Color Temp.: There are three preset white balance modes (D50, D65, and 9300K) and one User mode.
???Gamma:To alter the grayscale gamma between 18/2.2/2.5.
??? Phase adjusts the phase of the pixel clock signal. With a wrong phase adjustment, the screen shows horizontal disturbances.
???Clock (pixel frequency) controls the number of pixels scanned by one horizontal sweep. If the frequency is not correct, the screen shows vertical stripes and the image is not proportional.
3.Picture
You may adjust the Aspect Control, Over Scan, Position (VGA only), and Focus (VGA only) in this menu item.
CP220:
???Sharpness:Adjust the picture sharpness. The adjusting range is from 0 to 100.
???Trace free:speed up the response time by Over Drive technology. The adjusting range is from lower 0 to faster 100.(Only for CP240)
???Aspect Control:Adjust the aspect ratio to ???Full???, ???4:3???.
???Position: Adjust the horizontal position
???Focus:Reduce
4.Input Select
5.Select the input source from VGA, client source input signal.
5.Menu
Adjusts the system configuration.
CP220
???OSD Setup:To adjust the OSD Timeout, DDC/CI, Transparency, and
Power indicator.
???Information: To show the information of the display.
???Language: To select OSD language. The selections are: English, French, German, Spanish, Italian, Dutch, Russian, Traditional Chinese, Simplified Chinese, Japanese, Persian, Thai, Indonesian, Poland, Turkey, Portugal,
Czech, Croatia, Hungary, Romania, and Korean.
???All Reset: Selecting ???Yes??? to revert all settings back to the factory default values.
3.2Client setting
1. Turn on power and press
to select [Client] as your input source.
Client
MENU:Exit
2. Login Client widget, click ???[Options]??? on top left corner.
Options
3. Select ???[Options]???
Options
Configuration
Diagnostics
Information
User Settings

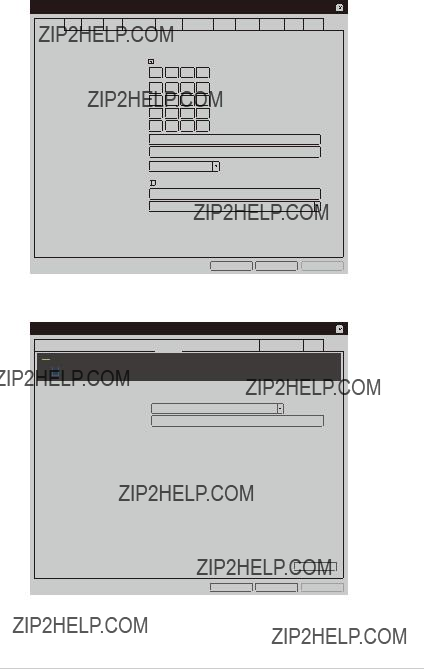

4. Enter ???[Configuration]???
Configuration
Network IPv6 SCEP Label Discovery Session Language Power Display Access Audio Reset
5.Select [Session] sheet and enter ???DNS Name or IP Address???, then click ???Apply??? to execute.
Configuration
Network
IPv6
SCEP
Label
Discovery
Session
Language
Power
Display Access
Audio Reset
vmware
Horizon ViewTM Client
Configure the connection to a peer device
Connection Type: View Connection Server
DNS Name or IP Address: 192.168.100.252
Advanced
6.Select [Language] sheet ,and choice requisite language, then click ???Apply??? to execute.
Configuration
Network IPv6 SCEP Label Discovery Session Language Power Display Access Audio Reset
7.Select [OK] to finish [Configuration].
8.Return to main manual, select [Options] on top left corner and go to [User settings].
Options
Configuration
Diagnostics
Information
User Settings
9. Select [Certificate] sheet, choice item and setting, then click [OK].
User Settings
Certificate Mouse Keyboard Image Display Topology Touch Screen
vmware
Horizon ViewTM Client
Certificate Checking Mode:
This mode determines how the client proceeds when it cannot verify that your connection to the server is secure. It is not recommended that you change this setting unless instructed to do so by your system administrator.
Never connect to untrusted servers
Warn before connecting to untrusted servers
Do not verify server identity certificates

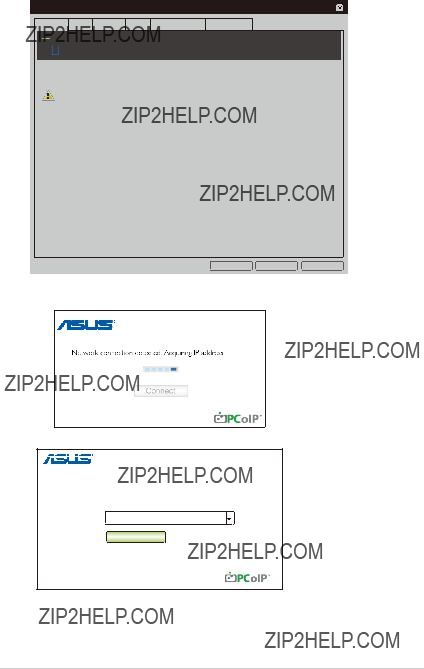

10. Link to server IP and enter connection interface, Click [Connect].
Enter the address of the View
Connection Server.
Server: 192.168.100.252
Connect
11. Enter ???User name??? and ???password???, then click [Login].
https://192.168.100.252
Enter your user name and password
12. Click [Connect].
13. Enter client interface.

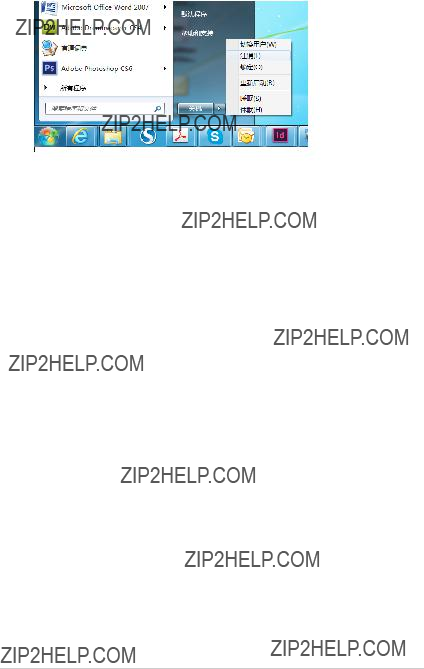

14. Select desktop ???Start???, choice ???Logout??? to exit client.
3.3Specifications
3.4Trouble shooting (FAQ)
3.5Supported Timing List
VESA / IBM Modes Support timing
*The modes not listed in the above tables may not be supported. For an optimal resolution, we recommend that you choose a mode listed in the above table.
